Genome-Wide Identification and Expression Analysis of CrRLK1-like Gene Family in Potatoes (Solanum tuberosum L.) and Its Role in PAMP-Triggered Immunity

by
Yazhou Bao
1,
Ru Zhao
1,
Sixian Hu
1,
Xiaoli Li
1,
Like Wang
1,
Ji Wang
1,
Junbin Ji
1,
Weiduo Wang
1,
Changqing Zhu
1,
Jiajia Chen
2,
Ailing Ben
1,
Jinfeng Peng
2,* and
Tingli Liu
1,*
1
The Nanjing Engineering Research Center for Peanut Genetic Engineering Breeding and Industrialization, School of Food Science, Nanjing Xiaozhuang University, Nanjing 211171, China
2
College of Landscape Architecture, Jiangsu Vocational College of Agriculture and Forestry, Zhenjiang 212400, China
*
Authors to whom correspondence should be addressed.
Genes 2025, 16(3), 308; https://doi.org/10.3390/genes16030308
Submission received: 29 January 2025 / Revised: 26 February 2025 / Accepted: 28 February 2025 / Published: 4 March 2025
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
Background: The Catharanthus roseus receptor-like kinase 1-like (CrRLK1L) subfamily, a specialized group within receptor-like kinases (RLKs), was initially identified in C. roseus cell cultures. CrRLK1L plays an important role in the growth, development and stress response of plants. Although CrRLK1L genes have been characterized across multiple plant species, their biological and genetic functions in potatoes (Solanum tuberosum) remains poorly elucidated. Methods: a genome-wide investigation, phylogenetic analysis, chromosome localization, exon–intron structure, conserved motifs, stress-responsive cis-elements, tissue-specific expression patterns, and their effects on pathogen associated molecular patterns (PAMPs) induced reactive oxygen species (ROS) production were analyzed. Results: A total of 29 CrRLK1L genes were identified in the S. tuberosum genome, unevenly distributed across 10 chromosomes and divided into three groups. Tissue-specific expression analysis revealed seven genes highly expressed in all tissues, while CrRLK1L13 was specific to stamens and flowers. Under stress conditions (mannitol, salt, hormone, and heat), StCrRLK1L genes exhibited diverse expression patterns. Functional characterization in Nicotiana benthamiana identified seven ROS suppressors and four ROS enhancers, implicating their roles in PAMP-triggered immunity. Conclusions: This study provides valuable insights into the StCrRLK1L gene family, enhancing our understanding of its functions, particularly in plant innate immunity.

1. Introduction

Plant cells constantly respond to a variety of signals from external and endogenous stimuli which are transformed into appropriate cellular and molecular responses, enabling plant cells to adapt to different local environmental conditions [1]. The receptor-like kinase (RLK) superfamily is one of the largest classes of transmembrane receptor protein systems in plant cells, which can receive, sense and process signals [2]. The RLK superfamily is characterized by a ligand-binding extracellular domain with diverse structures and sequences followed by a transmembrane domain and a conserved cytoplasmic serine/threonine kinase domain. Based on the phylogenetic analysis of extracellular regions and domain organizations, RLK divides into several subfamilies, indicating that each subfamily has a different potential function [3].
The C. roseus receptor-like kinase 1-like (CrRLK1L) subfamily, a specialized group within receptor-like kinases (RLKs), was first identified in C. roseus cell cultures [4]. Compared to other RLKs, CrRLK1Ls are characterized by one or two extracellular malectin-like carbohydrate-binding domains [5,6]. In A. thaliana, 17 CrRLK1L members have been characterized, each comprising a signal peptide, an extracellular malectin-like domain, a transmembrane domain and a cytoplasmic kinase domain [5,6,7]. Subsequently, CrRLK1L was also characterized in some crops. For example, 16/17 CrRLK1L members have been characterized in rice [8,9]. In cotton, 44, 40 and 79 CrRLK1L genes have been characterized (Gossypium raimondii, Gossypium arboreum and Gossypium hirsutum, respectively) [9,10]. In soybeans, 38/46 CrRLK1L genes were characterized (Glycine max) [9,11].
The CrRLK1L subfamily has been widely studied in A. thaliana. The functions of some members of the CrRLK1L family in cell wall integrity coordination, intercellular communication between gametophytes, cell elongation and cell wall sensing have been reported [4]. Among them, FERONIA (FER), THESEUS1 (THE1), HERCULES1 (HERK1) and HERCULES2 (HERK2) were strongly expressed in vegetative tissues and brassinosteroids could also regulate growth and development through them [12]. Previous studies have shown that FER responds to different hormonal signals, including auxin, ethylene, brassinosteroid (BR) and ABA [13,14,15,16]. ANXUR1 (ANX1) and ANXUR2 (ANX2) are the closest FER homologues in A. thaliana, involved in the growth and development of pollen tubes [17,18]. In addition, several studies have shown that the CrRLK1L family also plays an indispensable role in plant immunity. For example, ANX1 and ANX2 constitutively associate with FLS2 (flagellin-sensitive 2) and the perception of flagellin epitope flg22 promotes ANX1 association with BAK1 (BRASSINOSTEROID INSENSITIVE 1-associated kinase 1), which interferes with ligand-induced FLS2–BAK1 complex formation to negatively regulate plant immune responses [19]. However, FER positively regulates flg22-mediated responses by facilitating the complex formation between FLS2 and BAK1 [20]. GmLMM1 (lesion mimic mutant 1), a CrRLK1L subfamily gene in soybeans, is involved in pattern-recognition receptor complexes and negatively modulates flg22-induced reactive oxygen species (ROS), one of the early immune responses [21].
The potato (S. tuberosum L.), originating in the Andean regions of Peru and Bolivia [22], ranks as the third most vital staple crop globally, following rice and wheat [23]. The susceptibility of potato plants to pathogens during cultivation frequently results in substantial reductions in yield and quality. Notably, late blight, caused by Phytophthora infestans, represents one of the most devastating diseases affecting potato production [24]. Currently, the CrRLK1L gene family has been reported to be involved in the regulation of the immune system in a variety of plants, such as FER, ANX1/2 in A. thaliana and GmLMM1 in soybeans. However, systematic investigations of the CrRLK1L gene family and its functional association with disease resistance mechanisms remain conspicuously understudied in potatoes. In this study, 29 StCrRLK1L genes in potatoes were identified and analyzed by bioinformatics, including subcellular and chromosome location, phylogenetic relationship with A. thaliana, intron–exon structure, conserved protein motif, stress-related cis-elements and tissue-specific expression pattern. Finally, we transiently expressed the 25/29 family members in N. benthamiana to detect their role in flg22-induced ROS. Our results suggest that seven genes (CrRLK1L6, CrRLK1L8, CrRLK1L9, CrRLK1L11, CrRLK1L15, CrRLK1L16 and CrRLK1L17) strongly suppressed flg22-induced ROS accumulation and four genes (CrRLK1L19, CrRLK1L20, CrRLK1L27 and CrRLK1L28) strongly enhanced flg22-induced ROS accumulation in N. benthamiana. This study provides a wealth of information about the StCrRLK1L gene family, and increases our understanding of its functions, especially in plant innate immunity.

2. Materials and Methods

2.1. Plant Materials and Growth Conditions

N. benthamiana were cultured at 23 °C in 70% relative humidity with a 14-h light/10-h dark cycle.

2.2. Identification of CrRLK1Ls in S. tuberosum

The S. tuberosum proteome was screened using HMMER3.1 [25,26] with two PFAM domains: malectin-like (PF12819) and pkinase-Tyr (PF07714). Full-length protein sequences of 17 A. thaliana CrRLK1L genes served as queries for BLASTP [27] searches against the S. tuberosum genome annotation. Following redundancy removal, candidate sequences were validated via SMART [28] to confirm domain architecture prior to further analysis.

2.3. Sequence Analysis and Chromosomal Localization in S. tuberosum

Gene location and protein length (aa) were calculated using the Phytozome database. Physicochemical parameters (e.g., molecular weight and isoelectric point) of StCrRLK1L proteins were calculated using the ExPASy Compute pI/Mw tool (https://web.expasy.org/compute_pi/ (accessed on 20 December 2024)). Subcellular localization predictions were performed with Plant-mPLoc (http://www.csbio.sjtu.edu.cn/bioinf/plant-multi/ (accessed on 20 December 2024)).

2.4. Phylogenetic Analysis and Classification of StCrRLK1Ls

Full-length amino acid sequences of 29 StCrRLK1Ls and 17 A. thaliana CrRLK1Ls [5] were aligned using ClustalW (https://www.genome.jp/tools-bin/clustalw (accessed on 20 December 2024)) [29]. Maximum-likelihood phylogenetic trees were generated with MEGA 10.2 [30] with branch support assessed through 1000 bootstrap replicates.

2.5. Analysis of Structural Characterization in S. tuberosum

The MEME version 5.3.3 program (https://meme-suite.org/meme/tools/meme (accessed on 25 December 2024)) was used to identify motifs in the StCrRLK1Ls‘ sequence with the following parameters: the maximum number of motifs was set to 6, optimum motif width was set to 30–50, and any number of repeats [31]. The exon–intron structures of the StCrRLK1L genes were obtained from the Phytozome database.

2.6. Analysis of Cis-Acting Elements in the Promoter of StCrRLK1L Genes

To analyze the cis-acting elements of StCrRLK1L genes, 2-kb promoter regions upstream of the ATG initiation codon for each StCrRLK1L gene were retrieved from the Phytozome database. Putative cis-elements were annotated using the PlantCARE online platform (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 28 December 2024)) [32].

2.7. Expression Pattern Analysis of StCrRLK1L Genes

Tissue-specific and stress-response expression patterns of StCrRLK1L genes were analyzed using Illumina RNA-seq data from the PGSC [33]. Tissues included carpels, petals, petioles, stolons, stamens, sepals, tubers, shoots, roots, leaves, immature fruit, mature fruit and mature flowers in DM potatoes. Stress treatments comprised the following: (1) phytohormones: 10 μM IAA, 50 μM ABA, 50 μM GA3, or 10 μM BAP for 24 h; and (2) abiotic stresses: 150 mM NaCl (salt), 260 μM mannitol (drought mimic), or 35 °C (heat) for 24 h.

2.8. ROS Production Assay

StCrRLK1L genes were PCR-amplified and cloned into the pCAMBIA1300-35S-HA-RBS vector for transient expression in 5- to 6-week-old N. benthamiana leaves. After 48 h, leaf discs (8 mm diameter) were excised using a cork borer (Sigma), incubated overnight in 200 μL of water in 96-well plates, and treated with 200 μL of reaction buffer containing 20 μM of L-012 (Wako Chemical), 10 μg/mL of horseradish peroxidase (Sigma), and 1 μM of flg22. Luminescence was quantified using a Tecan F200 microplate reader.

3. Results

3.1. The Identification of CrRLK1L Subfamily Genes in the S. tuberosum Genome

The Hidden Markov Model (HMM) and BLASTP algorithm search were performed against the annotation of the S. tuberosum genome. Finally, 29 CrRLK1L genes were identified in the S. tuberosum genome, which were renamed StCrRLK1L1-StCrRLK1L29 based on their chromosomal location (Table 1). The features of the 29 StCrRLK1L gene family members were analyzed, including length of amino acid, protein molecular weight (MW), isoelectric point (pI) and subcellular location (Table 1). The length and physicochemical properties of the StCrRLK1L gene family members varied greatly. The amino acid lengths of the StCrRLK1L genes ranged from 627 aa (CrRLK1L28) to 1188 aa (CrRLK1L4), the molecular weights varied from 69.16 kDa (CrRLK1L28) to 132.56 kDa (CrRLK1L4), and the isoelectric point (pI) values ranged from 5.30 (CrRLK1L25) to 8.40 (CrRLK1L20). Subcellular localization predictions indicated that 29 StCrRLK1L proteins were located in the cell membrane, chloroplast, cytoplasm, mitochondrion and nucleus, suggesting that their functions are diverse. The detailed features of the 29 StCrRLK1L gene family members are listed in Table 1.

3.2. StCrRLK1L Gene Distribution on S. tuberosum Chromosome

Detailed information on the location of the 29 StCrRLK1L gene family members used in this study were obtained from the Phytozome (Table 1). Chromosomal mapping revealed that the 29 StCrRLK1L genes are unevenly distributed across 10 of the 12 S. tuberosum chromosomes (Figure 1; Table 1). Chromosomes 4 and 8 lacked StCrRLK1L genes, while chromosome 2 harbored the highest density (seven genes). In contrast, only one gene (CrRLK1L27) was found on chromosome 11, which had the least number of StCrRLK1L genes (Figure 1). Four StCrRLK1L members were located on chromosome 3, three StCrRLK1L members were located on chromosomes 5, 6 and 9 and two StCrRLK1L members were located on chromosomes 1, 7, 10 and 12 (Figure 1).

3.3. Phylogenetic Analysis of the CrRLK1L Family in A. thaliana and S. tuberosum

To resolve evolutionary relationships, a maximum-likelihood phylogenetic tree was constructed using full-length amino acid sequences of 46 CrRLK1L proteins (29 StCrRLK1Ls and 17 AtCrRLK1Ls). According to the similarity and topology of the amino acid sequences, the 29 StCrRLK1L genes were divided into three main groups named I, II and III. As shown in Figure 2, twenty StCrRLK1Ls and seventeen AtCrRLK1Ls belonged to cluster I, four StCrRLK1Ls belonged to cluster II, and five StCrRLK1Ls were grouped into cluster III.

3.4. Gene Structure and Conserved Protein Motif Composition of StCrRLK1L Genes

A phylogenetic tree of StCrRLK1Ls was reconstructed, classifying the 29 genes into three distinct subclasses (I–III; Figure 3A). In order to better understand the evolution of the StCrRLK1L family, the organization of exons–introns was analyzed. Among the StCrRLK1L genes, more than half (16 StCrRLK1L genes, 55.2%) were free introns. Three StCrRLK1L genes (10.3%) had one intron and nine StCrRLK1L genes (31.0%) had two or more introns. Most of the members with introns were distributed in subclass III while all members of subclass I did not contain introns (Figure 3B).
Protein motifs are highly conserved amino acid residues and are considered to have a functional and/or structural role in active proteins. Six conserved motifs were identified in the StCrRLK1L family genes by using the MEME website (Figure 3C). The lengths of the StCrRLK1L-conserved motifs ranged from 48 to 50 aa. The detailed sequences of the six putative motifs are shown in Table S1. All members of the StCrRLK1L genes contained Motif 1, Motif 3 and Motif 4. Motif 2 and Motif 5 were found in 28 StCrRLK1L genes, with the exception of StCrRLK1L7 and StCrRLK1L13. Except for four members (StCrRLK1L7, StCrRLK1L14, StCrRLK1L20 and StCrRLK1L22) of the StCrRLK1L gene family, Motif 6 was found in the other 25 StCrRLK1L genes.

3.5. Stress-Related Cis-Elements in the Promoter of StCrRLK1L Genes

In order to further analyze the possible regulatory mechanism of StCrRLK1L genes in abiotic and biotic stress response, a 2.0 kb upstream sequence of StCrRLK1L genes was submitted to PlantCARE to detect stress-related cis-elements. Eight stress-response elements, including abscisic acid (ABA), auxin, defense/stress, gibberellin, light, low temperature, MeJA and salicylic acid, were identified in the promoter of 29 StCrRLK1L genes (Figure 4).
Our results demonstrate that 29 StCrRLK1L genes have at least seven (CrRLK1L3) cis-elements related to stress response, which indicates that the expression of StCrRLK1L genes could be associated with stress responses. Among them, all 29 StCrRLK1L genes contain at least four cis-elements related to light response, the most cis-elements among all the stress-related elements. Among the twenty-nine StCrRLK1L family genes, only three genes (CrRLK1L7, CrRLK1L15 and CrRLK1L28) have a cis-element related to low temperature response, the least among all the stress response elements (Figure 4). The cis-elements related to abscisic acid, auxin, gibberellin, MeJA and salicylic acid were found in 20/29, 10/29, 16/29, 18/29 and 13/29 StCrRLK1L genes, respectively (Figure 4). One or more cis-elements related to defense and stress response are contained in 15 of the 29 StCrRLK1L family genes (Figure 4). The cis-elements analysis shows that 29 StCrRLK1L family genes might participate in different stress responses.

3.6. Expression Pattern Analysis of StCrRLK1L Genes in Different Tissues

Different genes have different expression levels in different tissues or organs so that they can adjust their physiological processes. To elucidate tissue-specific regulatory patterns, transcript abundances of StCrRLK1L genes were analyzed across 13 organs/tissues: carpels, petals, petioles, stolons, stamens, sepals, tubers, shoots, roots, leaves, immature fruit, mature fruit and mature flowers. As shown in Figure 5, the transcript abundance of 28 of the 29 StCrRLK1L genes were obtained. All of the 28 StCrRLK1L genes were expressed in at least two tissues. The results show that seven StCrRLK1L genes (CrRLK1L9, CrRLK1L10, CrRLK1L11, CrRLK1L19, CrRLK1L22, CrRLK1L23 and CrRLK1L28) were highly expressed in all tissues with FPKM >3. Approximately 20 genes (71.4%) were expressed in all tissues with a different transcript abundance. Strikingly, StCrRLK1L13 exhibited strict tissue specificity, with expression restricted to stamens and mature flowers (Figure 5; Table S2).

3.7. Expression Pattern Analysis of StCrRLK1L Genes Under Phytohormonal- and Abiotic- Stress Treatments

In order to investigate the role of StCrRLK1L genes in phytohormone and abiotic stress, we analyzed the transcription expression spectra of the StCrRLK1L genes under phytohormonal (10 μM IAA, 50 μM ABA, 50 μM GA3 and 10 μM BAP), salt stress (150mM NaCl) and drought induced by 260 μM mannitol and heat (35 °C) treatments. As shown in Figure 6, the transcript abundance of 28 of the 29 StCrRLK1L genes were obtained. The results show that ten (CrRLK1L2, CrRLK1L3, CrRLK1L7, CrRLK1L8, CrRLK1L12, CrRLK1L15, CrRLK1L20, CrRLK1L24, CrRLK1L25 and CrRLK1L27), two (CrRLK1L1 and CrRLK1L6), and three (CrRLK1L1, CrRLK1L12 and CrRLK1L25) StCrRLK1L genes were differentially expressed (|log2(FC)| > 1) under heat, salt, and mannitol treatments, respectively (Figure 6 and Table S3). Among the phytohormonal treatments, one StCrRLK1L gene (CrRLK1L29) was differentially expressed under IAA treatment. Four StCrRLK1L genes (CrRLK1L1, CrRLK1L7, CrRLK1L12 and CrRLK1L29) were differentially expressed under ABA treatment. One StCrRLK1L gene (CrRLK1L7) was differentially expressed under GA3 treatment, and twenty-one StCrRLK1L genes were differentially expressed under BAP treatment (Figure 6 and Table S3).

3.8. Analysis of the Role of StCrRLK1L Genes in flg22-Induced ROS in N. benthamiana

Several studies have shown that the CrRLK1L family also plays an indispensable role in plant immunity, such as FER and ANX1/2 in A. thaliana. FER was reported to interact with FLS2 and positively regulate flg22-induced ROS [20]. AXN1/2 and GmLMM1 negatively modulate flg22-induced ROS [19,21]. In order to further investigate the role of StCrRLK1L genes in plant immunity, 25 of 29 StCrRLK1L family genes were successfully cloned and Western blot analysis showed these proteins were expressed normally in N. benthamiana (Figure S1). Next, we investigated the regulatory activity of StCrRLK1L family members in flg22-induced ROS by using a transient expression assay in N. benthamiana. We observed that the expression of seven genes (CrRLK1L6, CrRLK1L8, CrRLK1L9, CrRLK1L11, CrRLK1L15, CrRLK1L16 and CrRLK1L17) strongly suppressed flg22-induced ROS accumulation and four genes (CrRLK1L19, CrRLK1L20, CrRLK1L27 and CrRLK1L28) strongly enhanced flg22-induced ROS accumulation in N. benthamiana (Figure 7).

4. Discussion

CrRLK1L is a subfamily of RLKs found only in plants. They are characterized by one or two carbohydrate-binding malectin-like domains in the extracellular region, a single transmembrane domain and a cytoplasmic kinase domain [34]. These proteins play pivotal roles in plant growth, development and stress adaptation [6]. FER, the prototypical member of the CrRLK1L subfamily, was initially identified as a key regulator of female reproductive development in plants [35]. Structurally or functionally related CrRLK1Ls, including HERK1, HERK2, and THE1, coordinate cell wall integrity maintenance and plasma membrane dynamic homeostasis [36]. ANX1, ANX2, BUDDHA‘s PAPER SEAL1 (BUPS1, AT4G39110) and BUPS2 (AT2G21480) orchestrate the structural integrity of pollen tube cell walls during polarized growth [17,18,37,38]. ERULUS/CAP1, a tip-growth-specific CrRLK1L, is critically required for calcium (Ca2+)-dependent modulation of pollen tube elongation and root hair cell wall remodeling processes [39,40]. CURVY1, another CrRLK1L, plays an important role in trichome and tapetal cell morphogenesis, the transition from vegetative to reproductive state and seed production [41]. MEDOS1-4 are associated with regulating plant development in response to the presence of metal ions [42]. In this study, we found that many genes in the StCrRLK1L family are in the same evolutionary cluster with the above genes. In the StCrRLK1L gene family, StCrRLK1L23 (FER-like) was in the same evolutionary cluster with FER; StCrRLK1L19 and StCrRLK1L27 were in the same evolutionary cluster with HERK1; StCrRLK1L5 was in the same evolutionary cluster with HERK2; StCrRLK1L21 and StCrRLK1L25 were in the same evolutionary cluster with THE1; StCrRLK1L1 (ANX1/2-like), StCrRLK1L17 and StCrRLK1L18 were in the same evolutionary cluster with ANX1/2; StCrRLK1L2 and StCrRLK1L26 were in the same evolutionary cluster with BUPS1/2; StCrRLK1L12 was in the same evolutionary cluster with ERULUS/CAP1; and StCrRLK1L16 was located in the same evolutionary cluster as CURVY1, suggesting that these genes may have the same function as their corresponding genes (Figure 2).
Plants must constantly respond to biotic and abiotic stress in order to survive. Detection of biotic or abiotic stress can induce signals from ion fluxes, the production of ROS, the accumulation of Ca2+, phosphorylation cascade, and hormonal pathways [43,44,45]. Several studies have shown that the CrRLK1L family plays an indispensable role in plant immunity. While ANX1/2 suppress immunity by disrupting FLS2–BAK1 complexes [19], FER enhances PAMP signaling via FLS2–BAK1 stabilization [20]. StCrRLK1L23 (FER-like) was in the same evolutionary cluster with FER, and StCrRLK1L1 (ANX1/2-like) was in the same evolutionary cluster with ANX1/2, suggesting that these genes may have the same function as FER and ANX1/2 (Figure 2). Abiotic stress adversely affects the growth and development of plants. In response to this pressure, plants respond through physiological, molecular, biochemical and genetic reactions. Many studies show that FER plays different roles in plant stomatal closure, salt stress, mechanical damage and heavy-metal stress [36,46,47,48]. We also observed that the expression of seven genes (CrRLK1L6, CrRLK1L8, CrRLK1L9, CrRLK1L11, CrRLK1L15, CrRLK1L16 and CrRLK1L17) strongly suppressed flg22-induced ROS accumulation and four genes (CrRLK1L19, CrRLK1L20, CrRLK1L27 and CrRLK1L28) strongly enhanced flg22-induced ROS accumulation in N. benthamiana (Figure 7). The cis-elements analysis shows that twenty-nine StCrRLK1L family genes may participate in different stress responses (Figure 4) and the transcript abundance of twenty-eight of the twenty-nine StCrRLK1L genes showed that ten (CrRLK1L2, CrRLK1L3, CrRLK1L7, CrRLK1L8, CrRLK1L12, CrRLK1L15, CrRLK1L20, CrRLK1L24, CrRLK1L25 and CrRLK1L27), two (CrRLK1L1 and CrRLK1L6) and three (CrRLK1L1, CrRLK1L12 and CrRLK1L25) StCrRLK1L genes are differentially expressed under heat, salt, and mannitol treatments, respectively (Figure 6 and Table S3). These expressions further support StCrRLK1Ls’ role in stress adaptation.
Non-peptide, or classical plant, hormones can affect plant physiological processes at low concentrations and play an important role in regulating plant growth and development. The transportation, accumulation, binding, degradation and inhibition of their signal cascade are regulated at different levels [49,50,51]. FER and ERULUS/CAP1 are closely related to auxin signal response [40,52]. In addition, FER is also negatively regulated by ABA treatment and ethylene synthesis [15,53]. FER, HERK1 and HERK2 are regulated by BR and are important for BR-mediated cell elongation [12]. FER regulates JA and SA immune responses by stabilizing/destroying MYC2, thereby regulating the signal response to JA and SA [54]. The cis-elements related to abscisic acid, auxin, gibberellin, MeJA and salicylic acid were found in 20/29, 10/29, 16/29, 18/29 and 13/29 StCrRLK1L genes, respectively (Figure 4). Among the phytohormone treatments, one StCrRLK1L gene (CrRLK1L29) was differentially expressed under IAA treatment. Four StCrRLK1L genes (CrRLK1L1, CrRLK1L7, CrRLK1L12 and CrRLK1L29) were differentially expressed under ABA treatment. One StCrRLK1L gene (CrRLK1L7) was differentially expressed under GA3 treatment and twenty-one StCrRLK1L genes were differentially expressed under BAP treatment (Figure 6 and Table S3).

5. Conclusions

In this study, a total of 29 CrRLK1L genes were identified in the S. tuberosum genome, renamed CrRLK1L1-CrRLK1L29 based on their chromosomal locations, and were unevenly dispersed on 10 of 12 chromosomes. According to the similarity and topology of their amino acid sequence, the 29 StCrRLK1L genes were divided into three main groups named I, II and III. The StCrRLK1L genes had specific tissue expressions and seven StCrRLK1L genes were highly expressed in all tissues. Approximately 20 genes (71.4%) were expressed in all tissues with different a transcript abundance. Among them, CrRLK1L13 displayed a tissue-specific expression pattern only expressed in stamens and mature flowers. In addition, under the mannitol, salt, hormone and heat stresses, the StCrRLK1L genes displayed different expression patterns. Moreover, the functional characterization of 25 StCrRLK1Ls in N. benthamiana identified seven ROS suppressors and four ROS enhancers, implicating these genes in PAMP-triggered immunity. This study provides a wealth of information about the StCrRLK1L gene family and increases our understanding of its functions, especially in innate immunity.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes16030308/s1, Table S1. The detailed sequences of the six putative motifs; Table S2. The FPKM value of StCrRLK1L genes in different tissues; Table S3. The FPKM value of StCrRLK1L genes under mannitol, salt, hormone and heat stress in DM potatoes; Figure S1. A total of 25 out of 29 family genes were successfully cloned and Western blot analysis showed that these proteins were expressed normally in N. benthamiana.

Author Contributions

Conceptualization, Y.B., A.B., J.P. and T.L.; Funding acquisition, Y.B. and T.L.; Resources, Y.B., A.B., J.P. and T.L.; Software, R.Z., S.H., X.L., L.W., J.W., J.J., W.W., C.Z. and J.C.; Visualization, R.Z., S.H., X.L., L.W., J.W., J.J., W.W., C.Z. and J.C.; Writing—original draft, R.Z., S.H., X.L., L.W., J.W., J.J., W.W., C.Z. and J.C.; Writing—review and editing, Y.B., A.B., J.P. and T.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (32302309, to Yazhou Bao and 32372499, to Tingli Liu) and the Natural Science Foundation of Jiangsu Province (BK20230986, to Yazhou Bao and BK20221426, to Tingli Liu).

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Morris, E.R.; Walker, J.C. Receptor-like protein kinases: The keys to response. Curr. Opin. Plant Biol. 2003, 6, 339–342. [Google Scholar] [CrossRef] [PubMed]
  2. Sakamoto, T.; Deguchi, M.; Brustolini, O.J.; Santos, A.A.; Silva, F.F.; Fontes, E.P. The tomato RLK superfamily: Phylogeny and functional predictions about the role of the LRRII-RLK subfamily in antiviral defense. BMC Plant Biol. 2012, 12, 229. [Google Scholar] [CrossRef] [PubMed]
  3. Shiu, S.H.; Karlowski, W.M.; Pan, R.; Tzeng, Y.H.; Mayer, K.F.; Li, W.H. Comparative analysis of the receptor-like kinase family in Arabidopsis and rice. Plant Cell 2004, 16, 1220–1234. [Google Scholar] [CrossRef] [PubMed]
  4. Schulze-Muth, P.; Irmler, S.; Schröder, G.; Schröder, J. Novel type of receptor-like protein kinase from a higher plant (Catharanthus roseus). cDNA, gene, intramolecular autophosphorylation, and identification of a threonine important for auto- and substrate phosphorylation. J. Biol. Chem. 1996, 271, 26684–26689. [Google Scholar] [CrossRef]
  5. Boisson-Dernier, A.; Kessler, S.A.; Grossniklaus, U. The walls have ears: The role of plant CrRLK1Ls in sensing and transducing extracellular signals. J. Exp. Bot. 2011, 62, 1581–1591. [Google Scholar] [CrossRef]
  6. Lindner, H.; Müller, L.M.; Boisson-Dernier, A.; Grossniklaus, U. CrRLK1L receptor-like kinases: Not just another brick in the wall. Curr. Opin. Plant Biol. 2012, 15, 659–669. [Google Scholar] [CrossRef]
  7. Cheung, A.Y.; Wu, H.M. THESEUS, FERONIA and relatives: A family of cell wall-sensing receptor kinases? Curr. Opin. Plant Biol. 2011, 14, 632–641. [Google Scholar] [CrossRef]
  8. Nguyen, Q.N.; Lee, Y.S.; Cho, L.H.; Jeong, H.J.; An, G.; Jung, K.H. Genome-wide identification and analysis of Catharanthus roseus RLK1-like kinases in rice. Planta 2015, 241, 603–613. [Google Scholar] [CrossRef]
  9. Solis-Miranda, J.; Fonseca-García, C.; Nava, N.; Pacheco, R.; Quinto, C. Genome-Wide Identification of the CrRLK1L Subfamily and Comparative Analysis of Its Role in the Legume-Rhizobia Symbiosis. Genes 2020, 11, 793. [Google Scholar] [CrossRef]
  10. Niu, E.; Cai, C.; Zheng, Y.; Shang, X.; Fang, L.; Guo, W. Genome-wide analysis of CrRLK1L gene family in Gossypium and identification of candidate CrRLK1L genes related to fiber development. Mol. Genet. Genom. MGG 2016, 291, 1137–1154. [Google Scholar] [CrossRef]
  11. Wang, Z.Q.; Yu, T.F.; Sun, G.Z.; Zheng, J.C.; Chen, J.; Zhou, Y.B.; Chen, M.; Ma, Y.Z.; Wei, W.L.; Xu, Z.S. Genome-Wide Analysis of the Catharanthus roseus RLK1-Like in Soybean and GmCrRLK1L20 Responds to Drought and Salt Stresses. Front. Plant Sci. 2021, 12, 614909. [Google Scholar] [CrossRef] [PubMed]
  12. Guo, H.; Li, L.; Ye, H.; Yu, X.; Algreen, A.; Yin, Y. Three related receptor-like kinases are required for optimal cell elongation in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2009, 106, 7648–7653. [Google Scholar] [CrossRef] [PubMed]
  13. Duan, Q.; Kita, D.; Li, C.; Cheung, A.Y.; Wu, H.M. FERONIA receptor-like kinase regulates RHO GTPase signaling of root hair development. Proc. Natl. Acad. Sci. USA 2010, 107, 17821–17826. [Google Scholar] [CrossRef] [PubMed]
  14. Deslauriers, S.D.; Larsen, P.B. FERONIA is a key modulator of brassinosteroid and ethylene responsiveness in Arabidopsis hypocotyls. Mol. Plant 2010, 3, 626–640. [Google Scholar] [CrossRef]
  15. Mao, D.; Yu, F.; Li, J.; Van de Poel, B.; Tan, D.; Li, J.; Liu, Y.; Li, X.; Dong, M.; Chen, L.; et al. FERONIA receptor kinase interacts with S-adenosylmethionine synthetase and suppresses S-adenosylmethionine production and ethylene biosynthesis in Arabidopsis. Plant Cell Environ. 2015, 38, 2566–2574. [Google Scholar] [CrossRef]
  16. Chen, J.; Yu, F.; Liu, Y.; Du, C.; Li, X.; Zhu, S.; Wang, X.; Lan, W.; Rodriguez, P.L.; Liu, X.; et al. FERONIA interacts with ABI2-type phosphatases to facilitate signaling cross-talk between abscisic acid and RALF peptide in Arabidopsis. Proc. Natl. Acad. Sci. USA 2016, 113, E5519–E5527. [Google Scholar] [CrossRef]
  17. Boisson-Dernier, A.; Lituiev, D.S.; Nestorova, A.; Franck, C.M.; Thirugnanarajah, S.; Grossniklaus, U. ANXUR receptor-like kinases coordinate cell wall integrity with growth at the pollen tube tip via NADPH oxidases. PLoS Biol. 2013, 11, e1001719. [Google Scholar] [CrossRef]
  18. Boisson-Dernier, A.; Roy, S.; Kritsas, K.; Grobei, M.A.; Jaciubek, M.; Schroeder, J.I.; Grossniklaus, U. Disruption of the pollen-expressed FERONIA homologs ANXUR1 and ANXUR2 triggers pollen tube discharge. Development 2009, 136, 3279–3288. [Google Scholar] [CrossRef]
  19. Mang, H.; Feng, B.; Hu, Z.; Boisson-Dernier, A.; Franck, C.M.; Meng, X.; Huang, Y.; Zhou, J.; Xu, G.; Wang, T.; et al. Differential Regulation of Two-Tiered Plant Immunity and Sexual Reproduction by ANXUR Receptor-Like Kinases. Plant Cell 2017, 29, 3140–3156. [Google Scholar] [CrossRef]
  20. Stegmann, M.; Monaghan, J.; Smakowska-Luzan, E.; Rovenich, H.; Lehner, A.; Holton, N.; Belkhadir, Y.; Zipfel, C. The receptor kinase FER is a RALF-regulated scaffold controlling plant immune signaling. Science 2017, 355, 287–289. [Google Scholar] [CrossRef]
  21. Wang, D.; Liang, X.; Bao, Y.; Yang, S.; Zhang, X.; Yu, H.; Zhang, Q.; Xu, G.; Feng, X.; Dou, D. A malectin-like receptor kinase regulates cell death and pattern-triggered immunity in soybean. EMBO Rep. 2020, 21, e50442. [Google Scholar] [CrossRef] [PubMed]
  22. Spooner, D.M.; McLean, K.; Ramsay, G.; Waugh, R.; Bryan, G.J. A single domestication for potato based on multilocus amplified fragment length polymorphism genotyping. Proc. Natl. Acad. Sci. USA 2005, 102, 14694–14699. [Google Scholar] [CrossRef] [PubMed]
  23. Camire, M.E.; Kubow, S.; Donnelly, D.J. Potatoes and human health. Crit. Rev. Food Sci. Nutr. 2009, 49, 823–840. [Google Scholar] [CrossRef] [PubMed]
  24. Fry, W. Phytophthora infestans: The plant (and R gene) destroyer. Mol. Plant Pathol. 2008, 9, 385–402. [Google Scholar] [CrossRef]
  25. El-Gebali, S.; Mistry, J.; Bateman, A.; Eddy, S.R.; Luciani, A.; Potter, S.C.; Qureshi, M.; Richardson, L.J.; Salazar, G.A.; Smart, A.; et al. The Pfam protein families database in 2019. Nucleic Acids Res. 2019, 47, D427–D432. [Google Scholar] [CrossRef]
  26. Johnson, L.S.; Eddy, S.R.; Portugaly, E. Hidden Markov model speed heuristic and iterative HMM search procedure. BMC Bioinform. 2010, 11, 431. [Google Scholar] [CrossRef]
  27. Altschul, S.F.; Madden, T.L.; Schäffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef]
  28. Letunic, I.; Bork, P. 20 years of the SMART protein domain annotation resource. Nucleic Acids Res. 2018, 46, D493–D496. [Google Scholar] [CrossRef]
  29. Thompson, J.D.; Higgins, D.G.; Gibson, T.J. CLUSTAL W: Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res. 1994, 22, 4673–4680. [Google Scholar] [CrossRef]
  30. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  31. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. MEME SUITE: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 38 (Suppl. S2), W202–W208. [Google Scholar] [CrossRef] [PubMed]
  32. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef] [PubMed]
  33. Xu, X.; Pan, S.; Cheng, S.; Zhang, B.; Mu, D.; Ni, P.; Zhang, G.; Yang, S.; Li, R.; Wang, J.; et al. Genome sequence and analysis of the tuber crop potato. Nature 2011, 475, 189–195. [Google Scholar] [PubMed]
  34. Kanaoka, M.M.; Torii, K.U. FERONIA as an upstream receptor kinase for polar cell growth in plants. Proc. Natl. Acad. Sci. USA 2010, 107, 17461–17462. [Google Scholar] [CrossRef]
  35. Escobar-Restrepo, J.M.; Huck, N.; Kessler, S.; Gagliardini, V.; Gheyselinck, J.; Yang, W.C.; Grossniklaus, U. The FERONIA receptor-like kinase mediates male-female interactions during pollen tube reception. Science 2007, 317, 656–660. [Google Scholar] [CrossRef]
  36. Richter, J.; Ploderer, M.; Mongelard, G.; Gutierrez, L.; Hauser, M.T. Role of CrRLK1L Cell Wall Sensors HERCULES1 and 2, THESEUS1, and FERONIA in Growth Adaptation Triggered by Heavy Metals and Trace Elements. Front. Plant Sci. 2017, 8, 1554. [Google Scholar] [CrossRef]
  37. Kessler, S.A.; Lindner, H.; Jones, D.S.; Grossniklaus, U. Functional analysis of related CrRLK1L receptor-like kinases in pollen tube reception. EMBO Rep. 2015, 16, 107–115. [Google Scholar] [CrossRef]
  38. Zhu, L.; Chu, L.C.; Liang, Y.; Zhang, X.Q.; Chen, L.Q.; Ye, D. The Arabidopsis CrRLK1L protein kinases BUPS1 and BUPS2 are required for normal growth of pollen tubes in the pistil. Plant J. 2018, 95, 474–486. [Google Scholar] [CrossRef]
  39. Schoenaers, S.; Balcerowicz, D.; Costa, A.; Vissenberg, K. The Kinase ERULUS Controls Pollen Tube Targeting and Growth in Arabidopsis thaliana. Front. Plant Sci. 2017, 8, 1942. [Google Scholar] [CrossRef]
  40. Schoenaers, S.; Balcerowicz, D.; Breen, G.; Hill, K.; Zdanio, M.; Mouille, G.; Holman, T.J.; Oh, J.; Wilson, M.H.; Nikonorova, N.; et al. The Auxin-Regulated CrRLK1L Kinase ERULUS Controls Cell Wall Composition during Root Hair Tip Growth. Curr. Biol. 2018, 28, 722–732.e6. [Google Scholar] [CrossRef]
  41. Gachomo, E.W.; Baptiste, L.J.; Kefela, T.; Saidel, W.M.; Kotchoni, S.O. The Arabidopsis CURVY1 (CVY1) gene encoding a novel receptor-like protein kinase regulates cell morphogenesis, flowering time and seed production. BMC Plant Biol. 2014, 14, 221. [Google Scholar] [CrossRef] [PubMed]
  42. Richter, J.; Watson, J.M.; Stasnik, P.; Borowska, M.; Neuhold, J.; Berger, M.; Stolt-Bergner, P.; Schoft, V.; Hauser, M.T. Multiplex mutagenesis of four clustered CrRLK1L with CRISPR/Cas9 exposes their growth regulatory roles in response to metal ions. Sci. Rep. 2018, 8, 12182. [Google Scholar] [CrossRef] [PubMed]
  43. Wahid, A.; Gelani, S.; Ashraf, M.; Foolad, M.R. Heat tolerance in plants: An overview. Environ. Exp. Bot. 2007, 61, 199–223. [Google Scholar] [CrossRef]
  44. Miller, G.; Suzuki, N.; Ciftci-Yilmaz, S.; Mittler, R. Reactive oxygen species homeostasis and signalling during drought and salinity stresses. Plant Cell Environ. 2010, 33, 453–467. [Google Scholar] [CrossRef]
  45. Takahashi, F.; Mizoguchi, T.; Yoshida, R.; Ichimura, K.; Shinozaki, K. Calmodulin-dependent activation of MAP kinase for ROS homeostasis in Arabidopsis. Mol. Cell 2011, 41, 649–660. [Google Scholar] [CrossRef]
  46. Yu, Y.; Chakravorty, D.; Assmann, S.M. The G Protein β-Subunit, AGB1, Interacts with FERONIA in RALF1-Regulated Stomatal Movement. Plant Physiol. 2018, 176, 2426–2440. [Google Scholar] [CrossRef]
  47. Zhao, C.; Zayed, O.; Yu, Z.; Jiang, W.; Zhu, P.; Hsu, C.C.; Zhang, L.; Tao, W.A.; Lozano-Durán, R.; Zhu, J.K. Leucine-rich repeat extensin proteins regulate plant salt tolerance in Arabidopsis. Proc. Natl. Acad. Sci. USA 2018, 115, 13123–13128. [Google Scholar] [CrossRef]
  48. Finka, A.; Cuendet, A.F.; Maathuis, F.J.; Saidi, Y.; Goloubinoff, P. Plasma membrane cyclic nucleotide gated calcium channels control land plant thermal sensing and acquired thermotolerance. Plant Cell 2012, 24, 3333–3348. [Google Scholar] [CrossRef]
  49. Broekaert, W.F.; Delauré, S.L.; De Bolle, M.F.; Cammue, B.P. The role of ethylene in host-pathogen interactions. Annu. Rev. Phytopathol. 2006, 44, 393–416. [Google Scholar] [CrossRef]
  50. Zhao, Y. Auxin biosynthesis and its role in plant development. Annu. Rev. Plant Biol. 2010, 61, 49–64. [Google Scholar] [CrossRef]
  51. Clouse, S.D. Brassinosteroid signal transduction: From receptor kinase activation to transcriptional networks regulating plant development. Plant Cell 2011, 23, 1219–1230. [Google Scholar] [CrossRef] [PubMed]
  52. Li, C.; Yeh, F.L.; Cheung, A.Y.; Duan, Q.; Kita, D.; Liu, M.C.; Maman, J.; Luu, E.J.; Wu, B.W.; Gates, L.; et al. Glycosylphosphatidylinositol-anchored proteins as chaperones and co-receptors for FERONIA receptor kinase signaling in Arabidopsis. Elife 2015, 4, e06587. [Google Scholar] [CrossRef] [PubMed]
  53. Chae, L.; Sudat, S.; Dudoit, S.; Zhu, T.; Luan, S. Diverse transcriptional programs associated with environmental stress and hormones in the Arabidopsis receptor-like kinase gene family. Mol. Plant 2009, 2, 84–107. [Google Scholar] [CrossRef] [PubMed]
  54. Guo, H.; Nolan, T.M.; Song, G.; Liu, S.; Xie, Z.; Chen, J.; Schnable, P.S.; Walley, J.W.; Yin, Y. FERONIA Receptor Kinase Contributes to Plant Immunity by Suppressing Jasmonic Acid Signaling in Arabidopsis thaliana. Curr. Biol. 2018, 28, 3316–3324.e6. [Google Scholar] [CrossRef]
Genes 16 00308 g001
Figure 1. Chromosomal locations of potato StCrRLK1L gene family members. Twenty-nine genes are mapped to 10 chromosomes based on Phytozome annotations.
Figure 1. Chromosomal locations of potato StCrRLK1L gene family members. Twenty-nine genes are mapped to 10 chromosomes based on Phytozome annotations.
Genes 16 00308 g001
Genes 16 00308 g002

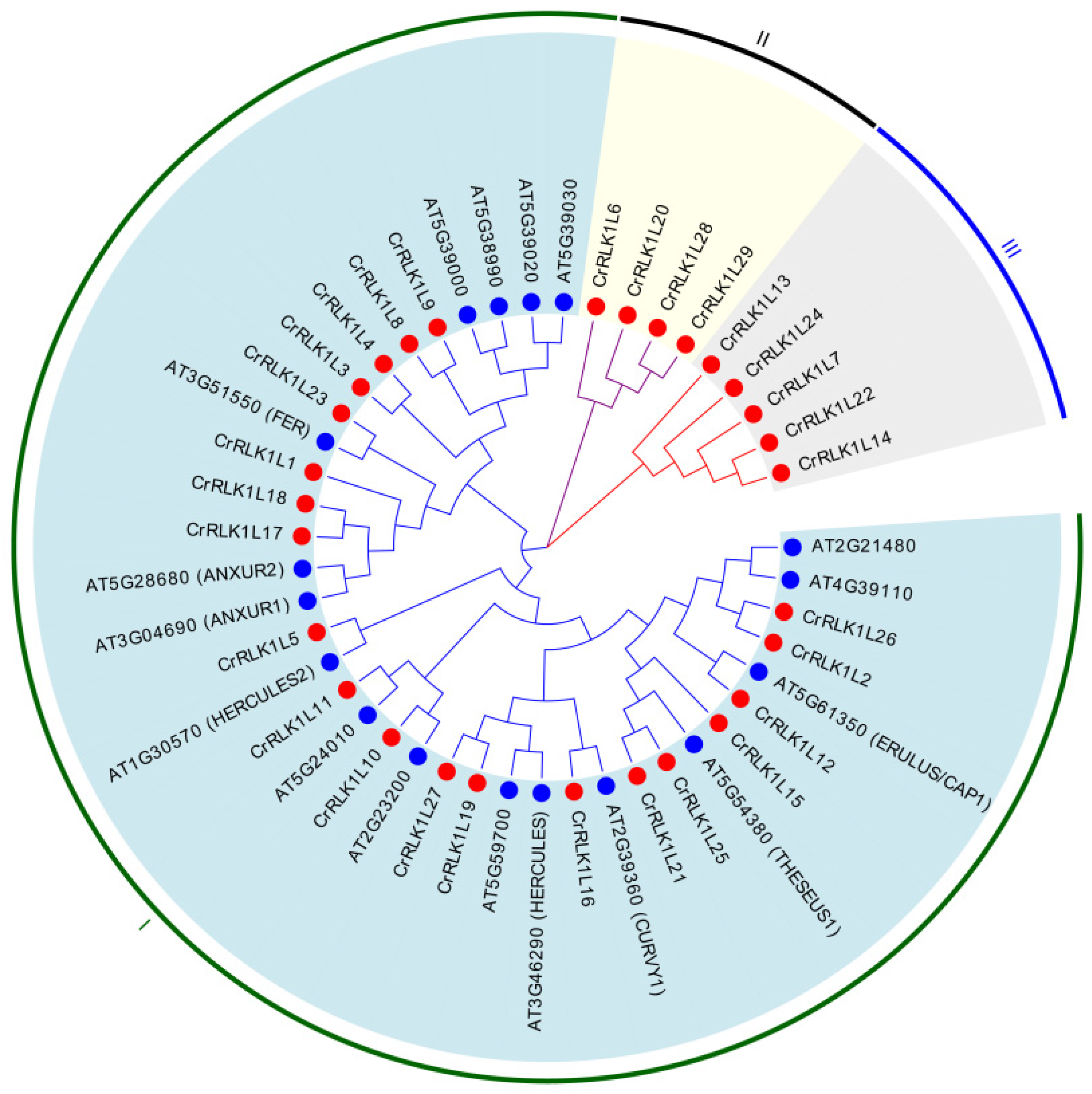

Figure 2. A phylogenetic tree of CrRLK1L-related proteins from A. thaliana (blue circles) and S. tuberosum (red circles). The tree was constructed using ClustalW alignment and MEGA X with 1000 bootstrap replicates.
Figure 2. A phylogenetic tree of CrRLK1L-related proteins from A. thaliana (blue circles) and S. tuberosum (red circles). The tree was constructed using ClustalW alignment and MEGA X with 1000 bootstrap replicates.
Genes 16 00308 g002
Genes 16 00308 g003
Figure 3. Structural and evolutionary analysis of StCrRLK1Ls. (A) Maximum-likelihood phylogenetic tree of 29 StCrRLK1Ls grouped into three subclasses. (B) Exon–intron architecture: green (UTRs), yellow (exons), gray line (introns). (C) Conserved motif distribution, colored by position in protein sequence.
Figure 3. Structural and evolutionary analysis of StCrRLK1Ls. (A) Maximum-likelihood phylogenetic tree of 29 StCrRLK1Ls grouped into three subclasses. (B) Exon–intron architecture: green (UTRs), yellow (exons), gray line (introns). (C) Conserved motif distribution, colored by position in protein sequence.
Genes 16 00308 g003
Genes 16 00308 g004

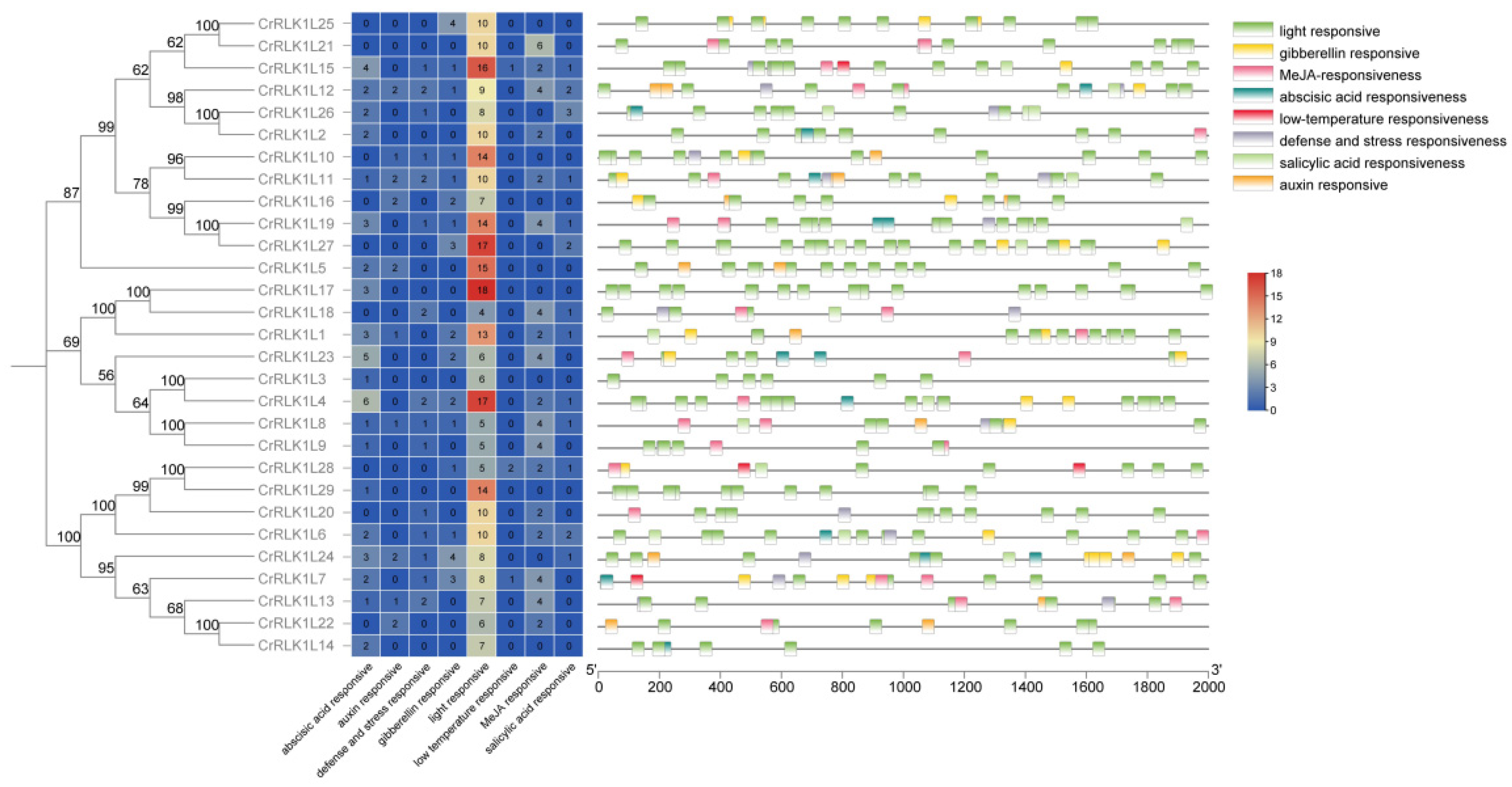

Figure 4. Cis-element distribution in the StCrRLK1L promoters. Element positions are scaled relative to the translation start site (ATG).
Figure 4. Cis-element distribution in the StCrRLK1L promoters. Element positions are scaled relative to the translation start site (ATG).
Genes 16 00308 g004
Genes 16 00308 g005

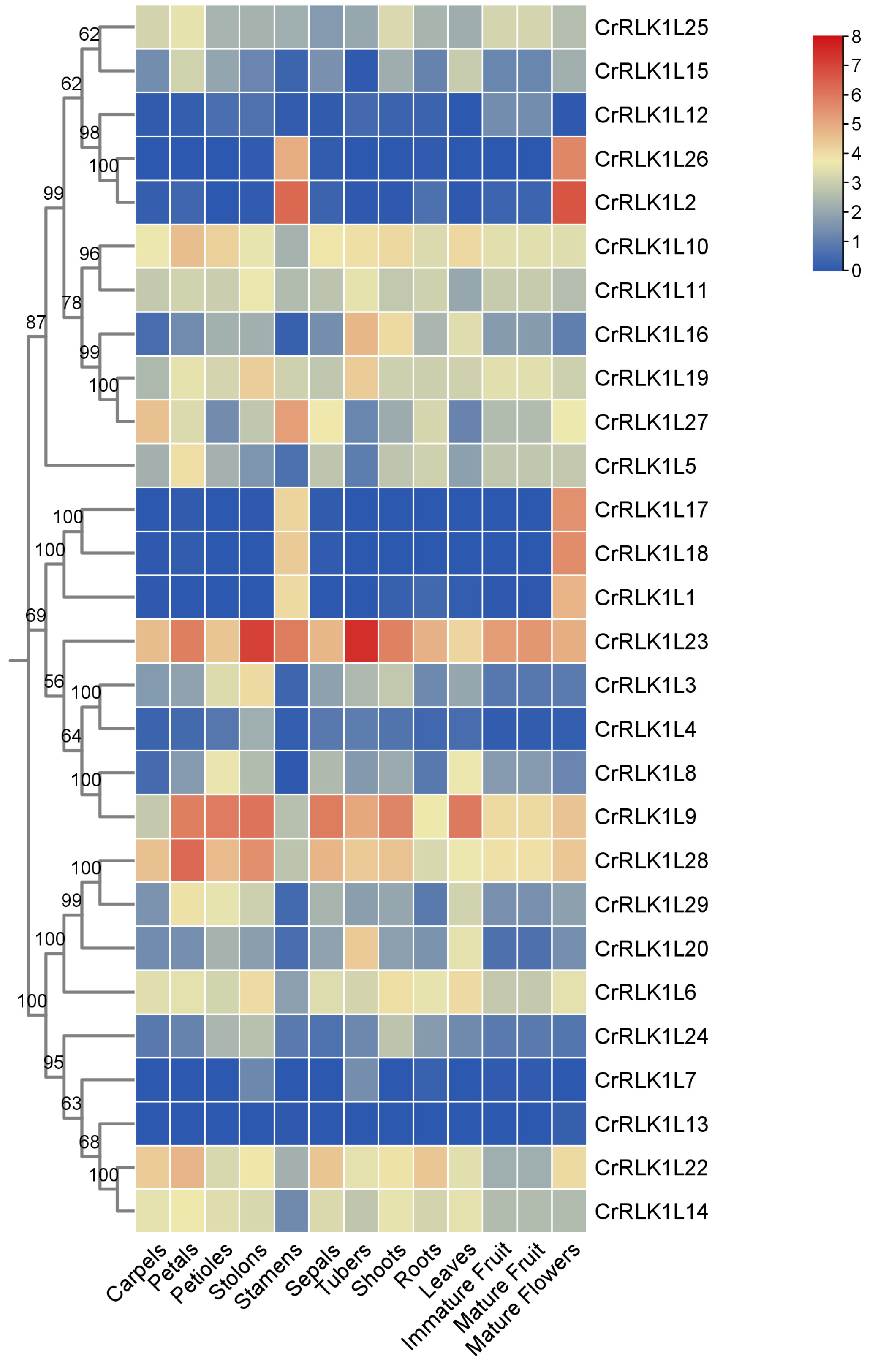

Figure 5. Heat map of StCrRLK1L expression across tissues in DM potatoes. Color intensity reflects log2-transformed FPKM values.
Figure 5. Heat map of StCrRLK1L expression across tissues in DM potatoes. Color intensity reflects log2-transformed FPKM values.
Genes 16 00308 g005
Genes 16 00308 g006
Figure 6. Expression dynamics of the StCrRLK1L genes under stress conditions. The color scale was plotted using the log2 mean of FPKM of each gene.
Figure 6. Expression dynamics of the StCrRLK1L genes under stress conditions. The color scale was plotted using the log2 mean of FPKM of each gene.
Genes 16 00308 g006
Genes 16 00308 g007

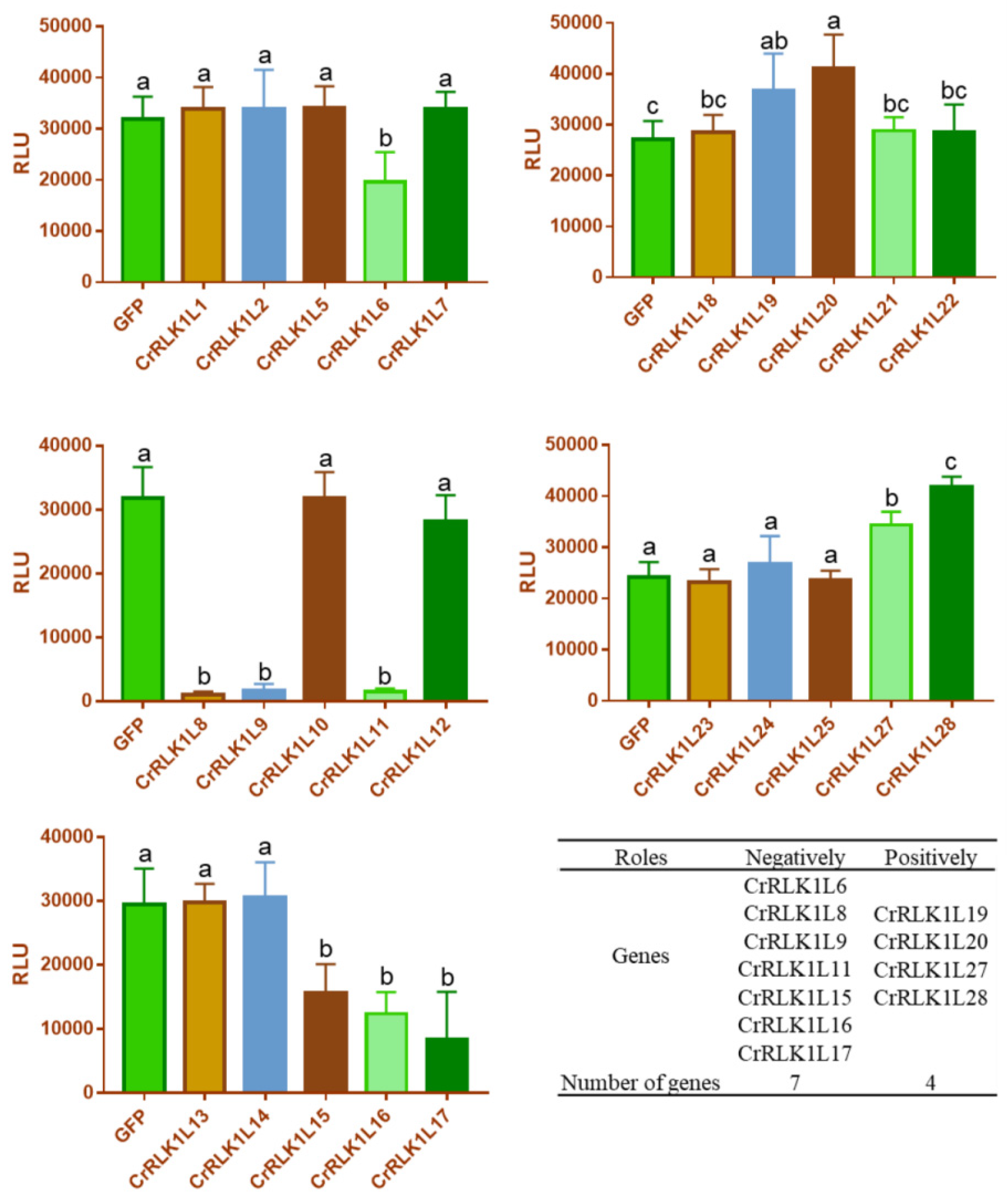

Figure 7. The Modulation of PAMP-triggered ROS by StCrRLK1Ls. The indicated constructs were transiently expressed by agrobacterium-mediated transient expression for 2 days and subjected to flg22-induced ROS examination (mean ± SD, n ≥ 8, and one-way ANOVA followed by Tukey’s post hoc test; different letters indicate significant difference at p < 0.01). The protein expression is shown in Figure S1.
Figure 7. The Modulation of PAMP-triggered ROS by StCrRLK1Ls. The indicated constructs were transiently expressed by agrobacterium-mediated transient expression for 2 days and subjected to flg22-induced ROS examination (mean ± SD, n ≥ 8, and one-way ANOVA followed by Tukey’s post hoc test; different letters indicate significant difference at p < 0.01). The protein expression is shown in Figure S1.
Genes 16 00308 g007
Table 1. The characteristics of 29 CrRLK1L gene family members in S. tuberosum. pI: theoretical isoelectric point.
Table 1. The characteristics of 29 CrRLK1L gene family members in S. tuberosum. pI: theoretical isoelectric point.
Gene NameGene IDChromosomeGene LocationProtein
Length (aa)		Molecular
Weight (kDa)		pISubcellular Location
CrRLK1L1PGSC0003DMG400021842Chr.145253663-4525622785495.056.39Nucleus
CrRLK1L2PGSC0003DMG400043836Chr.186334523-8633714487396.035.67Cytoplasm, Nucleus
CrRLK1L3PGSC0003DMG400041071Chr.28613635-86170421135127.217.35Cell membrane, Cytoplasm, Nucleus
CrRLK1L4PGSC0003DMG400010577Chr.28619185-86234571188132.568.35Nucleus
CrRLK1L5PGSC0003DMG400021186Chr.229091367-2909397386896.305.57Cytoplasm
CrRLK1L6PGSC0003DMG400028454Chr.231321077-3132839777286.056.22Cell membrane
CrRLK1L7PGSC0003DMG400030658Chr.241983221-4198828172982.428.22Cytoplasm, Nucleus
CrRLK1L8PGSC0003DMG400001369Chr.245448141-4545101185695.436.13Chloroplast, Cytoplasm, Mitochondrion, Nucleus
CrRLK1L9PGSC0003DMG400001368Chr.245458609-4546139687397.316.25Cell membrane, Chloroplast, Cytoplasm, Nucleus
CrRLK1L10PGSC0003DMG400014875Chr.37287447-728990381891.575.80Nucleus
CrRLK1L11PGSC0003DMG400026325Chr.317666491-1766894781891.277.56Chloroplast, Cytoplasm, Nucleus
CrRLK1L12PGSC0003DMG400024665Chr.355546289-5554855075383.346.11Nucleus
CrRLK1L13PGSC0003DMG400002602Chr.360521274-6052677278987.975.94Cell membrane, Cytoplasm, Nucleus
CrRLK1L14PGSC0003DMG400010746Chr.511413805-1141924387597.966.14Cell membrane
CrRLK1L15PGSC0003DMG400023419Chr.550431633-5043416184292.846.59Chloroplast, Cytoplasm
CrRLK1L16PGSC0003DMG400023508Chr.550582425-5058488181891.315.55Nucleus
CrRLK1L17PGSC0003DMG400007299Chr.6214455-217448997108.697.10Nucleus
CrRLK1L18PGSC0003DMG400007307Chr.6219466-22213588997.925.51Nucleus
CrRLK1L19PGSC0003DMG400009689Chr.66421767-642425682990.655.77Nucleus
CrRLK1L20PGSC0003DMG400017291Chr.750903025-509126261027113.298.40Cell membrane
CrRLK1L21PGSC0003DMG402019252Chr.753653922-5365642983591.645.31Cell membrane, Chloroplast, Cytoplasm, Nucleus
CrRLK1L22PGSC0003DMG400001732Chr.96573941-6582660928102.675.76Cell membrane
CrRLK1L23PGSC0003DMG400029885Chr.919231605-1923427488997.155.93Cell membrane, Cytoplasm, Nucleus
CrRLK1L24PGSC0003DMG401017656Chr.943843516-43847797904101.135.78Cell membrane
CrRLK1L25PGSC0003DMG400025030Chr.101778266-178077083491.295.30Cytoplasm, Extracell, Nucleus
CrRLK1L26PGSC0003DMG400003406Chr.1045284880-4528749887296.705.96Nucleus
CrRLK1L27PGSC0003DMG400015547Chr.1145084629-4508713383491.515.73Nucleus
CrRLK1L28PGSC0003DMG400015391Chr.12180926-18412362769.166.54Nucleus
CrRLK1L29PGSC0003DMG400028617Chr.1250035429-50041955924102.816.06Cell membrane
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bao, Y.; Zhao, R.; Hu, S.; Li, X.; Wang, L.; Wang, J.; Ji, J.; Wang, W.; Zhu, C.; Chen, J.; et al. Genome-Wide Identification and Expression Analysis of CrRLK1-like Gene Family in Potatoes (Solanum tuberosum L.) and Its Role in PAMP-Triggered Immunity. Genes 2025, 16, 308. https://doi.org/10.3390/genes16030308

AMA Style

Bao Y, Zhao R, Hu S, Li X, Wang L, Wang J, Ji J, Wang W, Zhu C, Chen J, et al. Genome-Wide Identification and Expression Analysis of CrRLK1-like Gene Family in Potatoes (Solanum tuberosum L.) and Its Role in PAMP-Triggered Immunity. Genes. 2025; 16(3):308. https://doi.org/10.3390/genes16030308

Chicago/Turabian Style

Bao, Yazhou, Ru Zhao, Sixian Hu, Xiaoli Li, Like Wang, Ji Wang, Junbin Ji, Weiduo Wang, Changqing Zhu, Jiajia Chen, and et al. 2025. "Genome-Wide Identification and Expression Analysis of CrRLK1-like Gene Family in Potatoes (Solanum tuberosum L.) and Its Role in PAMP-Triggered Immunity" Genes 16, no. 3: 308. https://doi.org/10.3390/genes16030308

APA Style

Bao, Y., Zhao, R., Hu, S., Li, X., Wang, L., Wang, J., Ji, J., Wang, W., Zhu, C., Chen, J., Ben, A., Peng, J., & Liu, T. (2025). Genome-Wide Identification and Expression Analysis of CrRLK1-like Gene Family in Potatoes (Solanum tuberosum L.) and Its Role in PAMP-Triggered Immunity. Genes, 16(3), 308. https://doi.org/10.3390/genes16030308

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
