Complete Chloroplast Genome of Crassula aquatica: Comparative Genomic Analysis and Phylogenetic Relationships

by
Kyu Tae Park
1 and
OGyeong Son
2,*
1
Department of Life Sciences, Yeungnam University, Gyeongsan 38541, Republic of Korea
2
Planning & Budget Office, Management Planning Division, Daegu National Science Museum, Yugaeup, Daegu 43023, Republic of Korea
*
Author to whom correspondence should be addressed.
Genes 2024, 15(11), 1399; https://doi.org/10.3390/genes15111399
Submission received: 9 October 2024 / Revised: 24 October 2024 / Accepted: 28 October 2024 / Published: 30 October 2024
(This article belongs to the Topic Plant Chloroplast Genome and Evolution)
Browse Figures
Versions Notes

Abstract

:
Background/Objectives: Crassula aquatica (L.) Schonl. is a very small annual plant growing along riverbanks. Chloroplast (cp) genomes, crucial for photosynthesis, are highly conserved and play a key role in understanding plant evolution. In this study, we conducted cp genome analysis of C. aquatica, aiming to elucidate its phylogenetic position and structural variations. We analyzed and described the features of the complete cp genome of C. aquatica and conducted comparative analysis with the cp genomes of closely related taxa. Rsults: The cp genome was 144,503 bp in length and exhibited the typical quadripartite structure, consisting of a large single-copy region (LSC; 77,993 bp), a small single-copy region (SSC; 16,784 bp), and two inverted repeats (24,863 bp). The cp genome of C. aquatica comprised 113 unique genes, including 79 protein-coding genes (PCGs), 30 tRNAs, and 4 rRNA genes. Comparative genomic analysis of 13 other Crassula species and six outgroups demonstrated highly conserved gene content and order among Crassula species. However, notable differences were observed, including the complete loss of the rpoC1 intron in C. aquatica and several closely related species, which may serve as a synapomorphic trait supporting the monophyly of the subgenus Disporocarpa. We analyzed the nucleotide diversity among 14 Crassula cp genomes and identified five highly variable regions (pi > 0.08) in the IGS regions. Phylogenetic analysis based on 78 PCGs confirmed the monophyly of Crassula and its division into two subgenera: Crassula and Disporocarpa. Although the phylogenetic tree supported the subgeneric classification system, the sectional classification system requires reassessment. Conclusions: In this study, we conducted a comparative analysis of the cp genome of the genus Crassula. We inferred evolutionary trends within the Crassula cp genome and provided molecular evidence supporting the integration of the genus Tillaea into the genus Crassula. However, as this study does not represent all species within the genus Tillaea, further comprehensive phylogenetic analyses are requrired.

1. Introduction

The chloroplast (cp), primarily involved in photosynthesis, is considered to have originated from an endosymbiotic cyanobacterium [1]. The cp genome is typically inherited uniparentally, exists in multiple copies per cell, and evolves at a slower rate compared to nuclear and mitochondrial genomes [2]. The cp genome is a circular molecule with a quadripartite structure and two inverted repeats (IR) separated by large single-copy (LSC) and small single-copy (SSC) regions [3,4]. The majority of genes encode proteins related to photosynthesis and their expression, as well as the remaining tRNAs and rRNAs. The cp genomes of angiosperms show significant conservation in terms of gene content, order, and organization [4,5]. It is suitable for comparison across various species. Furthermore, due to maternal inheritance, the cp genome shows less genetic variation, allowing it to reflect intra-lineage variations. Additionally, as it consists of a single circular DNA, the complete sequencing of the cp genome is relatively straightforward. Thus, the cp genome is appropriate for discovering phylogenetic relationships and explaining speciation processes among species [6,7]. In particular, structural variations such as rearrangements, gene loss, or pseudonization play a role in phylogenetic studies as they reflect genetic events (such as evolutionary divergence or environmental adaptation) within specific lineage [8,9,10,11]. The cp genomes of several species of the family Crassulaceae have been reported [12,13,14]. Ding et al. [15] recently reported complete cp genome sequences of several members of the genus Crassula.
The family Crassulaceae consists of approximately 1500 species across 34 genera [16,17], and all species within this family are succulent, easily distinguishing them from the sister family Haloragaceae [18]. Crassulaceae is divided into three subfamilies: Crassuloideae, Kalanchoideae, and Sempervivoideae [14]. These subfamilies are further classified into seven major clades: Crassula (Crassuloideae), Kalanchoe (Kalanchoideae), and five additional clades—Sempervium, Leucosedum, Aeonium, Acre, and Telephiu—comprising the subfamily Sempervivoideae [14,19,20,21,22,23,24,25]. The genus Crassula, comprising approximately 200 recognized species, is the sole genus in the Crassuloideae clade [17], and contributes to the diversity of Crassulaceae [20,23]. The reclassification of Crassula recognized two subgenera: Crassula L. and Disporocarpa C.A.Mey. [17,24,25]. After revision, Crassula was determined to comprise 149 species in southern Africa, organized into 20 sections. Most of Crassula are concentrated in western and southern South Africa. Approximately 20 additional species are distributed throughout temperate regions worldwide [26,27].
Previous phylogenetic studies of Crassulaceae, including Crassula, have used morphological, cytological, and molecular approaches [22,23,24,25,28,29,30,31]. One of the major issues in the phylogenetic study of Crassula is its monophyly. While the monophyly of the subgenus Crassula is clearly demonstrated, the monophyly of the subgenus Disporocarpa remains a subject of debate [22,23]. Thus, to clarify the phylogenetic relationships of Crassula, it is necessary to secure more evidence through additional studies. Another major issue is the phylogenetic relationship between the genus Crassula and the closely related genus Tillaea. Tölken (1985) treated Tillaea as a synonym under Crassula [26]. However, Gilbert et al. (2000) resurrected Tillaea based on the high level of sequence divergence in the cp DNA data [27]. In contrast, Mort et al. [25] and Bruyns et al. [31] indicated that Tillaea is polyphyletically embedded across Crassula and suggested that Tillaea should be included in Crassula.
Our target species, C. aquatica (L.) Schönland, is a very small annual plant growing along riverbanks and typically grows in wet areas with sandy soil. It is distributed throughout Eurasia and North America [32]. C. aquatica was assessed as vulnerable (VU) in South Korea [33]. C. aquatica was once treated as Tillaea aquatica L. but was later synonymized based on previous studies [25,31]. However, in some countries the synonym T. aquatica is used instead of C. aquatica [32,33]. Thus, we sequenced, assembled, and analyzed the cp genome to better understand the phylogenetic relationships in C. aquatica. We anticipated that the structural variations in the C. aquatica cp genome would be shared with specific lineages and expected that the large sequence dataset would further clarify its relationship within the genus. This study aimed to (1) identify the genomic features of C. aquatica, (2) explore the cp genomic structures of C. aquatica and determine structural variations by comparing them with the cp genomes of 13 Crassula and six outgroups, and (3) elucidate the phylogenetic relationships of C. aquatica using 78 protein-coding genes (PCGs).

2. Materials and Methods

2.1. Sampling, DNA Extraction, and Chloroplast Genome Sequencing

Fresh tissues of C. aquatica were collected from Gunwigun, Republic of Korea (N 36°8′2.78″ E 128°39′47.55″) on 1 June 2023. A voucher specimen was deposited in the Herbarium of Daegu National Science Museum (DNSM) (voucher no.: DNSM22405006). Genomic DNA was extracted from the plant tissue using a DNeasy Plant Mini Kit (Qiagen Inc., Valencia, CA, USA). We outsourced sequencing to Phyzen (Seongnam, Republic of Korea), which generated 150 bp paired-end reads from a 550 bp inserts library on an Illumina NovaSeq 6000 platform (Illumina, San Diego, CA, USA).

2.2. Chloroplast Genome Assembly and Gene Annotation

The raw data were processed using an NGS QC Tool Kit [34], where the adaptors were trimmed and low-quality reads were filtered out using default options. Once the raw data were filtered, clean reads were de novo assembled with paired-end reads via Velvet [35]. The annotations of transfer RNA (tRNA) genes were conducted via the tRNAscan-SE search server [36]. Both PCGs and ribosomal RNAs (rRNAs) were annotated using GeSeq [37]. PCGs were considered putatively functional based on two conditions: (1) the presence of an open reading frame with a completely conserved domain, verified via the NCBI Conserved Domain Database (CDD), and (2) the absence of internal stop codons. The annotated cp genome sequence was deposited in GenBank under the accession number PQ285632. A visualization of the circular cp genome map was created using Organellar Genome DRAW (OGDRAW) [38].

2.3. Comparative Analyses of Chloroplast Genomes

The cp genome of C. aquatica was compared with 13 Crassula cp genomes (Table S1). To evaluate sequence similarity, cp genomes were compared using mVISTA with the LAGAN mode, producing accurate multiple alignments regardless of whether they contained inversions [39]. We used MAFFT [40] to align the cp genome sequences and analyzed the sequence divergence between Crassula species and C. aquatica using sliding window analysis to compute nucleotide variability (pi) in DnaSP v6.12 [41]. We applied a window size of 600 bp with a 200 bp step size. To identify cp genome rearrangements in Crassula species, complete cp genome alignments were performed using ProgressiveMauve v.1.1.3 [42] in Geneious Prime 2024.0.3. To identify contraction or expansion at the IR boundaries, the boundaries were compared using IRplus [43].

2.4. Repeat

We investigated repeat sequences, including direct, reverse, palindromic, and complementary sequences, using REPuter [44]. For repeat identification, the following parameters were used: (1) minimum repeat size of 30 bp, (2) hamming distance of 3 kb, and (3) 90% or greater sequence identity. Simple sequence repeats (SSRs) were determined using MISA-web [45] with the following minimum number of repeats: ten repeat units for mononucleotides, five units for di, four units for tri-, and three units for tetra-, penta-, and hexa-nucleotide SSRs. To investigate codon usage bias in T. aquatica, we used MEGA 11 [46] to calculate relative synonymous codon usage (RSCU).

2.5. Phylogenetic Analysis

Phylogenetic analysis was performed using 78 PCGs shared by 39 Crassulaceae cp genomes. To verify the phylogenetic relationships among the three subfamilies of Crassulaceae and to determine the precise phylogenetic position of the genus Crassula within the family, five Haloragaceae species and one Penthoraceae species were used as outgroups (Table S1). Gene sequences were extracted from cp genomes, aligned individually using MAFFT, and concatenated using Geneious Prime 2024.0.3. Alignments were manually examined to verify the reading frames. Maximum likelihood (ML) analysis was performed using RAxML v.8.2.4 with 1000 bootstrap replicates to evaluate the node support [47]. This analysis used the GTR+I+G model selected by jModelTest v.2.1.9 [48]. We implemented Bayesian inference using MrBayes version 3.2 [49]. To determine the best-fitting substitution model, the Akaike information criterion was implemented using jModelTest v.2.1.9. The GTR+I+G model was used in the present study. Markov chain Monte Carlo analysis was performed for 1,000,000 generations. The first 25% of the trees were discarded as burn-in, and the remaining trees were used to generate a majority-rule consensus tree. ML and Bayesian inference (BI) analyses were performed using FigTree v.1.4.3.

3. Results

3.1. Chloroplast Genome Organization

The length of the complete cp genome of C. aquatica was 144,503 bp, with a typical quadripartite structure and an LSC region (77,993 bp) separated from the SSC region (16,784 bp) by two IR regions (24,863 bp) (Figure 1, Table S2). The cp genome of C. aquatica comprised 113 unique genes, including 79 PCGs, 30 tRNAs, and 4 rRNAs. Among the 113 genes, 57 were related to self-replication, including 9 genes related to the large subunit of the ribosome and 12 related to the small subunit of the ribosome. A total of 43 genes were involved in photosynthesis, including 6 related to ATP synthase, 11 to NADH dehydrogenase, 6 to the cytochrome b/f complex, 5 to the PSⅠ system, 15 to the PS II system, and 1 associated with Rubisco. Additionally, nine genes were annotated as having other (clpP, ccsA, accD, cemA, and matK) or unknown functions (ycf1, ycf2, ycf3, and ycf4). A total of 15 genes were found to have a single intron (atpF, ndhA, ndhB, petB, petD, rpl2, rpl16, rps12, trnA-UGC, trnG-GCC, trnI-CAU, trnI-GAU, trnK-UUU, trnL-UAA, and trnV-UAC), while 2 genes (clpP and ycf3) contained two introns (Table S3).

3.2. Comparative Chloroplast Genome Structure and Polymorphism

The entire sequence similarity of the 14 Crassula cp genomes including C. aquatica was evaluated using the mVISTA program. The results showed that the cp genomes of Crassula species were more conserved in the coding regions than in the non-coding regions (Figure S1). Furthermore, genomic rearrangement was not detected across the cp genome of Crassula (Figures S1 and S2). The sequence variability of the 14 Crassula cp genomes was examined by computing nucleotide polymorphisms (pi). The average pi value was estimated to be 0.03098, ranging from 0.00073 to 0.09766 (Figure 2). The sequence diversities of the IRs were more conserved (average pi = 0.01313) than those of the LSC (average pi = 0.03868) and SSC regions (average pi = 0.04939). In addition, the highly variable regions (pi > 0.08) were identified as five IGS regions (rps16-trnQ, pi = 0.08786. psbM-trnD-trnY, pi = 0.0.08588; trnL-trnF-ndhJ, pi = 0.09766; psbE-petL, pi = 0.08372; rps15-ycf1, pi = 0.08445) and one protein-coding region (ycf1, pi = 0.08766). We identified the IR boundaries among 14 Crassula cp genomes. Gene content and order were conserved in Crassula (Figure S3). In C. aquatica, the LSC/IRb boundary (JLB) was located on rps19, and the LSC/IRa boundary (JLA) was located between Ψrps19 and trnH. The IRa/SSC and IRb/SSC boundaries (JSA and JSB) were located on ycf1 or between the 5′ end of truncated ycf1 and ndhF. The IR junction patterns were similar across all Crassula species when the IR region was compared. The length of the IR region ranged from 24,810 to 24,878 bp, and the gene content of the IR region was conserved across all Crassula species. Notably, in the rps19 gene, despite being located in the JLB in all species, in C. aquatica, only 33 bp were situated within the IRb region, showing a difference compared to other Crassula species, which included 110 bp. In the trnH gene, it spanned the JLA in most Crassula species but was located in the LSC in C. aquatica. We found that the rpoC1 intron was completely lost in C. aquatica. Among 14 Crassula cp genomes, the rpoC1 intron had a length of 665 bp in most Crassula species, whereas in 4 Crassula (C. deltodiea Thunb., C. expansa subsp. fragilis (Baker) Toelken, C. volkenssi Engl., and C. aquatica), the rpoC1 intron was completely lost (Figure 3 and Figure S1).

3.3. Tandem Repeat Sequence and Simple Sequence Repeat Analysis

We identified 18 repeats, including 13 palindromic and 5 forward repeats in C. aquatica. In contrast, 15–28 repeats were identified in other Crassula species, including 9–18 palindromic, 5–9 forward, and 1–2 reverse repeats. No complementary repeats were detected in Crassula species (Figure 4A, Table S4). The length of the repeats varied from 30 to 48 bp and repeats with lengths of 30 and 31 bp were the most abundant and identified in all species, followed by those with lengths of 39, 41, and 32 bp (Figure 4B).
The total SSRs found in C. aquatica was 42, comprising 29 mono-, 5 di-, 4 tri-, 2 tetra-, 1 penta-, and 1 hexa-nucleotide repeats. For Crassula, the total number of SSRs ranged from 24 (C. volkensii) to 68 (C. dejecta Jacq.). Among these, the numbers of Crassula species (C. volkensii, C. expansa subsp. fragilis, and C. deltodiea) were lower than those of the other Crassula species, ranging from 24 to 29. Hexa-nucleotide repeats were detected only in C. aquatica (Figure 4C, Table S5). Mononucleotide repeats ranged from 21 (C. volkensii) to 49 (C. dejecta) and were most abundant in Crassula, with A/T repeats being the only representative (Figure 4D).

3.4. RSCU

The RSCU values were calculated from the complete cp genome sequences of C. aquatica using all PCGs. In total, 22,408 codons (Table S4) were observed. The most abundant amino acid was leucine (Leu; 10.9%), while the least abundant was cysteine (Cys; 1.12%). The most commonly used codon was AUU (959; encodes isoleucine [Ile]), and the least used codon was UGC (65; encodes cysteine [Cys]). The RSCU frequency analysis indicated a codon usage bias. Overall, 29 amino acids had an RSCU value greater than 1, while methionine (AUG) and tryptophan (UGG) showed no codon usage bias, with an RSCU value of 1.00. The highest RSCU value was recorded for UUA (2.01; encoding Leu), and the lowest value (0.35) was recorded for UAC (encoding tyrosine [Tyr]) (Figure 5). Similar to other Crassula species, C. aquatica showed a significant preference for A/U-ending codons over G/C-ending codons in the cp genome (Figure S4, Table S4).

3.5. Phylogenetic Analysis

Phylogenetic analysis was performed using 39 Crassulaceae cp genomes, including C. aquatica and six outgroups, based on a 65,548 bp nucleotide dataset comprising 78 PCGs (Figure 6). The topologies of the ML and BI trees were highly identical, with strong support values. All 39 Crassulaceae species were divided into three subclades, aligning with the three subfamilies (Crassuloideae, Kalanchoideae, and Sempervivoideae). Within Crassuloideae, Crassula formed a monophyletic group comprising two subgenera (subgenus Crassula and subgenus Disporocarpa). C. aquatica was clustered within the subgenus Disporocarpa clade with a strong support value (BS/PP = 100/1.00). Our phylogenetic tree results mostly reflected the phylogenetic relationships within the genus Crassula; however, C. alstonii Marloth (sect. Argyrophylla) did not cluster with C. tecta Thunb. or C. mesembrianthemopsis Dinter from sect. Argyrophylla. Instead, they formed a basal clade of the subgenus Crassula with C. columella Marloth and Schonland (sect. Arta) with a high support value (BS/PP = 100/1.00).

4. Discussion

When compared to the 14 Crassula cp genomes, the results indicated that the gene content and order of the cp genome were conserved. They showed slight variations in cp genome size and GC content. No rearrangements were observed.
The rps19 gene was located in JLB in all Crassula cp genomes. In C. aquatica, 33 bp of the 5′ end of the rps19 was located in the IRb region, whereas in other species, the 5′ end of the rps19 gene was located at 110 bp within the IRb region. Additionally, previous studies on the Crassulaceae family have consistently reported a 110 bp location [12,13,14,15]. In contrast, in the cp genome of Haloragaceae used as an outgroup, the 5′ end of the rps19 gene was located 2–3 bp within the IRb region, whereas in Penthoraceae, the entire rps19 gene was located only in the LSC region (Figure S3). This suggests an evolutionary trend of IR expansion in Crassulaceae cp genomes. IR expansion and contraction can occur via several mechanisms [50,51]. Short IR expansion can occur due to gene conversion, whereas large IR expansion can result from double-stranded DNA breaks [50]. Thus, to more accurately identify the trends in IR expansion and contraction, it is necessary to conduct further studies on Crassula, Crassulaceae, and related taxa.
In this study, we identified that the rpoC1 intron was completely lost in C. aquatica and its related species. The loss of the rpoC1 intron has been observed in various lineages and, in some cases, provides important phylogenetic information [52,53,54,55,56]. The rpoC1 gene codes for a subunit of plastid-encoded RNA polymerase, an enzyme that is crucial for cp gene expression [57]. As a result of the degeneration of RNA structures and intron-encoded proteins (IEP), cp introns lose their self-splicing ability [57]. The loss of introns is considered to be a result of evolutionary adaptation, potentially occurring in scenarios where a simplified genome structure or more efficient gene expression is required [52]. Moreover, among the 14 Crassula cp genomes, the rpoC1 intron was completely lost in all species of the subgenus Disporocarpa, including C. aquatica. This loss of the rpoC1 intron is considered a synapomorphic characteristic of the subgenus Disporocarp and provides evidence supporting its monophyly.
Nucleotide diversity analysis of the 14 Crassula cp genomes revealed six highly variable regions (HVR, pi > 0.08), with five found in the IGS region and one in the protein-coding region. A previous study reported a total of 11 HVRs within Crassula, and the observations were similar, with both results indicating the highest variability in the trnL-UAA-trnF-GAA-ndhJ region [11]. These HVR with high pi values can potentially provide DNA barcodes for species identification within the Crassula.
The codon usage pattern is an important genetic trait of an organism and is related to mutations, selection, and other phenomena of molecular evolution [58,59,60,61,62]. The cp genome of C. aquatica was analyzed and compared with those of other Crassula species to investigate the patterns of codon usage. In 14 Crassula cp genomes, leucine showed the highest frequency among all amino acids, whereas cysteine displayed the lowest frequency, excluding the top codons. Additionally, RSCU analysis revealed that codons ending in A/U had RSCU values greater than 1, whereas those ending in C/G had RSCU values less than 1. C. aquatica exhibits a preference for A/U-ending codons, which is consistent with the overall AT-rich content commonly observed in angiosperm cp genomes [58,59,60,61,62]. This pattern was similar to that of other Crassula species, which also demonstrated a significant preference for A/U at the third codon position.
The distribution and amount of repetitive sequences in the cp or nuclear genome are likely to contain phylogenetic signals [19,63,64,65,66,67,68,69]. In this study, the number of tandem repeats in the cp genome of the Crassula ranged from 15 (C. deltodiea) to 28 (C. mesembryanthemoides Haw.). Species in the subgenus Disporocarpa (e.g., C. aquatica, C. deltoidiea, C. volkensii, and C. expansa subsp. fragilis) exhibited 15–18 repeats, whereas species in subgenus Crassula showed 23–28 repeats (Table S4). Further studies involving additional Crassula species are needed to clarify the relationships between the number of repeats and phylogenetic patterns. SSRs are important codominant DNA molecular markers with the benefit of high abundance, random distribution throughout the genome, and substantial polymorphism data [63,64,65,66,67,68,69]. Therefore, they can offer significant insights into various areas such as populations genetics, phylogeography, and species identification [69]. A total of 718 SSRs were identified in 14 Crassula cp genomes, with C. dejecta containing the highest number. In each genome, A/T was the predominant motif among mononucleotide SSRs with the highest frequency. In contrast, hexa-nucleotide SSR motifs were identified only in C. aquatica within Crassula (Table S5). The microsatellites discovered in this study can be developed as markers for C. aquatica, contributing to future research on species identification and evolutionary studies within this genus.
In this study, the phylogenetic analysis results revealed that the phylogenetic tree was split into three subfamilies and six clades, aligning with findings from previous Crassulaceae phylogenetic studies [12,13,14,21]. The genus Crassula was validated as a monophyletic group with strong support values (BS = 100/PP = 1.00). In addition, they were grouped into two subgenera, supporting the subgeneric classification system proposed by Tölken [24]. However, the following exceptions were identified at the sectional level: C. alstonii (sect. Argyrophylla) was not grouped with C. tecta or C. mesembrianthemopsis in the same section; instead, it was closely related to C. mesembryanthemooides (sect. Globulea). This suggests potential issues with the sectional classification proposed by Tölken [26]. Furthermore, in a study by Bruyns et al. [26], only 5 of 20 sections (sect. Petrogeton—subgenus Disporocara; sect. Acutifolia, sect. Subulares, sect. Kalosanthes, and sect. Columnares—subgenus Crassula) were confirmed to be monophyletic. These results indicate that although the subgeneric classification is generally valid, the sections exhibit a paraphyletic pattern, suggesting the need for a more detailed reassessment [26,31]. According to the current classification, C. aquatica belongs to the subgenus Disporocarpa, section Helophytum. Our results also showed that C. aquatica was grouped within the subgenus Disporocarpa and was closely related to C. deltoidei (sect. Deltoideae) among the 13 Crassula species analyzed. These results are consistent with the pattern observed in Crassula chloroplast genomes (rpoC1 intron loss), providing strong evidence that C. aquatica belongs to the subgenus Disporocarpa. Tillaea was initially recognized as a specific species within the genus Crassula but was treated as a synonym by Tölken [26]. Using AFLP data, Ham and t’Hart [30] found that a single sampled species of Tillaea was closely related to two Crassula species. Based on these results, Gilbert et al. [27] classified certain Crassula species as Tillaea, despite a very limited sample size. However, Mort et al. [25] and Bruyns et al. [31] revealed that Tillaea species are not monophyletic but are instead embedded in different clades. The controversial taxonomic position and polyphyletic pattern of Tillaea in previous studies are likely due to a lack of understanding of these species (resulting from limited or insufficient data) and have led to an inaccurate reflection of their relationships. By obtaining more data, such as additional sequences data or taxa, these issues can be resolved. Although only one taxon, C. aquatica, previously classified under Tillaea, was included in this study, our results based on a large nucleotide sequence data set and a comparison of cp genome structure indicated its inclusion within the genus Crassula. Moreover, the results demonstrated an evolutionary trend, with structural variations shared exclusively within the subgenus Disporocarpa. Therefore, it is not reasonable to treat Tillaea as an independent genus, and it should be integrated into the genus Crassula.

5. Conclusions

In this study, we sequenced and analyzed the cp genome of C. aquatica. The comparative analyses revealed characteristics of the Crassula cp genome. Even though the cp genome size, genome structure, and gene contents of C. aquatica were similar to other Crassula cp genomes, the IR expansion, rpoC1 intron loss, and distribution of repeats demonstrated the evolutionary history of Crassula. Our phylogenetic analyses supported Crassula being monophyletic. However, the phylogenetic analysis supported the subgeneric classification system, but the sectional classification system requires reassessment.
Meanwhile, C. aquatica, which was synonymized from the genus Tillaea, shared structural variations in the cp genome with species of the subgenus Disporocarpa, and phylogenetic analysis showed the same pattern. This provides evidence supporting the inclusion of Tillaea within the genus Crassula. However, since only C. aquatica was included in this study among the taxa previously classified under Tillaea, it cannot represent all species of Tillaea. Additionally, the species of the genus Tillaea have now been merged into the genus Crassula, distributed across subgenus Crassula and subgenus Disporocarpa [17]. Therefore, to clarify the phylogenetic relationship between Tillaea and Crassula, further analysis including more taxa is necessary.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes15111399/s1, Figure S1: Structure comparisons of 14 Crassula chloroplast genomes using the mVISTA; Figure S2: Whole-genome alignment of 14 Crassula chloroplast genomes; Figure S3: Comparison of the boundaries of LSC, SSC, and IR regions among 14 Crassula chloroplast genomes; Figure S4: The heatmap of overall RSCU values among 14 Crassula species based on 53 chloroplast genes (length > 300 bp); Table S1: List taxa included in analysis; Table S2: Characteristics of C. aquatica chloroplast genome; Table S3: List of gene contents in C. aquatica; Table S4: Number of tandem repeat types in Crassula; Table S5: Number of SSR types in Crassula; Table S6: The RSCU values of codons among Crassula species.

Author Contributions

Conceptualization, supervision, and project administration, O.S.; investigation, resources, and curation, O.S.; methodology, formal analysis, and software, K.T.P.; writing—original draft preparation, K.T.P.; writing—revision and editing, K.T.P. and O.S.; visualization, K.T.P.; supervision, O.S.; funding acquisition, O.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Collect and Research Native plants on the Korean Peninsula for the Natural History exhibition of the Daegu National Science Museum (DNSM).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The sequence data generated in this study are available in GenBank of the National Center for Biotechnology Information (NCBI) under the access number PQ285632.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Timmis, J.; Ayliffer, M.; Huang, C.; Martin, W. Endosymbiotic gene transfer: Organelle genomes forge eukaryotic chromosomes. Nat. Rev. Genet. 2004, 5, 123–135. [Google Scholar] [CrossRef]
  2. Drouin, G.; Daoud, H.; Xia, J. Relative rates of synonymous substitutions in the mitochondrial, chloroplast and nuclear genomes of seed plants. Mol. Phylogenet. Evol. 2008, 49, 827–831. [Google Scholar] [CrossRef]
  3. Palmer, J. Comparative organization of chloroplast genomes. Annu. Rev. Genet. 1985, 19, 325–354. [Google Scholar] [CrossRef]
  4. Jansen, R.; Ruhlman, T. Plastid genomes of seed plant. In Genomics of Chloroplasts and Mitochondira; Bock, R., Knoop, V., Eds.; Springer: Dordrecht, The Netherland, 2012; pp. 103–126. [Google Scholar] [CrossRef]
  5. Palmer, J. Plastid chromosomes: Structure and evolution. In The Molecular Biology of Plastids. Cell Culture and Somatic Cell Genetics of Plants; Hermann, R.G., Ed.; Springer: Vienna, Austria, 1991; pp. 5–53. [Google Scholar] [CrossRef]
  6. Lee, S.B.; Kaittanis, C.; Jansen, R.K.; Hostetler, J.B.; Tallon, L.J.; Town, C.D.; Daniell, H. The complete chloroplast genome sequence of Gossypium hirsutum: Organization and phylogenetic relationships to other angiosperms. BMC Genom. 2006, 7, 61. [Google Scholar] [CrossRef]
  7. Mo, Z.; Lou, W.; Chen, Y.; Jia, X.; Zhai, M.; Guo, Z.; Xuan, J. The Chloroplast Genome of Carya illinoinensis: Genome Structure, Adaptive Evolution, and Phylogenetic Analysis. Forests 2020, 11, 207. [Google Scholar] [CrossRef]
  8. Duan, L.; Li, S.J.; Su, C.; Sirichamorn, Y.; Han, L.N.; Ye, W.; Lôc, P.K.; Wen, J.; Compton, J.A.; Schrire, B.; et al. Phylogenomic framework of the IRLC legumes (Leguminosae subfamily Papilionoideae) and intercontinental biogeography of tribe Wisterieae. Mol. Phylogenet Evol. 2021, 163, 107235. [Google Scholar] [CrossRef]
  9. Hoot, S.B.; Palmer, J.D. Structural rearrangements, including parallel inversions, within the chloroplast genome of Anemone and related genera. J. Mol. Evol. 1994, 38, 274–281. [Google Scholar] [CrossRef]
  10. Moghaddam, M.; Ohta, A.; Shimizu, M.; Terauchi, R.; Kazempour-Osaloo, S. The complete chloroplast genome of Onobrychis gaubae (Fabaceae-Papilionoideae): Comparative analysis with related IR-lacking clade species. BMC Plant Biol. 2022, 22, 75. [Google Scholar] [CrossRef]
  11. Zhai, W.; Duan, X.; Zhang, R.; Guo, C.; Li, L.; Xu, G.; Shan, H.; Kong, H.; Ren, Y. Chloroplast genomic data provide new and robust insights into the phylogeny and evolution of the Ranunculaceae. Mol. Phylogenet. Evol. 2019, 135, 12–21. [Google Scholar] [CrossRef]
  12. Han, S.; Bi, D.; Yi, R.; Ding, H.; Wu, L.; Kan, X. Plastome evolution of Aeonium and Monanthes (Crassulaceae): Insights into the variation of plastomic tRNAs, and the patterns of codon usage and aversion. Planta 2022, 256, 35. [Google Scholar] [CrossRef]
  13. An, S.-M.; Kim, B.-Y.; Kang, H.; Lee, H.-R.; Lee, Y.-B.; Park, Y.-J. The complete chloroplast genome sequences of six Hylotelephium species: Comparative genomic analysis and phylogenetic relationships. PLoS ONE 2023, 18, e0292056. [Google Scholar] [CrossRef] [PubMed]
  14. Chang, H.; Zhang, L.; Xie, H.; Liu, J.; Xi, Z.; Xu, X. The Conservation of Chloroplast Genome Structure and Improved Resolution of Infrafamilial Relationships of Crassulaceae. Front. Plant Sci. 2021, 12, 631884. [Google Scholar] [CrossRef] [PubMed]
  15. Ding, H.; Han, S.; Ye, Y.; Bi, D.; Zhang, S.; Yi, R.; Gao, J.; Yang, J.; Wu, L.; Kan, X. Ten Plastomes of Crassula (Crassulaceae) and Phylogenetic Implications. Biology 2022, 11, 1779. [Google Scholar] [CrossRef]
  16. Berger, A. Crassulaceae. In Die Na-Türlichen Pflanzenfamilien, 2nd ed.; Engler, A., Prantl, K., Eds.; W. Engelmann: Leipzig, Germany, 1930; Volume 18A, pp. 352–483. [Google Scholar]
  17. Eggli, U. Crassulaceae. In Illustrated Handbook of Succulent Plants; Eggli, U., Ed.; Springer: Berlin/Heidelberg, Germany, 2003. [Google Scholar]
  18. Soltis, D.E.; Soltis, P.S. Phylogenetic relationships in Saxifragaceae sensu lato: A comparison of topologies based on 18S rDNA and rbcL sequences. Am. J. Bot. 1997, 84, 504–522. [Google Scholar] [CrossRef]
  19. Thiede, J.; Eggli, U. Crassulaceae. In The Families and Genera of Vascular Plants; Kubitzki, K., Ed.; Springer: Berlin/Hamburg, Germany, 2007; pp. 83–118. [Google Scholar]
  20. Messerschmid, T.F.; Klein, J.T.; Kadereit, G.; Kadereit, J.W. Linnaeus’s folly–phylogeny, evolution and classification of Sedum (Crassulaceae) and Crassulaceae subfamily Sempervivoideae. Taxon 2020, 69, 892–926. [Google Scholar] [CrossRef]
  21. Gontcharova, S.; Gontcharov, A. Molecular phylogeny and systematics of flowering plants of the family Crassulaceae DC. Mol. Biol. 2009, 43, 794–803. [Google Scholar] [CrossRef]
  22. Van Ham, R.C.; Hart, H.T. Phylogenetic relationships in the Crassulaceae inferred from chloroplast DNA restriction-site variation. Am. J. Bot. 1998, 85, 123–134. [Google Scholar] [CrossRef]
  23. Lu, M.; Fradera-Soler, M.; Forest, F.; Barraclough, T.G.; Grace, O.M. Evidence linking life-form to a major shift in diversification rate in Crassula. Am. J. Bot. 2022, 109, 272–290. [Google Scholar] [CrossRef]
  24. Tölken, H.R. A revision of the genus Crassula in southern Africa. Contrib. Bolus. Herb. 1977, 8, 1–595. [Google Scholar]
  25. Mort, M.E.; Randle, C.P.; Burgoyne, P.; Smith, G.; Jaarsveld, E.; Hopper, S.D. Analyses of cpDNA matK sequence data place Tillaea (Crassulaceae) within Crassula. Plant Syst. Evol. 2009, 283, 211–217. [Google Scholar] [CrossRef]
  26. Tölken, H.R. Flora of Southern Africa. Leistner, O.A., Ed.; National Botanical Institute: Pretoria, South Africa, 1985; Volume 14, pp. 1–244. [Google Scholar]
  27. Gilbert, M.G.; Ohba, H.; Fu, K.J. New combinations in Tillaea (Crassulaceae). Novon 2000, 10, 366–367. [Google Scholar] [CrossRef]
  28. Uhl, C. Some cytotaxonomic problems in the crassulaceae. Evolution 1961, 15, 375–377. [Google Scholar] [CrossRef]
  29. Moteetee, A.; Nagendran, C. Comparative anatomical studies in five southern African species of Crassula: II. Structure of the leaf and the occurrence of transfer cells. South Afr. J. Bot. 1997, 63, 95–99. [Google Scholar] [CrossRef]
  30. Lange, P.; Heenan, P.; Keeling, D.; Murray, B.; Smissen, R.; Sykes, W. Biosystematics and conservation: A case study with two enigmatic and uncommon species of Crassula from New Zealand. Ann. Bot. 2008, 101, 881–899. [Google Scholar] [CrossRef]
  31. Bruyns, P.V.; Hanáček, P.; Klak, C. Crassula, insights into an old, arid-adapted group of southern African leaf-succulents. Mol. Phylogenet Evol. 2019, 131, 35–47. [Google Scholar] [CrossRef]
  32. Fu, K.; Ohba, H. Crassulaceae. In Flora of China; Wu, Z.Y., Raven, P.H., Eds.; Science Press: Beijing, China; Missouri Botanical Garden: St. Louis, MO, USA, 2001; Volume 8, pp. 202–268. [Google Scholar]
  33. Kim, S.B. Korean Read List of Threatened Species, 2nd ed.; National Institute of Biological Resources: Incheon, Republic of Korea, 2014. [Google Scholar]
  34. Patel, R.K.; Jain, M. NGS QC Toolkit: A toolkit for quality control of next generation sequencing data. PLoS ONE 2012, 7, e30619. [Google Scholar] [CrossRef]
  35. Zerbino, D.R.; Birney, E. Velvet: Algorithms for de novo short read assembly using de Bruijn graphs. Genome Res. 2008, 18, 821–829. [Google Scholar] [CrossRef]
  36. Lowe, T.; Chan, P. tRNAscan-SE On-line: Search and contextual analysis of transfer RNA genes. Nucleic Acids Res. 2016, 44, W54–W57. [Google Scholar] [CrossRef] [PubMed]
  37. Tillich, M.; Lehwark, P.; Pellizzer, T.; Ulbricht-Jones, E.; Fischer, A.; Bock, R. GeSeq –versatile and accurate annotation of organelle genomes. Nucleic Acids Res. 2017, 45, W6–W11. [Google Scholar] [CrossRef]
  38. Lohse, M.; Drechsel, O.; Kahlau, S.; Bock, R. OrganellarGenomeDRAW–a suite of tools for generating physical maps of plastid and mitochondrial genomes and visualizing expression data sets. Nucleic Acids Res. 2013, 41, W575–W581. [Google Scholar] [CrossRef]
  39. Frazer, K.A.; Pachter, L.; Poliakov, A.; Rubin, E.M.; Dubchak, I. VISTA: Computational tools for comparative genomics. Nucleic Acids Res. 2004, 32, W273–W279. [Google Scholar] [CrossRef] [PubMed]
  40. Katoh, K.; Standley, D. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed]
  41. Rozas, J.; Ferrer-Mata, A.; Sánchez-DelBarrio, J.C.; Guirao-Rico, S.; Librado, P.; Ramos-Onsins, S.E.; Sánchez-Gracia, A. DnaSP 6: DNA sequence polymorphism analysis of large data sets. Mol. Biol. Evol. 2017, 34, 3299–3302. [Google Scholar] [CrossRef] [PubMed]
  42. Darling, A.; Mau, B.; Blattner, F.; Perna, N. Mauve: Multiple alignment of conserved genomic sequence with rearrangements. Genome Res. 2004, 14, 1394–1403. [Google Scholar] [CrossRef]
  43. Díez Menéndez, C.; Poczai, P.; Williams, B.; Myllys, L.; Amiryousefi, A. IRplus: An Augmented Tool to Detect Inverted Repeats in Plastid Genomes. Genome Biol. Evol. 2023, 15, evad177. [Google Scholar] [CrossRef]
  44. Kurtz, S.; Choudhuri, J.V.; Ohlebusch, E.; Schleiermacher, C.; Stoye, J.; Giegerich, R. REPuter: The manifold applications of repeat analysis on a genomic scale. Nucleic Acids Res. 2001, 29, 4633–4642. [Google Scholar] [CrossRef]
  45. MISA-Microsatellite Identification Tool. Available online: http://pgrc.ipk-gatersleben.de/misa/ (accessed on 22 April 2024).
  46. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  47. Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics. 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
  48. Darriba, D.; Taboada, G.; Doallo, R. jModelTest 2: More models, new heuristics and parallel computing. Nat. Methods 2015, 9, 772. [Google Scholar] [CrossRef]
  49. Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.; Darling, A.; Hohna, S. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef]
  50. Goulding, S.E.; Olmstead, R.G.; Morden, C.W.; Wolfe, K.H. Ebb and flow of the chloroplast inverted repeat. Mol. Gen. Genet. 1996, 252, 195–206. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, R.J.; Cheng, C.L.; Chang, C.C.; Wu, C.L.; Su, T.M.; Chaw, S.M. Dynamics and evolution of the inverted repeat-large single copy junctions in the chloroplast genomes of monocots. BMC Evol. Biol. 2008, 8, 36. [Google Scholar] [CrossRef] [PubMed]
  52. Kwon, E.C.; Kim, J.H.; Kim, N.S. Comprehensive genomic analyses with 115 plastomes from algae to seed plants: Structure, gene contents, GC contents, and introns. Genes. Genom. 2020, 42, 553–570. [Google Scholar] [CrossRef] [PubMed]
  53. Wu, C.-S.; Chen, C.-I.; Chaw, S.-M. Plastid phylogenomics and plastome evolution in the morning glory family (Convolvulaceae). Front. Plant Sci. 2022, 13, 1061174. [Google Scholar] [CrossRef]
  54. Darshetkar, A.M.; Datar, M.N.; Tamhankar, S.; Li, P.; Choudhary, R.K. Understanding evolution in Poales: Insights from Eriocaulaceae plastome. PLoS ONE 2019, 14, e0221423. [Google Scholar] [CrossRef]
  55. Wallace, R.S.; Cota, J.H. An intron loss in the chloroplast gene rpoC1 supports a monophyletic origin for the subfamily Cactoideae of the Cactaceae. Curr. Genet. 1996, 29, 275–281. [Google Scholar] [CrossRef]
  56. Downie, S.R.; Llanas, E.; Katz-Downie, D.S. Multiple Independent Losses of the rpoCl Intron in Angiosperm chloroplast DNA’s. Syst. Bot. 1996, 21, 135–151. [Google Scholar] [CrossRef]
  57. Wang, X.; Wang, J.; Li, S.; Lu, C.; Sui, N. An overview of RNA splicing and functioning of splicing factors in land plant chloroplasts. RNA Biol. 2022, 19, 897–907. [Google Scholar] [CrossRef]
  58. Zhang, D.; Ren, J.; Jiang, H.; Wanga, V.O.; Dong, X.; Hu, G. Comparative and phylogenetic analysis of the complete chloroplast genomes of six Polygonatum species (Asparagaceae). Sci. Rep. 2023, 13, 7237. [Google Scholar] [CrossRef]
  59. Dong, S.J.; Ying, Z.; Yu, S.; Wang, Q.; Liao, G.; Ge, Y.; Cheng, R. Complete chloroplast genome of Stephania tetrandra (Menispermaceae) from Zhejiang Province: Insights into molecular structures, comparative genome analysis, mutational hotspots and phylogenetic relationships. BMC Genom. 2021, 22, 1. [Google Scholar] [CrossRef]
  60. Kim, K.-R.; Park, S.R.; Park, S.Y.; Kim, H.; Hong, J.M.; Kim, S.-Y.; Yu, J.-N. Complete chloroplast genome determination of Ranunculus sceleratus from Republic of Korea (Ranunculaceae) and comparative chloroplast genomes of the members of the Ranunculus Genus. Genes 2023, 14, 1149. [Google Scholar] [CrossRef]
  61. Kim, S.-C.; Ha, Y.-H.; Park, B.K.; Jang, J.E.; Kang, E.S.; Kim, Y.-S.; Kimspe, T.-H.; Kim, H.-J. Comparative analysis of the complete chloroplast genome of Papaveraceae to identify rearrangements within the Corydalis chloroplast genome. PLoS ONE 2023, 18, e0289625. [Google Scholar] [CrossRef] [PubMed]
  62. Yang, S.; Li, G.; Li, H. Molecular characterizations of genes in chloroplast genomes of the genus Arachis L. (Fabaceae) based on the codon usage divergence. PLoS ONE 2023, 18, e0281843. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, Y.J.; Ma, P.F.; Li, D.Z. High-throughput sequencing of six bamboo chloroplast genomes: Phylogenetic implications for temperate woody bamboos (Poaceae: Bambusoideae). PLoS ONE 2011, 6, e20596. [Google Scholar] [CrossRef]
  64. Dodsworth, S.; Chase, M.W.; Kelley, L.J.; Leitch, I.J.; Macas, J.; Novak, P. Genomic repeat abundances contain phylogenetic signal. Syst. Biol. 2014, 64, 112–126. [Google Scholar] [CrossRef]
  65. Wang, W.C.; Chen, S.Y.; Zhang, X.Z. Chlroplast genome evolution in Actinidiaceae: clpP loss, heterogenous divergence and phylogenomic practice. PLoS ONE 2016, 11, e0162324. [Google Scholar] [CrossRef]
  66. Hirano, R.; Ishii, H.; Than, O.; Gilani, S.A.; Kikuchi, A.; Watanabe, K.N. Propagation management methods have altered the genetic variability of two traditional Mango varieties in Myanmar, as revealed by SSR. Plant Genet. Resour. 2011, C9, 404–410. [Google Scholar] [CrossRef]
  67. Chen, C.X.; Zhou, P.; Choi, Y.A.; Huang, S.; Gmitter, F.G. Mining and characterizing microsatellites from citrus ESTs. Theor. Appl. Genet. 2006, 112, 1248–1257. [Google Scholar] [CrossRef] [PubMed]
  68. Provan, J.; Powell, W.; Hollingsworth, P.M. Chloroplast microsatellites: New tools for studies in plant ecology and evolution. Trends Ecol. Evol. 2001, 16, 142–147. [Google Scholar] [CrossRef]
  69. Jiao, Y.; Jia, H.M.; Li, X.W.; Chai, M.L.; Jia, H.J.; Chen, Z.; Wang, G.Y.; Chai, C.Y.; van de Weg, E.; Gao, Z.S. Development of simple sequence repeat (SSR) markers from a genome survey of Chinese bayberry (Myrica rubra). BMC Genom. 2012, 13, 201. [Google Scholar] [CrossRef]
Genes 15 01399 g001

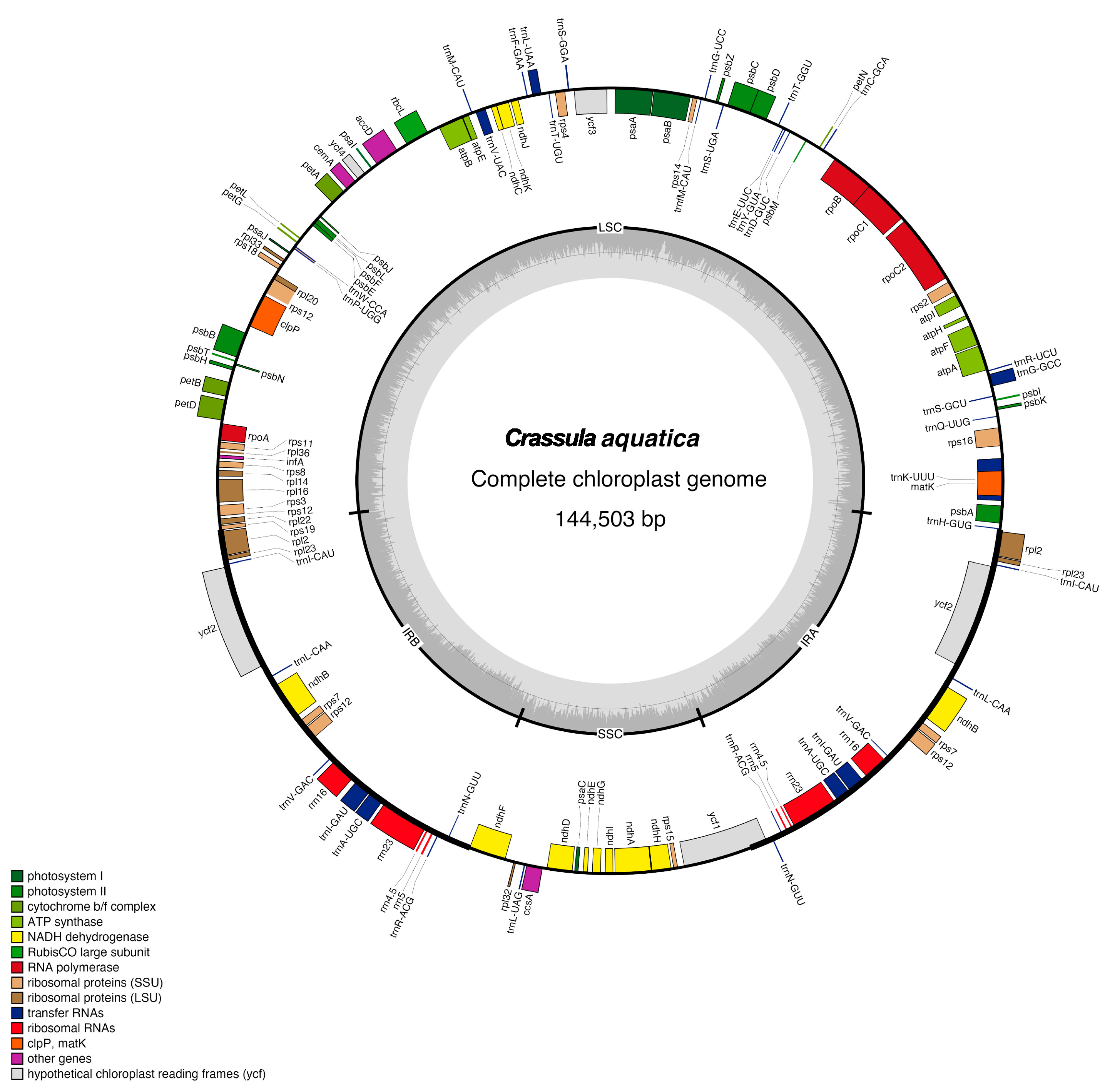

Figure 1. Gene map of the C. aquatica chloroplast genome. Genes inside the circle are transcribed clockwise, and genes outside are transcribed counterclockwise. The dark gray inner circle corresponds to the GC content, and the light gray circle corresponds to the AT content.
Figure 1. Gene map of the C. aquatica chloroplast genome. Genes inside the circle are transcribed clockwise, and genes outside are transcribed counterclockwise. The dark gray inner circle corresponds to the GC content, and the light gray circle corresponds to the AT content.
Genes 15 01399 g001
Genes 15 01399 g002

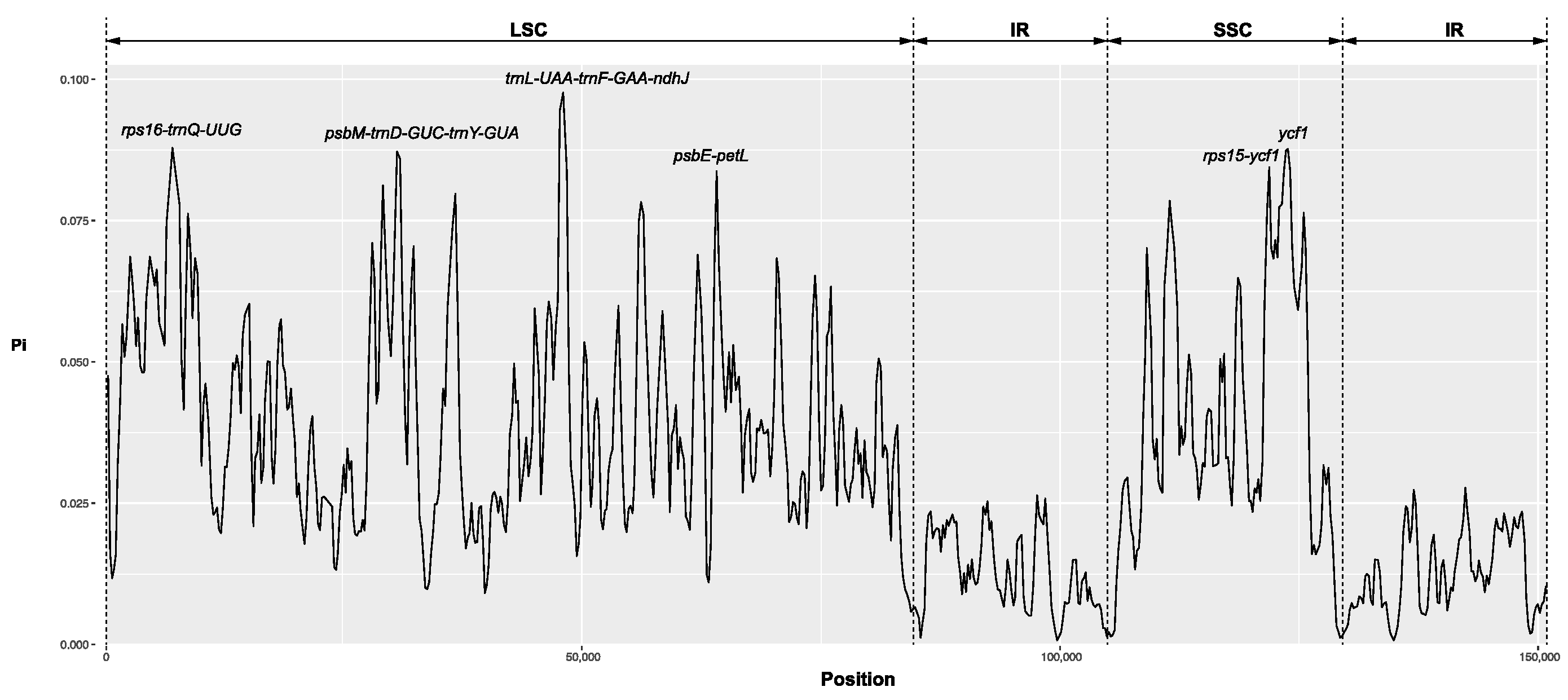

Figure 2. Nucleotide diversity analysis of 14 Crassula chloroplast genomes (window length: 600 bp; step size: 200 bp).
Figure 2. Nucleotide diversity analysis of 14 Crassula chloroplast genomes (window length: 600 bp; step size: 200 bp).
Genes 15 01399 g002
Genes 15 01399 g003

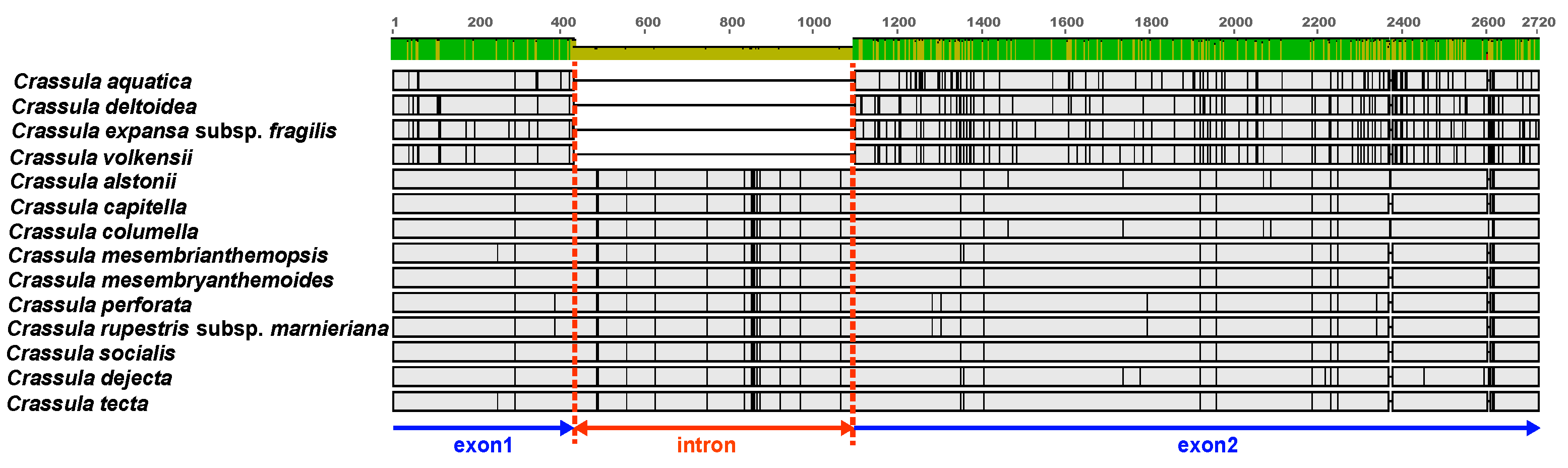

Figure 3. Alignment of the rpoC1 intron loss in Crassula.
Figure 3. Alignment of the rpoC1 intron loss in Crassula.
Genes 15 01399 g003
Genes 15 01399 g004

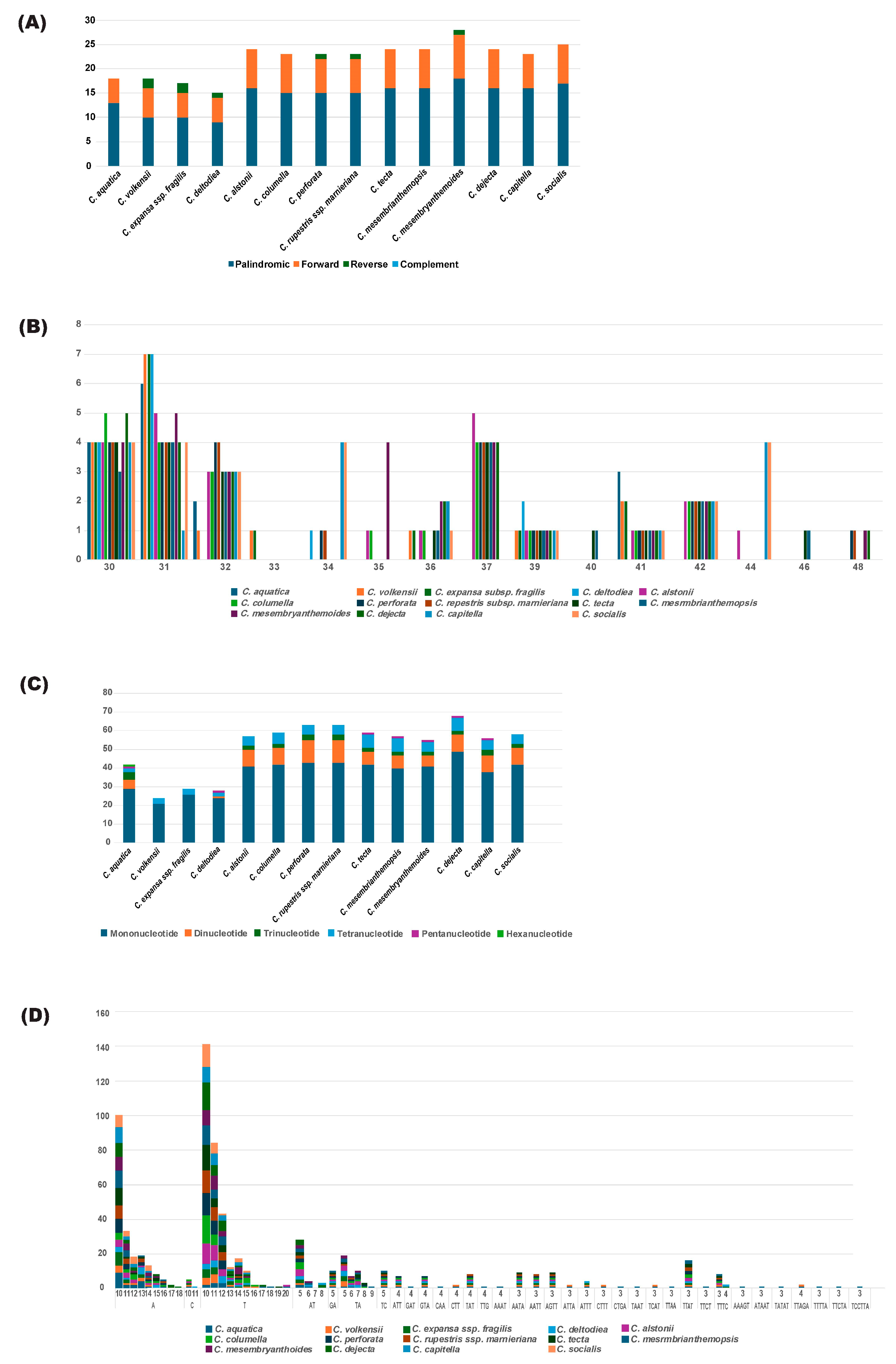

Figure 4. Analyses of repeated sequences in 14 Crassula cp genomes. (A) Distributions of tandem repeat types in Crassula cp genomes. (B) Frequencies of tandem repeat types in Crassula cp genomes. (C) Distributions of SSR motifs in Crassula cp genomes. (D) Frequencies of SSR motifs in Crassula cp genomes.
Figure 4. Analyses of repeated sequences in 14 Crassula cp genomes. (A) Distributions of tandem repeat types in Crassula cp genomes. (B) Frequencies of tandem repeat types in Crassula cp genomes. (C) Distributions of SSR motifs in Crassula cp genomes. (D) Frequencies of SSR motifs in Crassula cp genomes.
Genes 15 01399 g004
Genes 15 01399 g005

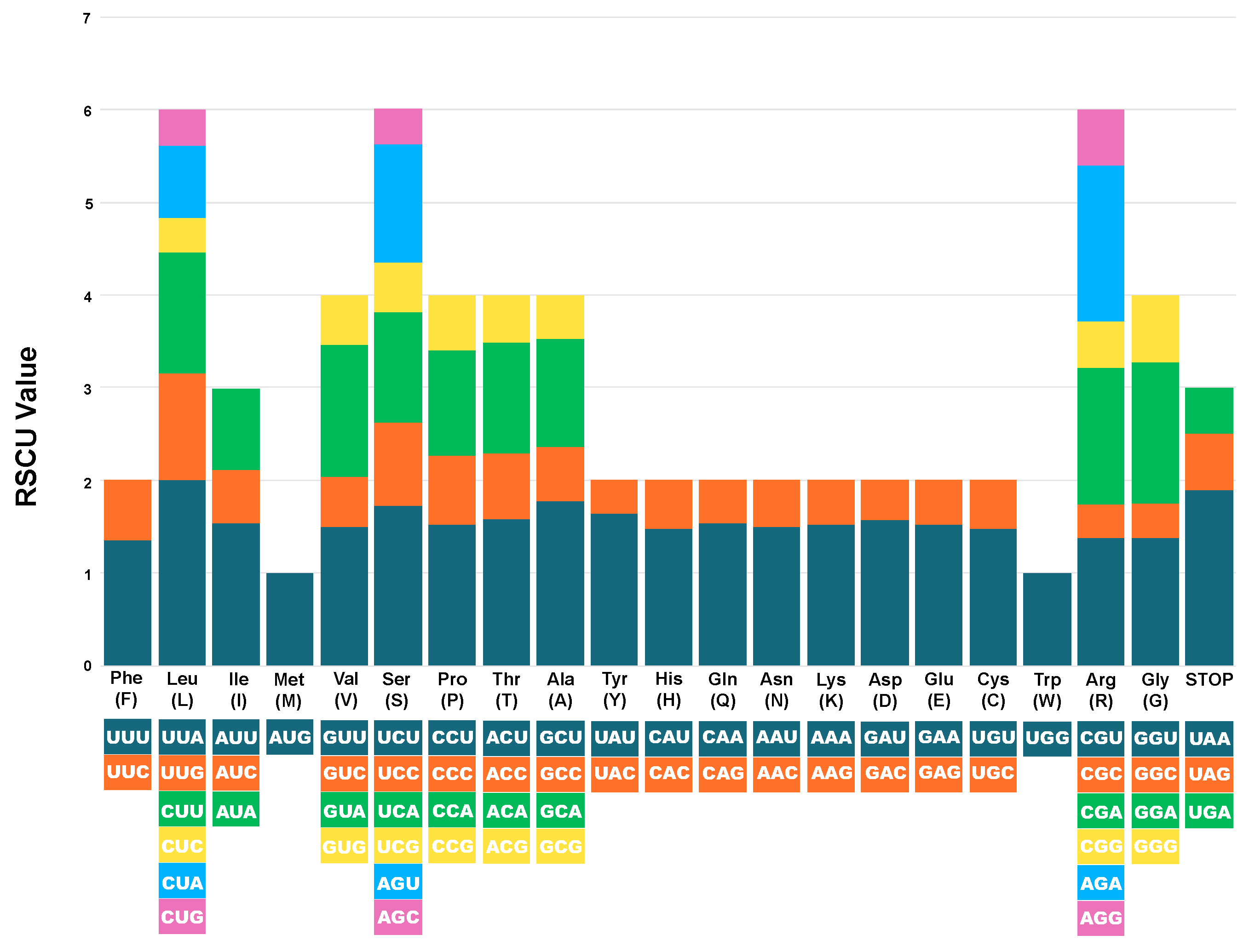

Figure 5. Relative synonymous codon usage (RSCU) values of 20 amino acid and stop codons in all protein-coding genes of the chloroplast genome of C. aquatica.
Figure 5. Relative synonymous codon usage (RSCU) values of 20 amino acid and stop codons in all protein-coding genes of the chloroplast genome of C. aquatica.
Genes 15 01399 g005
Genes 15 01399 g006
Figure 6. The phylogenetic tree reconstruction of 39 Crassulaceae taxa maximum likelihood based on the concatenated sequence of 78 PCGs. Numbers above the branches indicate bootstrap values and posterior probabilities.
Figure 6. The phylogenetic tree reconstruction of 39 Crassulaceae taxa maximum likelihood based on the concatenated sequence of 78 PCGs. Numbers above the branches indicate bootstrap values and posterior probabilities.
Genes 15 01399 g006
