RNAseq-Based Working Model for Transcriptional Regulation of Crosstalk between Simultaneous Abiotic UV-B and Biotic Stresses in Plants

by
Zheng Zhou
1,
Alex Windhorst
2,
Dirk Schenke
1,* and
Daguang Cai
1
1
Department of Molecular Phytopathology and Biotechnology, Institute of Phytopathology, Christian-Albrechts-Universität zu Kiel, 24118 Kiel, Germany
2
Plant Breeding Methodology, Georg-August-University Göttingen, 37073 Göttingen, Germany
*
Author to whom correspondence should be addressed.
Genes 2023, 14(2), 240; https://doi.org/10.3390/genes14020240
Submission received: 19 December 2022 / Revised: 10 January 2023 / Accepted: 14 January 2023 / Published: 17 January 2023
(This article belongs to the Special Issue Genetics of Biotic and Abiotic Stress Response in Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
Plants adjust their secondary metabolism by altering the expression of corresponding genes to cope with both abiotic and biotic stresses. In the case of UV-B radiation, plants produce protective flavonoids; however, this reaction is impeded during pattern-triggered immunity (PTI) induced by pathogens. Pathogen attack can be mimicked by the application of microbial associated molecular patterns (e.g., flg22) to study crosstalk between PTI and UV-B-induced signaling pathways. Switching from Arabidopsis cell cultures to in planta studies, we analyzed whole transcriptome changes to gain a deeper insight into crosstalk regulation. We performed a comparative transcriptomic analysis by RNAseq with four distinct mRNA libraries and identified 10778, 13620, and 11294 genes, which were differentially expressed after flg22, UV-B, and stress co-treatment, respectively. Focusing on genes being either co-regulated with the UV-B inducible marker gene chalcone synthase CHS or the flg22 inducible marker gene FRK1 identified a large set of transcription factors from diverse families, such as MYB, WRKY, or NAC. These data provide a global view of transcriptomic reprogramming during this crosstalk and constitute a valuable dataset for further deciphering the underlying regulatory mechanism(s), which appear to be much more complex than previously anticipated. The possible involvement of MBW complexes in this context is discussed.

1. Introduction

Plants respond to environmental cues with a plethora of induced defense reactions involving changes in secondary metabolite composition. In light of increased stress situations due to climate change, it is anticipated that combinations of abiotic and biotic stresses will pose a challenge to agricultural production. Therefore, it is important to understand the underlying molecular mechanisms of how plants perceive stress and integrate different stress signals in order to launch an appropriate defense to ensure survival. Revealing these mechanisms will allow the identification of suitable breeding targets to create stress-resilient crops. UV-B is a well-known inducer of flavonoid production. It is known for many years that this reaction is reliably suppressed during various plant-pathogen interactions. Infection can be mimicked by the elicitation with highly conserved elicitors, which are now termed microbial associated molecular patterns (MAMPs) [1]. This very stable crosstalk can be observed in many plant species and is therefore ideal to study mechanisms on how plants integrate different stress signals [2].
Plants exposed to both UV-B and pathogens/elicitors react with the suppression of UV-B-induced genes being involved in flavonol production, regardless if MAMPs are applied concomitantly or after the onset of UV-B radiation [3,4,5,6]. The binding of MAMPs to the receptor elicits the natural pathogen defense response of plants to pathogens termed pattern-triggered immunity (PTI). One MAMP which can be artificially synthesized is the proteinaceous flg22, a 22 amino acid peptide derived from the bacterial flagellin, which binds to the pattern recognition receptor FLS2 [7]. The key enzyme of the flavonol-branch of the phenylpropanoid pathway (PP) is the chalcone synthase (CHS) constituting the entry point for flavonol and subsequent anthocyanin production [8,9] being strongly UV-B up-regulated and suppressed during PTI [5,6,10], and a perfect marker gene to investigate this crosstalk. The advantage lies in the re-distribution of resources and metabolic flow into other branches of the PP leading to the production of lignin and the coumarin phytoalexin scopoletin, components for a strong pathogen defense reaction [5]. In addition, PTI induced by flg22 goes along with strong up-regulation of FRK1, senescence, and flg22-induced receptor-like kinase, which can serve as a marker gene for successful plant treatment with this MAMP [11].
Plants require special protection against UV-B radiation because of their sessile nature and dependency on light. Strong UV-B radiation can damage membranes and organelles within the cell as well as DNA within the nucleus. The effect of UV-B radiation varies with the intensity and duration of irradiation and can directly or indirectly affect basic plant metabolic processes, such as respiration, photosynthesis, growth, and reproduction. At low doses as used in this study, UV-B light typically activates UV-B photoreceptor UV RESISTANCE LOCUS 8 (UVR8) [12], which will lead to a diversity of changes, such as the alternation of flowering time, reduction of hypocotyl growth, and biosynthesis of protective flavonoid metabolites [13]. In its inactive state, UVR8 forms a homodimer, which monomerizes upon UV-B perception and then translocates from the cytosol into the nucleus to interact with the E3 ubiquitin ligase COP1 [14], that is however regulated by white light [15]. In the nucleus UVR8-COP1 complex formation involves SPA1 (SUPPRESSOR OF PHY A-105 1) and this can stabilize the bZIP transcription factor (TF) HY5 by preventing its degradation [14]. HY5 is a master-regulator of the photomorphogenic UV-B responses, including the production of flavonoids [16,17]. A significant suppression of several structural genes in flavonoid biosynthesis was observed at 6 h, while at 3h the suppressing effect of flg22 was only visible by tendency, and later at 24h the effect was declining [5]. The regulation of gene expression within this crosstalk involves chromatin remodeling by preventing acetylation of histone 3 lysine residue #9 (H3K9) at the flavonol pathway gene (FPG) loci (such as CHS) in presence of flg22 [18]. H3K9 acetylation is a hallmark of gene activation and was affected at both the promoter and coding region of the MYB TF MYB12, a positive regulator of the CHS. Other MYB TFs were found to be differentially regulated in the context of this crosstalk with functional redundancy. For example, MYB11, 12, and 111 are positive regulators of the flavonoid pathway [19] and all are co-regulated with the marker gene CHS being UV-B inducible and suppressed by flg22. MYB4 and its close relatives MYB7 and MYB32 are negative regulators [20]. The MYB4 gene was induced earlier by flg22 than by UV-B, suggesting its functional involvement in the PTI-mediated suppression of the UV-B-induced expression of FPGs [5]. Many MYBs proved to be targeted by microRNAs (miRNAs), a typical feature of TF regulation, whose expression requires frequent control by feedback circuits [21]. Moreover, MBW complexes contain MYB and basic-helix-loop-helix (bHLH) TFs as well as WD40 proteins, and proved to be implicated in the regulation of anthocyanin production [22]. All FPGs contain MYB-responsive cis-elements (MREs) and adjacent G-box-like sequences in their promoters [5]. In Arabidopsis and rice, the G-box binds both bZIP and bHLH TFs [23,24]. It has been assumed by Liu et al. [9] that at least some “early genes” (e.g., the CHS) required for flavonoid biosynthesis might be regulated by MBW complexes.
The crosstalk as well as the postulated model merely relied on studies of in vitro Arabidopsis cell culture systems [5]. The successful establishment of a seedling-based model system [6] allowed us to investigate this crosstalk for the first time also in planta. Thus, we deployed an RNAseq experiment to gain insights into transcriptomic response in Arabidopsis and report here the identification and analysis of several TF genes, which are differentially regulated by flg22 and UV-B treatment. The large number of candidate TFs suggests different regulatory layers are implicated in this crosstalk. The results support on the one hand, our previously postulated working model, and on the other hand, demonstrate that the underlying mechanism(s) are much more complex than previously anticipated. For example, bHLH/bZIP and WD40 proteins were identified as potential interactors of the MYB TFs involved in the crosstalk. In addition, this work constitutes a valuable dataset to elucidate the molecular mechanisms underlying plant adaption to different environmental cues of biotic and abiotic origin.

2. Materials and Methods

2.1. Plant Treatment

Col-0 (WT) seedlings of Arabidopsis thaliana were grown on Jiffies (Jiffy-7 Peat Pellets, Jiffy Products International AS), as nine plants per Jiffy. After sowing, the seeds were placed in darkness for three days at 4 °C before being transferred to short-day conditions (8 h light, 22 °C) as previously described [6]. Five-week-old seedlings were evenly sprayed with 1 mM flg22 solution or water as a mock control. To let the effects of flg22 treatment develop, the sprayed plants were incubated for one hour in darkness and were then exposed to UV-B or VIS-light as a control for four hours. A 3 mm thick glass plate was used to constrict the UV-B radiation emitted by two broadband UV-B lamps (Philips TL 20W/12 RS) with an emission spectrum from 290 to 315 nm, as described by Rizzini et al. [12] and two PROTEC.CLASS lamps (PLSL 18W/21) for concomitant white light supply (12.69 m2 s−1) to a natural level which is sufficient to induce photomorphogenic UV-B response (0.53 µmol m2 s−1), while the control plants exposed only to VIS light were shielded with two additional layers of polyester plastic foil (Folanorm SF/AS 0.13 mm, Folex GmbH). In total three independent biological replicates were investigated consisting each of four distinct treatments: Water/VIS-light control (C), flg22 treatment/VIS-light (F), water/UV-B treatment (U), and the flg22/UV-B co-treatment (F/U).

2.2. Harvest and Total RNA Isolation

Immediately after the treatment, plant material was harvested and flash-frozen in liquid nitrogen for long-term storage at −80 °C. For RNA isolation the samples were homogenized with pestles in 1.5 mL tubes, placed in liquid nitrogen and total RNA was isolated by the TRIzol method. For this 1 mL of TRIzol (Invitrogen, Thermo Fisher Scientific, Waltham, MA, USA) reagent was added to each sample, it was vortexed, and incubated for 5 min at room temperature. After adding 200 µL of chloroform, vigorously vortexing, and incubation for 5 min at room temperature, the samples were centrifuged with an Eppendorf centrifuge (5417R) at 12,000 rpm for 15 min at 4 °C. The supernatant was transferred into an RNase-free 1.5 mL tube. The same volume of isopropanol (stored at −20 °C) was added and incubated for 30 min at 4 °C. Thereafter, samples were centrifuged at 12,000 rpm for 15 min at 4°C and the supernatant was discarded. The pellet was washed twice, first with 1 mL of 80 % DEPC-EtOH and then with 500 µL of 100 % EtOH. Each washing was followed by a centrifugation step at 12,000 rpm for 5 min at 4 °C and the supernatant was discarded, respectively. The pellet was dried and dissolved in 30 µL DEPC-water before being stored at −20 °C. The RNA quality and concentration were checked by agarose gel electrophoresis and with a NanoDrop (NanoVue, Biochrom) measurement, respectively. Electrophoresis was carried out using 1% agarose gels running at 100 V for 30 min.

2.3. cDNA Synthesis and RT-qPCR Analysis

cDNA was reversely transcribed in 20 µL volume, using the RevertAid First Strand cDNA Synthesis Kit (Thermo Fisher Scientific) according to the suppliers’ instructions with 1 µg of total RNA treated with RNase-free DNaseI (Thermo Fisher Scientific). The cDNA quality was checked by semiquantitative PCR with gene-specific primers for the reference gene ACTIN 2 (ACT2). For RT-qPCR 1 µL of cDNA was added to a 9 µL master mix consisting of a primer and SYBR green (qPCRBIO SyGreen Mix; NIPPON Genetics Europe), and qPCR was performed to analyse target gene expression relative to ACT2 as a reference with primers described in Table S1. The fold change in gene expression analysis was calculated with the 2-∆∆Ct method [25] and multiple comparisons of statistical significance were performed by two-way ANOVA using the Minitab software [26].

2.4. RNAseq Analysis

In order to identify genes putatively involved in crosstalk between abiotic UV-B and biotic stress mimicked by flg22, Illumina sequencing was carried out twice with pooled RNA from three independent biological replicates comprising each the four treatments C, F, U, and F/U was carried out by Novogene Co. Ltd. (Hongkong, China). Raw reads were processed by Novogene and FPKM (Fragments Per Kilobase Million) values were used to calculate the expression level. Missing FPKM values were substituted for each gene by a default value of 0.001 when at least one FPKM value was detected in one of the four treatments (Table S2). A weak effect of UV-B on gene expression was expected in this study since it is based on whole seedlings, not specific tissue. While leaves were directly exposed to UV-B-containing light, the roots did not receive any UV-B radiation. Furthermore, genes such as transcription factors are temporally and spatially expressed at low levels [27,28]. For these reasons, differentially expressed genes (DEGs) were calculated by applying the conventional log2 threshold of ≥1 or ≤−1 for flg22 single and co-treatments, while the log2-threshold of UV-B regulated genes was lowered to ± 0.2 in order to increase the number of these DEGs for analysis. Genes of the phenylpropanoid pathway were subjected to hierarchical clustering by using the ggplot2 package (version 3.2.1.) [29] in R [30] according to the log2 values presented in Table S3.

2.5. Meta-Analysis

To further evaluate the quality of the selected TF genes, 25 candidates of each subset (CHS-group and FRK1-group) were subjected together with the respective marker genes to a GENEVESTIGATOR meta-analysis with the perturbation and biclustering tools [31]. All candidate TFs were analyzed additionally by an ATTED-II co-expression [32]. The log2-values from genes presented were compared to public transcriptomic data using the GENEVESTIGATOR platform and data sets AT-00107-4 (4 h), AT-00253-2 (3 h), and AT-00391-11 (2 h) were chosen for comparison with our flg22 single treatment. Though there were several other UV-B treatment experiments accessible, most dealt with plants grown on Murashige-Skoog (MS) medium supplemented with sucrose and might be therefore biased concerning FPG regulation. Thus, the comparison of our UV-B expression data with the public AT-00109-5 (UVAB treatment) and AT-00616-7 (low UV-B, but on MS) data sets is rather limited.

3. Results

3.1. RNAseq Data Reveals Transcriptomic Reprogramming in Plants by flg22 and UV-B as Well as Their Crosstalk/Interaction

To investigate the transcriptomic changes in response to flg22 treatment and UV-B irradiation-induced responses as well as their crosstalk/interaction, four treatments were conducted as described in M&M. In addition to a control (C), Arabidopsis seedlings were sprayed with 1 mM flg22 (F), exposed to UV-B (U), or co-treated with flg22 and UV-B (F/U). The pooled RNAs from each treatment were subjected to RNAseq to identify genes potentially involved in this crosstalk. A total of 24002 expressed genes were identified, however, 261 genes, which had an FPKM only in the control sample, were excluded from the analysis, leaving 23741 genes for DEG analysis (Table S2). By comparative analysis, 10778, 13620, and 11294 DEGs were identified from flg22, UV-B, and F/U libraries, respectively (Figure 1A). There were more genes down-regulated than induced in all three treatments. In this study, we focused specifically on antagonistically regulated DEGs being co-regulated either with the CHS (CHS-group, being UV-B induced and suppressed by flg22) or reciprocally being co-regulated with the FRK1 marker gene (FRK1-group, being flg22 induced and down-regulated by UV-B). From 7672 DEGs (Table S2), 1915 and 1351 candidate DEGs were identified from CHS-group and FRK1-group, respectively (Figure 1B,C, Figure S1 and Table S2).

3.2. RNAseq Data Support Our Previously Postulated Working Model

Based on a KEGG enrichment analysis of DEGs from CHS-group and FRK1-group, there are several indications that the phenylpropanoid pathway (ath00940), including flavonoid biosynthesis (ath00941) and anthocyanin biosynthesis (ath00942), displays major changes in this crosstalk (Table S4). Therefore, the hierarchical clustering of the relative gene expression (log2-fold change) of 45 DEGs encoding structural genes of the phenylpropanoid pathway was investigated in the context of this crosstalk. Generally, genes in Cluster I are suppressed by F or the co-treatment F/U and mostly up-regulated by UV-B (such as the marker gene CHS), while Cluster II genes are up-regulated by F or F/U, but negatively affected by UV-B treatment (such as the FRK1 marker gene). The result is consistent with previous qPCR data from Arabidopsis cell cultures and Arabidopsis meta-data [5] (Figure 1D and Table S3), demonstrating that flavonol biosynthesis pathway genes (FPGs) are generally suppressed by single F or F/U co-treatment in Arabidopsis plants. In addition, anthocyanidin biosynthetic-related genes LDOX/ANS and DFR showed a similar expression pattern as the FPGs. Here, the crosstalk marker gene CHS displayed the strongest induction by UV-B (log2 = 2.41), but three FPGs were found within Cluster II (FFT, CHI, and UGT78D2), while the 4CL3 was not detected in this data set. Instead, several lignin pathway genes (LPGs), such as CAD2/3/6/7/9, LAC17, and F5H2 were assigned to Cluster I being suppressed by all three treatments. The only general phenylpropanoid pathway gene (GPP) found in Cluster I is the PAL3 (phenylalanine ammonialyase), being indicative of metabolite channeling established during evolution by gene duplication [33]. The Arabidopsis single copy gene C4H (cinnamate-4-hydroxylase) and the remaining isoforms of PAL (PAL1/2/4) and 4CL (4CL1/2/5) [34] were much stronger induced by F and F/U than by UV-B, indicating distinct function from UV-protection and cluster together with the remaining genes involved in coumarin/scopoletin and/or lignin biosynthesis. CCoAOMT6, CAD1, CAD8, and FRK1 are a few examples of genes that were strongly induced by both F and F/U but were slightly suppressed by UV-B radiation. In conclusion, RNAseq analysis revealed two distinct expression patterns, which separate FPGs and anthocyanin biosynthesis-related genes (APGs) that are involved e.g., in the production of UV-protective metabolites (Cluster I) from other branches of the phenylpropanoid pathway, which are important for pathogen defense such as lignin and phytoalexin biosynthesis (Cluster II).

3.3. New TFs Being Potentially Involved in This Crosstalk

In the next steps, we focused on our analysis of conversely regulated genes for TFs by the UV-B irradiation and by the flg22 treatment, respectively. In Table S2, two major groups were defined from the DEG list based upon their co-regulation with the marker gene CHS (genes being UV-B up and down-regulated by both F and F/U) and with the PTI marker gene FRK1 (genes being UV-B suppressed and up-regulated by F as well as F/U). In total, 112 and 107 TFs were identified for the CHS-group and FRK1-group, respectively (Table 1). From our previous study, several common cis-elements found in the promoters of the FPGs have been expected to be involved in transcriptional regulation of this crosstalk, comprising e.g., the MRE-box (ACCTACC bound by MYB TFs), ACE-box (CACGTg bound by bHLH or bZIP TFs), W-box (TTGACc bound by WRKY TFs) and the FORCA cis-element (tTGGGC potentially targeted by NAC TFs). Therefore, the corresponding TFs were sought from the DEGs (Table 1 and Table S2).
As a result, 40 candidate TFs and WD40 proteins were found to display consistent regulatory patterns, 20 candidate TFs being co-regulated with the CHS (UV-B up-regulation and suppression by flg22) were presented in Table 2A, while the other 20 candidates are co-regulated with the FRK1 (flg22 up-regulation and suppression by UV-B) were presented in Table 2B. These genes were compared to public transcriptomic data or biclustering using the GENEVESTIGATOR platform as shown in Supplementary Figures S2 and S3, and Table S5, or the ATTED-II platform as shown in Supplementary Figure S4 (CHS-group) and Figure S5 (FRK1-group). The potential links among the candidates are indicated in Table 2 (“linkage” column) based on the biclustering analysis (Figure S3) or putative regulatory hubs (Figures S4 and S5). The expression of these 40 candidates was further compared to experiments from public data sets accessed through GENEVESTIGATOR (Table S5) showing in most cases similar tendencies.

3.4. Transcript Analysis of Selected Candidate Genes by RT-qPCR

To validate the RNAseq data, 6 random genes from Table 2A and Table 2B, respectively, together with the crosstalk marker genes FRK1 and CHS, and several PTI-associated genes, such as structural genes for defense metabolite production (F6H1, CCR2, HCT, and CCoAOMT6), signaling components (BAK1, an integral part of flg22-sensing receptor complexes, MPK3 and MPK4), as well as PDF1.2, a plant defensin commonly used as a marker gene for jasmonate/ethylene mediated defense pathways were subjected to RT-qPCR analysis. Two known TFs being implicated in this crosstalk, MYB12, a positive regulator, and MYB4, a negative regulator, were also included in the analysis. Transcript analysis by RT-qPCR generally confirmed the RNAseq data. The single flg22 treatment as well as the co-treatment F/U led to a significant induction of FRK1-group genes and a suppression of CHS-group candidates (Figure 2). However, it was not possible to obtain statistically significant data demonstrating a negative effect of UV-B on the expression of flg22 up-regulated genes, most likely because these genes are expressed at a very low level and therefore a further reduction is difficult to observe or because PTI associated signaling components are post-translationally regulated [35], suggesting this crosstalk is predominantly uni-directional.
It is noted, that even though not detected in the RNAseq data, MYB4 (Figure 2L) and MYB12 (Figure 2D) showed a similar expression pattern as reported in our previous studies, implying a limitation of the RNAseq technology applied in this study.

4. Discussion

A transcriptomic approach was applied for identifying genes being involved in the crosstalk between flg22 and UV-B-induced signaling pathways. Both F and F/U treatments had similar strong effects on overall gene expression, while in the samples treated with moderate UV-B much fewer DEGs were detected (Figure 1A), reflecting that the plant response to biotic stress is much stronger and more complex than to abiotic UV-B stress. The expression patterns of several cell structural genes (Figure 1D and Table S3) and TFs (Figure 2 and Table S5), as well as the marker genes CHS and FRK1 in our RNAseq data, are congruent to our previous study, which argues for the high quality of this RNAseq data set.
A subset of DEGs encoding TFs could be classified into two groups, being either up-regulated by UV-B and suppressed by single flg22 or the co-treatment flg22/UV-B (CHS-group) or down-regulated by UV-B and induced by single flg22 or the co-treatment flg22/UV-B (FRK1-group). Forty candidate TFs were chosen for further analysis (Table 2). Interestingly, most of these candidate genes from both groups displayed additional inverse regulation under several other stress treatments (Figure S2), as shown in a biclustering analysis using GENEVESTIGATOR (Figure S3). For instance, while CHS-group genes appear to be predominantly light-regulated (fitting to their strong induction by UV-B/VIS as applied in this study), their suppression was also observed under drought-inducing conditions (Figures S2 and S3B). On the other hand, FRK1-group genes were generally up-regulated in response to biotic stress, but also in response to nitrogen depletion (Figures S2 and S3C).
In general, the genes being flg22-induced could be potential negative regulators of the FPGs, while flg22-suppressed genes might play a positive role in FPG regulation or negatively regulate pathogen defense genes. Thus, the selected candidates have the potential to contribute to this crosstalk.

4.1. Possible Involvement of MBW Complexes

Both positive and negative regulating MYBs are implicated in the regulation of the “late genes” required for anthocyanin biosynthesis as part of MBW complexes, consisting of bHLH TFs and WD40 proteins [9,36]. The fact that several MYB, bHLH, and WD40 candidates were identified implies a possible role of MBW complexes in the FPG regulation as well. This is further supported by the identification of corresponding cis-elements in the promoters of FPGs, as well as promoter deletion studies [5,37]. Three positive regulators of FPGs MYB12, MYB75, and MYB111 are known co-regulators with the CHS (Figure 2A–D). Especially the anthocyanidin positive regulator, MYB75 [19], showed a strong down-regulation in the F and F/U treatments clustering with the CHS (Figure S3A), suggesting the PTI signaling could negatively regulate these TFs to suppress FPG expression.
The Arabidopsis genome contains 133 MYB TFs [38], 162 bHLH TFs [39], and 108 WD40 repeat containing proteins [40], indicating a great potential for functional redundancy in the composition of MBW complexes. To date, TTG1 is the only WD40 protein implicated in flavonoid biosynthesis [41]. The UV-B response depends on upstream components such as UVR8. UVR8 interaction with COP1 is negatively regulated by RUP1 and RUP2 and the latter three proteins all contain WD40-domains as well [42]. It is noted that COP1 was shown to mediate MYB75 degradation in the dark [43]. We speculate that some of the differentially regulated TF candidates might form previously undescribed MBW complexes and function either positively (consisting e.g., of MYB75-SPCH-AT5G53500) or negatively consisting, e.g., of MYB7/MYB32-bHLH78-AT1G64610. MYB4 and the phylogenetically related MYB7, are negative regulators of flavonoid production [44], while MYB32 is a negative regulator of lignin biosynthetic genes [45]. All were found to be co-regulated with the FRK1 (Figure 2I–L). However, other combinations could be deduced from the CHS-group, for example, an MBW complex containing negative regulators such as MYB29 and the bHLH TF UNE10, or one probably involved in trichome development consisting of MYB23, the bHLH TF MYC1, and the WD40 protein FAS2. Thus, it is reasonable to assume that the “early” FPGs are regulated by MBW complexes as suggested by Liu et al. [9] and indicated in Figure 3. Further experiments are needed, e.g., by mutant analysis, to ascertain the role of MBW complexes in crosstalk regulation.

4.2. Function of Genes Co-Regulated with the UV-B-Marker CHS

Two TF genes, MYB23 and ERF38, were identified (Figure S4A), and MYB23 is involved in trichome initiation which is positively regulated by UV-B. In addition to their repelling function towards insects, trichomes are also thought to protect the shaded tissue from UV-B radiation [46,47]. ERF38 is considered a candidate regulator of secondary wall metabolism in cell types that are not reinforced by the typical deposition of lignin but display suberization [48]. While ERF38 has not been linked to trichome development, several other TFs identified in Table 2A are involved in this process (GTL1, MYC1, and the WD40 protein FAS2).
MYB111 was distantly linked to SPCH, MYC1, and HB31 (Figure S4B). The positive regulator MYB111 has already been linked to this crosstalk as capable to activate CHS expression [6,19]. SPCH and MYC1 are both bHLH TFs, with SPCH being involved in stomatal development and indirectly stabilized by HY5-mediated expression of STOMAGEN [49,50]. Its suppression during PTI might be of advantage when reducing potential entry points of pathogens, but there is no link to UV-B-related responses so far.
Figure S4C links bZIP61, bZIP34, GTL1 and HAT1. Both bZIP61 and bZIP34 have been found to form heterodimers with bZIP18 and bZIP52 [51] and bind to the G-Box [52], but all these TFs have not been reported in the regulation of FPG expression before. GTL1, a trihelix TF, acts to interfere with trichome cell differentiation [53] and the trichome branch length [54]. HAT1 might function in a negative feedback mechanism, e.g., via interaction with MYB75, thereby interfering with MBW protein complex formation to stop the expression of the FPGs [55].
We found several interesting candidates, including UNE10, a bHLH TF, and the three Arabidopsis Whirly TFs, which cluster together with MYB29 and MYB75 (Figure S3A). Both MYB29, as well as UNE10, are negative regulators and the latter can inhibit Phytochrome A-mediated far-red light responses [56]. UNE10 is one of three TFs that were stronger induced by UV-B, with an additional attenuating effect on flg22-mediated suppression observed in the co-treatment (Table 2A, together with MYB111 and SPCH). Co-regulation of CHS with the Whirly TFs constitutes another link to chloroplast and mitochondrial retrograde signaling. WHY1 is targeted to the chloroplast, while WHY2 is targeted to the mitochondria [57]. Interestingly, Lepage et al. [58] showed that anthocyanin levels are strongly suppressed in the why1/why3/polIb triple mutant. The suppression of WHY1, WHY2, and WHY3 during elicitor-induced PTI can be deduced (Figure S2). In the why1 mutant, H2O2 and SA were induced earlier during senescence development [59,60], and immunity-related genes such as PR-1 were activated [61]. Thus, the suppression of Whirly TFs found in this study might be important for the integrity of flg22-induced plant immunity.

4.3. Role of Genes Co-Regulated with the PTI-Marker FRK1

The closely related TFs MYB7 and MYB32 are similar to MYB4 transcriptional repressors (Figure S5A) [62], implying an extensive functional redundancy explaining why a single myb4 knock-out mutant has no significant effect on this crosstalk. The anthocyanin repressor MYBL2 [63,64] was only weakly co-regulated with the FRK1. Therefore, it might be interesting to generate and analyze a triple myb4/myb7/myb32 KO mutant to see if transcriptional suppression of FPGs is mediated by these MYBs together.
The bHLH78 TF (AT5G48560) and WRKY9, as well as another bHLH TF (AT1G05710) with unknown functions, and WRKY39, were identified by ATTEDII analysis (Figure S5B,C). WRKY9 and bHLH78 are linked via WRKY36, which is co-regulated with the FRK1 (Table S2). WRKY36 usually acts to suppress HY5 transcription, but in response to UV-B, this TF interacts with UVR8 thereby releasing from the HY5 promoter [65]. WRKY9 is reported to regulate suberin production thereby forming another protective barrier and enhancing salt tolerance [66]. The biclustering analysis identified several negative and positive regulators belonging to the NAC and WRKY TF families (Figure S3). The negative regulators induced during PTI are potentially involved in the suppression of the FPGs, where they could bind to FPG promoters, or alternatively, regulate the TFs forming MBW complexes as indicated in the lower part of Figure 3. However, the negative regulators among them could also suppress the expression of TFs forming positive regulating MBW complexes in the upper part of Figure 3. NAC2 can be induced by salt, abscisic acid (ABA), the ethylene precursor ACC, and the synthetic auxin NAA [67], while NAC003 has been reported to be a negative regulator in vascular stem cell maintenance [68]. Interestingly, NAC053 (NTL4), a positive regulator, functions in regulating drought-induced leaf senescence [69] and programmed cell death under heat stress conditions [70]. NAC053 is furthermore transcriptionally regulated under mitochondrial stress conditions and probably binds to a mitochondrial dysfunction motif (CTTGNNNNNCA[AC]G), the motif TG[TG]CGTA or a Proteasome-Related cis-Element with the consensus core TGGGC [69,71,72], which was described as FORCA Motif that responds to the crosstalk between defense and light signaling and found in all “early FPGs” [5,73]. WRKY6 has been shown to negatively regulate Phosphate1 (Pho1) expression in response to low phosphate (Pi) stress, resulting in increased anthocyanin production [74,75], but also low nitrogen availability can induce flavonoid production [76,77]. Moreover, WRKY75 RNAi plants were also susceptible to Pi stress as indicated by the higher accumulation of anthocyanin during Pi starvation, suggesting that this negative regulator might suppress FPG or APG expression [78].

5. Conclusions

Taken together, our transcriptomic analysis provided further evidence for the impaired production of UV-B protective flavonols and anthocyanins during activated PTI in favor of lignin/scopoletin formation. This report now constitutes a basis for further hypotheses-driven elucidation of the molecular mechanism(s) underlying this crosstalk. Some new hypotheses are summarized in Figure 3 and constitute a valuable dataset and framework for further research. For instance, yeast two-hybrid or split YFP experiments could be applied to verify the interaction between the TFs mentioned in the model. Understanding how plants integrate different environmental cues to adjust their metabolism is critical for improving crop varieties concerning nutritional quality and adaptation to increasing stress conditions caused e.g., by climate change. Whole transcriptome profiling is one possible strategy to identify differentially expressed candidate genes, which could be then manipulated in order to prove their involvement in the plants’ stress response.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14020240/s1, Figure S1: Venn diagrams displaying the number and distribution of DEGs that were up-regulated by UV-B and F/U co-treatment, but down-regulated by flg22 (A), DEGs being up-regulated by flg22, but down-regulated by UV-B and F/U co-treatment (B), DEGs being up-regulated by UV-B and flg22, but down-regulated F/U co-treatment (C), DEGs being down-regulated by UV-B and flg22, but up-regulated by F/U co-treatment (D) as well as DEGs that were up-regulated by all three treatments (E) or down-regulated by all three treatments (F) to indicate all possible stress treatment outcomes. The Asterix in (F) indicates there are 261 additional genes (including 22 TFs), which are expressed only in control (Table S2), suggesting these are all down-regulated by the three treatments. Figure S2: GENEVESTIGATOR meta-analysis of 20 selected TF genes being either co-regulated with the marker gene CHS (UV-B induced and flg22 down-regulated) or with the FRK1 (UV-B suppressed and flg22 up-regulated). Figure S3: GENEVESTIGATOR biclustering analysis to detect other treatments potentially influencing this crosstalk. Figure S4: Meta-analysis to detect putative regulatory networks among selected candidates from the CHS-group (I). Three regulatory “hubs” were identified by ATTED-II and named 1A to 1C. Candidate genes from Tab 2A are indicated in yellow. Figure S5: Meta-analysis to detect putative regulatory networks among selected candidates from the FRK1-group (II). Three regulatory “hubs” were identified by ATTED-II and named 2A to 2C. Candidate genes from Tab 2B are indicated in yellow. Table S1: Primers used for gene-specific expression analysis by RT-qPCR. Table S2: RNAseq data, including tables with DEGs being co-regulated either with CHS (flg22 suppressed, but UV-B up-regulated) or with FRK1 (flg22 induced, but UV-B suppressed) as well as under the other 6 possible stress outcomes. Table S3: Log2 values for structural genes of the Phenylpropanoid Pathway analyzed in Figure 1D. Table S4: KEGG classification of CHS- and FRK1-group RNAseq-reads. Table S5: Comparison of log2 values from UV-B and flg22 single treatments with public expression data. The upper 20 genes (CHS-group) correspond to Table 2A, while the lower 20 genes (FRK1-group) correspond to Table 2B.

Author Contributions

Conceptualization, D.C.; validation, Z.Z. and A.W.; writing—original draft preparation, Z.Z., A.W. and D.S.; writing—review and editing, D.S. and Z.Z.; supervision, D.S. and D.C.; project administration, D.C.; funding acquisition, D.C. All authors have read and agreed to the published version of the manuscript.

Funding

This study is funded by Bundesministerium für Bildung und Forschung (BMBF), grant number 031B0910A, and Bundesministeriums für Ernährung und Landwirtschaft (BLE), grant number 2820HS012, as well as Zheng Zhou was funded by Chinese Scholarship Council (CSC).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data reported in this paper have been deposited in the National Center for Biotechnology Information Sequence Read Archive (NCBI SRA) Gene Expression Omnibus (GEO) database, https://www.ncbi.nlm.nih.gov/geo (accessible on 16 August 2021) (BioProject ID: PRJNA755194).

Acknowledgments

We acknowledge financial support by DFG within the funding program Open Access Publikationskosten.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boller, T.; Felix, G. A renaissance of elicitors: Perception of microbe-associated molecular patterns and danger signals by pattern-recognition receptors. Annu. Rev. Plant Biol. 2009, 60, 379–406. [Google Scholar] [CrossRef] [PubMed]
  2. Schenke, D.; Utami, H.P.; Zhou, Z.; Gallegos, M.T.; Cai, D. Suppression of UV-B stress induced flavonoids by biotic stress: Is there reciprocal crosstalk? Plant Physiol. Biochem. 2019, 134, 53–63. [Google Scholar] [CrossRef] [PubMed]
  3. Lozoya, E.; Block, A.; Lois, R.; Hahlbrock, K.; Scheel, D. Transcriptional repression of light-induced flavanoid synthesis by elicitor treatment of cultured parsley cells. Plant J. 1991, 1, 227–234. [Google Scholar] [CrossRef]
  4. Gläßgen, W.E.; Rose, A.; Madlung, J.; Koch, W.; Gleitz, J.; Seitz, H.U. Regulation of enzymes involved in anthocyanin biosynthesis in carrot cell cultures in response to treatment with ultraviolet light and fungal elicitors. Planta 1998, 204, 490–498. [Google Scholar] [CrossRef]
  5. Schenke, D.; Böttcher, C.; Scheel, D. Crosstalk between abiotic UV-B stress and biotic (flg22) stress signaling in Arabidopsis prevents flavonol accumulation in favor of pathogen defense compound production. Plant Cell Environ. 2011, 34, 1849–1864. [Google Scholar] [CrossRef]
  6. Zhou, Z.; Schenke, D.; Miao, Y.; Cai, D. Investigation of the crosstalk between the flg22 and the UV-B-induced flavonol pathway in Arabidopsis thaliana seedlings. Plant Cell Environ 2017, 40, 453–458. [Google Scholar] [CrossRef]
  7. Gómez-Gómez, L.; Boller, T. FLS2: An LRR receptor-like kinase involved in the perception of the bacterial elicitor flagellin in Arabidopsis. Mol. Cell 2000, 5, 1003–1011. [Google Scholar] [CrossRef]
  8. Falcone Ferreyra, M.L.; Rius, S.P.; Casati, P. Flavonoids: Biosynthesis, biological functions, and biotechnological applications. Front. Plant Sci. 2012, 3, 222. [Google Scholar] [CrossRef] [Green Version]
  9. Liu, Y.; Tikunov, Y.; Schouten, R.E.; Marcelis, L.; Visser, R.; Bovy, A. Anthocyanin Biosynthesis and Degradation Mechanisms in Solanaceous Vegetables: A Review. Front. Chem. 2018, 6, 52. [Google Scholar] [CrossRef]
  10. Vargas, P.; Farias, G.A.; Nogales, J.; Prada, H.; Carvajal, V.; Barón, M.; Rivilla, R.; Martín, M.; Olmedilla, A.; Gallegos, M.T. Plant flavonoids target Pseudomonas syringae pv. tomato DC3000 flagella and type III secretion system. Environ. Microbiol. Rep. 2013, 5, 841–850. [Google Scholar] [CrossRef]
  11. Asai, T.; Tena, G.; Plotnikova, J.; Willmann, M.R.; Chiu, W.L.; Gomez-Gomez, L.; Boller, T.; Ausubel, F.M.; Sheen, J. MAP kinase signalling cascade in Arabidopsis innate immunity. Nature 2002, 415, 977–983. [Google Scholar] [CrossRef] [PubMed]
  12. Rizzini, L.; Favory, J.J.; Cloix, C.; Faggionato, D.; O’Hara, A.; Kaiserli, E.; Baumeister, R.; Schäfer, E.; Nagy, F.; Jenkins, G.I.; et al. Perception of UV-B by the Arabidopsis UVR8 protein. Science 2011, 332, 103–106. [Google Scholar] [CrossRef] [Green Version]
  13. Meyer, P.; Van de Poel, B.; De Coninck, B. UV-B light and its application potential to reduce disease and pest incidence in crops. Hortic. Res. 2021, 8, 194. [Google Scholar] [CrossRef] [PubMed]
  14. Jenkins, G.I. The UV-B Photoreceptor UVR8: From Structure to Physiology. Plant Cell 2014, 26, 21–37. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Heijde, M.; Ulm, R. UV-B photoreceptor-mediated signalling in plants. Trends Plant Sci. 2012, 7, 230–237. [Google Scholar] [CrossRef] [PubMed]
  16. Stracke, R.; Favory, J.J.; Gruber, H.; Bartelniewoehner, L.; Bartels, S.; Binkert, M.; Funk, M.; Weisshaar, B.; Ulm, R. The Arabidopsis bZIP transcription factor HY5 regulates expression of the PFG1/MYB12 gene in response to light and ultraviolet-B radiation. Plant Cell Environ. 2010, 33, 88–103. [Google Scholar] [CrossRef] [PubMed]
  17. Xiao, Y.; Chu, L.; Zhang, Y.; Bian, Y.; Xiao, J.; Xu, D. HY5: A Pivotal Regulator of Light-Dependent Development in Higher Plants. Front. Plant Sci. 2022, 12, 800989. [Google Scholar] [CrossRef]
  18. Schenke, D.; Cai, D.; Scheel, D. Suppression of UV-B stress responses by flg22 is regulated at the chromatin level via histone modification. Plant Cell Environ. 2014, 37, 1716–1721. [Google Scholar] [CrossRef] [Green Version]
  19. Stracke, R.; Ishihara, H.; Huep, G.; Barsch, A.; Mehrtens, F.; Niehaus, K.; Weisshaar, B. Differential regulation of closely related R2R3-MYB transcription factors controls flavonol accumulation in different parts of the Arabidopsis thaliana seedling. Plant J. 2007, 50, 660–677. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, X.C.; Wu, J.; Guan, M.L.; Zhao, C.H.; Geng, P.; Zhao, Q. Arabidopsis MYB4 plays dual roles in flavonoid biosynthesis. Plant J. 2020, 101, 637–652. [Google Scholar] [CrossRef]
  21. Megraw, M.; Cumbie, J.S.; Ivanchenko, M.G.; Filichkin, S.A. Small genetic circuits and microRNAs: Big players in polymerase II transcriptional control in plants. Plant Cell 2016, 28, 286–303. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Chaves-Silva, S.; Santos, A.; Chalfun-Júnior, A.; Zhao, J.; Peres, L.; Benedito, V.A. Understanding the genetic regulation of anthocyanin biosynthesis in plants—Tools for breeding purple varieties of fruits and vegetables. Phytochemistry 2018, 153, 11–27. [Google Scholar] [CrossRef] [PubMed]
  23. Ezer, D.; Shepherd, S.; Brestovitsky, A.; Dickinson, P.; Cortijo, S.; Charoensawan, V.; Box, M.S.; Biswas, S.; Jaeger, K.E.; Wigge, P.A. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol. 2017, 175, 628–640. [Google Scholar] [CrossRef] [Green Version]
  24. Liu, L.; Xu, W.; Hu, X.; Liu, H.; Lin, Y. W-box and G-box elements play important roles in early senescence of rice flag leaf. Sci. Rep. 2016, 6, 20881. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  26. MINITAB LLC. Minitab. 2021. Pennsylvania, USA. Available online: https://www.minitab.com (accessed on 13 January 2023).
  27. Czechowski, T.; Bari, R.P.; Stitt, M.; Scheible, W.R.; Udvardi, M.K. Real-time RT-PCR profiling of over 1400 Arabidopsis transcription factors: Unprecedented sensitivity reveals novel root- and shoot-specific genes. Plant J. 2004, 38, 366–379. [Google Scholar] [CrossRef]
  28. El Yahyaoui, F.; Küster, H.; Ben Amor, B.; Hohnjec, N.; Pühler, A.; Becker, A.; Gouzy, J.; Vernié, T.; Gough, C.; Niebel, A.; et al. Expression profiling in Medicago truncatula identifies more than 750 genes differentially expressed during nodulation, including many potential regulators of the symbiotic program. Plant Physiol. 2004, 136, 3159–3176. [Google Scholar] [CrossRef] [Green Version]
  29. Wickham, H.; Chang, W.; Henry, L.; Takahashi, K.; Pedersen, L.T.; Takahashi, K.; Wilke, C.; Woo, K.; Yutani, H.; Dunnington, D. ggplot2: Create Elegant Data Visualisations Using the Grammar of Graphics. 2016. Available online: https://ggplot2.tidyverse.org/ (accessed on 21 December 2015).
  30. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2019. [Google Scholar]
  31. Hruz, T.; Laule, O.; Szabo, G.; Wessendorp, F.; Bleuler, S.; Oertle, L.; Widmayer, P.; Gruissem, W.; Zimmermann, P. Genevestigator v3: A reference expression database for the meta-analysis of transcriptomes. Adv. Bioinform. 2008, 420747. [Google Scholar] [CrossRef] [Green Version]
  32. Obayashi, T.; Aoki, Y.; Tadaka, S.; Kagaya, Y.; Kinoshita, K. ATTED-II in 2018: A Plant Coexpression Database Based on Investigation of the Statistical Property of the Mutual Rank Index. Plant Cell Physiol. 2018, 59, e3. [Google Scholar] [CrossRef]
  33. Jørgensen, K.; Rasmussen, A.V.; Morant, M.; Nielsen, A.H.; Bjarnholt, N.; Zagrobelny, M.; Bak, S.; Møller, B.L. Metabolon formation and metabolic channeling in the biosynthesis of plant natural products. Curr. Opin. Plant Biol. 2005, 8, 280–291. [Google Scholar] [CrossRef]
  34. Saito, K.; Yonekura-Sakakibara, K.; Nakabayashi, R.; Higashi, Y.; Yamazaki, M.; Tohge, T.; Fernie, A.R. The flavonoid biosynthetic pathway in Arabidopsis: Structural and genetic diversity. Plant Physiol. Biochem. 2013, 72, 21–34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Erickson, J.; Weckwerth, P.; Romeis, T.; Lee, J. What’s new in protein kinase/phosphatase signalling in the control of plant immunity? Essays Biochem. 2022, 66, 621–634. [Google Scholar] [CrossRef] [PubMed]
  36. Li, S. Transcriptional control of flavonoid biosynthesis: Fine-tuning of the MYB-bHLH-WD40 (MBW) complex. Plant Signal. Behav. 2014, 9, e27522. [Google Scholar] [CrossRef] [PubMed]
  37. Logemann, E.; Hahlbrock, K. Crosstalk among stress responses in plants: Pathogen defense overrides UV protection through an inversely regulated ACE/ACE type of light-responsive gene promoter unit. Proc. Natl. Acad. Sci. USA 2002, 99, 2428–2432. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Stracke, R.; Werber, M.; Weisshaar, B. The R2R3-MYB gene family in Arabidopsis thaliana. Curr. Opin. Plant Biol. 2001, 4, 447–456. [Google Scholar] [CrossRef] [PubMed]
  39. Heim, M.A.; Jakoby, M.; Werber, M.; Martin, C.; Weisshaar, B.; Bailey, P.C. The basic helix-loop-helix transcription factor family in plants: A genome-wide study of protein structure and functional diversity. Mol. Biol. Evol. 2003, 20, 735–747. [Google Scholar] [CrossRef] [Green Version]
  40. Berardini, T.Z.; Reiser, L.; Li, D.; Mezheritsky, Y.; Muller, R.; Strait, E.; Huala, E. The Arabidopsis information resource: Making and mining the “gold standard” annotated reference plant genome. Genesis 2015, 53, 474–485. [Google Scholar] [CrossRef] [Green Version]
  41. Chen, S.; Wang, S. GLABRA2, A Common Regulator for Epidermal Cell Fate Determination and Anthocyanin Biosynthesis in Arabidopsis. Int. J. Mol. Sci. 2019, 20, 4997. [Google Scholar] [CrossRef] [Green Version]
  42. Cloix, C.; Kaiserli, E.; Heilmann, M.; Baxter, K.J.; Brown, B.A.; O’Hara, A.; Smith, B.O.; Christie, J.M.; Jenkins, G.I. C-terminal region of the UV-B photoreceptor UVR8 initiates signaling through interaction with the COP1 protein. Proc. Natl. Acad. Sci. USA 2012, 109, 16366–16370. [Google Scholar] [CrossRef] [Green Version]
  43. Maier, A.; Schrader, A.; Kokkelink, L.; Falke, C.; Welter, B.; Iniesto, E.; Rubio, V.; Uhrig, J.F.; Hülskamp, M.; Hoecker, U. Light and the E3 ubiquitin ligase COP1/SPA control the protein stability of the MYB transcription factors PAP1 and PAP2 involved in anthocyanin accumulation in Arabidopsis. Plant J. 2013, 74, 638–651. [Google Scholar] [CrossRef]
  44. Fornalé, S.; Lopez, E.; Salazar-Henao, J.E.; Fernández-Nohales, P.; Rigau, J.; Caparros-Ruiz, D. AtMYB7, a new player in the regulation of UV-sunscreens in Arabidopsis thaliana. Plant Cell Physiol. 2014, 55, 507–516. [Google Scholar] [CrossRef]
  45. Xie, M.; Zhang, J.; Tschaplinski, T.J.; Tuskan, G.A.; Chen, J.G.; Muchero, W. Regulation of Lignin Biosynthesis and Its Role in Growth-Defense Tradeoffs. Front. Plant Sci. 2018, 9, 1427. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Yan, A.; Pan, J.; An, L.; Gan, Y.; Feng, H. The responses of trichome mutants to enhanced ultraviolet-B radiation in Arabidopsis thaliana. J. Photochem. Photobiol. B 2012, 113, 29–35. [Google Scholar] [CrossRef] [PubMed]
  47. Khosla, A.; Paper, J.M.; Boehler, A.P.; Bradley, A.M.; Neumann, T.R.; Schrick, K. HD-Zip Proteins GL2 and HDG11 Have Redundant Functions in Arabidopsis Trichomes, and GL2 Activates a Positive Feedback Loop via MYB23. Plant Cell 2014, 26, 2184–2200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Lasserre, E.; Jobet, E.; Llauro, C.; Delseny, M. AtERF38 (At2g35700), an AP2/ERF family transcription factor gene from Arabidopsis thaliana, is expressed in specific cell types of roots, stems and seeds that undergo suberization. Plant Physiol. Biochem. 2008, 46, 1051–1061. [Google Scholar] [CrossRef] [PubMed]
  49. Bian, C.; Guo, X.; Zhang, Y.; Wang, L.; Xu, T.; DeLong, A.; Dong, J. Protein phosphatase 2A promotes stomatal development by stabilizing SPEECHLESS in Arabidopsis. Proc. Natl. Acad. Sci. USA 2020, 117, 13127–13137. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, S.; Zhou, Z.; Rahiman, R.; Lee, G.; Yeo, Y.K.; Yang, X.; Lau, O.S. Light regulates stomatal development by modulating paracrine signaling from inner tissues. Nat. Commun. 2021, 12, 3403. [Google Scholar] [CrossRef]
  51. Gibalová, A.; Steinbachová, L.; Hafidh, S.; Bláhová, V.; Gadiou, Z.; Michailidis, C.; Műller, K.; Pleskot, R.; Dupľáková, N.; Honys, D. Characterization of pollen-expressed bZIP protein interactions and the role of ATbZIP18 in the male gametophyte. Plant Reprod. 2017, 30, 1–7. [Google Scholar] [CrossRef]
  52. Shen, H.; Cao, K.; Wang, X. A conserved proline residue in the leucine zipper region of AtbZIP34 and AtbZIP61 in Arabidopsis thaliana interferes with the formation of homodimer. Biochem. Biophys. Res. Commun. 2007, 362, 425–430. [Google Scholar] [CrossRef]
  53. Breuer, C.; Morohashi, K.; Kawamura, A.; Takahashi, N.; Ishida, T.; Umeda, M.; Grotewold, E.; Sugimoto, K. Transcriptional repression of the APC/C activator CCS52A1 promotes active termination of cell growth. EMBO J. 2012, 31, 4488–4501. [Google Scholar] [CrossRef]
  54. Völz, R.; Kim, S.K.; Mi, J.; Mariappan, K.G.; Guo, X.; Bigeard, J.; Alejandro, S.; Pflieger, D.; Rayapuram, N.; Al-Babili, S.; et al. The Trihelix transcription factor GT2-like 1 (GTL1) promotes salicylic acid metabolism, and regulates bacterial-triggered immunity. PLoS Genet. 2018, 14, e1007708. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Zheng, T.; Tan, W.; Yang, H.; Zhang, L.; Li, T.; Liu, B.; Zhang, D.; Lin, H. Regulation of anthocyanin accumulation via MYB75/HAT1/TPL-mediated transcriptional repression. PLoS Genet. 2019, 15, e1007993. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Oh, J.; Park, E.; Song, K.; Bae, G.; Choi, G. PHYTOCHROME INTERACTING FACTOR8 Inhibits Phytochrome A-Mediated Far-Red Light Responses in Arabidopsis. Plant Cell 2020, 32, 186–205. [Google Scholar] [CrossRef] [PubMed]
  57. Krause, K.; Kilbienski, I.; Mulisch, M.; Rödiger, A.; Schäfer, A.; Krupinska, K. DNA-binding proteins of the Whirly family in Arabidopsis thaliana are targeted to the organelles. FEBS Lett. 2005, 579, 3707–3712. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Lepage, É.; Zampini, É.; Brisson, N. Plastid genome instability leads to reactive oxygen species production and plastid-to-nucleus retrograde signaling in Arabidopsis. Plant Physiol. 2013, 163, 867–881. [Google Scholar] [CrossRef] [Green Version]
  59. Lin, W.; Huang, D.; Shi, X.; Deng, B.; Ren, Y.; Lin, W.; Miao, Y. H2O2 as a Feedback Signal on Dual-Located WHIRLY1 Associates with Leaf Senescence in Arabidopsis. Cells 2019, 8, 1585. [Google Scholar] [CrossRef] [Green Version]
  60. Lin, W.; Zhang, H.; Huang, D.; Schenke, D.; Cai, D.; Wu, B.; Miao, Y. Dual-Localized WHIRLY1 Affects Salicylic Acid Biosynthesis via Coordination of ISOCHORISMATE SYNTHASE1, PHENYLALANINE AMMONIA LYASE1, and S-ADENOSYL-L-METHIONINE-DEPENDENT METHYLTRANSFERASE1. Plant Physiol. 2020, 184, 1884–1899. [Google Scholar] [CrossRef]
  61. Desveaux, D.; Subramaniam, R.; Després, C.; Mess, J.N.; Lévesque, C.; Fobert, P.R.; Dangl, J.L.; Brisson, N. A “Whirly” transcription factor is required for salicylic acid-dependent disease resistance in Arabidopsis. Dev. Cell 2004, 6, 229–240. [Google Scholar] [CrossRef] [Green Version]
  62. Wang, H.; Zhao, Q.; Chen, F.; Wang, M.; Dixon, R.A. NAC domain function and transcriptional control of a secondary cell wall master switch. Plant J. 2011, 68, 1104–1114. [Google Scholar] [CrossRef]
  63. Nguyen, N.H.; Jeong, C.Y.; Kang, G.H.; Yoo, S.D.; Hong, S.W.; Lee, H. MYBD employed by HY5 increases anthocyanin accumulation via repression of MYBL2 in Arabidopsis. Plant J. 2015, 84, 1192–1205. [Google Scholar] [CrossRef]
  64. Wang, Y.; Wang, Y.; Song, Z.; Zhang, H. Repression of MYBL2 by both microRNA858a and HY5 leads to the activation of anthocyanin biosynthetic pathway in Arabidopsis. Mol. Plant 2016, 9, 1395–1405. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Yang, Y.; Liang, T.; Zhang, L.; Shao, K.; Gu, X.; Shang, R.; Shi, N.; Li, X.; Zhang, P.; Liu, H. UVR8 interacts with WRKY36 to regulate HY5 transcription and hypocotyl elongation in Arabidopsis. Nat. Plants 2018, 4, 98–107. [Google Scholar] [CrossRef] [PubMed]
  66. Krishnamurthy, P.; Vishal, B.; Bhal, A.; Kumar, P.P. WRKY9 transcription factor regulates cytochrome P450 genes CYP94B3 and CYP86B1, leading to increased root suberin and salt tolerance in Arabidopsis. Physiol. Plant. 2021, 172, 1673–1687. [Google Scholar] [CrossRef] [PubMed]
  67. He, X.J.; Mu, R.L.; Cao, W.H.; Zhang, Z.G.; Zhang, J.S.; Chen, S.Y. AtNAC2, a transcription factor downstream of ethylene and auxin signaling pathways, is involved in salt stress response and lateral root development. Plant J. 2005, 44, 903–916. [Google Scholar] [CrossRef]
  68. Yang, J.H.; Lee, K.H.; Du, Q.; Yang, S.; Yuan, B.; Qi, L.; Wang, H. A membrane-associated NAC domain transcription factor XVP interacts with TDIF co-receptor and regulates vascular meristem activity. New Phytol. 2020, 226, 59–74. [Google Scholar] [CrossRef] [PubMed]
  69. Lee, S.; Seo, P.J.; Lee, H.J.; Park, C.M. A NAC transcription factor NTL4 promotes reactive oxygen species production during drought-induced leaf senescence in Arabidopsis. Plant J. 2012, 70, 831–844. [Google Scholar] [CrossRef] [PubMed]
  70. Lee, S.; Lee, H.J.; Huh, S.U.; Paek, K.H.; Ha, J.H.; Park, C.M. The Arabidopsis NAC transcription factor NTL4 participates in a positive feedback loop that induces programmed cell death under heat stress conditions. Plant Sci. 2014, 227, 76–83. [Google Scholar] [CrossRef]
  71. De Clercq, I.; Vermeirssen, V.; Van Aken, O.; Vandepoele, K.; Murcha, M.W.; Law, S.R.; Inzé, A.; Ng, S.; Ivanova, A.; Rombaut, D.; et al. The membrane-bound NAC transcription factor ANAC013 functions in mitochondrial retrograde regulation of the oxidative stress response in Arabidopsis. Plant Cell 2013, 25, 3472–3490. [Google Scholar] [CrossRef] [Green Version]
  72. Gladman, N.P.; Marshall, R.S.; Lee, K.H.; Vierstra, R.D. The Proteasome Stress Regulon Is Controlled by a Pair of NAC Transcription Factors in Arabidopsis. Plant Cell 2016, 28, 1279–1296. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Evrard, A.; Ndatimana, T.; Eulgem, T. FORCA, a promoter element that responds to crosstalk between defense and light signaling. BMC Plant Biol. 2009, 9, 2. [Google Scholar] [CrossRef]
  74. Chen, Y.F.; Li, L.Q.; Xu, Q.; Kong, Y.H.; Wang, H.; Wu, W.H. The WRKY6 transcription factor modulates PHOSPHATE1 expression in response to low Pi stress in Arabidopsis. Plant Cell 2009, 21, 3554–3566. [Google Scholar] [CrossRef] [Green Version]
  75. Ye, Q.; Wang, H.; Su, T.; Wu, W.H.; Chen, Y.F. The Ubiquitin E3 Ligase PRU1 Regulates WRKY6 Degradation to Modulate Phosphate Homeostasis in Response to Low-Pi Stress in Arabidopsis. Plant Cell 2018, 30, 1062–1076. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Lea, U.S.; Slimestad, R.; Smedvig, P.; Lillo, C. Nitrogen deficiency enhances expression of specific MYB and bHLH transcription factors and accumulation of end products in the flavonoid pathway. Planta 2007, 225, 1245–1253. [Google Scholar] [CrossRef] [PubMed]
  77. Lillo, C.; Lea, U.S.; Ruoff, P. Nutrient depletion as a key factor for manipulating gene expression and product formation in different branches of the flavonoid pathway. Plant Cell Environ. 2008, 31, 587–601. [Google Scholar] [CrossRef] [PubMed]
  78. Devaiah, B.N.; Karthikeyan, A.S.; Raghothama, K.G. WRKY75 transcription factor is a modulator of phosphate acquisition and root development in Arabidopsis. Plant Physiol. 2007, 143, 1789–1801. [Google Scholar] [CrossRef] [PubMed]
Genes 14 00240 g001 550

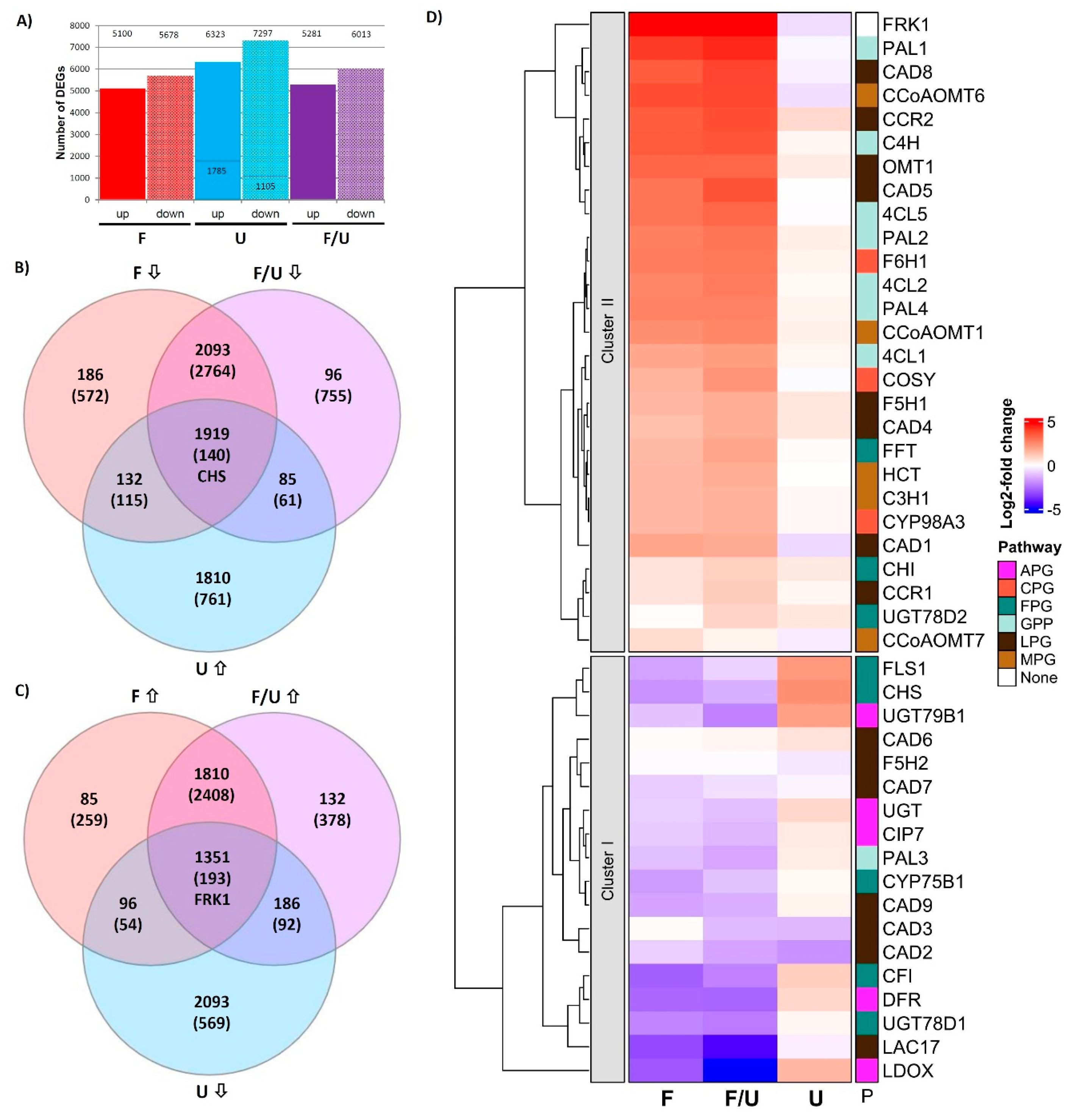

Figure 1. Impact of crosstalk on transcriptomic changes in Arabidopsis. (A) An overview of DEGs identified from RNAseq experiments using pooled RNA of three independent biological replicates. Treatments with flg22 (F), UV-B (U), or co-treatment with flg22 and UV-B (F/U) as compared to the control. DEGs were identified by applying a log2 threshold ≤ −1 or ≥ 1 for each treatment. Since we detected approximately five-fold fewer DEGs in the UV-B samples we lowered the log2 threshold to ±0.2 for this treatment in order to obtain a comparable number of DEGs as in the other treatments. (B) A Venn diagram displaying the number and distribution of DEGs that were down-regulated in response to single and co-treatment flg22, but up-regulated by UV-B (CHS-group). (C) A Venn diagram displaying the number and distribution of DEGs that were up-regulated in response to single and co-treatment with flg22, but down-regulated by UV-B (FRK1-group). The DEG numbers shown in (B,C) are based on a log2 threshold ≤−1 or ≥1 for flg22 or F/U co-treatment with the log2 threshold for the UV-B treatment lowered to ±0.2. (D) Cluster analysis of genes involved in phenylpropanoid metabolism shows the expected expression patterns with genes involved in the flavonoid pathway (FPG and anthocyanin biosynthesis-related genes) being largely up-regulated by UV-B and suppressed in response to flg22 and containing the CHS marker gene (Cluster I) as well as genes being up-regulated in response to flg22 (Cluster II), belonging to the general phenylpropanoid (GPP), monolignol (MPG), lignin (LPG) or coumarin (CPG) pathways clustering together with the FRK1 marker gene for successful induction of pattern triggered immunity (PTI). Expression levels are calculated based on log2-fold changes relative to the untreated control. Gene name abbreviations and concrete log2 values underlying the calculation can be found in Table S3.
Figure 1. Impact of crosstalk on transcriptomic changes in Arabidopsis. (A) An overview of DEGs identified from RNAseq experiments using pooled RNA of three independent biological replicates. Treatments with flg22 (F), UV-B (U), or co-treatment with flg22 and UV-B (F/U) as compared to the control. DEGs were identified by applying a log2 threshold ≤ −1 or ≥ 1 for each treatment. Since we detected approximately five-fold fewer DEGs in the UV-B samples we lowered the log2 threshold to ±0.2 for this treatment in order to obtain a comparable number of DEGs as in the other treatments. (B) A Venn diagram displaying the number and distribution of DEGs that were down-regulated in response to single and co-treatment flg22, but up-regulated by UV-B (CHS-group). (C) A Venn diagram displaying the number and distribution of DEGs that were up-regulated in response to single and co-treatment with flg22, but down-regulated by UV-B (FRK1-group). The DEG numbers shown in (B,C) are based on a log2 threshold ≤−1 or ≥1 for flg22 or F/U co-treatment with the log2 threshold for the UV-B treatment lowered to ±0.2. (D) Cluster analysis of genes involved in phenylpropanoid metabolism shows the expected expression patterns with genes involved in the flavonoid pathway (FPG and anthocyanin biosynthesis-related genes) being largely up-regulated by UV-B and suppressed in response to flg22 and containing the CHS marker gene (Cluster I) as well as genes being up-regulated in response to flg22 (Cluster II), belonging to the general phenylpropanoid (GPP), monolignol (MPG), lignin (LPG) or coumarin (CPG) pathways clustering together with the FRK1 marker gene for successful induction of pattern triggered immunity (PTI). Expression levels are calculated based on log2-fold changes relative to the untreated control. Gene name abbreviations and concrete log2 values underlying the calculation can be found in Table S3.
Genes 14 00240 g001
Genes 14 00240 g002 550

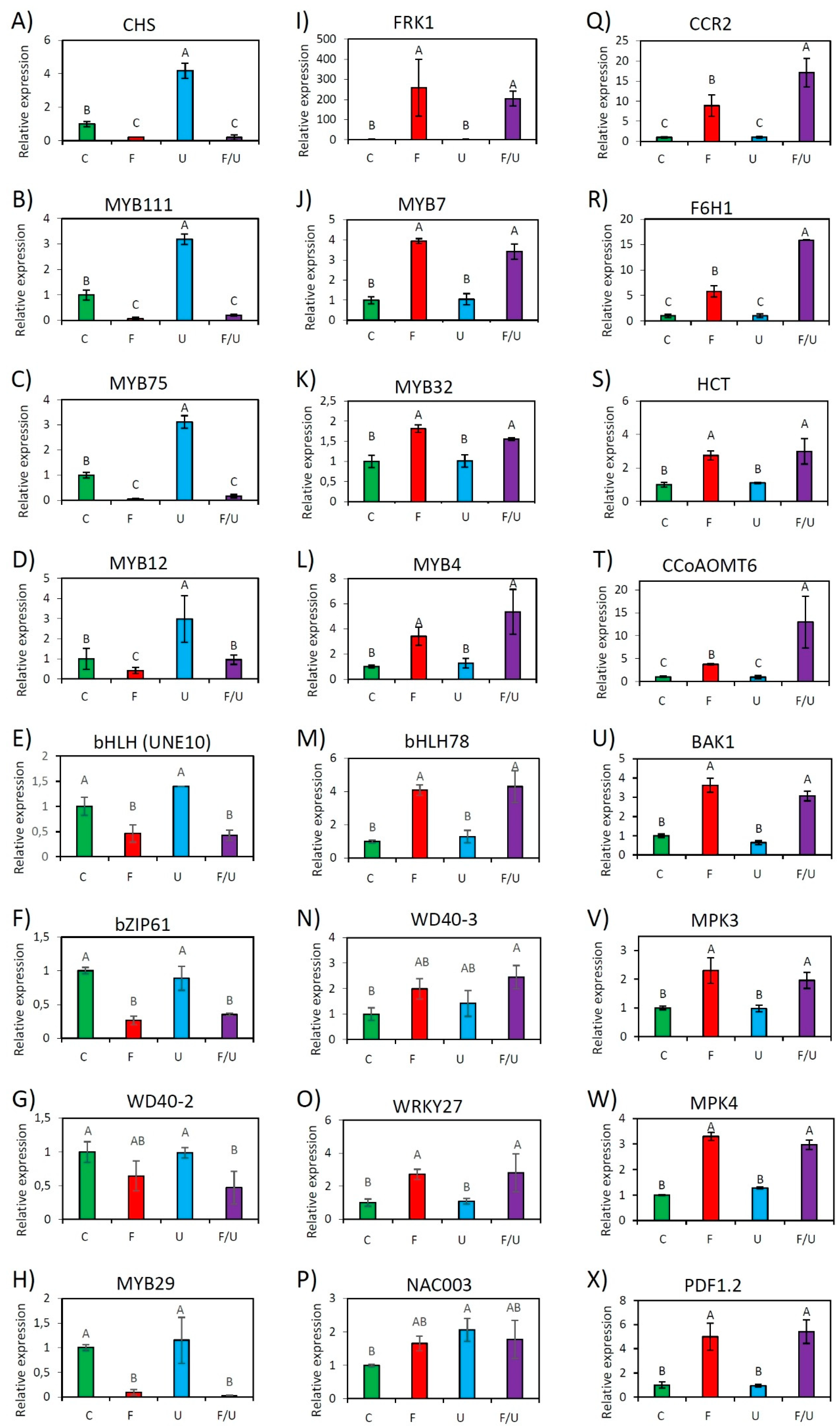

Figure 2. Relative expression levels of 24 selected genes from all identified clusters as analyzed by RT-qPCR. Shown is the response to different treatments with water as control (C), flg22 (F), UV-B (U), or co-treatment with flg22 and UV-B (F/U). The expression was measured after 4 h treatment of wild-type Arabidopsis Col-0 and is generally consistent with the Cluster analysis. Genes (A–H) display a reduction in response to flg22 single or co-treatment (Cluster I genes/CHS-group), while genes (I–X) are inducible by flg22 single or co-treatment (Cluster II genes/FRK1-group). Error bars represent the standard error of triplicate experiments, and statistical significance with p ≤ 0.05 was checked by a two-way ANOVA.
Figure 2. Relative expression levels of 24 selected genes from all identified clusters as analyzed by RT-qPCR. Shown is the response to different treatments with water as control (C), flg22 (F), UV-B (U), or co-treatment with flg22 and UV-B (F/U). The expression was measured after 4 h treatment of wild-type Arabidopsis Col-0 and is generally consistent with the Cluster analysis. Genes (A–H) display a reduction in response to flg22 single or co-treatment (Cluster I genes/CHS-group), while genes (I–X) are inducible by flg22 single or co-treatment (Cluster II genes/FRK1-group). Error bars represent the standard error of triplicate experiments, and statistical significance with p ≤ 0.05 was checked by a two-way ANOVA.
Genes 14 00240 g002
Genes 14 00240 g003 550

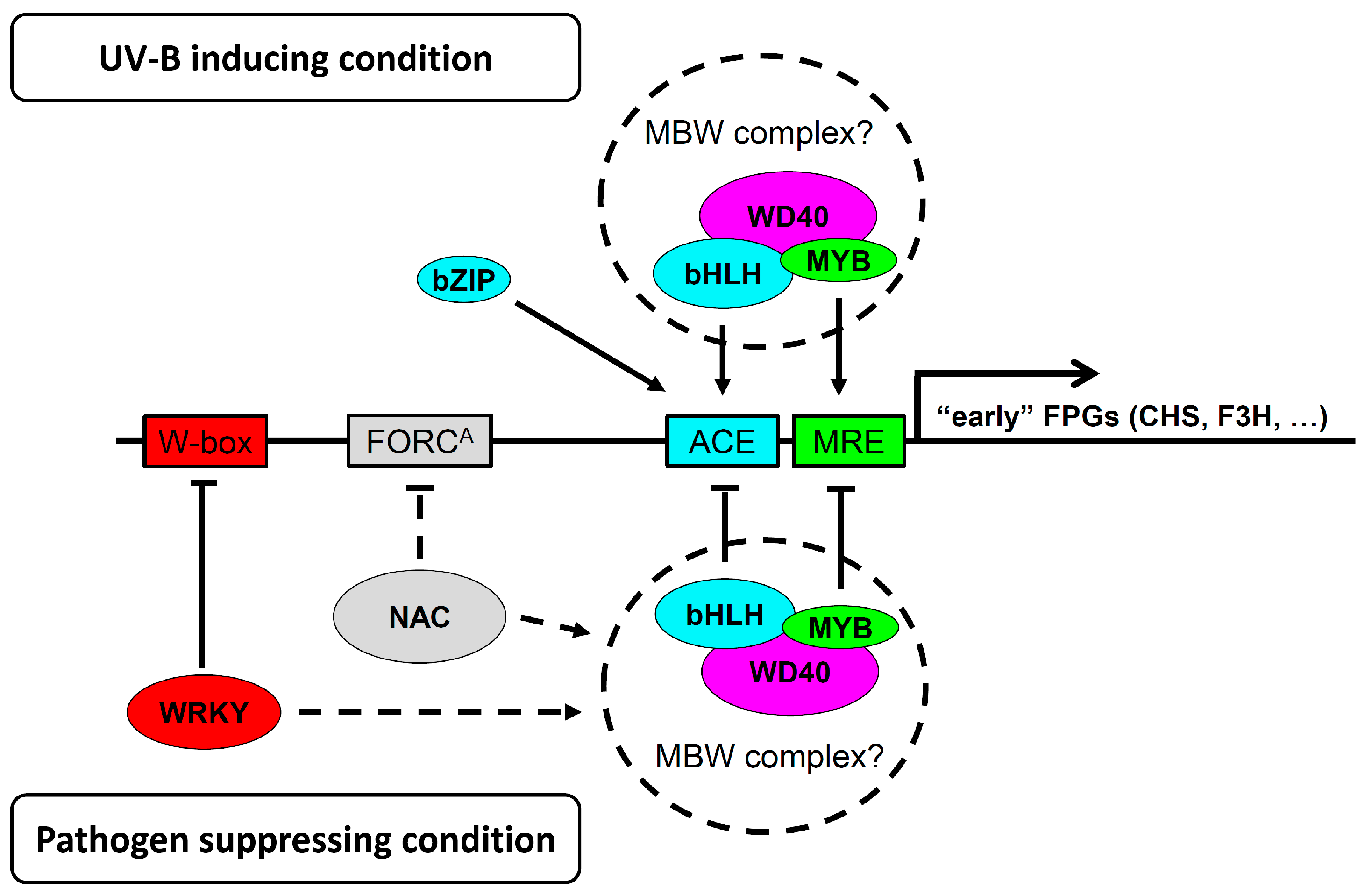

Figure 3. Graphical summary of potentially new processes involved in crosstalk between pathogen and UV-B induced signaling as discussed in the text. Identification of several conversely regulated MYB, bHLH, and WD40 TFs (Table 1) suggests that MBW complexes consisting of these TFs might also be regulating the “early” FPGs. Positive influence on FPG expression is deduced from genes that are co-regulated together with the CHS marker gene (being UV-B up- and flg22 down-regulated), while the negative impact is assumed from genes that are co-regulated with the FRK1 marker gene (being UV-B down- and flg22 up-regulated).
Figure 3. Graphical summary of potentially new processes involved in crosstalk between pathogen and UV-B induced signaling as discussed in the text. Identification of several conversely regulated MYB, bHLH, and WD40 TFs (Table 1) suggests that MBW complexes consisting of these TFs might also be regulating the “early” FPGs. Positive influence on FPG expression is deduced from genes that are co-regulated together with the CHS marker gene (being UV-B up- and flg22 down-regulated), while the negative impact is assumed from genes that are co-regulated with the FRK1 marker gene (being UV-B down- and flg22 up-regulated).
Genes 14 00240 g003
Table
Table 1. Overview of some transcription factor families identified under the eight possible stress treatment outcomes.
Table 1. Overview of some transcription factor families identified under the eight possible stress treatment outcomes.
Stress OutcomeDEGsTFsbHLHMYBNACWRKYbZIPFigure
U↑F↓F/U↓(CHS)1919112119213Figure 1B
U↓F↑F/U↑(FRK1)135110751410177Figure 1C
U↑F↓F/U↑13212--3--Figure S1A
U↓F↑F/U↓963--1--Figure S1B
U↑F↑F/U↓584---1-Figure S1C
U↓F↓F/U↑18622222-1Figure S1D
U↑F↑F/U↑1810171141813195Figure S1E
U↓F↓F/U↓209321819231145Figure S1F
Total76726495166424221
Table
Table 2. Log2-values of top 20 candidate genes potentially involved in crosstalk between UV-B signaling and PTI.
Table 2. Log2-values of top 20 candidate genes potentially involved in crosstalk between UV-B signaling and PTI.
A: DEGs being co-regulated with the marker gene CHS
AGI CodeTF TypeDescriptionLinkageflg22↓UVB↑F/U↓
AT5G40330MYB23regulation of trichome initiationFigure S4A−2.030.28−0.90
AT5G07690MYB29Neg. regulator of mitochondrial stress responsesFigure S3A−3.390.66−3.58
AT1G56650MYB75PAP1, regulation of anthocyanins / ROS scavengingFigure S3A−4.110.94−3.43
AT5G49330MYB111redundantly regulates flavonol biosynthesis Figure S4B−7.261.60−0.87
AT1G33240MYB-likeGTL1, activator, trichome morphogenesisFigure S4C−1.130.20−1.08
AT4G00050bHLHUNE10 (PIF8), inhibits far-red light responsesFigure S3A−1.280.74−0.33
AT5G53210bHLHSPCH, positive regulator, stomatal developmentFigure S4B−1.460.71−0.16
AT4G00480bHLH12MYC1, trichome patterningFigure S4B−2.310.62−3.21
AT3G58120bZIP61heterodimers with bZIP18/52, binds to G-boxes Figure S4C−3.130.70−3.89
AT2G42380bZIP34heterodimers with bZIP18/52, pos. regulatorFigure S4C−4.060.61−3.64
AT5G64630WD40-1FAS2, trichome differentiation −3.500.58−2.07
AT5G53500WD40-2response to light stimulus, but cytoplasmatic proteinFigure S3B−2.110.59−1.58
AT4G32980ATH1homeobox gene 1, involved in photomorphogenesis −2.620.50−2.10
AT1G14440HB31Homeobox protein, long-day photoperiodismFigure S4B−2.510.23−4.05
AT4G17460HAT1class II Homeodomain-ZIP protein, negative regulatorFigure S4C−1.590.35−1.59
AT2G35700ERF38secondary cell wall biogenesisFigure S4A−1.720.31−1.99
AT1G04250IAA17AXR3, repressor of auxin-inducible gene expressionFigure S3B−2.151.11−1.47
AT1G14410WHY1defense, retrograde signaling in chloroplastsFigure S3A−1.320.32−1.62
AT1G71260WHY2defense response, chloroplast, mitochondrionFigure S3A−1.690.47−1.99
AT2G02740WHY3defense response, chloroplast, mitochondrionFigure S3A−1.010.37−0.76
B: DEGs being co-regulated with the marker gene FRK1
AGI CodeTF TypeDescriptionLinkageflg22↓UVB↓F/U↓
AT2G47190MYB2pos. regulator, ABA responsive, phosphate starvationFigure S3D2.22−0.322.42
AT2G16720MYB7repressor of flavonol biosynthesis, linked to MYB4Figure S5A2.59−0.353.32
AT4G34990MYB32Related to MYB3/4/7, response to light stimulusFigure S5A1.78−0.211.72
AT4G12350MYB42activates phenylalanine biosynthesis/lignin 3.30−0.943.67
AT1G18570MYB51indole glucosinolate biosynthesis, callose, bacteria 2.36−0.371.55
AT5G48560bHLH78response to blue light, CRY2-INTERACTING BHLH 2Figure S5B1.40−0.691.55
AT1G05710bHLHunknown functionFigure S5C1.54−0.461.52
AT2G36270bZIPABI5, positive regulator, response to ABA 1.98−0.481.96
AT3G54620bZIP25pos. regulator 1.97−0.371.87
AT2G46270bZIPGBF3, induced by ABA, cold, drought, and darkness 1.67−0.531.55
AT1G64610WD40-3response to oxidative stress, defense to pathogenFigure S3C–E1.82−0.261.54
AT3G45620WD40-4defense response to bacterium, signal transduction 1.31−0.451.31
AT1G62300WRKY6neg. regulator, response to phosphate starvationFigure S3D–F4.05−0.343.65
AT1G68150WRKY9chemical homeostasis, defense responseFigure S5B3.61−2.212.97
AT5G52830WRKY27neg. regulator, defense response to bacterium 2.80−1.172.46
AT3G04670WRKY39response to salicylic acid, developmental processesFigure S5C1.40−0.481.65
AT5G13080WRKY75neg. regulator, induced by Pi starvationFigure S3C–F5.26−0.245.43
AT5G39610NAC2(6)pos. regulator, ABA + ET responsive, involved in PCDFigure S3F2.58−0.732.73
AT1G02220NAC003neg. regulator, ABA-activated signaling pathwayFigure S3E3.69−0.313.91
AT3G10500NAC053pos. regulator, ROS productionFigure S3C1.63−0.441.63
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhou, Z.; Windhorst, A.; Schenke, D.; Cai, D. RNAseq-Based Working Model for Transcriptional Regulation of Crosstalk between Simultaneous Abiotic UV-B and Biotic Stresses in Plants. Genes 2023, 14, 240. https://doi.org/10.3390/genes14020240

AMA Style

Zhou Z, Windhorst A, Schenke D, Cai D. RNAseq-Based Working Model for Transcriptional Regulation of Crosstalk between Simultaneous Abiotic UV-B and Biotic Stresses in Plants. Genes. 2023; 14(2):240. https://doi.org/10.3390/genes14020240

Chicago/Turabian Style

Zhou, Zheng, Alex Windhorst, Dirk Schenke, and Daguang Cai. 2023. "RNAseq-Based Working Model for Transcriptional Regulation of Crosstalk between Simultaneous Abiotic UV-B and Biotic Stresses in Plants" Genes 14, no. 2: 240. https://doi.org/10.3390/genes14020240

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
