Genome-Wide Identification and Preliminary Functional Analysis of BAM (β-Amylase) Gene Family in Upland Cotton

by
Yanlong Yang
1,2,†,
Fenglei Sun
3,†,
Penglong Wang
2,
Mayila Yusuyin
1,
Wumaierjiang Kuerban
2,
Chengxia Lai
1,
Chunping Li
1,
Jun Ma
1,* and
Fei Xiao
4,*
1
Research Institute of Economic Crops, Xinjiang Academy of Agricultural Sciences, Urumqi 830091, China
2
Xinjiang Academy of Agricultural Sciences Kuqa County Upland Cotton Test Station, Xinjiang Academy of Agricultural Sciences, Kuqa 842000, China
3
State Key Laboratory of Cotton Biology, Institute of Cotton Research of the Chinese Academy of Agricultural Sciences, Anyang 455000, China
4
Xinjiang Key Laboratory of Biological Resources and Genetic Engineering, College of Life Science and Technology, Xinjiang University, Urumqi 830046, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2023, 14(11), 2077; https://doi.org/10.3390/genes14112077
Submission received: 9 October 2023 / Revised: 9 November 2023 / Accepted: 12 November 2023 / Published: 14 November 2023
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
The β-amylase (BAM) gene family encodes important enzymes that catalyze the conversion of starch to maltose in various biological processes of plants and play essential roles in regulating the growth and development of multiple plants. So far, BAMs have been extensively studied in Arabidopsis thaliana (A. thaliana). However, the characteristics of the BAM gene family in the crucial economic crop, cotton, have not been reported. In this study, 27 GhBAM genes in the genome of Gossypium hirsutum L (G. hirsutum) were identified by genome-wide identification, and they were divided into three groups according to sequence similarity and phylogenetic relationship. The gene structure, chromosome distribution, and collinearity of all GhBAM genes identified in the genome of G. hirsutum were analyzed. Further sequence alignment of the core domain of glucosyl hydrolase showed that all GhBAM family genes had the glycosyl hydrolase family 14 domain. We identified the BAM gene GhBAM7 and preliminarily investigated its function by transcriptional sequencing analysis, qRT-PCR, and subcellular localization. These results suggested that the GhBAM7 gene may influence fiber strength during fiber development. This systematic analysis provides new insight into the transcriptional characteristics of BAM genes in G. hirsutum. It may lay the foundation for further study of the function of these genes.

1. Introduction

Starch is the most crucial form of carbohydrate storage in plants, and plant growth and development depend on starch metabolism [1]. Starch is temporarily stored in chloroplasts, seeds, and other specialized starch storage organs for a long time [2,3]. Starch is degraded by a series of enzymes (including α-amylase (AMY), β-amylase (BAM), limit dextrinase (PUL), β-glucosidase and α-glucan phosphorylase (PHO)) to release primary chemical energy and organic matter for plant growth, development, and response to abiotic stress [4,5,6,7,8,9]. The β-amylase (BAM) family is named for the ability to catalyze the hydrolysis of starch into maltose units by its catalytic members. It is the main starch-degrading enzyme in plant tissues [10,11]. β-Amylases (BAMs) are essential enzymes that catalyze the conversion of starch into maltose and play important roles in regulating plant growth, development, and abiotic stress tolerance [12]. They are vital enzymes for transient starch degradation in chloroplasts and important molecules for gene regulation [13,14,15]. β-Amylase (BAM) is an exoamylase that catalyzes the hydrolysis of α-1,4-linked oligosaccharides and polyglucans. It is mainly responsible for the hydrolysis of stored starch and the degradation of transitional starch, resulting in β-limit dextrin and β-maltose [11]. However, this family also contains proteins with weak catalytic activity, additional domains, or no localization with starch substrates. β-Maltose is exported from chloroplasts at night and is the main product of starch decomposition in leaves [16]. BAMs are also the only enzymes that can produce β-maltose in plants. BAM is a glycosyl hydrolase 14 family member with a conserved glycosyl hydrolase 14 domain. It is widely distributed in various plants and some microorganisms and is encoded by a multi-gene family [17,18,19].
BAM exists as a gene family in many plants. To date, genome-wide analysis has identified nine members of the BAM gene family (GFMs) in A. thaliana [8,20], 10 in rice varieties [21], 13 in maize varieties, 11 in Brachypodium distachyon varieties, 10 in sorghum varieties, 10 in foxtail millet varieties [22], 16 in banana varieties [11], 10 in potato varieties, 8 in trifoliate orange varieties [23], and 17 in pear varieties [9]. Most studies on the BAM family’s functions are carried out in A. thaliana. Maltose is the main product of starch degradation [24]. In Arabidopsis, BAMs are the main hydrolases for starch decomposition at night, which act on the non-reducing end of the α-1,4-linked glucan chain to produce maltose [10]. In Arabidopsis, nine genes encode BAM-like proteins, more than any other starch-metabolizing enzyme, and other plant genomes contain a similar number of BAM genes [25]. The analysis of conserved intron sites of BAM genes in terrestrial plants revealed that the family contains two subfamilies, one subfamily contains BAM1/3/9, and the other subfamily contains BAM2/4/8 [26]. So far, their characterization in Arabidopsis has revealed an alarming degree of sub-functionalization and neo-functionalization [27]. However, during the evolution of vascular plants, the BAM gene family has undergone diversity, resulting in isomers with different spacer structures and biological activities [15].
Cotton is one of the critical economic crops in the world and plays a vital role in China’s economy. Cotton fiber is the leading financial component of cotton, and fiber quality is an essential factor determining the economic quality of cotton [28]. Cotton fiber is a single-cell structure formed by the differentiation and development of the outer epidermis of cotton ovules. It is also an ideal single-cell model for cell elongation and cell wall modification. In the process of cotton fiber development, 15 days post-anthesis (DPA) is a crucial period, mainly for the fiber elongation stage, followed by the secondary wall thickening stage [29,30]. The BAM gene family plays a crucial role in transient starch metabolism [3], seed germination [31], and growth and development [32], and the development of cotton fiber is accompanied by the synthesis and degradation of starch, so BAM genes may play important regulatory roles. The role of the BAM gene family in fiber development is unclear, despite its vital importance. In this study, 27 GhBAM genes were identified in the whole genome of upland cotton. The GhBAM gene family was analyzed for its protein physicochemical properties, chromosome location, gene structure, conserved motifs, domain alignment, and phylogenetic evolution. In addition, the functions and evolutionary characteristics of the GhBAM gene family were explored by promoter element analysis and expression analysis of GhBAM family genes. The results provide a reference for future studies of the structure and function of the GhBAM gene family, as well as the identification and characterization of the BAM gene family in other species, and also provide a theoretical basis for further study of the molecular mechanism of fiber development in upland cotton.

2. Materials and Methods

2.1. Identification and Phylogenetic Analysis of the GhBAM Gene Family in G. hirsutum

The amino acid sequences of the Arabidopsis BAM gene family were downloaded from the TAIR website (https://www.Arabidopsis.org/; accessed on 30 September 2023), and the Arabidopsis BAM protein sequence was used as an index to perform local sequence alignment in the upland cotton genome (TM-1_V2.1, ZJU) [33]. The obtained candidate sequences were submitted to the NCBI-CDD website (https://www.ncbi.Nlm.Nih.gov/cdd; accessed on 30 September 2023) and the HMMER website (https://www.ebi.ac.uk/Tools/hmmer/search/hmmsearch; accessed on 30 September 2023) to verify whether they contained the Glyco_hydro_14 (PF01373) conserved domain. In Ex PASy (https://web.expasy.org/compute_pi; accessed on 30 September 2023), the average number of amino acids, molecular weight, isoelectric point, and hydrophilicity were obtained. The online tool WoLF PSORT (https://wolfpsort.hgc.jp/; accessed on 30 September 2023) was used to predict the subcellular localization of proteins encoded by GhBAM gene family members.

2.2. Chromosome Distribution, Synteny, Ka/Ks, and Phylogenetic Analysis of the GhBAM Family

The location information of the gene on the chromosome was obtained from the GFF3 data in the genome, and the TBtools tool was used to draw the schematic diagram and analyze gene collinearity. The non-synonymous substitution (Ka) and synonymous substitution (Ks) rates of the BAM gene family were calculated to analyze the selection pressure in the evolutionary process. All sequences were aligned using the default settings of Clustal X2.1, and phylogenetic trees were constructed using the MEGA-7 (http://www.megasoftware.net/mega-7; accessed on 30 September 2023) neighbor-joining (NJ) method, one thousand bootstrap samplings were performed, and other parameters were default values.

2.3. Analysis of GhBAM Gene Domain and Conserved Motif

The BAM gene structure of upland cotton was analyzed online using the GSDS website (http://gsds.Cbi.Pku.edu.cn; accessed on 30 September 2023). The MEME online tool (http://meme-suite.org/tools/meme; accessed on 30 September 2023) was used to identify the conserved motifs of the GhBAM gene family, setting 6–50 motif widths and up to 12 motifs. TBtools software (V 1.068) was used for visual analysis of gene structure and conserved motifs.

2.4. Subcellular Localization and Promoter Element Analysis of GhBAM7

The GhBAM7-GFP vector was constructed. The tobacco was cultured in a greenhouse for three–four weeks, and activated Agrobacterium containing the target gene subcellular targeting vector was added to resistant LB liquid medium (kanamycin 50 mg/L, rifampicin 25 mg/L). The OD value was measured between 0.8 and 1.0, and the bacterial liquid was centrifuged and resuspended. The bacterial liquid was re-suspended at room temperature for one–three hours to prepare for infection. The third and fourth leaves from the top were selected for infection (infection between the two veins). The plants, after injection, were cultured in the dark for 24 h and then cultured normally for two days. The GFP fluorescence near the injection site of the leaves was observed by fluorescence microscopy. The sequence of about 2000 bp upstream of the start codon of the GhBAM family genes was determined as a regulatory promoter region database. These sequences were then uploaded to the PlantCARE website (http://bioinformatics.psb.ugent.be; accessed on 30 September 2023) for the identification and analysis of cis elements.

2.5. GhBAM Gene Expression Analysis

Transcriptome data for ovular and fibrous tissue were also downloaded from the NCBI Sequence Read Archive collection PRJNA490626. The cotton introgression line population was planted in Shihezi City, Xinjiang Uygur Autonomous Region. After flowering, fiber samples at 15 DPA, 20 DPA, and 25 DPA of extreme individuals (Xinluzhong 60 (strong fiber strength), Xinhai 36 (weak fiber strength), and extreme materials for hybrid progeny) were immediately frozen in liquid nitrogen and stored in an ultra-low temperature refrigerator at −80 °C. The samples were sent to the gene sequencing company. Based on the Illumina Hi Seq sequencing platform, RNA-seq technology was used to identify the differentially expressed genes of fiber development in the two introgression lines. Real-time quantitative (RT-qPCR) preliminary verification was performed. The expression abundance (fragments per kilobase per million, FPKM) value of GhBAM was obtained from the transcriptome data. The log2 (FPKM + 1) formula calculated the degree of expression difference, and the heat map of gene expression was drawn using the Heat Map program in TBtools software (V 1.068).

3. Results

3.1. Identification and Sequence Retrieval of BAM Gene Family in Upland Cotton

In order to identify the BAM genes of upland cotton (G. hirsutum), BLASTP was performed using the glycosyl hydrolase family 14 domain of the reported A. thaliana sequence. BLAST comparison of the glycosyl hydrolase family 14 domains resulted in 29 sequences. When the BLAST results were further analyzed, only 27 genes contained the expected glycosyl hydrolase family 14 domain and were used for further analysis. The glycosyl hydrolase family 14 domain in these proteins was located at the N-terminal. Sequences of glycosyl hydrolase family 14 domains and isotypes of the same genes were excluded.
The Pfam database further confirmed the presence of the glycosyl hydrolase family 14 domain in 27 selected genes. The Pfam entry number of the glycosyl hydrolase family 14 domain is PF01373.2. The Pfam results showed that the glycosyl hydrolase family 14 domain comprised 402 amino acids. NCBI CDD analysis further confirmed the existence of the glycosyl hydrolase family 14 domain and showed that all GhBAM genes contained the glycosyl hydrolase family 14 domain. These genes were renamed GhBAM1–GhBAM27 (Table S1) according to their genomic location on the A and D subgenome chromosomes.
The relevant information of the GhBAM genes is shown in Table S1, including gene id, gene location, direction, isoelectric point (PI), molecular weight (Mw), subcellular location, peptide, genome, and coding sequence (CDS) sequence length (Table S1). Subcellular localization analysis showed that GhBAM family members were mainly located in the nucleus, cytoplasm, and chloroplast. Moreover, there were significant differences in protein length, molecular weight (MW), and isoelectric point (pI). BAM protein in upland cotton had an average length of 497 amino acids and ranged in length from 72 (GhBAM19) to 703 (GhBAM16) (Table S1). The isoelectric points (pIs) and molecular weights of the BAM protein sequences in upland cotton were 4.39–9.59 and 7904.94–79,049.31 Da, respectively. The overall mean of all BAM protein hydrophilic (GRAVY) scores was negative, indicating that the BAM protein was hydrophilic (Table S1).

3.2. BAM Family Sequence Comparison and Phylogenetic Tree Analysis

Conserved sequence alignment was used for phylogenetic analysis. This included 27 BAM sequences of upland cotton, 9 of A. thaliana, and 51 of Sea Island cotton (Gossypium barbadense). The phylogenetic tree showed that 87 BAM genes were classified into three categories: I, II, and III. The results are shown in Figure 1. Group I had the most significant number of BAM genes, including 14 members in upland cotton, 28 in Sea Island cotton, and 4 members in Arabidopsis. Group II had 13 members, mainly including six sequences of upland cotton and seven sequences of Sea Island cotton. Group III had 7 sequences of upland cotton, 16 sequences of Sea Island cotton, and 5 sequences of A. thaliana (Figure 1).

3.3. BAM Gene Structure and Conserved Motif Prediction

Exon and intron predictions can help to further understand the structural evolution of the GhBAM gene family. Genome and CDS sequences were compared to obtain the structures of exons and introns. The results showed that all genes in Group I had more than three exons interrupted by four introns. GhBAM5 and GhBAM6 in Group II contained three and two exons, respectively, interrupted by four and three introns. In Group I, the intron length of GhBAM26 and GhBAM13 was greater than that of the remaining GhBAM genes. The number and length of introns and exons of GhBAM3, GhBAM17, and GhBAM24 in Group III were similar, but the length of introns was different. Among all GhBAM gene family members, Group III had longer GhBAM introns (Figure 2).
An online MEME web server was used to analyze the conserved motifs in the GhBAM protein family. The results showed that the more similar the type and number of patterns within a group, the more tightly they functioned. Still, there were some differences between members of different groups. Some patterns were mainly present in different groups (Figure 2). Motifs 1, 2, 3, 5, 6, 8, 9, and 10 were conserved in all GhBAM proteins, with motifs 1, 2, 3, 5, 6, 8, 9, and 10 missing only in GhBAM5 and GhBAM19. Members of Group I (GhBAM20) contained motifs 6, 3, 8, and 2, while GhBAM18 and GhBAM25, also belonging to Group I, contained motif 8, suggesting that some functions changed during evolution. The members of Group II (GhBAM5, GhBAM6, and GhBAM10) were composed of motifs 4, 3, 8, 2, 9, 5, 1, 7, and 10. Motif 6 was missing from Group II members. Among members of Group III (GhBAM3, GhBAM11, GhBAM17, GhBAM19, and GhBAM24), motifs 6, 4, 3, 8, 2, 9, 5, and 1 appeared in GhBAM11. The consistent sequence of motifs retrieved from the MEME suite (Table S2) showed that of all ten identified motifs, motif 4 and motif 7 were associated with the glycosyl hydrolase family 14 domain (Figure 2). Motifs 4 and 7 were present in all GhBAM proteins, further confirming that the glycosyl hydrolase family 14 domain was present in all proteins.

3.4. Prediction of Cis-Acting Elements in the GhBAM Gene Promoter Region

Cis-acting element analysis is critical to understanding gene function and regulation because cis-acting elements in the promoter region regulate gene expression. Various cis-regulatory elements were found in the 2000 bp promoter region upstream of the start codon (ATG). In the GhBAM gene family, differences existed in the 14 cis-acting elements of the promoter (Figure 3). The functional dependencies of the elements involved in these cis-elements included protein-binding sites, hormones, cell differentiation, and elements involved in plant development and growth (Figure 3). There were 16 cis-elements at the binding site of DNA-binding protein (ATBP-1), 3 root-specific cis-elements, 803 hormone-responsive cis-elements (gibberellin, salicylic acid, abscisic acid, MeJA, and auxin), and 5 cis-elements involved in stress (trauma). There were 153 cis-elements involved in plant growth and development (related to meristem expression, protein-binding sites, regulation of zein metabolism, endosperm expression, regulation of specific seeds, and differentiation of palisade mesophyll cells) (Figure 3).

3.5. Chromosome Localization, Gene Replication, Collinearity Analysis, and Selection Pressure Analysis

A genome-wide analysis of G. hirsutum to determine the location of the GhBAM gene on the chromosome revealed that GhBAM genes were unevenly distributed in the A and D subgenomes (Figure 4). Genes were named according to their order in the A and D subgenomes. Fourteen of these genes (GhBAM1, GhBAM2, GhBAM3, GhBAM4, GhBAM5, GhBAM6, GhBAM7, GhBAM8, GhBAM9, GhBAM10, GhBAM11, GhBAM12, GhBAM13, GhBAM14) were located in the A subgenomic chromosome, and 13 genes (GhBAM15, GhBAM16, GhBAM17, GhBAM18, GhBAM19, GhBAM20, GhBAM21, GhBAM22, GhBAM23, GhBAM24, GhBAM25, GhBAM26, GhBAM27) were located in the D subgenomic chromosome above (Figure 4). GhBAM1 was mapped to A02; GhBAM2 and GhBAM3 were mapped to A08; GhBAM4, GhBAM5, and GhBAM6 were mapped to A09; GhBAM7 and GhBAM8 were mapped to A10; GhBAM9-12 was mapped to A11; and so on. GhBAM13 and GhBAM14 were mapped to A12 (Figure 4). On the other hand, GhBAM15 was on D02; GhBAM16 and GhBAM17 were on D08; GhBAM18, GhBAM19, and GhBAM20 were on D09; GhBAM21 and GhBAM22 were on D10; GhBAM23, GhBAM24, and GhBAM25 were on D11; and so on. GhBAM26 and GhBAM27 were on D12 (Figure 4). On some At and Dt subgenomic chromosomes, the deletion of the GhBAM gene may have been due to gene loss during evolution.
In plant evolution, replication, including tandem and segmentary replication, is the main force driving gene expansion. The amplification mechanism of BAM genes in G. hirsutum was determined through gene replication analysis, as shown in Figure 5 and Table S3. All genes were segmented among the 34 para-homologous gene pairs. These results indicated that tandem replication was essential in GhBAM gene amplification. In order to analyze the collinearity of the BAM genes in cotton, the MCScanX technique was used to detect the collinearity of upland cotton with tetraploid cotton varieties (G. barbadense and A. thaliana). Collinearity analysis revealed that G. hirsutum and A. thaliana had 16 homologous gene pairs (Figure 5B), and G. hirsutum and G. barbadense had 86 homologous gene pairs (Figure 5B).
To estimate the correlation of repeating genes over a long evolutionary history, Ka/Ks values in GhBAM gene homologous pairs were calculated based on different selection pressures such as purification, neutral, and active selection. According to the Ka/Ks analysis, the Ka/Ks values were below 1.0, indicating that these GhBAM genes underwent strong purification selection during evolution (Table S3). When differentiation is limited by purification selection, gene replication pairs may perform similar functions.

3.6. Transcriptome Analysis

3.6.1. Analysis of GhBAM Gene Expression in Different Tissues of Upland Cotton

Tissue-specific expression analysis of GhBAM genes in ovule and fiber tissues showed that the expression of these genes in different tissues was different (Figure 6). GhBAM2, GhBAM7, and GhBAM22 were mainly expressed in the ovule and fiber, with higher levels at −3 d, 0 d, 1 d, 10 d, 15 d, and 20 d in the ovule (Figure 6). In addition, GhBAM2, GhBAM7, and GhBAM22 were expressed at 10 d, 15 d, and 25 d during fiber development. The remaining genes were poorly expressed in tissues at these three stages of ovule and fiber development (Figure 6).

3.6.2. Transcriptional Expression Analysis of GhBAM Genes at 15 and 20 Days of Fiber Development in Extreme Materials

Transcriptional expression analysis of the GhBAM genes at day 15 and day 20 of fiber development in extreme materials showed that some genes were highly expressed (Figure 7), indicating that the GhBAM genes may play roles in fiber development periods. GhBAM1 had high expression at 20 d in extreme materials with low fiber length (Figure 7). The expression levels of GhBAM7 and GhBAM22 in extreme materials with high fiber length at 15 d and 20 d were higher than those in extreme materials with low fiber length. The expression difference at 20 d was highly significant (Figure 7). In contrast, the expression of GhBAM25 at the 15 d stage was higher than that at the 20 d stage in extreme materials. The expression of GHBAM25 in extreme materials with high fiber length was higher than in extreme materials with low fiber length (Figure 7).

3.7. qRT-PCR Validation of the GhBAM Gene Family in Two Extreme Materials

Information about gene function can be provided by analysis of gene expression levels. To analyze the roles of the GhBAM genes in fiber development, from the results obtained from the RNA-seq data analyzed in the previous section (Figure 6 and Figure 7), the GhBAM7 gene was selected because it may be involved in fiber growth and development. The expression levels of the GhBAM7 gene at 15 and 20 days of fiber development in four extreme materials were analyzed by qRT-PCR. The gene-specific primers are shown in Table S4. The results of qRT-PCR analysis showed that the expression patterns of the GhBAM7 gene in these four extreme materials changed at day 15 and day 20 (Figure 8). BS2 and BS18 showed high expression at 20 d, while BS24 and BS38 showed little change at 20 d. The results showed that the GhBAM7 gene was induced at 20 d of fiber development and reached the peak expression level quickly (Figure 8). These results suggest that the GhBAM7 gene may be involved in fiber development at 20 d.

3.8. Subcellular Localization Analysis of GhBAM7 Protein

Combined with the differential expression pattern and tissue specificity of the BAM gene family in cotton fiber development, we selected the GhBAM7 gene that was highly expressed at day 15 and day 20 during fiber development for in-depth study. In order to determine the location of the GhBAM7 protein in cells, a GFP vector for GhBAM7 protein subcellular localization analysis was constructed. At the same time, empty GFP fusion protein was used as the control, and the position of the fusion protein was observed by fluorescence confocal microscopy three days after injecting tobacco leaves. The results showed that GHBAM7-GFP was distributed in the nucleus and that the GhBAM7 protein was located in the nucleus (Figure 9).

4. Discussion

As an essential source of natural fiber, cotton is of great significance to the study of fiber quality and yield [34]. Completing cotton genome sequencing enables us to further study the fiber yield and quality mechanisms. The conversion of starch and sugar plays a vital role in fiber formation. Biochemical and genetic analyses have shown that the functions of BAM genes are related to plant germination, growth, development, and maturation. Studies in Arabidopsis show that β-amylase (BAM, EC3.2.1) is the main starch-degrading enzyme [11]. Therefore, studying the function and related roles of the GhBAM gene family is very important.
In conclusion, except for in-depth research on the BAM gene family of Arabidopsis in model plants, research on other plants is relatively shallow. In this study, based on the whole genome sequencing data of upland cotton, members of the GhBAM gene family were identified and screened, and their structure and function were analyzed in depth, providing a theoretical basis for further research on the role of the GhBAM gene family in the growth and development of cotton. So far, 9 BAM genes in Arabidopsis have been identified, including 10 in rice (Oryza sativa L.), 13 in maize (Zea mays L.), 11 in Brachypodium distachyon (Brachypodium distachyon (L.) P. Beauv), 10 in sorghum (Sorghum bicolor (L.) Moench), 10 in millet (Setaria italica var. germanica (Mill.) Schred), 16 in banana (Musa nana Lour.), 10 in potato (Solanum tuberosum L.), and 8 in trifoliate (Citrus trifoliata L.) [11,21,22,35,36]. Therefore, this study systematically analyzed the BAM gene family of upland cotton. BAM genes were distributed on 21 chromosomes in upland cotton and on 12 chromosomes in Sea Island cotton, among which several GhBAM genes were densely distributed on chromosomes with high accumulation, suggesting that tandem duplication and chromosome segment duplication may have contributed to the expansion of BAM gene family. The results of collinearity analysis show that 34 GhBAM genes showed collinearity in upland cotton, followed by 16 GhBAM genes showing collinearity with Arabidopsis BAM genes. It is speculated that BAM family genes may be involved in various growth and development processes regulated by hormone-related response elements. In order to determine the expression characteristics of the GhBAM7 protein in cells, the gene was analyzed by subcellular localization, and the GFP vector for GhBAM7 protein subcellular localization analysis was constructed. GhBAM7-GFP fusion protein was injected into tobacco leaves, and the position of the fusion protein was observed by fluorescence confocal microscopy three days after injection, with unloaded GFP as the control. The results showed (Figure 9) that GHBAM7-GFP was distributed in the nucleus, indicating that the GhBAM7 protein was located in the nucleus.
Arabidopsis AtBAM4 has been shown to participate in the starch degradation process [37]. Transcriptomic data analysis showed that GhBAM7 and GhBAM22 were more expressed at 15 d and 20 d in fiber than other genes. Moreover, the expression levels at 15 d and 20 d in extreme materials with high fiber lengths were higher than in extreme materials with short fiber lengths. The GHBAM7 gene was selected, and the expression levels at 15 and 20 days of fiber development in the four extreme materials were analyzed by qRT-PCR. The results of qRT-PCR analysis showed (Figure 8) that the expression patterns of the GhBAM7 gene in these four extreme materials changed at day 15 and day 20. BS2 and BS18 showed high expression at 20 d, while BS24 and BS38 showed little change at 20 d. The results showed that the GhBAM7 gene was induced at 20 d of fiber development and reached the peak expression level quickly (Figure 8). These results suggested that the GhBAM7 gene may be involved in fiber development at 20 days. It is speculated that it may play a role in starch degradation during the development of upland cotton fiber.
This study identified 27 GhBAM genes and analyzed their phylogenetic relationships, gene structures, protein motifs, and expression patterns at different stages of cotton fiber development. This comprehensive study adds to our understanding of how BAM genes are involved in the development process of upland cotton fibers and will provide an essential basis for future research using BAM for crop improvement.

5. Conclusions

BAM family genes were identified in four cotton cultivars, and their evolutionary relationships were analyzed with a phylogenetic tree. The gene structure, phylogenetic relationship, cis-acting elements, and collinearity of GhBAMs in upland cotton were analyzed, which increases the understanding of the BAM gene family in upland cotton. The analysis of cis-acting elements suggested that BAM genes might be involved in plant growth, development, glucose metabolism, and hormone signal transduction. Tissue-specific analysis of all GhBAM family genes combined with transcriptome analysis revealed that two genes were specifically expressed in extreme materials, and these two materials were also highly expressed in extreme materials with long fiber lengths. Four progeny extreme materials were selected for qRT-PCR verification, and the results showed that expression was high in the long progeny extreme materials and low in the poor extreme materials (with a very significant difference between them). It was concluded that the GhBAM7 gene might be involved in the development of upland cotton fiber, which provides a theoretical basis for studying the molecular mechanisms of BAM genes in upland cotton fiber development.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14112077/s1, Table S1: Characteristics of BAM gene family in G. hirsutum; Table S2. Multilevel consensus sequences of motifs in GhBAM; Table S3 Analysis of Ka, Ks and Ka/Ks of BAM gene family in upland cotton; Table S4 Primers used in GhBAM7 gene experiments.

Author Contributions

Conceived and designed the experiments, F.S., J.M., F.X. and Y.Y.; Formal Analysis, F.S. and M.Y.; Resources, W.K. and P.W.; Writing—Original Draft Preparation, Y.Y. and F.S.; Revised the paper, C.L. (Chengxia Lai) and C.L. (Chunping Li); All authors have read and agreed to the published version of the manuscript.

Funding

This research were funded by the Xinjiang Uygur Autonomous Region Natural Science Foundation Youth Fund Project (2021D01B62), The basic scientific research business fee project of public welfare scientific research institutes in Xinjiang Uygur Autonomous Region (KY2022006), and Xinjiang Academy of Agricultural Sciences Youth Science and Technology Backbone Innovation Ability Training Project (xjnkq-2022001 andxjnkq-2022007).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, D.; Wang, Y. β-amylase in developing apple fruits: Activities, amounts and subcellular localization. Sci. China Ser. C Life Sci. 2002, 45, 429–440. [Google Scholar] [CrossRef] [PubMed]
  2. Thalmann, M.; Santelia, D. Starch as a determinant of plant fitness under abiotic stress. New Phytol. 2017, 214, 943–951. [Google Scholar] [CrossRef] [PubMed]
  3. Monroe, J.D. Involvement of five catalytically active Arabidopsis β-amylases in leaf starch metabolism and plant growth. Plant Direct 2020, 4, e00199. [Google Scholar] [CrossRef] [PubMed]
  4. Sethi, S.; Saini, J.S.; Mohan, A.; Brar, N.K.; Verma, S.; Sarao, N.K.; Gill, K.S. Comparative and evolutionary analysis of α-amylase gene across monocots and dicots. Funct. Integr. Genom. 2016, 16, 545–555. [Google Scholar] [CrossRef] [PubMed]
  5. Zanella, M.; Borghi, G.L.; Pirone, C.; Thalmann, M.; Pazmino, D.; Costa, A.; Santelia, D.; Trost, P.; Sparla, F. β-amylase 1 (BAM1) degrades transitory starch to sustain proline biosynthesis during drought stress. J. Exp. Bot. 2016, 67, 1819–1826. [Google Scholar] [CrossRef] [PubMed]
  6. Smith, A.M.; Zeeman, S.C.; Smith, S.M. Starch degradation. Annu. Rev. Plant Biol. 2005, 56, 73–98. [Google Scholar] [CrossRef]
  7. Zeeman, S.C.; Delatte, T.; Messerli, G.; Umhang, M.; Stettler, M.; Mettler, T.; Streb, S.; Reinhold, H.; Kötting, O. Starch breakdown: Recent discoveries suggest distinct pathways and novel mechanisms. Funct. Plant Biol. 2007, 34, 465–473. [Google Scholar] [CrossRef]
  8. Valerio, C.; Costa, A.; Marri, L.; Issakidis-Bourguet, E.; Pupillo, P.; Trost, P.; Sparla, F. Thioredoxin-regulated β-amylase (BAM1) triggers diurnal starch degradation in guard cells, and in mesophyll cells under osmotic stress. J. Exp. Bot. 2011, 62, 545–555. [Google Scholar] [CrossRef]
  9. Zhao, L.Y.; Gong, X.; Gao, J.Z.; Dong, H.Z.; Zhang, S.L.; Tao, S.T.; Huang, X.S. Transcriptomic and evolutionary analyses of white pear (Pyrus bretschneideri) β-amylase genes reveals their importance for cold and drought stress responses. Gene 2019, 689, 102–113. [Google Scholar] [CrossRef]
  10. Fulton, D.C.; Stettler, M.; Mettler, T.; Vaughan, C.K.; Li, J.; Francisco, P.; Gil, M.; Reinhold, H.; Eicke, S.; Messerli, G.; et al. β-AMYLASE4, a noncatalytic protein required for starch breakdown, acts upstream of three active β-amylases in Arabidopsis chloroplasts. Plant Cell 2008, 20, 1040–1058. [Google Scholar] [CrossRef]
  11. Miao, H.X.; Sun, P.G.; Miao, Y.L.; Liu, J.H.; Zhang, J.B.; Jia, C.H.; Wang, J.Y.; Wang, Z.; Jin, Z.Q.; Xu, B.Y. Genome-wide identification and expression analysis of the β-amylase genes strongly associated with fruit development, ripening, and abiotic stress response in two banana cultivars. Front. Agric. Sci. Eng. 2016, 3, 346–356. [Google Scholar] [CrossRef]
  12. Jiang, S.Z.; Lian, H.; Xiong, Y.F.; Luo, K.J.; Su, X.Q.; Chen, S.P. Genome-wide identification and expression analysis of the β-amylase gene family in Castanea henry. J. For. Environ. 2021, 41, 545–553. [Google Scholar]
  13. Stitt, M.; Zeeman, S.C. Starch turnover: Pathways, regulation and role in growth. Curr. Opin. Plant Biol. 2012, 15, 282–292. [Google Scholar] [CrossRef] [PubMed]
  14. Streb, S.; Zeeman, S.C. Starch metabolism in Arabidopsis. Arab. Book/Am. Soc. Plant Biol. 2012, 10, 73–98. [Google Scholar] [CrossRef]
  15. David, L.C.; Lee, S.K.; Bruderer, E.; Abt, M.R.; Fischer-Stettler, M.; Tschopp, M.A.; Solhaug, E.M.; Sanchez, K.; Zeeman, S.C. BETA-AMYLASE9 is a plastidial nonenzymatic regulator of leaf starch degradation. Plant Physiol. 2022, 188, 191–207. [Google Scholar] [CrossRef] [PubMed]
  16. Weise, S.E.; Kim, K.S.; Stewart, R.P.; Sharkey, T.D. β-Maltose is the metabolically active anomer of maltose during transitory starch degradation. Plant Physiol. 2005, 137, 756–761. [Google Scholar] [CrossRef]
  17. Ziegler, P. Cereal Beta-Amylases. J. Cereal Sci. 1999, 29, 195–204. [Google Scholar] [CrossRef]
  18. Weise, S.E.; Weber, A.P.M.; Sharkey, T.D. Maltose is the major form of carbon exported from the chloroplast at night. Planta 2004, 218, 474–482. [Google Scholar] [CrossRef]
  19. Srivastava, G.; Kayastha, A.M. β-amylase from starchless seeds of Trigonella foenum-graecum and its local ization in germinating seeds. PLoS ONE 2014, 9, e88697. [Google Scholar] [CrossRef]
  20. Smith, S.M.; Fulton, D.C.; Chia, T.; Thorneycroft, D.; Chapple, A.; Dunstan, H.; Hylton, C.; Zeeman, S.C.; Smith, A.M. Diurnal Changes in the Transcriptome Encoding Enzymes of Starch Metabolism Provide Evidence for Both Transcriptional and Posttranscriptional Regulation of Starch metabolism in Arabidopsis leaves. Plant Physiol. 2004, 136, 2687–2699. [Google Scholar] [CrossRef]
  21. Koide, T.; Ohnishi, Y.; Horinouchi, S. Characterization of recombinant β-amylases from Oryza sativa. Biosci. Biotechnol. Biochem. 2011, 75, 793–796. [Google Scholar] [CrossRef] [PubMed]
  22. Mason-Gamer, R.J. The β-amylase genes of grasses and a phylogenetic analysis of the Triticeae (Poaceae). Am. J. Bot. 2005, 92, 1045–1058. [Google Scholar] [CrossRef] [PubMed]
  23. Hou, J.; Zhang, H.L.; Liu, J.; Reid, S.; Liu, T.F.; Xu, S.J.; Tian, Z.D.; Sonnewald, U.; Song, B.T.; Xie, C.H. Amylases St Amy23, St BAM1 and St BAM9 regulate cold-induced sweetening of potato tubers in distinct ways. J. Exp. Bot. 2017, 68, 2317–2331. [Google Scholar] [CrossRef]
  24. Niittyla, T.; Messerli, G.; Trevisan, M.; Chen, J.; Smith, A.M.; Zeeman, S.C. A previously unknown maltose transporter essential for starch degradation in leaves. Science 2004, 303, 87–89. [Google Scholar] [CrossRef] [PubMed]
  25. Thalmann, M.; Coiro, M.; Meier, T.; Wicker, T.; Zeeman, S.C.; Santelia, D. The evolution of functional complexity within the β-amylase gene family in land plants. BMC Evol. Biol. 2019, 19, 66. [Google Scholar] [CrossRef]
  26. Monroe, J.D.; Breault, J.S.; Pope, L.E.; Torres, C.E.; Gebrejesus, T.B.; Berndsen, C.E.; Storm, A.R. Arabidopsis β-amylase2 is a K+-requiring, catalytic tetramer with sigmoidal kinetics. Plant Physiol. 2017, 175, 1525–1535. [Google Scholar] [CrossRef] [PubMed]
  27. Monroe, J.D.; Storm, A.R. The Arabidopsis β-amylase (BAM) gene family: Diversity of form and function. Plant Sci. 2018, 276, 163–170. [Google Scholar] [CrossRef]
  28. Ma, Z.Y.; He, S.P.; Wang, X.F.; Sun, J.L.; Zhang, Y.; Zhang, G.Y.; Wu, L.Q.; Li, Z.K.; Liu, Z.H.; Sun, G.F.; et al. Resequencing a core collection of upland cotton identifies genomic variation and loci influencing fiber quality and yield. Nat. Genet. 2018, 50, 803–813. [Google Scholar] [CrossRef]
  29. Shan, C.M.; Shangguan, X.X.; Zhao, B.; Zhang, X.F.; Chao, L.M.; Yang, C.Q.; Wang, L.J.; Zhu, H.Y.; Zeng, Y.D.; Guo, W.Z.; et al. Control of cotton fibre elongation by a homeodomain transcription factor Gh HOX3. Nat. Commun. 2014, 5, 5519. [Google Scholar] [CrossRef]
  30. Tang, W.X.; Tu, L.L.; Yang, X.Y.; Tan, J.F.; Deng, F.L.; Hao, J.; Guo, K.; Lindsey, K.; Zhang, X.L. The calcium sensor Gh CaM7 promotes cotton fiber elongation by modulating reactive oxygen species (ROS) production. New Phytol. 2014, 202, 509–520. [Google Scholar] [CrossRef]
  31. Hajihashemi, S.; Skalicky, M.; Brestic, M.; Pavla, V. Cross-talk between nitric oxide, hydrogen peroxide and calcium in salt-stressed Chenopodium quinoa Willd. at seed germination stage. Plant Physiol. Biochem. 2020, 154, 657–664. [Google Scholar] [CrossRef] [PubMed]
  32. Vinje, M.A.; Willis, D.K.; Duke, S.H.; Henson, C.A. Differential expression of two b-amylase genes (Bmy1 and Bmy2) in developing and mature barley grain. Planta 2011, 233, 1001–1010. [Google Scholar] [CrossRef] [PubMed]
  33. Hu, Y.; Chen, J.; Fang, L.; Zhang, Z.; Ma, W.; Niu, Y.; Ju, L.; Deng, J.; Zhao, T.; Lian, J.; et al. Gossypium barbadense and Gossypium hirsutum genomes provide insights into the origin and evolution of allotetraploid cotton. Nat. Genet. 2019, 51, 739–748. [Google Scholar] [CrossRef]
  34. Fang, L.; Wang, Q.; Hu, Y.; Jia, Y.H.; Chen, J.D.; Liu, B.L.; Zhang, Z.Y.; Guan, X.Y.; Chen, S.Q.; Zhou, B.L.; et al. Genomic analyses in cotton identify signatures of selection and loci associated with fiber quality and yield traits. Nat. Genet. 2017, 49, 1089–1098. [Google Scholar] [CrossRef] [PubMed]
  35. Vogel, J.P.; Garvin, D.F.; Mockler, T.C.; Schmutz, J.; Rokhsar, D.; Bevan, M.W.; Lail, K. Genome sequencing and analysis of the model grass Brachypodium distachyon. Nature 2010, 463, 763–768. [Google Scholar]
  36. Vatansever, R.; Koc, I.; Ozyigit, I.I.; Sen, U.; Uras, M.E.; Anjum, N.A.; Pereira, E.; Filiz, E. Genome-wide identification and expression analysis of sulfate transporter (SULTR) genes in potato (Solanum tuberosum L.). Planta 2016, 244, 1167–1183. [Google Scholar] [CrossRef]
  37. Li, J.; Francisco, P.; Zhou, W.X.; Edner, C.; Steup, M.; Ritte, G.; Bond, C.S.; Smith, S.M. Catalytically-inactive β-amylase BAM4 required for starch breakdown in Arabidopsis leaves is a starch-binding-protein. Arch. Biochem. Biophys. 2009, 489, 92–98. [Google Scholar] [CrossRef]
Genes 14 02077 g001

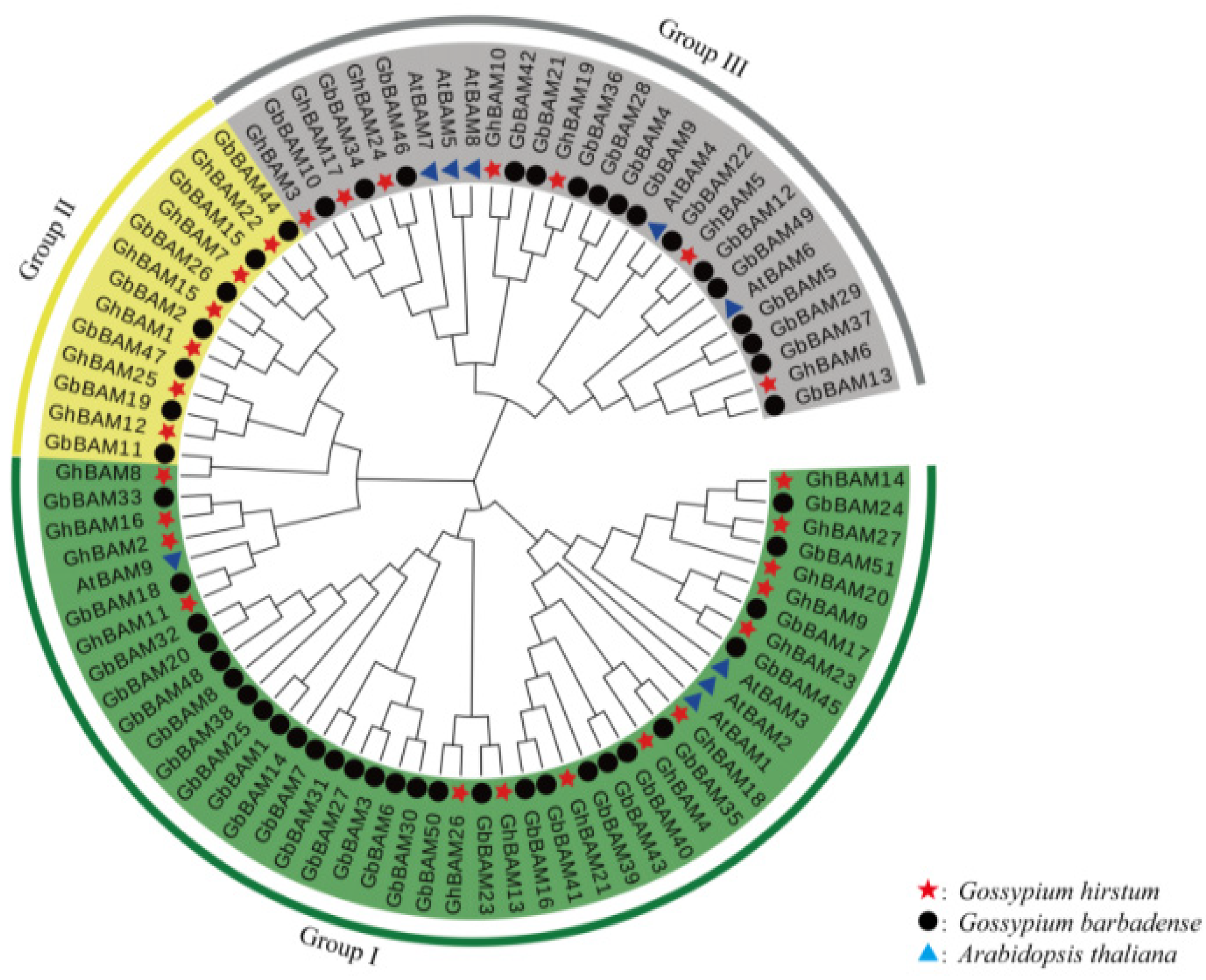

Figure 1. Evolutionary analysis of BAM gene family in upland cotton, Sea Island cotton, and A. thaliana.
Figure 1. Evolutionary analysis of BAM gene family in upland cotton, Sea Island cotton, and A. thaliana.
Genes 14 02077 g001
Genes 14 02077 g002

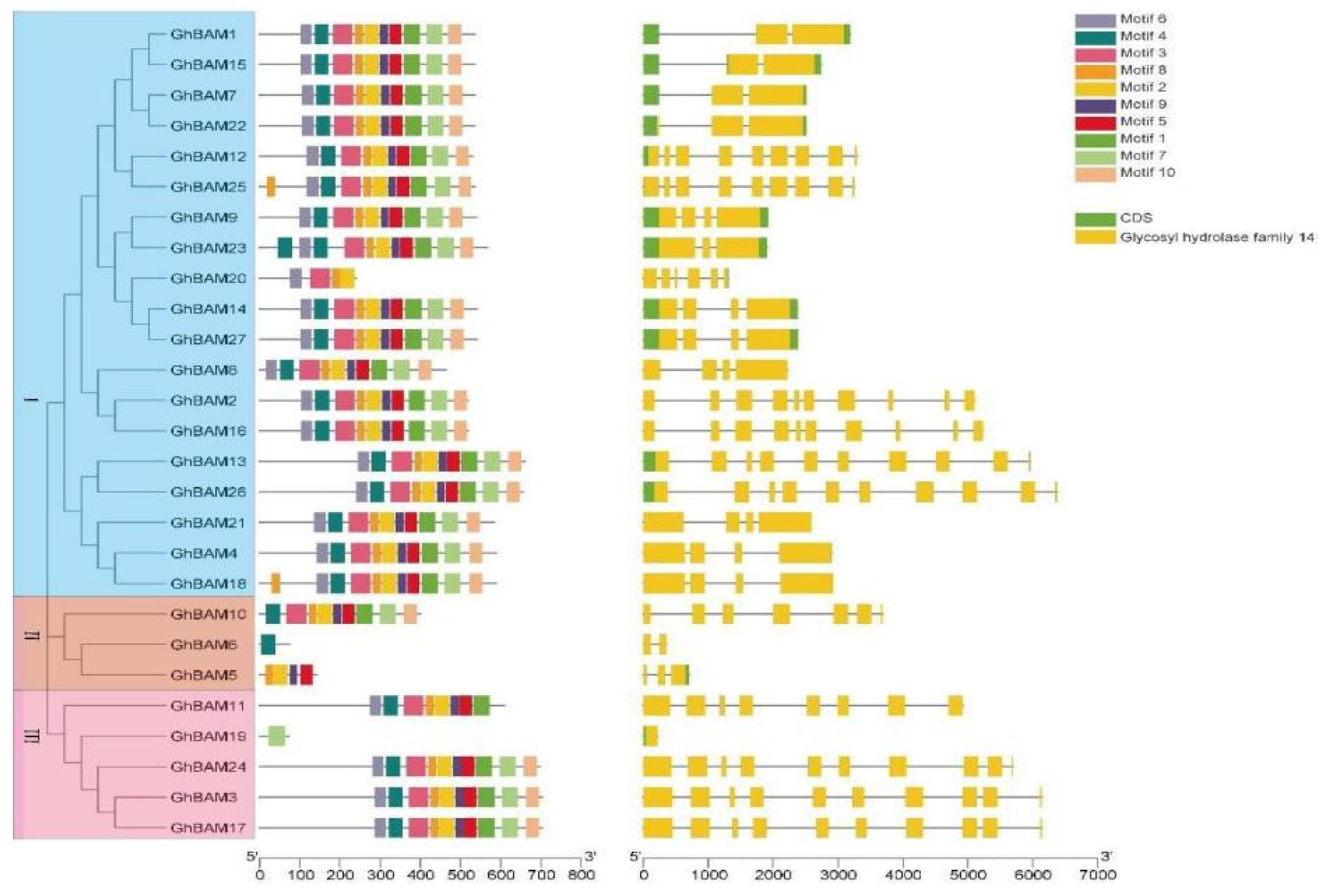

Figure 2. Analysis of motif and gene structure of BAM gene family in upland cotton.
Figure 2. Analysis of motif and gene structure of BAM gene family in upland cotton.
Genes 14 02077 g002
Genes 14 02077 g003

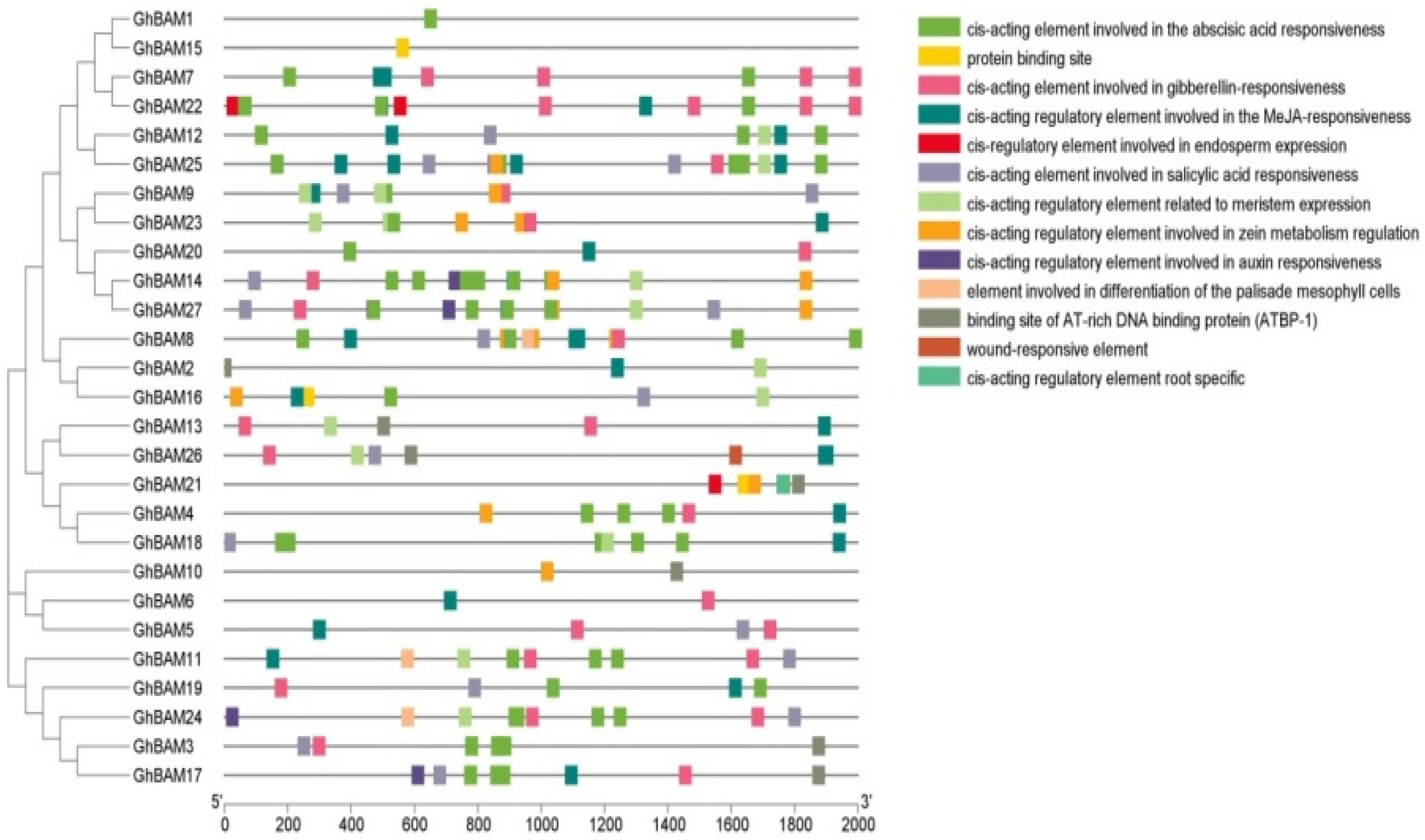

Figure 3. Analysis of promoter cis-acting elements of BAM gene family in upland cotton.
Figure 3. Analysis of promoter cis-acting elements of BAM gene family in upland cotton.
Genes 14 02077 g003
Genes 14 02077 g004

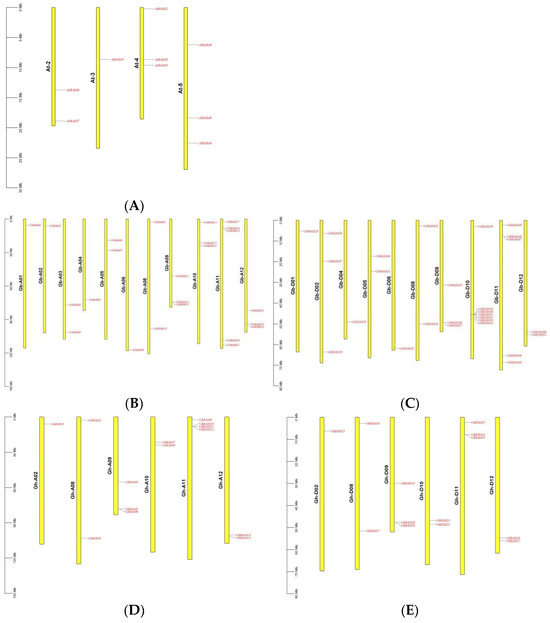

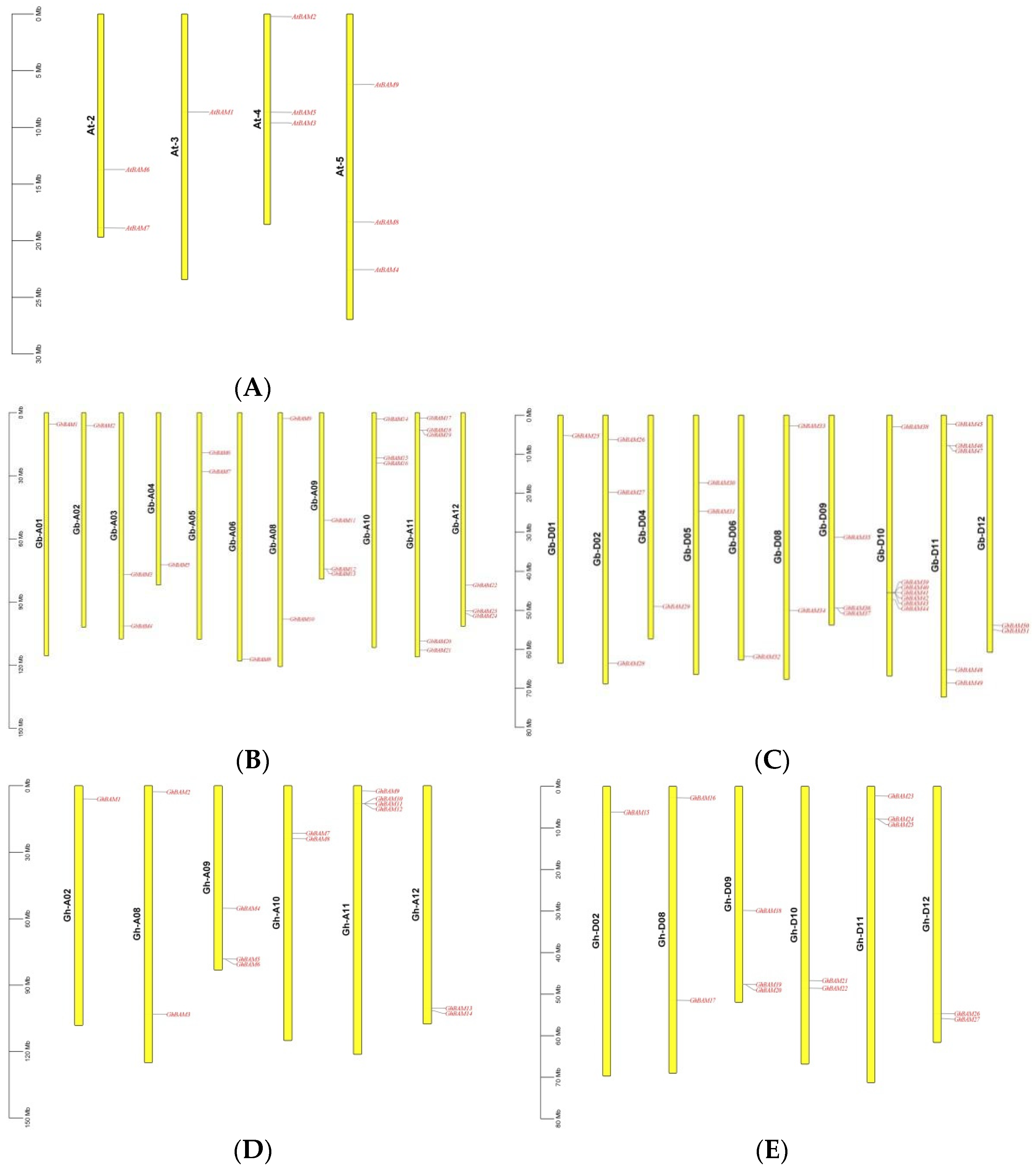

Figure 4. Chromosome localization analysis of BAM gene family. (A) A. thaliana BAM gene mapping, (B) Sea Island cotton At subgenomic BAM gene mapping, (C) Sea Island cotton Dt subgenomic BAM gene mapping (D) Upland cotton At subgenomic BAM gene mapping, (E) Upland cotton Dt subgenomic BAM gene mapping.
Figure 4. Chromosome localization analysis of BAM gene family. (A) A. thaliana BAM gene mapping, (B) Sea Island cotton At subgenomic BAM gene mapping, (C) Sea Island cotton Dt subgenomic BAM gene mapping (D) Upland cotton At subgenomic BAM gene mapping, (E) Upland cotton Dt subgenomic BAM gene mapping.
Genes 14 02077 g004
Genes 14 02077 g005

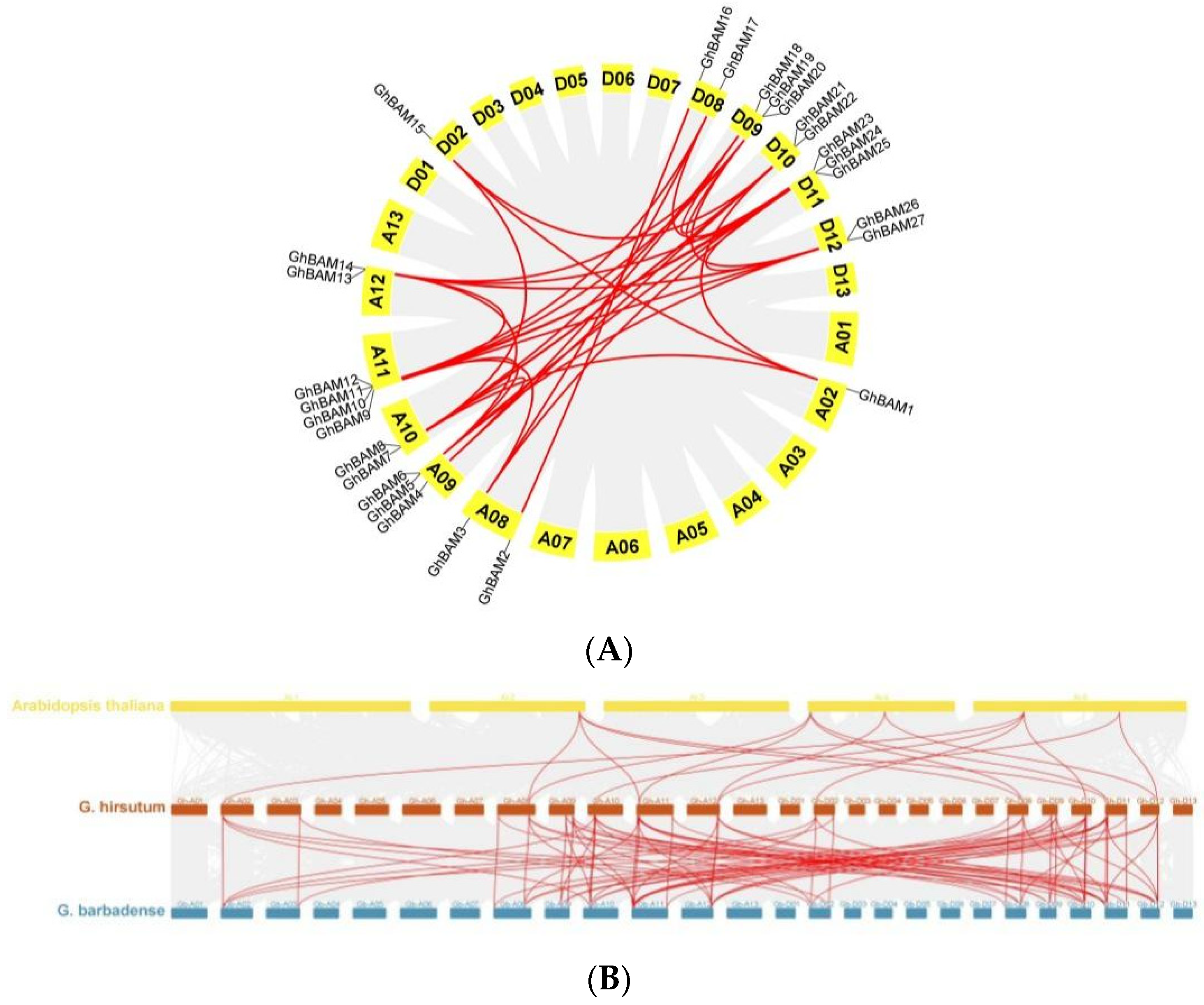

Figure 5. Collinearity analysis of BAM gene family. (A) BAM gene family analysis in upland cotton; (B) Collinearity analysis among Arabidopsis thaliana, upland cotton, and Sea Island cotton (collinear blocks of other plant genomes in the gray background). In contrast, the red line indicates the gene pairs of the BAM gene.
Figure 5. Collinearity analysis of BAM gene family. (A) BAM gene family analysis in upland cotton; (B) Collinearity analysis among Arabidopsis thaliana, upland cotton, and Sea Island cotton (collinear blocks of other plant genomes in the gray background). In contrast, the red line indicates the gene pairs of the BAM gene.
Genes 14 02077 g005
Genes 14 02077 g006

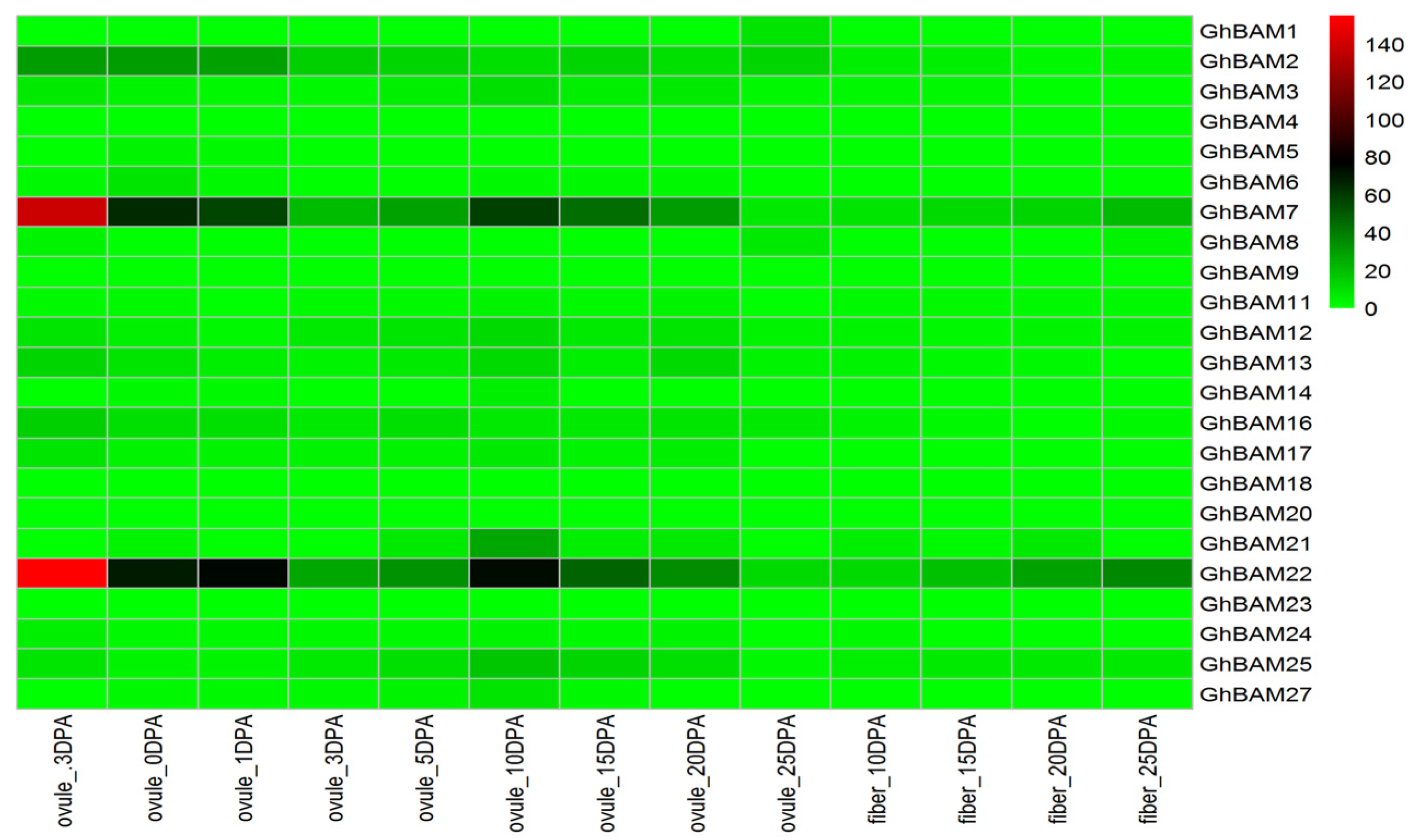

Figure 6. Transcriptional expression analysis of BAM gene family in ovule and fiber tissues of upland cotton.
Figure 6. Transcriptional expression analysis of BAM gene family in ovule and fiber tissues of upland cotton.
Genes 14 02077 g006
Genes 14 02077 g007

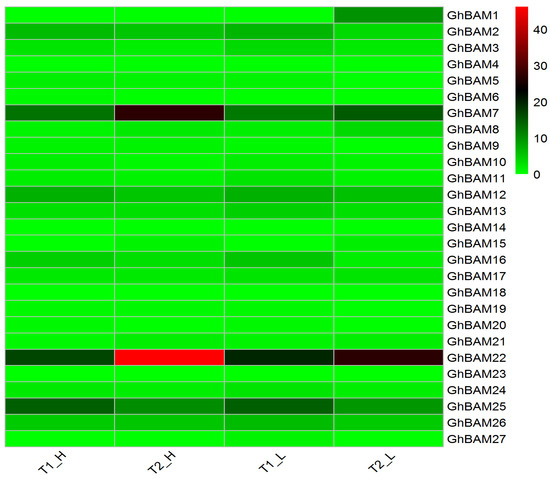

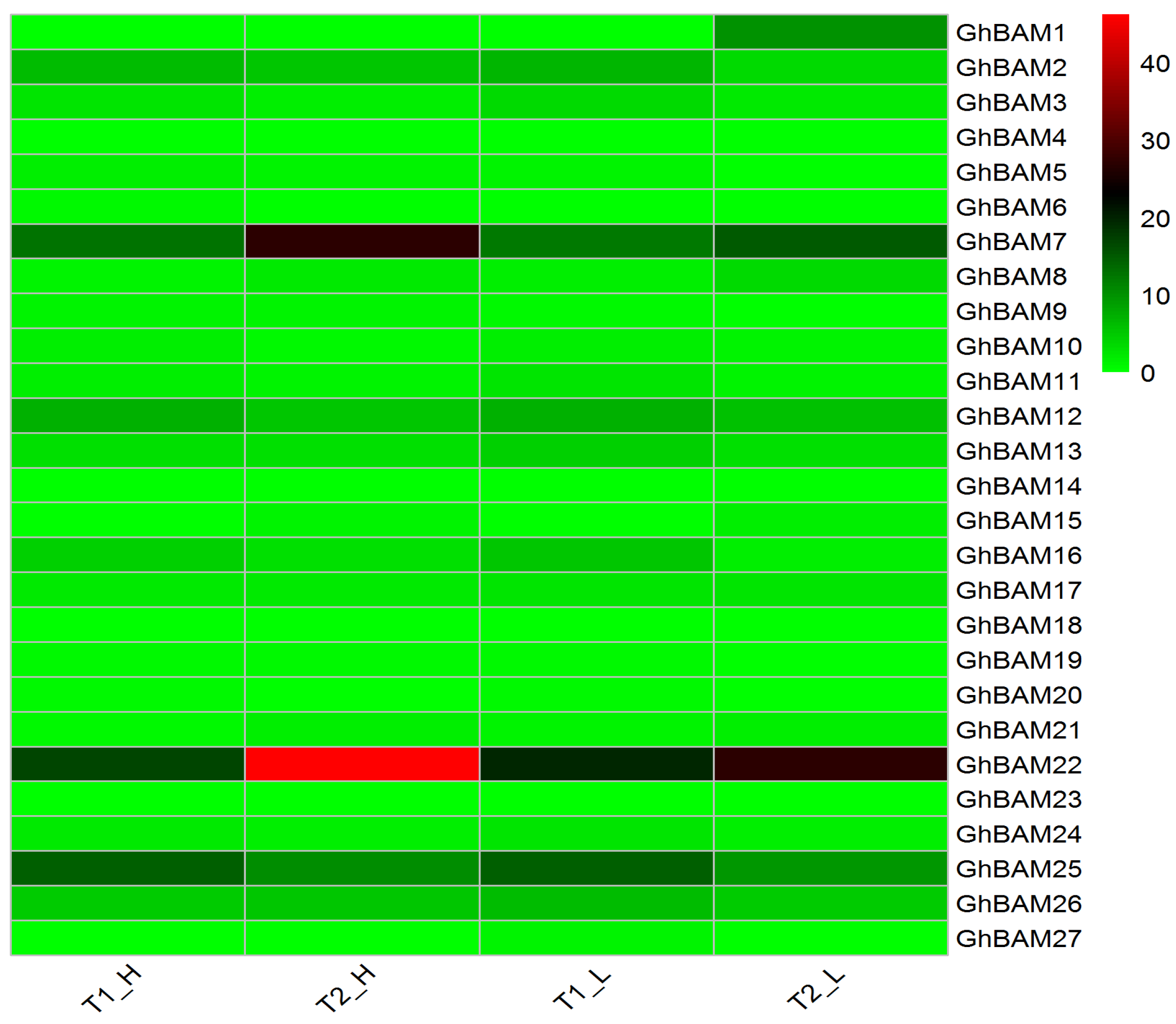

Figure 7. Transcriptional expression analysis of extreme materials with different fibers at day 15 and day 20 (T1_H: 15 days Xinluzhong 60 fiber; T2_H: 20 days Xinluzhong 60 fiber; T1_L: 15 days Xinhai 20 fiber; T2_L: 20 days Xinhai 20 fiber).
Figure 7. Transcriptional expression analysis of extreme materials with different fibers at day 15 and day 20 (T1_H: 15 days Xinluzhong 60 fiber; T2_H: 20 days Xinluzhong 60 fiber; T1_L: 15 days Xinhai 20 fiber; T2_L: 20 days Xinhai 20 fiber).
Genes 14 02077 g007
Genes 14 02077 g008

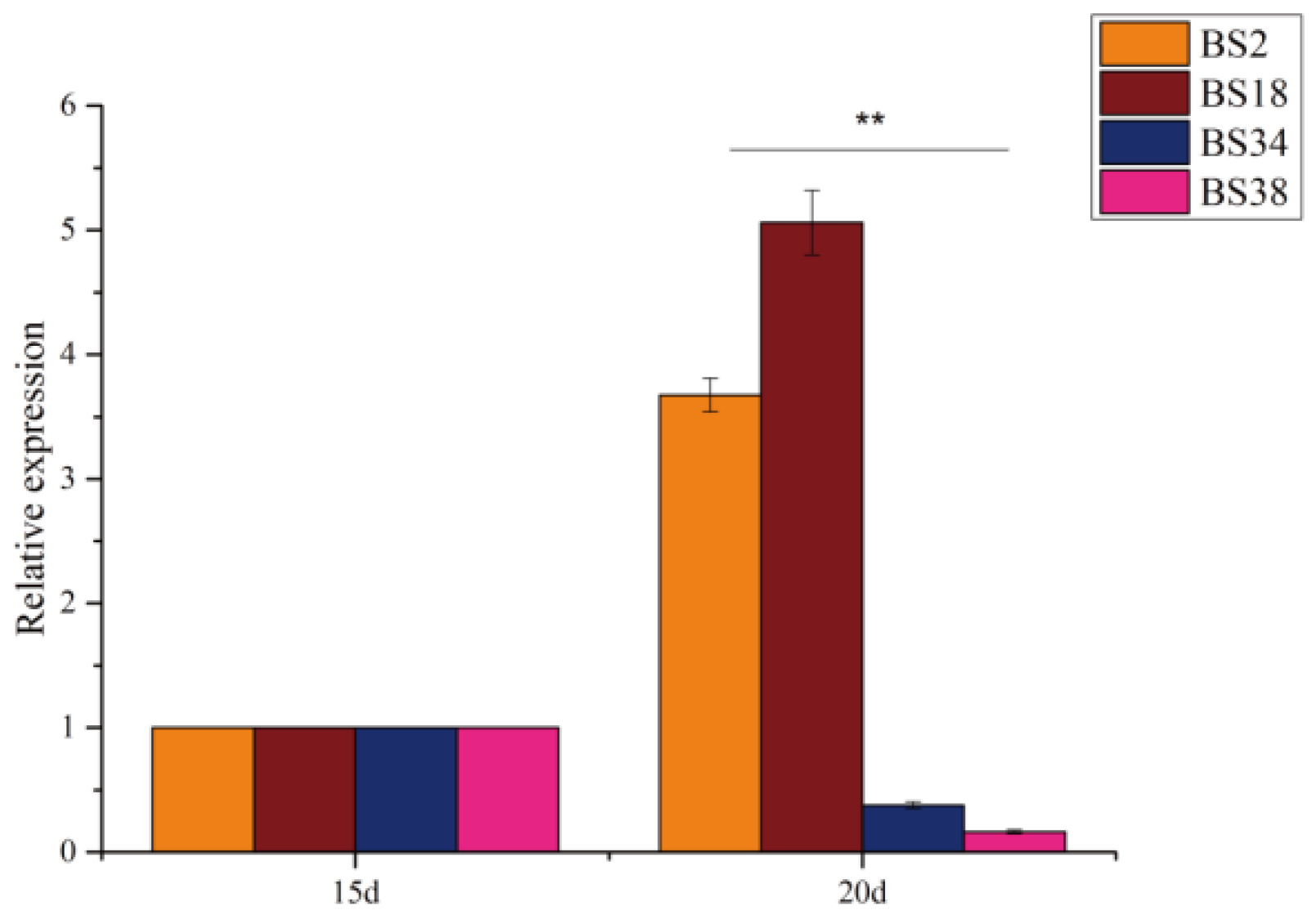

Figure 8. qRT-PCR analysis of GhBAM7 gene from four extreme materials at 20 days (20 d) of fiber development (BS2, BS18, BS34 and BS38: extreme materials for hybrid progeny). ** are significantly different at the 0.05 level of significance.
Figure 8. qRT-PCR analysis of GhBAM7 gene from four extreme materials at 20 days (20 d) of fiber development (BS2, BS18, BS34 and BS38: extreme materials for hybrid progeny). ** are significantly different at the 0.05 level of significance.
Genes 14 02077 g008
Genes 14 02077 g009
Figure 9. Subcellular localization analysis of GhBAM7.
Figure 9. Subcellular localization analysis of GhBAM7.
Genes 14 02077 g009
