Complete Chloroplast Genome of Gladiolus gandavensis (Gladiolus) and Genetic Evolutionary Analysis

by
Renjuan Qian
†,
Youju Ye
†,
Qingdi Hu
,
Xiaohua Ma
and
Jian Zheng
*
Zhejiang Institute of Subtropical Crops, Wenzhou Key Laboratory of Resource Plant Innovation and Utilization, Wenzhou 325005, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2022, 13(9), 1599; https://doi.org/10.3390/genes13091599
Submission received: 16 August 2022 / Revised: 26 August 2022 / Accepted: 4 September 2022 / Published: 7 September 2022
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
Gladiolus is an important ornamental plant that is one of the world’s four most-grown cut flowers. Gladiolus gandavensis has only been found in the Cangnan County (Zhejiang Province) of China, which is recorded in the “Botanical”. To explore the origin of G. gandavensis, chloroplast genome sequencing was conducted. The results indicated that a total of 151,654 bp of circular DNA was obtained. The chloroplast genome of G. gandavensis has a quadripartite structure (contains a large single-copy (LSC) region (81,547 bp), a small single-copy region (SSC) (17,895 bp), and two inverted repeats (IRs) (IRa and IRb, 52,212 bp)), similar to that of other species. In addition, a total of 84 protein-coding genes, 8 rRNA-encoding genes, and 38 tRNA-encoding genes were present in the chloroplast genome. To further study the structural characteristics of the chloroplast genome in G. gandavensis, a comparative analysis of eight species of the Iridaceae family was conducted, and the results revealed higher similarity in the IR regions than in the LSC and SSC regions. In addition, 265 simple sequence repeats (SSRs) were detected in this study. The results of the phylogenetic analysis indicated that the chloroplast genome of G. gandavensis has high homology with the Crocus cartwrightianus and Crocus sativus chloroplast genomes. Genetic analysis based on the rbcl sequence among 49 Gladiolus species showed that samples 42, 49, 50, and 54 had high homology with the three samples from China (64, 65, and 66), which might be caused by chance similarity in genotypes. These results suggest that G. gandavensis may have originated from South Africa.

1. Introduction

Gladilous comprises approximately 265 species, which is one of the largest genera in the family Iridaceae [1]. In addition, Gladiolus is a valuable ornamental plant with beautiful colors, and is one of the world’s four most-grown cut flowers [2]. Gladiolus is native to Africa and southern Europe. Currently, G. gandavensis is found in Cangnan County and Zhejiang Province, China. In Cangnan County, G. gandavensis is distributed in Xiaguan town, Mazhan town, and Beiguang Island [3]. G. gandavensis likes warm and sunny environments with good ventilation. In its environment, it displays red and yellow flowers and leaves shaped like swords [4]. Therefore, G. gandavensis has a high ornamental value, and is mainly used for flower arrangements, bouquets and baskets, as well as in flower beds and as potted plants [5].
The nuclear genome is biparentally inherited, while the chloroplast genome is maternally inherited [6]. In addition, the nuclear genome can be spread by pollen and seeds, and the chloroplast genome can be spread only by seeds in most angiosperm species [7]. Therefore, the chloroplast genome is suitable for identifying plants because of its special characteristics, such as its small size and conservation. Now, the chloroplast genome plays an irreplaceable role in evolution [8], migration [9], and identification [10].
The chloroplast is an important organelle used for photosynthesis and metabolic activities in higher plants and a few algae and prokaryotes [11]. In addition, chloroplasts also play important roles in other aspects of plant physiology and development, which are important for plant responses to light [12,13], heat [14], drought [15,16], salt [17], and other stress [18].
With the popularization and development of NGS technology, chloroplast genome databases are becoming increasingly abundant. Chloroplast genomes of increasing numbers of species have been sequenced, including Nicotiana tabacum [19], Oryza sativa [20], Zea mays [21], Pinus massoniana [22], and many other species. In general, there is a typical double-linked loop structure in the chloroplast genome of higher plants, whose sizes range between 120 and 180 kb. The chloroplast genome usually contains a small single-copy (SSC) region, a large single-copy (LSC) region, and an inverted repeat (IR) sequence [23,24].
G. gandavensis was only distributed in Cangnan County, China. However, the origin of G. gandavensis is unclear. The chloroplast genome was sequenced, and then the cpDNA rbcl sequence was used to identify 46 samples of Gladilous, to explore the origin of G. gandavensis.

2. Materials and Methods

2.1. Sequencing, Assembly, and Annotation

The G. gandavensis flowers showed red and yellow pigment, and their distribution was found in Cangnan county, Zhejiang Province, China. In Cangnan county, G. gandavensis was distributed in Xiaguan town, Mazhan town, and Beiguang Island (Figure 1). The G. gandavensis leaves were collected from Mazhan town (Zhejiang, China, N 27.29°, E 120.43°) for sequencing. An improved extraction method was used to isolate cpDNA from fresh leaves of G. gandavensis [25]. A library was constructed with 1 μg of DNA, and a Covaris M220 ultrasonic instrument was used to break the DNA into 300~5500 bp fragments. Afterward, the 3′ ends were polyadenylated and connected to index fragments (TruSeq™ Nano DNA Sample Prep Kit). Library enrichment and PCR amplification for 8 cycles were performed with a 2% agarose gel recycling destination bar (Certified Low Range Ultra Agarose), and then TBS380 (picogreen) was used for quantitation; the materials were mixed according to the data ratio. Then, the generated clusters were subjected to bridge PCR amplification on a CBOT solid phase, and 2 × 150 bp sequencing was performed with an Illumina HiSeq sequencing platform [26].
Original reads were filtered before assembly. SOAPdenovo (version: 2.04, http://soap.genomics.org.cn/soapdenovo.html, accessed on 1 May 2022) was used to assemble the clean data and obtain the optimal assembly results after multiple adjustment parameters [27]. The contigs were obtained by the assembly. The results were partially assembled and optimized according to the reads’ paired ends and overlapping relationships. Then, GapCloser (version: 1.12, http://soap.genomics.org.cn/soapdenovo.html, accessed on 1 May 2022) was used to repair the internal gaps in the sequences, and the redundant sequences were removed to obtain the final assembly sequence [28].

2.2. Sequence Analysis

MISA (http://pgrc.ipk-gatersleben.de/misa/misa.html, accessed on 1 May 2022) was used to identify the microsatellite motif [29]. MAFFT v7.310 (https://mafft.cbrc.jp/alignment/software/, accessed on 1 May 2022), which is a multiple sequence alignment software, was used to align the IR sequences between some species in Gladiolus [30]. MAUVE was used to locate structural differences among whole-genome alignments [31]. The codon usage bias of (RSCU) was analyzed by (number of codons encoding one amino acid/number of all codons encoding the amino acid)/(1/type of codon encoding the amino acid), namely, the actual frequency of codon usage/frequency of theoretical usage of the codon. Vmatch v2.3.0 (http://www.vmatch.de/, accessed on 1 May 2022) was used to identife the repeat sequence, and the parameter was set to: minimum length (minimum length) = 30 bp, hamming distance (hamming distance) = 3 [32]. KaKs_Calculator v2.0 (https://sourceforge.net/projects/kakscalculator2/, accessed on 1 May 2022) was used to calculate the Ka/Ks, while dnasp5 was used to calculate the pi of every gene [33].

2.3. Phylogenetic Analysis with Other Species

For in-depth research, the 8 chloroplast genome sequences of Iridaceae were aligned by MAFFT version 7 [30]. The Iridaceae species and sequences used included Iris lactea (MT740331), Iris sanguinea (KT626943), Iris loczyi (MT254070), Iris missourensis (MH251636), Crous sativus (MH542233), Crous cartwrightianus (MH542231), and Iris domestica (MW039136), which was downloaded from https://www.ncbi.nlm.nih.gov/ (accessed on 1 May 2022). Then, the maximum likelihood (ML) method was used to construct the phylogenetic tree [34].

2.4. Genetic Evolutionary Analysis

The total DNA of 49 Gladiolus (Table 1) samples was extracted using a Plant Genprep DNA Kit (Tiangen, Beijing, China) and quantified using a NanoDrop 2000c instrument (ThermoFisher Scientific, Wilmington, DE, USA) [35,36]. The DNA templates were detected via 1% agarose gel electrophoresis. The ABI-2720 PCR instrument (Applied Biosystems, Waltham, MA, USA) was for PCR amplification. PCR was carried out according to the manufacturer’s protocol. The primers of the chloroplast genome rbcl sequence used were ATGTCACCACAAACAGAAAC (forward primer) and TCGCATGTACCTGCAGTAGC (reverse primer). The PCR products were sent to Shanghai Suny Biotechnology Co., Ltd., Shanghai, China, for sequencing. The original sequence data were obtained with Sequencing Analysis 5.2 software. MAFFT was used to align all the sequences. The arithmetic means (UPGMA) method was used to construct the phylogenetic tree [37].

3. Results

3.1. Characteristics of Chloroplast Genomes

A circular chloroplast genome with 151,654 bp from G. gandavensis was assembled (GenBank accession number: OM304631). The chloroplast genome locations of 1–81,547 bp, 81,548–107,653 bp, 107,654–125,548 bp, and 125,549–151,654 bp were large single-copy (LSC) regions, first inverted repeat (IRa) regions, small single-copy (SSC) regions, and second inverted repeat (IRb) regions, respectively. The contents of the LSCs, IRs, and SSCs in the chloroplast genome were 53.78%, 29.01%, and 17.21%, respectively (Figure 2). In addition, the A, T, C, and G of the nucleotide compositions in the chloroplast genome were 30.79%, 30.88%, 19.2%, and 19.13%, respectively, and the total GC content was 38.34%. Additionally, the chloroplast genome of G. gandavensis contains 84 protein-coding genes, 38 transfer-RNA genes (tRNA), and 8 ribosomal RNA genes (rRNA) (Table 2).

3.2. Bias of Codon Usage

Genes from different species or within the same species show different codon usage bias modes, and the current oscillating use of unbalanced codons in biology is called codon usage bias, which helps in better understanding the environmental adaptability and molecular evolution of organisms. In this study, 26,108 codons were identified in all protein-coding sequences. Ile had the highest number (2276) of amino acids, while Met had the lowest number (85) of amino acids. Sixty-eight codons were identified with an RSCU > 1 (Figure 3).

3.3. Microsatellite Polymorphisms

Microsatellite polymorphisms (i.e., simple sequence repeats (SSRs)) were identified in the chloroplast genome of G. gandavensis, and distributed in the two different types of regions. There were 171 SSRs located in the LSC regions (64.6%), while 47 (17.7%) and 44 (16.6%) SSRs were located in the SSC regions and IR regions, respectively. In this study, 265 SSRs were identified in the G. gandavensis chloroplast genome. Among them, 164 were mononucleotides, 14 were dinucleotides, 78 were trinucleotides, 8 were tetranucleotides, and 1 was a pentanucleotide (Figure 4).

3.4. IR Expansion and Contraction

The IRs serve as integral components of maintaining the stability of the chloroplast genome, as loss of IRs could result in changes in the chloroplast genome [38]. Previous reports have indicated that IR expansion and contraction occur in many plant species [39]. In this study, the IR regions and the junction sites of the LSC and SSC regions in the chloroplast genomes of eight Iridaceae family members (including G. gandavensis) were analyzed (Figure 5). The results showed that the IR regions ranged from 150,819 bp in C. sativus to 153,735 bp in I. domestica. In addition, the ycf1 gene was located at the SSC/IRa junction in all the chloroplast genomes of different species; however, the ycf1 gene was missing in the Iris missouriensis and I. domestica, but was located at the SSC/IRb junction in other chloroplast genomes. Notably, the coding region of rpl22 was located at the LSC/IRb junction of all the chloroplast genomes, which resulted in the generation of 7, 69, 69, 63, 86, 70, 63, or 63 bp at the LSC/IRb border, respectively.

3.5. Phylogenetic Analysis

A phylogenetic tree of eight Iridaceae species was constructed by the GTRGAMMA model. The results showed that G. gandavensis had high homology with C. cartwrightianus and C. sativus, followed by I. domestica and other Iris species. Therefore, we speculate that Gladiolus has high homology with Crocus (Figure 6).

3.6. Genetic Relationship Analysis of Gladiolus

For further study, we amplified and sequenced the rbcl segment (cpDNA region) of the 49 Gladiolus species to analyze the genetic relationship in Gladiolus. Then, we obtained a phylogenetic tree by using the neighbor-joining (NJ) approach (Figure 7). The results showed that the three Chinese species (64, 65, and 66) all clustered into Group II. Specifically, species 66 had high homology with 50 and 54, 65 had high homology with the three species (50, 54, and 65), and 49, and 64 had high homology with 42 and 53. The results indicated that these species may be closely related to the three species.

4. Discussion

4.1. The Chloroplast Genome of G. gandavensis

The complete chloroplast genome of G. gandavensis was assembled. Then, the sequence data were submitted to the NCBI database, under the GenBank number (OM304631). The structure and characteristics of the G. gandavensis chloroplast genome were analyzed in this study, and the results were consistent with the traits of most angiosperms. In this study, only the clpP and rps12 genes included two introns. Research on the clpP gene indicated that it plays an important role in plant chloroplasts, which are the proteolytic subunits of the ATP-dependent Clp protease [40,41,42]. The rps12 gene is the most unique of all the chloroplast genes and is composed of two parts that are far apart in the genome [43]. Therefore, the study of these two genes would help in understanding the evolutionary process of genes and the genomic characteristics of G. gandavensis.
The sequence analysis among G. gandavensis and Iridaceae speciesCodon usage bias could avert transcriptional errors in the chloroplast genome by affecting the amino acid functions [44,45,46]. This research showed that the content of bases A and T in mononucleotide SSRs in the chloroplast genome of G. gandavensis was 96.95% on average, which was the most frequent. This result is consistent with that of previous reports for most angiosperm chloroplast genomes [47]. Notably, repetitive sequences could be used in phylogenetic studies and genome rearrangements [48]. A comparative analysis of eight Iridaceae plants was conducted. The expansion or contraction of the IR regions in this study indicates that the ycf1 gene was located at the SSC/IRa and SSC/IRb junctions, and this result will help in exploring the evolution of the chloroplast genome in G. gandavensis. Additionally, the phylogenetic tree of eight Iridaceae species indicated that G. gandavensis had higher homology with Crocus than with Iris species. These results show that G. gandavensis is closely related to the Crocus, which would cause similar molecular evolutionary mechanisms.

4.2. The Evolutionary Genetics of G. gandavensis

In addition, we obtained the rplc sequence from the 49 Gladiolus samples to analyze the evolution of Gladiolus, and then, constructed a phylogenetic tree by the NJ approach in this study. The results showed that 42, 49, 50, and 54 samples had high homology with the three Chinese species (64, 65, and 66), which may indicate a close evolutionary relationship. Regain was used with AFLP markers to analyze the genetic relationship of 54 Gladiolus cultivars, and the results showed that most of the exotic cultivars as well as indigenous cultivars were closely related to each other. This might be due to a chance similarity in their genotypes [49]. Therefore, we speculate that G. gandavensis originated from South Africa. Our results are similar to the previously mentioned studies; however, the specific relationship still needs further exploration. In the future, a study on population genetics, species identification, and conservation biology of Gladiolus may be conducted.

5. Conclusions

The chloroplast genome of G. gandavensis was assembled by Illumina sequencing technology. The sequence information was deposited into the NCBI database under the GenBank number (OM304631). By comparing its structure with that of other Iridaceae species, we found that Gladiolus had a higher homology with Crocus than with Iris. A study on the theoretical relationship among the Gladiolus species based on the rbcl chloroplast genome sequence will provide reference information for relationship homology, germplasm resource preservation, and sustainable use of these Gladiolus species.

Author Contributions

Design of the experimental approach and writing of the original draft, R.Q.; main experiments, data analysis and writing of the original draft, Y.Y.; image preparation, X.M.; article modification, Q.H.; provision of materials, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

Zhejiang Forestry Science and Technology Promotion Project (2021B06); Wenzhou Major Scientific and Technological Innovation Projects (ZS2020002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Myouga, F. A Heterocomplex of Iron Superoxide Dismutases Defends Chloroplast Nucleoids against Oxidative Stress and is Essential for Chloroplast Development in Arabidopsis. Plant. Cell. 2008, 20, 11. [Google Scholar] [CrossRef] [PubMed]
  2. Kumar, P.N.; Raju, D.V.S. Dormancy in Gladiolus: The Cause and Remedy—A Review. Agric. Rev. 2007, 28, 309–312. [Google Scholar]
  3. Wang, D.; Qi, Y.; Li, B.; Zhang, G. A New Anthraquinone from Gladiolus Gandavensis. Nat. Prod. Res. 2003, 17, 365–368. [Google Scholar] [CrossRef]
  4. Tai, Z.; Yang, X.; Le, C.; Sun, W.; Yang, Y. Studies on the Chemical Constituents from The Aerial Parts of Gladiolus gandavensis. J. Chin. Med. Mater. 2010, 33, 1257–1259. [Google Scholar]
  5. Yamagami, T.; Mine, Y.; Ishiguro, M. Complete Amino Acid Sequence of Chitinase-a from Bulbs of Gladiolus (Gladiolus gandavensis). Biosci. Biotech. Bioch. 2014, 62, 386–389. [Google Scholar] [CrossRef]
  6. Zhao, L.; Jiang, X.W.; Zuo, Y.J.; Liu, X.L.; Chin, S.W.; Haberle, R.; Wen, J. Multiple Events of Allopolyploidy in The Evolution of the Racemose Lineages in Prunus (Rosaceae) Based on Integrated Evidence from Nuclear and Plastid Data. PLoS ONE 2016, 11, e0157123. [Google Scholar] [CrossRef] [PubMed]
  7. Schubert, M.; Petersson, U.; Haas, B. Proteome Map of the Chloroplast Lumen of Arabidopsis thaliana. J. Biol. Chem. 2002, 277, 8354–8365. [Google Scholar] [CrossRef]
  8. Ohyama, K. Chloroplast and Mitochondrial Genomes from A Liverwort, Marchantia polymorpha--Gene Organization and molecular evolution. J. Agric. Chem. Soc. Jpn. 1996, 60, 16–24. [Google Scholar] [CrossRef] [PubMed]
  9. Ferris, C.; Oliver, R.; Davy, A.; Hewitt, G. Using Chloroplast DNA to Trace Postglacial Migration Routes of Oaks into Britain. Mol. Ecol. 2010, 4, 731–738. [Google Scholar] [CrossRef]
  10. James, C.; Gibby, M.; Barrett, J. Molecular Studies in Pelargonium (Geraniaceae). A Taxonomic Appraisal of Section Ciconium and the Origin of the ‘Zonal’ and ‘Ivy-leaved’ cultivars. Plant Syst. Evol. 2004, 243, 131–146. [Google Scholar] [CrossRef]
  11. Heath, R.; Packer, L. Photoperoxidation in Isolated Chloroplast I. Kinetics and Stoichiometry ofFatty Acid Peroxidation. Arch. Biochem. Biophys. 1968, 125, 189–198. [Google Scholar] [CrossRef]
  12. Kasahara, M.; Swartz, T.E.; Olney, M.A.; Onodera, A.; Mochizuki, N.; Fukuzawa, H.; Briggs, W.R. Photochemical Properties of the Flavin Mononucleotide-Binding Domains of the Phototropins from Arabidopsis, rice, and Chlamydomonas reinhardtii. Plant. phys. 2002, 129, 762–773. [Google Scholar] [CrossRef] [Green Version]
  13. Kagawa, T. Arabidopsis NPL1: A Phototropin Homolog Controlling the Chloroplast High-Light Avoidance Response. Science 2001, 291, 2138–2141. [Google Scholar] [CrossRef]
  14. Heckathorn, S.A. The Small, Methionine-Rich Chloroplast Heat-Shock Protein Protects Photosystem II Electron Transport during Heat Stress. Plant Phys. 1998, 116, 439–444. [Google Scholar] [CrossRef] [PubMed]
  15. Boyer, J.; Potter, J. Chloroplast Response to Low Leaf Water Potentials: IV. Quantum Yield is Reduced. Plant Physiol. 1973, 51, 989–1092. [Google Scholar] [CrossRef] [PubMed]
  16. Tamburino, R.; Vitale, M.; Ruggiero, A. Chloroplast Proteome Response to Drought Stress and Recovery in Tomato (Solanum lycopersicum L.). BMC Plant Biol. 2017, 17, 40. [Google Scholar] [CrossRef]
  17. Mittova, V.; Tal, M.; Volokita, M. Salt Stress Induces Up-Regulation of an Efficient Chloroplast Antioxidant System in the Salt-tolerant Wild tomato Species Lycopersicon pennellii but not in theCultivated Species. Physiol. Plant. 2010, 115, 3. [Google Scholar] [CrossRef] [PubMed]
  18. Siddhartha, D. Role of Temperature Stress on Chloroplast Biogenesis andProtein Import in Pea. Plant Physiol. 2009, 150, 1050–1061. [Google Scholar]
  19. Shinozaki, K.; Ohme, M.; Tanaka, M.; Wakasugi, T.; Hayashida, N.; Matsubayashi, T. The Complete Nucleotide Sequence of the Tobacco Chloroplast Genome: Its Gene Organization and Expression. EMBO J. 1986, 5, 2043–2049. [Google Scholar] [CrossRef] [PubMed]
  20. Hiratsuka, J.; Shimada, H.; Whittier, R.; Ishibashi, T.; Sakamoto, M.; Mori, M. The Complete Sequence of the rice (Oryza sativa) Chloroplast Genome: Intermolecular Recombination between Distinct tRNA Genes Accounts for a Major Plastid DNA Inversion during the Evolution of the Cereals. Mol. Gen. Genet. 1989, 217, 185–194. [Google Scholar] [CrossRef] [PubMed]
  21. Maier, R.; Kai, N.; Igloi, G. Complete Sequence of the Maize Chloroplast Genome: Gene Content, Hotspots of Divergence and Fine Tuning of Genetic Information by Transcript Editing. J. Mol. Biol. 1995, 251, 614. [Google Scholar] [CrossRef] [PubMed]
  22. Ni, Z.; Zhou, P.; Xin, Y.; Xu, M.; Xu, L.A. Parent–offspring variation transmission in full-sib families revealed predominantly paternal inheritance of chloroplast DNA in Pinus massoniana (Pinaceae). Tree Genet. Genomes 2021, 17, 36. [Google Scholar] [CrossRef]
  23. Palmer, J.; Stein, D. Conservation of chloroplast genome structure among vascular plants. Curr. Genet. 1986, 10, 823–833. [Google Scholar] [CrossRef]
  24. Zhang, X.; Gu, C.; Zhang, T.; Tong, B.; Zhang, H.; Wu, Y.; Yang, C. Chloroplast (Cp) Transcriptome of P. davidiana Dode× P. bolleana Lauch provides insight into the Cp drought response and Populus Cp phylogeny. BMC Evol. Biol. 2020, 20, 51. [Google Scholar] [CrossRef]
  25. McPherson, H.; Merwe, M.; Delaney, S.; Edwards, M.; Henry, R.; McIntosh, E. Capturing Chloroplast Variation for Molecular Ecology Studies: A Simple Next Generation Sequencing Approach Applied to a Rainforest Tree. BMC Ecol. 2013, 13, 8. [Google Scholar] [CrossRef]
  26. Bruce, B.D. Chloroplast Transit Peptides: Structure, Function and Evolution. Trends Cell. Biol. 2000, 10, 440–447. [Google Scholar] [CrossRef]
  27. Liu, B.; Xie, Y.; Li, Z.; Liu, Y. SOAPdenovo2: An Empirically Improved Memory-Efficient Short-Read de novo Assembler. GigaScience 2012, 1, 18. [Google Scholar]
  28. Xu, M.; Guo, L.; Gu, S. TGS-GapCloser: A Fast and Accurate Gap Closer for Large Genomes with Low Coverage of Error-Prone Long Reads. GigaScience 2020, 9, 9. [Google Scholar] [CrossRef]
  29. Kuravadi, N.; Tiwari, P.; Tanwar, U. Identification and Characterization of EST-SSR Markers in Cluster Bean (Cyamopsis spp.). Crop. Sci. 2013, 54, 3. [Google Scholar] [CrossRef]
  30. Standley, D. MAFFT Multiple Sequence Alignment Software Version 7: Improvements in Performance and Usability. Mol. Biol. Evol. 2013, 30, 772. [Google Scholar]
  31. Darling, A.; Mau, B.; Blattner, F. Mauve: Multiple Alignment of Conserved Genomic Sequence with Rearrangements. Genome Res. 2004, 14, 1394–1403. [Google Scholar] [CrossRef] [PubMed]
  32. Kurtz, S. The Vmatch Large Scale Sequence Analysis Software-a Manual. Center. Bioinform. 2010, 170, 391–392. [Google Scholar]
  33. Yu, Z.J. KaKs_Calculator 2.0: A Toolkit Incorporating Gamma-Series Methods and Sliding Window Strategies. Genom. Proteom. Bioinform. 2010, 8, 77–80. [Google Scholar]
  34. Dempster, A. Maximum-Likelihood from Incomlete Data via the Em Algorithm. J. R. Stat. Soc. Ser. B 1977, 39, 1–38. [Google Scholar]
  35. Huang, B.; Wang, Z.; Huang, J.; Li, X.; Zhu, H.; Wen, Q.; Xu, L. Population Genetic Structure Analysis Reveals Significant Genetic Differentiation of the Endemic Species Camellia chekiangoleosa Hu. with a Narrow Geographic Range. Forests 2022, 13, 234. [Google Scholar] [CrossRef]
  36. Ni, Z.; Ye, Y.; Bai, T.; Xu, L. Complete Chloroplast Genome of Pinus massoniana (Pinaceae): Gene Rearrangements, Loss of ndh Genes, and Short Inverted Repeats Contraction, Expansion. Molecules 2017, 22, 1528. [Google Scholar] [CrossRef] [PubMed]
  37. Backeljau, T.; de Bruyn, L.; de Wolf, H.; Jordaens, K.; van Dongen, S.; Winnepennincks, B. Multiple UPGMA and Neighbor-Joining Trees, and the Performance of Some Computer Packages. Mol. Biol. Evol. 1966, 13, 2. [Google Scholar] [CrossRef]
  38. Lee, E.; Smith, D.; Fanwick, P.; Byrn, S. Characterization and Anisotropic Lattice Expansion/Contraction of Polymorphs of Tenofovir Disoproxil Fumarate. Cryst. Growth. Des. 2010, 10, 2314–2322. [Google Scholar] [CrossRef]
  39. Dong, W.; Chao, X.; Tao, C.; Zhou, S.; Nicolas, S. Complete Chloroplast Genome of Sedum sarmentosum and Chloroplast Genome Evolution in Saxifragales. PLoS ONE 2013, 8, e77965. [Google Scholar]
  40. Wang, J.; Hartling, J.; Flanagan, J. The structure of ClpP at 2.3 AResolution Suggests a Model for ATP-Dependent Proteolysis. Cell 1997, 91, 447. [Google Scholar] [CrossRef]
  41. Hricová, A.; Quesada, V.; Micol, J.L. The SCABRA3 Nuclear Gene Encodes the Plastid RpoTp RNA Polymerase, which is Required for Chloroplast Biogenesis and Mesophyll Cell Proliferation in Arabidopsis. Plant Phys. 2006, 141, 942–956. [Google Scholar] [CrossRef] [PubMed]
  42. Haynes, C.; Petrova, K.; Benedetti, C.; Yun, Y.; Ron, D. ClpP Mediates Activation of a Mitochondrial Unfolded Protein Response in C. elegans. Dev. Cell 2007, 13, 467–480. [Google Scholar] [CrossRef]
  43. Liu, X.; Gillham, N.; Boynton, J. Chloroplast Ribosomal Protein Gene rps12 of Chlamydomonas Reinhardtii. Wild-Type Sequence, Mutation to Streptomycin Resistance and Dependence, and Function in Escherichia coli. J. Biol. Chem. 1989, 264, 16100. [Google Scholar] [CrossRef]
  44. Kawabe, A.; Miyashita, N. Patterns of codon usage bias in three dicot and four monocot plant species. Genes Genet. Syst. 2003, 78, 343–352. [Google Scholar] [CrossRef] [PubMed]
  45. Shackelton, L.; Parrish, C.; Holmes, E. Evolutionary Basis of Codon Usage and Nucleotide Composition Bias in Vertebrate DNA Viruses. J. Mol. Evol. 2006, 62, 551–563. [Google Scholar] [CrossRef]
  46. Dong, F.; Lin, Z.; Lin, J. Chloroplast Genome of Rambutan and Comparative Analyses in Sapindaceae. Plants 2021, 10, 283. [Google Scholar] [CrossRef]
  47. Li, J.; Jin, Z.; Tan, T. Genetic Diversity and Differentiation of Sinocalycanthus Chinensis Populations Revealed by Chloroplast Microsatellite (cpSSRs) Markers. Biochem. Syst. Ecol. 2012, 41, 48–54. [Google Scholar] [CrossRef]
  48. Cesare, M.; Hodkinson, T.; Barth, S. Chloroplast DNA Markers (cpSSRs, SNPs) for Miscanthus, Saccharum and Related grasses (Panicoideae, Poaceae). Mol. Breed. 2010, 26, 539–544. [Google Scholar] [CrossRef]
  49. Ranjan, P.; Bhat, K.V.; Misra, R.L.; Singh, S.K.; Ranjan, J.K. GeneticRelationships of Gladiolus Cultivars Inferred from Fluorescence based AFLP Markers. Sci. Hortic. 2010, 123, 562–567. [Google Scholar] [CrossRef]
Genes 13 01599 g001 550
Figure 1. (a) The flower with red and yellow colors of G. gandavensis. (b) The distribution of G. gandavensis in Cangnan County (Manzhan town, Pucheng town, and Beiguan Island).
Figure 1. (a) The flower with red and yellow colors of G. gandavensis. (b) The distribution of G. gandavensis in Cangnan County (Manzhan town, Pucheng town, and Beiguan Island).
Genes 13 01599 g001
Genes 13 01599 g002 550
Figure 2. The chloroplast genome of G. gandavensis. Genes drawn outside are presented in the clockwise direction, while those inside the circle are presented in the counterclockwise direction. In addition, genes with different functions are represented with different colors.
Figure 2. The chloroplast genome of G. gandavensis. Genes drawn outside are presented in the clockwise direction, while those inside the circle are presented in the counterclockwise direction. In addition, genes with different functions are represented with different colors.
Genes 13 01599 g002
Genes 13 01599 g003 550

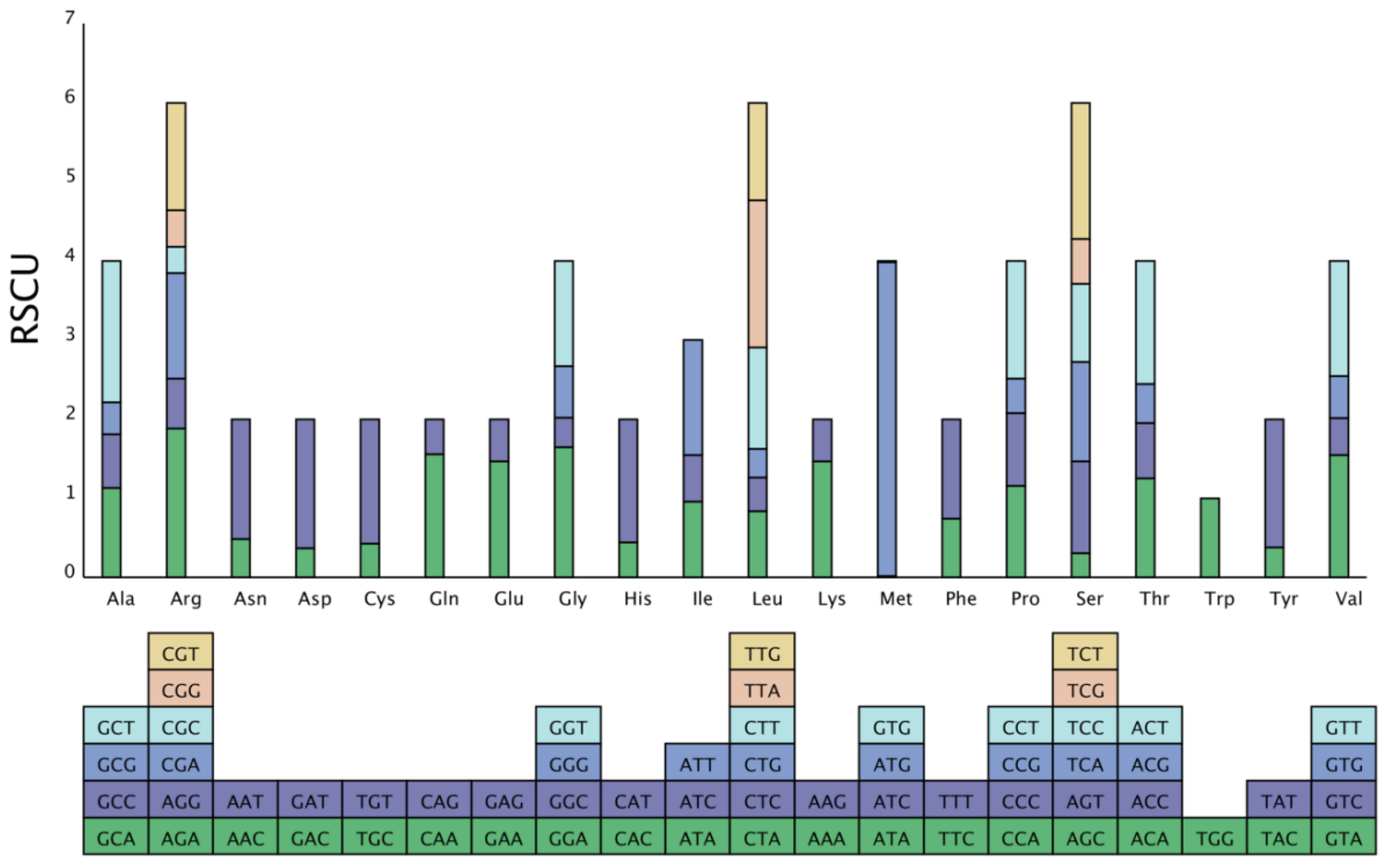

Figure 3. Codon content of 20 amino acids and stop codons in all protein-coding genes of the G. gandavensis chloroplast genome. The codons are represented by different colors in the histogram.
Figure 3. Codon content of 20 amino acids and stop codons in all protein-coding genes of the G. gandavensis chloroplast genome. The codons are represented by different colors in the histogram.
Genes 13 01599 g003
Genes 13 01599 g004 550

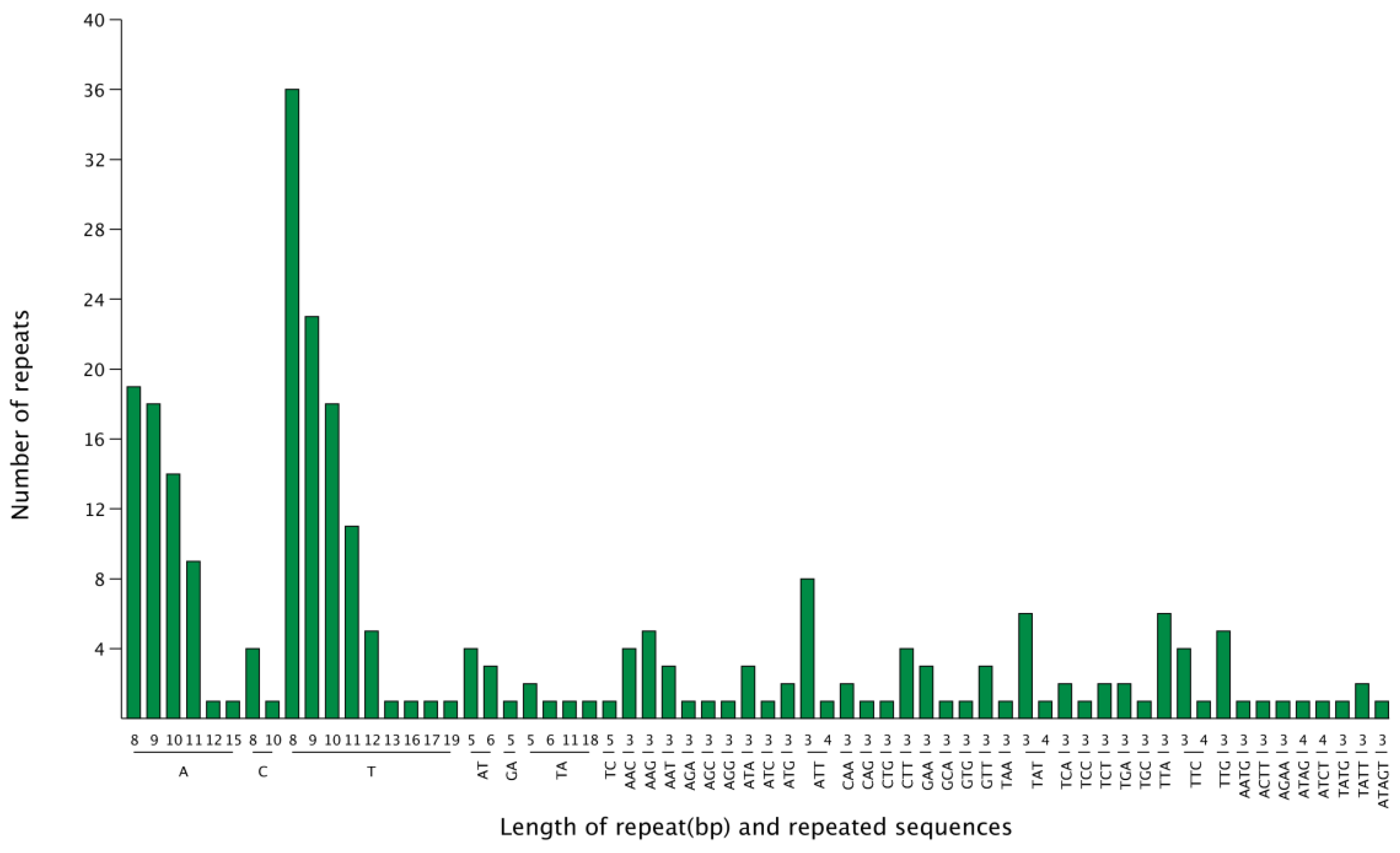

Figure 4. The number of SSRs repeats in the chloroplast genome of G. gandavensis. The number of repeats is represented by the green bar charts, and the x-ray represents the length of the repeat (bp) and repeated sequence.
Figure 4. The number of SSRs repeats in the chloroplast genome of G. gandavensis. The number of repeats is represented by the green bar charts, and the x-ray represents the length of the repeat (bp) and repeated sequence.
Genes 13 01599 g004
Genes 13 01599 g005 550

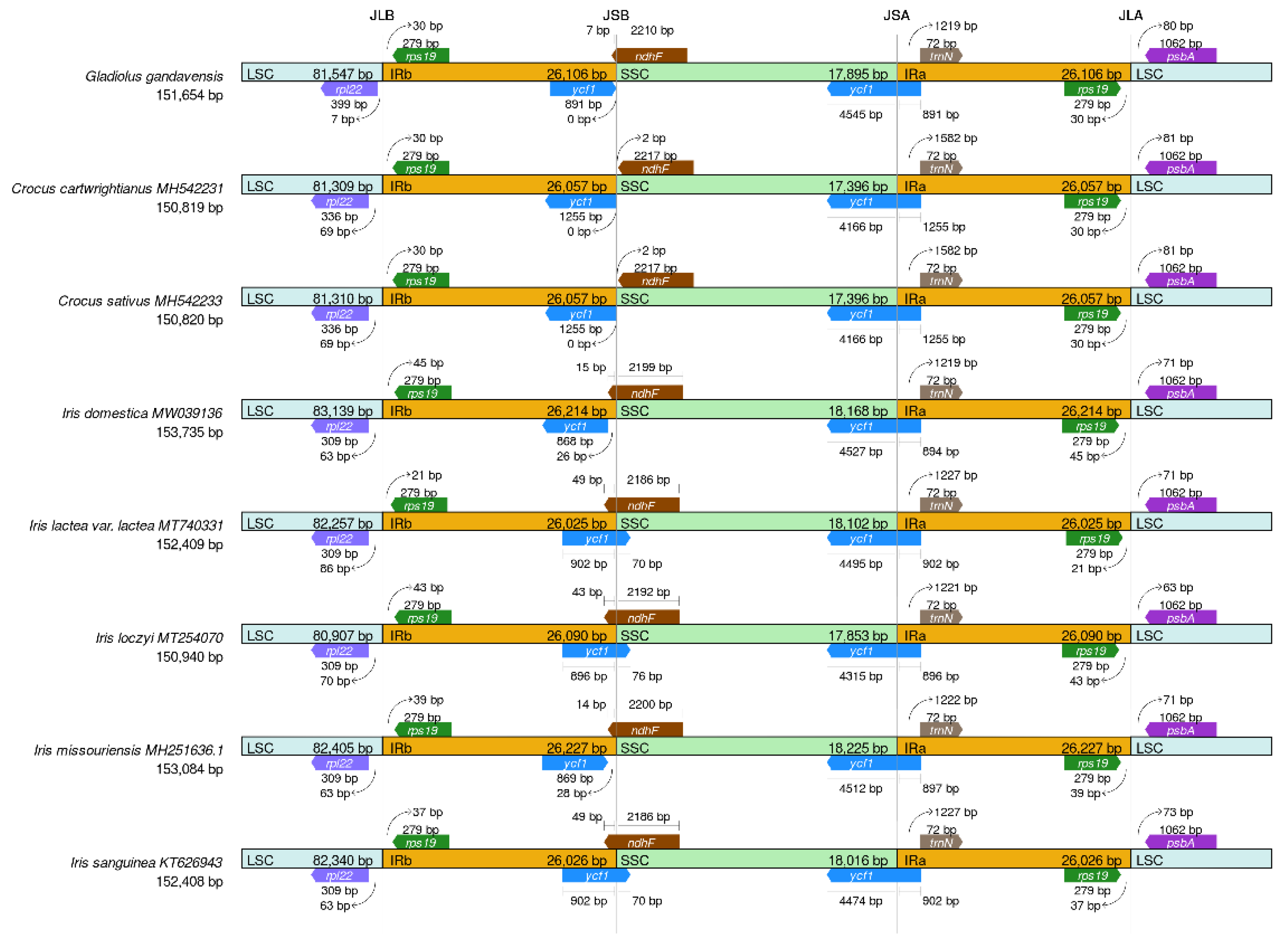

Figure 5. The results of comparing the borders of the LSC, SSC, and IR regions among eight Iridaceae chloroplast genomes: I. lactea (MT740331), I. sanguinea (KT626943), I. loczyi (MT254070), I. missou-riensis (MH251636), C. sativus (MH542233), C. cartwrightianus (MH542231), and I. domestica (MW039136). Genes located at the IRa/b junctions are represented by colored boxes above (sense), while gene segments represent the boxes below (antisense) the horizontal line.
Figure 5. The results of comparing the borders of the LSC, SSC, and IR regions among eight Iridaceae chloroplast genomes: I. lactea (MT740331), I. sanguinea (KT626943), I. loczyi (MT254070), I. missou-riensis (MH251636), C. sativus (MH542233), C. cartwrightianus (MH542231), and I. domestica (MW039136). Genes located at the IRa/b junctions are represented by colored boxes above (sense), while gene segments represent the boxes below (antisense) the horizontal line.
Genes 13 01599 g005
Genes 13 01599 g006 550

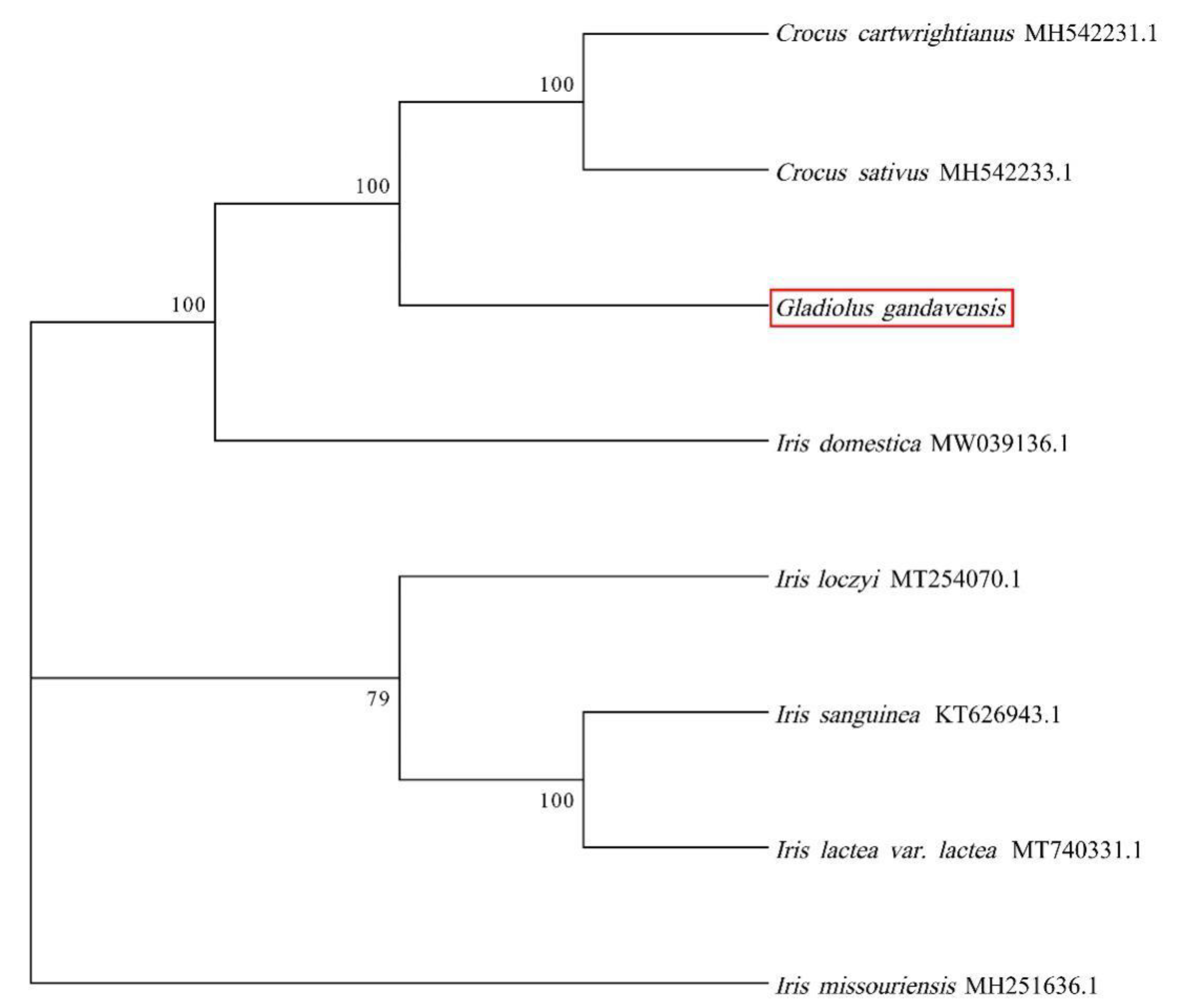

Figure 6. The phylogenetic tree was constructed based on the eight monocotyledons chloroplast genomes: I. lactea (MT740331), I. sanguinea (KT626943), I. loczyi (MT254070), I. missou-riensis (MH251636), C. sativus (MH542233), C. cartwrightianus (MH542231), and I. domestica (MW039136). The red box represented the chloroplast genome of G. gandavensis which was sequenced in this study. The GTRGAMMA model of NJ was used in this study. Bootstrap replicates = 1000.
Figure 6. The phylogenetic tree was constructed based on the eight monocotyledons chloroplast genomes: I. lactea (MT740331), I. sanguinea (KT626943), I. loczyi (MT254070), I. missou-riensis (MH251636), C. sativus (MH542233), C. cartwrightianus (MH542231), and I. domestica (MW039136). The red box represented the chloroplast genome of G. gandavensis which was sequenced in this study. The GTRGAMMA model of NJ was used in this study. Bootstrap replicates = 1000.
Genes 13 01599 g006
Genes 13 01599 g007 550

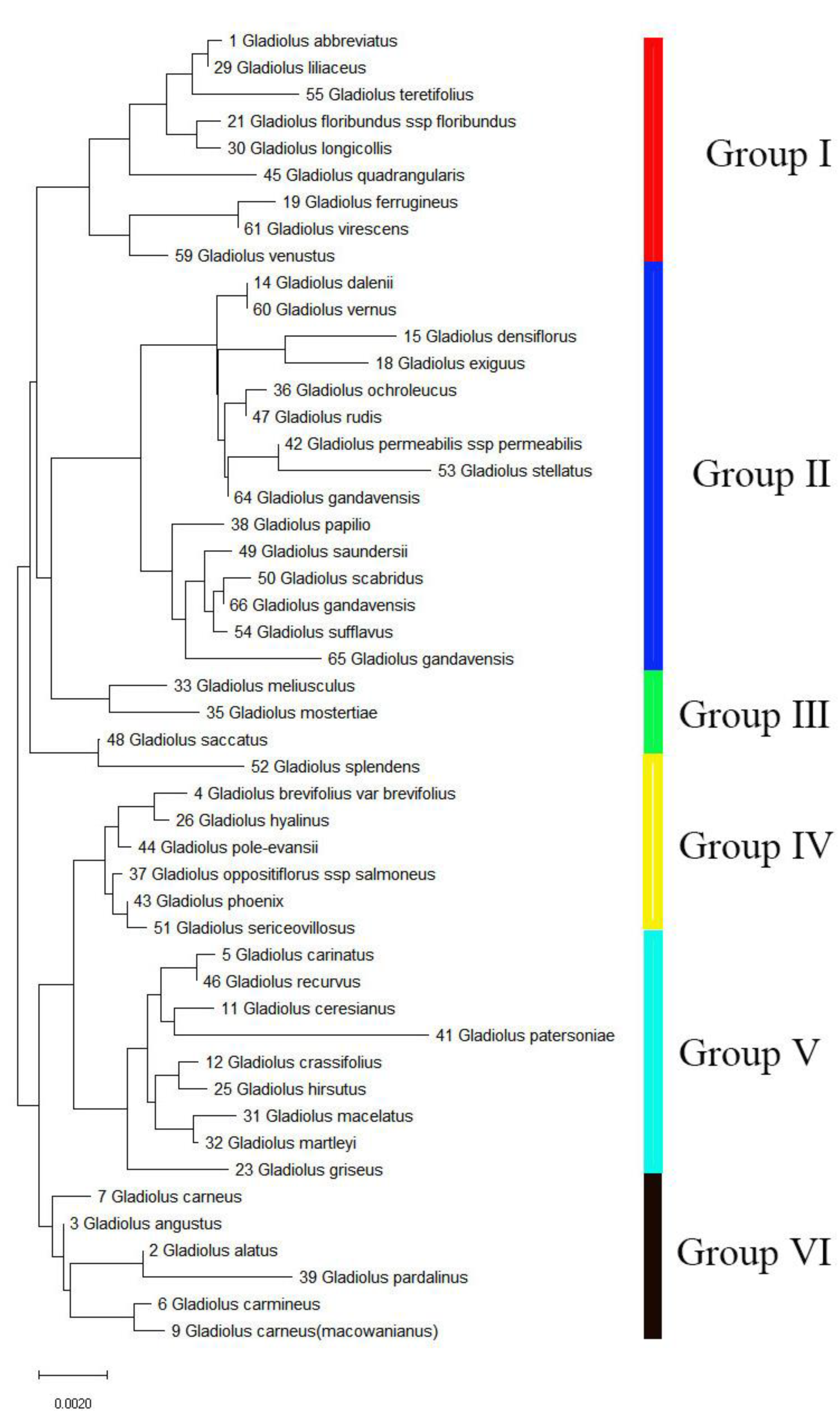

Figure 7. The phylogenetic tree of 49 Gladiolus samples was constructed based on the rbcl segment. The neighbor-joining (NJ) method was used to constructed the phylogenetic tree. Bootstrap replicates = 1000.
Figure 7. The phylogenetic tree of 49 Gladiolus samples was constructed based on the rbcl segment. The neighbor-joining (NJ) method was used to constructed the phylogenetic tree. Bootstrap replicates = 1000.
Genes 13 01599 g007
Table
Table 1. Sample geographic information on Gladiolus.
Table 1. Sample geographic information on Gladiolus.
NumberSpecific
Name		Latin NameOrigin
11Gladiolus abbreviatusSouth Africa
22Gladiolus alatusSouth Africa
33Gladiolus angustusSouth Africa
44Gladiolus brevifolius var brevifoliusSouth Africa
55Gladiolus carinatusSouth Africa
66Gladiolus carmineusSouth Africa
77Gladiolus carneusSouth Africa
89Gladiolus carneus (macowanianus)South Africa
911Gladiolus ceresianusSouth Africa
1012Gladiolus crassifoliusSouth Africa
1114Gladiolus daleniiSouth Africa
1215Gladiolus densiflorusSouth Africa
1318Gladiolus exiguusSouth Africa
1419Gladiolus ferrugineusSouth Africa
1521Gladiolus floribundus ssp floribundusSouth Africa
1623Gladiolus griseusSouth Africa
1725Gladiolus hirsutusSouth Africa
1826Gladiolus hyalinusSouth Africa
1929Gladiolus liliaceusSouth Africa
2030Gladiolus longicollisSouth Africa
2131Gladiolus macelatusSouth Africa
2232Gladiolus martleyiSouth Africa
2333Gladiolus meliusculusSouth Africa
2435Gladiolus mostertiaeSouth Africa
2536Gladiolus ochroleucusSouth Africa
2637Gladiolus oppositiflorus ssp salmoneusSouth Africa
2738Gladiolus papilioSouth Africa
2839Gladiolus pardalinusSouth Africa
2941Gladiolus patersoniaeSouth Africa
3042Gladiolus permeabilis ssp permeabilisSouth Africa
3143Gladiolus phoenixSouth Africa
3244Gladiolus pole-evansiiSouth Africa
3345Gladiolus quadrangularisSouth Africa
3446Gladiolus recurvusSouth Africa
3547Gladiolus rudisSouth Africa
3648Gladiolus saccatusSouth Africa
3749Gladiolus saundersiiSouth Africa
3850Gladiolus scabridusSouth Africa
3951Gladiolus sericeovillosusSouth Africa
4052Gladiolus splendensSouth Africa
4153Gladiolus stellatusSouth Africa
4254Gladiolus sufflavusSouth Africa
4355Gladiolus teretifoliusSouth Africa
4459Gladiolus venustusSouth Africa
4560Gladiolus vernusSouth Africa
4661Gladiolus virescensSouth Africa
4764G. gandavensisChina/Beiguan Island
4865G.gandavensisChina/Mazhan
4966G.gandavensisChina/Pucheng
Table
Table 2. Gene contents of chloroplast genome in G. gandavensis.
Table 2. Gene contents of chloroplast genome in G. gandavensis.
CategoryGene GroupGene Contents
PhotosynthesisSubunits of photosystem I psaA,psaB,psaC,psaI,psaJ
Subunits of photosystem II psbA,psbB,psbC,psbD,psbE,psbF,
psbH,psbI,psbJ,psbK,psbL,psbM,psbN,psbT,psbZ
Subunits of cytochrome b/f complex petA,petB*,petD*,petG,petN
Subunits of ATP synthase atpA,atpB,atpE,atpF*,atpH,atpI
Subunits of NADH-dehydrogenasendhA*,ndhB*(2),ndhC,ndhD,ndhE,ndhF,ndhG,ndhH,
ndhI,ndhJ,ndhK
Subunit of rubisco rbcLrbcL
Self-replicationSmall subunit of ribosomerps11,rps12**(2),rps14,rps15,rps16*,rps18,rps19(2),
rps2,rps3,rps4,rps7(2),rps8
Large subunit of ribosome rpl14,rpl16*,rpl2*(2),rpl20,rpl22,rpl23(2),rpl32,rpl33,
rpl36
DNA-dependent RNA polymerase rpoA,rpoB,rpoC1*,rpoC2
Protease clpPclpP
Maturase matK
Envelope membrane protein cemAcemA
Translation initiation factor infAinfA
Cytochrome c biogenesis ccsAccsA
Subunit Acetyl-CoA-CarboxylateaccD
Ribosomal RNAsrrn16(2), rrn23(2), rrn4.5(2), rrn5(2)
Transfer RNAtrnA-UGC*(2), trnC-GCA, trnD-GUC,
trnE-UUC,trnF-GAA,trnG-GCC*,trnG-UCC,
trnH-GUG(2),trnI-CAU(2),trnI-GAU*(2),
trnK-UUU*,trnL-CAA(2),trnL-UAA*,
trnL-UAG,trnM-CAU,trnN-GUU(2),
trnP-UGG,trnQ-UUG,trnR-ACG(2),
trnR-UCU,trnS-GCU,trnS-GGA,trnS-UGA,
trnT-GGU,trnT-UGU,trnV-GAC(2),trnV-UAC*,
trnW-CCA,trnY-GUA,trnfM-CAU
other genesMaturasematK
ProteaseclpP**
Envelope membrane protein cemA
Acetyl-CoA carboxylaseaccD
c-type cytochrome synthesis geneccsA
Translation initiation factor infA
Genes of unknown functionConserved open reading frames ycf1, ycf2, ycf2-D2, ycf3, ycf4,
*: one intron; **: two intron.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Qian, R.; Ye, Y.; Hu, Q.; Ma, X.; Zheng, J. Complete Chloroplast Genome of Gladiolus gandavensis (Gladiolus) and Genetic Evolutionary Analysis. Genes 2022, 13, 1599. https://doi.org/10.3390/genes13091599

AMA Style

Qian R, Ye Y, Hu Q, Ma X, Zheng J. Complete Chloroplast Genome of Gladiolus gandavensis (Gladiolus) and Genetic Evolutionary Analysis. Genes. 2022; 13(9):1599. https://doi.org/10.3390/genes13091599

Chicago/Turabian Style

Qian, Renjuan, Youju Ye, Qingdi Hu, Xiaohua Ma, and Jian Zheng. 2022. "Complete Chloroplast Genome of Gladiolus gandavensis (Gladiolus) and Genetic Evolutionary Analysis" Genes 13, no. 9: 1599. https://doi.org/10.3390/genes13091599

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
