Article

The GDAP1 p.Glu222Lys Variant-Weak Pathogenic Effect, Cumulative Effect of Weak Sequence Variants, or Synergy of Both Factors?

1
Neuromuscular Unit, Mossakowski Medical Research Institute Polish Academy of Sciences, 02-106 Warsaw, Poland
2
Institute of Biochemistry and Biophysics Polish Academy of Sciences, 02-106 Warsaw, Poland
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Genes 2022, 13(9), 1546; https://doi.org/10.3390/genes13091546
Received: 22 July 2022 / Revised: 22 August 2022 / Accepted: 25 August 2022 / Published: 27 August 2022
(This article belongs to the Section Human Genomics and Genetic Diseases)

Abstract

:
Charcot–Marie–Tooth disorders (CMT) represent a highly heterogeneous group of diseases of the peripheral nervous system in which more than 100 genes are involved. In some CMT patients, a few weak sequence variants toward other CMT genes are detected instead of one leading CMT mutation. Thus, the presence of a few variants in different CMT-associated genes raises the question concerning the pathogenic status of one of them. In this study, we aimed to analyze the pathogenic effect of c.664G>A, p.Glu222Lys variant in the GDAP1 gene, whose mutations are known to be causative for CMT type 4A (CMT4A). Due to low penetrance and a rare occurrence limited to five patients from two Polish families affected by the CMT phenotype, there is doubt as to whether we are dealing with real pathogenic mutation. Thus, we aimed to study the pathogenic effect of the c.664G>A, p.Glu222Lys variant in its natural environment, i.e., the neuronal SH-SY5Y cell line. Additionally, we have checked the pathogenic status of p.Glu222Lys in the broader context of the whole exome. We also have analyzed the impact of GDAP1 gene mutations on the morphology of the transfected cells. Despite the use of several tests to determine the pathogenicity of the p.Glu222Lys variant, we cannot point to one that would definitively solve the problem of pathogenicity.

1. Introduction

The currently available gene databases contain the still rising number of variants of unknown significance (VUS), variants of uncertain effect, or variants characterized even by contradictory results. In the era of next-generation sequencing (NGS), a leading problem seems to be establishing the pathogenic status of sequence variants rather than detecting it. The missense variants resulting from single substitutions within SNPs are an especially challenging task in terms of the pathogenic status of variants.
In 2015, nearly half of deposited sequence variants in the widely used ClinVar database were categorized as VUS. Five years later, in 2020, almost 75% of ClinVar variants were classified as VUS [1]. In other words, only one in four variants identified in the patients’ causative role of certain variants may be established.
The exponentially increasing number of variants of unknown clinical relevance has led to attempts to develop systems for the comprehensive assessment of the pathogenicity of mutations involving entire genes. Unfortunately, due to the diverse functions of proteins encoded even by the same gene, the creation of a common system for the functional assessment of the effects of mutations encounters quite serious difficulties. Different mutations of the same gene typically result in different disorders (cell viability, adhesion properties, sensitivity to toxic agents, etc.). Hence, there is a need to individualize the pathogenicity assessment of individual mutations. Some authors even propose the use of a summary assessment of the mutation effect, in which the results of various functional tests are taken into account—the integrated phenotypic score [2].
The GDAP1 gene (8q21) coding for the ganglioside differentiation-associated protein 1 was first characterized as the gene whose expression is tightly correlated with the differentiation of the neuroblastoma cells [3]. In 2002, two independent groups identified the pathogenic mutations in the patients affected with a severe form of peripheral neuropathy with an autosomal recessive trait of inheritance also called Charcot–Marie–Tooth disease type 4A (CMT4A) [4,5,6]. In 2005, the first GDAP1 gene mutations inherited in an autosomal dominant trait were reported [6]. Over 23 years of extensive studies of GDAP1 biology have provided a true plethora of molecular disturbances associated with GDAP1 mutations. For many years, the hypothesis of the role of GDAP1 function of glutathione transferase was discussed. As the protein expressed in the outer mitochondrial membrane, GDAP1 was shown to be involved in the fusion/fission processes. Some authors have shown evidence of the GDAP1 role in intracellular calcium transport. For 23 years, no functional association between the neuronal differentiation process accompanied by GDAP1 and any molecular pathways have been established till now [7]. Recently, it was shown that GDAP1 interacts with cofilin 1 and β tubulin [8]. In 2014, we reported on two small Polish CMT families in which a new Glu222Lys amino acid substitution in GDAP1 was found. Interestingly, the c.664G>A, p.Glu222Lys variant has been shown to segregate with CMT phenotype both in dominant and recessive (together with p.Leu239Phe) traits. Till now, in the literature, there was no reported, not even one CMT -affected patient harboring the heterozygous p.Leu239Phe mutation (carrier) manifesting any CMT symptoms. However, the p.Leu239Phe mutation is a recurrent pathogenic variant occurring both in the homozygous and compound heterozygous state in the CMT-affected patients [9].
In the dominant trait, Glu222Lys amino-acid substitution was associated with the extremely mild phenotype of peripheral neuropathy limited to the lower limbs beginning after the seventh decade of life [10]. In the period of 8 years after the initial publication of the first two Polish CMT (p.Glu222Lys) families, no other cases have been reported neither in the literature nor in the ClinVar database.
Due to extremely weak clinical manifestation and the lack of further CMT families, the pathogenic character of Glu222Lys amino-acid substitution could be considered at least disputable. Although the vast majority of GDAP1 mutations are inherited in recessive traits, there are some mutations that are dominant. However, the Glu222Lys amino-acid substitution is exceptional because it could be recessive as well as dominant. The double inheritance pattern occurs very rarely in inherited disorders. For such a reason, we decided to analyze the effects of Glu222Lys amino-acid substitution in a more detailed way. We could also not exclude the possibility that the pathogenic effect of the p.Glu222Lys variant depends on the ethnic or even intrafamilial context (mutation found in east European population in two families which could be related). Previously, we checked the pathogenic effect of GDAP1 mutation, including that resulting in p.Glu222Lys in a yeast-based model in which we classified this mutation as weak/moderate [11]. The yeast-based model was a base for further studies in which we have used two independent approaches to verify the pathogenicity of p.Glu222Lys. First, we have analyzed the genomic context of the p.Glu222Lys variant by whole exome sequencing (WES) applied to two Polish CMT families. Next, we examined the effect of Glu222Lys amino-acid substitution on the GDAP1 expression, cell viability, sensitivity to H2O2 and the differentiation process of the neuronal cell line (human neuroblastoma SH-SY5Y cell line).

2. Materials and Methods

2.1. Patients

In family A (Figure 1a), the siblings suffered from severe early onset axonal neuropathy. The genotype of them was c.715C>T, p.Leu239Phe/c.664G>A, p.Glu222Lys variants. Their 44-year-old mother with a heterozygous p.Glu222Lys variant considered herself healthy. Neurological examination in her revealed the absence of ankle jerks. In family B (Figure 1b), two patients aged 73 and 71 revealed only diminished ankle jerks. Electromyographic analysis (EMG) performed on them showed the neurogenic pattern in the muscles. Their genotype for the GDAP1 gene was c.664G>A, p.Glu222Lys heterozygous variant. For details, see Kabzińska et al. [10].

2.2. Selection of the Missense GDAP1 Gene Mutations Transmitted in the Dominant Trait as the Internal Controls for the p.Glu222Lys Pathogenic Effect

Two GDAP1 mutations, p. His123Arg and p.Ala156Gly were selected as the positive controls of the pathogenic effect of investigated p.Glu222Lys variant. The Gln218Glu substitution was also documented only in one Korean family and associated with a weak phenotype in two patients (father and daughter). We used p.Gln218Glu as a representative variant for weak mutations. The pathogenic variants resulting in His123Arg, Ala156Gly, and Gln218Glu amino-acid substitutions have been shown to segregate with CMT disease with an autosomal dominant trait of inheritance [12,13,14,15].

2.3. Whole Exome Sequencing

Ethics approval was obtained from the local ethic committee, as well as the informed concern from patients from families A and B. The study was conducted in accordance with the Declaration of Helsinki.
Whole exome sequencing (WES) of the proband’s DNA was performed in line with the protocol from Illumina’s TruSeq Exome Enrichment Guide. A SureSelect Human All Exon 50 Mb Kit (from Agilent Technologies, Santa Clara, CA, USA). Hybridized fragments were bound to streptavidin beads, while non-hybridized fragments were washed out. The library was then verified on an Agilent 2100 Bioanalyzer and sequenced on a HiSeq 2000 instrument (Illumina) from Intelliseq LLC (Kraków, Poland).

2.4. Exome Sequence Data Analysis

We have selected 154 genes (Supplementary Table S1) for the analysis calling them ‘‘CMT genes,’’—i.e., the genes involved in pure CMT phenotype and accompanying selected syndromes with hereditary neuropathies. The CMT genes were selected on the basis of the analysis of Pubmed and available databases in which peripheral neuropathy was recorded as a constant feature of the neurodegenerative process.

2.5. Cell Line, Media and Growth Conditions

Neuroblastoma cell line SH-SY5Y (gift from M. Szeliga MMRI PAS) was maintained in DMEM/F12 (Sigma-Aldrich, Saint Louis, MI, USA) containing 10% FBS (Thermo Fisher Scientific, Waltham, MA, USA), 100 IU/mL penicillin, and 100 μg/mL streptomycin (Thermo Fisher Scientific, Waltham, MA, USA), +1% Non-Essential Amino Acids (NEAA) (Sigma-Aldrich, Saint Louis, MI, USA) and uridine 1 mg/mL (Sigma-Aldrich, Saint Louis, MI, USA) in a humidified tissue culture incubator at 37 °C and 5% CO2 atmosphere.

2.6. Plasmids, Mutagenesis and CRISPR

GDAP1 cDNA was subcloned from pCMV6-XL5 GDAP1 (NM_018972) Human Untagged Clone (OriGene Technologies Inc., Rockville, MD, USA) to pIRES2-AcGFP1 Vector (TAKARA Bio, Shiga, Japan) using SacI and SalI enzymes (Thermo Fisher Scientific, Waltham, MA, USA).
Mutagenesis for mutations in the GDAP1 gene (c.652C>G p.Gln218Glu, c.664G>A p.Glu222Lys, c.368A>G p.His123Arg, c.467C>G p.Ala156Gly) was performed using Mut Express II Fast Mutagenesis Kit V2 (Vazyme Biotech Co., Ltd., Nanjing, Jiangsu, China) according to the manufacturer’s instructions and verified by sequencing.
A GDAP1 knockout was generated using the CRISPR method with GDAP1 sgRNA (spCas9) CRISPR Lentivector set (with three different target sgRNA: T1, T2, and T3), pLenti-U6-sgRNA-PGK-Neo from ABM (Richmond, BC, Canada). Plasmids were multiplying in TOP One Escherichia coli chemically competent cells then isolated with NucleoBond Xtra Midi EF kit (Macherey-Nagel, Düren, Germany). HEK293T cells (gift from Molecular Biology Unit, MMRI PAS) were seeded approximately 3 × 106 cells on 10 cm Ø plates containing a complete DMEM/F12 growth medium. Cells were growing overnight to approximately 70–80% confluence. All lentiviruses used for GDAP1 knockout (viral particles containing plasmids that express Cas9 and a guide RNA: T1, T2, T3, and T1/2/3) were generated in HEK293T cells via calcium phosphate transfection using two viral packaging plasmids ∆8.9 and VSVG (gift from Molecular Biology Unit, MMRI PAS). The viruses were collected after 24 h, and viral supernatants were filtered using a 0.45-μM filter and stored at −80 °C before SH-SY5Y cells transduction. The SH-SY5Y cells transduction was performed by adding 2 mL of viruses with different sgRNAs to 2 mL of complete DMEM/F12 growth medium on 6 cm Ø plates with ~50% confluent SH-SY5Y cells. The medium was changed 24 h after transfection and selected 48 h after transduction for Cas9 expression with 500 μg/mL G418 (Lab Empire, Rzeszów, Poland) for two weeks. The mixture of T1, T2, and T3 sgRNA viruses characterized by the most effective reduction of the GDAP1 protein level was selected for further analyses.

2.7. Cell Transfection

SH-SY5Y cells were transfected using the pIRES2-AcGFP1 Vector with Viromer Red (Lipocalyx, Halle, Germany) according to the manufacturer’s recommendations with the standard transfection scale. In all cases, the medium was changed 48 h after transfection. The resulting transfectant SH-SY5Y cells were cultured in an appropriate medium with 500 μg/mL G418 (Lab Empire, Rzeszów, Poland) for two weeks.

2.8. Protein Extracts and Western Blot Analysis

Total protein cell extracts were prepared using a cell lysis buffer (Cell Signaling Technology, Inc., Danvers, MA, USA) with 1 mM PMSF and Protease Inhibitor Cocktail 1/200 v/v (Sigma-Aldrich, Saint Louis, MI, USA). Proteins were separated by SDS-PAGE, transferred onto nitrocellulose membrane Amersham Protran (GE Healthcare Bio-Sciences AB, Uppsala, Sweden), and analyzed by Western blotting using rabbit polyclonal anti-GDAP1 (Abcam, Cambridge, MA, USA) and secondary anti-rabbit IgG horseradish peroxidase (HRP)-conjugated antibody (Sigma-Aldrich, Saint Louis, MI, USA) followed by enhanced chemiluminescence (Western Bright Sirius Advansta, San Jose, CA, USA).

2.9. Cells Viability

SH-SY5Y cells viability was measured using the trypan blue dye exclusion test in cells suspension by automated cell counter Countess II (Invitrogen, Camarillo, CA, USA). SH-SY5Y cells were counted and diluted to target approximately 2 × 106 cells/mL concentration. The 10 µL of 0.4% trypan blue (Sigma-Aldrich, Saint Louis, MI, USA) and 10 µL of cells suspension were mixed and incubated ~3 min at room temperature. After incubation, cells were immediately applied on disposable slides, and the percentages of viable cells were calculated automatically.

2.10. Sensitivity of Cells to H2O2

The amount of 4 × 105 cells was suspended in 200 µL of PBS (Sigma-Aldrich, Saint Louis, MI, USA) or PBS with different amounts of 30% H2O2 to concentrations: 100, 200, 300, 400, 500, and 600 mM, respectively. Cells were incubated 10 min in a humidified tissue culture incubator at 37 °C and 5% CO2 atmosphere, spin down 3 min at 300 g, suspended in 100 µL of PBS, and tested for viability with the trypan blue dye.

2.11. Live Cell Imaging

SH-SY5Y cells were plated on 6-well plates uncoated (plastic) in the density of 0.5 × 105 and incubated in regular DMEM media containing 10% FBS at 37 °C, 5% CO2 for 168 h (7 days). Pictures were taken at 20× using Zeiss Axio Imager brightfield microscope and ZEN 3.1 (blue edition) software at 24 (Day 1), 48 (Day 2), 72 (Day 3), 120 (Day 5), and 168 (Day 7) hours after cells seeding. Scale bar = 100 μm.

2.12. Statistical Analysis

Statistical analyses were performed using GraphPad Prism Software (San Diego, CA, USA) (https://www.graphpad.com/scientific-software/prism/, Accessed on 10 May 2022) using one-way ANOVA and Dunnett correction: * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.001. Data are presented as means ± standard deviations.

3. Results

3.1. Patients with GDAP1 Causative Mutations Have Additional Weak CMT Sequence Variants

Among GDAP1 variants are some that are poorly characterized. These include the p.Glu222Lys and p.Gln218Glu variants. We noted that, so far, there are no other reports of the p.Glu222Lys variant in the literature besides the report by Kabzińska et al. [10]. Similarly, the other analyzed by us variants, i.e., p.Gln218Glu, was reported only in one Korean family in 2008 [12]. More detailed characteristics of this Korean family were reported in 2021, supporting its pathogenic character [14]. Similarly to p.Gln218Glu, we would like to characterize the p.Glu222Lys variant more deeply, which was found only in two Polish families to the best of our knowledge.
While, in family A, we observe a severe clinical course of the disease in siblings of a similar age, but with a difference in the clinical picture, in family B, we observe a very similar and unusually mild clinical phenotype in the siblings. Interestingly, in family A, the disease is inherited both in a recessive and dominant manner, whereas in family B as a dominant trait [10]. The mildness of the phenotype, the presence of a few families that do not allow tracking the segregation of the variant with the phenotype, the marked inter-familiar clinical variability, and finally, the dual mode of inheritance does not exclude the possibility of the random coexistence of p.Glu222Lys variant with a CMT phenotype. Thus, we asked the questions of whether this mutation is really a pathogenic one and if the symptoms are the result of genetic variability, at least in other CMT genes. Therefore, to test this hypothesis, the WES studies were conducted on six members of families A and B (Figure 1a,b).
The analysis of WES revealed that the highest number (5) of additional variants in ‘‘CMT genes’’ were found in the exome of the most seriously affected patient III:2 from the family A. In the much milder affected brother III:3, only two additional variants were found in the ‘‘CMT genes’’ (Figure 1a). The mother of these siblings II:4 has two additional variants with a likely benign pathogenic status. The healthy father II:3 has three additional variants of benign, likely benign status or not reported to the databases.
In the case of the DST c.8626A>T variant, the pathogenicity status is unknown because it has not been reported to the databases up until now. Similarly, the databases have not yet recorded the PRNP c.654C>T variant. In the case of family B, the genetic load seems to be lower/low, and both patients III:9 and III:11 have the same two additional sequence variants in DST c.8626A>T and PEX1 c.149G>A genes. The difference in the genetic load between the studied two families is interesting.
Due to the identity of mutations in patients III:9 and III:11 in family B, it can be presumed that they were inherited from one of the parents.
As presented in this study of two families, we see that the number of CMT variants correlated with the clinical picture. Similarly, in the larger group of CMT families, we observed a positive correlation between sequence variants and the clinical picture of CMT. All the above-presented data strongly support the hypothesis that genetic background could have an additional impact on the clinical presentation of CMT.

3.2. The Level of GDAP1 Glu222Lys Protein in the SH-SY5Y Cell Line Is Reduced

We expected to answer the question of whether p.Glu222Lys is a leading mutation after WES, but our analysis identified mutations of unknown status or completely unknown. This does not allow us to answer the question if the p.Glu222Lys variant is a leading mutation. Is p.Glu222Lys one of many variants in CMT genes whose total effect we observe in the presented families? To more accurately answer these questions, we made a model to assess the pathogenicity of the p.Glu222Lys variant. The model is based on SH-SY5Y cells transfected with the empty vector or vector bearing cDNA of wild-type GDAP1 and c.664G>A, p.Glu222Lys and control variants with established pathogenicity c.652C>G, p.Gln218Glu; c.368A>G, p.His123Arg; and c.467C>G, p.Ala156Gly. This is due to the fact that a decrease in the level of GDAP1 has already been observed in the fibroblasts taken from the patients with the p.Leu239Phe/p.Arg273Gly and GDAP1 c.579+1G>A pathogenic variants [16]. The first step of our study was the analysis of the level of GDAP1 protein variants produced in SH-SY5Y cells transfected with cDNA of different GDAP1 alleles. Additionally, the knockout GDAP1 mutant was used as a control of GDAP1 protein level reduction. The level of Glu222Lys protein in the SH-SY5Y cells, together with levels of three other GDAP1 protein variants, as a control, was analyzed by Western blot. The cells transfected with cDNA of the wild-type GDAP1 show the highest level of GDAP1. In the case of three pathogenic GDAP1 variants, i.e., p.Gln218Glu, p.His123Arg, and p.Ala156Gly, respectively, the level of GDAP1 was reduced. A highly reduced level of GDAP1 was observed for the analyzed p.Glu222Lys variant.

3.3. The Reduced Cell Viability and Increased Sensitivity to H2O2 of the SH-SY5Y Cell Line Transfected with Different GDAP1 Alleles

In 2012, Noack et al. showed that GDAP1 overexpression increases the cellular level of GSH in the HT22 cells and stabilizes the mitochondrial membrane potential by decreasing the production of reactive oxygen species (ROS) [16]. In light of these findings, the pathogenic GDAP1 gene mutations by reduction of GDAP1 level (Figure 2) could result in high levels of damaging ROS and, consequently, reduce cell viability. Moreover, the GDAP1 mutants may be more vulnerable to the ROS overproduction resulting from the exposition of the cells to H2O2-the well-established ROS-producing agent.
We checked this hypothesis for four GDAP1 gene variants, i.e., p.Gln218Glu, p.Glu222Lys, p.His123Arg and p.Ala156Gly. Interestingly, the overexpression of theoretically protective wild-type GDAP1 resulted in a slight reduction of SH-SY5Y cell viability (Figure 3). The expression of two variants, i.e., p.His123Arg and p.Ala156Gly resulted in the reduction of viability of the SH-SY5Y cells. The Gln218Glu and Glu222Lys amino-acid substitutions resulted in a milder reduction of cell viability compared to GDAP1 overproduction, which was of no statistical significance. In the analysis of sensitivity to the H2O2 of the transfected SH-SY5Y cells, the strongest effect was observed again for p.His123Arg and p.Ala156Gly variants. The expression of p.Glu222Lys resulted in a higher sensitivity to H2O2 exposition compared to the wild-type control SH-SY5Y cells. The cells expressing the p.Gly218Glu variant were almost not sensitive to the H2O2. As could be expected, the knockout GDAP1 mutant was the most sensitive to H2O2.
To conclude, the overexpression of the GDAP1 in SH-SY5Y cells leads to the increased sensitivity of the cells to H2O2. All the analyzed GDAP1 missense variants resulted in both reduced viability and increased sensitivity to H2O2. The experiment showed no correlation between the reduction of GDAP1 levels and sensitivity to H2O2 and cell viability.

3.4. Altered Morphology of Cells Expressing GDAP1 p.Glu222Lys Mutant Allele

Given the results from studying cellular dysfunction were not completely informative, we decided to analyze more phenotypes and look closer at the cell’s morphology. Based on the first study concerning GDAP1 protein showing that GDAP1 plays a role in the process of differentiation of the neuronal cells [3], we expected that various levels of different GDAP1 protein variants would also affect cell morphology. Undifferentiated SH-SY5Y cells tend to grow in clusters and may form clumps, while differentiated SH-SY5Y neurons have a more pyramidal-shaped cell body and demonstrate extensive and elongated neuritic projections. Differentiated SH-SY5Y cells consist of two morphologically distinct types: ‘‘S’’ and ‘‘N.’’ The ‘‘N’’ type is more neuronal-like with a pyramidal shape and long projections, while, in contrast, ‘‘S’’ type epithelial-like cells have no neurites like projections [17]. We have checked the sprouting process of the SH-SY5Y cells transfected with different GDAP1 alleles and a knockout of GDAP1. It is noteworthy for the whole period of cell culture that the cells expressing p.Glu222Lys did not sprout efficiently (Figure 4) on the 1,2,3,5, and 7th days of observation (Figure S1). This observation seems to be in line with the previously observed significant reduction of p.Glu222Lys expression. The remaining analyzed GDAP1 mutants did not show any obvious sprouting abnormalities. To conclude, the analysis of morphology provided the most obvious and clear interpretable results regarding the pathogenic status of p.Glu222Lys variant.

4. Discussion

The still existing difficulties in the assessment of the pathogenic status of the rare sequence variants are especially visible for the missense mutations segregating with mildly expressed clinical phenotype. This issue is becoming increasingly difficult with different mutations in several genes resulting in a similar clinical picture. In these patients, NGS analysis can reveal numerous equally important sequence variants presenting a benign phenotype. How to establish whether the certain phenotype results from a cumulative effect of a series of equally-weighted mutations or is caused by common action of a single leading mutation and weak sequence variants remains to be answered. In this study, we noted that genetic background influences the pathogenicity of the GDAP1 p.Glu222Lys variant. Subsequent experiments to determine the pathogenicity of the p.Glu222Lys variant like determining the viability of cells and their sensitivity to H2O2, did not provide conclusive results. However, the following experiments showed morphological changes in the cells, which were accompanied by a significant reduction in the GDAP1 protein level. It seems that, in the case of the studied p.Glu222Lys variant, the analysis of GDAP1 protein levels together with morphological evaluation provides valuable arguments for the pathogenicity at least of this mutation.
Here, we studied whether p.Glu222Lys variant is a leading mutation necessary for the CMT phenotype or whether it represents only one of the sequence variants, which interact with other weak sequence variants detected in other CMT genes. Indeed, in this study, we have shown that the number of weak CMT sequence variants correlates with the severity of the CMT phenotype at least in the families A and B. In the former studies the effect of additional weak variants in CMT disorders has been also clearly shown [18]. In particular, the cumulative effect of GDAP1 and MFN2 gene sequence variants was established. [19,20,21,22]. Such a genetic interaction is observed when proteins encoded by mutated genes participate in the same process. This is a case for GDAP1 and MFN2 proteins, which are implicated in mitochondria fusion and fission processes. Some authors go even further and suggest that, at least in some patients, the CMT phenotype may result from the coexistence of numerous not functionally related sequence variants transmitted in polygenic traits [23]. To conclude in our study, we have shown that the final effect of p.Glu222Lys variant depends also on the genetic burden of the mutations present in other CMT genes.
Not only do the various sequence variants contribute to the phenotype, but genetic interaction between two alleles of GDAP1 is important for the genetic load. Even the variant p.Glu222Lys seems to be weak in recent studies studying the interaction of the amino-acid GDAP1 residues, and the authors showed that the Glu222Lys residue is sandwiched between three Arg side chains (Arg120, Arg225, Arg226) and Tyr124, and, additionally, this residue has van der Waals contacts to Leu239, the amino acid residue most frequently substituted in CMT4A [24]. This implies the importance of Glu222 amino acid residue in maintaining the proper structure of GDAP1 protein, and importantly its substitution can affect Leu239Phe residue. Thus, in patients from family A, the existence of compound heterozygote can mimic the homozygous mutations resulting in amino-acid substitutions of Leu239Phe. Indeed, the observed clinical phenotype in family A (III:2 and III:3) is similar to the patients harboring homozygous mutations causing substitutions of Leu239 residue. We presented only some aspects of genetic burden, which in our study is limited to CMT genes. The genetic burden may also involve other genes and variations of regulatory genome sequences. In more general terms, the interactions (synergy) between various alterations within CMT genes may be interpreted in light of the human disease network (HDN) conception. In other words, the genes being expressed together in specific tissues contribute to a final phenotype. Thus, the sequence variants we found toward CMT genes cooperate in a common system (peripheral nerve). The combined effect of weak variants located within CMT genes may impair the buffering capability of the system, in which various mutational events are coincident in a personal genome [18,25].
Since the studies of genetic load did not provide a clear explanation of the pathogenic nature of p.Glu222Lys variant, we have investigated the effect of the Glu222Lys amino acid substitution in the more natural milieu of the human neuronal cells i.e., in the neuroblastoma SH-SY5Y cell line. We have shown that expression of some of the GDAP1 mutants analyzed by us resulted in reduced viability of the cells. The SH-SY5Y transfected cells were sensitive to the exposure to the H2O2 with the highest sensitivity displayed by cells having a knockout of the GDAP1 gene. These findings are in line with observations made previously by Noack et al. for other GDAP1 gene mutations [16]. Surprisingly, we did not observe the protective effect of the GDAP1 gene overexpression on survival in the presence of H2O2. However, we used the different cell lines to model the effect of mutations (HT22; the immortalized mouse hippocampal cell line, versus SH-SY5Y; the human neuroblastoma cell line). The reduced viability upon H2O2 treatment has to be related to the level of GDAP1 protein variants. In contrast, we see that p.Glu222Lys and p.Gln218Glu, despite very low expression, result in a weaker sensitivity than GDAP1 overexpression, which results in high levels of GDAP1 protein. Moreover, the effect of p.Glu222Lys variant observed in the cell-line model of CMT4A disease does not correspond with the clinical severity of CMT4A. Within four dominantly inherited GDAP1 analyzed variants, the reduction of p.Glu222Lys protein level is the biggest one. If GDAP1 gene mutation will be acting in gene dosage fashion, the clinical phenotype for Glu222Lys amino-acid substitution should be the strongest one, but it is not. However, in general, the gene dosage effects are observed in CMT1A disease caused by duplication of the PMP22 gene and in CMT2S caused by the mutations in the IGHMBP2 gene [26,27].
Due to the fact that, in the first study devoted to the GDAP1 protein, the authors showed the correlation between neurite -like differentiation and sprouting of the Neuro2a cells and expression of GDAP1 gene [3]. Following this lead, we decided to check whether the p.Glu222Lys variant resulting in a severely reduced level of GDAP1 protein will evoke the abnormalities in the neural-like cell differentiation and sprouting of the SH-SY5Y cells. This lead turned out to be the right one. The p.Glu222Lys transfected SH-SY5Y cells did not differentiate and did not show any signs of sprouting. This effect was to be observed only for p.Glu222Lys variant. Interestingly, the relationship between GDAP1 expression and neural sprouting may be generalized because it is not limited to the primarily examined Neuro2a cells. It is of note that the strong effect of p.Glu222Lys variant observed for the morphology of SH-SY5Y cells could not be observed at the clinical level. In the light of these findings, everything shows that the process of neuronal differentiation is not a critical issue in the pathogenesis of CMT4 disease and that the other more pathogenic role of GDAP1 remains to be discovered. It is worth noting that a severe reduction in GDAP1 protein levels, as in the case of Glu222Lys amino-acid substitution, is accompanied by morphological changes. In recent studies by Miressi et al., the mutation resulting in p.Ser194* protein truncation was shown to be associated with a low level of protein, probably due to nonsense-mediated RNA decay. This also caused disturbances in the differentiation of motor neurons from hiPSCs [28].
Nevertheless, the morphological phenotype associated with the p.Glu222Lys variant may serve as the measure of the pathogenic effect of this variant but seems to be not serviceable in any attempts trying to establish the clinical prognosis of CMT-GDAP1 types. Interestingly, Glu222Lys substitution has a similar effect as mentioned above GDAP1 protein truncation.

5. Conclusions

Our studies show that, even for a single gene, no general functional test of mutation pathogenicity can be established. We see that the mechanism of action of the p.His123Arg and p.Ala156Gly mutations are quite different from the mechanism for the p.Gln218Glu or p.Gly222Lys variants. In the case of p.His123Arg and p.Ala156Gly, we see a significant reduction of cell viability, which is not present for p.Gln218Glu and p.Glu222Lys. On the contrary, p.His123Asp and p.Ala156Gly do not affect cell sprouting, which does not exclude their obvious and proved pathogenicity, verified by other functional assays. We have shown that assessing the pathogenicity of mutations requires a highly individualized approach.
We assume that a proper test of sequence variant’s pathogenicity should be selected very carefully, taking into account the most impaired function or cellular process disturbed by mutation. The pathogenic status of certain sequence variants should be assessed in the cellular milieu, which closely resembles the natural protein environment. For some weak sequence variants, even the combination of various pathogenicity approaches may not be sufficient to establish the causative role of mutation. Thus, especially in cases of weak variants, reporting of the clinical picture of unrelated patients harboring the same variant seems to be crucial in the process of assessing of causative role of the certain mutation.
There is an urgent need to add the results of functional tests concerning the pathogenic effect of mutations to existing databases and correlate them with available clinical and genealogical data.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes13091546/s1, Figure S1: The expression of p.Glu222Lys results in a marked reduction of neurites like projection formation. The SH-SY5Y cells with knockout of GDAP1 or transfected with indicated GDAP1 alleles were visualized under light microscopy Zeiss Axio Imager at 24 (Day 1), 48 (Day 2), 72 (Day 3), 120 (Day 5) and 168 (Day 7) hours after cells seeding. Scale bar = 100 μm; Table S1: List of the CMT genes analyzed in this study related to Figure 1.

Author Contributions

Conceptualization, A.K. and J.K.; methodology, A.K. and D.K.; validation, A.K. and J.K.; formal analysis, A.K. and J.K.; investigation, D.K. and K.C.; resources, D.K.; data curation, D.K.; writing—original draft preparation, A.K., J.K., D.K. and K.C.; writing—review and editing, A.K., J.K., D.K. and K.C.; visualization, D.K. and K.C.; supervision, J.K. and A.K.; project administration, A.K.; funding acquisition, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Science Centre Poland, Grant No. UMO-2016/23/B/NZ3/02035 to A.K. and by the European Social Fund, POWR.03.02.00-00-1028/17-00 to K.C.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Ethics Committee of Warsaw District Medical Chamber (protocol code: KB/1100/2017 and date of approval: 22 June 2017) for studies involving humans.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data provided in this study are available on request from D.K. These data are not available due to privacy.

Acknowledgments

We would like to thank Intelliseq Inc. for conduction of the WES analysis. SH-SY5Y cells were a gift from M. Szeliga MMRI PAS, and CRISPR vectors were a gift from Molecular Biology Unit, MMRI PAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McCormick, K.; Brock, T.; Wood, M.; Guo, L.; McBride, K.; Kim, C.; Resch, L.; Pop, S.; Bradford, C.; Kendrick, P.; et al. Gene Replacement Humanization Platform for Rapid Functional Testing of Clinical Variants in Epilepsy-associated STXBP1. bioRxiv 2020. [Google Scholar] [CrossRef]
  2. Lange, K.I.; Best, S.; Tsiropoulou, S.; Berry, I.; Johnson, C.A.; Blacque, O.E. Interpreting ciliopathy-associated missense variants of uncertain significance (VUS) in Caenorhabditis elegans. Hum. Mol. Genet. 2021, 31, 1574–1587. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, H.; Nakagawa, T.; Kanematsu, T.; Uchida, T.; Tsuji, S. Isolation of 10 Differentially Expressed cDNAs in Differentiated Neuro2a Cells Induced Through Controlled Expression of the GD3 Synthase Gene. J. Neurochem. 2008, 72, 1781–1790. [Google Scholar] [CrossRef] [PubMed]
  4. Baxter, R.V.; Ben Othmane, K.; Rochelle, J.M.; Stajich, J.E.; Hulette, C.; Dew-Knight, S.; Hentati, F.; Ben Hamida, M.; Bel, S.; Stenger, J.E.; et al. Ganglioside-induced differentia-tion-associated protein-1 is mutant in Charcot-Marie-Tooth disease type 4A/8q21. Nat. Genet. 2002, 30, 21–22. [Google Scholar] [CrossRef] [PubMed]
  5. Cuesta, A.; Pedrola, L.; Sevilla, T.; García-Planells, J.; Chumillas, M.J.; Mayordomo, F.; LeGuern, E.; Marín, I.; Vilchez, J.J.; Palau, F. The gene encoding ganglioside-induced differentiation-associated protein 1 is mutated in axonal Charcot-Marie-Tooth type 4A disease. Nat. Genet. 2002, 30, 22–25. [Google Scholar] [CrossRef]
  6. Claramunt, R.; Pedrola, L.; Sevilla, T.; de Munain, A.L.; Berciano, J.; Cuesta, A.; Sánchez-Navarro, B.; Millán, J.M.; Saifi, G.M.; Lupski, J.R.; et al. Genetics of Charcot-Marie-Tooth disease type 4A: Mutations, inheritance, phenotypic variability, and founder effect. J. Med. Genet. 2005, 42, 358–365. [Google Scholar] [CrossRef]
  7. Rzepnikowska, W.; Kochański, A. A role for the GDAP1 gene in the molecular pathogenesis of Charcot-Marie-Tooth disease. Acta Neurobiol. Exp. 2018, 78, 1–13. [Google Scholar] [CrossRef]
  8. Wolf, C.; Pouya, A.; Bitar, S.; Pfeiffer, A.; Bueno, D.; Rojas-Charry, L.; Arndt, S.; Gomez-Zepeda, D.; Tenzer, S.; Bello, F.D.; et al. GDAP1 loss of function inhibits the mitochondrial pyruvate dehydrogenase complex by altering the actin cytoskeleton. Commun. Biol. 2022, 5, 1–15. [Google Scholar] [CrossRef]
  9. Kabzińska, D.; Strugalska-Cynowska, H.; Kostera-Pruszczyk, A.; Ryniewicz, B.; Posmyk, R.; Midro, A.; Seeman, P.; Baránková, L.; Zimoń, M.; Baets, J.; et al. L239F founder mutation in GDAP1 is associated with a mild Charcot–Marie–Tooth type 4C4 (CMT4C4) phenotype. Neurogenetics 2010, 11, 357–366. [Google Scholar] [CrossRef]
  10. Kabzińska, D.; Kotruchow, K.; Cegielska, J.; Hausmanowa-Petrusewicz, I.; Kochański, A. A severe recessive and a mild dominant form of Charcot-Marie-Tooth disease associated with a newly identified Glu222Lys GDAP1 gene mutation. Acta Biochim. Pol. 2014, 61, 739–744. [Google Scholar] [CrossRef]
  11. Rzepnikowska, W.; Kaminska, J.; Kabzińska, D.; Binięda, K.; Kochański, A. A Yeast-Based Model for Hereditary Motor and Sensory Neuropathies: A Simple System for Complex, Heterogeneous Diseases. Int. J. Mol. Sci. 2020, 21, 4277. [Google Scholar] [CrossRef] [PubMed]
  12. Chung, K.; Suh, B.; Shy, M.; Cho, S.; Yoo, J.; Park, S.; Moon, H.; Park, K.; Choi, K.; Kim, S.; et al. Different clinical and magnetic resonance imaging features between Charcot-Marie-Tooth disease type 1A and 2A. Neuromuscul. Disord. 2008, 18, 610–618. [Google Scholar] [CrossRef] [PubMed]
  13. Zimoń, M.; Baets, J.; Fabrizi, G.M.; Jaakkola, E.; Kabzińska, D.; Pilch, J.; Schindler, A.B.; Cornblath, D.R.; Fischbeck, K.H.; Auer-Grumbach, M.; et al. Dominant GDAP1 mutations cause predominantly mild CMT phenotypes. Neurology 2011, 77, 540–548. [Google Scholar] [CrossRef] [PubMed]
  14. Kim, H.S.; Kim, H.J.; Nam, S.H.; Kim, S.B.; Choi, Y.J.; Lee, K.S.; Chung, K.W.; Yoon, Y.C.; Choi, B.-O. Clinical and Neuroimaging Features in Charcot-Marie-Tooth Patients with GDAP1 Mutations. J. Clin. Neurol. 2021, 17, 52–62. [Google Scholar] [CrossRef] [PubMed]
  15. Lehtilahti, M.; Kallio, M.; Majamaa, K.; Kärppä, M. Phenotype of Patients With Charcot-Marie-Tooth With the p.His123Arg Mutation in GDAP1 in Northern Finland. Neurol. Genet. 2021, 7, e629. [Google Scholar] [CrossRef]
  16. Noack, R.; Frede, S.; Albrecht, P.; Henke, N.; Pfeiffer, A.; Knoll, K.; Dehmel, T.; zu Horste, G.M.; Stettner, M.; Kieseier, B.C.; et al. Charcot-Marie-Tooth disease CMT4A: GDAP1 increases cellular glutathione and the mitochondrial membrane potential. Hum. Mol. Genet. 2011, 21, 150–162. [Google Scholar] [CrossRef]
  17. Kovalevich, J.; Langford, D. Considerations for the use of SH-SY5Y neuroblastoma cells in neurobiology. Methods Mol. Biol. 2013, 1078, 9–21. [Google Scholar] [CrossRef]
  18. Gonzaga-Jauregui, C.; Harel, T.; Gambin, T.; Kousi, M.; Griffin, L.B.; Francescatto, L.; Ozes, B.; Karaca, E.; Jhangiani, S.N.; Bainbridge, M.N.; et al. Exome Sequence Analysis Suggests that Genetic Burden Contributes to Phenotypic Variability and Complex Neuropathy. Cell Rep. 2015, 12, 1169–1183. [Google Scholar] [CrossRef]
  19. Kostera-Pruszczyk, A.; Kosinska, J.; Pollak, A.; Stawinski, P.; Walczak, A.; Wasilewska, K.; Potulska-Chromik, A.; Szczudlik, P.; Kaminska, A.; Ploski, R. Exome sequencing reveals mutations in MFN2 and GDAP1 in severe Charcot-Marie-Tooth disease. J. Peripher. Nerv. Syst. 2014, 19, 242–245. [Google Scholar] [CrossRef]
  20. Anghelescu, C.; Francou, B.; Cardas, R.; Guiochon-Mantel, A.; Aubourg, P.; Servais, L.; Gidaro, T. Targeted exomes reveal simultaneous MFN2 and GDAP1 mutations in a severe Charcot-Marie-Tooth disease type 2 phenotype. Eur. J. Neurol. 2017, 24, e15–e16. [Google Scholar] [CrossRef]
  21. Barreda Fierro, R.; Herrera Mora, P.; Zenteno, J.C.; Villarroel Cortés, C.E. Clinical and molecular evidence of possible digenic in-heritance for MFN2/GDAP1 genes in Charcot-Marie-Tooth disease. Neuromuscul. Disord. 2020, 30, 986–990. [Google Scholar] [CrossRef] [PubMed]
  22. Xie, Y.; Lin, Z.; Li, X.; Liu, L.; Huang, S.; Zhao, H.; Wang, B.; Cao, W.; Hu, Z.; Guo, J.; et al. One PMP22/MPZ and Three MFN2/GDAP1 Concomitant Variants Occurred in a Cohort of 189 Chinese Charcot-Marie-Tooth Families. Front. Neurol. 2021, 12, 736704. [Google Scholar] [CrossRef] [PubMed]
  23. Bis-Brewer, D.M.; Fazal, S.; Züchner, S. Genetic modifiers and non-Mendelian aspects of CMT. Brain Res. 2019, 1726, 146459. [Google Scholar] [CrossRef] [PubMed]
  24. Sutinen, A.; Nguyen, G.T.T.; Raasakka, A.; Muruganandam, G.; Loris, R.; Ylikallio, E.; Tyynismaa, H.; Bartesaghi, L.; Ruskamo, S.; Kursula, P. Structural insights into Char-cot-Marie-Tooth disease-linked mutations in human GDAP1. FEBS Open Bio 2022, 12, 1306–1324. [Google Scholar] [CrossRef]
  25. Goh, K.I.; Cusick, M.E.; Valle, D.; Childs, B.; Vidal, M.; Barabási, A.L. The human disease network. Proc. Nat. Acad. Sci. USA 2007, 104, 8685–8690. [Google Scholar] [CrossRef]
  26. Li, J.; Bai, Y.; Ghandour, K.; Qin, P.; Grandis, M.; Trostinskaia, A.; Ianakova, E.; Wu, X.; Schenone, A.; Vallat, J.M.; et al. Skin biopsies in myelin-related neuropathies: Bringing molecular pathology to the bedside. Brain 2005, 128, 1168–1177. [Google Scholar] [CrossRef]
  27. Cottenie, E.; Kochanski, A.; Jordanova, A.; Bansagi, B.; Zimon, M.; Horga, A.; Jaunmuktane, Z.; Saveri, P.; Rasic, V.M.; Baets, J.; et al. Truncating and Missense Mutations in IGHMBP2 Cause Charcot-Marie Tooth Disease Type 2. Am. J. Hum. Genet. 2014, 95, 590–601. [Google Scholar] [CrossRef]
  28. Miressi, F.; Benslimane, N.; Favreau, F.; Rassat, M.; Richard, L.; Bourthoumieu, S.; Laroche, C.; Magy, L.; Magdelaine, C.; Sturtz, F.; et al. GDAP1 Involvement in Mitochondrial Function and Oxidative Stress, Investigated in a Charcot-Marie-Tooth Model of hiPSCs-Derived Motor Neurons. Biomedicines 2021, 9, 945. [Google Scholar] [CrossRef]

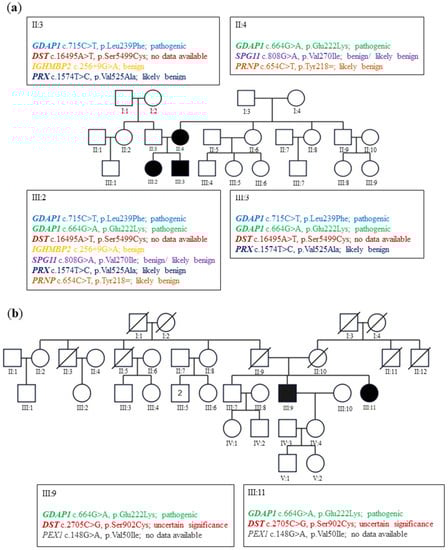

Figure 1. Pedigrees of the studied families A and B. (a) In family A, the p.Glu222Lys variant was found in the II:4 in a heterozygote and III:2 and III:3 in the compound heterozygosity with p.Leu239Phe. (b) In family B, the heterozygous p.Glu222Lys variant was found in III:9 and III:11. In both families, some additional sequence variants in CMT genes: DST (encoding Dystonin), IGHMBP2 (Immunoglobulin Mu DNA Binding Protein 2), PRX (Periaxin), SPG11 (SPG11 Vesicle Trafficking Associated, Spatacsin), PRNP (Prion protein) and PEX1 (Peroxisomal Biogenesis Factor 1) were found with the use of WES. Circles mark women, squares mark men, the crossed-out symbol means a deceased person, black symbols mean sick people, and a number in a square represents the number of healthy people of a given sex. Roman numerals indicate generation, and Arabic numerals indicate successive persons in a given generation.
Figure 1. Pedigrees of the studied families A and B. (a) In family A, the p.Glu222Lys variant was found in the II:4 in a heterozygote and III:2 and III:3 in the compound heterozygosity with p.Leu239Phe. (b) In family B, the heterozygous p.Glu222Lys variant was found in III:9 and III:11. In both families, some additional sequence variants in CMT genes: DST (encoding Dystonin), IGHMBP2 (Immunoglobulin Mu DNA Binding Protein 2), PRX (Periaxin), SPG11 (SPG11 Vesicle Trafficking Associated, Spatacsin), PRNP (Prion protein) and PEX1 (Peroxisomal Biogenesis Factor 1) were found with the use of WES. Circles mark women, squares mark men, the crossed-out symbol means a deceased person, black symbols mean sick people, and a number in a square represents the number of healthy people of a given sex. Roman numerals indicate generation, and Arabic numerals indicate successive persons in a given generation.
Genes 13 01546 g001

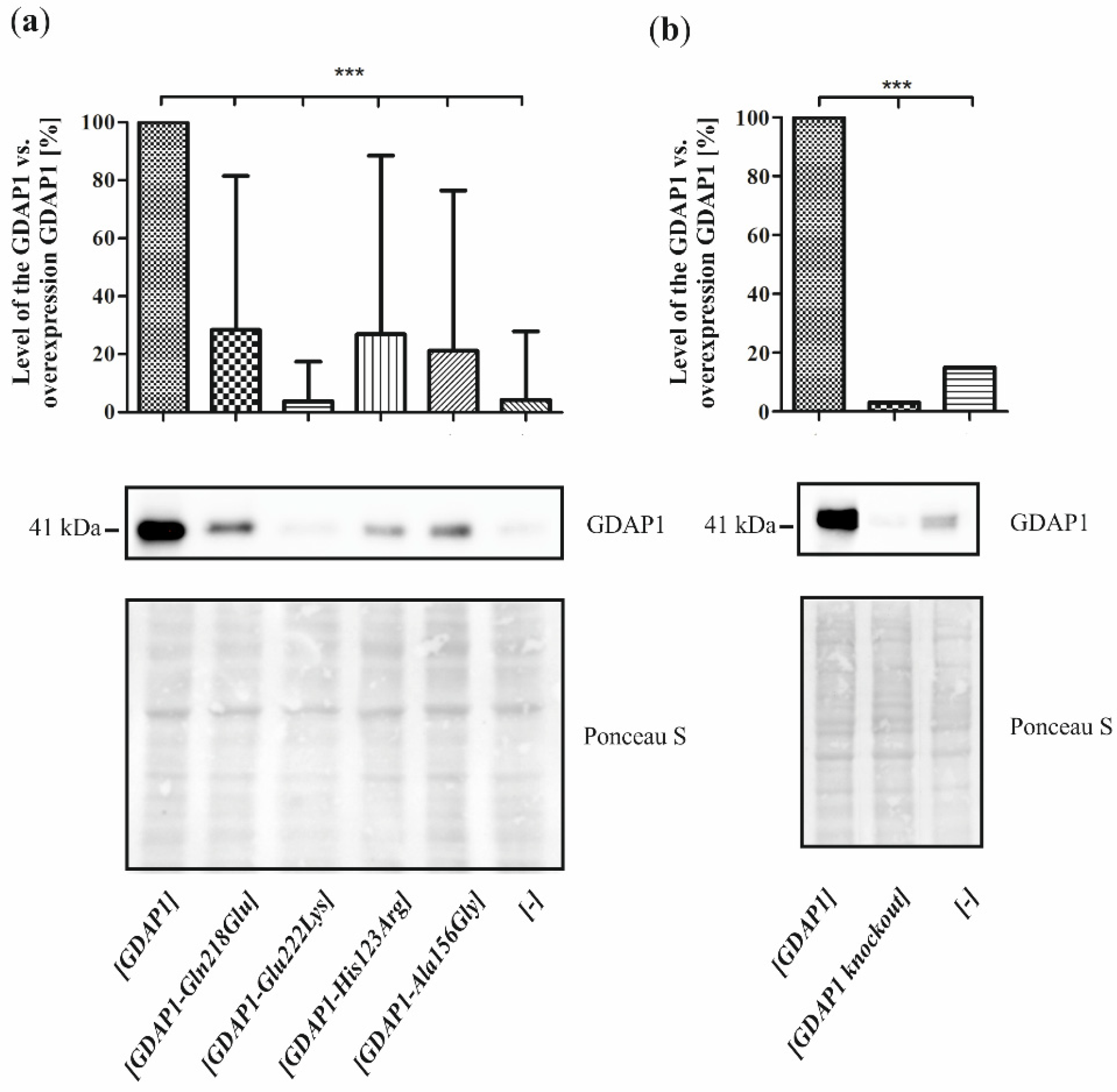

Figure 2. Different levels of GDAP1 protein in SH-SY5Y cells transfected with cDNAs of different GDAP1 variants. Western blot analysis of GDAP1 level in protein extracts from transfected SH-SY5Y cells with anti-GDAP1 antibody. Ponceau S staining of the blot shown as a loading control. Densitometric analysis of the GDAP1 protein level in SH-SY5Y cell line transfected to express indicated GDAP1 alleles. (a) the different variants of the GDAP1 gene; (b) the knockout of the GDAP1 gene. The relative level of GDAP1 mutant proteins to wild-type GDAP1 in SH-SY5Y cells. The results are means from three repetitions ± standard deviations; Statistical significance was determined using one-way ANOVA and Dunnett correction with *** p < 0.001 vs. GDAP1 overexpression SH-SY5Y cells.
Figure 2. Different levels of GDAP1 protein in SH-SY5Y cells transfected with cDNAs of different GDAP1 variants. Western blot analysis of GDAP1 level in protein extracts from transfected SH-SY5Y cells with anti-GDAP1 antibody. Ponceau S staining of the blot shown as a loading control. Densitometric analysis of the GDAP1 protein level in SH-SY5Y cell line transfected to express indicated GDAP1 alleles. (a) the different variants of the GDAP1 gene; (b) the knockout of the GDAP1 gene. The relative level of GDAP1 mutant proteins to wild-type GDAP1 in SH-SY5Y cells. The results are means from three repetitions ± standard deviations; Statistical significance was determined using one-way ANOVA and Dunnett correction with *** p < 0.001 vs. GDAP1 overexpression SH-SY5Y cells.
Genes 13 01546 g002

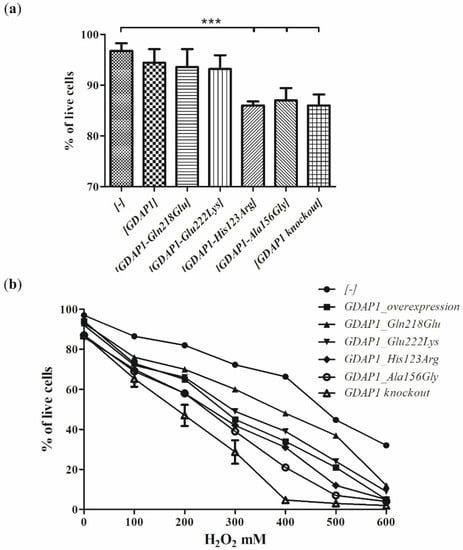

Figure 3. The viability and sensitivity to H2O2 of the SH-SY5Y cell line expressing the GDAP1 mutant alleles. Trypan blue dye exclusion test of GDAP1 (GDAP1_overexpression) or GDAP1 missense variants expressing cells and GDAP1 knockout cells compared with the control cells with empty vector [-] (a) from standard growth conditions (b) after treatment with H2O2. The results are means from three repetitions ± standard deviations; Statistical significance was determined using one-way ANOVA and Dunnett correction with *** p < 0.001 vs. empty vector [-].
Figure 3. The viability and sensitivity to H2O2 of the SH-SY5Y cell line expressing the GDAP1 mutant alleles. Trypan blue dye exclusion test of GDAP1 (GDAP1_overexpression) or GDAP1 missense variants expressing cells and GDAP1 knockout cells compared with the control cells with empty vector [-] (a) from standard growth conditions (b) after treatment with H2O2. The results are means from three repetitions ± standard deviations; Statistical significance was determined using one-way ANOVA and Dunnett correction with *** p < 0.001 vs. empty vector [-].
Genes 13 01546 g003
Figure 4. The expression of p.Glu222Lys results in a marked reduction of neurites-like projections formation. The SH-SY5Y cells with a knockout of GDAP1 or transfected with indicated GDAP1 alleles were visualized under light microscopy Zeiss Axio Imager at 24 (Day 1) and 168 (Day 7) hours after cells seeding. Scale bar = 100 μm.
Figure 4. The expression of p.Glu222Lys results in a marked reduction of neurites-like projections formation. The SH-SY5Y cells with a knockout of GDAP1 or transfected with indicated GDAP1 alleles were visualized under light microscopy Zeiss Axio Imager at 24 (Day 1) and 168 (Day 7) hours after cells seeding. Scale bar = 100 μm.
Genes 13 01546 g004
