Current Understanding of the Genetics and Molecular Mechanisms Regulating Wood Formation in Plants

Department of Plant & Environmental New Resources, Kyung Hee University, Yongin 17104, Korea
Department of Forest Bio-Resources, National Institute of Forest Science, Suwon 16631, Korea
Authors to whom correspondence should be addressed.
Genes 2022, 13(7), 1181;
Submission received: 9 June 2022 / Revised: 24 June 2022 / Accepted: 29 June 2022 / Published: 30 June 2022
(This article belongs to the Collection Feature Papers: 'Plant Genetics and Genomics' Section)


Unlike herbaceous plants, woody plants undergo volumetric growth (a.k.a. secondary growth) through wood formation, during which the secondary xylem (i.e., wood) differentiates from the vascular cambium. Wood is the most abundant biomass on Earth and, by absorbing atmospheric carbon dioxide, functions as one of the largest carbon sinks. As a sustainable and eco-friendly energy source, lignocellulosic biomass can help address environmental pollution and the global climate crisis. Studies of Arabidopsis and poplar as model plants using various emerging research tools show that the formation and proliferation of the vascular cambium and the differentiation of xylem cells require the modulation of multiple signals, including plant hormones, transcription factors, and signaling peptides. In this review, we summarize the latest knowledge on the molecular mechanism of wood formation, one of the most important biological processes on Earth.

1. Introduction

Land plants can be divided into two main groups: vascular and non-vascular plants. The vascular system is one of the key factors that enabled plants to successfully settle on land about 470 million years ago. The vascular system not only transports water, nutrients, and signals throughout the plant but also serves as mechanical support that maintains the plant’s vertical growth, increasing access to sunlight. The secondary xylem consists of vessel, fiber, and tracheid cells, with a thick secondary cell wall (SCW) composed mainly of cellulose, hemicellulose, and lignin [1,2,3]. The secondary xylem is derived from the vascular cambium, which is a cylindrical secondary meristem. Wood formation is achieved through a series of cascading processes that include: xylem mother cell specification by vascular cambium cell division, the differentiation of these cells into xylem cells followed by cell expansion, secondary cell wall deposition, pit formation, and programmed cell death (Figure 1). Each step is elaborately coordinated by factors such as hormones, signal peptides, and transcription factors (TFs). Recently, due to the global climate crisis, interest in sustainable energy development using eco-friendly and renewable biomass is increasing. Woody biomass produced from wood formation processes offers an economic and sustainable feedstock for bioenergy production.
In this review, we summarize the current understanding of the genetic and molecular mechanisms regulating the development of the vascular cambium and xylem cell differentiation, discussing the regulation of the developmental processes of xylem cells. Understanding the molecular mechanisms of wood formation will help elucidate the evolution and history of vascular development in plants.

2. Vascular Cambium Cell Development and Xylem Cell Differentiation: Initiating Wood Formation

The growth and development of woody plants can be largely divided into primary and secondary phases. Primary growth occurs in the shoot apical meristem (SAM) within the ground and root apical meristem (RAM) in the basement. In the apical region of this meristem tissue, the procambium differentiates into primary phloem and primary xylem that comprise the primary vascular bundle. As the procambium expands to the interfascicular region, it develops into a ring to form vascular cambium [4]. Secondary growth refers to the production of wood by the vascular cambium. Vascular cambium divides to produce daughter cells, with secondary xylem formed toward the center and secondary phloem on the outside of the plant. Xylem mother cells can differentiate into several types of daughter cells. However, it is unknown how the cambium develops and how cell fate is determined via the cambium to the secondary xylem or secondary phloem.
Recently, considerable progress has been made in understanding the molecular mechanisms of cambium formation and development, based on research conducted in model plants such as Arabidopsis and poplar. These studies have revealed that cambium development is regulated by hormones, TFs, and signal peptides [5,6,7,8] (Figure 2a). A series of studies on the functional characteristics of Arabidopsis and poplar mutant plants have revealed genes that play an important role in the development of vascular cambium.

2.1. Regulation by Plant Hormones

Hormones control various functions such as plant growth, development, and stress resistance [9]. Many studies have reported that vascular cambium activity is regulated by several hormones, including auxins, cytokinins, ethylene, and brassinosteroids.
Auxins are hormones that function in plant growth and development and affect cellular processes such as cell division, expansion, and differentiation [10,11]. Auxins are highly expressed in the cambium cell layer and play an important role in vascular cambium initiation and development [12,13,14,15,16]. PtoIAA9 and AUX/IAA in Populus tomentosa interact with AUXIN RESPONSE FACTOR 5 (PtoARF5) to regulate vascular cambium cell division and secondary xylem development. Auxin signaling maximum leads to direct activation of CLASS III HOMEODOMAIN-LEUCINE ZIPPER III (HD-ZIP III) TFs and changes in cell type-specific transcriptomes that define xylem cell identities [16,17]. The PtoIAA9-PtoARF5 module can bind to the promoter of the HD-ZIP III genes PtoHB7 and PtoHB8, which are involved in secondary xylem formation [18]. When the poplar HD-ZIP III gene PtrHB4 was upregulated, cambium development was induced by enhanced expression of PtrPIN1 [19]. The auxin-responsive module PaC3H17-PaMYB199 is associated with cambium cell division in poplar stems [20]. Knockdown mutants of two Populus MADS-box genes (VCM1 and VCM2), which are modulators of auxin homeostasis specifically expressed in the vascular cambium, enhanced vascular cambium proliferation activity and subsequent xylem differentiation [21].
Cytokinins (CKs) play important roles in vascular cambium development together with auxins. Poplar cytokinin receptor genes HISTIDINE KINASE 3 (PtHK3a) and PtHK3b are expressed at high levels in dividing cambium cells [22]. Inhibition of CK signaling by expression of Arabidopsis AtCKX2 under the promoter of the birch CRE1 gene reduced the number of cambium cells, whereas an increase in CK biosynthesis by expression of Arabidopsis ISOPENTENYL TRANSFERASE 7 (IPT7) increased cambium cell division in transgenic poplars [14,22]. Auxin-regulated LONESOME HIGHWAY (LHW) and TARGET OF MONOPTEROS5 (TMO5)/TMO5-LIKE1 (T5L1) directly up-regulated the CK biosynthesis genes LONELY GUY3 (LOG3) and LOG4, which are involved in the activation of vascular cell division [23]. AT2G28510/DOF2.1, which is a CK-dependent downstream target gene of LHW-TMO5/T5L1, controls vascular cell proliferation [24].
Brassinosteroids (BRs), ethylene (ET), and gibberellins (GAs) also promote vascular cambium division and secondary growth in trees. Mutations of both BRI-LIKE 1 (BRL1) and BRL3, which are Arabidopsis vascular-specific BR receptors, resulted in reduced xylem formation and increased phloem development [25]. BRI1-EMS SUPPRESSOR 1 (BES1) was shown to be involved in xylem differentiation downstream of TDIF-TDR-GSK3s signaling [26]. Similarly, inhibition of BR synthesis resulted in decreased secondary xylem differentiation and SCW biosynthesis, whereas increased BR levels increased secondary growth in poplar [27]. Exogenous BR treatment or genetic complementation of the BR biosynthesis DWARF gene in BR-biosynthetic-mutant tomato with retardation of xylem development resulted in a complete recovery of xylem cell formation [28]. In contrast, overexpression of GLYCOGEN SYNTHASE KINASE 3 (SlGSK3) or CRISPR/Cas9 knockout of BRASSINOSTEROID-INSENSITIVE 1 (SlBRI1) to block BR signaling resulted in severely defective xylem differentiation and secondary growth in tomato [28]. The tonoplast membrane-localized auxin efflux carrier WALLS ARE THIN1 (SlWAT1) is directly activated by SlBRL1/2 in xylem precursor cells. Transposable element (TE)-mediated loss-of-function allele Slwat1-copi resulted in defects in secondary xylem development, with a reduced vessel element number in tomato. Secondary xylem formation of Slwat1-copi was completely recovered by genetic complementation of WAT1 function [29]. Cambium division was increased in ET-overproducing poplar, whereas it was decreased in ET-insensitive poplar [30]. acs7-d, an ET overproducing Arabidopsis mutant, showed enhanced cambial activity and reduced fiber cell wall development [31]. Transgenic poplar overexpressing the GIBBERELLIN 20 OXIDASE 1 (GA20ox1) gene, which is involved in GA biosynthesis, was characterized by GA overproduction and cambium proliferation [32,33,34]. GA also induced vascular cambium differentiation and lignification when expressed downstream of WOX14 in Arabidopsis stems [35,36].

2.2. Regulation by Transcription Factors and Signal Peptides

Regulation via TFs and signal peptides is essential for vascular cambium development and xylem differentiation. CLAVATA3/EMBRYO SURROUNDING REGION (CLE) family peptides are 12–13 amino acids with two hydroxylated proline residues after processing and post-translational modifications [37]. CLE41/44 (a.k.a. TRACHEARY ELEMENT DIFFERENTIATION INHIBITORY FACTOR [TDIF]) is secreted by developing phloem cells and binds to the cambium cell receptor PHLOEM INTERCALATED WITH XYLEM (PXY) [38]. The TDIF-PXY module plays an important role in maintaining the cambium cell population via cell division and inhibiting xylem cell differentiation [39,40]. WUSCHEL HOMEOBOX RELATED 4 (WOX4), a downstream transcriptional regulator of the TDIF-PXY module, is specifically expressed in the cambium region, and is involved in the regulation of cambium activity [38,39,40,41,42]. Ectopic expression of PttCLE41b and other related PttCLE41-like genes causes a dwarf phenotype with loss of cell division orientation and defects in the patterning of vascular tissues [42]. PtrCLE20 is expressed in xylem tissues and suppresses cambium activity in poplar [43]. Populus WOX4, PttWOX4, is specifically expressed in the cambial region during the growing season only. PttWOX4a/b RNAi transgenic poplar showed reduced vascular cambium width and secondary growth [42]. Auxin-dependent WOX4 regulation is achieved in xylem precursor cells with auxin maxima, which promote vascular cambium cell division in a non-cell-autonomous manner [16]. GLYCOGEN SYNTHASE KINASE3/SHAGGY-LIKE KINASE proteins (GSK3s), including ARABIDOPSIS BRASSINOSTEROID-INSENSITIVE2 (BIN2), BIN2-LIKE1 (BIL1), and BIL2 are downstream of the TDIF-PXY module and inhibit xylem differentiation via the suppression of BRI1–EMS–SUPPRESSOR1 (BES1) and BRASSINAZOLE RESISTANT 1 (BZR1) [26,44]. BIL1 is a key mediator linking the TDIF-PXY module with auxin-CK signaling for the maintenance of cambium activity [45]. BIL1 phosphorylates and activates MONOPTEROS/AUXIN RESPONSE FACTOR 5 (MP/ARF5), and activated MP promotes the expression of the CK signaling negative regulators ARABIDOPSIS RESPONSE REGULATOR 7 (ARR7) and ARR15, which suppress cambium cell division.
HD-ZIP III and NAC (NAM, ATAF and CUC) TFs have been reported to play important roles in wood formation. PopREVOLUTA, the closest poplar homolog gene to Arabidopsis REVOLUTA (REV), has been reported to be involved in vascular cambium initiation [46]. Poplar PtrHB5 and PtrHB7, which are the closest homologs of Arabidopsis CORONA and AtHB8, induce cambium activity and xylem differentiation during secondary growth [47,48]. PtrHB7 is preferentially expressed in cambium tissues and is a direct target of the PtrIAA9-PtrARF5 module, inducing cambium activity and xylem differentiation [18,47,48]. PtrHB4 is specifically expressed in shoot tips and in the early developmental stages of vascular tissue; PtrHB4-SRDX (PtrHB4 repressor) transgenic poplar showed defects in the secondary vascular system due to failure of interfascicular cambium formation [19].
The NAC TF family have a highly conserved N-terminal NAC domain, which is associated with nuclear localization, DNA binding, and homodimer and/or heterodimer formation with other NAC proteins [49]. Among the NAC TFs in Arabidopsis, VASCULAR-RELATED NAC DOMAINs (VNDs) are master regulators of xylem differentiation [50,51]. NAC SECONDARY WALL THICKENING PROMOTING FACTOR 1 and 3 (NST1 and 3) are involved in stem fiber differentiation [52,53]. VND1, VND2, and VND3 contribute to xylem vessel formation during seedling development [54]. Poplar VNDs and NST1/3 are also involved in xylem differentiation [55,56,57]. VND6 and VND7, in particular, have been studied as master switches of xylem differentiation in metaxylem and protoxylem cells, respectively [50,58,59]. VND6 and VND7 upregulate xylem vessel cell differentiation-related genes such as SCW biosynthesis genes and programmed cell death (PCD) genes [58,60,61,62]. VND6 and VND7 directly regulate MYB46 and MYB83, which are master regulators of SCW biosynthesis [63,64]. XYLEM DIFFERENTIATION AND ALTERED VASCULAR PATTERNING (XVP) is a negative regulator of the TDIF-PXY module and fine-tunes TDIF signaling for xylem differentiation via interacting with the PXY-BAK1 (BRI1-ASSOCIATED KINASE 1) receptor complex [65].
However, some NAC TFs function as negative regulators of xylem differentiation. In Arabidopsis, a XYLEM NAC DOMAIN 1 (XND1) mutant showed improved xylem differentiation [66], and poplar XND1 or PopNAC122 (XND1 ortholog) overexpressing transgenic Arabidopsis had a decreased wood formation phenotype [67]. Expression of C-terminal truncated VND-INTERACTING2 (VNI2) under the control of the VND7 promoter resulted in inhibition of xylem vessel development in Arabidopsis roots and aerial organs [68]. Recently, the authors of [69] demonstrated that VND7 downregulated VNI2 expression and that MYB83, a downstream target of VND7, upregulated VNI2 expression.

3. Cell Expansion: Determining the Final Shape and Size of the Xylem Cell

Wood formation is achieved through a series of processes, including cell expansion, SCW deposition, and programmed cell death after the determination of the fate of daughter cells formed by vascular cambium division. The cell expansion step determines the final shape and cell size of the xylem and takes place in the primary cell wall (PCW) formation stage before the SCW is formed.
The EXPANSIN family comprises four subfamilies: α-expansin (EXPA), β-expansin (EXPB), expansin-like A (EXLA), and expansin-like B (EXLB). EXPA and EXPB bind to xyloglucan and xylose, respectively, and break noncovalent bonds between other cell wall components, resulting in cell wall loosening [70,71,72]. XYLOGLUCAN ENDOTRANSGLUCOSYLASE/HYDROLASE (XTH) is involved in cell wall loosening and remodeling by catalyzing the hydrolysis and reconnection of xyloglucans [73,74]. PECTIN METHYLESTERASE (PMEs) and PECTIN ACETYLESTERASE (PAEs) regulate cell wall loosening through pectin modification [75,76,77]. Populus ETHYLENE RESPONSE FACTOR 85 (PtERF85) is expressed in the phloem, cambium cells, and expanding xylem but not in mature xylem cells. The ectopic expression of PtERF85 reduced wood density and SCW thickness of xylem fibers in association with decreased expressions of SCW biosynthesis genes, but the diameter of fiber cells increased [78]. Thus, PtERF85 activates xylem cell expansion, but prevents SCW formation, suggesting that PtERF85 contributes to the transition of fiber cells from elongation to secondary cell wall deposition.
After cell wall expansion, SCW deposition occurs. Several excellent reviews have been reported recently on this subject, so please see [79,80,81,82].

4. Pit Formation: Decorating SCW

Cellulose microfibrils are the main components of the plant cell wall and physically restrict cell expansion, causing anisotropic cell growth. Cellulose microfibrils are synthesized at the plasma membrane outer surface by CESA complexes. The orientation of cellulose microfibrils is directed by cortical microtubules [83,84,85]. Thus, the pattern of cortical microtubule alignment affects the overall deposition pattern of cellulose microfibrils, which determines the shape of plant cells. Microtubule-associated proteins are important for regulating the dynamics and interactions of cortical microtubules. Plant-specific conserved microtubule-associated proteins such as ROP-INTERACTIVE CRIB MOTIF-CONTAINING PROTEIN1 (RIC1) and SP1-LIKE2 (SPL2) are involved in regulating the movement of transverse cortical microtubules [86,87,88].
Unique deposition patterns of the secondary cell walls of xylem cells, such as spiral and reticular patterns, are also determined by cortical microtubule alignment. During xylem cell differentiation, transverse cortical microtubules are rearranged into bundled or pitted patterns to direct secondary cell wall patterns [89]. MICROTUBULE-ASSOCIATED PROTEINS 70-5 (MAP70-5), MAP65, AUXIN-INDUCED IN ROOT CULTURES 9 (AIR9), CELLULOSE SYNTHASE-INTERACTIVE PROTEIN1 (CSI1), and MICROTUBULE DEPLETION DOMAIN 1 (MIDD1), which are members of a plant-specific microtubule-associated protein family, are involved in regulating secondary cell wall patterns [90,91,92]. Plasma membrane domains are formed by local activation of Rho-like GTPase RHO-RELATED PROTEIN FROM PLANTS 11 (ROP11) by RHO GUANYL-NUCLEOTIDE EXCHANGE FACTOR 4 (ROPGEF4) and ROP GTPASE-ACTIVATING PROTEIN 3 (ROPGAP3) [93]. Activated ROP11 interacts directly with MIDD1 and anchors it to the plasma membrane domain [91]. Kinesin-13A interacts with MIDD1 through a C-terminal coiled-coil domain and functions in microtubule degradation through the active ROP-MIDD1 cascade [94,95,96]. Loss of CORTICAL MICROTUBULE DISORDERING1 (CORD1) and CORD2, which encode microtubule-associated proteins, resulted in an irregular secondary cell wall with small pits in the xylem cells [97]. BOUNDARY OF ROP DOMAIN1 (BDR1) and WALLIN (WAL) localize to pit boundaries and mediate an ROP-actin pathway that shapes pit boundaries. WAL interacts with F-actin and promotes actin assembly at pit boundaries. BDR1 interacts with WAL as an ROP effector [98].

5. Programmed Cell Death: Finalizing Xylem Differentiation

After SCW biosynthesis, programmed cell death (PCD) occurs as the final step in the formation of mature xylem cells. PCD is usually initiated by central vacuole rupture during tracheary element (TE) differentiation, in which hydrolytic enzymes such as proteinases and nucleases are released [99,100].
BIFUNCTIONAL NUCLEASE1 (BFN1) encodes a bifunctional nuclease I enzyme with both RNase and DNase activities [100]. XYLEM CYSTEINE PROTEASE1 (XCP1) and XCP2, which have xylem-specific expression [101], are papain-like cysteine proteases located in the vacuole that control micro-autolysis in intact vacuoles or mega-autolysis of all cell materials in tonoplasts after rupture of the cell [102]. Arabidopsis METACASPASE (MC) family proteins induce cell death [103,104]. Among them, Arabidopsis AtMC9 has a developing xylem-specific expression pattern [60,105], and the poplar homolog of AtMC9 is upregulated during xylem maturation [106]. PCD-related genes such as XCP1, XCP2, and AtMC9 are direct targets of VND6 and VND7 [60,107]. This indicates that VND6 and VND7 regulate PCD in TE, in addition to SCW, suggesting that PCD is an essential part of the TE maturation program.
PCD is an important step in wood formation, involving the breakdown of all cellular contents except the cell wall. Although our understanding of PCD related to wood formation is insufficient, we are optimistic that future studies will provide insights into wood formation.
We summarized the recent wood formation studies described here in Table 1.

6. Conclusions and Future Perspectives

In recent years, advances in molecular biology technologies and bioinformatics have facilitated in-depth research into the regulatory networks governing vascular cambium development, cell differentiation, and secondary xylem formation. Wood formation is achieved through systematic and intimate processes controlled by a wide variety of factors, including hormones, small peptides, and transcriptional regulators. However, much is still unknown about the detailed mechanisms of wood formation, including cell fate determination and vascular cambium differentiation from procambium. The study of wood formation is difficult because the vascular cambium cells are embedded beneath the layers of other tissues, making them difficult to access. Additionally, in general, woody plants have a very long vegetative growth period, being large in size. The contribution of various cell types to wood formation is not well understood; until now, only tissue-level analysis was possible. Very recently, single-cell RNA-seq enabled the analysis of the wood formation control network at the single-cell level [108,109]. In the future, new information on the molecular mechanisms involved in wood formation will likely be obtained through studies using the latest technologies, which are rapidly being developed and applied.

Author Contributions

Conceptualization, M.-H.K., H.L. and J.-H.K.; data curation, M.-H.K. and E.-K.B.; writing—original draft preparation, M.-H.K., H.L. and J.-H.K.; writing—review and editing, M.-H.K., H.L. and J.-H.K..; visualization, M.-H.K. and E.-K.B.; funding acquisition, H.L. and J.-H.K. All authors have read and agreed to the published version of the manuscript.


Forest Resources Genome Project (2014071G10-1722-AA04 to J.-H.K.); National Institute of Forest Science Project (FG0702-2018-01 to Lee H.), National Research Foundation of Korea (NRF-2018R1A2B2005362 to J.-H.K.)

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Dara Availability Statement

Not applicable.


This work was supported by the National Research Foundation of Korea (NRF), with the grant funded by the Korea government (MSIT) (NRF-2018R1A2B2005362), National Institute of Forest Science Project (FG0702-2018-01), and Forest Resources Genome Project (2014071G10-1722-AA04).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Kumar, M.; Campbell, L.; Turner, S. Secondary cell walls: Biosynthesis and manipulation. J. Exp. Bot. 2016, 67, 515–531. [Google Scholar] [CrossRef] [PubMed]
  2. Morris, H.; Plavcova, L.; Cvecko, P.; Fichtler, E.; Gillingham, M.; Martínez-Cabrera, H.; McGlinn, D.; Wheeler, E.; Zheng, J.; Ziemińska, K.; et al. A global analysis of parenchyma tissue fractions in secondary xylem of seed plants. New Phytol. 2015, 209, 1553–1565. [Google Scholar] [CrossRef] [PubMed]
  3. Rajput, K.S.; Gondaliya, A.D.; Lekhak, M.M.; Yadav, S.R. Structure and Ontogeny of Intraxylary Secondary Xylem and Phloem Development by the Internal Vascular Cambium in Campsis radicans (L.) Seem. (Bignoniaceae). J. Plant Growth Regul. 2018, 37, 755–767. [Google Scholar] [CrossRef]
  4. Nieminen, K.; Blomster, T.; Helariutta, Y.; Mähönen, A.P. Vascular Cambium Development. Arab. Book 2015, 13, e0177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Miyashima, S.; Sebastian, J.; Lee, J.Y.; Helariutta, Y. Stem cell function during plant vascular development. EMBO J. 2013, 32, 178–193. [Google Scholar] [CrossRef] [Green Version]
  6. Mizrachi, E.; Myburg, A.A. Systems genetics of wood formation. Curr. Opin. Plant Biol. 2016, 30, 94–100. [Google Scholar] [CrossRef]
  7. Chiang, M.H.; Greb, T. How to organize bidirectional tissue production? Curr. Opin. Plant Biol. 2019, 51, 15–21. [Google Scholar] [CrossRef]
  8. Wang, D.; Chen, Y.; Li, W.; Li, Q.; Lu, M.; Zhou, G.; Chai, G. Vascular Cambium: The Source of Wood Formation. Front. Plant Sci. 2021, 12, 700928. [Google Scholar] [CrossRef]
  9. Lymperopoulos, P.; Msanne, J.; Rabara, R. Phytochrome and Phytohormones: Working in Tandem for Plant Growth and Development. Front. Plant Sci. 2018, 9, 1037. [Google Scholar] [CrossRef] [Green Version]
  10. Teale, W.D.; Paponov, I.A.; Palme, K. Auxin in action: Signalling, transport and the control of plant growth and development. Nat. Rev. Mol. Cell Biol. 2006, 7, 847–859. [Google Scholar] [CrossRef]
  11. Luo, J.; Zhou, J.J.; Zhang, J.Z. Aux/IAA Gene Family in Plants: Molecular Structure, Regulation, and Function. Int. J. Mol. Sci. 2018, 19, 259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Nilsson, J.; Karlberg, A.; Antti, H.; Lopez-Vernaza, M.; Mellerowicz, E.; Perrot-Rechenmann, C.; Sandberg, G.; Bhalerao, R.P. Dissecting the molecular basis of the regulation of wood formation by auxin in hybrid aspen. Plant Cell 2008, 20, 843–855. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ibañes, M.; Fàbregas, N.; Chory, J.; Caño-Delgado, A.I. Brassinosteroid signaling and auxin transport are required to establish the periodic pattern of Arabidopsis shoot vascular bundles. Proc. Natl. Acad. Sci. USA 2009, 106, 13630–13635. [Google Scholar] [CrossRef] [Green Version]
  14. Immanen, J.; Nieminen, K.; Smolander, O.P.; Kojima, M.; Alonso Serra, J.; Koskinen, P.; Zhang, J.; Elo, A.; Mähönen, A.P.; Street, N.; et al. Cytokinin and Auxin Display Distinct but Interconnected Distribution and Signaling Profiles to Stimulate Cambial Activity. Curr. Biol. 2016, 26, 1990–1997. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Weijers, D.; Wagner, D. Transcriptional Responses to the Auxin Hormone. Annu. Rev. Plant Biol. 2016, 67, 539–574. [Google Scholar] [CrossRef]
  16. Smetana, O.; Mäkilä, R.; Lyu, M.; Amiryousefi, A.; Sánchez Rodríguez, F.; Wu, M.F.; Solé-Gil, A.; Leal Gavarrón, M.; Siligato, R.; Miyashima, S.; et al. High levels of auxin signalling define the stem-cell organizer of the vascular cambium. Nature 2019, 565, 485–489. [Google Scholar] [CrossRef]
  17. Fischer, U.; Kucukoglu, M.; Helariutta, Y.; Bhalerao, R.P. The Dynamics of Cambial Stem Cell Activity. Annu. Rev. Plant Biol. 2019, 29, 293–319. [Google Scholar] [CrossRef] [Green Version]
  18. Xu, C.; Shen, Y.; He, F.; Fu, X.; Yu, H.; Lu, W.; Li, Y.; Li, C.; Fan, D.; Wang, H.C.; et al. Auxin-mediated Aux/IAA-ARF-HB signaling cascade regulates secondary xylem development in Populus. New Phytol. 2019, 222, 752–767. [Google Scholar] [CrossRef]
  19. Zhu, Y.; Song, D.; Xu, P.; Sun, J.; Li, L. A HD-ZIP III gene, PtrHB4, is required for interfascicular cambium development in Populus. Plant Biotechnol. J. 2018, 16, 808–817. [Google Scholar] [CrossRef] [Green Version]
  20. Tang, X.; Wang, D.; Liu, Y.; Lu, M.; Zhuang, Y.; Xie, Z.; Wang, C.; Wang, S.; Kong, Y.; Chai, G.; et al. Dual regulation of xylem formation by an auxin-mediated PaC3H17-PaMYB199 module in Populus. New Phytol. 2020, 225, 1545–1561. [Google Scholar] [CrossRef]
  21. Zheng, S.; He, J.; Lin, Z.; Zhu, Y.; Sun, J.; Li, L. Two MADS-box genes regulate vascular cambium activity and secondary growth by modulating auxin homeostasis in Populus. Plant Commun. 2021, 2, 100134. [Google Scholar] [CrossRef] [PubMed]
  22. Nieminen, K.; Immanen, J.; Laxell, M.; Kauppinen, L.; Tarkowski, P.; Dolezal, K.; Tähtiharju, S.; Elo, A.; Decourteix, M.; Ljung, K.; et al. Cytokinin signaling regulates cambial development in poplar. Proc. Natl. Acad. Sci. USA 2008, 105, 20032–20037. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ohashi-Ito, K.; Saegusa, M.; Iwamoto, K.; Oda, Y.; Katayama, H.; Kojima, M.; Sakakibara, H.; Fukuda, H. A bHLH complex activates vascular cell division via cytokinin action in root apical meristem. Curr. Biol. 2014, 8, 2053–2058. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Smet, W.; Sevilem, I.; de Luis Balaguer, M.A.; Wybouw, B.; Mor, E.; Miyashima, S.; Blob, B.; Roszak, P.; Jacobs, T.B.; Boekschoten, M.; et al. DOF2.1 Controls Cytokinin-Dependent Vascular Cell Proliferation Downstream of TMO5/LHW. Curr. Biol. 2019, 4, 520–529. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Caño-Delgado, A.; Yin, Y.; Yu, C.; Vafeados, D.; Mora-García, S.; Cheng, J.C.; Nam, K.H.; Li, J.; Chory, J. BRL1 and BRL3 are novel brassinosteroid receptors that function in vascular differentiation in Arabidopsis. Development 2004, 131, 5341–5351. [Google Scholar] [CrossRef] [Green Version]
  26. Kondo, Y.; Ito, T.; Nakagami, H.; Hirakawa, Y.; Saito, M.; Tamaki, T.; Shirasu, K.; Fukuda, H. Plant GSK3 proteins regulate xylem cell differentiation downstream of TDIF-TDR signalling. Nat. Commun. 2014, 24, 3504. [Google Scholar] [CrossRef] [Green Version]
  27. Du, J.; Gerttula, S.; Li, Z.; Zhao, S.T.; Liu, Y.L.; Liu, Y.; Lu, M.Z.; Groover, A.T. Brassinosteroid regulation of wood formation in poplar. New Phytol. 2020, 225, 1516–1530. [Google Scholar] [CrossRef]
  28. Lee, J.; Han, S.; Lee, H.Y.; Jeong, B.; Heo, T.Y.; Hyun, T.K.; Kim, K.; Je, B.I.; Lee, H.; Shim, D.; et al. Brassinosteroids facilitate xylem differentiation and wood formation in tomato. Planta 2019, 249, 1391–1403. [Google Scholar] [CrossRef]
  29. Lee, J.; Kim, H.; Park, S.G.; Hwang, H.; Yoo, S.I.; Bae, W.; Kim, E.; Kim, J.; Lee, H.Y.; Heo, T.Y.; et al. Brassinosteroid-BZR1/2-WAT1 module determines the high level of auxin signalling in vascular cambium during wood formation. New Phytol. 2021, 230, 1503–1516. [Google Scholar] [CrossRef]
  30. Love, J.; Björklund, S.; Vahala, J.; Hertzberg, M.; Kangasjärvi, J.; Sundberg, B. Ethylene is an endogenous stimulator of cell division in the cambial meristem of Populus. Proc. Natl. Acad. Sci. USA 2009, 106, 5984–5989. [Google Scholar] [CrossRef] [Green Version]
  31. Yang, S.; Wang, S.; Li, S.; Du, Q.; Qi, L.; Wang, W.; Chen, J.; Wang, H. Activation of ACS7 in Arabidopsis affects vascular development and demonstrates a link between ethylene synthesis and cambial activity. J. Exp. Bot. 2020, 71, 7160–7170. [Google Scholar] [CrossRef] [PubMed]
  32. Eriksson, M.E.; Israelsson, M.; Olsson, O.; Moritz, T. Increased gibberellin biosynthesis in transgenic trees promotes growth, biomass production and xylem fiber length. Nat. Biotechnol. 2000, 18, 784–788. [Google Scholar] [CrossRef] [PubMed]
  33. Park, E.J.; Kim, H.T.; Choi, Y.I.; Lee, C.; Nguyen, V.P.; Jeon, H.W.; Cho, J.S.; Funada, R.; Pharis, R.P.; Kurepin, L.V.; et al. Overexpression of gibberellin 20-oxidase1 from Pinus densiflora results in enhanced wood formation with gelatinous fiber development in a transgenic hybrid poplar. Tree Physiol. 2015, 35, 1264–1277. [Google Scholar] [PubMed] [Green Version]
  34. Jeon, H.W.; Cho, J.S.; Park, E.J.; Han, K.H.; Choi, Y.I.; Ko, J.H. Developing xylem-preferential expression of PdGA20ox1, a gibberellin 20-oxidase 1 from Pinus densiflora, improves woody biomass production in a hybrid poplar. Plant Biotechnol. J. 2016, 14, 1161–1170. [Google Scholar] [CrossRef] [PubMed]
  35. Mauriat, M.; Moritz, T. Analyses of GA20ox- and GID1-over-expressing aspen suggest that gibberellins play two distinct roles in wood formation. Plant J. 2009, 58, 989–1003. [Google Scholar] [CrossRef]
  36. Denis, E.; Kbiri, N.; Mary, V.; Claisse, G.; Conde e Silva, N.; Kreis, M.; Deveaux, Y. WOX 14 promotes bioactive gibberellin synthesis and vascular cell differentiation in Arabidopsis. Plant J. 2017, 90, 560–572. [Google Scholar] [CrossRef] [Green Version]
  37. Ito, Y.; Nakanomyo, I.; Motose, H.; Iwamoto, K.; Sawa, S.; Dohmae, N.; Fukuda, H. Dodeca-CLE peptides as suppressors of plant stem cell differentiation. Science 2006, 313, 842–845. [Google Scholar] [CrossRef]
  38. Hirakawa, Y.; Shinohara, H.; Kondo, Y.; Inoue, A.; Nakanomyo, I.; Ogawa, M.; Sawa, S.; Ohashi-Ito, K.; Matsubayashi, Y.; Fukuda, H. Non-cell-autonomous control of vascular stem cell fate by a CLE peptide/receptor system. Proc. Natl. Acad. Sci. USA 2008, 105, 15208–15213. [Google Scholar] [CrossRef] [Green Version]
  39. Etchells, J.P.; Turner, S.R. The PXY-CLE41 receptor ligand pair defines a multifunctional pathway that controls the rate and orientation of vascular cell division. Development 2010, 137, 767–774. [Google Scholar] [CrossRef] [Green Version]
  40. Hirakawa, Y.; Kondo, Y.; Fukuda, H. TDIF peptide signaling regulates vascular stem cell proliferation via the WOX4 homeobox gene in Arabidopsis. Plant Cell 2010, 22, 2618–2629. [Google Scholar] [CrossRef] [Green Version]
  41. Etchells, J.P.; Mishra, L.S.; Kumar, M.; Campbell, L.; Turner, S.R. Wood formation in trees is increased by manipulating PXY-regulated cell division. Curr Biol. 2015, 25, 1050–1055. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Kucukoglu, M.; Nilsson, J.; Zheng, B.; Chaabouni, S.; Nilsson, O. WUSCHEL-RELATED HOMEOBOX4 (WOX4)-like genes regulate cambial cell division activity and secondary growth in Populus trees. New Phytol. 2017, 215, 642–657. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Zhu, Y.; Song, D.; Zhang, R.; Luo, L.; Cao, S.; Huang, C.; Sun, J.; Gui, J.; Li, L. A xylem-produced peptide PtrCLE20 inhibits vascular cambium activity in Populus. Plant Biotechnol J. 2020, 18, 195–206. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Saito, M.; Kondo, Y.; Fukuda, H. BES1 and BZR1 Redundantly Promote Phloem and Xylem Differentiation. Plant Cell Physiol. 2018, 59, 590–600. [Google Scholar] [CrossRef] [Green Version]
  45. Han, S.; Cho, H.; Noh, J.; Qi, J.; Jung, H.J.; Nam, H.; Lee, S.; Hwang, D.; Greb, T.; Hwang, I. BIL1-mediated MP phosphorylation integrates PXY and cytokinin signalling in secondary growth. Nat. Plants 2018, 4, 605–614. [Google Scholar] [CrossRef]
  46. Robischon, M.; Du, J.; Miura, E.; Groover, A. The Populus class III HD ZIP, popREVOLUTA, influences cambium initiation and patterning of woody stems. Plant Physiol. 2011, 155, 1214–1225. [Google Scholar] [CrossRef] [Green Version]
  47. Du, J.; Miura, E.; Robischon, M.; Martinez, C.; Groover, A. The Populus Class III HD ZIP transcription factor POPCORONA affects cell differentiation during secondary growth of woody stems. PLoS ONE 2011, 6, e17458. [Google Scholar] [CrossRef] [Green Version]
  48. Zhu, Y.; Song, D.; Sun, J.; Wang, X.; Li, L. PtrHB7, a class III HD-Zip gene, plays a critical role in regulation of vascular cambium differentiation in Populus. Mol. Plant 2013, 6, 1331–1343. [Google Scholar] [CrossRef] [Green Version]
  49. Olsen, A.N.; Ernst, H.A.; Leggio, L.L.; Skriver, K. NAC transcription factors: Structurally distinct, functionally diverse. Trends Plant Sci. 2005, 10, 79–87. [Google Scholar] [CrossRef]
  50. Kubo, M.; Udagawa, M.; Nishikubo, N.; Horiguchi, G.; Yamaguchi, M.; Ito, J.; Mimura, T.; Fukuda, H.; Demura, T. Transcription switches for protoxylem and metaxylem vessel formation. Genes Dev. 2005, 19, 1855–1860. [Google Scholar] [CrossRef] [Green Version]
  51. Zhou, J.; Zhong, R.; Ye, Z.H. Arabidopsis NAC domain proteins, VND1 to VND5, are transcriptional regulators of secondary wall biosynthesis in vessels. PLoS ONE 2014, 9, e105726. [Google Scholar]
  52. Mitsuda, N.; Iwase, A.; Yamamoto, H.; Yoshida, M.; Seki, M.; Shinozaki, K.; Ohme-Takagi, M. NAC Transcription Factors, NST1 and NST3, Are Key Regulators of the Formation of Secondary Walls in Woody Tissues of Arabidopsis. Plant Cell 2007, 19, 270–280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Zhong, R.; Richardson, E.A.; Ye, Z.H. Two NAC domain transcription factors, SND1 and NST1, function redundantly in regulation of secondary wall synthesis in fibers of Arabidopsis. Planta 2007, 225, 1603–1611. [Google Scholar] [CrossRef] [PubMed]
  54. Tan, T.T.; Endo, H.; Sano, R.; Kurata, T.; Yamaguchi, M.; Ohtani, M.; Demura, T. Transcription Factors VND1-VND3 Contribute to Cotyledon Xylem Vessel Formation. Plant Physiol. 2018, 176, 773–789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ohtani, M.; Nishikubo, N.; Xu, B.; Yamaguchi, M.; Mitsuda, N.; Goué, N.; Shi, F.; Ohme-Takagi, M.; Demura, T. A NAC domain protein family contributing to the regulation of wood formation in poplar. Plant J. 2011, 67, 499–512. [Google Scholar] [CrossRef] [PubMed]
  56. Yang, Y.; Yoo, C.G.; Rottmann, W.; Winkeler, K.A.; Collins, C.M.; Gunter, L.E.; Jawdy, S.S.; Yang, X.; Pu, Y.; Ragauskas, A.J.; et al. PdWND3A, a wood-associated NAC domain-containing protein, affects lignin biosynthesis and composition in Populus. BMC Plant Biol. 2019, 11, 486. [Google Scholar] [CrossRef] [Green Version]
  57. Takata, N.; Awano, T.; Nakata, M.T.; Sano, Y.; Sakamoto, S.; Mitsuda, N.; Taniguchi, T. Populus NST/SND orthologs are key regulators of secondary cell wall formation in wood fibers, phloem fibers and xylem ray parenchyma cells. Tree Physiol. 2019, 39, 514–525. [Google Scholar] [CrossRef]
  58. Yamaguchi, M.; Mitsuda, N.; Ohtani, M.; Ohme-Takagi, M.; Kato, K.; Demura, T. VASCULAR-RELATED NAC-DOMAIN7 directly regulates the expression of a broad range of genes for xylem vessel formation. Plant J. 2011, 66, 579–590. [Google Scholar] [CrossRef]
  59. Endo, H.; Yamaguchi, M.; Tamura, T.; Nakano, Y.; Nishikubo, N.; Yoneda, A.; Kato, K.; Kubo, M.; Kajita, S.; Katayama, Y.; et al. Multiple classes of transcription factors regulate the expression of VASCULAR-RELATED NAC-DOMAIN7, a master switch of xylem vessel differentiation. Plant Cell Physiol. 2015, 56, 242–254. [Google Scholar] [CrossRef] [Green Version]
  60. Ohashi-Ito, K.; Oda, Y.; Fukuda, H. Arabidopsis VASCULAR-RELATED NAC-DOMAIN6 directly regulates the genes that govern programmed cell death and secondary wall formation during xylem differentiation. Plant Cell 2010, 22, 3461–3473. [Google Scholar] [CrossRef] [Green Version]
  61. Nakano, Y.; Yamaguchi, M.; Endo, H.; Rejab, N.A.; Ohtani, M. NAC-MYB-based transcriptional regulation of secondary cell wall biosynthesis in land plants. Front. Plant Sci. 2015, 6, 288. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Ohtani, M.; Demura, T. The quest for transcriptional hubs of lignin biosynthesis: Beyond the NAC-MYB-gene regulatory network model. Curr. Opin. Biotechnol. 2019, 56, 82–87. [Google Scholar] [CrossRef] [PubMed]
  63. Kim, W.C.; Ko, J.H.; Han, K.H. Identification of a cis-acting regulatory motif recognized by MYB46, a master regulator of secondary wall biosynthesis. Plant Mol. Biol. 2012, 78, 489–501. [Google Scholar] [CrossRef]
  64. Ko, J.H.; Jeon, H.W.; Kim, W.C.; Han, K.H. The MYB46/MYB83-mediated transcriptional regulatory programme is a gatekeeper of secondary wall biosynthesis. Ann. Bot. 2014, 114, 1099–1107. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Yang, J.H.; Lee, K.H.; Du, Q.; Yang, S.; Yuan, B.; Qi, L.; Wang, H. A membrane-associated NAC domain transcription factor XVP interacts with TDIF co-receptor and regulates vascular meristem activity. New Phytol. 2020, 226, 59–74. [Google Scholar] [CrossRef]
  66. Tang, N.; Shahzad, Z.; Lonjon, F.; Loudet, O.; Vailleau, F.; Maurel, C. Natural variation at XND1 impacts root hydraulics and trade-off for stress responses in Arabidopsis. Nat. Commun. 2018, 9, 3884. [Google Scholar] [CrossRef] [Green Version]
  67. Grant, E.H.; Fujino, T.; Beers, E.P.; Brunner, A.M. Characterization of NAC domain transcription factors implicated in control of vascular cell differentiation in Arabidopsis and Populus. Planta 2010, 232, 337–352. [Google Scholar] [CrossRef]
  68. Yamaguchi, M.; Ohtani, M.; Mitsuda, N.; Kubo, M.; Ohme-Takagi, M.; Fukuda, H.; Demura, T. VND-INTERACTING2, a NAC Domain Transcription Factor, Negatively Regulates Xylem Vessel Formation in Arabidopsis. Plant Cell 2010, 22, 1249–1263. [Google Scholar] [CrossRef] [Green Version]
  69. Ailizati, A.; Nagahage, I.S.P.; Miyagi, A.; Ishikawa, T.; Kawai-Yamada, M.; Demura, T.; Yamaguchi, M. An Arabidopsis NAC domain transcriptional activator VND7 negatively regulates VNI2 expression. Plant Biotech. 2021, 38, 415–420. [Google Scholar] [CrossRef]
  70. Yuan, S.; Wu, Y.; Cosgrove, D.J. A Fungal Endoglucanase with Plant Cell Wall Extension Activity. Plant Physiol. 2001, 127, 324–333. [Google Scholar] [CrossRef] [Green Version]
  71. Gray-Mitsumune, M.; Blomquist, K.; McQueen-Mason, S.; Teeri, T.T.; Sundberg, B.; Mellerowicz, E.J. Ectopic expression of a wood-abundant expansin PttEXPA1 promotes cell expansion in primary and secondary tissues in aspen. Plant Biotechnol. J. 2007, 6, 62–72. [Google Scholar] [CrossRef] [PubMed]
  72. Yennawar, N.H.; Li, L.C.; Dudzinski, D.M.; Tabuchi, A.; Cosgrove, D.J. Crystal structure and activities of EXPB1 (Zea m 1), a beta-expansin and group-1 pollen allergen from maize. Proc. Natl. Acad. Sci. USA 2006, 103, 14664–14671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Nishitani, K.; Tominaga, R. (1992) Endo-xyloglucan transferase, a novel class of glycosyltransferase that catalyzes transfer of a segment of xyloglucan molecule to another xyloglucan molecule. J. Biol. Chem. 1992, 267, 21058–21064. [Google Scholar] [CrossRef]
  74. Nishikubo, N.; Takahashi, J.; Roos, A.A.; Derba-Maceluch, M.; Piens, K.; Brumer, H.; Teeri, T.T.; Stålbrand, H.; Mellerowicz, E.J. Xyloglucan endo-Transglycosylase-Mediated Xyloglucan Rearrangements in Developing Wood of Hybrid Aspen. Plant Physiol. 2011, 155, 399–413. [Google Scholar] [CrossRef] [Green Version]
  75. Pelloux, J.; Rustérucci, C.; Mellerowicz, E.J. New insights into pectin methylesterase structure and function. Trends Plant Sci. 2007, 12, 267–277. [Google Scholar] [CrossRef]
  76. Siedlecka, A.; Wiklund, S.; Péronne, M.A.; Micheli, F.; Lesniewska, J.; Sethson, I.; Edlund, U.; Richard, L.; Sundberg, B.; Mellerowicz, E.J. Pectin methyl esterase inhibits intrusive and symplastic cell growth in developing wood cells of Populus. Plant Physiol. 2008, 146, 554–565. [Google Scholar] [CrossRef] [Green Version]
  77. Gou, J.Y.; Miller, L.M.; Hou, G.; Yu, X.H.; Chen, X.Y.; Liu, C.J. Acetylesterase-mediated deacetylation of pectin impairs cell elongation, pollen germination, and plant reproduction. Plant Cell 2012, 24, 50–65. [Google Scholar] [CrossRef] [Green Version]
  78. Seyfferth, C.; Wessels, B.A.; Vahala, J.; Kangasjärvi, J.; Delhomme, N.; Hvidsten, T.R.; Tuominen, H.; Lundberg-Felten, J. Populus PtERF85 Balances Xylem Cell Expansion and Secondary Cell Wall Formation in Hybrid Aspen. Cells 2021, 10, 1971. [Google Scholar] [CrossRef]
  79. Nookaraju, A.; Pandey, S.K.; Ahlawat, Y.K.; Joshi, C.P. Understanding the Modus Operandi of Class II KNOX Transcription Factors in Secondary Cell Wall Biosynthesis. Plants 2022, 11, 493. [Google Scholar] [CrossRef]
  80. Zhu, Y.; Li, L. Multi-layered Regulation of Plant Cell Wall Thickening. Plant Cell Physiol. 2021, 62, 1867–1873. [Google Scholar] [CrossRef]
  81. Xiao, R.; Zhang, C.; Guo, X.; Li, H.; Lu, H. MYB Transcription Factors and Its Regulation in Secondary Cell Wall Formation and Lignin Biosynthesis during Xylem Development. Int J. Mol. Sci. 2021, 22, 3560. [Google Scholar] [CrossRef] [PubMed]
  82. Zhang, J.; Xie, M.; Tuskan, G.A.; Muchero, W.; Chen, J.-G. Recent Advances in the Transcriptional Regulation of Secondary Cell Wall Biosynthesis in the Woody Plants. Front. Plant Sci. 2018, 9, 1535. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Paredez, A.R.; Somerville, C.R.; Ehrhardt, D.W. Visualization of cellulose synthase demonstrates functional association with microtubules. Science 2006, 312, 1491–1495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Crowell, E.F.; Bischoff, V.; Desprez, T.; Rolland, A.; Stierhof, Y.D.; Schumacher, K.; Gonneau, M.; Höfte, H.; Vernhettes, S. Pausing of Golgi bodies on microtubules regulates secretion of cellulose synthase complexes in Arabidopsis. Plant Cell 2009, 21, 1141–1154. [Google Scholar] [CrossRef] [Green Version]
  85. Gutierrez, R.; Lindeboom, J.J.; Paredez, A.R.; Emons, A.M.; Ehrhardt, D.W. Arabidopsis cortical microtubules position cellulose synthase delivery to the plasma membrane and interact with cellulose synthase trafficking compartments. Nat. Cell Biol. 2009, 11, 797–806. [Google Scholar] [CrossRef]
  86. Shoji, T.; Narita, N.N.; Hayashi, K.; Asada, J.; Hamada, T.; Sonobe, S.; Nakajima, K.; Hashimoto, T. Plant-specific microtubule-associated protein SPIRAL2 is required for anisotropic growth in Arabidopsis. Plant Physiol. 2004, 136, 3933–3944. [Google Scholar] [CrossRef] [Green Version]
  87. Fu, Y.; Xu, T.; Zhu, L.; Wen, M.; Yang, Z. A ROP GTPase signaling pathway controls cortical microtubule ordering and cell expansion in Arabidopsis. Curr. Biol. 2009, 19, 1827–1832. [Google Scholar] [CrossRef] [Green Version]
  88. Wightman, R.; Chomicki, G.; Kumar, M.; Carr, P.; Turner, S.R. SPIRAL2 determines plant microtubule organization by modulating microtubule severing. Curr. Biol. 2013, 23, 1902–1907. [Google Scholar] [CrossRef] [Green Version]
  89. Oda, Y.; Mimura, T.; Hasezawa, S. Regulation of secondary cell wall development by cortical microtubules during tracheary element differentiation in Arabidopsis cell suspensions. Plant Physiol. 2005, 137, 1027–1036. [Google Scholar] [CrossRef] [Green Version]
  90. Pesquet, E.; Korolev, A.V.; Calder, G.; Lloyd, C.W. The microtubule-associated protein AtMAP70-5 regulates secondary wall patterning in Arabidopsis wood cells. Curr. Biol. 2010, 20, 744–749. [Google Scholar] [CrossRef] [Green Version]
  91. Oda, Y.; Iida, Y.; Kondo, Y.; Fukuda, H. Wood cell-wall structure requires local 2D-microtubule disassembly by a novel plasma membrane-anchored protein. Curr. Biol. 2010, 20, 1197–1202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Derbyshire, P.; Ménard, D.; Green, P.; Saalbach, G.; Buschmann, H.; Lloyd, C.W.; Pesquet, E. Proteomic Analysis of Microtubule Interacting Proteins over the Course of Xylem Tracheary Element Formation in Arabidopsis. Plant Cell 2015, 27, 2709–2726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Oda, Y.; Fukuda, H. Initiation of cell wall pattern by a Rho- and microtubule-driven symmetry breaking. Science 2012, 337, 1333–1336. [Google Scholar] [CrossRef]
  94. Oda, Y.; Fukuda, H. Rho of plant GTPase signaling regulates the behavior of Arabidopsis kinesin-13A to establish secondary cell wall patterns. Plant Cell 2013, 25, 4439–4450. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Mucha, E.; Hoefle, C.; Huckelhoven, R.; Berken, A. RIP3 and AtKinesin-13A—A novel interaction linking Rho proteins of plants to microtubules. Eur. J. Cell Biol. 2010, 89, 906–916. [Google Scholar] [CrossRef]
  96. Sugiyama, Y.; Wakazaki, M.; Toyooka, K.; Fukuda, H.; Oda, Y. A Novel Plasma Membrane-Anchored Protein Regulates Xylem Cell-Wall Deposition through Microtubule-Dependent Lateral Inhibition of Rho GTPase Domains. Curr. Biol. 2017, 27, 2522–2528. [Google Scholar] [CrossRef]
  97. Sasaki, T.; Fukuda, H.; Oda, Y. CORTICAL MICROTUBULE DISORDERING1 Is Required for Secondary Cell Wall Patterning in Xylem Vessels. Plant Cell 2017, 29, 3123–3139. [Google Scholar] [CrossRef] [Green Version]
  98. Sugiyama, Y.; Nagashima, Y.; Wakazaki, M.; Sato, M.; Toyooka, K.; Fukuda, H.; Oda, Y. A Rho-actin signaling pathway shapes cell wall boundaries in Arabidopsis xylem vessels. Nat. Commun. 2019, 10, 468. [Google Scholar] [CrossRef]
  99. Obara, K.; Kuriyama, H.; Fukuda, H. Direct evidence of active and rapid nuclear degradation triggered by vacuole rupture during programmed cell death in Zinnia. Plant Physiol. 2001, 125, 615–626. [Google Scholar] [CrossRef] [Green Version]
  100. Ito, J.; Fukuda, H. ZEN1 is a key enzyme in the degradation of nuclear DNA during programmed cell death of tracheary elements. Plant Cell 2002, 14, 3201–3211. [Google Scholar] [CrossRef] [Green Version]
  101. Zhao, C.; Craig, J.C.; Petzold, H.E.; Dickerman, A.W.; Beers, E.P. The xylem and phloem transcriptomes from secondary tissues of the Arabidopsis root-hypocotyl. Plant Physiol. 2005, 138, 803–818. [Google Scholar] [CrossRef] [Green Version]
  102. Avci, U.; Earl Petzold, H.; Ismail, I.O.; Beers, E.P.; Haigler, C.H. Cysteine proteases XCP1 and XCP2 aid micro-autolysis within the intact central vacuole during xylogenesis in Arabidopsis roots. Plant J. 2008, 56, 303–315. [Google Scholar] [CrossRef]
  103. He, R.; Drury, G.E.; Rotari, V.I.; Gordon, A.; Willer, M.; Farzaneh, T.; Woltering, E.J.; Gallois, P. Metacaspase-8 modulates programmed cell death induced by ultraviolet light and H2O2 in Arabidopsis. J. Biol Chem. 2008, 283, 774–783. [Google Scholar] [CrossRef] [Green Version]
  104. Coll, N.S.; Vercammen, D.; Smidler, A.; Clover, C.; Van Breusegem, F.; Dangl, J.L.; Epple, P. Arabidopsis type I metacaspases control cell death. Science 2010, 330, 1393–1397. [Google Scholar] [CrossRef]
  105. Turner, S.; Gallois, P.; Brown, D. Tracheary element differentiation. Annu. Rev. Plant Biol. 2007, 58, 407–433. [Google Scholar] [CrossRef] [Green Version]
  106. Courtois-Moreau, C.L.; Pesquet, E.; Sjödin, A.; Muñiz, L.; Bollhöner, B.; Kaneda, M.; Samuels, L.; Jansson, S.; Tuominen, H. A unique program for cell death in xylem fibers of Populus stem. Plant J. 2009, 58, 260–274. [Google Scholar] [CrossRef]
  107. Yamaguchi, M.; Goué, N.; Igarashi, H.; Ohtani, M.; Nakano, Y.; Mortimer, J.C.; Nishikubo, N.; Kubo, M.; Katayama, Y.; Kakegawa, K.; et al. VASCULAR-RELATED NAC-DOMAIN6 and VASCULAR-RELATED NAC-DOMAIN7 effectively induce transdifferentiation into xylem vessel elements under control of an induction system. Plant Physiol. 2010, 153, 906–914. [Google Scholar] [CrossRef] [Green Version]
  108. Chen, Y.; Tong, S.; Jiang, Y.; Ai, F.; Feng, Y.; Zhang, J.; Gong, J.; Qin, J.; Zhang, Y.; Zhu, Y.; et al. Transcriptional landscape of highly lignified poplar stems at single-cell resolution. Genome Biol. 2021, 22, 319. [Google Scholar] [CrossRef]
  109. Li, H.; Dai, X.; Huang, X.; Xu, M.; Wang, Q.; Yan, X.; Sederoff, R.R.; Li, Q. Single-cell RNA sequencing reveals a high-resolution cell atlas of xylem in Populus. J. Integr. Plant Biol. 2021, 63, 1906–1921. [Google Scholar] [CrossRef]

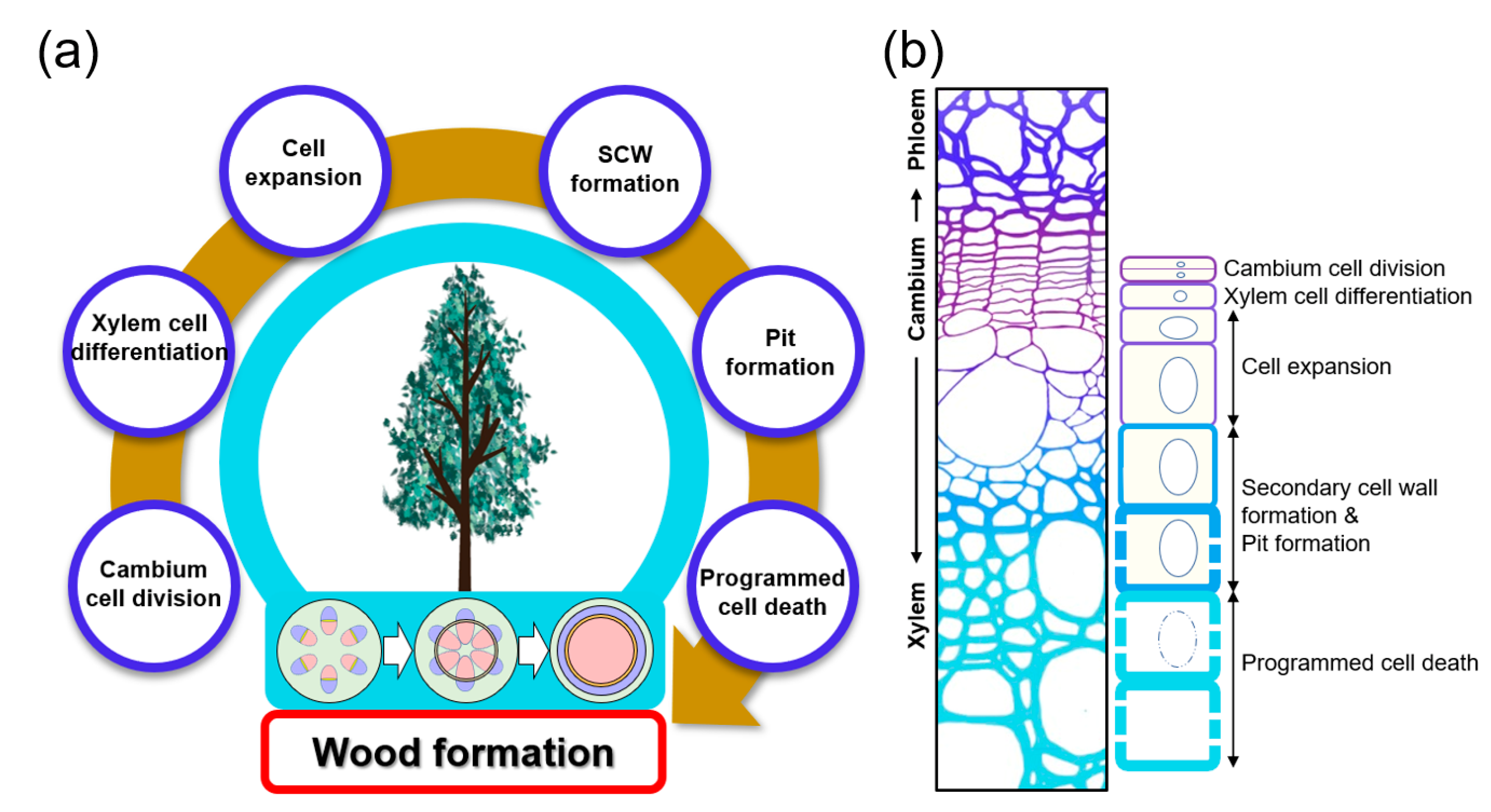

Figure 1. Wood formation in plants. (a) Simplified process of wood formation. Wood formation is initiated through cell divisions within the cylindrical vascular cambium layer, formed from the procambium. Then xylem cell differentiation, cell expansion, secondary cell wall (SCW) and pit formation, and programmed cell death (PCD) follow. Vascular cambium formation from procambium is shown in the stem cross-sections from below a tree: xylem (red), phloem (blue), and the cambium (yellow). (b) Stem cross-section and cell diagram for each stage of wood formation. The xylem is formed through the vascular cambium cell division and xylem cell differentiation, cell expansion, secondary cell wall formation and pit formation, and programmed cell death.
Figure 1. Wood formation in plants. (a) Simplified process of wood formation. Wood formation is initiated through cell divisions within the cylindrical vascular cambium layer, formed from the procambium. Then xylem cell differentiation, cell expansion, secondary cell wall (SCW) and pit formation, and programmed cell death (PCD) follow. Vascular cambium formation from procambium is shown in the stem cross-sections from below a tree: xylem (red), phloem (blue), and the cambium (yellow). (b) Stem cross-section and cell diagram for each stage of wood formation. The xylem is formed through the vascular cambium cell division and xylem cell differentiation, cell expansion, secondary cell wall formation and pit formation, and programmed cell death.
Genes 13 01181 g001

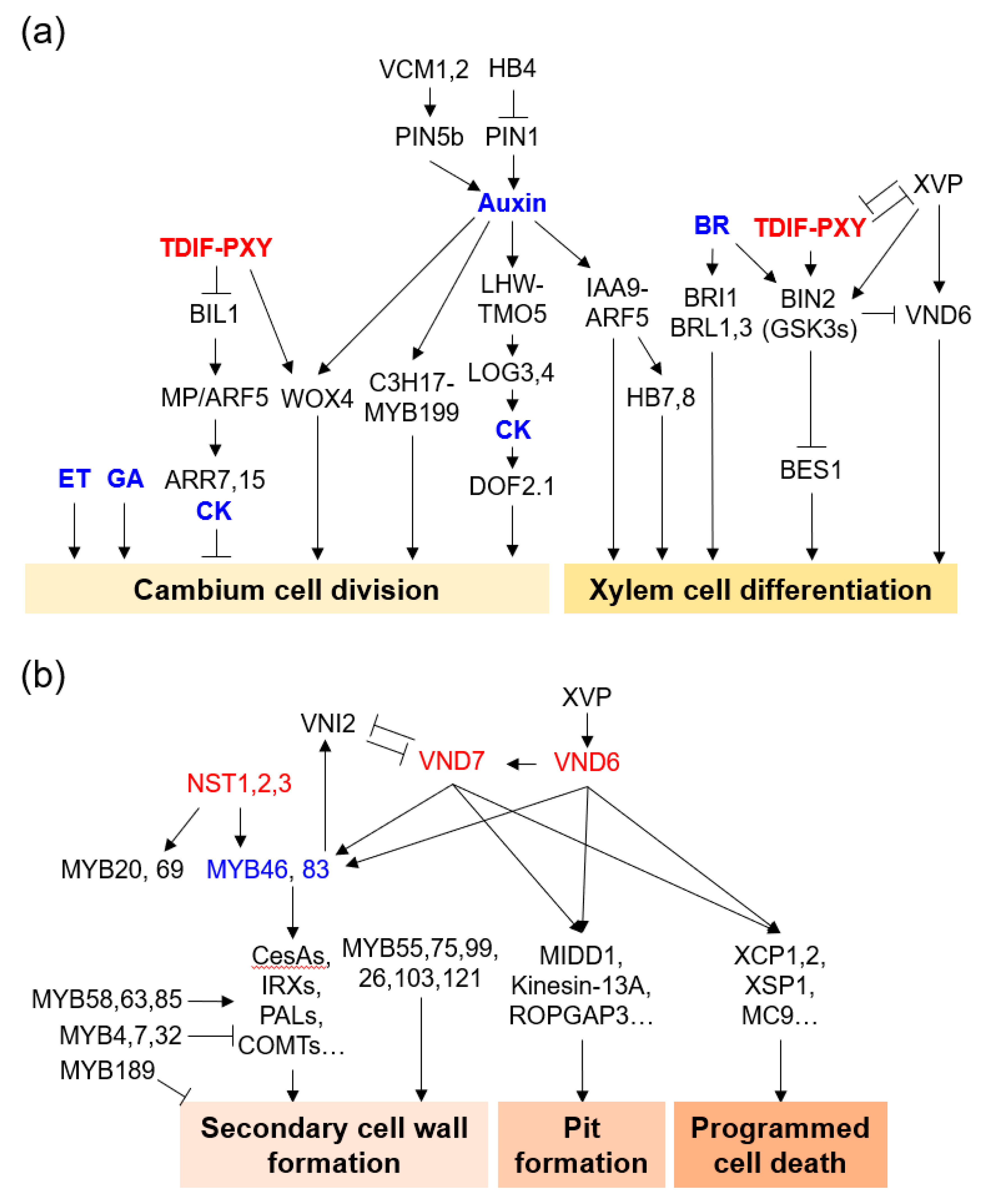

Figure 2. Molecular regulatory network of xylem cell formation. (a) Vascular cambium cell division and xylem cell differentiation. (b) Secondary cell wall formation, pit formation, and programmed cell death in xylem cell formation. Representative genes were depicted with hormones (blue). Genes with essential roles are described in the text.
Figure 2. Molecular regulatory network of xylem cell formation. (a) Vascular cambium cell division and xylem cell differentiation. (b) Secondary cell wall formation, pit formation, and programmed cell death in xylem cell formation. Representative genes were depicted with hormones (blue). Genes with essential roles are described in the text.
Genes 13 01181 g002
Table 1. Summary of recent wood formation studies.
Table 1. Summary of recent wood formation studies.
Gene NameFunctionStudied Plant SpeciesReference
Regulation by plant hormones
PtoIAA9-PtoARF5 module Regulate vascular cambium cell division and secondary xylem developmentPopulus tomentosa[16,17,18]
PtoHB7 and PtrHB8Secondary xylem cell differentiation, direct target of PtoIAA9-PtoARF5 modulePopulus tomentosa[18]
PtrHB4Increase cambium developmentPopulus trichocarpa[19]
PaC3H17-PaMYB199 moduleRegulate cambium cell divisionPopulus trichocarpa[20]
VCM1 and VCM2Knockdown mutant enhanced vascular cambium proliferation and xylem differentiationPopulus deltoides × P. euramericana[21]
AtCKX2Reduce cytokinin signaling and cambium cell growthP. tremula × tremuloides[22]
IPT7Key enzymes in the biosynthesis of major bioactive cytokinins, increase cambium cell divisionPopulus tremula × tremuloides[14]
LHW-TMO5 moduleInduce vascular cell proliferationArabidopsis thaliana[23,24]
LOG3 and LOG4Activate vascular cell divisionArabidopsis thaliana[23]
DOF2.1Cytokinin-dependent vascular cell proliferationArabidopsis thaliana[24]
BRL1 and BRL3Reduce xylem formation and increase phloem developmentArabidopsis thaliana[25]
BES1Promotes xylem differentiation from procambial cellsArabidopsis thaliana[26]
SlGSK3Reduce xylem differentiationSolanum lycopersicum[28]
SlBRI1Promote xylem differentiationSolanum lycopersicum[28]
SlWAT1Increase secondary xylem developmentSolanum lycopersicum[29]
ACS7acs7-d mutant enhanced cambium activity and reduced fiber cell wall developmentArabidopsis thaliana[31]
GA20ox1GA over production and cambium proliferationP. alba × P. tremula var. glandulosa[33,34]
Regulation by transcription factors and signal peptides
CLE41/44(TDIF)-PXY moduleMaintaining the cambium cell population via cell division and inhibiting xylem cell differentiationArabidopsis thaliana,
Populus tremula × P. tremuloides
WOX4Regulation of cambium activity Arabidopsis thaliana,
Populus tremula L. × P. tremuloides
PttCLE41b and PttCLE41-likeReduce cell division and defect vascular tissue patternPopulus tremula L. × P. tremuloides[41,42]
PtrCLE20Reduce cambium cell activityPopulus trichocarpa[43]
BIN2, BIL1 and BIL2Inhibit xylem differentiation by suppression of BES1 and BZR1Arabidopsis thaliana[26,44,45]
ARR7 and ARR15Supress cambium cell divisionArabidopsis thaliana[45]
PopREVOLUTAInvolved in vascular cambium initiationPopulus trichocarpa[46]
PtrHB5 and PtrHB7Induce cambium activity and xylem differentiationPopulus tomentosa,
Populus alba × P. tremula,
Populus × euramericana
VNDs (VND1–7)Involved in xylem differentiation Arabidopsis thaliana,
Populus trichocarpa,
Dactylis glomerata L
MYB46 and MYB83Master regulators of SCW biosynthesis Arabidopsis thaliana[63,64]
XVPNegative regulator of the TDIF-PXY module Arabidopsis thaliana[65]
XND1 and PopNAC122Mutant showed improved xylem differentiationArabidopsis thaliana[66]
VNI2Inhibition of xylem vessel development Arabidopsis thaliana[69]
Cell expansion
XTHInvolved in cell wall looseningPopulus tremula × tremuloides[74]
PMEs and PAEsRegulate cell wall loosening through pectin modificationPopulus trichocarpa[77]
PtERF85Contributes to the transition of fiber cells from elongation to secondary cell wall depositionPopulus tremula L. × P. tremuloides[78]
Pit formation
RIC1 and SPL2Regulating the movement of transverse cortical microtubulesArabidopsis thaliana[88]
MAP70-5, MAP65, AIR9, CSI1 and MIDD1Involved in regulating secondary cell wall patternsArabidopsis thaliana[92]
ROP11Direct formation of cell wall pits in metaxylem vessel cells through interaction with cortical microtubulesArabidopsis thaliana[93]
ROPGEF4Regulates the formation of ROP-activated domainsArabidopsis thaliana[93]
ROPGAP3Positively regulates pit formationArabidopsis thaliana[93]
Kinesin-13AMicrotubule degradation through the active ROP-MIDD1 cascadeArabidopsis thaliana[94,95,96]
CORD1 and CORD2Mutants resulted in an irregular secondary cell wall with small pits in xylem cellsArabidopsis thaliana[97]
BDR1Interacts with F-actin and promotes actin assembly at pit boundaries.Arabidopsis thaliana[98]
WALInteracts with WAL as an ROP effector Arabidopsis thaliana[98]
Programmed cell death
BFN1Involved in nucleic acid degradation to facilitate nucleotide and phosphate recovery during senescence.Zinnia elegans[100]
XCP1 and XCP2Function in micro-autolysis within the intact central vacuoleArabidopsis thaliana[102]
AtMC9Induce xylem cell deathArabidopsis thaliana[104]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kim, M.-H.; Bae, E.-K.; Lee, H.; Ko, J.-H. Current Understanding of the Genetics and Molecular Mechanisms Regulating Wood Formation in Plants. Genes 2022, 13, 1181.

AMA Style

Kim M-H, Bae E-K, Lee H, Ko J-H. Current Understanding of the Genetics and Molecular Mechanisms Regulating Wood Formation in Plants. Genes. 2022; 13(7):1181.

Chicago/Turabian Style

Kim, Min-Ha, Eun-Kyung Bae, Hyoshin Lee, and Jae-Heung Ko. 2022. "Current Understanding of the Genetics and Molecular Mechanisms Regulating Wood Formation in Plants" Genes 13, no. 7: 1181.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
