Tissue-Specific and Time-Dependent Expressions of PC4s in Bay Scallop (Argopecten irradians irradians) Reveal Function Allocation in Thermal Response

by
Ancheng Liu
1,
Xiujiang Hou
1,
Junhao Zhang
1,
Wen Wang
1,
Xuecheng Dong
1,
Jianshu Li
1,
Xinghai Zhu
1,
Qiang Xing
1,2,*,
Xiaoting Huang
1,2,
Jingjie Hu
1,3 and
Zhenmin Bao
1,2
1
MOE Key Laboratory of Marine Genetics and Breeding, College of Marine Life Sciences, Yushan Campus, Ocean University of China, 5 Yushan Road, Qingdao 266003, China
2
Laboratory for Marine Fisheries Science and Food Production Processes, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266237, China
3
Laboratory of Tropical Marine Germplasm Resources and Breeding Engineering, Sanya Oceanographic Institution, Ocean University of China (SOI-OUC), Sanya 572000, China
*
Author to whom correspondence should be addressed.
Genes 2022, 13(6), 1057; https://doi.org/10.3390/genes13061057
Submission received: 23 May 2022 / Revised: 10 June 2022 / Accepted: 10 June 2022 / Published: 13 June 2022
(This article belongs to the Special Issue Genetic Breeding and Genomics of Marine Shellfish)
Browse Figures
Versions Notes

Abstract

:
Transcriptional coactivator p15 (PC4) encodes a structurally conserved but functionally diverse protein that plays crucial roles in RNAP-II-mediated transcription, DNA replication and damage repair. Although structures and functions of PC4 have been reported in most vertebrates and some invertebrates, the PC4 genes were less systematically identified and characterized in the bay scallop Argopecten irradians irradians. In this study, five PC4 genes (AiPC4s) were successfully identified in bay scallops via whole-genome scanning through in silico analysis. Protein structure and phylogenetic analyses of AiPC4s were conducted to determine the identities and evolutionary relationships of these genes. Expression levels of AiPC4s were assessed in embryos/larvae at all developmental stages, in healthy adult tissues and in different tissues (mantles, gills, hemocytes and hearts) being processed under 32 °C stress with different time durations (0 h, 6 h, 12 h, 24 h, 3 d, 6 d and 10 d). Spatiotemporal expression profiles of AiPC4s suggested the functional roles of the genes in embryos/larvae at all developmental stages and in healthy adult tissues in bay scallop. Expression regulations (up- and down-) of AiPC4s under high-temperature stress displayed both tissue-specific and time-dependent patterns with function allocations, revealing that AiPC4s performed differentiated functions in response to thermal stress. This work provides clues of molecular function allocation of PC4 in scallops in response to thermal stress and helps in illustrating how marine bivalves resist elevated seawater temperature.

1. Introduction

Human activities have led to massive emissions of greenhouse gases, causing global temperatures to rise. The global surface temperature in the first 20 years of the 21st century has exceeded 0.99 °C compared with that between 1850 and 1900, in accordance with the ocean temperature increasing by 0.88 °C [1]. The continued warming of the oceans drove large numbers of species out of their original habitats to extinction [2]. Moreover, warming of the seawater resulted in an increase in the abundance of cold-water phytoplankton and a decrease in the abundance of warm-water phytoplankton, which further affected entire ecosystems with implications for fish and mammal populations [3]. Specifically, coral reefs were the ecosystems most vulnerable to environmental impacts, removing substantial amounts of living coral with a warming climate [4,5]. Marine ecosystems have been significantly affected by elevated seawater temperature [6], and climate warming has also caused incalculable losses to fisheries for many years [7].
Bivalve aquaculture has developed rapidly, and global bivalve production reached 17.7 million tons, which accounted for 21.6% of world aquaculture fish production in 2018 [8], which has become an indispensable food for people globally [9]. However, the warming of seawater has threatened sustainable development of bivalve aquaculture by affecting their biological activities including growth [10,11], development [12,13], reproduction [14,15] and energy metabolism [16]. Scallops, a representative species of bivalves, have become an important aquaculture product [17]. Bay scallops (Argopecten irradians irradians) process the highest yield (approximate 0.8 million tons annually) of scallop production in China due to the rapid expansion of aquaculture scale since it was introduced to China for aquaculture in the 1980s [18,19]. One important reason is that bay scallops can be harvested within a year with high economic value [20]. As a tropical species, bay scallops can survive from −1–31 °C and have an optimal growth temperature of 18–28 °C [21,22]. However, cases of high seawater temperature (beyond 28 °C) in summer have been reported in recent years in scallop-rearing areas of China [23,24,25], and the elevating seawater temperature definitely impacts scallop aquaculture, resulting in mass mortality and individual miniaturization. The reason behind the phenomenon has been widely investigated at different levels. At the metabolic level, lower serum protein concentrations [22] and higher individual oxygen consumption [26,27] of bay scallops were significantly affected when the temperature was 28 °C. In genetics, scallops’ responses to environmental temperature change were driven by regulations of key/pivotal genes’ expression [28,29]. Consequently, the molecular mechanisms underlying thermal tolerance in bay scallops warrant investigation by identifying thermal-tolerance-related genetic loci/genes.
Through a genome-wide association study, we previously identified transcriptional coactivator p15 (PC4) as a positive regulator of thermal tolerance in A. irradians and provided a candidate gene for the breeding of thermal-tolerant scallops [30]. The protein encoded by PC4, a general coactivator, was first discovered in human nuclear extracts in 1994 and named according to the order in which it was found [31]. PC4 has a highly conserved structure and functions extensively in eukaryotic cells and tissues, and it is also called a suppressor of TFIIB (Sub1) in yeast [32,33]. Human PC4 contains 127 amino acids, the molecular weight of which is about 15 kDa and 20 kDa in unphosphorylated and phosphorylated state, respectively [34]. Human PC4 contains two typical conserved domains, an N-terminal regulatory domain with 61 amino acids which consists of two serine-rich regions separated by lysine-rich regions, and the other C-terminal domain involves single-stranded DNA-binding and dimerization regions [34,35]. PC4 plays significant roles in RNA polymerase II (RNAP II)-mediated transcription, DNA replication and damage repair [36]. In detail, PC4 interacts simultaneously with DNA and components of transcription factor IID (TFIID) to promote the formation of preinitiation complex (PIC) [37]. In the presence of transcription factor IIH (TFIIH) and TFIID, PC4 initiates RNAP-II-mediated transcription in a stepwise series of events through promoting the formation of actively functional PIC [38,39]. Beyond that, PC4 is also critical for transcription initiation to elongation by collaborating with TFIIE-β in humans [40]. More interestingly, it has been reported that Sub1 (in yeast) is involved in the whole process from PIC formation to transcription termination [41]. PC4 is a single-stranded DNA binding protein that forms a complex with replication protein A (RPA or HSSB) on single-stranded DNA and then significantly affects the activity of HSSB-dependent enzymatic synthesis during DNA replication [42]. In addition, the ability of PC4 binding to single-stranded DNA lays a foundation for promoting DNA repair, which is necessary for the early stage of DNA damage [43,44,45]. Other studies also showed that PC4 can combine DNA ends depending on its C-terminal domain in vitro [46]. Furthermore, PC4 may be a therapeutic target for cancer [47], which plays a crucial role in activating cell proliferation mediated by the mTOR/P70S6K signaling pathway [48].
Although structural and functional investigations have been widely reported in yeast and mammals [32,49], systematic analysis of PC4 has not been carried out on bay scallops. PC4 provides a novel model for investigating the molecular mechanism of bay scallops’ thermotolerance via determining how the gene functions in the high-temperature seawater challenge. In the present study, we identified the number and sequences of PC4(s) of A. irradians (AiPC4s) in a genome-wide scale and analyzed their structures. After that, multiple sequence alignments and phylogenetic trees were constructed. Moreover, spatiotemporal expression analysis was identified in embryos/larvae at different developmental stages, in healthy adult tissues and in different tissues (mantles, gills, hemocytes and hearts) being processed under 32 °C stress at different time durations (0 h, 6 h, 12 h, 24 h, 3 d, 6 d and 10 d). Our work will contribute to further research on the functions of PC4 and help in illustrating how marine bivalves resist elevated seawater temperature.

2. Materials and Methods

2.1. Database Mining, Gene Identification and Sequence Analysis

PC4 protein sequences of vertebrates and invertebrates (Homo sapiens, Mus musculus, Gallus gallus, Oryzias latipes, Xenopus laevis, Danio rerio, Ciona intestinalis, Saccoglossus kowalevskii, Strongylocentrotus purpuratus, Apostichopus japonicas, Drosophila serrata, Bombus impatiens, Pomacea canaliculata, Crassostrea virginica, Brachionus plicatilis, Strongyloides ratti, Echinococcus granulosus, Stylophora pistillata, Trichoplax sp. H2 and Amphimedon queenslandica) (Table S1) were derived from NCBI (http://www.ncbi.nlm.nih.gov (accessed on 10 September 2021)), Ensembl (http://useast.ensembl.org (accessed on 10 September 2021)) and OysterBase (http://www.oysterdb.com/ (accessed on 10 September 2021)) databases to determine PC4(s) in bay scallops. Next, all these sequences were used to search the transcriptome (unpublished data) and the whole-genome sequence databases (unpublished data) of bay scallops. The initial candidate sequences of AiPC4s were obtained by TBLASTN, and transcriptome and genome’s comparisons were performed through BLASTN to verify the cDNA sequences and genetic structure. We predicted amino acid sequences of AiPC4s through ORF (open reading frame) finder (https://www.ncbi.nlm.nih.gov/orffinder/ (accessed on 10 September 2021)) and DNAstar (version 4.05). Then, we blasted (BLASTP) the acquired sequences in NCBI non-redundant protein sequence database to identify the protein sequences. Finally, we acquired the coding sequence of AiPC4s after above repeated confirmation. In addition, we gained the total length of the AiPC4s, the number of exons and introns, the length of the untranslated region (UTR) and the length of ORF. Furthermore, the simple modular architecture research tool (SMART) (http://smart.embl.de/ (accessed on 15 September 2021)) was applied to detect the presence of conserved domains of proteins encoded by AiPC4s. Compute pI/Mw tool (http://web.expasy.org/compute_pi/ (accessed on 15 September 2021)) was used to predict molecular weight and theoretical putative isoelectric points (PI). The secondary of AiPC4s were obtained with Geneious 4.8.3 (http://www.geneious.com/ (accessed on 15 September 2021)), and tertiary structures of AiPC4s were predicted through Protein Homology/analogY Recognition Engine V 2.0 (http://www.sbg.bio.ic.ac.uk/phyre2/html/page.cgi?id=index (accessed on 15 September 2021)). Specially, the AiPC4 tertiary structures were visualized in PyMOL-2.5.2 (https://pymol.org/2/ (accessed on 15 September 2021)).

2.2. Multiple Sequence Alignment and Phylogenetic Analysis

PC4 sequences of bay scallops and orthologs from vertebrates and invertebrates, including H. sapiens, M. musculus, G. gallus, O. latipes, X. laevis, D. rerio, C. intestinalis, S. kowalevskii, S. purpuratus, A. japonicas, B. impatiens, P. canaliculata, C. virginica, Chlamys farreri, Patinopecten yessoensis, B. plicatilis, S. ratti, E. granulosus, S. pistillata, T. sp. H2 and A. queenslandica were aligned with the Clustal Omega program (https://www.ebi.ac.uk/Tools/msa/clustalo/ (accessed on 15 September 2021)) and color was added when identity or similarity of PC4 protein sequences reached 70% with Color Align Conservation (http://www.bioinformatics.org/sms2/color_align_cons.html (accessed on 15 September 2021)). MEGA 11.0 (https://www.megasoftware.net/ (accessed on 15 September 2021)) was used to construct phylogenetic tree, which was evaluated by 1500 replications of bootstrapping with the neighbor-joining (NJ) method.

2.3. Sample Collection and Heat Stress Experiment

Nine-month-old healthy bay scallops (N > 500) were derived from Laizhou (Yantai, China) and brought to our laboratory (Ocean University of China, Qingdao, China) in accordance with standard procedures [50] in 2020. In the laboratory, bay scallops were acclimated for a week prior to the experiments. Filtered and aerated seawater was maintained at approximately 22 °C, which was within the optimum temperature range for their growth [51].
In the thermal stress experiment, 160 scallops were randomly divided into groups T and C. Group T was cultured in 32 °C filtered and aerated seawater at different times (0 h, 6 h, 12 h, 24 h, 3 d, 6 d and 10 d) to assess the response of bay scallops to heat stress. Group C was used as the control group and kept in 22 °C filtered and aerated seawater. Our previous investigation showed that Arrhenius break temperature (ABT, which was regarded as an organism’s upper limit temperature) was 32.20 ± 0.25 °C [52,53], which was in accordance with reported thermal limit of bay scallops [54]. Thus, in the present study, different tissues (mantles, gills, hemocytes and hearts) of bay scallops were processed under 32 °C stress. At each high-temperature time point, three bay scallops were randomly selected from both groups and tissues of mantles, gills, hemocytes and hearts were separated, sampled and stored in liquid nitrogen for subsequent RNA-seq analysis. During the whole experiment period, the salinity and pH of the filtered and aerated seawater were 31.7 ± 0.13 and 8.09 ± 0.05, respectively.
In addition, scallop samples (N > 500) were obtained in 2019 to analyze the spatiotemporal expression pattern of AiPC4s with the corresponding transcriptome data that could be obtained (unpublished data). In brief, zygotes, 2–8 cells, blastula, gastrula, trochophores, D-shaped larvae, umbo larvae and juvenile scallops (N > 1000, respectively) were separately sampled after artificial hybridization of bay scallops (N > 500) in February 2016 and stored in RNAlater (Sigma-Aldrich, St. Louis, MO, USA) at −80 °C for RNA-seq analysis. Moreover, the hepatopancreas, foot, mantles, gills, gonads, kidney, smooth muscle and striated muscle of bay scallops were dissected (n = 4, respectively), immediately frozen in liquid nitrogen and stored at −80 °C before processing. All of the experiments were conducted according to the guidelines and regulations of the Ocean University of China and the local government.

2.4. RNA Isolation and RNA-Seq Analysis

Total RNA was obtained following protocols from Hu et al. [55] and then digested with DNase I (TaKaRa, Shiga, Japan). Next, the RNA-seq library construction of all samples was operated using VAHTS mRNA-seq v2 Library Prep kit (Vazyme, Nanjing, China) before Illumina sequencing. Finally, RNA-seq data (unpublished data) were extracted from embryos/larvae at eight developmental stages and eight kinds of adult tissues to determine spatiotemporal expression levels of AiPC4s. Similarly, RNA-seq data (unpublished data) of transcriptomes of selected tissues (mantles, gills, hemocytes and hearts) were used to detect the regulation of AiPC4 expression under 32 °C stress [21] at different times (0 h, 6 h, 12 h, 24 h, 3 d, 6 d and 10 d).

2.5. Expression Analysis of AiPC4s

RNA-seq data from embryos/larvae at eight developmental stages and eight kinds of adult tissues of bay scallops were used to determine the expression profiles of AiPC4s. The constructed heat maps with above data had been laterally homogenized for the embryos/larvae and healthy tissues. The zygotes were used as the control for fold change in embryos/larvae at different developmental stages. Significant differences of AiPC4 expressions were detected in certain tissues relative to the expression in smooth muscle. In the thermal stress experiment, RNA-seq data (unpublished) of transcriptomes of selected tissues (mantles, gills, hemocytes and hearts) were used to determine the expression profiles of AiPC4s under 32 °C stress at different times (0 h, 6 h, 12 h, 24 h, 3 d, 6 d and 10 d). Moreover, the gene expression was formalized and presented in the form of TPM (transcripts per kilobase of exon model per million mapped reads) and the fold changes were calculated as TPMtest/TPMcontrol. The control samples (Group C) were used for normalization and fold change. The presentation of the final data in the heat map was log2 (TPM values).
We constructed the heat maps with online software Lianchuan Biological Cloud Platform (https://www.omicstudio.cn/login (accessed on 20 September 2021)). Significant differences between the test and control group (smooth muscle) were determined with counts-based method DESeq2 [56] (p < 0.05 or |log2 fold change| > 1, n = 4) to analyze gene expression in healthy adult scallop tissues. In the heat stress experiment, the significant differences between the test and control group (group C) were determined with SPSS (version 21.0) using independent-sample t-Tests (p < 0.05, n = 3).

3. Results

3.1. Sequence Identification and Analysis

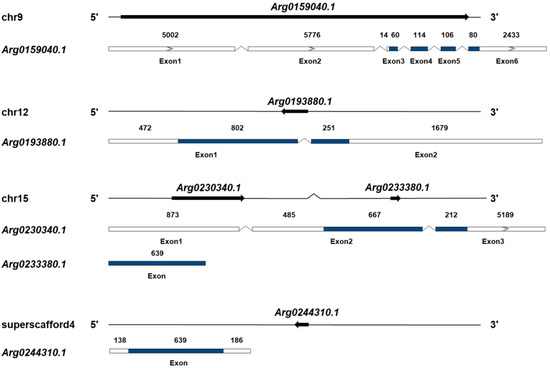

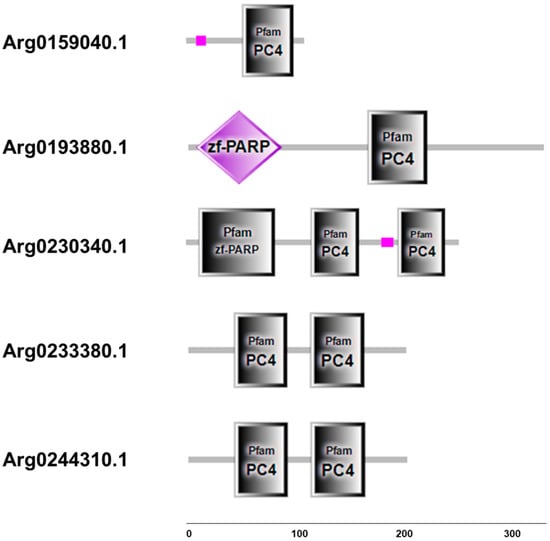

Five AiPC4s (Arg0159040.1, Arg0193880.1, Arg0230340.1, Arg0233380.1 and Arg0244310.1) were identified from the genome database of bay scallops (Figure 1 and Data S1), and their presence was further confirmed in the transcriptome databases. The sequences of the five genes have been submitted to GenBank (accession number ON121988-ON121992). The basic information of these AiPC4s is summarized in Table 1. At the genome level, the five AiPC4s were successfully mapped to three chromosomes (9, 12 and 15) and a superscaffold (4) (Figure 1). In detail, two genes (Arg0230340.1 and Arg0233380.1) were located in chromosome 15, and another two genes (Arg0159040.1 and Arg0193880.1) were located in chromosome 9 and 12, respectively. The remaining gene, Arg0244310.1, was only mapped on the superscaffold. The total lengths of Arg0159040.1, Arg0193880.1, Arg0230340.1, Arg0233380.1 and Arg0244310.1 were 50,697, 3,547, 10,151, 639 and 963 bp, respectively, with six, two and three exons in three AiPC4s (Arg0159040.1, Arg0193880.1 and Arg0230340.1) and only one exon in the other two genes (Arg0233380.1 and Arg0244310.1). Analysis of genome sequences showed that all the exon–intron boundaries in the AiPC4s were consistent with the GT/AG rule for splicing. In addition, the ORF of the five AiPC4s ranged from 360 to 1053 bp, and encoding PC4 proteins varied from 119 to 350 amino acids. The predicted molecular weights of these AiPC4s ranged from 13.566 to 39.729 kDa with PI that varied from 6.60 to 9.20 (Table 1).

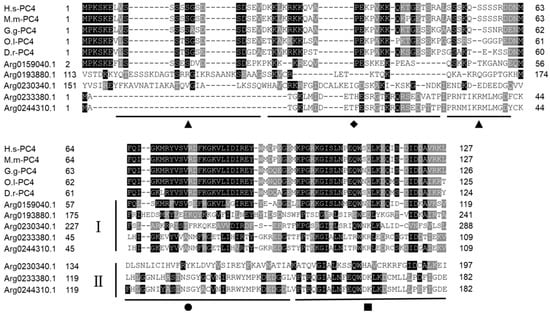

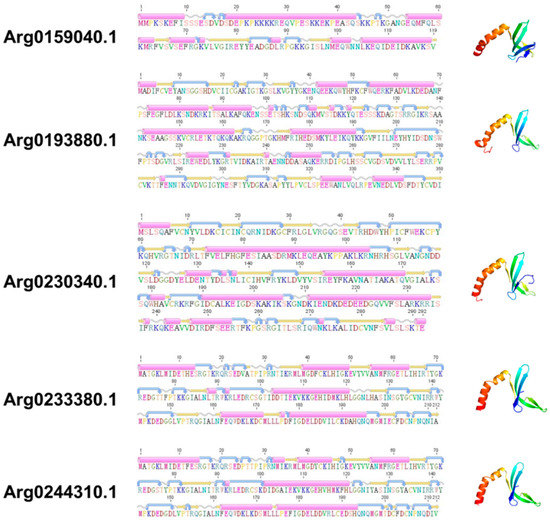

Although the sequences structure of AiPC4s showed some differences, several evolutionarily conserved domains were found in AiPC4 proteins by the SMART analysis. Apparently, all five AiPC4s shared a functionally conserved PC4 domain, with only one in Arg0159040.1 and Arg0193880.1, whereas two in Arg0230340.1, Arg0233380.1 and Arg0244310.1 (Figure 2). Besides, a low complexity region (Lcr) existed in Arg0159040.1 and Arg0230340.1, and another zf-PARP domain was found in Arg0193880.1 and Arg0230340.1. What is more, the deduced secondary structures analysis of AiPC4s showed that these proteins consisted of 8, 18 15, 9 and 8 α helixes; 4, 23, 17, 12 and 14 β strands; 8, 25, 13, 12 and 11 coils; 7, 28, 20, 15 and 18 turns, respectively (Table 1 and Figure 3). The tertiary structures of AiPC4s were regular foldings of the polypeptide chain and are shown in Figure 3, displaying that they shared similar protein conformational structures. Specifically, according to our analysis of the multiple sequence alignment, the AiPC4s were highly conserved at the key sites of the ssDNA-binding region (black circle) and the dimerization region (black square), while the serine-rich domain (black triangle) and lysine-rich domain (black diamond) were relatively less conserved (Figure 4).

3.2. Phylogenetic Analysis

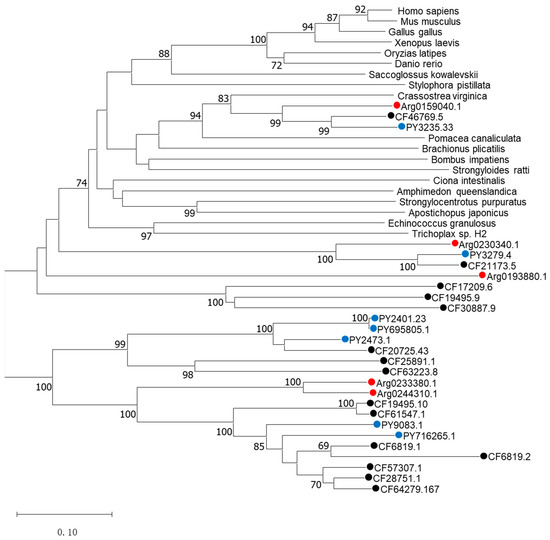

The phylogenetic tree was constructed to determine the identities of the five AiPC4s using known PC4 proteins from mammals, birds, fish, batrachian and other invertebrates by the neighbor-joining (NJ) method and shows phylogenetic relationships of PC4s in Figure 5. Different PC4 proteins members generally cluster into their corresponding clades according to the phylogenetic relationships. Two distinct clades can be observed in the NJ phylogenetic tree: one is a normal clade composed of PC4 homologs from vertebrates and invertebrates of the corresponding species, and the other is a scallop-specific clade. In the first clade, PC4s from vertebrates (H. sapiens, M. musculus, G. gallus, O. latipes, X. laevis and D. rerio) cluster together with a bootstrap value of 100 and the rest of the PC4s of the invertebrates are also clustered in a phylogenetic relationship. It was unequivocal that PC4s from the species including Yesso scallops (PY3235.33), Zhikong scallops (CF46769.5) and bay scallops (Arg0159040.1) clustered with C. virginica and P. canaliculata, forming the mollusks clade with a solid bootstrap value of 94, and then grouped with other invertebrates and vertebrates. The second scallop-specific cluster contained PC4 homologs from bay scallops, Yesso scallops and Zhikong scallops. Specifically, Arg0233380.1 and Arg0244310.1 clustered together, forming the bay scallop clade with a solid bootstrap value of 100 and then grouped with Yesso scallops and Zhikong scallops. All the above analyses confirmed the genetic relationship of AiPC4s.

3.3. Spatiotemporal Expression of AiPC4s

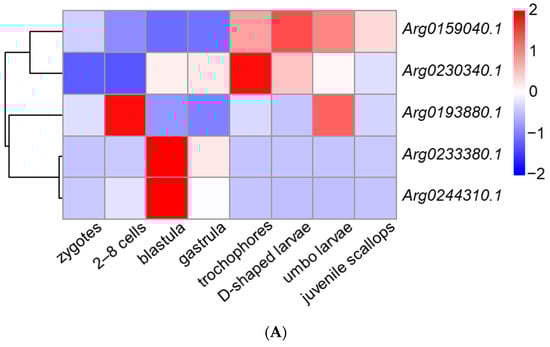

We obtained the spatiotemporal expression profiles of AiPC4s through RNA-seq data generated from embryos/larvae at eight developmental stages (zygotes, 2–8 cells, blastula, gastrula, trochophores, D-shaped larvae, umbo larvae and juvenile scallops) and eight kinds of adult tissues (hepatopancreas, foot, mantles, gills, gonads, kidney, smooth muscle and striated muscle). As shown in Figure 6A, the five AiPC4s presented different expression patterns from zygotes to juvenile scallops. The expression level of Arg0159040.1 was the highest in embryos/larvae at nearly all detected developmental stages (the average expressions of Arg0159040.1 were 2.14 to 68.89-fold compared with those of the other AiPC4s in embryos/larvae at developmental stages). In detail, Arg0159040.1 expressed relatively low levels in embryos/larvae at early developmental stages, but initially rose from trochophores (2.17-fold) and reached the highest in D-shaped larvae (2.80-fold), then gradually decreased from umbo larvae (2.37-fold) to juvenile scallops (1.71-fold). As for Arg0230340.1, the expression level showed an increasing trend from zygotes (1.00-fold) to gastrula (10.16-fold) and reached the highest in trochophores (20.39-fold) but decreased from D-shaped larvae (11.96-fold) to juvenile scallops (7.46-fold). Arg0193880.1 mainly expressed in 2–8 cells (3.31-fold) and umbo larvae (2.66-fold), and the expression of which could be observed in embryos/larvae at other developmental stages with lower levels in zygotes, blastula (0.41-fold), gastrula (0.21-fold), trochophores (0.98-fold), D-shaped larvae (0.79-fold) and juvenile scallops (0.95-fold), respectively. Arg0233380.1 and Arg0244310.1 displayed a similar expression pattern during all the developmental stages, with maximum expressions in blastula (106.37-fold and 36.56-fold, respectively), and followed by a moderate expression trend in the other developmental stages (0.95~24.33-fold and 0.00~5.89-fold, respectively).

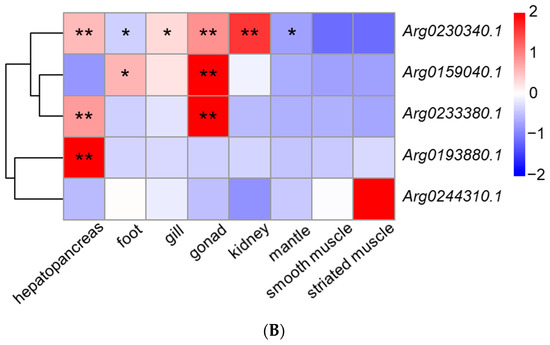

The spatiotemporal expression profiles of AiPC4s in eight kinds of adult tissues (the hepatopancreas, foot, mantles, gills, gonads, kidney, smooth muscle and striated muscle) of healthy bay scallops were determined and shown in Figure 6B. Generally, different expression profiles of AiPC4s were presented in eight kinds of adult tissues. Wherein, Arg0159040.1 presented the highest expression level in each healthy adult tissue (the expressions of Arg0159040.1 were 6.59 to 119.57-fold compared with the total expressions of the other AiPC4s in each sampled tissue), which was similar to its expression profiles in embryos/larvae at eight developmental stages. The expression level of Arg0159040.1 ranged from 0.92 to 2.97-fold in tissues compared with that in smooth muscle, with the highest expression level in gonads (2.97-fold, p < 0.01) and the lowest expression level in hepatopancreas (0.92-fold). Significant (p < 0.05) or extremely significant (p < 0.01) higher levels of Arg0230340.1 were observed in hepatopancreas (122.56-fold), foot (56.38-fold), gill (103.09-fold), gonad (144.48-fold), kidney (193.54-fold) and mantle (30.47-fold) compared with that in smooth muscle. As for Arg0233380.1, the expression level reached its peak in gonads (44.06-fold, p < 0.01), followed by hepatopancreas (23.07-fold, p < 0.01) and other tissues (0.28 to 7.35-fold). In addition, Arg0193880.1 showed a tissue-specific pattern, with an observing elevated level in hepatopancreas (53.76-fold, p < 0.01) in comparison with those in other tissues (0.00 to 2.81-fold). A similar tissue-specific higher expression of Arg0244310.1 was also displayed in striated muscle (3.73-fold), and slight/no expression (0.00 to 1.05-fold) of which could be detected in all kinds of adult tissues. The five AiPC4s showed different expression patterns but were principally higher expressed in the tissues of hepatopancreas, foot, gonad and kidney. The spatiotemporal expression profiles of AiPC4s suggested the functions of these genes in embryos/larvae at developmental stages and healthy adult tissues in bay scallops.

3.4. Expression Regulations of AiPC4s with Heat Stress

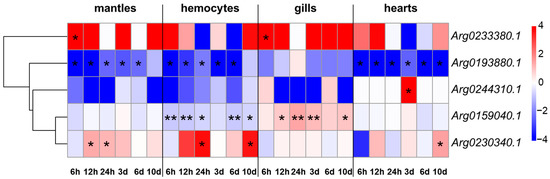

Expression profiles of AiPC4s were determined in different tissues (mantles, gills, hemocytes and hearts) being processed under 32 °C at different times (0 h, 6 h, 12 h, 24 h, 3 d, 6 d and 10 d) for investigating their expression regulations with heat stress (Figure 7). Generally, all AiPC4s displayed diverse expression regulation patterns in different tissues in 32 °C, including up- and down-regulations at different time points, showing obvious tissue-specific and time-dependent patterns. In mantles and hemocytes, the expression pattern of each AiPC4 was similar at different challenging time points. Specifically, no expression of Arg0233380.1 could be detected at group C, but it was obviously (p < 0.05) up-regulated at 6 h in mantles (1808.10-fold). Arg0230340.1 showed obviously (p < 0.05) time-dependent up-regulations in mantles and hemocytes after high-temperature stimulation, including 12 (2.52-fold) and 24 h (2.35-fold) in mantles and 24 h (13.18-fold) and 10 d (12.26-fold) in hemocytes. Conversely, Arg0193880.1 was obviously (p < 0.05) down-regulated at most time points in mantles and hemocytes (0.00-, 0.00-, 0.19-, 0.17- and 0.21-fold and 0.00-, 0.12-, 0.24-, 0.00- and 0.00-fold at 6 h, 12 h, 24 h, 3 d and 6 d in mantles and hemocytes, respectively). Arg0244310.1 was generally down-regulated at most challenging time points in mantles and hemocytes (0.22-, 0.00-, 0.00-, 0.76-, 0.60- and 0.00-fold and 0.00-, 0.15-, 0.28-, 0.53-, 0.16- and 0.67-fold at 6 h, 12 h, 24 h, 3 d, 6 d and 10 d in mantles and hemocytes, respectively). Significant (p < 0.05) or extremely significant (p < 0.01) expression levels of Arg0159040.1 were down-regulated at multiple time points with high temperature stimulation in hemocytes (0.56-, 0.58-, 0.62-, 0.58- and 0.65-fold at 6 h, 12 h, 24 h, 6 d and 10 d, respectively), but this trend was not obvious in the mantles. In gills, an up-regulation of Arg0233380.1 could be observed at acute 6 h (3,311.56-fold, p < 0.05) among the up-regulated expression profile. In addition, the expression regulation pattern of Arg0159040.1 in gills was extremely special compared with that in other tissues: (1) Arg0159040.1 showed an up-regulation-dominated expression pattern in gills, which was distinct with those in other tissues (down-regulation-dominated expression patterns); (2) the up-regulated expression profile of Arg0159040.1 was time-dependent, with significant (p < 0.05) or extremely significant (p < 0.01) up-regulations in acute (1.82- and 2.69-fold for 12 and 24 h) and chronic (2.21- and 1.98-fold for 3 and 10 d) periods. Diverse expression regulation patterns of Arg0193880.1 and Arg0230340.1 in gills could be observed compared with those in mantles and hemocytes, without significant up-regulation or down-regulation reactions. In hearts, Arg0244310.1 and Arg0230340.1 both displayed a single time-point-dependent up-regulation, with significantly (p < 0.05) up-regulated levels in 3 d (316.16-fold) and 10 d (2.82-fold), respectively. Damagingly down-regulated expressions of Arg0193880.1 were observed at all high-temperature stimulation time points with a consistent trend of that in mantles and hemocytes. Arg0233380.1 and Arg0159040.1 presented up-regulation and down-regulation reactions at different time points with high-temperature stimulation (0.87-, 0.92- 1.01-, 1.22-, 0.72- and 0.91-fold and 0.10-, 2.23-, 0.69-, 1.43- and 0.91-fold at 6 h, 12 h, 24 h, 3 d, 6 d and 10d). On the whole, down-regulations mainly occurred in Arg0193880.1 and Arg0244310.1, while the other three AiPC4s showed mixed (up- or down-) regulations with tissue-specific and/or time-dependent expressions. Overall, all AiPC4s were differentially expressed at one or several time points post-challenge and showed tissue-specific and/or time-dependent expression patterns with function allocation with thermal stress.

4. Discussion

PC4 is a functionally diverse protein with a highly conserved structure in most organisms and plays essential roles in cellular processes including RNAP-II-mediated transcription [57,58], DNA replication [42], damage repair [44,59] and cancer control [60] in vertebrates. In invertebrates, molecular functions of PC4 were only reported in the transcription activation of Caenorhabditis elegans [40] and in the recognition and activation of immune-related signaling pathways in the oyster Crassostrea gigas [61]. In our previous investigations, PC4 genes have been proven to be involved in responses to low pH in Yesso scallops [62] and with thermal stress in Zhikong scallops [63], revealing that PC4s played versatile roles in scallops suffering from negative impacts. In the present study, five AiPC4s were successfully identified in the marine bivalve A. irradians from its genome [64] and transcriptome [65] databases. Moreover, protein structure and phylogenetic analyses of AiPC4s were conducted. After that, expression levels of AiPC4s were assessed in embryos/larvae at different developmental stages, healthy adult tissues and different tissues (mantles, gills, hemocytes and hearts) being processed under 32 °C stress at different times (0 h, 6 h, 12 h, 24 h, 3 d, 6 d and 10 d). Our work will contribute to further research on the functions of PC4 and help in illustrating how marine bivalves resist elevated seawater temperature.
Five AiPC4s were identified from the genome database of bay scallops, and their presence was further confirmed in the transcriptome databases. Similarly, different numbers of PC4 genes were detected in other bivalves, including two in Sinonovacula constricta [66], three in Crassostrea hongkongensis [67], five in C. gigas [68], six in C. virginica [69], seven in Mercenaria mercenaria [70], 15 in C. farreri [71] and up to 18 in Mytilus galloprovincialis [72]. Obviously, the number of PC4s in nearly all the above bivalves is more than those in vertebrates, for example, H. sapiens and M. musculus, which all have only one PC4 gene. It is certain that gene expansion occurred in the PC4 family in most bivalves. Similarly, gene expansion of toll-like receptors [73], cholinesterase [74] in Yesso scallops and nicotinic acetylcholine receptor [75], superoxide dismutase [76] in Zhikong scallops also occurred, indicating that functional differentiation of resistance-related genes via number expansion may be responsible for response to variable environmental factors in the ocean. The tertiary structure of AiPC4 family members and multiple sequence alignment showed PC4 proteins with a high identity in structure and function comparing with those from other species [32], which indicated that they might play similar functional roles in bivalves. Moreover, orthologs and paralogs of PC4 in the NJ phylogenetic tree indicated the same origin in vertebrates and invertebrates. PC4 members in bivalves presented a mass of species distribution caused by gene expansion, revealing the functional classification of bivalves facing various marine environment stresses.
The AiPC4s expressed in embryos/larvae and in adult tissues of healthy bay scallops indicate that AiPC4s had specific functions in all stages of development and growth of the scallop. Five AiPC4s had various expression patterns in embryos/larvae at different developmental stages, suggesting that AiPC4s performed continuous functions during scallop development. A developmental stage specific expression pattern of Arg0193880.1 was obvious at the 2–8 cells stage, illustrating its participation in DNA replication in the early cleavage period [54]. Early cell differentiation of embryos usually occurs at the blastula stage, during which period higher expression levels of Arg0233380.1 and Arg0244310.1 may promote certain genes’ expression to ensure the achievement of differentiation functions of cells [77,78]. In addition, the higher expression levels of Arg0159040.1 from trochophores to umbo larvae and developmental stage-dependent elevations of Arg0230340.1 in trochophores might indicate the involvements of AiPC4s in RNAP-II-mediated transcriptional initiation of a mass of genes and the formation of organs [79]. Such various expression patterns indicated that AiPC4s were involved in scallop larval organogenesis and had functional differentiations during all developmental stages of scallops.
The general and tissue-specific functions of these genes could be observed in healthy adult tissues. In the present study, the ubiquitous expression of all AiPC4s was observed in most healthy tissues, and the relatively higher expression levels were detected in the hepatopancreas, foot, gills, gonads and kidney compared with that in smooth muscle. Hepatopancreas participated in various significant physiological activities including digestion, absorption, storage and metabolism and played an important role in initiating the immune response [80,81]. The high expression levels of three AiPC4s (Arg0230340.1, Arg0233380.1 and Arg0193880.1) might promote synthesis of certain enzymes to enhance immune function in hepatopancreas [82,83,84]. The foot of adult bay scallops performed sense-related functions which might be dependent on significantly higher expressions of general coactivator AiPC4(s) for sense-related genes’ transcription [54]. Gills were regarded as the main tissue of bivalves for hematopoiesis and immune response [85,86], thus the higher level of Arg0230340.1 in gills implied the possibility of PC4 involved in DNA synthesis and expression of certain immune-related genes [86,87]. In addition, DNA damage usually occurred during anoxic stress and aerobic recovery in gills [88], and the high level of Arg0230340.1 might be contributing to DNA damage repair in bivalves [89]. Furthermore, significant high expression levels of three AiPC4s (Arg0230340.1, Arg0159040.1 and Arg0233380.1) were observed in the gonad that related to gametogenesis involved in reproduction [90], a process which contained DNA replication to a great extent. Besides, a significantly high level of Arg0230340.1 in kidney ensured the realization of their immune-related functions in scallops potentially through the abundant expression of immune-related genes [91]. Consequently, the ubiquitous expression of AiPC4s in multiple tissues revealed an essential position in bay scallops, and diverse expression levels of AiPC4s ensured the realization of tissue-specific functions in scallops.
Elevated seawater temperature has severely affected the biological activity of marine organisms including scallops, resulting in massive losses to fisheries in recent years [6,7]. In order to investigate the functions of AiPC4s in bay scallops under high-temperature stress, expression profiles of AiPC4s were detected in four tissues (mantles, gills, hearts, and hemocytes), which are all regarded as the major tissues in response to thermal stress in mollusks [92,93,94]. Obviously, up-regulations mainly occurred in Arg0233380.1 and Arg0230340.1, while another two AiPC4s (Arg0193880.1 and Arg0244310.1) were down-regulated in four tissues. Similar phenomena have also been observed in the research of heat shock proteins in bay scallops (AiHSP70 and AiHSP90) [28,95] in response to thermal stress, suggesting that the functional diversity of the above gene members coincides with thermal stress. The mantles were considered the first barrier against the adverse external environment [96], and hemocytes were the main cell mediator in molluscan internal defenses [97]. The two functional, closely related tissues interact with each other and might be involved in immune regulation through DNA repair for cell homeostasis maintenance in heat stress, which is reflected by the display of similar expression regulations of each AiPC4 at different challenging time points between mantles and hemocytes. Another case of oyster PC4s with higher expression levels in hemocytes and mantles for immune regulation through DNA repair supports our hypothesis [61]. Interestingly, the expression level of Arg0159040.1 was up-regulated in gills and down-regulated in hemocytes, respectively. The up-regulated expression might be involved in DNA repair in gills caused by heat stress, whereas the down-regulated expression might be a transcriptional function inhibition in hemocytes which was consistent with the findings in the mussels [98], corals [99] and oysters [100] that the phenomenon might be a protection mechanism against heat stress [101]. Specifically, in response to high temperature, two AiPC4s (Arg0233380.1 and Arg0159040.1) expressed the time-dependently up-regulated levels which might promote the function of RNAP-II-mediated transcription to express enzymes associated with breathing and/or conducting DNA damage repair caused by anoxic stress and aerobic recovery resulting from strengthened respiration in the gills under high temperature [87,102,103], according to the reports in vertebrates that the elevating levels of endogenous PC4s mainly induced a response to DNA damage through the accumulation of PC4 at sites of DNA damage [43]. Scallops possess a typical bivalve heart composed of two auricles and one ventricle, and the contraction of the heart drives its circulatory system, which is regarded to be critical to scallops’ normal and stressed conditions [54]. We hypothesized that the single time-point-dependent up-regulation of AiPC4s in hearts might improve cardiac hemodynamics as reported in rats [104] and protected heart-derived muscle as reported in humans [105] with thermal stress. As expected, the cardiac performance investigations in scallops reported that, with the increase of ambient seawater temperature, the heart rate and heart amplitude of scallops increased gradually before Arrhenius break temperature, and the results of which generally supported our hypothesis [53], whereas obvious down-regulations occurred in Arg0193880.1 at nearly all time points during high-temperature stimulation, indicating that transcriptional function inhibition was blocked by some protein synthesis [101]. A similar phenomenon of gene family member tissue-specific and time-dependent expression was also observed in Mitogen-activated protein kinase (MAPK) [106] and HSP90 genes in Zhikong scallops [107], providing implications for flexible regulation of bivalve gene families in response to heat stress. Collectively, our results showed a significant and flexible regulation profile (up-/down-regulated, tissue-specific, time-dependent) of these AiPC4s and possibly suggested a strong adaptation model under temperature stress.

5. Conclusions

This study represented comprehensive analyses of PC4 family genes in bay scallops. We identified a full set of five PC4 members from the A. irradians genome. After that, multiple sequence alignment and a phylogenetic tree verified their identities and evolutionary relationships. In addition, spatiotemporal expression profiles of these genes indicated the various functions of AiPC4s in embryos/larvae at different developmental stages and in healthy adult tissues. Expression profiles confirmed that scallop AiPC4s displayed tissue-specific, time-dependent and up-/down-regulations via molecular function allocation with heat stress. Future exploration on the functions and activities of mollusk PC4s through RNA interference, gene knock down and Western blot analysis will contribute to a better understanding the environmental adaptation of mollusks.

Supplementary Materials

The following supporting information can be downloaded at: www.mdpi.com/article/10.3390/genes13061057/s1, Table S1: The species and related accession numbers for homologous sequence; Data S1: Gene sequences, coding sequences and amino acid sequences of AiPC4s.

Author Contributions

Conceptualization, A.L., Q.X. and Z.B.; methodology, A.L., X.H. (Xiujiang Hou), J.Z., J.L. and W.W.; validation, A.L., X.D. and X.Z.; data curation, X.H. (Xiujiang Hou), J.Z. and X.Z.; writing—original draft preparation, A.L. and Q.X.; writing—review and editing, A.L. and Q.X.; supervision, Q.X., X.H. (Xiaoting Huang), J.H. and Z.B.; project administration, Q.X., X.H. (Xiaoting Huang) and Z.B.; funding acquisition, J.H. and Z.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Sanya Yazhou Bay Science and Technology City (SKJC-KJ-2019KY01), the Earmarked Fund for Agriculture Seed Improvement Project of Shandong Province (2020LZGC016) and the China Agriculture Research System of MOF and MARA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The sequences of the five AiPC4s have been submitted to GenBank (accession number ON121988-ON121992). The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
