Select Porcine Elongation Factor 1α Sequences Mediate Stable High-Level and Upregulated Expression of Heterologous Genes in Porcine Cells in Response to Primate Serum

by
Wu-Sheng Sun
1,†,‡,
Hyeon Yang
1,†,
Jin Gu No
1,
Haesun Lee
1,
Nahyun Lee
1,
Minguk Lee
1,
Man-Jong Kang
2 and
Keon Bong Oh
1,*
1
Animal Biotechnology Division, National Institute of Animal Science, Rural Development Administration, Wanju-gun 55365, Korea
2
Department of Animal Science, Chonnam National University, Gwangju 61186, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
Current affiliation: College of Life Sciences, Yulin University, Yulin 719000, China.
Genes 2021, 12(7), 1046; https://doi.org/10.3390/genes12071046
Submission received: 25 May 2021 / Revised: 25 June 2021 / Accepted: 1 July 2021 / Published: 7 July 2021
(This article belongs to the Section Animal Genetics and Genomics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Genetically engineered (GE) pigs with various combinations of genetic profiles have been developed using heterologous promoters. This study aimed to identify autologous promoters for high and ubiquitous expression of xenotransplantation relevant genes in GE pigs. A 1.4 kb upstream regulatory sequence of porcine elongation factor 1α (pEF1α) gene was selected and isolated for use as a promoter. Activity of the pEF1α promoter was subsequently compared with that of the cytomegalovirus (CMV) promoter, CMV enhancer/chicken β-actin (CAG) promoter, and human EF1α (hEF1α) promoter in different types of pig-derived cells. Comparative analysis of luciferase and mutant human leukocyte antigen class E-F2A-β-2 microglobulin (HLA-E) expression driven by pEF1α, CMV, CAG, and hEF1α promoters revealed the pEF1α promoter mediated comparable expression levels with those of the CAG promoter in porcine ear skin fibroblasts (PEFs) and porcine kidney-15 (PK-15) cells, but lower than those of the CAG promoter in porcine aortic endothelial cells (PAECs). The pEF1α promoter provided long-term stable HLA-E expression in PEFs, but the CAG promoter failed to sustain those levels of expression. For xenogeneic serum-induced cytotoxicity assays, the cells were cultured for several hours in growth medium supplemented with primate serum. Notably, the pEF1α promoter induced significant increases in luciferase and HLA-E expression in response to primate serum in PAECs compared with those driven by the CAG promoter, suggesting the pEF1α promoter could regulate temporal expression of heterologous genes under xenogeneic-cytotoxic conditions. These results suggest the pEF1α promoter may be valuable for development of GE pigs spatiotemporally and stably expressing immunomodulatory genes for xenotransplantation.

1. Introduction

Genetically engineered (GE) pigs for use in xenotransplantation have been considered an alternative donor source to provide a therapeutic resource for patients with end-stage organ failure as pigs share many similarities with humans regarding anatomy, physiology, and phylogeny [1]. During the process of producing GE pigs, promoter selection and optimization to drive and regulate the spatial and temporal expression of target genes relative to their intended purpose is a critical step. Currently, both viral and mammalian gene promoters have been used in GE pigs in effort to express immunomodulatory and/or coagulation-modulatory proteins for xenotransplantation.
Cytomegalovirus (CMV) enhancer/chicken β-actin (CAG) promoter has been predominately used for ubiquitous and constitutively high-level expression of target genes in GE pigs [2,3,4]. However, accumulating evidence suggests this viral promoter is vulnerable over time to methylation-mediated transcriptional silencing due to host-cell epigenetic defense mechanisms that have emerged [5,6]. Mouse H-2Kb, human α-globin, and human eukaryotic translation elongation factor 1α (hEF1α) promoters have also been used for generation of GE pigs; however, expression levels of target genes using these promoters are unequable [7]. Alternatively, full or partial genomic sequences of immunomodulatory and anticoagulation genes, including autologous promoters, have been successfully adopted in order for GE pig to possess expression specificity for particular genes [7,8]. Nevertheless, the availability of promoters to construct heterologous gene-expression cassettes may be limited with lengths exceeding 4 kb [7,9]. Therefore, it is necessary to explore promoters with high activity and small size.
Inducible promoters allow target-gene expression to be upregulated under endogenous and exogenous stimuli, making it possible to more precisely regulate temporal expression of genes that may be harmful to the development of GE animals [10]. Indeed, the development of cytokine inducible promoters, complement factor 3, serum amyloid A3, and acute-phase protein for regulating reporter gene expression in response to lipopolysaccharide in vivo have been reported [11]. Recently, Fischer et al. [12] demonstrated that optimized human C-C motif chemokine ligand 2 and tumor necrosis factor α induced protein 3, and porcine A20 promoters are able to direct high-level expression of the developmental defect gene LEA29Y in response to TNFα and IL1ß, which are well known pro-inflammatory cytokines that are initially released as part of xenograft rejection mechanisms [13,14]. The development of these promoters is of great significance to the production of GE pigs that can accurately express immunomodulatory genes for xenotransplantation.
In the current study, we identified for the first time a novel function of a 1.4 kb sequence region of porcine elongation factor 1α (pEF1α) gene. We characterized this sequence in vitro as a xenogeneic serum-inducible promoter. The pEF1α promoter supported heterologous gene expression levels comparable with that of the CAG promoter in primary pig ear skin fibroblasts (PEFs) and porcine kidney-15 (PK-15) cells under basic culture conditions. However, the pEF1α promoter drove increased expression levels of heterologous genes in porcine aortic endothelial cells (PAECs) compared to that of the CAG promoter when induced with xenogeneic serum. Notably, we were able to confirm that the pEF1α promoter activity was sustained at the initial level during long-term culture, whereas the CAG promoter activity was downregulated with time. We suggest that the pEF1α promoter of this study may be useful for generating GE pigs by precisely directing the spatial and temporal expression of single and multiple genes in order to attenuate the immune response during xenotransplantation.

2. Materials and Methods

2.1. Promoter and Expression Vector Construction

The CMV, CAG, and hEF1α promoters were isolated from the pcDNATM 3.1 (+) vector (Invitrogen, CA, USA), pCAGMKOSiE vector (Addgene, MA, USA), and pBudCE4.1 vector (Invitrogen), respectively. We searched the National Center for Biotechnology Information (NCBI) Sscrofa11.1 database using the hEF1α sequences from the human genome GRCh38 assembly, chr6: 73,521,970–73,518,347 as a template and identified a conserved region of pEF1α sequence (chr1: 92,421,084–92,424,225), which spanned six exons and approximate 1.4 kb of upstream regulatory sequence (URS) (Figure 1A). The selected pEF1α promoter and an expression cassette including human leukocyte antigen class E (HLA-E) complementary DNA (cDNA) with a mutation in the leader peptide region (HLA-E Cw0304) connected with β-2 microglobulin (B2M) cDNA [15] were synthesized by Thermo Fisher Scientific (Waltham, MA, USA). The cassette was subsequently inserted to the pcDNA3.1TM (+) vector and the original vector promoter was replaced with the pEF1α or CAG promoter. Comparative analysis of the pEF1α and hEF1α promoter sequences was performed using DNAMAN software (Lynnon Biosoft, Quebec, QC, Canada) and the mVISTA program in LAGAN mode with default parameters [16].

2.2. Cell Culture, Transfection, Selection, Serum Induction, and Genotyping

PEFs and PAECs were isolated from one-month-old α1,3-galactosyltransferase knockout (GTKO) pigs and cultured as previously described [17]. PK-15 cells were maintained in Dulbecco’s Modified Eagle’s Medium (DMEM; Invitrogen) supplemented with 10% (v/v) fetal bovine serum (FBS) and 1× Antibiotic-Antimycotic (Thermo Fisher Scientific). The methods for transfecting the PEFs and PAECs were described previously [17]. The PK-15 cells were transfected using a Lipofectamine 3000 Kit (Invitrogen) according to manufacturer’s protocol. A pMAX GFP plasmid (Lonza, Basel, Switzerland) was co-transfected with the experimental constructs to help normalize the transfection efficiency. The transfected PEFs were selected using 600 μg/mL neomycin (Thermo Fisher Scientific) for 10 days (D0). The cells were subsequently maintained in selection medium for an additional 4 days (D4), 8 days (D8), 16 day (D16), or 20 days (D20). Serum induction of the PAECs was performed using 15% primate serum (Xenia Inc., Seong-nam, Korea). Porcine serum obtained from whole blood of a 7-month-old male GTKO pig bred at National Institute of Animal Science (Wanju-gun, JB, Korea) was used as a control. Genomic DNA of transfected and neomycin-selected cells was extracted using a DNeasy Blood and Tissue Kit (Qiagen, Hilden, Germany). Polymerase chain reaction (PCR) analysis was performed using Prime Taq Premix (Genet Bio, Nonsan, Korea) with primers presented in Table 1.

2.3. Luciferase Assay

Four different promoters were individually subcloned into a pGL3-Basic Luciferase Reporter Vector (Promega, Madison, WI, USA) and then transfected into PEFs, PK-15 cells, and PAECs. At 48 h post transfection, the cells were washed with Hank’s Balanced Salt Solution (HBSS, Invitrogen) and then analyzed using a Dual-luciferase®® Reporter Assay System (Promega), according to the manufacturer’s instructions. Luminescence from each sample was measured using a Centro LB 960 luminometer (Berthold, Bad Wildbad, Germany). All values are normalized relative to values for the CAG promoter.

2.4. Real-Time Quantitative PCR

Total RNA was extracted from the cells using a RNeasy Mini Kit (Qiagen). The cDNAs were synthesized using a Superscript IV First-Strand Synthesis Kit (Invitrogen). Real-time quantitative PCR (qPCR) was performed in triplicate using Power SYBR Green PCR master mix (Applied Biosystems, Foster City, CA, USA) and a StepOne Real-Time PCR System (Applied Biosystems). Sequences of the primers used are presented in Table 1.

2.5. Western Blot Analysis

Whole cell proteins were isolated using mammalian protein extraction reagent M-PER (Invitrogen) supplemented with a protease inhibitor cocktail (Thermo Fisher Scientific). Protein concentrations were determined using the Bradford assay (Bio-Rad, CA, USA). Equal amounts of protein samples (10 μg) were loaded onto NuPAGE™ 4–12% SDS-PAGE gels (Invitrogen), electrophoresed, and transferred to polyvinylidene fluoride membranes (Invitrogen). The membranes were subsequently incubated with primary antibodies overnight at 4 °C followed by secondary antibodies for 1 h at room temperature. Mouse anti-HLA-E monoclonal antibody (Acris, Rockville, MD, USA), mouse anti-B2M, or anti-β-actin antibody (Santa Cruz, TX, USA) were used as primary antibodies and goat anti-mouse IgG-horseradish peroxidase (HRP) antibody (Santa Cruz) was used as the secondary antibody. The immunostained blots were visualized using Amersham ECL Prime Western Blotting Detection Reagent (GE Healthcare, Chalfont St Giles, Buckinghamshire, UK) and the signal detected using an EZ-Capture II chemiluninescence charge-coupled device (CCD) imaging system (ATTO, Amherst, NY, USA).

2.6. Flow Cytometry

The transfected neomycin-selected PEFs were harvested and incubated with phycoerythrin (PE)-conjugated anti-human HLA-E antibody (Milteny Biotec, Bergish Gladbach, Germany) in staining buffer consisting of 1× phosphate-buffered saline supplemented with 0.5% (w/v) bovine serum albumin (BSA). The cells were washed three times with staining buffer and analyzed by flow cytometry using a FACS CaliburTM (BD Bioscience, NJ, USA). A PE-conjugated mouse IgG1κ antibody (Milteny Biotec) was used as an isotype control.

2.7. Statistical Analysis

All experimental results underwent statistical analysis using GraphPad Prism 5.03 software (GraphPad Software Inc., San Diego, CA, USA). Statistical significance for the promoter screening reporter assays and endogenous mRNA expression of the HLA-E gene were assessed using one-way analysis of variance (ANOVA). Two-way ANOVA was implemented for analysis of the xenogeneic study results. All the data are represented in mean ± standard error of the mean (SEM). A p-value less than 0.05 was considered statistically significant.

3. Results

3.1. Sequence Analysis of the pEF1α Upstream Region

Comparative analysis of the selected upstream sequences of pEF1α and hEF1α revealed that the porcine sequence shared 65.76% homology with that of its human counterpart (Figure 1A) and the distribution pattern of CpGs differed slightly between the porcine and human sequences (Figure 1B). However, conserved CpG islands (Figure 1B) and several putative transcription-factor binding sites, such as those for Sp1, GATA, NF-κB, and C/EBP, were identified within the upstream region of both the hEF1α and pEF1α (Supplementary Table S1). We selected a 1421 bp-length segment in the upstream region of pEF1α (chr1: 92,421,241–92,422,700), which included predicted CpG islands at the 5’ end (Figure 1B).

3.2. The pEF1α Promoter Led to High-Level Heterologous Gene Expression in Porcine Cells

Four luciferase reporter vectors (Figure 2A) were individually transiently transfected into PEFs, PK-15 cells, and PAECs. The results of luciferase assay revealed that the pEF1α promoter led to a 2.2-fold higher level of luciferase expression than that of the CAG promoter in PEFs, which was a statistically significant difference (Figure 2B). No significant difference was observed in the levels of expression between the pEF1α and CAG promoters in PK-15 cells (Figure 2C). However, the level of luciferase expression driven by the pEF1α promoter was significantly lower compared with that of the CAG promoter in PAECs (Figure 2D). Interestingly, activity of the CMV and hEF1α promoters, which are frequently used for mammalian gene expression in vitro and in vivo, were shown to be significantly less than that of the CAG promoter activity in the porcine cells tested (Figure 2B–D).
To determine whether the pEF1α promoter regulated heterologous gene expression independent of the gene linked, we constructed HLA-E expression cassettes driven by pEF1α and CAG promoters (Figure 3A) and introduced the cassettes into PEFs, PK-15 cells, and PAECs. The results indicate that the expression levels of HLA-E mRNA (Figure 3B) and protein (Figure 3C) were consistent with that of luciferase expression (Figure 2); significantly higher in PEFs, comparable in PK-15 cells, and significantly lower in PAECs when driven by the pEF1α promoter. Taken together, these results indicate that the pEF1α promoter activity was comparable with that of the CAG promoter regarding the regulation if gene expression in porcine cells, except for PAECs in which expression was lower.

3.3. The pEF1α Promoter Induced Heterologous Gene Expression in Response to Xenogeneic Serum

The PAECs transiently transfected with luciferase (Figure 2A) and HLA-E (Figure 3A) expression cassettes were cultured for 7 h in endothelial culture medium supplemented with 15% normal primate serum or porcine serum. Porcine serum treatment did not affect the pEF1α promoter activity or CAG promoter activity with respect to the expression of luciferase or the HLA-E transgene (Figure 4A) compared to that of the results for basic endothelial culture conditions with 5% fetal bovine serum (Figure 2D and Figure 3B). Interestingly, treatment with primate serum resulted in significantly higher expression of luciferase and HLA-E under the control of the pEF1α promoter compared to that under control of the CAG promoter (Figure 4B). These results suggest the pEF1α promoter was able to induce increased expression of the target gene under conditions similar to xenogeneic stress, at least in PAECs. We were not able to detect a specific increase of endogenous pEF1α expression following primate serum treatment (Figure 4C). Notably, tissue factor (TF), which has been identified as a gene upregulated during cardiac xenograft rejection [18], exhibited serially increased expression depending on time of primate serum treatment (Figure 4D). We were able to confirm that intercellular adhesion molecule 2 (ICAM2), a gene specifically expressed in endothelium, was consistently expressed (Figure 4E), indicating the upregulation of endogenous TF expression and exogenous pEF1α-luciferase and pEF1α-HLA-E expression were a consequence of promoter induction in response to primate serum. We suggest that the pEF1α sequences selected in this study lost regulatory elements essential for consistent expression of pEF1α, but obtained novel function that was inducible by primate serum.

3.4. The pEF1α Promoter, but Not the CAG Promoter, Retained High-Level HLA-E Expression during Long-Term Culture

PEFs transfected for HLA-E expression under pEF1α and CAG promoters were selected and serially harvested, as described in the materials and methods section. Genotype analysis showed that the selection procedure was successful (Figure 5A) without causing morphological changes in the cells (Supplementary Figure S1). The qPCR analysis showed the pEF1α promoter led to consistent expression of HLA-E, but the CAG promoter led to a dramatic downregulation of HLA-E expression starting from D8 compared with that at D4 (Figure 5B). The qPCR results were confirmed by western blot analysis, which demonstrated similar patterns (Figure 5C). Furthermore, flow cytometry analysis clearly showed that the pEF1α promoter retained expression levels over time; this contrasted with that of the CAG promoter, which showed a decreased expression level by D20 (Figure 5D). Therefore, we demonstrated the pEF1α promoter, in contrast to that of the CAG promoter, possessed activity that allowed it to consistently control target gene expression comparable to the levels initially expressed.

4. Discussion

GE pigs that ablate or attenuate genes involved in pig-to-primate rejection mechanisms are considered a key goal for successful xenotransplantation. Currently, multiple GE pigs have been generated, including those with immunomodulatory, anti-coagulation, anti-inflammatory, and anti-apoptotic genetic changes in a GTKO background. The choice of promoters among the various studies on GE pig production differs depending on the purpose of the target gene and whether ubiquitous and/or specific expression is desired. Promoters for ubiquitous expression seem to be suitable for expressing human complement regulating genes and immune-cell response factor genes, such as CD46, CD55, human HLAs, and CD47. The ICAM2 promoter has been frequently used for specific expression of anti-coagulation and anti-inflammatory proteins, including tissue factor pathway inhibitor (TFPI), thrombomodulin (THBD), C1 inhibitor, and A20 [3,19,20]. In previous studies, we reported the production of GTKO pigs carrying human CD46 (GTKO/CD46) or THBD (GTKO/CD46/THBD) driven by the CMV promoter [21,22], CAG promoters for ubiquitous expression, and the pig ICAM2 promoter for endothelium-specific expression of THBD and CD73 [23]. We demonstrated that the CMV promoter was moderately active for CD46 expression in GTKO/CD46 pigs, and the CAG promoter was rather strong for CD46 expression in GTKO/CD46/THBD pigs. In the current study, we successfully developed the pEF1α promoter, an autologous gene promoter of pigs. This promoter ubiquitously regulated high-level expression of target genes compared to that of the CAG promoter and eliminated potentially unstable expression, both improvements over the CAG promoter for the generation of GE pigs. Furthermore, we were able to confirm that the pEF1α promoter allowed temporal gene expression induced by xenogeneic stress conditions.
The CAG promoter showed consistent high-level expression of luciferase compared to that of the CMV, hEF1α, and pEF1α promoters, independent of the cell type. Consistent with this, the CAG promoter has been reported in previous studies as a valuable promoter for GE pigs. Considering expression levels of heterologous genes, the CAG promoter may be the best option for use in the generation of GE pigs for xenotransplantation. However, the CAG promoter failed in the current study to drive stable expression of HLA-E in porcine cells, consequently raising concern that the level of HLA-E expression in CAG-HLA-E pigs may be different between generations of pigs and/or among individual pigs. To develop a novel autologous gene promoter for pigs that essentially provides stable expression of the target gene at high levels, we isolated and analyzed the activity of porcine CD46, ICAM2, β-ACTIN, and pEF1α promoters. The results were the pEF1α promoter was comparable to that of the CAG promoter with respect to the expression levels. Moreover, this study showed that the pEF1α promoter regulated the stable expression of target genes at initial levels and did so long-term, clearly demonstrating that the pEF1α promoter is a reasonable choice for use in GE pig production.
We also identified several conserved CpG islands and putative transcription-factor binding sites in the current study, such as GATA, stress-responsive HSF [24], inflammatory-responsive NF-κB, and C/EBP motifs of the pEF1α promoter [25]. These transcription-factor binding sites were shown in the hEF1α promoter and are well known to enhance gene expression. Wang et al. reported that the hEF1α promoter increases gene expression compared with that of the CMV and CAG promoters in CHO cells [26]. Among the four different promoters tested in our current study, activity of the pEF1α promoter was highest and that of the hEF1α promoter was lowest in PEFs and PAECs (Figure 2). This could have been attributable to the hEF1α promoter being suppressive in porcine cells. We suggest that the hEF1α promoter would be a poor choice for GE pig production when it comes to xenotransplantation.
We recently reported a list of differentially expressed genes in xenografted hearts of GTKO pigs into primates [18]. The list included a significant increase in TF expression, but no change in expression levels of EF1α or ICAM 2. The genes exhibited a similar pattern in endothelial cells cultured with medium supplemented with primate serum, suggesting that the conditions of culture with primate serum are likely to at least partially mimic the rejection mechanisms in cardiac xenotransplantation (Figure 4). Therefore, we evaluated the effect of primate serum stimulation on the activity of the pEF1α and CAG promoters. The results demonstrated that the pEF1α promoter responded with significantly increased levels of luciferase and HLA-E expression compared with that of the CAG promoter. The precise induction mechanism(s) of the pEF1α promoter in response to primate serum remains unknown. Regardless of the mechanism, the novel function of the pEF1α promoter with a swift and dynamic upregulation of gene expression in response to xenogeneic stimuli should prove beneficial for investigating xenotransplantation by dramatically upregulating target immune regulatory genes involved during mechanisms of graft rejection.

5. Conclusions

We developed an autologous promoter to provide a high-level expression of target genes during the production of GM pigs, independent of the specific generation or individual pig. Specifically, we isolated the pEF1α promoter and analyzed its consistency and comparative expression level relative with that of the CAG promoter in porcine cells, including PEFs, PK-15 cells, and PAECs. The results demonstrated that the pEF1α promoter was able to mediate stable consistent expression of heterologous target genes at a high level in PEFs, while the CAG promoter led to a dramatic downregulation of target gene expression. Notably, the pEF1α promoter showed a novel function in responding to xenogeneic serum, resulting in a significant increase of target gene expression in PAECs. Taken together, we believe the pEF1α promoter may be valuable for the development of GM pigs spatiotemporally and stably expressing immunomodulatory genes for xenotransplantation.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/genes12071046/s1, Figure S1: Morphological analysis of CAG- and the pEF1α-HLA-E expression cassettes transfected into PEFs and selected for on day 4 (D4), day 12 (D12), and day 20 (D20), Table S1: Putative transcription-factor binding sites in the selected pEF1α promoters compared with those of the hEF1α promoter.

Author Contributions

Conceptualization, K.B.O.; validation, W.-S.S., H.Y. and M.-J.K.; formal analysis, W.-S.S. and H.Y.; investigation, J.G.N., H.L., N.L. and M.L.; writing—original draft preparation, W.-S.S. and H.Y.; visualization, W.-S.S., H.Y., J.G.N. and K.B.O.; writing—review and editing, M.-J.K. and K.B.O.; supervision, K.B.O.; project administration, K.B.O. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Cooperative Research Program for Agriculture Science and Technology Development (project number PJ01422801) of Rural Development Administration, Korea.

Institutional Review Board Statement

The protocol and standard operating procedures for the treatment of the animals used in this study were reviewed and approved by the Institutional Animal Care and Use Committee of the National Institute of Animal Science (NIAS), Rural Development Administration of Korea (Approval number: NIAS20191567).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or Supplementary Materials.

Acknowledgments

This work was supported by (2021) Postdoctoral Fellowship Program of National Institute of Animal Science, Rural Development Administration, Korea.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cooper, D.K.C.; Hara, H.; Iwase, H.; Yamamoto, T.; Li, Q.; Ezzelarab, M.; Federzoni, E.; Dandro, A.; Ayares, D. Justification of specific genetic modifications in pigs for clinical organ xenotransplantation. Xenotransplantation 2019, 26, e12516. [Google Scholar] [CrossRef]
  2. Buermann, A.; Petkov, S.; Petersen, B.; Hein, R.; Lucas-Hahn, A.; Baars, W.; Brinkmann, A.; Niemann, H.; Schwinzer, R. Pigs expressing the human inhibitory ligand PD-L1 (CD 274) provide a new source of xenogeneic cells and tissues with low immunogenic properties. Xenotransplantation 2018, 25, e12387. [Google Scholar] [CrossRef] [PubMed]
  3. Yue, Y.; Xu, W.; Kan, Y.; Zhao, H.Y.; Zhou, Y.; Song, X.; Wu, J.; Xiong, J.; Goswami, D.; Yang, M.; et al. Extensive germline genome engineering in pigs. Nat. Biomed. Eng. 2021, 5, 134–143. [Google Scholar] [CrossRef]
  4. Fischer, K.; Kraner-Scheiber, S.; Petersen, B.; Rieblinger, B.; Buermann, A.; Flisikowska, T.; Flisikowski, K.; Christan, S.; Edlinger, M.; Baars, W.; et al. Efficient production of multi-modified pigs for xenotransplantation by ‘combineering’, gene stacking and gene editing. Sci. Rep. 2016, 6, 29081. [Google Scholar] [CrossRef] [PubMed]
  5. Hsu, C.C.; Li, H.P.; Hung, Y.H.; Leu, Y.W.; Wu, W.H.; Wang, F.S.; Lee, K.D.; Chang, P.J.; Wu, C.S.; Lu, Y.J.; et al. Targeted methylation of CMV and E1A viral promoters. Biochem. Biophys. Res. Commun. 2010, 402, 228–234. [Google Scholar] [CrossRef] [PubMed]
  6. Zhou, Y.; Zhang, T.; Zhang, Q.K.; Jiang, Y.; Xu, D.G.; Zhang, M.; Shen, W.; Pan, Q.J. Unstable expression of transgene is associated with the methylation of CAG promoter in the offspring from the same litter of homozygous transgenic mice. Mol. Biol. Rep. 2014, 41, 5177–5186. [Google Scholar] [CrossRef]
  7. Aigner, B.; Klymiuk, N.; Wolf, E. Transgenic pigs for xenotransplantation: Selection of promoter sequences for reliable transgene expression. Curr. Opin. Organ Transplant. 2010, 15, 201–206. [Google Scholar] [CrossRef] [PubMed]
  8. Wuensch, A.; Baehr, A.; Bongoni, A.K.; Kemter, E.; Blutke, A.; Baars, W.; Haertle, S.; Zakhartchenko, V.; Kurome, M.; Kessler, B.; et al. Regulatory sequences of the porcine THBD gene facilitate endothelial-specific expression of bioactive human thrombomodulin in single- and multitransgenic pigs. Transplantation 2014, 97, 138–147. [Google Scholar] [CrossRef] [Green Version]
  9. Bacman, S.R.; Gammage, P.A.; Minczuk, M.; Moraes, C.T. Chapter 19—Manipulation of mitochondrial genes and mtDNA heteroplasmy. In Methods in Cell Biology; Pon, L.A., Schon, E.A., Eds.; Academic Press: Cambridge, MA, USA, 2020; Volume 155, pp. 441–487. [Google Scholar]
  10. Kallunki, T.; Barisic, M.; Jäättelä, M.; Liu, B. How to Choose the Right Inducible Gene Expression System for Mammalian Studies? Cells 2019, 8, 796. [Google Scholar] [CrossRef] [Green Version]
  11. Varley, A.W.; Coulthard, M.G.; Meidell, R.S.; Gerard, R.D.; Munford, R.S. Inflammation-induced recombinant protein expression in vivo using promoters from acute-phase protein genes. Proc. Natl. Acad. Sci. USA 1995, 92, 5346–5350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Fischer, A.; Manske, K.; Seissler, J.; Wohlleber, D.; Simm, N.; Wolf-van Buerck, L.; Knolle, P.; Schnieke, A.; Fischer, K. Cytokine-inducible promoters to drive dynamic transgene expression: The “Smart Graft” strategy. Xenotransplantation 2020, 27, e12634. [Google Scholar] [CrossRef]
  13. Dinarello, C.A.; van der Meer, J.W. Treating inflammation by blocking interleukin-1 in humans. Semin. Immunol. 2013, 25, 469–484. [Google Scholar] [CrossRef] [Green Version]
  14. Grenz, A.; Schenk, M.; Zipfel, A.; Viebahn, R. TNF-alpha and its receptors mediate graft rejection and loss after liver transplantation. Clin. Chem. Lab. Med. 2000, 38, 1183–1185. [Google Scholar] [CrossRef]
  15. Braud, V.M.; Allan, D.S.; O’Callaghan, C.A.; Söderström, K.; D’Andrea, A.; Ogg, G.S.; Lazetic, S.; Young, N.T.; Bell, J.I.; Phillips, J.H.; et al. HLA-E binds to natural killer cell receptors CD94/NKG2A, B and C. Nature 1998, 391, 795–799. [Google Scholar] [CrossRef]
  16. Sun, W.S.; Chun, J.L.; Kim, D.H.; Ahn, J.S.; Kim, M.K.; Hwang, I.S.; Kwon, D.J.; Hwang, S.; Lee, J.W. Molecular cloning and characterization of porcine ribosomal protein L21. J. Vet. Sci. 2017, 18, 531–540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Lee, H.; Hwang, I.S.; Vasamsetti, B.M.K.; Rallabandi, H.R.; Park, M.R.; Byun, S.J.; Yang, H.; Ock, S.A.; Lee, H.C.; Woo, J.S.; et al. Codon optimized membrane cofactor protein expression in α 1, 3 galactosyltransferase knockout pig cells improve protection against cytotoxicity of monkey serum. 3 Biotech 2020, 10, 108. [Google Scholar] [CrossRef]
  18. Park, M.Y.; Krishna Vasamsetti, B.M.; Kim, W.S.; Kang, H.J.; Kim, D.Y.; Lim, B.; Cho, K.; Kim, J.S.; Chee, H.K.; Park, J.H.; et al. Comprehensive Analysis of Cardiac Xeno-Graft Unveils Rejection Mechanisms. Int. J. Mol. Sci. 2021, 22, 751. [Google Scholar] [CrossRef] [PubMed]
  19. Iwase, H.; Liu, H.; Wijkstrom, M.; Zhou, H.; Singh, J.; Hara, H.; Ezzelarab, M.; Long, C.; Klein, E.; Wagner, R.; et al. Pig kidney graft survival in a baboon for 136 days: Longest life-supporting organ graft survival to date. Xenotransplantation 2015, 22, 302–309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Zou, L.; Zhang, Y.; He, Y.; Yu, H.; Chen, J.; Liu, D.; Lin, S.; Gao, M.; Zhong, G.; Lei, W.; et al. Selective germline genome edited pigs and their long immune tolerance in Non Human Primates. bioRxiv 2020. [Google Scholar] [CrossRef] [Green Version]
  21. Ullah, I.; Lee, R.; Oh, K.B.; Kim, Y.; Woo, J.S.; Hwang, S.; Im, G.S.; Ock, S.A. Stable Regulation of Senescence-Related Genes in Galactose-alpha1,3-galactose Epitope Knockout and Human Membrane Cofactor Protein hCD46 Pig. Transplant. Proc. 2019, 51, 2043–2050. [Google Scholar] [CrossRef]
  22. Hwang, S.; Oh, K.B.; Kwon, D.J.; Ock, S.A.; Lee, J.W.; Im, G.S.; Lee, S.S.; Lee, K.; Park, J.K. Improvement of cloning efficiency in minipigs using post-tawed donor cells treated with roscovitine. Mol. Biotechnol. 2013, 55, 212–216. [Google Scholar] [CrossRef]
  23. Lee, S.C.; Lee, H.; Oh, K.B.; Hwang, I.S.; Yang, H.; Park, M.R.; Ock, S.A.; Woo, J.S.; Im, G.S.; Hwang, S. Production and Breeding of Transgenic Cloned Pigs Expressing Human CD73. Dev. Reprod. 2017, 21, 157–165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Himanen, S.V.; Sistonen, L. New insights into transcriptional reprogramming during cellular stress. J. Cell Sci. 2019, 132, jcs238402. [Google Scholar] [CrossRef] [PubMed]
  25. Xia, C.; Cheshire, J.K.; Patel, H.; Woo, P. Cross-talk between transcription factors NF-kappa B and C/EBP in the transcriptional regulation of genes. Int. J. Biochem. Cell Biol. 1997, 29, 1525–1539. [Google Scholar] [CrossRef]
  26. Wang, X.; Xu, Z.; Tian, Z.; Zhang, X.; Xu, D.; Li, Q.; Zhang, J.; Wang, T. The EF-1α promoter maintains high-level transgene expression from episomal vectors in transfected CHO-K1 cells. J. Cell. Mol. Med. 2017, 21, 3044–3054. [Google Scholar] [CrossRef] [PubMed]
Genes 12 01046 g001 550

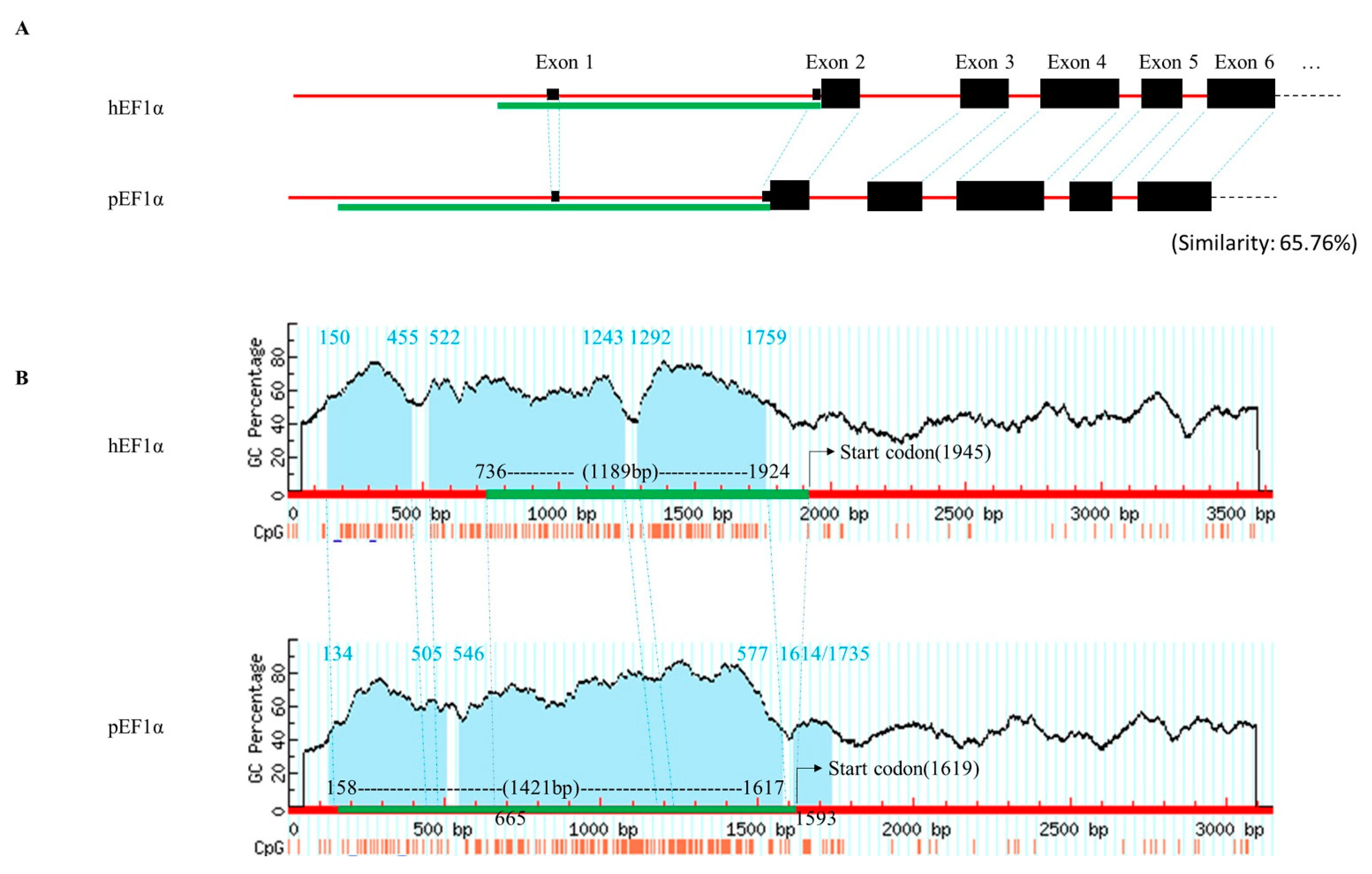

Figure 1. Sequence alignment of hEF1α and pEF1α, including the URS. (A) Structure comparison of the selected URS (red lines) of hEF1α and pEF1α. Exons are shown in black boxes. (B) Pairwise alignment of the URS of hEF1α and pEF1α. Three predicted CpG islands are filled with blue and indicated as numbers on top of the graph. Location of the CpG dinucleotides is indicated by vertical red bars under the x-axis. Ortholog gene sequences of pEF1α and hEF1α are connected on the map with dotted blue lines. Green lines indicate the locations of the promoters used in the current study. hEF1α, human elongation factor 1α; pEF1α, porcine elongation factor 1α; URS, upstream regulatory sequence.
Figure 1. Sequence alignment of hEF1α and pEF1α, including the URS. (A) Structure comparison of the selected URS (red lines) of hEF1α and pEF1α. Exons are shown in black boxes. (B) Pairwise alignment of the URS of hEF1α and pEF1α. Three predicted CpG islands are filled with blue and indicated as numbers on top of the graph. Location of the CpG dinucleotides is indicated by vertical red bars under the x-axis. Ortholog gene sequences of pEF1α and hEF1α are connected on the map with dotted blue lines. Green lines indicate the locations of the promoters used in the current study. hEF1α, human elongation factor 1α; pEF1α, porcine elongation factor 1α; URS, upstream regulatory sequence.
Genes 12 01046 g001
Genes 12 01046 g002 550

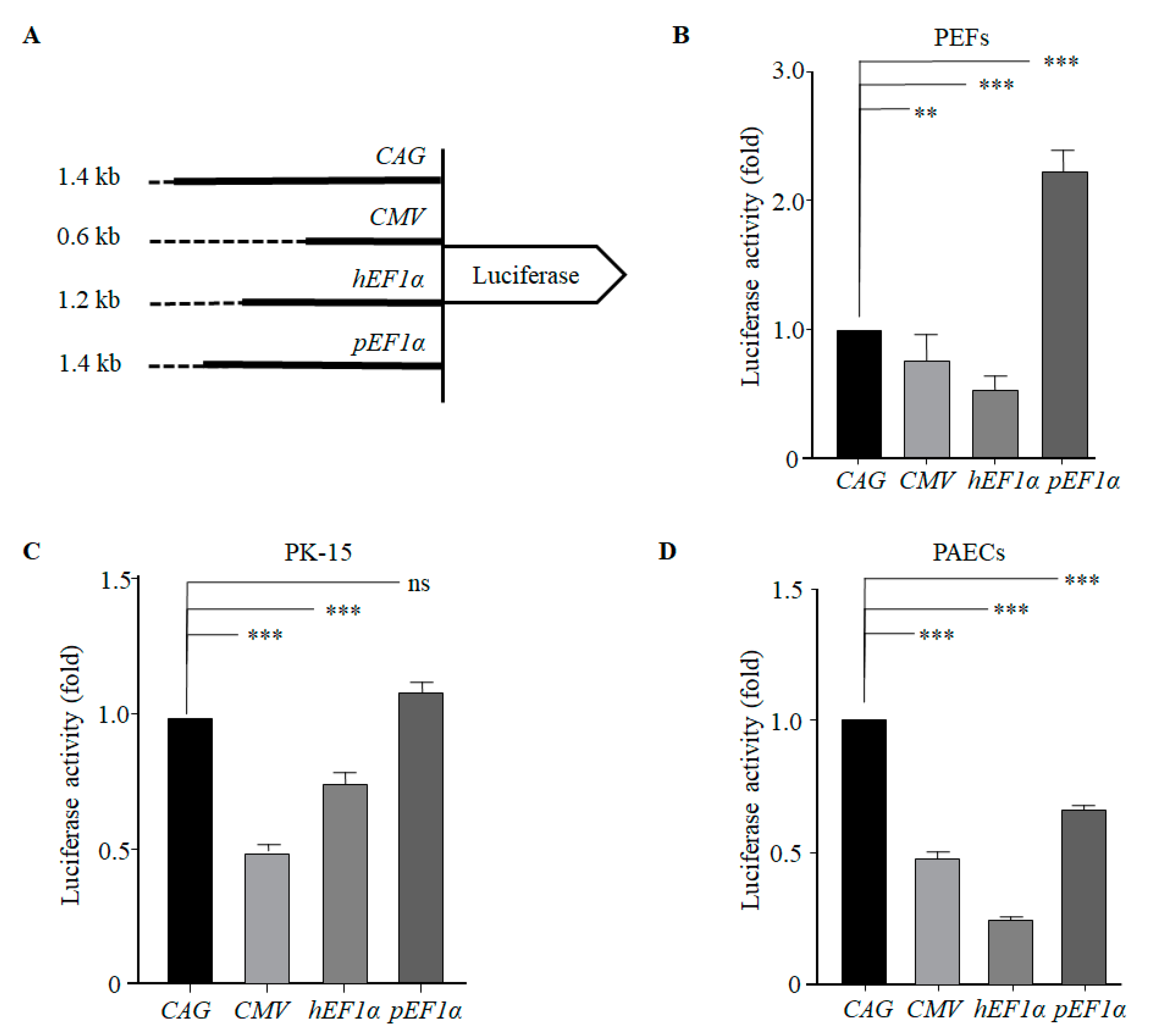

Figure 2. Relative activity of various promoters in regulating luciferase expression in different types of porcine cells. (A) Schematic diagram of the luciferase reporter constructs used in the study. Numbers on the left indicate the approximate length of the respective promoters. (B) Promoter activity in PEFs. (C) Promoter activity in PK-15 cells. (D) Promoter activity in PAECs. All values are normalized relative to values for the CAG promoter. CAG, cytomegalovirus enhancer/chicken β-actin promoter; CMV, cytomegalovirus promoter; hEF1α, human elongation factor 1α; pEF1α, porcine elongation factor 1α; PEFs, porcine ear skin fibroblasts; PAECs, porcine aortic endothelial cells. Values are means ± SEM calculated from three replicates; ns, no significant difference; **, p < 0.01; ***, p < 0.001.
Figure 2. Relative activity of various promoters in regulating luciferase expression in different types of porcine cells. (A) Schematic diagram of the luciferase reporter constructs used in the study. Numbers on the left indicate the approximate length of the respective promoters. (B) Promoter activity in PEFs. (C) Promoter activity in PK-15 cells. (D) Promoter activity in PAECs. All values are normalized relative to values for the CAG promoter. CAG, cytomegalovirus enhancer/chicken β-actin promoter; CMV, cytomegalovirus promoter; hEF1α, human elongation factor 1α; pEF1α, porcine elongation factor 1α; PEFs, porcine ear skin fibroblasts; PAECs, porcine aortic endothelial cells. Values are means ± SEM calculated from three replicates; ns, no significant difference; **, p < 0.01; ***, p < 0.001.
Genes 12 01046 g002
Genes 12 01046 g003 550
Figure 3. Comparative activity of the pEF1α promoter with that of the CAG promoter in regulating an immunomodulatory gene in different types of porcine cells. (A) Schematic of the cassettes for HLA-Ecw0304 and B2M (HLA-E) co-expression. Comparative expression of mRNA levels (B) and protein levels (C) of HLA-E in PEFs, -15 cells, and PAECs. pEF1α, porcine elongation factor 1α; HLA-E, human leukocyte antigen E; F2A, 2A self-cleaving peptides; B2M, β-2 microglobulin; p(A), poly A; Neo®®, neomycin resistance. PEFs, porcine ear skin fibroblasts; PAECs, porcine aortic endothelial cells. ***, p < 0.001.
Figure 3. Comparative activity of the pEF1α promoter with that of the CAG promoter in regulating an immunomodulatory gene in different types of porcine cells. (A) Schematic of the cassettes for HLA-Ecw0304 and B2M (HLA-E) co-expression. Comparative expression of mRNA levels (B) and protein levels (C) of HLA-E in PEFs, -15 cells, and PAECs. pEF1α, porcine elongation factor 1α; HLA-E, human leukocyte antigen E; F2A, 2A self-cleaving peptides; B2M, β-2 microglobulin; p(A), poly A; Neo®®, neomycin resistance. PEFs, porcine ear skin fibroblasts; PAECs, porcine aortic endothelial cells. ***, p < 0.001.
Genes 12 01046 g003
Genes 12 01046 g004 550
Figure 4. The pEF1α promoter mediates significant increases in heterologous gene expression in response to primate serum in PAECs. (A) Luciferase activity, mRNA expression levels, and protein expression levels of HLA-E transgenes in PAECs transiently transfected with the expression cassettes presented in Figure 3A, followed by incubation in culture medium supplemented with pig serum. (B) Luciferase activity, mRNA expression levels, and protein expression levels of HLA-E transgenes in transfected PAECs incubated in culture medium supplemented with primate serum. (C–E) Expression pattern of endogenous pEF1α (C), TF (D), and ICAM2 (E) in PAECs cultured with porcine serum and primate serum for 1, 2, 3, 5, and 7 h. CAG, cytomegalovirus enhancer/chicken β-actin promoter; pEF1α, porcine elongation factor 1α; HLA, human leukocyte antigen E; ICAM2, intercellular adhesion molecule 2; TF, tissue factor. Values are means ± SEM calculated from three replicates. *, p < 0.05; **, p < 0.01; ***, p < 0.001.
Figure 4. The pEF1α promoter mediates significant increases in heterologous gene expression in response to primate serum in PAECs. (A) Luciferase activity, mRNA expression levels, and protein expression levels of HLA-E transgenes in PAECs transiently transfected with the expression cassettes presented in Figure 3A, followed by incubation in culture medium supplemented with pig serum. (B) Luciferase activity, mRNA expression levels, and protein expression levels of HLA-E transgenes in transfected PAECs incubated in culture medium supplemented with primate serum. (C–E) Expression pattern of endogenous pEF1α (C), TF (D), and ICAM2 (E) in PAECs cultured with porcine serum and primate serum for 1, 2, 3, 5, and 7 h. CAG, cytomegalovirus enhancer/chicken β-actin promoter; pEF1α, porcine elongation factor 1α; HLA, human leukocyte antigen E; ICAM2, intercellular adhesion molecule 2; TF, tissue factor. Values are means ± SEM calculated from three replicates. *, p < 0.05; **, p < 0.01; ***, p < 0.001.
Genes 12 01046 g004
Genes 12 01046 g005 550

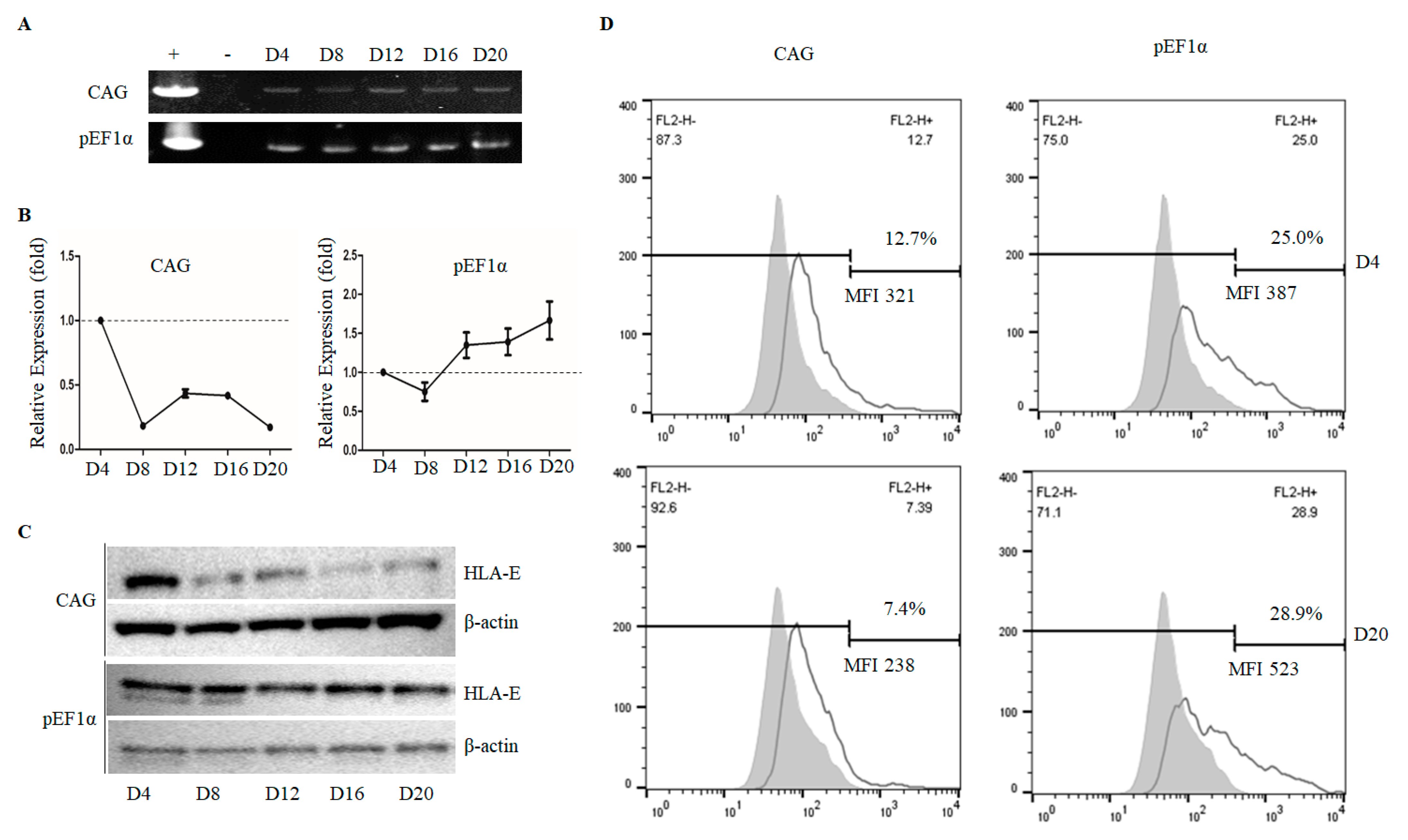

Figure 5. The pEF1α promoter mediates stable HLA-E expression during long-term culture. (A) CAG- and the pEF1α-HLA-E expression cassettes were transfected into PEFs and then selected as described in detail in the Materials and Methods. Genotype analysis revealed that the transfectants carried the cassettes on day 4 (D4), day 8 (D8), day 12 (D12), day 16 (D16), and day 20 (D20) after 10 days of primary selection. (B) Comparative analysis of HLA-E mRNA expression at D20 compared with that at D4. Values are means ±SEM calculated from three replicates. (C) Western blot analysis of HLA-E expression on different days of selection. (D) Flow cytometry analysis for HLA-E at D20 compared with that at D4. “+”, positive control; “−”, negative control; CAG, cytomegalovirus enhancer/chicken β-actin promoter; pEF1α, porcine elongation factor 1α; HLA, human leukocyte antigen E; MFI, mean fluorescence intensity.
Figure 5. The pEF1α promoter mediates stable HLA-E expression during long-term culture. (A) CAG- and the pEF1α-HLA-E expression cassettes were transfected into PEFs and then selected as described in detail in the Materials and Methods. Genotype analysis revealed that the transfectants carried the cassettes on day 4 (D4), day 8 (D8), day 12 (D12), day 16 (D16), and day 20 (D20) after 10 days of primary selection. (B) Comparative analysis of HLA-E mRNA expression at D20 compared with that at D4. Values are means ±SEM calculated from three replicates. (C) Western blot analysis of HLA-E expression on different days of selection. (D) Flow cytometry analysis for HLA-E at D20 compared with that at D4. “+”, positive control; “−”, negative control; CAG, cytomegalovirus enhancer/chicken β-actin promoter; pEF1α, porcine elongation factor 1α; HLA, human leukocyte antigen E; MFI, mean fluorescence intensity.
Genes 12 01046 g005
Table
Table 1. Primers used in this study.
Table 1. Primers used in this study.
ExperimentGene SymbolAmplicon Size (bp)Primer (5′→3′)
Real-time PCRhHLA-E501GGGCTACCCGAGCCCGTCACCCTGAGATGG
TTCAATTCTCTCTCCATTCTTCAGTAAGTC
pGAPDH219TCGGAGTGAACGGATTTG
CCTGGAAGATGGTGATGG
pTF181AACTGAATGTGACCGTAGAAGCTG
CCTTTATCCACGTCAATCAGAAAC
pEF1α136TGGATTGCATTCTACCACCA
ACCATGCCAGGTTTGAGAAC
pICAM2117CGTGCTGCTCTTCTTGTTTG
CACCTCAGCCTCCTCTGAAC
GenotypinghHLA-E1274ATTTCCACACTTCCGTGTCC
TTCAATTCTCTCTCCATTCTTCAGTAAGTC
GAPDH, glyceraldehyde 3-phosphate dehydrogenase; HLA-E, human leukocyte antigen E; TF, tissue factor; EF1α, elongation factor 1α; ICAM2, intercellular adhesion molecule 2; h, human; p, pig.
