Article

Arabidopsis NPF4.6 and NPF5.1 Control Leaf Stomatal Aperture by Regulating Abscisic Acid Transport

1
RIKEN Center for Sustainable Resource Science, Kanagawa 230-0045, Japan
2
Graduate School of Science and Technology, Nara Institute of Science and Technology, Nara 630-0192, Japan
*
Author to whom correspondence should be addressed.
Academic Editors: Sonia Gazzarrini and Eiji Nambara
Genes 2021, 12(6), 885; https://doi.org/10.3390/genes12060885
Received: 7 May 2021 / Revised: 31 May 2021 / Accepted: 4 June 2021 / Published: 8 June 2021

Abstract

The plant hormone abscisic acid (ABA) is actively synthesized in vascular tissues and transported to guard cells to promote stomatal closure. Although several transmembrane ABA transporters have been identified, how the movement of ABA within plants is regulated is not fully understood. In this study, we determined that Arabidopsis NPF4.6, previously identified as an ABA transporter expressed in vascular tissues, is also present in guard cells and positively regulates stomatal closure in leaves. We also found that mutants defective in NPF5.1 had a higher leaf surface temperature compared to the wild type. Additionally, NPF5.1 mediated cellular ABA uptake when expressed in a heterologous yeast system. Promoter activities of NPF5.1 were detected in several leaf cell types. Taken together, these observations indicate that NPF5.1 negatively regulates stomatal closure by regulating the amount of ABA that can be transported from vascular tissues to guard cells.
Keywords: abscisic acid (ABA); Arabidopsis thaliana L.; guard cells; NITRATE TRANSPORTER 1/PEPTIDE TRANSPORTER FAMILY (NPF); transporter abscisic acid (ABA); Arabidopsis thaliana L.; guard cells; NITRATE TRANSPORTER 1/PEPTIDE TRANSPORTER FAMILY (NPF); transporter

1. Introduction

The plant hormone abscisic acid (ABA) plays crucial roles in various processes such as seed development, germination and responses to abiotic and biotic stresses [1,2,3]. Frequently, these physiological responses are associated with changes in endogenous ABA levels. For example, ABA levels increase in response to water deficit to induce stomatal closure and the expression of stress-responsive genes [4,5,6]. In developing seeds, ABA levels peak during the middle stage when seeds accumulate storage compounds and acquire desiccation tolerance [7,8,9]. Therefore, the concentration of ABA within plants is a key determinant of ABA-mediated physiological responses.
The amount of ABA within a cell is defined by the balance between biosynthesis and catabolism. To date, most of the genes and enzymes involved in ABA metabolism have been identified [10]. It is now widely accepted that the enzymatic reaction catalyzed by nine-cis-epoxycarotenoid dioxygenase (NCED) is the rate-limiting step for ABA biosynthesis. Among five NCEDs in Arabidopsis (NCED2, 3, 5, 6 and 9), NCED3 plays a central role in the drought-inducible accumulation of ABA in vegetative organs [11,12]. On the other hand, NCED6 and NCED9 are the main NCEDs that contribute to ABA production in Arabidopsis seeds [13]. Expression of NCED3 is rapidly induced upon water deficit [11,14], whereas mRNA levels of NCED6 and NCED9 are regulated by environmental factors that affect seed dormancy and germination (e.g., light and temperature) during imbibition [15,16]. Recently, the expression of NCED3 was reported to be regulated by the CLE25 peptide [17]. A transcription factor (NGATHA1) that directly binds to the NCED3 promoter has also been identified [18], although its relationship to CLE25 is currently unknown. A number of studies in other plant species have documented the presence of NCED(s) in vegetative organs and seeds whose expression is regulated by environmental factors [4,19,20,21,22,23]. ABA 8’-hydroxylase, belonging to the CYP707A subfamily of cytochrome P450s, is well established as the rate-limiting enzyme of ABA catabolism. There are four CYP707As (CYP707A1-4) that function as ABA 8’-hydroxylases in Arabidopsis [24,25] and differentially regulate various physiological processes. For example, the expression of CYP707A3 is strongly induced by rehydration of plants after dehydration, indicating that the gene product plays an important role in drought stress responses [24,26]. In fact, mutants defective in CYP707A3 accumulate higher levels of ABA during water deficit and subsequent rehydration compared to the wild type. In contrast, CYP707A1 and CYP707A2 are highly expressed in the middle and late stages of seed development, respectively. Mutant seeds defective in these genes exhibit deeper dormancy and have a higher ABA content compared to the wild type [27]. The physiological functions of CYP707As that are involved in ABA catabolism have also been studied in other plant species [22,23,28,29,30].
In addition to the well-studied regulatory roles of ABA biosynthesis and catabolism, recent studies have demonstrated that transmembrane transport of ABA is also an important factor determining the cellular hormone content and, hence, the resulting physiological responses [10,31]. Studies on the localization of ABA biosynthetic enzymes within plants have shown that leaf vascular tissues, more specifically phloem companion cells, are the main site of ABA biosynthesis during water stress responses [5,32,33]. This finding indicates that ABA synthesized in vascular tissues has to be translocated to guard cells to induce stomatal closure. In fact, three types of transporter families, namely ATP binding cassette (ABC), NITRATE TRANSPORTER 1/PEPTIDE TRANSPORTER FAMILY (NPF) and Detoxification Efflux Carriers (DTX)/Multidrug and Toxic Compound Extrusion (MATE) proteins that possibly regulate the process have been identified. In Arabidopsis, genes encoding the subgroup G ABC protein (ABCG) ABCG25 and the NPF protein NPF4.6, which was originally identified as the low-affinity nitrate transporter NRT1.2 and also called AIT1 after ABA IMPORTING TRANSPORTER 1, are expressed in vascular tissues and possibly facilitate ABA export and import from/into the cells, respectively [34,35]. Genes encoding another ABCG protein ABCG40 (also referred to as PDR12 after PLEIOTROPIC DRUG RESISTANCE 12) and the DTX/MATE protein DTX50 that functions as an ABA importer and exporter, respectively, are expressed in guard cells [36,37]. In Arabidopsis seeds, ABCG25 and ABCG31 export ABA from the endosperm, whereas ABCG30 and ABCG40 import ABA into the embryo [38]. Possible ABA transporters have also been identified in several other plant species [10,39,40,41,42,43,44]. These investigations indicate that the movement of ABA within plants must be regulated by multiple steps.
In this study, we found that Arabidopsis NPF4.6 was localized in the guard cells of leaves in addition to vascular tissues. Furthermore, we found that mutants defective in NPF5.1 (npf5.1) had higher leaf surface temperatures compared to the wild type. When expressed in yeast cells, NPF5.1 mediated cellular ABA uptake, indicating that this protein also functions as an ABA importer. We discuss how the two NPFs coordinately regulate stomatal aperture through the transport of ABA.

2. Materials and Methods

2.1. Plant Materials and Growth Conditions

Arabidopsis (Arabidopsis thaliana (L.) Heynh.) accession Columbia-0 (Col-0) was used as the wild type. T-DNA insertion lines were obtained from the Arabidopsis Biological Resource Center. aao3-4 (SALK_072361) and npf4.6-1 (ait1-1) (SALK_146143) were isolated in previous studies [35,45]. Homozygous npf5.1-1 (SALK_085919) and npf5.1-2 (SALK_000464) were selected by PCR using primer combinations designed by the T-DNA Primer Design Tool (http://signal.salk.edu/tdnaprimers.2.html, accessed on 25 March 2014). Transgenic plant lines (pNPF4.6:gNPF4.6-GUS, 35S:NPF5.1 and pNPF5.1:GUS) were generated by transformation using Agrobacterium strain GV3101.
After surface sterilization with 70% (v/v) ethanol and then with 5% (v/v) NaClO (0.25% active chlorine) containing 1% (w/v) Tween 20, seeds were sown on plates containing half-strength MS media and 0.8% (w/v) agar. The plates were incubated at 4 °C for 3 d in the dark and then incubated at 22 °C under continuous light (50 μ moles/m 2/s). For measurements of leaf surface temperature and quantification of plant hormones, young seedlings (around 7-d-old) were transplanted on soil containing vermiculite and Metro-mix 350 (Sun Gro Horticulture, MA, USA) at a 3:1 ratio and grown under day (10 h) and night (14 h) conditions. For GUS staining and seed propagation for germination assays, plants were grown under continuous light after transplanting.

2.2. Germination Assays

Surface sterilized seeds were sown on plates containing half-strength MS media and 0.8% (w/v) agar with or without supplementation with 0.5 μM ABA. ABA was dissolved in DMSO at a concentration 1000 times greater than the final concentration used in the assay. The stock ABA solution was added to the cooled autoclaved media. DMSO was added to the control media. Plates were incubated at 4 °C for 3 d, and the numbers of germinated seedlings with green cotyledons were scored after transferring the plates to lighted conditions at 22 °C.

2.3. Vector Construction

For expression of NPF5.1 in yeast, NPF5.1 CDS cloned in pENTR/D-TOPO (Thermo Fisher, Waltham, MA, USA) was transferred to pYES-DEST52 (Thermo Fisher, Waltham, MA, USA) by LR reactions [46].
To generate pNPF4.6:gNPF.6-GUS plants, a promoter region (2 kb upstream of the ATG start codon) of NPF4.6 was amplified by PCR with the primer pair 5′-CACCATTAATATATTGCGGCTA-3′/5′-TCTCTCTCTTTCTTTCTCTC-3′ and cloned into pENTR/D-TOPO. The genomic sequence of NPF4.6 was amplified by PCR with the primer pair 5′-AAAGAAAGAGAGAGAATGGTGGGTTCTTGAAGCTTCTCACATTATTTTC-3′/5′-GGCGCGCCCACCCTTGCTTCTTGAACCAGTTGATCTATACTTGTA-3′ and combined with the 2 kb upstream region cloned in pENTR/D-TOPO that had been linearized by inverse PCR with the primer pair 5′-AAGGGTGGGCGCGCCGACCCAGC-3′/5′-TCTCTCTCTTTCTTTCTCTCAAACTTTGAG-3′ using an In-Fusion Cloning Kit (Takara Bio, Shiga, Japan). The NPF4.6 promoter plus genomic sequence was cloned into pGWB3 [47] by LR reactions.
For guard-cell specific expression of NPF4.6, the Arabidopsis MYB60 promoter region [48] and the NPF4.6 CDS were amplified by PCR with primer pairs 5′-AAGCTTGGGTTCCCTCTGCTGTATG-3′/5′-GTCGACCTTTCTCTCTCTCTCTTCCTCTAG-3′ and 5′-TCTAGAGTCGACATGGAAGTGGAAGAAGAGGT-3′/5′-GGTACCTTAGCTTCTTGAACCAGTTG-3′, respectively, and cloned into pT7Blue (Novagen, Darmstadt, Germany). The MYB60 promoter sequence was cloned into pBIB-HYG [49] using the Hind III and Sal I restriction sites. NPF4.6 CDS was then cloned into pBIB-HYG containing MYB60 promoter using the Sal I and Kpn I restriction sites.
For transient expression of GFP-fused NPF5.1 in onion epidermal cells, the NPF5.1 CDS cloned in pENTR/D-TOPO was transferred to pUGW5 [47] by LR reactions. pUGW2 [47] was used for the transient expression of GFP alone.
To generate 35S:NPF5.1 plants, the NPF5.1 CDS was amplified by PCR with a primer pair 5′-GCCGCCCCCTTCACCATGGAGGCTGCAAAAGTTTA-3′/5′-AGCTGGGTCGGCGCGTTAGATACTAAGAGGAGATGTGTC-3′ and cloned into pENTR4 (Thermo Fisher) using an In-Fusion Cloning Kit (Takara Bio). After confirming the sequence, the NPF5.1 CDS was cloned into pGWB402-omega [50] by LR reactions.
To generate pNPF5.1:GUS plants, a promoter (the 3 kb region upstream of the ATG start codon) region of NPF5.1 was amplified by PCR with the primer pair 5′-GCCGCCCCCTTCACCTACTAAGATGTTTATTGGTTGA-3′/5′-AGCTGGGTCGGCGCGTAATTGTTTTTTCTGTTTATATCAA-3′ and cloned into pENTR/D-TOPO that had been linearized by inverse PCR with the primer pair 5′-CGCGCCGACCCAGCTTTCTTG-3′/5′-GGTGAAGGGGGCGGCCGCGG-3′ using an In-Fusion Cloning Kit. The NPF5.1 promoter sequence was cloned into pGWB3 by LR reactions.

2.4. Thermal Imaging

Thermal images were obtained using a thermal video system (TVS-8500; Nippon Avionics, Kanagawa, Japan).

2.5. GUS Staining

GUS staining was performed using a solution composed of 50 mM sodium phosphate buffer (pH 7.2), 10 mM EDTA, 0.05% (v/v) Triton X-100, 0.5 mM potassium ferrocyanide, 0.5 mM potassium ferricyanide and 1 mM X-Gluc. Close-up views were observed using a Leica M205 stereo microscope or a Leica DM2500 (Leica Camera AG, Wetzlar, Germany) microscope.

2.6. Transport Assays

The NPF5.1 CDS cloned in pYES-DEST52 was introduced into the Saccharomyces cerevisiae strain INVSc1 (Thermo Fisher). As a negative control, yeast cells were transformed with the empty pYES-DEST52 vector. Assays were conducted as described previously [51]. Yeast cells expressing NPF5.1 were incubated with 1 or 10 μM substrates for 10 min in 50 mM potassium phosphate buffer (KPB) (pH 5.8). Extraction, purification, quantification by LC-MS/MS were performed, as described previously [44].

2.7. ABA Measurements

Endogenous levels ABA were quantified as described previously [51]. Samples were purified using Oasis HLB, MCX and WAX column cartridges (1 cc, Waters, MA, USA).

2.8. Chemicals

(±)-ABA was purchased from Sigma-Aldrich (MO, USA). (+)-ABA was purchased from Tokyo Chemical Industry Co (Tokyo, Japan). (D6) ABA was purchased from Icon Isotope (MI, USA).
(±)-ABA was used for germination assays, whereas (+)-ABA was used for transport assays.

2.9. Quantitative Reverse Transcription-PCR

Quantification of mRNA levels was performed as described previously [52]. Total RNA was prepared from 7-d-old seedlings of wild type and npf5.1 mutants. The primer pair 5′-GCGGTTTGGATCACTCCCAT-3′/5′-GTCAAGAGAATCATCCCCAGGAC-3′ was used to detect NPF5.1 cDNA. Expression levels were normalized against the levels of 18S rRNA.

2.10. Transient Expression of GPF Fused NPF5.1 in Onion Epidermal Cells

One milligram of gold particles (1 µm diameter, Bio-Rad, Hercules, CA, USA) were coated with 2 µg plasmid DNA for each bombardment. Onion bulb scales were placed with their inner side up on 1.5% (w/v) agar plates. Gold particles coated with plasmid DNA were introduced into the inner epidermal cells of an onion by particle bombardment at 1100 psi using a PDS-1000 He Biolistic Particle Delivery System (Bio-Rad). After bombardment, the onion bulb scales were incubated in moist conditions overnight at 25 °C in the dark. GFP fluorescence was observed using a confocal laser scanning microscope LSM700 (Carl Zeiss, Oberkochen, Germany). Onion epidermal peels were stained with 50 μM propidium iodide solution to visualize the cell walls. To observe plasmolysis, 20% (w/v) mannitol was used.

3. Results

3.1. NPF4.6 Mediates ABA Uptake into Guard Cells

We previously showed that NPF4.6 functions as an ABA importer in Arabidopsis [35]. The inflorescence stems of mutants defective in NPF4.6 (npf4.6) had lower surface temperatures with more open stomata; however, the mutants did not show any clear leaf phenotypes, presumably due to redundancies with other ABA transporters. Therefore, the physiological roles of NPF4.6 remained not fully understood. To examine the contribution of NPF4.6 in the regulation of leaf stomatal apertures, we first investigated the effects of reduced endogenous ABA levels on the phenotypes of npf4.6. In Arabidopsis, there are four genes encoding aldehyde oxidase (AAO1-4) [53]. Although the AAO3 product plays a central role in the conversion of abscisic aldehyde to ABA, other isoforms could replace the function of AAO3, at least in the loss of function aao3 mutant background [45,53,54]. Therefore, aao3 has a relatively mild phenotype. When cultivated under well-watered conditions, aao3 did not show the growth retardation that is a typical symptom of mutants severely affected in ABA biosynthesis (Figure 1); however, the leaf surface temperature of the mutant was reduced compared to the wild type. In the same conditions, npf4.6 was not distinguished from wild type in terms of leaf surface temperature as we reported previously. Nevertheless, we found that the npf4.6 mutation was able to enhance the “cool” phenotype observed in the aao3 mutant background (Figure 1), indicating that NPF4.6 is potentially a positive regulator of stomatal closure.
Since the promoter activities of NPF4.6 were detected in the vascular tissues of leaves where ABA is supposed to be synthesized [35], we hypothesized that the protein regulates the amount of ABA transported from the tissues by mediating cellular ABA uptake. However, if this is the case, one may imagine that the loss of NPF4.6 function would result in an increased amount of ABA transported from the vascular tissues to guard cells and, hence, reduce the stomatal aperture (increased leaf surface temperature). One possible explanation for this unexpected result is that NPF4.6 is present also in guard cells and transports ABA into the cells. To examine this possibility, we generated transgenic plants that contained a transgene in which the GUS reporter gene was placed after the NPF4.6 genomic sequence so that the GUS fused NPF4.6 protein was expressed under the control of the NPF4.6 native promoter (pNPF4.6:gNPF4.6-GUS) (Figure 2). As in the case of simple promoter-GUS lines, GUS staining was clearly detected in leaf vascular tissues in the pNPF4.6:gNPF4.6-GUS plants (Figure 2A,B). In addition, closer investigation revealed that guard cells of the transgenic plants were also stained with GUS (Figure 2C,D). These results indicated that NPF4.6 is localized to both the vascular tissues and the guard cells.
To examine whether the lack of NPF4.6 proteins present in guard cells is the cause of the reduced leaf surface temperature in the aao3 npf4.6 double mutant compared to the single aao3 mutant, we expressed wild-type NPF4.6 using a guard cell-specific Arabidopsis MYB60 promoter in the double mutant background (Figure 3). Three independent transgenic lines had higher leaf surface temperatures compared to the original aao3 npf4.6 double mutant, although there were variations in the degree of the effect. Altogether, these observations support the idea that NPF4.6 localized in guard cells facilitates ABA uptake into the cells and promotes stomatal closure.

3.2. Identification of Another NPF That Regulates Stomatal Aperture

Our previous study showed that several Arabidopsis NPF proteins other than NPF4.6 were able to induce interactions between the ABA receptor PYR1 and the PP2C protein phosphatase ABI1 in yeast under low ABA concentrations in the growth media [35,46], indicating that other NPF proteins can mediate ABA uptake into the cells. NPF5.1 was one of the identified proteins [46], and transcriptome data available in a public database (Arabidopsis eFP Browser; http://bar.utoronto.ca/efp/cgi-bin/efpWeb.cgi, accessed on 5 April 2016) indicate that the expression of NPF5.1 is induced by exogenous ABA treatment (Supplemental Figure S1). Thus, we hypothesized that NPF5.1 might somehow be involved in ABA-mediated physiological responses and examined this possibility.
We obtained two alleles of the loss-of-function npf5.1 mutants (npf5.1-1 and npf5.1-2) from T-DNA insertion lines (Supplemental Figure S2). Observing the mutants with an infrared thermal imaging camera showed that both mutants had higher leaf surface temperatures compared to the wild type, suggesting that NPF5.1 is a negative regulator of stomatal closure (Figure 4). In this experiment, we took thermographic images just after detaching the rosette leaves from roots. This step was necessary because the phenotype was relatively weak, and the leaf surface temperature was affected by its contact with the wet soil when observations were made on intact potted plants. Again, clear differences in the leaf surface temperature were not observed between wild type and the npf4.6 single mutant. If, however, we introduced an npf5.1 mutation into the npf4.6 mutant background, the phenotype observed in the original npf5.1 mutant was suppressed (Figure 4). This result supports the idea that NPF4.6 is a positive regulator of stomatal closure. In addition, the higher leaf surface temperature observed in npf5.1 is likely to require the function of NPF4.6.

3.3. NPF5.1 Has an ABA Uptake Activity

We then examined whether NPF5.1 can transport ABA. Yeast cells expressing NPF5.1 were incubated with solutions containing ABA, and the amount of compound taken into the cells was quantified by liquid chromatography-tandem mass spectrometry (LC-MS/MS). The results clearly showed that NPF5.1 mediated cellular ABA uptake when the substrate concentrations were 1 and 10 μM (Figure 5).
The accumulation of ABA in the NPF5.1-expressing yeast cells indicated that the protein was localized to the plasma membrane. To determine if this localization site is also the case in plant cells, we transiently expressed GFP-fused NPF5.1 proteins in onion epidermal cells by particle bombardment (Figure 6). Fluorescence was detected broadly in the cells expressing GFP alone; in contrast, the signals were localized to the plasma membrane in the cells expressing NPF5.1-GFP fusion proteins.
If NPF5.1 is localized to the plasma membrane and mediates cellular ABA uptake, overexpression of the protein should result in enhanced ABA sensitivity as we have shown for NPF4.6 [35]. Two independent transgenic lines that overexpress NPF5.1 (35S:NPF5.1) were tested for their responsiveness to exogenously applied ABA during germination. Our result indicates that the overexpressors were more sensitive to the treatment in terms of inhibiting cotyledon greening compared to the wild type (Figure 7).

3.4. Endogenous ABA Levels in NPF5.1

ABA is reported to move long distances within plants, for example, from roots to shoots and vice versa [31]. Therefore, the increased leaf surface temperature observed in npf5.1 might be caused by an accumulation of ABA in leaves due to altered long-distance ABA transport. To examine this possibility, we quantified the endogenous ABA content in rosette leaves of wild type and npf5.1 (Supplemental Figure S3) and found that the levels were comparable between wild type and the mutant.

3.5. Spatial Expression Patterns of NPF5.1

To understand how NPF5.1 regulates stomatal aperture, it is important to know where the protein functions. We found that promoter activities of NPF4.6 and NPF4.6-GUS proteins were not always detected in the same cells (Figure 1) [35]. Therefore, we first generated transgenic plants that express GUS-fused NPF5.1 proteins under the control of the NPF5.1 promoter; however, we were unable to detect GUS activities in the transgenic lines possibly due to low levels of protein accumulation. Accordingly, we visualized promoter activities of NPF5.1 using a 3 kb region upstream of the ATG start codon and the GUS reporter gene (pNPF5.1:GUS) (Figure 8). In young seedlings, the NPF5.1 promoter was active in true leaves, weakly active in cotyledons, and no activity was detected in the roots. In rosette leaves, GUS staining was observed in many leaf tissues, including mesophyll/epidermal cells, vascular tissues and trichomes. Unlike the case of NPF4.6, the promoter activities of NPF5.1 were not strong in the primary and secondary leaf veins. Furthermore, no GUS activity was specifically detected in the guard cells of the transgenic plants.

4. Discussion

Although earlier studies reported that ABA is synthesized in the roots in response to soil drying, it is now widely accepted that drought-inducible ABA biosynthesis takes place mainly in leaf vascular tissues [31]. ABA synthesized in the guard cells has also been reported to induce stomatal closure [55]. The recent identification of ABA transporters indicates that stomatal aperture is regulated by multiple steps through ABA export and import between the vascular tissues and guard cells [10,31]. We previously identified Arabidopsis NPF4.6 as an ABA importer [35]. Promoter-reporter analysis indicated that NPF4.6 was expressed in leaf vascular tissues and inflorescence stems. Therefore, we hypothesized that NPF4.6 limits the amount of ABA exported from the vascular tissues by facilitating cellular ABA uptake at the site of its active biosynthesis. However, this model cannot explain completely the reduced stomatal apertures observed in the inflorescence stems of npf4.6. In addition, the contribution of NPF4.6 in regulating stomatal aperture in leaves was not clear. In this study, we found that the aao3 npf4.6 double mutant had a lower leaf surface temperature compared to the aao3 single mutant (Figure 1), indicating that NPF4.6 is potentially a positive regulator of stomatal closure in leaves. Again, this finding is somewhat contradictory to the possible function of NPF4.6 as an ABA importer that is localized in leaf vascular tissues; one may expect that the loss of NPF4.6 function would result in an increased amount of ABA translocated to guard cells and, hence, reduced stomatal aperture. One possibility to explain these results would be that NPF4.6 is present in guard cells, although promoter activity of NPF4.6 was not detected there. In fact, GUS activities were detected in guard cells as well as in vascular tissues in leaves of pNPF4.6:gNPF4.6-GUS transgenic plants (Figure 2). Regulatory regions for transcription and/or translation may be present in the NPF4.6 genome sequence. It is also possible that NPF4.6 proteins are stabilized by unknown factors in guard cells. Expression of NPF4.6 specifically in the guard cells of aao3 npf4.6 increased the leaf surface temperature of the double mutant (Figure 3), indicating that the positive effect of NPF4.6 on stomatal closure relies on the proteins localized in guard cells. Variations in the effects of guard cell-expressed NPF4.6 on leaf surface temperature among the three independent lines tested in this study are possibly due to different expression levels of the transgene that can be influenced by the location of the insertion sites and/or copy number. The physiological roles of NPF4.6 present in vascular tissues are still unknown. In the future, it will be important to precisely determine the localization of NPF4.6 proteins within vascular tissues and to see the effects of cell type-specific expression of NPF4.6 on the phenotypes of aao3 npf4.6.
NPF proteins were originally identified as nitrate or peptide transporters [56]. More recent studies have demonstrated that the member proteins of this family transport a variety of compounds, including plant hormones (ABA, gibberellin (GA), auxin and jasmonoyl isoleucine (JA-Ile)) [35,57,58,59,60,61], secondary metabolites (glucosinolates and alkaloids) [62,63,64], and nutrients (potassium and chloride) [65,66,67]. The Arabidopsis genome encodes 53 NPFs; however, their biochemical and physiological functions are still largely unknown [68]. We previously identified several NPFs that can transport ABA [35,46]. Among them, NPF5.1 had a relatively weak impact on the ABA-dependent PYR1–ABI1 interactions in yeast [46], but we confirmed that the protein did mediate ABA uptake into the cells by direct analysis with LC-MS/MS (Figure 5). The apparently low ABA transport activities of NPF5.1 might be due to lower protein accumulation levels in yeast, although we could not determine this possibility. Thus, it is still possible that NPF5.1 could efficiently transport ABA within plants. Our previous study also indicated that NPF5.1 transports GA in addition to ABA when expressed in yeast [46]. We hypothesize that NPF5.1 is a multifunctional transporter as has been reported, for example, for NPF4.6 (nitrate and ABA) [35,69], NPF2.10 (glucosinolates, GA and JA-Ile) [58,61,62], and NPF7.3 (nitrate, potassium and indole-3-butyric acid) [52,67,70]. Nevertheless, we focused on the role of NPF5.1 on ABA transport in this study.
The expression of genes involved in ABA biosynthesis, catabolism, signaling and transport are reportedly regulated by the hormone. The Arabidopsis eFP Browser (http://bar.utoronto.ca/efp/cgi-bin/efpWeb.cgi, accessed on 5 April 2016) indicated that the expression of NPF5.1 is induced by exogenous ABA treatment ( Supplemental Figure S1). Therefore, we hypothesized that NPF5.1 might also be involved in ABA-mediated physiological responses, although the physiological meaning of this gene expression was not known. Although NPF4.6 positively regulates stomatal closure, NPF5.1 appeared to function as a negative regulator of the process because the loss-of-function npf5.1 mutants had higher leaf surface temperatures compared to the wild type (Figure 4). Based on the observation that the promoter activities of NPF5.1 were detected in leaf vascular tissues as well as in the mesophyll and/or epidermal cells (Figure 8), we propose a model in which NPF5.1 regulates the amount of ABA transported from the vascular tissues to the guard cells by mediating cellular ABA uptake (Supplemental Figure S4). As mentioned above, promoter activity and protein accumulation can be detected in different places, but we were unable to observe the distribution of NPF5.1. Tissue/cell-type-specific expression of NPF5.1 in the npf5.1 mutant background and monitoring the effects on the mutant phenotype will be required to identify the functional sites of NPF5.1. According to our model, the loss-of-function of both NPF4.6 and NPF5.1 should result in an increased amount of ABA that can travel through the apoplastic space. Nevertheless, npf4.6 npf5.1 had lower leaf surface temperatures compared to npf5.1. This result can be explained by the defect in NPF4.6 that mediates ABA uptake into the guard cells (Supplemental Figure S4).

5. Conclusions

In conclusion, our study demonstrates that two Arabidopsis NPF proteins, which function as ABA importers, positively and negatively regulate leaf stomatal closure by mediating ABA uptake in different tissues and cells.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/genes12060885/s1, Figure S1: ABA-inducible expression of NPF5.1, Figure S2: Genome structure of NPF5.1 and T-DNA insertion sites of npf5.1-1 and npf5.1-2, Figure S3: Endogenous ABA levels in wild type and npf5.1, Figure S4: A model showing the possible functions of NPF4.6 and NPF5.1 in vascular tissues, leaf mesophyll and epidermal cells and/or guard cells.

Author Contributions

T.S. and M.S. designed the experiments; T.S. and M.S. characterized the phenotypes of mutants and transgenic plants; T.S. and Y.K. constructed the vectors and conducted transport assays and hormone measurements; H.S. carried out transient assays in onion epidermal cells; S.W. performed quantitative PCR analyses and statistical analyses; M.S. wrote the article with inputs from all contributors. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data supporting the results of this paper are presented in the paper and/or the supplementary materials.

Acknowledgments

We thank the Arabidopsis Biological Resource Center for T-DNA insertion mutants and Tsuyoshi Nakagawa (Shimane University) for the pGWB and pUGW vectors. We also thank Tomoe Nose and Masako Tanaka for their technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zeevaart, J.A.D.; Creelman, R.A. Metabolism and physiology of abscisic acid. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1988, 39, 439–473. [Google Scholar] [CrossRef]
  2. Nambara, E.; Marion-Poll, A. Abscisic acid biosynthesis and catabolism. Annu. Rev. Plant Biol. 2005, 56, 165–185. [Google Scholar] [CrossRef]
  3. Finkelstein, R. Abscisic acid synthesis and response. Arabidopsis Book 2013, 11, e0166. [Google Scholar] [CrossRef] [PubMed]
  4. Qin, X.; Zeevaart, J.A. The 9-cis-epoxycarotenoid cleavage reaction is the key regulatory step of abscisic acid biosynthesis in water-stressed bean. Proc. Natl. Acad. Sci. USA 1999, 96, 15354–15361. [Google Scholar] [CrossRef] [PubMed]
  5. Endo, A.; Sawada, Y.; Takahashi, H.; Okamoto, M.; Ikegami, K.; Koiwai, H.; Seo, M.; Toyomasu, T.; Mitsuhashi, W.; Shinozaki, K.; et al. Drought induction of Arabidopsis 9-cis-epoxycarotenoid dioxygenase occurs in vascular parenchyma cells. Plant Physiol. 2008, 147, 1984–1993. [Google Scholar] [CrossRef] [PubMed]
  6. Fujita, Y.; Fujita, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. ABA-mediated transcriptional regulation in response to osmotic stress in plants. J. Plant Res. 2011, 124, 509–525. [Google Scholar] [CrossRef] [PubMed]
  7. Karssen, C.M.; Brinkhorstvanderswan, D.L.C.; Breekland, A.E.; Koornneef, M. Induction of dormancy during seed development by endogenous abscisic acid: Studies on abscisic acid deficient genotypes of Arabidopsis thaliana (L) Heynh. Planta 1983, 157, 158–165. [Google Scholar] [CrossRef]
  8. Kanno, Y.; Jikumaru, Y.; Hanada, A.; Nambara, E.; Abrams, S.R.; Kamiya, Y.; Seo, M. Comprehensive hormone profiling in developing Arabidopsis seeds: Examination of the site of ABA biosynthesis, ABA transport and hormone interactions. Plant Cell Physiol. 2010, 51, 1988–2001. [Google Scholar] [CrossRef]
  9. Nambara, E.; Okamoto, M.; Tatematsu, K.; Yano, R.; Seo, M.; Kamiya, Y. Abscisic acid and the control of seed dormancy and germination. Seed Sci. Res. 2010, 20, 55–67. [Google Scholar] [CrossRef]
  10. Seo, M.; Marion-Poll, A. Abscisic acid metabolism and transport. Adv. Bot. Res. 2019, 92, 1–49. [Google Scholar]
  11. Iuchi, S.; Kobayashi, M.; Taji, T.; Naramoto, M.; Seki, M.; Kato, T.; Tabata, S.; Kakubari, Y.; Yamaguchi-Shinozaki, K.; Shinozaki, K. Regulation of drought tolerance by gene manipulation of 9-cis-epoxycarotenoid dioxygenase, a key enzyme in abscisic acid biosynthesis in Arabidopsis. Plant J. 2001, 27, 325–333. [Google Scholar] [CrossRef]
  12. Frey, A.; Effroy, D.; Lefebvre, V.; Seo, M.; Perreau, F.; Berger, A.; Sechet, J.; To, A.; North, H.M.; Marion-Poll, A. Epoxycarotenoid cleavage by NCED5 fine-tunes ABA accumulation and affects seed dormancy and drought tolerance with other NCED family members. Plant J. 2012, 70, 501–512. [Google Scholar] [CrossRef] [PubMed]
  13. Lefebvre, V.; North, H.; Frey, A.; Sotta, B.; Seo, M.; Okamoto, M.; Nambara, E.; Marion-Poll, A. Functional analysis of Arabidopsis NCED6 and NCED9 genes indicates that ABA synthesized in the endosperm is involved in the induction of seed dormancy. Plant J. 2006, 45, 309–319. [Google Scholar] [CrossRef]
  14. Tan, B.C.; Joseph, L.M.; Deng, W.T.; Liu, L.; Li, Q.B.; Cline, K.; McCarty, D.R. Molecular characterization of the Arabidopsis 9-cis epoxycarotenoid dioxygenase gene family. Plant J. 2003, 35, 44–56. [Google Scholar] [CrossRef] [PubMed]
  15. Seo, M.; Hanada, A.; Kuwahara, A.; Endo, A.; Okamoto, M.; Yamauchi, Y.; North, H.; Marion-Poll, A.; Sun, T.P.; Koshiba, T.; et al. Regulation of hormone metabolism in Arabidopsis seeds: Phytochrome regulation of abscisic acid metabolism and abscisic acid regulation of gibberellin metabolism. Plant J. 2006, 48, 354–366. [Google Scholar] [CrossRef]
  16. Toh, S.; Imamura, A.; Watanabe, A.; Nakabayashi, K.; Okamoto, M.; Jikumaru, Y.; Hanada, A.; Aso, Y.; Ishiyama, K.; Tamura, N.; et al. High temperature-induced abscisic acid biosynthesis and its role in the inhibition of gibberellin action in Arabidopsis seeds. Plant Physiol. 2008, 146, 1368–1385. [Google Scholar] [CrossRef] [PubMed]
  17. Takahashi, F.; Suzuki, T.; Osakabe, Y.; Betsuyaku, S.; Kondo, Y.; Dohmae, N.; Fukuda, H.; Yamaguchi-Shinozaki, K.; Shinozaki, K. A small peptide modulates stomatal control via abscisic acid in long-distance signalling. Nature 2018, 556, 235–238. [Google Scholar] [CrossRef]
  18. Sato, H.; Takasaki, H.; Takahashi, F.; Suzuki, T.; Iuchi, S.; Mitsuda, N.; Ohme-Takagi, M.; Ikeda, M.; Seo, M.; Yamaguchi-Shinozaki, K.; et al. Arabidopsis thaliana NGATHA1 transcription factor induces ABA biosynthesis by activating NCED3 gene during dehydration stress. Proc. Natl. Acad. Sci. USA 2018, 115, E11178–E11187. [Google Scholar] [CrossRef]
  19. Iuchi, S.; Kobayashi, M.; Yamaguchi-Shinozaki, K.; Shinozaki, K. A stress-inducible gene for 9-cis-epoxycarotenoid dioxygenase involved in abscisic acid biosynthesis under water stress in drought-tolerant cowpea. Plant Physiol. 2000, 123, 553–562. [Google Scholar] [CrossRef]
  20. Chernys, J.T.; Zeevaart, J.A. Characterization of the 9-cis-epoxycarotenoid dioxygenase gene family and the regulation of abscisic acid biosynthesis in avocado. Plant Physiol. 2000, 124, 343–353. [Google Scholar] [CrossRef]
  21. Thompson, A.J.; Jackson, A.C.; Parker, R.A.; Morpeth, D.R.; Burbidge, A.; Taylor, I.B. Abscisic acid biosynthesis in tomato: Regulation of zeaxanthin epoxidase and 9-cis-epoxycarotenoid dioxygenase mRNAs by light/dark cycles, water stress and abscisic acid. Plant Mol. Biol. 2000, 42, 833–845. [Google Scholar] [CrossRef] [PubMed]
  22. Sawada, Y.; Aoki, M.; Nakaminami, K.; Mitsuhashi, W.; Tatematsu, K.; Kushiro, T.; Koshiba, T.; Kamiya, Y.; Inoue, Y.; Nambara, E.; et al. Phytochrome- and gibberellin-mediated regulation of abscisic acid metabolism during germination of photoblastic lettuce seeds. Plant Physiol. 2008, 146, 1386–1396. [Google Scholar] [CrossRef]
  23. Endo, A.; Okamoto, M.; Koshiba, T. ABA biosynthesis and catabolism pathways. In Abscisic Acid: Metabolism, Transport and Signaling; Zhang, D.P., Ed.; Springer: Berlin/Heidelberg, Germany, 2014; pp. 21–46. [Google Scholar]
  24. Kushiro, T.; Okamoto, M.; Nakabayashi, K.; Yamagishi, K.; Kitamura, S.; Asami, T.; Hirai, N.; Koshiba, T.; Kamiya, Y.; Nambara, E. The Arabidopsis cytochrome P450 CYP707A encodes ABA 8′-hydroxylases: Key enzymes in ABA catabolism. EMBO J. 2004, 23, 1647–1656. [Google Scholar] [CrossRef] [PubMed]
  25. Saito, S.; Hirai, N.; Matsumoto, C.; Ohigashi, H.; Ohta, D.; Sakata, K.; Mizutani, M. Arabidopsis CYP707As encode (+)-abscisic acid 8′-hydroxylase, a key enzyme in the oxidative catabolism of abscisic acid. Plant Physiol. 2004, 134, 1439–1449. [Google Scholar] [CrossRef] [PubMed]
  26. Umezawa, T.; Okamoto, M.; Kushiro, T.; Nambara, E.; Oono, Y.; Seki, M.; Kobayashi, M.; Koshiba, T.; Kamiya, Y.; Shinozaki, K. CYP707A3, a major ABA 8′-hydroxylase involved in dehydration and rehydration response in Arabidopsis thaliana. Plant J. 2006, 46, 171–182. [Google Scholar] [CrossRef] [PubMed]
  27. Okamoto, M.; Kuwahara, A.; Seo, M.; Kushiro, T.; Asami, T.; Hirai, N.; Kamiya, Y.; Koshiba, T.; Nambara, E. CYP707A1 and CYP707A2, which encode abscisic acid 8′-hydroxylases, are indispensable for proper control of seed dormancy and germination in Arabidopsis. Plant Physiol. 2006, 141, 97–107. [Google Scholar] [CrossRef]
  28. Yang, S.H.; Zeevaart, J.A. Expression of ABA 8′-hydroxylases in relation to leaf water relations and seed development in bean. Plant J. 2006, 47, 675–686. [Google Scholar] [CrossRef]
  29. Chono, M.; Honda, I.; Shinoda, S.; Kushiro, T.; Kamiya, Y.; Nambara, E.; Kawakami, N.; Kaneko, S.; Watanabe, Y. Field studies on the regulation of abscisic acid content and germinability during grain development of barley: Molecular and chemical analysis of pre-harvest sprouting. J. Exp. Bot. 2006, 57, 2421–2434. [Google Scholar] [CrossRef]
  30. Saika, H.; Okamoto, M.; Miyoshi, K.; Kushiro, T.; Shinoda, S.; Jikumaru, Y.; Fujimoto, M.; Arikawa, T.; Takahashi, H.; Ando, M.; et al. Ethylene promotes submergence-induced expression of OsABA8ox1, a gene that encodes ABA 8′-hydroxylase in rice. Plant Cell Physiol. 2007, 48, 287–298. [Google Scholar] [CrossRef]
  31. Kuromori, T.; Seo, M.; Shinozaki, K. ABA transport and plant water stress responses. Trends Plant Sci. 2018, 23, 513–522. [Google Scholar] [CrossRef]
  32. Koiwai, H.; Nakaminami, K.; Seo, M.; Mitsuhashi, W.; Toyomasu, T.; Koshiba, T. Tissue-specific localization of an abscisic acid biosynthetic enzyme, AAO3, in Arabidopsis. Plant Physiol. 2004, 134, 1697–1707. [Google Scholar] [CrossRef] [PubMed]
  33. Kuromori, T.; Sugimoto, E.; Shinozaki, K. Intertissue signal transfer of abscisic acid from vascular cells to guard cells. Plant Physiol. 2014, 164, 1587–1592. [Google Scholar] [CrossRef]
  34. Kuromori, T.; Miyaji, T.; Yabuuchi, H.; Shimizu, H.; Sugimoto, E.; Kamiya, A.; Moriyama, Y.; Shinozaki, K. ABC transporter AtABCG25 is involved in abscisic acid transport and responses. Proc. Natl. Acad. Sci. USA 2010, 107, 2361–2366. [Google Scholar] [CrossRef]
  35. Kanno, Y.; Hanada, A.; Chiba, Y.; Ichikawa, T.; Nakazawa, M.; Matsui, M.; Koshiba, T.; Kamiya, Y.; Seo, M. Identification of an abscisic acid transporter by functional screening using the receptor complex as a sensor. Proc. Natl. Acad. Sci. USA 2012, 109, 9653–9658. [Google Scholar] [CrossRef] [PubMed]
  36. Kang, J.; Hwang, J.U.; Lee, M.; Kim, Y.Y.; Assmann, S.M.; Martinoia, E.; Lee, Y. PDR-type ABC transporter mediates cellular uptake of the phytohormone abscisic acid. Proc. Natl. Acad. Sci. USA 2010, 107, 2355–2360. [Google Scholar] [CrossRef]
  37. Zhang, H.; Zhu, H.; Pan, Y.; Yu, Y.; Luan, S.; Li, L. A DTX/MATE-type transporter facilitates abscisic acid efflux and modulates ABA sensitivity and drought tolerance in Arabidopsis. Mol. Plant 2014, 7, 1522–1532. [Google Scholar] [CrossRef]
  38. Kang, J.; Yim, S.; Choi, H.; Kim, A.; Lee, K.P.; Lopez-Molina, L.; Martinoia, E.; Lee, Y. Abscisic acid transporters cooperate to control seed germination. Nat. Commun. 2015, 6, 8113. [Google Scholar] [CrossRef] [PubMed]
  39. Yao, L.; Cheng, X.; Gu, Z.; Huang, W.; Li, S.; Wang, L.; Wang, Y.F.; Xu, P.; Ma, H.; Ge, X. The AWPM-19 family protein OsPM1 mediates abscisic acid influx and drought response in rice. Plant Cell 2018, 30, 1258–1276. [Google Scholar] [CrossRef] [PubMed]
  40. Pawela, A.; Banasiak, J.; Biala, W.; Martinoia, E.; Jasinski, M. MtABCG20 is an ABA exporter influencing root morphology and seed germination of Medicago truncatula. Plant J. 2019, 98, 511–523. [Google Scholar] [CrossRef] [PubMed]
  41. Krattinger, S.G.; Kang, J.; Braunlich, S.; Boni, R.; Chauhan, H.; Selter, L.L.; Robinson, M.D.; Schmid, M.W.; Wiederhold, E.; Hensel, G.; et al. Abscisic acid is a substrate of the ABC transporter encoded by the durable wheat disease resistance gene Lr34. New Phytol. 2019, 223, 853–866. [Google Scholar] [CrossRef] [PubMed]
  42. Fu, X.; Liu, H.; Hassani, D.; Peng, B.; Yan, X.; Wang, Y.; Wang, C.; Li, L.; Liu, P.; Pan, Q.; et al. AaABCG40 enhances artemisinin content and modulates rrought tolerance in Artemisia annua. Front. Plant Sci. 2020, 11, 950. [Google Scholar] [CrossRef]
  43. Kuromori, T.; Sugimoto, E.; Shinozaki, K. Brachypodium BdABCG25 is a homolog of Arabidopsis AtABCG25 involved in the transport of abscisic acid. FEBS Lett. 2021, 595, 954–959. [Google Scholar] [CrossRef] [PubMed]
  44. Shohat, H.; Illouz-Eliaz, N.; Kanno, Y.; Seo, M.; Weiss, D. The tomato DELLA protein PROCERA promotes abscisic acid responses in guard cells by upregulating an abscisic acid transporter. Plant Physiol. 2020, 184, 518–528. [Google Scholar] [CrossRef]
  45. Seo, M.; Aoki, H.; Koiwai, H.; Kamiya, Y.; Nambara, E.; Koshiba, T. Comparative studies on the Arabidopsis aldehyde oxidase (AAO) gene family revealed a major role of AAO3 in ABA biosynthesis in seeds. Plant Cell Physiol. 2004, 45, 1694–1703. [Google Scholar] [CrossRef] [PubMed]
  46. Chiba, Y.; Shimizu, T.; Miyakawa, S.; Kanno, Y.; Koshiba, T.; Kamiya, Y.; Seo, M. Identification of Arabidopsis thaliana NRT1/PTR FAMILY (NPF) proteins capable of transporting plant hormones. J. Plant Res. 2015, 128, 679–686. [Google Scholar] [CrossRef] [PubMed]
  47. Nakagawa, T.; Kurose, T.; Hino, T.; Tanaka, K.; Kawamukai, M.; Niwa, Y.; Toyooka, K.; Matsuoka, K.; Jinbo, T.; Kimura, T. Development of series of gateway binary vectors, pGWBs, for realizing efficient construction of fusion genes for plant transformation. J. Biosci. Bioeng. 2007, 104, 34–41. [Google Scholar] [CrossRef] [PubMed]
  48. Rusconi, F.; Simeoni, F.; Francia, P.; Cominelli, E.; Conti, L.; Riboni, M.; Simoni, L.; Martin, C.R.; Tonelli, C.; Galbiati, M. The Arabidopsis thaliana MYB60 promoter provides a tool for the spatio-temporal control of gene expression in stomatal guard cells. J. Exp. Bot. 2013, 64, 3361–3371. [Google Scholar] [CrossRef]
  49. Becker, D. Binary vectors which allow the exchange of plant selectable markers and reporter genes. Nucleic Acids Res. 1990, 18, 203. [Google Scholar] [CrossRef]
  50. Nakagawa, T.; Suzuki, T.; Murata, S.; Nakamura, S.; Hino, T.; Maeo, K.; Tabata, R.; Kawai, T.; Tanaka, K.; Niwa, Y.; et al. Improved Gateway binary vectors: High-performance vectors for creation of fusion constructs in transgenic analysis of plants. Biosci. Biotechnol. Biochem. 2007, 71, 2095–2100. [Google Scholar] [CrossRef]
  51. Kanno, Y.; Oikawa, T.; Chiba, Y.; Ishimaru, Y.; Shimizu, T.; Sano, N.; Koshiba, T.; Kamiya, Y.; Ueda, M.; Seo, M. AtSWEET13 and AtSWEET14 regulate gibberellin-mediated physiological processes. Nat. Commun. 2016, 7, 13245. [Google Scholar] [CrossRef]
  52. Watanabe, S.; Takahashi, N.; Kanno, Y.; Suzuki, H.; Aoi, Y.; Takeda-Kamiya, N.; Toyooka, K.; Kasahara, H.; Hayashi, K.I.; Umeda, M.; et al. The Arabidopsis NRT1/PTR FAMILY protein NPF7.3/NRT1.5 is an indole-3-butyric acid transporter involved in root gravitropism. Proc. Natl. Acad. Sci. USA 2020, 117, 31500–31509. [Google Scholar] [CrossRef] [PubMed]
  53. Seo, M.; Koiwai, H.; Akaba, S.; Komano, T.; Oritani, T.; Kamiya, Y.; Koshiba, T. Abscisic aldehyde oxidase in leaves of Arabidopsis thaliana. Plant J. 2000, 23, 481–488. [Google Scholar] [CrossRef] [PubMed]
  54. Seo, M.; Peeters, A.J.; Koiwai, H.; Oritani, T.; Marion-Poll, A.; Zeevaart, J.A.; Koornneef, M.; Kamiya, Y.; Koshiba, T. The Arabidopsis aldehyde oxidase 3 (AAO3) gene product catalyzes the final step in abscisic acid biosynthesis in leaves. Proc. Natl. Acad. Sci. USA 2000, 97, 12908–12913. [Google Scholar] [CrossRef]
  55. Bauer, H.; Ache, P.; Lautner, S.; Fromm, J.; Hartung, W.; Al-Rasheid, K.A.; Sonnewald, S.; Sonnewald, U.; Kneitz, S.; Lachmann, N.; et al. The stomatal response to reduced relative humidity requires guard cell-autonomous ABA synthesis. Curr. Biol. 2013, 23, 53–57. [Google Scholar] [CrossRef] [PubMed]
  56. Leran, S.; Varala, K.; Boyer, J.C.; Chiurazzi, M.; Crawford, N.; Daniel-Vedele, F.; David, L.; Dickstein, R.; Fernandez, E.; Forde, B.; et al. A unified nomenclature of NITRATE TRANSPORTER 1/PEPTIDE TRANSPORTER family members in plants. Trends Plant Sci. 2014, 19, 5–9. [Google Scholar] [CrossRef] [PubMed]
  57. Krouk, G.; Lacombe, B.; Bielach, A.; Perrine-Walker, F.; Malinska, K.; Mounier, E.; Hoyerova, K.; Tillard, P.; Leon, S.; Ljung, K.; et al. Nitrate-regulated auxin transport by NRT1.1 defines a mechanism for nutrient sensing in plants. Dev. Cell 2010, 18, 927–937. [Google Scholar] [CrossRef]
  58. Saito, H.; Oikawa, T.; Hamamoto, S.; Ishimaru, Y.; Kanamori-Sato, M.; Sasaki-Sekimoto, Y.; Utsumi, T.; Chen, J.; Kanno, Y.; Masuda, S.; et al. The jasmonate-responsive GTR1 transporter is required for gibberellin-mediated stamen development in Arabidopsis. Nat. Commun. 2015, 6, 6095. [Google Scholar] [CrossRef]
  59. David, L.C.; Berquin, P.; Kanno, Y.; Seo, M.; Daniel-Vedele, F.; Ferrario-Mery, S. N availability modulates the role of NPF3.1, a gibberellin transporter, in GA-mediated phenotypes in Arabidopsis. Planta 2016, 244, 1315–1328. [Google Scholar] [CrossRef]
  60. Tal, I.; Zhang, Y.; Jorgensen, M.E.; Pisanty, O.; Barbosa, I.C.; Zourelidou, M.; Regnault, T.; Crocoll, C.; Erik Olsen, C.; Weinstain, R.; et al. The Arabidopsis NPF3 protein is a GA transporter. Nat. Commun. 2016, 7, 1486. [Google Scholar] [CrossRef]
  61. Ishimaru, Y.; Oikawa, T.; Suzuki, T.; Takeishi, S.; Matsuura, H.; Takahashi, K.; Hamamoto, S.; Uozumi, N.; Shimizu, T.; Seo, M.; et al. GTR1 is a jasmonic acid and jasmonoyl-l-isoleucine transporter in Arabidopsis thaliana. Biosci. Biotechnol. Biochem. 2017, 81, 249–255. [Google Scholar] [CrossRef]
  62. Nour-Eldin, H.H.; Andersen, T.G.; Burow, M.; Madsen, S.R.; Jorgensen, M.E.; Olsen, C.E.; Dreyer, I.; Hedrich, R.; Geiger, D.; Halkier, B.A. NRT/PTR transporters are essential for translocation of glucosinolate defence compounds to seeds. Nature 2012, 488, 531–534. [Google Scholar] [CrossRef]
  63. Larsen, B.; Fuller, V.L.; Pollier, J.; Van Moerkercke, A.; Schweizer, F.; Payne, R.; Colinas, M.; O’Connor, S.E.; Goossens, A.; Halkier, B.A. Identification of iridoid glucoside transporters in catharanthus roseus. Plant Cell Physiol. 2017, 58, 1507–1518. [Google Scholar] [CrossRef] [PubMed]
  64. Payne, R.M.; Xu, D.; Foureau, E.; Teto Carqueijeiro, M.I.; Oudin, A.; Bernonville, T.D.; Novak, V.; Burow, M.; Olsen, C.E.; Jones, D.M.; et al. An NPF transporter exports a central monoterpene indole alkaloid intermediate from the vacuole. Nat. Plants 2017, 3, 16208. [Google Scholar] [CrossRef] [PubMed]
  65. Li, B.; Qiu, J.; Jayakannan, M.; Xu, B.; Li, Y.; Mayo, G.M.; Tester, M.; Gilliham, M.; Roy, S.J. AtNPF2.5 modulates chloride (Cl-) efflux from roots of Arabidopsis thaliana. Front. Plant Sci. 2016, 7, 2013. [Google Scholar] [CrossRef]
  66. Li, B.; Byrt, C.; Qiu, J.; Baumann, U.; Hrmova, M.; Evrard, A.; Johnson, A.A.; Birnbaum, K.D.; Mayo, G.M.; Jha, D.; et al. Identification of a stelar-localized transport protein that facilitates root-to-shoot transfer of chloride in Arabidopsis. Plant Physiol. 2016, 170, 1014–1029. [Google Scholar] [CrossRef] [PubMed]
  67. Li, H.; Yu, M.; Du, X.Q.; Wang, Z.F.; Wu, W.H.; Quintero, F.J.; Jin, X.H.; Li, H.D.; Wang, Y. NRT1.5/NPF7.3 functions as a proton-coupled H+/K+ antiporter for K+ loading into the xylem in Arabidopsis. Plant Cell 2017, 29, 2016–2026. [Google Scholar] [CrossRef]
  68. Corratge-Faillie, C.; Lacombe, B. Substrate (un)specificity of Arabidopsis NRT1/PTR FAMILY (NPF) proteins. J. Exp. Bot. 2017, 68, 3107–3113. [Google Scholar] [CrossRef] [PubMed]
  69. Huang, N.C.; Liu, K.H.; Lo, H.J.; Tsay, Y.F. Cloning and functional characterization of an Arabidopsis nitrate transporter gene that encodes a constitutive component of low-affinity uptake. Plant Cell 1999, 11, 1381–1392. [Google Scholar] [CrossRef]
  70. Lin, S.-H.; Kuo, H.-F.; Canivenc, G.; Lin, C.-S.; Lepetit, M.; Hsu, P.-K.; Tillard, P.; Lin, H.-L.; Wang, Y.-Y.; Tsai, C.-B.; et al. Mutation of the Arabidopsis NRT1.5 nitrate transporter causes defective root-to-shoot nitrate transport. Plant Cell 2008, 20, 2514–2528. [Google Scholar] [CrossRef]
Figure 1. NPF4.6 is a positive regulator of stomatal closure. (A) Wild type (WT), npf4.6-1 (npf4.6), aao3-4 (aao3) and aao3-4 npf4.6-1 (aao3 npf4.6) plants (approximately 1-month-old) grown under a day and night cycle (10 h light/14 h dark). Scale bar = 1 cm. (B) Leaf surface temperature of plants in (A) observed by a thermal imaging camera.
Figure 1. NPF4.6 is a positive regulator of stomatal closure. (A) Wild type (WT), npf4.6-1 (npf4.6), aao3-4 (aao3) and aao3-4 npf4.6-1 (aao3 npf4.6) plants (approximately 1-month-old) grown under a day and night cycle (10 h light/14 h dark). Scale bar = 1 cm. (B) Leaf surface temperature of plants in (A) observed by a thermal imaging camera.
Genes 12 00885 g001
Figure 2. GUS staining of pNPF4.6:gNPF4.6-GUS plants. (A) A rosette (approximately 3 weeks old). Scale bar = 1 cm. (B) Close-up view of a leaf from (A). (C) Close-up view of the leaf surface. Arrowheads indicate guard cells. V denotes vascular tissues. (D) Close-up view of a pair of guard cells. Scale bar = 20 μm. Plants were grown in continuous light.
Figure 2. GUS staining of pNPF4.6:gNPF4.6-GUS plants. (A) A rosette (approximately 3 weeks old). Scale bar = 1 cm. (B) Close-up view of a leaf from (A). (C) Close-up view of the leaf surface. Arrowheads indicate guard cells. V denotes vascular tissues. (D) Close-up view of a pair of guard cells. Scale bar = 20 μm. Plants were grown in continuous light.
Genes 12 00885 g002
Figure 3. Guard-cell specific expression of NPF4.6 in the aao3 npf4.6 double mutant background. (A) Wild type (WT), npf4.6-1 (npf4.6), aao3-4 (aao3), aao3-4 npf4.6-1 (aao3 npf4.6) and three independent lines (#1-3) of aao3-4 npf4.6-1 that express wild-type NPF4.6 specifically in the guard cells (aao3 npf4.6/pMYB60:NPF4.6). Plants (approximately 1 month old) were grown under a day and night (10 h light/14 h dark) cycle. Scale bar = 1 cm. (B) Leaf surface temperature of plants in (A) observed by a thermal imaging camera.
Figure 3. Guard-cell specific expression of NPF4.6 in the aao3 npf4.6 double mutant background. (A) Wild type (WT), npf4.6-1 (npf4.6), aao3-4 (aao3), aao3-4 npf4.6-1 (aao3 npf4.6) and three independent lines (#1-3) of aao3-4 npf4.6-1 that express wild-type NPF4.6 specifically in the guard cells (aao3 npf4.6/pMYB60:NPF4.6). Plants (approximately 1 month old) were grown under a day and night (10 h light/14 h dark) cycle. Scale bar = 1 cm. (B) Leaf surface temperature of plants in (A) observed by a thermal imaging camera.
Genes 12 00885 g003
Figure 4. npf5.1 has a higher leaf surface temperature compared to the wild type. (A) Rosette leaves of wild type (WT), npf4.6-1 (npf4.6), npf5.1-1, npf5.1-2 and npf4.6-1 npf5.1-1 (npf4.6 npf5.1) plants (approximately 1 month old) grown under a day and night (10 h light/14 h dark) cycle. Scale bar = 1 cm. (B) Leaf surface temperature of plants in (A) observed by a thermal imaging camera immediately after detachment of the rosette leaves from the roots.
Figure 4. npf5.1 has a higher leaf surface temperature compared to the wild type. (A) Rosette leaves of wild type (WT), npf4.6-1 (npf4.6), npf5.1-1, npf5.1-2 and npf4.6-1 npf5.1-1 (npf4.6 npf5.1) plants (approximately 1 month old) grown under a day and night (10 h light/14 h dark) cycle. Scale bar = 1 cm. (B) Leaf surface temperature of plants in (A) observed by a thermal imaging camera immediately after detachment of the rosette leaves from the roots.
Genes 12 00885 g004

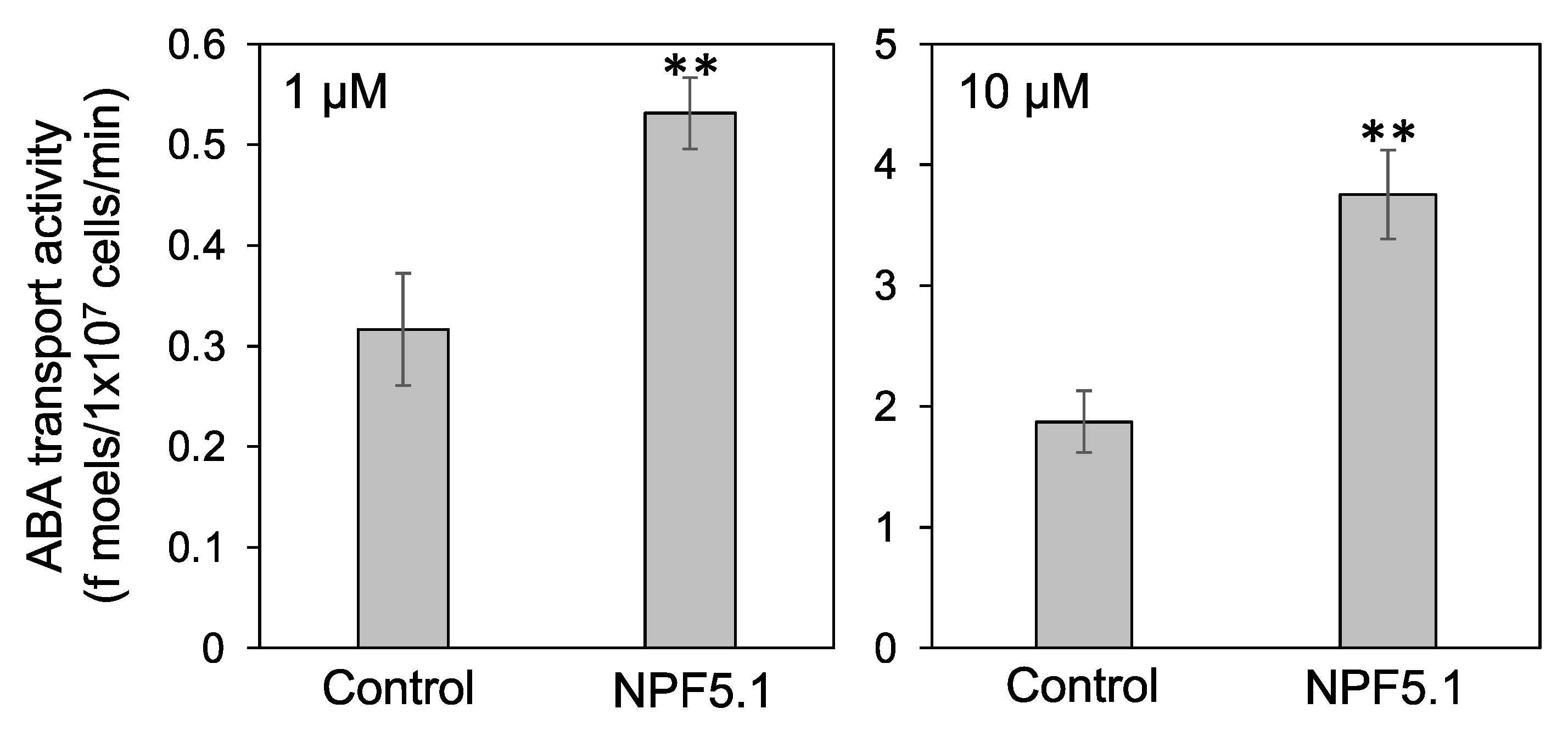

Figure 5. ABA transport activity of NPF5.1. The amounts of ABA (f moels/1 × 107 cells/min) taken into yeast cells expressing NPF5.1 or control cells containing an empty vector were determined when the substrate concentration was 1 or 10 μM. Results are presented as mean ± SD of three biological replicates. ** Significantly different compared with the values in the control cells (p < 0.001) by Student’s t-test.
Figure 5. ABA transport activity of NPF5.1. The amounts of ABA (f moels/1 × 107 cells/min) taken into yeast cells expressing NPF5.1 or control cells containing an empty vector were determined when the substrate concentration was 1 or 10 μM. Results are presented as mean ± SD of three biological replicates. ** Significantly different compared with the values in the control cells (p < 0.001) by Student’s t-test.
Genes 12 00885 g005
Figure 6. Plasma membrane localization of NPF5.1. GFP signals in onion epidermal cells that transiently express GFP-fused NPF5.1 or GFP alone under the control of the 35S promoter (35S:NPF5.1-GFP and 35S:GFP, respectively). Photos were taken before (A) and after (B) plasmolysis with 20% mannitol. PI indicates propidium iodide staining of the cell walls. Scale bar = 200 μm.
Figure 6. Plasma membrane localization of NPF5.1. GFP signals in onion epidermal cells that transiently express GFP-fused NPF5.1 or GFP alone under the control of the 35S promoter (35S:NPF5.1-GFP and 35S:GFP, respectively). Photos were taken before (A) and after (B) plasmolysis with 20% mannitol. PI indicates propidium iodide staining of the cell walls. Scale bar = 200 μm.
Genes 12 00885 g006

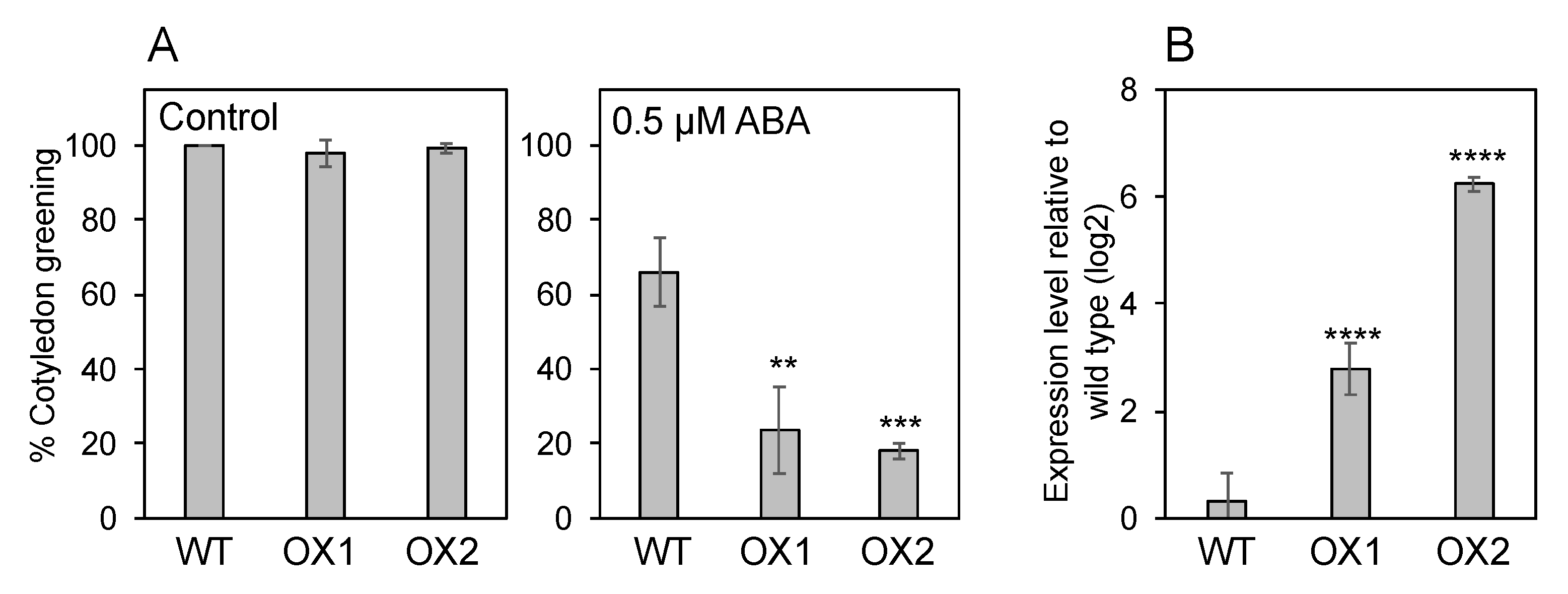

Figure 7. Overexpression of NPF5.1 enhances ABA sensitivities during germination. (A) Cotyledon greening of wild type (WT) and two independent transgenic lines that overexpress NPF5.1 (OX1 and 2) on control media without supplementation of ABA or media containing 0.5 μM ABA scored at 4 d (control) and 7 d (0.5 μM ABA) after stratification. (B) Expression levels of NPF5.1 in 7-d-old seedlings of wild type (WT) and two independent transgenic lines that overexpress NPF5.1 (OX1 and 2). Asterisks indicate statistically significant differences compared to the wild type determined by Dunnett’s multiple comparison test (** p < 0.01; *** p < 0.001; **** p < 0.0001).
Figure 7. Overexpression of NPF5.1 enhances ABA sensitivities during germination. (A) Cotyledon greening of wild type (WT) and two independent transgenic lines that overexpress NPF5.1 (OX1 and 2) on control media without supplementation of ABA or media containing 0.5 μM ABA scored at 4 d (control) and 7 d (0.5 μM ABA) after stratification. (B) Expression levels of NPF5.1 in 7-d-old seedlings of wild type (WT) and two independent transgenic lines that overexpress NPF5.1 (OX1 and 2). Asterisks indicate statistically significant differences compared to the wild type determined by Dunnett’s multiple comparison test (** p < 0.01; *** p < 0.001; **** p < 0.0001).
Genes 12 00885 g007
Figure 8. GUS staining of pNPF5.1:GUS plants. (A) A seedling (approximately 7-d-old) grown under continuous light. Scale bar = 1 mm. (B) Rosette leaves of plants grown under continuous light (approximately 3 weeks old). Scale bar = 1 cm. (C) Close-up view of a leaf in (B). Scale bar = 1 mm.
Figure 8. GUS staining of pNPF5.1:GUS plants. (A) A seedling (approximately 7-d-old) grown under continuous light. Scale bar = 1 mm. (B) Rosette leaves of plants grown under continuous light (approximately 3 weeks old). Scale bar = 1 cm. (C) Close-up view of a leaf in (B). Scale bar = 1 mm.
Genes 12 00885 g008
