Article

Genome Features of Asaia sp. W12 Isolated from the Mosquito Anopheles stephensi Reveal Symbiotic Traits

1
Department of Clinical and Diagnostic Sciences, School of Health Sciences, Oakland University, 433 Meadowbrook Road, Rochester, MI 48309, USA
2
Agro-Biological Gene Research Center, Guangdong Academy of Agricultural Sciences, Guangzhou 510640, China
3
Architecture et Fonction des Macromolécules Biologiques, Centre National de la Recherche Scientifique (CNRS), Aix-Marseille Université (AMU), UMR 7257, 13288 Marseille, France
4
Institut National de la Recherche Agronomique (INRA), USC AFMB, 1408 Marseille, France
5
Department of Biological Sciences, King Abdulaziz University, Jeddah 21412, Saudi Arabia
6
Department of Microbiology and Molecular Genetics, Michigan State University, East Lansing, MI 48824, USA
*
Author to whom correspondence should be addressed.
Genes 2021, 12(5), 752; https://doi.org/10.3390/genes12050752
Received: 24 January 2021 / Revised: 4 May 2021 / Accepted: 6 May 2021 / Published: 17 May 2021
(This article belongs to the Section Microbial Genetics and Genomics)

Abstract

:
Asaia bacteria commonly comprise part of the microbiome of many mosquito species in the genera Anopheles and Aedes, including important vectors of infectious agents. Their close association with multiple organs and tissues of their mosquito hosts enhances the potential for paratransgenesis for the delivery of antimalaria or antivirus effectors. The molecular mechanisms involved in the interactions between Asaia and mosquito hosts, as well as Asaia and other bacterial members of the mosquito microbiome, remain underexplored. Here, we determined the genome sequence of Asaia strain W12 isolated from Anopheles stephensi mosquitoes, compared it to other Asaia species associated with plants or insects, and investigated the properties of the bacteria relevant to their symbiosis with mosquitoes. The assembled genome of strain W12 had a size of 3.94 MB, the largest among Asaia spp. studied so far. At least 3585 coding sequences were predicted. Insect-associated Asaia carried more glycoside hydrolase (GH)-encoding genes than those isolated from plants, showing their high plant biomass-degrading capacity in the insect gut. W12 had the most predicted regulatory protein components comparatively among the selected Asaia, indicating its capacity to adapt to frequent environmental changes in the mosquito gut. Two complete operons encoding cytochrome bo3-type ubiquinol terminal oxidases (cyoABCD-1 and cyoABCD-2) were found in most Asaia genomes, possibly offering alternative terminal oxidases and allowing the flexible transition of respiratory pathways. Genes involved in the production of 2,3-butandiol and inositol have been found in Asaia sp. W12, possibly contributing to biofilm formation and stress tolerance.

1. Introduction

Bacteria of the genus Asaia are classified as acetic acid bacteria (AAB) in the class Alphaproteobacteria, family Acetobacteraceae; they are Gram-negative aerobic rods [1]. These bacteria are frequently isolated from tropical plants such as Bauhinia purpurea and Plumbago, where they metabolize plant sugars and alcohol for growth [2]. Bacteria of the genus Asaia have been characterized as symbionts of several insect species, including the orders Diptera (flies, including mosquitoes), Hymenoptera (bees and wasps), and Hemiptera (true bugs), which feed upon plant sugars from the nectar, fruit, and sap [2,3]. Diverse Asaia strains have been demonstrated to be tightly associated with several species of Anopheles mosquitoes known to be vectors of human malaria (e.g., A. stephensi, A. maculipennis, and A. gambiae) [4]. Asaia was one of the most predominant bacterial members found in samples of male and female mosquito midguts [4,5]. Moreover, they persist in host mosquitoes without variations due to sex, blood and sugar meals, and age [5,6]. Asaia species live in the mosquito midgut lumen but also actively colonize other tissues and organs, including the salivary glands and reproductive organs, indicating that, if ingested in a sugar meal from a plant, Asaia bacteria pass through the tissue body barriers, such as midgut epithelium and basal lamina, reaching and infecting other tissues and organs [1]. Further, the infection of Asaia among mosquitoes occurs by horizontal transmission through mating (venereal transmission from adult male to adult female), as well as by vertical transmission from mother to progeny via ovarian infection to eggs [7,8].
The infection of Asaia bacteria in insects appears to be of a mutualistic nature, in that the bacteria contribute physiologically to their insect hosts [9]. For example, they provide certain nutrients and metabolic cofactors (such as carbon, nitrogen, and vitamins) [10], positively affect mosquito growth and development, as evidenced by the negative effects upon their removal, and antagonize Wolbachia endosymbionts [11,12]. These intimate interactions between Asaia bacteria and mosquitoes expand to interference in the development and propagation of Plasmodium malaria parasites in Asaia-infected Anopheles mosquitoes [13], supporting the potential use of these bacteria (in proof of concept) as a paratransgenesis agent to control malaria transmission [1,13,14,15]. The traits favoring this idea are ease of cultivation in vitro, amenability for genetic manipulation, and quickly established and stably persistent infections in several mosquito species [1,7,13,14,16]. The strain Asaia bogorensis SF2.1 was engineered to secrete anti-plasmodial proteins into the Anopheles midgut, resulting in the inhibition of malaria parasite development [16]. Further, introduction of “native” Asaia isolates modulated mosquito innate immunity by activation of antimicrobial peptide expression, thereby repressing growth and propagation of parasites in insect guts [17], and more generally appear to compete for space and nutrients with other microorganisms in insect hosts [7,18]. To resolve the issues about mutual exclusion between Asaia and Wolbachia [14], the latter unrelated bacteria infecting reproductive tissues (and having anti-parasite properties supporting paratransgenesis control methods), and to make use of the favorable traits from the bacteria of both genera, chimeric Asaia symbionts expressing a Wolbachia surface protein were created that efficiently stimulated mosquito immunity, inhibiting filarial parasite development [15].
Despite their importance for mosquito physiology and the potential for the control of vector-borne disease, the mechanisms involved in establishing symbiosis between Asaia and their hosts, regulating the mosquito host development and immunity, remain largely unknown [10,11]. In this study, we isolated a new Asaia strain from A. stephensi, sequenced the genome, and performed comparative genomic studies with other Asaia strains from insects and plants. The goal of this study was to develop a comparative genomic analysis of Asaia strains that provides insight into the molecular mechanisms for transmission, colonization, and persistence in mosquitoes.

2. Materials and Methods

2.1. Bacterial Strains and Growth Conditions

Adult A. stephensi Liston mosquitoes (Johns Hopkins strain) were collected from a laboratory colony maintained at Michigan State University [19], anesthetized for five minutes at −20 °C, and surface-disinfected by soaking in 70% ethanol. Mosquito midgut tissues were dissected under sterile conditions, suspended in 200 µl of sterile saline solution (0.9% NaCl), and homogenized using a pestle. Suspensions were transferred to enrichment broth containing 2.2% D-glucose, 0.5% peptone, and 0.5% yeast extract (pH 3.5). Cultures were rotated at 200 rpm and 30 °C overnight and plated onto a selective medium containing 2.2% D-glucose, 1.0% ethanol, 1.0% yeast extract, 0.7% CaCO3, and 1.5% agar. Colonies showing clear zones were isolated and selected for further experiments. Trypticase soy broth (TSB) medium was then used for the culture of Asaia isolates resulting from this procedure. One of these isolates, herein designated Asaia sp. W12, was chosen for this study because it was predominant. A PCR amplification method was utilized to screen Asaia colonies by using the forward primer GCGCGTAGGCGGTTTACAC and reverse primer AGCGTCAGTAATGAGCCAGGTT [1].

2.2. Genome Sequencing, Assembly, and Annotation

Isolation and purification of bacterial genomic DNA were performed with the Wizard Genomic DNA Purification Kit (Promega, Madison, WI, USA). Next-generation sequencing (NGS) libraries were prepared using the Illumina TruSeq Nano DNA Library Preparation Kit following the standard procedures recommended by the manufacturer. De novo assembly was performed using CLC NGS Cell v. 10.0.1. Gene annotation was carried out by the NCBI Prokaryotic Genome Automatic Annotation Pipeline (PGAAP 3.3). Genomic data of selected Asaia genomes were obtained from the NCBI genome database (https://www.ncbi.nlm.nih.gov, accessed date: 5 January 2020).

2.3. Bioinformatics

Functional categorization and classification for predicted ORFs were performed by the RAST server-based SEED viewer [20]. For genome similarity assessment, the average nucleotide identity (ANI) and Digital DNA-DNA Hybridization (dDDH) were computed using GGDC (https://ggdc.dsmz.de, accessed date: 5 January 2020). The pan genome, core genome, and specific genes of Asaia spp. were compared to representative Asaia genomes using EDGAR 2.0 [21]. The presence of clustered regularly interspaced short palindromic repeats (CRISPRs) in the selected genomes was predicted using CRISPRFinder with the default parameters (https://crispr.i2bc.paris-saclay.fr/Server/, accessed date: 30 January 2020). Among them, questionable CRISPRs were omitted. A cluster analysis of the orthologous groups (COGs) was carried out using Orthovenn2 (https://orthovenn2.bioinfotoolkits.net/task/create, accessed date: 1 April 2021) with an e-value cutoff of 0.001 and an inflation value of 1.5. The taxonomic assignment of Asaia sp. W12 was conducted using GTDB-Tk [22] with default settings, which placed this bacterium in the Asaia genus. Genomic islands (GIs) were predicted by both IslandPick and IslandPath-DIMOB methods [23].
Eukaryotic-like proteins (ELPs) containing the motifs tetratrico peptide repeats (TPRs: PF13429, PF13371, PF00515, PF13181, PF13432, PF14559, PF14561, and PF09976); ankyrin repeats (ANKs: PF12796 and PF13637); Sel1 repeats (PF08238); and fibronectin type III (PF14310) were predicted using InterProScan v5.44.79 (http://www.ebi.ac.uk/interpro/search/sequence/, accessed date: 5 January 2020). Prediction of the regulatory elements was done using the p2rp program with default settings (http://www.p2rp.org, accessed date: 1 January 2020). Carbohydrate-Active enZyme (CAZyme) families, including enzymes of glycan assembly (glycosyltransferases, GT) and deconstruction (glycoside hydrolases, GH, polysaccharide lyases, PL, and carbohydrate esterases, CE), were semi-manually annotated using the CAZy database curation pipelines [24,25,26]. More precisely, CAZymes were annotated based on a combination of BLASTP and HMMER searches and automatically processed when a high similarity to the reference CAZymes was observed and manually curated in intermediary similarity levels. The genomic context was inspected using GFF files and NCBI genome browsers [26]. The identification of secondary metabolites was performed using the online server antiSMASH 5.0 with “relaxed” detection strictness [27].

2.4. Accession of the Genome Sequences

The data from these Whole-Genome Shotgun projects have been deposited at DDBJ/ENA/GenBank under accession number PNQZ00000000.1. The BioProject designation for this project is PRJNA427835, and the BioSample accession number is SAMN08274829.

2.5. Statistical Analyses

Statistical analyses were performed using SAS (version 9.2; SAS Institute, Cary, NC, USA).

3. Results

3.1. Genome Features

A GTDB-Tk analysis placed the bacterium W12 in the genus Asaia [22]. Asaia sp. W12 formed a clade with mosquito-associated A. bogorensis SF2.1 and A. bogorensis GD01, as well as ant-associated Asaia As-1742 (Figure 1); however, it departed from the cluster formed by plant-associated A. prunellae JCM25354, A. platycodi JCM25414, and A. astilbis JCM15831 (Figure 1). Overall, the Asaia species showed a different evolution pathway from the outgroup representative Acetobacter tropicalis strain BDGP1 (Figure 1). The genome sizes of the insect-associated A. bogorensis (i.e., A. bogorensis SF2.1 and A. bogorensis GD 01) were more similar to those isolated from the plants (Table 1). Asaia sp. W12 had the largest genome size (3.94 M) among the selected Asaia (Table 1). However, the average genome sizes (Table 1) in the insect-associated Asaia species (average 3.59 M, n = 4) were significantly larger (t-test, p < 0.05) than those from plant-associated ones (average 3.17 M, n = 5). The assembled genome of Asaia sp. W12 contained 229 contigs and 3652 coding sequences (CDSs) (Table 1). The average GC content in W12 was 60.1%, consistent with those in most of the selected Asaia species. It is interesting that the average GC content in Asaia prunellae JCM 25354 was much lower (55.8%) than that in the other Asaia (Table 1). A genome analysis of Asaia sp. W12 by the RAST Server revealed at least 378 subsystems classified into 27 categories (Figure 2). Among these categories, the “amino acid and derivatives” subsystem had the largest number (294 CDSs), followed by carbohydrate metabolism (260), protein metabolism (257), and RNA metabolism (138). Moreover, the “stress response” category accounted for at least 104 CDSs. Within the “virulence, disease, and defense” subsystem (90 CDSs), 12 of them were related to invasion and intracellular resistance, while 72 were associated with a resistance to antibiotics and toxic compounds (Figure 2).

3.2. Gene Repertoire of Asaia spp.

A genome-wide comparison of the orthologous clusters in different isolates provides insight into the gene structure, gene function, and molecular evolution of genomes (Figure 3). The species form 3116 clusters, 912 orthologous clusters (at least contains two species), and 2204 single-copy gene clusters. The COG analysis of Asaia sp. W12 was compared with the other four selected genomes (Figure 3). The analysis shows that Asaia sp. W12 contained 2734 COGs. Among them, 2256 COGs were shared by all five strains, and 31 COGs were only present in the Asaia sp. W12 genome (Figure 3). There are only three and eight COGs present in mosquito-associated A. bogorensis SF2.1 and A. bogorensis GD01, respectively. The unique COGs existing in Asaia sp. W12 involved several genes functioning with amino acid transport, regulation of the amino acid catabolic process, urea metabolic process, fatty acid biosynthetic process, DNA-binding transcription factor activity, and many others. However, the representative meanings of these singular genes in W12 are not clear. Further investigations to understand the features of these unique genes in W12 are warranted. To investigate the pangenome in Asaia, we plotted the number of annotated genes, shared genes, and unique genes as a function of the number of sequenced genomes (Figure S1).

3.3. Carbohydrate-Active EnZymes (CAZymes) in Asaia spp.

The number of glycoside hydrolase (GH) genes in insect-associated Asaia (i.e., W12, SF 2.1, As-1742, and A. bogorensis GD-01) was slightly higher than those originating from plants (Table 2). Gene copies of glycosyltransferases (GTs) or carbohydrate esterases (CEs) in A. astilbis JCM 15831 and A. platycodi JCM 25414 were lower than those from other selected Asaia (Table 2). Most CAZymes in Asaia genomes (~30%) targeted peptidoglycan (glycoside hydrolases families GH23, GH102, GH103, GH104, and GH108), while we also observed the conservation of some CAZymes dedicated to sucrose or fructose polymers (GH32 and GH68) that could, for example, allow the metabolism of plant nectar by mosquitoes (Table S1). Interestingly, these genomes also encode a trehalase (GH37) commonly found in various organisms (Table S1). Trehalose plays a critical role as an energy source in insects, and it is involved in tolerating abiotic stresses [28]. The bacterial trehalase may contribute to the host carbon metabolism process and defense against osmotic and oxidative stress [29]. Despite the variable genome sizes and assembly across these genomes, two relevant CAZyme operons conserved in most species were identified. The first operon includes the bacterial glycogen operon, with α-glucanases (with four GH13s from distinct subfamilies for linkage specificities, three appended to the carbohydrate-binding module family CBM48) and glycosyltransferases, notably from the GT4 and GT5 families, in a single locus (Table S1). The second one included a GH8 and a glycosyltransferase of the GT2 family likely involved in a cellulose-like biofilm synthesis (Table S1). The assembly of the bacterial cellulose biosynthesis operons was diverse among the Asaia species (Figure 4).

3.4. Regulatory Systems in Asaia spp.

The Asaia sp. W12 genome encoded 57 two-component system proteins, 169 transcription factor proteins, and 17 other DNA-binding proteins, which possessed the most regulatory protein genes (total 243) among the selected Asaia (Table 3). Next to it, Asaia sp. As-1742 (ant-associated) carried at least 235 predicted regulatory genes encoding 46 two-component system proteins, 174 transcription factor proteins, and 15 other DNA-binding proteins. Similar to those in the two insect isolates, the mosquito isolate A. bogorensis SF2.1 also had abundant regulatory proteins (up to 213 regulatory protein genes and components). Remarkably, most plant-associated strains possessed relatively fewer regulatory proteins (ranging from 150 to 198) and components (Table 3). For example, the total number of transcriptional regulators (TRs, 81) and one-component systems (OCSs, ranging from 40 to 57) in these insect isolates was relatively higher than those in the plant-associated ones (Table 3). However, regardless of their origin, Asaia bacteria have comparable numbers of RRs, phosphotransferase proteins (PPs), and sigma factors (SFs) in their genomes, indicating that these regulatory proteins play the fundamental roles in maintaining bacterial metabolism and function.

3.5. Genes Involved in other Symbiosis Traits

We further investigated additional well-known genetic traits possibly important for forming a symbiotic relationship with its host mosquitoes (Table 4). For example, W12 and other selected Asaia (except A. astilbis JCM 15831) carried two complete cyoABCD operons encoding bo3-type ubiquinol oxidase genes (Table 4). The complete operons of cyoABCD encoded bo3-type ubiquinol oxidases with four subunits [30]. The presence of the additional copy of cyoABCD operons may contribute to survival in the dramatically different environmental changes in hosts (such as gut vs. saliva). Volatile compounds (BVCs) such as 2,3-butanediol (2,3-BD) and acetoin affect biofilm formation, bacterial motility, and associations with hosts [31,32]. The putative acetoin and butanediol synthesis pathways were discovered in all the selected Asaia genomes, indicating BVCs may contribute to the formation of a symbiosis relationship (such as colonization) between Asaia and their plant or insect hosts. Inositol is an important nutritional or signaling factor in many microbes and eukaryotes [33]. The inositol metabolic pathways found in Asaia may participate in the regulation of the stress response (such as cold tolerance) in hosts [34]. Moreover, Asaia had operons involved in flagella formation, which accounted for the ability to migrate to several locations in mosquitoes [1]. A gene encoding a large adhesin (filamentous hemagglutinin family outer membrane protein) possibly functioning in the attachment to host cells [35] was found in all but A. bogorensis SF2.1. Several motifs participating in protein–protein interactions were detected in members of the genus Asaia (Table 5). The protein-coding genes containing the eukaryotic-like motifs/eukaryotic-like proteins (ELPs) with TPRs (7~10 per genome), ANKs (1 to 2 per genome), Sel1-like repeats (2 to 3 per genome), and Fn3 (1~3 per genome) showed that Asaia bacteria had many different ways to adhere to the cell surface and invade the host tissues.

3.6. Comparative Genome Plasticity

Among the selected Asaia spp., only A. bogorensis NBRC 16594, A. astilbis JCM 15831, and Asaia sp. W12 carried intact prophages (Table S2). At least seven different prophages were predicted in the genome of Asaia sp. W12, including one intact (prophage IV), one questionable (prophage VI), and five incomplete ones (Table S2). The largest one (prophage IV, 30.6 Kb) contained a battery of genes encoding the phage tail, head, portal, integrase, lysin, terminase, and other component proteins. Prophage VI (23.4 Kb) carried at least 35 CDS encoding the ApaG protein, O-succinylhomoserine sulfhydrylase, DNA polymerases, primase/helicase proteins, exonuclease, lysozyme, several hypothetical proteins, and phage structural and assembly proteins. The other predicted prophages (sizes ranging from 9.0 to 19.8 Kb) seemed to be incomplete, because they lacked the full set of structural or assembly elements. However, these “incomplete prophages” may utilize elements from complete ones. Some of the incomplete prophages may be involved in fitness and adaption under certain conditions. For example, the third-largest one (prophage I, 19.8 Kb, incomplete) contained transcriptional regulators, the siderophore interacting protein, stress response protein, and several phage structure proteins (Table S2). Prophage III (19.7 Kb, incomplete) carried multiple transposases, killer proteins (HigA and HigB), and hydrolases. Moreover, prophage IV may have integrated into the host genome long ago, because its GC content (61.5%) is only slightly different from average in the whole genome (60.1%). Remarkably, the GC content of two complete prophages in A. astilbis JCM 15831 (56.0% and 56.3% in prophage I and III, respectively) was much lower than average in the genome, indicating that they are recently invaded phage elements. Similarly, a lower GC content (57.8%) of the intact prophage II predicted in A. bogorensis NBRC 16594 was found. Interestingly, A. bogorensis SF2.1 associated with mosquitoes did not carry any complete prophages, highlighting the differential evolution of these Asaia species and strains (Table S2).
Up to 17 genomic islands (GIs) were detected in the Asaia sp. W12 genome, ranging in size from 4.05 to 72.04 Kb (Table S3). Genes encoding flagellar structural and assembly proteins; prophage components; various enzymes (e.g., lipase, proteases, lysozyme, NAD(P)H oxidoreductase, hydrolases, and amidase); DNA metabolism; transposases; regulators; modification and restriction systems; and stress response systems occurred in these GIs (Table S3), indicating that Asaia sp. W12 possibly acquired these genes, thereby forming GIs favoring the adaptation to diverse environments.

4. Discussion

One of the striking features in insect-associated Asaia species is that they have much larger genome sizes than plant-associated ones, which is consistent with that reported by Comandatore et al. [36]. This observation highlights the diverse lifestyles of Asaia species forming a symbiotic relationship with mosquito hosts [1]. Mosquitoes live in both aquatic and terrestrial environments (depending on their developmental stages) and need various diets (microorganisms and detritus as larval food; sugar and blood as adults) [13]. Such frequent and dramatic changes necessitate mosquito-associated Asaia to carry out versatile metabolic activities and regulatory mechanisms (see below). Asaia species experienced an evolution that occurred through independent genomic reduction/variation after they formed symbiotic relationships with mosquitoes [36,37]. For example, some genes were reduced in COG pathways, including those involved in transcription, replication, recombination, and repair, as well as cell motility [36].
Differences in the repertoires of these regulatory proteins are likely to facilitate the adaptation of Asaia to different hosts and/or could be responsible for different symbiosis or disease characteristics induced [2,5,16]. Strain W12 carried the most regulatory protein genes among the selected genomes, which may indicate a high degree of adaptability of this organism to both plant and insect environments [38]. A. bogorensis SF2.1 was reported to be located in multiple sites in mosquitoes, including the salivary gland, midgut, and reproduction organs [13]. These niches obviously represent very different microenvironments physiologically [2,37]. One possible explanation is that these signaling molecules trigger the expression of genes responsible for stress and regulate the development of the symbiosis relationship or intercellular communication [10,12,39]. Several signaling proteins are present in insect-associated Asaia while commonly absent in plant-associated Asaia. The acquisition of transcriptional protein genes in insect-associated Asaia cannot be explained by genome size increases, because the relative transcriptional protein ratio was also higher (average 61/Mb) than those from insects (average 53/Mb). During the evolution of various symbiotic relationships with different hosts, bacteria tend to maintain their target genes more than the transcription factors that regulate their expression [40]. Our present results indicated that mosquito-associated Asaia obtain/maintain more transcription factors to control their gene expression in order to adapt to the complex environment, which may stress the strain difference and various evolution pathways. However, the challenge remains to associate these differences in TCS proteins to specific traits of Asaia.
Most of the CAZymes in Asaia species are involved in metabolizing simple sugars rather than complex plant polysaccharides [41], which is consistent with their living conditions [5]. The increased number of glycoside hydrolases in insect-associated Asaia strains were only limited to a few peptidoglycan lyases or chitinase-like hydrolases, showing that the adaptation to a plant or insect host was not marked by the acquisition of specific CAZymes [2,41]. It has been well-documented that Asaia and other acetic acid bacteria produce bacterial cellulose (BC), which contributes to cell adherence to plant surfaces or insect epitheliums or other tissues, as one of the biofilm components [42]. The physiological role of BC may be important for the symbiotic relationship persistence between Asaia and mosquitoes by (1) hindering the flagellar rotation, (2) limiting cell motility, and (3) promoting biofilm formation [42]. The mechanisms involved in bacterial cellulose formation and its regulation in Asaia are not clear; our findings suggest that bacterial cellulose biosynthesis is diverse among Asaia strains, implying that the regulatory mechanisms of BC-related biofilm are different. It is well-known that the cellulose matrix extracted from Asaia has thinner fibrils, highlighting the biological origination differences from those well-known bacteria [43]. The cellulose-producing bacterium Gluconacetobacter xylinus has endo-1,4-β-glucanase and β-glucosidase genes (located adjacent to the cellulose synthesis operon), which played an important role in regulation of cellulose biosynthesis [44]. However, β-glucosidase genes in A. bogorensis were outside of the cellulose synthesis cluster, which produced a different type of β-glucosidases [45]. The different cellulose productivities between A. bogorensis and G. xylinus may partly be linked to the different β-1,4-glucanases [45]. bscA was not present in this operon, as were the typical ones discovered in E. coli and others [46]. The second gene in the operon (bcsB) encodes the catalytic subunit of cellulose synthase [47]. Bacterial strains mutated in the bcsA locus were found to be deficient in cellulose synthesis due to the lack of cellulose synthase and diguanylate cyclase activities [47].
Besides the above-mentioned traits, we also further investigated eukaryote-like proteins (ELPs) in Asaia genomes, which may lead to the discovery of novel mechanisms underlying host–symbiont interactions [48]. These domains may be acquired through horizontal gene transfer (HGT) from the eukaryote hosts or through convergent evolution [49]. ELPs have only been reported in a few symbiotic bacteria in mosquitoes [50,51,52]. However, they are likely to be more widespread. Asaia species carried several genes encoding ELPs, including TPR, Ank, Sel1 repeats, and Fn3. ELPs in the mosquito symbiont Wolbachia pipientis wMel carried at least 23 ANK-containing genes [51,52], indicating that the contents of the ELPs were beyond the strict pathogens. Further, Klasson et al. (2008) reported that W. pipientis wPip had up to 60 ANK proteins with some of unique presence in its own genome [53]. Cardinium hertigii (another inherited bacterial symbionts causing CI) was reported to have many ELPs (such as ANK-containing proteins) [54].
Even though the bacterial niches in mosquito tissues and organs are not strictly anaerobic, some tissues may have limited oxygen concentrations. Coon et al. (2017) showed that bacteria (wild-type E. coli) reduced the midgut oxygen concentrations below 5% in both nonsterile or gnotobiotic larvae [55]. However, E. coli mutants lacking cytochrome bd oxidase genes did not [55]. In the same study, they further demonstrated that hypoxia mediated by bacterial respiratory functioned as an important signal of larval development and ecdysone-induced molting [55]. Together, their findings indicated the importance of aerobic respiration by gut bacteria in mosquito development. Here, our comparative genome analysis showed that, regardless of the species’ origination, most Asaia genomes carried two distinct cyo operons (except A. astilbis JCM 15831). Previously, Chouaia et al. (2014) found that only eight AAB species (animal and plant pathogens or symbionts, including A. bogorensis NBRC 16594) among the 705 bacterial genomes contained two complete cyo operons [38]. The expression level of the two cyo operons was differently regulated, depending on their culture conditions [38]. One can infer that the additional copy of fully functional modules of bo3 and bd may allow bacteria Asaia to handle oxidative stress conditions in mosquitoes. They may actively create hypoxia (a signal for molting), a condition in the mosquito gut, using their enhanced respiratory capability [55]. It will be necessary to test which cyo operon(s) directly participate in the above process and which may serve to create tools for interrupting growth of larval mosquitoes.
In many microbes, pyruvates can be channeled via α-acetolactate and acetoin into 2,3-butanediol. The production of this compound is induced under limited oxygen levels and low pH, which possibly happens in some mosquito tissues [56,57]. P. aeruginosa grown with the 2,3-butanediol supplement persisted longer in the murine respiratory tract [58]. They promoted TNF-α and IL-6 responses in the host and led to the increased colonization of the microbiota in the lung tissue [58]. Further, 2,3-butanediol upregulated the expression of the global transcription regulator LasI-LasR controlling the quorum sensing in P. aeruginosa, which increased the exotoxin concentrations and biofilm formation [59]. Due to the importance of 2,3-butanediol in biofilm formation and toxicity [59], one can hypothesize that it not only has a role in bacterial antagonism and Asaia abundance but, also, in the increased colonization of the mosquito midgut with other environmental microbes. It is also worth noting that inositol metabolic pathways were found in all of the selected Asaia. Pathogenic bacteria (such as Mycobacterium) require inositol biosynthesis for survival and pathogenesis, because inositol may be involved in detoxification and in protecting the cell from oxidative damage in the course of infection [60]. In animals, myo-inositol participated in several cellular signaling pathways and functioned as an osmolyte in some specific tissues where osmolarity played a crucial biological role [61]. For example, the ability of insects to survive during cold environments (such as a harsh winter) possibly links to myo-inositol production [62]. Therefore, it is possible that inositol metabolic pathways in Asaia contribute to the stress response regulation (such as cold tolerance).
Horizontal gene transfer (HGT), transposons, and prophages often lead to genome plasticity [63,64]. Among them, prophages are very important for genetic diversification by delivering functional genes among different strains [65,66]. For example, some transcriptional regulators, iron uptake proteins, stress response proteins, killer proteins (HigA and HigB), and hydrolases were found in the prophages of Asaia. The size of the genome and the numbers and size of the GIs in W12 were more than those in other selected Asaia, implying that W12 had a more flexible response to environment changes. The flagellar structural and assembly protein genes; various enzymes (e.g., lipase, proteases, lysozyme, NAD(P)H oxidoreductase, hydrolases, and amidase); DNA metabolism; transposases; modification and restriction systems; and stress response systems were found in these GIs. Asaia bacteria possibly employ a complex set of chemosensory pathways to swim towards different insect organs and adapt to the insect’s physiological demands. However, the detailed mechanisms need to be further investigated.

5. Conclusions

In conclusion, Asaia sp. W22 carried several genetic traits that facilitate the formation of symbiotic relations with insects [10,18,37]. It had more signaling components and glycoside hydrolase genes compared to many other selected Asaia genomes. Many well-known eukaryotic-like motifs/eukaryotic-like proteins (ELPs) and large adhesins involved in the protein–protein interactions for a range of cellular processes were discovered in its genome. Remarkably, most Asaia species carried two copies of cyoABCD, encoding bo3-type ubiquinol oxidase genes (encoding the terminal respiratory chain protein), which was a unique characteristic for them to be symbionts in both plants and insects [38]. Metabolic genes, including inositol and butanediol synthesis, possibly play the important roles in stress tolerance and biofilm formation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/12/5/752/s1, Table S1: The CAZy prediction amongst different Asaia spp. Table S2: The putative prophages predicted in various Asaia. Table S3: The total genomic islands predicted in various Asaia spp. Figure S1: Core genome, pan genome, and singleton genome evolution.

Author Contributions

Conceptualization, S.C., N.T., B.H., and T.Y.; methodology, S.C.; validation, S.C.; formal analysis, S.C.; investigation, S.C. and E.D.W.; resources, S.C. and E.D.W.; data curation, S.C.; writing—original draft preparation, S.C. and E.D.W.; writing—review and editing, S.C., T.Y., N.T., B.H., and E.D.W.; supervision, S.C. and E.D.W.; and project administration, S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This project was funded by NIH grant R37AI21884.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are available from the corresponding author upon reasonable request.

Acknowledgments

We thank Jochen Blom at Justus-Liebig University for helping with the EDGAR analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Favia, G.; Ricci, I.; Damiani, C.; Raddadi, N.; Crotti, E.; Marzorati, M.; Rizzi, A.; Urso, R.; Brusetti, L.; Borin, S.; et al. Bacteria of the genus Asaia stably associate with Anopheles stephensi, an Asian malarial mosquito vector. Proc. Natl. Acad. Sci. USA 2007, 104, 9047–9051. [Google Scholar] [CrossRef][Green Version]
  2. Bassene, H.; Niang, E.H.A.; Fenollar, F.; Doucoure, S.; Faye, O.; Raoult, D.; Sokhna, C.; Mediannikov, O. Role of plants in the transmission of Asaia sp., which potentially inhibit the Plasmodium sporogenic cycle in Anopheles mosquitoes. Sci. Rep. 2020, 10, 7144. [Google Scholar] [CrossRef] [PubMed]
  3. Crotti, E.; Damiani, C.; Pajoro, M.; Gonella, E.; Rizzi, A.; Ricci, I.; Negri, I.; Scuppa, P.; Rossi, P.; Ballarini, P.; et al. Asaia, a versatile acetic acid bacterial symbiont, capable of cross-colonizing insects of phylogenetically distant genera and orders. Environ. Microbiol. 2009, 11, 3252–3264. [Google Scholar] [CrossRef]
  4. Chouaia, B.; Rossi, P.; Montagna, M.; Ricci, I.; Crotti, E.; Damiani, C.; Epis, S.; Faye, I.; Sagnon, N.; Alma, A.; et al. Molecular evidence for multiple infections as revealed by typing of Asaia bacterial symbionts of four mosquito species. Appl. Environ. Microbiol. 2010, 76, 7444–7450. [Google Scholar] [CrossRef][Green Version]
  5. Minard, G.; Tran, F.; Raharimalala, F.; Hellard, E.; Ravelonandro, P.; Mavingui, P.; Valiente, M. Prevalence, genomic and metabolic profiles of Acinetobacter and Asaia associated with field-caught Aedes albopictus from Madagascar. FEMS Microbiol. Ecol. 2013, 83, 63–73. [Google Scholar] [CrossRef][Green Version]
  6. Chen, S.; Zhao, J.; Joshi, D.; Xi, Z.; Norman, B.; Walker, E.D. Persistent infection by Wolbachia wAlbB has no effect on composition of the gut microbiota in adult female Anopheles stephensi. Front. Microbiol. 2016, 7. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Damiani, C.; Ricci, I.; Crotti, E.; Rossi, P.; Rizzi, A.; Scuppa, P.; Capone, A.; Ulissi, U.; Epis, S.; Genchi, M.; et al. Mosquito-bacteria symbiosis: The case of Anopheles gambiae and Asaia. Microb. Ecol. 2010, 60, 644–654. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Damiani, C.; Ricci, I.; Crotti, E.; Rossi, P.; Rizzi, A.; Scuppa, P. Paternal transmission of symbiotic bacteria in malaria vectors. Curr. Biol. 2008, 18, R1087–R1088. [Google Scholar] [CrossRef] [PubMed][Green Version]
  9. Capone, A.; Ricci, I.; Damiani, C.; Mosca, M.; Rossi, P.; Scuppa, P.; Crotti, E.; Epis, S.; Angeletti, M.; Valzano, M.; et al. Interactions between Asaia, Plasmodium and Anopheles: New insights into mosquito symbiosis and implications in malaria symbiotic control. Parasite Vector 2013, 6. [Google Scholar] [CrossRef][Green Version]
  10. Ricci, I.; Damiani, C.; Rossi, P.; Capone, A.; Scuppa, P.; Cappelli, A.; Ulissi, U.; Mosca, M.; Valzano, M.; Epis, S.; et al. Mosquito symbioses: From basic research to the paratransgenic control of mosquito-borne diseases. J. Appl. Entomol. 2011, 135, 487–493. [Google Scholar] [CrossRef][Green Version]
  11. Mancini, M.V.; Damiani, C.; Short, S.M.; Cappelli, A.; Ulissi, U.; Capone, A.; Serrao, A.; Rossi, P.; Amici, A.; Kalogris, C.; et al. Inhibition of Asaia in adult mosquitoes causes male-specific mortality and diverse transcriptome changes. Pathogens 2020, 9, 380. [Google Scholar] [CrossRef]
  12. Rossi, P.; Ricci, I.; Cappelli, A.; Damiani, C.; Ulissi, U.; Mancini, M.V.; Valzano, M.; Capone, A.; Epis, S.; Crotti, E.; et al. Mutual exclusion of Asaia and Wolbachia in the reproductive organs of mosquito vectors. Parasite Vector 2015, 8, 278. [Google Scholar] [CrossRef] [PubMed]
  13. Favia, G.; Ricci, I.; Marzorati, M.; Negri, I.; Alma, A.; Sacchi, L.; Bandi, C.; Daffonchio, D. Bacteria of the genus Asaia: A potential paratransgenic weapon against malaria. In Transgenesis and the Management of Vector-Borne Disease; Aksoy, S., Ed.; Springer: New York, NY, USA, 2008; pp. 49–59. [Google Scholar] [CrossRef]
  14. Favia, G.; Ricci, I.; Marzorati, M.; Negri, I.; Alma, A.; Sacchi, L. Bacteria of the genus Asaia: A potential weapon against malaria. Adv. Exp. Med. Biol. 2008, 627, 49–59. [Google Scholar]
  15. Epis, S.; Varotto-Boccazzi, I.; Crotti, E.; Damiani, C.; Giovati, L.; Mandrioli, M.; Biggiogera, M.; Gabrieli, P.; Genchi, M.; Polonelli, L.; et al. Chimeric symbionts expressing a Wolbachia protein stimulate mosquito immunity and inhibit filarial parasite development. Commun. Biol. 2020, 3, 105. [Google Scholar] [CrossRef] [PubMed]
  16. Bongio, N.J.; Lampe, D.J. Inhibition of Plasmodium berghei development in mosquitoes by effector proteins secreted from Asaia sp. bacteria using a novel native secretion signal. PLoS ONE 2015, 10, e0143541. [Google Scholar] [CrossRef][Green Version]
  17. Cappelli, A.; Damiani, C.; Mancini, M.V.; Valzano, M.; Rossi, P.; Serrao, A.; Ricci, I.; Favia, G. Asaia activates immune genes in mosquito eliciting an anti-Plasmodium response: Implications in malaria control. Front. Genet. 2019, 10. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Crotti, E.; Rizzi, A.; Chouaia, B.; Ricci, I.; Favia, G.; Alma, A.; Sacchi, L.; Bourtzis, K.; Mandrioli, M.; Cherif, A.; et al. Acetic acid bacteria, newly emerging symbionts of insects. Appl. Environ. Microbiol. 2010, 76, 6963–6970. [Google Scholar] [CrossRef][Green Version]
  19. Chen, S.; Bagdasarian, M.; Walker, E.D. Elizabethkingia anophelis: Molecular manipulation and interactions with mosquito hosts. Appl. Environ. Microbiol. 2015. [Google Scholar] [CrossRef][Green Version]
  20. Overbeek, R.; Olson, R.; Pusch, G.D.; Olsen, G.J.; Davis, J.J.; Disz, T.; Edwards, R.A.; Gerdes, S.; Parrello, B.; Shukla, M.; et al. The SEED and the rapid annotation of microbial genomes using subsystems technology (RAST). Nucleic Acids Res. 2014, 42, D206–D214. [Google Scholar] [CrossRef]
  21. Blom, J.; Kreis, J.; Spänig, S.; Juhre, T.; Bertelli, C.; Ernst, C.; Goesmann, A. EDGAR 2.0: An enhanced software platform for comparative gene content analyses. Nucleic Acids Res. 2016, 44, W22–W28. [Google Scholar] [CrossRef][Green Version]
  22. Chaumeil, P.-A.; Mussig, A.J.; Hugenholtz, P.; Parks, D.H. GTDB-Tk: A toolkit to classify genomes with the Genome Taxonomy Database. Bioinformatics 2019, 36, 1925–1927. [Google Scholar] [CrossRef]
  23. Bertelli, C.; Laird, M.R.; Williams, K.P.; Simon Fraser University Research Computing Group; Lau, B.Y.; Hoad, G.; Winsor, G.L.; Brinkman, F.S. IslandViewer 4: Expanded prediction of genomic islands for larger-scale datasets. Nucleic Acids Res. 2017, 45, W30–W35. [Google Scholar] [CrossRef]
  24. Lombard, V.; Golaconda Ramulu, H.; Drula, E.; Coutinho, P.M.; Henrissat, B. The carbohydrate-active enzymes database (CAZy) in 2013. Nucleic Acids Res. 2014, 42, D490–D495. [Google Scholar] [CrossRef][Green Version]
  25. Terrapon, N.; Lombard, V.; Drula, É.; Lapébie, P.; Al-Masaudi, S.; Gilbert, H.J.; Henrissat, B. PULDB: The expanded database of polysaccharide utilization loci. Nucleic Acids Res. 2018, 46, D677–D683. [Google Scholar] [CrossRef]
  26. Cantarel, B.L.; Coutinho, P.M.; Rancurel, C.; Bernard, T.; Lombard, V.; Henrissat, B. The Carbohydrate-Active EnZymes database (CAZy): An expert resource for glycogenomics. Nucleic Acids Res. 2008, 37, D233–D238. [Google Scholar] [CrossRef]
  27. Blin, K.; Shaw, S.; Steinke, K.; Villebro, R.; Ziemert, N.; Lee, S.Y.; Medema, M.H.; Weber, T. antiSMASH 5.0: Updates to the secondary metabolite genome mining pipeline. Nucleic Acids Res. 2019, 47, W81–W87. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Sharma, M.P.; Grover, M.; Chourasiya, D.; Bharti, A.; Agnihotri, R.; Maheshwari, H.S.; Pareek, A.; Buyer, J.S.; Sharma, S.K.; Schütz, L.; et al. Deciphering the role of trehalose in tripartite symbiosis among rhizobia, arbuscular mycorrhizal fungi, and legumes for enhancing abiotic stress tolerance in crop plants. Front. Microbiol. 2020, 11. [Google Scholar] [CrossRef] [PubMed]
  29. MacIntyre, A.M.; Barth, J.X.; Pellitteri Hahn, M.C.; Scarlett, C.O.; Genin, S.; Allen, C. Trehalose synthesis contributes to osmotic stress tolerance and virulence of the bacterial wilt pathogen Ralstonia solanacearum. Mol. Plant-Microbe Interact. 2020, 33, 462–473. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Kawai, M.; Higashiura, N.; Hayasaki, K.; Okamoto, N.; Takami, A.; Hirakawa, H.; Matsushita, K.; Azuma, Y. Complete genome and gene expression analyses of Asaia bogorensis reveal unique responses to culture with mammalian cells as a potential opportunistic human pathogen. DNA Res. 2015, 22, 357–366. [Google Scholar] [CrossRef][Green Version]
  31. Oleńska, E.; Małek, W.; Wójcik, M.; Swiecicka, I.; Thijs, S.; Vangronsveld, J. Beneficial features of plant growth-promoting rhizobacteria for improving plant growth and health in challenging conditions: A methodical review. Sci. Total Environ. 2020, 743, 140682. [Google Scholar] [CrossRef] [PubMed]
  32. Farag, M.A.; Song, G.C.; Park, Y.-S.; Audrain, B.; Lee, S.; Ghigo, J.-M.; Kloepper, J.W.; Ryu, C.-M. Biological and chemical strategies for exploring inter- and intra-kingdom communication mediated via bacterial volatile signals. Nat. Protoc. 2017, 12, 1359–1377. [Google Scholar] [CrossRef]
  33. Michell, R.H. Inositol derivatives: Evolution and functions. Nat. Rev. Mol. Cell Biol. 2008, 9, 151–161. [Google Scholar] [CrossRef]
  34. Enriquez, T.; Colinet, H. Cold acclimation triggers major transcriptional changes in Drosophila suzukii. BMC Genom. 2019, 20, 413. [Google Scholar] [CrossRef]
  35. Rojas, C.M.; Ham, J.H.; Deng, W.-L.; Doyle, J.J.; Collmer, A. HecA, a member of a class of adhesins produced by diverse pathogenic bacteria, contributes to the attachment, aggregation, epidermal cell killing, and virulence phenotypes of Erwinia chrysanthemi EC16 on Nicotiana clevelandii seedlings. Proc. Natl. Acad. Sci. USA 2002, 99, 13142–13147. [Google Scholar] [CrossRef][Green Version]
  36. Comandatore, F.; Damiani, C.; Cappelli, A.; Ribolla, P.E.M.; Gasperi, G.; Gradoni, F.; Capelli, G.; Piazza, A.; Montarsi, F.; Mancini, M.V.; et al. Phylogenomics reveals that Asaia symbionts from insects underwent convergent genome reduction, preserving an insecticide-degrading gene. mBio 2021, 12, e00106–e00121. [Google Scholar] [CrossRef]
  37. Alonso, D.P.; Mancini, M.V.; Damiani, C.; Cappelli, A.; Ricci, I.; Alvarez, M.V.N.; Bandi, C.; Ribolla, P.E.M.; Favia, G. Genome reduction in the mosquito symbiont Asaia. Genome Biol. Evol. 2018, 11, 1–10. [Google Scholar] [CrossRef][Green Version]
  38. Chouaia, B.; Gaiarsa, S.; Crotti, E.; Comandatore, F.; Degli Esposti, M.; Ricci, I.; Alma, A.; Favia, G.; Bandi, C.; Daffonchio, D. Acetic acid bacteria genomes reveal functional traits for adaptation to life in insect guts. Genome Biol. Evol. 2014, 6, 912–920. [Google Scholar] [CrossRef][Green Version]
  39. Shane, J.L.; Bongio, N.J.; Favia, G.; Lampe, D.J. Draft genome sequence of Asaia sp. strain SF2.1, an important member of the microbiome of Anopheles mosquitoes. Genome Announc. 2014, 2, e01202–e01213. [Google Scholar] [CrossRef][Green Version]
  40. Perez, J.C.; Groisman, E.A. Evolution of transcriptional regulatory circuits in bacteria. Cell 2009, 138, 233–244. [Google Scholar] [CrossRef][Green Version]
  41. Lacombe-Harvey, M.-È.; Brzezinski, R.; Beaulieu, C. Chitinolytic functions in actinobacteria: Ecology, enzymes, and evolution. Appl. Microbiol. Biotechnol. 2018, 102, 7219–7230. [Google Scholar] [CrossRef][Green Version]
  42. Augimeri, R.V.; Varley, A.J.; Strap, J.L. Establishing a role for bacterial cellulose in environmental interactions: Lessons learned from diverse biofilm-producing proteobacteria. Front. Microbiol. 2015, 6. [Google Scholar] [CrossRef][Green Version]
  43. Penttilä, P.A.; Imai, T.; Capron, M.; Mizuno, M.; Amano, Y.; Schweins, R.; Sugiyama, J. Multimethod approach to understand the assembly of cellulose fibrils in the biosynthesis of bacterial cellulose. Cellulose 2018, 25, 2771–2783. [Google Scholar] [CrossRef]
  44. Liu, M.; Liu, L.; Jia, S.; Li, S.; Zou, Y.; Zhong, C. Complete genome analysis of Gluconacetobacter xylinus CGMCC 2955 for elucidating bacterial cellulose biosynthesis and metabolic regulation. Sci. Rep. 2018, 8, 6266. [Google Scholar] [CrossRef] [PubMed]
  45. Kumagai, A.; Mizuno, M.; Nozaki, K.; MSaxena, I.; Amano, Y. Comparative study on the ability to produce gentiobiose in cellulose-producing bacteria Asaia bogorensis and Gluconacetobacter xylinus. J. Appl. Glycosci. 2011, 58, 147–150. [Google Scholar] [CrossRef][Green Version]
  46. Krasteva, P.V.; Bernal-Bayard, J.; Travier, L.; Martin, F.A.; Kaminski, P.-A.; Karimova, G.; Fronzes, R.; Ghigo, J.-M. Insights into the structure and assembly of a bacterial cellulose secretion system. Nat. Commun. 2017, 8, 2065. [Google Scholar] [CrossRef][Green Version]
  47. Wong, H.C.; Fear, A.L.; Calhoon, R.D.; Eichinger, G.H.; Mayer, R.; Amikam, D.; Benziman, M.; Gelfand, D.H.; Meade, J.H.; Emerick, A.W. Genetic organization of the cellulose synthase operon in Acetobacter xylinum. Proc. Natl. Acad. Sci. USA 1990, 87, 8130. [Google Scholar] [CrossRef][Green Version]
  48. Díez-Vives, C.; Moitinho-Silva, L.; Nielsen, S.; Reynolds, D.; Thomas, T. Expression of eukaryotic-like protein in the microbiome of sponges. Mol. Ecol. 2017, 26, 1432–1451. [Google Scholar] [CrossRef]
  49. Wybouw, N.; Pauchet, Y.; Heckel, D.G.; Van Leeuwen, T. Horizontal gene transfer contributes to the evolution of arthropod herbivory. Genome Biol. Evol. 2016, 8, 1785–1801. [Google Scholar] [CrossRef][Green Version]
  50. Siozios, S.; Ioannidis, P.; Klasson, L.; Andersson, S.G.E.; Braig, H.R.; Bourtzis, K. The diversity and evolution of Wolbachia ankyrin repeat domain genes. PLoS ONE 2013, 8, e55390. [Google Scholar] [CrossRef] [PubMed][Green Version]
  51. Walker, T.; Klasson, L.; Sebaihia, M.; Sanders, M.J.; Thomson, N.R.; Parkhill, J.; Sinkins, S.P. Ankyrin repeat domain-encoding genes in the wPip strain of Wolbachia from the Culex pipiens group. BMC Biol. 2007, 5, 39. [Google Scholar] [CrossRef][Green Version]
  52. Wu, M.; Sun, L.V.; Vamathevan, J.; Riegler, M.; Deboy, R.; Brownlie, J.C.; McGraw, E.A.; Martin, W.; Esser, C.; Ahmadinejad, N.; et al. Phylogenomics of the reproductive parasite Wolbachia pipientis wMel: A streamlined genome overrun by mobile genetic elements. PLoS Biol. 2004, 2, e69. [Google Scholar] [CrossRef][Green Version]
  53. Klasson, L.; Walker, T.; Sebaihia, M.; Sanders, M.J.; Quail, M.A.; Lord, A.; Sanders, S.; Earl, J.; O′Neill, S.L.; Thomson, N.; et al. Genome evolution of Wolbachia strain wPip from the Culex pipiens group. Mol. Biol. Evol. 2008, 25, 1877–1887. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Penz, T.; Schmitz-Esser, S.; Kelly, S.E.; Cass, B.N.; Müller, A.; Woyke, T.; Malfatti, S.A.; Hunter, M.S.; Horn, M. Comparative genomics suggests an independent origin of cytoplasmic incompatibility in Cardinium hertigii. PLoS Genet. 2012, 8, e1003012. [Google Scholar] [CrossRef][Green Version]
  55. Coon, K.L.; Valzania, L.; McKinney, D.A.; Vogel, K.J.; Brown, M.R.; Strand, M.R. Bacteria-mediated hypoxia functions as a signal for mosquito development. Proc. Natl. Acad. Sci. USA 2017, 114, E5362. [Google Scholar] [CrossRef][Green Version]
  56. Zhang, L.; Sun, J.; Hao, Y.; Zhu, J.; Chu, J.; Wei, D.; Shen, Y. Microbial production of 2, 3-butanediol by a surfactant (serrawettin)-deficient mutant of Serratia marcescens H30. J. Ind. Microbiol. Biotechnol. 2010, 37, 857–862. [Google Scholar] [CrossRef] [PubMed]
  57. Köpke, M.; Mihalcea, C.; Liew, F.; Tizard, J.H.; Ali, M.S.; Conolly, J.J.; Al-Sinawi, B.; Simpson, S.D. 2,3-butanediol production by acetogenic bacteria, an alternative route to chemical synthesis, using industrial waste gas. Appl. Environ. Microbiol. 2011, 77, 5467–5475. [Google Scholar] [CrossRef][Green Version]
  58. Nguyen, M.; Sharma, A.; Wu, W.; Gomi, R.; Sung, B.; Hospodsky, D.; Angenent, L.T.; Worgall, S. The fermentation product 2,3-butanediol alters P. aeruginosa clearance, cytokine response and the lung microbiome. ISME J. 2016, 10, 2978–2983. [Google Scholar] [CrossRef][Green Version]
  59. Venkataraman, A.; Rosenbaum, M.A.; Werner, J.J.; Winans, S.C.; Angenent, L.T. Metabolite transfer with the fermentation product 2,3-butanediol enhances virulence by Pseudomonas aeruginosa. ISME J. 2014, 8, 1210–1220. [Google Scholar] [CrossRef]
  60. Reynolds, T.B. Strategies for acquiring the phospholipid metabolite inositol in pathogenic bacteria, fungi and protozoa: Making it and taking it. Microbiology 2009, 155, 1386–1396. [Google Scholar] [CrossRef] [PubMed][Green Version]
  61. Chhetri, D.R. Myo-Inositol and its derivatives: Their emerging role in the treatment of human diseases. Front. Pharmacol. 2019, 10, 1172. [Google Scholar] [CrossRef][Green Version]
  62. Vesala, L.; Salminen, T.S.; Koštál, V.; Zahradníčková, H.; Hoikkala, A. Myo-inositol as a main metabolite in overwintering flies: Seasonal metabolomic profiles and cold stress tolerance in a northern drosophilid fly. J. Exp. Biol. 2012, 215, 2891–2897. [Google Scholar] [CrossRef][Green Version]
  63. Dutta, C.; Sarkar, M. Horizontal Gene Transfer and Bacterial Diversity. In Encyclopedia of Metagenomics: Genes, Genomes and Metagenomes: Basics, Methods, Databases and Tools; Nelson, K.E., Ed.; Springer: Boston, MA, USA, 2015; pp. 251–257. [Google Scholar] [CrossRef]
  64. Burrus, V.; Waldor, M.K. Shaping bacterial genomes with integrative and conjugative elements. Res. Microbiol. 2004, 155, 376–386. [Google Scholar] [CrossRef]
  65. Ramisetty, B.C.M.; Sudhakari, P.A. Bacterial ‘grounded’ prophages: Hotspots for genetic renovation and innovation. Front. Genet. 2019, 10, 65. [Google Scholar] [CrossRef][Green Version]
  66. Bobay, L.-M.; Rocha, E.P.C.; Touchon, M. The adaptation of temperate bacteriophages to their host genomes. Mol. Biol. Evol. 2012, 30, 737–751. [Google Scholar] [CrossRef][Green Version]
Figure 1. Phylogenetic placement of the selected Asaia. The tree is calculated from 829 core amino acids sequences per genome (6632 core amino acid sequences). The tree showed 100% branch support in 250 bootstrap iterations. The tree for 10 genomes was build out of a core of 471 genes per genome, which was 5181 in total. The selected genomes were: Acetobacter tropicalis strain BDGP1 (CP022699) (outgroup), A. astilbis JCM15831 (BAJT01000001), A. bogorensis NBRC16594 (AP014690), A. bogorensis GD01 (UEGO00000000.1), A. bogorensis IPC01 (UBIX00000000.1), A. platycodi JM 25414 (BAKW01000001), A. prunellae JCM 25354 (BAJV01000001), Asaia sp. As1742 (VWWA00000000), A. bogorensis SF2.1 (CBLX010000009.1), and Asaia sp. W12 (PNQZ00000000.1).
Figure 1. Phylogenetic placement of the selected Asaia. The tree is calculated from 829 core amino acids sequences per genome (6632 core amino acid sequences). The tree showed 100% branch support in 250 bootstrap iterations. The tree for 10 genomes was build out of a core of 471 genes per genome, which was 5181 in total. The selected genomes were: Acetobacter tropicalis strain BDGP1 (CP022699) (outgroup), A. astilbis JCM15831 (BAJT01000001), A. bogorensis NBRC16594 (AP014690), A. bogorensis GD01 (UEGO00000000.1), A. bogorensis IPC01 (UBIX00000000.1), A. platycodi JM 25414 (BAKW01000001), A. prunellae JCM 25354 (BAJV01000001), Asaia sp. As1742 (VWWA00000000), A. bogorensis SF2.1 (CBLX010000009.1), and Asaia sp. W12 (PNQZ00000000.1).
Genes 12 00752 g001

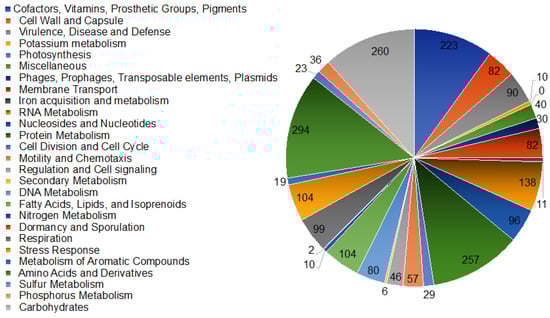

Figure 2. Subsystem category distribution of Asaia using SEED subsystems by the RAST analysis. The pie chart represents the relative abundance of each subsystem category, and the numbers depict the subsystem feature counts.
Figure 2. Subsystem category distribution of Asaia using SEED subsystems by the RAST analysis. The pie chart represents the relative abundance of each subsystem category, and the numbers depict the subsystem feature counts.
Genes 12 00752 g002
Figure 3. Proteome comparison among the selected Asaia. Venn diagrams generated by OrthoVenn 2.0 showing orthologous clusters shared separately by Asaia sp. W12 (green) and four other close Asaia species—specifically, A. bogorensis SF2.1 (blue), Asaia sp. As1742 (pink), A. bogorensis NBRC 16594 (yellow), and A. bogorensis GD01 (orange). When Asaia sp. W22 was compared with the other Asaia, there were 378, 170, 224, and 2255 clusters shared between 2, 3, 4, and 5 strains, respectively, while 89 clusters (clusters of singleton genes) were found in only 1 of the 5 Asaia compared.
Figure 3. Proteome comparison among the selected Asaia. Venn diagrams generated by OrthoVenn 2.0 showing orthologous clusters shared separately by Asaia sp. W12 (green) and four other close Asaia species—specifically, A. bogorensis SF2.1 (blue), Asaia sp. As1742 (pink), A. bogorensis NBRC 16594 (yellow), and A. bogorensis GD01 (orange). When Asaia sp. W22 was compared with the other Asaia, there were 378, 170, 224, and 2255 clusters shared between 2, 3, 4, and 5 strains, respectively, while 89 clusters (clusters of singleton genes) were found in only 1 of the 5 Asaia compared.
Genes 12 00752 g003

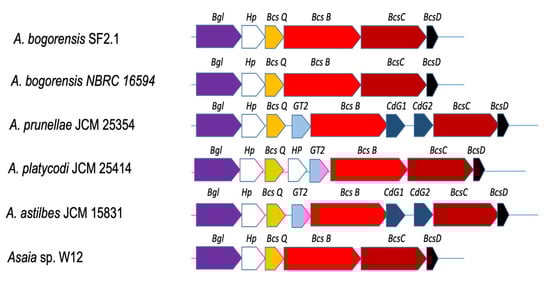

Figure 4. The operon organization of bacterial cellulose biosynthesis in selected Asaia strains. Bgl (purple); β-glucosidase gene; Hp (white), hypothetical protein gene; BcsQ (yellow), bacterial cellulose synthase (BCS) Q gene, involved in cellular localization of the BCS complexes; BcsB (red), bacterial cellulose synthase subunit B gene; BcsC (dark red), bacterial cellulose synthase subunit C gene; BcsD (black), bacterial cellulose synthase subunit D gene; GT2 (blue), glycosyltransferase family 2 gene; CdG, C-di-GMP precursor gene (dark blue).
Figure 4. The operon organization of bacterial cellulose biosynthesis in selected Asaia strains. Bgl (purple); β-glucosidase gene; Hp (white), hypothetical protein gene; BcsQ (yellow), bacterial cellulose synthase (BCS) Q gene, involved in cellular localization of the BCS complexes; BcsB (red), bacterial cellulose synthase subunit B gene; BcsC (dark red), bacterial cellulose synthase subunit C gene; BcsD (black), bacterial cellulose synthase subunit D gene; GT2 (blue), glycosyltransferase family 2 gene; CdG, C-di-GMP precursor gene (dark blue).
Genes 12 00752 g004
Table 1. General features of the various Asaia spp.
Table 1. General features of the various Asaia spp.
SpeciesSourcesSize (Mb)GC%Total RNA Number *CDSGenBank Accession Number
A. bogorensis NBRC 16594Bauhinia purpurea3.2059.8592896GCA_001547995.1
A. astilbis JCM 15831Astilbe thunbergii3.1558.0493482GCA_000613845.1
A. prunellae JCM 25354Prunella vulgaris3.1855.8483583GCA_900465315.1
A. platycodi JCM 25414Platycodon grandiflorum3.1559.3493774GCA_000614545.1
A. bogorensis IPC-01Flower3.1759.7542880GCA_900465315.1
A. bogorensis GD01Anopheles gambiae3.3459.8603226GCA_900465345.1
A. bogorensis SF2.1Anopheles stephensi3.5259.8453005GCA_000724025.1
Asaia sp. As-1742Atta sexdens3.7459.6543308GCA_011753235.1
Asaia sp. W12A. stephensi3.9460.1593580GCA_003994335.1
* The total RNA number includes the rRNA and tRNA copies.
Table 2. The distribution of glycoside hydrolases, glycosyltransferases, and carbohydrate esterases amongst different Asaia spp.
Table 2. The distribution of glycoside hydrolases, glycosyltransferases, and carbohydrate esterases amongst different Asaia spp.
Glycoside Hydrolases (GHs)Glycosyltransferases (GTs)Carbohydrate Esterases (CEs)
A. astilbis JCM 1583117371
A. platycodi JCM 2541415341
A. prunellae JCM 2535422551
A. bogorensis NBRC 1659428543
A. bogorensis IPC-0127543
A. bogorensis GD-0128553
A. bogorensis SF2.132533
Asaia sp. As-174232533
Asaia sp. W1232523
Table 3. Regulatory systems in Asaia spp.
Table 3. Regulatory systems in Asaia spp.
Predicted Regulatory Proteins
Two Component SystemsTranscription FactorsOther DNA-Binding ProteinsTotal
RRPPHKOCSRRTRSFODP
A. astilbis JCM 158311911527106558150
A. bogorensis NBRC 1659425022421562711184
A. bogorensis IPC-0124020351464713177
A. prunellae JCM 2535423214301369712170
A. platycodi JCM 2541416216331359810157
A. bogorensis GD-0121119391383715198
A. bogorensis SF2.125121401588716213
Asaia sp. As-174224121571496715235
Asaia sp. W1230126571885917243
Abbreviations: HK, histidine kinases; RR, response regulators; PR, phosphotransferase proteins; TR, transcriptional regulators; OCS, one-component systems; SF, sigma factors; ODP, other DNA-binding proteins.
Table 4. Genes involved in other symbiotic traits in Asaia.
Table 4. Genes involved in other symbiotic traits in Asaia.
SpeciescyoABCDAcetoin, Butanediol and InositolFlagellaLarge Adhesin
A. astilbis JCM 158311+++
A. bogorensis NBRC 165942+++
A. bogorensis IPC-012+++
A. prunellae JCM 253542+++
A. platycodi JCM 254142+++
A. bogorensis GD-012+++
Asaia sp. As-17422+++
A. bogorensis SF2.12++-
Asaia sp. W122+++
Table 5. Possible eukaryotic-like protein (ELP) motifs in the selected Asaia species.
Table 5. Possible eukaryotic-like protein (ELP) motifs in the selected Asaia species.
Tetratrico Peptide RepeatsAnkyrin RepeatsSel1 RepeatsFibronectin Type IIITotal Motif
A. astilbis JCM 15831922215
A. bogorensis NBRC 16594913114
A. bogorensis IPC 01913114
A. platycodi JCM 25414713112
A. prunellae JCM 25354913316
A. bogorensis GD 01813113
A. bogorensis SF2.1913215
Asaia As-1742813113
Asaia sp. W121012114
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, S.; Yu, T.; Terrapon, N.; Henrissat, B.; Walker, E.D. Genome Features of Asaia sp. W12 Isolated from the Mosquito Anopheles stephensi Reveal Symbiotic Traits. Genes 2021, 12, 752. https://doi.org/10.3390/genes12050752

AMA Style

Chen S, Yu T, Terrapon N, Henrissat B, Walker ED. Genome Features of Asaia sp. W12 Isolated from the Mosquito Anopheles stephensi Reveal Symbiotic Traits. Genes. 2021; 12(5):752. https://doi.org/10.3390/genes12050752

Chicago/Turabian Style

Chen, Shicheng, Ting Yu, Nicolas Terrapon, Bernard Henrissat, and Edward D. Walker. 2021. "Genome Features of Asaia sp. W12 Isolated from the Mosquito Anopheles stephensi Reveal Symbiotic Traits" Genes 12, no. 5: 752. https://doi.org/10.3390/genes12050752

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
