Evolution of the Pyrethroids Target-Site Resistance Mechanisms in Senegal: Early Stage of the Vgsc-1014F and Vgsc-1014S Allelic Frequencies Shift

Laboratoire d’Ecologie Vectorielle et Parasitaire, Faculté des Sciences et Technique, Université Cheikh Anta Diop, Dakar-Fann, Dakar B.P. 5005, Senegal
Disease Control and Elimination Theme, Medical Research Council Unit, The Gambia at the London School of Hygiene and Tropical Medicine, Banjul P.O. Box 273, The Gambia
Genomics Core Platform, Medical Research Council Unit, The Gambia at the London School of Hygiene and Tropical Medicine, Banjul P.O. Box 273, The Gambia
Laboratoire de Parasitologie Médicale, Pharmacie et d’Odonto-Stomatologie, Faculté de Médecine, Université Cheikh Anta Diop, Dakar-Fann, Dakar B.P. 5005, Senegal
Authors to whom correspondence should be addressed.
Genes 2021, 12(12), 1948;
Submission received: 28 October 2021 / Revised: 17 November 2021 / Accepted: 30 November 2021 / Published: 3 December 2021
(This article belongs to the Section Population and Evolutionary Genetics and Genomics)


The evolution and spread of insecticide resistance mechanisms amongst malaria vectors across the sub-Saharan Africa threaten the effectiveness and sustainability of current insecticide-based vector control interventions. However, a successful insecticide resistance management plan relies strongly on evidence of historical and contemporary mechanisms circulating. This study aims to retrospectively determine the evolution and spread of pyrethroid resistance mechanisms among natural Anopheles gambiae s.l. populations in Senegal. Samples were randomly drawn from an existing mosquito sample, collected in 2013, 2017, and 2018 from 10 sentinel sites monitored by the Senegalese National Malaria Control Programme (NMCP). Molecular species of An. gambiae s.l. and the resistance mutations at the Voltage-gated Sodium Channel 1014 (Vgsc-1014) locus were characterised using PCR-based assays. The genetic diversity of the Vgsc gene was further analyzed by sequencing. The overall species composition revealed the predominance of Anopheles arabiensis (73.08%) followed by An. gambiae s.s. (14.48%), Anopheles coluzzii (10.94%) and Anopheles gambiaecoluzii hybrids (1.48%). Both Vgsc-1014F and Vgsc-1014S mutations were found in all studied populations with a spatial variation of allele frequencies from 3% to 90%; and 7% to 41%, respectively. The two mutations have been detected since 2013 across all the selected health districts, with Vgsc-L1014S frequency increasing over the years while Vgsc-1014F decreasing. At species level, the Vgsc-1014F and Vgsc-1014S alleles were more frequent amongst An. gambiae s.s. (70%) and An. arabiensis (20%). The Vgsc gene was found to be highly diversified with eight different haplotypes shared between Vgsc-1014F and Vgsc-1014S. The observed co-occurrence of Vgsc-1014F and Vgsc-1014S mutations suggest that pyrethroid resistance is becoming a widespread phenomenon amongst malaria vector populations, and the NMCP needs to address this issue to sustain the gain made in controlling malaria.

1. Introduction

Despite extensive control efforts, including vector control interventions, over the last two decades, malaria remains one of the main global public health problems. The core malaria vector control interventions long-lasting insecticide-treated nets (LLINs) and indoor residual spraying (IRS) relies heavily on the use of four main insecticides classes recommended for use in public health [1]. Of these, the pyrethroids class of insecticides have been, and remain, the cornerstone of malaria prevention in Africa for almost two decades, including in Senegal. Pyrethroids have been recommended by the World Health Organization (WHO) as the most suitable for bed nets impregnation due to their insecticidal and quick knock-down effects on mosquitoes, while being relatively safe for human and other mammals [2]. Currently, pyrethroids are widely used in all types of LLIN and several IRS campaigns as well as in agriculture [3]. Moreover, several studies have demonstrated the key contribution of LLIN in curbing global malaria transmission and its associated mortality over the past two decades [3,4].
Unfortunately, due to their extremely large numbers and short generation time, mosquito populations evolve very rapidly, and resistance to several insecticide classes, including pyrethroids, are selected in a relatively short time, leading to repeated failures of control intervention [5,6,7]. Resistance to pyrethroids is mainly associated with a single nucleotide polymorphism in the target-site within the voltage-gated sodium channel (Vgsc) gene. In the main malaria vector, An. gambiae s.l., two amino acid substitutions have been selected at Vgsc locus, Vgsc-1014F and Vgsc-1014S, respectively known as kdr-west and kdr-east, respectively conferring the cross-resistance to the DDT (Dichloro Diphenyl Trichloroethane) and pyrethroids, and initially identified in western-central and central-eastern Africa, respectively [8]. However, more recently, several findings have suggested the range both alleles being not geographically limited; but found co-occurring in several western as well as eastern African countries, including in Mauritania [9], Cameroon [10], Gabon [11], and Tanzania [12]. According to reports from several West African countries, both of these mutations seemed predominant among the natural populations of the West Africans malaria vectors [8,13,14,15].
Understanding the dynamics and driving factors of insecticide resistance alleles can help in improving resistance management strategies and expend the lifespan of the limited available insecticides [16]. Moreover, with widespread insecticide resistance amongst malaria vectors, WHO lunched a Global plan for insecticide resistance management (GPIRM), which emphasizes the need to improve our knowledge on factors underlying resistance mechanisms [17]. However, no attempts have been made, to our knowledge, to better understand the biological and molecular mechanisms underlying the evolutionary dynamic of both mutations amongst the western African malaria vector populations.
Over the past decade, Senegal has undertaken large up-scaling of pyrethroid-based vector control interventions, mainly through universal the coverage of LLIN and targeted IRS using pyrethroids in selected Senegalese health districts between 2007 and 2010 [18]. However, several reports of pyrethroid resistance amongst natural population of malaria vectors [14,19,20,21], could compromise the gain obtained. Moreover, although the co-occurrence of both Vgsc-1014F and Vgsc-1014S has been extensively reported from several wild populations across diverse ecological zones of the country [14,20,21], their evolutionary history and dynamic in the country remain unclear and under-investigated. Therefore, understanding the distribution and evolutionary processes of both Vgsc-1014F and Vgsc-1014S mutations amongst the natural An. gambiae s.l. populations as well as their historical gene flow in Senegal, will be critical for the NMCP (National Malaria Control Programme) for its decision making regarding the management strategies of pyrethroids resistance and increase the lifespan of the limited core vector control interventions currently available.
In the present study, the pyrethroids/DDT cross-resistance allele frequencies at Vgsc locus, their genetic diversity, and evolutionary history in wild populations of An. gambiae s.l. were investigated from 10 Senegal NMCP sentinel sites in 2013, 2017, and 2018. These selected years corresponded to three important milestones with the shift of insecticides classes used for IRS across the study area.

2. Material and Methods

2.1. Study Design

This is a retrospective study tracking-back the evolutionary history of the target site DDT/Pyrethroids cross-resistance in natural populations of Anopheles gambiae s.l. across several ecological setting of Senegal. A random stratified sample was drawn from an existing collection of An. gambiae s.l. to capture as much as possible the spatial and temporal heterogeneities across the study area.

2.2. Study Area and Mosquito Collections

Historical samples of An. gambiae s.l. collected in 2013, 2017, and 2018 were retrieved from ten out of the thirty NMPC’s entomological sentinel health districts (Figure 1). A stratified random sampling approach considering the shifts periods for insecticide classes in IRS was used to select the specimens of An. gambiae s.l. stored in the mosquito biobank at the Laboratoire d’Ecologie Vectorielle et Parasitaire (LEVP) which is the entomological reference unit of the NMCP in Senegal. No sample collected during the pyrethroids period was included due to the insufficient samples size and low material remaining after the samples being processed for other purposes.
Entomological surveillance was carried out monthly during the high transmission season from June to November and once or twice (January and/or April) during the non or low transmission season. More detail on the NMCP sentinel sites and entomological surveillance can be found in [18,22].
The ten selected health districts are located in five (5) administrative regions, which in turn belong to our bioclimate zones accounting for almost 90% of the malaria transmission recorded in Senegal: the Sudan-Sahelian (Thies, Nioro, Ndoffane, kaffrine, Malem Hoddar, and Koungheul), the Sudanese zone (Velingara, Koumpentoum, and Tambacounda) and the Sudan-Guinean zone (Kedougou).
Of the ten districts, four (Nioro, Malem Hoddar, Koungheul, Koumpentoum, and Velingara) were previous IRS districts. While the remaining did not receive IRS and were selected as external control health district during entomological survey [18]. From 2007, when IRS started under the US PMI project to 2017, the IRS program in Senegal has gone through several insecticides and classes shift (Pyrethroids: 2007–2011, Carbamate: 2011–2013, Organophosphate: 2013–2017, and No-IRS in 2018) as part of the NMCP’s insecticide resistance management plan. While in the year 2018, no IRS was carried out in any of the selected districts following the decision of the PMI to stop the project in Senegal [18].

2.3. An. gambiae s.l. Samples Preparation and Laboratory Processing

Morphologically confirmed 1215 whole specimen of An. gambiae s.l. [23], stored individually in silica gel, were selected for subsequent molecular analyses.
The genomic DNA of individual sample was extracted from individual mosquito specimen using automated QIAXtractor Robot (Qiagen, Hilden, Germany). An. gambiae s.l. species were identified by species-specific genotyping PCR as previously described by Scott et al. [24] and Fanello Santolamazza and Della Torre [25] at Molecular Diagnostic Laboratories of Medical Research Council, Unit The Gambia at London School of Hygiene and Tropical Medicine.
All the 1215 An. gambiae s.l. samples were screened for presence of the two knockdown resistance (kdr) mutations at the 1014 amino acid locus as described previously [26].

2.4. Partial Sequencing of Voltage-Gated Sodium Channel Gene Encompassing Resistant Mutations

To infer the polymorphisms of the Vgsc-1014F and Vgsc-1014S mutations, their origin and evolutionary history, the Vgsc gene containing the 1014 mutation flanked by exons 20 and 21 were partially sequenced from 46 individuals (23 An. arabiensis, 17 An. coluzzii, and 6 An. gambiae s.s.) as described [27] at Genomics Core Platform of MRCG at LSHTM in The Gambia.
The samples were amplified using primers (kdr-CL-F: 5′-AAATGTCTCGCCC- AAATCAG-3′) and (kdr-CL-R: 5′-GCACCTGCAAAACAATGTCA-3′). The PCR mixture contained 1x PCR Buffer (New England Biolabs, London, UK), 0.2 mM of each dNTPs (Quiagen, Hilden, Germany), 1 U Taq DNA polymerase (New England Biolabs), and 0.25 mM of each primer, in a total volume of 50 µL. The cycling conditions were as follows: 5 min at 94 °C denaturation step; 35 cycles of 30 s at 94 °C, 30 s at 50 °C, and 60 s at 72 °C; and final extension for 10 min at 72 °C.
Ampure xp beads (Beckman Coulter A63881) were used to purify the amplified product. In detail, 0.9 × of beads was added to the PCR product. This was mixed and incubated at room temperature for 5 min before placing on a magnetic rack. The supernatant was discarded, and the bead–amplicon complex was washed with 80% ethanol twice and air dried before it was resuspended in 25 µL of elution buffer (Qiagen 19086). The supernatant was transferred to a new PCR plate and quantified with the Qubit™ 3 Fluorometer (Ref Q33216). All products were normalized to 20 ng and 10 ng was used as template (based on Thermofisher recommendations for fragment sizes between 500 b-1 kb) for both the forward and the reverse strand cycle sequencing using the Big Dye Terminator cycle sequencing kit (BTCS) V3.1. The master mix for the cycle sequencing consisted of 8 µL of the BTCS ready mix, 4 µL of primer, and 8 µL of PCR grade water. This was subjected to the following cycling conditions: 96 °C/1 min; then 25 cycles (96 °C/10 s, 50 °C/5 s, 60 °C/4 min). Forward and reverse amplification was conducted separately. PCR products were purified with Agencourt CleanSEQ (Ref A29151) and 85% of ethanol using the magnetic stand-96. DNA was eluted in 40 µL of PCR grade water and 20 µL was transferred to the ABI Seqstudio automatic sequencer (Applied Biosystems) for sequencing.

2.5. Data Analyses

The Vgsc-1014F and Vgsc-1014S alleles frequencies were calculated according to the Hardy–Weinberg expectations, and statistical differences among and between the study populations were examined by ANOVA at the significance level of 5%.
The obtained sequences were corrected using BioEdit v.7.2.1 then aligned using the ClustalW [28]. Estimates of DNA polymorphism, including the number of segregating sites, number of haplotypes, haplotype diversity, and nucleotide diversity, were obtained, then the genetic differentiation and gene flow between populations were inferred using DnaSP v.5.10 [29]. The genealogical relations among haplotypes were estimated by constructing network using the Network software v. [30] and the maximum likelihood phylogenetic tree was constructed using the MEGA v.7.0 program version [31] with the obtained clean sequences aligned with reference sequences (accession numbers AY615612, EU078898, and EU078896) retrieved from GenBank.

3. Results

3.1. Molecular Identification of An. gambiae Complex

Of the 1215 An. gambiae s.l., identified at species level by RFLP-PCR, 888 (73.08%) were Anopheles arabiensis, 176 (14.48%) An. gambiae s.s., 133 (10.94%) An. coluzzii, and 18 (1.48%) An. coluziigambiae hybrids. An. arabiensis was the most frequent and widespread species across the study area and the years, excepted in Kédougou in 2017 and 2018, and Tambacounda in 2013, where An. gambiae s.s. was the most predominant species, even though being found in sympatry with An. arabiensis and An. coluzzii (see Figure 2).

3.2. Detection of Vgsc-1014F and Vgsc-1014S Mutations

Both the Vgsc-1014F and Vgsc-1014S alleles were found in the study populations from all the ten health districts.
The Vgsc-1014F was recorded in all in the An. arabiensis population with an allelic frequency varying between 0.01 and 0.41. It was found in only nine health districts for the An. coluzzii population (0.04–0.64), seven districts for An. gambiae s.s. (0.11–1), and in two districts for the gambiaecoluzzii hybrids (0.64–1, see Table 1). The mean of frequencies of Vgsc-1014F mutation within sites was 0.10 ± 0.013 for An. arabiensis, 0.19 ± 0.03 for An. coluzzii, 0.68 ± 0.15 for An. gambiae s.s., and 0.82 ± 0.06 for gambiaecoluzzii hybrids. The recorded means varied significantly between species (one-way Anova F = 11.61, p < 0.001, Table 2). The mean of frequencies of the Vgsc-1014F mutation was 0.07 in Kaffrine, 0.45 in Kedougou, 0.27 in Koumpentoum, 0.04 in Kounghuel, 0.39 in Malem hoddar, in 0.04 Ndoffane, 0.06 in Nioro, 0.56 in Tamba, 0.13 in Thies, and 0.65 in Velingara.
On the other hand, the Vgsc-1014S mutation was recorded in only nine districts for An. arabiensis (allelic frequency: 0.11–0.41, Table 1), three districts for both An. coluzzii (0.03–0.30) and An. gambiae s.s. (0.05–0.47), and in one site for the gambiaecoluzzii hybrids (0.07). The means of frequencies of the Vgsc-1014S mutation within the districts was not significantly different between species, with 0.18±0.008 for An. arabiensis, 0.14 ± 0.04 for An. gambiae, 0.09 ± 0.02 for An. coluzzii, and 0.07 for gambiaecoluzzii hybrids (one-way ANOVA, F = 0.52, p = 0.67, Table 2). The mean of frequencies of the mutation was 0.08 in Koumpentoum, 0.05 in Koungheul, 0.06 in Malem hoddar, 0.06 in Nioro, 0.04 in Velingara, 0.09 in Kaffrine, 0.03 in Tamba, 0.29 in Thies, and 0.11 in Ndoffane.
Both mutations were found co-occurring in several An. gambiae s.l. specimens and populations all over the study period. The frequency of the Vgsc-1014F decreased between 2013 and 2018 from 0.46 ± 0.11 in 2013, to 0.19 ± 0.03 in 2017, then 0.22 ± 0.07 in 2018; while in the meantime, the Vgsc-1014S mutation frequency remained relatively constant with 0.35 ± 0.09 in 2013, 0.66 ± 0.01 in 2017, and 0.64 ± 0.001 in 2018 (see Table 3). No significant difference was recorded between the allelic frequencies of both mutations over the investigation years (see Table 2).

3.3. Genetic Diversity on the Voltage-Gated Sodium Channel Locus

The partial sequencing of a 461 bp of Vgsc gene from 46 samples from the 10 districts over the 3-year group, revealed 8 polymorphic sites with a high haplotype diversity of 0.804 and a nucleotide diversity of 0.0059. The genetic differentiation between the 3-year group was significant (Chi2 = 26.572; p-value = 0.0219; df = 14) and gene flow showed strong hybridization between populations (FST = −0.03318).
At the spatial level, each site constitutes a population and the genetic analysis between ten populations showed similar and high levels of haplotype diversity with no significant genetic differentiation between populations (X2 = 77.226, p-value = 0.1; df = 63). The overall estimate of gene flow between the populations was moderate with a FST of 0.1145.
At the species level, the variation in An. arabiensis, An. coluzzii, and An. gambiae s.s. populations showed similar levels of diversity, with an overall haplotype diversity of 0.639, 0.787, and 0.666, respectively. The gene flow between An. coluzzii and An. gambiae s.s. showed a high inbreeding between their two populations (FST = 0.02). However, the FST variation showed a very important genetic differentiation between An. arabiensis and An. coluzzii but also between An. arabiensis and An. gambiae with respective values 0.402 and 0.554.
The haplotype network (Figure 3) shows that the ancestral haplotype, H2 (28/92) shared between An. arabiensis and An. coluzzii was specific for both alleles. H1 (20/92) was specific only to the 1014S kdr and carried by An. arabiensis, An. coluzzii, and An. gambiae s.s. H3 (19/92) was specific to the 1014F kdr only and shared by all three species. H4 (6/92) and H5 (7/92) were specific to kdr west and carried by An. arabiensis and An. coluzzii. H6 (10/92) shared between An. coluzzii and An. gambiae s.s. belonged to kdr west. The lowest haplotypes H7 (1/92) and H8 (1/92) were specific for the 1014F resistance allele and belonged to An. coluzzii (Figure 3). Moreover, the analysis of the maximum likelihood phylogenetic tree between An. gambiae s.l. showed two main clades: the major with the three species, and the second made up only by An. coluzzii and An. gambiae s.s. (Figure 4). However, in the each of these clades, the most of nodes have poor support, suggesting low differences between the individuals. Consistent with the haplotype network, the Vgsc haplotypes H1, H2, and H4 were clustered into the top clade, which comprised mainly An. arabiensis, while the second clade contained the haplotypes H3, H5, H6, H7, and H8 (see Figure 3 and Figure 4).

4. Discussion

Assessing the dynamic of insecticide resistance in major malaria vectors and its impact on the effectiveness of control tools is essential for implementing appropriate strategies to manage the growing challenge of resistance in malaria vectors. In the present study, the resistant allele frequencies at Vgsc locus in ten health districts in 2013, 2017, and 2018 were investigated, and their genetic diversity was analyzed to infer their origin and evolutionary history.

4.1. Dynamic of Pyrethroid-Target Site Resistant Alleles within An. gambiae Species in Senegal

Molecular characterization of genetic mutations conferring resistance to target site insecticides revealed the presence of both the Vgsc-1014F and Vgsc-1014S mutations in natural populations of the An. gambiae sensus lato. In this study, distribution, and evolution of Vgsc-1014F kdr mutation showed its widespread presence and at higher frequencies in An. gambiae s.s. and gambiaecoluzzii hybrids compared to An. arabiensis and An. coluzzii. Many studies reported this mutation at high frequency within An gambiae s.s. and An. coluzzii especially in An. gambiae s.s. populations from the south-eastern part of the country [20,32]. The low frequency of Vgsc-1014F observed in An. arabiensis is consistent with a previous study from the country [14,33]. The low Vgsc-1014F frequencies in An. arabiensis suggests that this specie is less exposed to selection pressure of insecticides due to its outside resting behavior by avoiding the contact with IRS insecticides sprayed inside houses.
Vgsc-1014S mutation was recorded at highest frequency in An. Arabiensis populations in the Dakar urban area [34] and in the central-west [14]. Previous studies have recorded only a few individuals of An. coluzzii from the central-west part of the country carrying this mutation [14,20]. However, in An. gambiae s.s., Vgsc-1014S was found only in heterozygous form as well as in the southern and south-eastern part of the country [20]. The present study reveals that this mutation has spread across the whole country since 2013, and is now observed at a relatively high frequency in An. arabiensis but low in An. coluzzii, An. gambiae s.s., and their hybrid. However, in An. gambiae s.s. and the hybrid form, only the heterozygous mutations were recorded. The observed frequencies are low compared with previous studies in Burkina Faso [35], and in Gambia [15,36].
The difference in the allelic frequency of Vgsc-1014F and Vgsc-1014S mutations may be related to their origin or linked to different ecological and/or behavioral characters between species. The occurrence of the Vgsc-1014F mutation in An. coluzzii has been suggested to have occurred by introgression from An. gambiae s.s. and via a de novo mutation event in An. arabiensis [37]. However, the origin of the Vgsc-1014S mutation in An. gambiae s.s., An. coluzzii, and An. arabiensis species in West Africa is not so clearly understood. It could have been introduced to Senegal by migration, as previously suggested in Burkina Faso [35]. The presence of the Vgsc-1014S mutation in the current study is consistent with several reports from West African countries such as Benin [13], Burkina Faso [38], Côte d’Ivoire [39], Mali [40], and The Gambia [36].

4.2. Temporal and Genetic Evolution of Pyrethroid Resistance at Vgsc in Senegal

The substitution in the Vgsc gene was initially found in the oldest collection in Senegal [41], being in agreement with this present study. However, the trend here indicates that Vgsc-1014F frequency has decreased, likely from 2013 to 2018. Historically, Senegal started implementing IRS in 2007 with the financial and technical support from the U.S. President’s Malaria Initiative. IRS has been conducted with different pyrethroids and formulations between 2007 and 2011. The NMCP shifted to bendiocarb from 2011 to 2014, then to organophosphate between 2014 and 2017 [22]. However, no IRS was conducted in 2018 due to the decision of the PMI to stop the program in Senegal [22]. All these insecticide management strategies may have contributed to the reduction in the pyrethroids selection pressure and thus the frequency of Vgsc-1014F mutation in the local vector populations [35]. Moreover, the frequency of the Vgsc-1014S mutation is very similar in all three years and appears to be fixed in the population, which could result in a selective mechanism to maintain the balance between the allelic frequencies of the two mutations. The evolution of the two mutation frequencies over the years has been analyzed at a complex level due to limited sample size. With the three species of the complex pooled and analyzed all together, no inter-species difference can be missed. However, with An. arabiensis being the dominant and most widespread species across the country, this limit could be relativized.
The study observed that variations in the Vgsc gene was high amongst the An. gambiae s.l. populations. Vector species from different ecological zones showed different haplotypes for this locus, confirming the existence of moderate gene flow barriers between species. These results corroborate with previous studies [42]. Furthermore, of the eight haplotypes recorded, H1, H2, and H3 were found to be the most widespread as previously reported by Pinto et al. when investigating the multiple origins of knockdown resistance mutations in An. gambiae sampled across several sites from 15 West African countries [27]. H1 was Vgsc-1014S-specific and predominated in An. arabiensis in all study districts except Kedougou and Malem Hoddar. H2 was detected in both Vgsc-1014F and Vgsc-1014S mutations and common in An. arabiensis, in all study districts. H3 was more prominent in An. coluzzii and present only in the Vgsc-1014F mutation. The high prevalence of H3 in An. coluzzii contrasted with previous results [20,43].The observed haplotype diversity at the Vgsc gene could be explained by the influence of different evolutionary forces such as gene flow and selection pressure. These forces may lead to changes in the genetic structure of vector populations associated with environmental variation.

5. Conclusions

The present study documented spatial and temporal evolution of pyrethroids kdr target-site resistance mechanisms across hotspot areas in Senegal. Both the Vgsc-1014F and Vgsc-1014S mutations were found in three An. gambiae s.l. species, with a spatial variation in allelic frequencies. The presence of the two mutations was detected since 2013 across the country. At species level, the Vgsc-1014F mutation was more frequent in An. gambiae s.s., whereas Vgsc-1014S more prevalent in An. arabiensis.
The observed co-occurrence of Vgsc-1014F and Vgsc-1014S mutations confirms that pyrethroid resistance is a widespread phenomenon among malaria vector populations. Thus, the NMCP needs to urgently address these findings to maintain the current gain and ensure the success of future control interventions. Other control strategies such as larval source management and targeting of mosquito reproductive inhibitory genes could complement current tools to control pyrethroid resistant vectors.

Author Contributions

Conceptualization: E.H.A.N. and B.S.A.; data curation: M.H.-A., E.H.A.N., and B.S.A.; formal analysis: M.D., P.C.S., M.H.-A., E.H.A.N., and B.S.A.; funding acquisition: O.G., E.H.A.N., and B.S.A.; investigation: M.D., M.H.-A., J.M., E.H.A.N., and B.S.A.; methodology: M.D., M.H.-A., E.H.A.N., and B.S.A.; project administration: E.H.A.N. and B.S.A.; resources: E.H.A.N., O.F., and L.K.; supervision: E.H.A.N. and B.S.A.; validation: E.H.A.N. and B.S.A.; visualization: E.H.A.N. and B.S.A.; writing—original draft: M.D., M.H.-A., E.H.A.N., and B.S.A.; writing—review and editing: O.S., P.C.S., M.O.N., O.F., L.K., O.G., A.K.S., E.H.A.N., and B.S.A. All authors have read and agreed to the published version of the manuscript.


This work was supported through the sub-award from the West African Network for TB, AIDS, and Malaria (WANETAM2/EDCTP-RegNet2015-1049). The samples used for this study were collected with financial support of The President’s Malaria Initiative (US-PMI) and Senegal National Malaria Control Programme. B.S.A. was supported by DELTAS Africa Initiative grant DEL-15-010 of the African Academy of Sciences (AAS)’s Alliance for Accelerating Excellence in Science in Africa (AESA) and the Crick African Network, which receives its funding from the UK’s Global Challenges Research Fund (MR/P028071/1). E.H.A.N. was supported by the Wellcome Trust Training Fellowship in Public Health and Tropical Medicine (206742/Z/17/Z).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data supporting the conclusions of this article are included within the article. Raw data will be made available upon request to the corresponding author.

Conflicts of Interest

The authors state that they have no competing financial and non-financial interests.


  1. World Health Organization. World Malaria Report 2020; World Health Organization: Geneva, Switzerland, 2020; ISBN 978-92-4-001579-1. [Google Scholar]
  2. World Health Organization. World Malaria Report 2019; World Health Organization: Geneva, Switzerland, 2019; ISBN 978-92-4-156572-1. [Google Scholar]
  3. Bhatt, S.; Weiss, D.J.; Mappin, B.; Dalrymple, U.; Cameron, E.; Bisanzio, D.; Smith, D.L.; Moyes, C.L.; Tatem, A.J.; Lynch, M. Coverage and System Efficiencies of Insecticide-Treated Nets in Africa from 2000 to 2017. Elife 2015, 4, e09672. [Google Scholar] [CrossRef] [PubMed]
  4. Steinhardt, L.C.; St Jean, Y.; Impoinvil, D.; Mace, K.E.; Wiegand, R.; Huber, C.S.; Alexandre, J.S.F.; Frederick, J.; Nkurunziza, E.; Jean, S. effectiveness of insecticide-treated bednets in malaria prevention in Haiti: A case-control study. Lancet Glob. Health 2017, 5, e96–e103. [Google Scholar] [CrossRef] [Green Version]
  5. Ranson, H.; Lissenden, N. Insecticide resistance in African anopheles mosquitoes: A worsening situation that needs urgent action to maintain malaria control. Trends Parasitol. 2016, 32, 187–196. [Google Scholar] [CrossRef]
  6. Hemingway, J.; Ranson, H.; Magill, A.; Kolaczinski, J.; Fornadel, C.; Gimnig, J.; Coetzee, M.; Simard, F.; Roch, D.K.; Hinzoumbe, C.K.; et al. Averting a malaria disaster: Will insecticide resistance derail malaria control? Lancet 2016, 387, 1785–1788. [Google Scholar] [CrossRef]
  7. Alout, H.; Roche, B.; Dabiré, R.K.; Cohuet, A. Consequences of insecticide resistance on malaria transmission. PLoS Pathog. 2017, 13, e1006499. [Google Scholar] [CrossRef] [PubMed]
  8. Silva, A.P.B.; Santos, J.M.M.; Martins, A.J. Mutations in the voltage-gated sodium channel gene of anophelines and their association with resistance to pyrethroids—A review. Parasit. Vectors 2014, 7, 450. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Mint Mohamed Lemine, A.; Ould Lemrabott, M.A.; Niang, E.H.A.; Basco, L.K.; Bogreau, H.; Faye, O.; Ould Mohamed Salem Boukhary, A. Pyrethroid resistance in the major malaria vector anopheles arabiensis in Nouakchott, Mauritania. Parasit. Vectors 2018, 11, 344. [Google Scholar] [CrossRef] [Green Version]
  10. Nwane, P.; Etang, J.; Chouaïbou, M.; Toto, J.C.; Mimpfoundi, R.; Simard, F. Kdr-based insecticide resistance in anopheles Gambiae Ss populations in Cameroon: Spread of the L1014F and L1014S mutations. BMC Res. Notes 2011, 4, 1–9. [Google Scholar] [CrossRef] [Green Version]
  11. Pinto, J.; Lynd, A.; Elissa, N.; Donnelly, M.J.; Costa, C.; Gentile, G.; Caccone, A.; Rosário, V.D. Co-Occurrence of East and West African Kdr mutations suggests high levels of resistance to pyrethroid insecticides in Anopheles Gambiae from Libreville, Gabon. Med. Vet. Entomol. 2006, 20, 27–32. [Google Scholar] [CrossRef] [PubMed]
  12. Kabula, B.; Kisinza, W.; Tungu, P.; Ndege, C.; Batengana, B.; Kollo, D.; Malima, R.; Kafuko, J.; Mohamed, M.; Magesa, S. Co-occurrence and distribution of East (L1014S) and West (L1014F) African knock-down resistance in Anopheles Gambiae Sensu Lato population of Tanzania. Trop. Med. Int. Health 2014, 19, 331–341. [Google Scholar] [CrossRef]
  13. Djègbè, I.; Boussari, O.; Sidick, A.; Martin, T.; Ranson, H.; Chandre, F.; Akogbéto, M.; Corbel, V. Dynamics of insecticide resistance in malaria vectors in Benin: First evidence of the presence of L1014S Kdr mutation in Anopheles Gambiae from West Africa. Malar. J. 2011, 10, 261. [Google Scholar] [CrossRef] [Green Version]
  14. Thiaw, O.; Doucouré, S.; Sougoufara, S.; Bouganali, C.; Konaté, L.; Diagne, N.; Faye, O.; Sokhna, C. Investigating insecticide resistance and knock-down resistance (Kdr) mutation in Dielmo, Senegal, an area under long lasting insecticidal-treated nets universal coverage for 10 years. Malar. J. 2018, 17, 123. [Google Scholar] [CrossRef] [Green Version]
  15. Wilson, A.L.; Pinder, M.; Bradley, J.; Donnelly, M.J.; Hamid-Adiamoh, M.; Jarju, L.B.S.; Jawara, M.; Jeffries, D.; Kandeh, B.; Rippon, E.J.; et al. Emergence of knock-down resistance in the Anopheles Gambiae complex in the upper river region: The Gambia, and its relationship with malaria infection in children. Malar. J. 2018, 17, 205. [Google Scholar] [CrossRef] [Green Version]
  16. Choi, K.S.; Spillings, B.L.; Coetzee, M.; Hunt, R.H.; Koekemoer, L.L. A Comparison of DNA sequencing and the hydrolysis probe analysis (TaqMan Assay) for knockdown resistance (Kdr) mutations in Anopheles Gambiae from the Republic of the Congo. Malar. J. 2010, 9, 278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. World Health Organization. Global Plan for Insecticide Resistance Management in Malaria Vectors; World Health Organization, Ed.; World Health Organization: Geneva, Switzerland, 2012; ISBN 978-92-4-156447-2. [Google Scholar]
  18. PMI. U.S. President’s Malaria Initiative Senegal Malaria Operational Plan FY; USAID: Washington, DC, USA, 2020; p. 125. Available online: (accessed on 15 July 2021).
  19. Niang, E.H.A.; Konaté, L.; Diallo, M.; Faye, O.; Dia, I. Patterns of insecticide resistance and knock down resistance (Kdr) in malaria vectors An. Arabiensis, An. Coluzzii and An. Gambiae from sympatric areas in Senegal. Parasit. Vectors 2016, 9, 71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Gueye, O.K.; Tchouakui, M.; Dia, A.K.; Faye, M.B.; Ahmed, A.A.; Wondji, M.J.; Nguiffo, D.N.; Mugenzi, L.M.J.; Tripet, F.; Konaté, L.; et al. Insecticide resistance profiling of Anopheles Coluzzii and Anopheles Gambiae populations in the Southern Senegal: Role of target sites and metabolic resistance mechanisms. Genes 2020, 11, 1403. [Google Scholar] [CrossRef] [PubMed]
  21. Sy, O.; Sarr, P.C.; Assogba, B.S.; Ndiaye, M.; Dia, A.K.; Ndiaye, A.; Nourdine, M.A.; Guèye, O.K.; Konaté, L.; Gaye, O.; et al. Detection of Kdr and Ace-1 mutations in wild populations of Anopheles Arabiensis and An. Melas in a residual malaria transmission area of Senegal. Pestic. Biochem. Physiol. 2021, 173, 104783. [Google Scholar] [CrossRef]
  22. Lo, C.; Dia, A.K.; Dia, I.; Niang, E.H.A.; Konaté, L.; Faye, O. Evaluation of the residual efficacy of indoor residual spraying with bendiocarb (FICAM WP 80) in six health districts in Senegal. Malar. J. 2019, 18, 198. [Google Scholar] [CrossRef] [PubMed]
  23. Diagne, N.; Fontenille, D.; Konate, L.; Faye, O.; Lamizana, M.T.; Legrod, F.; Molez, J.; Trape, J. Les anopheles du senegale. Bull. Soc. Path. Exot. 1994, 87, 267–277. [Google Scholar]
  24. Scott, J.A.; Brogdon, W.G.; Collins, F.H. Identification of single specimens of the Anopheles Gambiae complex by the polymerase chain reaction. Am. J. Trop. Med. Hyg. 1993, 49, 520–529. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Fanello, C.; Santolamazza, F.D.; Della Torre, A. Simultaneous identification of species and molecular forms of the anopheles gambiae complex by PCR-RFLP. Med. Vet. Entomol. 2002, 16, 461–464. [Google Scholar] [CrossRef]
  26. Bass, C.; Nikou, D.; Donnelly, M.J.; Williamson, M.S.; Ranson, H.; Ball, A.; Vontas, J.; Field, L.M. Detection of knockdown resistance (Kdr) mutations in Anopheles Gambiae: A comparison of two new high-throughput assays with existing methods. Malar. J. 2007, 6, 111. [Google Scholar] [CrossRef] [Green Version]
  27. Pinto, J.; Lynd, A.; Vicente, J.L.; Santolamazza, F.; Randle, N.P.; Gentile, G.; Moreno, M.; Simard, F.; Charlwood, J.D.; do Rosário, V.E.; et al. Multiple origins of knockdown resistance mutations in the afrotropical mosquito vector Anopheles Gambiae. PLoS ONE 2007, 2, e1243. [Google Scholar] [CrossRef]
  28. Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucl. Acids. Symp. Ser. 1999, 41, 95–98. [Google Scholar]
  29. Librado, P.; Rozas, J. DnaSP v5: A software for comprehensive analysis of DNA polymorphism data. Bioinformatics 2009, 25, 1451–1452. [Google Scholar] [CrossRef] [Green Version]
  30. Bandelt, H.-J.; Dress, A.W. Split decomposition: A new and useful approach to phylogenetic analysis of distance data. Mol. Phylogenet. Evol. 1992, 1, 242–252. [Google Scholar] [CrossRef]
  31. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolution genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2015, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  32. Diouf, E.-H.; Niang, E.-H.A.; Samb, B.; Diagne, C.T.; Diouf, M.; Konaté, A.; Dia, I.; Faye, O.; Konaté, L. Multiple insecticide resistance target sites in adult field strains of An. Gambiae (S.l.) from Southeastern Senegal. Parasit. Vectors 2020, 13, 567. [Google Scholar] [CrossRef]
  33. Dia, A.K.; Guèye, O.K.; Niang, E.A.; Diédhiou, S.M.; Sy, M.D.; Konaté, A.; Samb, B.; Diop, A.; Konaté, L.; Faye, O. Insecticide resistance in Anopheles Arabiensis populations from Dakar and its suburbs: Role of target site and metabolic resistance mechanisms. Malar. J. 2018, 17, 116. [Google Scholar] [CrossRef] [Green Version]
  34. Ndiath, M.O.; Cailleau, A.; Orlandi-Pradines, E.; Bessell, P.; Pagès, F.; Trape, J.-F.; Rogier, C. Emerging knock-down resistance in anopheles arabiensis populations of Dakar, Senegal: First evidence of a high prevalence of Kdr-E mutation in West African urban area. Malar. J. 2015, 14, 364. [Google Scholar] [CrossRef] [Green Version]
  35. Dabire, R.K.; Namountougou, M.; Diabaté, A.; Soma, D.D.; Bado, J.; Toé, H.K.; Bass, C.; Combary, P. Distribution and Frequency of Kdr Mutations within Anopheles Gambiae Sl Populations and First Report of the Ace. 1 G119S Mutation in Anopheles Arabiensis from Burkina Faso (West Africa). PLoS ONE 2014, 9, e101484. [Google Scholar] [CrossRef]
  36. Hamid-Adiamoh, M.; Nwakanma, D.; Assogba, B.S.; Ndiath, M.O.; D’Alessandro, U.; Afrane, Y.A.; Amambua-Ngwa, A. influence of insecticide resistance on the biting and resting preferences of malaria vectors in the Gambia. PLoS ONE 2021, 16, e0241023. [Google Scholar] [CrossRef]
  37. Diabaté, A.; Brengues, C.; Baldet, T.; Dabire, K.R.; Hougard, J.-M.; Akogbeto, M.; Kengne, P.; Simard, F.; Guillet, P.; Hemingway, J. The spread of the Leu-Phe Kdr mutation through Anopheles Gambiae complex in Burkina Faso: Genetic introgression and de novo phenomena. Trop. Med. Int. Health 2004, 9, 1267–1273. [Google Scholar] [CrossRef] [PubMed]
  38. Badolo, A.; Traore, A.; Jones, C.M.; Sanou, A.; Flood, L.; Guelbeogo, W.M.; Ranson, H.; Sagnon, N. Three years of insecticide resistance monitoring in Anopheles Gambiae in Burkina Faso: Resistance on the rise? Malar. J. 2012, 11, 232. [Google Scholar] [CrossRef] [Green Version]
  39. Mouhamadou, C.S.; N’Dri, P.B.; Fodjo, B.K.; Sadia, C.G.; Affoue, F.-P.K.; Koudou, B.G. Wild from Côte d’Ivoire Anopheles Coluzzi. Wellcome Open Res. 2019, 4, 31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Keïta, M.; Sogoba, N.; Kané, F.; Traoré, B.; Zeukeng, F.; Coulibaly, B.; Sodio, A.B.; Traoré, S.F.; Djouaka, R.; Doumbia, S. Multiple resistance mechanisms to pyrethroids insecticides in Anopheles Gambiae Sensu Lato population from Mali, West Africa. J. Infect. Dis. 2021, 223, S81–S90. [Google Scholar] [CrossRef] [PubMed]
  41. Santolamazza, F.; Calzetta, M.; Etang, J.; Barrese, E.; Dia, I.; Caccone, A.; Donnelly, M.J.; Petrarca, V.; Simard, F.; Pinto, J.; et al. Distribution of knock-down resistance mutations in Anopheles Gambiae molecular forms in West and West-Central Africa. Malar. J. 2008, 7, 74. [Google Scholar] [CrossRef] [Green Version]
  42. Hemming-Schroeder, E.; Zhong, D.; Machani, M.; Nguyen, H.; Thong, S.; Kahindi, S.; Mbogo, C.; Atieli, H.; Githeko, A.; Lehmann, T.; et al. Ecological drivers of genetic connectivity for African Malaria vectors Anopheles Gambiae and An. Arabiensis. Sci. Rep. 2020, 10, 19946. [Google Scholar] [CrossRef]
  43. Antonio-Nkondjio, C.; Tene Fossog, B.; Kopya, E.; Poumachu, Y.; Menze Djantio, B.; Ndo, C.; Tchuinkam, T.; Awono-Ambene, P.; Wondji, C.S. Rapid evolution of pyrethroid resistance prevalence in Anopheles Gambiae populations from the cities of Douala and Yaoundé (Cameroon). Malar. J. 2015, 14, 155. [Google Scholar] [CrossRef] [Green Version]

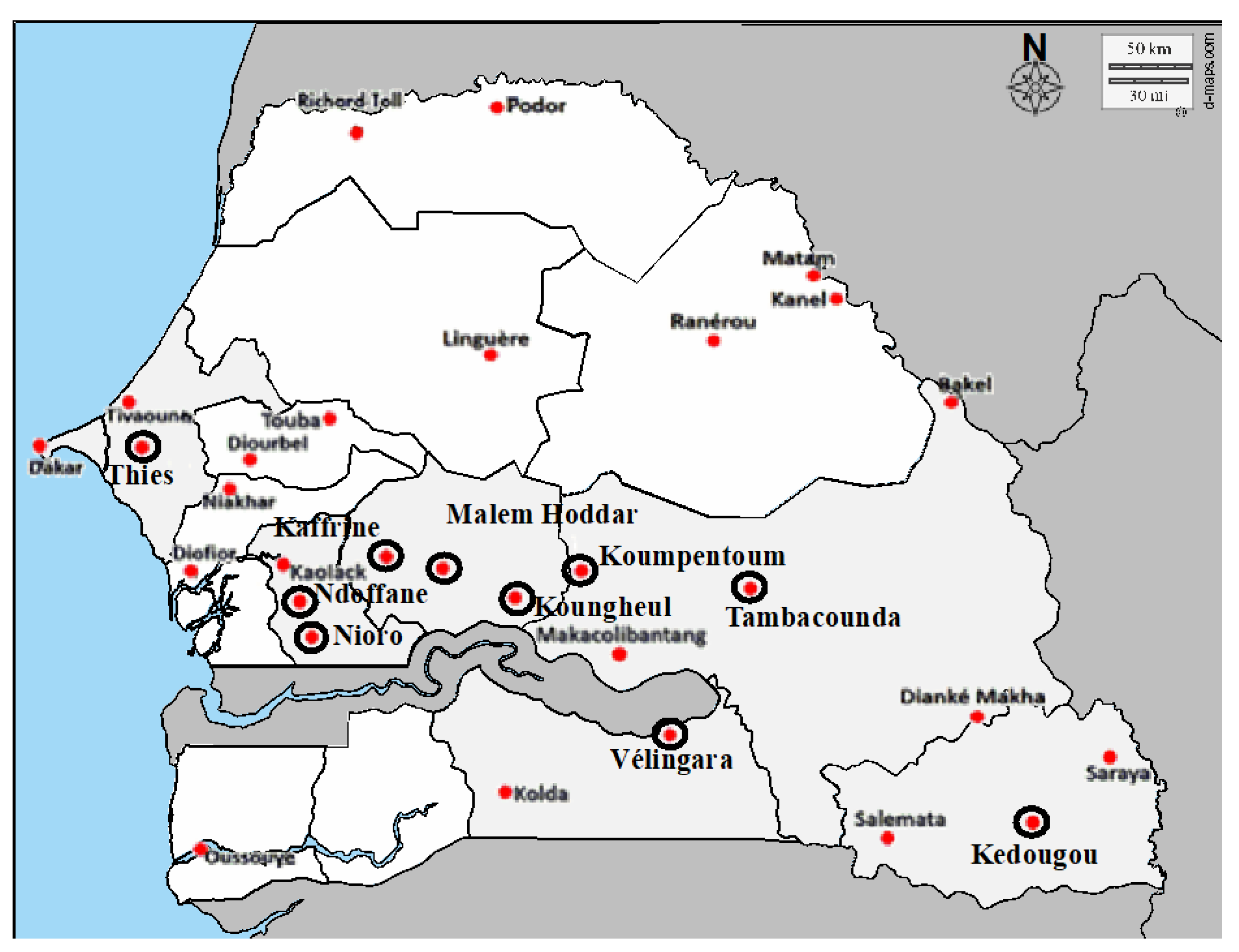

Figure 1. Geographical location of the study Health districts. All the labelled districts here are the NMCP entomological sentinel sites. The selected sites in this study were indicated with black circle.
Figure 1. Geographical location of the study Health districts. All the labelled districts here are the NMCP entomological sentinel sites. The selected sites in this study were indicated with black circle.
Genes 12 01948 g001

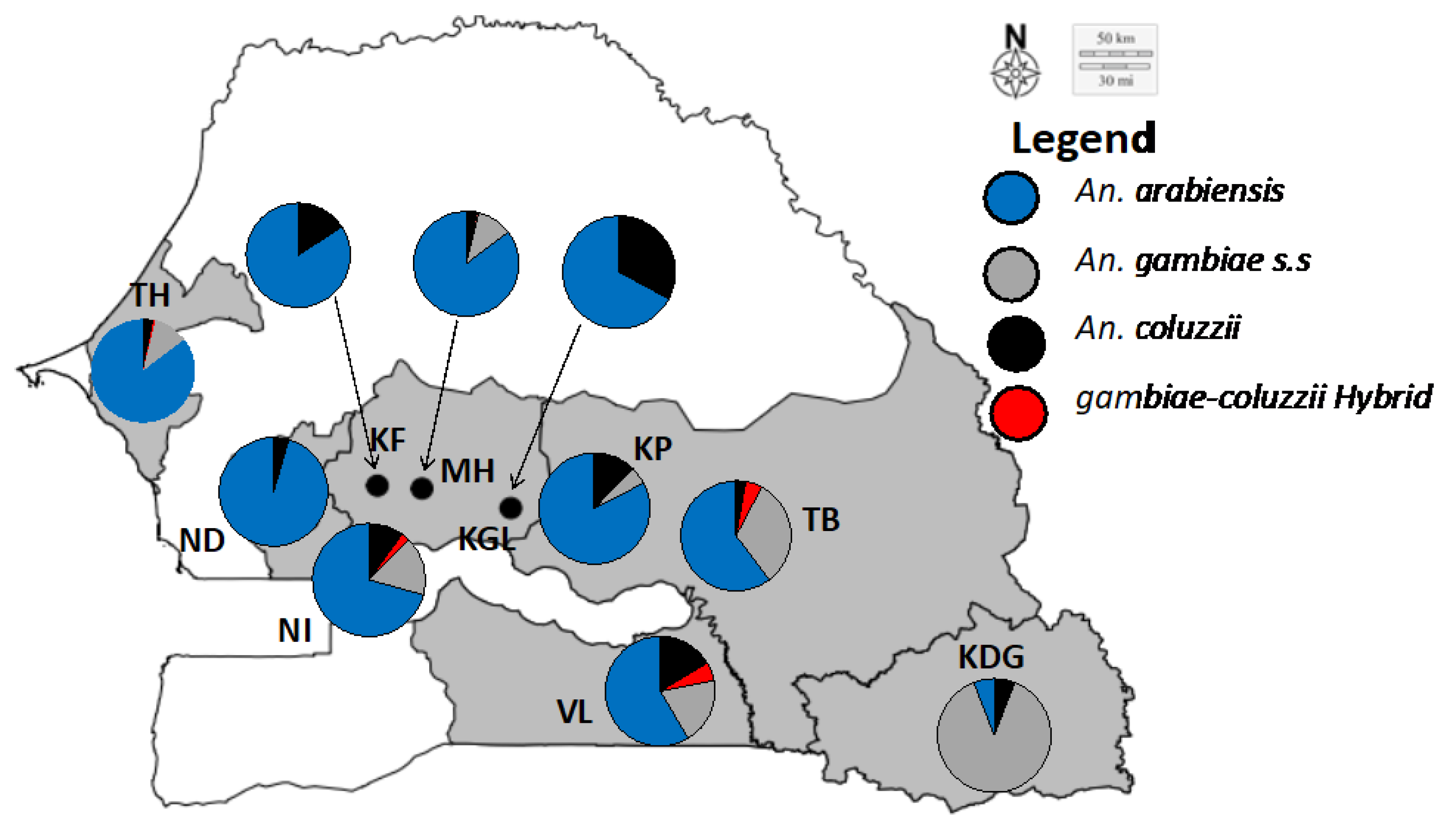

Figure 2. Anopheles gambiae s.l. species compositions across the study sites. KF: Kaffrine; KDG: Kédougou; KP: Koumpentoum; KGL: Koungheul; MH: Malem hoddar; ND: Ndoffane; NI: Nioro; TB: Tambacounda; TH: Thiés; VL: Vélingara.
Figure 2. Anopheles gambiae s.l. species compositions across the study sites. KF: Kaffrine; KDG: Kédougou; KP: Koumpentoum; KGL: Koungheul; MH: Malem hoddar; ND: Ndoffane; NI: Nioro; TB: Tambacounda; TH: Thiés; VL: Vélingara.
Genes 12 01948 g002

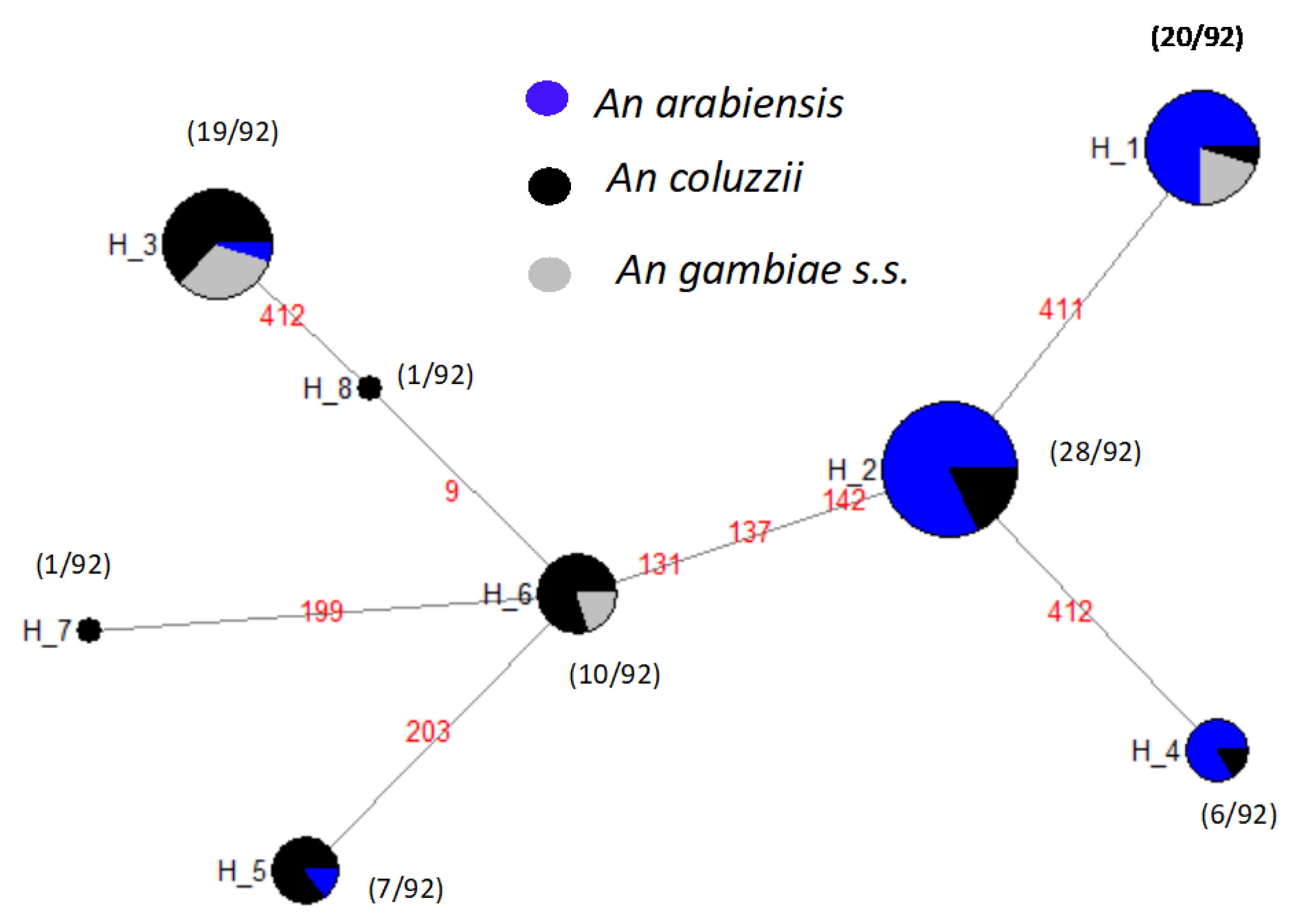

Figure 3. Haplotype network of the Vgsc-1014 allele in relation to An. gambiae s.l. species. Each haplotype is represented by a circle with a size proportional to its frequency. The number represent the position of the mutation.
Figure 3. Haplotype network of the Vgsc-1014 allele in relation to An. gambiae s.l. species. Each haplotype is represented by a circle with a size proportional to its frequency. The number represent the position of the mutation.
Genes 12 01948 g003

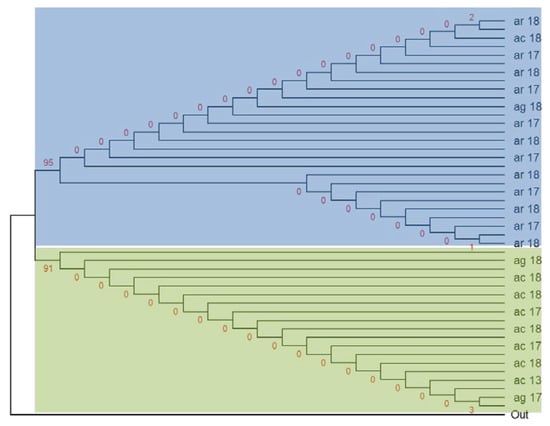

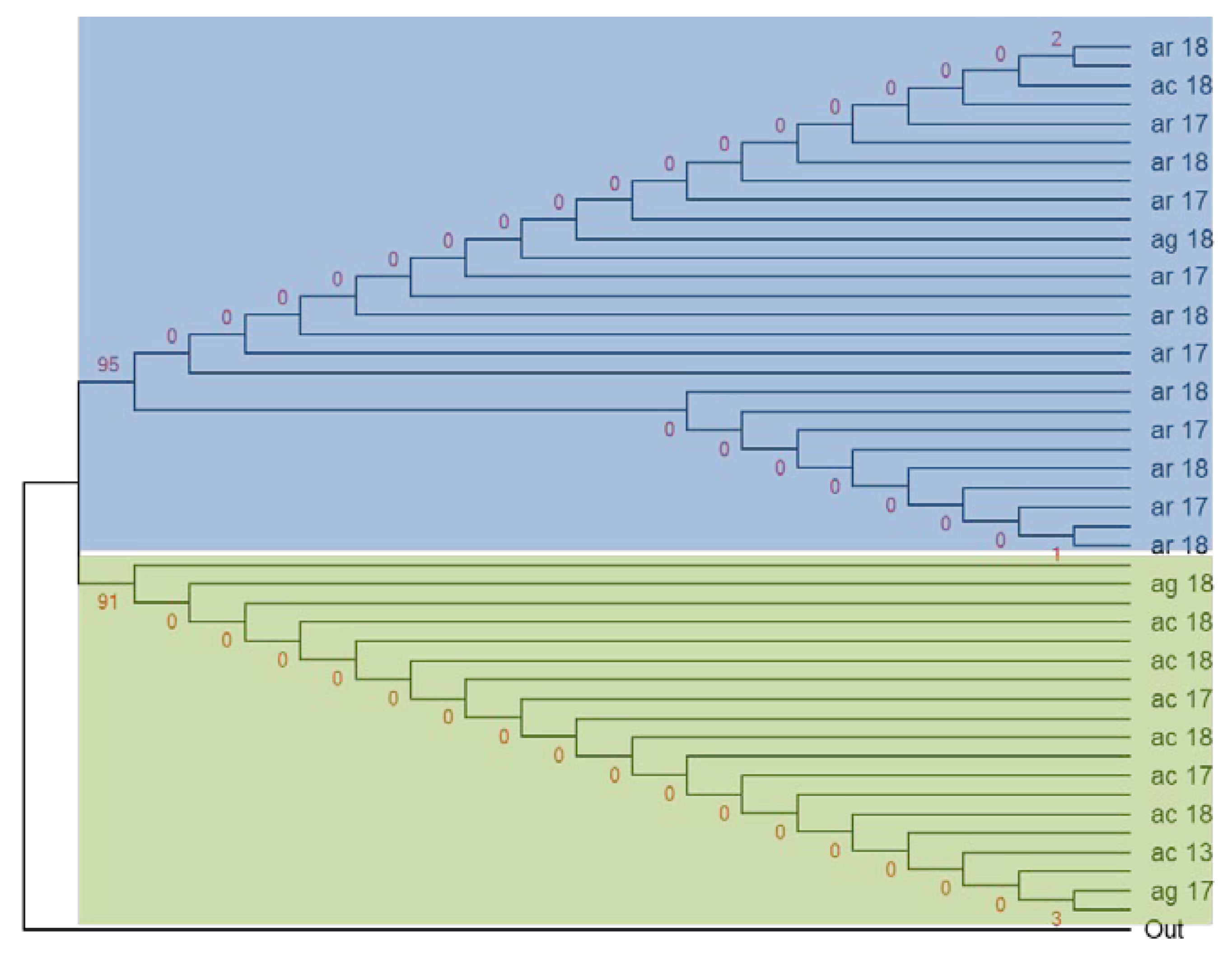

Figure 4. Evolutionary history of the Vgsc-1014 allele between species and years using the maximum likelihood method. AR: An. arabiensis; AC: An. coluzzii; AG: An. gambiae s.s.; Out: outgroup reference sequence of Vgsc; red number represent the statistics frequency. 13, 17, 18: Correspond to the study years.
Figure 4. Evolutionary history of the Vgsc-1014 allele between species and years using the maximum likelihood method. AR: An. arabiensis; AC: An. coluzzii; AG: An. gambiae s.s.; Out: outgroup reference sequence of Vgsc; red number represent the statistics frequency. 13, 17, 18: Correspond to the study years.
Genes 12 01948 g004
Table 1. Vgsc-1014 alleles frequencies in natural An. gambiae s.l. population by study locality.
Table 1. Vgsc-1014 alleles frequencies in natural An. gambiae s.l. population by study locality.
LocalityNGenotypesAllelic Frequencies
LL: Leucine homozygous (Vgsc-L1014L)/Wide Type (WT); FF: Phenylalanine homozygous (Vgsc-F1014F); SS: Serine homozygous (Vgsc-S1014S); LF: Leucine-Phenylalanine heterozygous (Vgsc-L1014F); LS: Leucine-Serine heterozygous (Vgsc-L1014S); FS: Phenylalanine-Serine heterozygous (Vgsc-F1014S); AR: An. arabiensis; AG: An. gambiae s.s.; AC: An. coluzzii; AG-AC: gambiaecoluzzii hybrids; N: Number of specimens tested per health district. The alleles frequencies for each species are indicated in bold.
Table 2. Variance of the means Vgsc-1014F and Vgsc-1014S frequencies between study years.
Table 2. Variance of the means Vgsc-1014F and Vgsc-1014S frequencies between study years.
Source of VariationsSSdfFp-ValueF critSSdfFp-ValueF Crit
Between groups0.084720.71350.50203.49280.011520.33060.72203.4434
Within groups1.186520 0.381922
Table 3. Vgsc-1014 alleles frequencies in natural An. gambiae s.l. population by study year.
Table 3. Vgsc-1014 alleles frequencies in natural An. gambiae s.l. population by study year.
LocalityNGenotypesAllelic Frequencies
LL: Leucine homozygous (Vgsc-L1014L)/Wide Type (WT); FF: Phenylalanine homozygous (Vgsc-F1014F); SS: Serine homozygous (Vgsc-S1014S); LF: Leucine-Phenylalanine heterozygous (Vgsc-L1014F); LS, Leucine-Serine heterozygous (Vgsc-L1014S); FS: Phenylalanine-Serine heterozygous (Vgsc-F1014S); N: Number of specimens tested per health district. The alleles frequencies for each year are indicated in bold.
