Rolling-Circle Replication in Mitochondrial DNA Inheritance: Scientific Evidence and Significance from Yeast to Human Cells

Chemical Genetics Research Group, RIKEN Center for Sustainable Resource Science, Hirosawa 2-1, Wako, Saitama 351-0198, Japan
Graduate School of Science and Engineering, Saitama University, Saitama 338-8570, Japan
Department of Biotechnology, Graduate School of Agricultural Life Sciences, the University of Tokyo, Tokyo 113-8657, Japan
Collaborative Research Institute for Innovative Microbiology, the University of Tokyo, Tokyo 113-8657, Japan
Author to whom correspondence should be addressed.
Genes 2020, 11(5), 514;
Submission received: 2 April 2020 / Revised: 29 April 2020 / Accepted: 29 April 2020 / Published: 6 May 2020
(This article belongs to the Special Issue Genetic Aspects of Yeast: Cell Biology, Ecology and Biotechnology)


Studies of mitochondrial (mt)DNA replication, which forms the basis of mitochondrial inheritance, have demonstrated that a rolling-circle replication mode exists in yeasts and human cells. In yeast, rolling-circle mtDNA replication mediated by homologous recombination is the predominant pathway for replication of wild-type mtDNA. In human cells, reactive oxygen species (ROS) induce rolling-circle replication to produce concatemers, linear tandem multimers linked by head-to-tail unit-sized mtDNA that promote restoration of homoplasmy from heteroplasmy. The event occurs ahead of mtDNA replication mechanisms observed in mammalian cells, especially under higher ROS load, as newly synthesized mtDNA is concatemeric in hydrogen peroxide-treated human cells. Rolling-circle replication holds promise for treatment of mtDNA heteroplasmy-attributed diseases, which are regarded as incurable. This review highlights the potential therapeutic value of rolling-circle mtDNA replication.

1. Introduction

The mitochondria, which provide eukaryotic cells with energy through oxidative phosphorylation, contain multiple copies of mitochondrial DNA (mtDNA). mtDNA encodes components essential for ATP production [1,2]. Mitochondria are the primary intracellular source of reactive oxygen species (ROS), which damage cellular components such as mtDNA molecules [3]. Consequently, mtDNA is more susceptible to mutagenesis than nuclear chromosomal DNA [4,5]. Homoplasmy of mtDNA, in which all mtDNA copies have identical sequences, is the basic state in cells and individuals. A substantial shift toward homoplasmy occurs in fetuses, as well as in embryonic stem cells (ESCs) derived from heteroplasmic embryos [6]. The return of a heteroplasmic mtDNA mutation to homoplasmy occurs in only two or three generations of Holstein cows [7,8], although the underlying mechanism remains highly controversial [9,10,11,12]. It is partially because the mechanism for mtDNA replication in mammals remains unclear. In mammals, a strand-displacement mechanism was proposed based on circular replicative intermediates observed under an electron microscope [13], which was further refined as a model for replication of animal mtDNA [14]. So far, two asynchronous (strand displacement and ribonucleotide incorporation throughout the lagging strand (RITOLS) [15]) and one synchronous (strand coupled) replication models have been proposed for human mtDNA replication. In the asynchronous models, replication from the origin in the H-chain starts earlier, so that the replication of the two chains ends at different times. The synchronous model is more traditional and implies two replication forks with leading and lagging strands initiated at the same origin [16]. For details, please refer to the review article [17]. Recently, the rolling-circle mtDNA replication mechanism in hydrogen peroxide-treated human cells, which promotes mt-allele segregation towards mt-homoplasmy, was revealed [18].
mtDNA mutations accumulate during aging, particularly in nerve and muscle cells, resulting in heteroplasmy, a state in which wild-type and mutant mtDNA molecules co-exist within a cell. When the proportion of pathogenic mutant mtDNA exceeds some threshold, heteroplasmy can cause incurable disease due to mitochondrial dysfunction [19]. Induced pluripotent stem (iPS) cells from elderly patients contain elevated amounts of mutant mtDNA, which may jeopardize efficacy and hold back future iPS cell therapies [20,21,22]. In recent years, the expression of mitochondria-targeted transcription activator-like effector nucleases (TALENs) to cleave pathogenic mtDNA mutations raises the possibility that these mitochondrial nucleases can be therapeutic for some mitochondrial diseases, but it is essential to introduce exogenous factors into heteroplasmic cells for the removal of specific mtDNA [23,24,25]. The methods for decreasing the proportion of mutant mtDNA would be crucial for the treatment of heteroplasmy-induced disorders and future research and development of new stem-cell therapies.
Homologous recombination is a type of reshuffling of genetic information in which two similar or identical DNA sequences are exchanged. Its primary role is to repair double-stranded DNA breaks (DSBs). It is widely believed that mitochondria are descended from endosymbiotic bacteria [26]. In bacteria such as Escherichia coli, homologous recombination–dependent DNA replication proceeds by the θ-type mode or rolling-circle mode of DNA synthesis, yielding closed-circular DNA monomers or linear-stranded DNA multimers, respectively [27]. It remains unknown which DNA replication mode is preferred in mitochondria, and thus forms the basis of mtDNA inheritance [14,28,29].
This article introduces the idea that in order to adapt to the environment inside the mitochondrion, mtDNA replicates via a rolling-circle rather than a θ-type mode. Homologous DNA pairing mediates both ROS-stimulated rolling-circle mtDNA replication, which promotes mitochondrial allele segregation toward homoplasmy, and homologous DNA recombination, which is crucial for the repair of harmful mtDNA double-stranded breaks (DSBs), and thus for maintenance of cellular respiration.

2. The Origin of θ-Type mtDNA Replication

The physical study of isolated mtDNA molecules began in the 1960s using mtDNA purified from yeast and mammalian cells. This initial work revealed mtDNA as a minor band with a density lower than that of the nuclear DNA in cesium chloride density gradient [30]. Electron micrographs of purified mtDNA from mouse fibroblasts show this circularity as a ring structure, which is distinct from the low percentage of linear fragments in purified DNA; the virtual absence of free ends in lysed preparations indicates that a ring structure is the primary, but not necessarily the only, form of mtDNA in vivo [30]. Based on these findings, animal mtDNA was proposed to replicate via a θ-type mode [14]: the replication intermediates observed in the electron microscopy images resemble the Greek character “θ”, and the circularity of mtDNA supported the idea of θ-type replication.
Recently, however, a rolling-circle replication mechanism producing multimeric lariats of mitochondrial DNA was observed in Caenorhabditis elegans, revealing that some animal mtDNAs also use this mode [29].

3. The Main Problems of θ-Type Replication Mode for the Explanation of the Rapid Segregation of mt-Alleles towards Homoplasmy

Following mating of Saccharomyces cerevisiae haploid cells, the resultant diploids contain 50–100 copies of mtDNA [31], which segregate to homoplasmy within 20 generations [32,33]. However, θ-type replication could not achieve such rapid segregation; in this mode, one template yields one copy, and mathematic modeling simulation has shown that random segregation could yield homoplasmy only when six or fewer mtDNA copies are present in the diploid (i.e., three in each haploid cell) [34]. Rapid segregation of mt-alleles from heteroplasmy towards homoplasmy occurs within a few generations during early oogenesis in metazoan female germlines [8,12,35]. This has also been explained as a bottleneck phenomenon [10,11], which again cannot be explained by the θ-type replication mode, as the number of segregating units of mtDNA in mice is still ~200 [35]. Notably in this regard, a rolling-circle replication mechanism produces the multimeric lariats of mtDNA observed in another animal model, C. elegans [29]. The mtDNA of tube-dwelling anemone, possibly the longest mitochondrial genome observed to date, is also replicated via a rolling-circle mode [36]. It seemed likely an alternate replication mode could exist, and further research to understand the full picture of mtDNA replication systems of humans and other mammals is required [17].

4. Why Linear Double-Stranded mtDNA Is Undetectable

Why have only circular mtDNA molecules been visualized in mammalian cells by electron microscopy? Very recently, Peeva et al., reported that linear mtDNA is rapidly degraded by components of the replication machinery in human embryonic kidney cells; specifically, degradation by exonucleases such as the mitochondrial 5′→3′ exonuclease MGME1 and the mitochondrial 3′→5′ exonuclease of mtDNA polymerase POLG eliminates linear mtDNA molecules [37]. Indeed, MGME1-deficient mice accumulate long linear subgenomic mtDNA species [38]. Therefore, in mammalian cells, exonucleases rapidly degrade linear mtDNA synthesized via Strand-coupled DNA replication (SCD replication); only the remaining circular mtDNA molecules can be observed by microscopy; dissimilarly, it is relatively easy to detect a lot of intermediates involved in mtDNA replication in S. cerevisiae (Figure 1). The major species of the budding yeast S. cerevisiae mtDNA are linear head-to-tail multimers of genomic unit DNA with variable sizes, termed concatemers [39,40]. Concatemers can be formed through rolling circle DNA replication or homologous DNA recombination. Rolling-circle DNA replication is initiated through recombination-dependent mechanisms in some DNA replication systems, such as bacteriophage lambda at the late stage of infection [41], plasmids [42], and even the chromosome in SOS-induced E. coli cells [43,44]. In the later stages of λ infection, the DNA replication switches from a theta (θ) mode to a rolling circle (σ) mode, and this switch requires the proteins encoded by the redα (λ exonuclease) and redβ (β protein) genes required for homologous DNA recombination. In phage T4 of E. coli, concatemers are formed through homologous DNA recombination [45]. The rolling circle replication can sustainably produce linear tandem multimers linked by head-to-tail unit-sized mtDNA, (concatemers) using circular mtDNA molecules resistant to the degradation by exonucleases as templates. S. cerevisiae petite mutants are respiration-deficient cells, which are unable to grow on media containing only non-fermentable carbon sources (such as glycerol or ethanol) and form small colonies when grown in the presence of fermentable carbon sources (such as glucose), and contain mtDNA with a large deletion or tandem arrays of a mtDNA segment [46]. mtDNA deletion-attributed dysfunctional mitochondria can serve as a signaling platform to promote the loss of redox homeostasis and ROS accumulation [47]. More accumulation of concatemers in yeast petite mutant cells is very likely that the excision-repair enzyme Ntg1 recognizes the bases oxidized by ROS and introduces a DSB at the mtDNA replication origin ori5 to initiate the rolling-circle mtDNA replication [46,48]. Comparative analysis has revealed that the enzymatic activities involved in mtDNA replication of mammals and yeast are very similar [49], implying that the products or intermediates of rolling-circle replication might be present in mammalian cells, as well as in yeast.

5. Evidence for Human mtDNA Recombination

mtDNA recombination occurs in human cells [50,51], although the precise machinery involved remains elusive. For example, mtDNA recombination occurs in humans [51], and its intermediates, such as the four-way (Holliday) junctions observed in the human heart muscle, are sensitive to treatment with E. coli RuvC protein, a Holliday junction resolvase [52,53].
When pulsed-field gel electrophoresis (PFGE) is used to separate human mtDNA species from nuclear genomic DNA species followed by Southern blot analysis with an mtDNA-specific probe, the majority of mtDNA molecules observed as mtDNA signals remain stuck inside the wells [18]. This is reminiscent of the recombination-mediated replication mechanisms in yeast [40] and plants [54].

6. The Rolling-Circle mtDNA Replication Mode is Universal

mtDNA recombination was first observed more than 50 years ago in budding yeast [55], over 25 years ago in plants [56], and over 20 years ago in human cells [50,51]. Homologous recombination is essential for initiation of rolling-circle mtDNA replication, which was first observed in budding yeast [39,57]. Recently, rolling-circle mtDNA replication was proven to be the predominant form in yeast [58], and it also occurs in nematodes [29], plants [59,60], and humans [18]. The research history of mtDNA recombination and rolling-circle mtDNA replication in budding yeast led us to infer that mtDNA recombination events are tightly linked with rolling-circle replication.

7. The Mhr1-Driven Mechanism of Rolling Circle mtDNA Replication in Yeast

In budding yeast [61], linear mtDNA molecules, observed as the primary form of mtDNA, declared the end of circle form for yeast mtDNA [28]. These linear mtDNA molecules are mainly linear tandem multimers linked by head-to-tail unit-sized mtDNA, termed mtDNA concatemers, which are produced by rolling-circle replication [33,62]. Although circular mtDNA molecules are a minority of budding yeast mtDNA molecules [40], circular mtDNA can be generated from an event termed intramolecular recombination [63], in which Cce1, a cruciform cutting endonuclease, resolves Holiday junctions as recombination intermediates [64]. mtDNA concatemers in mother cells are likely processed to monomers in buds [33].
Saccharomyces cerevisiae MHR1, which encodes the Mhr1 protein, is the wild-type gene complementing a recessive nuclear mutation (mhr1-1) that causes a defect in mtDNA recombination [57]. Mhr1, a mitochondrial recombinase [62,65], plays a role in the repair of oxidatively damaged mtDNA [66] and is responsible for initiating rolling-circle mtDNA replication through homologous DNA recombination intermediates termed heteroduplex joints [48,62,67]. The products of such a mtDNA replication mode are linear tandem multimers linked by head-to-tail unit-sized mtDNA, termed mtDNA concatemers [33]. Concatemers enable transmission of multiple identical mt-genome copies as a single unit, and thus promote the segregation of all mitochondrial alleles (i.e., separate sets of normal and mutated variants of each gene) to restore homoplasmy [33]. In the rolling-circle mode, the mitochondrial recombinase Mhr1 mediates homologous DNA pairing to initiate the rolling-circle mtDNA replication (Figure 1). In addition, Mhr1 can bind mtDNA double-strand breaks (DSBs) and mediate homologous DNA recombination, the predominant pathway for repair of mtDNA DSBs [67,68]. Several factors that collaborate with Mhr1 have been identified. For example, the DNA damage–inducible 5′→3′ exonuclease Din7 acts in DNA end resection to produce 3′-single-stranded DNA tails [67]. A mitochondria-localized Rad52-related protein Mgm101 has a short carboxyl-terminal tail for single-stranded DNA binding required for mitochondrial DNA recombination to maintain yeast mtDNA [69,70,71,72]. The oxidized base excision-repair enzyme Ntg1 introduces a DSB in the single-stranded regions at the mtDNA replication origin ori5; this DSB initiates the rolling-circle mtDNA replication mediated by Mhr1 [46,48]. Thus, optimal amounts of ROS promote mt-allele segregation mediated concatemers produced by the rolling-circle mtDNA replication, leading us to propose a mechanism in which an optimal level of ROS activates the homologous DNA pairing-initiated recombination-driven rolling-circle replication (RdRR) to increase mtDNA copy number in budding yeast [46,48].
ROS can damage DNA, but also serve as central hubs in cellular signaling networks [73]. Mitochondrial ROS stabilizes HIF-1 (hypoxia-inducible factor), a master regulator of hypoxia-induced gene expression [74,75]. Adaptive mitochondrial ROS signal extends the chronological lifespans of both C. elegans and yeast [76,77]. Elevated levels of oxidative stress decrease the level of the transcription regulator BACH1, which stimulates lung cancer metastasis [78]. In addition, mitochondrial ROS regulates thermogenic energy expenditure by promoting sulfenylation of uncoupling protein 1 (UCP-1) in brown adipose tissue [79].

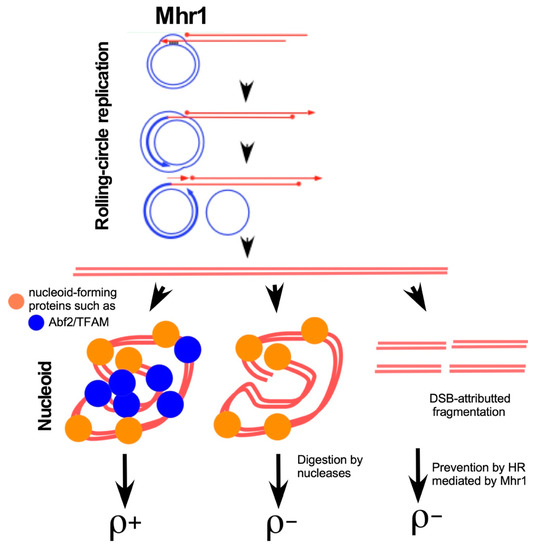

8. Roles of RdRR in Mitochondrial Dynamics and Maintenance of mtDNA Integrity

Mitochondrial nucleoids are regarded as the segregation unit for mtDNA inheritance [80]. Over 50 nucleoid-associated proteins, including aconitase, a component of the TCA cycle, play roles in mtDNA maintenance and gene expression [80,81]. Abf2 (the yeast homolog of human TFAM), a key component of the nucleoid with a histone-like role [82,83], promotes efficient packaging of linear double-stranded DNAs such as concatemers [82] by wrapping and bending mtDNA to protect it from damage and digestion by nucleases [84,85]. Abf2 plays no transcriptional role in yeast [86,87,88]. Mutants lacking ABF2 (∆abf2) lose mtDNA phenotype due to mtDNA deletions [80,82,89,90,91] in yeast and human cells, mtDNA concatemers produced by RdRR are likely packaged by Abf2 or TFAM into a nucleoprotein complex termed the mitochondrial nucleoid (Figure 2). Indeed, activation of the checkpoint via the ATM-Chk2 pathway in response to DNA damage increases mtDNA content without changing the amount of TFAM, but is accompanied by generation of the common 4977-bp deletion [92]. Fusion events, which are accompanied by the degradation of dissociated electron transport chain complex IV and transient reductions in the levels of complex IV subunits, increase ROS levels, leading to elevation of mtDNA copy number in a manner dependent on Mhr1 [93]. Therefore, RdRR ensures the distribution of mitochondrial genomes and is thus critical for the maintenance of mtDNA copy number during mitochondrial dynamics [93].
In contrast to Mhr1, overproduction of the Abf2 leads to mtDNA instability [89]. Mhr1 localizes near DSB sites in mtDNA [68], and exogenous introduction of Mhr1 promotes mtDNA recombination, thereby preventing mtDNA deletion-attributed deficiency in respiratory function [91]. This is consistent with the conclusion that Mhr1 plays a pivotal role in mtDNA maintenance [94].
As in S. cerevisiae, mtDNA replication is initiated from linear double-stranded mtDNA, and circular mtDNA molecules result from intramolecular recombination of linear double-stranded mtDNAs mediated by direct repeats. Circular mtDNA molecules act as templates for rolling-circle mtDNA replication for production of mtDNA concatemers (also see: Figure 1). mtDNA molecules that fail to package in nucleoids are usually sensitive to DNA damages and digestion by nucleases, and consequently generate DSBs. DSBs of mtDNA are repaired by homologous recombination, thereby preventing mtDNA deletions (Figure 2).

9. Significance of the mtDNA Recombination-Driven Rolling-Circle mtDNA Replication

Aging is caused by multiple internal and external factors. mtDNA deletion jeopardizes the ability of mitochondria to provide sufficient ATP, and thus causes processes related to aging [95,96]. In yeast, mtDNA deletion levels negatively correlate with the capacity of mtDNA recombination, in which the rolling-circle type mtDNA replication increases mtDNA copy number while preventing heteroplasmy due to mtDNA deletions [91], allowing us to infer that proficiency of mtDNA recombination is tightly associated with a healthy lifespan.

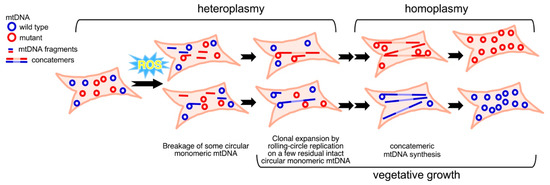

In heteroplasmic human cells, the activation of rolling-circle mtDNA replication represents a potential strategy for treating incurable diseases attributed to mitochondrial dysfunction. mtDNA mutations accumulate during aging, particularly in nerve and muscle cells, resulting in heteroplasmy [95,97,98,99,100,101,102]. A common mtDNA point mutation, which is the A-to-G transition at nucleotide position (np) 3243 (m.3243A > G), forms stable heteroplasmy with wild-type mtDNA [103,104] and causes mitochondrial myopathy, encephalopathy, lactic acidosis, and stroke-like episodes (MELAS) disease [105] and diabetes [106]. According to the established principle of RdRR in yeast mtDNA segregation [33], treating human heteroplasmic m.3243A > G primary fibroblast cells with hydrogen peroxide at an optimal ROS level, the promoted shift of mt-allele segregation towards wild-type and mutant mtDNA homoplasmy was observed [18]. The mechanism underlying ROS-stimulated mt-allele segregation towards homoplasmy in human cells is rolling-circle mtDNA replication, in which the amount of intact circular mtDNA molecules used as rolling-circle type replication templates is reduced, but the amount of mtDNA concatemers is elevated and newly synthesized mtDNA is concatemeric in hydrogen peroxide-treated human cells [18]. A newly developed system for the detection of mtDNA species based on Southern blotting after PFGE-coupled 2D gel electrophoresis has shown that ROS-triggered mt-allele segregation correlates with the production of mtDNA concatemers [18].
The ROS-stimulated mt-allele segregation via the rolling-circle mechanism raises possibility of restoring mtDNA homoplasmy from heteroplasmic human cells, without passage through the germline, by segregating mutant mtDNA molecules away from wild-type mtDNA copies within a cell; it could also be used to decrease the fraction of mutant mtDNA in a heteroplasmic cell during prenatal development [18]. Furthermore, this method also holds promise for screening iPS cells, or iPS cell-derived products, which have lower levels of point or deletion mutations in mtDNA (Figure 3). In addition, the RdRR mechanism first discovered in yeast may be universal among eukaryotes from yeast to humans [18]. We infer that the bootlace strand-asynchronous replication model, based on RITOLS, can occur using circular mtDNA as templates since intramolecular recombination converts concatemers to circular mtDNA molecules (also see: Figure 1). Of course, the proceeding of SCD replication also can occur on concatemers.

10. Conclusions and Perspectives

Here, we introduced the rolling-circle type mtDNA replication mode driven by mitochondrial homologous recombination and described its potential importance for maintaining a healthy lifespan, preventing mitochondrial diseases, and understanding the nature of the mtDNA genetic bottleneck during oogenesis.
Rolling-circle mtDNA replication is initiated by a homologous DNA pairing protein, and thus has the ability to repair mtDNA DSBs by homologous DNA recombination, raising the possibility of preventing aging processes attributed to mtDNA deletions. The rolling-circle replication mode promotes the shift of mitochondrial alleles towards homoplasmy, and thus decreases or increases the proportion of mutant mtDNA at a single-cell level; this could yield a paradigm shift in the treatment of incurable mitochondrial diseases. Without the rolling-circle mode of mtDNA replication, it is not possible to fully explain the mtDNA genetic bottleneck. Recent findings regarding RdRR should provide an enthusiastic discussion within the field about mtDNA metabolism and inheritance.

Author Contributions

F.L. wrote the article. M.Y. provided critical feedback and advice. All authors have read and agreed to the published version of the manuscript.


This research was funded in part by a Grant-in-Aid for Scientific Research (C) (No. 23510237, No. 17K07294, and No. 20K06498) from the Ministry of Education, Culture, Sports, Science and Technology of Japan to F.L.; by an Incentive Research Grant from RIKEN to F.L.; by a grant from the RIKEN Strategic Research Program; and by a grant from JST-CREST to F.L., and the AFC was funded by the Grant-in-Aid for Scientific Research (C) (17K07294).


This work was supported by a Grant-in-Aid for Scientific Research (C) (17K07294) from the Ministry of Education, Culture, Sports, Science and Technology of Japan (to F.L.).

Conflicts of Interest

The authors declare no competing interests.


ROSreactive oxygen species;
mtDNAmitochondrial DNA
DSBsdouble-stranded DNA breaks
S. cerevisiaeSaccharomyces cerevisiae;
MGME1mitochondrial genome maintenance exonuclease 1
POLGDNA polymerase subunit γ
PFGEpulsed-field gel electrophoresis
2D gel electrophoresistwo-dimensional gel electrophoresis


  1. Ernster, L.; Schatz, G. Mitochondria: A historical review. J. Cell Biol. 1981, 91 Pt 2, 227s–255s. [Google Scholar] [CrossRef]
  2. Willis, E.J. The powerhouse of the cell. Ultrastruct. Pathol. 1992, 16, iii–vi. [Google Scholar] [CrossRef]
  3. Birnboim, H.C. DNA strand breaks in human leukocytes induced by superoxide anion, hydrogen peroxide and tumor promoters are repaired slowly compared to breaks induced by ionizing radiation. Carcinogenesis 1986, 7, 1511–1517. [Google Scholar] [CrossRef]
  4. Vawter, L.; Brown, W.M. Nuclear and mitochondrial DNA comparisons reveal extreme rate variation in the molecular clock. Science 1986, 234, 194–196. [Google Scholar] [CrossRef] [PubMed]
  5. Neiman, M.; Taylor, D.R. The causes of mutation accumulation in mitochondrial genomes. Proc. Biol. Sci. 2009, 276, 1201–1209. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Lee, H.S.; Ma, H.; Juanes, R.C.; Tachibana, M.; Sparman, M.; Woodward, J.; Ramsey, C.; Xu, J.; Kang, E.J.; Amato, P.; et al. Rapid mitochondrial DNA segregation in primate preimplantation embryos precedes somatic and germline bottleneck. Cell Rep. 2012, 1, 506–515. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Hauswirth, W.W.; Laipis, P.J. Mitochondrial DNA polymorphism in a maternal lineage of Holstein cows. Proc. Natl. Acad. Sci. USA 1982, 79, 4686–4690. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Ashley, M.V.; Laipis, P.J.; Hauswirth, W.W. Rapid segregation of heteroplasmic bovine mitochondria. Nucleic Acids Res. 1989, 17, 7325–7331. [Google Scholar] [CrossRef] [PubMed]
  9. Cao, L.; Shitara, H.; Horii, T.; Nagao, Y.; Imai, H.; Abe, K.; Hara, T.; Hayashi, J.; Yonekawa, H. The mitochondrial bottleneck occurs without reduction of mtDNA content in female mouse germ cells. Nat. Genet. 2007, 39, 386–390. [Google Scholar] [CrossRef]
  10. Cree, L.M.; Samuels, D.C.; de Sousa Lopes, S.C.; Rajasimha, H.K.; Wonnapinij, P.; Mann, J.R.; Dahl, H.H.; Chinnery, P.F. A reduction of mitochondrial DNA molecules during embryogenesis explains the rapid segregation of genotypes. Nat. Genet. 2008, 40, 249–254. [Google Scholar] [CrossRef]
  11. Khrapko, K. Two ways to make an mtDNA bottleneck. Nat. Genet. 2008, 40, 134–135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Wai, T.; Teoli, D.; Shoubridge, E.A. The mitochondrial DNA genetic bottleneck results from replication of a subpopulation of genomes. Nat. Genet. 2008, 40, 1484–1488. [Google Scholar] [CrossRef] [PubMed]
  13. Robberson, D.L.; Kasamatsu, H.; Vinograd, J. Replication of mitochondrial DNA. Circular replicative intermediates in mouse L cells. Proc. Natl. Acad. Sci. USA 1972, 69, 737–741. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Clayton, D.A. Replication of animal mitochondrial DNA. Cell 1982, 28, 693–705. [Google Scholar] [CrossRef]
  15. Yasukawa, T.; Reyes, A.; Cluett, T.J.; Yang, M.Y.; Bowmaker, M.; Jacobs, H.T.; Holt, I.J. Replication of vertebrate mitochondrial DNA entails transient ribonucleotide incorporation throughout the lagging strand. EMBO J. 2006, 25, 5358–5371. [Google Scholar] [CrossRef]
  16. Zinovkina, L.A. DNA Replication in Human Mitochondria. Biochemistry (Moscow) 2019, 84, 884–895. [Google Scholar] [CrossRef]
  17. Yasukawa, T.; Kang, D. An overview of mammalian mitochondrial DNA replication mechanisms. J. Biochem. 2018, 164, 183–193. [Google Scholar] [CrossRef]
  18. Ling, F.; Niu, R.; Hatakeyama, H.; Goto, Y.; Shibata, T.; Yoshida, M. Reactive oxygen species stimulate mitochondrial allele segregation toward homoplasmy in human cells. Mol. Biol. Cell 2016, 27, 1684–1693. [Google Scholar] [CrossRef]
  19. Ono, T.; Isobe, K.; Nakada, K.; Hayashi, J.I. Human cells are protected from mitochondrial dysfunction by complementation of DNA products in fused mitochondria. Nat. Genet. 2001, 28, 272–275. [Google Scholar] [CrossRef]
  20. Kang, E.; Wang, X.; Tippner-Hedges, R.; Ma, H.; Folmes, C.D.; Gutierrez, N.M.; Lee, Y.; Van Dyken, C.; Ahmed, R.; Li, Y.; et al. Age-Related Accumulation of Somatic Mitochondrial DNA Mutations in Adult-Derived Human iPSCs. Cell Stem Cell 2016, 18, 625–636. [Google Scholar] [CrossRef]
  21. Hamalainen, R.H. Mitochondrial DNA mutations in iPS cells: mtDNA integrity as standard iPSC selection criteria? EMBO J. 2016, 35, 1960–1962. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Deuse, T.; Hu, X.; Agbor-Enoh, S.; Koch, M.; Spitzer, M.H.; Gravina, A.; Alawi, M.; Marishta, A.; Peters, B.; Kosaloglu-Yalcin, Z.; et al. De novo mutations in mitochondrial DNA of iPSCs produce immunogenic neoepitopes in mice and humans. Nat. Biotechnol. 2019, 37, 1137–1144. [Google Scholar] [CrossRef] [PubMed]
  23. Bacman, S.R.; Williams, S.L.; Pinto, M.; Peralta, S.; Moraes, C.T. Specific elimination of mutant mitochondrial genomes in patient-derived cells by mitoTALENs. Nat. Med. 2013, 19, 1111–1113. [Google Scholar] [CrossRef] [PubMed]
  24. Bacman, S.R.; Kauppila, J.H.K.; Pereira, C.V.; Nissanka, N.; Miranda, M.; Pinto, M.; Williams, S.L.; Larsson, N.G.; Stewart, J.B.; Moraes, C.T. MitoTALEN reduces mutant mtDNA load and restores tRNA(Ala) levels in a mouse model of heteroplasmic mtDNA mutation. Nat. Med. 2018, 24, 1696–1700. [Google Scholar] [CrossRef]
  25. Bacman, S.R.; Gammage, P.A.; Minczuk, M.; Moraes, C.T. Manipulation of mitochondrial genes and mtDNA heteroplasmy. Methods Cell Biol. 2020, 155, 441–487. [Google Scholar] [PubMed]
  26. Bui, E.T.; Bradley, P.J.; Johnson, P.J. A common evolutionary origin for mitochondria and hydrogenosomes. Proc. Natl. Acad. Sci. USA 1996, 93, 9651–9656. [Google Scholar] [CrossRef] [Green Version]
  27. Asai, T.; Bates, D.B.; Kogoma, T. DNA replication triggered by double-stranded breaks in E. coli: Dependence on homologous recombination functions. Cell 1994, 78, 1051–1061. [Google Scholar] [CrossRef] [Green Version]
  28. Bendich, A.J. The end of the circle for yeast mitochondrial DNA. Mol. Cell 2010, 39, 831–832. [Google Scholar] [CrossRef]
  29. Lewis, S.C.; Joers, P.; Willcox, S.; Griffith, J.D.; Jacobs, H.T.; Hyman, B.C. A rolling circle replication mechanism produces multimeric lariats of mitochondrial DNA in Caenorhabditis elegans. PLoS Genet. 2015, 11, e1004985. [Google Scholar] [CrossRef] [Green Version]
  30. Nass, M.M. The circularity of mitochondrial DNA. Proc. Natl. Acad. Sci. USA 1966, 56, 1215–1222. [Google Scholar] [CrossRef] [Green Version]
  31. Williamson, D.H.; Fennell, D.J. Visualization of yeast mitochondrial DNA with the fluorescent stain “DAPI”. Methods Enzymol. 1979, 56, 728–733. [Google Scholar] [PubMed]
  32. Dujon, B. Mitochondrial genetics and function. In The Molecular Biology of the Yeast Saccharomyces: Life Cycle and Inheritance; Strathern, J.N., Jones, E.W., Broach, J.R., Eds.; Cold Spring Harbor Laboratory Press: New York, NY, USA, 1981; pp. 505–635. [Google Scholar]
  33. Ling, F.; Shibata, T. Mhr1p-dependent concatemeric mitochondrial DNA formation for generating yeast mitochondrial homoplasmic cells. Mol. Biol. Cell 2004, 15, 310–322. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Birky, C.W., Jr. Transmission genetics of mitochondria and chloroplasts. Annu. Rev. Genet. 1978, 12, 471–512. [Google Scholar] [CrossRef] [PubMed]
  35. Jenuth, J.P.; Peterson, A.C.; Fu, K.; Shoubridge, E.A. Random genetic drift in the female germline explains the rapid segregation of mammalian mitochondrial DNA. Nat. Genet. 1996, 14, 146–151. [Google Scholar] [CrossRef] [PubMed]
  36. Stampar, S.N.; Broe, M.B.; Macrander, J.; Reitzel, A.M.; Brugler, M.R.; Daly, M. Linear Mitochondrial Genome in Anthozoa (Cnidaria): A Case Study in Ceriantharia. Sci. Rep. 2019, 9, 6094. [Google Scholar] [CrossRef] [Green Version]
  37. Peeva, V.; Blei, D.; Trombly, G.; Corsi, S.; Szukszto, M.J.; Rebelo-Guiomar, P.; Gammage, P.A.; Kudin, A.P.; Becker, C.; Altmuller, J.; et al. Linear mitochondrial DNA is rapidly degraded by components of the replication machinery. Nat. Commun. 2018, 9, 1727. [Google Scholar] [CrossRef] [Green Version]
  38. Matic, S.; Jiang, M.; Nicholls, T.J.; Uhler, J.P.; Dirksen-Schwanenland, C.; Polosa, P.L.; Simard, M.L.; Li, X.; Atanassov, I.; Rackham, O.; et al. Mice lacking the mitochondrial exonuclease MGME1 accumulate mtDNA deletions without developing progeria. Nat. Commun. 2018, 9, 1202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Maleszka, R.; Skelly, P.J.; Clark-Walker, G.D. Rolling circle replication of DNA in yeast mitochondria. EMBO J. 1991, 10, 3923–3929. [Google Scholar] [CrossRef] [PubMed]
  40. Bendich, A.J. Structural analysis of mitochondrial DNA molecules from fungi and plants using moving pictures and pulsed-field gel electrophoresis. J. Mol. Biol. 1996, 255, 564–588. [Google Scholar] [CrossRef]
  41. Enquist, L.W.; Skalka, A. Replication of bacteriophage lambda DNA dependent on the function of host and viral genes. I. Interaction of red, gam and rec. J. Mol. Biol. 1973, 75, 185–212. [Google Scholar] [CrossRef]
  42. Silberstein, Z.; Maor, S.; Berger, I.; Cohen, A. Lambda Red-mediated synthesis of plasmid linear multimers in Escherichia coli K12. Mol. Gen. Genet. 1990, 223, 496–507. [Google Scholar] [CrossRef] [PubMed]
  43. Asai, T.; Sommer, S.; Bailone, A.; Kogoma, T. Homologous recombination-dependent initiation of DNA replication from DNA damage-inducible origins in Escherichia coli. EMBO J. 1993, 12, 3287–3295. [Google Scholar] [CrossRef] [PubMed]
  44. Kogoma, T.; Hong, X.; Cadwell, G.W.; Barnard, K.G.; Asai, T. Requirement of homologous recombination functions for viability of the Escherichia coli cell that lacks RNase HI and exonuclease V activities. Biochimie 1993, 75, 89–99. [Google Scholar] [CrossRef]
  45. Mosig, G. Recombination and recombination-dependent DNA replication in bacteriophage T4. Annu. Rev. Genet. 1998, 32, 379–413. [Google Scholar] [CrossRef] [PubMed]
  46. Ling, F.; Hori, A.; Shibata, T. DNA recombination-initiation plays a role in the extremely biased inheritance of yeast [rho-] mitochondrial DNA that contains the replication origin ori5. Mol. Cell Biol. 2007, 27, 1133–1145. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Leadsham, J.E.; Sanders, G.; Giannaki, S.; Bastow, E.L.; Hutton, R.; Naeimi, W.R.; Breitenbach, M.; Gourlay, C.W. Loss of cytochrome c oxidase promotes RAS-dependent ROS production from the ER resident NADPH oxidase, Yno1p, in yeast. Cell Metab. 2013, 18, 279–286. [Google Scholar] [CrossRef] [Green Version]
  48. Hori, A.; Yoshida, M.; Shibata, T.; Ling, F. Reactive oxygen species regulate DNA copy number in isolated yeast mitochondria by triggering recombination-mediated replication. Nucleic Acids Res. 2009, 37, 749–761. [Google Scholar] [CrossRef] [Green Version]
  49. Schmitt, M.E.; Layton, D.A. Conserved features of yeast and mammalian mitochondrial DNA replication. Curr. Opin. Genet. Dev. 1993, 3, 769–774. [Google Scholar] [CrossRef]
  50. Thyagarajan, B.; Padua, R.A.; Campbell, C. Mammalian mitochondria possess homologous DNA recombination activity. J. Biol. Chem. 1996, 271, 27536–27543. [Google Scholar] [CrossRef] [Green Version]
  51. Kraytsberg, Y.; Schwartz, M.; Brown, T.A.; Ebralidse, K.; Kunz, W.S.; Clayton, D.A.; Vissing, J.; Khrapko, K. Recombination of human mitochondrial DNA. Science 2004, 304, 981. [Google Scholar] [CrossRef] [Green Version]
  52. Kajander, O.A.; Karhunen, P.J.; Holt, I.J.; Jacobs, H.T. Prominent mitochondrial DNA recombination intermediates in human heart muscle. EMBO Rep. 2001, 2, 1007–1012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Pohjoismaki, J.L.; Goffart, S.; Tyynismaa, H.; Willcox, S.; Ide, T.; Kang, D.; Suomalainen, A.; Karhunen, P.J.; Griffith, J.D.; Holt, I.J.; et al. Human heart mitochondrial DNA is organized in complex catenated networks containing abundant four-way junctions and replication forks. J. Biol. Chem. 2009, 284, 21446–21457. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Oldenburg, D.J.; Bendich, A.J. Size and Structure of Replicating Mitochondrial DNA in Cultured Tobacco Cells. Plant Cell 1996, 8, 447–461. [Google Scholar] [CrossRef] [PubMed]
  55. Thomas, D.Y.; Wilkie, D. Recombination of mitochondrial drug-resistance factors in Saccharomyces cerevisiae. Biochem. Biophys. Res. Commun. 1968, 30, 368–372. [Google Scholar] [CrossRef]
  56. Honda, H.; Hirai, A. The gene for the alpha-subunit of ATPase: A site of homologous recombination in plant mitochondrial DNA also functions in somatic hybrid cells. Theor. Appl. Genet. 1992, 84, 33–38. [Google Scholar] [CrossRef]
  57. Ling, F.; Makishima, F.; Morishima, N.; Shibata, T. A nuclear mutation defective in mitochondrial recombination in yeast. EMBO J 1995, 14, 4090–4101. [Google Scholar] [CrossRef]
  58. Prasai, K.; Robinson, L.C.; Scott, R.S.; Tatchell, K.; Harrison, L. Evidence for double-strand break mediated mitochondrial DNA replication in Saccharomyces cerevisiae. Nucleic Acids Res. 2017, 45, 7760–7773. [Google Scholar] [CrossRef] [Green Version]
  59. Backert, S.; Dorfel, P.; Lurz, R.; Borner, T. Rolling-circle replication of mitochondrial DNA in the higher plant Chenopodium album (L.). Mol. Cell Biol. 1996, 16, 6285–6294. [Google Scholar] [CrossRef] [Green Version]
  60. Backert, S. R-loop-dependent rolling-circle replication and a new model for DNA concatemer resolution by mitochondrial plasmid mp1. EMBO J. 2002, 21, 3128–3136. [Google Scholar] [CrossRef] [Green Version]
  61. Shadel, G.S. Yeast as a model for human mtDNA replication. Am. J. Hum. Genet. 1999, 65, 1230–1237. [Google Scholar] [CrossRef] [Green Version]
  62. Ling, F.; Shibata, T. Recombination-dependent mtDNA partitioning: In vivo role of Mhr1p to promote pairing of homologous DNA. EMBO J. 2002, 21, 4730–4740. [Google Scholar] [CrossRef] [PubMed]
  63. MacAlpine, D.M.; Perlman, P.S.; Butow, R.A. The numbers of individual mitochondrial DNA molecules and mitochondrial DNA nucleoids in yeast are co-regulated by the general amino acid control pathway. EMBO J. 2000, 19, 767–775. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Kleff, S.; Kemper, B.; Sternglanz, R. Identification and characterization of yeast mutants and the gene for a cruciform cutting endonuclease. EMBO J. 1992, 11, 699–704. [Google Scholar] [CrossRef] [PubMed]
  65. Ling, F.; Yoshida, M.; Shibata, T. Heteroduplex joint formation free of net topological change by Mhr1, a mitochondrial recombinase. J. Biol. Chem. 2009, 284, 9341–9353. [Google Scholar] [CrossRef] [Green Version]
  66. Ling, F.; Morioka, H.; Ohtsuka, E.; Shibata, T. A role for MHR1, a gene required for mitochondrial genetic recombination, in the repair of damage spontaneously introduced in yeast mtDNA. Nucleic Acids Res. 2000, 28, 4956–4963. [Google Scholar] [CrossRef] [Green Version]
  67. Ling, F.; Hori, A.; Yoshitani, A.; Niu, R.; Yoshida, M.; Shibata, T. Din7 and Mhr1 expression levels regulate double-strand-break-induced replication and recombination of mtDNA at ori5 in yeast. Nucleic Acids Res. 2013, 41, 5799–5816. [Google Scholar] [CrossRef] [Green Version]
  68. Prasai, K.; Robinson, L.C.; Tatchell, K.; Harrison, L. Saccharomyces cerevisiae Mhr1 can bind Xho I-induced mitochondrial DNA double-strand breaks in vivo. Mitochondrion 2018, 42, 23–32. [Google Scholar] [CrossRef]
  69. Chen, X.J.; Guan, M.X.; Clark-Walker, G.D. MGM101, a nuclear gene involved in maintenance of the mitochondrial genome in Saccharomyces cerevisiae. Nucleic Acids Res. 1993, 21, 3473–3477. [Google Scholar] [CrossRef] [Green Version]
  70. Mbantenkhu, M.; Wang, X.; Nardozzi, J.D.; Wilkens, S.; Hoffman, E.; Patel, A.; Cosgrove, M.S.; Chen, X.J. Mgm101 is a Rad52-related protein required for mitochondrial DNA recombination. J. Biol. Chem. 2011, 286, 42360–42370. [Google Scholar] [CrossRef] [Green Version]
  71. Mbantenkhu, M.; Wierzbicki, S.; Wang, X.; Guo, S.; Wilkens, S.; Chen, X.J. A short carboxyl-terminal tail is required for single-stranded DNA binding, higher-order structural organization, and stability of the mitochondrial single-stranded annealing protein Mgm101. Mol. Biol. Cell 2013, 24, 1507–1518. [Google Scholar] [CrossRef]
  72. Nardozzi, J.D.; Wang, X.; Mbantenkhu, M.; Wilkens, S.; Chen, X.J. A properly configured ring structure is critical for the function of the mitochondrial DNA recombination protein, Mgm101. J. Biol. Chem. 2012, 287, 37259–37268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Kietzmann, T.; Petry, A.; Shvetsova, A.; Gerhold, J.M.; Gorlach, A. The epigenetic landscape related to reactive oxygen species formation in the cardiovascular system. Br. J. Pharmacol. 2017, 174, 1533–1554. [Google Scholar] [CrossRef] [PubMed]
  74. Chandel, N.S.; Maltepe, E.; Goldwasser, E.; Mathieu, C.E.; Simon, M.C.; Schumacker, P.T. Mitochondrial reactive oxygen species trigger hypoxia-induced transcription. Proc. Natl. Acad. Sci. USA 1998, 95, 11715–11720. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Kaelin, W.G., Jr. ROS: Really involved in oxygen sensing. Cell Metab. 2005, 1, 357–358. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Schroeder, E.A.; Shadel, G.S. Alternative mitochondrial fuel extends life span. Cell Metab. 2012, 15, 417–418. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Pan, Y.; Schroeder, E.A.; Ocampo, A.; Barrientos, A.; Shadel, G.S. Regulation of yeast chronological life span by TORC1 via adaptive mitochondrial ROS signaling. Cell Metab. 2011, 13, 668–678. [Google Scholar] [CrossRef] [Green Version]
  78. Wiel, C.; Le Gal, K.; Ibrahim, M.X.; Jahangir, C.A.; Kashif, M.; Yao, H.; Ziegler, D.V.; Xu, X.; Ghosh, T.; Mondal, T.; et al. BACH1 Stabilization by Antioxidants Stimulates Lung Cancer Metastasis. Cell 2019, 178, 330–345.e22. [Google Scholar] [CrossRef]
  79. Chouchani, E.T.; Kazak, L.; Jedrychowski, M.P.; Lu, G.Z.; Erickson, B.K.; Szpyt, J.; Pierce, K.A.; Laznik-Bogoslavski, D.; Vetrivelan, R.; Clish, C.B.; et al. Mitochondrial ROS regulate thermogenic energy expenditure and sulfenylation of UCP1. Nature 2016, 532, 112–116. [Google Scholar] [CrossRef] [Green Version]
  80. Chen, X.J.; Butow, R.A. The organization and inheritance of the mitochondrial genome. Nat. Rev. Genet. 2005, 6, 815–825. [Google Scholar] [CrossRef]
  81. Lee, S.R.; Han, J. Mitochondrial Nucleoid: Shield and Switch of the Mitochondrial Genome. Oxid. Med. Cell Longev. 2017, 2017, 8060949. [Google Scholar] [CrossRef]
  82. Diffley, J.F.; Stillman, B. DNA binding properties of an HMG1-related protein from yeast mitochondria. J. Biol. Chem. 1992, 267, 3368–3374. [Google Scholar] [PubMed]
  83. Newman, S.M.; Zelenaya-Troitskaya, O.; Perlman, P.S.; Butow, R.A. Analysis of mitochondrial DNA nucleoids in wild-type and a mutant strain of Saccharomyces cerevisiae that lacks the mitochondrial HMG box protein Abf2p. Nucleic Acids Res. 1996, 24, 386–393. [Google Scholar] [CrossRef] [PubMed]
  84. Brewer, L.R.; Friddle, R.; Noy, A.; Baldwin, E.; Martin, S.S.; Corzett, M.; Balhorn, R.; Baskin, R.J. Packaging of single DNA molecules by the yeast mitochondrial protein Abf2p. Biophys. J. 2003, 85, 2519–2524. [Google Scholar] [CrossRef] [Green Version]
  85. Wang, Y.E.; Marinov, G.K.; Wold, B.J.; Chan, D.C. Genome-Wide Analysis Reveals Coating of the Mitochondrial Genome by TFAM. PLoS ONE 2013, 8. [Google Scholar] [CrossRef] [Green Version]
  86. Clayton, D.A. Transcription and replication of animal mitochondrial DNAs. Int. Rev. Cytol. 1992, 141, 217–232. [Google Scholar]
  87. Van Dyck, E.; Clayton, D.A. Transcription-dependent DNA transactions in the mitochondrial genome of a yeast hypersuppressive petite mutant. Mol. Cell Biol. 1998, 18, 2976–2985. [Google Scholar] [CrossRef] [Green Version]
  88. Kukat, C.; Larsson, N.G. mtDNA makes a U-turn for the mitochondrial nucleoid. Trends Cell Biol. 2013, 23, 457–463. [Google Scholar] [CrossRef]
  89. MacAlpine, D.M.; Perlman, P.S.; Butow, R.A. The high mobility group protein Abf2p influences the level of yeast mitochondrial DNA recombination intermediates in vivo. Proc. Natl. Acad. Sci. USA 1998, 95, 6739–6743. [Google Scholar] [CrossRef] [Green Version]
  90. Zelenaya-Troitskaya, O.; Newman, S.M.; Okamoto, K.; Perlman, P.S.; Butow, R.A. Functions of the high mobility group protein, Abf2p, in mitochondrial DNA segregation, recombination and copy number in Saccharomyces cerevisiae. Genetics 1998, 148, 1763–1776. [Google Scholar]
  91. Ling, F.; Bradshaw, E.; Yoshida, M. Prevention of mitochondrial genomic instability in yeast by the mitochondrial recombinase Mhr1. Sci. Rep. 2019, 9, 5433. [Google Scholar] [CrossRef] [Green Version]
  92. Niu, R.; Yoshida, M.; Ling, F. Increases in mitochondrial DNA content and 4977-bp deletion upon ATM/Chk2 checkpoint activation in HeLa cells. PLoS ONE 2012, 7, e40572. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Hori, A.; Yoshida, M.; Ling, F. Mitochondrial fusion increases the mitochondrial DNA copy number in budding yeast. Genes Cells 2011, 16, 527–544. [Google Scholar] [CrossRef] [PubMed]
  94. Fritsch, E.S.; Chabbert, C.D.; Klaus, B.; Steinmetz, L.M. A genome-wide map of mitochondrial DNA recombination in yeast. Genetics 2014, 198, 755–771. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Linnane, A.W.; Marzuki, S.; Ozawa, T.; Tanaka, M. Mitochondrial DNA mutations as an important contributor to ageing and degenerative diseases. Lancet 1989, 1, 642–645. [Google Scholar] [CrossRef]
  96. Balciuniene, J.; Balciunas, D. A Nuclear mtDNA Concatemer (Mega-NUMT) Could Mimic Paternal Inheritance of Mitochondrial Genome. Front. Genet. 2019, 10, 518. [Google Scholar] [CrossRef]
  97. Holt, I.J.; Cooper, J.M.; Morgan-Hughes, J.A.; Harding, A.E. Deletions of muscle mitochondrial DNA. Lancet 1988, 1, 1462. [Google Scholar] [CrossRef]
  98. Holt, I.J.; Harding, A.E.; Morgan-Hughes, J.A. Deletions of muscle mitochondrial DNA in patients with mitochondrial myopathies. Nature 1988, 331, 717–719. [Google Scholar] [CrossRef]
  99. Wallace, D.C. Mitochondrial DNA sequence variation in human evolution and disease. Proc. Natl. Acad. Sci. USA 1994, 91, 8739–8746. [Google Scholar] [CrossRef] [Green Version]
  100. Ozawa, T. Genetic and functional changes in mitochondria associated with aging. Physiol Rev 1997, 77, 425–464. [Google Scholar] [CrossRef]
  101. Smeitink, J.A.; Zeviani, M.; Turnbull, D.M.; Jacobs, H.T. Mitochondrial medicine: A metabolic perspective on the pathology of oxidative phosphorylation disorders. Cell Metab. 2006, 3, 9–13. [Google Scholar] [CrossRef] [Green Version]
  102. Geng, X.; Zhang, Y.; Yan, J.; Chu, C.; Gao, F.; Jiang, Z.; Zhang, X.; Chen, Y.; Wei, X.; Feng, Y.; et al. Mitochondrial DNA mutation m.3243A>G is associated with altered mitochondrial function in peripheral blood mononuclear cells, with heteroplasmy levels and with clinical phenotypes. Diabet. Med. 2018. [Google Scholar] [CrossRef] [PubMed]
  103. Lehtinen, S.K.; Hance, N.; El Meziane, A.; Juhola, M.K.; Juhola, K.M.; Karhu, R.; Spelbrink, J.N.; Holt, I.J.; Jacobs, H.T. Genotypic stability, segregation and selection in heteroplasmic human cell lines containing np 3243 mutant mtDNA. Genetics 2000, 154, 363–380. [Google Scholar] [PubMed]
  104. Raap, A.K.; Jahangir Tafrechi, R.S.; van de Rijke, F.M.; Pyle, A.; Wahlby, C.; Szuhai, K.; Ravelli, R.B.; de Coo, R.F.; Rajasimha, H.K.; Nilsson, M.; et al. Non-random mtDNA segregation patterns indicate a metastable heteroplasmic segregation unit in m.3243A>G cybrid cells. PLoS ONE 2012, 7, e52080. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. Goto, Y.; Nonaka, I.; Horai, S. A mutation in the tRNA(Leu)(UUR) gene associated with the MELAS subgroup of mitochondrial encephalomyopathies. Nature 1990, 348, 651–653. [Google Scholar] [CrossRef]
  106. Reardon, W.; Ross, R.J.; Sweeney, M.G.; Luxon, L.M.; Pembrey, M.E.; Harding, A.E.; Trembath, R.C. Diabetes mellitus associated with a pathogenic point mutation in mitochondrial DNA. Lancet 1992, 340, 1376–1379. [Google Scholar] [CrossRef]

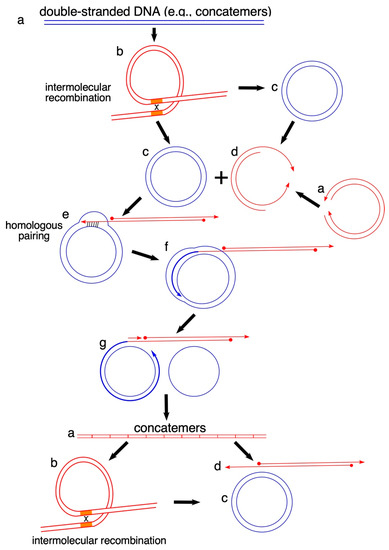

Figure 1. Homologous pairing–mediated mtDNA replication via a rolling-circle mechanism. mtDNA replication is initiated from double-stranded DNA, such as a concatemer (a). Intramolecular recombination (b) converts concatemers to circular mtDNA molecules (c). 5′→3′ exonuclease produces a 3′ single-stranded tail of linear double-stranded mtDNA, followed end resection at DSBs (cd). Homologous DNA recombinases such as Mhr1 initiate rolling-circle mtDNA replication in a heteroduplex joint (e), yielding replication intermediates (eg) and products termed as concatemers, which are linear tandem multimers linked by head-to-tail unit-sized mtDNA (a). Intramolecular recombination (b) converts concatemers to circular mtDNA molecules (a), which may act as a template for rolling-circle mtDNA replication. Note: only circular mtDNA molecules (c) are resistant to degradation by exonuclease activities.
Figure 1. Homologous pairing–mediated mtDNA replication via a rolling-circle mechanism. mtDNA replication is initiated from double-stranded DNA, such as a concatemer (a). Intramolecular recombination (b) converts concatemers to circular mtDNA molecules (c). 5′→3′ exonuclease produces a 3′ single-stranded tail of linear double-stranded mtDNA, followed end resection at DSBs (cd). Homologous DNA recombinases such as Mhr1 initiate rolling-circle mtDNA replication in a heteroduplex joint (e), yielding replication intermediates (eg) and products termed as concatemers, which are linear tandem multimers linked by head-to-tail unit-sized mtDNA (a). Intramolecular recombination (b) converts concatemers to circular mtDNA molecules (a), which may act as a template for rolling-circle mtDNA replication. Note: only circular mtDNA molecules (c) are resistant to degradation by exonuclease activities.
Genes 11 00514 g001
Figure 2. Packaging of mtDNA in nucleoids and DSB repair by Mhr1-mediated homologous recombination. The products of rolling-circle mtDNA replication, as linear mtDNA molecules, are packaged in mitochondrial nucleoids by nucleoid-forming proteins such as Abf2/TFAM for inheritance. Otherwise, they are susceptible to DNA damage and digestion by nucleases. mtDNA deletions caused by DSBs are primarily prevented by homologous recombination mediated by mitochondrial recombinases such as Mhr1. ρ+, respiration-proficient cells of S. cerevisiae. ρ−, respiration-deficient cells of S. cerevisiae, which contain mtDNA with a large deletion or tandem arrays of a mtDNA segment.
Figure 2. Packaging of mtDNA in nucleoids and DSB repair by Mhr1-mediated homologous recombination. The products of rolling-circle mtDNA replication, as linear mtDNA molecules, are packaged in mitochondrial nucleoids by nucleoid-forming proteins such as Abf2/TFAM for inheritance. Otherwise, they are susceptible to DNA damage and digestion by nucleases. mtDNA deletions caused by DSBs are primarily prevented by homologous recombination mediated by mitochondrial recombinases such as Mhr1. ρ+, respiration-proficient cells of S. cerevisiae. ρ−, respiration-deficient cells of S. cerevisiae, which contain mtDNA with a large deletion or tandem arrays of a mtDNA segment.
Genes 11 00514 g002
Figure 3. Restoration of homoplasmy from heteroplasmy through mitochondrial allele segregation stimulated by ROS. In hydrogen peroxide-treated MELAS cells, ROS cause partial breakage of intact circular monomeric mtDNA to decrease the number of templates. Concatemers synthesized by rolling-circle mtDNA replication, using residual whole monomeric mtDNAs as templates, allow restoration of homoplasmy during vegetative growth.
Figure 3. Restoration of homoplasmy from heteroplasmy through mitochondrial allele segregation stimulated by ROS. In hydrogen peroxide-treated MELAS cells, ROS cause partial breakage of intact circular monomeric mtDNA to decrease the number of templates. Concatemers synthesized by rolling-circle mtDNA replication, using residual whole monomeric mtDNAs as templates, allow restoration of homoplasmy during vegetative growth.
Genes 11 00514 g003

Share and Cite

MDPI and ACS Style

Ling, F.; Yoshida, M. Rolling-Circle Replication in Mitochondrial DNA Inheritance: Scientific Evidence and Significance from Yeast to Human Cells. Genes 2020, 11, 514.

AMA Style

Ling F, Yoshida M. Rolling-Circle Replication in Mitochondrial DNA Inheritance: Scientific Evidence and Significance from Yeast to Human Cells. Genes. 2020; 11(5):514.

Chicago/Turabian Style

Ling, Feng, and Minoru Yoshida. 2020. "Rolling-Circle Replication in Mitochondrial DNA Inheritance: Scientific Evidence and Significance from Yeast to Human Cells" Genes 11, no. 5: 514.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
