Article

Hepatic Transcriptomics Reveals that Lipogenesis Is a Key Signaling Pathway in Isocitrate Dehydrogenase 2 Deficient Mice

by
Jeong Hoon Pan
1,†,
Jingsi Tang
1,
Mersady C. Redding
1,
Kaleigh E. Beane
1,
Cara L. Conner
1,
Yun Jeong Cho
1,
Jiangchao Zhao
2,
Jun Ho Kim
3,
Byungwhi C. Kong
4,*,
Jin Hyup Lee
5,* and
Jae Kyeom Kim
1,*,†
1
School of Human Environmental Sciences, University of Arkansas, Fayetteville, AR 72701, USA
2
Department of Animal Science, University of Arkansas, Fayetteville, AR 72701, USA
3
Department of Food Science and Biotechnology, Andong National University, Andong 36729, Korea
4
Poultry Science, University of Arkansas, Fayetteville, AR 72701, USA
5
Department of Food and Biotechnology, Korea University, Sejong 30019, Korea
*
Authors to whom correspondence should be addressed.
†
Current address: Department of Behavioral Health and Nutrition, University of Delaware, Newark, DE 19716, USA.
Genes 2019, 10(9), 728; https://doi.org/10.3390/genes10090728
Submission received: 20 August 2019 / Revised: 13 September 2019 / Accepted: 16 September 2019 / Published: 19 September 2019
Browse Figures
Versions Notes

Abstract

:
Mitochondrial nicotinamide adenine dinucleotide phosphate (NADP+)-dependent isocitrate dehydrogenase (IDH2) plays a key role in the intermediary metabolism and energy production via catalysing oxidative decarboxylation of isocitrate to α-ketoglutarate in the tricarboxylic acid (TCA) cycle. Despite studies reporting potential interlinks between IDH2 and various diseases, there is lack of effort to comprehensively characterize signature(s) of IDH2 knockout (IDH2 KO) mice. A total of 6583 transcripts were identified from both wild-type (WT) and IDH2 KO mice liver tissues. Afterwards, 167 differentially expressed genes in the IDH2 KO group were short-listed compared to the WT group based on our criteria. The online bioinformatic analyses indicated that lipid metabolism is the most significantly influenced metabolic process in IDH2 KO mice. Moreover, the TR/RXR activation pathway was predicted as the top canonical pathway significantly affected by IDH2 KO. The key transcripts found in the bioinformatic analyses were validated by qPCR analysis, corresponding to the transcriptomics results. Further, an additional qPCR analysis confirmed that IDH2 KO caused a decrease in hepatic de novo lipogenesis via the activation of the fatty acid β-oxidation process. Our unbiased transcriptomics approach and validation experiments suggested that IDH2 might play a key role in homeostasis of lipid metabolism.

1. Introduction

Isocitrate dehydrogenases (IDHs) catalyze the oxidative decarboxylation of isocitrate into α-ketoglutarate [1] and are classified into two subclasses based on a type of cofactors utilized in the reaction. Either nicotinamide adenine dinucleotide (NAD+) or NADP+ is utilized as a cofactor to form NADH (reduced form of NAD+) or NADPH (reduced form of NADP+), respectively [2]. There are three isoforms of IDHs depending upon their localization: Cytosolic NADP+-dependent isocitrate dehydrogenase (IDH1), mitochondrial NADP+-dependent isocitrate dehydrogenase (IDH2), and mitochondrial NAD+-dependent isocitrate dehydrogenase (IDH3) [3]. Of the three isoforms, IDH1 and IDH2 produce NADPH, which is a molecule required not only for the regeneration of glutathione [4], but also for the utilization of anabolic pathways, such as fatty acid elongation processes [5]. Regarding NADPH production, IDH2 plays a critical role in mitochondrial homeostasis since glucose 6-phosphate dehydrogenase, another key enzyme participating the pentose phosphate pathway to produce NADPH, is lacking in mitochondria [1].
Thus far, a few studies have utilized IDH2 deficient in vitro or in vivo models. In non-cancer studies, the mechanistic contributions of IDH2 are fairly clear as to ROS homeostasis which might be related to NADPH production and glutathione regeneration. Multiple studies have shown that IDH2 knockout (KO) mice elicited enhanced disease susceptibility ulcerative colitis [6], cardiac hypertrophy [7], and others [8,9,10]. Most these studies explained the mechanisms by which IDH2 deficiency worsens disease susceptibility through the imbalances of the mitochondrial redox status [1,11]. In agreement with these studies, in a recent publication, the inactivation of IDH2 or deletion of Idh2 increased cytosolic reactive oxygen species (ROS), thereby potentiating oxidative damages to DNA, proteins, and lipids in ischemia induced liver damages [9]. Of note, the enzymatic activity of IDH2 can be affected by various factors, such as chemicals [12], diet [13] in addition to post-translational regulation [14]. Despite important physiological roles of IDH2 in energy metabolism in the TCA cycle, most studies however are overly weighted towards redox systems and are thus somewhat biased. To this end, the global gene expression analyses, such as mRNA sequencing (RNAseq), allows researchers to unravel novel function(s) and identify candidate genes associated with characteristics of interest, in our case, IDH2 deficiency.
To the best of the authors’ knowledge, a global gene expression analysis in IDH2 KO mice has never been undertaken, in spite of studies reporting potential interlinks between this gene and various diseases as aforementioned. Therefore, the present study was conducted to capture metabolic signatures of IDH2 KO liver transcriptome using RNAseq which may provide information to discover new transcripts and to quantify transcript levels [15]. Further, using the RNAseq dataset, a gene ontology (GO) analysis and software-based pathway analysis were performed to further identify key biological functions of IDH2 influencing disease-related signaling pathways.

2. Materials and Methods

2.1. Animal Housing, and Study Design

The animals used in this study were idh2−/− germ-line knockout (IDH2 KO) mice (both male (n = 2) and female (n = 3)) and their littermate wild type (WT) mice (both male (n = 3) and female (n = 4)). Both WT and IDH2 KO mice share same C57BL/6N stain background. All mice were maintained in cages (up to 4 mice per cage) in a windowless room with a 12 h-light–dark cycle at a constant temperature of 23 ± 2 °C and humidity of 40 ± 10%. Mouse tail genotyping was carried out before use (Figure 1A) and further confirmed by measuring the IDH2 protein expression (Figure 1B). All mice were killed by exsanguination at 8–10 weeks of age via cardiac puncture under anesthesia using 2,2,2-tribromoethanon (Sigma-Aldrich, St. Louis, MO, USA). The harvested liver tissues were quickly placed in the RNALater solution (Invitrogen, Carlsbad, CA, USA) for 12 h at 4 °C, and then were stored at −80 °C until further RNA isolation. All animal handling and experiments were performed in accordance with a protocol approved by the Institutional Animal Care and Use Committee of the University of Arkansas (IACUC protocol approval number: 17044).

2.2. Liver Transcriptomics Analysis

The total RNA from liver tissues was isolated using the RNeasy Plus Mini Kit (Qiagen, Hilden, Germany) and then the quality of isolated RNA was first assessed using the conventional A260/280 ratio and A260/230 ratio measurement (SpectraMax i3x; Molecular Devices, Sunnyvale, CA, USA) which were all satisfactory. In addition, the RNA Integrity Number (also known as RIN) was assessed using the RNA R6K assay for the Agilent 2200 TapeStation (Agilent Technology, Santa Clara, CA, USA) in which RINs ranged between 8.5 and 9.5 and were hence satisfactory. For the RNAseq analysis, library preparation and sequencing analyses were carried out at the Research Technology Support Facility of Michigan State University (East Lansing, MI, USA). Liver transcriptome (n = 7 for WT group and n = 5 for IDH2 KO group) was analyzed using a 1 × 50 bp single end read method of Illumina HiSeq system (Illumina Inc., San Diego, CA, USA) as described in an earlier report [16]. The total read counts were normalized by the transformation to log2 number of reads per million in order to stabilize the variance. The normalized reads per million values were then subjected to further statistical analyses followed by computational bioinformatics. The sequencing dataset supporting this article has uploaded to the Gene Expression Omnibus repository (GEO; https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE128361), which will be published on 15 March 2020.

2.3. Bioinformatics Analyses

For the transcriptomics dataset, a short list of differentially expressed genes (DEGs) was produced based on the criteria: mRNAs showing p-value < 0.05 and fold change > 2. To visualize fold changes in the transcriptome dataset in response to Idh2 deletion compared to the WT mice, a volcano plot and heat map were generated using the R package software (R Studio 3.5.2 version; The R Foundation, Boston, MA; available at r-project.org). The heat map was generated for the short-listed mRNAs by creating a normalized z-score that was calculated in the R. The short-listed DEGs were subjected to the DAVID, which is web-based tools to identify enriched biological themes including GO terms, group functionally related genes, cluster annotation terms for large gene lists and pathways in the KEGG database. The functional annotation clustering algorithm was used to generate a clustered, non-redundant report of related annotation terms, and the groups of annotation clusters with gene count threshold > 10, and EASE scores (i.e., modified Fisher Exact p-value for gene-enrichment analysis) < 0.01 were retained. Similarly, the short list was subjected to the IPA software (Qiagen) to perform a core analysis in order to identify the upstream regulators for DEGs and related canonical pathways in response to Idh2 deletion. The IPA core analyses are based on previous knowledge of the associations of upstream regulators and their downstream target genes archived in the Ingenuity Knowledge Base. The p-values were calculated by Fisher’s exact test for the upstream regulator analysis. A schematic diagram of the data acquisition, bioinformatics analyses, and validation experiments is shown in Figure 2A.

2.4. Quantitative RT-PCR Validation

The transcriptomics and computational bioinformatics analyses were validated by quantitative RT-PCR analysis using StepOnePlus system (Applied Biosystems; Foster City, CA, USA). Two μg of total RNA was reverse transcribed using the High Capacity cDNA Reverse Transcription Kit (Applied Biosystems) according to the manufacturer’s protocol. The reaction mixture contained TaqMan Gene Expression Mastermix, respective primer(s) tagged with TaqMan probes (Table S5), and cDNA. The amplification was conducted under the following conditions: One cycle at 50 °C for 2 min and 95 °C for 10 min, followed by 40 cycles of denaturation (95 °C for 15 s) and annealing/extension (60 °C for 1 min). The genes of interest were normalized to that of the reference gene (Actb). The data were analyzed with StepOne Software (Ver. 2.1; Applied Biosystems) using the 2−ΔΔCT method.

2.5. Statistical Analyses

All data were analyzed by a two tailed, Welch’s t test. A p-value of 0.05 or less was considered statistically significant (SAS 9.4 version; SAS Institute Inc., Cary, NC, USA).

3. Results

3.1. Transcriptome Profiles and Identification of DEGs

A total of 12 RNAseq libraries were constructed using RNA samples of liver tissues from both wild-type (WT) and IDH2 KO mice. After filtering low read counts and normalization, a total of 6583 transcripts remained. Of the 6583 genes, only mRNAs showing p-value < 0.05 and fold change >2 were considered differentially expressed genes (DEGs) for further bioinformatics analyses and qPCR validation (Figure 2A). Using these criteria, this study was able to select 167 DEGs as shown in a volcano plot (Figure 2B). The red dots indicate that the DEGs passed the criteria (i.e., p-value < 0.05, and fold change >2). The complete gene list is provided in the Table S1. Further, the gene expression profiles of DEGs were visualized using a heat map (Figure 2C). A cluster dendrogram for two biological replicates (i.e., WT and IDH2 KO mice) shows clear segregation between the 77 upregulated (red keys) and 90 downregulated genes (blue keys).

3.2. Computational Bioinformatic Pathway Prediction of DEGs

To explore the key pathways in which 167 DEGs were involved and enriched, the computational bioinformatic pathway prediction analyses were performed using core analysis function of both Kyoto Encyclopedia of Genes and Genomes (KEGG) and Ingenuity Pathway Analysis (IPA) software (Qiagen). In the core analysis, the canonical pathway analysis function ranked the most enriched pathways of the DEGs based on p-values and the number of overlapping genes within the list of DEGs. In this, the top 5 canonical pathways enriched in DEGs include TR/RXR activation (p = 0.0003), breast cancer regulation by Stathmin1 (p = 0.0040), ERK/MAPK signaling (p = 0.0044), PXR/RXR activation (p = 0.0046), and RAR activation (p = 0.0049) (Figure 3).
In order to obtain further insights into the interaction networks related with IDH2 KO, the potential functional networks of DEGs were predicted. The IPA network analysis revealed that the DEG can be clustered into 9 significant networks (Table 1). Each network was automatically scored and ranked by the IPA software based on the number of network eligible molecules. The primary functional roles (labeled as Top Biofunctions in the Table 1) of top three networks include lipid metabolism, molecular transport, and small molecule biochemistry (Figure 4A). Of the 9 networks, due to their similar Top Biofunctions, the top two networks were integrated and visualized in the Figure 4B. As shown, the key genes in lipogenesis (i.e., Ppara, Rara, Acaca, and Fasn) were found in the integrated network, and these genes are at the core position of the network as they are associated with neighboring factors.
Subsequently, to identify potential regulatory upstream gene(s), the upstream analysis of the IPA was utilized. In this, three upstream regulators Srebf1, Srebf2, and Scap (Activation z-scores: −2.527, −2.200, and −2.207, respectively) were able to be found, which were suppressed in live tissues of IDH2 KO mice. Three common target molecules in the DEGs, namely Aacs, Acaca, and Fasn, were regulated by all three upstream regulators (Figure 4C).

3.3. Database for Annotation, Visualization, and Integrated Discovery (DAVID) Web-Based Bioinformatic Analysis of DEGs

The DAVID GO terms enrichment analysis was carried out using the list of DEGs. The results demonstrated that 132 genes (79.5%, 132/167) were significantly enriched in the biological process category. A total of 139 GO terms for the biological category were annotated, and 16 GO terms were retrieved with the gene counts >10 and EASE Score < 0.01. The list of 16 GO terms with respective p-values is provided in the Table S2. As shown in the Table S2, the lipid metabolic process (GO: 0051186) showed the highest significant enrichment (by enrichment 12.7%), followed by organonitrogen compound biosynthesis process (GO: 1901566) and amide biosynthetic process (GO: 0043604). A pie chart depicts contributions of enriched biological processes and three processes related to lipid metabolism were highlighted which account for 28.3% of total (Figure 5A).
Additionally, the DAVID functional annotation clustering of the GO terms in the biological process category was performed. The lists of particular genes for the most enriched clusters are shown (Figure 5B), and the annotation clusters are listed in Table S3. The annotation clustering analysis revealed that the Acyl-CoA metabolic process (p = 0.00032), the Thioester metabolic process (p = 0.00032), the cofactor metabolic process (p = 0.00042), the Acetyl-CoA metabolic process (p = 0.00120), and the coenzyme metabolic process (p = 0.00190) were the most enriched annotation clusters, followed by the annotation cluster 2 which includes the lipid metabolic process (p = 0.00053), the lipid biosynthetic process (p = 0.00680), and the cellular lipid metabolic process (p = 0.00710) (Figure 5B). Taken together, the lipid metabolic process was the common enriched term in both the DAVID GO terms enrichment analysis and the functional annotation clustering analysis.
Last, the DEGs were subjected to the KEGG pathway analysis, which uses the most diverse tools among the multiple pathway databases. In the KEGG pathway database, the AMPK signaling pathway (p = 0.005) was found to be the most enriched (shown in the Figure 6) followed by fatty acid metabolism (p = 0.010), the PPAR signaling pathway (p = 0.034), and the insulin signaling pathway (p = 0.035) (Table S4).

3.4. Quantitative PCR Validation of Predicted Pathway of DEGs

The genes found from (1) core positions in the integrated networks (retrieved from the upstream analysis, and canonical pathway analysis of IPA) and (2) the functional annotation clustering analysis of the DAVID tools were selected and validated using qPCR analysis to assess the reliability of RNAseq results and computational predictions. First, the core positioned genes in the gene networks (Figure 4B), Rxra, Acaca, Fasn, and Ppara, were quantified by qPCR analysis. The expression levels of Rxra, Acaca, and Fasn were significantly downregulated in IDH2 KO mice liver, but Ppara expression was significantly upregulated. These expression patterns are all in agreement with our RNAseq dataset (Figure 7A). Additionally, an upstream regulator, responsible for the de novo lipogenesis pathway, Srebf1, was also significantly downregulated by 16.7% in IDH2 KO mice liver (Figure 7A) as predicted by the IPA. Furthermore, Me1 and Thrsp were validated, as these two genes were both shown in both the IPA and DAVID analyses and are included in our list of DEGs. The expression of both Me1 and Thrsp was significantly downregulated in IDH2 KO mice liver thus consistent with the RNAseq dataset (Figure 7A). In order to further validate computational predictions, additional representative genes related to lipid metabolism were measured. As a result, the genes responsible for the fatty acid uptake (i.e., Cd36, and Slc27a1) and fatty acid β-oxidation (i.e., Sirt1, Ppargc1, and Acox1) were all significantly upregulated (Figure 7B), whereas the genes responsible for fatty acid elongation (i.e., Elovl6) and fatty acid desaturation (i.e., Scd1) were all downregulated in IDH2 KO mice liver tissues (Figure 7B). A fatty acid esterification gene (i.e., Dgat2) showed marginal difference (p = 0.07). Overall, our qPCR results showed consistent expression patterns to RNAseq results and computational bioinformatic predictions.

4. Discussion

Multiple studies have demonstrated the implications of IDH2 in diverse disease models, such as colitis and non-alcoholic liver disease [6,10,17]. However, most studies suggested that increased disease susceptibility might be due to a compromised mitochondrial redox status in IDH2 KO mice. Thus far, however, no study has attempted to comprehensively characterize metabolic signature(s) of IDH2 KO mice. To this end, this study analyzed the hepatic transcriptome profiles of the IDH2 KO mice followed by computational pathway analyses in order to explore key functional genes and pathways that are significantly impacted when Idh2 is deficient. As a result, the transcriptome analysis showed that overall genetic signatures were substantially altered in IDH2 KO mice livers. More specifically, the computational analytic tools, including DAVID, KEGG, and IPA software used in this study all suggested that lipid metabolism is a significantly altered signature of IDH2 KO liver transcriptome.
In our IPA canonical pathway analysis, the TR/RXR activation pathway was found to be most significantly enriched in IDH2 KO mice (Figure 3). The downstream genes of the TR/RXR activation pathway included Fasn, and Acaca that are both related to lipogenesis and decreased expressions of the genes were confirmed in our qPCR validation (p < 0.01 and p < 0.001, respectively; Figure 7A). These results are consistent with the IPA predictions. The thyroid hormone itself is one of the master regulators of de novo lipogenesis [18]. The thyroid hormone acts through thyroid hormone receptors which bind to a thyroid hormone response elements as a form of heterodimer with a retinoid X receptor (or RXR), thereby orchestrating gene expressions related to fat metabolism [19]. In the absence of the thyroid hormone, TR coupled with a corepressor binds to the hormone response elements to negatively regulate gene expression [20]. In the present study, lipogenesis genes of the TR/RXR pathway were significantly downregulated in IDH2 KO mice liver tissues, suggesting that Idh2 might affect lipogenesis via modulating the canonical TR/RXR pathway.
In order to better understand potential cross-talks between signaling networks, the network analysis of the IPA core analysis was also carried out. In this, the top two networks both included the lipid metabolism biofunction (Table 1). To visualize the networks, this study highlighted lipid metabolism biofunction genes in Figure 4B that include Acaca, Fasn, and Elovl. The de novo lipogenesis is a metabolic pathway of fatty acid synthesis from excessive energy intake (e.g., carbohydrates) and multiple regulatory genes are involved in this pathway. For example, Acaca (also known as acetyl-CoA carboxylase-1; encoded by the Acaca) is a key enzyme of de novo lipogenesis [21]. Acetyl-CoA is a substrate of Acaca to synthesize malonyl-CoA which is an essential intermediate metabolite for fatty acid synthesis. The liver specific Acaca deletion significantly reduced lipid accumulation, emphasizing the importance of hepatic Acaca in de novo lipogenesis [22]. Subsequently, Fasn also plays a key role by converting the acetyl-CoA and malonyl-CoA into palmitate, the end product of glucose metabolism [23]. This end product can be esterified to produce triacylglycerol for further storage [23].
Further, the qPCR assays for additional representative genes of lipid metabolism showed that the expression patterns of genes responsible for fatty acid uptake (Cd36, and Slc27a1), lipogenesis (Srebf1, Acaca, and Fasn), fatty acid esterification (Dgat2), fatty acid β-oxidation (Sirt1, Ppargc1, and Acox1), and fatty acid desaturation/elongation (Scd1, and Elovl6) were in good agreement with current transcriptomics results (Figure 7A,B). In line with this, our previous report also showed a trend of a decrease in hepatic lipogenesis mRNAs (i.e., Srebf1, Fasn, and Dgat2) in female IDH2 KO mice [17]. Additionally, it was reported that IDH2 deficient mice are resistant to obesity and hepatic steatosis via the suppression of lipogenesis and the elevation of thermogenesis in the liver and adipose tissues [8,24]. These findings all support our results that IDH2 KO might suppress lipogenesis in the liver.
The upstream analysis revealed that the three upstream regulators including Srebf1, Srebf2, and Scap (activation z-scores: −2.527, −2.200, and −2.207, respectively) were suppressed in IDH2 KO mice livers (Figure 4C). Importantly, there were three common molecules (i.e., Aacs, Acaca, and Fasn; Figure 4C) targeted by the all three upstream regulators. These genes are, as mentioned above, responsible for lipogenesis. The regulatory roles of Srebf1 in lipid metabolism, specifically de novo lipogenesis, have been highlighted elsewhere [25,26,27,28]. In our study, a decrease in Srebf1 was predicted (Figure 4C) and was validated by the qPCR analysis in IDH2 KO mice liver tissues (Figure 7A). This supports well established roles of Srebf1 that control the expression of lipogenic genes such as Thrsp, Acaca, and Me1 [29,30,31]. In particular, Srebf1 enhances the Acaca expression by forming a tetrameric complex with TR/RXR [32], which is important to note because Acaca is an earlier target of Srebf1 in the lipogenesis process, followed by Fasn, Scd1, and other lipogenic genes. Similarly, the dramatic down-regulation of Srebf1 and SREBP1 (i.e., encoded by Srebf1) in liver tissues of IDH2 KO mice was reported [24].
The Srebf1-mediated transcriptional activation of de novo lipogenesis is well-established and there are auxiliary genes supporting lipogenesis indirectly by providing NADPH [26]. The expressions of these auxiliary genes are also regulated by Srebf1. For instance, the over-expression of hepatic Srebf1 upregulates the transcription of lipogenic genes, which are involved in NADPH production [28,33]. This might suggest there is an indirect regulatory role of IDH2 in lipogenesis because Idh2 is also one of the major NADPH producing enzymes. Further, Idh2 gene transcription might be regulated in a sterol dependent manner in hepatocytes [34]. In this study, Idh1 transcription was activated by both Srebf1 and Srebf2. Although Idh1 showed a stronger association with sterols (2.3-fold induction of Idh1 mRNA by sterol depletion), a regulatory role of sterols in Idh2 expression was clearly observed (1.3-fold induction of Idh2 mRNA by sterol depletion). In this study, the IDH2 deficiency led the downregulation of both Srebf1 and Srebf2 in the qPCR or transcriptomics analyses, suggesting that there might be a feedback mechanism between these genes. Taken together, the previous and current studies represent a clear association between Srebfs and Idh. However, further investigation is warranted to unravel the causal relationship of Srebfs expression in IDH2 KO mice.
In addition to the IPA database, DAVID tools were utilized, which annotated that the lipid metabolic process is the major process influenced in IDH2 KO mice (Figure 5). Specifically, the AMPK signaling pathway was predicted as the most enriched pathway with DEGs (Figure 6). AMPK, known to be activated in response to an increased AMP/ATP ratio or ADP/ATP ratio [35,36], is a master regulator of both lipogenesis and lipolysis. Of note, activated AMPK inhibits Srebf1, followed by decreasing downstream lipogenic genes [37]. This prediction is plausible since Idh2 deletion causes ATP depletion in several tissues such as the heart, white adipose tissue, and kidney [7,8,38]. Interestingly, the AMPK-mediated lipid metabolism can also be directly modulated by thyroid hormones [39,40]. The thyroid hormone analogues act differently on lipid metabolism. For instance, T2 thyroid hormone is known to exert anti-lipogenic activity against high-fat diet intervention through the direct activation of Sirt1 [41]. On the other hand, T3 thyroid hormone up-regulates Acaca expression by binding to Acaca gene promoters [32,42,43]. Therefore, our results indicate that there might be possible links between Idh2 and thyroid hormone homeostasis in relation to the AMPK pathway. However, this is beyond the scope of the study but clearly requires further investigations.
The accumulating evidences indicate that the excessive production of mitochondrial ROS (mtROS) damages cellular components as well as induces cytotoxicity and senescence [44]. In that regard, Idh2 deficient mice have been utilized as a model of mitochondrial-related diseases since IDH2 is one of the major NADPH generating enzymes in mitochondria [45]. In line with this, multiple studies, including our previous works, demonstrated that Idh2 deletion significantly increases mtROS production, thereby increasing susceptibility to diseases [9,24,38]. Previously, the authors reported that the mtROS level was elevated, while lipogenesis was suppressed in Idh2 deficient mice [8,24]. These are similar results to the current findings (although mtROS level was not measured in this study). Thus, it was speculated that the suppression of lipogenesis might be somehow related with elevated thermogenesis, possibly via Ucp1 [8]. This is strengthened by a recent finding showing that mtROS might be a non-canonical activator of AMPK [46]. Additionally, another recent study reported that mtROS-mediated AMPK activation suppresses lipogenesis in lung adenocarcinoma cell lines [47]. In fact, the AMPK signaling pathway was predicted as the most enriched pathway in the present study (Figure 6). Therefore, it is possible to hypothesize that Idh2 deletion, due to the accumulated mtROS, activates the AMPK, thus upregulates the genes involved in β-oxidation (e.g., Ppargc1, Ucp1), which leads to the suppression of lipogenesis. Further mechanistic studies are warranted to elucidate if mtROS accumulation is a precedent event for lipogenesis suppression in Idh2 deficient mice.
In summary, the current study is the first attempt to investigate comprehensive transcriptome signatures in liver tissues of IDH2 KO mice compared to WT mice. The online knowledge-based software analyses and qPCR validation indicated that IDH2 might be primarily responsible for the regulation of hepatic lipid metabolism (more specifically, de novo lipogenesis suppression). A combined analysis of the IPA upstream analysis and KEGG pathway analysis predicted that AMPK activation, likely resulting from an increased AMP/ATP ratio in IDH2 KO mice, inhibits lipogenic genes via Srebf1. It was also suggested that the thyroid hormone may play a key role in the regulation of lipogenesis in IDH2 KO mice via the TR/RXR activation. Since our unbiased study, for the first time, provided evidence on transcriptome characteristics of IDH2 KO mice liver, further investigations are warranted. For example, the implications of thyroid hormones on lipid metabolism in IDH2 KO mice are likely to provide deeper insights. Moreover, based on our report, the physiological roles of Idh2 can be reappraised in a different perspective rather than controlling ROS homeostasis.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/9/728/s1, Table S1: A list of differentially expressed genes in RNA sequencing dataset, Table S2: DAVID GO terms for biological process, Table S3: Annotation clusters of DAVID GO terms for biological process, Table S4: A list of representative terms in Kyoto Encyclopedia of Gene and Genomes (KEGG) pathways, Table S5: A list of TaqMan primers.

Author Contributions

Conceptualization: B.C.K., J.H.L., and J.K.K.; data curation: J.H.P., J.T., and Y.J.C.; formal analysis: Y.J.C., and B.C.K.; funding acquisition: B.C.K., and J.K.K.; investigation: J.H.P., J.T., M.C.R., K.E.B., and C.L.C.; resources: J.Z., J.H.K., J.H.L., and J.K.K.; software: J.H.P., and J.T.; supervision: J.K.K.; writing—original draft: J.H.P.; writing—review & editing: M.C.R., K.E.B., C.L.C., J.T., J.H.K., B.C.K., J.H.L., and J.K.K.

Funding

This work was supported by the University of Arkansas VPRED Start-up fund and Dale Bumpers College of Agricultural, Food and Life Sciences (J.K.K., and J.H.P.). Support has also been provided, in part, by the Arkansas Biosciences Institute. This work was also supported by the China Scholarship Council (J.T. as a mentee; J.K.K. and J.Z. as mentors) and by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2018R1A6A3A03011418; J.H.P.).

Acknowledgments

The authors thank Elizabeth M. Hopper (University of Arkansas, School of Human Environmental Sciences) for manuscript English editing service.

Conflicts of Interest

The authors declare no competing of interest.

References

  1. Jo, S.H.; Son, M.K.; Koh, H.J.; Lee, S.M.; Song, I.H.; Kim, Y.O.; Lee, Y.S.; Jeong, K.S.; Kim, W.B.; Park, J.W.; et al. Control of mitochondrial redox balance and cellular defense against oxidative damage by mitochondrial NADP+-dependent isocitrate dehydrogenase. J. Biol. Chem. 2001, 276, 16168–16176. [Google Scholar] [CrossRef] [PubMed]
  2. Koshland, D.E., Jr.; Walsh, K.; LaPorte, D.C. Sensitivity of metabolic fluxes to covalent control. Curr. Top. Cell. Regul. 1985, 27, 13–22. [Google Scholar] [PubMed]
  3. Reitman, Z.J.; Yan, H. Isocitrate dehydrogenase 1 and 2 mutations in cancer: Alterations at a crossroads of cellular metabolism. J. Natl. Cancer Inst. 2010, 102, 932–941. [Google Scholar] [CrossRef] [PubMed]
  4. Veech, R.L.; Eggleston, L.V.; Krebs, H.A. The redox state of free nicotinamide-adenine dinucleotide phosphate in the cytoplasm of rat liver. Biochem. J. 1969, 115, 609–619. [Google Scholar] [CrossRef] [PubMed]
  5. Berg, J.; Tymoczko, J.; Stryer, L. Section 22.4 fatty acids are synthesized and degraded by different pathways. In Biochemistry, 5th ed.; W. H. Freeman and Company: New York, NY, USA, 2002; p. 2013. [Google Scholar]
  6. Cha, H.; Lee, S.; Hwan Kim, S.; Kim, H.; Lee, D.S.; Lee, H.S.; Lee, J.H.; Park, J.W. Increased susceptibility of IDH2-deficient mice to dextran sodium sulfate-induced colitis. Redox Biol. 2017, 13, 32–38. [Google Scholar] [CrossRef]
  7. Ku, H.J.; Ahn, Y.; Lee, J.H.; Park, K.M.; Park, J.W. IDH2 deficiency promotes mitochondrial dysfunction and cardiac hypertrophy in mice. Free Radic. Biol. Med. 2015, 80, 84–92. [Google Scholar] [CrossRef] [PubMed]
  8. Lee, S.J.; Kim, S.H.; Park, K.M.; Lee, J.H.; Park, J.W. Increased obesity resistance and insulin sensitivity in mice lacking the isocitrate dehydrogenase 2 gene. Free Radic. Biol. Med. 2016, 99, 179–188. [Google Scholar] [CrossRef]
  9. Han, S.J.; Choi, H.S.; Kim, J.I.; Park, J.W.; Park, K.M. IDH2 deficiency increases the liver susceptibility to ischemia-reperfusion injury via increased mitochondrial oxidative injury. Redox Biol. 2018, 14, 142–153. [Google Scholar] [CrossRef]
  10. Kong, M.J.; Han, S.J.; Kim, J.I.; Park, J.W.; Park, K.M. Mitochondrial NADP(+)-dependent isocitrate dehydrogenase deficiency increases cisplatin-induced oxidative damage in the kidney tubule cells. Cell Death Dis. 2018, 9, 488. [Google Scholar] [CrossRef]
  11. Kil, I.S.; Park, J.W. Regulation of mitochondrial NADP+-dependent isocitrate dehydrogenase activity by glutathionylation. J. Biol. Chem. 2005, 280, 10846–10854. [Google Scholar] [CrossRef]
  12. Kim, H.; Pan, J.H.; Kim, S.H.; Lee, J.H.; Park, J.W. Chlorogenic acid ameliorates alcohol-induced liver injuries through scavenging reactive oxygen species. Biochimie 2018, 150, 131–138. [Google Scholar] [CrossRef]
  13. Someya, S.; Yu, W.; Hallows, W.C.; Xu, J.; Vann, J.M.; Leeuwenburgh, C.; Tanokura, M.; Denu, J.M.; Prolla, T.A. Sirt3 mediates reduction of oxidative damage and prevention of age-related hearing loss under caloric restriction. Cell 2010, 143, 802–812. [Google Scholar] [CrossRef]
  14. Yu, W.; Dittenhafer-Reed, K.E.; Denu, J.M. SIRT3 protein deacetylates isocitrate dehydrogenase 2 (IDH2) and regulates mitochondrial redox status. J. Biol. Chem. 2012, 287, 14078–14086. [Google Scholar] [CrossRef]
  15. Mortazavi, A.; Williams, B.A.; McCue, K.; Schaeffer, L.; Wold, B. Mapping and quantifying mammalian transcriptomes by RNA-Seq. Nat. Methods 2008, 5, 621–628. [Google Scholar] [CrossRef]
  16. Kong, B.W.; Hudson, N.; Seo, D.; Lee, S.; Khatri, B.; Lassiter, K.; Cook, D.; Piekarski, A.; Dridi, S.; Anthony, N.; et al. RNA sequencing for global gene expression associated with muscle growth in a single male modern broiler line compared to a foundational Barred Plymouth Rock chicken line. BMC Genom. 2017, 18, 82. [Google Scholar] [CrossRef]
  17. Pan, J.H.; Kim, H.S.; Beane, K.E.; Montalbano, A.M.; Lee, J.H.; Kim, Y.J.; Kim, J.H.; Kong, B.C.; Kim, S.; Park, J.W.; et al. IDH2 Deficiency Aggravates Fructose-Induced NAFLD by Modulating Hepatic Fatty Acid Metabolism and Activating Inflammatory Signaling in Female Mice. Nutrients 2018, 10, 679. [Google Scholar] [CrossRef]
  18. Duntas, L.H.; Brenta, G. A renewed focus on the association between thyroid hormones and lipid metabolism. Front. Endocrinol. 2018, 9, 511. [Google Scholar] [CrossRef]
  19. Liu, Y.Y.; Brent, G.A. Thyroid hormone crosstalk with nuclear receptor signaling in metabolic regulation. Trends Endocrinol. Metab. 2010, 21, 166–173. [Google Scholar] [CrossRef] [Green Version]
  20. Koenig, R.J. Thyroid hormone receptor coactivators and corepressors. Thyroid 1998, 8, 703–713. [Google Scholar] [CrossRef]
  21. Brownsey, R.W.; Boone, A.N.; Elliott, J.E.; Kulpa, J.E.; Lee, W.M. Regulation of acetyl-CoA carboxylase. Biochem. Soc. Trans. 2006, 34, 223–227. [Google Scholar] [CrossRef]
  22. Mao, J.; DeMayo, F.J.; Li, H.; Abu-Elheiga, L.; Gu, Z.; Shaikenov, T.E.; Kordari, P.; Chirala, S.S.; Heird, W.C.; Wakil, S.J. Liver-specific deletion of acetyl-CoA carboxylase 1 reduces hepatic triglyceride accumulation without affecting glucose homeostasis. Proc. Natl. Acad. Sci. USA 2006, 103, 8552–8557. [Google Scholar] [CrossRef] [Green Version]
  23. Strable, M.S.; Ntambi, J.M. Genetic control of de novo lipogenesis: Role in diet-induced obesity. Crit. Rev. Biochem. Mol. Biol. 2010, 45, 199–214. [Google Scholar] [CrossRef]
  24. Lee, S.J.; Cha, H.; Kim, H.; Lee, J.H.; Park, J.W. Amelioration of late-onset hepatic steatosis in IDH2-deficient mice. Free Radic. Res. 2017, 51, 368–374. [Google Scholar] [CrossRef]
  25. Horton, J.D.; Bashmakov, Y.; Shimomura, I.; Shimano, H. Regulation of sterol regulatory element binding proteins in livers of fasted and refed mice. Proc. Natl. Acad. Sci. USA 1998, 95, 5987–5992. [Google Scholar] [CrossRef] [Green Version]
  26. Horton, J.D.; Goldstein, J.L.; Brown, M.S. SREBPs: Activators of the complete program of cholesterol and fatty acid synthesis in the liver. J. Clin. Investig. 2002, 109, 1125–1131. [Google Scholar] [CrossRef]
  27. Horton, J.D.; Shimomura, I.; Brown, M.S.; Hammer, R.E.; Goldstein, J.L.; Shimano, H. Activation of cholesterol synthesis in preference to fatty acid synthesis in liver and adipose tissue of transgenic mice overproducing sterol regulatory element-binding protein-2. J. Clin. Investig. 1998, 101, 2331–2339. [Google Scholar] [CrossRef]
  28. Shimomura, I.; Shimano, H.; Korn, B.S.; Bashmakov, Y.; Horton, J.D. Nuclear sterol regulatory element-binding proteins activate genes responsible for the entire program of unsaturated fatty acid biosynthesis in transgenic mouse liver. J. Biol. Chem. 1998, 273, 35299–35306. [Google Scholar] [CrossRef]
  29. Ji, C.; Kaplowitz, N. Betaine decreases hyperhomocysteinemia, endoplasmic reticulum stress, and liver injury in alcohol-fed mice. Gastroenterology 2003, 124, 1488–1499. [Google Scholar] [CrossRef]
  30. Wu, J.; Wang, C.; Li, S.; Li, S.; Wang, W.; Li, J.; Chi, Y.; Yang, H.; Kong, X.; Zhou, Y.; et al. Thyroid hormone-responsive SPOT 14 homolog promotes hepatic lipogenesis, and its expression is regulated by liver X receptor alpha through a sterol regulatory element-binding protein 1c-dependent mechanism in mice. Hepatology 2013, 58, 617–628. [Google Scholar] [CrossRef]
  31. You, M.; Fischer, M.; Deeg, M.A.; Crabb, D.W. Ethanol induces fatty acid synthesis pathways by activation of sterol regulatory element-binding protein (SREBP). J. Biol. Chem. 2002, 277, 29342–29347. [Google Scholar] [CrossRef]
  32. Yin, L.; Zhang, Y.; Hillgartner, F.B. Sterol regulatory element-binding protein-1 interacts with the nuclear thyroid hormone receptor to enhance acetyl-CoA carboxylase-alpha transcription in hepatocytes. J. Biol. Chem. 2002, 277, 19554–19565. [Google Scholar] [CrossRef] [PubMed]
  33. Amemiya-Kudo, M.; Shimano, H.; Hasty, A.H.; Yahagi, N.; Yoshikawa, T.; Matsuzaka, T.; Okazaki, H.; Tamura, Y.; Iizuka, Y.; Ohashi, K.; et al. Transcriptional activities of nuclear SREBP-1a, -1c, and -2 to different target promoters of lipogenic and cholesterogenic genes. J. Lipid Res. 2002, 43, 1220–1235. [Google Scholar] [PubMed]
  34. Shechter, I.; Dai, P.; Huo, L.; Guan, G. IDH1 gene transcription is sterol regulated and activated by SREBP-1a and SREBP-2 in human hepatoma HepG2 cells: Evidence that IDH1 may regulate lipogenesis in hepatic cells. J. Lipid Res. 2003, 44, 2169–2180. [Google Scholar] [CrossRef]
  35. Carling, D.; Zammit, V.A.; Hardie, D.G. A common bicyclic protein kinase cascade inactivates the regulatory enzymes of fatty acid and cholesterol biosynthesis. FEBS Lett. 1987, 223, 217–222. [Google Scholar] [CrossRef] [Green Version]
  36. Oakhill, J.S.; Steel, R.; Chen, Z.P.; Scott, J.W.; Ling, N.; Tam, S.; Kemp, B.E. AMPK is a direct adenylate charge-regulated protein kinase. Science 2011, 332, 1433–1435. [Google Scholar] [CrossRef] [PubMed]
  37. Li, Y.; Xu, S.; Mihaylova, M.M.; Zheng, B.; Hou, X.; Jiang, B.; Park, O.; Luo, Z.; Lefai, E.; Shyy, J.Y.; et al. AMPK phosphorylates and inhibits SREBP activity to attenuate hepatic steatosis and atherosclerosis in diet-induced insulin-resistant mice. Cell Metab. 2011, 13, 376–388. [Google Scholar] [CrossRef] [PubMed]
  38. Han, S.J.; Jang, H.S.; Noh, M.R.; Kim, J.; Kong, M.J.; Kim, J.I.; Park, J.W.; Park, K.M. Mitochondrial NADP(+)-Dependent Isocitrate Dehydrogenase Deficiency Exacerbates Mitochondrial and Cell Damage after Kidney Ischemia-Reperfusion Injury. J. Am. Soc. Nephrol. 2017, 28, 1200–1215. [Google Scholar] [CrossRef] [PubMed]
  39. Hardie, D.G.; Ross, F.A.; Hawley, S.A. AMP-activated protein kinase: A target for drugs both ancient and modern. Chem. Biol. 2012, 19, 1222–1236. [Google Scholar] [CrossRef]
  40. Senese, R.; Lasala, P.; Leanza, C.; de Lange, P. New avenues for regulation of lipid metabolism by thyroid hormones and analogs. Front. Physiol. 2014, 5, 475. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. De Lange, P.; Cioffi, F.; Senese, R.; Moreno, M.; Lombardi, A.; Silvestri, E.; De Matteis, R.; Lionetti, L.; Mollica, M.P.; Goglia, F.; et al. Nonthyrotoxic prevention of diet-induced insulin resistance by 3,5-diiodo-L-thyronine in rats. Diabetes 2011, 60, 2730–2739. [Google Scholar] [CrossRef]
  42. Blennemann, B.; Leahy, P.; Kim, T.S.; Freake, H.C. Tissue-specific regulation of lipogenic mRNAs by thyroid hormone. Mol. Cell. Endocrinol. 1995, 110, 1–8. [Google Scholar] [CrossRef]
  43. Huang, C.; Freake, H.C. Thyroid hormone regulates the acetyl-CoA carboxylase PI promoter. Biochem. Biophys. Res. Commun. 1998, 249, 704–708. [Google Scholar] [CrossRef] [PubMed]
  44. Rubattu, S.; Pagliaro, B.; Pierelli, G.; Santolamazza, C.; Castro, S.D.; Mennuni, S.; Volpe, M. Pathogenesis of target organ damage in hypertension: Role of mitochondrial oxidative stress. Int. J. Mol. Sci. 2014, 16, 823–839. [Google Scholar] [CrossRef] [PubMed]
  45. Robertson, J.D.; Starnes, J.W.; Kehrer, J.P. Cosubstrates involved in the reduction of cytosolic glutathione disulfide in rat heart. Toxicology 1997, 124, 11–19. [Google Scholar] [CrossRef]
  46. Rabinovitch, R.C.; Samborska, B.; Faubert, B.; Ma, E.H.; Gravel, S.P.; Andrzejewski, S.; Raissi, T.C.; Pause, A.; St-Pierre, J.; Jones, R.G. AMPK Maintains Cellular Metabolic Homeostasis through Regulation of Mitochondrial Reactive Oxygen Species. Cell Rep. 2017, 21, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Fan, X.X.; Leung, E.L.; Xie, Y.; Liu, Z.Q.; Zheng, Y.F.; Yao, X.J.; Lu, L.L.; Wu, J.L.; He, J.X.; Yuan, Z.W.; et al. Suppression of Lipogenesis via Reactive Oxygen Species-AMPK Signaling for Treating Malignant and Proliferative Diseases. Antioxid. Redox Signal. 2018, 28, 339–357. [Google Scholar] [CrossRef] [PubMed]
Genes 10 00728 g001 550
Figure 1. The validation of Idh2 deletion in mice. The ablation of Idh2 was verified by tail DNA genotyping method (A), and by comparing IDH2 protein expression in liver tissues of wild-type (WT) and IDH2 KO mice (B).
Figure 1. The validation of Idh2 deletion in mice. The ablation of Idh2 was verified by tail DNA genotyping method (A), and by comparing IDH2 protein expression in liver tissues of wild-type (WT) and IDH2 KO mice (B).
Genes 10 00728 g001
Genes 10 00728 g002 550
Figure 2. Procedures of hepatic transcriptomics dataset. The analyses of transcriptomics dataset followed by computational analyses and qPCR validation: A flowchart (A), A volcano plot (B), and heat map (C) showed differentially expressed genes and the relationships among samples used, respectively.
Figure 2. Procedures of hepatic transcriptomics dataset. The analyses of transcriptomics dataset followed by computational analyses and qPCR validation: A flowchart (A), A volcano plot (B), and heat map (C) showed differentially expressed genes and the relationships among samples used, respectively.
Genes 10 00728 g002
Genes 10 00728 g003 550

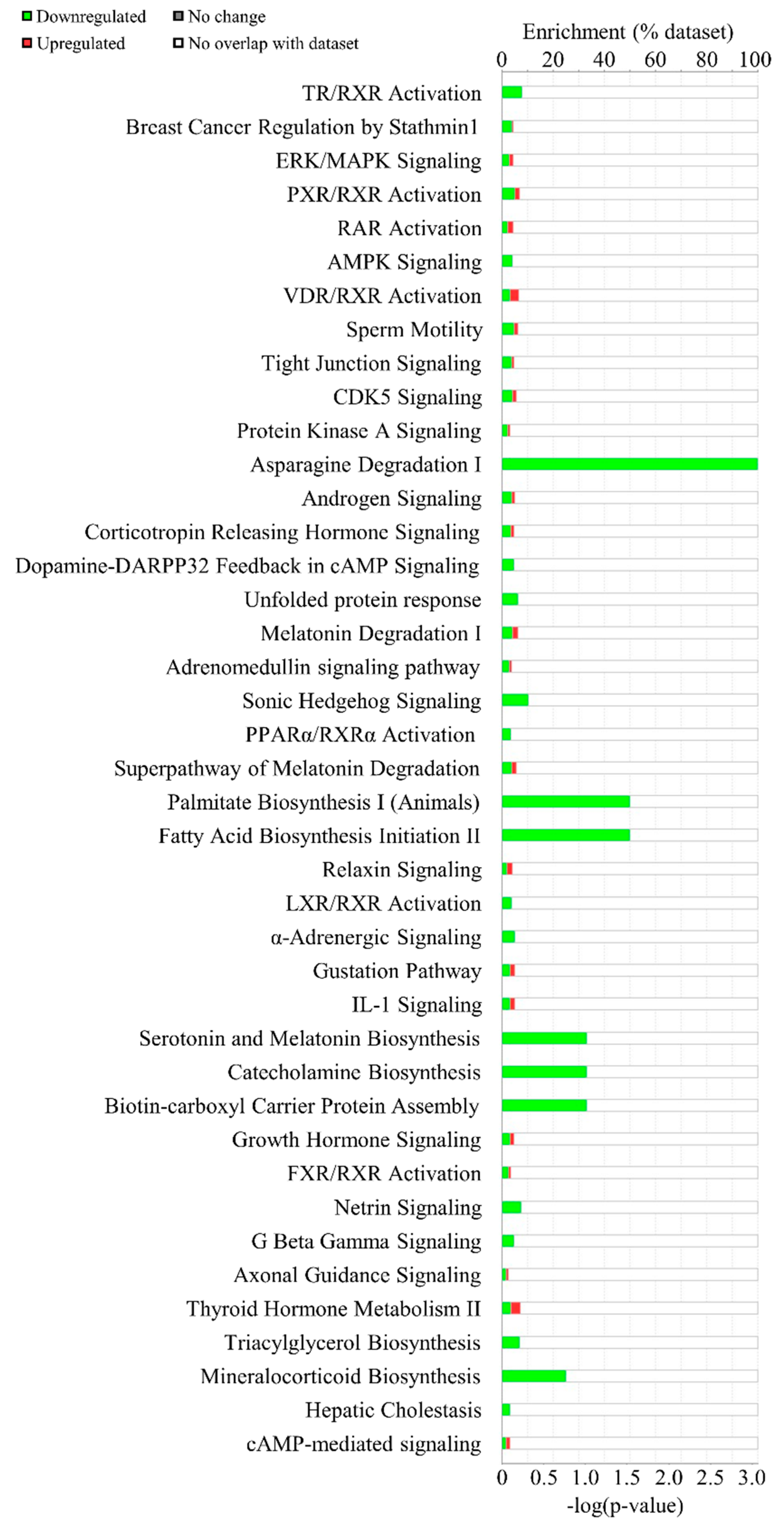

Figure 3. Canonical pathway analysis using Ingenuity Pathway Analysis software. Enriched canonical pathways in IDH2 KO mice liver were listed. The green bars indicate the number of downregulated genes while the red portion in bars show the number of upregulated genes.
Figure 3. Canonical pathway analysis using Ingenuity Pathway Analysis software. Enriched canonical pathways in IDH2 KO mice liver were listed. The green bars indicate the number of downregulated genes while the red portion in bars show the number of upregulated genes.
Genes 10 00728 g003
Genes 10 00728 g004 550

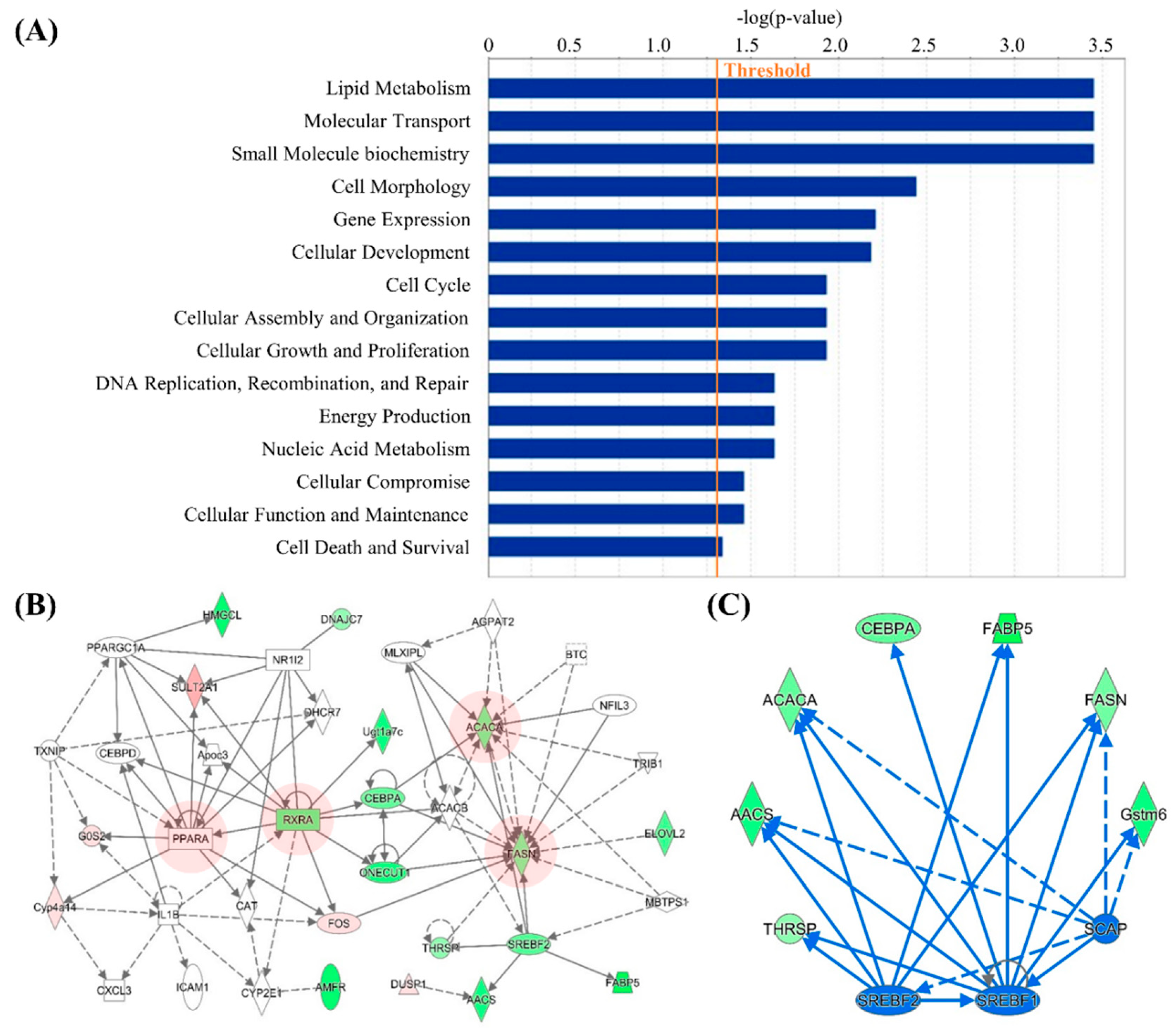

Figure 4. Biofunctions, networks, and upstream analyses using the Ingenuity Pathway Analysis (IPA). Enriched functional roles of networks in IDH2 KO mice are listed (A), and IPA Networks only related to lipid metabolism are integrated. The key transcripts at core position of the networks are highlighted with red color (B). Upstream regulators including Srebf1, Srebf2, and Scap, were predicted in the interactome image (C).
Figure 4. Biofunctions, networks, and upstream analyses using the Ingenuity Pathway Analysis (IPA). Enriched functional roles of networks in IDH2 KO mice are listed (A), and IPA Networks only related to lipid metabolism are integrated. The key transcripts at core position of the networks are highlighted with red color (B). Upstream regulators including Srebf1, Srebf2, and Scap, were predicted in the interactome image (C).
Genes 10 00728 g004
Genes 10 00728 g005 550

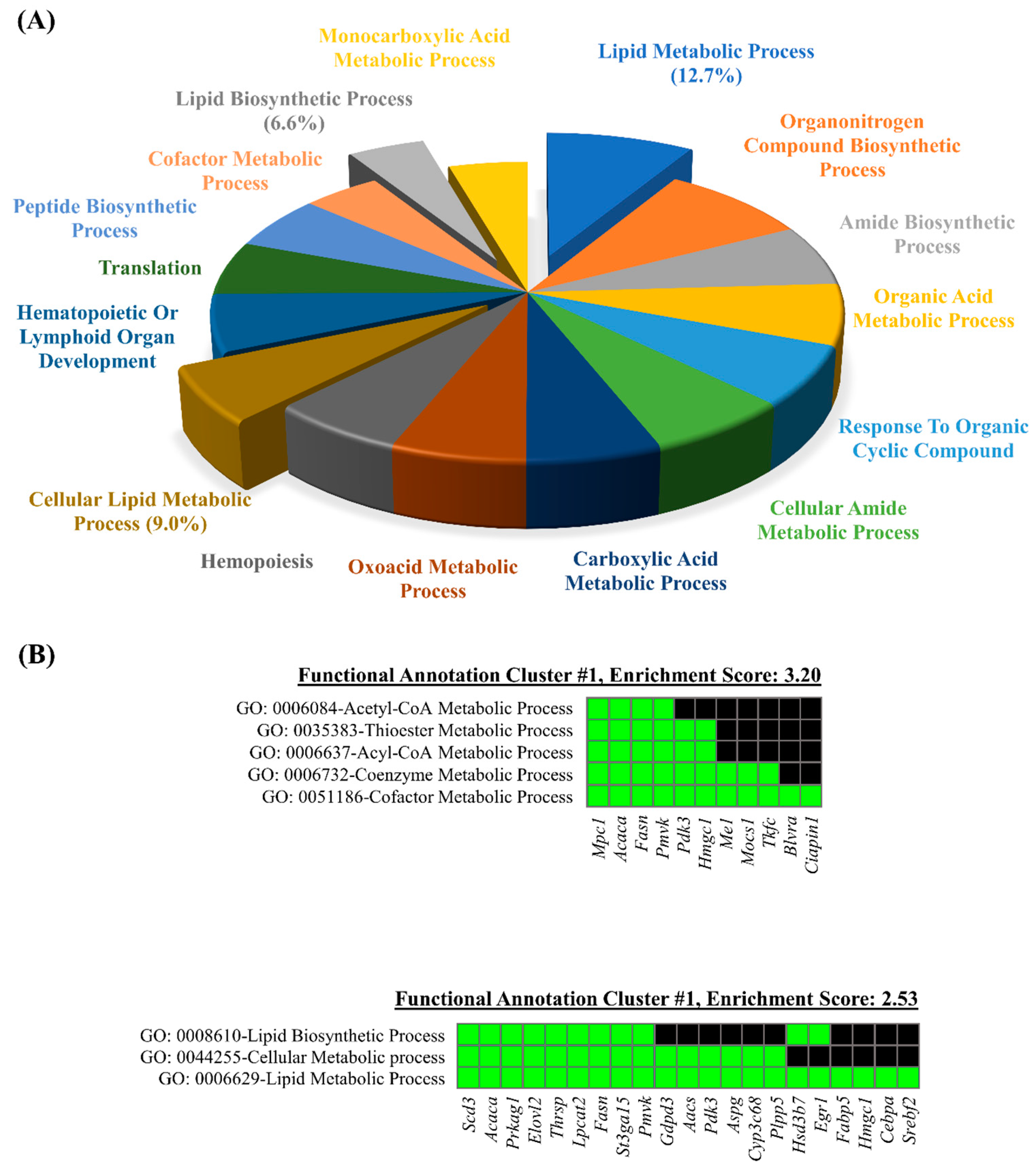

Figure 5. Functional analyses of differentially expressed genes by DAVID gene ontology (GO) enrichment analysis. The representative GO terms for biological processes (A) were utilized for DAVID functional annotation clustering of categories (B).
Figure 5. Functional analyses of differentially expressed genes by DAVID gene ontology (GO) enrichment analysis. The representative GO terms for biological processes (A) were utilized for DAVID functional annotation clustering of categories (B).
Genes 10 00728 g005
Genes 10 00728 g006 550
Figure 6. KEGG AMPK signaling. The AMPK signaling pathway was predicted as the most enriched pathway from the KEGG pathways analysis provided by the DAVID tools. The key player genes are highlighted with red color.
Figure 6. KEGG AMPK signaling. The AMPK signaling pathway was predicted as the most enriched pathway from the KEGG pathways analysis provided by the DAVID tools. The key player genes are highlighted with red color.
Genes 10 00728 g006
Genes 10 00728 g007 550
Figure 7. The validation of RNA sequencing results using quantitative PCR. The genes found at the core positions of the networks, upstream regulators, canonical pathway (TR/RXR), and found in the functional annotation clustering of DAVID tools were randomly selected and validated using qPCR analyses. The data were expressed as the means ± standard error of means (SEM; n = 5 for male, and n = 7 for female) (A). In addition to the validation, the representative genes of each lipid metabolic process were randomly selected and their expression levels were assessed. The genes responsible for fatty acid uptake (Cd36, and Slc27a1), fatty acid β-oxidation (Sirt1, Ppargc1, and Acox1), fatty acid esterification (Dgat2), and fatty acid desaturation/elongation (Scd1, and Elovl6) were quantified using qPCR analysis (B). * p < 0.05; ** p < 0.01; *** p < 0.001.
Figure 7. The validation of RNA sequencing results using quantitative PCR. The genes found at the core positions of the networks, upstream regulators, canonical pathway (TR/RXR), and found in the functional annotation clustering of DAVID tools were randomly selected and validated using qPCR analyses. The data were expressed as the means ± standard error of means (SEM; n = 5 for male, and n = 7 for female) (A). In addition to the validation, the representative genes of each lipid metabolic process were randomly selected and their expression levels were assessed. The genes responsible for fatty acid uptake (Cd36, and Slc27a1), fatty acid β-oxidation (Sirt1, Ppargc1, and Acox1), fatty acid esterification (Dgat2), and fatty acid desaturation/elongation (Scd1, and Elovl6) were quantified using qPCR analysis (B). * p < 0.05; ** p < 0.01; *** p < 0.001.
Genes 10 00728 g007
Table
Table 1. Nine networks of differentially expressed genes 1 and their biofunctions predicted by Ingenuity Pathway Analysis (IPA) software.
Table 1. Nine networks of differentially expressed genes 1 and their biofunctions predicted by Ingenuity Pathway Analysis (IPA) software.
RankMolecules in NetworkScore 2Focused Molecule 3Top Functional Networks
1AHCY, ALAS1, AMFR, Apoc3, C1S, C3, CAT, CEBPD, Ces2a, Clec2d, CLOCK, CXCL3, Cyp2c40, CYP2C9, CYP2E1, Cyp4a14, DHCR7, DNAJC7, EEF2K, FOS, G0S2, Gstm6, HES1, HMGCL, HSF2, ICAM1, IL1B, NFE2L1, NR1I2, PPARA, PPARGC1A, RXRA, ST3GAL5, SULT2A1, TXNIP2117Lipid Metabolism, Molecular Transport, Small Molecule Biochemistry
2AACS, ACACA, ACACB, AGPAT2, BTC, CCND3, CEBPA, Cyp2c12, DUSP1, ELOVL2, FABP5, FASN, FOS, HSD3B7, KLB, MBTPS1, MID1IP1, MLX, MLXIPL, NCOR1, NEUROG3, NFIL3, ONECUT1, PRKAA2, PSME3, RARG, RXRA, SREBF2, SRSF2, SULT2A1, THRSP, TKFC, TRIB1, Ugt1a7c, VDR1916Lipid Metabolism, Molecular Transport, Small Molecule Biochemistry
3ARNT, C3, Calm1, CEBPD, CIAPIN1, DDC, DNM2, EGF, EGR1, ESR1, FOS, GDF15, HAMP, HDAC3, ICAM1, IL6ST, JAK2, MAPK3, ME1, MTOR, NCOA1, PCNA, PDE4A, PPP2CB, PRKAR1A, RGS16, RGS3, RICTOR, RPS15, RPS4Y1, RPS6KB1, SDHB, SERPINA1, SP1, STAT31916Cell Death and Survival, Cancer, Hematological Disease
4DYNC1H1, S100A1011Cellular Growth and Proliferation, Developmental Disorder, Hereditary Disorder
5DLG1, GJB111Carbohydrate Metabolism, Cell-To-Cell Signaling and Interaction, Cellular Function and Maintenance
6GATA1, MYCN11Cancer, Hematological Disease, Organismal Injury and Abnormalities
7EIF2AK2, TUBA1A11Developmental Disorder, Hereditary Disorder, Neurological Disease
8ADAM15, MBD211Cell-To-Cell Signaling and Interaction, Hair and Skin Development and Function, Cellular Compromise
9PRKAA1, PRKAB1, PRKAG111Protein Synthesis, Cell Morphology, Cellular Function and Maintenance
1 Differentially expressed genes were subjected to the IPA software to identify highly-interconnected networks and enriched genes representing significant biological function in mice liver transcriptome influenced by deletion of IDH2. 2 Scores were calculated for each Functional Network based on relevance of the network to the focused molecules on the IPA software. This indicates a significance of link between Molecules in Networks and Top Functional Networks based on the number of focused molecules and the size of the network to approximate the relevance of the network to the original list of focused molecules. 3 Genes present in our differentially expressed genes.
