Functional Similarity and Difference among Bra-MIR319 Family in Plant Development

Abstract

miR319 was the first plant miRNA discovered via forward genetic mutation screening. In this study, we found that miR319 family members had similar sequences but different expression patterns in Brassica campestris and Arabidopsis thaliana. RT-PCR analysis revealed that Bra-MIR319a and Bra-MIR319c had similar expression patterns and were widely expressed in plant development, whereas Bra-MIR319b could only be detected in stems. The overexpression of each Bra-MIR319 family member in Arabidopsis could inhibit cell division and function in leaf and petal morphogenesis. Bra-miR319a formed a new regulatory relationship after whole genome triplication, and Bra-MIR319a overexpressing in Arabidopsis led to the degradation of pollen content and affected the formation of intine, thereby causing pollen abortion. Our results suggest that Bra-MIR319 family members have functional similarity and difference in plant development.

1. Introduction

MicroRNAs (miRNAs) are a class of short (about 21 nt in length) noncoding RNAs [1]. In plants, different miRNA precursor genes can form the same or similar mature sequences, and these precursor genes are considered to be the same family [2,3]. miRNA family members have similar functions due to the same or similar mature sequences. However, each precursor gene in the miRNA family has different expression patterns and targets, so they exhibit functional differentiation [4].

miR319 was the first plant miRNA discovered via forward genetic mutation screening; leaves of the mutant jaw-D are crinkly and serrated [5]. In Arabidopsis thaliana, three precursor genes of miR319 can produce two mature sequences, which differ by one base at the 3′ end [6]. The three members of MIR319 have different expression patterns. MIR319a is continuously expressed during plant growth, MIR319b is expressed only during vegetative growth, and MIR319c is highly expressed in reproductive growth [7]. Different expression patterns lead to differences in gene function. The overexpression of MIR319a results in leaf phenotypes similar to those of jaw-D mutants, whereas leaves of overexpressing MIR319c plants have no difference with those of wild-type plants [6]. The expression level of miR319a is higher than those of miR319b and miR319c. Thus, the current report on the regulation of the miR319 family mainly focuses on miR319a. miR319a can target five TCP transcription factors but also some MYB transcription factors in A. thaliana [6,7]. miR319a participates in leaf morphogenesis by targeting TCPs [8,9]. Given the cross-target of miR319 and miR159, the overexpression of MIR319a causes anther defects similar to those seen in overexpressing MIR159a plants [6]. High-throughput sequencing has revealed that miR319 is also present in pollen [10], but its role in pollen development is unclear.

Brassica campestris (syn. B. rapa) and A. thaliana are closely related in taxonomy [11]. Compared with A. thaliana, B. campestris undergoes whole-genome triplication (WGT), its genome is divided into three subgenomes, and the number and expressions of genes are differentiated in three subgenomes [12]. Similar to the encoded protein gene family, miRNA families also undergo functional retention and differentiation in B. campestris after WGT [13,14]. Moreover, the complexity of miRNAs regulating target genes is increased after gene duplication. miRNA target genes undergo a high degree of differentiation, and some miRNA binding sites are lost [15,16].

We previously used the precursor gene of miR319 in A. thaliana to perform BLAST in the Brassica database (http://brassicadb.org/brad/) and obtained the precursor genes of Bra-miR319 [17]. The similarity of miR319 precursor sequences between B. campestris and A. thaliana was over 80%. Bra-miR319a and Bra-miR319b had the same sequence, whereas Bra-miR319c had one base difference at the 3′ end. They shared the same sequences with those of A. thaliana. In this study, we found that although their sequences were highly conserved in B. campestris and A. thaliana, Bra-miR319 family members had different expression patterns than those in A. thaliana, and they could all function in leaf and petal morphogenesis. Moreover, Bra-miR319a could also target BcMYB101 and function in pollen development. Our results indicate that after WGT, Bra-MIR319 family members had functional similarity and difference in plant development.

2. Materials and Methods

2.1. Plant Materials

Chinese cabbage “Aijiaohuang” (B. campestris L. subsp. chinensis Makino cv. Aijiaohuang) was cultivated in the experimental farm of Zhejiang University. A. thaliana (Col-0), transgenic plants, and nuclear localization tobacco (Nicotiana benthamiana) were grown under long-day conditions (16 h light/8 h dark) at 22 °C.

2.2. Expression Profile Analysis

The total RNA and small RNA from roots, stems, leaves, inflorescences, and siliques were extracted by using a microRNA extraction kit (Invitrogen, Carlsbad, CA, USA) and reversed transcribed into the first strand of cDNA through the PrimerScript RT reagent kit (TAKARA, Shiga, Japan). BcUBC10 and BcU6 were selected as the reference genes for RT-PCR and qRT-PCR; the gene-specific primers are listed in Supplementary Materials Table S1. qRT-PCR was performed by using the SYBR^® Premix Ex Taq™ Kit (TaKaRa, Shiga, Japan) in a CFX96 Real-Time System (Bio-Rad, Hercules, CA, USA). The 2^−△△Ct method was used to compute the expression levels of different genes [18].

2.3. Generation of Bra-MIR319-Overexpression Arabidopsis Lines

The 168 bp precursor gene of Bra-MIR319a, 169 bp precursor gene of Bra-MIR319b, and 161 bp precursor gene of Bra-MIR319c were amplified with gene-specific primer pairs (Supplementary Table S1) and subcloned into the pBI121 vector with the constitutive CaMV 35S promoter, respectively. These constructs were transferred into the Arabidopsis plant through the floral-dip method mediated by Agrobacterium [19]. The seeds of transformed Arabidopsis were screened in 1/2 MS agar plate containing kanamycin. The total RNA from the transgenic plants and wild-type plants were extracted and the expression levels of Bra-MIR319a, Bra-MIR319b, and Bra-MIR319c were detected via qRT-PCR in accordance with the abovementioned method. Transgenic T₁ plants were used for the phenotypic observation of vegetative growth and T₂ plants were further used for the observation of pollen development.

2.4. Morphological and Cytological Observation

The methods for scanning electron microscopy (SEM) and transmission electron microscopy (TEM) observation were previously described [20]. Semithin section observations of leaf and anther were previously described [21]. Image-Pro software was used to measure the size of epidermal cells at 1 K magnification. Alexander staining was used to observe pollen vitality.

2.5. Cleavage Site of miRNA Targets

The miRNA target gene prediction website (http://plantgrn.noble.org/psRNATarget/) was used to predict the target genes of Bra-miR319. Total RNA was purified to extract poly (A) RNA. cDNA was synthesized using the RACE kit (TAKARA). Nested PCR was performed for 5′ rapid amplification of cDNA ends (RACE) with specific reverse primers (Supplementary Table S1).

2.6. Transient Expression in N. benthamiana

The CDS of BcMYB101 was cloned into pFGC-eGFP to create the fusion construct by using gene-specific primer pairs (Supplementary Table S1). As a control, we amplified the CDS of mBcMYB101 with multiple mutations in the miRNA complement motif, preventing the miRNA from cleaving without altering its amino acid sequence, and cloned it into pFGC-eGFP via overlapping PCR. The method of coexpression of Bra-miR319a and BcMYB101 was described previously [6]. After 48 h of transfection, GFP fluorescence was detected using a confocal laser scanning microscope (Nikon A1-SHS, Japan).

3. Results

3.1. Bra-MIR319 Family Members Have Functional Similarity in Leaf and Petal Morphogenesis

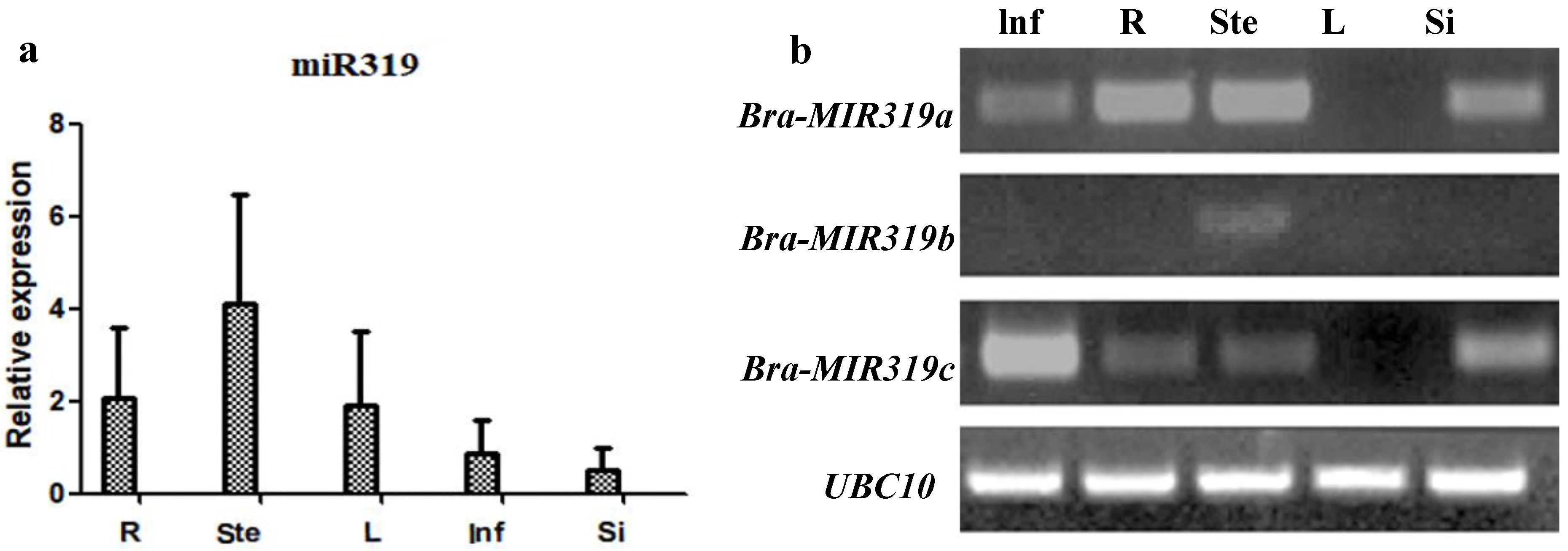

Expression of Bra-miR319 was detected via qRT-PCR in different tissues of B. campestris, including roots, stems, leaves, inflorescences, and siliques. The result showed that Bra-miR319 was expressed in all tissues, and its expression in the stem was higher (Figure 1a). Given that Bra-miR319 could be produced by different precursors, the expression of these precursors was detected via RT-PCR. The expressions of Bra-MIR319a and Bra-MIR319c were similar, and Bra-MIR319b was only expressed in stems (Figure 1b). We constructed overexpression vectors for Bra-MIR319a, Bra-MIR319b, and Bra-MIR319c, respectively, and transferred them into the Arabidopsis plants to observe the phenotype of transgenic plants. Expressions of Bra-MIR319a, Bra-MIR319b, and Bra-MIR319c were all increased in transgenic Arabidopsis plants (Figure S1). p35S: Bra-MIR319a, p35S: Bra-MIR319b, and p35S: Bra-MIR319c transgenic Arabidopsis plants could all show crinkly leaves (Figure 2b–d). Further, transgenic Arabidopsis plants also showed wavy and yellow-green petals (Figure 2e–h). Compared with the wild-type petal, the petal vascular tissue of the transgenic plants exhibited an irregular shape (Figure 2i–l). These results indicated that all precursor genes of Bra-miR319 could be efficiently processed in Arabidopsis, and they had similar functions in leaf and petal morphogenesis.

3.2. Bra-MIR319 Family Members Overexpressing in Arabidopsis Can Inhibit Cell Division

We selected the fifth leaf of the fully expanded transgenic and wild-type Arabidopsis plants for further cytological observation. SEM showed that the overexpression of Bra-MIR319a, Bra-MIR319b, and Bra-MIR319c reduced the number of epidermal cells in Arabidopsis leaves, but the cells increased in size (Figure 3a–d,i). The size of the epidermal cells of wild-type and transgenic plants were measured by Image-Pro software at 1 K magnification. The size of the epidermal cells of the wild-type plants was 1258.8 ± 545.8 μm², and the size of the epidermal cells of Bra-MIR319 family members overexpressing plants was 1835.1 ± 666.1, 2612.5 ± 152.6, and 1687.2 ± 518.2 μm², respectively. Comparing the shape of leaf epidermal cells, it was found that cells of the wild-type plants were "jigsaw", while the epidermal cells of the transgenic plants were rounder and showed undifferentiated cell morphology. The results of semithin section analysis showed that the number and arrangement of palisade tissues in leaves of transgenic plants were not different from those of wild-type plants, but the number of sponge tissues was significantly less than that of wild-type plants (Figure 3e–h,j–k). These results indicated Bra-MIR319a, Bra-MIR319b, and Bra-MIR319c were involved in cell division and differentiation.

3.3. Bra-MIR319a Overexpressing in Arabidopsis Reduces Pollen Viability

We further observed the reproductive growth of transgenic plants. We examined the pollen viability and morphology of Bra-MIR319a, Bra-MIR319b, and Bra-MIR319c overexpressing plants. Alexander staining results showed that nearly 86.4% of the pollen in the p35S:Bra-MIR319a anthers was blue-green, and only a small part of the pollen was viable. In contrast, the pollen stainings of Bra-MIR319b and Bra-MIR319c transgenic plants were indistinguishable from those of wild-type plants, and both pollen grains were viable (Figure 4a–d). The pollen morphology was observed by SEM and the results showed that the pollen morphology of Bra-MIR319b and Bra-MIR319c transgenic plants did not differ from that of wild-type plants (Figure 4g–h and k–l). However, these aborted pollen grains of Bra-MIR319a overexpressing plants were shrunk (Figure 4f,j). Thus, the results showed that Bra-MIR319 family members had functional differentiation in pollen development, and the overexpression of Bra-MIR319a could lead to remarkable pollen abortion.

3.4. Bra-MIR319a Overexpressing in Arabidopsis Affects the Formation of Pollen Content and Intine

We observed anthers at different developmental stages via semithin section analysis to clarify the underlying reasons for pollen abortion in Bra-MIR319a overexpressing transgenic Arabidopsis plants. Until the early uninucleate stage, no difference was observed between Bra-MIR319a transgenic plants and wild-type plants (Figure 5a–b,e–f). The results of semithin sectioning revealed that at the binuclear stage, Bra-MIR319a transgenic plants showed vacuolar pollen, and the vacuolar pollen completely shrunk at the mature pollen stage (Figure 5g–h). TEM was used for more detailed observation. The results of TEM showed that the pollen content of Bra-MIR319a transgenic plants began to degrade from the uninucleate vacuole stage and continued to degrade in the binuclear stage, with complete degradation during the mature pollen stage (Figure 6f–h). With the degradation of the pollen content, the pollen intine of the Bra-MIR319a transgenic plant disappeared with the intact structure of pollen exine (Figure 6i–j). These findings suggest the overexpression of Bra-MIR319a led to the degradation of pollen contents, thereby affecting the formation of pollen intine and leading to pollen distortion.

3.5. Bra-miR319a Can Target Homologs of MYB101

In Arabidopsis, since miR319a also targeted MYB33 and MYB65, some overexpression of miR319a plants could lead to additional stamen defects resembling those of 35S:miR159a plants. However, after WGT, homologs of MYB33 were not detected in any of the Brassica species and the miRNA-binding region was entirely missing in homologs of MYB65 in B. campestris [6,22]. According to the analysis results of the miRNA target gene prediction website, we found Bra-miR319a could target homologs of MYB101. In B. campestris, homologs of MYB101 had three copies: BcMYB101-1 (Bra022888), BcMYB101-2 (Bra021791), and BcMYB101-3 (Bra005597). The results of the 5′ RACE experiment proved that Bra-miR319a could cleave BcMYB101-1 between nucleotides 10 and 11 of the miRNA recognition sequence (Figure 7a). Moreover, we transiently expressed the BcMYB101-1: GFP fusion protein in N. benthamiana leaves and coexpressed it with Bra-miR319a. As expected, the coexpression of Bra-miR319a led to the disappearance of GFP fluorescence (Figure 7c). As a control, we prepared a version of BcMYB101-1: GFP with multiple mutations in the miRNA complementary motif (Figure 7b), and when coexpressed with Bra-miR319a, the GFP signal still existed (Figure 7c). These data indicated that the regulation of target genes by Bra-miR319a was differentiated after WGT.

4. Discussion

In Brassicaceae, MIR319a and MIR319b were closely related and formed sister clades, with MIR319c forming a separate clade [23]. In Arabidopsis, the expression of MIR319a was high during plant development. MIR319a overexpressing plants had crinkly leaves, whereas those with MIR319c overexpression had normal leaves due to limited expression during vegetative growth. Therefore, miR319a played a major role in leaf development [6,7]. In contrast to the expression pattern of MIR319 members in Arabidopsis, Bra-MIR319a and Bra-MIR319c had similar expression patterns, whereas Bra-MIR319b was only expressed in the stem (Figure 1b). The overexpression of Bra-MIR319c could produce a leaf phenotype similar to that of plants overexpressing Bra-MIR319a (Figure 2a). The overexpression of Brassica oleracea MIR319c in Arabidopsis could also produce crinkled leaves, whereas the overexpression of B. oleracea MIR319a resulted in normal rosette leaves because the mature sequence of Bol-MIR319a differed in a single nucleotide from others. Thus, the function of the MIR319a gene in B. oleracea was assumed by Bol-MIR319c or Bol-MIR319b [24]. However, the mature sequence of MIR319a in B. campestris was the same as that of A. thaliana and could lead to similar crinkled leaves. Thus, Bra-MIR319 family members had functional similarity in leaf development and could all give rise to functional Bra-miR319 in A. thaliana.

In Arabidopsis, miR319a could target some TCP transcription factors to inhibit cell division through different pathways [8,9]. In our study, SEM showed that the number of epidermal cells in Bra-MIR319 family member transgenic plant leaves was reduced, and the shapes of epidermal cells were undifferentiated (Figure 3b–d). According to the miRNA target gene prediction website, Bra-miR319 family members could also target homologs of TCP3 and TCP4, so we presumed that Bra-miR319 had similar regulatory pathways as those in Arabidopsis to affect cell division and differentiation. In addition, miR319-regulated TCP4 could directly activate YUCCA5 and integrate the auxin response to promotes cell elongation in A. thaliana hypocotyls [25]. Overexpression of Bra-MIR319 family members could also cause the size of the epidermal cells to increase, but it needed more experiments to illustrate the function of the Bra-MIR319 family in the auxin pathway. Bra-miR319 family members had more functions in petal morphogenesis. Petals could be compared with the leaf lamina because both were broadly extended and positioned distally [26]. Thus, the overexpression of Bra-miR319 family members could also cause wavy petals and even cause the petals to darken (Figure 2i–l). In Arabidopsis, overexpression of MIR319a could affect the accumulation of chlorophyll and delay leaf senescence, and in double mutant mir319ab, the content of chlorophyll began to decline earlier than the wild-type plants [7,27]. So, we speculated the dark green color of the petals of Bra-MIR319 overexpressing plants might be caused by chlorophyll accumulation.

Bra-MIR319a could be expressed in inflorescence and caused 86% pollen abortion. Bra-MIR319a overexpressing in Arabidopsis gave rise to the degradation of pollen contents from the uninucleate stage, and the pollen intine of transgenic plants disappeared (Figure 6f–j). Pollen contents provided the raw material for the formation of pollen intine [28]. During the uninucleate stage, pollen intine started forming and thickened in the binuclear stage. Thus, the pollen grain remained normal in form; however, abnormal development of pollen intine caused the pollen grain to shrink and led to abortion [29]. In Arabidopsis, except TCPs, miR319 could also target MYB33 and MYB65 and caused anther defects similar to miR159 [6]. However, after WGT in B. campestris, homologs of MYB33 were lost [6,21]. In this study, we confirmed that Bra-miR319a could target homologs of MYB101 (Figure 7). MYB101, MYB120, and MYB97 had functional redundancy in pollen tube growth in Arabidopsis [30]. In B. campestris, homologs of MYB97 were lost, and BcMYB101 and BcMYB120 each had three copies, whereas Bra-miR319a could only target one copy of BcMYB101. Thus, we inferred that they might exhibit functional differentiation. Bra-miR319a might function in pollen development by regulating BcMYB101-1. In our future work, we will investigate the relevant detailed mechanisms. Although Bra-MIR319c had similar expression in the inflorescence, it did not cause pollen abortion when overexpressed in Arabidopsis. However, when Bra-MIR319c was overexpressed in B. campestris ssp. chinensis cv. Youqin 49, it could cause 25% pollen abortion [17]. We suspect that Bra-miR319c played a minor role in pollen development.

In conclusion, Bra-MIR319 family members had different expression patterns, but they had functional similarity in leaf and petal morphogenesis. Moreover, we revealed that the overexpression of Bra-MIR319a in Arabidopsis played a role in pollen intine formation and caused pollen grains to shrink. This study helps us to deepen our understanding of the similarity and difference of miRNA function in the same family and to explore new miRNA regulatory networks formed after replication events.
