Nanoparticles Enhance Plant Resistance to Abiotic Stresses: A Bibliometric Statistic

by
Zemao Liu
1,
Mohammad Faizan
2,
Lihong Zheng
1,
Luomin Cui
1,
Chao Han
1,
Hong Chen
1 and
Fangyuan Yu
1,*
1
Collaborative Innovation Centre of Sustainable Forestry in Southern China, College of Forest Science, Nanjing Forestry University, Nanjing 210000, China
2
Botany Section, School of Sciences, Maulana Azad National Urdu University, Hyderabad 500032, India
*
Author to whom correspondence should be addressed.
Agronomy 2023, 13(3), 729; https://doi.org/10.3390/agronomy13030729
Submission received: 27 January 2023 / Revised: 23 February 2023 / Accepted: 27 February 2023 / Published: 28 February 2023
(This article belongs to the Special Issue Advances in Plant Physiology of Abiotic Stresses Series II)
Browse Figures
Versions Notes

Abstract

:
Using nanoparticles (NPs) to effectively mitigate the negative effects of abiotic stressors on plant growth and development will help to achieve sustainable agriculture. Although there have been some prior reviews in this area, bibliometrics is still lacking. In this study, the most productive nations or regions, journals, publishers, and scholars in this field were identified using an objective bibliometric examination of the pertinent material published in the Web of Science core database. To dig deeper for information, the keywords co-occurrence, collaboration network of countries/regions and authors, and network map of highly cited papers citation are used to characterize present advances and forecast potential future trends. The results show a growing interest in using nanoparticles to alleviate abiotic stressors. There has been an exponential increase in the number of relevant papers and citations. Moreover, Asian countries are the most active in this subject, even if the USA generates papers with the best overall quality. The most common publishers and journals in this area are Elsevier and Environmental Science-Nano, while Wu HH is currently the most active author. Even though many researchers have formed close partnerships, there is not yet a large collaborative group of researchers in this field. Gaps in the current scientific literature are highlighted, such as the lack of use of omics, especially multi-omics, to provide a more in-depth and comprehensive explanation of the molecular mechanisms by which NPs enhance plant resistance to abiotic stresses. This bibliometric study will provide a valuable reference for studying the evolution of the field and identifying research frontiers.

1. Introduction

By 2050, it is anticipated that there will be more than 9.7 billion people on the planet, which would significantly boost the demand for food [1]. Since plants cannot move, they are regularly subjected to a variety of abiotic stressors, which severely limit crop output and sharply lower agricultural yields [2,3]. It has been shown that about 50% of agricultural yields are directly or indirectly reduced by abiotic stress factors [4]. Furthermore, climate change and environmental degradation brought on by human activity exacerbate the negative impacts of abiotic stresses [5,6].
Therefore, new and effective technologies are urgently needed to mitigate the impacts of abiotic stress on crop growth, and nanoparticles (NPs) are a newly emerging and promising strategy to mitigate abiotic stress [7]. NPs refer to materials with a size of 1–100 nm [8]. NPs may be more reactive than bulk materials due to their distinct physical characteristics, such as their extremely small size and huge surface area, which could lead to more harmful or helpful effects on plants [9,10]. It has been shown that NPs can improve photosynthetic pigment production, regulate redox status, increase antioxidant defense mechanisms, regulate primary glucose metabolism, and modulate plant hormone signaling to help plants adapt to and overcome abiotic stress [11,12,13]. For this reason, NPs have become a promising solution for fostering sustainable agriculture [14].
The potential of NPs to promote sustainable agriculture has gained increasing popularity among researchers [15]. However, the rapid expansion in the number of published papers in the field has made it increasingly difficult for researchers to follow the lead and capture the latest discoveries. Although several outstanding reviews on this subject can give researchers important knowledge and creative direction [14,16,17,18], there has not yet been a thorough examination of the literature in this field. By rigorously parsing vast amounts of unstructured data, the bibliometric approach can assist researchers in quickly locating the most crucial literature on the topic and mapping the research area without subjectivity [19]. Additionally, bibliometrics offers a variety of qualitative and quantitative indicators of the success of scientific research in the field, including the number of publications, citations, author collaboration networks, and national collaboration networks. This is crucial for understanding the state of the field and determining the future directions of research [20]. Thanks to the rapid advancement of bibliometric software and scientific databases, bibliometric analysis has been applied in more and more disciplines and is playing an increasingly vital role [21]. Additionally, there have been some excellent bibliometric studies on how plants respond to abiotic stresses [20,22,23,24,25,26].
This study aims to illustrate, using bibliometrics, the geographical distribution, variation in numbers, researchers, and keyword evolution of papers on the study of nanoparticle mitigation of abiotic stresses in plants. This will provide valuable references and information on the use of NPs to mitigate plant abiotic stress and achieve sustainable agriculture.

2. Materials and Methods

2.1. Data Collection

In the search bar of the Web of Science core database, we entered the topics “nanoparticles or NPs,” “abiotic stress,” and “plant” on 4 January 2023. A total of 392 papers were retrieved. A total of 385 papers were obtained by selecting original research papers plus reviews. These 385 papers were then exported from the database. After that, we checked using Endnote 20 and Citespace 6.1 and discovered no duplicate papers. Thus, a total of 385 literature records—279 original research publications and 106 reviews—were eventually acquired.

2.2. Bibliometric Indicators

We used HistCite Pro 2.1 to analyze the year of publication, country of publication, author, and citation by other papers of all literature [27]. Then, depending on the number of articles, we created a globe map using ArcGIS 10.6 (Environmental Systems Research Institute, Inc., Redlands, CA, USA) to display the contribution of each nation or region. TLCS and TGCS represent the number of citations of a paper in local databases (databases composed of exported literature) and global databases, respectively, and are basic indicators of bibliometrics [28]. The TLCS and TGCS of all papers were obtained using HistCite Pro 2.1. The “analyze search results” function of the “Web of Science” was used to count the affiliated journals and publishers of all papers.
Impact factor (IF) and h-index are important evaluation indicators in bibliometric analysis. IF is an important indicator of the influence of journals, the quality of papers, and the level of scientific research [29]. The h-index has been increasingly used to assess the scholarly contributions of researchers and predict their future scientific achievements [30]. In short, if a researcher has co-authored h papers and each paper has been cited at least h times, he or she will have a corresponding h-index [31]. We queried the authors’ h-index online using the Web of Science database. We also used the journal citation reports published by Clarivate Analytics to find the impact factors and JCR classifications of journals.
VOSviewer is excellent visualization software for bibliometric analysis and can be used to draw collaborative network diagrams of authors and countries and co-occurrence network diagrams of keywords [32]. We used VOSviewer 1.6.18 to display collaborative network diagrams of authors and countries as well as co-occurrence network diagrams of keywords across all literature.

3. Results and Analysis

3.1. Number of Publications and Citations Per Year

First, an annual tally of all publications was taken (Figure 1). It was first published in 2008. From 2008 to 2013, the corresponding number of papers published and citations increased slowly. Since 2014, both the number of citations (NC) and the number of publications (NP) have shown rapid exponential growth. From 2014 to 2020, it was the first stage of rapid growth in achievements in the field. NC and NP skyrocketed 25.85 times and 10.75 times, respectively. The period from 2020 to 2022 represents the second stage of rapid expansion in outcomes in this field, with NC and NP continuing to soar from a substantial foundation, expanding by 2.88 and 1.81 times, respectively.

3.2. Most Productive Publishers and Periodicals

HistCite Pro 2.1 was used to count the publishers and periodicals of all publications. The top publishers and journals are listed (Table 1 and Table 2). It can be found that for publishers, the famous Elsevier ranked first, followed by MDPI and Springer Nature. The top three publishers together account for more than half of all publications. In terms of periodicals, “Environmental Science Nano” and “Frontiers in Plant Science” are the most popular, with 19 papers each. Plants-Basel has also published 18 related papers. It can also be seen that the popularity of papers in this field is relatively high, and the quality of the top several journals is all high, except for “Plants-Basel,” where the IF of all the other journals is greater than five, and save for “Nanomaterials,” all the other journals are classified as Q1 in the JCR partition.

3.3. Most Productive Countries/Regions

The countries involved in the publication of these papers were counted using HistCite Pro 2.1. A total of 65 countries or regions contributed (Figure 2). It is easy to see that Asia is the region with the greatest concentration and activity of relevant research. Likewise, the top five countries for NP and TGCS are listed (Table 3 and Table 4). China and India have participated in more relevant papers published in the past, contributing 29.4% and 18.4% of all papers, respectively. However, the higher quality of the U.S. papers involved is reflected in the higher TGCS. This may be because the US has a developed economy and can invest more money in this area of research.

3.4. Most Influential Researchers

A total of 1848 researchers are involved in this field. Among them, the most productive one is Wu HH from Huazhong Agricultural University. He is involved in a total of 13 outstanding publications from 2017 to 2022. He was followed by Ali S from Government College University and Rizwan M from Qatar University, both of whom were involved in the completion of 12 publications. The analytical hierarchy process (AHP), a crucial multiple-criteria decision-making method, has been extensively investigated and used in the past due to its broad applicability and simplicity [33,34]. Han et al. (2004) used AHP stratified analysis to synthesize the influence of researchers, and indicated that the weights of NP, h-index, and ACI (the average number of citations per paper by the researcher) were 24.39%, 16.64%, and 58.97%, respectively [35]. Consequently, we calculated the final scores of researchers with larger outputs (NP ≥ 7) according to this weighting factor (Figure 3). The results showed that Giraldo JP from the University of California scored 39.80 and ranked first, followed by Ali S (36.08), Wu HH (35.24), and Rizwan M (34.73).

3.5. Network of Collaboration

In this area, numerous countries/regions have worked together to create a sophisticated network of cooperation (Figure 4A). The countries that collaborate and exchange the most internationally are China, India, the USA, Saudi Arabia, Pakistan, and Egypt. For collaboration between researchers, the outstanding contributors are Wu HH, Rizwan M, Ali S, and Gohair G from the University of Maragheh (Figure 4B). However, no sizable team of collaborators has emerged in this area.

3.6. Highly-Cited Publications

The TLCS of a publication is the number of times it has been cited in the local database (the selected database for bibliometric analysis) (Table 5), and the higher the TLCS of a publication, the higher its importance and peer recognition [20]. Based on TLCS, 385 literature records were sorted, and the first 30 records were selected for citation network mapping (Figure 5). Each circle represents a publication. The number in the circle is the serial number of the publication in the current database, and the size of the circle is proportional to the TLCS of the corresponding publication. The arrows between the circles show citation links between publications, with the arrows pointing to the cited literature. The number of node links is 25. The TLCS ranges from 6 to 40. These 30 papers with the highest peer recognition can roughly represent the major evolution of research on the effects of nanomaterials on plant stress resistance.
The literature with high TLCS first appeared in 2014, which is consistent with the above-mentioned that this field has gradually attracted wide attention since 2014. Literature with high TLCS was published from 2014 to 2020, while literature published from 2020 to 2022 had a decline in peer recognition. The literature with a high TLCS value was No. 61, 49, 70, 65, 142, 112, and 131 (The serial number here refers to the serial number of the document in the local database). In general, references 61, 70, 65, and 112 (The serial number here refers to the serial number of the document in the local database)serve as key bridges connecting the interconnections and citations in this field.

3.7. Keyword Co-Occurrence

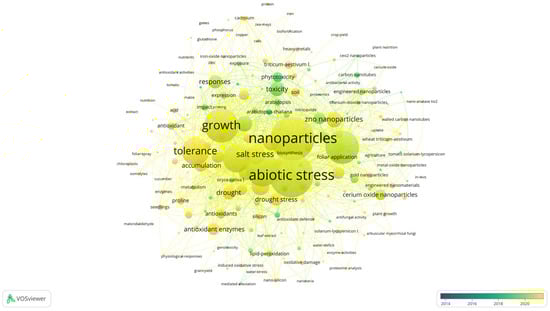

Keyword co-occurrence uses keywords from the literature to construct a semantic map of the domain, enabling scientific discovery of connections between sub-domains and facilitating researchers to track trends [41]. Figure 6 shows the keyword co-occurrence mapping generated using VOSviewer. Older keywords are shown in purple, while newer keywords are shown in yellow. As can be seen, the most notable keywords are nanoparticles, abiotic stress, growth, tolerance, and salt stress. This suggests that the selected literature is primarily concerned with NPs improving plant tolerance to abiotic stresses and, as a result, plant growth in abiotic stress environments. The value of NPs in mitigating salt stress has been studied the most in the past. Early important keywords were mainly: “phytotoxicity”, “toxicity”, “Arabidopsis thaliana”, etc. The bulk of research on the effects of NPs on plant abiotic stress resistance began, like many studies, with the study of A. thaliana, the model plant [42,43,44,45]. Later, the keywords became antioxidant enzymes, responses, and proline. This suggests that studies targeting the mitigation of abiotic stresses in plants by NPs at that time were focused on physiological aspects such as antioxidant enzymes and osmoregulation. Currently, the most important keywords, apart from the largest ones mentioned earlier, are ZnO nanoparticles, drought stress, cerium oxide nanoparticles, foliar application, Triticum aestivum L., and soil. ZnO NPs are currently one of the most popular NPs, with global production expanding from 550 to 33,400 metric tons in a short period and still rising [46]. Many studies have now shown that ZnO NPs can effectively enhance plant resistance to abiotic stresses. According to our previous research, ZnO NPs can enhance antioxidant systems and photosynthesis in tomato (Lycopersicon esculentum) and rice (Oryza sativa) seedlings, enhance the activity of antioxidant enzymes, plant hormone crosstalk, and late embryogenesis-abundant protein in developing seeds of Styrax tonkinensis to alleviate abiotic stress [11,47,48,49,50]. The change in keywords indicates that research on NP mitigation of abiotic stresses is gradually developing in-depth, and not only is the variety of NPs increasing, but so are the application methods, with a broad scope of application in both agriculture and forestry.

4. Discussion

4.1. Attention Is Being Drawn to the Efficiency of Using NPs to Increase Plants’ Tolerance to Abiotic Stress

A serious challenge for humanity in the coming decades will be to meet future food needs without further disrupting the integrity of the planet’s environmental systems [51]. Abiotic stressors are a major factor in crop yield losses globally because they generate a variety of morphological, physiological, biochemical, and molecular changes in plants that negatively impact plant growth and productivity [52]. To make matters worse, various abiotic stressors frequently harm plants simultaneously in the field environment [53]. NPs provide a viable method to handle multiple abiotic stresses. Currently, related research is booming, with a rapidly growing number of publications and citations. The topic of NPs for enhancing plant resilience to abiotic stresses is gaining more attention, and more resources are being invested.

4.2. Cooperation Has Produced Rich Results

The secret to success is effective collaboration. Currently, there is cooperation between several countries in this field (Figure 4A). Asia is the region with the highest concentration and activity of related research. Although the quality of papers from Asian countries is not the highest, the fact that Asian countries account for three of the five highest TGCS countries speaks volumes about the results achieved by Asian countries in this area. Although food insecurity is a global threat, its severity may vary from country to country. One study suggests that more than 88% of the world’s undernourished population lives in Asia or Africa [54]. This may explain the fact that among the countries that have made significant contributions to international cooperation in this area, all of them, except for the United States, are in Asia or Africa. Understandably, because Asia’s economic prosperity is greater than that of Africa, Asian countries have achieved better results in this field than in Africa. It is believed that, with the future economic development of Africa, African countries will also put more resources into this field.
The outstanding contributors to the researcher exchange collaboration are Wu HH, Rizwan M, Ali S, and Gohair G (Figure 4B). Among them, Wu HH is the most influential. Giraldo JP, the top scorer in AHP, has co-authored most of his works in this field with Wu HH. Hence, here we mainly discuss the relevant research on the cooperative group composed by Wu HH et al. The studies involving Wu HH et al. mainly focused on how cerium oxide NPs enhance plant resistance to abiotic stresses. They first gave the synthesis method for cerium oxide NPs and characterized their physical traits [55]. They further demonstrated that cerium oxide NPs can alleviate abiotic stresses by promoting K retention and Na exclusion in leaf sarcomeres, enhancing their ability to scavenge reactive oxygen species, and maintaining the photosynthetic capacity of leaves [36,37,56,57]. The results of a recent study showed that foliar spraying was a more effective application method compared to root application when using cerium oxide NPs to enhance salt stress tolerance in Cucumis sativus L. [58]. Moreover, not only for direct application to seedlings, seed priming with cerium oxide NPs has also been shown to be an effective strategy for adapting to abiotic stresses, substantially enhancing the resistance of subsequent seedlings to abiotic stresses [40,59].

4.3. Future Research Hotspot

At the outset, it is perfectly normal and necessary for people to be concerned about the toxicity of nanoparticles, a new material. What is more, due to the unique size and properties of NPs, their mass production and release into the environment could have profound effects on humans, plants, animals, and terrestrial microorganisms [43]. Handy et al. (2008) first reviewed the possible risks associated with the large-scale use of manufactured NPs, noting that NPs could be toxic to bacteria, algae, invertebrates, fish, and mammals [60]. However, at the time, the ecotoxicological data on NPs were relatively homogeneous in terms of species, with a particular lack of data on higher plants. Mustafa et al. (2016) noted that for metalloid NPs and metal oxide NPs, it is crucial to determine whether the toxicity is due to the properties of the metal ion or the nano properties of the material [61]. Exploring the possible adverse effects of NPs on plants and ecosystems has been a hot topic of research since the beginning [62,63,64,65,66]. This is because ensuring that NPs do not cause unacceptable negative impacts on plant growth, particularly on the ecological environment, is a prerequisite for large-scale applications in sustainable agriculture. Currently, terrestrial risk assessment of NPs released into the environment is still in its infancy, and therefore continued attention will be paid to assessing the risks of nanoparticle applications in the foreseeable future, taking into account both the physical properties of NPs and the type of NPs [67,68].
In addition to the traditional applications of ZnO NPs and CeO2 NPs, in recent years, various other NPs such as carbon NPs, potassium NPs, gold NPs, copper NPs, manganese NPs, magnetite NPs, selenium NPs, silicon NPs, and graphene have shown great potential in attenuating the adverse effects of abiotic stresses on plants and improving their resistance to abiotic stresses [69,70,71,72,73,74,75,76,77,78,79]. In addition, there is also a result that showed that the mixture of Se NPs and other substances can alleviate salt stress in bitter melon (Momordica charantia L.) [80]. Excitingly, in the field of sustainable agriculture there is an increasing number of family members made up of different types of NPs. At the same time, it has been shown that the positive effects of NPs on plant resistance to abiotic stresses vary by species and dose used [81]. In consideration of that, in the future, exploring the species and dose of NPs best suited to mitigate abiotic stresses in a particular plant will be a hot topic of research.

4.4. Future Research Proposal

Most of the current studies on the effects of nanoparticles on plant stress resistance are limited to the physiological level. Omics allows researchers to identify changes in genes, mRNA, proteins, metabolites, etc. at the plant temporal and spatial system level as a whole, providing a key strategy for understanding plant responses to abiotic stresses [82,83]. Additionally, as a result of rapid technological advancement, omics has grown in popularity and declined in cost, allowing it to be applied to the study of an increasing number of plants [84]. With the advancement of technology, many new omics approaches have emerged, such as ionomics, RNomics, epigenomics, fluxomics, glycoproteomics, glycomics, regulomics, secretomics, lipidomics, and phosphoproteomics and the integration of multidimensional biological information from different omics is forming a relatively new branch of life sciences: systems biology [85,86]. As a consequence, when studying plant growth and development in abiotic stress environments, the omics approach opens up many new possibilities and has grown in importance and feasibility. However, there is currently a paucity of excellent and landmark literature on the use of histological tools to study nanoparticles for abiotic stresses in plants. In the future, it will be essential and highly recommended to apply omics, especially multi-omics, to explore more deeply and comprehensively how nanoparticles might assist plants to mitigate abiotic stresses, which is a crucial step toward attaining sustainable agriculture.

5. Conclusions

The application of NPs to help plants adapt to and overcome abiotic stresses is a relatively new and promising approach to sustainable agriculture that is still in its infancy. Much research has been conducted in this area in many countries, particularly in Asia, although the United States still holds the number one position in terms of global citations for papers published. There is an urgent need for a large collaborative group of researchers to work together in this field. Finally, we believe that future research trends will revolve around the toxicity of nanoparticles, the types of nanoparticles and the doses used, and the use of omics, particularly multi-omics, approaches for extensive and in-depth studies.

Author Contributions

Conceptualization, Z.L.; Data curation, Z.L.; Formal analysis, M.F., L.Z., C.H. and H.C.; Funding acquisition, F.Y.; Investigation, Z.L. and L.C.; Methodology, Z.L.; Resources, L.Z.; Software, Z.L., L.Z., L.C. and C.H.; Supervision, F.Y.; Validation, Z.L. and L.C.; Writing—original draft, Z.L. and M.F.; Writing—review and editing, Z.L., M.F. and F.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (3197140894), the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD), and the Postgraduate Research and Practice Innovation Program of Jiangsu Province (SJKY19_0882).

Data Availability Statement

Not applicable.

Acknowledgments

Thanks to the developers and maintainers of all the software used in the study, it is those excellent programs that make bibliometrics more and more feasible and important.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ahmad, Z.; Tahseen, S.; Wasi, A.; Ganie, I.B.; Shahzad, A.; Emamverdian, A.; Ramakrishnan, M.; Ding, Y. Nanotechnological Interventions in Agriculture. Nanomaterials 2022, 12, 2667. [Google Scholar] [CrossRef]
  2. Devireddy, A.R.; Zandalinas, S.I.; Fichman, Y.; Mittler, R. Integration of reactive oxygen species and hormone signaling during abiotic stress. Plant J. 2021, 105, 459–476. [Google Scholar] [CrossRef] [PubMed]
  3. Raza, A.; Razzaq, A.; Mehmood, S.S.; Hussain, M.A.; Wei, S.; He, H.; Zaman, Q.U.; Xuekun, Z.; Yong, C.; Hasanuzzaman, M. Omics: The way forward to enhance abiotic stress tolerance in Brassica napus L. GM Crop. Food 2021, 12, 251–281. [Google Scholar] [CrossRef]
  4. Verma, K.; Li, D.-M.; Singh, M.; Rajput, V.; Malviya, M.; Minkina, T.; Singh, R.; Singh, P.; Song, X.-P.; Li, Y.-R. Interactive Role of Silicon and Plant–Rhizobacteria Mitigating Abiotic Stresses: A New Approach for Sustainable Agriculture and Climate Change. Plants 2020, 9, 1055. [Google Scholar] [CrossRef] [PubMed]
  5. Zhu, J.-K. Abiotic Stress Signaling and Responses in Plants. Cell 2016, 167, 313–324. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Dehghanian, Z.; Bandehagh, A.; Habibi, K.; Balilashaki, K.; Lajayer, B.A. Impact of Abiotic Stress on Plant Brassinosteroids. Clim. Change Microbiome Sustenance Ecosphere 2021, 63, 279–298. [Google Scholar] [CrossRef]
  7. Javed, T.; Shabbir, R.; Hussain, S.; Naseer, M.A.; Ejaz, I.; Ali, M.M.; Ahmar, S.; Yousef, A.F. Nanotechnology for endorsing abiotic stresses: A review on the role of nanoparticles and nanocompositions. Funct. Plant Biol. 2022. [Google Scholar] [CrossRef]
  8. Khan, I.; Saeed, K.; Khan, I. Nanoparticles: Properties, applications and toxicities. Arab. J. Chem. 2019, 12, 908–931. [Google Scholar] [CrossRef]
  9. Haliloğlu, K.; Türkoğlu, A.; Balpınar, Ö.; Nadaroğlu, H.; Alaylı, A.; Poczai, P. Effects of Zinc, Copper and Iron Oxide Nanoparticles on Induced DNA Methylation, Genomic Instability and LTR Retrotransposon Polymorphism in Wheat (Triticum aestivum L.). Plants 2022, 11, 2193. [Google Scholar] [CrossRef]
  10. Abideen, Z.; Waqif, H.; Munir, N.; El-Keblawy, A.; Hasnain, M.; Radicetti, E.; Mancinelli, R.; Nielsen, B.L.; Haider, G. Algal-Mediated Nanoparticles, Phycochar, and Biofertilizers for Mitigating Abiotic Stresses in Plants: A Review. Agronomy 2022, 12, 1788. [Google Scholar] [CrossRef]
  11. Liu, Z.-M.; Faizan, M.; Chen, C.; Zheng, L.-H.; Yu, F.-Y. The Combined Analysis of Transcriptome and Antioxidant Enzymes Revealed the Mechanism of EBL and ZnO NPs Enhancing Styrax tonkinensis Seed Abiotic Stress Resistance. Genes 2022, 13, 2170. [Google Scholar] [CrossRef]
  12. Liu, L.; Nian, H.; Lian, T. Plants and rhizospheric environment: Affected by zinc oxide nanoparticles (ZnO NPs). A review. Plant Physiol. Biochem. 2022, 185, 91–100. [Google Scholar] [CrossRef] [PubMed]
  13. Tripathi, D.; Singh, M.; Pandey-Rai, S. Crosstalk of nanoparticles and phytohormones regulate plant growth and metabolism under abiotic and biotic stress. Plant Stress 2022, 6, 100107. [Google Scholar] [CrossRef]
  14. Zhao, L.; Lu, L.; Wang, A.; Zhang, H.; Huang, M.; Wu, H.; Xing, B.; Wang, Z.; Ji, R. Nano-Biotechnology in Agriculture: Use of Nanomaterials to Promote Plant Growth and Stress Tolerance. J. Agric. Food Chem. 2020, 68, 1935–1947. [Google Scholar] [CrossRef]
  15. Farooq, M.A.; Hannan, F.; Islam, F.; Ayyaz, A.; Zhang, N.; Chen, W.; Zhang, K.; Huang, Q.; Xu, L.; Zhou, W. The potential of nanomaterials for sustainable modern agriculture: Present findings and future perspectives. Environ. Sci. Nano 2022, 9, 1926–1951. [Google Scholar] [CrossRef]
  16. Khan, M.N.; Mobin, M.; Abbas, Z.K.; AlMutairi, K.A.; Siddiqui, Z.H. Role of nanomaterials in plants under challenging environments. Plant Physiol. Biochem. 2017, 110, 194–209. [Google Scholar] [CrossRef] [PubMed]
  17. Kumar, H.; Bhardwaj, K.; Nepovimova, E.; Kuca, K.; Dhanjal, D.S.; Bhardwaj, S.; Bhatia, S.K.; Verma, R.; Kumar, D. Antioxidant Functionalized Nanoparticles: A Combat against Oxidative Stress. Nanomaterials 2020, 10, 1334. [Google Scholar] [CrossRef] [PubMed]
  18. Rajput, V.; Minkina, T.; Kumari, A.; Harish; Singh, V.; Verma, K.; Mandzhieva, S.; Sushkova, S.; Srivastava, S.; Keswani, C. Coping with the Challenges of Abiotic Stress in Plants: New Dimensions in the Field Application of Nanoparticles. Plants 2021, 10, 1221. [Google Scholar] [CrossRef]
  19. Zupic, I.; Čater, T. Bibliometric methods in management and organization. Organ. Res. Methods 2015, 18, 429–472. [Google Scholar] [CrossRef]
  20. Ma, X.; Pan, J.; Xue, X.; Zhang, J.; Guo, Q. A Bibliometric Review of Plant Growth-Promoting Rhizobacteria in Salt-Affected Soils. Agronomy 2022, 12, 2304. [Google Scholar] [CrossRef]
  21. Donthu, N.; Kumar, S.; Mukherjee, D.; Pandey, N.; Lim, W.M. How to conduct a bibliometric analysis: An overview and guidelines. J. Bus. Res. 2021, 133, 285–296. [Google Scholar] [CrossRef]
  22. Gimenez, E.; Salinas, M.; Manzano-Agugliaro, F. Worldwide Research on Plant Defense against Biotic Stresses as Improvement for Sustainable Agriculture. Sustainability 2018, 10, 391. [Google Scholar] [CrossRef] [Green Version]
  23. Kulak, M.; Ozkan, A.; Bindak, R. A bibliometric analysis of the essential oil-bearing plants exposed to the water stress: How long way we have come and how much further? Sci. Hortic. 2018, 246, 418–436. [Google Scholar] [CrossRef]
  24. Hamdan, M.F.; Karlson, C.K.S.; Teoh, E.Y.; Lau, S.-E.; Tan, B.C. Genome Editing for Sustainable Crop Improvement and Mitigation of Biotic and Abiotic Stresses. Plants 2022, 11, 2625. [Google Scholar] [CrossRef] [PubMed]
  25. Idris, O.A.; Opute, P.; Orimoloye, I.R.; Maboeta, M.S. Climate Change in Africa and Vegetation Response: A Bibliometric and Spatially Based Information Assessment. Sustainability 2022, 14, 4974. [Google Scholar] [CrossRef]
  26. Pan, X.; Wang, H.; Ouyang, Z.; Song, Z.; Long, H.; Luo, W. Scientometric Analysis on Rice Research under Drought, Waterlogging or Abrupt Drought-Flood Alternation Stress. Agriculture 2022, 12, 1509. [Google Scholar] [CrossRef]
  27. Garfield, E.; Paris, S.; Stock, W.G. HistCiteTM: A software tool for informetric analysis of citation linkage. Inf. Wiss. und Prax. 2006, 57, 391. [Google Scholar]
  28. Li, B.; Hu, K.; Lysenko, V.; Khan, K.Y.; Wang, Y.; Jiang, Y.; Guo, Y. A scientometric analysis of agricultural pollution by using bibliometric software VoSViewer and Histcite™. Environ. Sci. Pollut. Res. 2022, 29, 37882–37893. [Google Scholar] [CrossRef]
  29. Li, H.; Siri, M.; Wang, B.; He, Y.; Liu, C.; Feng, C.; Liu, K. Global root traits research during 2000–2021: A bibliometric analysis. Agronomy 2022, 12, 2471. [Google Scholar] [CrossRef]
  30. Wang, S.; Zhou, H.; Zheng, L.; Zhu, W.; Zhu, L.; Feng, D.; Wei, J.; Chen, G.; Jin, X.; Yang, H.; et al. Global Trends in Research of Macrophages Associated With Acute Lung Injury Over Past 10 Years: A Bibliometric Analysis. Front. Immunol. 2021, 12, 669539. [Google Scholar] [CrossRef]
  31. Hirsch, J.E. Does the h index have predictive power? Proc. Natl. Acad. Sci. USA 2007, 104, 19193–19198. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Van Eck, N.J.; Waltman, L. Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics 2010, 84, 523–538. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Vaidya, O.S.; Kumar, S. Analytic hierarchy process: An overview of applications. Eur. J. Oper. Res. 2006, 169, 1–29. [Google Scholar] [CrossRef]
  34. Ho, W. Integrated analytic hierarchy process and its applications—A literature review. Eur. J. Oper. Res. 2008, 186, 211–228. [Google Scholar] [CrossRef]
  35. Han, L.; Mei, Q.; Lu, Y.; Ji, M. Analysis and study on AHP-fuzzy comprehensive evaluation. China Saf. Sci. J. 2004, 14, 89–92. [Google Scholar]
  36. Wu, H.; Tito, N.; Giraldo, J.P. Anionic Cerium Oxide Nanoparticles Protect Plant Photosynthesis from Abiotic Stress by Scavenging Reactive Oxygen Species. ACS Nano 2017, 11, 11283–11297. [Google Scholar] [CrossRef]
  37. Wu, H.; Shabala, L.; Shabala, S.; Giraldo, J.P. Hydroxyl radical scavenging by cerium oxide nanoparticles improves Arabidopsis salinity tolerance by enhancing leaf mesophyll potassium retention. Environ. Sci. Nano 2018, 5, 1567–1583. [Google Scholar] [CrossRef]
  38. Abdel Latef, A.A.H.; Srivastava, A.K.; El-Sadek, M.S.A.; Kordrostami, M.; Tran, L.S.P. Titanium Dioxide Nanoparticles Improve Growth and Enhance Tolerance of Broad Bean Plants under Saline Soil Conditions. Land Degrad. Dev. 2018, 29, 1065–1073. [Google Scholar] [CrossRef]
  39. Khan, I.; Raza, M.A.; Awan, S.A.; Shah, G.A.; Rizwan, M.; Ali, B.; Tariq, R.; Hassan, M.J.; Alyemeni, M.N.; Brestic, M.; et al. Amelioration of salt induced toxicity in pearl millet by seed priming with silver nanoparticles (AgNPs): The oxidative damage, antioxidant enzymes and ions uptake are major determinants of salt tolerant capacity. Plant Physiol. Biochem. 2020, 156, 221–232. [Google Scholar] [CrossRef] [PubMed]
  40. An, J.; Hu, P.; Li, F.; Wu, H.; Shen, Y.; White, J.C.; Tian, X.; Li, Z.; Giraldo, J.P. Emerging investigator series: Molecular mechanisms of plant salinity stress tolerance improvement by seed priming with cerium oxide nanoparticles. Environ. Sci. Nano 2020, 7, 2214–2228. [Google Scholar] [CrossRef]
  41. Feng, Y.; Zhu, Q.; Lai, K.-H. Corporate social responsibility for supply chain management: A literature review and bibliometric analysis. J. Clean. Prod. 2017, 158, 296–307. [Google Scholar] [CrossRef]
  42. Wang, Q.; Zhao, S.; Zhao, Y.; Rui, Q.; Wang, D. Toxicity and translocation of graphene oxide in Arabidopsis plants under stress conditions. RSC Adv. 2014, 4, 60891–60901. [Google Scholar] [CrossRef]
  43. Geisler-Lee, J.; Brooks, M.; Gerfen, J.R.; Wang, Q.; Fotis, C.; Sparer, A.; Ma, X.; Berg, R.H.; Geisler, M. Reproductive Toxicity and Life History Study of Silver Nanoparticle Effect, Uptake and Transport in Arabidopsis thaliana. Nanomaterials 2014, 4, 301–318. [Google Scholar] [CrossRef] [Green Version]
  44. García-Sánchez, S.; Bernales, I.; Cristobal, S. Early response to nanoparticles in the Arabidopsis transcriptome compromises plant defence and root-hair development through salicylic acid signalling. BMC Genom. 2015, 16, 1–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Ma, C.; Liu, H.; Guo, H.; Musante, C.; Coskun, S.H.; Nelson, B.C.; White, J.C.; Xing, B.; Dhankher, O.P. Defense mechanisms and nutrient displacement in Arabidopsis thaliana upon exposure to CeO2 and In2O3 nanoparticles. Environ. Sci. Nano 2016, 3, 1369–1379. [Google Scholar] [CrossRef]
  46. Azarin, K.; Usatov, A.; Minkina, T.; Plotnikov, A.; Kasyanova, A.; Fedorenko, A.; Duplii, N.; Vechkanov, E.; Rajput, V.D.; Mandzhieva, S.; et al. Effects of ZnO nanoparticles and its bulk form on growth, antioxidant defense system and expression of oxidative stress related genes in Hordeum vulgare L. Chemosphere 2021, 287, 132167. [Google Scholar] [CrossRef]
  47. Faizan, M.; Faraz, A.; Hayat, S. Effective use of zinc oxide nanoparticles through root dipping on the performance of growth, quality, photosynthesis and antioxidant system in tomato. J. Plant Biochem. Biotechnol. 2019, 29, 553–567. [Google Scholar] [CrossRef]
  48. Faizan, M.; Bhat, J.A.; Chen, C.; Alyemeni, M.N.; Wijaya, L.; Ahmad, P.; Yu, F. Zinc oxide nanoparticles (ZnO-NPs) induce salt tolerance by improving the antioxidant system and photosynthetic machinery in tomato. Plant Physiol. Biochem. 2021, 161, 122–130. [Google Scholar] [CrossRef]
  49. Faizan, M.; Bhat, J.A.; Hessini, K.; Yu, F.; Ahmad, P. Zinc oxide nanoparticles alleviates the adverse effects of cadmium stress on Oryza sativa via modulation of the photosynthesis and antioxidant defense system. Ecotoxicol. Environ. Saf. 2021, 220, 112401. [Google Scholar] [CrossRef] [PubMed]
  50. Faizan, M.; Faraz, A.; Mir, A.R.; Hayat, S. Role of zinc oxide nanoparticles in countering negative effects generated by cadmium in Lycopersicon esculentum. J. Plant Growth Regul. 2021, 40, 101–115. [Google Scholar] [CrossRef]
  51. Mueller, N.D.; Gerber, J.S.; Johnston, M.; Ray, D.K.; Ramankutty, N.; Foley, J.A. Closing yield gaps through nutrient and water management. Nature 2012, 490, 254–257. [Google Scholar] [CrossRef] [PubMed]
  52. Wang, W.-X.; Vinocur, B.; Altman, A. Plant responses to drought, salinity and extreme temperatures: Towards genetic engineering for stress tolerance. Planta 2003, 218, 1–14. [Google Scholar] [CrossRef] [PubMed]
  53. Mittler, R. Abiotic stress, the field environment and stress combination. Trends Plant Sci. 2006, 11, 15–19. [Google Scholar] [CrossRef] [PubMed]
  54. Bashir, M.K.; Schilizzi, S. Determinants of rural household food security: A comparative analysis of African and Asian studies. J. Sci. Food Agric. 2013, 93, 1251–1258. [Google Scholar] [CrossRef]
  55. Newkirk, G.M.; Wu, H.; Santana, I.; Giraldo, J.P. Catalytic Scavenging of Plant Reactive Oxygen Species In Vivo by Anionic Cerium Oxide Nanoparticles. J. Vis. Exp. 2018, 138, e58373. [Google Scholar] [CrossRef] [Green Version]
  56. Liu, J.; Li, G.; Chen, L.; Gu, J.; Wu, H.; Li, Z. Cerium oxide nanoparticles improve cotton salt tolerance by enabling better ability to maintain cytosolic K+/Na+ ratio. J. Nanobiotechnol. 2021, 19, 1–16. [Google Scholar] [CrossRef] [PubMed]
  57. Li, Y.; Liu, J.; Fu, C.; Khan, M.N.; Hu, J.; Zhao, F.; Wu, H.; Li, Z. CeO2 nanoparticles modulate Cu–Zn superoxide dismutase and lipoxygenase-IV isozyme activities to alleviate membrane oxidative damage to improve rapeseed salt tolerance. Environ. Sci. Nano 2022, 9, 1116–1132. [Google Scholar] [CrossRef]
  58. Chen, L.; Peng, Y.; Zhu, L.; Huang, Y.; Bie, Z.; Wu, H. CeO2 nanoparticles improved cucumber salt tolerance is associated with its induced early stimulation on antioxidant system. Chemosphere 2022, 299, 134474. [Google Scholar] [CrossRef]
  59. Khan, M.N.; Li, Y.; Khan, Z.; Chen, L.; Liu, J.; Hu, J.; Wu, H.; Li, Z. Nanoceria seed priming enhanced salt tolerance in rapeseed through modulating ROS homeostasis and α-amylase activities. J. Nanobiotechnol. 2021, 19, 1–19. [Google Scholar] [CrossRef]
  60. Handy, R.D.; Owen, R.; Valsami-Jones, E. The ecotoxicology of nanoparticles and nanomaterials: Current status, knowledge gaps, challenges, and future needs. Ecotoxicology 2008, 17, 315–325. [Google Scholar] [CrossRef]
  61. Mustafa, G.; Komatsu, S. Toxicity of heavy metals and metal-containing nanoparticles on plants. Biochim. et Biophys. Acta (BBA)—Proteins Proteom. 2016, 1864, 932–944. [Google Scholar] [CrossRef]
  62. Nowack, B.; Bucheli, T.D. Occurrence, behavior and effects of nanoparticles in the environment. Environ. Pollut. 2007, 150, 5–22. [Google Scholar] [CrossRef]
  63. Navarro, E.; Baun, A.; Behra, R.; Hartmann, N.B.; Filser, J.; Miao, A.J.; Quigg, A.; Santschi, P.H.; Sigg, L. Environmental behavior and ecotoxicity of engineered nanoparticles to algae, plants, and fungi. Ecotoxicology 2008, 17, 372–386. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Thwala, M.; Musee, N.; Sikhwivhilu, L.; Wepener, V. The oxidative toxicity of Ag and ZnO nanoparticles towards the aquatic plant Spirodela punctuta and the role of testing media parameters. Environ. Sci. Process. Impacts 2013, 15, 1830–1843. [Google Scholar] [CrossRef] [PubMed]
  65. Al-Khayri, J.M.; Rashmi, R.; Surya Ulhas, R.; Sudheer, W.N.; Banadka, A.; Nagella, P.; Aldaej, M.I.; Rezk, A.A.; Shehata, W.F.; Almaghasla, M.I. The role of nanoparticles in response of plants to abiotic stress at physiological, biochemical, and molecular levels. Plants 2023, 12, 292. [Google Scholar] [CrossRef]
  66. Guo, J.; Li, S.; Brestic, M.; Li, N.; Zhang, P.; Liu, L.; Li, X. Modulations in protein phosphorylation explain the physiological responses of barley (Hordeum vulgare) to nanoplastics and ZnO nanoparticles. J. Hazard. Mater. 2023, 443, 130196. [Google Scholar] [CrossRef] [PubMed]
  67. Singh, D.; Gurjar, B.R. Nanotechnology for agricultural applications: Facts, issues, knowledge gaps, and challenges in environmental risk assessment. J. Environ. Manag. 2022, 322, 116033. [Google Scholar] [CrossRef]
  68. Li, X.; Ban, Z.; Yu, F.; Hao, W.; Hu, X. Untargeted Metabolic Pathway Analysis as an Effective Strategy to Connect Various Nanoparticle Properties to Nanoparticle-Induced Ecotoxicity. Environ. Sci. Technol. 2020, 54, 3395–3406. [Google Scholar] [CrossRef]
  69. Alsherif, E.A.; Almaghrabi, O.; Elazzazy, A.M.; Abdel-Mawgoud, M.; Beemster, G.T.S.; Sobrinho, R.L.; AbdElgawad, H. How Carbon Nanoparticles, Arbuscular Mycorrhiza, and Compost Mitigate Drought Stress in Maize Plant: A Growth and Biochemical Study. Plants 2022, 11, 3324. [Google Scholar] [CrossRef] [PubMed]
  70. González-García, Y.; López-Vargas, E.R.; Pérez-Álvarez, M.; Cadenas-Pliego, G.; Benavides-Mendoza, A.; Valdés-Reyna, J.; Pérez-Labrada, F.; Juárez-Maldonado, A. Seed Priming with Carbon Nanomaterials Improves the Bioactive Compounds of Tomato Plants under Saline Stress. Plants 2022, 11, 1984. [Google Scholar] [CrossRef]
  71. Rady, M.M.; Mossa, A.-T.H.; Youssof, A.M.; Osman, A.S.; Ahmed, S.M.; Mohamed, I.A. Exploring the reinforcing effect of nano-potassium on the antioxidant defense system reflecting the increased yield and quality of salt-stressed squash plants. Sci. Hortic. 2023, 308, 111609. [Google Scholar] [CrossRef]
  72. Venzhik, Y.; Deryabin, A.; Popov, V.; Dykman, L.; Moshkov, I. Priming with gold nanoparticles leads to changes in the photosynthetic apparatus and improves the cold tolerance of wheat. Plant Physiol. Biochem. 2022, 190, 145–155. [Google Scholar] [CrossRef]
  73. Van Nguyen, D.; Nguyen, H.M.; Le, N.T.; Nguyen, K.H.; Nguyen, H.T.; Le, H.M.; Nguyen, A.T.; Dinh, N.T.T.; Hoang, S.A.; Van Ha, C. Copper Nanoparticle Application Enhances Plant Growth and Grain Yield in Maize Under Drought Stress Conditions. J. Plant Growth Regul. 2021, 41, 364–375. [Google Scholar] [CrossRef]
  74. Ye, Y.; Medina-Velo, I.A.; Cota-Ruiz, K.; Moreno-Olivas, F.; Gardea-Torresdey, J.L. Can abiotic stresses in plants be alleviated by manganese nanoparticles or compounds? Ecotoxicol. Environ. Saf. 2019, 184, 109671. [Google Scholar] [CrossRef] [PubMed]
  75. El-Saber, M.M.; Mahdi, A.; Hassan, A.H.; Farroh, K.Y.; Osman, A. Effects of magnetite nanoparticles on physiological processes to alleviate salinity induced oxidative damage in wheat. J. Sci. Food Agric. 2021, 101, 5550–5562. [Google Scholar] [CrossRef]
  76. Morales-Espinoza, M.C.; Cadenas-Pliego, G.; Pérez-Alvarez, M.; Hernández-Fuentes, A.D.; de la Fuente, M.C.; Benavides-Mendoza, A.; Valdés-Reyna, J.; Juárez-Maldonado, A. Se Nanoparticles Induce Changes in the Growth, Antioxidant Responses, and Fruit Quality of Tomato Developed under NaCl Stress. Molecules 2019, 24, 3030. [Google Scholar] [CrossRef] [Green Version]
  77. Kiumarzi, F.; Morshedloo, M.R.; Zahedi, S.M.; Mumivand, H.; Behtash, F.; Hano, C.; Chen, J.-T.; Lorenzo, J.M. Selenium Nanoparticles (Se-NPs) Alleviates Salinity Damages and Improves Phytochemical Characteristics of Pineapple Mint (Mentha suaveolens Ehrh.). Plants 2022, 11, 1384. [Google Scholar] [CrossRef]
  78. Rajput, V.D.; Minkina, T.; Feizi, M.; Kumari, A.; Khan, M.; Mandzhieva, S.; Sushkova, S.; El-Ramady, H.; Verma, K.K.; Singh, A.; et al. Effects of Silicon and Silicon-Based Nanoparticles on Rhizosphere Microbiome, Plant Stress and Growth. Biology 2021, 10, 791. [Google Scholar] [CrossRef]
  79. Chen, Z.; Niu, J.; Guo, Z.; Sui, X.; Xu, N.; Kareem, H.A.; Hassan, M.U.; Yan, M.; Zhang, Q.; Cui, J.; et al. Graphene enhances photosynthesis and the antioxidative defense system and alleviates salinity and alkalinity stresses in alfalfa (Medicago sativa L.) by regulating gene expression. Environ. Sci. Nano 2021, 8, 2731–2748. [Google Scholar] [CrossRef]
  80. Sheikhalipour, M.; Esmaielpour, B.; Behnamian, M.; Gohari, G.; Giglou, M.; Vachova, P.; Rastogi, A.; Brestic, M.; Skalicky, M. Chitosan–Selenium Nanoparticle (Cs–Se NP) Foliar Spray Alleviates Salt Stress in Bitter Melon. Nanomaterials 2021, 11, 684. [Google Scholar] [CrossRef]
  81. Sarraf, M.; Vishwakarma, K.; Kumar, V.; Arif, N.; Das, S.; Johnson, R.; Janeeshma, E.; Puthur, J.T.; Aliniaeifard, S.; Chauhan, D.K.; et al. Metal/Metalloid-Based Nanomaterials for Plant Abiotic Stress Tolerance: An Overview of the Mechanisms. Plants 2022, 11, 316. [Google Scholar] [CrossRef]
  82. Gong, F.; Yang, L.; Tai, F.; Hu, X.; Wang, W. “Omics” of Maize Stress Response for Sustainable Food Production: Opportunities and Challenges. OMICS J. Integr. Biol. 2014, 18, 714–732. [Google Scholar] [CrossRef] [Green Version]
  83. Razzaq, M.; Aleem, M.; Mansoor, S.; Khan, M.; Rauf, S.; Iqbal, S.; Siddique, K. Omics and CRISPR-Cas9 Approaches for Molecular Insight, Functional Gene Analysis, and Stress Tolerance Development in Crops. Int. J. Mol. Sci. 2021, 22, 1292. [Google Scholar] [CrossRef] [PubMed]
  84. Ambrosino, L.; Colantuono, C.; Diretto, G.; Fiore, A.; Chiusano, M.L. Bioinformatics Resources for Plant Abiotic Stress Responses: State of the Art and Opportunities in the Fast Evolving -Omics Era. Plants 2020, 9, 591. [Google Scholar] [CrossRef] [PubMed]
  85. Singh, D.; Chaudhary, P.; Taunk, J.; Singh, C.K.; Singh, D.; Tomar, R.S.S.; Aski, M.; Konjengbam, N.S.; Raje, R.S.; Singh, S.; et al. Fab Advances in Fabaceae for Abiotic Stress Resilience: From ‘Omics’ to Artificial Intelligence. Int. J. Mol. Sci. 2021, 22, 10535. [Google Scholar] [CrossRef] [PubMed]
  86. Chaudhary, J.; Khatri, P.; Singla, P.; Kumawat, S.; Kumari, A.; Rachappanavar, V.; Vikram, A.; Jindal, S.K.; Kardile, H.; Kumar, R.; et al. Advances in Omics Approaches for Abiotic Stress Tolerance in Tomato. Biology 2019, 8, 90. [Google Scholar] [CrossRef] [Green Version]
Agronomy 13 00729 g001 550

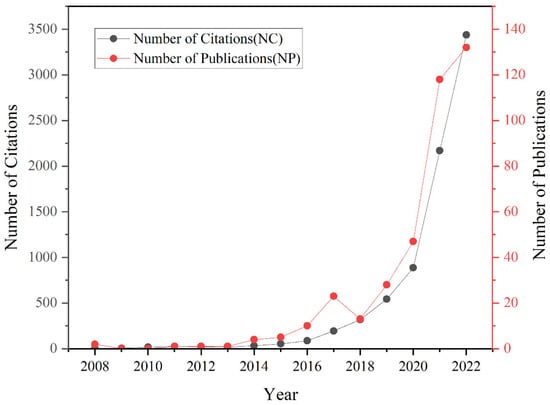

Figure 1. The trend of the number of publications (NP) and citations (NC) regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Figure 1. The trend of the number of publications (NP) and citations (NC) regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Agronomy 13 00729 g001
Agronomy 13 00729 g002 550

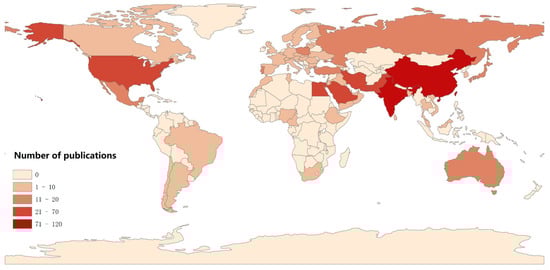

Figure 2. A globe map showing the contribution of each country/region based on the number of publications.
Figure 2. A globe map showing the contribution of each country/region based on the number of publications.
Agronomy 13 00729 g002
Agronomy 13 00729 g003 550

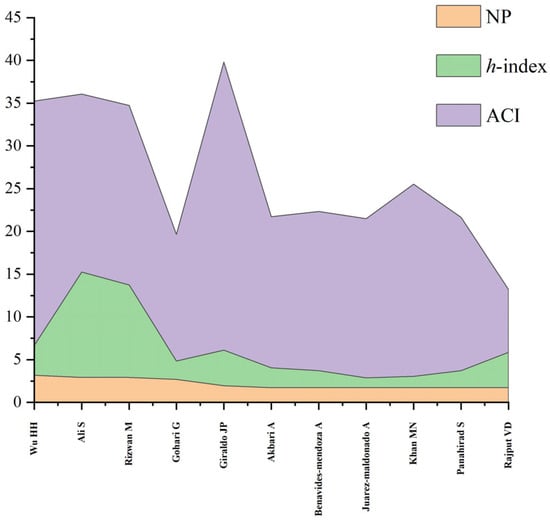

Figure 3. The number of publications (NP) of the most productive authors and their corresponding h–index, ACI.
Figure 3. The number of publications (NP) of the most productive authors and their corresponding h–index, ACI.
Agronomy 13 00729 g003
Agronomy 13 00729 g004 550

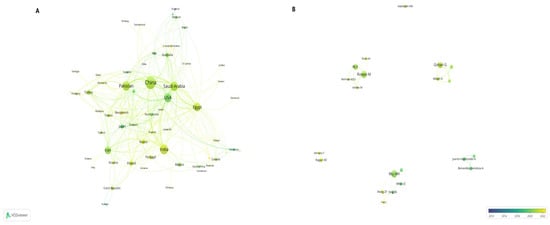

Figure 4. The collaboration network of countries/regions and authors. Note: The node’s size reveals how frequently it is used. The simultaneous relationship between the nodes is indicated by the link between the two nodes. The co-occurrence frequency of the two sets of nodes is shown by the thickness of the connection between the two nodes. Different node colors signify various clustering outcomes. The same as below.
Figure 4. The collaboration network of countries/regions and authors. Note: The node’s size reveals how frequently it is used. The simultaneous relationship between the nodes is indicated by the link between the two nodes. The co-occurrence frequency of the two sets of nodes is shown by the thickness of the connection between the two nodes. Different node colors signify various clustering outcomes. The same as below.
Agronomy 13 00729 g004
Agronomy 13 00729 g005 550

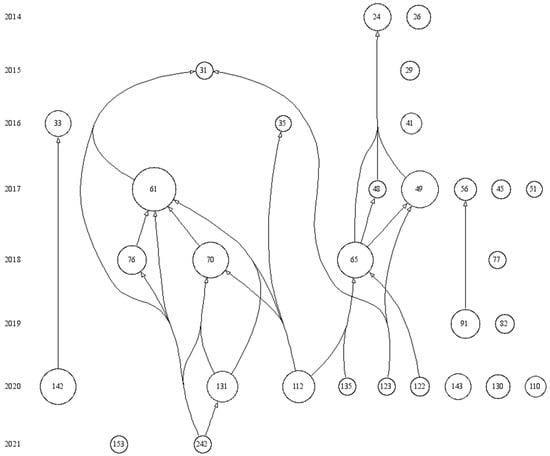

Figure 5. The top 30 publications highly cited by peers in the local database. Note: The number in the circle refers to the serial number of the document in the local database.
Figure 5. The top 30 publications highly cited by peers in the local database. Note: The number in the circle refers to the serial number of the document in the local database.
Agronomy 13 00729 g005
Agronomy 13 00729 g006 550
Figure 6. The main keywords of network co-occurrence.
Figure 6. The main keywords of network co-occurrence.
Agronomy 13 00729 g006
Table
Table 1. The top seven publishers that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Table 1. The top seven publishers that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
PublishersRecord CountPercent (%)
Elsevier8923.117
MDPI8121.039
Springer Nature6617.143
Frontiers Media Sa256.494
Royal Society of Chemistry256.494
American Chemical Society184.675
Wiley133.377
Table
Table 2. The top seven periodicals that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Table 2. The top seven periodicals that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
PeriodicalsRecord CountPercent (%)Affiliated PublisherIFJCR
Environmental Science-Nano194.935Royal Society of Chemistry9.473Q1
Frontiers in Plant Science194.935Frontiers Media Sa6.627Q1
Plants-Basel184.675MDPI4.658Q1
Ecotoxicology and Environmental Safety143.636Elsevier7.129Q1
Chemosphere133.377Elsevier8.943Q1
Plant Physiology and Biochemistry112.857Elsevier5.437Q1
Nanomaterials102.597MDPI5.719Q2
Table
Table 3. The top five countries/regions that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Table 3. The top five countries/regions that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Country/RegionNPPercent (%)
China11329.4
India7118.4
Pakistan6416.6
USA6115.8
Egypt5213.5
Table
Table 4. The top five most influential countries/regions that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Table 4. The top five most influential countries/regions that published papers regarding NPs enhancing abiotic tolerance in plants from 2008 to 2022.
Country/RegionTGCSPercent (%)
USA223614.87
China177711.82
Saudi Arabia13659.08
Pakistan13298.84
Egypt10246.81
Table
Table 5. Details of the top peer-cited papers in the local database.
Table 5. Details of the top peer-cited papers in the local database.
OrderArticle TitlePYTLCSAuthor
61Anionic cerium oxide nanoparticles protect plant photosynthesis from abiotic stress by scavenging reactive oxygen species201740Wu HH, Tito N, Giraldo JP [36]
49Role of nanomaterials in plants under challenging environments201730Khan MN, Mobin M, Abbas ZK, et al. [16]
70Hydroxyl radical scavenging by cerium oxide nanoparticles improves Arabidopsis salinity tolerance by enhancing leaf mesophyll potassium retention201828Wu HH, Shabala L, Shabala S, et al. [37]
65Titanium dioxide nanoparticles improve growth and enhance tolerance of broad bean plants under saline soil conditions201826Latef AAHA, Srivastava AK, Abd El-Sadek MS, et al. [38]
142Amelioration of salt induced toxicity in pearl millet by seed priming with silver nanoparticles (AgNPs): The oxidative damage, antioxidant enzymes and ions uptake are major determinants of salt tolerant capacity202026Khan I, Raza MA, Awan SA, et al. [39]
112Nano-Biotechnology in agriculture: use of nanomaterials to promote plant growth and stress tolerance202022Zhao LJ, Lu L, Wang AD, et al. [14]
131Emerging investigator series: molecular mechanisms of plant salinity stress tolerance improvement by seed priming with cerium oxide nanoparticles202021An J, Hu PG, Li FJ, et al. [40]
Note: Order refers to the serial number of the publication in the local database. PY: the publication year of the paper.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, Z.; Faizan, M.; Zheng, L.; Cui, L.; Han, C.; Chen, H.; Yu, F. Nanoparticles Enhance Plant Resistance to Abiotic Stresses: A Bibliometric Statistic. Agronomy 2023, 13, 729. https://doi.org/10.3390/agronomy13030729

AMA Style

Liu Z, Faizan M, Zheng L, Cui L, Han C, Chen H, Yu F. Nanoparticles Enhance Plant Resistance to Abiotic Stresses: A Bibliometric Statistic. Agronomy. 2023; 13(3):729. https://doi.org/10.3390/agronomy13030729

Chicago/Turabian Style

Liu, Zemao, Mohammad Faizan, Lihong Zheng, Luomin Cui, Chao Han, Hong Chen, and Fangyuan Yu. 2023. "Nanoparticles Enhance Plant Resistance to Abiotic Stresses: A Bibliometric Statistic" Agronomy 13, no. 3: 729. https://doi.org/10.3390/agronomy13030729

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
