A Novel Locus for Bakanae Disease Resistance, qBK4T, Identified in Rice

by
Sais-Beul Lee
,
Ji-Yoon Lee
,
Ju-Won Kang
,
Hyunggon Mang
,
Nkulu Rolly Kabange
,
Gi-Un Seong
,
Youngho Kwon
,
So-Myeong Lee
,
Dongjin Shin
,
Jong-Hee Lee
,
Jun-Hyeon Cho
,
Ki-Won Oh
and
Dong-Soo Park
*
Department of Southern Area Crop Science, National Institute of Crop Science, RDA, Miryang 50424, Korea
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(10), 2567; https://doi.org/10.3390/agronomy12102567
Submission received: 4 October 2022 / Revised: 17 October 2022 / Accepted: 17 October 2022 / Published: 19 October 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Bakanae disease caused by Fusarium fujikuroi causes crop failure and yield losses in the majority of rice-growing countries. In this study, we employed a joint strategy quantitative trait locus (QTL) mapping–Genome-Wide Association Study (GWAS) to investigate novel genetic loci associated with Bakanae disease resistance using a population of 143 BC1F8 RILs derived from a cross between Ilpum × Tung Tin Wan Hien1. The phenotypic data from the bioassay and the genotypic data generated using a DNA chip were utilized to perform QTL mapping and GWAS study. Our results identified a novel genetic locus qBK4T associated with Bakanae disease resistance, which was mapped on chromosome 4 and flanked by AX-116847364 (33.12 Mbp) and AX-115752415 (33.44 Mbp) markers covering a region of 324kbp. There were 34 genes in this region including Os04g55920 (encoding a zinc-finger protein, OsJAZ1), Os04g55970 (encoding AP2-like ethylene-responsive transcription factor), etc. This study proposes qBK4T as a novel locus for Bakanae disease resistance. The identification of qBK4T and its flanking marker information could be useful for marker-assisted breeding and functional characterization of resistance genes against bakanae disease.

1. Introduction

Bakanae disease caused by the pathogenic fungus Gibberella fujikuroi was first described in 1828 in Japan (Ito and Kimura 1931) and is characterized by a severe stem overgrowth also known as a foolish seedling disease [1]. Since its initial identification, the disease widely spread in temperate and tropical environments, mostly occurring rice growing regions of the world [2]. To date, four Fusarium species are associated with bakanae disease in rice, including Fusarium andiyazi, Fusarium fujikuroi, Fusarium proliferatum and Fusarium verticillioides in the Gibberella fujikuroi species complex [3]. Reports indicate that Bakanae disease is caused by one or more seed-borne Fusarium species, mainly Fusarium fujikuroi, and the disease may infect rice plants from the pre-emergence stage to the mature stage, with a severe infection of rice seeds resulting in poor germination or withering [3,4]. Seeds contaminated with the fungus provide initial foci for primary infection. Under favorable environmental conditions, infected plants can produce many conidia that subsequently infect proximate healthy panicles through aerial conidial diffusion by wind, resulting in infected seeds [5,6,7]. The typical symptoms of bakanae disease include tall, lanky, and fewer tillers with pale green flag leaves [5,8]. Generally, infected plants die later on, while panicles on surviving plants do not develop any grains and bear only empty panicles [9], thus resulting in yield loss [5,8,10]. On the other hand, infected seeds or plants result in secondary infection [6], which spreads through wind or water. Low plant survival and high spikelet sterility [8,9] may account for yield losses of up to 50% in Japan [8], 3.0–95% in India [11,12], 40% in Nepal [9], 6.7–58.0% in Pakistan [13], 75% in Iran [14] and to 28.8% in Korea [15].
Unlike direct seeding, germinating rice seeds in seed boxes for mechanical transplantation has caused many problems associated with bakanae disease, among others [16]. The most common management practices to limit bakanae disease occurrence are thermal seed treatment (hot water immersion) or fungicides. However, reports support that the use of hot water immersion in severely infected seeds is not efficient due to the ineffective heat transfer to the pericarp layer [9,17,18]. The application of fungicides has also proven to be resulting in a resistant response of the pathogen’s spores [4,15,19,20,21].
Owing to the above, employing rice varieties carrying bakanae disease resistance gene is regarded as the most effective and durable way to control the disease. Several quantitative traits loci (QTLs) associated with bakanae disease resistance have been identified on chromosome 1 (chr1), qB1 [22], qBK1 [23,24], qBK1.1, qBK1.2, and qBK1.3 [25], qFfR1 [26], qBK1_628091 [27], qBK1WD [18], qBK1Z [28], on chromosome 3, qBK3.1 [25], chr4, qBK4_31750955 [27], and chr9, qFfR9 [29], etc. It was also found that gene-pyramided lines harboring two QTLs, qBK1WD and qBK1 exhibited a higher degree of resistance compared with those with only qBK1WD or qBK1. Identifying new resistance genes from diverse sources is important in rice breeding programs to enhance the resistance level and help to overcome the breakdown of resistance genes.
This study aimed at identifying new QTLs associated with the control of bakanae disease in rice. Therefore, seeds of the mapping population were inoculated with Fusarium fujikuroi virulent CF283 isolate [30]. A novel QTL for bakanae disease resistance mapped on chr4 has been detected. Genes harbored by the identified QTL have annotated molecular functions, including stress signaling and disease response.

2. Materials and Methods

2.1. Plant Materials, Growth Conditions of Mapping Population, and Bioassay

The Fusarium fujikuroi isolate CF283 (virulent) [18] was used to inoculate the mapping population. The pathogen was grown on potato dextrose broth (PDB) and cultured at 26 °C under continuous light for one week. The fungal spore concentration was adjusted to 1 × 106 spores/mL with a hemocytometer to obtain standardized inoculums. Forty seeds per line were placed into a tissue-embedding cassette (M512, Simport, Beloeil, QC, Canada). The seeds in the tissue-embedding cassette were then surface sterilized in a hot water bath (57 °C) for 13 min and allowed to drain before they were soaked in a conidial suspension in another tray for 3 d at 26 °C with gentle shaking four times a day. After inoculation, 30 seeds per line were sown in nursery bed soil in a seedling tray. The inoculated seedlings were grown in a greenhouse at 28 ± 5 °C during the day and 23 ± 3 °C at night, in a 12 h light/dark cycle. The response to bakanae disease was evaluated by calculating the proportion of healthy plants in a given plot one month after sowing. Healthy and unhealthy plants were classified by the method described by previous reports [18,23,24,28,30,31]. Plants with the same phenotype as untreated plants or slightly elongated seedlings with no thinness or yellowish coloring after infection were regarded as healthy plants. The plants showing the same phenotype as the untreated plants, slight elongation then normal growth without thin and yellowish-green were regarded as healthy plants. The experiments were conducted using a BC1F8 population (n = 143) derived from a cross between Tung Ting Wan Hien1 (bakanae disease resistant) and Ilpum (bakanae disease susceptible), and the resultant phenotype was used for QTL analysis. The population was developed in the experimental fields at the National Institute of Crop Science of the Rural Developmental Administration in Miryang, Korea.

2.2. DNA Extraction and High-Throughput SNP Genotyping

The genomic DNA was extracted from leaf samples of parental cultivars Ilpum and Tung Ting Wan Hien1 and their derived population (143 BC1F8 RILs, 14-day-old seedlings) according to the CTAB method [32]. The concentration and quality of DNA samples were measured using a Nanodrop ND-1000 spectrophotometer (Thermo Fisher Scientific, Wilmington, DE, USA). To perform the genotyping, we commissioned DNA Link Co., Ltd. and Genome background analysis was conducted using Axiom_Oryza_580K_chipset [33]. Axiom_Oryza_580K_chipset consists of 542,333 SNP markers chipset data.

2.3. QTL Mapping and Genome-Wide Association Study (GWAS)

To perform the QTL analysis, we employed the phenotype results (bakanae disease scores) and the genotype data consisting of 62,549 polymorphic SNP markers between parental cultivars, out of initial 542,333 SNP markers in the chipset dataset. The mapping population was composed of 143 BC1F8 generation. The QTL analysis was done with IciMapping software v.4.2. for a bi-parental population using ICIM-ADD and Kosambi mapping functions. The permutation test (1000 times) parameter explaining the probability for detecting statistically significant (α = 0.05) QTLs at was selected. To visualize the results, the output from IciMapping was employed in RStudio v.1.2; 2009–2020 with the R/QTL package, which utilizes the scanone function (R/QTL) and an expectation–maximization (EM) algorithm was used, and the logarithm of the odds (LOD) threshold value was estimated with 1000 permutations at a significance level of p = 0.05. The resulting LOD threshold values were 3.91. Furthermore, the threshold value was increased to 10.0 manually, and we focused the study on the significant QTLs that surpassed the LOD value > 10.0.
Moreover, from the perspective of exploring the possibility for a dual approach QTL mapping–GWAS to detect similar genetic loci that could be associated with bakanae disease resistance in rice, the same genotype and phenotype data that served in QTL analysis were used to conduct a Genome-Wide Association Study (GWAS. The following functions in RStudio were used: multtest, gplots, LDheatmap, genetics, EMMREML, compiler, scatterplot3d, data.table, MASS, qqplotr). The significant threshold for GWAS was selected using the Bonferroni correction in the GAPIT function: my_GAPIT <- GAPIT (Y = myY, G = myG, Model. selection = TRUE, PCA. total = 3, SNP.MAF = 0.05). The interactive Manhattan plots that help in the identification of physical positions were built using the Manhattanly R package.

3. Results

3.1. Phenotypic Response towards Bakanae Disease

To investigate the host resistance towards bakanae disease, the proportion of healthy versus diseased plants in the resistant cultivar Tung Ting Wan Hien1 and the susceptible cultivar Ilpum along with their derived population were measured after inoculation with a virulent isolate of Fusarium fujikuroi CF283 (Kim et al. 2014). Ilpum was highly susceptible with a proportion of healthy plants of 36.9% against 77% recorded by Tung Ting Wan Hien1. The typical bakanae disease symptoms, such as abnormal elongation, pale green leaves, or drying up of the whole plantlets were observed (Figure 1A). The proportion of healthy Ilpum and Tung Ting Wan Hien1 plants was 36.9% and 77.0%, respectively (Figure 1B).
The expression of the OsPR1 gene was assayed by qPCR to gain more insights into the transcriptional regulatory dynamic in the parent varieties (Figure 2) with the following primer sets (OsPR1a-forward: ACGGCGAGAACATCTTCTG, reverse: TACCACTGCTTCTCCGACAC, product size: 88 bp, UBQ5-Forward: ACCACTTCGACCGCCACTACT, reverse: ACGCCTAAGCCTGCTGGTT, product size: 69 bp). Expression of OsPR1 upregulated in Tung Ting Wan hien1 at the same time point in response to Fusarium fujikuroi CF283 isolate and exhibited a sharp increase in the resistant cultivar Tung Ting Wan hien1 while Ilpum showed constant and low level of expression.
The frequency distribution and quantile–quantile (Q–Q) plot (Figure 3A,B) indicate a positive skewness for bakanae disease score of the mapping population (143 BC1F8 RILs) designated as the proportion of healthy plants in percentage. About 28% of the mapping population exhibited a high proportion of healthy plants (Tung Ting Wan Hien1-like), here indicating their degree of resistance, while nearly 72% recorded a low percentage of healthy plants (Ilpum-like) regarded as susceptible. Parental cultivars exhibited highly significant differential phenotypic responses under the same conditions.

3.2. Differential Invasion Patterns of CF283-GFP Fusarium fujikuroi in the Early Stage of Infection

To evaluate the invasion of the Fusarium fujikuroi, seeds of the susceptible and resistant cultivars (Ilpum and Tung Ting Wan Hien1, respectively) were inoculated with the fungal pathogen CF283 isolate tagged with a green fluorescent protein (GFP) (Figure 4). Confocal imaging of embryo sections of the rice seed revealed that the fungal pathogen penetrated the embryo of both Ilpum and Tung Ting Wan Hien1 soon after inoculation (1day post-inoculation, 1dpi) (Figure 4A,B). strong colonization of the pathogen localized by the green fluorescence of the GFP signal was observed in the coleoptile at 3 and 7 dpi of Ilpum (Figure 4C,E). In contrast, the resistant Tung Ting Wan Hien1 showed no apparent sign of colonization in the coleoptile under the same conditions (Figure 4D,F).

3.3. QTL Mapping and Genome-Wide Association Study (GWAS) Detected a Novel qBK4T Locus

QTL mapping and GWAS approach were employed to investigate novel genetic loci associated with the control of bakanae disease in rice. From a dataset of 538,836 SNP Chip markers, 62,550 markers showed polymorphism between Ilpum and Tung Ting Wan Hien1 which covers the whole rice chromosome. QTL mapping and GWAS results detected one QTL herein referred to as qBK4T on chromosome 4. Of all markers linked to this locus, 78, and 34 SNPs showed a highly significant linkage probability above the genome-wide line (LOD > 10 with QTL analysis and −log10(p) > 8 with GWAS analysis, respectively) (Figure 5A,C, Table S1). The target qBK4T was flanked by AX-154456463 (32.68 Mb, left) and AX- 115752415 (33.44 Mb, right) makers, covering a region of 765kb in the QTL analysis, whereas, it was flanked by AX-116847364 (33.12 Mb, left) and AX- 115752415 (33.44 Mb, right) makers, covering a region of 324kb (Figure 5B,D).

4. Discussion

4.1. Differential Phenotypic Response of the Mapping Population towards Fusarium fujikuroi

Plants subjected to pathogenic microorganisms activate various defense systems, which may result in an enhanced resistance phenotype, especially in genotypes carrying resistant loci. In this study, the bioassay results revealed that nearly 28% of the population exhibited a high resistance phenotype over time upon Fusarium fujikuroi inoculation, with minor typical bakanae disease symptoms. In contrast, about 72% were highly susceptible, which symptoms were pronounced at the last count 3 weeks after sowing, and could be resumed in weak growth, stunt plants, and necrosis, under the same conditions. As expected, parental lines Ilpum (recurrent) and Tung Ting Wan Hien1 (donor) harboring the resistance locus qBK4T recorded a low- and high proportion of healthy plants, respectively (Figure 1A,B).

4.2. GFP-Tagged Fusarium fujikuroi Localized in Embryo, and Stem of Susceptible Rice in the Early Stage of Infection

Successful infection of Fusarium spp. is a complex process such as adhesion, penetration (via wounds, seeds, and stomata), and subsequent colonization inside cells and in intercellular compartments [34,35]. A study conducted by Lee et al. [18] found that Fusarium fujikuroi was abundant in the stem of susceptible rice cultivars compared to resistant one. Similarly, Elshafey et al. [36] indicated that Fusarium fujikuroi preferably grow in the aerenchym, pith, cortex, and vascular bundle of both the sheath and stem of rice. We evaluated the invasion of the Fusarium fujikuroi in seeds of the susceptible and resistant cultivars in the early stages of infection. Our results, based on the cellular localization of Fusarium fujikuroi isolate CF283 tagged with a GFP observed using a Confocal microscope, detected a similar abundance of the target fungal pathogen in the embryo at 1 dpi in both Ilpum and Tung Ting Wan Hien1 (Figure 4A,B). However, later on, the pathogen was shown to rapidly colonize the coleoptile of Ilpum at 3 dpi and 7 dpi (Figure 4C,E); while in the resistant cultivar Tung Ting Wan Hien1, a very weak presence of GFP-Fusarium fujikuroi in the coleoptile under the same conditions (Figure 4D,F). A similar colonization pattern of Fusarium fujikuroi was observed in previous studies [18,36], where its presence was detected in vascular bundles, mesophyll, and subcutaneous tissue of infected stem in susceptible cultivars compared to the resistant one. Therefore, we could then speculate that soon after inoculation of rice seeds with the virulent isolate CF283 of Fusarium fujikuroi in both resistant and susceptible varieties, the colonization of the pathogen occurred rapidly in susceptible varieties (Ilpum), which would eventually have a defective or weak defense system, whereas the observed resistance of Tung Ting Wan Hien1, would be in part explained by the contribution of qBK4T.

4.3. Novel qBK4T Harbors Genes Associated with Stress Signaling and Defense

Initially, using a QTL analysis approach, our study identified qBK4T as a novel QTL associated with bakanae disease resistance in rice. QTL mapping results detected a wide region of 765 kbp with hundreds of genes, which limited the possibility to select putative candidate genes. In the perspective to detect similar genetic loci controlling the same trait, we performed GWAS on the same population using the same DNA Chip markers. It was interesting to see that GWAS detected narrow region that overlaps within the qBK4T region. This could be in part explained by the analytical and methodological differences between GWAS and QTL (Figure 5B,D). In addition, regardless of their advantages and limitations, we focussed on the co-detected region by both QTL and GWAS to unveil the identify of putative candidate genes. We exploited the genome browsers feature in http://rice.uga.edu/cgi-bin/gbrowse/rice/ (accessed on 5 April 2022) using the physical position of the flanking markers (AX-116847364 and AX-115752415 covering a region of 324kb). Data revealed that a total of 34 genes (Table 1), except transposons and non-coding protein genes or non-domain-containing genes, were located within the target locus region of qBK4T. Genes found within the qBK4T region encode proteins associated with signaling, transport, or kinase-related activities, transcriptional regulation, nucleotide and protein binding, or posttranslational modification, among others (Table 1). Among them, Os04g55920 encodes a zinc-finger protein (OsJAZ1), and which could potentially be active in defense response. Studies have shown that jasmonate signaling modulates plant defense against pathogens [37,38]. In rice, OsJAZ1 was reported to attenuate drought resistance through negative regulation of JA and ABA signaling [39].
Another set of genes was described as having a transcription factor or protein or nucleotide binding activity, such that encoding AP2-like ethylene-responsive transcription factor (Os04g55970 and Os04g56150), peroxidase precursor having a catalytic activity (Os04g55740), D-3-phosphoglycerate dehydrogenase (chloroplast precursor, Os04g55720), or encoding an Arogenate dehydratase and ACT domains (Os04g55780) commonly involved in specifically binding an amino acid or other small ligands [40]. Genes belonging to AP2/ERF have been reported as key regulators of various phytohormones-mediated stress responses in plants [41], including abiotic [42] and biotic stress defense mechanisms [43,44], programmed cell death [45], as well as normal growth and development [46]. Similarly, overexpression of the GmEF3 gene encoding an AP2/ERF TF was shown to govern abiotic and biotic stress responses in tobacco [47].
In the same region, we also found a few genes associated with hormonal signaling or transport activity, such as that having a glycine-rich RNA-binding activity (Abscisic acid-inducible protein, Os04g55980) and the Glycine-rich cell wall structural protein 1 precursor (Os04g56010), and Os04g55800 having a sulfate transport activity.
In addition, the qBK4T region harbors genes with hydrolase activity, transferase activity and, copper-binding in plants. These include Os04g55650 encoding an Oryzain α-chain precursor, Os04g55730 that encodes an α-N-acetylglucosaminidase, Os04g55860 encoding a peptidyl-tRNA hydrolase, and that encoding an indole-3-acetate β-glucosyltransferase (Os04g55680). Another group of interesting genes includes (Os04g55810) belonging to the Golgin subfamily A member 5 proteins, of which members are involved in maintaining the Golgi structure was located in the same region, and Os04g55940 (OsNCX1) encoding a Sodium/calcium exchanger protein, a ubiquitously expressed membrane protein known to be involved in calcium (Ca2+) homeostasis in the cell [48,49,50,51,52].
Diverse strategies have been proposed for the control of bakanae disease in rice. Many studies consider the use of resistance genotypes as the most effective way of controlling this fungal disease. It has been shown that rice varieties with a single resistance (R) gene confers a vertical resistance, and would eventually be overcome by new pathological races [18,24]. Many studies have reported quantitative trait loci (QTLs) associated with the control of bakanae disease resistance in rice using various population types, mapping methods and markers systems. Among them qBK1 [23,24], qBK1WD [18], qBK1z [28], qBK1.1, qBK1.2, and qBK1.3 [25], qBK1_628091 [27] mapped on chromosome 1. Recently, Kang et al. [29] identified a major QTL qFfR9 (chromosome 9) proposed to confer resistance towards Fusarium fujikuroi. In this study, we identified a novel QTL qBK4T on chromosome 4 via a QTL mapping and GWAS approach. Position of qBK4T was different from qBK4_31750955 [27] and qBK4.1 [40], which were previously mapped on chromosome 4 (Figure 6).

5. Conclusions

Bakanae disease remains a threat to many rice-growing countries globally, and a growing interest in developing resistant rice cultivars has been observed. This study identified a novel QTL qBK4T, mapped on chromosome 4, associated with the control of bakanae disease resistance in rice, using QTL analysis and GWAS approach. qBK4T covers a region of 324Kb, which harbors genes with interesting molecular functions and is involved in several biological processes in plants, including stress signaling, transcription regulation, transport, and defense against pathogens. In addition, the transcript accumulation patterns of qBK4T-related genes revealed that OsWAK55 (encoding a wall-associated kinase, receptor-like protein), Os04g55960 (encoding an NADPH reductase), NCX1 (encoding a sodium/calcium exchanger protein), and OsJAZ1 (encoding a zinc-finger protein), coupled with genes belonging to the AP2/ERF transcription factor family (Os04g56150 and Os04g55970) would be involved in the defense mechanism against Fusarium fujikuroi-mediated bakanae disease in rice. Functional characterization of the above genes may help unveil and elucidate their roles in the defense response against bakanae disease. The use of a joint strategy QTL mapping–GWAS identified co-detected region and allowed the selection of putative candidate genes within the overlapping region for downstream analysis. Therefore, considering the interesting, predicted functions of qBK4T-related genes, further functional studies may help elucidate their molecular functions and their possible interactions with other well-known defense-related genes in response to bakanae disease.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy12102567/s1, Table S1: SNP locations associated with Bakanae desease resistance in 143 BC1F8 RILs rice accession.

Author Contributions

Conceptualization, S.-B.L., J.-W.K., J.-Y.L. and D.-S.P.; methodology, formal analysis, and investigation S.-B.L., N.R.K. and Y.K.; validation, D.-S.P.; software resources, S.-B.L., G.-U.S. and N.R.K., J.-H.C., K.-W.O.; data curation, S.-M.L., H.M., D.S. and N.R.K.; writing—original draft preparation, S.-B.L. and N.R.K.; writing—review and editing, D.-S.P., J.-Y.L., H.M. and J.-H.L.; visualization and supervision and project administration, D.-S.P.; funding acquisition, D.-S.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Rural Development Administration, Republic of Korea, grant number PJ014774012022 (Project title: QTL mapping for development of functional rice with bakanae disease resistance).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ito, S.; Kimura, J. Studies on the bakanae disease of the rice plant. Rep. Hokkaido Natl. Agric. Exp. Stn. 1931, 27, 1–95. [Google Scholar]
  2. Gupta, A.; Solanki, I.S.; Bashyal, B.; Singh, Y.; Srivastava, K. Bakanae of rice-an emerging disease in asia. J. Anim. Plant Sci. 2015, 25, 1499–1514. [Google Scholar]
  3. Wulff, E.G.; Sørensen, J.L.; Lübeck, M.; Nielsen, K.F.; Thrane, U.; Torp, J. Fusarium spp. associated with rice Bakanae: Ecology, genetic diversity, pathogenicity and toxigenicity. Environ. Microbiol. 2010, 12, 649–657. [Google Scholar] [CrossRef] [PubMed]
  4. Iqbal, M.; Javed, N.; Sahi, S.T.; Cheema, N.M. Genetic management of bakanae disease of rice and evaluation of various fungicides against Fusarium moniliforme in vitro. Park. J. Phytopathol. 2011, 23, 103–107. [Google Scholar]
  5. Ou, S.H. Rice Diseases, 2nd ed.; Commonwealth Mycological Institute, Kew: Surrey, London, UK; Cabi Publishing: Wallingford, UK, 1985. [Google Scholar]
  6. Ora, N.; Faruq, A.; Islam, M.; Akhtar, N.; Rahman, M.M. Detection and identification of seed borne pathogens from some cultivated hybrid rice varieties in Bangladesh. Middel-East J. Sci. Res. 2011, 10, 482–488. [Google Scholar]
  7. Matic, S.; Gullino, M.L.; Spadaro, D. The puzzle of bakanae disease through interactions between Fusarium fujikuroi and rice. Front Biosci. 2017, 9, 333–344. [Google Scholar]
  8. Mew, T.W.; Gonzales, P.G. A Handbook of Rice Seedborne Fungi; International Rice Research Institute: Los Baňos, Philippines; Science Publishers, Inc., Enfield: New York, NY, USA, 2002. [Google Scholar]
  9. Singh, R.; Sunder, S. Foot rot and bakanae of rice: An overview. Rev. Plant Pathol. 2012, 5, 565–604. [Google Scholar]
  10. Desjardins, A.E.; Manandhar, H.K.; Plattner, R.D.; Manandhar, G.G.; Poling, S.M.; Maragos, C.M. Fusarium species from nepalese rice and production of mycotoxins and gibberellic acid by selected species. Appl. Environ. Microbiol. 2000, 66, 1020–1025. [Google Scholar] [CrossRef] [Green Version]
  11. Sunder, S.; Satyavir; Virk, K.S. Studies on correlation between bakanae incidence and yield loss in paddy. Indian Phytopathol. 1997, 50, 99–101. [Google Scholar]
  12. Singh, R.; Sunder, S. Foot rot and bakanae of rice: Retrospects and prospects. Int. J. Trop. Plant Dis. 1997, 15, 153–176. [Google Scholar]
  13. Yasin, S.; Khan, T.; Akhtar, K.; Anwer, M.; Ahmad, M. Economic evaluation of bakanae disease of rice. Mycopath 2003, 1, 115–117. [Google Scholar]
  14. Saremi, H.; Ammarellou, A.; Marefat, A.; Okhovvat, S. Binam a rice cultivar, resistant for root rot disease on rice caused by Fusarium moniliforme in northwest, Iran. Int. J. Bot. 2008, 4, 383–389. [Google Scholar] [CrossRef] [Green Version]
  15. Park, W.S.; Choi, H.W.; Han, S.S.; Shin, D.B.; Shim, H.K.; Jung, E.S.; Lee, S.W.; Lim, C.K.; Lee, Y.H. Control of bakanae disease of rice by seed soaking into the mixed solution of Procholraz and Fludioxnil. Res. Plant Dis. 2009, 15, 94–100. [Google Scholar] [CrossRef] [Green Version]
  16. Rosales, A.M.; Mew, T.W. Suppression of Fusarium moniliforme in rice by rice-associated antagonistic bacteria. Plant Dis. 1997, 81, 49–52. [Google Scholar] [CrossRef] [Green Version]
  17. Hayasaka, T.; Ishiguro, K.; Shibutani, K.; Namai, T. Seed disinfection using hot water immersion to control several seed-borne diseases of rice plants. Jpn. J. Phytopathol. 2001, 67, 26–32. [Google Scholar] [CrossRef]
  18. Lee, S.B.; Hur, Y.J.; Cho, J.H.; Lee, J.H.; Kim, T.H.; Cho, S.M.; Song, Y.C.; Seo, Y.S.; Lee, J.; Kim, T.S.; et al. Molecular mapping of qBK1WD, a major QTL for bakanae disease resistance in rice. Rice 2018, 11, 3. [Google Scholar] [CrossRef]
  19. Ogawa, K. Damage by “Bakanae” disease and its chemical control. Jpn. Pestic. Inf. 1988, 52, 13–15. [Google Scholar]
  20. Kim, J.M.; Hong, S.K.; Kim, W.G.; Lee, Y.K.; Yu, S.H.; Choi, H.W. Fungicide resistance of gibberella fujikuroi isolates causing rice bakanae disease and their progeny isolates. Korean J. Mycol. 2010, 38, 75–79. [Google Scholar] [CrossRef] [Green Version]
  21. Lee, Y.H.; Lee, M.J.; Choi, H.W.; Kim, S.T.; Park, J.W.; Myung, I.S.; Park, K.S.; Lee, S.W. Development of in vitro seedling screening method for selection of resistant rice against bakanae disease. Res. Plant Dis. 2011, 17, 288–294. [Google Scholar] [CrossRef] [Green Version]
  22. Yang, C.D.; Guo, L.B.; Li, X.M.; Ji, Z.J.; Ma, L.Y.; Qian, Q. Analysis of QTLs for resistance to rice bakanae disease. Chin. J. Rice Sci. 2006, 6, 657–659. [Google Scholar]
  23. Hur, Y.J.; Lee, S.B.; Kim, T.H.; Kwon, T.; Lee, J.H.; Shin, D.J.; Park, S.K.; Hwang, U.H.; Cho, J.H.; Yoon, Y.N.; et al. Mapping of qBk1, a major qtl for bakanae disease resistance in rice. Mol. Breed. 2015, 35, 78. [Google Scholar] [CrossRef]
  24. Lee, S.B.; Kim, N.; Hur, Y.J.; Cho, S.M.; Kim, T.H.; Lee, J.Y.; Cho, J.H.; Lee, J.H.; Song, Y.C.; Seo, Y.S.; et al. Fine mapping of qBK1, a major QTL for bakanae disease resistance in rice. Rice 2019, 12, 36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Fiyaz, R.A.; Yadav, A.K.; Krishnan, S.G.; Ellur, R.K.; Bashyal, B.M.; Grover, N.; Bhowmick, P.K.; Nagarajan, M.; Vinod, K.; Singh, N.K. Mapping quantitative trait loci responsible for resistance to bakanae disease in rice. Rice 2016, 9, 45. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Ji, H.; Kim, T.H.; Lee, G.S.; Kang, H.J.; Lee, S.B.; Suh, S.C.; Kim, S.L.; Choi, I.; Baek, J.; Kim, K.H. Mapping of a major quantitative trait locus for bakanae disease resistance in rice by genome resequencing. Mol. Genet. Genom. 2018, 293, 579–586. [Google Scholar] [CrossRef] [PubMed]
  27. Volante, A.; Tondelli, A.; Aragona, M.; Valente, M.T.; Biselli, C.; Desiderio, F.; Bagnaresi, P.; Matic, S.; Gullino, M.L.; Infantino, A.; et al. Identification of bakanae disease resistance loci in japonica rice through genome wide association study. Rice 2017, 10, 29. [Google Scholar] [CrossRef] [Green Version]
  28. Lee, S.B.; Kim, N.; Jo, S.; Hur, Y.J.; Lee, J.Y.; Cho, J.H.; Lee, J.H.; Kang, J.W.; Song, Y.C.; Bombay, M.; et al. Mapping of a major QTL, qBK1z, for bakanae disease resistance in rice. Plants 2021, 10, 434. [Google Scholar] [CrossRef]
  29. Kang, D.Y.; Cheon, K.S.; Oh, J.; Oh, H.; Kim, S.L.; Kim, N.; Lee, E.; Choi, I.; Baek, J.; Kim, K.; et al. Rice genome resequencing reveals a major quantitative trait locus for resistance to bakanae disease caused by Fusarium fujikuroi. Int. J. Mol. Sci. 2019, 20, 2598. [Google Scholar] [CrossRef] [Green Version]
  30. Kim, M.H.; Hur, Y.J.; Lee, S.B.; Kwon, T.; Hwang, U.H.; Park, S.K.; Yoon, Y.N.; Lee, J.H.; Cho, J.H.; Shin, D.J. Large-scale screening of rice accessions to evaluate resistance to bakanae disease. J. Gen. Plant Pathol. 2014, 80, 408–414. [Google Scholar] [CrossRef]
  31. Hur, Y.J.; Lee, S.B.; Shin, D.; Kim, T.H.; Cho, J.H.; Han, S.I.; Oh, S.H.; Lee, J.Y.; Son, Y.B.; Lee, J.H.; et al. Screening of rice germplasm for bakanae disease resistance in rice. Korean J. Breed. Sci. 2016, 48, 22–28. [Google Scholar] [CrossRef] [Green Version]
  32. Murray, M.G.; Thompson, W.F. Rapid isolation of high molecular weight plant DNA. Nucleic Acids Res. 1980, 8, 4321–4325. [Google Scholar] [CrossRef] [Green Version]
  33. Kim, K.W.; Nam, J.; Chu, S.H.; Phitaktansakul, R.; Yoo, J.M.; Kang, J.S.; Min, M.H.; Cheng, L.; Cao, Y.; Aung, K.M.; et al. Development of knu axiom oryza 580k genotyping array. In Proceedings of the KSBS & SABRAO International Conference on Plant Breeding for Sustainable Development, Gwangju, Korea, 2–5 July 2019; Volume 158, p. PCS02-58. [Google Scholar]
  34. Rana, A.; Sahgal, M.; Johri, B. Fusarium oxysporum: Genomics, diversity and plant–host interaction. In Developments in Fungal Biology and Applied Mycology; Satyanarayana, T., Deshmukh, S., Johri, B., Eds.; Springer: Singapore, 2017. [Google Scholar]
  35. Jansen, C.; Wettstein, D.V.; Schäfer, W.; Kogel, K.H.; Felk, A.; Maier, F. Infection patterns in barley and wheat spikes inoculated with wild-type and trichodiene synthase gene disrupted Fusarium graminearum. Proc. Natl. Acad. Sci. USA 2005, 102, 16892–16897. [Google Scholar] [CrossRef] [PubMed]
  36. Elshafey, R.A.S.; Tahoon, A.M.; El-Emary, F.A. Analysis of varietal response to bakanae infection Fusarium fujikuroi and gibberellic acid through morphological, anatomical and hormonal changes in three rice varieties. J. Phytopathol. Pest Manag. 2018, 5, 63–87. [Google Scholar]
  37. Li, C.; Xu, M.; Cai, X.; Han, Z.; Si, J.; Chen, D. Jasmonate signaling pathway modulates plant defense, growth, and their trade-offs. Int. J. Mol. Sci. 2022, 23, 3945. [Google Scholar] [CrossRef]
  38. Zhang, L.; Zhang, F.; Melotto, M.; Yao, J.; He, S.Y. Jasmonate signaling and manipulation by pathogens and insects. J. Exp. Bot. 2017, 68, 1371–1385. [Google Scholar] [PubMed] [Green Version]
  39. Fu, J.; Wu, H.; Ma, S.; Xiang, D.; Liu, R.; Xiong, L. Osjaz1 attenuates drought resistance by regulating ja and aba signaling in rice. Front. Plant Sci. 2017, 8, 2108. [Google Scholar] [PubMed] [Green Version]
  40. Grant, G.A. The act domain: A small molecule binding domain and its role as a common regulatory element. J. Biol. Chem. 2006, 281, 33825–33829. [Google Scholar] [CrossRef] [Green Version]
  41. Chen, C.Y.; Lin, P.H.; Chen, K.H.; Cheng, Y.S. Structural insights into arabidopsis ethylene response factor 96 with an extended n-terminal binding to gcc box. Plant Mol. Biol. 2020, 104, 483–498. [Google Scholar] [CrossRef] [PubMed]
  42. Xie, Z.; Nolan, T.M.; Jiang, H.; Yin, Y. AP2/ERF transcription factor regulatory networks in hormone and abiotic stress responses in Arabidopsis. Front. Plant Sci. 2019, 10, 228. [Google Scholar] [CrossRef] [Green Version]
  43. Phukan, U.J.; Jeena, G.S.; Tripathi, V.; Shukla, R.K. Regulation of Apetala2/Ethylene response factors in plants. Front. Plant Sci. 2017, 8, 150. [Google Scholar] [PubMed] [Green Version]
  44. Gutterson, N.; Reuber, T.L. Regulation of disease resistance pathways by ap2/erf transcription factors. Curr. Opin. Plant Biol. 2004, 7, 465–471. [Google Scholar]
  45. Mase, K.; Ishihama, N.; Mori, H.; Takahashi, H.; Kaminaka, H.; Kodama, M.; Yoshioka, H. Ethylene-responsive AP2/ERF transcription factor macd1 participates in phytotoxin-triggered programmed cell death. Mol. Plant Microbe Interact 2013, 26, 868–879. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Gu, C.; Guo, Z.H.; Hao, P.P.; Wang, G.M.; Jin, Z.M.; Zhang, S.L. Multiple regulatory roles of AP2/ERF transcription factor in angiosperm. Bot. Stud. 2017, 58, 6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Zhang, G.; Chen, M.; Li, L.; Xu, Z.; Chen, X.; Guo, J.; Ma, Y. Overexpression of the soybean GmERF3 gene, an AP2/ERF type transcription factor for increased tolerances to salt, drought, and diseases in transgenic tobacco. J. Exp. Bot. 2009, 60, 3781–3796. [Google Scholar] [CrossRef] [PubMed]
  48. Chen, S.Y.; Lai, M.H.; Tung, C.W.; Wu, D.H.; Chang, F.Y.; Lin, T.C.; Chung, C.L. Genome-wide association mapping of gene loci affecting disease resistance in the rice-fusarium Fujikuroi pathosystem. Rice 2019, 12, 85. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Kwon, Y.H.; Kabange, N.R.; Lee, J.Y.; Lee, S.M.; Cha, J.K.; Shin, D.J.; Cho, J.H.; Kang, J.W.; Ko, J.M.; Lee, J.H. Novel QTL associated with shoot branching identified in doubled haploid rice (Oryza sativa L.) under low nitrogen cultivation. Genes 2021, 12, 745. [Google Scholar] [CrossRef]
  50. Wang, P.; Li, Z.; Wei, J.; Zhao, Z.; Sun, D.; Cui, A. Na+/Ca2+ exchanger-like protein (AtNCLl) involved in salt stress in arabidopsis. J. Biol. Chem. 2012, 287, 44062–44070. [Google Scholar] [CrossRef] [Green Version]
  51. Schulze, D.H.; Muqhal, M.; Lederer, W.J.; Ruknudin, A.M. Sodium/Calcium exchanger (NCX1) macromolecular complex. J. Biol. Chem. 2003, 278, 28849–28855. [Google Scholar] [CrossRef]
  52. Chen, C.; Song, Y.; Zhuang, K.; Li, L.; Xia, Y.; Shen, Z. Proteomic analysis of copper-binding proteins in excess copper-stressed roots of two rice (Oryza sativa L.) varieties with different cu tolerances. PLoS ONE 2015, 10, e0125367. [Google Scholar]
Agronomy 12 02567 g001 550
Figure 1. Visual observation of parental phenotypic response towards bakanae disease. (A) Distinctive phenotypes of parents and (B) proportion of healthy plants between parents infected with the Fusarium fujikuroi isolate CF283.
Figure 1. Visual observation of parental phenotypic response towards bakanae disease. (A) Distinctive phenotypes of parents and (B) proportion of healthy plants between parents infected with the Fusarium fujikuroi isolate CF283.
Agronomy 12 02567 g001
Agronomy 12 02567 g002 550

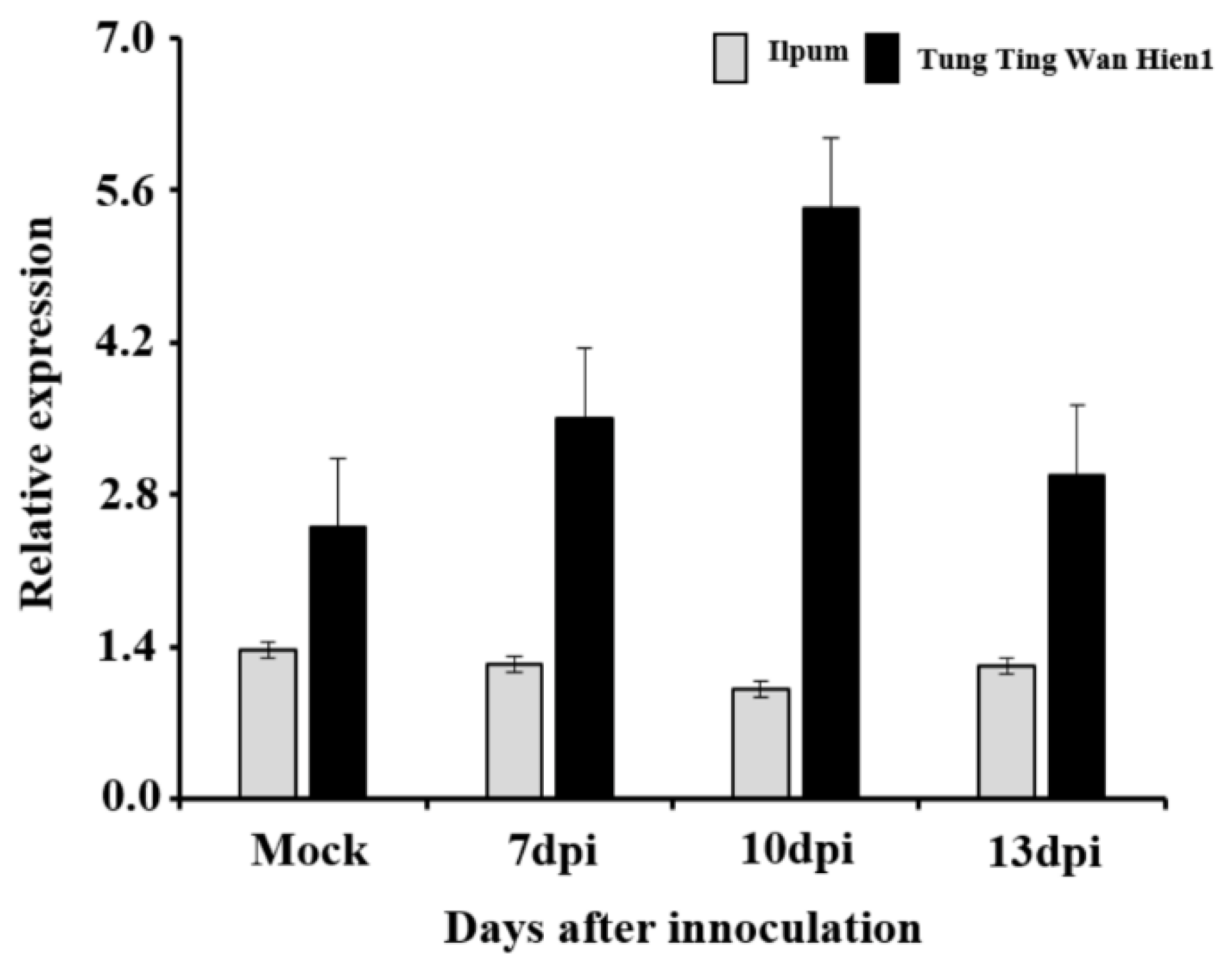

Figure 2. Transcript accumulation patterns of OsPR1a (Os07g03710) in resistant and susceptible rice varieties inoculated with Fusarium fujikuroi CF283 isolate. Bars (white: Ilpum and black: Tung Ting Wan Hien1) are mean values ± SD. The expression values of the target genes were normalized to that of the housekeeping gene, ubiquitin 5 (UBQ5).
Figure 2. Transcript accumulation patterns of OsPR1a (Os07g03710) in resistant and susceptible rice varieties inoculated with Fusarium fujikuroi CF283 isolate. Bars (white: Ilpum and black: Tung Ting Wan Hien1) are mean values ± SD. The expression values of the target genes were normalized to that of the housekeeping gene, ubiquitin 5 (UBQ5).
Agronomy 12 02567 g002
Agronomy 12 02567 g003 550

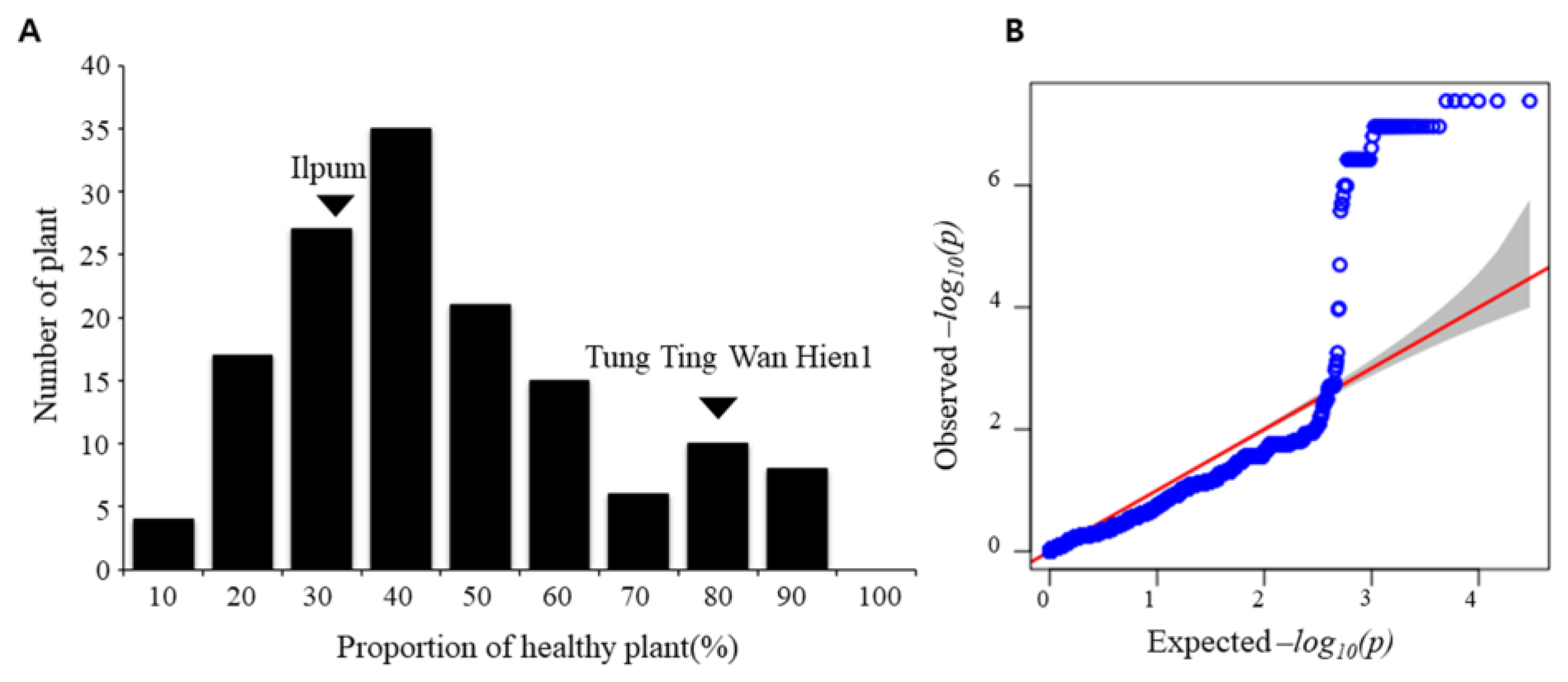

Figure 3. Frequency distributionof the proportion of healthy plants (n = 143) in BC1F8. Near Isogenic Lines. (A) frequency distribution and (B) quantile-quantile (Q-Q) plot.
Figure 3. Frequency distributionof the proportion of healthy plants (n = 143) in BC1F8. Near Isogenic Lines. (A) frequency distribution and (B) quantile-quantile (Q-Q) plot.
Agronomy 12 02567 g003
Agronomy 12 02567 g004 550
Figure 4. Confocal imaging of Ilpum and Tung Ting Wan Hien1 rice inoculated with CF283-GFP Fusarium fujikuroi isolate. (A,B) longitudinal sections of embryos of Ilpum (susceptible) and Tung Ting Wan Hien1 (resistant) cultivars at 1 dpi, (C,D) 3 dpi in coleoptile, and (E,F) 7 dpi in coleoptile.
Figure 4. Confocal imaging of Ilpum and Tung Ting Wan Hien1 rice inoculated with CF283-GFP Fusarium fujikuroi isolate. (A,B) longitudinal sections of embryos of Ilpum (susceptible) and Tung Ting Wan Hien1 (resistant) cultivars at 1 dpi, (C,D) 3 dpi in coleoptile, and (E,F) 7 dpi in coleoptile.
Agronomy 12 02567 g004
Agronomy 12 02567 g005 550

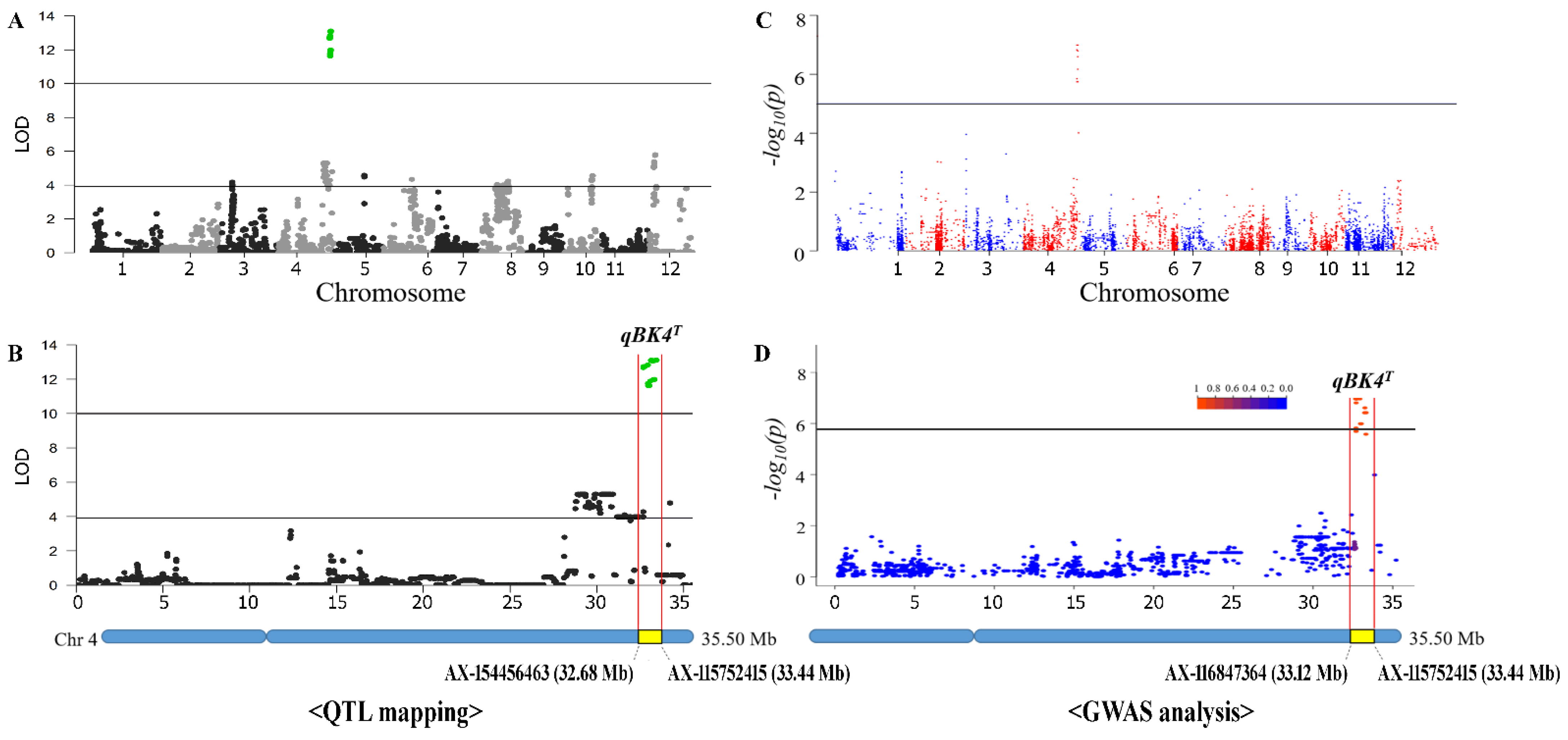

Figure 5. Manhattan plots of QTL mapping and GWAS analysis for bakanae disease resistance 143 BC1F8 RILs. Markers plotted above the genome line recorded the topmost significant LOD by QTL mapping (A) and −log10(p) by GWAS analysis (C) as indicated by the black line. Manhattan plot displaying a zoom in of the qBK4T locus on chromosome 4 tagged by QTL mapping (B) and GWAS analysis (D).
Figure 5. Manhattan plots of QTL mapping and GWAS analysis for bakanae disease resistance 143 BC1F8 RILs. Markers plotted above the genome line recorded the topmost significant LOD by QTL mapping (A) and −log10(p) by GWAS analysis (C) as indicated by the black line. Manhattan plot displaying a zoom in of the qBK4T locus on chromosome 4 tagged by QTL mapping (B) and GWAS analysis (D).
Agronomy 12 02567 g005
Agronomy 12 02567 g006 550

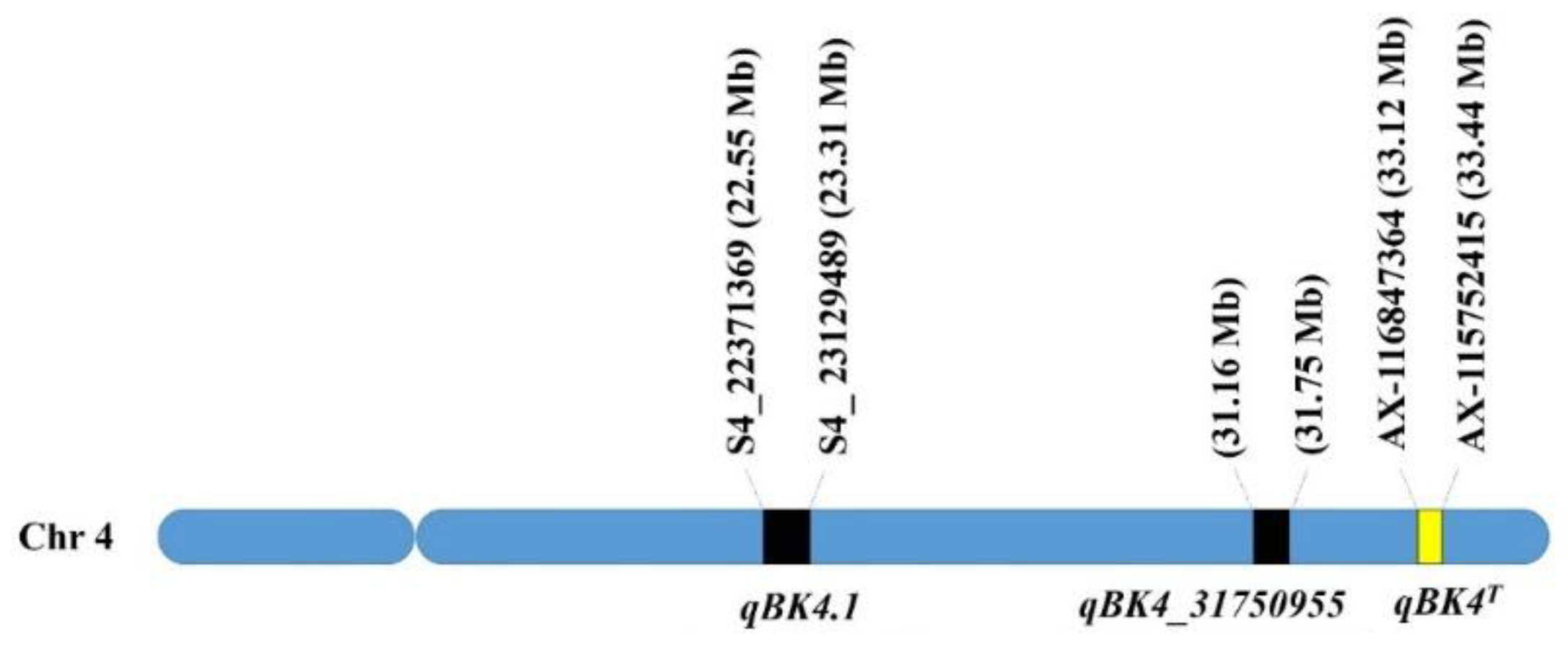

Figure 6. Physical locations of bakanae disease resistance quantitative trait loci on chromosome 4.
Figure 6. Physical locations of bakanae disease resistance quantitative trait loci on chromosome 4.
Agronomy 12 02567 g006
Table
Table 1. List of genes located in the qBK4T region.
Table 1. List of genes located in the qBK4T region.
No.MSU IDAnnotation
1Os04g55640CCB4, protein of unknown function DUF579
2Os04g55650Oryzain alpha chain precursor (Copper-binding protein), hydrolase activity
3Os04g55660GDSL-like lipase/acylhydrolase, hydrolase activity
4Os04g55670Glycosyltransferase family 43 protein, transferase activity
5Os04g55680Indole-3-acetate beta-glucosyltransferase
6Os04g55690Cofactor assembly of complex C involved in photosystem II assembly
7Os04g55700Exonuclease, nuclease activity
8Os04g55720D-3-phosphoglycerate dehydrogenase, chloroplast precursor, nucleotide binding
9Os04g55730Alpha-N-acetylglucosaminidase, hydrolase activity
10Os04g55740Peroxidase precursor, catalytic activity, protein binding
11Os04g55750OsWAK54—OsWAK short gene, kinase activity
12Os04g55760OsWAK55, Wall-associated kinase (WAK), receptor-like protein kinase
13Os04g55770GT1, Myeloblastosis (MYB)-like protein, SANT, one of the GT trihelix transcription
14Os04g55780Arogenate dehydratase and ACT domains
15Os04g55790GT1, myb-like, SANT family; GT-1, a myb-like protein, is one of the GT trihelix transcription
16Os04g55800Sulfate transporter, transporter activity
17Os04g55810Golgin subfamily A member 5; Members of this family of proteins are involved in maintaining Golgi structure.
18Os04g55840Peptidase C65 Otubain domain containing protein encoding gene. This family of proteins conserved from plants to humans
19Os04g55850Nuclease PA3
20Os04g55860Peptidyl-tRNA hydrolase
21Os04g55920OsJAZ1, Zinc-finger protein
22Os04g55940NCX1, sodium/calcium exchanger protein
23Os04g55960NADPH reductase
24Os04g55970AP2-like ethylene-responsive transcription factor AINTEGUMENTA
25Os04g55980Glycine-rich RNA-binding, abscisic acid-inducible protein
26Os04g56010Glycine-rich cell wall structural protein 1 precursor
27Os04g56060Protein phosphorylation, protein serine/threonine, kinase activity
28Os04g56070COP9 signalosome complex subunit 5b
29Os04g56080S-locus-like receptor protein kinase, recognition of pollen, protein phosphorylation, protein serine/threonine kinase activity
30Os04g56100One cut domain family member 3
31Os04g56110protein kinase, carbohydrate binding, kinase activity
32Os04g56120protein kinase domain containing protein, kinase activity, carbohydrate binding
33Os04g56130protein kinase domain containing protein, kinase activity, carbohydrate binding
34Os04g56150AP2 domain containing protein, sequence-specific DNA binding transcription factor activity
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lee, S.-B.; Lee, J.-Y.; Kang, J.-W.; Mang, H.; Kabange, N.R.; Seong, G.-U.; Kwon, Y.; Lee, S.-M.; Shin, D.; Lee, J.-H.; et al. A Novel Locus for Bakanae Disease Resistance, qBK4T, Identified in Rice. Agronomy 2022, 12, 2567. https://doi.org/10.3390/agronomy12102567

AMA Style

Lee S-B, Lee J-Y, Kang J-W, Mang H, Kabange NR, Seong G-U, Kwon Y, Lee S-M, Shin D, Lee J-H, et al. A Novel Locus for Bakanae Disease Resistance, qBK4T, Identified in Rice. Agronomy. 2022; 12(10):2567. https://doi.org/10.3390/agronomy12102567

Chicago/Turabian Style

Lee, Sais-Beul, Ji-Yoon Lee, Ju-Won Kang, Hyunggon Mang, Nkulu Rolly Kabange, Gi-Un Seong, Youngho Kwon, So-Myeong Lee, Dongjin Shin, Jong-Hee Lee, and et al. 2022. "A Novel Locus for Bakanae Disease Resistance, qBK4T, Identified in Rice" Agronomy 12, no. 10: 2567. https://doi.org/10.3390/agronomy12102567

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
