Optimal Nitrogen Practice in Winter Wheat-Summer Maize Rotation Affecting the Fates of ¹⁵N-Labeled Fertilizer

Abstract

Lower nitrogen recovery efficiency (NRE) and negative environmental impacts caused by excessive nitrogen (N) fertilization threaten the sustainability of agriculture. Efficient and appropriate fertilization practices are extremely important to achieve higher crop yield with minimum N loss. A field microplot experiment was conducted in a wheat-maize rotation system in Shaanxi province, at North China Plain, using the ¹⁵N isotope tracer technique to qualify the different annual N managements in terms of crop yield, NRE, N distribution in plant-soil, and N losses to optimize the N management. The experiment included four N treatments: conventional practice with 510 kg ha⁻¹ annually in four applications (N1), and three optimized N treatments, reducing N rate to 420 kg ha⁻¹, adjusting topdressing fertilizer times and using slow-release fertilizer (SRF) (N2, N3, N4). The results showed that the grain yield and N uptake did not differ significantly among treatments. N from fertilizer taken up (Ndff) by wheat was not affected by N management; however, in maize, Ndff performed differently. Optimized treatments significantly decreased the Ndff as compared to N1 treatment. Furthermore, NRE of wheat and annual nitrogen recovery efficiency (annual NRE) did not differ among treatments in 2016 but significantly increased in 2017 compared to N1. Annual NRE in 2017 was similar to that obtained for wheat. For maize, optimized N managements decreased the NRE in N3 and N4 treatments of two years. Potential losses in wheat were also similar amongst treatments, but in maize, N3 and N4 had lower residual N in the soil’s top 60 cm but resulted in higher potential losses than N1 and N2. Overall, our results demonstrate that applying 420 kg N ha⁻¹ annually in three applications and combining SRF and urea are effective to sustain crop yield, improve the efficiency of N usage by maize, and reduce N losses in this region.

1. Introduction

The efficient use of nitrogen (N) is becoming gradually important in agricultural fields because it can reduce the input of fertilizer and improve N use efficiency (NUE). However, over the last few decades, applying a large amount of chemical fertilizer to increase the crop yield has become more and more common. In recent years, the use of the chemical N in China has accounted for 32% of the world’s total use [1]. In some regions of China, the N application rate was as high as 325 kg N ha⁻¹ for wheat and 257 kg N ha⁻¹ for maize. In Shandong province, the N application rate was 553 kg N ha⁻¹ in the wheat-maize rotation system [2,3]. In investigating other regions of North China, traditionally, the N rate for farmers was more than 500 kg ha⁻¹ year⁻¹ for the intensive wheat-maize system and approached 600 kg ha⁻¹ year⁻¹ in recent years to pursue high crop yields [3,4]. It is higher than other developed countries as well as the world average [5]. Additionally, smallholders invariably apply a large proportion of N as basal fertilizer and generally apply topdressing at the wintering stage for wheat and at the bell stage for maize. The fertilizers are applied four times annually [6]. Clearly, this N practice contributed to a large amount of N fertilizer input in the early growth stages, which results in poor synchrony between soil N supply and crop demand [7,8]. Several factors are assumed to contribute to higher fertilizer consumption in the wheat–maize rotation system. One is that the cropland is managed by hundreds of millions of farmers which leads to the rates of fertilizer application by different farmers varying widely. Regardless of soil fertility and crop potential production, farmers still believe that more fertilizer input, the higher grain yield is achieved [2,9]. A further important factor is that being restricted by old knowledge and habits, farmers lack basic information on crop yield response to N fertilizer. Small-scale farming has resulted in high fertilizer input to achieve higher crop production in limited areas of land. Worldwide, high N has contributed to higher crop yield, but it has also led to lower economic returns for farmers and loss of more than 50% of the applied N to the environment [10,11]. Lower nitrogen recovery efficiency (NRE), and different environmental consequences, such as soil acidification, N leaching, ammonia volatilization, and groundwater contamination etc. are becoming ever more serious [11,12,13]. This phenomenon is particularly of concern in intensive cropping systems [2,14,15]. Therefore, it is essential to resolve the contradictions between optimizing N fertilization management to improve NRE, crop yield, economic returns, and the environment. In the wheat–maize rotation system, some studies have shown that cutting in half the additions of N fertilizer will not reduce the yield, and could decrease N losses by 50% [16,17]. Clearly, a rational N fertilizer management has been considered a key challenge for sustaining crop yield and restoring balance to the environment.

At present, the sustainable development of agriculture has been gaining more and more public attention. Great progress has been made in optimizing management for NUE [18]. To optimize N management, nitrification inhibitors, fertilizer deep placement, and controlled-release urea are utilized [15,19,20]. Ju et al. [17] and Zhao et al. [21] have already reported that adopting optimum N fertilization techniques and controlling the primary N loss pathways can decrease the negative effect of excessive N fertilizer on crop quality, NUE, and environmental risk in rice/wheat cultivation. In recent years, slow-release fertilizer (SRF) was introduced to agriculture, which was designed to release N into the soil at a rate that can closely match crop nutrient absorption [22]. Some studies have found that SRF not only improves NUE but also decreases N/NO₃⁻ leaching. Moreover, SRF has been considered a time- and labor-saving phenomenon, as it only needs a one-time application, as opposed to conventional urea [20,23]. Other studies have focused on improving NRE by decreasing N losses by adjusting the N rate and the ratio of basal to topdressing fertilization. The experimental data of Lopez-Bellido et al. [24] and Cui et al. [25] showed that increasing topdressing N fertilizer at a suitable ratio can increase grain yield, plant N uptake, and NRE. However, the majority of studies focused on a single crop or optimized N practice on a single crop, only a few studies focused on the wheat–maize rotation system that is dominant in northern China. Therefore, this study explores the effects of different annual N fertilization strategies (including rate, timing, and SRF) to optimize conventional fertilizer management on a wheat-maize rotation system. To this end, the ¹⁵N tracer technique was used to trace the fate of fertilizer or residual N in the soil. Its use allows a clear analysis of crop N uptake, NRE, and N losses from leaching or volatilization [26,27,28,29]. In this study, we evaluate the different annual N managements in terms of NRE, N distribution in plant and soil, and N losses. By adjusting the N application ratio from basal to topdressing and combining this with SRF, an effective fertilizer management strategy can be developed for sustained crop yield, improving NRE, and mitigating potential N losses from the agro-ecosystem.

2. Materials and Methods

2.1. Description of Experimental Plot

A two-year experiment included two subsequent winter wheat–summer maize rotations that were conducted at Doukou Experiment Station, Northwest A&F University, Shaanxi Province, China (34°36′ N, 108°52′ E; altitude 427.4 m) from 15 October 2015 to 9 October 2017. This area has the typical dry semi-humid climate of northwest China. The rainfall during the wheat and maize growing seasons was 217.2 and 230.1 mm in 2016 and 2017, respectively. About 60–70% of the annual rainfall is concentrated in summer, falling from May to August, and monthly rainfall is unevenly distributed. Furthermore, the rainfall in the two years varied and cannot meet the growth of crops. So moderate irrigation was necessary to make all treatments free of potential drought stress throughout the whole crop growing seasons (according to the dynamic variation of soil moisture). The highest monthly temperature (28.8 °C) occurred in August in 2016 and in July (29.9 °C) in 2017 (Figure 1). Weather data were collected with an automatic weather station (Vantage Pro2, Davis Instruments Corporation, San Francisco, CA, USA). The winter wheat–summer maize rotation system is the major cultivation practice in this area [6]. The soil at the research site was loamy clay; the soil properties of the top 20 cm are shown in

Table 1. Properties of the top-soil layer (0–20 cm) in the experimental field at Doukou, Shaanxi in 2015.

Year	pH	SOM (g/kg)	TN (g/kg)	AK (mg/kg)	AP (mg/kg)
2015	8.6	18.88	1.54	397.07	18.56

SOM: soil organic matter; TN: total nitrogen; AK: available potassium; AP: available phosphorus. The data was published previously in Liang et al. [6].

, and the information of the chemical properties of the topsoil was described previously by Liang et al. [6].

2.2. Experimental Set-Up

The experiment included four different annual N application treatments: the conventional N fertilization treatment with an annual application rate of 510 kg N ha⁻¹ and three optimized N treatments with reducing annual N application rate to 420 kg N ha⁻¹; the basal N was applied the day before sowing and topdressing N at GS24 [(70 days after sowing (DAS)], GS39 (175 DAS) of wheat, and V6, V12 of maize. Detailed N fertilizer application schemes are shown in

Table 2. Annual nitrogen (N) treatments in the wheat-maize double cropping system.

Treatment	Annual N	Wheat				Maize
		Appl. No	N Rate kg ha−1	Fertilizer Type	Growth Stage	Appl. No	N Rate kg ha−1	Fertilizer Type	Growth Stage
a N1	510	2	270	b U210-U60	B + GS24	2	240	U120+U120	B + V12
N2	420	2	210	U120-U90	B + GS39	2	210	U90+U120	V6 + V12
N3	420	2	210	U120-U90	B + GS39	1	210	SRF210	V6
N4	420	2	210	U120-U90	B + GS39	1	210	(U:SRF)210	V6

^a The treatments (N1, N2, N3, N4) were described by Liang et al. [6]. ^b U represents normal urea; SRF represents slow-release fertilizer, U:SRF represents a mixed fertilizer with an SRF: urea ratio of 1:1. B denotes basal N; GS24 and GS39 denote topdressing N at the wintering stage and the jointing stage, respectively. V6 and V12 denote topdressing N at the six-leaf stage and the twelve-leaf stage, respectively.

and the treatments were described previously by Liang et al. [6]. Additionally, the control without N was included. The plots were arranged in a randomized block design with three replications and the area of each plot was 49 m² (7 × 7 m). The N application practice of N1 for both crops was surveyed and followed the custom of local farmers. N fertilizer was applied in the form of urea (46% N) and SRF (28% N). The SRF was supplied by the Stanley Agricultural Group Co., Ltd., (Linyi, China) and the N release period of the SRF was three months in water and longer in soil [30]. To each plot, phosphate (P) and potassium (K) fertilizers were applied basally at 120 (P₂O₅) kg ha⁻¹and 30 (K₂O) kg ha⁻¹, respectively, before sowing and incorporated to a depth of 10–15 cm by rotary tillage. Topdressing fertilizer was placed in the soil at a depth of 10 cm following irrigation. Wheat cultivar Xiaoyan 22 and maize cultivar Zhengdan 958 were used, which are widely used cultivars on the North China plain. The wheat crop was sown on 15 October 2015 and 11 October 2016 at a rate of 150 kg ha⁻¹ and a spacing of 25 cm; the maize was sown immediately after the wheat harvest with a density of 100,000 plants ha⁻¹. The row and plant spacing of maize were 40 and 20 cm, respectively. Other farm management followed local practice.

To monitor the fate of ¹⁵N-labeled fertilizer, each plot contained a ¹⁵N isotope microplot using a PVC pipe with a height of 60 cm and a diameter of 30 cm in the southwestern side of the experimental plot in the wheat season. In all the microplots, the same plant spacing was used as the corresponding main plots. All the pipes were kept 5 cm above the soil to prevent runoff and lateral contamination with unlabeled fertilizer. In the maize season, the microplots were moved to the northwestern side of the plots. ¹⁵N-labeled urea, with an abundance of 10.21%, was adopted in both the wheat and maize season (provided by the Shanghai Research Institute of Chemical Industry) and applied at the same dosage as in the corresponding main plot.

2.3. Plant and Soil Sampling Analysis

Whole wheat and maize plant samples in each microplot were harvested at maturity; they were divided into two parts to determine the total N content and for isotopic analysis. The plants of wheat were divided into straw and grain for analysis in both years. For maize, the samples were divided into stems (including cobs), leaves and grain in 2016 but in 2017, the isotopic analysis was done using the whole plant. The grain protein was also measured using a near-infrared Grain Analyzer (DA7250, Perten Company, Hägersten, Sweden). After harvest, soil samples in each microplot were collected to a depth of 60 cm (0–20 cm, 20–40 cm, and 40–60 cm) using a soil auger at 20 cm intervals. Plant total N was analyzed using the Kjeldahl method. The ¹⁵N enrichment in plant and soil were measured by elemental analysis isotope ratio mass spectrometry (EA-IRMS), using an Organic Elemental Analyser (FLASH 2000) in conjunction with an isotope mass spectrometer (MAT-253, Thermo Fisher, Bremen, Germany). The sample materials were weighed (<1 mg) and wrapped in a tin cup, then loaded into a Flash EA 2000 automatic sampler before EA-IRMS analysis [31]. The ¹⁵N is expressed as the atom excess corrected for background abundance (0.366%).

The percentage of nitrogen derived from fertilizer (Ndff) and the soil residual N (Ndfs) (%), N recovery efficiency (%), N residual efficiency (%), and potential N losses (%) were calculated according to Equations (1)–(6), respectively, referring to the methods of Halitligil et al., Yang et al. [32,33], and Wang et al. [34].

$$\mathrm{Ndff}(\%)=\frac{\mathrm{at}\%{}^{15}\mathrm{N}\mathrm{atom}\mathrm{excess}\left(\mathrm{plant}\right)-{}^{15}\mathrm{N}\mathrm{natural}\mathrm{abundance}}{\mathrm{at}\%{}^{15}\mathrm{N}\mathrm{atom}\mathrm{excess}\left(\mathrm{fertilizer}\right)-{}^{15}\mathrm{N}\mathrm{natural}\mathrm{abundance}}\times 100$$

(1)

$$\mathrm{Ndfs}(\%)=100-\left(1\right)$$

(2)

$$\mathrm{Ndff}\left(\mathrm{kg}/\mathrm{ha}\right)=\mathrm{N}\mathrm{uptake}\mathrm{in}\mathrm{plant}\times \left(1\right)$$

(3)

$$\mathrm{N}\mathrm{recovery}\mathrm{efficiency}(\%)=\frac{\mathrm{Plant}{}^{15}\mathrm{N}\mathrm{from}\mathrm{fertilizer}\left(\mathrm{kg}/\mathrm{ha}\right)}{{}^{15}\mathrm{N}\mathrm{application}\mathrm{rate}\left(\mathrm{kg}/\mathrm{ha}\right)}\times 100$$

(4)

$$\mathrm{N}\mathrm{residual}\mathrm{efficiency}(\%)=\frac{\mathrm{Residual}{}^{15}\mathrm{N}\mathrm{in}\mathrm{soil}\left(\mathrm{kg}/\mathrm{ha}\right)}{{}^{15}\mathrm{N}\mathrm{application}\mathrm{rate}\left(\mathrm{kg}/\mathrm{ha}\right)}\times 100$$

(5)

$$\mathrm{Potential}\mathrm{N}\mathrm{losses}(\%)=100-\left(4\right)-\left(5\right)$$

(6)

All data were analyzed by one-way analysis of variance (ANOVA). Statistical analyses were done using SPSS version 20.0 software (SPSS Inc., Chicago, IL, United States), and the least significant difference (LSD) at the 5% level was used to compare the treatments. Graphs were prepared by using Sigmaplot 12.5.

3. Results

3.1. Effect of Nitrogen Management on Yield and Protein of Wheat and Maize

All fertilized N treatments were significantly different than the N0 treatment, showing an increase in grain yield, plant N uptake in wheat and maize seasons. The yields of winter wheat and summer maize were not affected by the optimal N application practice in 2016 and 2017 (

Table 3. Crop yield and N uptake under different nitrogen treatments in a wheat-maize double cropping system.

Treatment	Wheat Yield (t ha−1)		Maize Yield (t ha−1)		Annual Yield (t ha−1)		Wheat N Uptake (kg ha−1)		Maize N Uptake (kg ha−1)
	2016	2017	2016	2017	2016	2017	2016	2017	2016	2017
N0	5.4b	5.9b	4.4b	5.8b	9.8b	11.7b	147.2b	172.7b	129.3b	186.2b
N1	7.5a	8.7a	9.6a	8.9a	16.8a	17.7a	223.3a	334.2a	263.8a	371.8a
N2	7.2a	9.3a	9.5a	8.4a	17.1a	17.8a	256.1a	331.9a	277.3a	353.2a
N3	7.3a	9.4a	9.9a	9.1a	17.1a	18.5a	254.2a	334.5a	237.2a	396.8a
N4	7.1a	9.7a	9.5a	9.0a	16.7a	18.7a	243.3a	366.6a	285.6a	373.0a

Different letters within a column represent significant differences (p < 0.05). The data for crop yield was published previously in Liang et al. [6].

). The N uptake of wheat and maize showed the same pattern as the yield in both growing seasons and there were also no significant differences among treatments. After harvesting, the crude protein (butt) of grains was analyzed, and the results revealed that annual N managements did not affect the crude protein of wheat and maize in either year (

Table 4. Crude protein of grains under different nitrogen treatments after harvest.

Treatment	Wheat		Maize
	2016	2017	2016	2017
	Crude	Crude	Crude	Crude
	protein (%)	protein (%)	protein (%)	protein (%)
N0	13.8b	12.1b	7.3b	9.7b
N1	14.7a	14.3a	8.1a	11.6a
N2	14.7a	13.9ab	8.0a	10.8a
N3	14.6a	13.9ab	7.9ab	10.7ab
N4	14.3a	14.5a	8.4a	10.8a

Different letters within a column represent significant differences (p < 0.05).

). In N0 treatment, the crude protein was significantly lower than the fertilized N treatments.

3.2. Plant N Derived from Fertilizer and Soil

In 2016 and 2017 winter wheat seasons, the N uptake in the straw of wheat derived from ¹⁵N-labeled urea (Ndff), and from the soil (Ndfs) did not differ significantly in the treatments, where the N rate was reduced or where topdressing was moved to the jointing stage compared with that of treatment N1. The grain’s N uptake from ¹⁵N-labeled fertilizer showed a similar trend to the straw that is showed in

Table 5. N uptake from ¹⁵N-labeled urea by wheat and maize after harvest in 2016 and 2017 under different N fertilizer treatments.

Crop	Treatment	Ndff (kg ha−1)		Ndfs (kg ha−1)		Ndff (kg ha−1)		Ndfs (kg ha−1)		Ndff (kg ha−1)	Ndfs (kg ha−1)	Ndff (kg ha−1)	Ndfs (kg ha−1)
		Straw(S)				Grain(G)				Total of 2016		Total of 2017
		2016	2017	2016	2017	2016	2017	2016	2017
Winter wheat	N0	-	-	-	-	-	-	-	-	-	147.2b	-	172.7b
	N1	23.5a	38.4a	40.8a	68.2a	71.3a	83.3a	87.7a	144.3a	94.8a	128.5a	121.7a	212.5a
	N2	30.0a	36.8a	51.4a	61.0a	73.6a	88.6a	101.2a	145.5a	103.6a	152.5a	125.3a	206.6a
	N3	26.4a	39.4a	46.3a	65.6a	79.2a	91.0a	102.3a	138.5a	105.6a	148.6a	130.4a	204.1a
	N4	23.4a	40.0a	41.6a	68.3a	77.0a	98a	101.3a	160.4a	100.3a	143.0a	138.0a	228.6a
		Straw(S+C+L)				Grain(G)				Total of 2016		Total of 2017
Summer maize	N0	-	-	-	-	-	-	-	-	-	129.3b	-	186.2b
	N1	33.3a	-	62.9ab	-	46.5a	-	121.0b	-	79.8a	184.0a	81.1a	290.7a
	N2	18.1b	-	62.1ab	-	46.0a	-	151.0ab	-	64.1a	213.2a	64.5b	288.7a
	N3	13b	-	62.8ab	-	16.5b	-	144.9ab	-	29.5b	207.7a	52.8b	343.9a
	N4	14.9b	-	65.5a	-	19.0b	-	186.3a	-	33.9b	251.8a	58.9b	314.1a

Different letters within a column represent significant differences (p < 0.05). Ndff represents N from ¹⁵N-labelled urea; Ndfs represents N from soil (total N uptake—Ndff); wheat straw includes stem and leaf; maize straw includes stem, leaf and cob.

. The distribution of ¹⁵N among these organs was as follows: grain > straw. The total N uptake in both years from the fertilizer (Ndff) and soil (Ndfs) was also not different among all treatments. However, the N derived from fertilizer (Ndff) in the maize plant performed differently (Table 5). There was a significant difference between treatments N1 and N3 and N4; Ndff in the different organs (straw and grain) was higher in N1 than in treatments N3 and N4 in 2016. Additionally, the ¹⁵N among the different organs in maize was as follows: grain > straw. Among the optimized N3 and N4 treatments, there were no significant differences. The ¹⁵N in the straw derived from soil (Ndfs) did not differ among treatments. However, in optimal N treatments, the Ndfs of grain were higher than the N1 treatment. Regarding total ¹⁵N uptake, the ¹⁵N derived from fertilizer (Ndff) in N1 and N2 was significantly different from that in N3 and N4. The total Ndff was lower in treatments N3 and N4, but the total Ndfs was not different among treatments. In 2017, the ¹⁵N uptake by the whole plant was measured and the result indicated a similar pattern to the ¹⁵N uptake of maize in 2016 (Table 5). Regarding the annual ¹⁵N uptake, there was no significant difference between all the treatments in either year (

Table 6. Annual N uptake from ¹⁵N-labeled urea by winter wheat and summer maize in 2016 and 2017.

Treatment	Crop	Ndff/N Uptake (%)	Ndfs/N Uptake (%)	Ndff/N Uptake (%)	Ndfs/N Uptake (%)		Ndff (kg ha−1)	Ndfs (kg ha−1)	Ndff (kg ha−1)	Ndfs (kg ha−1)
		2016	2016	2017	2017		Annual of 2016		Annual of 2017
N1	Winter wheat	42.5	57.5	36.4	63.6	Rotation system	174.6a	312.5a	202.8a	503.2a
N2		40.5	59.5	37.8	62.2		167.7a	365.7a	189.8a	495.3a
N3		41.5	58.5	39.0	61.0		135.1a	356.3a	198.8a	548.0a
N4		41.2	58.8	37.6	62.4		134.2a	394.7a	196.9a	542.7a
N1	Summer maize	30.3	69.7	21.8	78.2
N2		23.1	76.9	18.3	81.7
N3		12.4	87.6	13.3	86.7
N4		11.9	88.1	15.8	84.2

Different letters within a column represent significant differences (p < 0.05). Ndff represents N from ¹⁵N-labelled urea; Ndfs represents N from soil (total N uptake—Ndff).

). The total N uptake by wheat consisted of 40.5–42.5% of fertilizer ¹⁵N and 57.5–59.5% of soil N in 2016 and 36.4–39.0% and 61.0–63.6% in 2017, respectively. The total N uptake by maize consisted of 11.9–30.3% of fertilizer ¹⁵N and 69.7.7–88.1% of soil N in 2016 and 13.3–21.8% and 78.2–86.7% in 2017, respectively. The N derived from soil (Ndfs) in wheat and maize plants was more than what was derived from fertilizer (Ndff). This indicates that soil N is particularly important for the plant.

After the wheat harvest, the residual N (%) of the soil from fertilizer in the top 0–60 cm was analyzed and the result demonstrated that the N residual from treatment N1 was higher than that from other treatments, followed by N2, while treatments N3 and N4 were not significantly different in 2016 and 2017 (

Table 7. The fate of ¹⁵N-labeled urea in wheat-maize rotation system in 2016 and 2017.

Treatment	Wheat		Maize		Wheat		Maize		Wheat		Maize		Annual
	Plant Recovery (%)				Soil Residual (%) (0–60cm)				Potential Losses (%)				Plant Recovery (%)		Soil Residual (%)
	2016	2017	2016	2017	2016	2017	2016	2017	2016	2017	2016	2017	2016	2017	2016	2017
N1	35.1a	45.1b	33.3a	33.8a	26.8a	20.3a	21.7a	51.1a	38.1a	34.6a	45.0b	15.1c	34.2a	39.8b	25.6a	35.4a
N2	49.3a	59.7a	30.5a	30.7ab	23.8b	19.7ab	24.5a	45.7b	26.9a	20.6a	45.0b	23.6b	39.9a	45.2ab	22.4b	31.4b
N3	50.3a	62.1a	14.1b	25.2b	23.0b	18.8c	11.9b	21.0c	26.7a	19.1a	74.0a	53.8a	32.2a	43.6ab	17.5c	20.7c
N4	47.8a	65.7a	16.1b	28.0ab	22.8b	19.4bc	14.1b	20.9c	29.4a	14.9a	69.8a	51.1a	32.0a	46.9a	18.4c	20.1c

Different letters within a column represent significant differences (p < 0.05).

). In both years, after the maize harvest, the N residual of the soil displayed a similar trend to that after the wheat harvest. The annual residual was also taken into consideration and the results presented were similar in the two annual crop growing seasons. There was more residual N in the soil in treatment N1, followed by N2, while the soil residual in treatments N3 and N4 was lower. Moreover, the residual of the application mostly remained in the topsoil layer. The N recovery efficiency rate in wheat was not affected by the N application practice in 2016 but significantly higher in 2017 in optimal N treatments compared with N1. Furthermore, it greatly affected the maize when the N application rate decreased. In terms of annual N recovery efficiency, integrated N management showed a similar trend to wheat in two years of rotation. Table 7 also provided the loss of the ¹⁵N-labeled urea and the results showed that the potential loss did not differ among treatments in the wheat-growing seasons in 2016 and 2017. However, in the maize-growing seasons of both years, the loss rates were opposite to that in the wheat-growing seasons and in treatments N3 and N4, the losses were higher than in N1 and N2. This means the potential loss of N was higher when N was applied once, even though the N application rate was reduced.

3.3. Distribution of Residual ¹⁵N in Soil

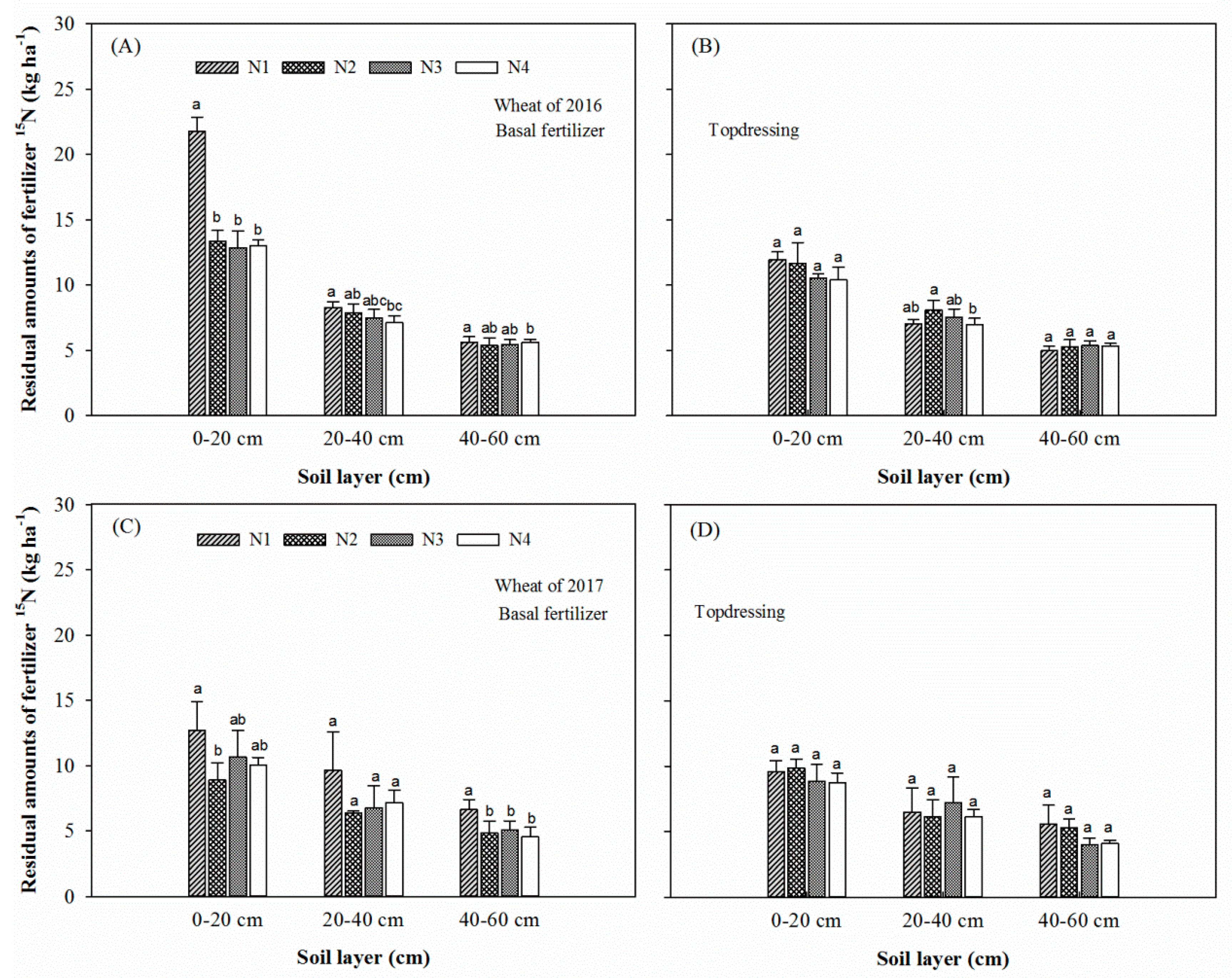

The distribution of residual ¹⁵N in the upper 0–60 cm of soil was analyzed and presented in Figure 2. After the wheat harvest, in the 2016 and 2017 growing seasons, the total residual ¹⁵N in the upper 0–60 cm accounted for 22.8–26.8% and 18.8–20.3% of ¹⁵N, respectively. In 2016, after wheat was fertilized basally, half of the residual ¹⁵N remained in the upper 0–20 cm of soil and N1 was significantly different from the other treatments (Figure 2A). Treatment N1 had the highest residual ¹⁵N when N was applied traditionally (210 kg N ha⁻¹). In the 20–40 cm and 40–60 cm soil layers, there was no difference between N1 and N2 or N3. However, applying N to wheat by topdressing showed that residual ¹⁵N was affected by application time compared with that of N1 (Figure 2B). Although in treatment N1, more N was applied than in the other treatments, its residual ¹⁵N did not differ from that of the other treatments in the upper 60 cm of soil. In 2017, the residual ¹⁵N distribution in the upper 60 cm of soil was similar to that in 2016 (Figure 2C,D). The above results indicated that the topdressing fertilizer is better at the jointing stage than at the wintering stage. It can reduce the residual N in the soil after the wheat harvest.

After the maize harvest, the residual ¹⁵N in soil was significantly different among treatments. Under different N management practices, the distribution characteristics in both years and in different soil profile layers were similar (Figure 3A,B). The residual ¹⁵N was mainly concentrated in the topsoil and was highest for N1, then N2. There was no difference between treatments N3 and N4 and the amount of residual ¹⁵N was lower. The results revealed that the amount of residual ¹⁵N decreased with lower N application rates. Furthermore, the application of slow-release fertilizer and its combination with urea were also important to reduce residual N in the soil. Since the N management is based on annual rotation, the annual residual ¹⁵N exposed that the treatments with reduced N application rate had lower residual ¹⁵N compared to that of treatment N1 in the top 60 cm of soil (Figure 3C,D). Additionally, applying the fertilizer three times is beneficial for reducing the residual N of the soil after the crop is harvested in a rotation system compared to that of traditional N practice.

4. Discussion

4.1. Effect of N Management on N Uptake and Grain Yield

Many studies have reported that optimizing N management by reducing the rate of application of N and adjusting the ratio of basal to topdressing N can enhance crop yield, plant N uptake, and NRE and reduce residual N in the soil [11,34,35]. In the present study, reducing the N application rate did not affect the grain yield or total N uptake of wheat and maize compared to that in traditional N application practice; in a previous study, similar results were obtained by Wang et al. and Jia et al. [11,36]. The reason may be ascribed to the relatively high N fertility (total N 1.54 g kg⁻¹) of soil environmental N inputs. Fang et al. [37] showed that reducing N fertilizer rates to about 100–200 kg N ha⁻¹ did not deplete NO₃⁻N content in 0–100 cm soil layer and maintained stable grain yield. Other researchers found that the N application rate did not affect the plant N derived from soil [26,36] which means a lower N application rate in a continuous wheat–maize double cropping system may cause soil N depletion. Our results also found that soil-derived N was more than one-second and two-thirds of the N assimilated by wheat and maize, respectively (Table 5). In the wheat–maize rotation system, annual N management did not affect wheat’s NRE but greatly affected the NRE of maize. In the maize growing season, when reducing the application rate of N, applying N at the jointing and bell stage (N2) performed better than other treatments in terms of improving the NRE. This may be because when basal N was applied before planting, it can easily be leached out to below the rooting zone when the crop has a limited root system for N uptake; in addition, the higher temperatures accelerate the decomposition of urea [38]. Furthermore, applying SRF at the ratio of 1:1 with urea as the sole source of N in the growing season of maize also did not sacrifice the grain yield. This result was closely related to the release characteristic of SRF and consistent with those of Geng et al. [39]. Some studies have reported that the protein content responded positively at the highest N rate, whereas at lower N rates, no significant difference was observed. In the present study, under the optimized N rate, our results are in accordance with those of Cucci and Lacolla [40], and Dostálová et al. [41].

4.2. N Efficiency in the Plant–Soil System

The different N managements significantly affected NRE, soil N residual and N losses of wheat and maize. Compared to traditional N practice, reducing the N application rate did not affect the NRE of wheat and annual NRE in 2016. But the NRE was significantly higher than N1 in 2017. For maize, the NRE in N3 and N4 decreased with one N application compared to split N in N1 and N2. The residual N in wheat and maize growing seasons were within the range of 20.9–23.6% and 16.4–36.4% (mean of two years), respectively. the N losses in wheat were in the range of 22.2–36.4%. The highest N losses were in N3 and N4 (60.45, 63.9%) in maize growing seasons, which were significantly higher than N1 and N2 (Table 7). As for topdressing fertilizer, applying N at the jointing stage of wheat increased the REN and the annual NRE was also improved. For maize, applying N at the jointing stage and bell stage may be attributed to better synchronization between N supply and crop demand compared to one application. The N uptake in N0 and the fate of ¹⁵N-labeled urea indicated the high inorganic N concentration in the soil profile. At the N rate of 210 kg ha⁻¹, total plant N derived from the fertilizer of wheat was in the range of 114.5–119.2 kg ha⁻¹(mean of two years). An average of 92.8 kg ha⁻¹ fertilizer N lost to the environment, which included 19.7 kg ha⁻¹ residual N remained in the soil and 73.1 kg ha⁻¹ N lost by gaseous losses. For maize, total plant N derived from fertilizer was only 41.2–64.3 kg ha⁻¹ (mean of two years), An average of 159.4 kg ha⁻¹ fertilizer could be saved in the maize growing season, including 35.8 kg ha⁻¹ residual N and 123.5 kg ha⁻¹ gaseous N. Therefore, the N losses in this two ways accounted for at least 50% among the treatments. The fertilizer N application could be cut in half without crop yield reduction for two annual rotation years.

4.3. Fate of ¹⁵N-Labeled Urea Affected by N Management

Application practice affected the utilization of N from fertilizer and soil by the crop. To monitor the N dynamics in plant and soil during the growth seasons of the crop, the fate of ¹⁵N-labeled urea was investigated. In this study, for wheat, the ¹⁵N-labeled urea derived from fertilizer and soil in straw and grain was not significantly different among the treatments for the two years. For maize, the total N uptake consisted of 12.85–26.05% (mean of two years) of fertilizer ¹⁵N and 73.95–87.15% (mean of two years) of soil N, respectively. In the wheat growth season, the N derived from fertilizer did not differ compared with N1 when reducing the N application rate. In the growth season of maize, reducing the N application rate decreased the plant’s N from fertilizer, but more N from the soil was absorbed compared to that in N1 (Table 5 and Table 6). These results are similar to those in earlier studies of Rimski-Korsakov et al. [42] and Wang et al. [34], who studied different N split application to plastic mulched maize and this suggests that the majority of the crop’s N comes from N mineralization of soil organic matter and not directly from fertilizer. Other studies also reported that the N in the crop absorbed by mineralization of the soil organic matter can account for 62–80% of the total N in cereal crops [28,43]. In the present study, optimized N use could reduce the annual N fertilization rate and improve N uptake from soil especially for maize, which is beneficial to the environment.

It is generally believed that N losses inevitably occur when large amounts of N fertilizer are applied to the soil, especially on farmers’ fields. In this study, the potential losses after the wheat harvested were not different among treatments in either year, but the N losses in N1 were higher than in the other treatments (Table 7). This indicated that integrated N treatment, with its reducing N application rate, results in lower N losses than in N1, without a corresponding decrease in grain yield. Furthermore, in the growth seasons of wheat, the N losses in integrated N treatments were relatively lower, ranging from 22.2% to 23.8% (mean of two years). N losses were lower than in other reports that studied the maize and rice system, such as Shi et al. [44] and Wang et al. [28]. Our results also found that the N losses for the summer maize season were significantly higher than the winter wheat season. This result was also similar to that of Cai et al. and Wang et al. [29,45]. This may be due to the lower NH₃ volatilization and N leaching losses, which depend on the weather conditions (precipitation/irrigation and air temperature) and soil moisture (Figure 1). However, the losses of ¹⁵N-labeled fertilizer during the maize season accounted for 63.9 and 60.5% (mean of two years) in treatments N3 and N4, respectively, and were significantly higher than in N1 and N2. During the growth season of maize, the temperature was high and rainfall was relatively low, especially in August, which led to lower soil moisture levels. Therefore, leaching losses is not a significant pathway for N loss from fertilizer in maize [45]. Other studies have already reported that the lower seasonal rainfall resulted in less soil water flux and less leaching losses [38,46]. The higher potential losses for N3 and N4 in maize were mainly ascribed to gaseous N emissions to the atmosphere. Regarding this, N₂O emission, although subjected to fertilizer management, accounts only for a very little part of the total N applied. The IPCC [47] established that 1.25 ± 1.0% of the fertilizer N applied is lost to the atmosphere in the form of N₂O. Thus, in this study, gaseous N losses by NH₃ volatilization may have reflected the actual losses more closely since the fertilizer (SRF or urea) was applied at a depth of 10 cm and covered with soil. Other studies indicated that the best measure to obtain higher N use efficiency and reduce N losses is by placing fertilizer at 15–20 cm depth, especially when using slow-release urea in the growing season of maize [13,45,48]. Moreover, it is well known that another important factor governing the NH₃ volatilization is ammonical N concentration [49,50]. In our study, a possible reason for higher gaseous N losses was that the ammonical N concentration was substantially higher when fertilizer was applied once in N3 and N4 treatments in maize compared to that of treatments N1 and N2. An amount of SRF applied equivalent to the traditional urea rate of N did not reduce the N losses, which may due to the sustainable release of N supplied by SRF leads to a higher N content in topsoil compared to that of treatment N1 and N2. Wang et al. [29] reported that NO₃⁻-N content, temperature, and soil moisture had a significant positive influence on denitrification losses. In this study, the denitrification losses occurred for summer maize due to the higher N content and high temperature. Xie et al. [51] found that a 10% reduction of application SRF led to lower N₂O emissions. Lower N losses were obtained when N fertilizer application was divided into an appropriate ratio of basal and topdressing N. In this case, though fertilizer applied once in maize can reduce labor input, N loss was higher compared to split fertilization.

The soil residual of the ¹⁵N-labeled fertilizer at wheat and maize harvest was calculated in the upper layer of 0–60 cm. In the present study, the N application rate affected the amount of residual in the soil significantly. The residual in N1 was obviously higher than in other treatments and reducing the application rate of N can significantly decrease the soil residual (Figure 2, Figure 3 and Table 7). Similar results were reported by Liu et al. [52]. For wheat, N topdressing had no effect on the N residual of the soil. While in the case of maize, the fertilizer management obviously influenced the soil N residual. In N3 and N4 treatments, using SRF only or in combination with urea at a ratio of 1:1 can decrease the amount of N residual, but increased the N losses compared to N2. This was due to the split N application (N2) being more optimal than one-off fertilization (N4). In the maize growing season, using SRF once in N3 and N4 saved labor and time and increased the economic benefits [6], but the NRE was lower than the split N application. Regarding the annual N residual, treatment N1 was highest, then N2, and N3 and N4 were lowest. The annual residual ¹⁵N in the upper 60 cm soil layer ranged from 17.5% to 25.6% in 2016 and from 20.1% to 35.4% in 2017. This was consistent with the report of Shi et al. [44], who found the soil residual in the upper 100 cm of the Middle and Lower Yangtze River Basin to account for just 33%. The lower residual N in the present study may be attributed to the higher gaseous losses during the growing season of maize.

To sum up, in terms of wheat and maize grain yields, NRE, residual N of the soil, and N losses in an intensive wheat-maize rotation system, the N rate in the present study was 210 kg ha⁻¹ per plant (annual N 420 kg ha⁻¹). This N rate was similar to the optimum application rate (200 kg ha⁻¹, 202 kg ha⁻¹, 210 kg ha⁻¹) reported by Fang et al., Zhang et al., and Jia et al. [36,37,53], but higher than other results (150 or 120 kg ha⁻¹) [54,55]. In the present study, the N uptake of the plant was 129.3–186.2 kg ha⁻¹ in N0 treatment. Under the different N treatments of two years, the N uptake of wheat that derived from fertilizer was within the range of 94.8–105.6 kg ha⁻¹ and 121.7–138.0 kg ha⁻¹, and 128.5–152.5 kg ha⁻¹ and 204.1–228.6 kg ha⁻¹ that was derived from the soil, respectively. The fate of ¹⁵N labeled-urea demonstrated that 57.5–63.6% N accumulated in the wheat plant and 69.7–88.1% in maize was derived from soil, respectively. These results indicated that the N uptake in the present study was higher with high soil mineralization. Sufficient N supply in soil enhanced N uptake by the plant from the soil. Some works have already reported that crop yield response to applied N was strongly affected by soil N supply [56,57]. Olson et al. [57] found that if soil profile inorganic N exceeded 120 kg ha⁻¹, the crop yield had no response to added N. A second reason is the large amount of nitrate-N accumulated in the root zone and severe leaching did not occur since the rainfall was lower in the crop growing season. Furthermore, it may also be related to the differences of N nutrition characteristics among different genotypes of wheat. Thus, the 210 kg ha⁻¹ application rate was still high under high fertility conditions. The current N managements were relatively effective in improving NRE, soil’s N residual and N losses, but they were not optimal fertilization management. Zhao and Yu [58] reported that under high fertility soil, at the mature stage of wheat, 73.3–87.3% N uptake was derived from soil and 34.2–43.7% from N fertilizer applied. The N rate in the range of 150–195 kg ha⁻¹ was beneficial to crop yield, NRE, and environment. Similar results had been reported by Wang et al. [34] and Chen et al. [59]. Another study showed that under the conditions of high fertilization for many years, the soil N supply was sufficient to match the crop needs even without fertilization [60]. These researches were in agreement with the present study as described above. Apparently, the optimal N rate should be determined by crop yield potential and background soil fertility, especially the available N content in the soil and fertilizer-holding capacity of the soil. Based on present N treatments, we recommend that decreasing N rate by 40% for winter wheat with split N at the basal and jointing stage, and for summer maize, reducing the N rate by 50% with two topdressing N at the jointing and bell stage may be a more efficient strategy to enhance NRE and reduce N losses to the environment. Further studies are still needed to determine optimum N management practice in the long term based on the soil N_min test, which can be applied in the winter wheat-summer maize rotation system in the North China Plain.

5. Conclusions

In general, compared with the conventional practice of N fertilization, reducing the application rate of N did not affect the yield of wheat and maize in both rotation years. Optimized annual N management does not affect the total N uptake by the plant but affected the proportion of N uptake that derived from fertilizer and soil. It can induce plants to absorb more N from the soil, especially maize. The NRE did not differ significantly with annual N management. Moreover, the residual N in the soil can be reduced by reducing the N application rate. The potential losses in wheat were not significantly different among treatments, but maize N3 and N4 had higher potential losses. Considering the large amount of labor involved in topdressing, N3 and N4 are better solutions for farmers using the wheat–maize double system when placing fertilizer at a depth of 15 cm. When SRF is too expensive for farmers, and minimizing environmental pollution from NH₃ volatilization and denitrification losses, N2 is also an alternative choice. However, the continuous reduction of N fertilizer may reduce soil fertility in the long term. Therefore, these strategies are suitable for at least two years of wheat-maize rotation production and it remains to be determined for several successive years.
