Increasing Growth of Lettuce and Mizuna under Sole-Source LED Lighting Using Longer Photoperiods with the Same Daily Light Integral

Abstract

Light recommendations for horticultural crops often focus on the optimal daily light integral (DLI) without regard to how that light is delivered throughout each day. Because photosynthesis is more efficient at lower photosynthetic photon flux density (PPFD), we hypothesized that longer photoperiods with lower PPFD results in faster growth than shorter photoperiods with higher PPFD and the same DLI. We quantified the effect of different photoperiods, all providing the same DLI, on photosynthesis and growth of two leafy greens. Mizuna (Brassica rapa var. japonica) and lettuce (Lactuca sativa) “Little Gem” were grown from seed in a controlled environment chamber (20 °C and 819 µmol·mol⁻¹ CO₂) under six photoperiods (10, 12, 14, 16, 18, and 20 h). LED fixtures provided white light and PPFD was adjusted so each treatment received a DLI of 16 mol·m⁻²·d⁻¹. Mizuna and lettuce were harvested 30 and 41 days after planting, respectively. Longer photoperiods with lower PPFD increased light interception, chlorophyll content index, quantum yield of photosystem II, and aboveground biomass, but decreased instantaneous CO₂ assimilation of lettuce and mizuna. Aboveground biomass increased 16.0% in lettuce and 18.7% in mizuna in response to increasing the photoperiod from 10 to 20 h. In summary, extending the photoperiod and lowering PPFD increases growth of lettuce and mizuna by increasing light interception and the quantum yield of photosystem II.

1. Introduction

Photosynthesis is the primary process plants use to accumulate biomass, and whole-plant photosynthesis is directly related to overall crop productivity [1,2]. In controlled environment agriculture, such as greenhouses and plant factories, natural sunlight is supplemented or replaced with electrical lighting to achieve adequate photosynthesis and growth. The cost of electricity in such facilities is high, comprising up to 30% of growers’ operating costs [3]. With the advent of dimmable light-emitting diode (LED) lighting fixtures and programmable control systems, the timing and intensity of horticultural lighting can be controlled more precisely than ever before.

Light recommendations for crops often focus on the optimal daily light integral (DLI, total amount of photosynthetic light received by a plant in a day), without regard to how that light is delivered over time [4]. The daily light integral is a function of the photoperiod and photosynthetic photon flux densities (PPFDs) throughout that photoperiod. Finding the optimal way to provide supplemental or sole-source lighting, maximizing the efficiency with which plants intercept and use light to produce marketable biomass, has the potential to reduce input costs and increase yields and profitability [5]. Plants use light most efficiently for photosynthesis at lower light intensities [6], suggesting that providing a specific DLI over longer photoperiods and lower PPFDs increase daily photosynthesis and potentially growth. Such lighting approaches have been studied since at least the 1970s. Early studies on different crops (sugar beet, beetroot, and spinach beet (Beta vulgaris ssp. vulgaris), lettuce (Lactuca sativa), cabbage (Brassica oleracea), oilseed rape (B. napus ssp. napus), radish (Raphanus sativus), celery (Apium graveolens), and tomato (Solanum lycopersicum)) demonstrated that when the same total amount of light is delivered to plants at a lower intensity across a longer photoperiod, plants produced more biomass. This was attributed to greater net assimilation [7,8,9,10]. In some of these studies, the photoperiod was extended with very low-intensity light at the beginning and/or end of the photoperiod, which adds a negligible amount of light to the total DLI [7,8]. However, this approach may introduce confounding effects, caused by shade responses induced by that low-intensity light, especially if that light is provided by incandescent bulbs, which have a low red:far-red ratio. In addition, some prior studies used different combinations of multiple lamp types (e.g., fluorescent and incandescent bulbs) to achieve their desired light levels, which introduced differences in light spectra among treatments [7,8]. In another study [9], the type of lights used or how the different light intensities in each photoperiod treatment were achieved were not reported.

More recently, growth and photosynthesis of tomato plants under 12 h and 24 h photoperiods with the same DLI were compared, in part to investigate whether diurnal temperature fluctuations could mitigate injury caused by continuous lighting [10]. Despite many plants developing physiological injuries from the 24 h photoperiod treatment, they still produced more biomass than plants grown in the 12 h photoperiod treatment. Taking advantage of dimmable LED fixtures, we previously conducted greenhouse trials where plants in different treatments all received the same DLI, but spread out over photoperiods ranging from 12 to 21 h. The shoot and root dry mass of Rudbeckia fulgida var. sullivantii seedlings increased by 30 and 24%, respectively, as the photoperiod increased from 12 to 21 h [11], while lettuce shoot dry mass increased by 28% [12]. Under sole-source lighting, the effect of longer photoperiods, with the same DLI, on the growth of lettuce may be greater when that DLI is higher [13], consistent with the finding that the total daily electron transport rate through photosystem II responds more strongly to longer photoperiods when the DLI is higher [14].

Crop growth depends on how much light is intercepted by the crop and how efficiently that light is subsequently used for biomass production. Thus, our goal was to quantify the effects of different photoperiod and PPFD combinations on light interception and photosynthetic physiology of two species of leafy greens (lettuce and mizuna (Brassica rapa var. japonica)). We hypothesized that longer photoperiods with lower PPFD increase photosynthetic efficiency, resulting in faster growth than shorter photoperiods with higher PPFD.

2. Materials and Methods

2.1. Growing Space Setup and Lighting Treatments

The experiment was conducted in a walk-in growth chamber (temperature 19.1 ± 0.4 °C; vapor pressure deficit 1.38 ± 0.15 kPa; CO₂ concentration 819 ± 43 µmol·mol⁻¹; means ± SD). Three metal racks were housed within the growth chamber. Each rack contained three shelves, which were divided into two sections to create six individual growing areas per rack; the three racks together contained a total of 18 growing areas. Small fans were mounted at evenly spaced intervals along the edges of the racks within each growing area to provide horizontal air flow over the canopy. Two LED light bars (SPYDRx Plus with PhysioSpec indoor spectrum; Fluence Bioengineering, Austin, TX, USA) supplied light to each growing area. One dimmable driver controlled three pairs of lights, one pair on each rack. Six drivers allowed for six different lighting treatments in each rack. Each full rack represented one block, for a total of three blocks. Treatment positions were randomized within each rack. The experiment was replicated twice in the same growth chamber and treatments were re-randomized for the second experiment.

Plants were grown under six photoperiods (10, 12, 14, 16, 18, and 20 h). The PPFD output from the light fixtures in each treatment was adjusted so that all treatments received the same DLI of 16 mol·m⁻²·d⁻¹ throughout the study (

Table 1. The six lighting treatments with different photoperiods and photosynthetic photon flux density (PPFD). The PPFD decreased proportionally as the photoperiod increased to maintain a daily light integral (DLI) of 16 mol·m⁻²·d⁻¹ in all treatments.

Photoperiod (h)	PPFD (µmol·m−2·s−1)
10	444
12	370
14	318
16	278
18	247
20	222

). The PPFD output was adjusted using pulse width modulation (PWM) signals from a datalogger (CR6; Campbell Scientific, Logan, UT, USA) to the drivers. The PPFD was measured at the substrate surface under each light fixture using a handheld quantum sensor (SS-110; Apogee Instruments, Logan, UT, USA).

2.2. Plant Material and Growing Practices

Mizuna and lettuce “Little Gem” were grown from seed. Seeds were sown in 10 cm square plastic pots containing soilless substrate (Fafard 3B mix; Sun Gro Horticulture, Agawam, MA, USA) and the trays were subirrigated daily using an automated ebb-and-flow system supplying a fertilizer solution containing 100 mg·L^–1 total N (15N-2.2P-12.5K, Peters Excel 15-5-15 Cal-Mag Special, ICL Specialty Fertilizers, Dublin, OH, USA). Fertilizer solution was added to the ebb-and-flow reservoirs as needed; the solution in the reservoirs was not changed during the experiment. One tray with 15 pots of each of the two species was placed in each growing area. Species were arranged randomly within each section, and re-randomized in each experiment.

The mizuna and lettuce grew at different rates and were harvested at 30 and 41 d after planting (DAP), respectively. Harvest times were determined by visual inspection; mizuna plants were harvested when they outgrew the available space, while the lettuce was harvested when most of the plants had reached a commercial size.

2.3. Data Collection

Leaf chlorophyll content index (CCI, a dimensionless indicator of leaf chlorophyll content) was measured with a handheld chlorophyll content meter (CCM-200 plus; Opti-Sciences, Hudson, NH, USA) in both species at regular intervals during both experiments. Four fully expanded leaves in each tray were measured and the average CCI value calculated.

The quantum yield of photosystem II was measured with a chlorophyll fluorometer (Mini-PAM; Walz, Effeltrich, Germany) on leaves of both species just before harvest (29 and 40 DAP for mizuna and lettuce, respectively) during the first experiment. Four fully expanded leaves with direct exposure to the overhead lights were measured in each experimental unit and the average of the four readings in each unit was calculated.

Photosynthesis—light response curves were measured with a portable leaf photosynthesis system (CIRAS-3; PP Systems, Amesbury, MA, USA) shortly before final harvest in the second experiment; mizuna was measured between 25 and 28 DAP, and lettuce was measured between 38 and 41 DAP. Light response curves were measured on one leaf of one representative plant from each experimental unit, for a total of 18 curves per species. Net photosynthesis was measured under eleven PPFDs, ranging from 0–2000 μmol m⁻² s⁻¹, administered from lowest to highest intensity. Each PPFD level was maintained for 180 s. Light was provided by white LEDs built into the leaf cuvette. Leaf temperature and CO₂ concentration in the cuvette were maintained at 25 °C and 800 μmol⋅mol⁻¹, respectively.

Canopy light interception of both species was measured at regular intervals throughout both experiments using a ceptometer (AccuPAR LP-80; Meter Group, Pullman, WA, USA). The ceptometer light sensor bar was inserted below the canopy at the pot level in four different directions and the average light level of the four measurements was calculated. Light interception percentage was determined by using an initial light measurement at the top of each tray before seedlings emerged as the reference value (0% light interception) for subsequent measurements. Light interception percentage was calculated as ((initial light level—current level)/initial light level) × 100%.

Leaf area and aboveground biomass were measured in both experiments. Leaves were separated and counted during harvest and total leaf area was measured with a leaf area meter (LI-3100; Lincoln, NE, USA). Aboveground dry mass was measured after drying the samples in a drying oven at 80 °C for approximately 72 h. Biomass of root/hypocotyl tissue from mizuna plants was also measured during the second experiment.

2.4. Experimental Design and Data Analysis

The experiment used a randomized complete block design with three blocks, and it was replicated twice in time. Most data were analyzed using mixed models (JMP statistical software, SAS Institute, Cary, NC, USA).

Light response curves were fitted in SigmaPlot (Version 11.0, Systat Software, Inc., San Jose, CA, USA) using a three-parameter exponential rise to a maximum with the equation:

P_n = R_d + P_g,max × (1 − e ^{− QYm × PPFD/Pg,max}),

(1)

where P_n is net photosynthesis, R_d is dark respiration, P_g,max is the light-saturated gross photosynthesis, and QY_m is the maximum quantum yield of CO₂ fixation (mol of C fixed/mol of incident light; the initial slope of the regression curve). These three physiological parameters were analyzed as a function of PPFD. The light response curves were also used to estimate the leaf P_n at the PPFD the plants were grown under. Parameters from these regressions were analyzed with the same mixed model method as the other data.

The data were analyzed using mixed models (JMP, Sas Institute, Cary, NC, USA). Aboveground biomass data from both species and both experiments were pooled together for analysis; experimental replicate and block were random effects while photoperiod or PPFD, species, and species × photoperiod (or PPFD) interaction were fixed effects.

3. Results and Discussion

3.1. Leaf Characteristics and Light Interception

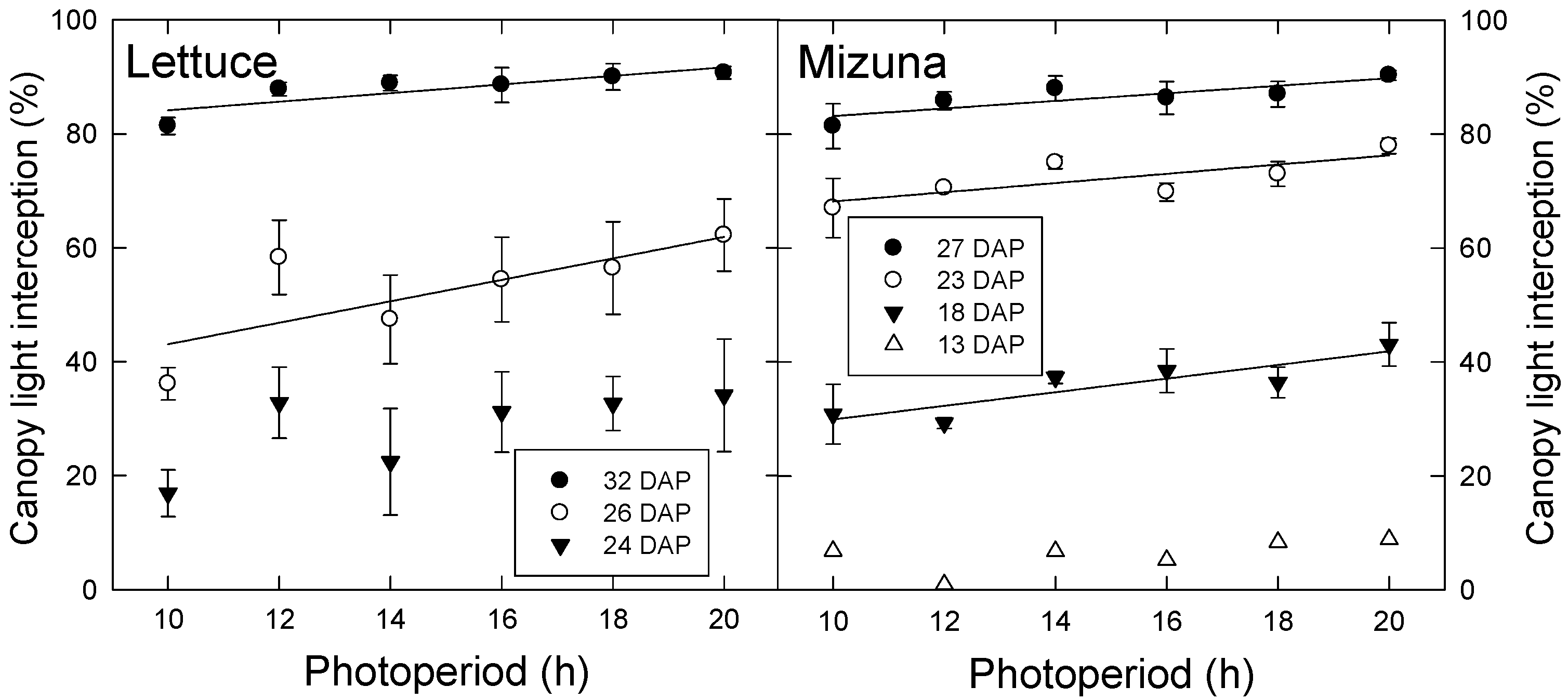

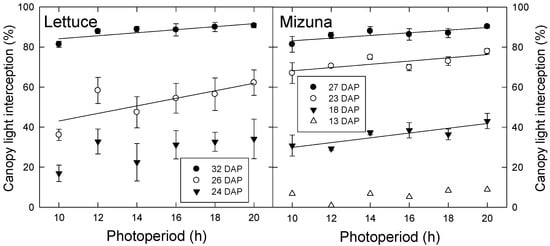

There was no difference in final leaf area or area per leaf among photoperiod treatments in either lettuce or mizuna. However, differences in canopy light interception arose over time and these differences persisted until harvest. Both species had greater light interception with longer photoperiods. During the first experiment, differences occurred in lettuce starting at 26 DAP and in mizuna at 18 DAP (Figure 1). This pattern was similar in the second experiment, where differences occurred in lettuce and mizuna starting at 25 and 23 DAP, respectively (data not shown).

Since there was no difference in total leaf area or area per leaf among photoperiod treatments, other morphological factors must account for the differences in light interception percentage. Under lower PPFD, plants may have had longer leaves that extended farther to increase light interception; We have previously seen that lettuce plants grown under lower PPFD had longer leaves than those grown under higher PPFD, which reduced overlap of leaves and increased light interception (Legendre, pers. comm.). In an experiment comparing Iris pumila plants grown in shaded versus unshaded natural habitats (estimated average PPFD of 55 and 505 μmol m⁻² s⁻¹, respectively), leaf length, leaf width, and leaf area were all higher in shaded plants, but the magnitude of the increase in leaf length was greater than that of the leaf width [15]. This indicates that shade may induce a change in leaf shape that reduces intra-plant shading and increases light interception.

In addition to possible changes in leaf shape causing differences in light interception, lettuce plants grown under the shortest photoperiod with the highest PPFD had leaves held at a steeper angle toward the light source than those of plants grown under longer photoperiods (Figure 2), which reduces light exposure. Visual differences in lettuce leaf angle decreased as the plants aged. Lettuce plants in the shortest photoperiod treatment also had lighter green leaves (consistent with lower chlorophyll content) than those in the longest photoperiod treatment.

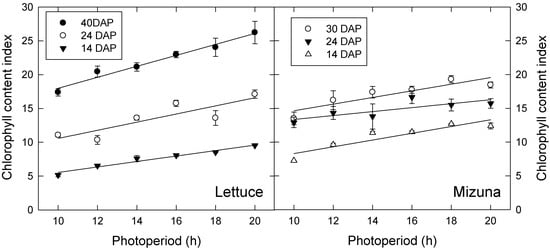

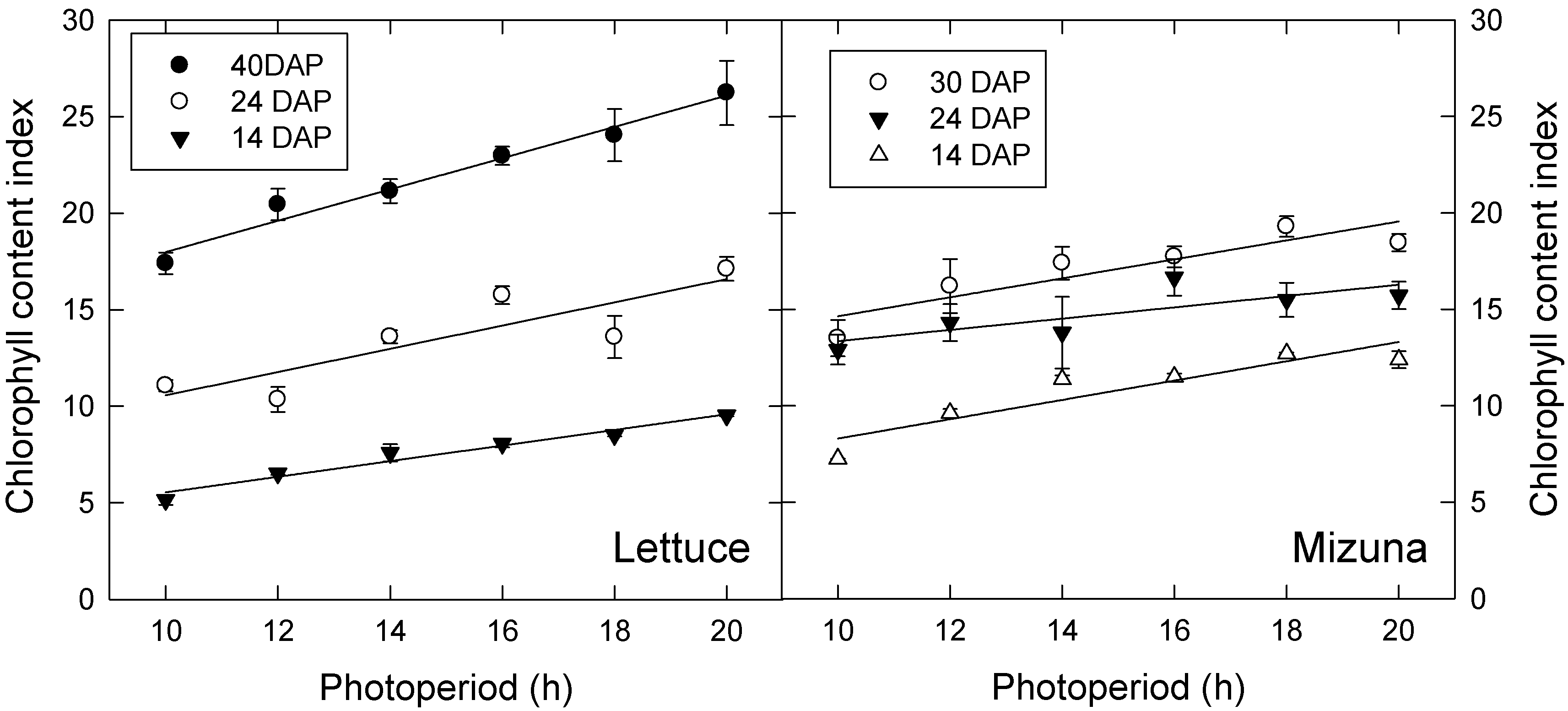

Lettuce and mizuna both had higher leaf chlorophyll content index (CCI) under longer photoperiod treatments in both experiments. CCI increased over time in both species during the second experiment, but this did not occur during the first experiment (Figure 3; only data from experiment 2 shown). During the first experiment, photoperiod effects on CCI of lettuce and mizuna were no longer significant at 41 and 27 DAP, respectively, but photoperiod effects on CCI remained significant throughout the second study. We previously hypothesized that the increase in CCI in the longer photoperiod/lower PPFD treatments is a shade-acclimation response to increased leaf light absorption under low PPFD [12]. However, in subsequent studies, we have observed that CCI increases with increasing PPFD, if all plants are exposed to the same photoperiod (unpublished results). This suggests that the observed treatment effects are the result of differences in photoperiod, rather than PPFD. Since chlorophyll production is a light-regulated process [16], the shorter photoperiods may simply reduce the amount of time during which the plants can produce chlorophyll.

Many of the lettuce plants developed tip burn during the latter part of the experiment (Figure 2C). The frequency of tip burn occurrence was not measured; however, it was present in plants from all six photoperiod treatments. Tip burn in lettuce is a physiological disorder attributed to localized calcium deficiency in fast-growing leaf tissues; the most likely cause of this condition was inadequate air circulation near the meristems of the plants [17]. The fans installed on the growth racks provided horizonal air flow above the lettuce canopy, but may not have been sufficient to penetrate the tightly packed center leaves of the rosettes. In a greenhouse study using an adaptive supplemental lighting system to provide different photoperiods with the same DLI, tip burn in “Little Gem” lettuce was more common in plants grown under longer photoperiod treatments, consistent with the faster growth of those plants [12]. Calcium deficiency tends to be exacerbated in faster-growing plants [18].

3.2. Leaf Photosynthesis

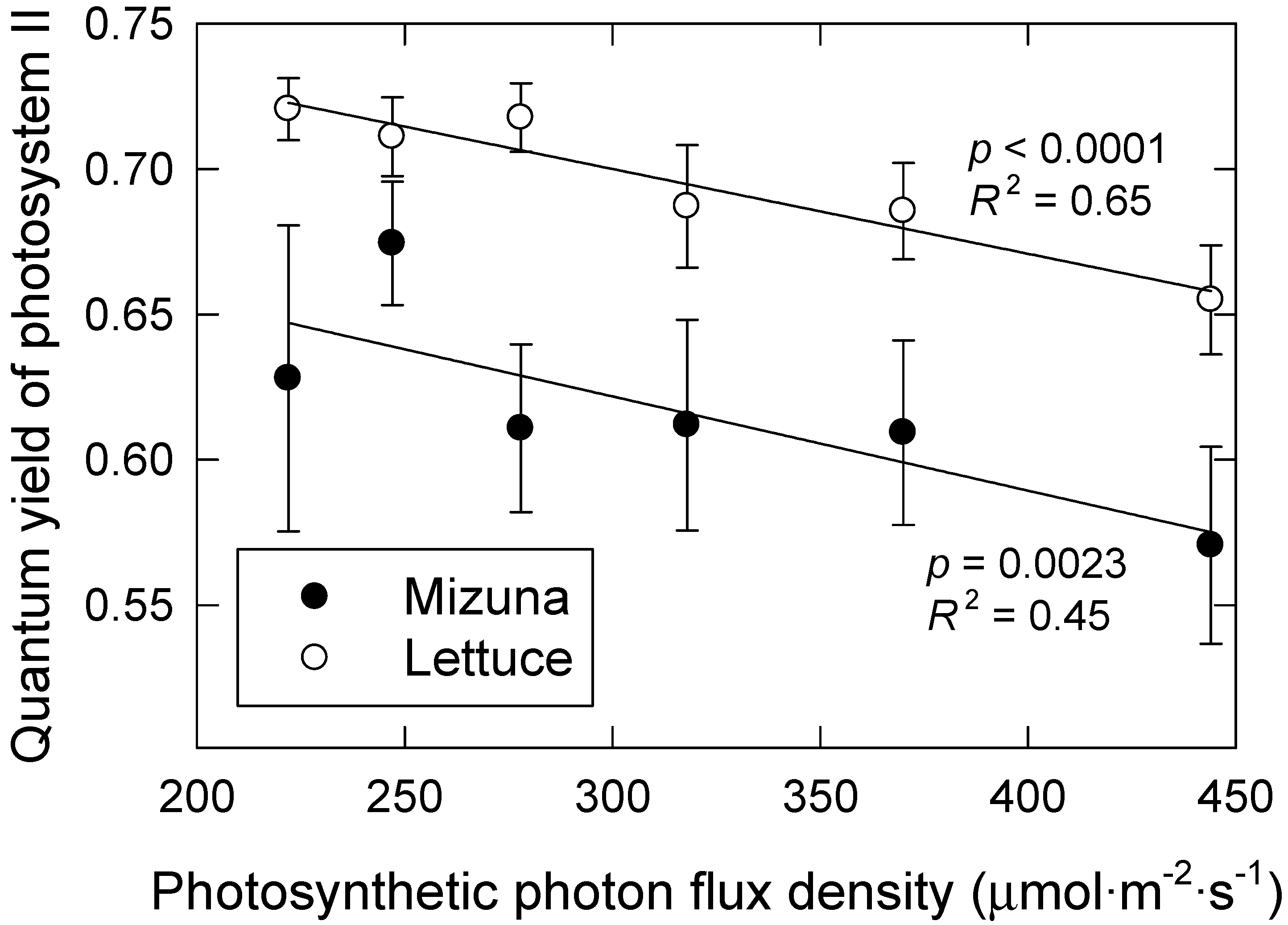

Lettuce and mizuna both had higher Φ_PSII when grown under longer photoperiod treatments with lower PPFD (p = 0.0023 and p < 0.0001, respectively) (Figure 4); doubling the PPFD from 222 to 444 resulted in 9% and 11% decreases in Φ_PSII in lettuce and mizuna, respectively. These results are consistent with prior research demonstrating that photochemistry is more efficient at lower light intensities [6,19]. At high PPFD, a larger proportion of the PSII reaction centers are closed, making them incapable of accepting additional excitation energy from photons. In addition, heat dissipation of absorbed light energy is upregulated in response to higher PPFD [20]; thus, a larger proportion of the absorbed photons are not used for photosynthesis, but instead their excitation energy is dissipated as heat or re-emitted as fluorescence light to avoid damaging the PSII machinery [20]. We have previously found that Φ_PSII of lettuce varies little during different photoperiods with constant PPFD, resulting in greater daily electron transport through photosystem II under longer photoperiods with lower PPFD [14]. We did not calculate electron transport rates in the current study, because leaf absorptance values are needed to do so. We did not measure leaf absorptance, but it likely differed among treatments. Leaf absorptance is correlated with leaf chlorophyll levels [21] and the leaves of plants grown under longer photoperiods, and with higher CCI, thus likely had higher leaf absorptance.

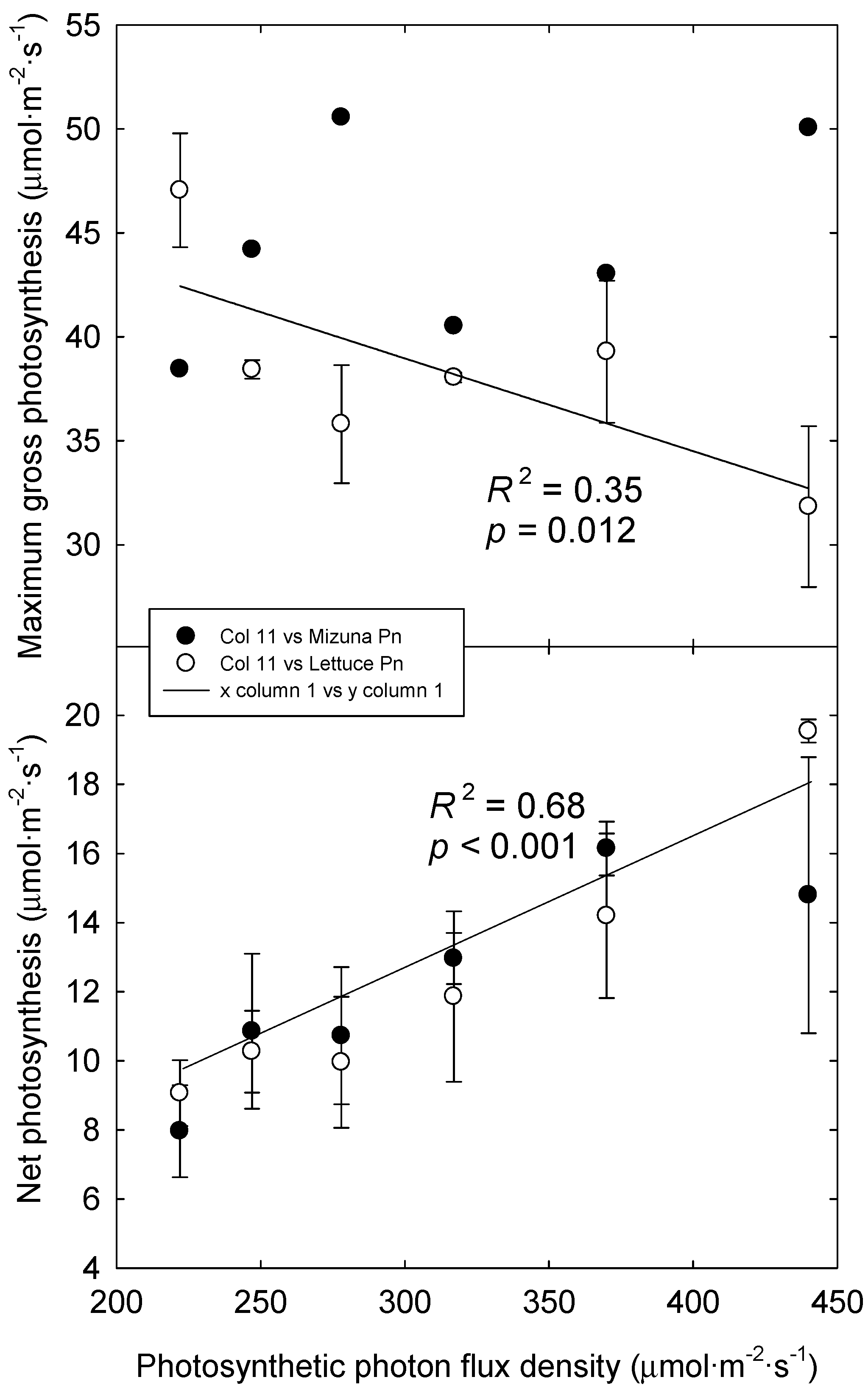

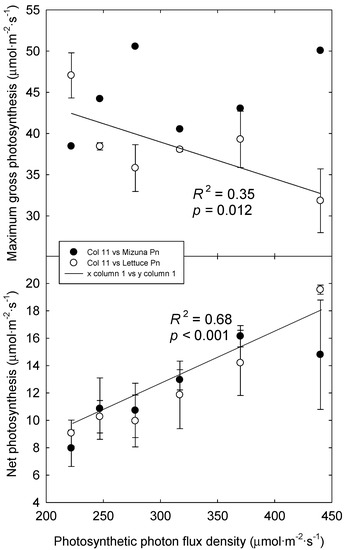

Dark respiration did not differ among photoperiod treatments in either species and averaged 3.4 and 4.5 μmol m⁻² s⁻¹ for lettuce and mizuna, respectively. The maximum quantum yield of CO₂ fixation also did not differ among photoperiod treatments in either species and averaged 0.066 and 0.070 mol mol⁻¹ for lettuce and mizuna, respectively. P_g,max of lettuce decreased from 44.2 to 33.6 µmol·m⁻²·s⁻¹ as PPFD increased (p = 0.01), but there was no effect in mizuna (average P_g,max of 44.5 µmol·m⁻²·s⁻¹) (Figure 5). The decrease in lettuce P_g,max under high light follows a similar trend as CCI and lettuce P_g,max and CCI were positively, but not strongly, correlated (p = 0.022, R² = 0.30). Similar responses occurred in three species of Heliconia under high light conditions; plants exhibited lower quantum yield, had a lower maximum photosynthetic rate, and lower chlorophyll content per unit leaf area when grown in full sun, compared with those grown under varying shade levels [22].

3.3. Biomass Production

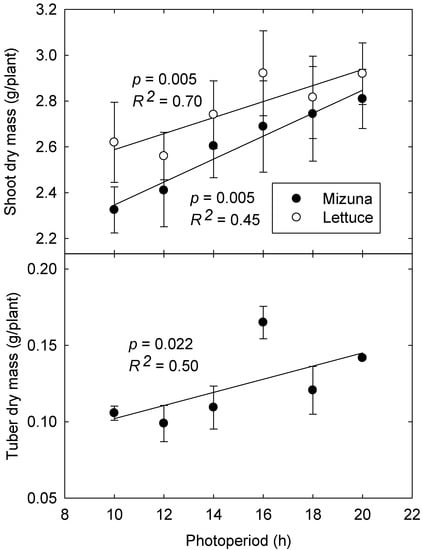

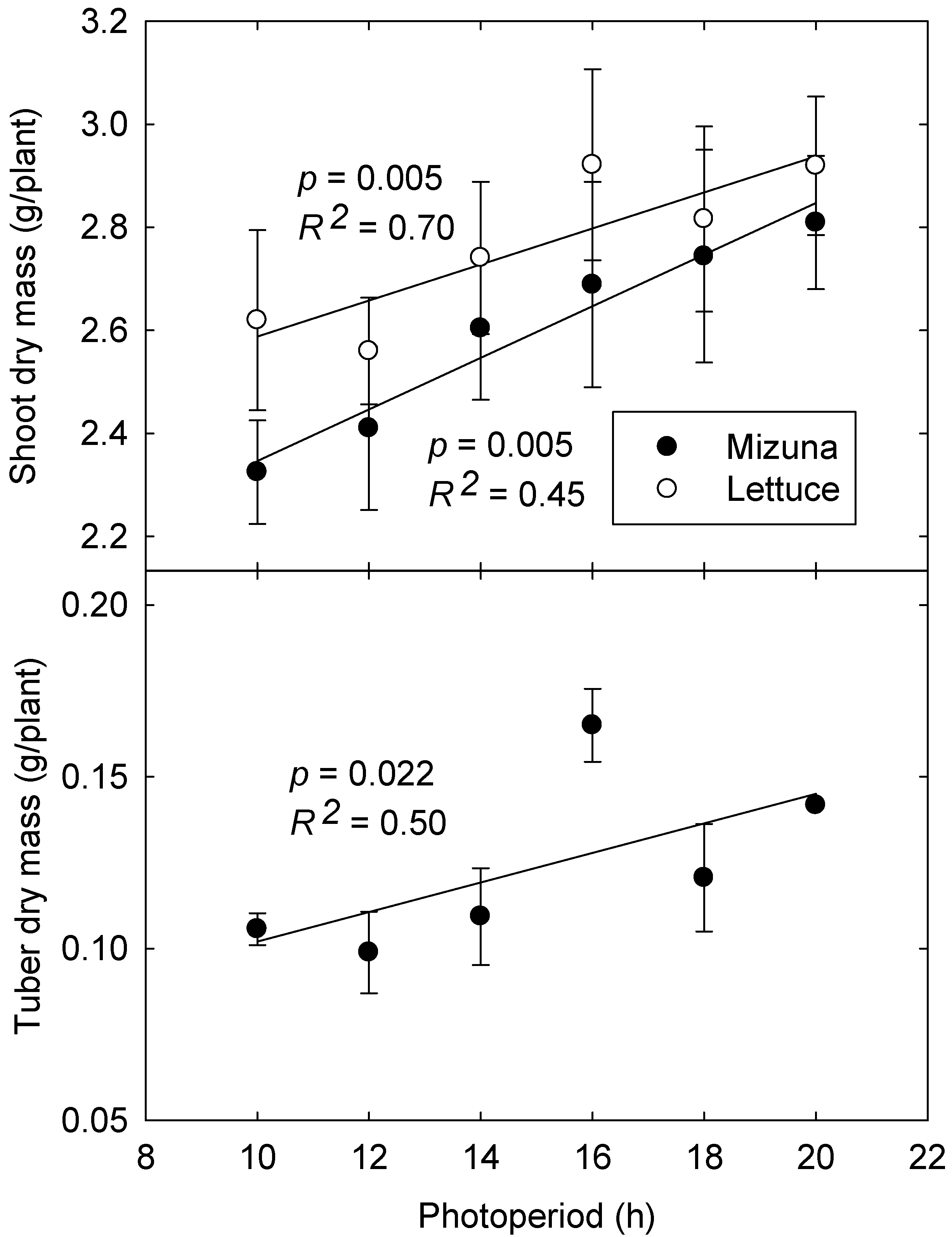

Averaged over both experiments, both lettuce and mizuna grown under longer photoperiods with lower PPFD had greater aboveground biomass (16.0% and 18.7% increases, respectively) than those grown under shorter photoperiods with higher PPFD (p < 0.0001). Longer photoperiods also resulted in 42% greater tuber biomass in mizuna (p = 0.022) (Figure 6), although total biomass of tubers was low and the fraction of total biomass allocated to tubers was not affected by photoperiod (~4.3% of total biomass).

While mizuna is not grown as a tuber crop, it can be utilized as a as a “cut and come again” crop with repeat harvesting [23,24], so its tubers may act as an important stored energy source for leaf regeneration. This ability to form tubers may be detrimental for the crop that is harvested only once, if a large amount of photosynthates are allocated to tuber growth rather than shoot biomass. Since tuber biomass accounted for only ~4.3% of total biomass, however, it is unclear whether significant gains in aboveground biomass could be made by inhibiting tuber formation. Although not a topic of our study, we did observe the formation of new leaves from the tubers after the shoots had been harvested.

3.4. Lighting Treatments and Yield Potential

Crop yields can be described using a simple equation [25]:

Yield = (total incident PPFD over the growing season) × (PPFD interception efficiency)
× (PPFD conversion efficiency) × (harvest index)

(2)

To maximize yields, the different components of this equation need to be maximized, while considering that maximizing yield does not necessarily optimize economic returns. For example, increasing the total incident PPFD over the growing season can be increased by either increasing PPFD or extending the crop production cycle. However, increasing the PPFD also increases both capital expenses, due to the need for more or higher power light fixtures, and operating expenses, because of the increased electricity use. Thus, increasing total incident PPFD may not be economically feasible.

Increasing PPFD interception efficiency can also be achieved in multiple ways. A high plant density allows seedlings to quickly develop a large canopy, allowing them to intercept much of the provided light [26]. For example, increasing the planting density of sowthistle (Ixeris dentata Nakai) had little effect on fresh and dry weight per plant, but increased the fresh and dry weight per unit growing area [27]. Light interception also can be increased through lighting treatments. In the current study, we found that longer photoperiods with lower PPFD increase the fraction of the provided light that is intercepted by the canopy. Light spectrum also can be used to modify the canopy architecture and, in particular, the use of far-red light has received much attention in recent years. Far-red light induces shade responses in many crops [28,29], and can increase leaf expansion and crop growth [30]. Finally, high chlorophyll levels can increase leaf absorptance [21] and thus canopy light interception. Although leaf chlorophyll levels are strongly affected by fertilization, our results suggest that lengthening the photoperiod can also increase leaf chlorophyll content.

The PPFD conversion efficiency is a complex term that incorporates much of the physiological process that drives growth (see [31] for an in-depth review). The first step in this process is the use of absorbed photons to drive electron transport in the light reactions of photosynthesis. The Φ_PSII inevitably decreases while electron transport rate increases with increasing PPFD (Figure 4) [6,14,32]. Therefore, maximizing Φ_PSII is not feasible, since it will unavoidably result in low electron transport rates and low photosynthetic rates. However, there may be opportunities to breed for cultivars with a higher Φ_PSII [14], which may increase growth and the overall resource use efficiency in plant factories.

The ATP and NADPH produced in the light reactions of photosynthesis are subsequently used in the Calvin cycle to produce carbohydrates. CO₂ enrichment can increase crop productivity by providing more substrate to Rubisco, the key enzyme in the Calvin cycle, while at the same time suppressing Rubisco’s oxygenation reactions. However, Rubisco activity can still be a limiting step in crop production, because it is a large enzyme, thus requiring much nitrogen [33], with a low catalytic rate [34]. The Rubisco in C3 plants does not have the optimal catalytic properties for plants grown under elevated CO₂ [35] and there is much interest in improving Rubisco properties [34,36].

The carbohydrates produced in the Calvin cycle subsequently are used to support respiration and produce biomass. The carbon use efficiency (the fraction of fixed carbon incorporated into biomass) is a function of the relative growth rate of the crop [37]. Lighting conditions thus need to support sustained high crop growth rates, or a large fraction of the produced carbohydrates will be lost through respiration.

Finally, a high harvest index, the edible biomass as a fraction of total biomass, needs to be high to achieve a high marketable yield. Leafy greens have a high harvest index [38], so it is not likely that this can be much increased.

4. Conclusions

The observed increases in biomass in response to longer photoperiods likely occurred because of a combination of morphological and physiological responses. Lower PPFDs combined with longer photoperiods increased CCI, canopy light interception, and Φ_PSII. The observed increase in growth under lower PPFDs and longer photoperiods is consistent with prior studies, which found that when DLI is held constant, plants generally produce more biomass when grown under longer photoperiods [7,8,9,11,12,39,40]. The observation that spreading a given DLI over a longer photoperiod with a lower instantaneous PPFD has clear benefits to growers; first, the initial capital expenses can be reduced because fewer lighting fixtures are needed to provide the lower PPFD. Second, by improving the efficiency with which plants use the light provided to them, by increasing light interception and Φ_PSII, growers can produce more edible biomass per dollar spent on electricity. Third, using lower PPFDs with longer photoperiods reduces the instantaneous heat generated by the light fixtures, thus reducing air-conditioning requirements.

This study also demonstrates that PPFD, photoperiod, and DLI effects on plants cannot be studied as individual factors. At best, one of the three factors can be held constant while the other two vary. As such, we recommend researchers always report all three parameters and consider potential interactions between these factors.
