Next Article in Journal
Effect of Drug Loading Method and Drug Physicochemical Properties on the Material and Drug Release Properties of Poly (Ethylene Oxide) Hydrogels for Transdermal Delivery
Next Article in Special Issue
Synthesis of Novel Hyperbranched Polybenzo-Bisthiazole Amide with Donor–Acceptor (D-A) Architecture, High Fluorescent Quantum Yield and Large Stokes Shift
Previous Article in Journal
Fabrication and Test of an Inflated Circular Diaphragm Dielectric Elastomer Generator Based on PDMS Rubber Composite
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(7), 284; https://doi.org/10.3390/polym9070284

Three Carbazole-Based Polymers as Potential Anodically Coloring Materials for High-Contrast Electrochromic Devices

Department of Chemical and Materials Engineering, National Yunlin University of Science and Technology, Yunlin 64002, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Carlos Baleizão
Received: 8 June 2017 / Revised: 12 July 2017 / Accepted: 12 July 2017 / Published: 18 July 2017
(This article belongs to the Special Issue Polymeric Materials for Optical Applications)
Full-Text   |   PDF [8598 KB, uploaded 18 July 2017]   |

Abstract

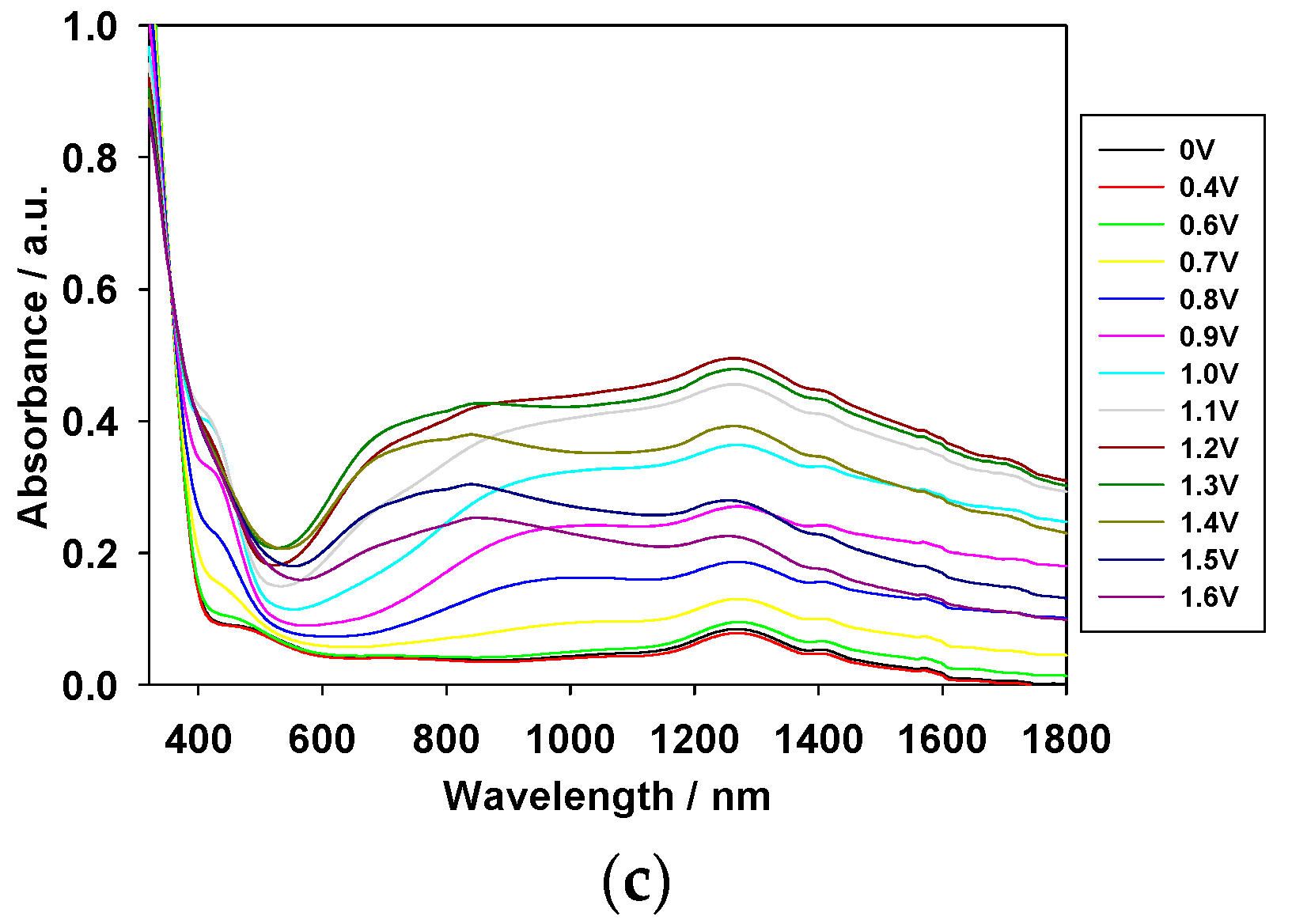

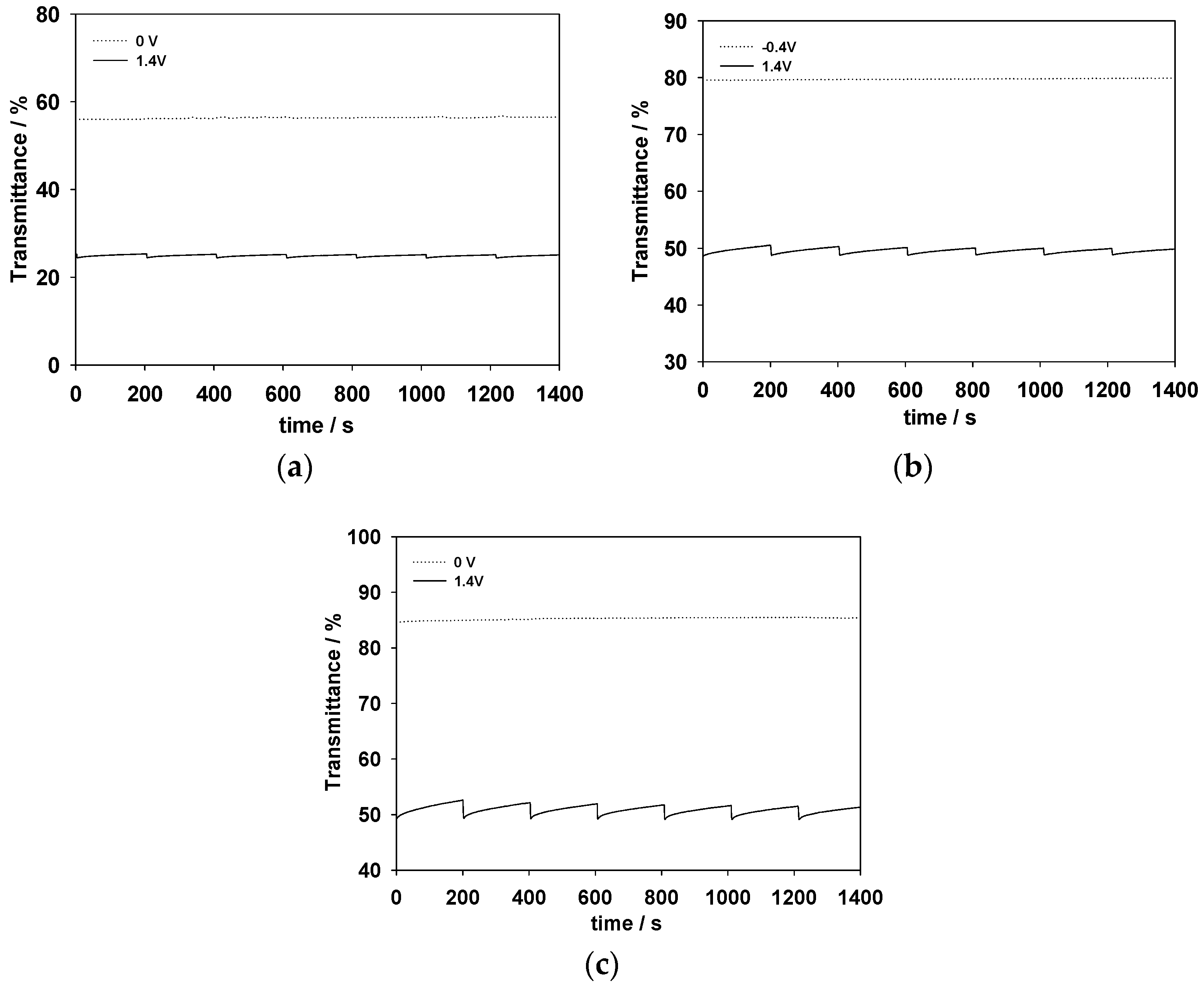

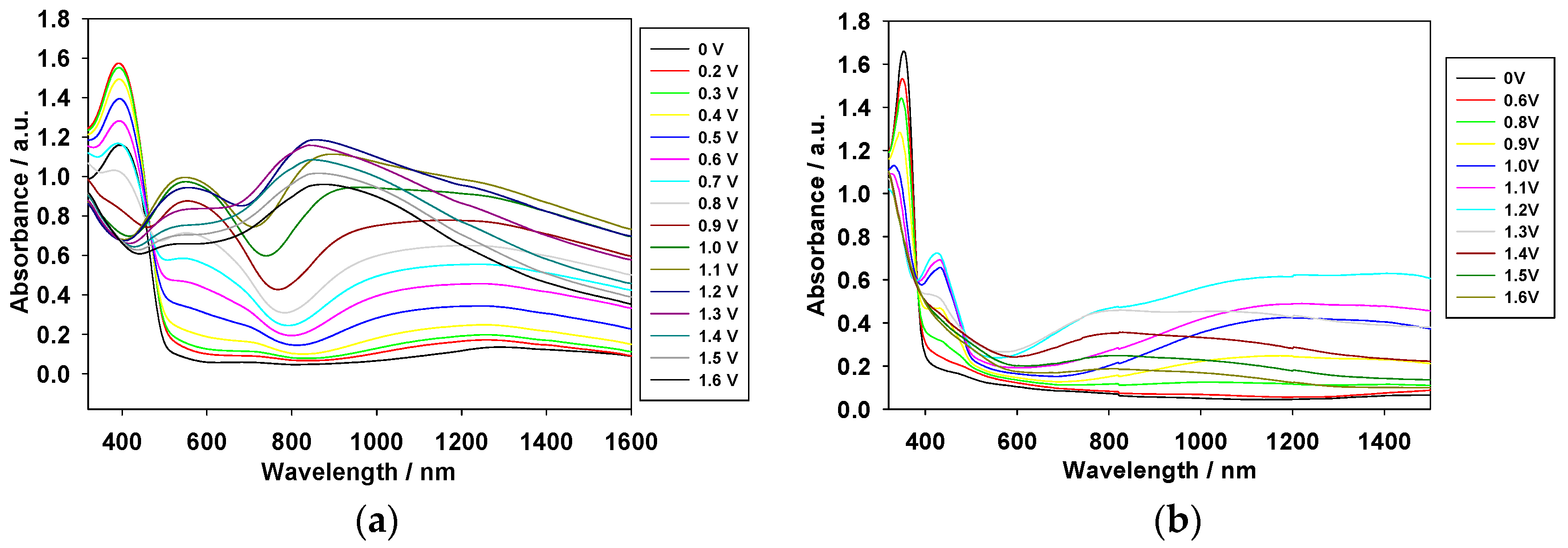

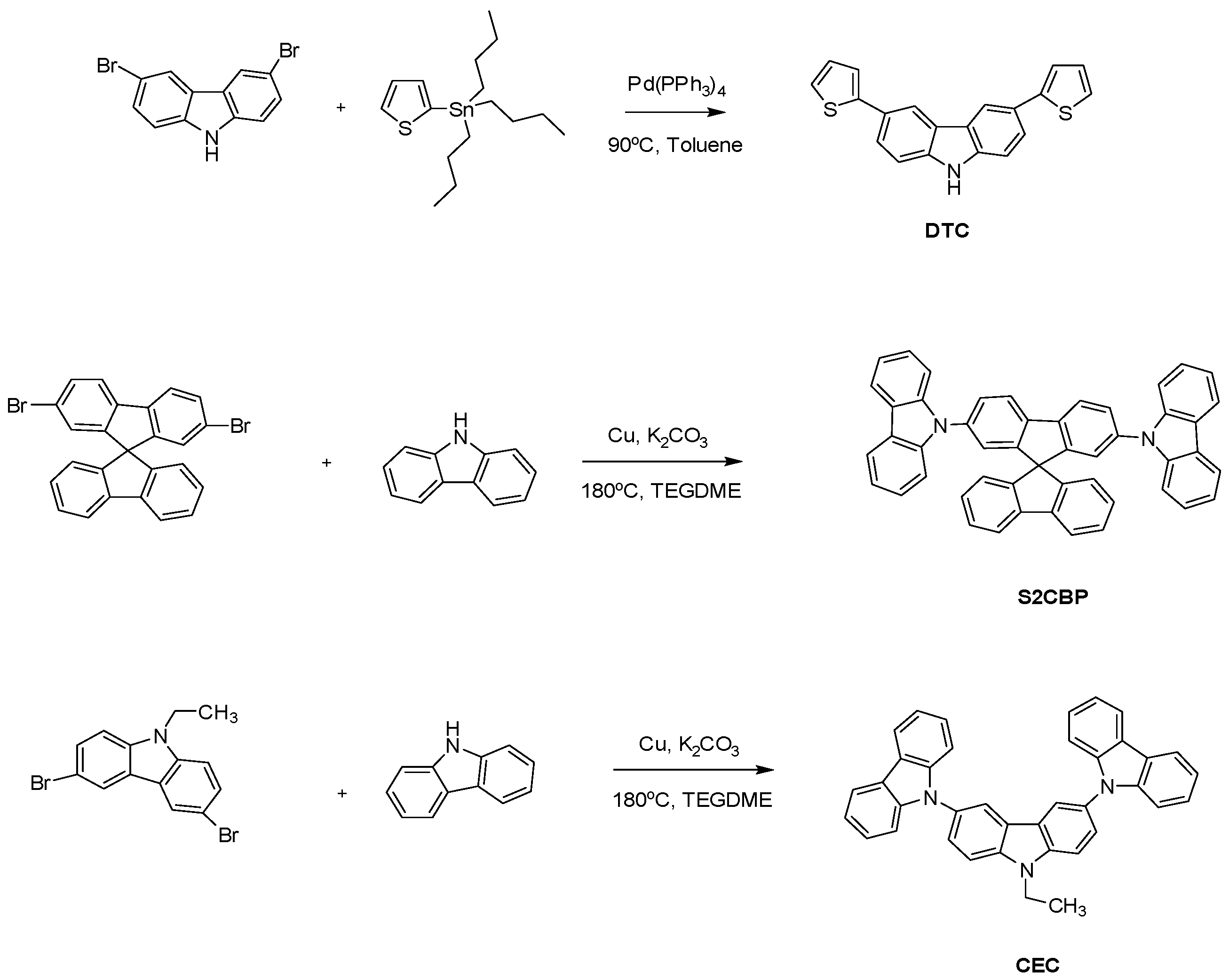

Three carbazole-based conjugated polymers (poly(3,6-di(2-thienyl)carbazole) (PDTC), poly(2,7-bis(carbazol-9-yl)-9,9-spirobifluorene) (PS2CBP), and poly(3,6-bis(N-carbazole)-N-ethylcarbazole) (PCEC)) are synthesized using electrochemical polymerization. The spectroelectrochemical studies indicate that the PDTC, PS2CBP, and PCEC films show reversible electrochromic behaviors in their redox states, and the PS2CBP film shows a distinct color transition with four various colors (gray at 0 V, grayish-green at 1.0 V, moss green at 1.2 V, and foliage green at 1.4 V). The maximum optical contrast of the PS2CBP and PCEC films is 39.83% at 428 nm and 32.41% at 420 nm, respectively, in an ionic liquid solution. Dual-type electrochromic devices (ECDs) that employ PDTC, PS2CBP, or PCEC film as an anodic layer, and PProDOT-Et2 film as a cathodic layer, were constructed. The as-prepared PCEC/PProDOT-Et2 ECD shows high optical contrast (38.25% at 586 nm) and high coloration efficiency (369.85 cm2 C−1 at 586 nm), and the PS2CBP/PProDOT-Et2 ECD shows high optical contrast (34.45% at 590 nm), good optical memory, and good long-term cycling stability. View Full-Text
Keywords: electrochemical polymerization; optical contrast; spectroelectrochemistry; coloration efficiency; electrochromic devices electrochemical polymerization; optical contrast; spectroelectrochemistry; coloration efficiency; electrochromic devices

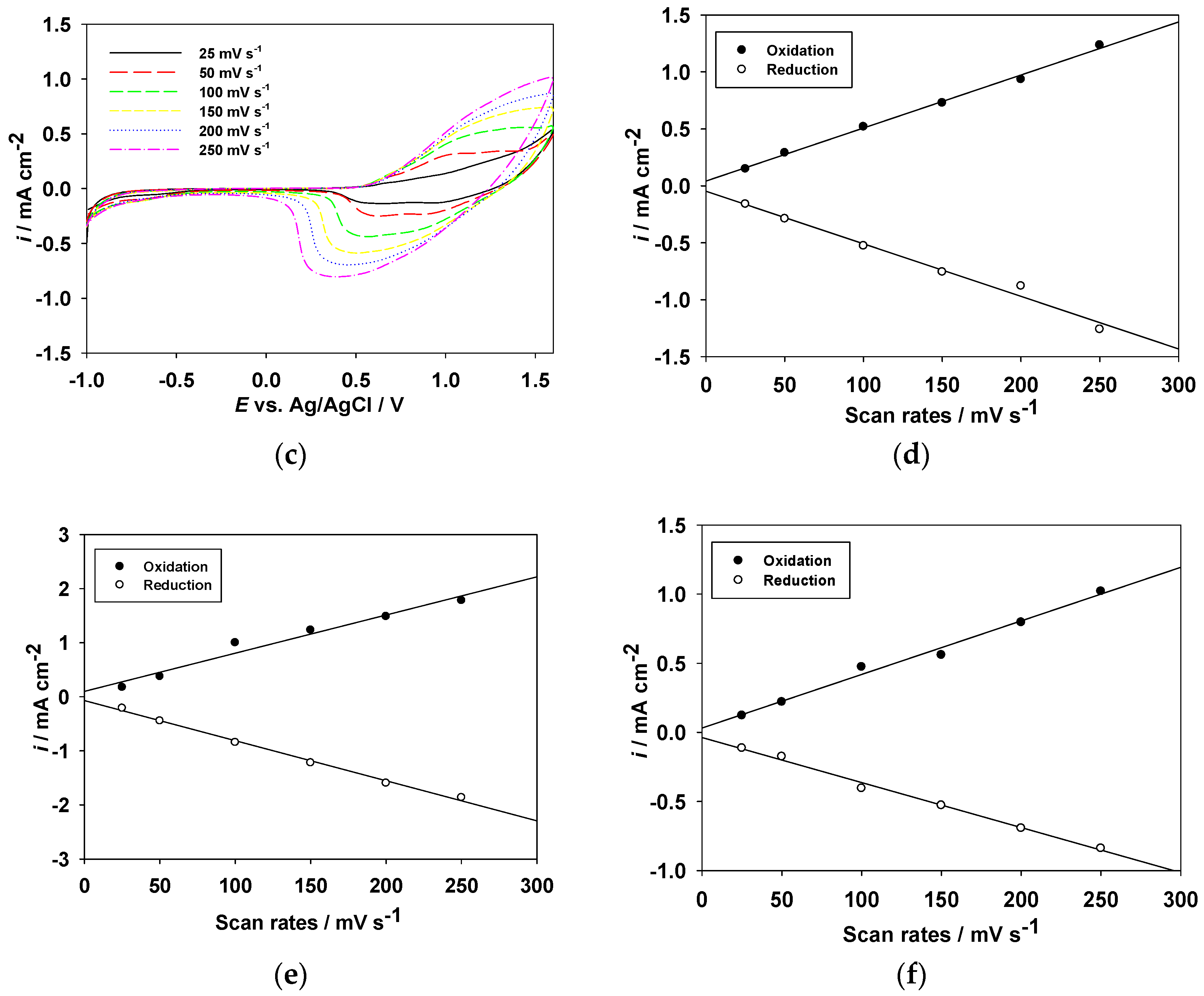

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Su, Y.-S.; Wu, T.-Y. Three Carbazole-Based Polymers as Potential Anodically Coloring Materials for High-Contrast Electrochromic Devices. Polymers 2017, 9, 284.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
