Next Article in Journal
Programming of One- and Two-Step Stress Recovery in a Poly(ester urethane)
Next Article in Special Issue
Coumarin- and Carboxyl-Functionalized Supramolecular Polybenzoxazines Form Miscible Blends with Polyvinylpyrrolidone
Previous Article in Journal
Bio-Inspired Polymer Membrane Surface Cleaning
Previous Article in Special Issue
Preparation of RF-(VM-SiO2)n-RF/AM-Cellu Nanocomposites, and Use Thereof for the Modification of Glass and Filter Paper Surfaces: Creation of a Glass Thermoresponsive Switching Behavior and an Efficient Separation Paper Membrane
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(3), 96;

Crystal Structure Evolution of UHMWPE/HDPE Blend Fibers Prepared by Melt Spinning

Institute of Plastic Machinery and Engineering, Beijing University of Chemical Technology, Beijing 100029, China
Author to whom correspondence should be addressed.
Academic Editor: Shiao-Wei Kuo
Received: 9 January 2017 / Revised: 6 March 2017 / Accepted: 7 March 2017 / Published: 9 March 2017
(This article belongs to the Special Issue Polymer Blends 2017)
Full-Text   |   PDF [12951 KB, uploaded 9 March 2017]   |

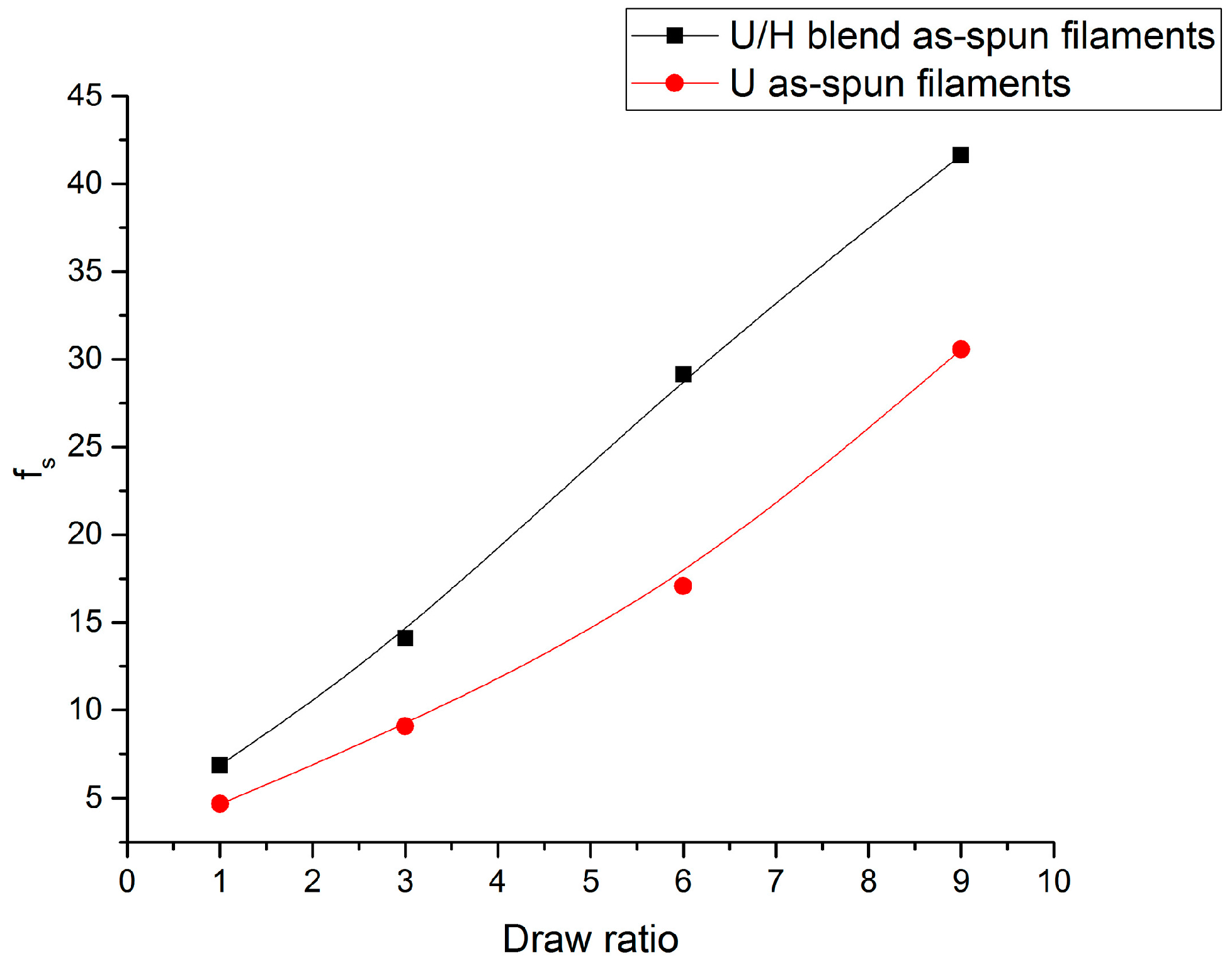

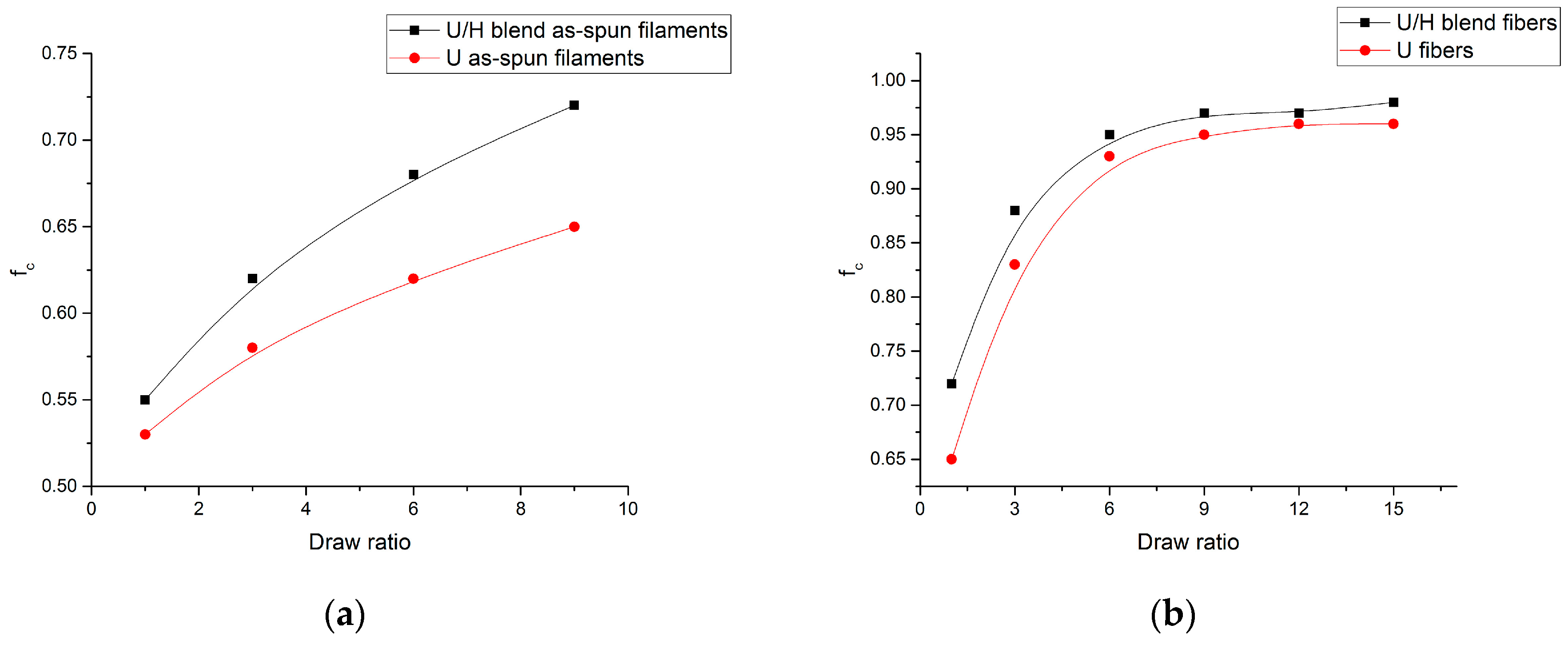

Ultra-high molecular weight polyethylene (UHMWPE) and high-density polyethylene (HDPE) blend fibers with the highest tensile strength of 1.13 GPa were prepared by a melt spinning process. The mechanical behavior and crystal structure of the as-spun filaments and fibers were studied by differential scanning calorimetry (DSC), scanning electron microscopy (SEM), X-ray diffraction (XRD), sound velocity orientation testing, and tensile testing. The orientation degree, crystallinity, tensile strength, and initial modulus of the fibers increased with the increasing of the draw ratios. The grain size was shortened in the radial direction and elongated in the axial direction. The results suggested that the improvement of the tensile strength and initial modulus was a result of the compact crystal structure formed by slender grains composed of highly oriented molecular chains. Blending with HDPE could improve the formation of a slender and compact crystal structure, and the tensile strength and initial modulus of the blend fibers were higher. View Full-Text
Keywords: UHMWPE; HDPE; fibers; blend; melt spinning UHMWPE; HDPE; fibers; blend; melt spinning

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, F.; Liu, L.; Xue, P.; Jia, M. Crystal Structure Evolution of UHMWPE/HDPE Blend Fibers Prepared by Melt Spinning. Polymers 2017, 9, 96.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
