Article

Evaluation of Acidic Deep Eutectic Solvents Treatment on Enzymatic Hydrolysis Lignins: Structural Analysis and Antioxidant Activity

by
Qiaorun Ma
†,
Xun Meng
†,
Hongtao Shi
,
Lian Chen
,
Jiangyao Han
,
Lifen Li
* and
Liping Yu
*
College of Forestry, Guizhou University, Guiyang 550025, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2025, 17(8), 1006; https://doi.org/10.3390/polym17081006
Submission received: 18 March 2025 / Revised: 3 April 2025 / Accepted: 7 April 2025 / Published: 8 April 2025
(This article belongs to the Special Issue Lignin-Based Functional Materials)
Browse Figures
Versions Notes

Abstract

:
The high-value utilization of enzymatic hydrolysis lignin (EHL) is essential for promoting the development of the biorefinery industry. This study investigated the enhancement of the antioxidant activity and ultraviolet (UV) absorption capacity of EHL through treatment with choline chloride (ChCl)-based acidic deep eutectic solvents (DESs). The yield, chemical structure, UV absorption properties, antioxidant activity, and thermal stability of the degraded and regenerated enzymatic hydrolysis lignin (DEHL) were analyzed. The results indicated that treatment with DESs effectively preserved the aromatic structure of EHL. Compared to untreated EHL, DEHL exhibited an increased O/C atomic ratio, a decreased UV transmittance, a significant reduction in weight-average molecular weight (Mw), and a notable increase in phenolic hydroxyl (ArOH) content. Notably, DEHL treated with ChCl–p-toluenesulfonic acid had the lowest Mw (1586 g/mol) and the highest ArOH content. Except for the ChCl–malic acid and ChCl–acetic acid systems, all the other five DES treatments enhanced the antioxidant activity of DEHL to varying degrees. Among them, DEHL treated with ChCl–p-toluenesulfonic acid exhibited the highest antioxidant activity, with an IC50 DPPH value of 262.87 μg/mL.

1. Introduction

Lignins are one of the main components of lignocellulosic biomass and the third most abundant organic polymer on earth [1]. According to the available research [2], the annual production of lignins in nature can reach 500–3600 million tons, while the pulp and paper and biomass energy industries can produce 40–50 million tons of lignins per year [3]. However, the diversity of lignins in terms of molecular weight distribution, functional group types, and linkages, as well as the presence of organic and inorganic impurities, results in very complex structures and properties, limiting their large-scale industrial applications [4]. Currently, the effective utilization rate of lignins is less than 5% [5], and most lignins are used as low-value fuels, which is not only a huge waste of resources but also pollutes the ecological environment [6].
In order to increase the utilization value of lignin, various strategies can be employed, including reducing its molecular weight, increasing its hydroxyl content, or converting it into valuable small molecule aromatic substances [7]. Today, lignin degradation methods can be mainly divided into physical (microwave radiation and ultrasonic degradation), chemical (reduction, oxidation, hydrothermal, ionic liquid-assisted, etc.), and biological degradation (fungi and bacteria) [8,9]. At present, physical methods often face challenges such as high energy consumption, low conversion efficiency, and a wide range of reaction products. Biological methods mainly suffer from the disadvantages of long processing times and limited degradation efficiency. Among these approaches, chemical degradation is one of the most widely used techniques in lignin decomposition. In recent years, ionic liquids (ILs) have attracted much attention as solvents for the catalytic degradation of lignin. These solvents are considered “green” due to their non-volatility, non-flammability, tunable nature, and high solubility for lignin [10]. The catalytic or oxidative depolymerization of lignin model compounds and lignin itself using ILs can yield valuable platform aromatic compounds such as vanillin, vanillic acid, and other potential substitutes for petroleum-based feedstocks [11]. However, the industrial application of certain ILs is limited by their high cost, complexity of synthesis, high viscosity, and, in some cases, toxicity and non-biodegradability [12].
Deep eutectic solvents (DESs) have a structure similar to that of ILs and are liquid eutectic mixtures composed of hydrogen bond acceptors and hydrogen bond donors. Typically, they consist of two or three components that can bond with each other through hydrogen bonds. The concept of DESs was first introduced by Abbott et al. [13], who prepared DESs using quaternary ammonium salts and amide compounds with melting points lower than any of the individual components. Due to their simple synthesis, renewability, mild reaction conditions, low toxicity, good solubility for lignin [14], and better preservation of lignin structure during the separation and extraction of lignin from lignocellulosic biomass [15,16], DESs have been favored in recent years in the research and application of lignin extraction, modification, and degradation. They are considered ideal alternatives for lignin extraction and degradation, and they are also regarded as promising substitutes for ILs [17].
Three types of DESs, namely acidic, neutral, and basic, can be formed by using choline chloride (ChCl) as a hydrogen bond acceptor and various compounds as hydrogen bond donors. In acidic DES, the hydrogen bond donors mainly consist of monoacid and some polyacids compounds. While in basic DESs, the hydrogen bond donors primarily include urea, amine, and amides. Neutral DESs usually use alcohols as hydrogen bond donors. Acidic DESs have been reported to outperform other types of DESs in terms of lignin extraction efficiency [18]. In recent years, acidic DESs have gained significant attention for extracting lignin with excellent antioxidant properties from lignocellulosic materials such as wood [19], bamboo [20], crop stalks [21], and fruit shells [22]. The efficiency and antioxidant activity of the extracted lignin are influenced by various factors, including the types of DESs, extraction temperature, extraction time, and solid-to-liquid ratio. Generally, the antioxidant activity of extracted lignin increases with higher temperatures and longer extraction times. Among these, ChCl–lactic acid is considered a promising DES for the pretreatment of lignocellulosic materials [23]. Moreover, there has been growing interest in utilizing acidic DESs for industrial lignin degradation under mild conditions. For example, Li et al. [24] used ChCl–p-toluenesulfonic acid to degrade alkaline lignin and found that this DES selectively cleaved most of the ether bonds in lignin. This led to a decrease in molecular weight and an increase in phenolic hydroxyl (ArOH) content of the regenerated lignin. Similarly, Hong et al. [25] used ChCl–formic acid to degrade alkaline lignin at 80–120 °C, demonstrating that a large number of β-O-4 linkages were broken, along with some C-C bonds (i.e., β-5′, β-β′). They also observed the dehydration of hydroxyl groups on lignin side chains and a partial loss of methoxy groups. In another study, Li et al. [26] compared the degradation performances of seven different ChCl-based DESs on alkaline lignin and found that the regenerated lignin had a lower molecular weight and was more uniformly dispersed compared to untreated alkaline lignin. This improvement was mainly attributed to the effectively cleaving the β-O-4 aryl ether bond in lignin by the acidic DES treatment.
Enzyme hydrolyzed lignin (EHL) can be produced by using enzymes to degrade cellulose and hemicellulose in agricultural and forestry waste, as well as food residues, during the production of bioenergy or chemicals [27]. After enzymatic treatment, the fermentation processes yield valuable products such as ethanol, butanol, and functional sugars. The remaining residues are then separated and purified to produce EHL. It has been reported that EHL can be produced in quantities of up to 200,000 tons per year [28], and this production is expected to increase significantly each year with the rapid development of biochemicals and bioenergy research [29]. Since EHL is produced through bioextraction methods, it avoids the high-temperature and high-pressure cooking processes typically used in the production of alkali lignin and sulfate lignin. As a result, EHL retains structurally active functional groups, such as ArOH and aliphatic hydroxyl (AlkOH) groups, which remain more intact compared to other types of lignin. However, current challenges in utilizing EHL include its high molecular weight and low antioxidant activity. Presently, a large amount of EHL is burned as fuel, and there remains substantial potential for its resource utilization [30].
Currently, DESs are primarily used for the pretreatment of lignocellulosic materials, with relatively limited research on the degradation of industrial lignin, such as EHL. In this study, seven acidic DESs were prepared using ChCl as the hydrogen bonding acceptor and various acids as hydrogen bonding donors. These acids include monoacids (lactic acid, acetic acid, and formic acid), dibasic acids (oxalic acid and malic acid), a ternary acid (citric acid), and a Brønsted acid (p-toluenesulfonic acid). EHL was treated with these seven DESs, and the yields of DEHL were measured using a gravimetric method. To investigate the effects of different acidic DESs treatments on the chemical structure, molecular weight, and thermal stability of lignins, a range of analytical techniques, including Fourier transform infrared (FTIR) spectroscopy, X-ray photoelectron spectroscopy (XPS), ultraviolet (UV–Vis) spectroscopy, gel permeation chromatography (GPC), and thermogravimetric analysis (TG), were employed. Additionally, the DPPH radical scavenging activity of EHL and DEHL was tested, and the relationship between the ArOH content of lignins and their antioxidant activity was further explored. This work aims to address the challenges associated with the low degradation and utilization efficiency of industrial lignins by developing DEHL with improved antioxidant properties. This approach not only provides new pathways for the high-value utilization of biomass resources but also promotes the sustainable development of the biorefinery industry.

2. Materials and Methods

2.1. Materials

Enzymatic hydrolysis lignins (EHLs) were purchased from Shandong Longli Bio-technology Co., Ltd., Dezhou, China, and was extracted from corn kernel residue after functional sugar preparation. Lactic acid (analytically pure, 85.0–90.0%) was purchased from Sailanbo Technology Co., Ltd., Guizhou, China; ChCl (analytically pure, 98%), acetic acid (analytically pure, ACS, ≥99.7%)), formic acid (ACS, ≥96%), oxalic acid (analytically pure, 98%), malic acid (analytically pure, >99.0%), citric acid (analytically pure, 99.5%), p-toluenesulfonic acid monohydrate (analytically pure, ≥98.5%), sodium hydroxide (97%, in flakes), methanol (chromatographic grade, ≥99.9%), 1,4-dioxane (ACS, ≥99.0%), diphenylpropylphenylhydrazine (DPPH) (97%), acetyl chloride (AR, 98%), glacial acetic acid (AR, 99.5%), gallic acid (99%), and anhydrous sodium carbonate (≥99.8%) were purchased from Aladdin Biochemistry and Technology Co., Ltd., Shanghai, China. All materials were used directly without treatment.

2.2. Preparation of Series DESs

All raw materials for the preparation of DESs were dried in a vacuum oven at 80 °C for 12 h. The molar ratio of ChCl to p-toluenesulfonic acid was 1:1, while the molar ratio of ChCl to the other acids (lactic, acetic, formic, oxalic, malic, and citric) was 1:2, and the mixtures were stirred at 100 °C until a clear liquid formed; these were labeled ChCl-LA, ChCl-HAc, ChCl-FA, ChCl-OA, ChCl-MA, ChCl-CA, and ChCl-TsOH. The prepared DESs were sealed and stored in a desiccator. The pH values of the different DESs were measured using a pH meter (PHS-3C, Shanghai Yifen Scientific Instrument Co., Ltd., Shanghai, China) at 20 °C. Each group tested three times, and the average value reported.

2.3. Purification of EHLs

The precisely weighed EHLs (15.0 g) were dissolved in 300 mL of a sodium hydroxide aqueous solution with a concentration of 1 mol/L. The mixture was then filtered to remove insoluble and poorly soluble impurities. Subsequently, 1 mol/L sulfuric acid solution was gradually added to the lignin filtrate, adjusting the solution pH to a range of 2 to 3, which caused the lignin to precipitate. The precipitate was filtered and washed with a large amount of distilled water to remove salts and other impurities, ensuring that the final filtrate had a pH of 6 to 7. The filter residue was collected and dried in an oven at 80 °C for 12 h. After drying, the residue was ground and passed through a 100-mesh sieve. The resulting sample was the purified EHLs.

2.4. Degradation of EHLs with DESs

A total of 20.0 g (accurate to 0.1 g) of DESs was placed in a reagent bottle and heated at 120 °C using a thermostatic magnetic stirrer (DF-101S, Shanghai Qiuzuo Scientific Instrument Co., Ltd., Shanghai, China). Approximately 1.0 g (m0) of the purified EHLs was then added, and the mixture was stirred for 5 h. At the end of the mixing process, the DESs–EHLs mixture was slowly dropped into 100 mL of rapidly stirred distilled water, and stirring continued for an additional 30 min. After the designated time, the filtrate was separated from the residue using a 0.45 μm filter membrane, and the filtrate was washed three times with 60 mL of distilled water. Finally, the filtrate was dried to absolute dryness at 80 °C to obtain degraded and regenerated EHLs (DEHLs), and the mass of DEHLs was weighed (m1). The DEHLs obtained using ChCl-LA, ChCl-HAc, ChCl-FA, ChCl-OA, ChCl-MA, ChCl-CA, and ChCl-TsOH are denoted as ChCl-LA-DEHL, ChCl-HAc-DEHL, ChCl-FA-DEHL, ChCl-OA-DEHL, ChCl-MA-DEHL, ChCl-CA-DEHL, and ChCl-TsOH-DEHL. The DEHL yields after treatment with different acidic DESs were calculated using the gravimetric method according to Equation (1).
D E H L   y i e l d = m 1 m 0 × 100 %

2.5. Analysis of the Structure and Antioxidant Activity of EHLs and DEHLs

2.5.1. Chemical Structure

The chemical structures of EHLs and DEHLs were analyzed by the KBr pellet method using a Fourier transform infrared spectrometer (Nicolet iS20, Thermo Fisher Scientific, Waltham, MA, USA). The test was performed with a scanning range of 400 to 4000 cm−1, a resolution of 2 cm−1 and 32 scans.

2.5.2. Surface Elements Analysis

The surface elements of EHLs and DEHLs were analyzed using an X-ray photoelectron spectrometer (K-Alpha, Thermo Fisher Scientific, Waltham, MA, USA). The fluence energies and step sizes for full-spectrum and narrow-spectrum scanning were set at 150 eV and 1 eV and 50 eV and 0.1 eV, respectively.

2.5.3. UV Absorption and Shielding Capacity

The UV absorption and transmission spectra of EHLs and DEHLs were analyzed using a UV–visible spectrophotometer (UV-9000, Shanghai Yuananalytical Instrument Co., Ltd., Shanghai, China) according to the method described in the literature [31], with slight modifications.
For UV absorption spectroscopy, 3.75 mg of lignins was dissolved in a 10 mL mixture of dioxane/water (9:1, m/m) with stirring to ensure complete dissolution. Subsequently, 1 mL of the lignin solution was diluted with 9 mL of the same dioxane/water mixture, resulting in a final lignin concentration of 0.0375 mg/mL for testing. The absorption spectra of both EHLs and DEHLs were then recorded over a wavelength range of 230 to 600 nm.
For UV transmission spectroscopy, 4.00 mg of lignin was dissolved in a 10 mL mixture of dioxane/water (9:1, m/m) with stirring. The appropriate amount of the lignin solution was then diluted to achieve a concentration of 0.20 mg/mL, and the transmittance was measured over a wavelength range of 230 to 600 nm.

2.5.4. Molecular Weight Distribution

Prior to the determination of molecular weight of the lignins, they were modified through acetylation according to previous studies [32,33] to improve their solubility in tetrahydrofuran. The method was as follows: Approximately 0.2 g of lignins was weighed and placed in a round-bottom flask. Next, 20 mL of acetylation reagent was added, which consisted of a mixture of acetyl chloride and glacial acetic acid in the ratio of 1:4 (v/v). The mixture was then stirred in a sealed environment at 40 °C for 2 h. Upon the completion of the reaction, the untreated solvent was removed using a rotary evaporator (RE-52AA, Shanghai Cancun Instrument Co., Ltd., Shanghai, China). Subsequently, 20 mL of distilled water was added to the solid residue and ultrasonicated for 5 min. The resulting mixture was vacuum-filtered through a 0.45 μm membrane. The filter residue was washed thoroughly with a large volume of distilled water until no acidic odor remained. Finally, the product was vacuum-dried to obtain acetylated lignin.
The molecular weights of EHLs and DEHLs were determined using gel permeation chromatography (Waters1525/Waters2414, Waters Technology (Shanghai) Co., Ltd., Shanghai, China). Specifically, 0.02 g of dried acetylated lignins was dissolved in tetrahydrofuran to make a solution with a concentration of 2 mg/mL. Prior to analysis, the solution was filtered through a 0.22 μm filter membrane. GPC analysis was performed using an Agilent PL gel 5 µm MIXED-C, with tetrahydrofuran as the mobile phase at a flow rate of 1 mL/min, an injection volume of 20 µL, and the column temperature maintained at 35 °C.

2.5.5. ArOH Content Test

The ArOH content of EHL and DEHL was analyzed using the Folin–Ciocalteu method, with gallic acid as the standard [34]. A series of gallic acid solutions were prepared by dissolving various amounts of gallic acid in a 90% (v/v) 1,4-dioxane/water solution at concentrations of 40, 80, 120, 160, 200, and 240 μg/mL. At each concentration, 0.2 mL of the gallic acid solution was mixed with 0.5 mL of Folin–Ciocalteu reagent and was shaken thoroughly. After 5 min of reaction, 1 mL of 15% (m/m) Na2CO3 solution was added, and the volume was adjusted to 10 mL with water. The mixture was then shaken well and incubated at 25 °C for 2 h protected from light. The absorbance at 760 nm was measured using a UV–visible spectrophotometer (UV-2700, Shimadzu (Hong Kong) Ltd., Hong Kong, China), and a standard curve was plotted. It was found that there was a strong linear relationship between the concentration of gallic acid (from 40 to 240 μg/mL) and the absorbance, which can be expressed by the regression equation y = 0.00275x − 0.00514, with an R2 value of 0.9994, indicating a highly significant correlation. This standard curve allows for the calculation of total ArOH content in EHL and DEHL.
A 0.2 mL aliquot of lignin solution in 90% (v/v) 1,4-dioxane/water at a concentration of 0.5 mg/mL was thoroughly mixed with 0.5 mL of flufenoxuron reagent. The reaction was carried out for 5 min, after which 1 mL of 15% Na2CO3 solution was added. The total volume was then adjusted to 10 mL with distilled water, and the mixture was shaken well and incubated at 25 °C for 2 h protected from light. The absorbance of the solution at 760 nm was measured using a UV–vis spectrophotometer. The ArOH content of the lignins was determined based on the gallic acid standard calibration curve. The total ArOH content of lignin samples was expressed as gallic acid equivalent (GAE), i.e., mg GAE/100 mg lignin. Three measurements were taken for each specimen, and the average value was used for the analysis.

2.5.6. Thermal Stability

The thermal stability of the lignins was determined using a thermogravimetric analyzer (Netzsch STA 449F3, Selb, Germany) under a N2 atmosphere. The temperature range analyzed was from 30 to 800 °C, with a heating rate of 10 °C/min and an N2 flow rate of 60 mL/min.

2.5.7. Antioxidant Properties

The antioxidant activity of the lignins was evaluated using the DPPH radical scavenging method based on the literature [35]. The method is as follows: An appropriate amount of purified EHL and DEHL was dissolved in 0.1 mL of a 90% aqueous dioxane solution at lignin concentrations of 100, 200, 300, 400, 600, and 800 μg/mL, respectively. Subsequently, 3.9 mL of DPPH solution (0.06 mmol/L in methanol) was added to the mixture. The reaction was carried out at 25 °C for 30 min protected from light. At the end of the reaction, the absorbance (As) of the mixture at 517 nm was measured by a UV–Vis spectrophotometer (UV-2700, Shimadzu (Hong Kong) Ltd., Hong Kong, China). Simultaneously, the absorbance (Ab) of the control mixture containing 0.1 mL of 90% dioxane and 3.9 mL of DPPH solution was measured. The scavenging rate of DPPH radicals by different lignins was calculated using Equation (2), and the half-maximal inhibitory concentration (IC50) of DPPH radicals was determined. Three measurements were taken for each sample, and the results were averaged. Lower IC50 values indicate the better antioxidant activity of the materials.
D P P H   Clearance   Rate = A b − A s A b × 100 %

3. Results and Discussion

3.1. Degraded and Regenerated EHL Yield in Different Acidic DESs

The pH values of DESs and the yields of DEHL are shown in Table 1. It was found that the seven DESs prepared with ChCl as the hydrogen bonding acceptor and lactic acid, acetic acid, formic acid, oxalic acid, malic acid, citric acid, and p-toluenesulfonic acid as the hydrogen bonding donors were all acidic in nature. Of these, ChCl-LA was the least acidic, with a pH value of 3.37, while ChCl-OA was the most acidic, with a pH value lower than 2.00. The yields of DEHL ranged from 92.03% to 94.14% after treatment at 120 °C for 5 h. Among these, ChCl-MA treatment showed the highest DEHL yield, followed by ChCl-TsOH, and ChCl-FA treatment showed the lowest DEHL yield. In general, the acidity of DESs seems to have little effect on the DEHL yield.

3.2. Infrared Spectra of Lignin

The functional groups of EHL and DEHL were analyzed using FTIR spectroscopy, and the results are shown in Figure 1. It was observed that all the lignin samples showed obvious stretching vibrations of ArOH and AlkOH groups around 3401 cm−1, indicating the presence of a large number of hydroxyl groups in lignin. The absorption peaks at 2933 cm−1 and 2850 cm−1 are attributed to the C-H vibrations in the methoxyl and methylene groups [36]. Moreover, the absorption peak at 1699 cm−1 corresponds to the carbonyl group (C=O) in conjugated ketones and carboxylic acids. Additionally, the absorption peaks at 1598 cm−1 and 1509 cm−1 are associated with aryl ring vibrations, carbonyl vibrations, and stretching vibrations of the aryl ring skeleton. The absorption peaks observed at 1458 cm−1 and 1421 cm−1 are attributed to the deformation of the C-H single bonds and the bending vibrations of methoxy and methylene groups in the asymmetric -CH3 and -CH2 groups, respectively. In addition, the absorption peak at 1215 cm−1 corresponds to the formation of C-C bonds in the guaiacyl group, as well as the stretching vibrations of C-C, C-O, and C=O within the guaiacyl structure. The peak at 1120 cm−1 is associated with the in-plane deformation vibrations of C-H in guaiacyl, while the peak at 1026 cm−1 results from a combination of the in-plane deformation of the aromatic C-H, the deformation of C-O, and the vibration of C=O. Finally, the absorption peak at 827 cm−1 corresponds to the bending vibration of the aromatic cyclic C-H group. Overall, the FTIR spectroscopy analysis indicated that the absorption peaks of lignin did not change significantly before and after treatment with DESs, suggesting that DEHL basically retained the original aromatic compound structure of EHL.
In addition, the analysis showed that the hydroxyl absorption peaks of DEHL treated with ChCl-LA, ChCl-FA, and ChCl-MA exhibited a certain degree of blue shift. Specifically, the wavelengths of these hydroxyl absorption peaks shifted from 3401 cm−1 to 3397, 3398, and 3396 cm−1, respectively. Notably, the hydroxyl absorption peaks of ChCl-TsOH-DEHL underwent a significant blue shift to 3389 cm−1. In contrast, the hydroxyl absorption peak of ChCl-HAc-DEHL was markedly red-shifted to 3410 cm−1. The hydroxyl absorption peaks of ChCl-OA-DEHL and ChCl-CA-DEHL shifted to 3407 and 3402 cm−1, respectively, both showing similar red shifts.
Furthermore, the carbonyl (C=O) absorption peaks of all DEHLs exhibited red shifts. The carbonyl absorption peaks of ChCl-LA-DEHL, ChCl-HAc-DEHL, ChCl-FA-DEHL, ChCl-OA-DEHL, ChCl-MA-DEHL, ChCl-CA-DEHL, and ChCl-TsOH-DEHL moved from 1699 cm−1 to 1714, 1708, 1712, 1706, 1711, 1704, and 1708 cm−1, respectively, with an increase in the intensity of these absorption peaks. The changes in the wavelengths and intensities of the lignin hydroxyl and carbonyl groups peaks can be attributed to various chemical reactions that occurred in lignin during different acidic DESs treatments. These reactions include the cleavage of the β-O-4 ether bonds, the formation of Hibbertone, and the reaction of some hydroxyl groups in lignin with carboxylic acids in the DESs, resulting in the formation of the corresponding esters [37,38]. Additionally, significant absorption peaks were observed at 681 cm−1 and 563 cm−1 in ChCl-TsOH-DEHL, likely corresponding to the stretching vibrations of the p-toluenesulfonic acid-related group (SO3) [39]. This phenomenon may be due to the sulfonation reaction that occurred during the treatment of EHL with ChCl-TsOH [40].

3.3. X-Ray Photoelectron Spectroscopy of Lignin

To investigate the effect of different acidic DESs treatments on the surface elements of EHLs, X-ray photoelectron spectroscopy (XPS) was used to analyze the surface elements composition of EHLs and DEHLs. The broad-scan XPS spectra of EHLs and DEHLs are shown in Figure 2. As can be seen, the XPS broad-scan spectra of all lignins showed prominent peaks around 285 eV and 532 eV, indicating that lignins are rich in carbon and oxygen. In addition, a weak absorption peak appeared near 400 eV, indicating that lignins also contain a small amount of nitrogen.
The results of the O/C atomic ratios of EHLs and DEHLs are shown in Table 2. It can be found that the O/C atomic ratio of EHLs was 0.239, which closely aligns with the findings of Zhou et al. [41]. Compared to EHLs, the O/C ratios of DEHLs increased, with ChCl-TsOH-DEHLs showing the smallest increase, resulting in an O/C ratio of 0.250. Conversely, ChCl-LA DEHLs showed the largest increase, with an O/C ratio of 0.283. The treatment of DESs, such as ChCl-MA, also markedly increased the O/C atomic ratios of DEHLs. This increase can be attributed to the esterification reactions that occurred during the treatment of EHLs with carboxylic acid-based DESs, such as ChCl-LA and ChCl-MA [42]. Similarly, Chirila et al. [43] also found that the relative oxygen content on the surface of modified lignins increased, while the relative content of carbon decreased when lignins were modified with carboxylic acids, including oleic, lactic, and butyric acids.

3.4. UV–Vis Absorption and Transmission Spectra of Lignins

As an aromatic compound, lignins exhibit UV absorption capacity. The UV–visible absorption spectra of EHLs and DEHLs were analyzed using a UV–visible spectrophotometer, and the results are shown in Figure 3. It can be seen that all lignins displayed a prominent absorption peak around 283 nm, which can be attributed to the π→π* electron transition of the aromatic ring, a characteristic of aromatic ring absorption bands. Additionally, weaker absorption peaks observed near 318 nm are associated with π→π* transitions in lignin units with Cα = Cβ linkages, which are conjugated with the aromatic ring, as well as n→π* transitions in lignin units containing Cα = O groups that are conjugated with the aromatic ring [44]. These peaks may also correspond to conjugated phenolic units in ferulic acid, p-coumaric acids, or hydroxycinnamic acid-type structures present in lignins [45].
The sun emits electromagnetic radiation across three ultraviolet (UV) wavelength regions. The shortest wavelengths, UVC (100–280 nm), are absorbed by the atmosphere, while the mid-wavelengths (UVA, 280–320 nm) and longer wavelengths (UVB, 320–400 nm) reach the Earth’s surface. Overexposure to UVB can cause sunburn, while UVA penetrates deeper into the skin. Both UVA and UVB can cause DNA damage and increase the risk of cancer in humans. In addition, they significantly contribute to the aging process, leading to the discoloration, yellowing, and degradation of the mechanical properties of polymer materials [46,47]. Therefore, researching and applying UV shielding agents is essential to mitigate the harmful effects of UV radiation [48].
The transmittance of EHLs and DEHLs under UV–visible light was analyzed, and the results are shown in Figure 4. The data showed that both EHLs and DEHLs possessed certain UV absorption and shielding effects, especially in the UVB stage, where the UV transmittance was almost 0. In the UVA stage, ChCl-TsOH-DEHL exhibited the highest UV shielding ability, with a UV transmittance of only 4.83% at 400 nm, followed by ChCl-OA-DEHL. The weakest UV shielding effects were observed for ChCl-CA-DEHL and EHL. In addition, it can be found that DEHL, which showed higher UVC shielding capacity, also exhibited greater shielding capacity in the visible range (400–600 nm).

3.5. Molecular Weight of Lignins

The molecular weight of lignins is closely associated with their physicochemical properties. In order to investigate the effects of different acidic DESs treatments on the molecular weight of EHLs, the molecular weights of EHLs and DEHLs were examined by gel permeation chromatography (GPC). The results are shown in Figure 5 and Table 3. As can be seen from the table, the weight-average molecular weight (Mw), number-average molecular weight number (Mn), and dispersion coefficient (Mw/Mn) of DEHLs were all lower than those of EHLs. This indicates that treatment of EHLs with acidic DESs under the experimental conditions mainly resulted in depolymerization, which disrupted the inter-unit bonding between the basic structural units (e.g., β-O-4 linkage) of the lignins, consequently decreasing the molecular weight of EHLs [49]. In addition, the dispersion coefficient of DEHLs was lower compared to that of EHLs, indicating a more uniform fragmentation of the lignins. Of the samples analyzed, ChCl-TsOH-DEHL had the lowest Mw (1586 g/mol) and MW/Mn (2.28), while ChCl-OA-DEHL had the smallest Mn (639 g/mol).

3.6. Total ArOH Content of Lignins

The total ArOH content of EHLs and DEHLs is shown in Figure 6. From the figure, it can be seen that the total ArOH content of DEHLs was higher than that of the untreated EHLs. Notably, ChCl-TsOH-DEHL had the highest total ArOH content, measuring 185.75 mg GAE/100 mg lignin. In contrast, ChCl-CA-DEHL had the lowest total ArOH content at 106.96 mg GAE/100 mg lignin. However, this value still surpassed the 99.44 mg GAE/100 mg lignin found in EHLs. The increase in ArOH content observed in DEHLs can be attributed to the disruption of the β-O-4 ether bond in EHLs by DESs, resulting in the formation of new ArOH groups [50].

3.7. Thermal Stability of Lignins

To analyze the effect of DESs treatment on the thermal stability of EHLs, the thermal stability of EHLs and DEHLs was tested using a thermogravimetric analyzer in the temperature range of 30–800 °C. The results of the thermogravimetric weight-loss (TG) curves of lignin and their first-order derivatives (DTG) curves are shown in Figure 7. The thermal decomposition of all lignin samples can be roughly divided into three stages.
The first stage occurred between 30 and 150 °C. This stage primarily involved the removal of adsorbed water in lignins and the degradation of low-molecular-weight lignins, resulting in a weight loss of about 3%.
The second stage occurred between 150 and 600 °C. This phase represented the rapid pyrolysis of the lignin samples. During this stage, mass loss was primarily due to the degradation of lignin phenylpropane polymers, particularly the breakdown of the β-O-4 basic structural unit and the cleavage of lignin side chains [51,52]. At this stage, the peak degradation rate for EHL was observed at an inflection temperature of 330.2 °C, corresponding to a degradation rate of 2.58%/min. It is widely recognized that ball-milled lignins closely resemble the structure of natural lignins found in plants, characterized by a relatively rich presence of easily degradable β-O-4 ether bonds. Study [53] demonstrated that the temperature range for ball-milled lignins to achieve their maximum degradation rate is approximately between 316 and 330 °C. Notably, the inflection temperature for EHL aligned closely with that of ball-milled lignins, suggesting that the milder extraction conditions for EHLs better preserve the original lignin structure [54]. The inflection point temperatures of ChCl-LA-DEHL, ChCl-HAc-DEHL, ChCl-FA-DEHL, ChCl-OA-DEHL, ChCl-MA-DEHL, ChCl-CA-DEHL, and ChCl-TsOH-DEHL increased from 330.2 °C for EHLs to 363.2 °C, 360.9 °C, 362.7 °C, 367.2 °C, 361.4 °C, 359.6 °C, and 332.5 °C, respectively, indicating that the thermal stability of EHLs improved after treatment with DESs. Specifically, the thermal stability of the six DESs-treated DEHLs increased by about 30 °C, except for ChCl-TsOH-DEHL, which showed a slight increase of 2.3 °C. The increase in the thermal stability of DEHLs during the second stage could be attributed to the cleavage of the less thermally stable β-O-4 ether bonds during the DES treatment. Furthermore, treatments with ChCl-LA, ChCl-HAc, ChCl-FA, ChCl-OA, ChCl-MA, and ChCl-CA may induce esterification reactions of certain hydroxyl groups in lignin, which further contributes to the improvement of the thermal stability of DEHLs [55]. Additionally, with the exception of ChCl-TsOH, other DESs treatments resulted in enhanced shoulder peaks at lower temperatures in DEHLs, especially ChCl-FA-DEHL, which exhibited a pronounced shoulder peak at 259.4 °C, with a corresponding degradation rate of 1.67%/min. This suggests the presence of more thermally unstable regions in DEHLs following treatment with these six acidic DESs [56].
The third stage of lignin thermal degradation occurred between 600 and 800 °C. This stage is characterized by the carbonization of the relatively stable aromatic ring structure. Due to the stability of these aromatic ring structures, lignins lost weight slowly during this stage. As the temperature continued to rise, a series of reactions, including carbon–carbon bond breakage, occurred within the aromatic rings of lignin, eventually leading to its degradation into small molecules such as CO2, CO, and H2O [57]. At 800 °C, the char yield of EHL was 46.14%. However, with the exception of ChCl-TsOH-DEHL, all other DESs treatments resulted in a reduction in the char yield of EHL at 800 °C. Meanwhile, the char yield of ChCl-TsOH-DEHL increased from 46.14% fo EHL to 48.44% at 800 °C.
It can be found that different DESs treatments have varying effects on the thermal stability of EHLs. All seven DESs treatments significantly improved the thermal stability of EHLs within 150 °C to 600 °C. With the exception of ChCl-TsOH-DEHL, the other DESs treatments reduced the char yield of lignins at 800 °C to some extent. Overall, ChCl-TsOH treatment enhanced the thermal stability of EHL, helping to preserve the integrity of its chemical structure and functional properties at elevated temperatures.

3.8. Antioxidant Capacity of Lignins

DPPH (2,2-diphenyl-1-picrylhydrazyl) is a stable radical commonly used to assess the free radical scavenging ability of various substances. When dissolved in methanol, DPPH• shows a characteristic dark purple color and displays strong absorption at 517 nm. Upon reaction with antioxidants, the absorption at 517 nm decreased. The antioxidant activity of a substance can be assessed by calculating the percentage inhibition of DPPH•, which is determined through absorbance measurements at 517 nm using a UV spectrophotometer.

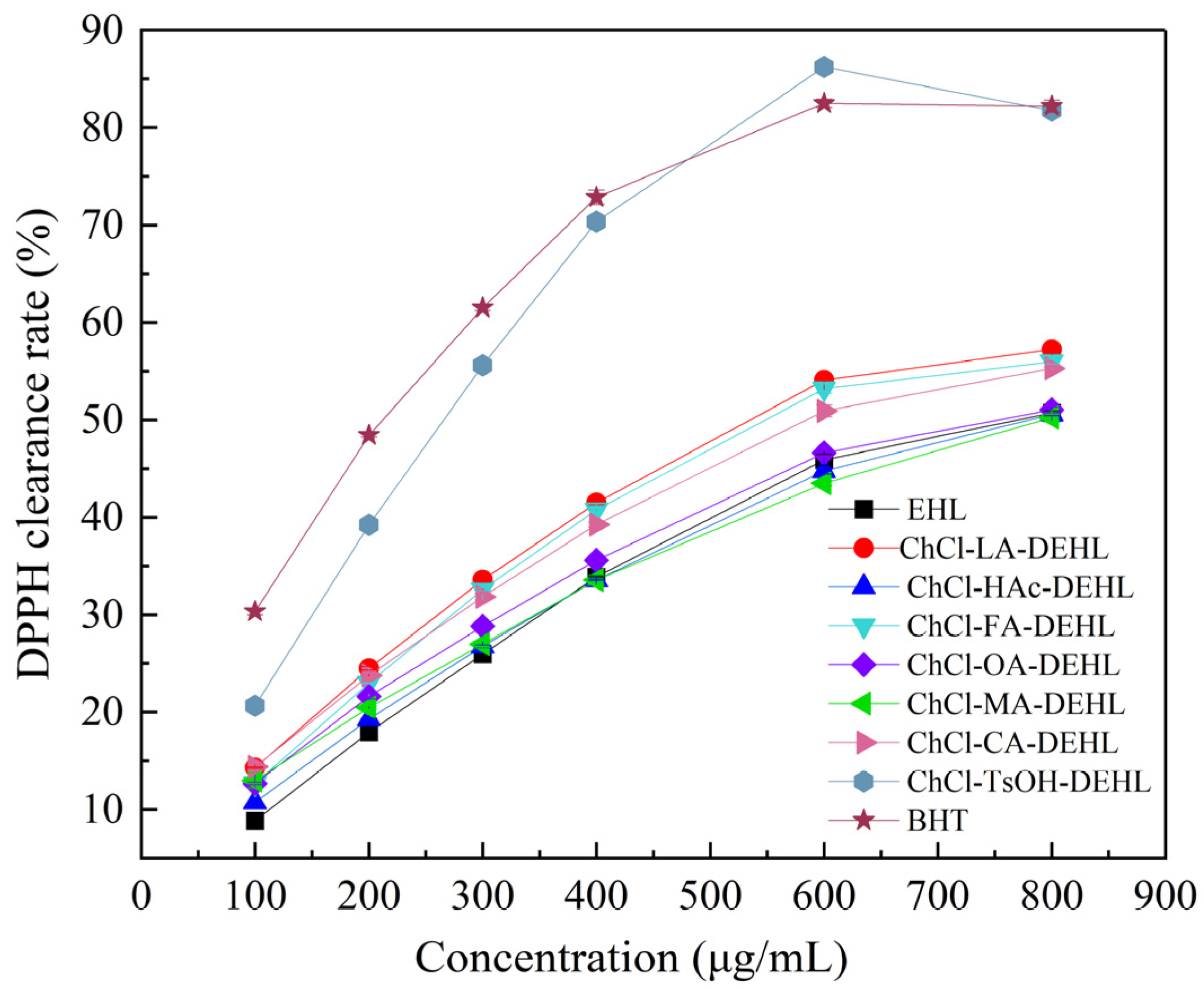

The scavenging effect of EHLs and DEHLs on DPPH• is shown in Figure 8. Using the commercial synthetic food antioxidant butylated hydroxytoluene (BHT) as a control, the antioxidant capacity of different lignins was analyzed. The results showed that, at lower concentrations, the DPPH• scavenging ability of lignins generally increased with concentration. However, the antioxidant capacity of lignin did not show a consistent positive correlation with its concentration changes. This might be due to the tendency of lignin to aggregate at higher concentrations, thereby reducing the number of active groups available to react with DPPH• [58]. Under the conditions studied, with the exception of ChCl-MA and ChCl-HAc, the other five DESs treatments enhanced the antioxidant activity of lignin to a certain extent. Overall, the antioxidant activities of EHLs and DEHLs were lower than that of the commercial antioxidant BHT. Interestingly, the antioxidant activity of ChCl-TsOH-DEHL at higher concentrations surpassed that of BHT, achieving a DPPH• scavenging rate of 86.22% at a concentration of 600 μg/mL, compared to BHT’s rate of 82.50% at the same concentration.
Therefore, DEHLs with enhanced antioxidant properties show promise as natural antioxidants for various applications, including skin care products, food packaging, composites, and pharmaceutical materials.

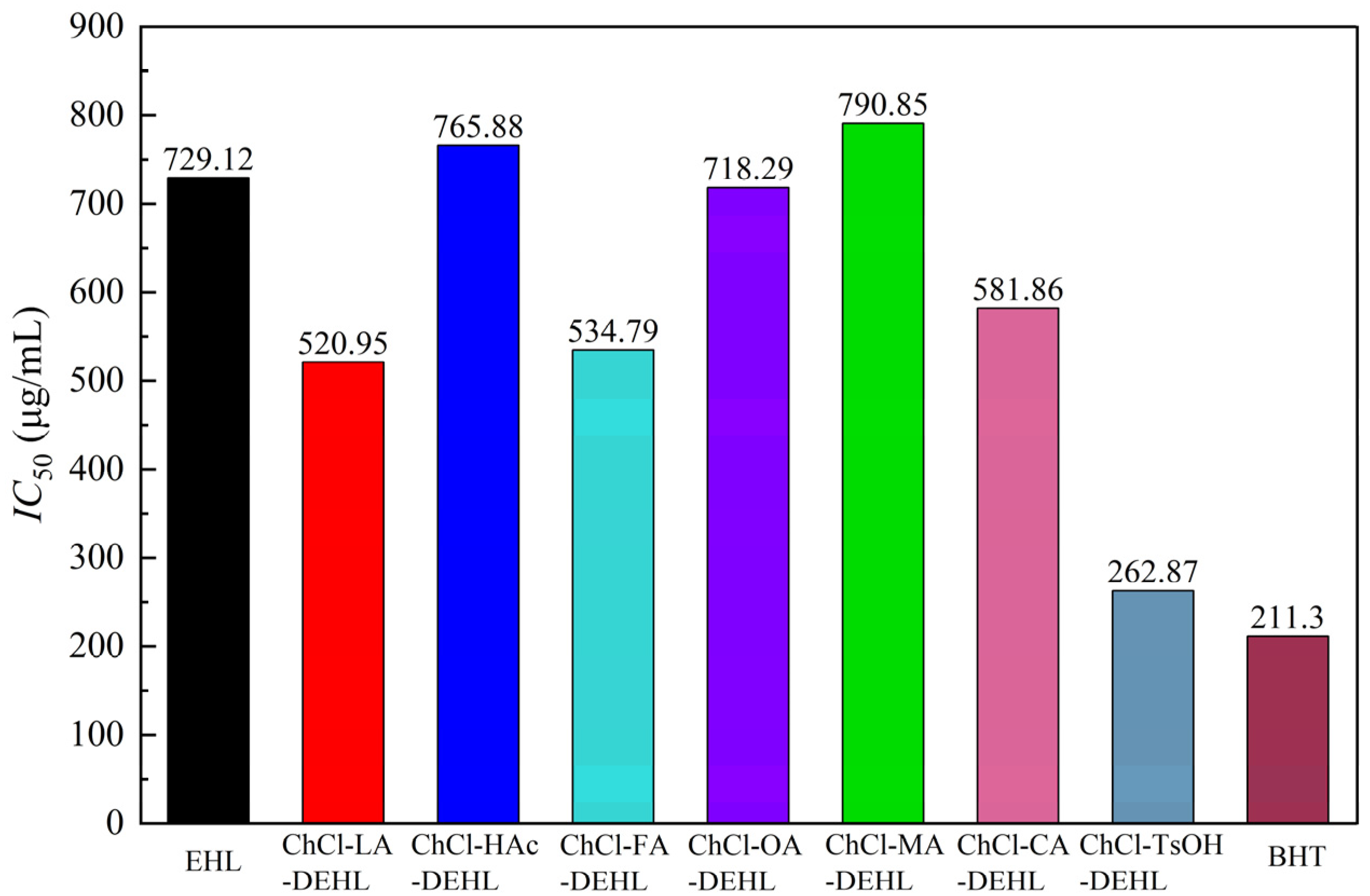

The half-maximal inhibitory concentration (IC50) is defined as the concentration of a sample required for the free radical clearance rate to reach 50%, serving as a crucial indicator of the antioxidant activity of the sample [59]. The IC50 values for EHLs, DEHLs, and BHT in relation to DPPH• are presented in Figure 9. A lower IC50 value indicates the stronger ability of the material to scavenge DPPH•. The results reveal that the highest IC50 value was observed for ChCl-MA-DEHL (783.55 μg/mL), followed by ChCl-HAc-DEHL (765.88 μg/mL) and EHLs (729.12 μg/mL). The lowest IC50 value was found for ChCl-TsOH-DEHL (262.87 μg/mL), which was closest to the IC50 value of BHT (211.30 μg/mL). This finding suggests that the antioxidant capacity of EHLs was significantly improved after treatment with ChCl-TsOH. Based on the previous analysis of the chemical structure of DEHL, this increase in antioxidant activity may be due to the reduction in molecular weight and the increase in ArOH content after treatment with ChCl-TsOH compared to EHLs [60].

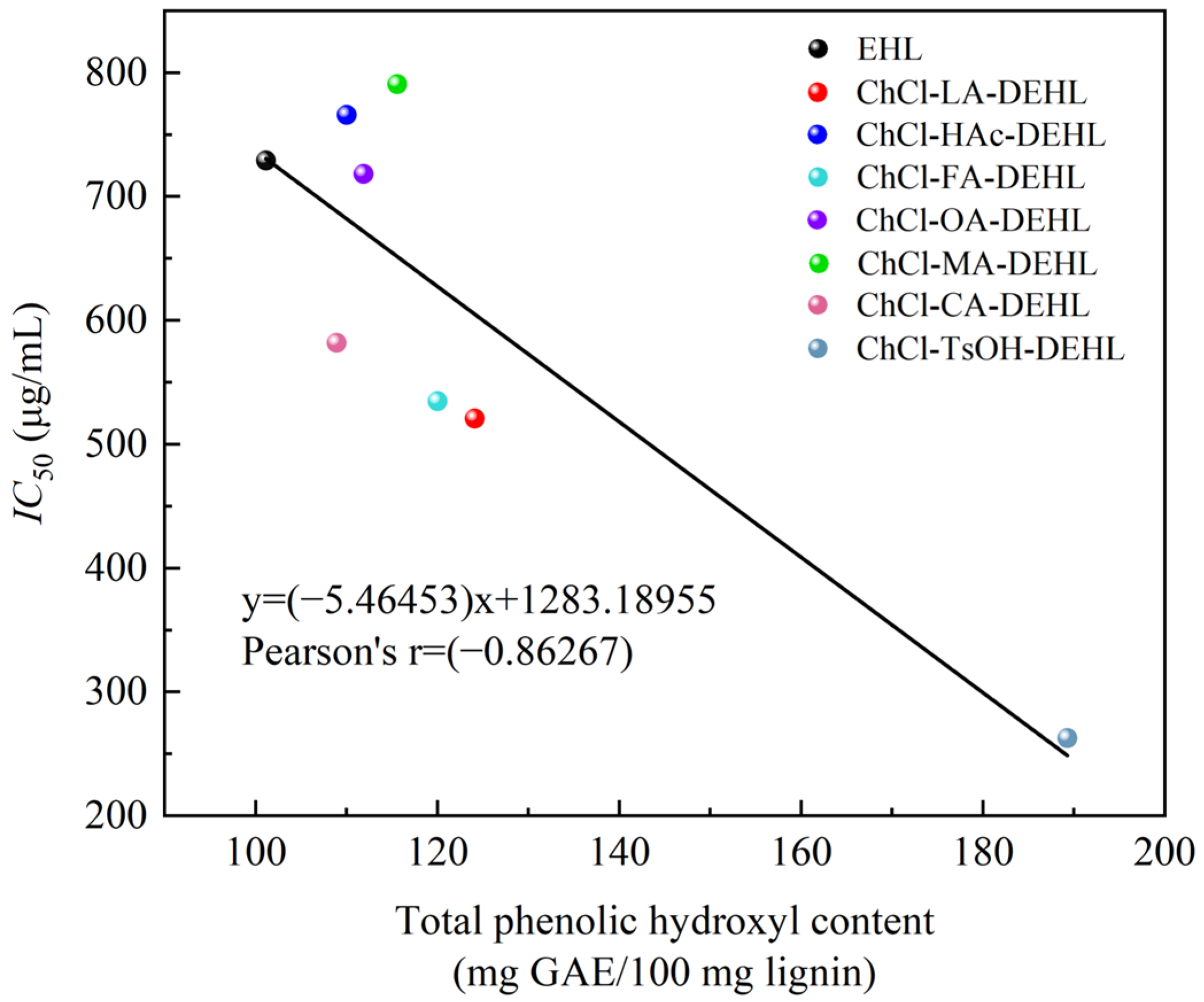

In order to analyze the relationship between the ArOH content of EHLs and DEHLs and their antioxidant activity, relationship curves were plotted using the total ArOH content of EHLs and DEHLs as the horizontal axis and their IC50 DPPH value against DPPH• as the vertical axis. The results are shown in Figure 10. It can be seen that there is a linear relationship between the total ArOH content of lignin and the IC50 DPPH value, with a Pearson correlation coefficient of −0.86267. This suggests a strong negative linear correlation between the total ArOH content of lignins and their IC50 DPPH values. Nsimba et al. [61] reported linear correlation coefficients (R2) of 0.7983 and 0.8185 for the ArOH and methoxyl contents of lignins, respectively, in relation to their IC50 DPPH values. These findings suggest that there is a strong linear correlation between the ArOH and methoxyl contents of lignin and their free radical scavenging ability.
Overall, ChCl-TsOH-DEHL exhibited the highest ArOH content, antioxidant activity and thermal stability among the several lignins studied in this research. Infrared analysis, molecular weight assessments and thermogravimetric analysis indicated that the treatments of EHLs with ChCl-LA, ChCl-HAc, ChCl-FA, ChCl-OA, ChCl-MA, and ChCl-CA resulted in the cleavage of some ether bonds between the basic structural units of lignins. This degradation led to a decrease in the molecular weight of DEHLs, an increase in ArOH content, and an improvement in thermal stability within the range of 150–600 °C. However, the carboxylic acids present in these DESs undergo esterification reactions with some of the hydroxyl groups in the regenerated lignins, which consequently reduced the ArOH content. As a result, the enhancement of antioxidant activity of the regenerated lignins following these DES treatments was not as pronounced as that of the ChCl-TsOH treatment.

4. Conclusions

In this study, seven acidic DESs were prepared using ChCl as the hydrogen bond acceptor and lactic acid, acetic acid, formic acid, oxalic acid, malic acid, citric acid, and p-toluenesulfonic acid as hydrogen bond donors. These seven acidic DESs were utilized to treat EHL.
The results showed that the yield of DEHLs treated with several acidic DESs ranged from 92.03% to 94.14%. DEHLs essentially retained the aromatic structures of EHLs, and the analysis suggested that lignins may have undergone a sulfonation reaction during treatment with ChCl-TsOH. With the exception of ChCl-CA, treatment with the other acidic DESs enhanced the UV shielding ability of the lignins, with ChCl-TsOH-DEHL exhibiting the best UV shielding and antioxidant performance. The acidic DESs treatments significantly reduced both the Mw and Mn of EHLs. Of the treatments, ChCl-TsOH-DEHL showed the lowest molecular weight, with Mw and Mn measured at 3223 g/mol and 939 g/mol, respectively. Moreover, treatment with acidic DESs increased the phenolic content of EHL to varying degrees. Notably, ChCl-TsOH treatment resulted in the highest increase in the ArOH content of DEHLs, raising it from 99.44 mg GAE/100 mg lignin to 185.75 mg GAE/100 mg lignin. Except for ChCl-MA and ChCl-HAc, the antioxidant activity of DEHLs improved after treatment with the other acidic DESs. The IC50 DPPH values of ChCl-LA-DEHL, ChCl-FA-DEHL, ChCl-OA-DEHL, ChCl-CA-DEHL, and ChCl-TsOH-DEHL decreased from the 729.12 μg/mL of EHLs to 520.95, 534.79, 718.29, 581.86, and 262.87 μg/mL, respectively, indicating that all these DESs treatments were effective in improving the antioxidant activity of EHLs. In particular, the antioxidant activity of ChCl-TsOH-DEHL at a concentration of 600 μg/mL surpassed that of the commercial antioxidant BHT. Furthermore, the DPPH• scavenging capacity of both EHLs and DEHLs exhibited a strong negative correlation with their ArOH content. In conclusion, this study found that the acidity of the DESs had little effect on the yield, chemical structure, molecular weight, and antioxidant activity of DEHLs, while the type of acid in DESs had a significant impact on the properties of DEHLs. In particular, treatment with ChCl-TsOH significantly improved the antioxidant activity of DEHLs, thereby broadening the potential applications of EHLs.

Author Contributions

Q.M., X.M., H.S., L.C. and L.L. prepared the composite and conducted the data organization and analysis. Q.M., X.M., J.H., L.L. and L.Y. drafted the initial version of the manuscript wrote the first draft of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (32160413), the Natural Science Foundation of Guizhou Province (no. Qiankehe ZK [2022] General 067), the International Joint Research Center for Biomass Materials (Southwest Forestry University) (2023-GH06), the 111 Project (D21027), and the Guizhou Province College Students’ Innovation and Entrepreneurship Training Program (gzusc2024084).

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, J.; Hong, K.; Ma, L.; Hao, X. Effect of time series on the degradation of lignin by Trametes gibbosa: Products and pathways. Int. J. Biol. Macromol. 2024, 281, 136236. [Google Scholar] [CrossRef] [PubMed]
  2. Abdelaziz, O.Y.; Brink, D.P.; Prothmann, J.; Ravi, K.; Sun, M.Z.; García-Hidalgo, J.; Sandahl, M.; Hulteberg, C.P.; Turner, C.; Lidén, G.; et al. Biological valorization of low molecular weight lignin. Biotechnol. Adv. 2016, 34, 1318–1346. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, R.; Zhang, K.; Liu, P.; Han, H.W.; Zhao, S.; Kakade, A.; Khan, A.; Du, D.L.; Li, X.K. Lignin depolymerization and utilization by bacteria. Bioresour. Technol. 2018, 269, 557–566. [Google Scholar] [CrossRef] [PubMed]
  4. Bergamasco, S.; Zikeli, F.; Vinciguerra, V.; Sobolev, A.P.; Scarnati, L.; Tofani, G.; Mugnozza, G.S.; Romagnoli, M. Extraction and characterization of acidolysis lignin from turkey oak (Quercus cerris L.) and eucalypt (Eucalyptus camaldulensis Dehnh.) wood from Population Stands in Italy. Polymers 2023, 15, 3591. [Google Scholar] [CrossRef]
  5. Wu, F.F.; Chen, L.; Hu, P.; Zhou, X.; Zhou, H.Q.; Wang, D.H.; Lu, X.Y.; Mi, B.B. Comparison of properties, adsorption performance and mechanisms to Cd(II) on lignin-derived biochars under different pyrolysis temperatures by microwave heating. Environ. Technol. Innov. 2022, 25, 102196. [Google Scholar] [CrossRef]
  6. Li, M.C.; Zhang, Y.X.; Sun, J.S.; Lv, K.H.; Huang, X.B.; Meng, X.; Li, Z.Y.; Song, N.N.; Yang, D.Q.; Liu, C.Z. Lignin nanoparticle-stabilized pickering emulsion: Mechanism, influencing parameter, and emerging application. Adv. Colloid Interface Sci. 2025, 341, 103476. [Google Scholar] [CrossRef]
  7. Wörner, M.; Barsuhn, A.; Zevaco, T.; Hornung, U.; Dahmen, N. From pulp to aromatic products-reaction pathways of lignin depolymerization. Energy Fuels 2024, 38, 6020–6035. [Google Scholar] [CrossRef]
  8. Li, P.H.; Ren, J.P.; Jiang, Z.W.; Huang, L.J.; Wu, C.W.; Wu, W.J. Review on the preparation of fuels and chemicals based on lignin. RSC Adv. 2022, 12, 10289–10305. [Google Scholar] [CrossRef]
  9. Zhao, L.; Zhang, J.Y.; Zhao, D.Y.; Jia, L.; Qin, B.; Cao, X.Y.; Zang, L.H.; Lu, F.P.; Liu, F.F. Biological degradation of lignin: A critical review on progress and perspectives. Ind. Crop Prod. 2023, 188, 115715. [Google Scholar] [CrossRef]
  10. Singh, K.; Mehra, S.; Kumar, A. Recent advances in catalytic conversion of lignin to value-added chemicals using ionic liquids and deep eutectic solvents: A critical review. Green Chem. 2024, 26, 1062–1091. [Google Scholar] [CrossRef]
  11. Singh, K.; Mehra, S.; Kumar, A. Metal-based ionic liquids, effective catalysts in aqueous media for the selective production of vanillin from alkali lignin at room temperature. Green Chem. 2022, 24, 9629–9642. [Google Scholar]
  12. Wang, H.J.; Dong, Y.N.; Sun, J.J.; Wu, Y.Q.; Shen, F.; Wang, J.F.; Nie, Y. Insights into the electrochemical degradation mechanisms of imidazolium-based ionic liquids in the aqueous solution. Sep. Purif. Technol. 2025, 361, 131500. [Google Scholar]
  13. Abbott, A.P.; Capper, G.; Davies, D.L.; Rasheed, R.K.; Tambyrajah, V. Novel solvent properties of choline chloride/urea mixtures. Chem. Commun. 2003, 70–71. [Google Scholar]
  14. Lin, W.; Xing, S.; Jin, Y.; Lu, X.; Huang, C.; Yong, Q. Insight into understanding the performance of deep eutectic solvent pretreatment on improving enzymatic digestibility of bamboo residues. Bioresour. Technol. 2020, 306, 123163. [Google Scholar]
  15. Oh, Y.; Park, S.; Jung, D.; Oh, K.K.; Lee, S.H. Effect of hydrogen bond donor on the ChCl-based deep eutectic solvent-mediated extraction of lignin from pine wood. Int. J. Biol. Macromol. 2020, 165, 187–197. [Google Scholar]
  16. Lyu, G.; Li, T.; Ji, X.; Yang, G.; Liu, Y.; Lucia, L.A.; Chen, J. Characterization of lignin extracted from willow by deep eutectic solvent treatments. Polymers 2018, 10, 869. [Google Scholar] [CrossRef]
  17. Khandelwal, S.; Tailor, Y.K.; Kumar, M. Deep eutectic solvents (DESs) as eco-friendly and sustainable solvent/catalyst systems in organic transformations. J. Mol. Liq. 2016, 215, 345–386. [Google Scholar]
  18. Tan, Y.T.; Ngoh, G.C.; Chua, A.S. Evaluation of fractionation and delignification efficiencies of deep eutectic solvents on oil palm empty fruit bunch. Ind. Crop Prod. 2018, 123, 271–277. [Google Scholar]
  19. Rodríguez-Rebelo, F.; Rodríguez-Martínez, B.; Del-Río, P.G.; Collins, M.N.; Garrote, G.; Gullón, B. Assessment of deep eutectic solvents (DES) to fractionate Paulownia wood within a biorefinery scheme: Cellulosic bioethanol production and lignin isolation. Ind. Crops Prod. 2024, 216, 118761. [Google Scholar] [CrossRef]
  20. Song, K.Q.; Yu, L.P.; Yang, S.L.; Cao, Y.; Li, L.F.; Wu, Z.G.; Shi, H.T.; Ma, Q.R. Insights into the chemical structure and antioxidant activity of lignin extracted from bamboo by acidic deep eutectic solvents. ACS Omega 2024, 9, 40956–40969. [Google Scholar]
  21. Zhu, Y.; Yang, T.X.; Li, H.; Qi, B.K.; Zhao, Q.S.; Zhao, B. Acidic and alkaline deep eutectic solvents (DESs) pretreatment of grapevine: Component analysis, characterization, lignin structural analysis, and antioxidant properties. Int. J. Biol. Macromol. 2023, 236, 123977. [Google Scholar] [CrossRef] [PubMed]
  22. Argenziano, R.; Moccia, F.; Esposito, R.; D’Errico, G.; Panzella, L.; Napolitano, A. Recovery of lignins with potent antioxidant properties from shells of edible nuts by a green ball milling/deep eutectic solvent (des)-based protocol. Antioxidants 2022, 11, 1860. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, J.H.; Fu, Y.Z.; Dong, Y.Y.; Wang, D.W.; Deng, J.; Shi, Z.J.; Yang, J.; Yang, H.Y. Pretreatment of bamboo with choline chloride-lactic acid integrated with calcium chloride hydrates deep eutectic solvent to boost bioconversion for ethanol production. Ind. Crops Prod. 2023, 200, 116879. [Google Scholar] [CrossRef]
  24. Li, L.; Wu, Z.; Xi, X.; Liu, B.; Cao, Y.; Xu, H.; Hu, Y. A bifunctional brønsted acidic deep eutectic solvent to dissolve and catalyze the depolymerization of alkali lignin. J. Renew. Mater. 2021, 9, 219–235. [Google Scholar] [CrossRef]
  25. Hong, S.; Shen, X.J.; Sun, Z.H.; Yuan, T.Q. Insights into structural transformations of lignin toward high reactivity during ChCl/formic acid deep eutectic solvents pretreatment. Front. Energy Res. 2020, 8, 573198. [Google Scholar] [CrossRef]
  26. Li, P.; Lu, Y.; Long, G.; Li, S.; Li, K.; Jiang, B.; Wu, W. Structural characterization of acid DES-modified alkaline lignin and evaluation of antioxidant properties. Forests 2023, 14, 550. [Google Scholar] [CrossRef]
  27. Zhou, X.Y.; Zheng, F.; Liu, X.Y.; Tang, L.J.; Xue, G.; Du, G.B.; Yong, Q.; Chen, M.Z.; Zhu, L.L. Glass transition of oxygen plasma treated enzymatic hydrolysis lignin. Bioresources 2012, 7, 4776–4785. [Google Scholar] [CrossRef]
  28. Chen, W.; Wang, X.; Hashisho, Z.; Feizbakhshan, M.; Shariaty, P.; Niknaddaf, S.; Zhou, X. Template-free and fast one-step synthesis from enzymatic hydrolysis lignin to hierarchical porous carbon for CO2 capture. Microporous Mesoporous Mater. 2019, 280, 57–65. [Google Scholar] [CrossRef]
  29. Menezes, F.F.; Nascimento, V.M.; Gomes, G.R.; Rocha, G.J.; Strauss, M.; Junqueira, T.L.; Driemeier, C. Depolymerization of enzymatic hydrolysis lignin: Review of technologies and opportunities for research. Fuel 2023, 342, 127796. [Google Scholar] [CrossRef]
  30. Liang, F.K.; Yin, Y.B.; Jiao, T.T.; Li, X.P.; Zhou, H.F.; Liang, P. Catalytic hydrogenolysis of lignin with NiO-CuO catalyst via alcohol-water coprecipitation. Appl. Cataly. A-Gen. 2024, 691, 120082. [Google Scholar] [CrossRef]
  31. Hansen, B.; Kusch, P.; Schulze, M.; Kamm, B. Qualitative and quantitative analysis of lignin produced from beech wood by different conditions of the organosolv process. J. Polym. Environ. 2016, 24, 85–97. [Google Scholar]
  32. Taokaew, S.; Phisalaphong, M.; Newby, B.M.Z. Modification of bacterial cellulose with organosilanes to improve attachment and spreading of human fibroblasts. Cellulose 2015, 22, 2311–2324. [Google Scholar] [PubMed]
  33. Wan, Y.L.; Hu, Y.L.; Xu, D.X.; Huang, J.B.; Xu, F.; Wu, Y.Y.; Zhang, X.M. Fabrication and characterization of cellulose/lignin microspheres films with UV-blocking. J. Mater. Eng. 2021, 49, 56–63. [Google Scholar]
  34. Lourençon, T.V.; de Lima, G.G.; Ribeiro, C.S.; Hansel, F.A.; Maciel, G.M.; da Silva, K.; Winnischofer, S.M.; de Muniz, G.I.; Magalhães, W.L. Antioxidant, antibacterial and antitumoural activities of kraft lignin from hardwood fractionated by acid precipitation. Int. J. Biol. Macromol. 2021, 166, 1535–1542. [Google Scholar] [PubMed]
  35. Hu, Q.; Wang, Y.Y.; Gong, W.H.; Wang, Y.; Tana, M.J. Effect of deep eutectic solvent pretreatment on the structure and physicochemical properties of lignin from bamboo shoot shell. Nat. Prod. Res. Dev. 2023, 35, 365–371. [Google Scholar]
  36. Moubarik, A.; Grimi, N.; Boussetta, N.; Pizzi, A. Isolation and characterization of lignin from Moroccan sugarcane bagasse: Production of lignin-phenol-formaldehyde wood adhesive. Ind. Crop Prod. 2013, 45, 296–302. [Google Scholar] [CrossRef]
  37. Zhao, X.; Zhang, Y.; Hu, H.; Huang, Z.; Yang, M.; Chen, D.; Huang, K.; Huang, A.; Qin, X.; Feng, Z. Effect of mechanical activation on structure changes and reactivity in further chemical modification of lignin. Int. J. Biol. Macromol. 2016, 91, 1081–1089. [Google Scholar]
  38. Miles-Barrett, D.M.; Neal, A.R.; Hand, C.; Montgomery, J.R.; Panovic, I.; Ojo, O.S.; Lancefield, C.S.; Cordes, D.B.; Slawin, A.M.; Lebl, T.; et al. The synthesis and analysis of lignin-bound Hibbert ketone structures in technical lignins. Org. Biomol. Chem. 2016, 14, 10023–10030. [Google Scholar] [CrossRef]
  39. Pejov, L.; Ristova, M.; Šoptrajanov, B. Quantum chemical study of p-toluenesulfonic acid, p-toluenesulfonate anion and the water-p-toluenesulfonic acid complex: Comparison with experimental spectroscopic data. Spectrochim. Acta A 2011, 79, 27–34. [Google Scholar] [CrossRef]
  40. Feng, C.Q.; Zhu, J.T.; Cao, L.M.; Yan, L.; Qin, C.R.; Liang, C.; Yao, S.Q. Acidolysis mechanism of lignin from bagasse during p-toluenesulfonic acid treatment. Ind. Crop. Prod. 2022, 176, 114374. [Google Scholar]
  41. Zhou, X.Y.; Tang, L.J.; Zheng, F.; Xue, G.; Du, G.B.; Zhang, W.D.; Lv, C.L.; Yong, Q.; Zhang, R.; Tang, B.J.; et al. Oxygen plasma-treated enzymatic hydrolysis lignin as a natural binder for manufacturing biocomposites. Holzforschung 2011, 65, 829–833. [Google Scholar]
  42. Sosa, F.H.B.; Abranches, D.O.; Lopes, A.M.D.; Coutinho, J.A.P.; da Costa, M.C. Kraft lignin solubility and its chemical modification in deep eutectic solvents. ACS Sustain. Chem. 2021, 8, 18577–18589. [Google Scholar] [CrossRef]
  43. Chirila, O.; Totolin, M.; Cazacu, G.; Dobromir, M.; Vasile, C. Lignin modification with carboxylic acids and butyrolactone under cold plasma conditions. Ind. Eng. Chem. Res. 2013, 52, 13264–13271. [Google Scholar]
  44. Hynynen, J.; Riddell, A.; Achour, A.; Takacs, Z.; Wallin, M.; Parkås, J.; Bernin, D. Lignin and extractives first’conversion of lignocellulosic residual streams using UV light from LEDs. Green Chem. 2021, 23, 8251–8259. [Google Scholar]
  45. Li, W.B.; Li, B.; Wei, L.G.; Zhang, K.L.; An, Q.D. Structural changes of lignin during the process of treatment with double salt ionic liquids. J. Dalian Polytechnic. Univ. 2022, 41, 42–47. [Google Scholar]
  46. Nichols, J.A.; Katiyar, S.K. Skin photoprotection by natural polyphenols, anti-inflammatory, anti-oxidant and DNA repair mechanisms. Arch. Dermatol. Res. 2010, 302, 71–83. [Google Scholar] [CrossRef]
  47. Hasan, S.; Arthur, R. Lignin as a UV light blocker-A review. Polymers 2020, 12, 1134–1143. [Google Scholar] [CrossRef]
  48. Piccinino, D.; Capecchi, E.; Tomaino, E.; Gabellone, S.; Gigli, V.; Avitabile, D.; Saladino, R. Nano-structured lignin as green antioxidant and UV shielding ingredient for sunscreen applications. Antioxidants 2021, 10, 274. [Google Scholar] [CrossRef] [PubMed]
  49. Hong, S.; Shen, X.J.; Pang, B.; Xue, Z.; Cao, X.F.; Wen, J.L.; Sun, Z.H.; Lam, S.S.; Yuan, T.Q.; Sun, R.C. In-depth interpretation of the structural changes of lignin and formation of diketones during acidic deep eutectic solvent pretreatment. Green Chem. 2020, 22, 1851–1858. [Google Scholar] [CrossRef]
  50. Li, P.; Li, X.; Jiang, Z.; Xu, X.; Jin, Y.; Wu, W. Mild depolymerization of alkaline lignin in a formic acid-ChCl type deep eutectic solvent system. Holzforschung 2023, 77, 149–158. [Google Scholar]
  51. Poletto, M. Assessment of the thermal behavior of lignins from softwood and hardwood species. Maderas-Cienc. Tecnol. 2017, 19, 63–74. [Google Scholar] [CrossRef]
  52. Ci, Y.H.; Yu, F.; Zhou, C.X.; Mo, H.E.; Li, Z.Y.; Ma, Y.Q.; Zang, L.H. New ternary deep eutectic solvents for effective wheat straw deconstruction into its high-value utilization under near–neutral conditions. Green Chem. 2020, 22, 8713–8720. [Google Scholar]
  53. Toledano, A.; Serrano, L.; Labidi, J. Enhancement of lignin production from olive tree pruning integrated in a green biorefinery. Ind. Eng. Chem. Res. 2011, 50, 6573–6579. [Google Scholar]
  54. Wang, Y.; Hou, Y.; Li, H.; Wu, W.; Ren, S.; Li, J. New insights into the coalification of lignite from lignin: A comparison of their chemical structures. Fuel 2022, 326, 125017. [Google Scholar]
  55. Ando, D.; Nakatsubo, F.; Yano, H. Thermal stability of lignin in ground pulp (GP) and the effect of lignin modification on GP’s thermal stability: TGA experiments with dimeric lignin model compounds and milled wood lignins. Holzforschung 2019, 73, 493–499. [Google Scholar]
  56. Huijgen, W.J.; Telysheva, G.; Arshanitsa, A.; Gosselink, R.J.; De Wild, P.J. Characteristics of wheat straw lignins from ethanol-based organosolv treatment. Ind. Crop Prod. 2014, 59, 85–95. [Google Scholar] [CrossRef]
  57. Hong, S.; Li, H.Y.; Shen, X.J.; Sun, S.N.; Sun, Z.; Yuan, T.Q. Unveiling the migration and transformation mechanism of lignin in eucalyptus during deep eutectic solvent pretreatment. ChemSusChem 2022, 15, e202200553. [Google Scholar]
  58. Liu, D.; Li, Y.; Qian, Y.; Xiao, Y.; Du, S.; Qiu, X. Synergistic antioxidant performance of lignin and quercetin mixtures. ACS Sustain. Chem. Eng. 2017, 5, 8424–8428. [Google Scholar] [CrossRef]
  59. Sadeghifar, H.; Argyropoulos, D.S. Correlations of the antioxidant properties of softwood kraft lignin fractions with the thermal stability of its blends with polyethylene. ACS Sustain. Chem. Eng. 2015, 3, 349–356. [Google Scholar]
  60. Qi, S.; Wang, G.; Sun, H.; Wang, L.; Liu, Q.; Ma, G.; Parvez, A.M.; Si, C. Using lignin monomer as a novel capping agent for efficient acid-catalyzed depolymerization of high molecular weight lignin to improve its antioxidant activity. ACS Sustain. Chem. Eng. 2020, 8, 9104–9114. [Google Scholar]
  61. Nsimba, R.Y.; West, N.; Boateng, A.A. Structure and radical scavenging activity relationships of pyrolytic lignins. J. Agric. Food Chem. 2012, 60, 12525–12530. [Google Scholar] [CrossRef] [PubMed]
Polymers 17 01006 g001

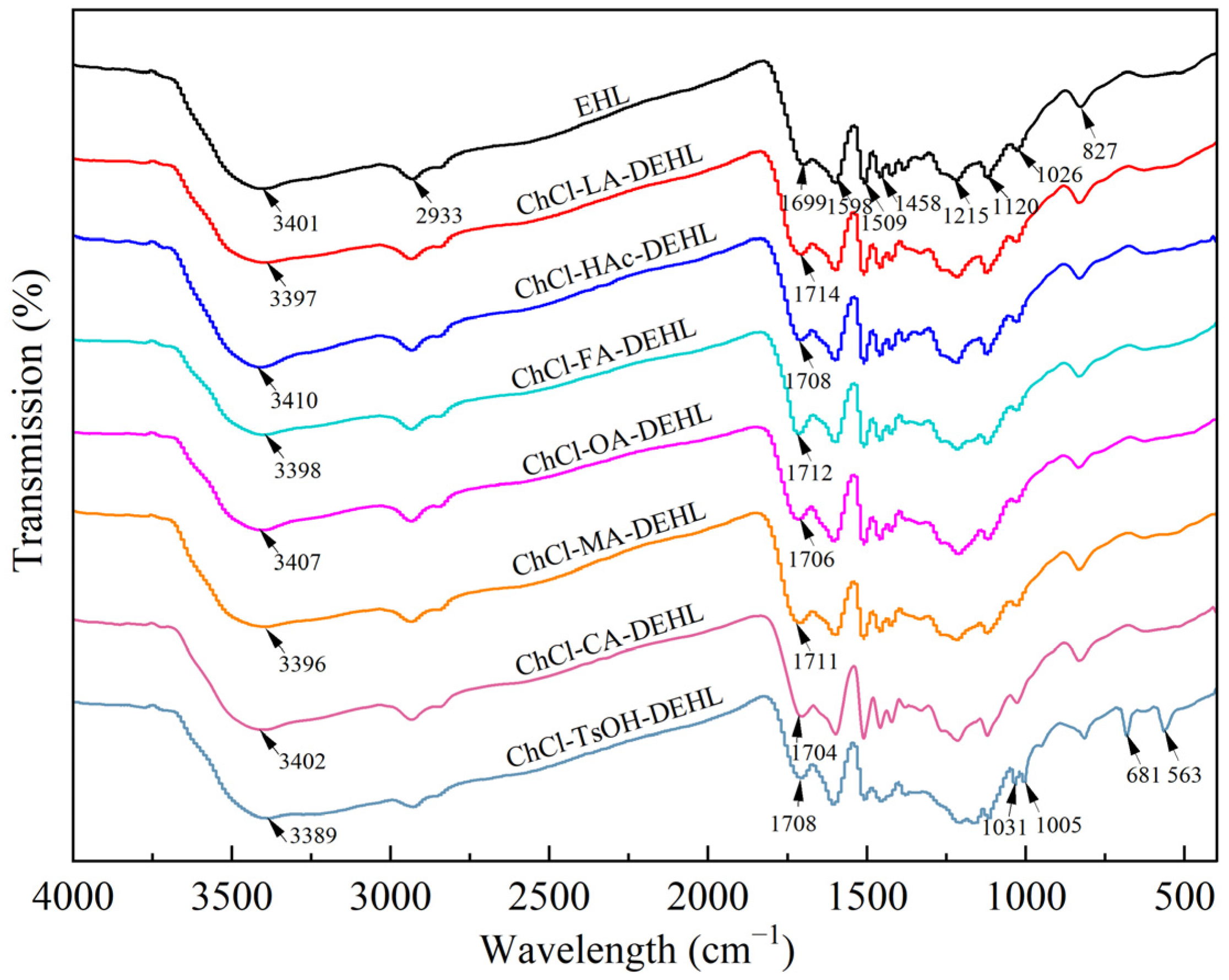

Figure 1. FT-IR spectra of EHL and DEHL.
Figure 1. FT-IR spectra of EHL and DEHL.
Polymers 17 01006 g001
Polymers 17 01006 g002

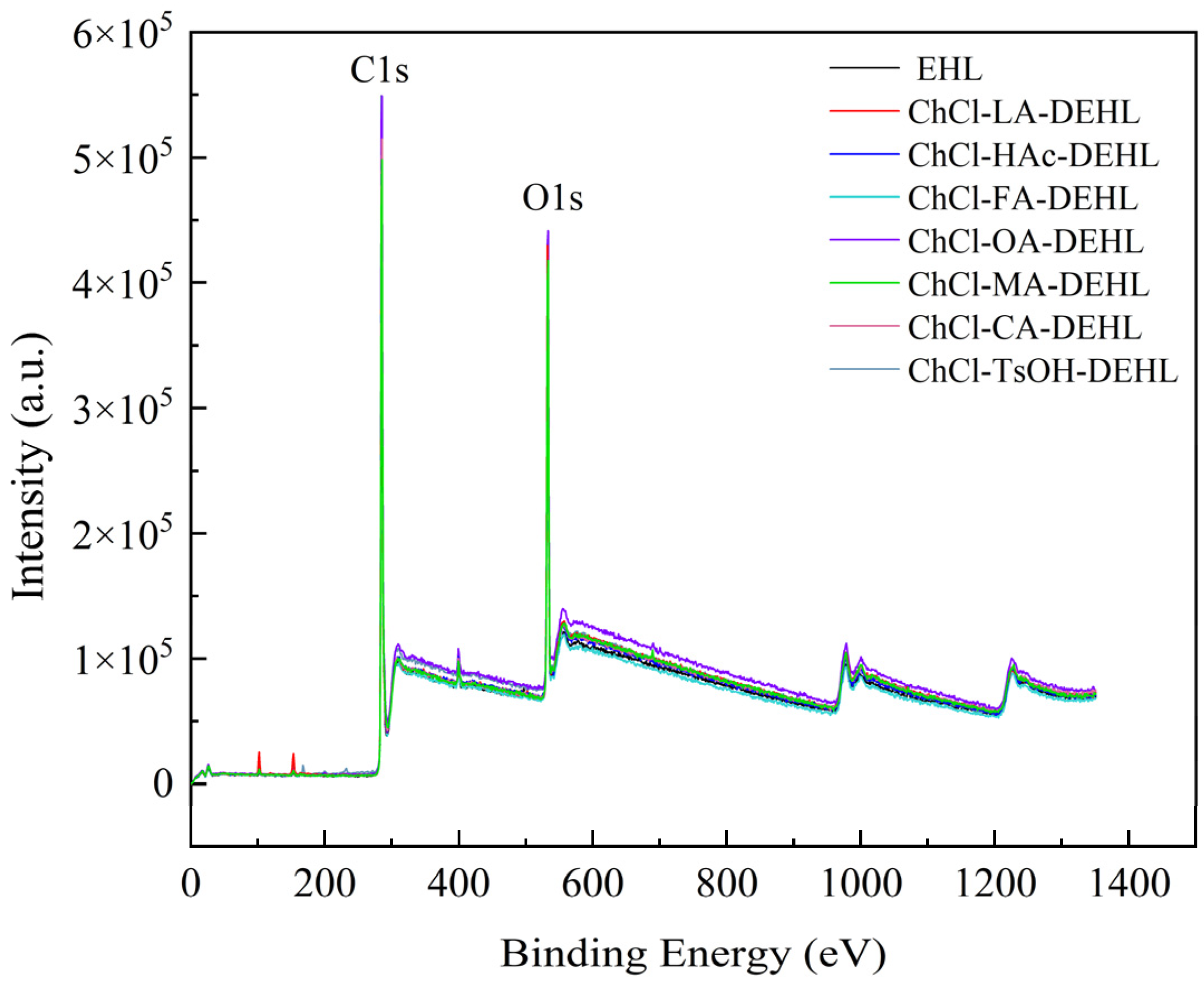

Figure 2. XPS wide scan of EHLs and DEHLs.
Figure 2. XPS wide scan of EHLs and DEHLs.
Polymers 17 01006 g002
Polymers 17 01006 g003

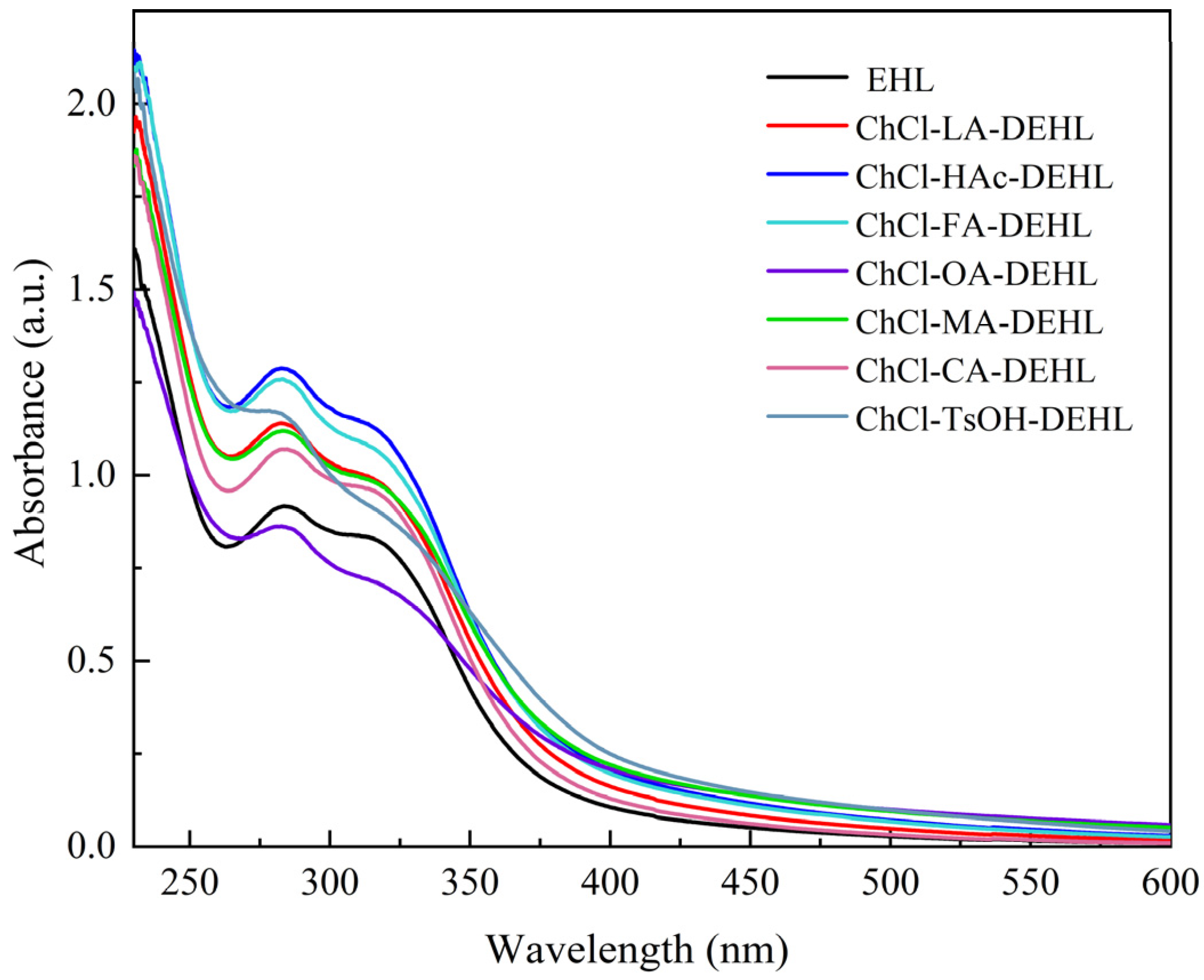

Figure 3. Ultraviolet–visible absorption spectra of EHLs and DEHLs.
Figure 3. Ultraviolet–visible absorption spectra of EHLs and DEHLs.
Polymers 17 01006 g003
Polymers 17 01006 g004

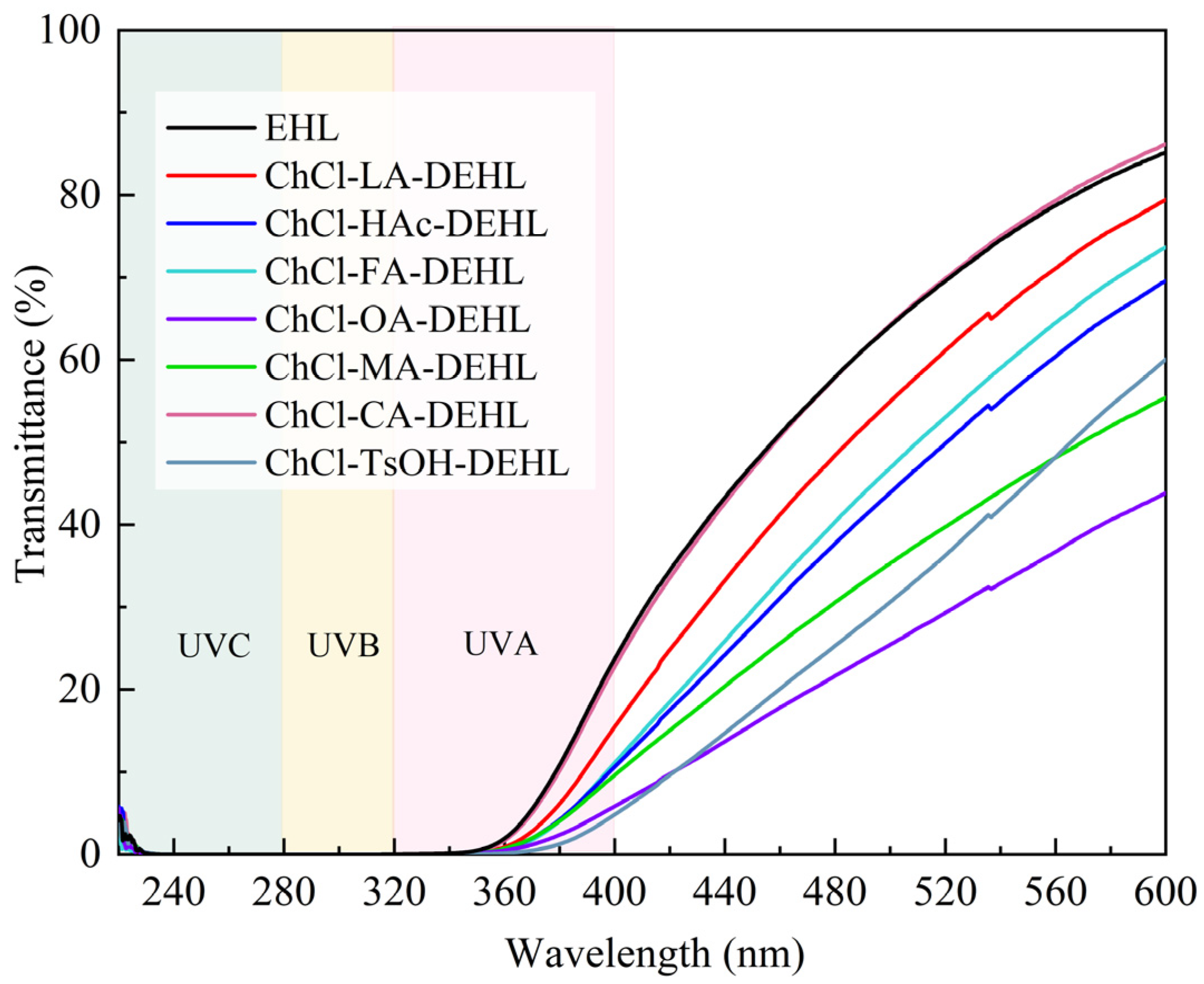

Figure 4. Ultraviolet–visible transmission spectra of EHLs and DEHLs.
Figure 4. Ultraviolet–visible transmission spectra of EHLs and DEHLs.
Polymers 17 01006 g004
Polymers 17 01006 g005

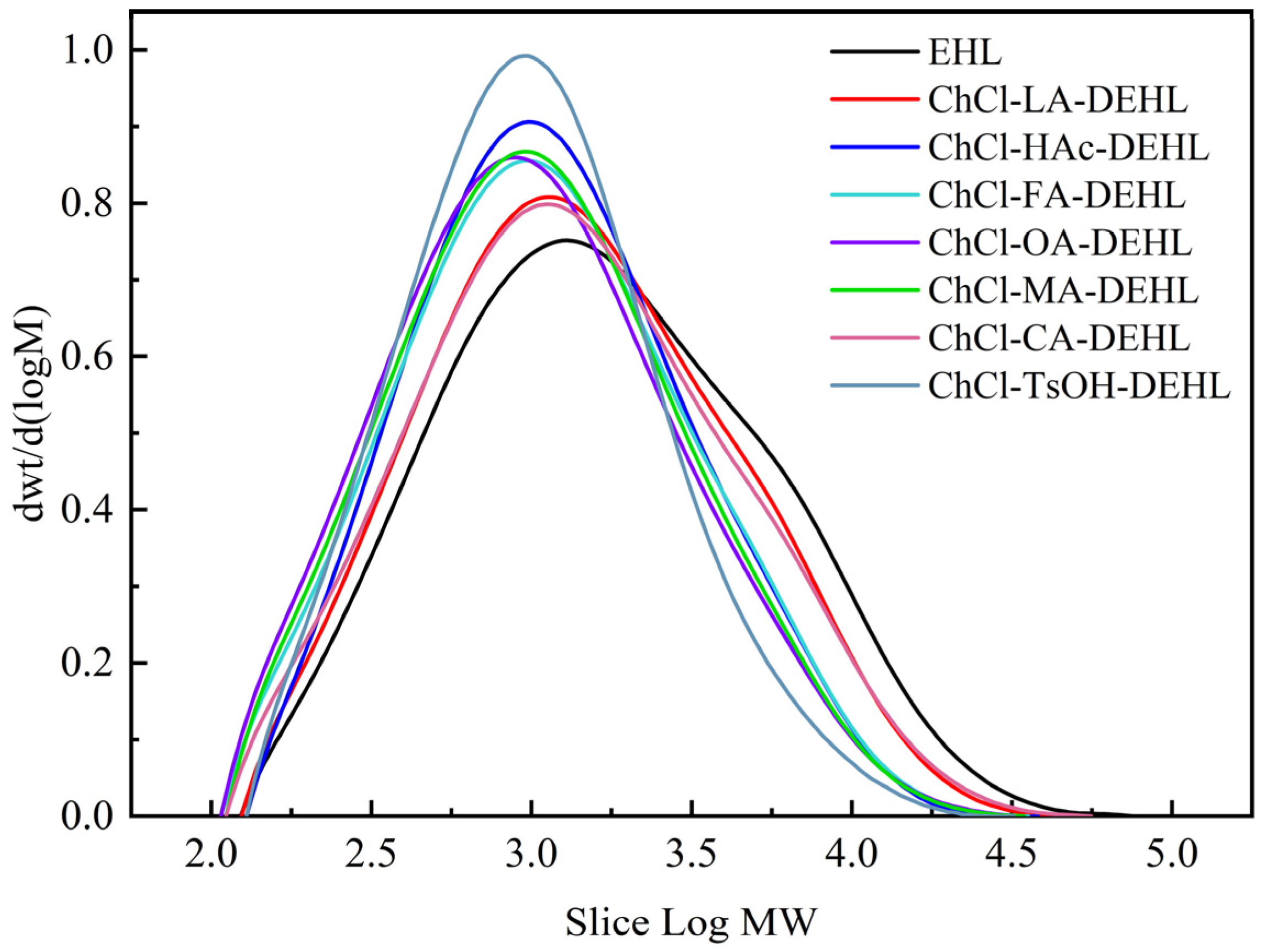

Figure 5. Molecular weights of EHLs, DEHLs, and BHT.
Figure 5. Molecular weights of EHLs, DEHLs, and BHT.
Polymers 17 01006 g005
Polymers 17 01006 g006

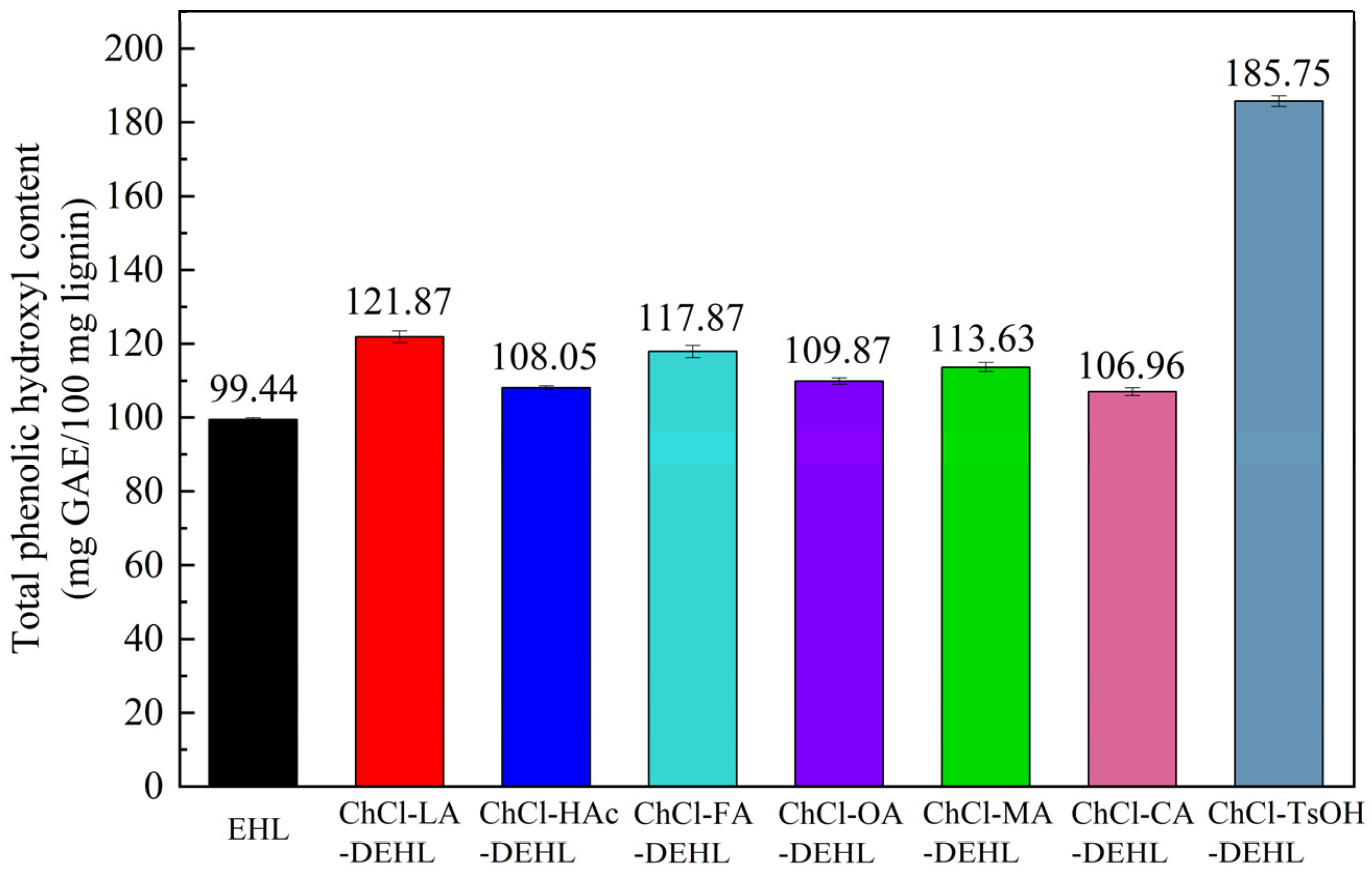

Figure 6. Total ArOH content of EHLs and DEHLs.
Figure 6. Total ArOH content of EHLs and DEHLs.
Polymers 17 01006 g006
Polymers 17 01006 g007

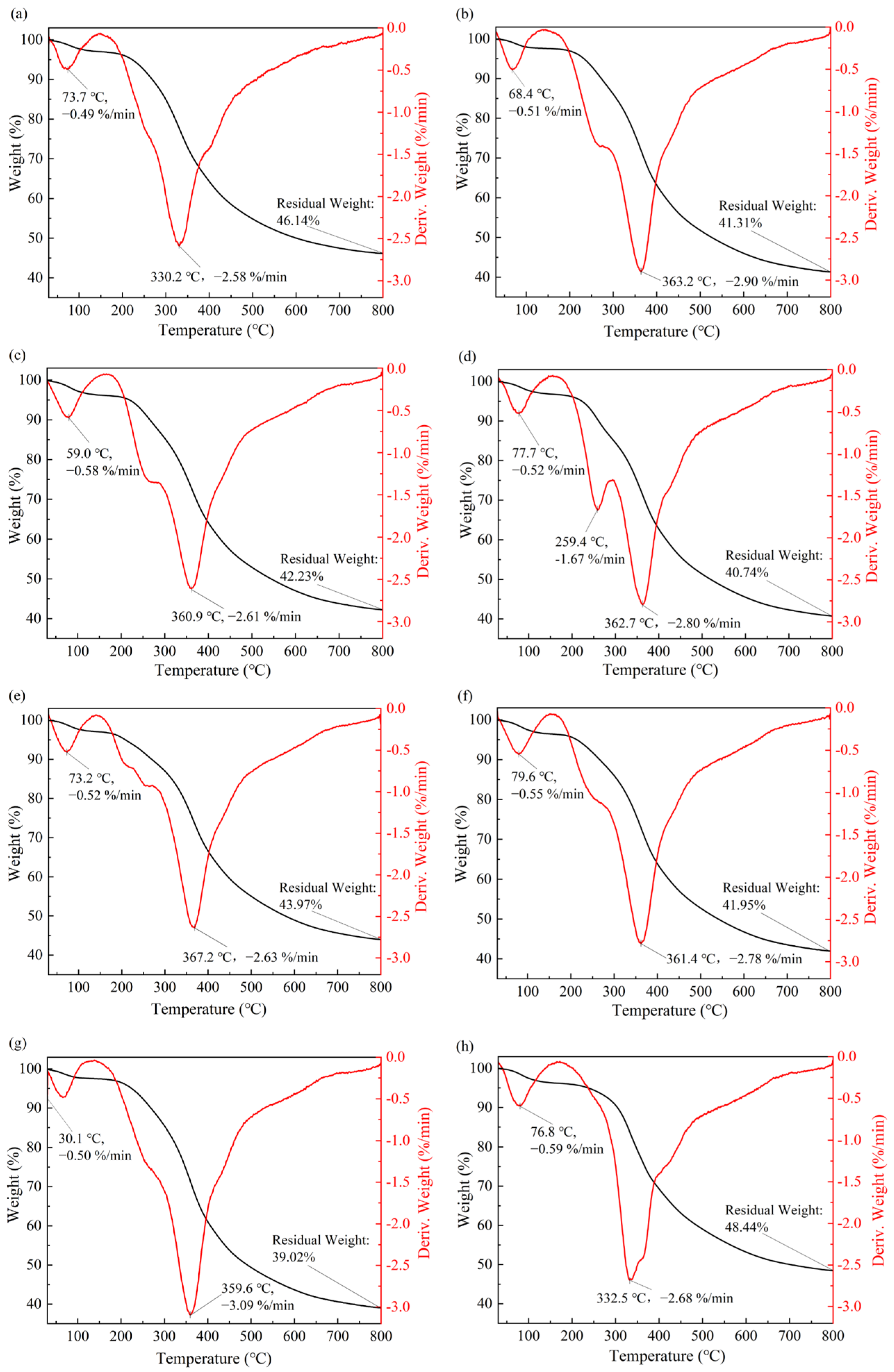

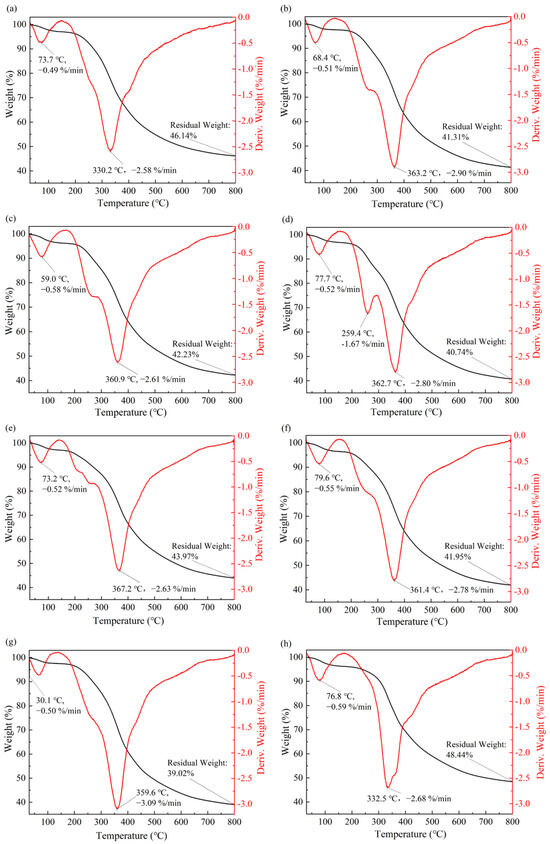

Figure 7. TG curves and DTG curves of EHLs and DEHLs: (a–h) are the TG curves and DTG curves of EHL, ChCl-LA-DEHL, ChCl-HAc-DEHL, ChCl-FA-DEHL, ChCl-OA-DEHL, ChCl-MA-DEHL, ChCl-CA-DEHL, and ChCl-TsOH-DEHL, respectively.
Figure 7. TG curves and DTG curves of EHLs and DEHLs: (a–h) are the TG curves and DTG curves of EHL, ChCl-LA-DEHL, ChCl-HAc-DEHL, ChCl-FA-DEHL, ChCl-OA-DEHL, ChCl-MA-DEHL, ChCl-CA-DEHL, and ChCl-TsOH-DEHL, respectively.
Polymers 17 01006 g007
Polymers 17 01006 g008
Figure 8. Scavenging capacity of EHLs and DEHLs for DPPH•.
Figure 8. Scavenging capacity of EHLs and DEHLs for DPPH•.
Polymers 17 01006 g008
Polymers 17 01006 g009
Figure 9. IC50 value of EHLs, DEHLs, and BHT.
Figure 9. IC50 value of EHLs, DEHLs, and BHT.
Polymers 17 01006 g009
Polymers 17 01006 g010
Figure 10. Relationship between total ArOH content of lignins and their half-inhibitory concentration of DPPH free radicals.
Figure 10. Relationship between total ArOH content of lignins and their half-inhibitory concentration of DPPH free radicals.
Polymers 17 01006 g010
Table 1. Yield of DEHL treated with different acidic DESs.
Table 1. Yield of DEHL treated with different acidic DESs.
DESs TypepH Value of the DESsDEHL Yield/%
ChCl-LA3.37 (0.06)92.87
ChCl-HAc1.10 (0.02)92.03
ChCl-FA−0.04 (0.04)92.16
ChCl-OA<−2.0093.00
ChCl-MA−0.62 (0.05)94.14
ChCl-CA−1.43 (0.11)92.82
ChCl-TsOH−1.92 (0.08)92.44
Table 2. The O/C atomic ratio of EHLs and DEHLs.
Table 2. The O/C atomic ratio of EHLs and DEHLs.
LigninO1s (%)C1s (%)O/C
EHL19.2780.730.239
ChCl-LA-DEHL22.0477.960.283
ChCl-HAc-DEHL20.2179.790.253
ChCl-FA-DEHL20.0979.910.251
ChCl-OA-DEHL20.7579.250.262
ChCl-MA-DEHL21.3878.620.272
ChCl-CA-DEHL20.8679.140.264
ChCl-TsOH-DEHL19.9880.020.250
Table 3. Molecular weight and polydispersity of EHLs and DEHLs.
Table 3. Molecular weight and polydispersity of EHLs and DEHLs.
LigninMW (g/mol)Mn (g/mol)MW/Mn
EHL32239393.43
ChCl-LA-DEHL25288393.01
ChCl-HAc-DEHL19017612.50
ChCl-FA-DEHL19126912.80
ChCl-OA-DEHL17806392.78
ChCl-MA-DEHL18246712.72
ChCl-CA-DEHL25387863.23
ChCl-TsOH-DEHL15866972.28
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ma, Q.; Meng, X.; Shi, H.; Chen, L.; Han, J.; Li, L.; Yu, L. Evaluation of Acidic Deep Eutectic Solvents Treatment on Enzymatic Hydrolysis Lignins: Structural Analysis and Antioxidant Activity. Polymers 2025, 17, 1006. https://doi.org/10.3390/polym17081006

AMA Style

Ma Q, Meng X, Shi H, Chen L, Han J, Li L, Yu L. Evaluation of Acidic Deep Eutectic Solvents Treatment on Enzymatic Hydrolysis Lignins: Structural Analysis and Antioxidant Activity. Polymers. 2025; 17(8):1006. https://doi.org/10.3390/polym17081006

Chicago/Turabian Style

Ma, Qiaorun, Xun Meng, Hongtao Shi, Lian Chen, Jiangyao Han, Lifen Li, and Liping Yu. 2025. "Evaluation of Acidic Deep Eutectic Solvents Treatment on Enzymatic Hydrolysis Lignins: Structural Analysis and Antioxidant Activity" Polymers 17, no. 8: 1006. https://doi.org/10.3390/polym17081006

APA Style

Ma, Q., Meng, X., Shi, H., Chen, L., Han, J., Li, L., & Yu, L. (2025). Evaluation of Acidic Deep Eutectic Solvents Treatment on Enzymatic Hydrolysis Lignins: Structural Analysis and Antioxidant Activity. Polymers, 17(8), 1006. https://doi.org/10.3390/polym17081006

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
