Correction

Correction: Takayama et al. Polyvinyl Butyral Addition Effects on Notched Charpy Impact Strength of Injection-Molded Glass Fiber-Reinforced Polypropylene. Polymers 2024, 16, 3472

Graduate School of Organic Materials Science, Yamagata University, Yamagata 990-8510, Japan
*
Author to whom correspondence should be addressed.
Polymers 2025, 17(7), 916; https://doi.org/10.3390/polym17070916
Submission received: 27 February 2025 / Accepted: 7 March 2025 / Published: 28 March 2025
(This article belongs to the Section Polymer Composites and Nanocomposites)

Table and Figure Corrections

There was an error in the original publication [1]. There was an error in the description of Table 2, Figures 14 and 15 and Equation (13). Specifically, the error in the fiber length measurement method was rectified. The corrected Table 2, Figure 14 and Figure 15 and Equation (13) appear below.
a i N = τ i V f L F 2 d cos φ for   L F < L c d V f σ F B 2 4 τ i cos φ for   L F > L c
The authors state that the scientific conclusions are unaffected. This correction was approved by the Academic Editor. The original publication has also been updated.

Reference

  1. Takayama, T.; Yuasa, Y.; Jiang, Q. Polyvinyl Butyral Addition Effects on Notched Charpy Impact Strength of Injection-Molded Glass Fiber-Reinforced Polypropylene. Polymers 2024, 16, 3472. [Google Scholar] [CrossRef] [PubMed]

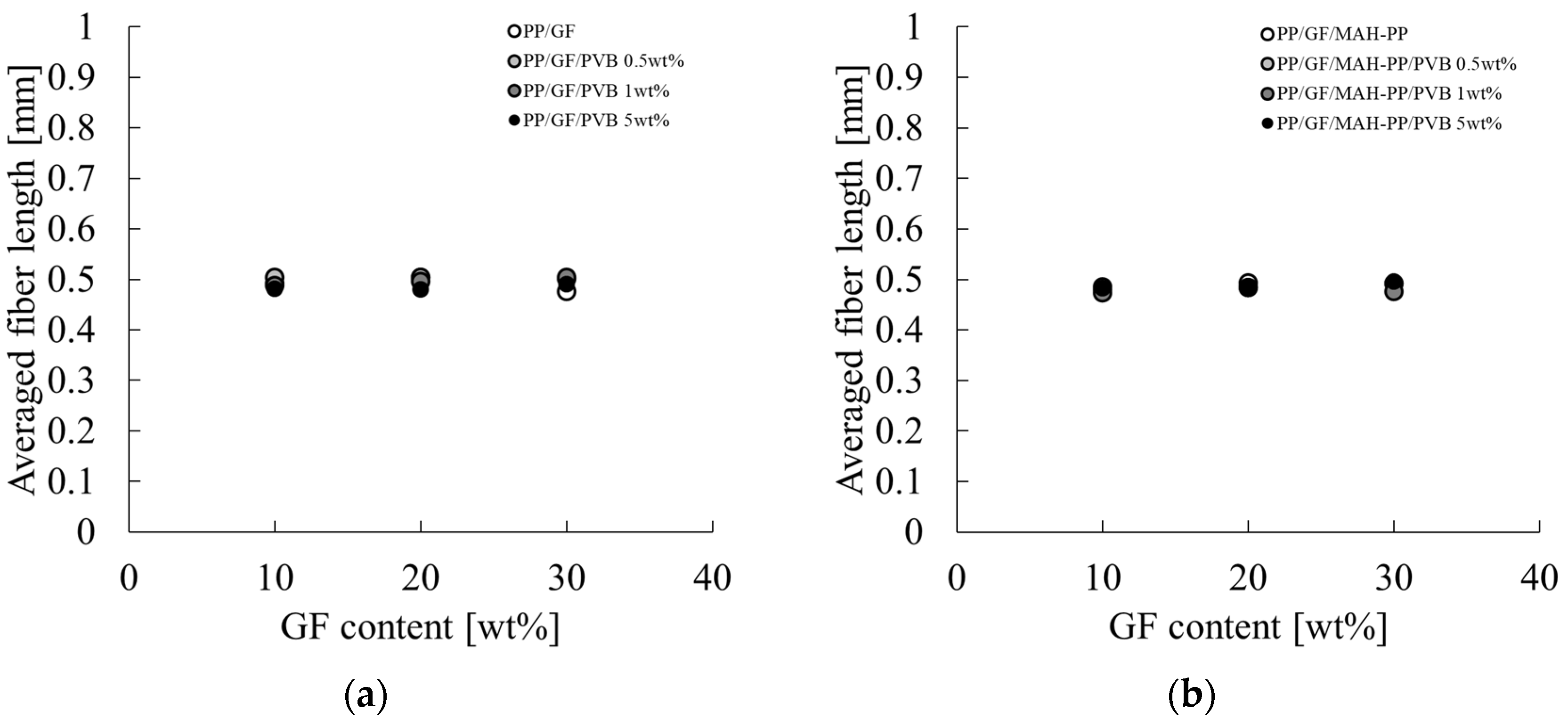

Figure 14. GF content dependences on the averaged fiber length of (a) PP/GF/PVB and (b) PP/GF/MAH-PP/PVB composites.
Figure 14. GF content dependences on the averaged fiber length of (a) PP/GF/PVB and (b) PP/GF/MAH-PP/PVB composites.
Polymers 17 00916 g014

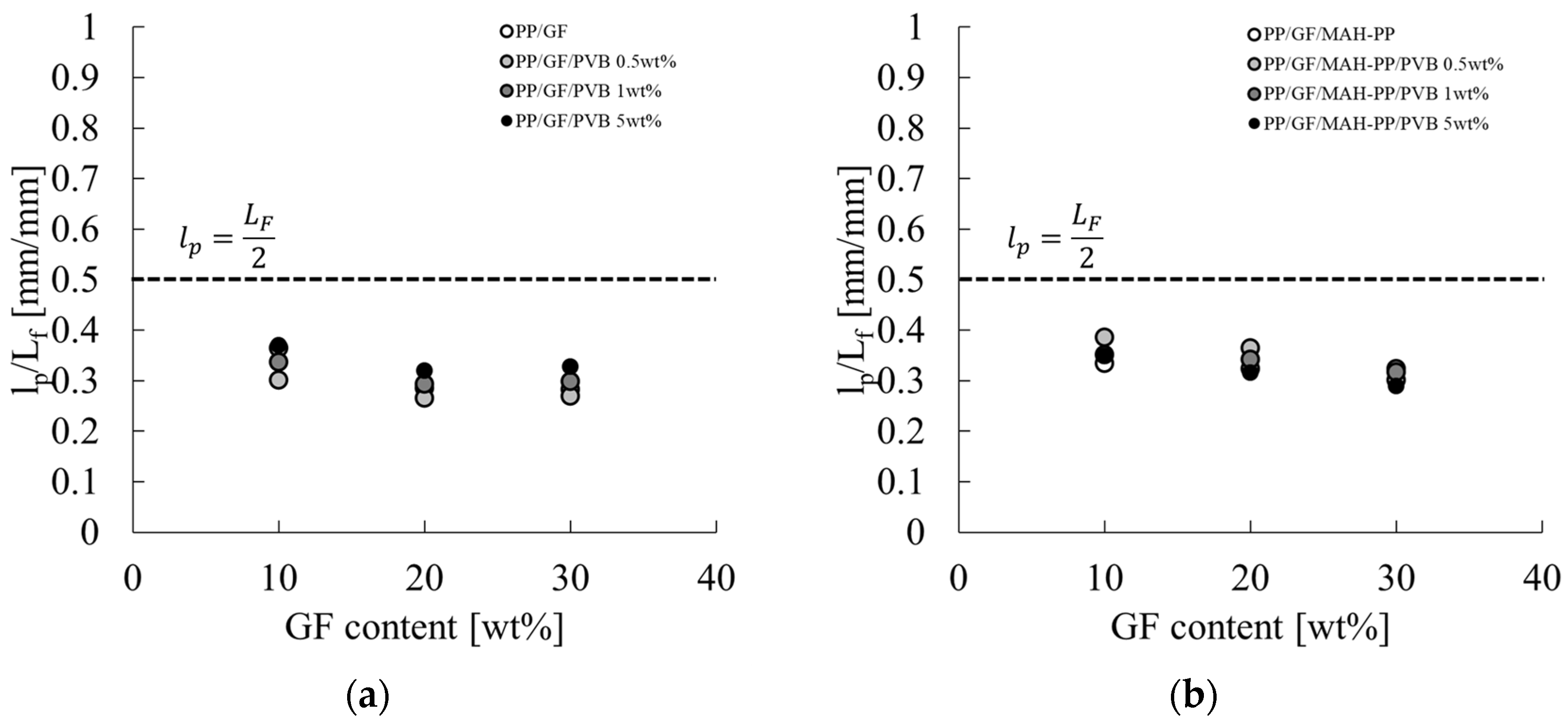

Figure 15. GF content dependences on the lp/LF of (a) PP/GF/PVB and (b) PP/GF/MAH-PP/PVB composites.
Figure 15. GF content dependences on the lp/LF of (a) PP/GF/PVB and (b) PP/GF/MAH-PP/PVB composites.
Polymers 17 00916 g015
Table 2. Characteristic values used for this study.
Table 2. Characteristic values used for this study.
PP
(wt%)
GF
(wt%)
MAH-PP
(wt%)
PVB
(wt%)
IFSS
(MPa)
σw
(MPa)
aiN
(kJ/m2)
γi
(N/mm)
φ
(degree)
Lf
(mm)
σFB
(MPa)
σFB0
(MPa)
9010007.622.72.70.9968.90.494191928
8020007.421.43.50.4363.90.503261618
7030006.318.03.90.2057.80.482611460
89.51000.58.422.42.10.6569.20.503891782
79.52000.57.720.13.20.1966.10.503171520
69.53000.56.917.44.20.0456.30.502861653
8910018.523.42.51.0168.60.494291981
7920017.320.23.30.3359.00.503251772
6930016.117.74.40.1451.40.502811843
8510057.220.32.51.7771.40.483911744
7520057.218.43.90.8263.20.483401706
6530055.714.65.00.4856.20.492811625
8510508.925.92.61.2271.20.494431975
7520508.525.35.00.5766.50.494181990
6530508.522.96.70.3162.00.493871987
84.51050.58.224.83.10.9972.20.484682066
74.52050.57.924.05.60.4165.80.484252044
64.53050.57.822.26.90.2059.60.493832063
8410518.326.52.41.3163.70.474232106
7420518.025.64.80.5761.10.484062119
6430517.723.65.90.3056.20.483582077
8010558.025.22.52.1369.40.484121881
7020557.924.44.31.0966.00.483721780
6030557.823.05.80.7161.90.503421758
