3.2. Fourier-Transform Infrared and Raman Spectroscopy

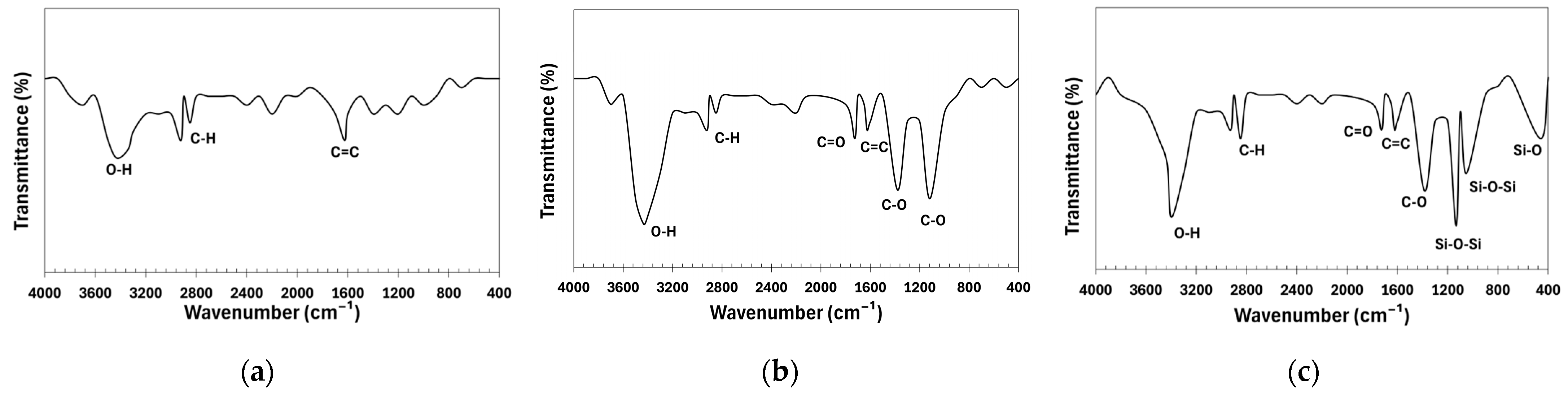

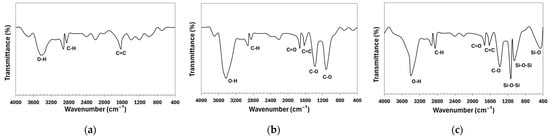

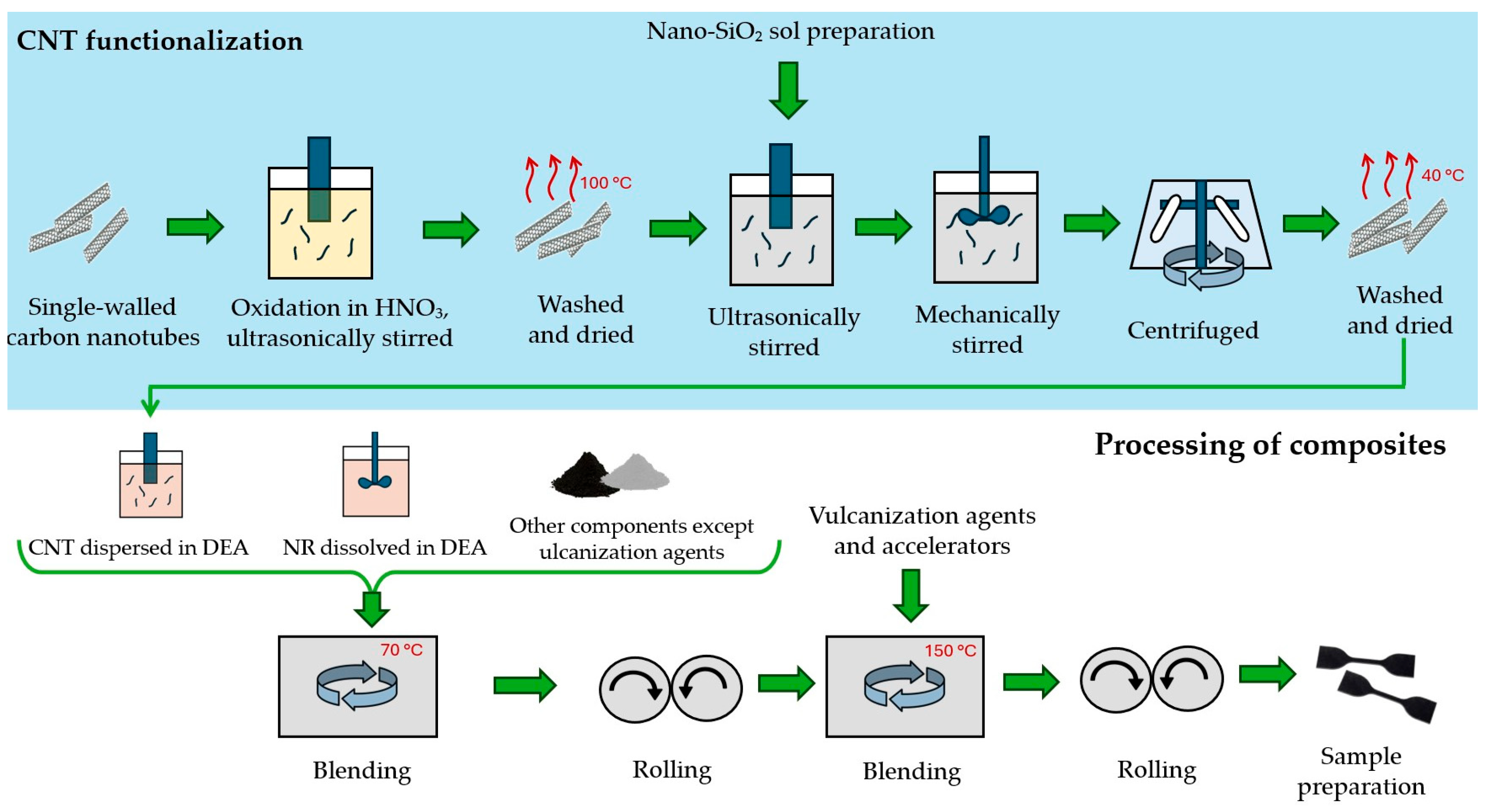

The FTIR spectra of the CNTs before and after functionalization are shown in
Figure 4. The pristine CNT spectrum reveals key chemical features: the 1625 cm
−1 band corresponds to C=C stretching, while bands at 2851 cm
−1 and 2921 cm
−1 indicate C-H stretching, suggesting organic impurities. The 3431 cm
−1 band reflects hydroxyl (-OH) vibrations, likely due to adsorbed moisture or structural defects. Oxidation with HNO
3 introduces new bonds, evident in the 1118 cm
−1 band (C-O in -COOH, -C-O-C-, or -C-OH), 1380 cm
−1 (bending vibrations of C-O in carboxyl group -COOH), 1626 cm
−1 (C=C), and 1725 cm
−1 (C=O in carboxyl and carbonyl groups). The 2849 cm
−1 and 2920 cm
−1 bands remain, likely from residual organic molecules. The 3433 cm
−1 band indicates O-H stretching from hydroxyl groups. Treatment with nano-SiO
2 introduces Si-O-related bands: 460 cm
−1 (Si-O bending), 1052 cm
−1, and 1132 cm
−1 (Si-O-Si stretching), with 1132 cm
−1 confirming SiO
2 deposition [
40]. The 1384 cm
−1 band suggests C-O in carboxyl or nitro groups. Carboxyl groups are confirmed by the 1726 cm
−1 band (C=O), while 2848 cm
−1 and 2925 cm
−1 (C-H) indicate residual organic impurities. The broad 3431 cm
−1 band reflects hydroxyl (-OH) stretching [
41]. These spectral changes confirm successful CNT functionalization with nitric acid (-COOH at 1726 cm
−1) and silica deposition (Si-O-Si at 1132 cm
−1).

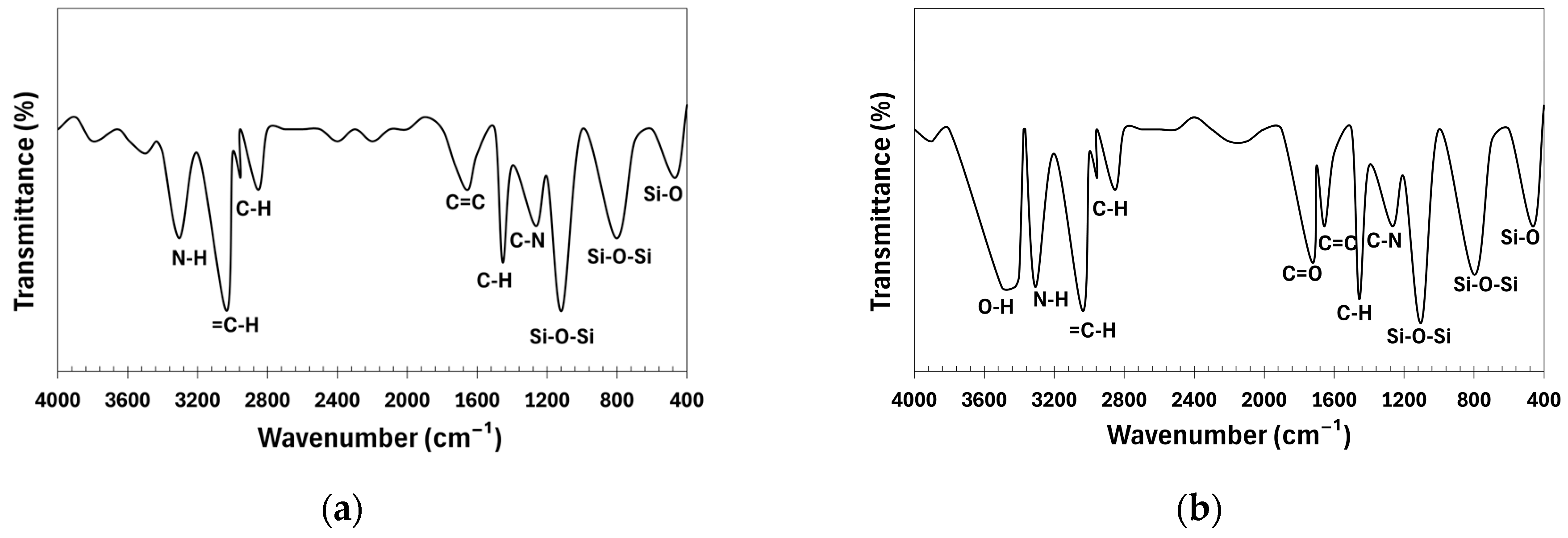

Figure 5 presents the FTIR spectra of the NR-0 compound and NR-CNT 4 nanocomposite. In NR-0, characteristic absorption bands confirm the presence of key components: Si-O bending at 465 cm
−1, Si-O-Si stretching at 1117 cm
−1 and 804 cm
−1 (ULTRASIL silica), and C-N stretching at 1265 cm
−1 (6PPD, TMQ). Aromatic C=C stretching appears at 1654 cm
−1 (TMQ), while C-H stretching at 2955 cm
−1, 2853 cm
−1, and 1455 cm
−1 confirms natural rubber, reclaimed rubber, DAE, and stearin. The 3034 cm
−1 band (=C-H stretching) and 3305 cm
−1 (N-H stretching) indicate the presence of TMQ and 6PPD.
With functionalized CNTs, shifts and intensity changes occur: Si-O-Si stretching moves to 1102 cm−1 and 798 cm−1, and Si-O bending to 460 cm−1. The 1456 cm−1 (C-H deformation) and 1655 cm−1 (C=C stretching) bands intensify due to the addition of the functionalized CNTs. Hydrocarbon-related bands (2955 cm−1, 2852 cm−1, 3035 cm−1) remain unchanged, while N-H stretching at 3308 cm−1 increases due to hydroxyl groups on the CNTs. New functional groups (-COOH, C=O, -OH) appear, with absorption bands at 1724 cm−1 (C=O stretching) and 3423 cm−1 (O-H stretching), confirming CNT modification and interaction with the polymer matrix.

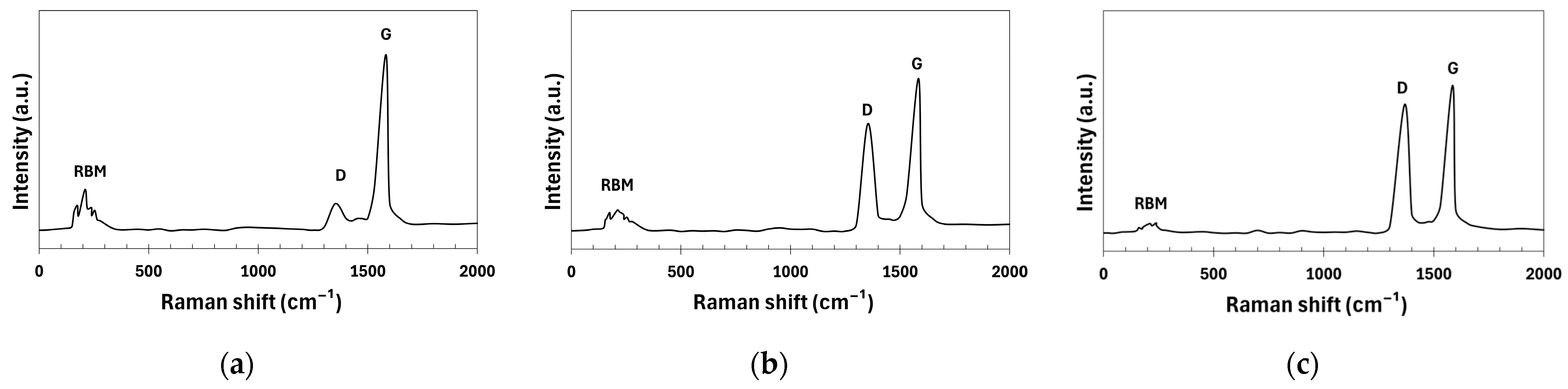

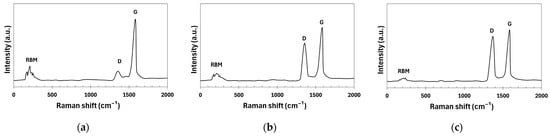

Raman spectra are shown in
Figure 6. In the high-frequency region of the spectrum of the pristine CNTs, two bands were observed: the G-band (1583 cm
−1), which is related to the graphitic structure of the CNTs, and the weak D-band (1352 cm
−1), which is associated with defects in the carbon structure. In the low-frequency part of the spectrum, there is a second region characteristic of the SWCNTs, known as the radial breathing mode (RBM). This mode describes the radial oscillations of carbon atoms, where the walls of the nanotube simultaneously expand and contract. This region is particularly prominent in CNTs with a diameter of less than 3 nm [
42]. Oxidation in HNO
3 causes structural disruption in CNTs, which is reflected in changes in the Raman spectrum. The D-band (1354 cm
−1) showed increased intensity due to defects in the CNT structure, and the G-band (1584 cm
−1) remained present but showed reduced intensity due to structural changes. The RBM band weakened because of the CNT disruption. Further modification with the nano-SiO
2 sol, due to the coverage of the CNT with nanoparticles, led to a further increase in the intensity of the D-band (1369 cm
−1) along with its slight shift, as well as additional weakening of the G-band (1586 cm
−1) and an almost complete loss of the RBM band.

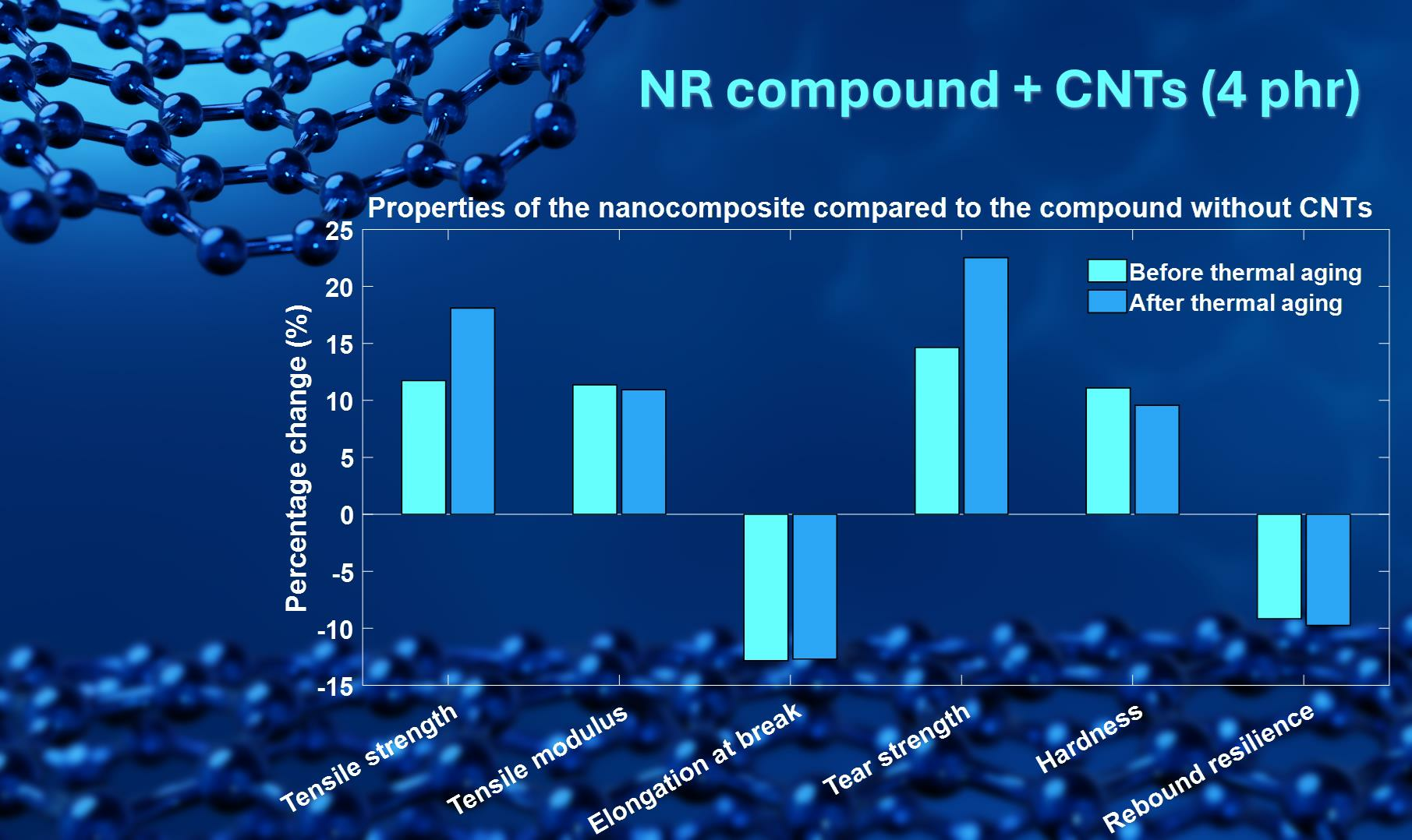

3.3. Test Results Before and After Aging

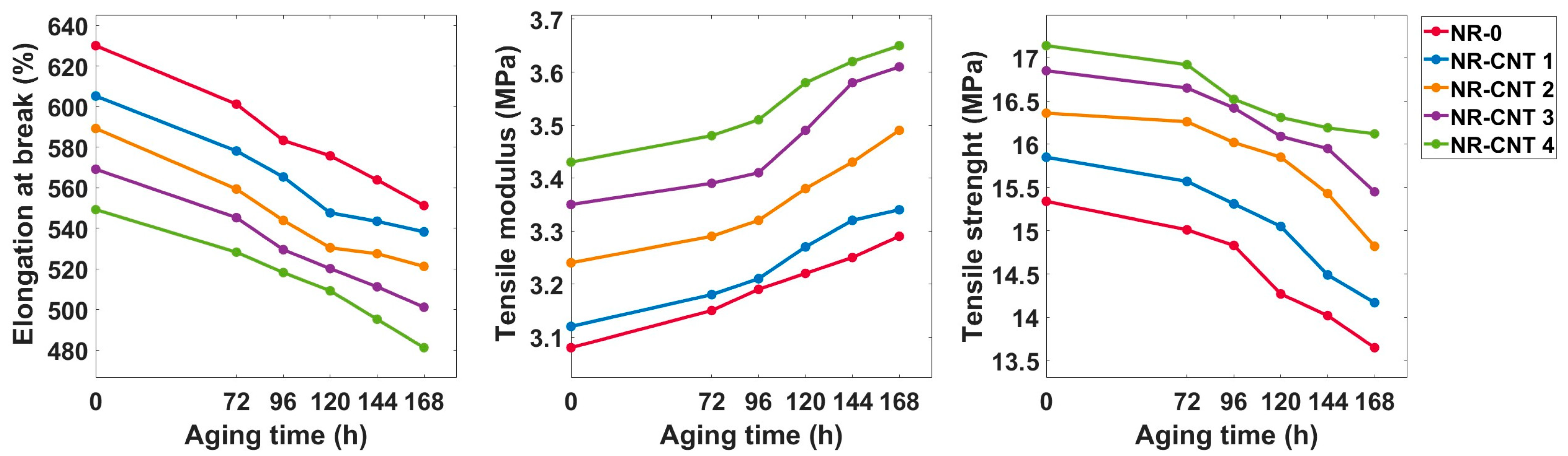

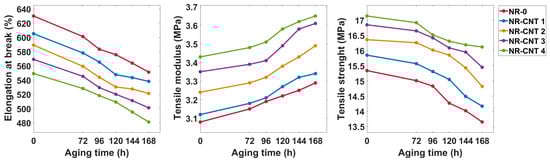

Tensile test results are presented in
Table 3 and
Figure 7. The incorporation of the CNTs increased both the strength and the tensile modulus of the nanocomposites. Prior to thermal aging, the NR-CNT 4 compound had 11.73% higher strength than the reference NR-0 compound. After thermal aging for 168 h at 100 °C, the strength of the NR-0 decreased by 11.02%, while NR-CNT 4 showed a reduction of only 5.95%.
The NR-CNT 4 nanocomposite also demonstrated the highest tensile modulus, which was 11.36% higher than that of the NR-0. Thermal aging led to an increase in the tensile modulus across all compounds, with the total percentage increase after 168 h ranging from 6.41% to 7.76%.
With an increasing amount of the CNTs, elongation at break decreased. Specifically, the NR-CNT 4 showed a 12.84% reduction in elongation at break compared to the NR-0. After thermal aging, the elongation at break declined. However, the rate of decrease did not significantly differ among the compounds with the varying CNT content. The total percentage decrease after aging ranged from 11.07% to 12.53%.
From the tensile test results, the aging factor (
Ka) was determined to quantify change in mechanical properties, according to equation [
43]:
where
TSba is tensile strength before aging (MPa),
Eba is elongation at break before aging (%),
TSag is tensile strength after aging (MPa),
Eag is elongation at break after aging (%). The product of strength and elongation is an indicator of the material’s ability to absorb mechanical energy during its deformation until rupture. The aging factor decreased with aging time. The values of

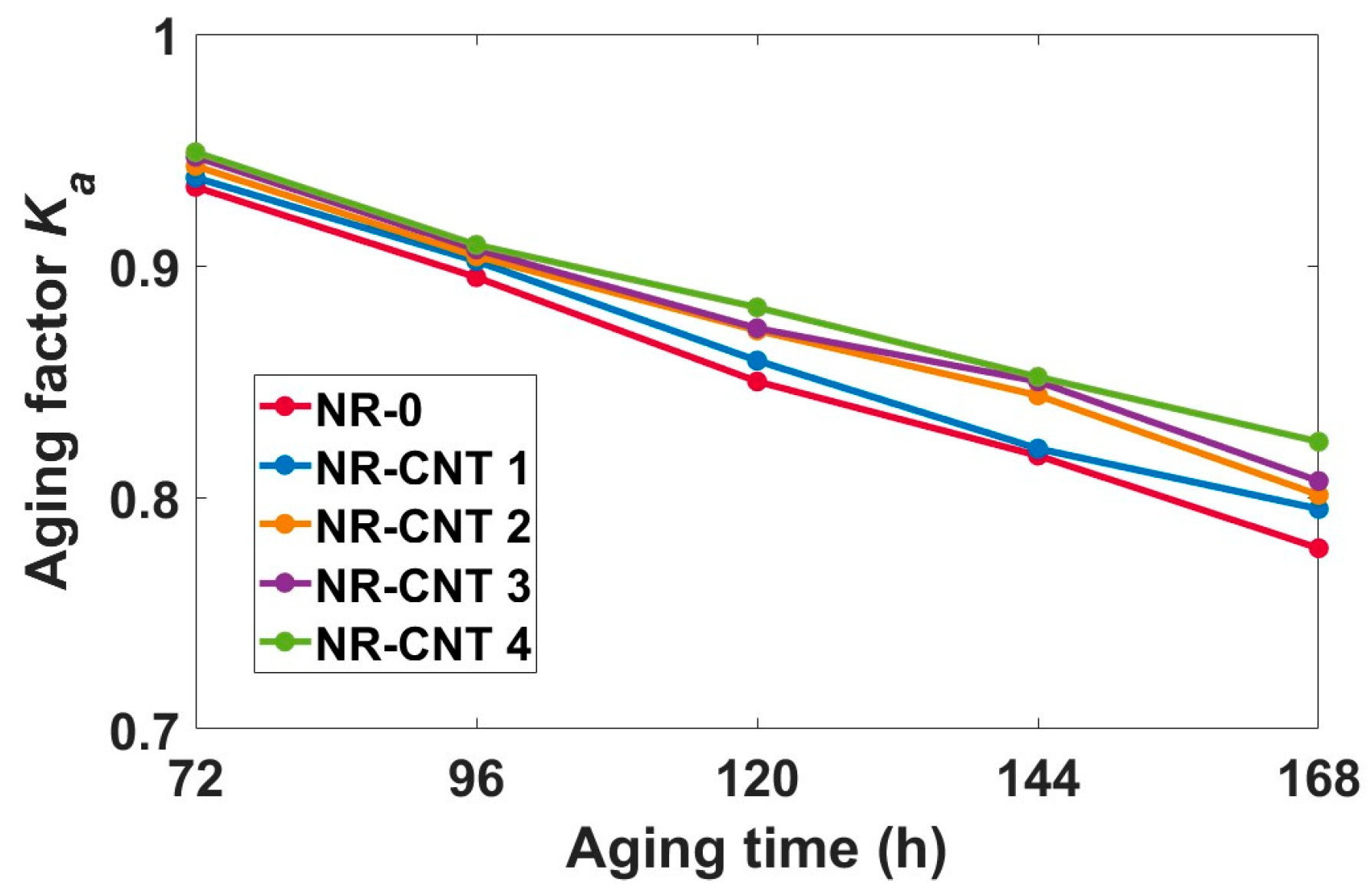

Ka are depicted in
Figure 8. The addition of CNTs slowed the decline of
Ka values. Aging factor of the NR-0 decreased from 0.934 after 72 h of aging to 0.778 at 168 h of aging, while
Ka of the NR-CNT 4 decreased from 0.949 to 0.824.

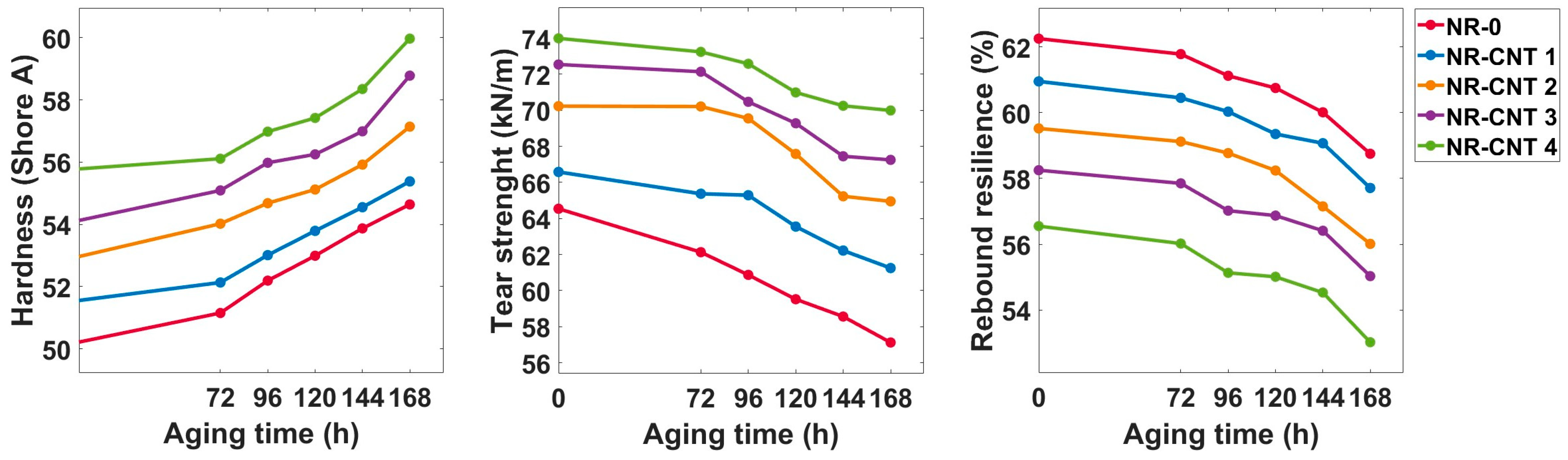

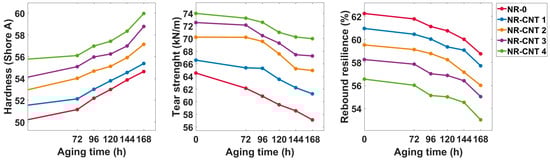

The results of the hardness, tear strength, and rebound resilience measurements are depicted in
Figure 9 and listed in
Table 4. The hardness increased with an increasing CNTs content. Before thermal aging, the NR-CNT 4 had 11.09% higher hardness than the reference compound without the nanotubes. The thermal aging caused a rise in hardness values. Specifically, after aging for 168 h at 100 °C, the hardness of the NR-CNT 4 and NR-0 compounds increased by 8.82% and 7.51%, respectively.
The tear strength also increased with the CNTs content, and the addition of 4 phr of the CNTs resulted in 14.64% higher tear strength. The CNTs also contributed to reducing the rate at which tear strength declined during thermal aging. After 168 h of aging, the tear strength of the NR-0 decreased by 11.50%, while that of the NR-CNT 4 declined by only 5.41%.
Rebound resilience is a physical property of a material that describes its ability to recover its shape and energy after deformation caused by an impact load. The presence of the CNTs in the tested compounds caused a decrease in rebound resilience. A maximum decline of 9.16% was observed when comparing the unaged NR-CNT 4 and NR-0 compounds. After 168 h of thermal aging at 100 °C, the rebound resilience decreased within a range of 5.32–6.24%. Rubber compounds with lower rebound resilience are ideal for shock and vibration damping applications, such as seals and protective elements. These materials effectively absorb energy from the external environment and minimize vibration transmission to sensitive components.
During thermal aging, the formation of additional crosslinks restricts chain mobility, leading to a decline in elasticity. Prolonged exposure to elevated temperatures causes the material to harden, making the rubber stiffer. The primary factors contributing to strength reduction are chemical and physical degradation processes that compromise the polymer structure. In some cases, excessive crosslinking can occur, which diminishes the rubber compound’s ability to absorb mechanical stress, ultimately reducing strength. Additionally, certain additives that enhance strength and elasticity may degrade at high temperatures, further weakening the overall structure of the rubber.
The enhancement of polymer properties through the addition of the CNTs depends on the degree of crosslinking between polymer chains and the components of the composite. The high aspect ratio, large specific surface area, and good dispersion and alignment of the CNTs within the polymer matrix promote strong van der Waals interactions with polymer chains. These interactions contribute to the formation of nucleation sites for crosslinking agents, effectively initiating and supporting crosslinking reactions [
44].
Additionally, functionalized CNTs can facilitate covalent bonding between polymer chains and crosslinking agents, thereby increasing crosslinking density in the composite. Chemically modified CNTs can directly participate in crosslinking reactions by interacting with polymer chains, leading to the formation of additional crosslinks.
The CNTs also exhibit excellent thermal conductivity. When well-dispersed in a polymer blend, they enhance heat transfer, promoting more uniform and efficient crosslinking reactions. Moreover, CNTs can influence the kinetics of crosslinking by altering reaction rates, activation energies, or reaction pathways, depending on the specific chemistry of the system [
44,
45,
46].
The effects of CNTs depend on multiple factors, including the type of CNTs used, the polymer matrix, and the processing and manufacturing conditions of the composite.
3.4. Tensile and Compressive Sets Results

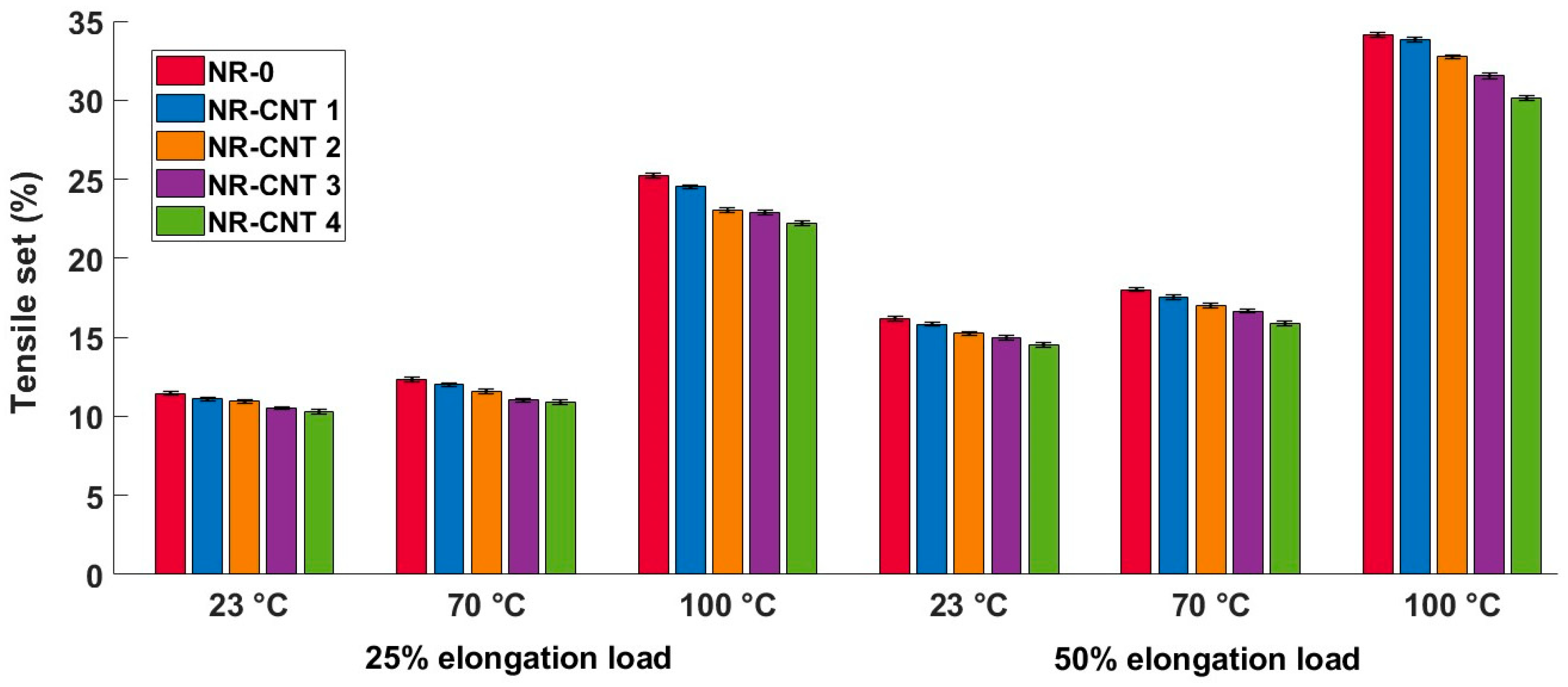

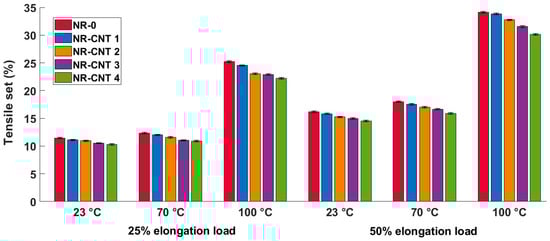

The tensile set test results are listed in
Table 5 and shown in
Figure 10. Tests performed at higher temperatures resulted in higher tensile set values. The addition of the CNTs decreased residual tensile deformation. The percentage difference in the tensile set values between the NR-CNT 4 and NR-0 compounds did not vary significantly across different test conditions. The tensile sets of the NR-CNT 4 were reduced by 10.14–11.88% compared to the NR-0.

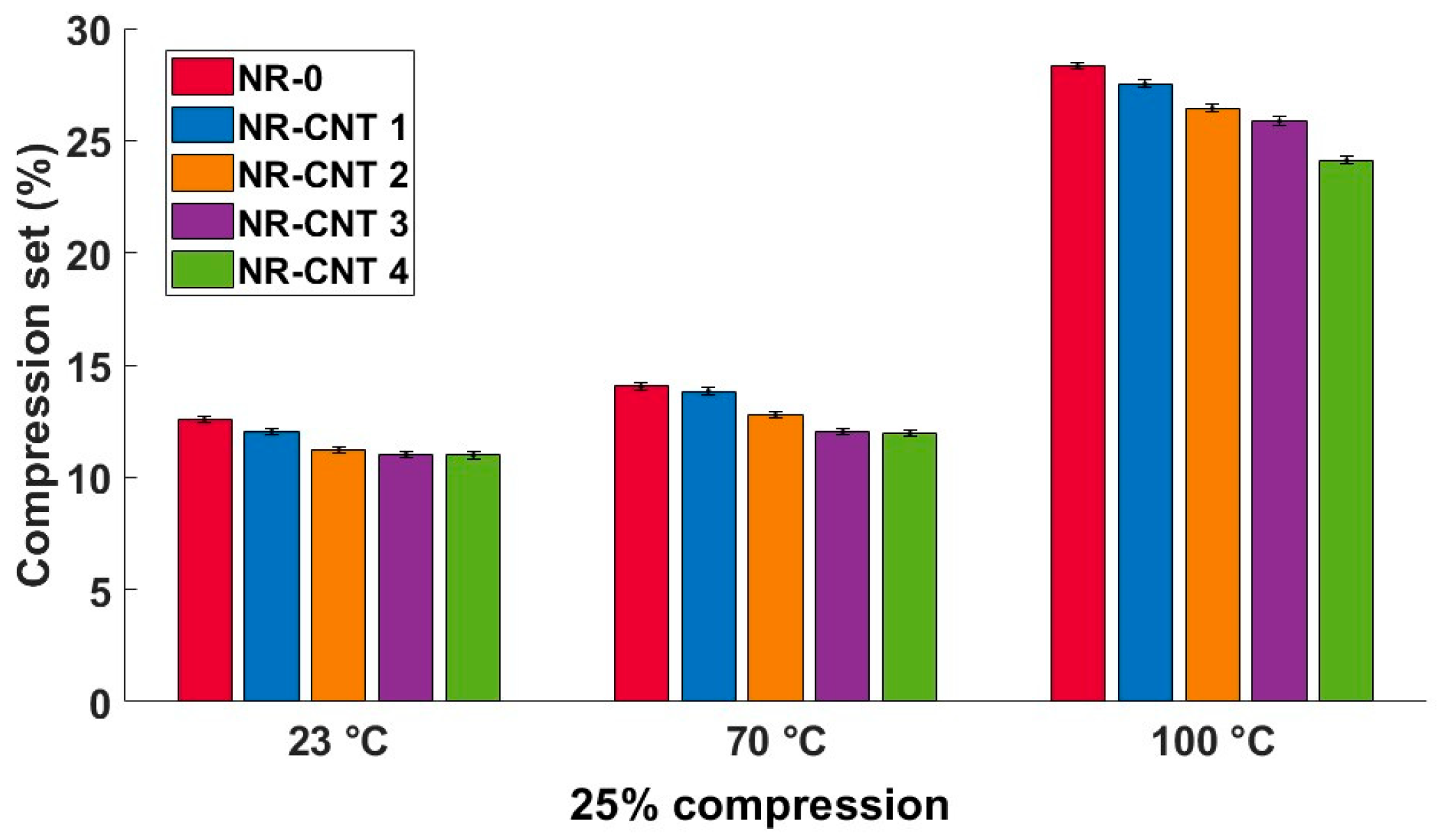

The compression set test results are listed in
Table 6 and shown in
Figure 11. Similarly to the tensile set test results, the CNTs presence in the tested compounds caused a reduction in the residual deformation after relaxation at all tested temperatures. The compression set of the NR-CNT 4 was reduced by 12.64% at 23 °C, 14.95% at 70 °C, and 14.93% at 100 °C when compared to the NR-0. The residual deformation rose with an increasing temperature, at which the tests were performed. The reduction in the value of the compression set is particularly positive in applications such as seals.
The use of the CNTs in rubber compounds has a significant impact on the mechanical properties of polymer materials, including residual deformation after exposure to tensile or compressive strain load. The CNTs have a high elastic modulus and strength, which can increase the resistance of the rubber compound to deformation. With good dispersion, the CNTs help to form an effective network in the matrix, which ensures better stress transfer between polymer chains. This leads to a reduction in the concentration of local stress, which helps to prevent permanent changes in shape.
3.5. DMA Results
The DMA temperature and frequency sweeps were conducted. The tensile complex modulus, which provides a more comprehensive view of the material’s behavior, was determined. The storage modulus
E′ describes not only material stiffness, but also the ability to absorb and release energy under dynamic conditions. The loss modulus
E″ is a material parameter that expresses the viscous behavior of a material during the DMA. It indicates what part of the mechanical energy of the applied load is dissipated in the material due to internal friction and viscous processes [
47].

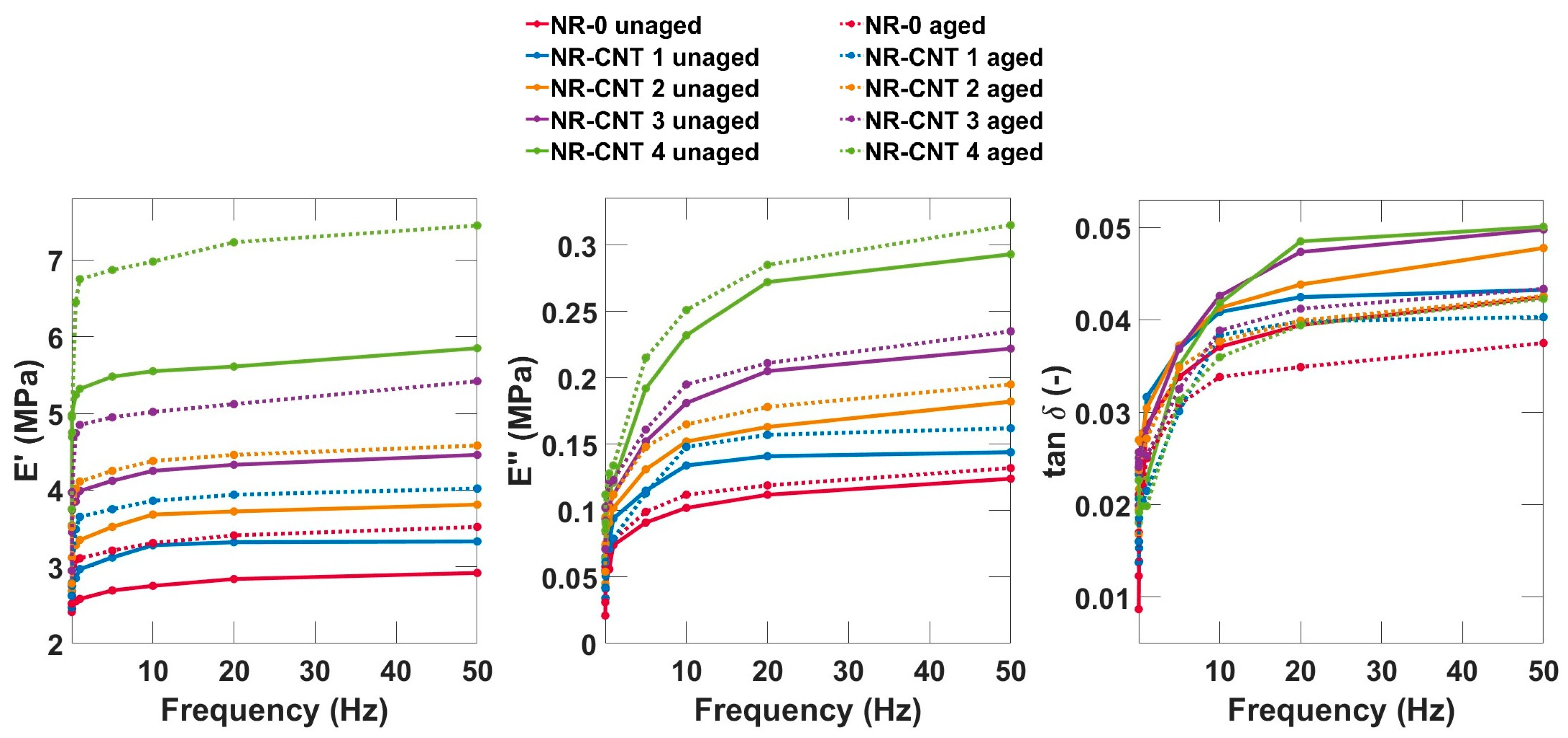

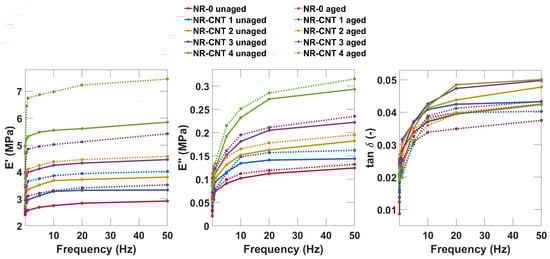

The results from the DMA frequency sweep are depicted in
Figure 12. The elastic moduli
E′, loss moduli
E″, and
tan δ for all compounds show increasing trends with increasing frequency. At low frequencies, the
E′ values are lower because the molecules have enough time to reorient and relax, and the material has a lower ability to store mechanical energy effectively. At higher frequencies, the
E′ value is higher because the molecule chains do not have time to rearrange, the deformation is mostly reversible, and the material has greater stiffness. Thermal aging, as well as addition of CNTs, caused an increase in both the elastic moduli
E′ and loss moduli
E″. The
tan δ values slightly decreased.

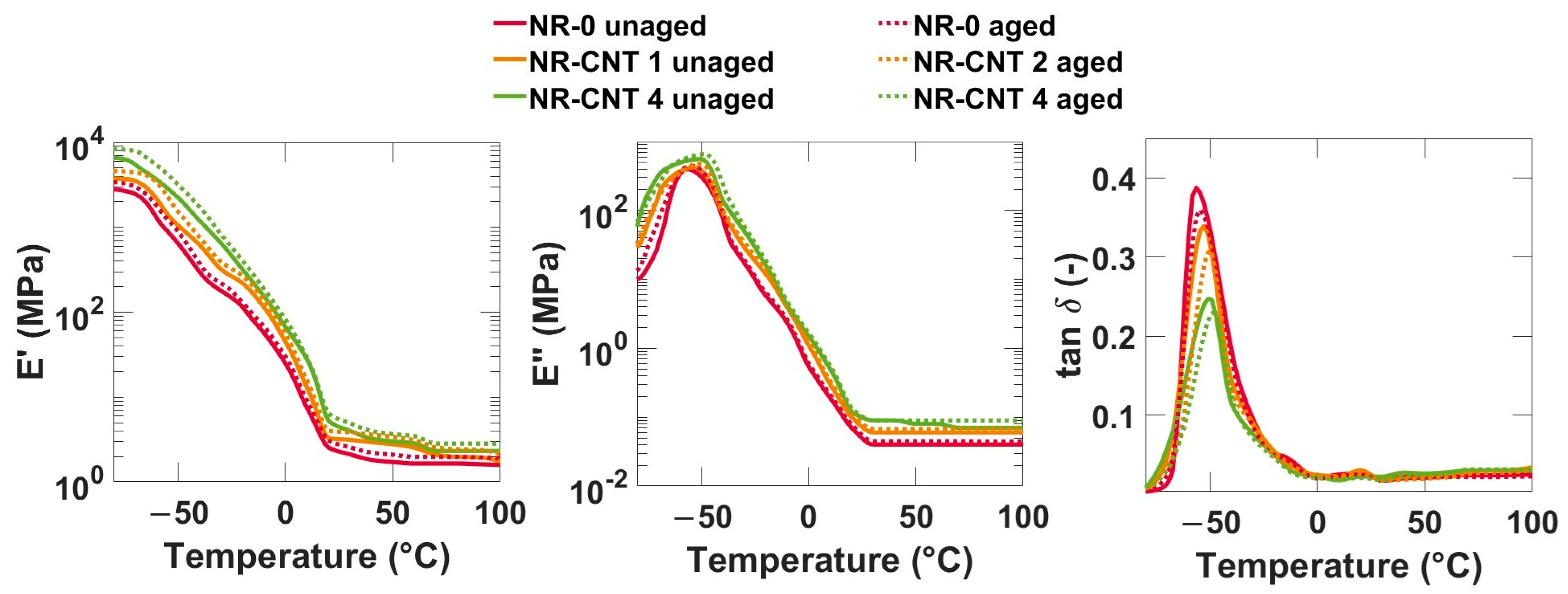

The results from the DMA temperature sweep of representative compounds are shown in
Figure 13. With rising temperatures, values of
E′ decrease, and elastomers become softer and less stiff, as the molecules begin to have more kinetic energy, which leads to an increase in chain mobility. As the CNT content increased, the storage modulus
E′ increased. The CNTs increased the stiffness of the investigated compounds. Thermal aging also caused an increase in the storage modulus. However, it is important to note that an increase in
E′ can also negatively impact other material properties, such as rebound resilience, flexibility, and durability. This is especially true if the aging process is prolonged, or the material is exposed to fluctuating adverse conditions.
The values of the loss modulus E″ in the investigated compounds are significantly lower compared to the storage modulus E′, which means that the elastic properties prevail. The E″ increased slightly with the addition of nanotubes. Thermal aging caused a slight increase in the viscous modulus.
The tangent of phase angle
tan δ, which is a ratio between the
E″ and
E′, expresses the phase shift between the applied stress and the strain response. It represents the ratio of dissipated loss energy to energy stored during the deformation cycle. The higher values of
tan δ mean higher losses, which means a greater ability of the material to convert mechanical energy into heat. This leads to good damping properties, but also to higher heating of the material. Conversely, lower values represent lower losses, which is advantageous in applications where low hysteresis and high energy efficiency are desired, such as tires with low rolling resistance [
48].
The glass transition temperature
Tg is determined from maximum of a temperature dependency of the
tan δ. The measured values of the
Tg are listed in
Table 7. The glass transition temperature slightly increased with the addition of the CNTs. Despite general agreement on the influence of the CNTs on most properties in rubber compounds, the effect of the CNTs on the glass transition temperature remains inconsistent. While some studies report no significant impact, others indicate an increase or decrease in the
Tg [
13,
49]. The increase in glass transition temperature can be attributed to reduced polymer mobility, enhanced crosslink density, and CNT–polymer interactions through van der Waals forces, π-π interactions, or hydrogen bonding, if functionalized CNTs with hydroxyl or carboxyl groups are used [
13]. The thermal aging did not have a statistically significant influence on the value of the
Tg. The addition of the CNTs had the most significant impact on
tan δ around the glass transition temperature, approximately between −65 °C and −30 °C, where an increase in CNT concentration led to a decrease in tan δ. Thermal aging also caused a slight decrease in
tan δ within this temperature range. Below this range, nanocomposites exhibited higher
tan δ values compared to NR-0, while above this range, no clear trend was observed.
3.6. Evaluation of the Surface Using Atomic Force Microscopy

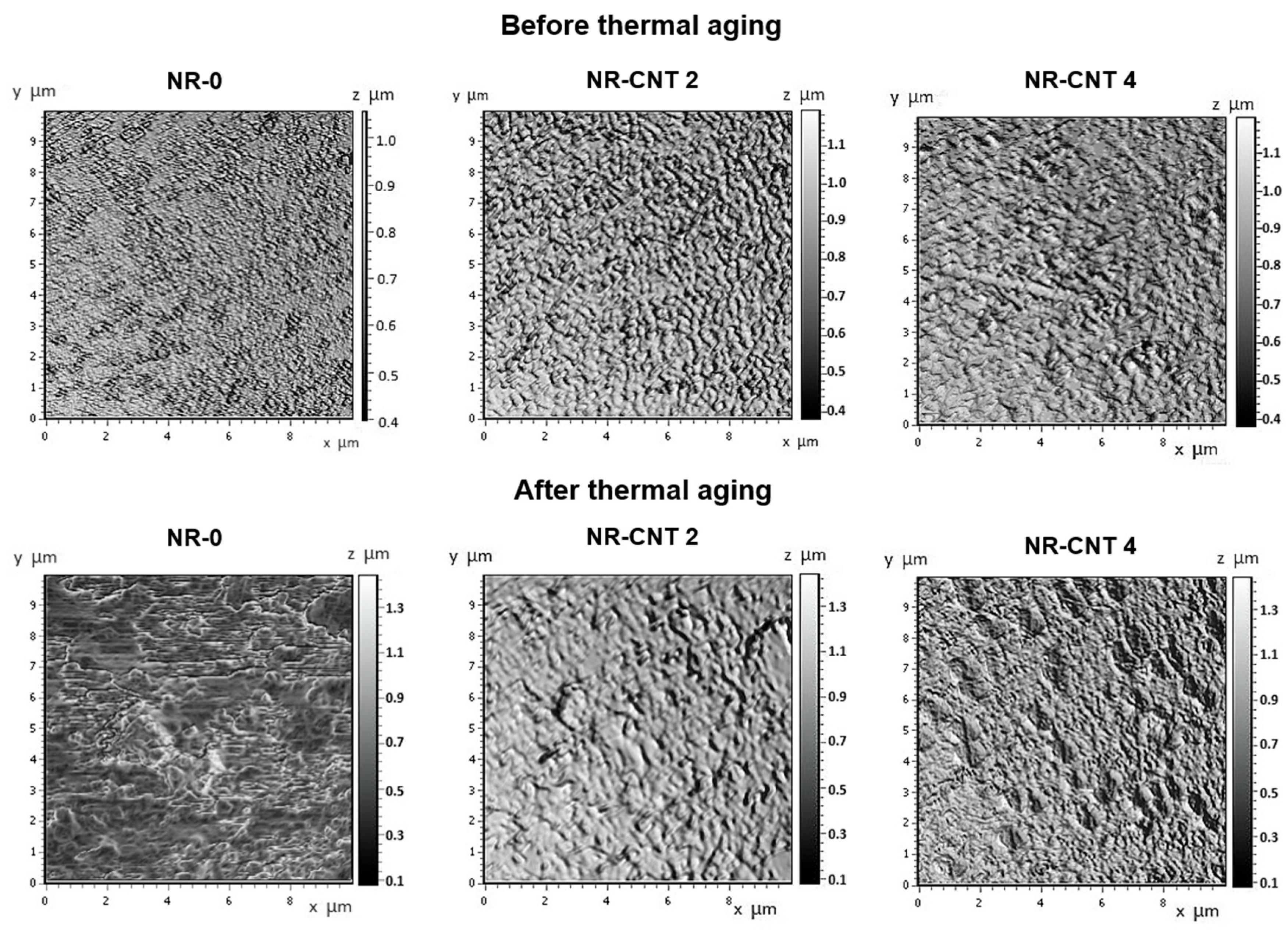

The addition of the CNTs to rubber compounds can also affect their surface properties. The AFM was utilized to examine the topography of the compounds, both before and after 168 h of thermal aging at 100 °C. The AFM-obtained images are shown in
Figure 14. The arithmetic mean deviation
Ra and the root mean square deviation of the assessed profile
Rq obtained by the AFM software (SurfaceXplorer 1.0.8.65) are presented in
Table 8.
The Ra and Rq values of the NR-0 before thermal aging were 0.62 μm and 0.71 μm, respectively. The presence of CNTs led to the formation of slight microstructural irregularities and fine inhomogeneities, causing an increase in the roughness of the nanocomposites compared to the NR-0 compound. Specifically, the roughness of the NR-CNT 4 compound was Ra = 0.95 μm and Rq = 1.07 μm. After thermal aging, the NR-0 compound exhibited more pronounced changes than the compounds reinforced with the CNTs, both in terms of roughness values and visual inspection. The parameters Ra and Rq of the reference NR-0 compound increased by 66.13% and 57.75%, respectively, after thermal aging, while the Ra and Rq values of the NR-CNT 4 were only 9.47% and 7.47% higher after aging. The presence of the CNTs can improve the stability of the surface by reducing the degradation rate and preventing excessive roughness growth.
