Preparation, Thermal Stability, and Preliminary Gas Separation Performance of Furan-Based Bio-Polyimide Films

Abstract

The need for renewable alternatives to petroleum-based polymers is growing in response to environmental concerns and resource depletion. Polyimides (PIs), which are traditionally synthesized from petroleum-derived monomers, raise sustainability issues. In this work, renewable 2,5-furandicarboxylic acid (FDCA) was employed as a sustainable feedstock to synthesize a bio-based diamine monomer, N,N′-bis(4-aminophenyl)furan-2,5-dicarboxamide (FPA). Subsequently, FPA was polymerized with various aromatic dianhydrides through thermal imidization, yielding four distinct bio-based polyimide (FPA-PI) films. The resulting films exhibited exceptional thermal stability, with 5% weight loss temperatures exceeding 425 °C and char yields ranging from 54% to 60%. Mechanical characterization revealed high elastic moduli (2.14–3.20 GPa), moderate tensile strengths (50–99 MPa), and favorable aging resistance. Gas permeation tests demonstrated promising CO₂/N₂ separation performance, with FPA-DODDA achieving superior CO₂/N₂ selectivity (27.721) compared to commercial films such as Matrimid^®, polysulfone, and polycarbonate, while FPA-BPFLDA exhibited enhanced CO₂ permeability (P(CO₂) = 2.526 Barrer), surpassing that of Torlon^®. The CO₂/N₂ separation performance of these FPA-PI films is governed synergistically by size-sieving effects and solution-diffusion mechanisms. This work not only introduces a novel synthetic route for bio-based polymers but also highlights the potential of replacing conventional petroleum-based materials with renewable alternatives in high-temperature and gas separation applications, thereby advancing environmental sustainability.

1. Introduction

With the increasing severity of global environmental challenges and the gradual depletion of fossil resources, the development of renewable alternatives to petroleum-based materials has emerged as a critical focus in polymer research [1,2]. Currently, approximately 99% of global plastic production relies on petroleum-derived feedstocks, with 4–6% of Europe’s annual oil consumption allocated to plastics manufacturing, of which 40% is utilized in the packaging sector [3]. This high dependence on fossil resources not only exacerbates environmental pollution and greenhouse gas emissions but also raises the long-term threat of resource depletion. Therefore, developing high-performance polymer materials based on renewable biomass resources has become a key strategy for achieving sustainable development and environmental protection [4,5].

Polyimides (PIs), as a class of high-performance polymers containing -CO-NR-CO- groups in their molecular structure, are widely used in the nuclear industry, liquid crystals, lasers, nanotechnology, microelectronics, and aerospace due to their excellent mechanical properties, dimensional stability, chemical resistance, low volatility, non-toxicity, self-extinguishing properties, and radiation stability [6,7,8]. The preparation of PIs typically employs a “two-step method”, where diamines and dianhydrides first form polyamic acid (PAA) solutions in polar aprotic solvents, followed by thermal or chemical imidization to convert to polyimides [9,10]. Traditional polyimides are mainly synthesized from petroleum-based monomers, such as 4,4′-diaminodiphenyl ether (ODA) and pyromellitic dianhydride (PMDA) [11]. However, the production of these petroleum-based monomers is usually accompanied by the emission of toxic and harmful substances and high energy consumption, which does not align with the concepts of green chemistry and sustainable development. Therefore, developing polyimide materials based on renewable biomass resources has become a research hotspot in the field of polymer materials in recent years [12,13].

Research on bio-based polyimides mainly focuses on developing renewable biomass-derived diamines and dianhydrides to replace traditional petroleum-based monomers [14]. Among them, 2,5-furandicarboxylic acid (FDCA), as an important bio-based platform compound, has been identified by the U.S. Department of Energy as one of the “high-value chemicals derived from biomass” [15]. FDCA can be synthesized from C6 sugars in lignocellulosic biomass through furan derivatives, offering advantages such as renewability, environmental friendliness, and easy accessibility [3]. In recent years, research on FDCA-based polyimides materials has made significant progress, showing potential to replace traditional petroleum-based polyimides [14,16]. For example, in the work of Ma et al. [16], two novel bio-based diamines, N,N′-bis(3-aminophenyl)furan-2,5-dicarboxamide (m-FDDA) and N,N′-bis(4-aminophenyl)furan-2,5-dicarboxamide (p-FDDA), were synthesized by incorporating renewable 2,5-furandicarboxylic acid (FDCA). Subsequently, the corresponding aromatic PIs were prepared via a two-step polycondensation process using these diamines with commercially available aromatic dianhydrides, including 3,3′,4,4′-biphenyltetracarboxylic dianhydride (BPDA), 4,4′-(hexafluoroisopropylidene)diphthalic anhydride (6FDA), and 2,2-bis [4-(3,4-dicarboxyphenoxy)phenyl]propane dianhydride (BPADA).

PIs also exhibit significant potential in gas separation applications, particularly for CO₂ capture and separation [17,18,19]. By modifying the molecular chain packing state and free volume of PI films, a competitive balance between permeability and selectivity can be achieved [20,21]. Extensive research has been reported on petroleum-based PI films. For instance, Bei et al. [22] grafted task-specific ionic liquids (TSIL) as bulky side groups onto the PI backbone via Schiff base reactions to prepare TSIL-PI films. With 0.8 wt% TSIL loading, the CO₂ permeability coefficient increased from 5.28 Barrer to 10.2 Barrer, while CO₂/N₂ selectivity improved from 21.9 to 92.8. This remarkable enhancement is attributed to the rigid TSIL side chains restricting the mobility of PI chains and packing, thereby increasing free volume to facilitate rapid CO₂ transport. The constrained chain motion simultaneously enhanced molecular sieving effects [23], achieving synergistic improvements in both permeability and selectivity. Chuah et al. [24] incorporated 20% functionalized UiO-66-NH2 into PI to fabricate mixed matrix membranes (MMMs), denoted as UiO-66-NH2/PI MMMs. Results showed a 38% increase in CO₂ permeability compared to pure PI, with CO₂/N₂ selectivity reaching 37.1, primarily due to CO₂-specific adsorption by amino groups. Notably, research on bio-based PIs for gas separation remains in its early stages. Hu et al. [18] developed a series of Tröger’s Base (TB)-PI films using bio-based dianhydride monomers (e.g., lignin-derived compounds) and TB-containing diamine monomers. These films exhibited a CO₂ permeability of up to 702 Barrer and exceptional thermal stability, with 5% decomposition temperatures (T_d^5%) exceeding 440 °C, highlighting their potential for gas separation applications. However, most diamine monomers for the synthesis of PIs still rely on petroleum-based precursors. This limitation stems from the incompatibility of aromatic diamines with microbial and plant cellular systems [25], making their direct biosynthesis challenging [26]. Consequently, despite the promising technical prospects of PI gas separation films, their environmental feasibility remains constrained by monomer sourcing issues—a critical gap that has not been adequately addressed in the existing literature. Moreover, even the currently reported bio-based diamine monomers for PIs synthesis predominantly originate from biomass resources rather than fully sustainable pathways [1].

This work builds upon previous work by Ma et al. [16] to broaden the investigation of furan-based bio-polyimides. Starting from bio-based 2,5-furandicarboxylic acid (FDCA) as the raw material, a bio-based diamine monomer, N,N′-bis(4-aminophenyl)furan-2,5-dicarboxamide, was synthesized. To simplify the nomenclature, this monomer is abbreviated as FPA in this study (replacing the original designation “p-FDDA”). Subsequently, the diamine monomer FPA was polymerized with various aromatic dianhydrides (e.g., ODPA, BPFLDA) to prepare a series of polyamic acid (PAA) precursor solutions. Through thermal imidization, four FPA-PI films were successfully expanded (Scheme 1 and Scheme 2), and their mechanical properties, thermal stability, and gas separation performance were characterized.

2. Materials and Methods

2.1. Materials

2,5-Furandicarboxylic acid (FDCA, 99%), 4-nitroaniline (99%), 4-nitrophthalonitrile (98%), 4,4′-sulfonyldiphenol (SDP, 99.8%), 4,4′-biphenol (DOD, 99%), 4,4′-(hexafluoroisopropylidene)diphenol (BPAF, 98%), 9,9-bis(4-hydroxyphenyl)fluorene (BPFL, 98%), 1,4-benzenediol (HQ, 98%), and dianhydride monomers pyromellitic dianhydride (PMDA, 98%), 3,3′,4,4′-benzophenonetetracarboxylic dianhydride (BTDA, 98%), 4,4′-oxydiphthalic anhydride (ODPA, 98%), palladium on carbon (Pd/C, 5%), N,N-dimethylformamide (DMF, 99.5%), and N-methyl-2-pyrrolidone (NMP, 99.5%) were purchased from Adamas-beta^® (Shanghai Titan Technology Co., Ltd., Shanghai, China). Xylene (99.0%) was purchased from Tianjin Zhiyuan Chemical Reagent Co., Ltd. (Tianjin, China); concentrated hydrochloric acid (36–38%) from Chongqing Chuandong Chemical (Group) Co., Ltd. (Chongqing, China); acetic anhydride (Ac₂O, 98.5%), hydrazine monohydrate (N₂H₄·H₂O, 80%), oxalyl chloride ((COCl)₂, 98.5%), methanol (MeOH, 99.5%), and anhydrous potassium hydroxide (KOH, 99.8%) from Chengdu Kelong Chemical Co., Ltd. (Chengdu, China); dichloromethane (DCM, 99.5%) from Yunnan Four Leaf Clover Biotechnology Co., Ltd. (Yunnan, China); and tetrahydrofuran (THF, 99.5%) was purchased from Greagent-reagent^® (Shanghai Titan Technology Co., Ltd., Shanghai, China). NMP was dried over 4 Å molecular sieves for 48 h before use; DCM and THF were refluxed with calcium hydride for 5 h; and other reagents were used as received without further purification. The ether-containing dianhydride was synthesized by modifying the method of Hsiao et al. [27].

2.2. Synthesis of FDCDCl

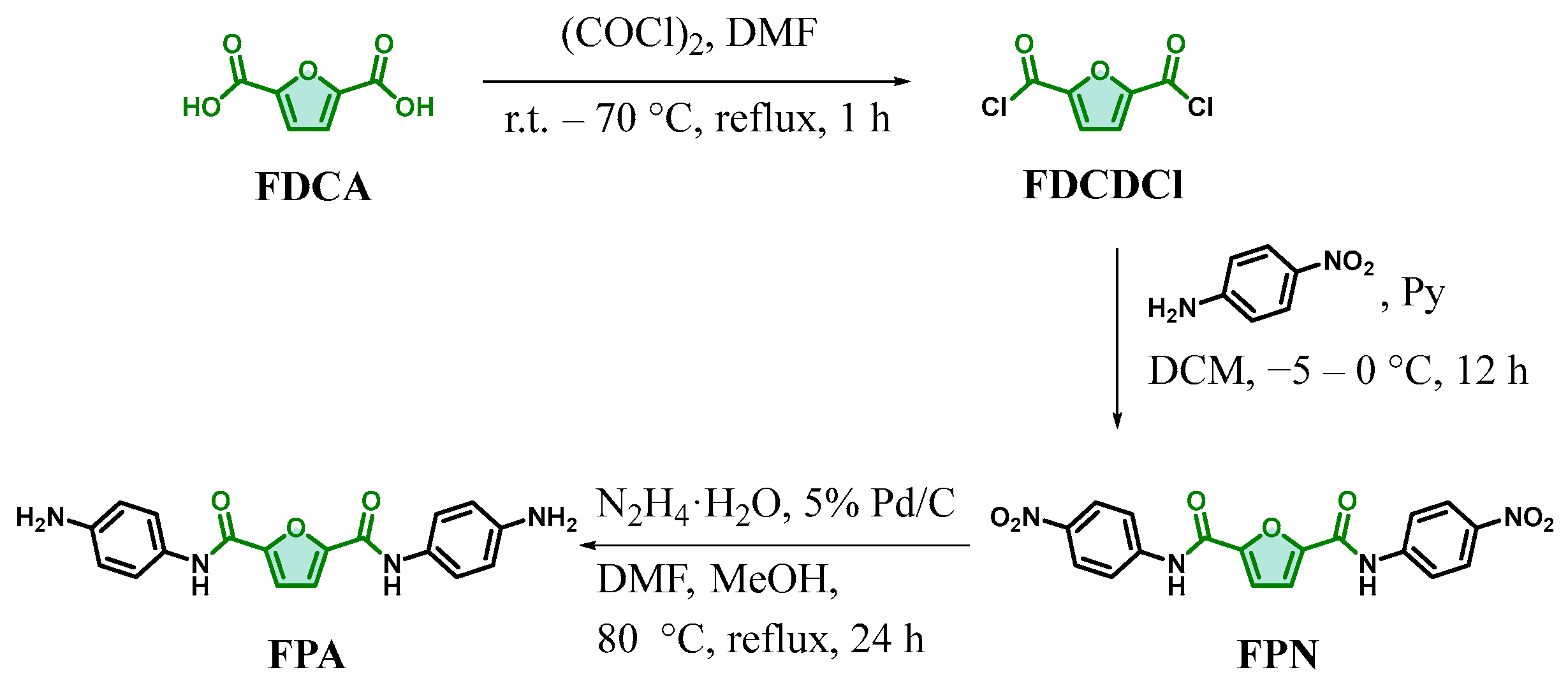

The synthesis route for the diamine monomer FPA is illustrated in Scheme 3. Starting from bio-based 2,5-furandicarboxylic acid (FDCA) as the initial raw material, the bio-based diamine monomer N,N′-bis(4-aminophenyl)furan-2,5-dicarboxamide (FPA) was synthesized through reactions with 4-nitroaniline, involving acyl chlorination, amidation, and nitro group hydrogenation reduction steps.

Synthesis of 2,5-furandicarbonyl dichloride (FDCDCl). 2,5-Furandicarboxylic acid (60.00 g, 384.40 mmol) and DMF (0.2 mL) were added to a 500 mL round-bottom flask equipped with a magnetic stirrer and a condenser. Oxalyl chloride (120 mL) was slowly added dropwise with stirring. After complete addition, the mixture was heated to 70 °C and refluxed until the reaction system became clear (reflux time: 1 h). The reaction was then cooled to room temperature, and residual solvents were removed under reduced pressure. The resulting pale brown needle-like solid was sealed and stored in a refrigerator (72.76 g, yield = 99%). M. p. = 78–79 °C; ¹H NMR (400 MHz, Chloroform-d) δ 7.55 (s, 2H); ¹³C NMR (101 MHz, Chloroform-d) δ 156.01, 149.42, 123.48; IR (KBr, ν, cm⁻¹): 3143, 3110 (C-H, furan stretching), 1745, (C=O, stretching), 1564 (C=C, furan stretching), 1200 (C-O-C, stretching), 540 (C-Cl, stretching).

2.3. Synthesis of FPN

Synthesis of N,N′-bis(4-nitrophenyl)furan-2,5-dicarboxamide (FPN). 4-Nitroaniline (33.98 g, 245.80 mmol), pyridine (21.39 g, 270.38 mmol), and anhydrous THF (369 mL) were added to a 1 L three-necked round-bottom flask equipped with a mechanical stirrer. The mixture was cooled to −5 to 0 °C, and a solution of FDCDCl (23.59 g, 122.90 mmol) in anhydrous DCM (123 mL) was slowly added dropwise under stirring. After complete addition, the reaction was stirred at room temperature for 12 h and monitored by thin-layer chromatography (TLC; eluent: MeOH/DCM = 5%, v/v; R_f = 0.5). The solid was collected by filtration, slurried twice in 500 mL of deionized water, washed three times with 250 mL methanol, and dried in a blast drying oven at 80 °C to afford a light green powdery solid (45.57 g, yield = 93%). M. p. = 375.4 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 10.87 (d, J = 3.8 Hz, 2H), 8.31 (d, J = 8.9 Hz, 4H), 8.06 (d, J = 8.8 Hz, 4H), 7.58 (s, 2H); ¹³C NMR (101 MHz, DMSO-d₆) δ 155.94, 148.13, 144.43, 142.89, 124.99, 120.07, 117.13; IR (KBr, ν, cm⁻¹): 3391, (N-H, amide stretching), 3119/3081 (C-H, furan/aromatic stretching), 1700, (C=O, stretching), 1610, 1500 (C=C, aromatic stretching), 1538 (-NO₂, asym. stretching), 1331 (-NO₂, sym. stretching), 1305 (C-N, amide stretching), 848 (C-H, aromatic p-disubst. bending).

2.4. Synthesis of FPA

Synthesis of N,N′-bis(4-aminophenyl)furan-2,5-dicarboxamide (FPA). A mixture of FPN (39.63 g, 100 mmol), DMF (200 mL), MeOH (200 mL), Pd/C (5% w/w, 8.51 g), and N₂H₄·H₂O (60 mL) was added to a 1 L three-necked round-bottom flask equipped with a magnetic stirrer. The reaction was heated to 80 °C under a nitrogen (N₂) atmosphere and refluxed for 24 h, with progress monitored by TLC (eluent: MeOH/DCM = 5%, v/v; R_f = 0.2). The mixture was filtered hot through celite, and the Pd/C catalyst was washed twice with DMF (30 mL). The filtrate was collected, and the product was precipitated by adding 1.5 L of deionized water under vigorous stirring. The resulting solid was isolated by filtration, washed three times with water, and dried at 80 °C for 48 h to afford a pale yellow powdery solid (30.83 g, yield = 92%). M. p. = 150.3 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 9.95 (s, 2H), 7.45–7.30 (m, 4H), 7.28 (s, 2H), 6.78–6.41 (m, 4H), 5.07 (s, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 155.12, 148.38, 146.03, 126.40, 122.86, 115.30, 113.87. IR (KBr, ν, cm⁻¹): 3435/3321, (-NH₂, asym./sym. stretching), 3387, (N-H, amide stretching), 3115/3078 (C-H, furan/aromatic stretching), 1646, (C=O, stretching), 1608, 1515 (C=C, aromatic stretching), 1563/1327 (-NO₂, asym./sym. stretching), 1291 (C-N, amide stretching), 826 (C-H, aromatic p-disubst. bending).

2.5. Synthesis of Tetranitriles

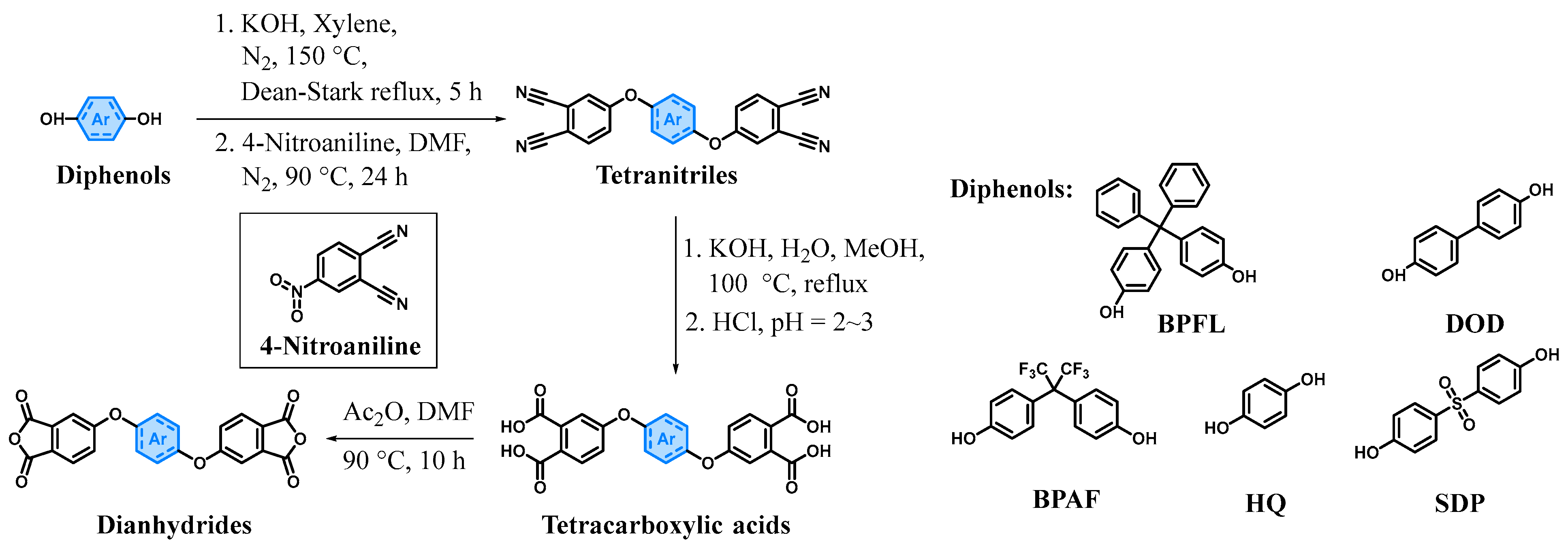

The dianhydrides BTDA, PMDA, and ODPA used in this work were obtained from commercial sources. Additionally, ether-linked dianhydrides were synthesized by modifying the method reported by Hsiao et al. [27], as illustrated in Scheme 4 and Scheme 5.

Synthesis of 4,4′-[(diphenylmethylene)bis(1,4-phenyleneoxy)]diphthalonitrile (BPFLCN). BPFL (49.06 g, 140.00 mmol), anhydrous KOH (15.71 g, 280.00 mmol), and xylene (280 mL) were added to a 500 mL round-bottom flask equipped with a magnetic stirrer. The mixture was heated to 150 °C under N₂ atmosphere and refluxed for 5 h. During the reaction, water and approximately 270 mL of xylene were removed using a Dean–Stark trap. After cooling to room temperature, 4-nitrophthalonitrile (48.48 g, 280.00 mmol) and dry DMF (280 mL) were added. The reaction mixture was heated to 90 °C under N₂ and stirred for 24 h. Subsequently, the mixture was poured into 2 L of water under vigorous stirring. The precipitated solid was collected by filtration, washed three times with a MeOH/DCM (3:1, v/v) mixture, and vacuum-dried at 80 °C for 12 h to yield a pale yellow powdery solid (83.19 g, yield = 98%). M. p. = 269.4 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 8.07 (d, J = 8.8 Hz, 2H), 8.01–7.91 (m, 2H), 7.79 (d, J = 2.6 Hz, 2H), 7.51 (d, J = 7.6 Hz, 2H), 7.47–7.40 (m, 2H), 7.39–7.31 (m, 4H), 7.30–7.19 (m, 4H), 7.17–6.95 (m, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 160.79, 152.61, 150.24, 142.79, 139.53, 136.34, 129.81, 128.17, 128.03, 126.07, 122.83, 122.04, 120.76, 120.15, 116.73, 115.94, 115.43, 108.29, 64.05; IR (KBr, ν, cm⁻¹): 3039 (C-H, aromatic stretching), 2228 (CN, stretching), 1590, 1490 (C=C, arom. stretching), 1252 (C-O-C, stretching), 846 (C-H, aromatic p-disubst. bending).

The other tetranitrile compounds were synthesized using the same method. 4,4′-[1,4-phenylenebis(oxy)]bis(1,2-benzenedicarbonitrile) (HQCN) was synthesized from HQ (6.61 g, 60.00 mmol), anhydrous KOH (6.73 g, 120.00 mmol), and 4-nitrophthalonitrile (20.78 g, 120.00 mmol), yielding a pale yellow powdery solid (18.85 g, 87% yield). M. p. = 268–270 °C; ¹H NMR (400 MHz, DMSO-d₆) δ 8.14 (d, J = 8.8 Hz, 2H), 7.87 (d, J = 2.5 Hz, 2H), 7.52 (dd, J = 8.8, 2.6 Hz, 2H), 7.34 (s, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 161.28, 151.05, 136.32, 122.80, 122.35, 122.12, 116.76, 115.98, 115.49, 108.28; IR (KBr, ν, cm⁻¹): 3076 (C-H, aromatic stretching), 2233 (CN, stretching), 1596, 1501 (C=C, aromatic stretching), 1244 (C-O-C, stretching), 836 (C-H, aromatic p-disubst. bending).

4,4′-[Sulfonylbis(1,4-phenyleneoxy)]bis(1,2-benzenedicarbonitrile) (SDPCN) was synthesized from SDP (35.04 g, 140.00 mmol), anhydrous KOH (15.71 g, 280.00 mmol), and 4-nitrophthalonitrile (48.48 g, 280.00 mmol), yielding a pale yellow powdery solid (66.01 g, yield = 94%). M. p. = 226.7 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 8.17 (d, J = 8.7 Hz, 2H), 8.11–8.03 (m, 4H), 8.01 (d, J = 2.6 Hz, 2H), 7.60 (dd, J = 8.8, 2.6 Hz, 2H), 7.37 (d, J = 8.8 Hz, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 159.47, 159.19, 137.61, 136.94, 130.83, 125.00, 124.71, 120.63, 117.44, 116.22, 115.73, 110.46; IR (KBr, ν, cm⁻¹): 3096 (C-H, aromatic stretching), 2235 (CN, stretching), 1580, 1485 (C=C, aromatic stretching), 1251 (C-O-C, stretching), 1149 (S=O, stretching),839 (C-H, p-disubst. aromatic bending), 734, 684 (C-H, trisubst. aromatic bending).

4,4′-Bis(3,4-dicyanophenoxy)biphenyl (DODCN) was synthesized from DOD (13.04 g, 70.00 mmol), anhydrous KOH (7.86 g, 140.00 mmol), and 4-nitrophthalonitrile (24.24 g, 140.00 mmol), yielding a pale brown powdery solid (27.51 g, yield = 90%). M. p. = 235–236 °C; ¹H NMR (400 MHz, DMSO-d₆) δ 8.12 (d, J = 8.8 Hz, 2H), 7.85 (d, J = 2.6 Hz, 2H), 7.81 (d, J = 8.5 Hz, 4H), 7.45 (dd, J = 8.8, 2.6 Hz, 2H), 7.30 (d, J = 8.5 Hz, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 160.95, 153.52, 136.63, 136.41, 128.90, 122.92, 122.25, 120.84, 116.79, 115.98, 115.47, 108.39. IR (KBr, ν, cm⁻¹): 3073 (C-H, aromatic stretching), 2232 (CN, stretching), 1592, 1486 (C=C, aromatic stretching), 1251 (C-O-C, stretching), 818 (C-H, aromatic p-disubst. bending).

2,2-Bis [4-(3,4-dicyanophenoxy)phenyl]hexafluoropropane (BPAFCN) was synthesized from BPAF (47.07 g, 140.00 mmol), anhydrous KOH (15.71 g, 280.00 mmol), and 4-nitrophthalonitrile (48.48 g, 280.00 mmol), yielding a pale yellow powdery solid (82.39 g, yield = 96%). M. p. = 232–233 °C; ¹H NMR (400 MHz, DMSO-d₆) δ 8.16 (d, J = 8.7 Hz, 2H), 7.96 (d, J = 2.5 Hz, 2H), 7.54 (dd, J = 8.7, 2.6 Hz, 2H), 7.49 (d, J = 8.5 Hz, 4H), 7.36–7.24 (m, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 159.95, 155.00, 136.48, 132.13, 128.88, 128.23, 125.39, 123.71, 123.19, 122.53, 119.98, 116.92, 115.88, 115.40, 109.22, 63.41; ¹⁹F NMR (376 MHz, DMSO-d₆) δ −63.36; IR (KBr, ν, cm⁻¹): 3088 (C-H, aromatic stretching), 2236 (CN, stretching), 1588, 1508, 1485 (C=C, aromatic stretching), 1248(C-O-C, stretching), 1023(C-F, aromatic stretching), 850 (C-H, aromatic p-disubst. bending).

2.6. Synthesis of Tetracarboxylic Acids and Dianhydrides

Synthesis of 5,5′-[(diphenylmethanediylbis(oxy-1,4-phenylene))]bis(isobenzofuran-1,3-dione) (BPFLDA) [28]. BPFLCN (60.47 g, 100 mmol), KOH (44.89 g, 800.00 mmol), methanol (264 mL), and water (144 mL) were added to a 500 mL round-bottom flask equipped with a magnetic stirrer. The mixture was refluxed at 100 °C until ammonia evolution ceased, as monitored by litmus paper. Concentrated HCl was then added dropwise in an ice bath to adjust the pH to 2–3, precipitating a white solid. The solid was collected by filtration, slurried twice with water, and vacuum-dried at 70 °C for 24 h to yield a grayish-white blocky solid, BPFLCOH (62.62 g, yield = 92%), which was used directly in the next step without further purification or characterization.

The crude product BPFLCOH (54.45 g, 80 mmol) and anhydrous DMF (40 mL) were added to a 250 mL round-bottom flask equipped with a magnetic stirrer. The mixture was stirred at 90 °C for 10 min, followed by the addition of 160 mL acetic anhydride (Ac₂O). Stirring was continued for 10 h, after which the mixture was cooled to room temperature and filtered. The collected solid was slurried four times in a mixed solvent of acetic anhydride/anhydrous DMF (10:1, v/v; the DMF ratio was adjusted as needed based on solubility). Residual solvents were removed in a vacuum oven at 100 °C, and the product was further dried in a forced-air oven at 190 °C to yield a white powdery solid (45.85 g, yield = 89%). M. p. = 258–259 °C; ¹H NMR (400 MHz, DMSO-d₆) δ 8.05 (d, J = 8.4 Hz, 2H), 7.97 (d, J = 7.6 Hz, 2H), 7.57–7.34 (m, 10H), 7.28 (d, J = 8.4 Hz, 4H), 7.12 (d, J = 8.3 Hz, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 163.68, 162.67, 162.51, 153.03, 150.28, 142.79, 139.55, 134.14, 129.87, 128.22, 128.06, 127.92, 126.10, 124.88, 124.59, 120.80, 120.30, 112.77, 64.10; IR (KBr, ν, cm⁻¹): 3064 (C-H, aromatic stretching), 1851, (C=O, asym. stretching), 1777 (C=O, sym. stretching), 1594, 1481 (C=C, aromatic stretching), 1279 (C-O-C, stretching).

The other dianhydrides were synthesized using the same method.

Synthesis of 5,5′-(1,4-phenylenebisoxy)bis(isobenzofuran-1,3-dione) (HQDA) [29]. HQCN (7.00 g, 19.30 mmol) and KOH (8.66 g, 154.40 mmol) were reacted to yield a crude tetracarboxylic acid as a white blocky solid, HQCOH (8.24 g, yield = 97%). HQCOH (8.24 g, 18.80 mmol) was treated with Ac₂O (38 mL) under reflux conditions. The resulting product was isolated as a white powdery solid, HQDA (6.46 g, yield = 85%). M. p. = 268.5 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 8.11 (d, J = 8.3 Hz, 2H), 7.61 (d, J = 10.7 Hz, 4H), 7.36 (s, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 164.35, 163.13, 162.99, 151.91, 134.65, 128.35, 125.46, 125.15, 123.06, 113.31; IR (KBr, ν, cm⁻¹): 3102, 3075 (C-H, aromatic stretching), 1847, (C=O, asym. stretching), 1771 (C=O, sym. stretching), 1601, 1481 (C=C, aromatic stretching), 1270 (C-O-C, stretching).

Synthesis of 5,5′-[sulfonylbis(oxy-1,4-phenylene)]bis(isobenzofuran-1,3-dione) (SDPDA) [30]. SDPCN (66.01 g, 131.36 mmol) and KOH (58.96 g, 1050.88 mmol) were reacted to yield a crude tetracarboxylic acid as a white blocky solid, SDPCOH (68.13 g, yield = 90%). SDPCOH (67.58 g, 116.82 mmol) was treated with Ac₂O (230 mL) under reflux conditions. The product was isolated as a white powdery solid, SDPDA (48.23 g, yield = 76%). M. p. = 243.4 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 8.13 (d, J = 8.3 Hz, 2H), 8.08 (d, J = 8.7 Hz, 4H), 7.77 (d, J = 2.3 Hz, 2H), 7.67 (dd, J = 8.4, 2.2 Hz, 2H), 7.35 (d, J = 8.4 Hz, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 162.47, 161.60, 159.34, 136.99, 134.28, 130.43, 128.04, 126.66, 120.02, 115.47; IR (KBr, ν, cm⁻¹): 3101(C-H, aromatic stretching), 1846, (C=O, asym. stretching), 1777 (C=O, sym. stretching), 1583, 1481 (C=C, aromatic stretching), 1283 (C-O-C, stretching), 1149 (S=O, stretching).

Synthesis of 5,5′-[1,1′-biphenyl]-4,4′-diylbis(oxy)bis(isobenzofuran-1,3-dione) (DODDA) [29]. DODCN (16.44 g, 37.50 mmol) and KOH (16.83 g, 300.00 mmol) were reacted to yield a crude tetracarboxylic acid as a pale yellow powdery solid, DODCOH (19.17 g, yield = 99%). DODCOH (18.86 g, 36.70 mmol) was treated with Ac₂O (72 mL) under reflux conditions. The product was isolated as a pale yellow powdery solid, DODDA (15.07 g, yield = 86%). M. p. = 287.7 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 8.10 (d, J = 8.4 Hz, 2H), 7.85 (d, J = 8.4 Hz, 4H), 7.58 (dd, J = 8.4, 2.3 Hz, 2H), 7.51 (s, 2H), 7.32 (d, J = 8.1 Hz, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 163.82, 162.72, 162.56, 153.94, 136.62, 134.21, 129.01, 127.98, 125.02, 124.82, 120.93, 112.87; IR (KBr, ν, cm⁻¹): 3101, 3078 (C-H, aromatic stretching), 1848, (C=O, asym. stretching), 1775 (C=O, sym. stretching), 1595, 1481 (C=C, aromatic stretching), 1280 (C-O-C, stretching).

Synthesis of 5,5′-[(hexafluoropropane-2,2-diylbis(4,1-phenyleneoxy))bis(oxy)]bis(isobenzofuran-1,3-dione) (BPAFDA) [30]. BPAFCN (78.20 g, 132.89 mmol) and KOH (59.65 g, 1063.10 mmol) were reacted to yield a crude tetracarboxylic acid as a reddish-brown blocky solid, BPAFCOH (87.95 g, yield = 99%). BPAFCOH (87.95 g, 132.36 mmol) was treated with acetic anhydride (Ac₂O, 260 mL) under reflux conditions. The product was isolated as a white powdery solid, BPAFDA (61.48 g, yield = 74%). M. p. = 232.6 °C (DSC); ¹H NMR (400 MHz, DMSO-d₆) δ 8.12 (d, J = 8.7 Hz, 2H), 7.66 (d, J = 2.3 Hz, 2H), 7.65–7.60 (m, 2H), 7.52 (d, J = 9.6 Hz, 4H), 7.32 (d, J = 9.5 Hz, 4H); ¹³C NMR (101 MHz, DMSO-d₆) δ 162.64, 162.56, 162.47, 155.46, 134.23, 132.14, 128.74, 128.01, 125.77, 125.62, 125.41, 122.54, 119.97, 119.01, 114.08, 63.44; ¹⁹F NMR (376 MHz, DMSO-d₆) δ −63.34; IR (KBr, ν, cm⁻¹): 3099 (C-H, aromatic stretching), 1851, (C=O, asym. stretching), 1781 (C=O, sym. stretching), 1593, 1481 (C=C, aromatic stretching), 1285 (C-O-C, stretching).

2.7. Preparation of FPA-PI Films

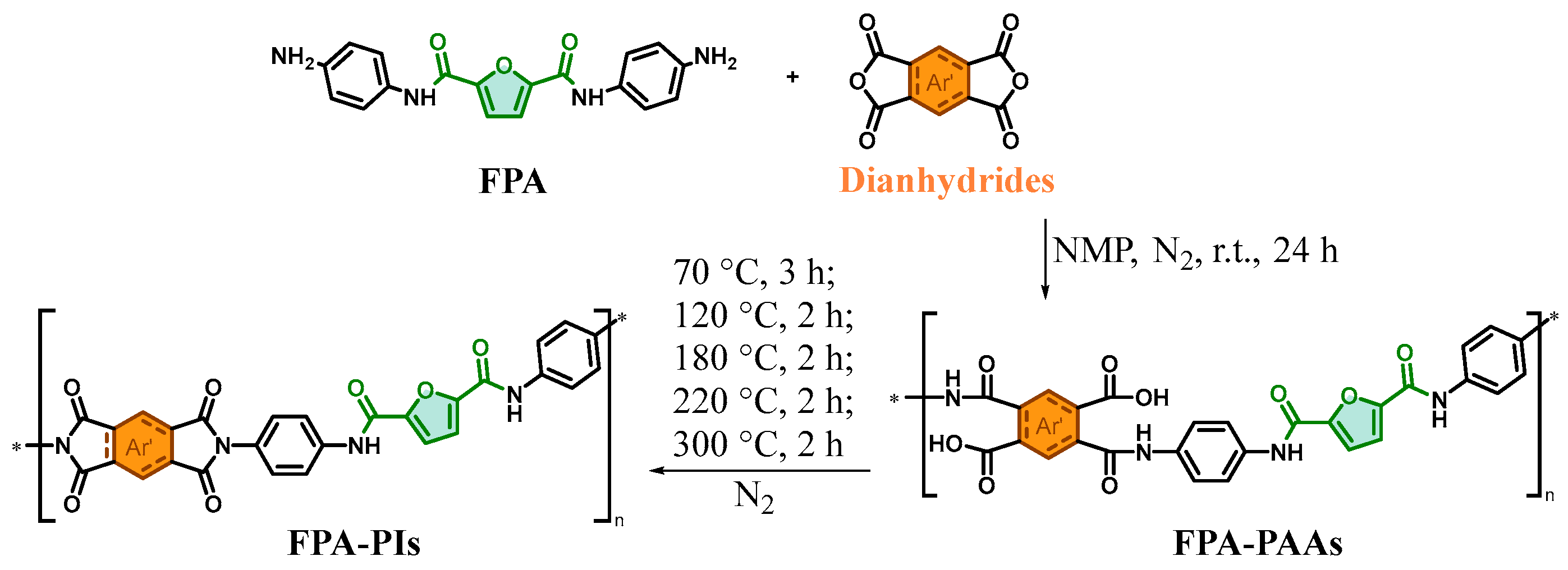

Bio-based polyimides were synthesized via a two-step method. First, polyamic acid (PAAs) precursors based on FPAs (FPA-PAAs) were prepared in dry NMP, followed by thermal imidization to produce bio-based PI films (FPA-PIs), as illustrated in Scheme 6.

Synthesis of PAAs (exemplified with FPA and BPFLDA). FPA (2.02 g, 6.00 mmol) and NMP (40 mL) were added to a 100 mL round-bottom flask equipped with a magnetic stirrer. BPFLDA (3.87 g, 6.00 mmol) was added under stirring, and the reaction mixture was stirred under a N₂ atmosphere at room temperature for 24 h, yielding a viscous PAA solution with a solid content of 14.7%. Other PAA solutions were prepared analogously.

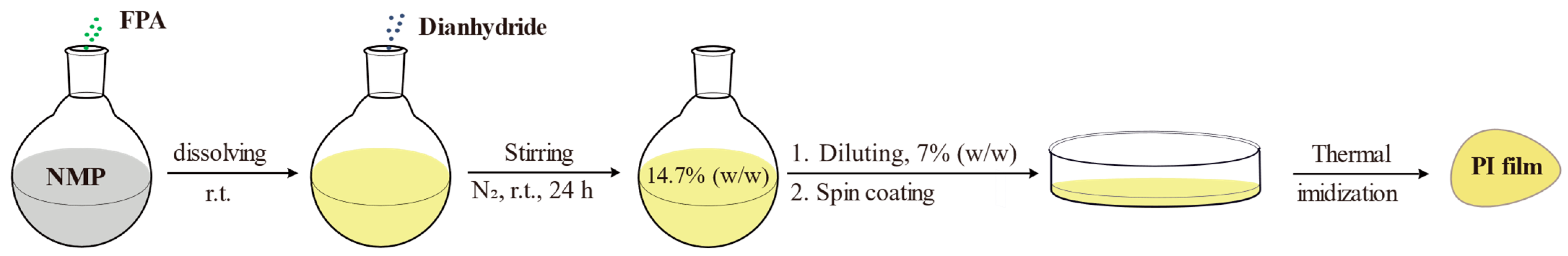

The PAA solution was diluted to a solid content of 7.0% and spin-coated onto flat-bottomed glass Petri dishes (diameter: 100 mm). A gradient heating program was employed for thermal imidization [31] to prevent defects such as pores and cracks in the film, which could be induced by rapid solvent evaporation or material decomposition due to abrupt temperature increases. The temperature protocol in this study was designed as follows: First, the sample was maintained at 70 °C under an N₂ atmosphere with a vacuum of −0.08 MPa for 3 h to allow volatilization of the majority of NMP solvent. Subsequently, it was transferred to an oven and subjected to sequential heating steps: 120 °C for 2 h, 180 °C for 2 h, 220 °C for 2 h, and 300 °C for 2 h, with a heating rate of 2 °C·min⁻¹. The timing for each step was initiated once the target temperature was attained. N₂ purging was maintained throughout the heating process to replace ambient air gradual cooling, and the FPA-PI films were peeled off by water immersion, dried in a forced-air oven at 80 °C for 12 h, and stored under ambient conditions. The resulting bio-based PI films exhibited thicknesses of 50–70 μm.

FPA-ODPA: IR (film, ν, cm⁻¹): 3337 (N-H, amide stretching), 1776, (C=O, asym. stretching), 1736 (C=O, sym. stretching), 1704 (C=O, stretching), 1370 (C-N-C, stretching), 745 (C=O, bending).

FPA-BPFLDA: IR (film, ν, cm⁻¹): 3366 (N-H, amide stretching), 1776, (C=O, asym. stretching), 1730 (C=O, sym. stretching), 1667 (C=O, stretching), 1382 (C-N-C, stretching), 745 (C=O, bending)

FPA-DODDA: IR (film, ν, cm⁻¹): 3334 (N-H, amide stretching), 1776, (C=O, asym. stretching), 1721 (C=O, sym. stretching), 1678 (C=O, stretching), 1379 (C-N-C, stretching), 746 (C=O, bending).

FPA-PMDA: IR (film, ν, cm⁻¹): 3350 (N-H, amide stretching), 1776, (C=O, asym. stretching), 1739 (C=O, sym. stretching), 1678 (C=O, stretching), 1370 (C-N-C, stretching), 726 (C=O, bending).

2.8. Characterization

All NMR spectra were recorded on a Bruker AVANCE-II 400 MHz spectrometer (Bruker, Switzerland), typically with DMSO-d₆, Chloroform-d (CDCl₃), or D₂O as solvents and tetramethylsilane (TMS) as an internal standard. Fourier-transform infrared (FT-IR) spectra were recorded on a Nicolet IS10 FT-IR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) in the range of 4000–400 cm⁻¹ with 32 scans. Monomer precursors, diamine monomers, and dianhydride monomers were analyzed using the KBr pellet method, while PI films were directly tested. X-ray diffraction (XRD) patterns of PI films were recorded on a Bruker D8 ADVANCE A25× diffractometer (Bruker, Karlsruhe, Germany) with Cu-Kα radiation (λ = 0.15406 nm) in the 2θ range of 5–70° at a scan rate of 12°·min⁻¹.

Mechanical property testing. The mechanical properties of PI films were measured using a CMT4104 computer-controlled universal testing machine (MTS SYSTEMS (CHINA) Co., Ltd., Shenzhen, China), and triplicate measurements were performed for each sample. Specimens with dimensions of 50 mm (length) × 10 mm (width) and thicknesses of 50–70 μm were tested at a tensile rate of 10 mm/min.

Thermal property testing. The glass transition temperature (Tg) of PIs was measured using a differential scanning calorimeter (DSC 214 Polyma, Netzsch, Selb, Germany). Specifically, the DSC curves of PIs were recorded during the second heating cycle. The procedure involved first weighing 5–10 mg of the sample in an aluminum crucible; then the first heating stage—heating from 20 °C to 300 °C at a rate of 10 °C·min⁻¹ to eliminate thermal history; the first cooling stage—cooling from 300 °C to 20 °C at 10 °C·min⁻¹; and the second heating stage—heating from 20 °C to 400 °C at 10 °C·min⁻¹. All heating/cooling programs were conducted under a N₂ atmosphere. Additionally, the melting points (M. p., °C) of some monomer precursors and monomers were determined using the same DSC instrument at a heating rate of 10 °C·min⁻¹, while others were measured with a micro-melting point apparatus (X-5, Beijing Tech Instruments Co., Ltd., Beijing, China). Thermogravimetric analysis (TGA) of PIs was performed using a synchronized thermal analyzer (STA 449 F3, Netzsch, Selb, Germany) under N₂, with a temperature range of 30 °C to 800 °C and a heating rate of 10 °C·min⁻¹.

Gas permeability testing. The pure gas permeability coefficients (P, Barrer) of CO₂ and N₂ through PI films were measured using a GTR-721-3S gas transmission rate tester (Jinan Sike Testing Technology Co., Ltd., Jinan, China) via the pressure difference method. The permeability coefficient P is expressed in Barrer (1 Barrer = 1 × 10⁻¹⁰ cm³(STP)·cm·cm⁻²·s⁻¹·cmHg⁻¹). Tests were conducted at 23 °C under 50% relative humidity (%RH) following ASTM D3985-17 [32]. To minimize experimental errors, the thickness of each film was measured three times and averaged, and three independent samples of each polyimide film were tested. The ideal selectivity ${\alpha }_{ij}$ of the films was calculated using the following equation:

$${\alpha }_{ij}={\displaystyle \frac{P_i}{P_j}}$$

(1)

where $P_i$ and $P_j$ represent the permeability coefficients of gas $i$ and gas $j$, respectively.

3. Results and Discussion

3.1. Structural Characterization of FPA

The synthesis routes of diamine monomer FPA are illustrated in Figure 1. Starting from bio-based 2,5-furandicarboxylic acid (FDCA) as the initial raw material, the bio-based diamine monomer N,N′-bis(4-aminophenyl)furan-2,5-dicarboxamide (FPA) was synthesized through reactions with 4-nitroaniline, involving acyl chlorination, amidation, and nitro group hydrogenation reduction steps. FPA’s structure was characterized by FT-IR and NMR. In the ¹H NMR spectra (Figure 1a), the protons on the furan ring and the amino group (-NH₂) of FPA exhibit chemical shifts at δ 7.28 ppm (labeled a) and δ 5.07 ppm (labeled e), respectively. The protons on the benzene ring of FPA resonate at δ 7.45–7.30 ppm (labeled c and g) and δ 6.78–6.41 ppm (labeled d and f). Additionally, the amide proton (-CONH-) appears at δ 9.95 ppm (labeled b). The integration ratios of all signals are consistent with the expected number of protons in the molecular structure. In the ¹³C NMR spectrum (Figure 1b), the tertiary carbon and quaternary carbon on the furan ring exhibit chemical shifts at δ 115.30 ppm (labeled 1) and δ 148.38 ppm (labeled 2), respectively. The carbonyl carbon (-C=O) in the amide group (-CONH-) resonates at δ 155.12 ppm (labeled 3), while the carbons on the benzene ring are observed at δ 146.03 ppm (labeled 7), δ 126.40 ppm (labeled 4), δ 122.86 ppm (labeled 5 and labeled 9), and δ 113.87 ppm (labeled 6 and labeled 8). Furthermore, the FT-IR spectrum (see 2.4) reveals characteristic vibrational bands: the N-H stretching of the amide group at 3387 cm⁻¹, -C=O stretching at 1646 cm⁻¹, asymmetric and symmetric stretching vibrations of the nitro group (-NO₂) at 1563 cm⁻¹ and 1327 cm⁻¹, respectively, and aromatic -C=C stretching vibrations at 1608 cm⁻¹ and 1515 cm⁻¹. Collectively, these spectroscopic data (¹H NMR, ¹³C NMR and FT-IR) provide conclusive evidence for the successful synthesis of FPA.

3.2. Intrinsic Viscosity of FPA-PAAs and Solubility Testing of FPA-PIs

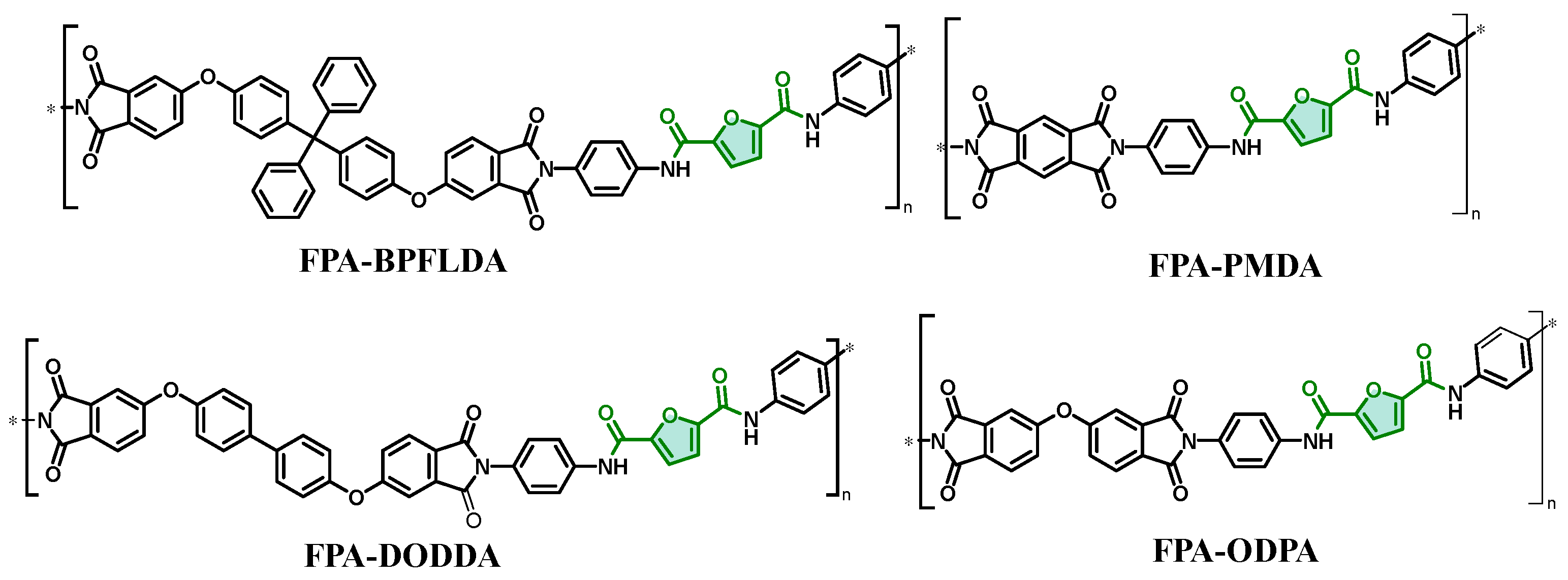

Bio-based PIs (FPA-PIs) were synthesized via thermal imidization. Due to their limited solubility, conventional gel permeation chromatography (GPC) could not determine the molecular weights of FPA-PIs. Therefore, the intrinsic viscosities ([η]) of PAA solutions were measured using an Ubbelohde viscometer (Taizhou Jiaojiang Huan Guang Glass Instrument Co., Ltd., Taizhou, China), which reflects the hydrodynamic volume and chain extension of PAA in solution. According to the Mark–Houwink equation, molecular weight and intrinsic viscosity exhibit a positive correlation. As shown in

Table 1. Intrinsic viscosities ([η]) ^a of FPA-PAAs; rough simulation and calculation of densities (ρ) ^b and solubilities ^c of FPA-PIs.

FPA-PIs	[η] (dL·g−1)	ρ [g·cm−3]	NMP	DMF	DMAC	DMSO	DCM	CHCl3	THF	Acetone
FPA-BPFLDA	2.38 d	1.298	--	--	--	--	--	--	--	--
FPA-DODDA	0.60 d	1.341	--	--	--	--	--	--	--	--
FPA-PMDA	1.08 d	1.390	--	--	--	--	--	--	--	--
FPA-ODPA	0.93 d	1.391	--	--	--	--	--	--	--	--
FPA-SDPDA	0.28 e	1.388	X	X	X	X	X	X	X	X
FPA-BPAFDA	0.26 e	1.420	X	X	X	X	X	X	X	X
FPA-BTDA	0.49 e	1.393	X	X	X	X	X	X	X	X
FPA-HQDA	1.23 e	1.366	X	X	X	X	X	X	X	X

^a Intrinsic viscosity ([η]) measurement: the intrinsic viscosities of FPA-PAAs were measured using an Ubbelohde viscometer with N-methyl-2-pyrrolidone (NMP) as the solvent at 25.0 °C ± 0.1 °C and a PAA concentration of 0.5 g·dL⁻¹. ^b Density of FPA-PI films rapidly predicted using the Synthia module in Materials Studio was overestimated compared to experimental values. ^c Solubility testing: each polyimide film (10 mg) was immersed in 1 mL of solvent (NMP, DMF, DMAC, DMSO, DCM, chloroform (CHCl₃), THF, or acetone) at room temperature and stirred for 24 h. Solubility tests showed the films were insoluble (‘--’); untested ones are marked ‘X’. ^d Film formation (successful): films were successfully prepared via thermal imidization. ^e Film formation (failed): films failed to form through thermal imidization.

, the intrinsic viscosities of all FPA-PAA samples ranged from 0.26 to 2.38 dL·g⁻¹. Notably, when [η] fell below 0.5 dL·g⁻¹, film formation was unachievable (FPA-SDPDA: 0.28 dL·g⁻¹, FPA-BPAFDA: 0.26 dL·g⁻¹ and FPA-BTDA: 0.49 dL·g⁻¹); due to the low molecular weight of the PIs, the films become brittle or discontinuous during the thermal imidization process, resulting in the failure to form continuous films. Conversely, when [η] exceeds 0.6 dL·g⁻¹, enhanced film-forming properties are achieved during the thermal imidization process (FPA-BPFLDA: 2.38 dL·g⁻¹, FPA-DODDA: 0.60 dL·g⁻¹, FPA-PMDA: 1.08 dL·g⁻¹, FPA-ODPA: 0.93 dL·g⁻¹). However, for FPA-HQDA (FPA-HQDA: 1.23 dL·g⁻¹), the rigid furan backbone and amide groups (-CONH-) result in poor solubility in the solvent (NMP), resulting in microphase separation during solvent evaporation and disrupted film continuity [33], combined with localized stress imbalances during thermal processing that induce film defects; these factors ultimately prevent effective film formation. The film-forming properties of polymers are synergistically influenced by molecular weight, structural features, and solvent selection. Future work focused on enhancing the solubility and processability of PIs could involve structural modifications such as (a) incorporating fluorine-containing groups (e.g., trifluoromethyl (-CF₃), hexafluoroisopropyl (-C(CF₃)₂)) to increase interchain free volume [34,35]; (b) introducing flexible alkyl/fatty chains to improve chain mobility [9,36]; or (c) copolymerization with flexible monomers (e.g., ester-containing units) to reduce chain rigidity and intermolecular interactions [14]. Additionally, solvent strategies such as cosolvent systems (e.g., N,N-dimethylacetamide (DMAC)/1,4-butyrolactone (GBL)) can be optimized by selecting solvents using Hansen solubility parameters (HSP) [37,38,39,40]. This approach helps to regulate solvent evaporation rates and enhance polymer–solvent compatibility, thereby suppressing phase separation and significantly improving film formation.

Solubility tests (as indicated by the shaded entries in Table 1, non-film-forming FPA-PIs were excluded due to the inability to prepare testable films) revealed that all bio-based FPA-PI films exhibited poor solubility, remaining insoluble even in polar aprotic solvents such as NMP, DMF, DMAC, and dimethyl sulfoxide (DMSO). This is attributed to the rigid furan structure and amide (-CONH-) groups in FPA, which persist in limiting solubility despite the incorporation of flexible ether linkages (-O-) in the dianhydrides.

3.3. Morphological Characterization of FPA-PI Films

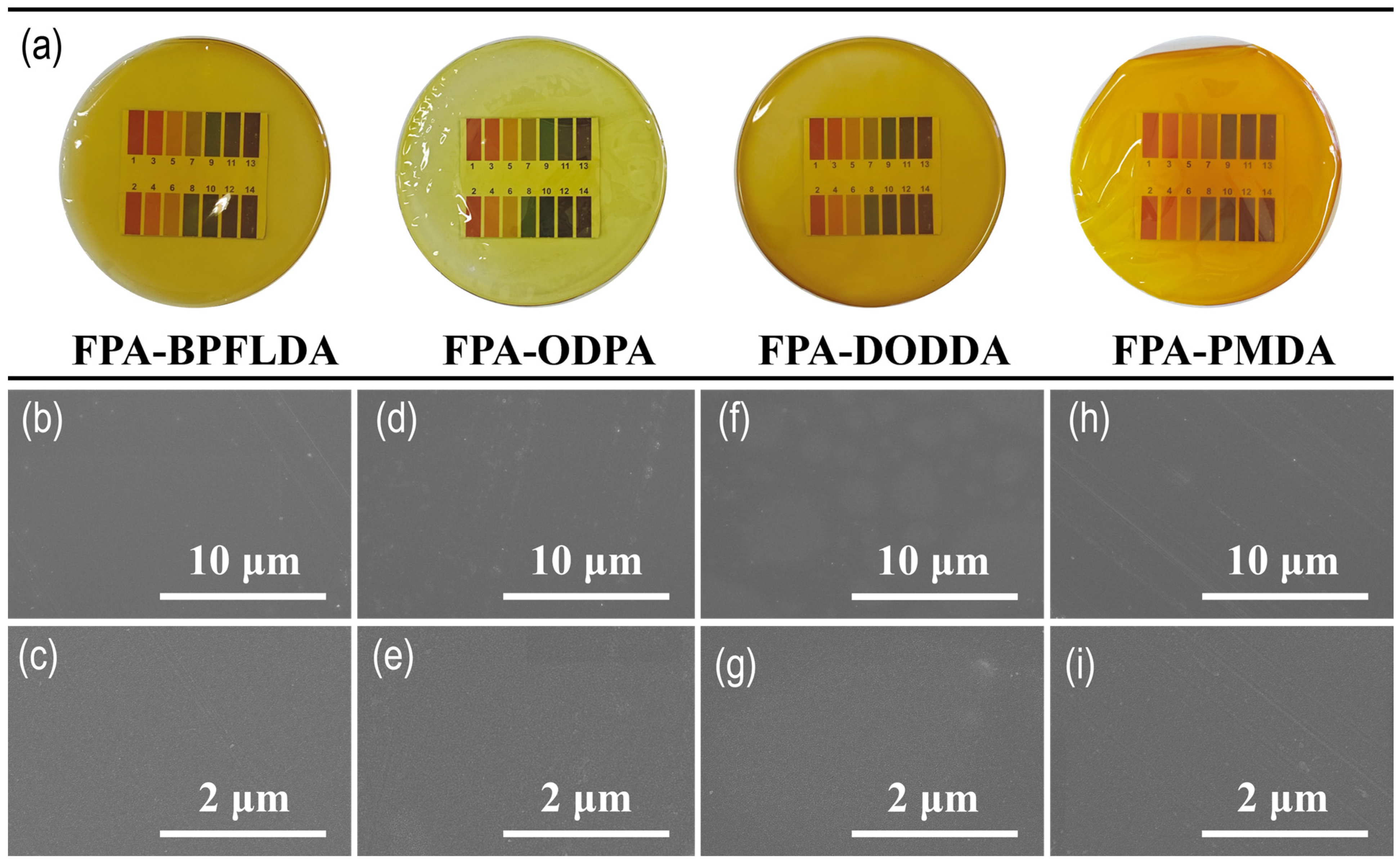

As shown in Figure 2a, the macroscopic morphologies of the four bio-based FPA-PI films are presented, while the images b–j below provide their corresponding SEM micrographs with scale bars of 10 μm (20,000×) and 2 μm (100,000×). All films exhibit deep coloration, primarily attributed to the dense packing of PI chain segments within these films, which enhances light refraction [41]. Additionally, during the thermal imidization process, residual air (due to the possible presence of air not fully displaced by N₂) may further contribute to the darkening of film color and reduced transparency. SEM analysis reveals crack-free surfaces for all films at 20,000×. However, at 100,000× magnification, while the surfaces of FPA-BPFLDA, FPA-ODPA, and FPA-PMDA remain crack-free, FPA-DODDA exhibits distinct surface cracks, which could be attributed to uneven stress distribution during the thermal imidization process [42].

3.4. FT-IR Characterization of FPA-PI Films

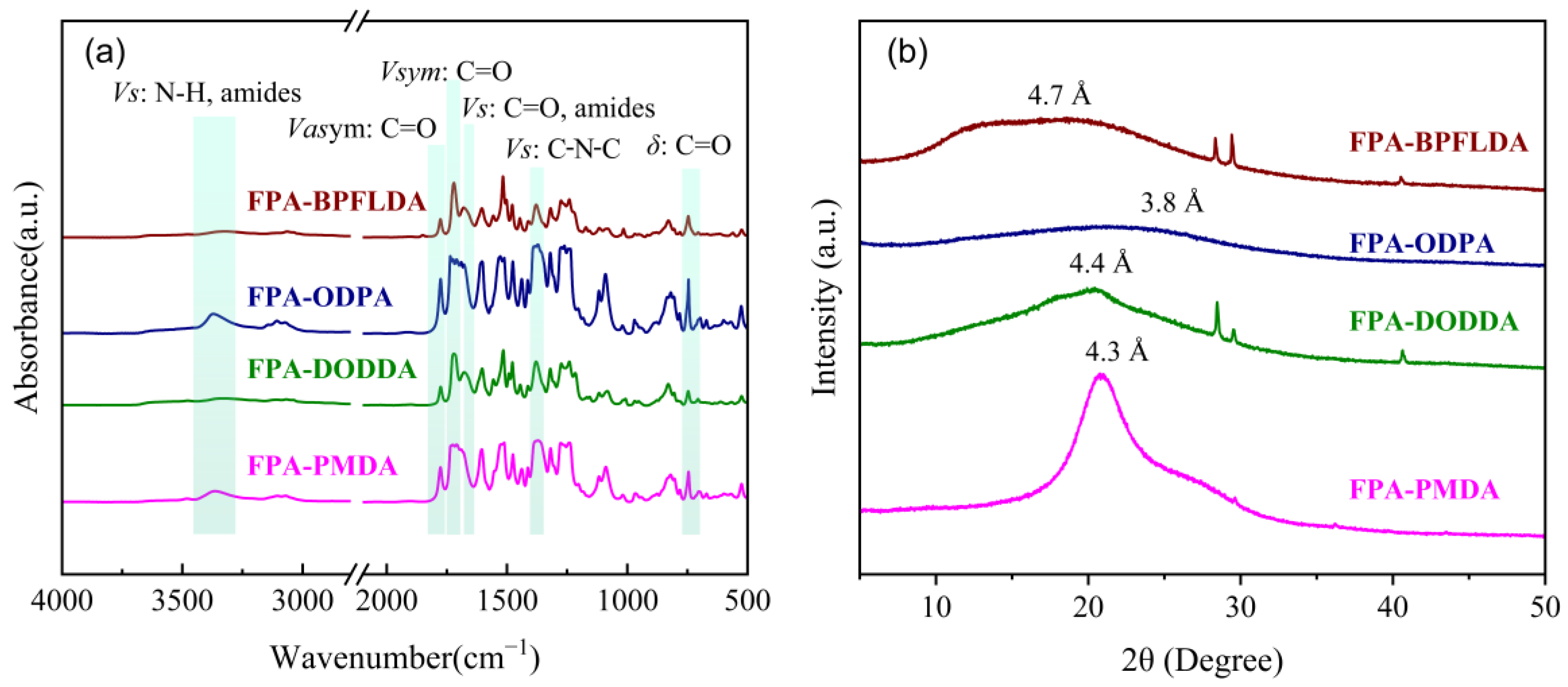

The FPA-PI films were analyzed by FT-IR spectroscopy, and the results are presented in Figure 3a. The characteristic peaks of FPA-PIs are observed at approximately 1783 cm⁻¹ for the asymmetric stretching vibration of the imide -C=O bond (Vasym: C=O), 1724 cm⁻¹ for the symmetric stretching vibration of the imide -C=O bond (Vsym: C=O), and 1379 cm⁻¹ for the stretching vibration of the imide C-N-C bond (Vs: C-N-C). These three peaks are the most distinctive features of polyimides [10]. Additionally, the bending vibration of the imide -C=O bond (δ: C=O) appears around 724 cm⁻¹, serving as supplementary verification, though it may overlap with aromatic ring bending vibrations. Peaks at 1666 cm⁻¹ and 3364 cm⁻¹ are attributed to the stretching vibrations of the -C=O bond (Vs: C=O, amides) and N-H bond (Vs: N-H, amides) in the amide group (-CONH-), respectively. These results align well with previously reported findings for bio-based furan-containing polyimides and poly(amide-imide) systems [16,43]. The absence of carboxyl group peaks from PAA in the 3700–3400 cm⁻¹ region confirms the successful synthesis of FPA-PIs [31,44].

3.5. XRD Characterization of FPA-PI Films

The FPA-PI films were analyzed through XRD patterns, and the results are presented in Figure 3b. The d-spacing, which typically reflects the distance between polymer chain segments, serves as an indicator of the tight packing degree of polymer chains and correlates with the free volume and gas permeability of the polymer [12,34,45]. The d-spacing was calculated by the Bragg equation λ = 2d sinθ. Distinct shoulder peaks or sharp peaks were observed near the diffraction signals of all PIs except FPA-ODPA, suggesting the presence of smaller-sized pore structures or partially ordered arrangements of PI chain segments [46]. The d-spacing values of FPA-PI films range from 3.8 to 4.7 Å, indicating generally tight chain packing. This phenomenon is attributed to the enhanced stacking of PIs molecular chains facilitated by the rigid furan rings [47]. Additionally, the structure of the dianhydride significantly influences the chain packing behavior. For example, FPA-BPFLDA (d-spacing = 4.7 Å) exhibits much larger d-spacing than FPA-ODPA (d-spacing = 3.8 Å), which is due to the steric hindrance imposed by the bulky benzene ring (-C(Ph)₂), thereby disrupting tight chain packing.

To further explore the consistency between chain packing, d-spacing, and the density of FPA-PI films, the density (ρ) was predicted using the Synthia module in Materials Studio. This module estimates the density of amorphous polymers by calculating the ratio of the molar mass to molar volume of the repeat unit [48]. However, the predicted values in Table 1 systematically overestimate the experimental densities, as the algorithm neglects non-ideal chain arrangements caused by intermolecular interactions (e.g., van der Waals forces, hydrogen bonding) and steric hindrance effects. Despite this limitation, the relative trends in the predicted densities align with the d-spacing data, effectively reflecting differences in the tightness of chain packing. For example, FPA-ODPA exhibits the smallest d-spacing (3.8 Å) and the highest predicted density (1.391 g·cm⁻³), consistent with its tightly packed chains. In contrast, FPA-BPFLDA shows the largest d-spacing (4.7 Å) and the lowest predicted density (1.298 g·cm⁻³), corroborating the steric hindrance-induced loose packing due to its bulky benzene rings. Intermediate systems, such as FPA-DODDA (1.341 g·cm⁻³) and FPA-PMDA (1.390 g·cm⁻³), follow the same inverse correlation between d-spacing and density, which is consistent with the trends reported in the literature [45,46,49]. Additionally, an intuitive spatial ball-and-stick model of the repeat units is provided in Figure S1. These results demonstrate that the trends in d-spacing and computational density provide complementary insights into the spatial organization of polymer chains: smaller d-spacing and higher predicted density collectively indicate tighter molecular packing.

3.6. Thermal Property Characterization of FPA-PI Films

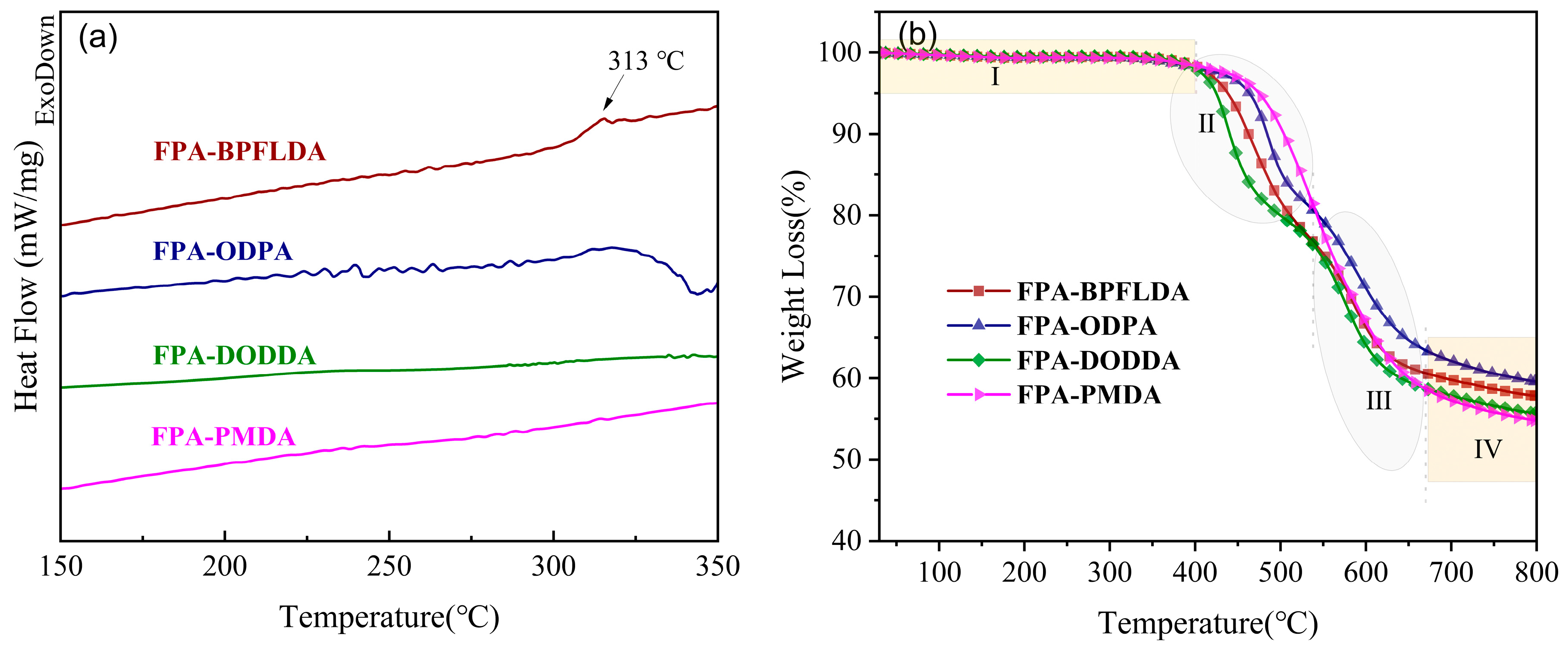

The thermal properties of four bio-based PI films were evaluated using differential scanning calorimetry (DSC). The results are shown in Figure 4a, with relevant thermal data summarized in

Table 2. Thermal properties from DSC and TGA of FPA-PI films.

FPA-PIs	Bio-C (%) a	Tg (°C) b	Td5% (°C) c	Td10% (°C) d	Char Yield (%) e
FPA-BPFLDA	10.2	313	438	463	57.8
FPA-ODPA	17.6	N.F.	463	484	59.6
FPA-DODDA	13.0	N.F.	425	440	55.7
FPA-PMDA	21.4	N.F.	475	504	54.8

^a Bio-based content (Bio-C) in the polyimide. ^b Glass transition temperature (T_g); N.F.: not found. ^c Temperature at 5% weight loss (T_d^5%). ^d Temperature at 10% weight loss (T_d^10%). ^e Char yield: carbon residue remaining after pyrolysis.

. Notably, distinct glass transition temperatures (T_g) were observed only for FPA-BPFLDA (T_g = 313 °C). For the other FPA-PIs, no distinct T_g was observed in the DSC curves, a feature characteristic of rigid PIs attributed to the enhanced molecular chain rigidity caused by the -CONH- groups in FPA [45]. Additionally, restricted chain segment mobility caused by interchain entanglement in PIs’ molecular chains may contribute to this phenomenon [50].

The thermal properties of four bio-based PI films were evaluated using thermogravimetric analysis (TGA). The results are shown in Figure 4b, with relevant thermal data summarized in Table 2. The thermal degradation of these four bio-based PIs can be divided into four distinct regions. Region I (<400 °C): no significant weight loss was observed for any polyimide, indicating exceptional thermal stability of the imide rings, aromatic ether linkages, and amide bonds in the polymer backbone, which underscores the high heat resistance of PIs. Region II (425–520 °C): The temperature at 5% weight loss (T_d^5%) exceeded 425 °C for all samples, primarily attributed to the pyrolysis of furan rings. Notably, FPA-PMDA exhibits the highest thermal stability, with its 5% weight loss temperature (T_d^5%) and 10% weight loss temperature (T_d^10%) reaching 475 °C and 504 °C, respectively. This is attributed to its rigid benzene ring structure and enhanced polymer chain packing density. Region III (520–670 °C): degradation of the dianhydride backbone dominated, driven by cleavage of aromatic ether linkages (-O-Ar-O-). Region IV (>670 °C): High-temperature carbonization occurred, with char yield from 50 to 60%. FPA-ODPA exhibited the highest char yield (59.6%), suggesting the formation of a dense carbon layer with excellent barrier effects. FPA-BPFFLDA (57.8%) followed, likely due to their high aromatic ring content. Compared to the PI-2-c reported by Ma et al. [16], PI-2-c (48%) exhibited lower char yield, which is attributed to the presence of the flexible structural group (-C(CF₃)₂ in 6FDA). Furthermore, the decomposition of -CF₃ groups into volatile fluorinated molecules (such as CHF₃) at elevated temperatures further inhibited the formation of stable carbonaceous layers in PI-2-c systems [51,52]. In summary, in this work, all FPA-PIs exhibited outstanding thermal stability (T_d^5% > 425 °C), highlighting their potential for applications in the field of sustainable organic high-temperature resistant materials.

According to the US Department of Agriculture (USDA), the bio-based content in a bio-based polymer refers to the percentage of bio-based carbon in the total carbon of the polymer [10,53]. As shown in Table 2, the bio-based content of FPA-PIs ranges from 10.2% to 21.4%, with FPA-PMDA exhibiting the highest bio-based content (21.4%).

3.7. Mechanical Properties of FPA-PI Films

The stress–strain curves of bio-based FPA-PI films are shown in Figure 5a, and the corresponding data are summarized in

Table 3. Mechanical properties of FPA-PI films.

FPA-PIs	EM (GPa) a	TS (MPa) b	EB (%) c
FPA-BPFLDA	2.25 ± 0.13	79.03 ± 4.19	6.03 ± 0.36
FPA-ODPA	2.61 ± 0.10	95.22 ± 4.11	7.94 ± 0.38
FPA-DODDA	3.20 ± 0.15	99.43 ± 4.06	7.46 ± 0.23
FPA-PMDA	2.14 ± 0.11	50.47 ± 1.80	4.90 ± 0.20

^a E_M: Elastic modulus; ^b T_S: tensile strength; ^c E_B: elongation at break.

. These results demonstrate that all PI films exhibit favorable mechanical properties. The elastic modulus (E_M) of FPA-PIs ranged from 2.14 to 3.20 GPa, with tensile strength (T_S) values of 50–99 MPa and elongation at break (E_B) of 4.9–7.9%. The structure of the dianhydride critically influences mechanical performance. For example, FPA-PMDA showed the poorest mechanical properties, likely due to localized stress imbalance during thermal processing, which induced structural defects in the films. In terms of toughness, FPA-ODPA achieved the highest E_B (7.9%), attributable to the flexible ether linkage (-O-) in the ODPA structure [8]. Furthermore, the mechanical properties of these FPA-PI films are comparable to or even surpass those of vanillin-based and citric acid-based bio-polyimides as well as Torlon (poly(amide-imide)) materials reported in the literature [10,54,55], providing crucial theoretical support for developing furan-based bio-polyimides.

3.8. Evolution of Elastic Modulus and Elongation at Break in FPA-PI Films with Aging Time

Traditional methods for evaluating the actual service life of polymeric materials, such as natural aging, typically require thousands of hours. Elevated temperature and pressure environments can effectively accelerate oxidative aging processes, thereby significantly reducing testing duration [56]. In accordance with methodologies established by Ruggles-Wrenn and Crochon et al. [57,58], isothermal aging experiments were conducted on FPA-PI films in air at 250 °C for 40 days to investigate the evolution of elastic modulus and elongation at break with aging time (2, 4, 10, 25, and 40 days). As illustrated in Figure 5b, the elastic modulus of FPA-PI films demonstrated an overall increasing trend with prolonged aging duration, while the elongation at break decreased correspondingly. A slow evolution stage was observed between 10 and 25 days for both parameters. Notably, rapid property changes occurred during the initial 0–4 day period, with the elastic modulus increasing by 3.4–8.9% and elongation at break decreasing sharply by 19.3–28%. This accelerated transformation phase can be attributed to interchain crosslinking within the PI molecular structure [55]. Between 25 and 40 days, the films exhibited pronounced embrittlement accompanied by a marked reduction in elongation at break (7.8–20.0%), likely resulting from oxidative degradation and crack formation during prolonged thermal aging.

These findings suggest that FPA-PI films undergo complex structural modifications during high-temperature oxidative aging. It should be noted that the current experiments were conducted below the glass transition temperature (T_g = 313 °C). Subsequent investigations could explore aging experiments conducted at temperatures above or below T_g to further elucidate the degradation mechanisms of FPA-PI films.

3.9. CO₂/N₂ Gas Permeability Properties of FPA-PI Films

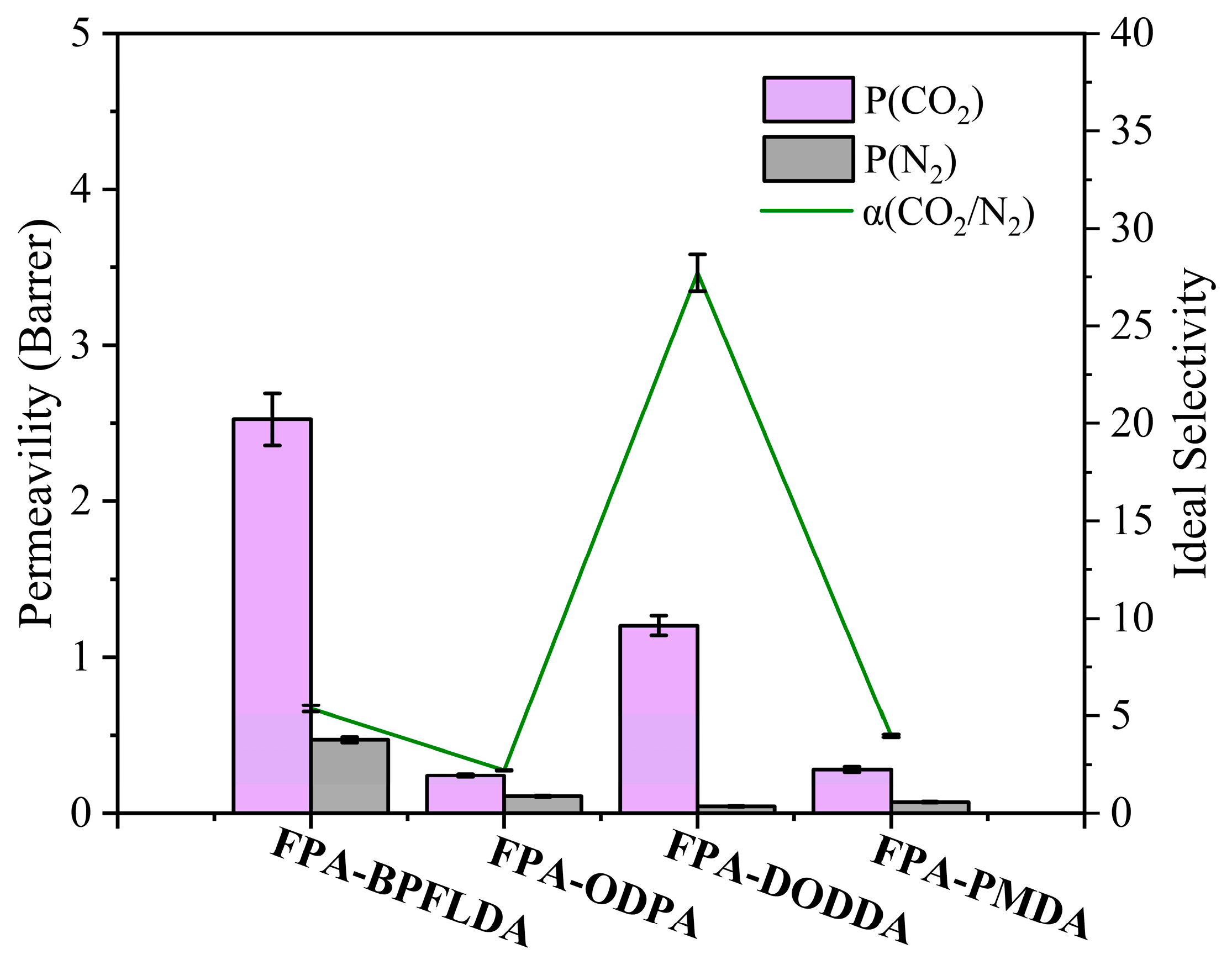

The pure CO₂ and N₂ permeability coefficients (P(CO₂) and P(N₂)) of FPA-PI films were measured using the pressure difference method, and their ideal CO₂/N₂ selectivity (α(CO₂/N₂)) was calculated, as shown in Figure 6 and

Table 4. CO₂ permeability coefficients and CO₂/N₂ ideal selectivity data of FPA-PI films.

FPA-PIs	P(CO2) (Barrer) a	P(N2) (Barrer) b	α(CO2/N2) c
FPA-BPFLDA	2.526 ± 0.167	0.470 ± 0.017	5.368 ± 0.167
FPA-ODPA	0.242 ± 0.010	0.109 ± 0.004	2.215 ± 0.018
FPA-DODDA	1.204 ± 0.065	0.043 ± 0.003	27.721 ± 0.953
FPA-PMDA	0.282 ± 0.017	0.071 ± 0.004	3.963 ± 0.073
Matrimid® 5218 [59]	6.5	0.25	25.6
Polysulfone [60]	5.6	0.25	22.400 d
Polycarbonate [61]	6.0	0.289	20.761 d
PBI-I [62]	0.16	0.0048	33.333 d
Torlon® [66]	0.47	0.014	33.571 d
P84 [67]	1.37	0.050	27.400 d

^a CO₂ permeability coefficient (P(CO₂)). ^b N₂ permeability coefficient (P(N₂)), where 1 Barrer = 1 × 10⁻¹⁰ cm³ (STP)·cm·cm⁻²·s⁻¹·cmHg⁻¹. ^c Ideal selectivity (α(CO₂/N₂)) for CO₂/N₂ separation by the film. ^d Calculated from data reported in the literature, rounded to three decimal places.

. Among them, FPA-DODDA exhibited the optimal separation performance, with a selectivity (α(CO₂/N₂) = 27.721) surpassing commercial films such as Matrimid^® (α = 25.6) [59], Polysulfone (α(CO₂/N₂) = 22.400) [60], and Polycarbonate (α(CO₂/N₂) = 20.761) [61]. Its CO₂ permeability (P(CO₂) = 1.204 Barrer) lies between the highly selective material PBI-I (P(CO₂) = 0.16 Barrer) [62] and the highly permeable material Polysulfone (P(CO₂) = 5.6 Barrer). Notably, although cracks were observed on the surface of FPA-DODDA under 100,000× magnification, this structural feature did not result in a significant increase in gas permeability. In contrast, FPA-BPFLDA exhibited higher permeability (P(CO₂) = 2.53 Barrer), attributed to benzene ring steric effects (d-spacing = 4.7 Å) [63], yet its selectivity (α(CO₂/N₂) = 5.4) dropped significantly, consistent with free volume theory predictions. Meanwhile, FPA-ODPA and FPA-PMDA displayed ultralow permeability (P(CO₂) < 0.3 Barrer) owing to dense chain packing (d-spacing = 3.8–4.3 Å). These FPA-PI films demonstrated a synergistic control mechanism combining size-sieving effects and solution-diffusion processes [64]: (1) The rigid linear DODDA unit promoted tight molecular chain packing (d-spacing = 4.4 Å) with reduced free volume, preferentially hindering the permeation of larger N₂ molecules (kinetic diameter = 3.64 Å). (2) The majority of solid surfaces preferentially adsorb CO₂ over N₂ via a physisorption mechanism. This preference arises from CO₂’s greater polarizability and quadrupole moment [65], which strengthen its interactions with polar or polarizable surface groups (e.g., -CO-O-CO- in polyimide) through dipole-quadrupole effects. Compared to the poly(amide-imide) Torlon^® [66], FPA-PI films exhibited enhanced N₂ solubility (0.043–0.470 Barrer) but reduced CO₂ solubility (FPA-ODPA: 0.242 Barrer; FPA-PMDA: 0.282 Barrer), attributed to the denser structure induced by furan ring π-π stacking. The synergy of these mechanisms enables FPA-DODDA to achieve CO₂/N₂ selectivity (α = 27.721) comparable to petroleum-based P84 (α = 27.4) [67] while maintaining similar CO₂ permeability. However, none of these membranes achieved CO2/N2 separation performance reaching the 2008 Robeson upper bound [68].

These results highlight that multi-scale structural modulation of furan rings in bio-based polyimides can overcome traditional film performance limitations, offering a novel strategy for sustainable separation films balancing high selectivity and practical permeability. Notably, Wen et al. [69] confirmed that the incorporation of amide bonds in PIs diminishes gas permeability, which thus may represent another critical factor influencing the CO₂/N₂ permeability of the FPA-Pl films in this study. Future studies may adopt design modifications inspired by Torlon^® (α(CO₂/N₂) = 33.571) to optimize gas permeation flux without compromising selectivity.

4. Conclusions

In conclusion, the successful synthesis of the bio-based diamine FPA from renewable FDCA, followed by its polymerization with various dianhydrides, has led to the development of high-performance bio-based polyimide films. These FPA-PI films have demonstrated exceptional thermal stability, with 5% weight loss temperatures (T_d^5%) exceeding 425 °C, 10% weight loss temperatures (T_d^10%) surpassing 440 °C, and char yields above 54.8%. Mechanically, the films exhibited elastic moduli (2.14–3.20 GPa) and tensile strengths (50–99 MPa) comparable to conventional petroleum-based PIs, alongside robust aging resistance. Notably, FPA-DODDA achieved a CO₂/N₂ selectivity of 27.721, outperforming commercial films such as Matrimid^®, polysulfone, and polycarbonate, while FPA-BPFLDA showed enhanced CO₂ permeability (P(CO₂) = 2.526 Barrer), surpassing that of Torlon^®. The gas separation performance of these films was governed by a synergistic interplay of size-sieving effects and solution-diffusion mechanisms. Despite these advancements, limitations persist: (1) Certain formulations (e.g., FPA-BPAFDA) displayed low reactivity, resulting in film-forming challenges, while the poor solubility of FPA-PIs further restricted processability. (2) The bio-based carbon content of FPA-PIs remained moderate, with a maximum of 21.4% (FPA-PMDA). (3) The dense chain packing (d-spacing = 3.8–4.7 Å) limited CO₂ permeability, preventing the CO₂/N₂ separation performance from reaching the 2008 Robeson upper bound. To address these limitations, future efforts should focus on developing fully bio-based systems, incorporating flexible chains, and introducing bulky substituents to optimize free volume and processability. Overall, this study validates the potential of bio-based polyimides as environmentally friendly and sustainable alternatives to traditional petroleum-derived polyimides, offering valuable insights for the future design and application of green, high-performance materials.
