Microscopic Chemical Reaction Mechanism and Kinetic Model of Al/PTFE

Abstract

In order to study the microscopic reaction mechanism and kinetic model of Al/PTFE, a reactive force field (ReaxFF) was used to simulate the interface model of the Al/PTFE system with different oxide layer thicknesses (0 Å, 5 Å, 10 Å), and the thermochemical behavior of Al/PTFE at different heating rates was analyzed by simultaneous thermal analysis (TG-DSC). The results show that the thickness of the oxide layer has a significant effect on the reaction process of Al/PTFE. In the system with an oxide layer thickness of 5 Å, the compactness of the oxide layer changes due to thermal rearrangement, resulting in the diffusion of reactants (fluorine-containing substances) through the oxide layer into the Al core. The reaction mainly occurs between the oxide layer and the Al core. For the 10 Å oxide layer, the reaction only exists outside the interface of the oxide layer. With the movement of the oxygen ions in the oxide layer and the Al atoms in the Al core, the oxide layer moves to the Al core, which makes the reaction continue. By analyzing the reaction process of Al/PTFE, the mechanism function of Al/PTFE was obtained by combining the shrinkage volume model (R3 model) and the three-dimensional diffusion (D3 model). In addition, the activation energy of Al/PTFE was 258.8 kJ/mol and the pre-exponential factor was 2.495 × 10¹⁵ min⁻¹. The research results have important theoretical significance and reference value for the in-depth understanding of the microscopic chemical reaction mechanism and the quantitative study of macroscopic energy release of Al/PTFE reactive materials.

1. Introduction

Reactive destructing materials (RMs) represent a novel class of materials characterized by maintaining stability under normal conditions while reacting upon impact [1]. When kill elements, prepared from RMs, strike a target at high speed, they generate a dual-destructive mechanism of penetration and explosion. RMs have been widely used in fragments, liners, and other kill elements [2,3]. Compared to traditional kill elements, reactive fragments exhibit larger kill radii and superior capability to ignite aviation kerosene. Similarly, liners made from RMs significantly enhance the destructive effects on concrete targets. RMs can be broadly categorized into four types: fluoropolymer-based, metal-intermetallic compounds, alloys, and amorphous materials. Among these, the fluoropolymer-based system is composed mainly of polytetrafluoroethylene (PTFE) powder and active metal powder, with Al/PTFE being the most representative [4].

Under high-velocity impact or explosive loads, Al/PTFE releases substantial chemical energy. Researchers have delved into the energy release mechanisms of Al/PTFE under high strain rate loading and identified a two-step process: first, a temperature rise due to high strain rate loading, followed by a chemical reaction triggered by the elevated temperature. Yang [5] employed a meso-scale model to study the temperature rise of Al/PTFE under impact loads, indicating that higher impact velocities lead to greater temperature increases. Cai [6] analyzed the effect of material porosity on the temperature rise of Al/PTFE, suggesting that collapsing and closing of internal pores under impact loads lead to rapid temperature increases and hotspot formation, thereby initiating reactions. Lu [7] proposed a theoretical model to describe the behavior of impact-induced chemical reactions: under impact, hotspots are formed in the PTFE matrix. When the temperature of these hotspots reaches the decomposition temperature of PTFE, CF₂ gas is released. At the same time, local fragmentation of the PTFE matrix brings Al particles into contact with CF₂ gas, initiating subsequent chemical reactions. Some researchers [8] believe that after the temperature rise induced by impact, the oxide layer ruptures under the stress from the melting and expansion of the aluminum core, resulting in an eruption-like effect on the aluminum particle surfaces and rapid reactions with oxides. Regarding specific reaction mechanisms, Losada [9] studied the reaction between PTFE monomer C₂F₄ and Al under anaerobic/aerobic conditions using quantum mechanics, identifying intermediate products and final products. Jun [10] employed molecular dynamics to simulate the pyrolysis of PTFE and the reactions between pyrolysis products and Al, indicating the CF₃ + Al/CF₂ + AlF reaction pathway as the most feasible. However, these studies did not consider the oxide layer surrounding the aluminum particles. Overall, while temperature rise is a necessary condition for reactions to occur, the reaction process of Al/PTFE under temperature remains unclear, especially considering the oxide layer’s role.

Numerical simulation is an essential tool for studying the energy release process of Al/PTFE. To accurately simulate the energy release process of Al/PTFE, a model that can accurately describe the reaction is necessary. Rosencrantz [11] and Ren [12] utilized the Lee–Tarver ignition and growth model to calculate the reaction rate of Al/PTFE, but its complex parameterization poses challenges in controlling the reaction rate. Currently, reaction kinetics models, such as the Avrami–Erofeev equation with n = 3/2 used by Zhou [13] and n = 0.625 by Zheng [14], or the Jander model [15], are employed to calculate the reaction process of Al/PTFE. However, uncertainties remain in the kinetics models and reaction mechanism function of Al/PTFE.

This study employs a reliable reactive force field to simulate the reaction process of Al/PTFE. Thermal analysis experiments are conducted to analyze Al/PTFE, revealing the chemical reaction mechanisms of the Al/PTFE system with an oxide layer. A kinetic model for the Al/PTFE reactive material is established based on these findings. The results of this research hold significant reference value for a deeper understanding of the microchemical reaction mechanisms of reactive materials with oxide layers. Moreover, they are of crucial importance for the development of numerical calculation methods for the impact energy release of reactive materials.

2. Experiments

2.1. Experimental Method

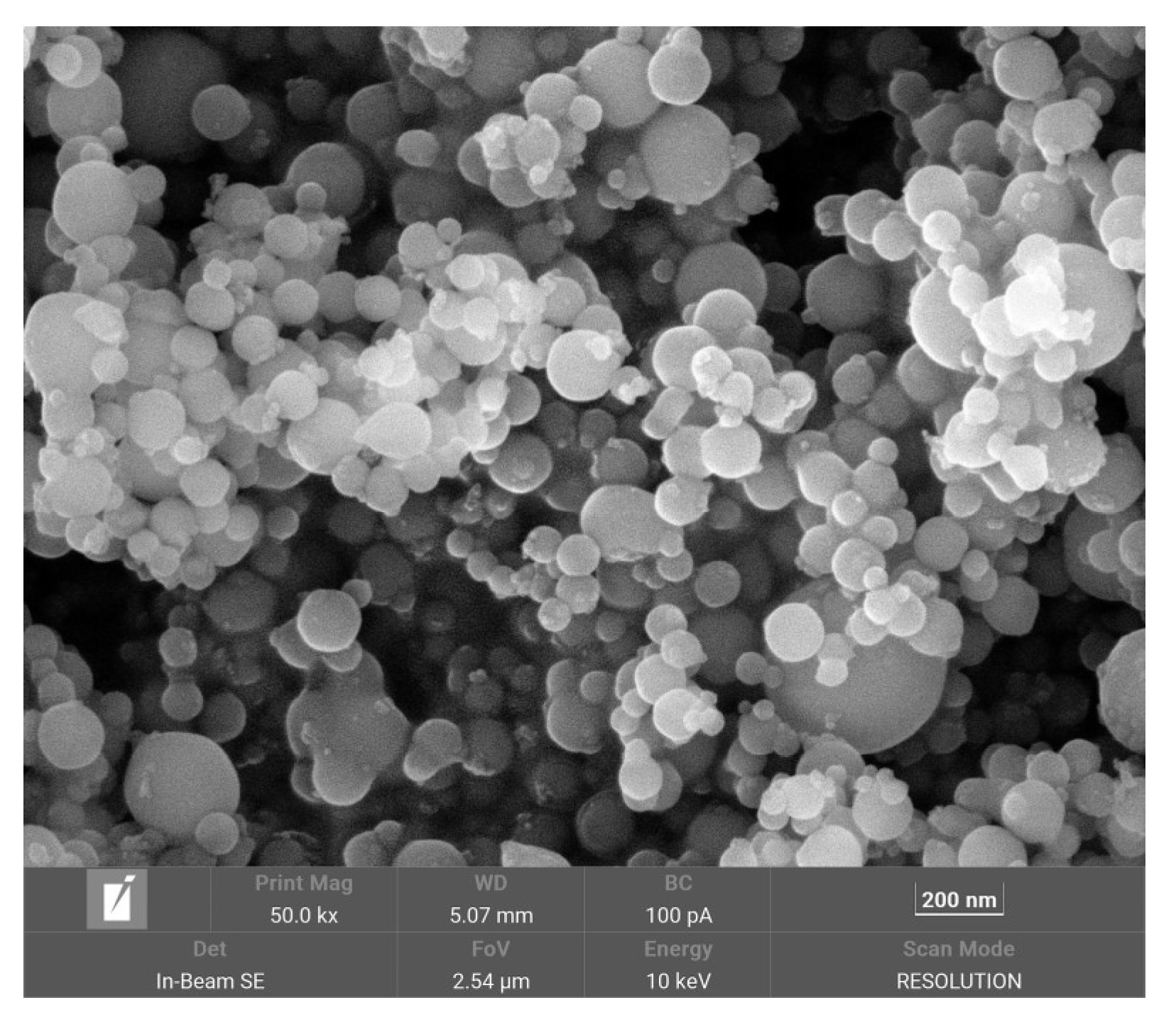

Al/PTFE with an Al particle size of 100 nm was prepared by the wet mixing method, as shown in Figure 1. PTFE powder and nano-sized Al powder were mixed at a mass ratio of 76.5 to 23.5, and anhydrous ethanol was used as the medium. The magnetic stirrer was used to wet the mixture in a vacuum environment to obtain a uniformly mixed material. After drying in a vacuum drying oven, an Al/PTFE sample powder was obtained. The non-isothermal thermochemical analysis of Al/PTFE reactive materials was conducted by simultaneous thermal analysis (TG-DSC). The temperature could be controlled in the range of 30–800 °C by using a HITACHI STA200 simultaneous thermal analyzer. The experiment was conducted in argon atmosphere at four heating rates of 5 K/min, 10 K/min, 15 K/min, and 20 K/min. The specific conditions are shown in

Table 1. TG-DSC experimental conditions.

Term	Condition
Temperature °C	30–800
Heating Rate K/min	5, 10, 15, 20
Sweeping Gas	Ar
Sample Mass mg	10 ± 0.5
Reference	Al2O3
Crucible	Al2O3

.

2.2. Experimental Results

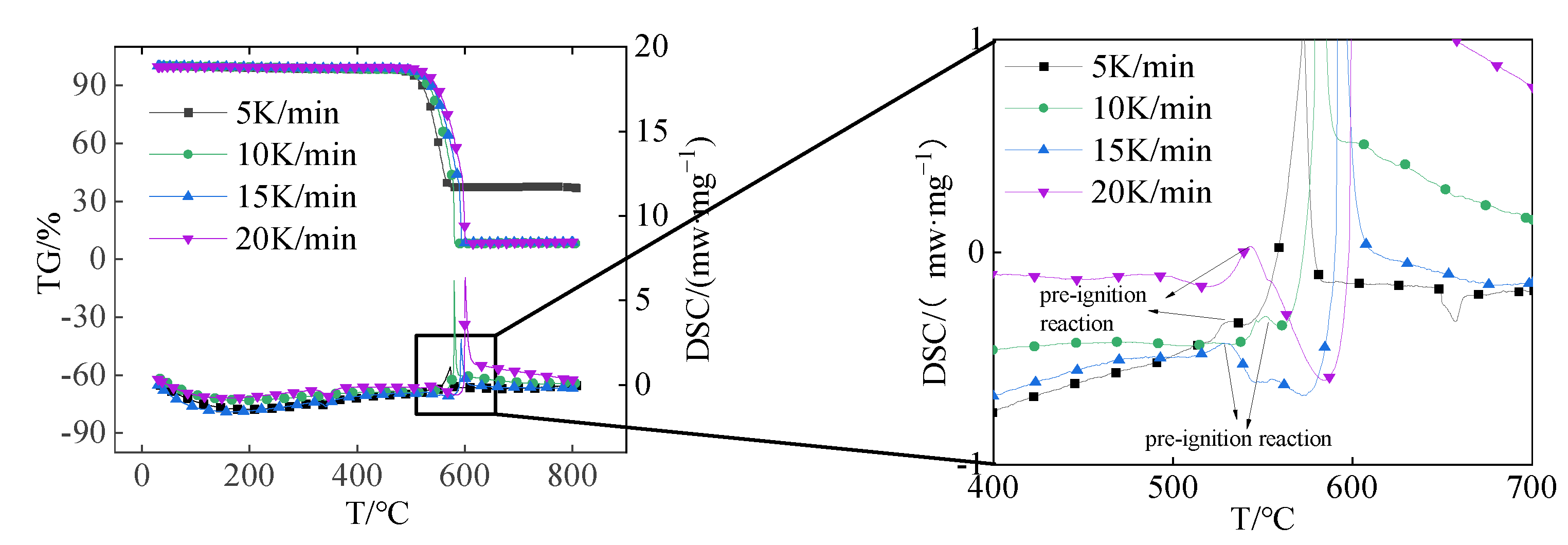

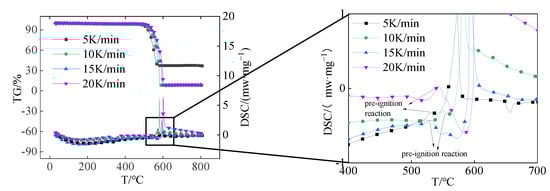

Figure 2 shows the TG-DSC thermal analysis curves of Al/PTFE at different heating rates. It can be seen from the diagram that the TG and DSC curves at different heating rates have similar trends. The TG curve remained flat before 500 °C, there was obvious mass loss between 500 °C and 600 °C, and there was only one mass loss stage in the whole reaction process. The DSC curve shows an endothermic peak at about 344 °C, which is near the melting point of PTFE [16] and is caused by the melting of the PTFE matrix, and an obvious exothermic peak at about 600 °C. It is worth noting that before the main exothermic peak appears, DSC curves of different heating rates have a small exothermic peak, and the reaction of the small exothermic peak is a pre-ignition reaction. The exothermic peak near 600 °C is caused by the reaction of Al/PTFE. The temperature at the beginning of this peak is defined as the initial reaction temperature (T_i), the peak maximum temperature is defined as the peak reaction temperature (T_p), and the temperature at the end of the peak is defined as the final reaction temperature (T_f).

Table 2. Characteristic temperature of thermal analysis.

Ingredient	Heating Rate K/min	Ti/°C	Tp/°C	Tf/°C	Energy Release J/g	Mass Loss %
Al/PTFE	5	539.8	572.4	592.8	260	63.1
Al/PTFE	10	561.34	580.6	607.3	240	92
Al/PTFE	15	569.4	593.1	666.4	229	91.5
Al/PTFE	20	591	601	633	316	90.9

lists the characteristic temperature (T_i, T_p, T_f) under different heating rates. The characteristic temperature is different with different heating rates. As the heating rate increases, the thermal effect per unit time increases, the thermal inertia increases, and the temperature difference increases, so that the reaction’s exothermic peak and other temperature characteristics move toward the high-temperature direction. It can be seen from the TG curve that the final mass loss is about 63% when the heating rate is 5 K/min, and the melting endothermic peak of Al appears in the DSC curve at 657 °C. It indicates that there are incompletely reacted Al particles at a heating rate of 5 K/min. In the thermal analysis experiments of other heating rates, the TG curve will change from slow decline to sudden decline, and the final mass loss is about 92%, which indicates that all the samples reacted.

3. Molecular Dynamics Simulation

3.1. Simulation Method

The Al/PTFE molecular dynamics simulation was carried out using the ReaxFF reaction force field released by the Van Duin team, which can describe the interaction of the four elements in C-F-Al-O [17]. The ReaxFF is an empirical force field based on quantum mechanics and experiments [18,19]. It relies on the bond order to simulate the generation and breaking of bonds. The force field decomposes the system energy into the following items:

E_system = E_bond + E_over+ E_val +E_tors +E_vdWals+ E_coulomb+ E_specifIc

where E_bond, E_val, and E_tors are, respectively, bond energy, valence angle energy, and torsion angle energy. E_over is the correction energy caused by over-coordination, and E_vdWals is the energy provided by the Van der Waals force. E_coulomb is the Coulomb energy, and E_specifIc is the specific energy in the system such as hydrogen bond and lone electron pair. In particular, ReaxFF enables simulations involving reactive events at the interface between solid, liquid, and gas phases, which is made possible because the ReaxFF description of each element is transferable across phases [20]. Researchers including Senftle [21] and Liu [22] have successfully studied the reactions at the interface using the ReaxFF.

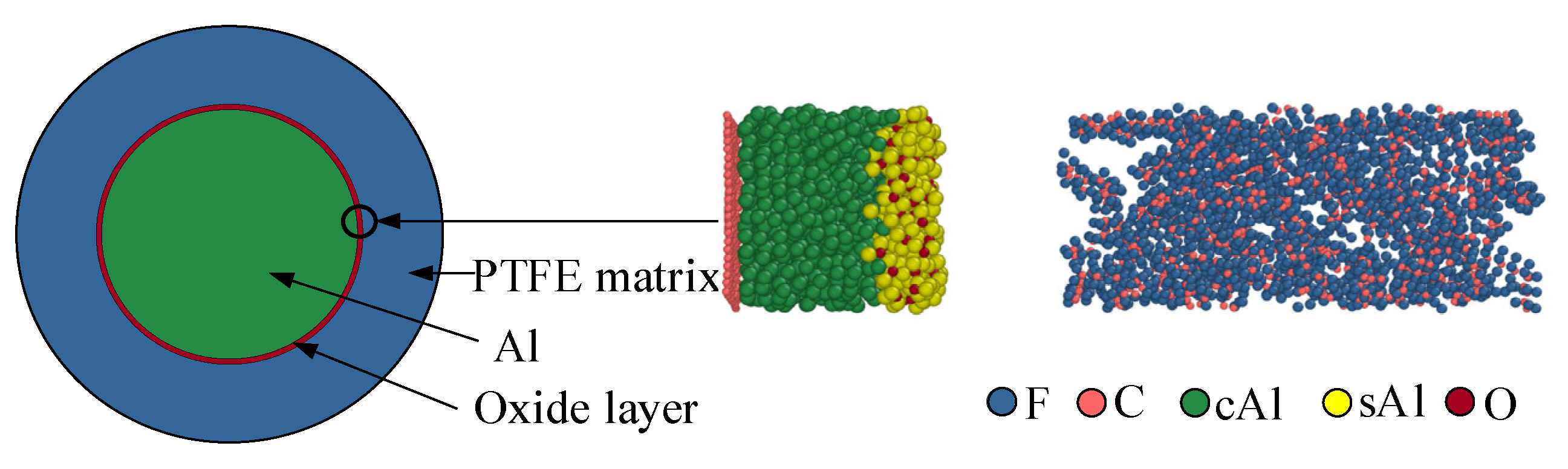

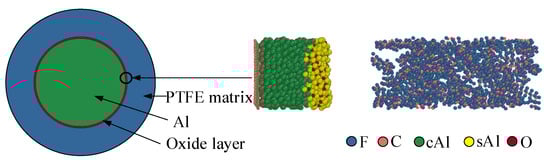

Al has a high affinity for oxygen. After Al particles are exposed to air, the outer layer of Al atoms is oxidized by oxygen atoms in the environment to form a dense Al₂O₃ layer. Therefore, the Al particle structure in Al/PTFE is usually a core/shell structure with Al as the core and the Al₂O₃ oxide layer as the shell. Based on the above analysis, an interface model is established, as shown in Figure 3. To protect the bottom surface of the Al slab, a single graphene layer is added [17]. The carbon chain length of each PTFE molecule is twenty. In the model, sAl (shellAl, yellow) represents Al in the oxide layer, and cAl (coreAl, green) represents Al in the Al core. The fluorine atom is represented by blue, the oxygen atom is represented by red, and the carbon atom is represented by pink.

The particle size of aluminum significantly influences the reactions of Al/PTFE. Different particle sizes result in distinct DSC curves [15]. Under impact, the ignition threshold and relaxation time also vary noticeably [23]. This is due to the different thicknesses of the oxide layer [24] and contact areas at varying particle sizes. In order to study the effect of oxide layer size on the reaction in the Al/PTFE chemical reaction process, the models of oxide layers with different thicknesses were established. The model was relaxed using Lammps to obtain a reasonable initial structure [25]. In reality, the oxide layer outside aluminum particles is thicker. Considering computational efficiency and cost, the thickness of the oxide layer after relaxation at a simulated temperature of 300 K is 0 Å in Figure 4a, 5 Å in Figure 4b, and 10 Å in Figure 4c. In different Al/PTFE model structures, the number of cAl remains the same when only the thickness of the oxide layer is changed.

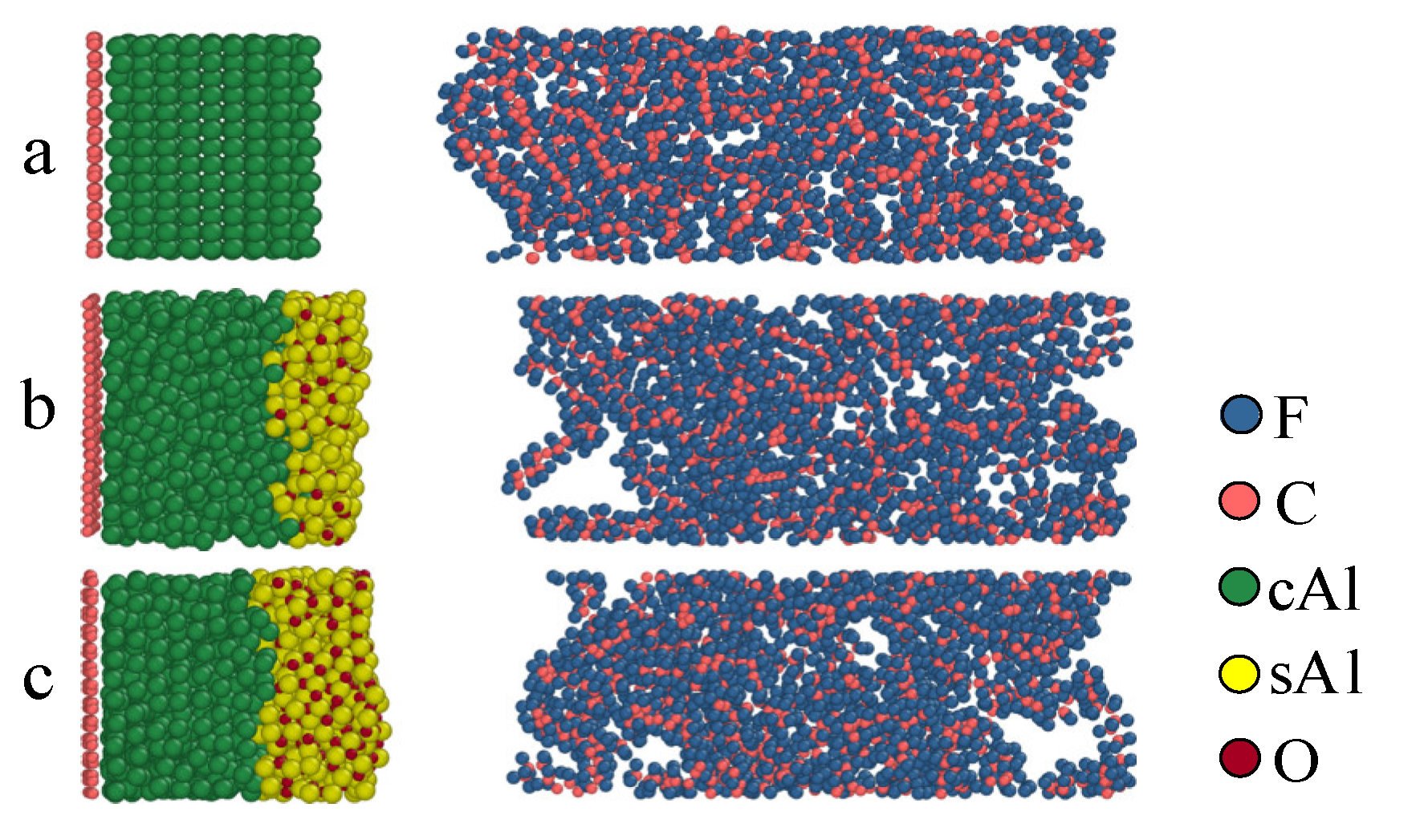

The reactive molecular dynamics simulation was performed using Lammps. The initial temperature of the Al/PTFE simulation system with three different structures was set to 1200 K–1900 K (1200 K, 1500 K, 1750 K, 1900 K). The specific simulation conditions are shown in

Table 3. Simulation conditions.

No.	Layer	Simulation Temperature	Number of PTFE
a	0 Å	1200 K, 1500 K, 1750 K, 1900 K	42
b	5 Å	1200 K, 1500 K, 1750 K, 1900 K	42
c	10 Å	1200 K, 1500 K, 1750 K, 1900 K	42

. In the simulation process, the temperature is controlled by the Berendson thermostat, and the dynamics are simulated by the NVT canonical ensemble. The MD time step length of the simulation is 0.1 fs.

3.2. Simulation Results

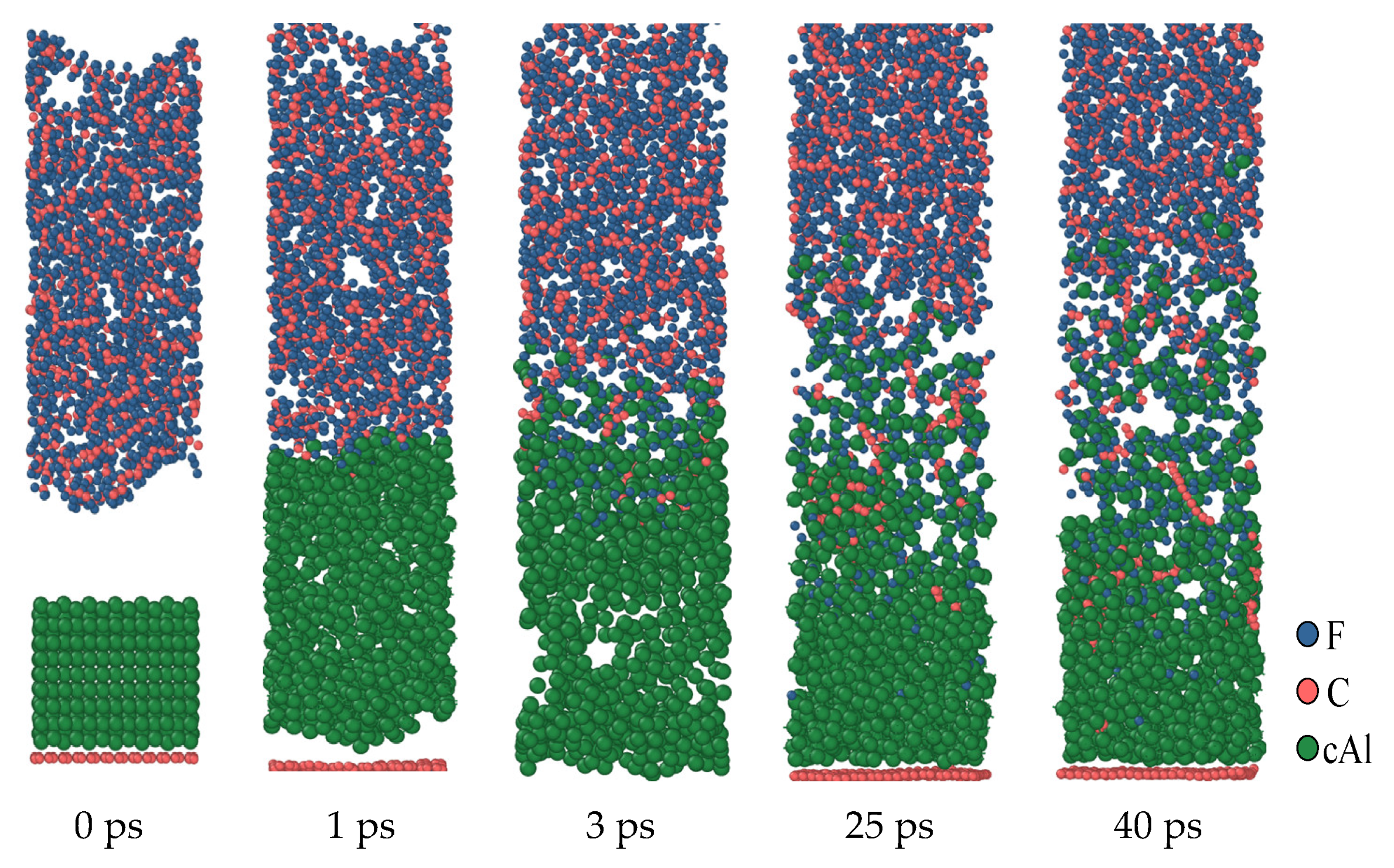

Figure 5 shows the reaction process of the first structure (a, 0 Å) at a simulated temperature of 1900 K. Under the influence of thermal expansion, when the simulation is conducted to 1 ps, Al contacts with PTFE and reacts immediately to form an AlF_x product layer. The formation of this product layer makes it impossible for Al to directly react with PTFE or PTFE products, and it needs to react with PTFE decomposition products through the product layer. As time goes on, this product layer continues to increase. The dynamics simulation results show that at the simulation temperature of 1900 K, some C atoms from PTFE will deposit on the surface of Al to form Al-C clusters. At the same time, some C atoms exist in the form of simple substances, which indicates that the behavior of C atoms in the reaction process is complex under high-temperature conditions.

Figure 6 shows the dynamics process of the second structure (b layer, 5 Å) at the simulated temperature of 1900 K. Although structure (b) has an oxide layer, under high-temperature conditions, the oxide layer is affected by thermal rearrangement. Its compactness is changed, and it can even be considered that the oxide layer is broken. This makes the oxide layer lose its original hindering effect. Therefore, the reaction process of the structure is like that of the first structure (a), and the fluorine-containing substance diffuses through the product layer to react with Al. In the second structure (b), similar to the first structure (a), Al contacts with PTFE at high temperatures and reacts immediately to form an AlF_x product layer. The formation of this product layer makes it impossible for Al to directly react with PTFE or PTFE products, and it is necessary to react with PTFE decomposition products through the product layer. As time goes on, this product layer continues to increase.

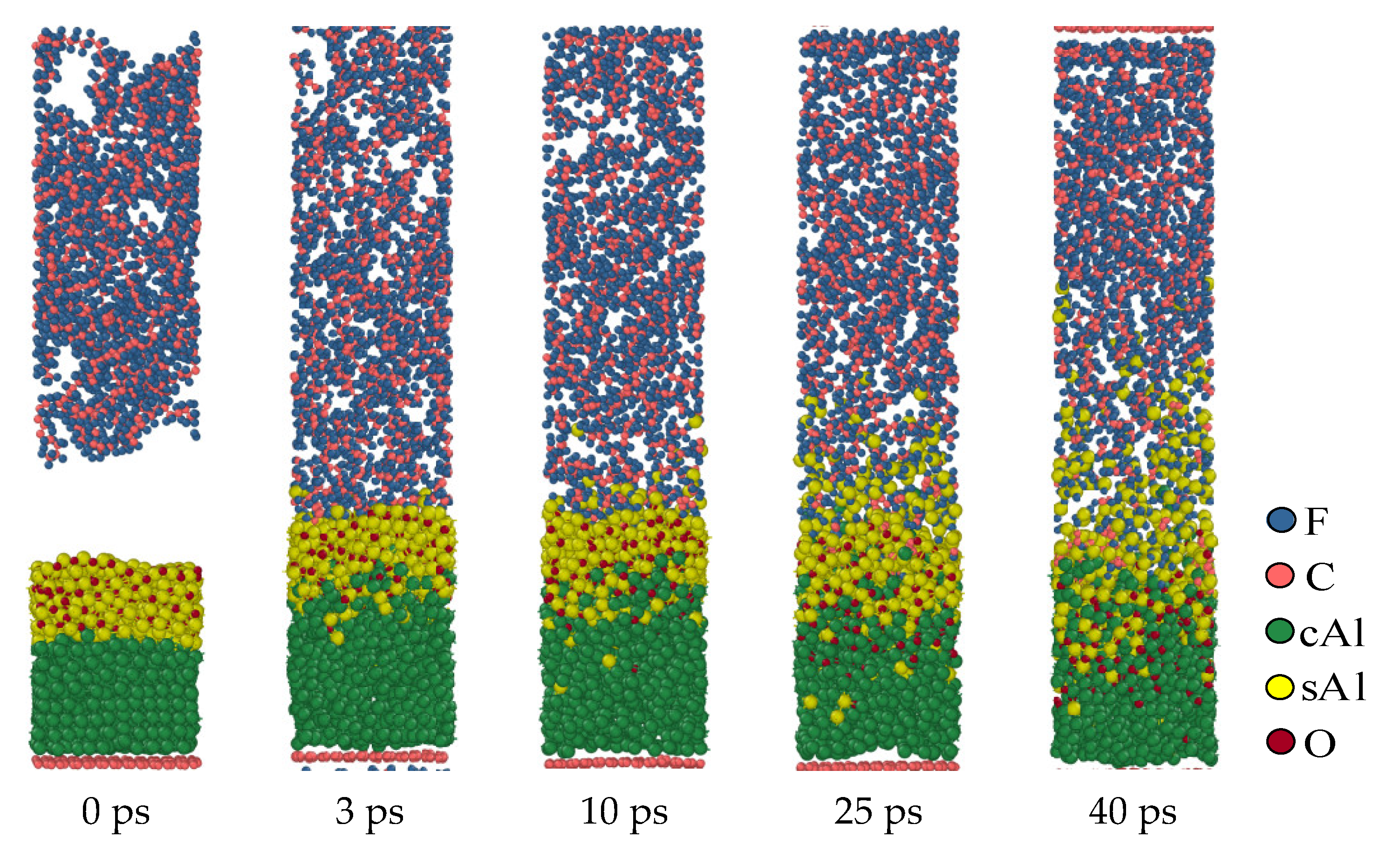

Figure 7 shows the molecular dynamics evolution process at a simulated temperature of 1900 K when the oxide layer thickness is 10 Å (structure c). In the simulation results, the reaction in structure (c) only occurs outside the oxide layer, and the oxide layer is not broken during the full process. Different from the oxide layers with thinner structures, when the thickness of the oxide layer is 10 Å, the fluorine-containing material cannot diffuse through the oxide layer into the interior of the Al core during the reaction. This means that in the third structure (c), the reaction is still confined to the surface of the oxide layer and cannot penetrate the oxide layer into the interior of the Al core. The oxide layer remains intact during this process and hinders the diffusion of fluorine-containing substances, preventing them from entering the Al core for reaction.

4. Discussion

4.1. Reaction Process

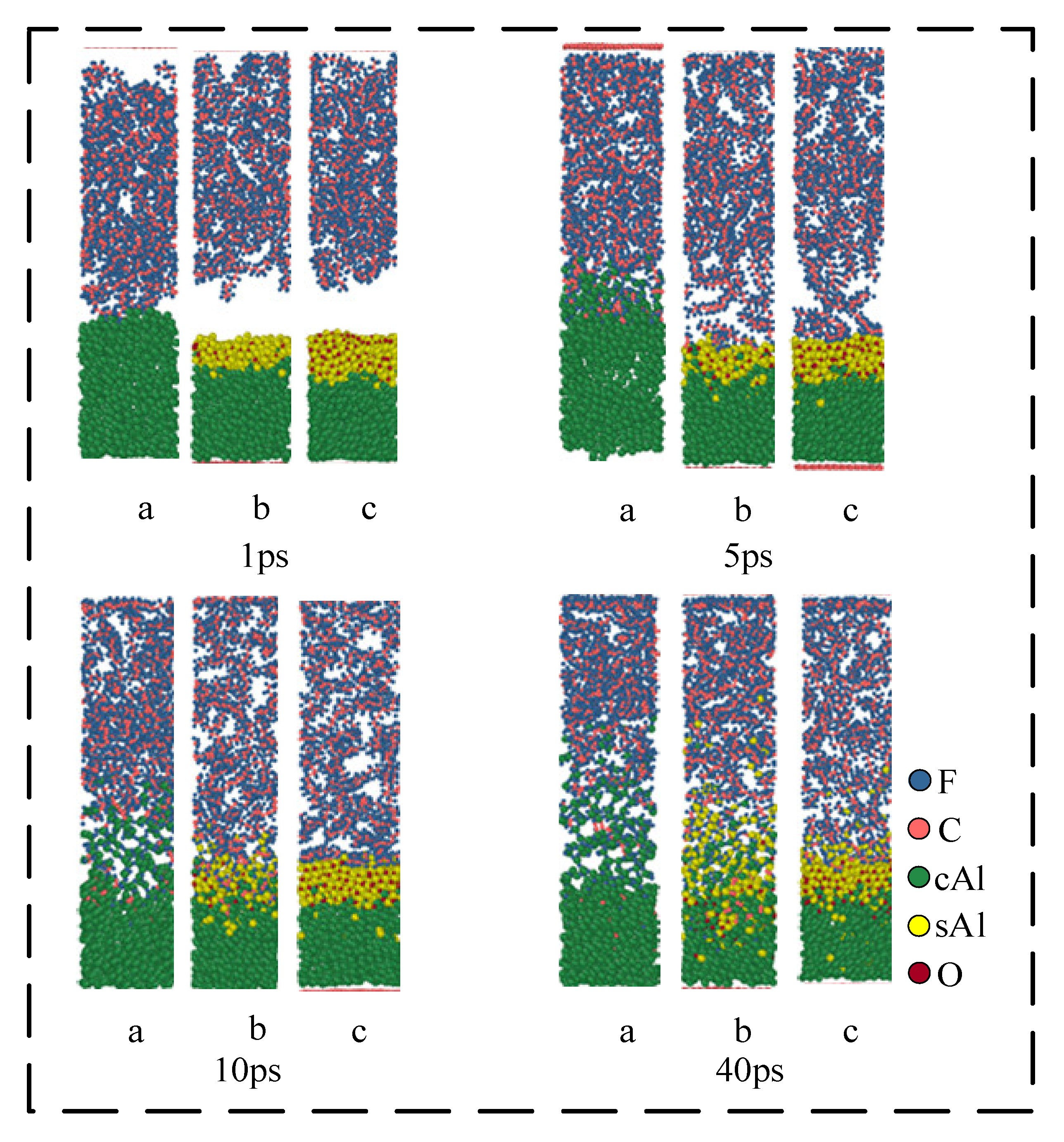

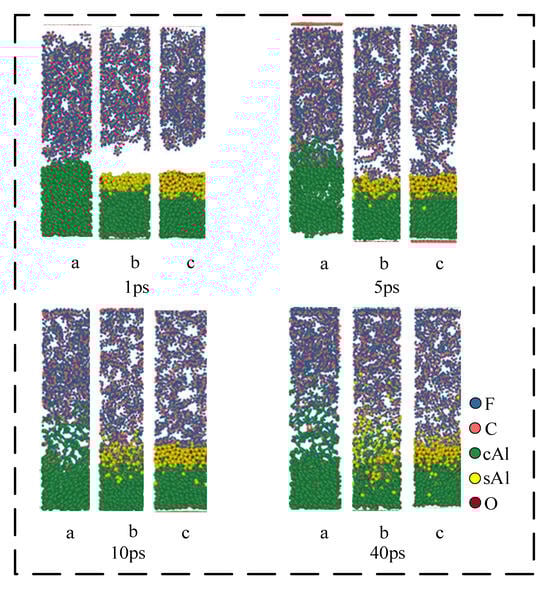

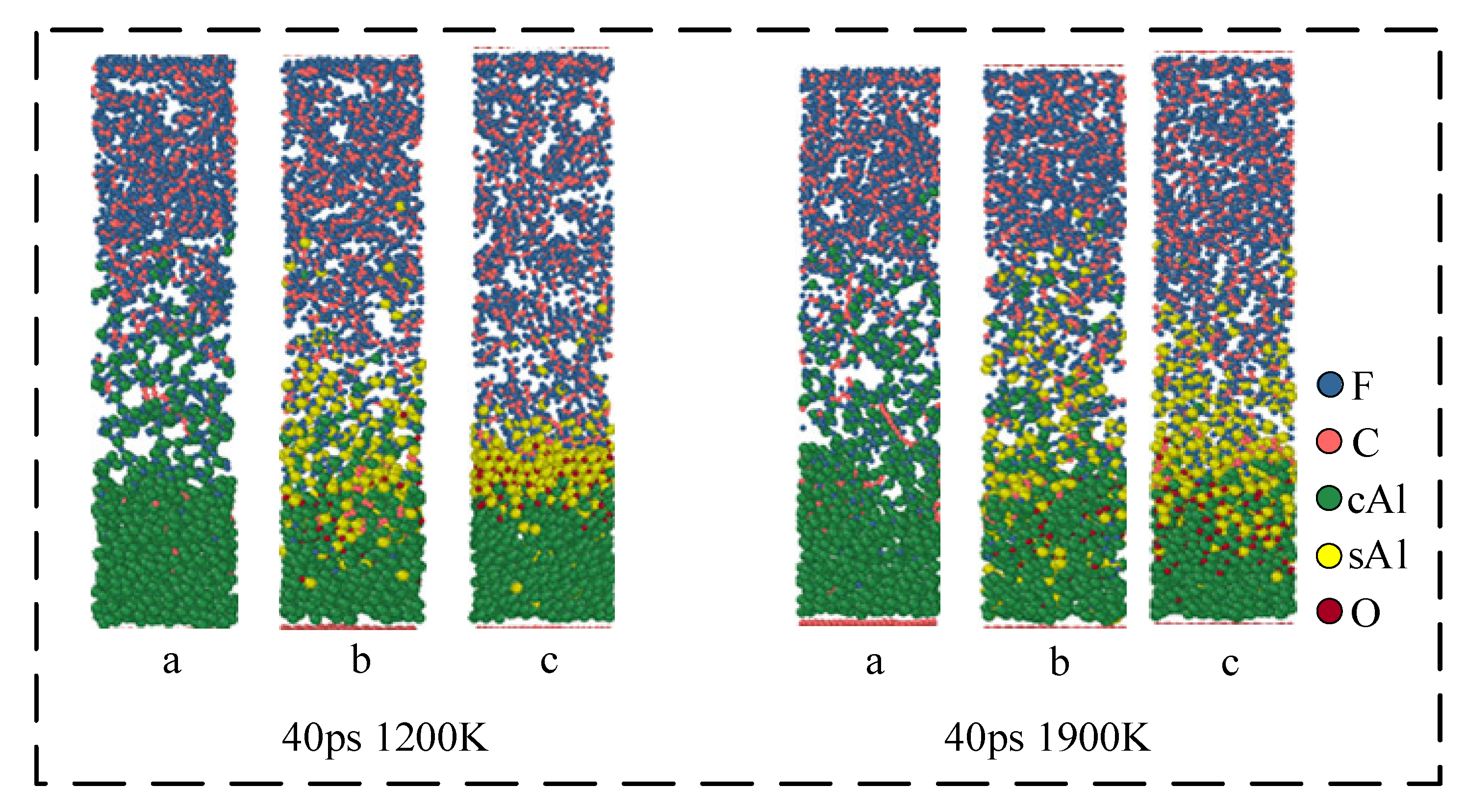

Figure 8 shows the reaction process of the Al/PTFE system with different oxide thicknesses at 1200 K. At the initial stage of the reaction, the volume of the Al core expands after heating, which is manifested as an increase in the thickness of the Al core. The thickness of the Al core in the first structure (a) increases by 20 Å. The expansion of the Al core in the second structure (b) is about 8 Å, and for the third structure (c) is 6 Å. That is to say, the expansion size of the Al core decreases with the increase in the thickness of the oxide layer. This is because the oxide layer will limit the thermal volume expansion of the Al core and its limiting ability increases with the increase in the thickness of the oxide layer.

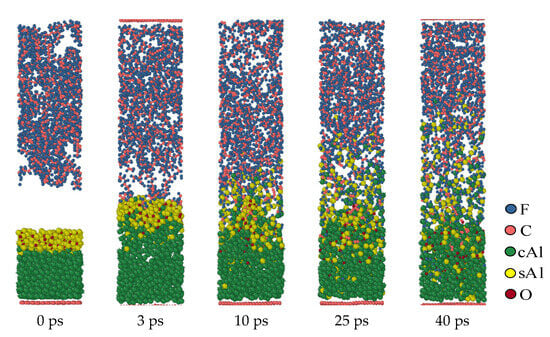

At 1 ps, the Al in the structure (a) expands around the PTFE matrix. In this process, Al will immediately be defluorinated with the pyrolysis products of the PTFE matrix/PTFE, resulting in the formation of AlF_x on the surface of Al. When the simulation reaches about 5 ps, due to the diffusion of the PTFE matrix, the oxide layer in structures (b) and (c) is in contact with the PTFE. However, due to the blocking effect of the oxide layer, PTFE/PTFE pyrolysis products cannot directly react with cAl in the Al core. On the contrary, they react with sAl ions in the oxide layer. Because the electronegativity of F is greater than that of O, Al in Al₂O₃ will form AlF_x with F, and O in Al₂O₃ will diffuse to the Al core after becoming O ion and react with cAl in the Al core to regenerate cAl₂O₃. This reaction causes the oxide layer to move toward the Al core, which is consistent with the existing research: ‘Al₂O₃ catalyzes PTFE decomposition’. In addition, the defluorination reaction generates AlF_x on the surface of the oxide layer, which causes PTFE to lose F and form unsaturated PTFE. After the loss of F, the carbon chain of unsaturated PTFE will be exposed, and then decomposed to form small fluorocarbon molecules:

Al + PTFE = AlF_x + unsaturated-PTFE

(1)

cAl + sAl₂O₃ + PTFE = sAlF_x + cAl₂O₃ + unsaturated-PTFE

(2)

When the simulation reaches 10 ps, part of the PTFE carbon in structure (a) begins to deposit on the surface of Al to form Al-C clusters, and some carbon exists in the form of elemental carbon. The product AlF_x begins to dissociate and generate small gas molecules such as AlF₃ and AlF₄⁻. These small molecules diffuse into the PTFE matrix and catalyze the decomposition of PTFE. In structures (b) and (c), the reaction is significantly weaker than the structure (a). At 10 ps, the oxide layer in structure (b) begins to lose its role in hindering the reaction, and the small fluorocarbon molecules begin to penetrate into the oxide layer. Additionally, the reaction is no longer confined to the outside of the oxide layer. The reaction in structure (c) still occurs outside the oxide layer. The reactions that occur in this process are as below:

AlF_x = AlF₃+ AlF₄⁻

(3)

$$\mathrm{PTFE}{\displaystyle \stackrel{Al{F}_3}{=}}{nC}_2{F}_4$$

(4)

At 40 ps, the thickness of the product layer of structure (b) increases significantly compared with that at 10 ps, and the reaction process of Equations (3) and (4) occurs.

In Figure 9, the dynamics results of three structures at different simulation temperatures (1200 K and 1900 K) were simulated to 40 ps. The results show that in the simulation of 1200 K, no obvious carbon element is observed in structure (a). But in the simulation of 1900 K, an obvious carbon element appears in structure (a). It indicates that high temperature (1900 K) contributes to the formation of carbon elements. Under high-temperature conditions, the movement of AlF₃ and AlF₄⁻ molecules in the system is Brownian motion. Therefore, with the increase in temperature, the diffusion degree of Al fluorine small molecules will also increase. In structure (c), the temperature will increase the moving rate of the oxide layer. When the simulation temperature is 1900 K, the oxide layer movement distance at 40 ps is significantly larger than the oxide layer movement distance at the same time when the simulation temperature is 1200 K. However, in structure (c), the reaction of Al and F still only occurs on the surface of the oxide layer.

It can be seen that under the influence of Al volume expansion, under pressure, the oxide layer contacts with PTFE and reacts. Al ions in the oxide layer react with PTFE or PTFE pyrolysis products to form AlF_x. After a period of time, AlF_x is dissociated into small gas molecules such as AlF₃ and AlF₄⁻. These small molecules diffuse into the PTFE matrix under the action of Brownian motion and catalyze the decomposition of PTFE. Due to the barrier effect of the oxide layer, fluorine-containing molecules cannot directly react with cAl in the Al core, thus forming a fluorine-rich environment outside the oxide layer. Al₂O₃ reacts with F ions in fluorine-containing substances to form O ions, which makes the outer surface of the oxide layer negatively charged. Under the action of the electric field, O ions diffuse into the Al core, and cAl diffuses to the oxide layer interface under the action of concentration. Under the combined action of these two atoms, the oxide layer moves toward the Al core, and cAl and sAl are exposed to the fluorine-rich environment to react. In this process, the moving rate of the oxide layer and the moving rate of the reaction interface to the center are the keys to controlling the reaction.

4.2. Mechanism Function

To determine the mechanism function of Al/PTFE, the α-T and dα/dT-T curves were obtained from the experimental data of simultaneous thermal analysis, where α is defined as below:

$$\alpha =\frac{m_0-m_t}{m_0-m_{\infty }}$$

(5)

In the equation, α is the reaction degree, m₀ is the mass at the beginning of the reaction, m_t is the mass at time t, and m_∞ is the mass at the end of the reaction.

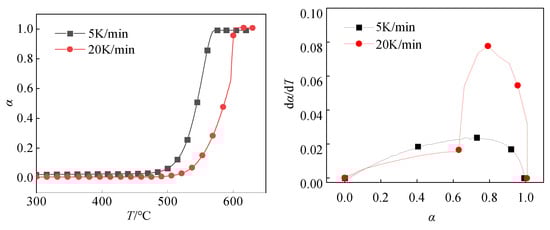

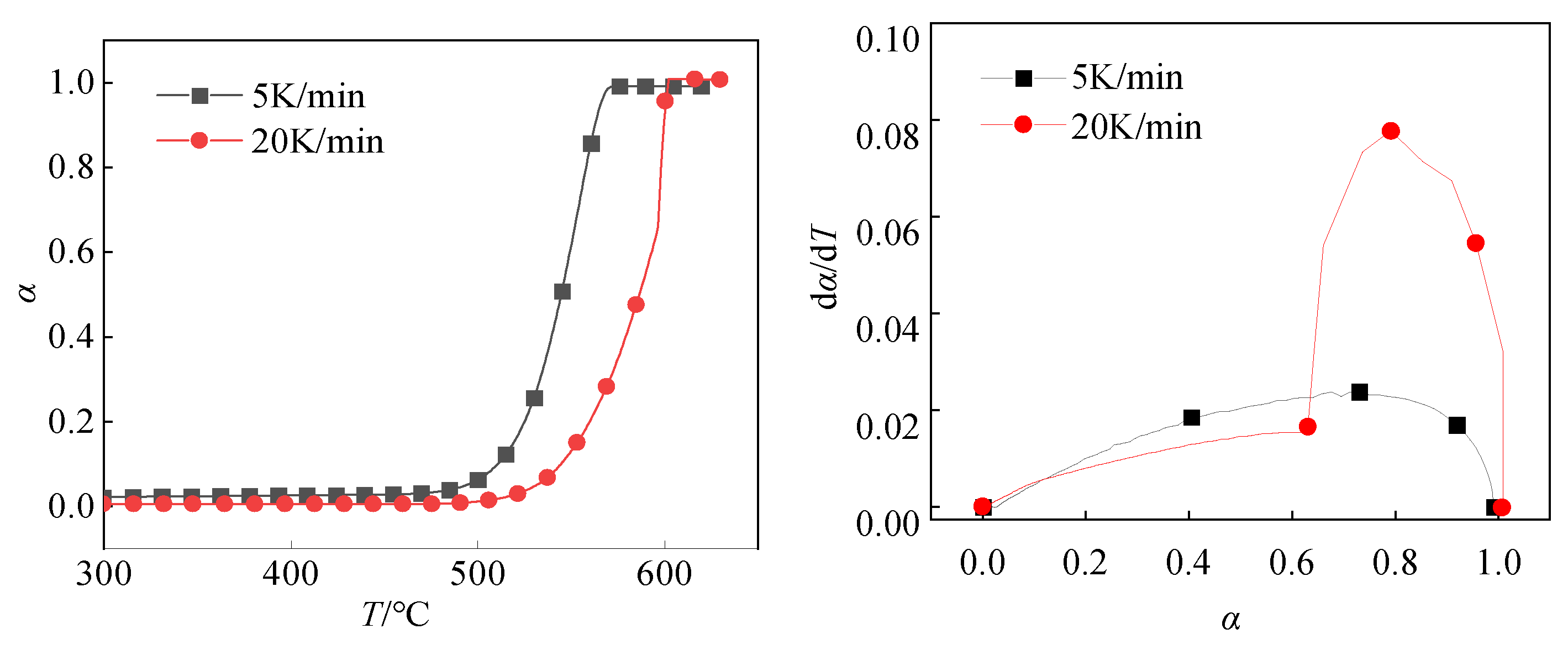

Figure 10 shows the α-T curve and dα/dT-T curve with heating rates of 5 K/min and 20 K/min, respectively. When the reaction degree α does not reach 0.6, the dα/dT-α curves with heating rates of 5 K/min and 20 K/min have similar trends. It indicates that in the early stage of the reaction, the two have the same reaction process, that is, they have the same reaction mechanism function. At this time, the change trend of the two curves is similar, and the reaction rate is also close. However, when the degree of reaction reaches 0.6, the two curves are significantly different. It indicates that in the reaction process with a heating rate of 5 K/min and 20 K/min when it reaches a certain point, the reaction process with a heating rate of 20 K/min changes. In other words, the reaction mechanism function changes. This difference may be due to different heating rates leading to different dynamic behaviors of the reaction process, which in turn affects the mechanism of the reaction.

The mechanism function is a theoretical description of the reaction kinetic process. It can use a specific mathematical expression to describe the relationship between the rate and the reactant concentration in a specific reaction process. In the Al/PTFE molecular dynamics simulation results, it was found that the reaction rate was affected by the diffusion rate of fluorine-containing substances through the product layer in the structures with oxide layers of 0 Å and 5 Å, and the reaction process is shown in Figure 11.

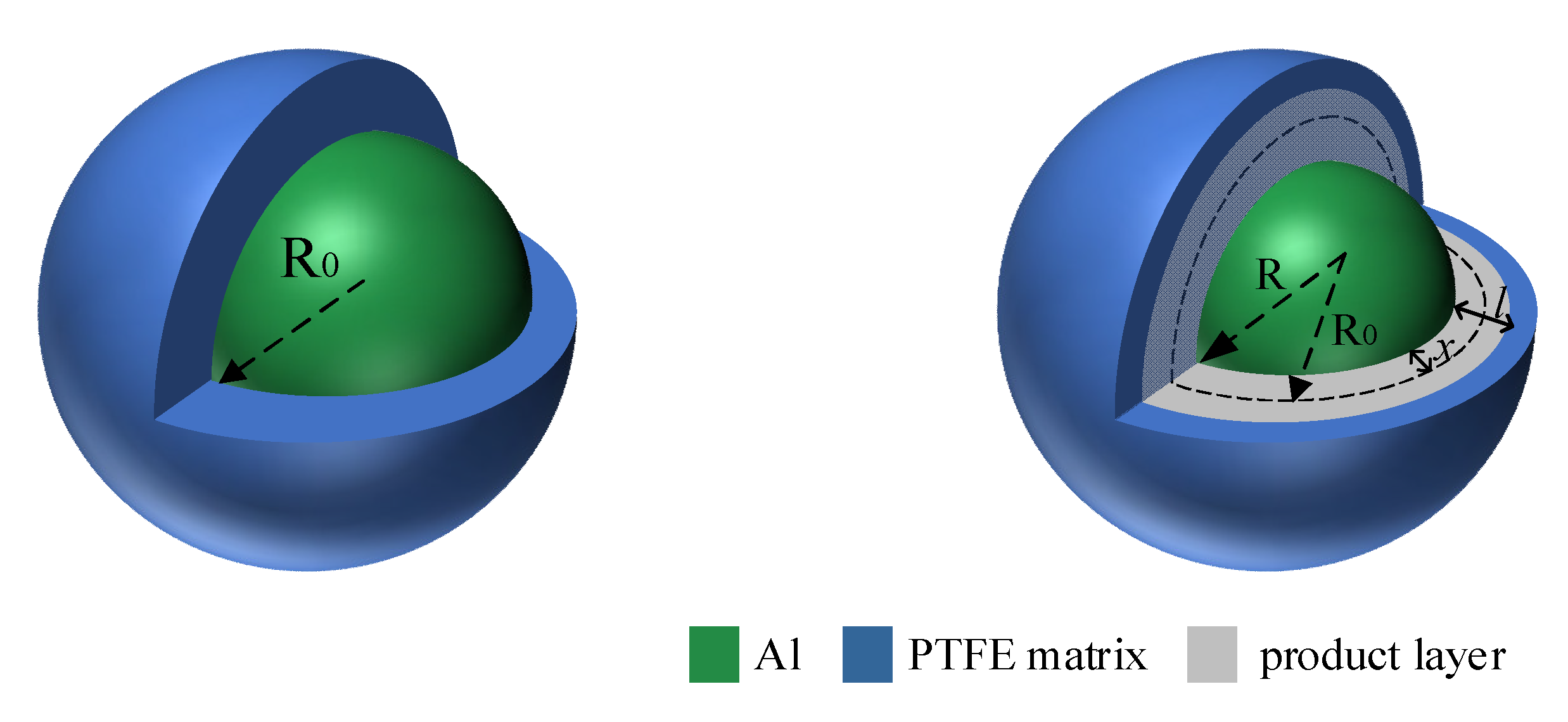

When there is no oxide layer to hinder, the fluorocarbon compound diffuses to the AL core through the product layer and reacts with the Al core. R₀ is the initial radius of the Al particle. R is the radius of the Al particle after a certain time, and l is the product layer. x is the radius of the Al particle to reduce the distance. The PTFE matrix is decomposed into fluorocarbon small molecules, and the diffusion of small fluorocarbon molecules reacts with the Al core through the product layer. The mechanism function is derived as follows.

The following equation is used to calculate the reactivity of n spherical particles:

$$\alpha =\frac{n\frac{4}{3}\rho \pi {R_0}^3-n\frac{4}{3}\rho \pi {\left(R_0-x\right)}^3}{n\frac{4}{3}\rho \pi {R_0}^3}$$

(6)

In Equation (6), α is the reactivity, R₀ is the initial radius of Al particles, and x is the reduction distance of Al particle radius. ρ is the Al density, and n is n Al particles in Al/PTFE. Equation (6) can be transformed into.

$$\alpha =1-{\left(\frac{R_0-x}{R_0}\right)}^3$$

(7)

Rearrange Equation (7) to obtain:

$$x=R_0\left[1-{\left(1-\alpha \right)}^{\frac{1}{3}}\right]$$

(8)

where l is the thickness of the product layer, whose growth law is Equation (9), and k₁ is a rate constant. x and l satisfy Equation (10), a is a constant.

$$l^2=k_1\mathrm{t}$$

(9)

$$x=al$$

(10)

Substitute Equations (9) and (10) into Equation (8) to obtain:

$${R_0}^2{\left[1-{\left(1-\alpha \right)}^{\frac{1}{3}}\right]}^2=a^2{k}_1\mathrm{t}$$

(11)

Assuming k^’₁ = a²k₁/R₀², Equation (11) can be transformed into the following D3 (Jander) model.

$${\left[1-{\left(1-\alpha \right)}^{\frac{1}{3}}\right]}^2=\frac{a^2{k}_1}{R^2}t={k_1}^{\prime }t$$

(12)

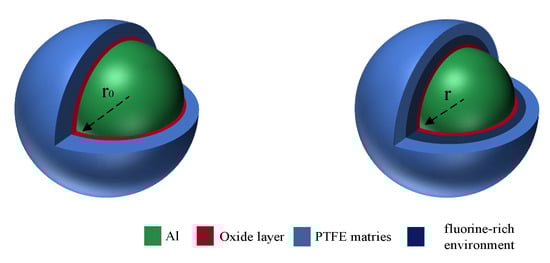

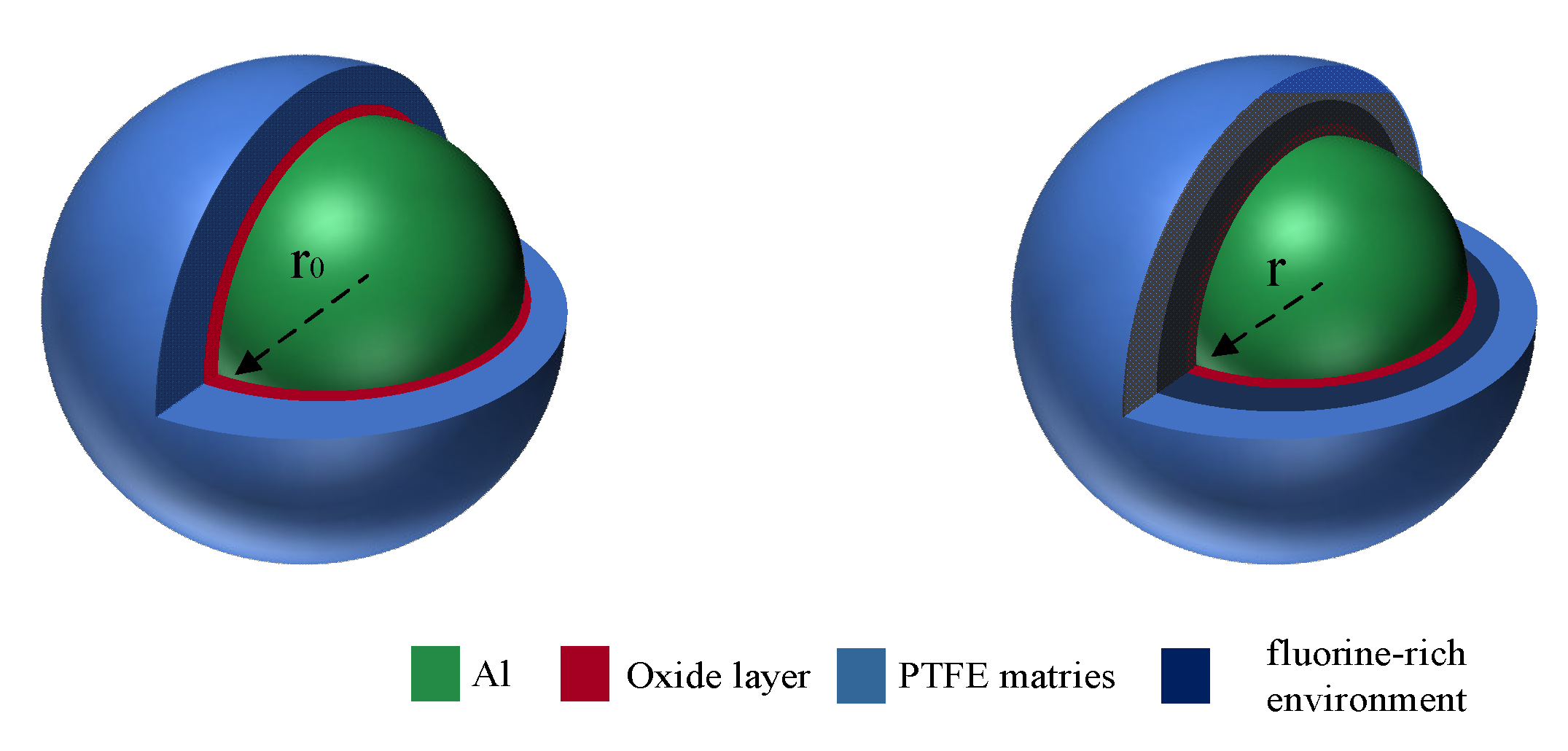

When there is an oxide layer, the reaction cannot enter the oxide layer, resulting in the accumulation of fluorine substances on the surface of the oxide layer, forming a fluorine-rich environment, as shown in Figure 12. In this case, the reaction mainly occurs on the surface of the oxide layer. Influenced by the motion of various particles, the oxide layer continues to move toward the aluminum core, and the reaction proceeds continuously.

The reactivity is calculated as follows:

$$\alpha =\frac{n\frac{4}{3}\rho \pi {r_0}^3-n\frac{4}{3}\rho \pi r^3}{n\frac{4}{3}\rho \pi {r_0}^3}$$

(13)

Equation (13) can be simplified to Equation (14). α is the reaction degree, r₀ is the inner radius of the initial oxide layer, and r is the radius of the oxide layer after a certain time. ρ is the Al density, and n is the number of Al particles in Al/PTFE. r₀ and r satisfy Equation (15). k₂ is the reaction rate constant.

$$\alpha =1-\frac{r^3}{{r_0}^3}$$

(14)

$$r=r_0-k_{2}t$$

(15)

Substituting Equation (15) into Equation (14), the following equation can be obtained:

$$\alpha =1-{\left(\frac{r_0-k_{2}t}{r_0}\right)}^3$$

(16)

After rearranging Equation (16), we obtain:

$$1-\alpha ={\left(1-\frac{k_2}{r_0}t\right)}^3$$

(17)

Let k₂’ = k₂/r₀, Equation (17) becomes as below.

$$1-{\left(1-\alpha \right)}^{\frac{1}{3}}={k_2}^{\prime }t$$

(18)

Equation (18) is the R3 model. Combined with the α-T curve, dα/dT-T curve, and kinetic results obtained by the DSC experiment, it can be seen that in the actual process, the initial Al/PTFE reaction process is hindered by the oxide layer. The reaction only reacts outside the oxide layer. The mechanism function is R3 at first. At a certain time, the oxide layer loses its hindrance, and the reaction diffuses into the oxide layer. The reaction mechanism function of Al/PTFE is transformed into D3, so the reaction mechanism function of Al/PTFE can be expressed as follows:

$$f(\alpha )=\left\{\begin{array}{lll}3{\left(1-\alpha \right)}^{\frac{2}{3}}& \left(\mathrm{R}3\right)& \alpha <{\alpha }_{\mathrm{c}}\\ \frac{3}{2}{\left(1-\alpha \right)}^{\frac{2}{3}}{\left[1-{\left(1-\alpha \right)}^{\frac{1}{3}}\right]}^{-1}& \left(\mathrm{D}3\right)& \alpha >{\alpha }_{\mathrm{c}}\end{array}\right.$$

(19)

where 0 ≤ α_c ≤ 1. α_c will change with the heating rate, ignition mode, and other reactive materials in different environments. In the TG-DSC experiment with a heating rate of 5 K/min, α_c is 1. Additionally, in the TG-DSC experiment with a heating rate of 20 K/min, α_c is 0.6.

4.3. Parameters of Rate Equation

For chemical reactions, the reaction rate can be described as follows:

$$\frac{\mathrm{d}\alpha }{\mathrm{d}t}=A{\mathrm{e}}^{-\left(\frac{E_{\mathrm{a}}}{RT}\right)}f(\alpha )$$

(20)

The apparent activation energy (E_a) in Equation (20) is the threshold or energy barrier that must be overcome in the occurrence of chemical bond recombination, which intuitively reflects the difficulty of a system reaction. The lower the apparent activation energy is, the easier the reaction is. On the contrary, the higher the apparent activation energy is, the more difficult the reaction is. A is a pre-exponential factor, which is a measurement of the frequency of the reaction. The reaction activation energy and pre-exponential factor of the Al/PTFE system can be calculated according to the temperature T_p (Table 2) and Kissinger equation (Equation (21)) corresponding to the exothermic peak at different heating rates in the TG-DSC curve.

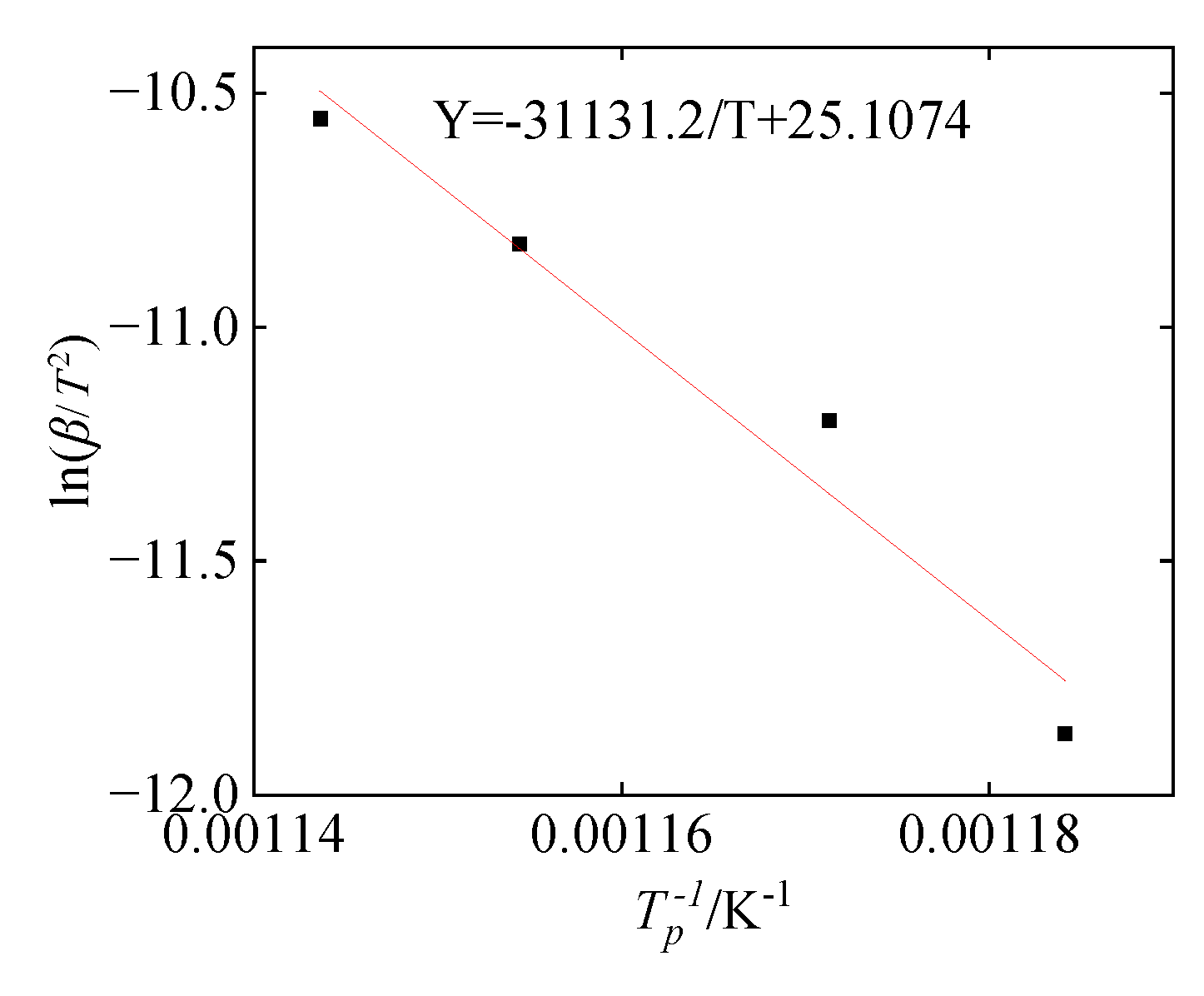

$$\ln \frac{{\beta }_{\mathfrak{i}}}{T_{\mathrm{p}\mathfrak{i}}^2}=\ln \frac{R\cdot A}{{{\rm E}}_{\mathrm{a}}}-\frac{{{\rm E}}_{\mathrm{a}}}{R\cdot T_{\mathrm{p}\mathfrak{i}}}, i=1,2,3,4$$

(21)

β_i is the heating rate (K/min); T_pi is the peak temperature of the DSC curve (K); E_a is the activation energy (KJ/mol); R is the gas constant, 0.008314 KJ/(mol·K); A is the pre-exponential factor (min⁻¹).

The Kissinger equation shows that 1/T_pi has a linear relationship with ln (β_i/T_pi²), and a straight line can be obtained by plotting the two. The activation energy E_a and pre-exponential factor A of the system reaction can be calculated by the slope and intercept after linear fitting. Figure 13 shows the Arrhenius curve by Kissinger fitting, where the slope is E_a/R, the value is 31,131.2, and the calculated activation energy E_a is about 258.8 KJ/mol. The intercept is ln(R·A/E_a), the value is 25.1074, and the calculated pre-exponential factor A is 2.495 × 10¹⁵ min⁻¹. According to the experimental parameters and the f(α) obtained in Section 4.2, the chemical reaction rate can be expressed as below:

$$\frac{\mathrm{d}\alpha }{\mathrm{d}t}=\left\{\begin{array}{lll}2.495\times {10}^{12}{\mathrm{e}}^{-\left(\frac{258}{RT}\right)}3{\left(1-\alpha \right)}^{\frac{2}{3}}& \mathrm{R}3& \alpha <{\alpha }_c\\ 2.495\times {10}^{12}{\mathrm{e}}^{-\left(\frac{258}{RT}\right)}\frac{3}{2}{\left(1-\alpha \right)}^{\frac{2}{3}}{\left[1-{\left(1-\alpha \right)}^{\frac{1}{3}}\right]}^{-1}& \mathrm{D}3& \alpha >{\alpha }_c\end{array}\right.$$

(22)

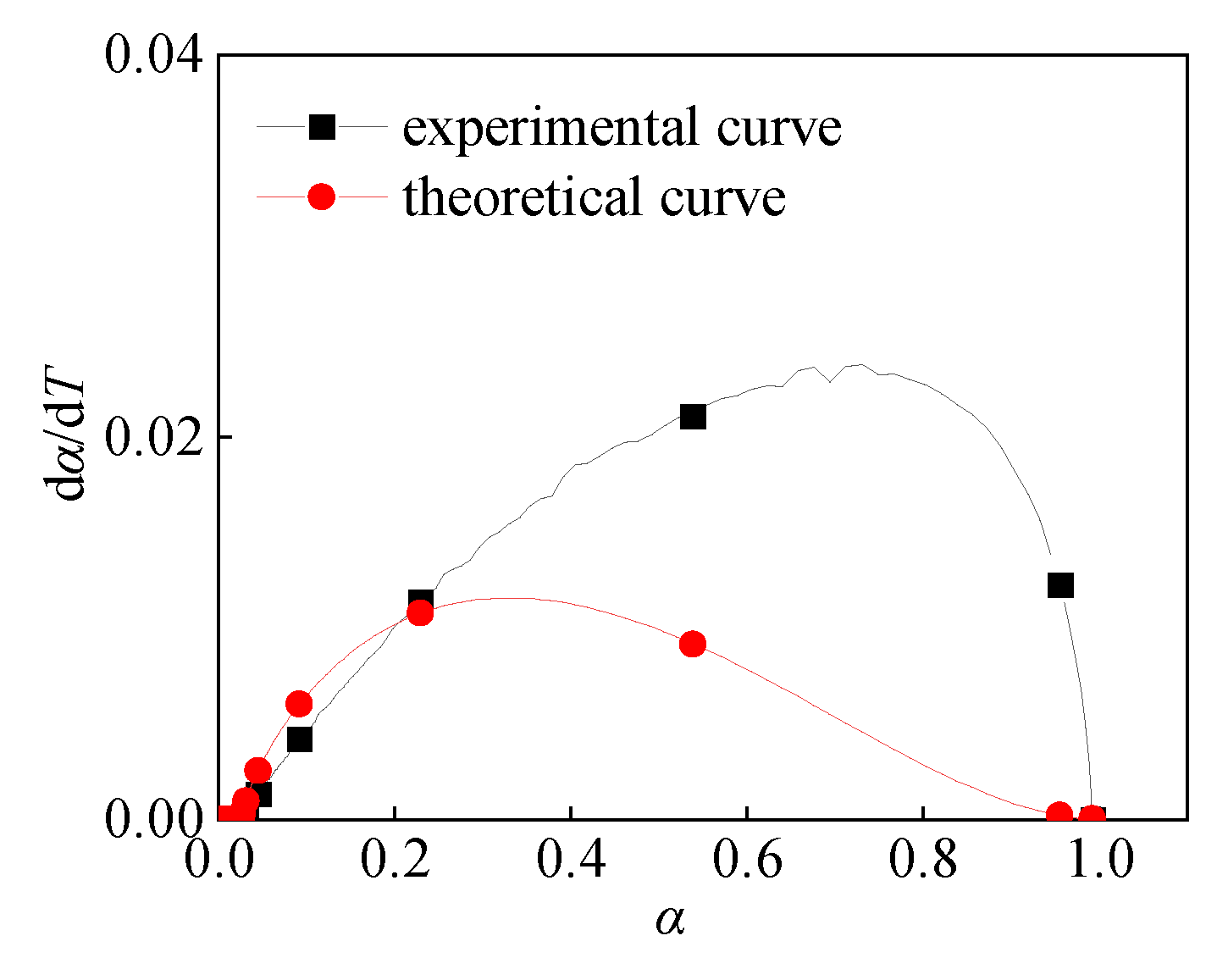

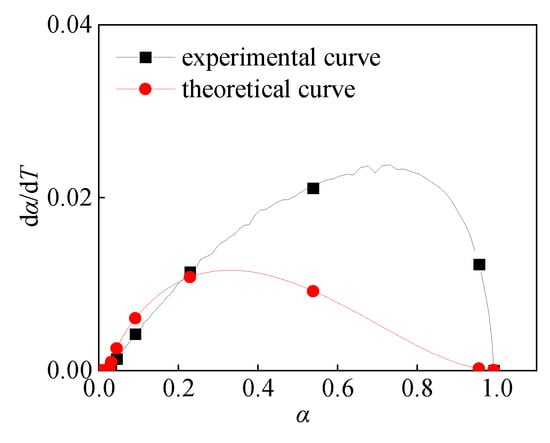

There are two different mechanism functions in the continuous α in the Al/PTFE reaction process. The range of α_c is: 0 ≤ α_c ≤ 1, and the value of α_c is related to the environment of Al/PTFE (heating rate, ignition mode, impact velocity, etc.). When the TG-DSC experiment of Al/PTFE was conducted at a heating rate of 5 K/min, α_c = 1, the reaction mechanism function in the whole reaction process was R3. Using the following Equation (23) to calculate the curve of dα/dT and α (Figure 14), the theoretical curve and the experimental curve have a high degree of fitting.

$$\frac{\mathrm{d}\alpha }{\mathrm{d}T}=\frac{\mathrm{d}\alpha }{\mathrm{d}t}\cdot \frac{\mathrm{d}t}{\mathrm{d}T}=\frac{A}{\beta }\cdot {\mathrm{e}}^{-\left(\frac{E_{\mathrm{a}}}{RT}\right)}\cdot 3{\left(1-\alpha \right)}^{\frac{2}{3}}$$

(23)

4.4. Effect of Oxide Layer Thickness on Activation Energy

To study the effect of oxide layer thickness on the reaction behavior of Al/PTFE, reactive molecular dynamics simulation was implemented to calculate the apparent activation energy E_a of three structures (a, b, and c). In structures (a) and (b), the reaction mechanism function adopts the D3 model. The parabolic law equation (Equation (9)) is used to calculate the reaction rate constant k₁ at different simulated temperatures. Specifically, the change of the product layer thickness l with the reaction time t during the reaction process was observed, and k₁ was obtained by parabolic law fitting. The kinetic model of structure c is the R3 model, and the reaction rate constant k₂ was calculated by using Equation (15) and dynamics results.

E_a was calculated by the Arrhenius equation (Equation (24)) and k (k₁, k₂) was obtained at different temperatures of structures (a, b, and c). Among them, k₁ and k₂ have a certain proportional relationship with k’₁ and k’₂ in the reaction mechanism function model, which will not affect the slope (E_a/R) in the Arrhenius curve. Therefore, the activation energy of the structure can be obtained by linear fitting using k₁ and k₂, as shown in Figure 15.

$$\ln k=\ln A-\frac{E_{\mathrm{a}}}{RT}$$

(24)

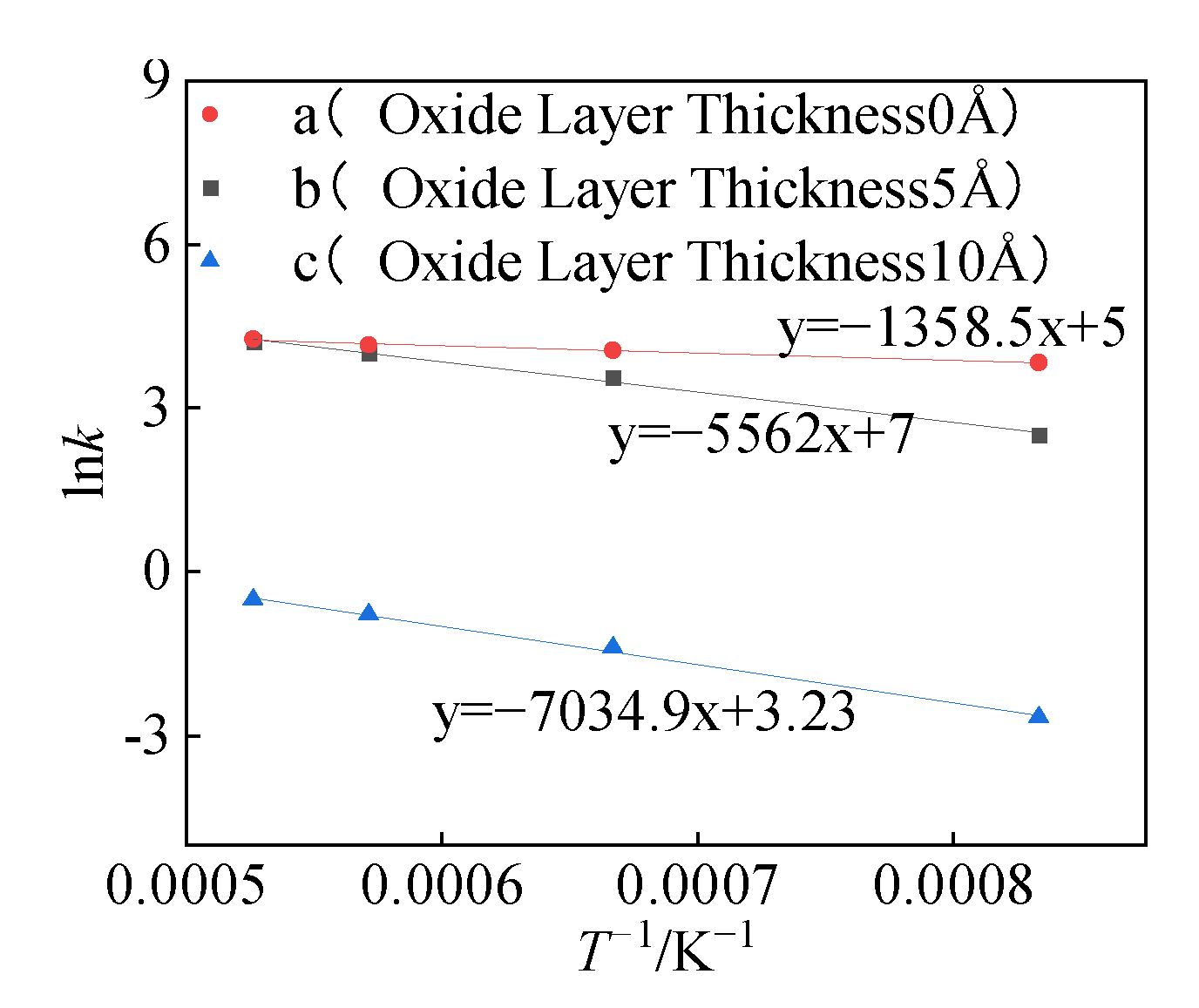

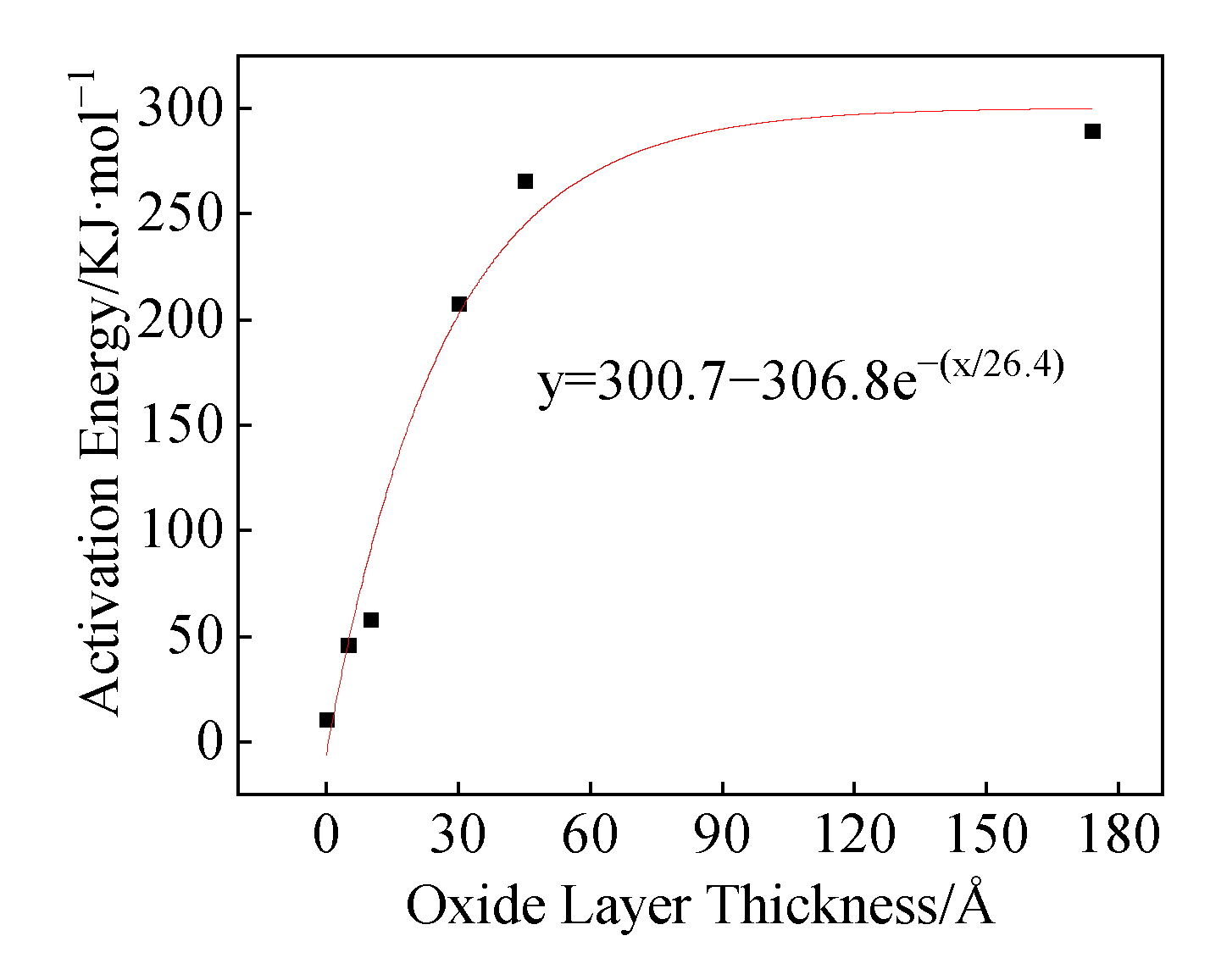

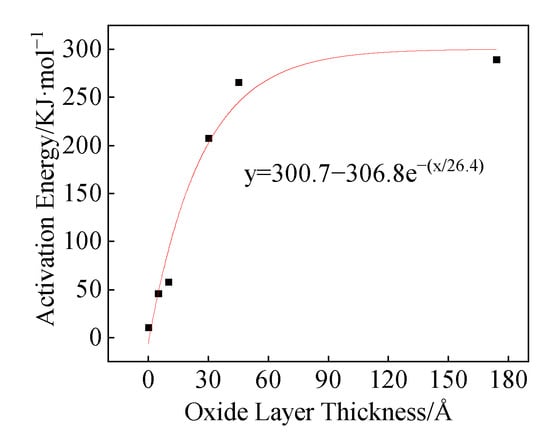

It can be seen from Figure 16 that the activation energies of the three structures (a, b, and c) are 11.3 KJ/mol, 46 KJ/mol, and 58 KJ/mol, respectively. Zeng et al. obtained the relationship between the Al particle size and the thickness of the oxide layer [24,26]:

$$\delta =\left[3.621\left(1-{\mathrm{e}}^{-0.0248d}\right)+1.251\left(1-{\mathrm{e}}^{-0.0012d}\right)\right]$$

(25)

$$\delta =24.705(1-{\mathrm{e}}^{-0.409d})$$

(26)

In the equation, δ is the thickness of the oxide layer and d is the particle size of the Al particles. The oxide layer of the Al particle size used in this paper is calculated to be about 3.5 nm by using Equation (25). When the activation energy is 258.8 KJ/mol, the oxide layer thickness is 5.3 nm, indicating that Equations (25) and (26) have high rationality.

Although the reaction mechanism functions of structures (a) and (b) are consistent, the presence or absence of the oxide layer has a significant effect on the activation energy. In structure (b), the existence of the oxide layer increases the activation energy from 11.3 KJ/mol to 46 KJ/mol. The oxide layer cannot hinder the diffusion of fluorocarbon molecules into the oxide layer and reach the Al core during the reaction process. However, compared with structure (a) without the oxide layer, the oxide layer in structure (b) will affect the diffusion coefficient D of fluorocarbon molecules in the product layer, which in turn affects the activation energy. The diffusion coefficient D can be calculated by the following Equation (27):

$$\mathrm{D}=\frac{k_1}{2}\rho$$

(27)

In the equation, k₁ is the rate constant, and ρ is the density of fluorocarbon molecules. The calculation shows that the diffusion coefficient D of structure (a) at 1200 K is 3.66109 m²/s, and the diffusion coefficient D at 1900 K is 5.6109 m²/s. The diffusion coefficient of structure (b) at 1200 K is 9.8108 m²/s, and the diffusion coefficient at 1900 K is 5.4109 m²/s. When the simulation temperature is 1200 K, the diffusion coefficient is significantly different. At 1900 K, the 5 Å oxide layer basically loses its effect, and the diffusion coefficients of the two are close. The difference in diffusion coefficients in different structures affects the activation energy of the reaction.

By increasing the thickness of the oxide layer from 5 Å to 10 Å (structure from b to c), the reaction process changed significantly. Different from the oxide layer in structure (b), which is rearranged, and the compactness decreases during the thermal expansion process, the oxide layer in structure (c) maintains compactness throughout the reaction process. Increasing the thickness of the oxide layer can increase the compactness of the oxide layer so that the oxide layer does not appear defects during the expansion process. So, the activation energy of structure (c) is greater than the activation energy of structure (b).

5. Conclusions

In this paper, Al/PTFE reactive materials with Al particle sizes at the nanometer level were prepared by wet mixing. The TG-DSC experiment was carried out to test the thermochemical reaction of the samples at different heating rates. The Al/PTFE reaction process with different oxide layer thicknesses was studied by ReaxFF reaction molecular dynamics. The following main conclusions are drawn.

The effects of temperature and heating rate on the reaction process are significant. High temperature contributes to the formation of carbon, and temperature has a significant effect on the movement of small gases such as molecules of AlF₃ and AlF₄⁻ and the movement rate of the oxide layer in the structure. As the heating rate increases, the thermal effect per unit time increases, the thermal inertia increases, and the temperature difference increases. As a result, the reaction exothermic peak and other characteristic temperatures move to the high-temperature direction.

The thickness of the oxide layer has a significant effect on the reaction process of Al/PTFE. When the oxide layer is thin, the compactness of the oxide layer changes due to thermal rearrangement, resulting in the diffusion of reactants (fluorine-containing substances) through the oxide layer into the Al core. Additionally, the reaction mainly occurs between the oxide layer and the Al core. When the oxide layer is thick, the reaction only exists outside the oxide layer interface. With the movement of oxygen ions in the oxide layer and Al atoms in the Al core, the oxide layer moves to the Al core, so that the reaction continues. In addition, a pre-ignition reaction will occur between the oxide layer and the PTFE matrix, which will catalyze the decomposition of PTFE and further affect the reaction process.

The mechanism function of Al/PTFE is composed of the R3 model and the D3 model. The critical value α_c depends on the reaction environment such as ignition mode, impact velocity, and heating rate.
