Branched Amphiphilic Polylactides as a Polymer Matrix Component for Biodegradable Implants

A.N. Nesmeyanov Institute of Organoelement Compounds of Russian Academy of Sciences, Vavilov Street, 28, 119991 Moscow, Russia
Bauman Moscow State Technical University, Baumanskaya 2-ya Str., 5/1, 105005 Moscow, Russia
Department of Chemistry and Technology of Macromolecular Compounds, MIREA—Russian Technological University (RTU MIREA), Vernadskogo Avenue 78, 119454 Moscow, Russia
Department of Biomaterials, Mendeleev University of Chemical Technology of Russia, Miusskaya Sq., 9, 125047 Moscow, Russia
Authors to whom correspondence should be addressed.
Polymers 2023, 15(5), 1315;
Submission received: 21 December 2022 / Revised: 2 March 2023 / Accepted: 2 March 2023 / Published: 6 March 2023
(This article belongs to the Special Issue Scaffolds and Surfaces with Biomedical Applications)


The combination of biocompatibility, biodegradability, and high mechanical strength has provided a steady growth in interest in the synthesis and application of lactic acid-based polyesters for the creation of implants. On the other hand, the hydrophobicity of polylactide limits the possibilities of its use in biomedical fields. The ring-opening polymerization of L-lactide, catalyzed by tin (II) 2-ethylhexanoate in the presence of 2,2-bis(hydroxymethyl)propionic acid, and an ester of polyethylene glycol monomethyl ester and 2,2-bis(hydroxymethyl)propionic acid accompanied by the introduction of a pool of hydrophilic groups, that reduce the contact angle, were considered. The structures of the synthesized amphiphilic branched pegylated copolylactides were characterized by 1H NMR spectroscopy and gel permeation chromatography. The resulting amphiphilic copolylactides, with a narrow MWD (1.14–1.22) and molecular weight of 5000–13,000, were used to prepare interpolymer mixtures with PLLA. Already, with the introduction of 10 wt% branched pegylated copolylactides, PLLA-based films had reduced brittleness, hydrophilicity, with a water contact angle of 71.9–88.5°, and increased water absorption. An additional decrease in the water contact angle, of 66.1°, was achieved by filling the mixed polylactide films with 20 wt% hydroxyapatite, which also led to a moderate decrease in strength and ultimate tensile elongation. At the same time, the PLLA modification did not have a significant effect on the melting point and the glass transition temperature; however, the filling with hydroxyapatite increased the thermal stability.

1. Introduction

One of the most urgent problems of bioengineering is the development of new biodegradable polymeric devices. Despite intensive research in recent decades, the number of polymers available for this application is extremely limited. One of their most prominent representatives is poly(L-lactide) (PLLA). It is an aliphatic semi-crystalline polyester, that can be produced from renewable sources such as corn or sugar cane [1]. Due to its biocompatibility, biodegradability up to lactic acid, and sufficiently high mechanical characteristics, as well as a biodegradation rate comparable in time to the healing of damaged human tissues, products made from this polymer are of great interest for use in regenerative medicine [2,3,4,5]. Unfortunately, due to the fragility and hydrophobicity of PLLA [6], its use in medicine is limited [7]. One possible way to vary the properties of PLLA devices, including the rate of their biodegradation, is to manufacture these devices from PLLA plasticized with other polymers [8,9,10,11,12]. A promising component of PLLA matrices for biodegradable devices are amphiphilic copolyesters, in most cases represented by block copolymers of polylactide or polycaprolactone with polyethylene oxide [13,14,15,16]. They have been used to create capable biomedical devices such as stents, films, thermosensitive polymer hydrogels, electrospun fibers, etc. [17,18,19,20,21,22].
Despite the wide variety of polymers used to modify PLLA, the vast majority of them have a linear structure. At the same time, in recent decades [23,24,25,26,27], interest has been growing in the synthesis and study of the properties of biocompatible, biodegradable, branched and hyperbranched polymers, the properties of which differ significantly from linear, star-shaped, and crosslinked analogs. As a rule, their main feature is a smaller size of molecules compared to linear analogs, a higher density of the structure of macromolecules, in combination with a spatially unloaded core, as well as a large number of free functional groups located on the surface [28,29,30]. All these types of macromolecular substances differ significantly in properties from their linear counterparts, and their main feature lies in the possibility of consistent regulation of the structure and, accordingly, properties. From this point of view, branched and hyperbranched polymers are of great interest; by modifying their free reactive functional groups, one can change the properties of polymers over a very wide range [31,32,33,34], and obtain biodegradable amphiphilic copolymers for targeted drug delivery [35,36,37,38]. An additional modification of functionalized polymers makes it possible to obtain copolymers with controlled colloidal chemical properties [39,40]. The use of amphiphilic branched polymers as a component of the polymer matrix in hydroxyapatite-containing systems also leads to a significant improvement in the properties of composite materials. In these systems, branched amphiphilic polylactides act not only as PLLA plasticizers, which change the mechanical properties of the polymer matrix, but also as compatibilizers, which increase adhesion between the polymer matrix and the mineral filler. The latest advances in the field of regulation of mechanical properties, and the use of branched polylactides in biomedical fields, were summarized in review [41].
Ring-opening polymerization of lactones (ROP), catalyzed by tin carboxylates in the presence of dihydroxycarboxylic acids as co-initiators and branching agents of the AB2 type, were discussed in the literature in connection with the synthesis of branched copolyesters [42,43,44,45]. Kinetic data indicate that ROP proceeds via the sequential insertion of lactones into the –Sn–OR bond, after the formation of tin alcoholates from the starting tin carboxylates [42]. Bis(hydroxymethyl)butyric acid is traditionally used as an AB2 agent [44,45].
In the present paper, in order to introduce long-chain hydrophilic fragments and reduce the wetting angle of the surface of the resulting branched copolylactides, an ester obtained by esterification of 2,2-bis(hydroxymethyl)-propyonic acid and poly(ethylene glycol) monomethyl ethers, was used as a macroinitiator. The synthesized pegylated branched copolylactides were compatible, when mixed with linear PLLA, providing its hydrophilization, which also contributed to the good compatibility of the prepared interpolymer mixtures with a hydrophilic filler, i.e., hydroxyapatite. The filling of polylactide interpolymer blends with hydroxyapatite contributed to an additional decrease in the water contact angle; however, this effect was achieved at the cost of a decrease in strength and ultimate tensile elongation (Figure 1). At the same time, the mechanical characteristics of the obtained materials were acceptable for use in biomedical fields, in particular, for bone tissue regenerative surgery.

2. Materials and Methods

2.1. Materials

Polylactic acid (PLLA, Mw ~60 kDa, Aldrich Chemical Co., St. Louis, MO, USA), stannous (II) 2-ethylhexanoate (Sn(Oct)2, 95%, Aldrich Chemical Co., St. Louis, MO, USA), 1,1′-carbonyldiimidazole (CDI, 98%, Aldrich Chemical Co., St. Louis, MO, USA), and hydroxyapatite (HA, particle size ~1 micron, “R&P” “POLYSTOM”, Moscow, Russia) were used as received. L-lactide (98%, ABCR, Karlsruhe, Germany) was recrystallized from ethyl acetate before use; 2,2-bis(hydroxymethyl)propyonic acid (BHP, 98%, Aldrich Chemical Co., St. Louis, MO, USA), poly(ethylene glycol) monomethyl ethers, with Mn ~1900 and 5000 Da (MPEG1900 and MPEG 5000, respectively, Merck, Darmstadt, Germany) were dried in a vacuum (10 Pa, 30 °C) for 24 h prior to use. Methylene chloride, THF, and DMSO (“Himmed”, Moscow, Russia) were purified by standard methods [46].

2.2. Polymerization

Linear copolylactide was prepared by copolymerizing L-lactide and MPEG 1900; synthesis was carried out at 140 °C for 24 h in bulk, using Sn(Oct)2 as a catalyst (molar ratio L-lactide:catalyst = 2000:1) according to Scheme 1 [47].
Branched copolylactides were prepared by ROP of L-lactide in the presence of BHP, as well as the esterification product of BHP and MPEG [48,49], as per Scheme 2.
Thus, to obtain linear copolylactide 1, the Sn(Oct)2 catalyst (0.008 g, 0.01 mmol) was placed in a two-necked glass flask in the form of a 10% solution in THF, after which the solvent was distilled off under reduced pressure. Then, 2.883 g, 20.0 mmol of L-lactide and 0.150 g, 0.40 mmol of MPEG 1900 were added to the flask. The flask was equipped with a mechanical overhead stirrer and heated to 140 °C using a heating mantle, for 24 h. The resulting crude product was dialyzed in CHCl3 (Roth “ZelluTrans” membrane, MWCO = 1000 Da, Karlsruhe, Germany) for 48 h. Then, the solvent was evaporated and the polymer was dried under vacuum for 48 h [47].
For the synthesis of branched copolylactides in the first stage (Scheme 2A), MPEG (10 mmol) and CDI (16.21 g, 10 mmol) were reacted in 50 mL of THF, for 30 min at room temperature, after which this solution was slowly added to BHP (14.75 g, 11 mmol) in 50 mL THF, at 30 °C, and reacted for 2 h. The resulting crude product was purified by column chromatography on silica gel (eluent—THF) with a yield of 68%. At the next stage, an ester of BHP and MPEG was introduced into copolymerization with L-lactide and BHP (Scheme 2B, Table 1). The reaction was carried out at 140 °C, as described in article [47]. The resulting crude product was dialyzed in CHCl3 (Roth “ZelluTrans” membrane, MWCO = 1000 Da, Karlsruhe, Germany) for 48 h. Then the solvent was evaporated and the polymer was dried under vacuum for 48 h [47].

2.3. Characterization

The 1H NMR spectra were recorded on a Brucker spectrometer, with operating frequency 1H—400.22 MHz at 25 °C, using CDCl3 as solvent and TMS as an internal standard.
FTIR spectra were recorded on a Nicolet 380 spectrometer (Thermo Fisher Scientific Inc., Waltham, MA, USA).
Size exclusion chromatography (SEC) of the copolymers was carried out on a “Waters 150” chromatograph (eluent—THF (1 mL/min), column—PL-GEL 5u MIXC (300 mm × 7.5 mm) (“Waters”, Milford, MA, USA).
The differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) were performed using a NETZSCH STA 449F3 Jupiter thermal analyzer (Selb, Bavaria, Germany). The Tg was determined as the peak or midpoint of the heat capacity increase at the second heating cycle, and Tm as the endothermal peak in the DSC curve of the second heating cycle. From the TGA curves were obtained the temperature required for a 5% weight loss (T5%), which is representative of the onset of decomposition, the temperature of maximum decomposition rate (Tdeg), and the amount of residual mass at 600 °C.
Copolymer films were prepared by the solvent casting method, from polymer composition samples dissolved in methylene chloride. Polymer samples were prepared at 10% (w/v) concentration. HA was added to the polymer solution at 20% (w/v) concentration, with respect to the contents of the polymer composition. Polymer compositions were blended by a magnetic stirrer at room temperature and cast on the glass flat surface by a manual film applicator, then allowed to evaporate in a desiccator, to obtain a homogeneous film.
The tensile test was performed using an Instron-3366 universal mechanical testing machine. Samples were cut into rectangular pieces, about 0.15 mm thick, 10 mm wide, and 30 mm long. The sample gauge length was 10 mm and the testing speed was 1 mm/min. The results were taken as an average of five tests.
The SEM were obtained on a Hitachi TM300 electron microscope (Hitachi, Tokyo, Japan).
Water contact angle (WCA) measurements, between the polymer films and MilliQ water drops, were measured by the sessile drop method, on a “Tracker” automatic drop shape analyzer (Teclis-Scientific, Civrieux-d’Azergues, France), for drops of 100 s age, at a temperature of 25 °C and about 100% relative humidity. All measurements were repeated at least four times for each polymer sample.
The water absorption studies were performed in MilliQ water (pH = 7.00), at 25 °C. The amount of fluid absorbed through time was monitored gravimetrically. Dry 20 mm × 20 mm film samples (approximately 40 mg) were immersed in 50 mL of water and at regular time intervals were removed, dried with filter paper, weighed, and placed in the same bath. The water absorption (q) was calculated by the following equation:
q = (mt − m0)/m0
where mt is the weight of the absorbed polymer film at the time of measuring, and m0 is the initial weight of the polymer film [50].

3. Results

3.1. The Structure of Linear and Branched Pegylated Copolylactides

In this work, a number of MPEG-containing amphiphilic copolylactides were obtained; PLLA blocks were either linear (for copolylactide 1) or branched containing BHP monomer units (for copolylactides 2–4). The polymerization of L-lactide was carried out at 140 °C, as recommended in [51]. By systematic variation of composition and molecular weight of the polylactide block, a series of oligomeric amphiphilic copolymers, with varied ratios of PEG and PLLA molecular units, were prepared. The synthesized branched pegylated copolylactides are waxy substances, soluble in CH2Cl2, DMSO, and THF.
The structure of the synthesized linear and branched pegylated copolylactides was confirmed by 1H NMR spectroscopy; the assignment is shown in Figure 2 and is consistent with the literature data [28,44,52].
The incorporation of the MPEG was confirmed by the 1H NMR spectroscopy for both the linear and branched copolylactides. The ratio of incorporated PEG and PLLA units was determined from the respective 1H NMR signal intensity: thus, PEG units show characteristic signals at 3.56–3.70 ppm, that can be used to quantify their fraction, by comparison with the signals of the (>CH–) group of the lactide monomer units located at 5.1 ppm [47].
The synthesized copolylactides, the molecular parameters of which are summarized in Table 1, were characterized by narrow unimodal MWDs, with dispersity indices in the range of 1.17–1.22. According to the GPC data, the values of the average molecular weights of the copolylactides were in the range 8400–12,400 (Table 1), and this is probably somewhat on the low side, since polystyrene standards were used to calibrate the columns. It is important that in polymers changed either structure of PLLA block (linear or branched), or ratios of PEG/PLLA units (30:70 or 50:50), or molecular weight of the PEG block (1900 or 5000Da). The agreement between the calculated and experimental ratios of PEG and PLLA blocks was satisfactory. A decrease in the yield of pegylated copolylactides, with an increase in the amount of BHP in the reaction mixture, was observed (Table 1).

3.2. The Properties of PLLA Films Plasticized with Branched Pegylated Copolylactides Filled with Hydroxyapatite

Prior to the examination of PLLA plasticized with copolymers, the DSC analysis of pure polymers was performed. The obtained data are listed in Table 2.
All the studied copolylactides had a wide bimodal peak at 38.7–54.7 °C, the maxima of which corresponded to the Tg of the PEG and PLLA blocks. Along with this, pronounced monomodal peaks, corresponding to the Tm of PEG and PLA, were observed. While the Tm peaks of PEG and PLLA did not change significantly for all samples, the temperature of Tg peaks for PEG and PLLA blocks increased with their molecular weight.
Five PLLA films, plasticized with 10 wt% of different copolylactides, were obtained by the solvent casting technique. Furthermore, five composite films, containing 20% by weight of hydroxyapatite, were obtained using polymer matrices with 10 wt% of different copolylactides.
The IR spectra of the PLLA 1, PLLA 2, and PLLA 3 samples, shown in Figure 3, contained all the signals characteristic of copolylactides [53], and were close to the IR spectra of the PLLA 4 and PLLA 5 samples. At the same time, filling with hydroxyapatite lead to the appearance of characteristic absorption bands in the 500–700 cm−1 region.
The thermal transitions of the prepared PLLA blends were assessed by DSC experiments. Typical DSC thermograms of PLLA 1, PLLA 1 HA, PLLA 5, and PLLA 5 HA composites (second heating run), are given in Figure 4. The designations of the obtained samples of polyester composites, as well as their compositions and thermal properties, are given in Table 3.
The glass transition temperature (Tg) and the melting point (Tm) of the PEG and PLLA phases, were evaluated for the polyester composites shown in Table 3. The samples of composite films had a wide glass transition temperature range, that sits between the glass transition temperatures of pure PLLA and pegylated copolylactides. The monomodal nature of DSC in the temperature range corresponding to the relaxation transition (glass transition), indicates good compatibility of pegylated copolylactides and pure PLLA for all studied compositions [54].
The addition of copolylactides to PLA only slightly changed the Tg and Tm values of neat PLLA; a correlation was observed between the molecular weights of the copolylactide blocks of PLLA and the Tg of the PLLA films plasticized by them. Addition of HA slightly increased the glass transition values of the PLA composites, perhaps due to a reduction of the chain segment mobility of the polymeric amorphous phase around the HA particles [55].
To study the thermal stability of the obtained films, thermogravimetric analysis (TGA) was performed. The experimental data are summarized in Table 3.
One can observe that HA containing samples underwent thermal decomposition in a single step, ranging from approximately 260 to 400 °C, which correlates well with values reported elsewhere [56,57,58]. Interestingly, the films plasticized by linear copolylactide 1 showed the highest T5% value (Table 3), but faster decomposition, which was reflected in a lower Tdeg value. In the same case, the addition of copolylactides 2–4 neither caused significant changes in T5% (for films without HA), nor did they remarkably reduce the thermal stability (for films containing HA). The temperature of the maximum decomposition rate for films plasticized with branched copolylactides was generally close to the temperature of the maximum decomposition rate of neat PLLA films, only the use of copolylactide 4 with the largest polylactide block led to a slight excess of Tdeg over this value of neat polylactide.
The addition of 20% HA to the PLLA matrix improved the thermal stability of the polymer, as can be seen in Figure 4. A rise in the T5% and in the Tdeg was observed for all composite samples (Table 3), suggesting an insulating effect of HA incorporation. We did not observe an increase in the degradation rate of the polymer matrix with the presence of the HA, as was stated in [55].
One can also observe that the residual masses for samples without HA, were relatively low, and progressively increased with the molecular weight of copolylactides up to 3.1%. For compositions with 20% HA, since the filler is thermally stable at high temperatures and can also act as a heat barrier, it could enhance the formation of char after thermal decomposition. Thus, the residual weights of samples containing hydroxyapatite were higher than those of samples without hydroxyapatite.
The tensile curves of PLLA films plasticized with copolylactides 1–4, as well as films of composite materials containing HA, are shown in Figure 5, and specific data are also given in Table 4. Pure PLLA 1 film showed mechanical properties of a hard but brittle material, with values of tensile modulus (Et) of 1290.8 MPa, tensile strength at break (σb) of 25.4 MPa, and elongation at break (εb) of 4.3% (Figure 5, Table 4).
The tensile modulus for blends of PLLA with copolylactides was lower than for pure PLLA. At the same time, plasticization of PLLA with linear copolylactide 1 led to mixtures with the tensile modulus only slightly lower than that of unplasticized PLLA. The presence of copolylactides with a branched PLLA block in mixtures, as a rule, led to a decrease in the tensile modulus of the polymer mixture. This effect decreased with increasing molecular weight of the copolylactides.
The filling of polyester films with hydroxyapatite had almost no effect on the elastic modulus of composite materials; however, the tensile strength and elongation at break decreased markedly. The low sensitivity of the elastic modulus of polyester materials to filling with hydroxyapatite indicated high compatibility of the matrix and filler. At the same time, it can be assumed that the interface between the polyester matrix and the filler (hydroxyapatite) becomes the center of the formation of defects and cracks under high mechanical loads. The decrease in the tensile strength of polyester materials when filled with hydroxyapatite, apparently, limits the achievable ultimate deformation corresponding to the rupture of composites.
The addition of copolylactides tended to plasticize the PLA film, resulting in a significant increase in flexibility and a decrease in tensile strength, as noted in various previous studies. Nevertheless, we found that the addition of linear copolylactide 1 caused only a slight increase in the value of elongation at break, which contradicts previously published data [59]. The yield point is observed only for copolylactides with high molecular weight branched PLLA blocks. Since the stage of plastic deformation is due to the parallel alignment of PLLA polymer chains, the presence of bulky high-molecular weight branched PLLA blocks increases the mobility of the polymer chains.
Typically, the addition of hydroxyapatite to PLLA in a 20:80 mix ratio, resulted in a decrease in ductility in all samples. However, the elongation at break for films plasticized with copolyesters was always higher than for unplasticized PLLA. Here, copolylactide 4 is of particular interest: the values of elongation at break for films plasticized with it were two times higher than for unplasticized films, regardless of the presence of HA in the film.
Tensile strength values for films plasticized with copolylactides were slightly lower than for pure PLLA films; at the same time, the PLLA 5HA sample plasticized with copolylactide 4 showed a tensile strength value characteristic of the unplasticized sample. This may be due to the good miscibility of the PLLA macromolecules and the plasticizer, as well as to the fact that HA particles are able to interact with the polar groups in branched PLLA polymer blocks [60,61]. As different polar groups, such as -OH, -CO, -CH2-O-CH2-, and -COOH, appear in the copolylactide polymer chains, they can react or interact with the -OH groups in commercial HA, as demonstrated by Zhang et al. [62].
The SEM data indicate the compatibility of the copolylactide matrices with hydroxyapatite. The SEMs of the PLLA5 and PLLA 5 HA samples, shown in Figure 6, were typical for all obtained composite materials, and indicate a uniform distribution of the filler in the matrix volume. On the other hand, the pronounced surface roughness of the mixture of branched copolylactide 4 and PLLA (sample PLLA5) may be due to microphase separation of hydrophilic PEG fragments and hydrophobic lactide residues.
The hydrophilicity of the surface of the material is considered as a paramount requirement for its use in living organisms. Various studies have shown that wettability plays a key role in determining the ability of a polymeric material to serve as a scaffold for bone osteointegration [63,64]. However, the hydrophobicity of pure PLLA puts a limit on its compatibility with tissues and body fluids, and requires reduction. In this work, the PLLA hydrophilization was achieved by introducing hydrophilic polyethylene oxide fragments and a hydrophilic filler, i.e., hydroxyapatite. As can be seen in Table 4, the introduction of polyethylene oxide blocks and filling with hydroxyapatite led to a decrease in the water contact angle. Apparently, the value of water contact angle for the obtained composite materials is an integral characteristic of intermolecular interactions between hydrophilic and hydrophobic blocks in the composition of macromolecules, as well as hydrophilic polyethylene oxide blocks with hydroxyl groups on the surface of hydroxyapatite, used for filling. It can be assumed that if the main contribution comes from the interactions of the hydrophilic polyethylene oxide blocks with the hydroxyl groups on the surface of hydroxyapatite, then the surface layer is enriched with the hydrophobic polylactide fragments, which leads to an increase in the water contact angle, as was observed in the case of filling with PLLA3. Nevertheless, in the vast majority of cases, the contribution of hydrophobic interactions of polylactide fragments and displacement of hydrophilic polyethylene oxide fragments to the surface, is predominant, which leads to the desired effect of reducing the water contact angle.
The WCA observation can be correlated with the data on water absorption by polymer films shown in Figure 7. It is well known that the wetting and water absorption can play an important role in the release of a drug from the polymer matrix into an aqueous solution [65]. It is known that upon degradation of PLLA, the hydrophilicity of the polymer increases and the weight of the polymer decreases. Since these processes can occur simultaneously with water absorption, a relatively short time of 1 week was used to evaluate water absorption, in which polymer degradation processes do not have a large effect on the weight of the samples [66,67].
The amount of water absorbed by plasticized PLLA films is generally higher than by non-plasticized ones. The water absorption of all films steadily increased with time as ever deeper layers of the material became available for water. The water absorption of the films increased along with the rise in the mole fraction of hydrophilic pegylated fragments in the compositions of the branched copolylactides, as expected. The PLLA films not plasticized with copolylactides, as expected, absorbed water at the lowest rate. Among plasticized films, the sample containing linear copolylactide 1 had the lowest water absorption rate. Films plasticized with branched copolylactides showed the highest water absorption rates. Samples containing copolylactide 3, with the lowest molecular weight, showed the fastest water absorption. This may be due to different accessibility of the interior of the polymer matrix for water. Whereas linear copolylactides form fairly dense polymeric structures, branched copolylactides resulted in looser, permeable polymeric structures. In addition, low molecular weight copolylactide 3 may have the lowest adhesion to the polymer matrix and be removed from the polymer with water. All samples containing hydroxyapatite absorbed water faster than samples without hydroxyapatite of the same polymer composition, perhaps due to the hydrophilic nature of hydroxyapatite. In this case, the same tendences are observed as for films not containing HA: films plasticized with linear copolylactides absorb less water than films plasticized with pegylated branched copolylactides. Low molecular weight copolylactides absorb more water than films containing high molecular weight copolylactides.
It is known that, unlike linear polylactides, the hydrolytic degradation of which proceeds in bulk, the hydrolytic degradation of branched polylactides has a surface nature [68]. Although the determination of the dynamics and kinetics of the biodegradation of the obtained composite materials will be the subject of subsequent studies, it can be assumed that the rate of weight loss due to hydrolysis will hardly differ from that characteristic of linear PLLA, since the minimum content of the latter was 72 wt% at the maximum content of branched pegylated copolylactides (10 wt%) (Table 3).

4. Conclusions

It was established that the polymerization of L-lactide, catalyzed by tin (II) 2-ethylhexanoate in the presence of both BHP and BHP ester with MPEG, leads to the formation of branched pegylated copolylactides with a narrow molecular weight distribution. It was shown that the introduction of PEG fragments into linear and branched copolylactides leads to a decrease in the glass transition temperatures and melting points, as compared to PLLA. The resulting pegylated copolylactides were compatible with PLLA when blended, and formed films with higher tensile strength, lower strength, and lower tensile modulus. The introduction of 10 wt% of the synthesized pegylated copolylactides into PLLA did not have a significant effect on the melting points and the glass transition temperatures of the resulting interpolymer mixtures, but lead to a decrease in the water contact angle and increased water absorption. Additional hydrophilization of PLLA interpolymer blends and pegylated copolylactides can be achieved by filling with hydroxyapatite. In this case, the strength and ultimate elongation in tension decreased. Since HA-containing scaffolds are very important for medicine, the presented study will provide more information about their behavior and may lead to their wider use.

Author Contributions

Conceptualization, V.I., V.V.; methodology, V.V.; validation, V.G. and I.G.; formal analysis, V.I.; investigation, V.I., V.V., V.G., I.G., Y.M., O.V.B.; resources, V.I.; data curation, V.V.; writing—original draft preparation, V.I., Y.M.; writing—review and editing, V.I., V.V., I.G., Y.M.; visualization, V.I., V.G.; supervision, V.V.; project administration, V.I. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Ministry of Science and Higher Education of the Russian Federation (Contract No. 075-03-2023-642), and was performed employing the equipment of the Center for molecular composition studies of INEOS RAS.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author (the obtained initial data are fully presented in the article).


The study of polymer composites was carried out within the framework of the program of state support for the centers of the National Technology Initiative (NTI), on the basis of educational institutions of higher education and scientific organizations (Center NTI “Digital Materials Science: New Materials and Substances” on the basis of the Bauman Moscow State Technical University).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Jayasekara, T.; Wickrama Surendra, Y.; Rathnayake, M. Polylactic Acid Pellets Production from Corn and Sugarcane Molasses: Process Simulation for Scaled-Up Processing and Comparative Life Cycle Analysis. J. Polym. Environ. 2022, 30, 4590–4604. [Google Scholar] [CrossRef]
  2. Capuana, E.; Lopresti, F.; Ceraulo, M.; La Carrubba, V. Poly-L-Lactic Acid (PLLA)-Based Biomaterials for Regenerative Medicine: A Review on Processing and Applications. Polymers 2022, 14, 1153. [Google Scholar] [CrossRef]
  3. Dai, Y.; Lu, T.; Shao, M.; Lyu, F. Recent advances in PLLA-based biomaterial scaffolds for neural tissue engineering: Fabrication, modification, and applications. Front. Bioeng. Biotechnol. 2022, 10, 1011783. [Google Scholar] [CrossRef] [PubMed]
  4. Pawar Rajendra, P.; Tekale Sunil, U.; Shisodia Suresh, U.; Totre Jalinder, T.; Domb, A.J. Biomedical Applications of Poly(Lactic Acid). Recent Pat. Regen. Med. 2014, 4, 40–51. [Google Scholar] [CrossRef]
  5. Shah, T.V.; Vasava, D.V. A glimpse of biodegradable polymers and their biomedical applications. e-Polymers 2019, 19, 385–410. [Google Scholar] [CrossRef]
  6. Bastekova, K.; Guselnikova, O.; Postnikov, P.; Elashnikov, R.; Kunes, M.; Kolska, Z.; Švorčík, V.; Lyutakov, O. Spatially selective modification of PLLA surface: From hydrophobic to hydrophilic or to repellent. Appl. Surf. Sci. 2017, 397, 226–234. [Google Scholar] [CrossRef]
  7. Huang, Y.; Wang, Y.; Wen, J. A Study on modification of polylactic acid and its biomedical application. E3S Web Conf. 2021, 308, 02008. [Google Scholar] [CrossRef]
  8. Tian, J.; Cao, Z.; Qian, S.; Xia, Y.; Zhang, J.; Kong, Y.; Sheng, K.; Zhang, Y.; Wan, Y.; Takahashi, J. Improving tensile strength and impact toughness of plasticized poly(lactic acid) biocomposites by incorporating nanofibrillated cellulose. Nanotechnol. Rev. 2022, 11, 2469–2482. [Google Scholar] [CrossRef]
  9. Murariu, M.; Paint, Y.; Murariu, O.; Laoutid, F.; Dubois, P. Tailoring and Long-Term Preservation of the Properties of PLA Composites with “Green” Plasticizers. Polymers 2022, 14, 4836. [Google Scholar] [CrossRef]
  10. Omar, A.A.; Mohd Hanafi, M.H.; Razak, N.H.; Ibrahim, A.; Ab Razak, N.A. A Best-Evidence Review of Bio-based Plasticizer and the Effects on the Mechanical Properties of PLA. Chem. Engineer. Transact. 2021, 89, 241–246. [Google Scholar]
  11. Xuan, W.; Odelius, K.; Hakkarainen, M. Tailoring Oligomeric Plasticizers for Polylactide through Structural Control. ACS Omega 2022, 7, 14305–14316. [Google Scholar] [CrossRef] [PubMed]
  12. López-Rodríguez, N.; Sarasua, J.R. Plasticization of Poly-L-lactide with L-lactide, D-lactide, and D,L-lactide monomers. Polym. Engineer. Sci. 2013, 53, 2073–2080. [Google Scholar] [CrossRef]
  13. Lee, H.J.; Jeong, B. ROS-Sensitive Degradable PEG-PCL-PEG Micellar Thermogel. Small 2020, 16, 1903045. [Google Scholar] [CrossRef] [PubMed]
  14. Dethe, M.R.; Prabakaran, A.; Ahmed, H.; Agrawal, M.; Roy, U.; Alexander, A. PCL-PEG copolymer based injectable thermosensitive hydrogels. J. Control Release 2022, 343, 217–236. [Google Scholar] [CrossRef] [PubMed]
  15. Hwang, J.-J.; Huang, S.-M.; Lin, W.-Y.; Liu, H.-J.; Chuang, C.-C.; Chiu, W.-H. The Synthesis of Biodegradable Poly(L-Lactic Acid)-Polyethylene Glycols Copolymer/Montmorillonite Nanocomposites and Analysis of the Crystallization Properties. Minerals 2022, 12, 14. [Google Scholar] [CrossRef]
  16. Kutikov, A.B.; Song, J. Biodegradable PEG-Based Amphiphilic Block Copolymers for Tissue Engineering Applications. ACS Biomater. Sci. Eng. 2015, 1, 463–480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Ilyas, R.A.; Zuhri, M.Y.M.; Norrrahim, M.N.F.; Misenan, M.S.M.; Jenol, M.A.; Samsudin, S.A.; Nurazzi, N.M.; Asyraf, M.R.M.; Supian, A.B.M.; Bangar, S.P.; et al. Natural Fiber-Reinforced Polycaprolactone Green and Hybrid Biocomposites for Various Advanced Applications. Polymers 2022, 14, 182. [Google Scholar] [CrossRef] [PubMed]
  18. Han, L.-Y.; Wu, Y.-L.; Zhu, C.-Y.; Wu, C.-S.; Yang, C.-R. Improved Pharmacokinetics of Icariin (ICA) within Formulation of PEG-PLLA/PDLA-PNIPAM Polymeric Micelles. Pharmaceutics 2019, 11, 51. [Google Scholar] [CrossRef] [Green Version]
  19. Cokelaere, S.M.; Groen, W.M.G.A.C.; Plomp, S.G.M.; de Grauw, J.C.; van Midwoud, P.M.; Weinans, H.H.; van de Lest, C.H.A.; Tryfonidou, M.A.; van Weeren, P.R.; Korthagen, N.M. Sustained Intra-Articular Release and Biocompatibility of Tacrolimus (FK506) Loaded Monospheres Composed of [PDLA-PEG1000]-b-[PLLA] Multi-Block Copolymers in Healthy Horse Joints. Pharmaceutics 2021, 13, 1438. [Google Scholar] [CrossRef]
  20. Shimanouchi, T.; Iwamura, M.; Deguchi, S.; Kimura, Y. Fibril Growth Behavior of Amyloid β on Polymer-Based Planar Membranes: Implications for the Entanglement and Hydration of Polymers. Appl. Sci. 2021, 11, 4408. [Google Scholar] [CrossRef]
  21. Pan, L.; Yang, J.; Xu, L. Preparation and Characterization of Simvastatin-Loaded PCL/PEG Nanofiber Membranes for Drug Sustained Release. Molecules 2022, 27, 7158. [Google Scholar] [CrossRef]
  22. Wu, D.T.; Munguia-Lopez, J.G.; Cho, Y.W.; Ma, X.; Song, V.; Zhu, Z.; Tran, S.D. Polymeric Scaffolds for Dental, Oral, and Craniofacial Regenerative Medicine. Molecules 2021, 26, 7043. [Google Scholar] [CrossRef] [PubMed]
  23. Shen, B.; Lu, S.; Sun, C.; Song, Z.; Zhang, F.; Kang, J.; Cao, Y.; Xiang, M. Effects of Amino Hyperbranched Polymer-Modified Carbon Nanotubes on the Crystallization Behavior of Poly (L-Lactic Acid) (PLLA). Polymers 2022, 14, 2188. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, P.; Huang, X.; Pan, X.; Li, N.; Zhu, J.; Zhu, X. Hyperbranched Polycaprolactone through RAFT Polymerization of 2-Methylene-1,3-dioxepane. Polymers 2019, 11, 318. [Google Scholar] [CrossRef] [Green Version]
  25. Peng, Q.; Cheng, J.; Lu, S.; Li, Y. Electrospun hyperbranched polylactic acid–modified cellulose nanocrystals/polylactic acid for shape memory membranes with high mechanical properties. Polym. Adv. Technol. 2020, 31, 15–24. [Google Scholar] [CrossRef]
  26. Christodoulou, E.; Notopoulou, M.; Nakiou, E.; Kostoglou, M.; Barmpalexis, P.; Bikiaris, D.N. Branched Poly(ε-caprolactone)-Based Copolyesters of Different Architectures and Their Use in the Preparation of Anticancer Drug-Loaded Nanoparticles. Int. J. Mol. Sci. 2022, 23, 15393. [Google Scholar] [CrossRef] [PubMed]
  27. Fang, F.; Niu, D.; Xu, P.; Liu, T.; Yang, W.; Wang, Z.; Li, X.; Ma, P. A Quantitative Study on Branching Density Dependent Behavior of Polylactide Melt Strength. Macromol. Rapid Commun. 2023, 44, e2200858. [Google Scholar] [CrossRef]
  28. Nim, B.; Rahayu, S.S.; Thananukul, K.; Eang, C.; Opaprakasit, M.; Petchsuk, A.; Kaewsaneha, C.; Polpanich, D.; Opaprakasit, P. Sizing down and functionalizing polylactide (PLA) resin for synthesis of PLA-based polyurethanes for use in biomedical applications. Sci. Rep. 2023, 13, 2284. [Google Scholar] [CrossRef]
  29. Zamboulis, A.; Nakiou, E.A.; Christodoulou, E.; Bikiaris, D.N.; Kontonasaki, E.; Liverani, L.; Boccaccini, A.R. Polyglycerol Hyperbranched Polyesters: Synthesis, Properties and Pharmaceutical and Biomedical Applications. Int. J. Mol. Sci. 2019, 20, 6210. [Google Scholar] [CrossRef] [Green Version]
  30. Shen, B.; Xu, Y.; Zhang, Y.; Xie, Z.; Zhang, F.; Kang, J.; Cao, Y.; Xiang, M. Effects of Different End Functional Groups Hyperbranched Polymers-Modified Carbon Nanotubes on the Crystallization and Mechanical Properties of Poly(l-lactic acid) (PLLA). ACS Omega 2022, 7, 42939–42948. [Google Scholar] [CrossRef]
  31. Zhang, X.; Dai, Y.; Dai, G. Advances in amphiphilic hyperbranched copolymers with an aliphatic hyperbranched 2,2-bis(methylol)propionic acid-based polyester core. Polym. Chem. 2020, 11, 964–973. [Google Scholar] [CrossRef]
  32. Prabaharan, M.; Grailer, J.J.; Pilla, S.; Steeber, D.; Gong, S. Folate- conjugated amphiphilic hyperbranched block copolymers based on Boltorn H40, poly(l-lactide) and poly(ethylene glycol) for tumor-targeted drug delivery. Biomaterials 2009, 30, 3009–3019. [Google Scholar] [CrossRef]
  33. Perše, L.S.; Huskić, M. Rheological characterization of multiarm star copolymers. Eur. Polym. J. 2016, 76, 188–195. [Google Scholar] [CrossRef]
  34. Hawker, C.J.; Lee, R.; Fréchet, J.M.J. One-Step Synthesis of Hyperbranched Dendritic Polyesters. J. Am. Chem. Soc. 1991, 113, 4583–4588. [Google Scholar] [CrossRef]
  35. Korake, S.; Shaikh, A.; Salve, R.; Gajbhiye, K.R.; Gajbhiye, V.; Pawar, A. Biodegradable dendritic BoltornTM nanoconstructs: A promising avenue for cancer theranostics. Int. J. Pharm. 2021, 594, 120177. [Google Scholar] [CrossRef]
  36. Istratov, V.V.; Krupina, T.V.; Gomzyak, V.I.; Vasnev, V.A. Development and characterization of bioresorbable polyglycerol esters and drug-loaded microparticles. High Perf. Polym. 2017, 29, 708–715. [Google Scholar] [CrossRef]
  37. Di Martino, A.; Trusova, M.E.; Postnikov, P.S.; Sedlarik, V. Branched poly (lactic acid) microparticles for enhancing the 5-aminolevulinic acid phototoxicity. J. Photochem. Photobiol. B. 2018, 181, 80–88. [Google Scholar] [CrossRef]
  38. Hadar, J.; Skidmore, S.; Garner, J.; Park, H.; Park, K.; Wang, Y.; Qin, B.; Jiang, X. Characterization of branched poly(lactide-co-glycolide) polymers used in injectable, long-acting formulations. J. Control Release 2019, 304, 75–89. [Google Scholar] [CrossRef] [PubMed]
  39. Žagar, E.; Žigon, M. Characterization of a Commercial Hyperbranched Aliphatic Polyester Based on 2,2-Bis(methylol) propionic Acid. Macromolecules 2002, 35, 9913–9925. [Google Scholar] [CrossRef]
  40. Kricheldorf, H.R.; Kreiser-Saunders, I.; Boettcher, C. Polylactones: Sn(II)octoate-initiated polymerization of L-lactide: A mechanistic study. Polymer 1995, 36, 1253–1259. [Google Scholar] [CrossRef]
  41. Zhao, X.; Li, J.; Liu, J.; Zhou, W.; Peng, S. Recent progress of preparation of branched poly(lactic acid) and its application in the modification of polylactic acid materials. Int. J. Biol. Macromol. 2021, 193 Pt A, 874–892. [Google Scholar] [CrossRef]
  42. Kowalski, A.; Duda, A.; Penczek, S. Kinetics and Mechanism of Cyclic Esters Polymerization Initiated with Tin(II) Octoate. 3. Polymerization of l,l-Dilactide. Macromolecules 2000, 33, 7359–7370. [Google Scholar] [CrossRef]
  43. Bednarek, M. Branched aliphatic polyesters by ring-opening (co)polymerization. Prog. Polym. Sci. 2016, 58, 27–58. [Google Scholar] [CrossRef]
  44. Smet, M.; Gottschalk, C.; Skaria, S.; Frey, H. Aliphatic Hyperbranched Copolyesters by Combination of ROP and AB2-Polycondensation. Macromol. Chem. Phys. 2005, 206, 2421–2428. [Google Scholar] [CrossRef]
  45. Gottschalk, C.; Frey, H. Hyperbranched Polylactide Copolymers. Macromolecules 2006, 39, 1719–1723. [Google Scholar] [CrossRef]
  46. Armarego, W.L.F.; Li, C.; Chai, L. (Eds.) Purification of Laboratory Chemicals, 5th ed.; Butterworth Heinemann: Amsterdam, The Netherlands, 2003. [Google Scholar] [CrossRef]
  47. Istratov, V.V.; Polezhaev, A.V. Branched copolylactides: The effect of the synthesis method on their properties. J. Phys. Conf. Ser. 2021, 1990, 012046. [Google Scholar] [CrossRef]
  48. Siengalewicz, P.; Mulzer, J.; Rinner, U. Synthesis of Esters and Lactones. In Comprehensive Organic Synthesis, 2nd ed.; Knochel, P., Ed.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 355–410. ISBN 9780080977430. [Google Scholar] [CrossRef]
  49. Heller, S.T.; Sarpong, R. On the reactivity of imidazole carbamates and ureas and their use as esterification and amidation reagents. Tetrahedron 2011, 67, 8851–8859. [Google Scholar] [CrossRef]
  50. Bell, C.L.; Peppas, N.A. Measurement of the swelling force in ionic polymer networks. III. Swelling force of interpolymer complexes. J. Control. Release 1995, 37, 277–280. [Google Scholar] [CrossRef]
  51. Zhou, Z.H.; Liu, X.P.; Liu, L.H. Synthesis of Ultra-high Weight Average Molecular Mass of Poly-L-lactide. Int. J. Polym. Mater. 2008, 57, 532–542. [Google Scholar] [CrossRef]
  52. Huh, K.M.; Bae, Y.H. Synthesis and characterization of poly(ethylene glycol)/poly(l-lactic acid) alternating multiblock copolymers. Polymer 1999, 40, 6147–6155. [Google Scholar] [CrossRef]
  53. Chieng, B.W.; Ibrahim, N.A.; Yunus, W.M.Z.W.; Hussein, M.Z. Poly(lactic acid)/Poly(ethylene glycol) Polymer Nanocomposites: Effects of Graphene Nanoplatelets. Polymers 2014, 6, 93–104. [Google Scholar] [CrossRef] [Green Version]
  54. Schliecker, G.; Schmidt, C.; Fuchs, S.; Wombacher, R.; Kissel, T. Hydrolytic degradation of poly(lactide-co-glycolide) films: Effect of oligomers on degradation rate and crystallinity. Int. J. Pharmaceut. 2003, 266, 39–49. [Google Scholar] [CrossRef] [PubMed]
  55. Albano, C.; González, G.; Palacios, J.; Karam, A.; Castillo, R.V.; Covis, M. Characterization of poly l-lactide/hydroxyapatite composite:chemical, thermal and thermomechanical properties. Rev. Fac. Ing. Univ. Cent. Venez. 2013, 28, 97–108. [Google Scholar]
  56. Ferri, J.; Jordá, J.; Montanes, N.; Fenollar, O.; Balart, R. Manufacturing and characterization of poly(lactic acid) composites with hydroxyapatite. J. Thermoplast. Compos. Mater. 2017, 31, 865–881. [Google Scholar] [CrossRef] [Green Version]
  57. Kesenci, K.; Fambri, L.; Migliaresi, C.; Piskin, E. Preparation and properties of poly(L-lactide)/hydroxyapatite composites. J. Biomater. Sci. Polym. Ed. 2000, 11, 617–632. [Google Scholar] [CrossRef]
  58. Chieng, B.W.; Ibrahim, N.A.; Then, Y.Y.; Loo, Y.Y. Epoxidized Vegetable Oils Plasticized Poly(lactic acid) Biocomposites: Mechanical, Thermal and Morphology Properties. Molecules 2014, 19, 16024–16038. [Google Scholar] [CrossRef] [Green Version]
  59. Ji, L.; Gong, M.; Qiao, W.; Zhang, W.; Liu, Q.; Dunham, R.E.; Gu, J. A gelatin/PLA-b-PEG film of excellent gas barrier and mechanical properties. J. Polym. Res. 2018, 25, 210. [Google Scholar] [CrossRef]
  60. Bai, H.; Huang, C.; Xiu, H.; Gao, Y.; Zhang, Q.; Fu, Q. Toughening of poly(l-lactide) with poly(ε-caprolactone): Combined effects of matrix crystallization and impact modifier particle size. Polymer 2013, 54, 5257–5266. [Google Scholar] [CrossRef]
  61. Lin, Y.; Zhang, K.-Y.; Dong, Z.-M.; Dong, L.-S.; Li, Y.-S. Study of Hydrogen-Bonded Blend of Polylactide with Biodegradable Hyperbranched Poly(ester amide). Macromolecules 2007, 40, 6257–6267. [Google Scholar] [CrossRef]
  62. Zhang, H.; Lu, X.; Leng, Y.; Fang, L.; Qu, S.; Feng, B.; Fang, L.; Qu, S.; Feng, B.; Weng, J.; et al. Molecular dynamics simulations on the interaction between polymers and hydroxyapatite with and without coupling agents. Acta Biomater. 2009, 5, 1169–1181. [Google Scholar] [CrossRef] [PubMed]
  63. Ganeles, J.; Zöllner, A.; Jackowski, J.; Bruggenkate, C.T.; Beagle, J.; Guerra, F. Immediate and Early Loading of Straumann Implants With a Chemically Modified Surface (SLActive) in the Posterior Mandible and Maxilla: 1-Year Results from a Prospective Multicenter Study. Clin. Oral Implant. Res. 2008, 19, 1119–1128. [Google Scholar] [CrossRef] [PubMed]
  64. Rani, V.D.; Vinoth-Kumar, L.; Anitha, V.; Manzoor, K.; Deepthy, M.; Shantikumar, V.N. Osteointegration of Titanium Implant Is Sensitive to Specific Nanostructure Morphology. Acta Biomater. 2012, 8, 1976–1989. [Google Scholar] [CrossRef]
  65. Hu, X.; Liu, S.; Zhou, G.; Huang, Y.; Xie, Z.; Jing, X. Electrospinning of polymeric nanofibers for drug delivery applications. J. Control. Release 2014, 185, 12–21. [Google Scholar] [CrossRef] [PubMed]
  66. Trofimchuk, E.S.; Moskvina, M.A.; Nikonorova, N.I.; Efimov, A.V.; Garina, E.S.; Grokhovskaya, T.E.; Ivanova, O.A.; Bakirov, A.V.; Sedush, N.G.; Chvalun, S.N. Hydrolytic degradation of polylactide films deformed by the environmental crazing mechanism. Eur. Polym. J. 2020, 139, 110000. [Google Scholar] [CrossRef]
  67. Behera, K.; Sivanjineyulu, V.; Chang, Y.-H.; Chiu, F.-C. Thermal properties, phase morphology and stability of biodegradable PLA/PBSL/HAp composites. Polym. Degrad. Stabil. 2018, 154, 248–260. [Google Scholar] [CrossRef]
  68. Scoponi, G.; Francini, N.; Paradiso, V.; Donno, R.; Gennari, A.; d’Arcy, R.; Capacchione, C.; Athanassiou, A.; Tirelli, N. Versatile Preparation of Branched Polylactides by Low-Temperature, Organocatalytic Ring-Opening Polymerization in N-Methylpyrrolidone and Their Surface Degradation Behavior. Macromolecules 2021, 54, 9482–9495. [Google Scholar] [CrossRef]

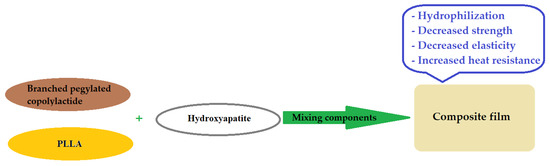

Figure 1. The preparation and development of properties of polylactide composite materials filled with hydroxyapatite.
Figure 1. The preparation and development of properties of polylactide composite materials filled with hydroxyapatite.
Polymers 15 01315 g001

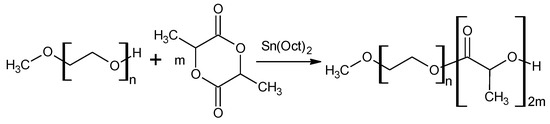

Scheme 1. Synthesis of linear copolylactide.
Scheme 1. Synthesis of linear copolylactide.
Polymers 15 01315 sch001

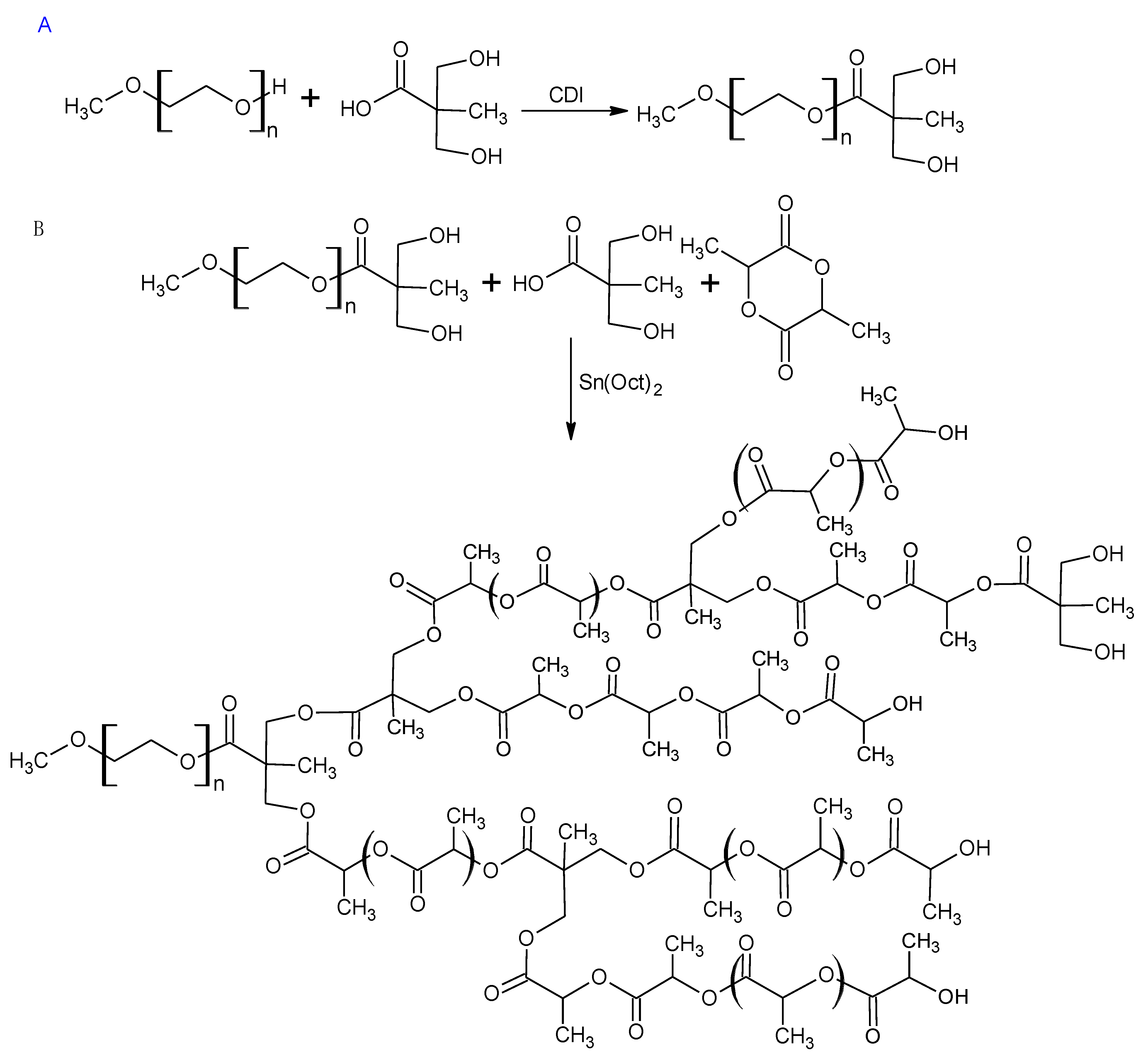

Scheme 2. Synthesis of pegylated branched copolylactides: esterification of BHP upon interaction with MPEG (A); polymerization of L-lactide in the presence of BHP and BHP ester with MPEG (B).
Scheme 2. Synthesis of pegylated branched copolylactides: esterification of BHP upon interaction with MPEG (A); polymerization of L-lactide in the presence of BHP and BHP ester with MPEG (B).
Polymers 15 01315 sch002

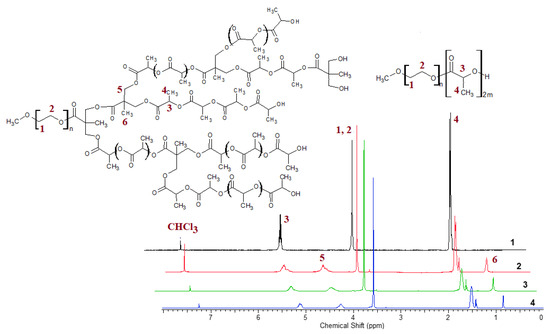

Figure 2. 1H NMR spectra of synthesized polymers. The indices at the spectra correspond to the designations of the polymers in Table 1.
Figure 2. 1H NMR spectra of synthesized polymers. The indices at the spectra correspond to the designations of the polymers in Table 1.
Polymers 15 01315 g002

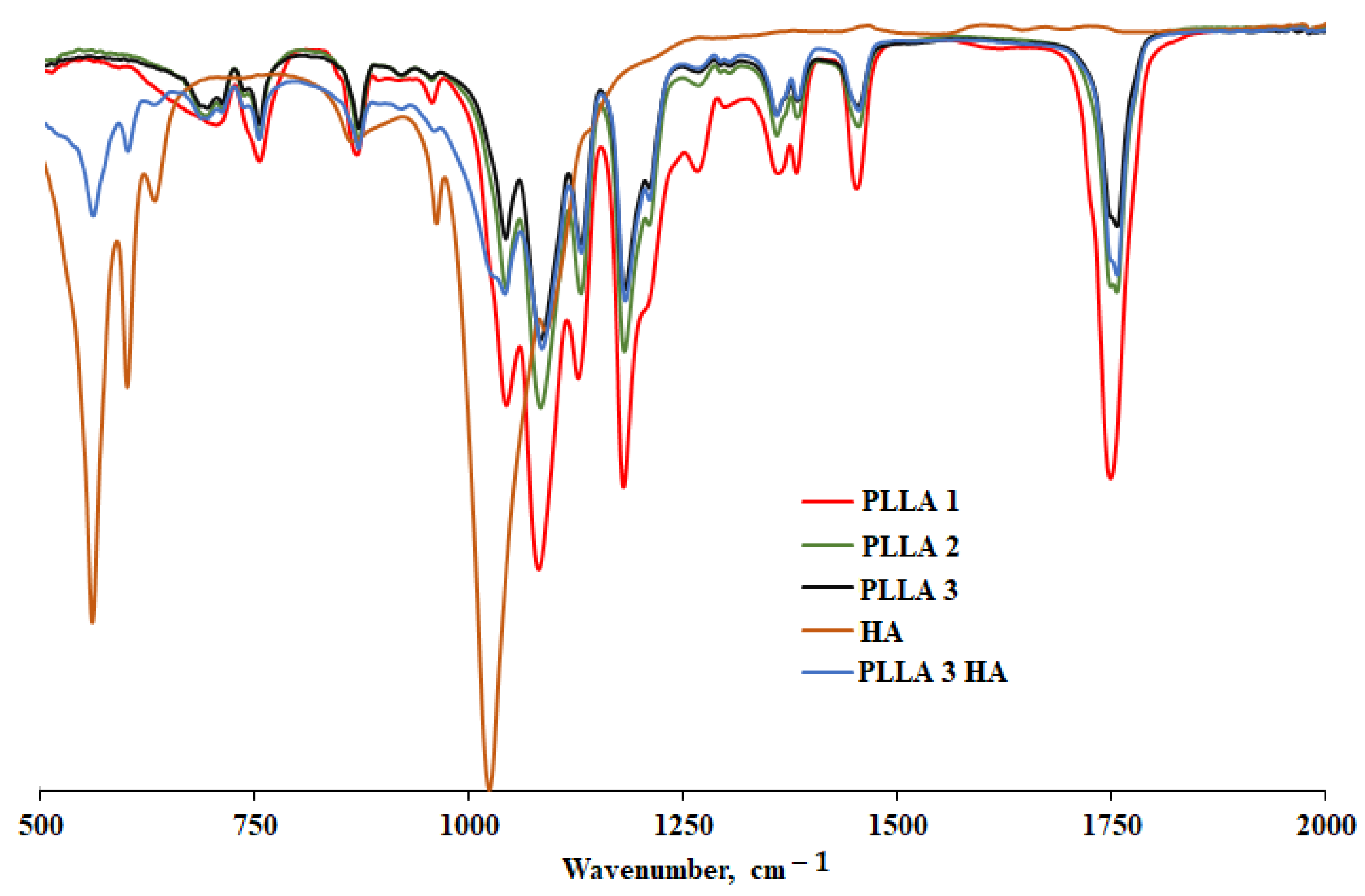

Figure 3. IR spectra of unfilled and hydroxyapatite-filled copolylactide films.
Figure 3. IR spectra of unfilled and hydroxyapatite-filled copolylactide films.
Polymers 15 01315 g003

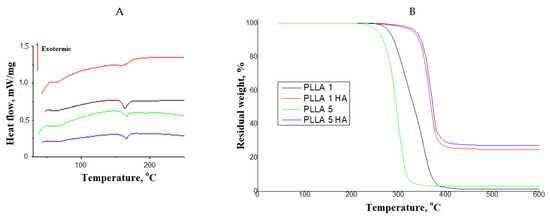

Figure 4. Representative thermal analysis data for composite samples: DSC curves (A) and TGA curves (B).
Figure 4. Representative thermal analysis data for composite samples: DSC curves (A) and TGA curves (B).
Polymers 15 01315 g004

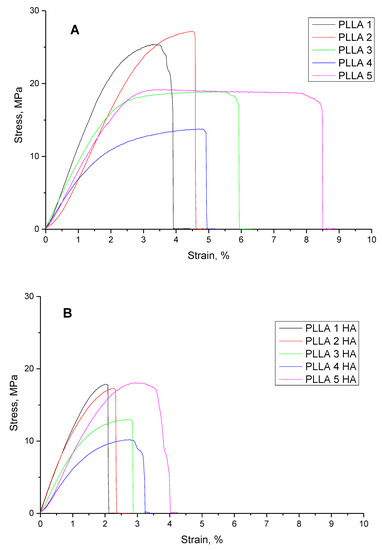

Figure 5. Tensile test curves for PLLA films without (A) and with (B) addition of 20 wt% of hydroxyapatite.
Figure 5. Tensile test curves for PLLA films without (A) and with (B) addition of 20 wt% of hydroxyapatite.
Polymers 15 01315 g005
Figure 6. SEM of a polymer matrix (sample PLLA5)—(A) and a composite obtained by filling of the matrix with hydroxyapatite (sample PLLA 5 HA)—(B).
Figure 6. SEM of a polymer matrix (sample PLLA5)—(A) and a composite obtained by filling of the matrix with hydroxyapatite (sample PLLA 5 HA)—(B).
Polymers 15 01315 g006

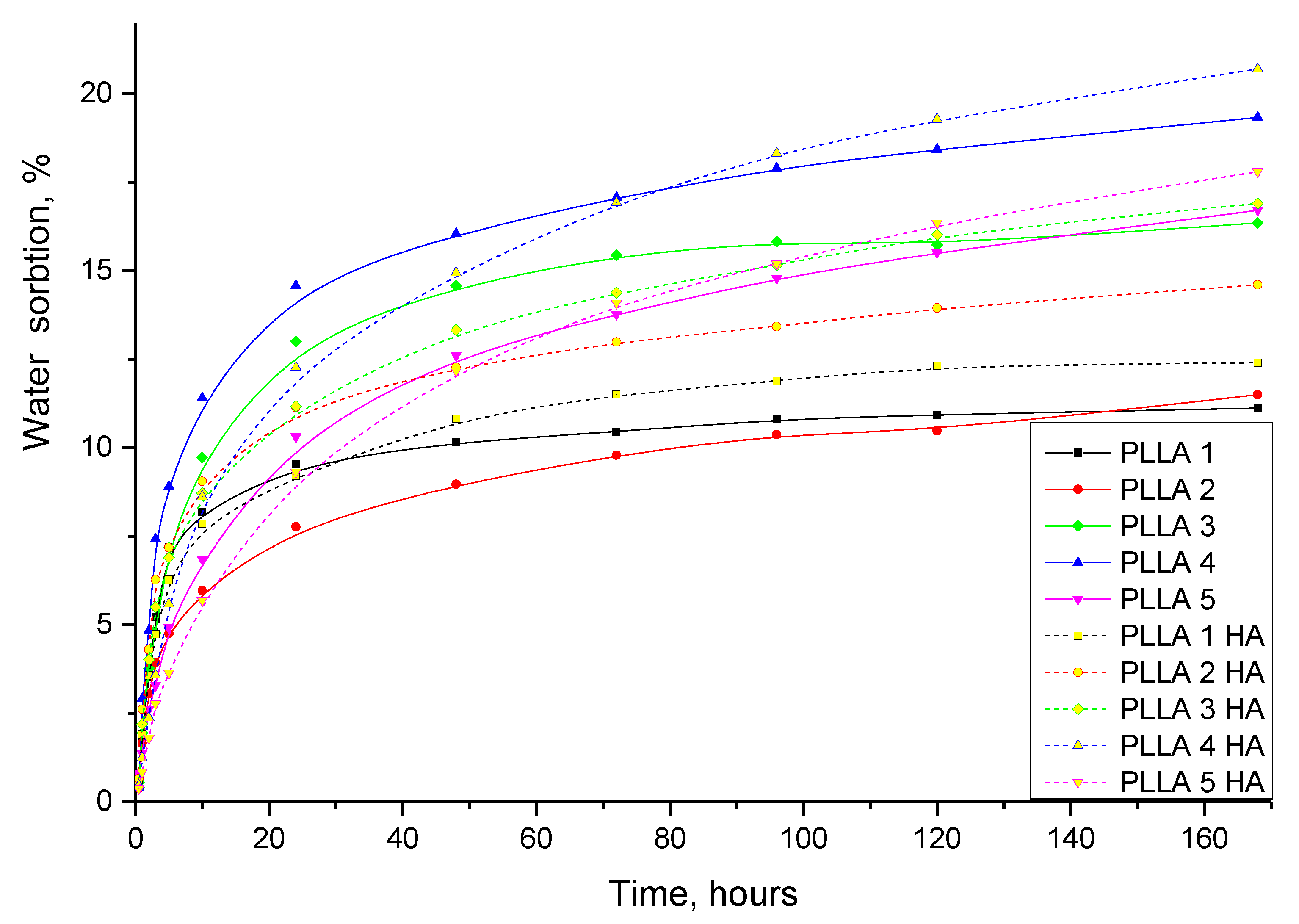

Figure 7. Kinetic curves for water absorption by different PLLA film samples.
Figure 7. Kinetic curves for water absorption by different PLLA film samples.
Polymers 15 01315 g007
Table 1. Molecular parameters for PEG-co-PLLA copolylactides (BHP was used in an equimolar amount with respect to PEG units).
Table 1. Molecular parameters for PEG-co-PLLA copolylactides (BHP was used in an equimolar amount with respect to PEG units).
Copoly-LactidePEG MnYieldPEG/PLLA UnitsMn *Mn **Mw/Mn **
CalculatedMeasured *
*—Obtained from 1H NMR spectra of the polymers; **—Obtained by GPC.
Table 2. Characteristics of polymer materials used.
Table 2. Characteristics of polymer materials used.
Copolylactide 145.348.746.8.153.6
Copolylactide 245.147.646.2154.0
Copolylactide 345.439.738.4148.5
Copolylactide 452.157.954.7158.0
Table 3. Thermal properties of PLLA films.
Table 3. Thermal properties of PLLA films.
SampleCopolylactideComposition (%)Tg (°C)Tm (°C)T5% (°C)Tdeg (°C)Residual Mass (%)
PLLACopo Lylac TideHA
PLLA 1-1000061.2164.2279.3361.42.1
PLLA 2Copolylactide 19010059.8166.4280.7295.31.9
PLLA 3Copolylactide 29010056.2165.1254.1299.12.2
PLLA 4Copolylactide 39010060.3166.7257.2307.52.7
PLLA 5Copolylactide 49010060.7165.3255.8314.73.1
PLLA 1 HA-8002064.3158.8330.5368.124.8
PLLA 2 HACopolylactide 17282064.4163.0350.8360.225.2
PLLA 3 HACopolylactide 27282063.4162.3332.4365.627.7
PLLA 4 HACopolylactide 37282059.1163.7332.7364.326.2
PLLA 5 HACopolylactide 47282063.1165.8336.6369.727.4
Table 4. Properties of composite polyester materials: tensile modulus (Et), elongation at break (εb), tensile strength (MPa) (σb), and water contact angle (WCA) on different PLLA substrates.
Table 4. Properties of composite polyester materials: tensile modulus (Et), elongation at break (εb), tensile strength (MPa) (σb), and water contact angle (WCA) on different PLLA substrates.
SampleEt (MPa)εb (%)σb (MPa)WCA (°)
PLLA 11290.84.325.493.3
PLLA 21076.15.127.476.8
PLLA 3951.16.018.971.9
PLLA 4672.35.413.988.5
PLLA 5897.08.919.186.6
PLLA 1 HA1295.02.417.975.9
PLLA 2 HA1116.22.717.371.5
PLLA 3 HA798.53.313.075.8
PLLA 4 HA691.
PLLA 5 HA1042.45.918.166.4
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Istratov, V.; Gomzyak, V.; Vasnev, V.; Baranov, O.V.; Mezhuev, Y.; Gritskova, I. Branched Amphiphilic Polylactides as a Polymer Matrix Component for Biodegradable Implants. Polymers 2023, 15, 1315.

AMA Style

Istratov V, Gomzyak V, Vasnev V, Baranov OV, Mezhuev Y, Gritskova I. Branched Amphiphilic Polylactides as a Polymer Matrix Component for Biodegradable Implants. Polymers. 2023; 15(5):1315.

Chicago/Turabian Style

Istratov, Vladislav, Vitaliy Gomzyak, Valerii Vasnev, Oleg V. Baranov, Yaroslav Mezhuev, and Inessa Gritskova. 2023. "Branched Amphiphilic Polylactides as a Polymer Matrix Component for Biodegradable Implants" Polymers 15, no. 5: 1315.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
