Recent Advances in Poly(Ionic Liquid)-Based Membranes for CO2 Separation

LEPABE, Department of Chemical Engineering, University of Porto, 4200-465 Porto, Portugal
Associate Laboratory in Chemical Engineering–ALiCE, Faculty of Engineering, University of Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
Author to whom correspondence should be addressed.
Polymers 2023, 15(3), 667;
Submission received: 16 November 2022 / Revised: 13 December 2022 / Accepted: 26 January 2023 / Published: 28 January 2023
(This article belongs to the Special Issue Advances in Polymerized Ionic Liquids and Their Composites)


Poly(ionic liquid)-based membranes have been the subject of intensive research in the last 15 years due to their potential for the separation of CO2 from other gases. In this short review, different types of PIL-based membranes for CO2 separation are described (neat PIL membranes; PIL-IL composite membranes; PIL-polymer blend membranes; PIL-based block copolymer membranes, and PIL-based mixed matrix membranes), and their state-of-the-art separation results for different gas pairs (CO2/N2, CO2/H2, and CO2/CH4) are presented and discussed. This review article is focused on the most relevant research works performed over the last 5 years, that is, since the year 2017 onwards, in the field of poly(ionic liquid)-based membranes for CO2 separation. The micro- and nano-morphological characterization of the membranes is highlighted as a research topic that requires deeper study and understanding. Nowadays there is an array of advanced structural characterization techniques, such as neutron scattering techniques with contrast variation (using selective deuteration), that can be used to probe the micro- and nanostructure of membranes, in length scales ranging from ~1 nm to ~15 μm. Although some of these techniques have been used to study the morphology of PIL-based membranes for electrochemical applications, their use in the study of PIL-based membranes for CO2 separation is still unknown.

1. Introduction

The anthropogenic emission of greenhouse gases, such as CO2, to the atmosphere has been considered responsible for the accelerated global warming of our planet and, consequently, a serious threat to the future of mankind [1]. Most of the anthropogenic carbon dioxide emissions result from the burning of fossil fuels like coal, natural gas, and oil. The Paris United Nations agreement for Climate in 2015 [2] highlighted the importance of reducing CO2 emissions from fossil fuel combustion. There are currently several carbon capture and storage (CCS) technologies being developed to control CO2 emissions in an efficient and economical way. These major CCS approaches can be applied to pre-combustion [3,4], post-combustion [3,5], and oxyfuel combustion [3,6].
Pre-combustion capture [4] involves CO2 removal before combustion, and takes place in three stages: (i) the hydrocarbon fuel (methane, or gasified coal) is converted primarily into H2 and CO (synthesis gas); (ii) synthesis gas is converted into CO2 and H2 rich streams by the water gas shift reaction; and (iii) CO2 is separated from H2 and then it can be compressed into liquid and transported to a storage site. Post-combustion capture [5] involves separating CO2 from the exhaust gases (flue gas) created by burning fossil fuels. The flue gas consists mostly of N2 and CO2. The post-combustion CO2 separation techniques may involve cryogenic separation, amines solvent-based absorption, and membrane separation. Currently, the chemical absorption of CO2 by aqueous amine solutions occupies 90% of the market for CO2 separation [7]. A major drawback of a typical amine-based CO2 absorption system is that it requires being heated up to ~120 °C to release the captured CO2 and regenerate the amine solvent. This high temperature regeneration process makes the technology very energy intensive [8]. The oxyfuel combustion [6] consists in burning the fuel with nearly pure oxygen instead of air. However, as the amount of oxygen required in oxyfuel combustion is significantly larger than in pre-combustion, the CO2 capture costs are higher.
There is a need to develop technological solutions for carbon capture and storage that are simpler to operate, more environmentally friendly, and more energy efficient, and in this context membrane separation technology is the most promising option. There are several different types of membranes currently being studied for the separation of CO2 from different gas streams (CO2/N2, CO2/CH4, CO2/H2), and these include polymeric membranes [9], carbon molecular sieve membranes [10,11,12,13,14], and poly(ionic liquids) (PIL) membranes [15,16,17,18].
Membranes for CO2 separation based on poly(ionic liquids) (PIL), also named polymerized ionic liquids, were first reported in 2007 by Bara et al. [19]. PIL membranes are obtained by polymerizing ionic liquid (IL) monomers, or crosslinking polymer chains containing IL-based functional groups, forming a charged macromolecular architecture. PIL membranes combine the advantages of polymers, namely improvement of the mechanical stability and durability of the membrane, and the advantages of ILs, namely the ability to tailor the chemical and physical properties of the membrane. PILs often exhibit a significantly higher CO2 uptake capacity than their corresponding IL monomers [20,21]. Different types of PIL-based membranes have been investigated: (i) neat PIL membranes; (ii) PIL-IL blend membranes; (iii) PIL copolymer membranes; and (iv) PIL-IL-inorganic particle mixed matrix membranes.
Neat PIL membranes, due to their compact, solid nature, typically present low gas diffusivities and permeabilities, and selectivities well below the Robeson Upper Bound. Additionally, they are usually very brittle and difficult to process into free standing films, requiring the use of expensive rigid and porous supports. Despite many studies being performed that addressed different PIL polycation structures and functionalization, it became evident that neat PIL membranes cannot achieve the gas separation performances needed to be technologically competitive. This intrinsic limitation of neat PIL membranes has stimulated the research on other types of PIL-based membranes [15,16,17].
PIL-IL composite membranes are produced by blending PIL with ILs. The addition of free ILs into PIL membranes can increase drastically the CO2 permeability of PIL-IL membranes [22], and the membrane properties can be tuned with respect to the IL content to guarantee high CO2 permeabilities without compromising the mechanical stability that is provided by the PIL. These membranes are very stable and can withstand large pressure gradients without leaching, because the Coulombic attraction between PIL and free ILs largely outweighs the external pressure [17]. The gas permeation properties of the free ILs largely affect the CO2 separation performance of the composite membranes, and therefore the appropriate choice of an IL is crucial in tuning the PIL-IL membrane performance for CO2 separation.
The gas transport in poly(ionic liquid) membranes obeys the sorption-diffusion mechanism, and the gas permeation through a membrane involves three consecutive steps: (1) gas molecules dissolve into the membrane at the high-pressure side; (2) gas molecules diffuse through the membrane under the concentration gradient across the membrane; (3) gas molecules desorb at the low-pressure side of the membrane. Therefore, the permeability (P) can be explained as being equal to the product of gas diffusivity (D) and sorption (S) in the membrane, i.e., P = D·S. The membrane ideal permeability selectivity (αi/j), permselectivity, is the ratio of permeabilities (Pi/Pj) of two permeating species (i and j) and can also be represented as the product of diffusivity selectivity (Di/Dj) and sorption selectivity (Si/Sj) [23].
α i / j = P i P j = D i D j × S i S j
PIL membranes for CO2 separation should have both a high permeability to CO2 and a low permeability to the other gases X of the component mixture, i.e., they should have a high selectivity to CO2/X mixtures. A higher permeability to CO2 decreases the area of membrane needed to separate a certain amount of gas mixture, and a higher selectivity produces CO2 with higher purity, both contributing to a reduction in the capital cost of the purification process. In 1991, Robeson showed that in polymeric membranes for gas separation there is a trade-off relationship between permeability and selectivity, as selectivity tends to decrease when the permeability increases [24]. In the case of polymeric membranes, this relationship is described by the so-called Robeson upper-bound, which is a straight line with a negative slope in the log-log plot of selectivity versus permeability of the more permeable gas. Later, in 2008, Robeson revised the upper bound for several gas mixtures based on newly available experimental data [25]. More recently, Araújo et al. [26] proposed a new figure of merit, the Robeson Index (θ), to characterize the separation performance of membranes. The Robeson Index is the ratio between the actual selectivity value αi,j and the one corresponding to the Robeson upper bound (αi,j (RUB)), both for a given permeability:
θ = α i , j α i , j   R U B
The permeability to CO2 in poly(ionic liquid) membranes is usually much higher than the permeability to other gases such as H2, N2, and CH4. These are CO2-selective membranes, that can permeate CO2 and retain other gases and impurities. Furthermore, the sorption-diffusion gas transport mechanism in PIL-based membranes can be facilitated by a CO2-selective transport mechanism, as shown in Figure 1. In this mechanism, complexation reactions between CO2 and CO2 carriers increase the transport of CO2 through the membrane. By contrast, other non-reacting gases (such as H2, N2, CO, and CH4) do not experience such a transport enhancement, being transported mostly by the simple sorption-diffusion mechanism. This results in a significantly improved permeability of the membrane to CO2, with high selectivities towards H2, N2, CO, and CH4 [27].
In this article, we review the most relevant studies of PIL-based membranes, targeting their application in the purification of CO2 and performed within the last 5 years (from 2017 onwards). As a benchmark for performance improvements, in Figure 2 we compare the performances reported in these last 5 years with those reported in a very comprehensive review by Marrucho et al. [15] published in 2016. The gas separation performances of PIL-based membranes for different gas pairs (CO2/N2, CO2/H2, and CO2/CH4) are also shown in Table 1.

2. Recent Studies

2.1. Neat PIL Membranes

In 2017, Nikolaeva et al. [28] synthesized three novel PILs based on polyvinylbenzyl chloride (PVBC): P[VBTMA][Tf2N], P[VBHEDMA][Tf2N], and P[VBMP][Tf2N]. CO2 sorption experiments have shown that CO2 has a 5 times higher solubility selectivity to P[VBHEDMA][Tf2N] than to the two other PILs. These three PILs were used to fabricate thin-film membranes (average thickness of 2–6 μm) on top of porous polyimide supports and tested for their CO2 removal from synthetic flue gas. Membranes based on P[VBHEDMA][Tf2N] exhibited the highest mixed-gas selectivity (α(CO2/N2) = 41), but lowest CO2 permeability (PCO2 = 349 barrer). Scanning electron microscopy (SEM) analysis, has shown that the PIL-support interface was sharp and clear in the membranes based on P[VBTMA][Tf2N] and P[VBMP][Tf2N], but diffuse on membranes based on P[VBHEDMA][Tf2N]. A diffuse interface may indicate penetration of the PIL into the pores of the support, which can reduce the flux through the membrane. Importantly, humidity in the feed gas was shown to increase the flux through the membranes. Later, in 2018, the same research group synthesized [29] a cellulose-acetate (CA)-based poly(ionic liquid) by modification of cellulose acetate with pyrrolidinium cations through alkylation of butyl chloride, substituting the OH groups in the polymer backbone, followed by anion exchange to bis(trifluoromethylsulfonyl)imide, P[CA][Tf2N]. PIL membranes based on the neat P[CA][Tf2N] exhibited a pure gas permeability to CO2 (PCO2) of 8.9 barrer and a perm-selectivity α(CO2/N2) of 26.8; this separation performance, however, was worse than that of the original CA membrane (PCO2 = 13.8 and α(CO2/N2) = 39.5). However, under mixed gas conditions, membranes based on P[CA][Tf2N] exhibited a higher permeability to CO2 than membranes based on the original CA.
More recently, Yin et al. [30] synthesized neat, crosslinked poly(ionic liquids) (PILs) and studied the effects of the PIL Mw, crosslinker type, and the mass ratio of PIL:crosslinker on the gas separation performances of the corresponding membranes. Both the use of an ether-containing crosslinker and an increase in the crosslinker content, improved the CO2 solubility and diffusivity, with the best neat PILs membrane, named LP(1:2), exhibiting a PCO2 of 170 barrer and a CO2/N2 permselectivity of 36. This membrane was fully amorphous, as determined by XRD. Semi-crystalline neat-PIL membranes, named LT, exhibited a much poorer permeability and permselectivity than other membranes.

2.2. PIL-IL Composite Membranes

The group of Tomé and Marrucho at the University of Lisbon, in Portugal, has been particularly active and has contributed significantly to this field of PIL-IL composite membranes for CO2 separation [31,32,33,34,35,36]. In 2017, Tomé et al. [31] prepared, by solvent casting, four different homogeneous and stable PIL-IL composite membranes based on two pyrrolidinium-based PILs, and two siloxane-functionalized ILs: two membranes of poly([Pyr11][NTf2]) blended with 40 and 60 wt% of [(SiOSi)C1mim][NTf2], and two membranes of poly([Pyr11][C(CN)3]) blended with 40 and 60 wt% of [(SiOSi)C1mim][C(CN)3]. The permeability results obtained demonstrated that the incorporation of siloxane-based ILs into PILs increases the membrane permeability to CO2 (PCO2) as well as the CO2/N2 permselectivity. However, the CO2/CH4 permselectivity is not significantly increased. For the same amount of IL, the membranes containing the [NTf2] anion exhibit higher permeabilities to CO2 than membranes containing the [C(CN)3] anion. However, membranes containing the [C(CN)3] anion display higher CO2/N2 permselectivities. No structural or morphological studies of these composite membranes were reported.
Later, 42 PIL-IL composite membrane combinations, prepared by the simple solvent casting technique, were tested by Teodoro et al. [32]. The PIL comprised a pyrrolidinium polycation backbone ([Pyr11]+) and cyano-functionalized anions ([N(CN)2], [C(CN)3], or [B(CN)4]), and also an [NTf2] anion was tested as a reference. The 5 ILs comprised either an imidazolium ([C2mim]+) or a pyrrolidinium ([Pyr14]+) based cation, and the same four anions used in the PILs, where for each system the IL anion was always different from the PIL anion. Among all the combinations tested, only 21 produced membranes that were free standing and macroscopically homogeneous, and these were all tested for their gas separation performances. The performance of four of these membranes (PIL N(CN)2–60 IL C(CN)3, PIL B(CN)4–60 IL C(CN)3, PIL C(CN)3–40 IL N(CN)2, and PIL C(CN)3–60 IL B(CN)4) were close to, or surpassed, the 2008 Robeson upper bound for CO2/N2 separation. While the CO2 and N2 permeability in these PIL-IL membranes was found to be mainly controlled by gas diffusivity, the CO2/N2 permselectivity was found to be controlled by the gas solubility. The study of the micro- and nano-morphologies of the membranes was not reported.
Tomé et al. [33] studied the effect of the PIL molecular weight (namely high Mw (average 400–500 kDa), medium Mw (average 200–350 kDa), and low Mw (average < 100 kDa)), on the physical and gas permeation properties of PIL-IL composite membranes based on pyrrolidinium-based PILs, having [C(CN)3] as the counter-anion and different amounts (20, 40, and 60 wt%) of free [C2mim][C(CN)3] IL. Free standing PIL-IL membranes could only be obtained with high and medium Mw PIL. PIL-IL membranes based on the medium Mw PIL exhibited higher CO2 permeabilities (14.6–542 barrer) than those based on the high Mw PIL (8.0–439 barrer). The membrane permeability to CO2, and the CO2/N2 permselectivity, both increased with the addition of IL. The performance value reported for the CO2/N2 separation with the medium Mw membrane with 60 wt% of IL (PCO2 = 542 barrer and α(CO2/N2) = 54.0) is the best reported in these last 5 years for this membrane type. No morphological studies of the membranes have been reported.
Gouveia et al. [34] prepared, by solvent casting, free-standing PIL-IL membranes using two pyrrolidinium-based PILs: poly([Pyr11][C(CN)3]) and poly([Pyr11][NTf2]). The poly([Pyr11][C(CN)3]) was blended with 40 and 60 wt% of [C2mim][C(CN)3] IL. The poly([Pyr11][NTf2]) was mixed with 40 and 60 wt% of [C4mpyr][NTf2] IL and with 40 wt% of ([C2mim][NTf2]). The CO2 and H2 permeabilities were measured at 20 °C and 35 °C under a transmembrane pressure differential of 100 kPa. The membrane with the best separation performance was based on poly([Pyr11][C(CN)3]) blended with 60 wt% of [C2mim][C(CN)3] IL, and achieved a PCO2 = 438 barrer and α(CO2/H2) = 15.1 at 20 °C, and a PCO2 = 505 barrer and α(CO2/H2) = 12.5 at 35 °C. The study of the membrane’s morphology was not reported. More recently, the same authors tested [35] the permeability of free-standing membranes similar to these, at five different temperatures (20, 35, 50, 65, and 80 °C) and using a multicomponent gas mixture with composition: 57.1 vol% of H2, 40 vol% of CO2, and 2.9 vol% of N2, at a total feed pressure of 1 bar. The same trend of gas permeabilities PCO2 > PH2 > PN2 was obtained for all the membranes, like in the previous single gas experiments. Also, similarly to the results previously obtained in single gas testing [34], the membrane with the best separation performance was again based on poly([Pyr11][C(CN)3]) blended with 60 wt% of [C2mim][C(CN)3] IL. This membrane achieved a PCO2 = 325 barrer and α(CO2/H2) = 11.4 at 35 °C and a feed pressure of 1 bar.
Gouveia et al. [36] synthesized three PILs by an ion exchange reaction between poly(diallyldimethylammonium) chloride and salts with anions bis(fluorosulfonyl)amide ([FSI]), (trifluoromethyl)sulfonyl-N-cyanoamide ([TFSAM]), and (trifluoromethyl)sulfonyl-N-trifluoroacetamide ([TSAC]). Composite PIL-IL membranes were prepared by solvent casting with these PILs and different amounts (20 wt% and 40 wt%) of ionic liquids (ILs) based on a 1-methyl-3-ethylimidazolium ([C2mim]+) cation and the same anion as the respective PIL ([C2mim][FSI], [C2mim][TFSAM] and [C2mim][TSAC]). The best membrane for CO2/H2 separation was based on PIL FSI−40 IL FSI, and exhibited PCO2 = 201 barrer and α(CO2/H2) = 8.9. No structural studies were reported.
Four novel anionic poly(IL)-IL composite membranes were synthesized by Kammakakam et al. [37] using photopolymerization. Two types of photopolymerizable methacryloxy-based IL monomers (MIL-CF3 and MIL-C7H7) were synthesized and photopolymerized with two distinct amounts of free IL (0.5 equiv and 1 equiv) containing the same cation ([C2mim][Tf2N]) and 20 wt% PEGDA cross-linker. The best separation performance for the three different gas separations: CO2/H2, CO2/N2, and CO2/CH4, was attained with the membrane (MIL-C7H7/PEGDA(20%)/IL(1 equiv.)), namely, PCO2 = 20.4 barrer and α(CO2/H2) ~ 4.1, α(CO2/N2) ~ 87, and α(CO2/CH4) ~ 119. Wide-Angle X-ray Diffraction (WAXD) of the membranes revealed that they were mostly amorphous as no sharp peaks could be observed. The main halo observed in the four membranes was used to determine the interchain spacing using the Bragg equation, and the largest d-spacing of 6.63 Å was obtained for the best performing membrane.
In a continuation of previously reported work, Yin et al. [30] prepared crosslinked PIL-IL composite membranes and studied the effect of the PIL Mw, crosslinker type, and mass ratio of PIL:crosslinker on the gas separation performance of the resulting membranes. The optimized membrane achieved a PCO2 of 2070 barrer and a CO2/N2 permselectivity of 24.6.
In 2021, Vijayakumar et al. [38] synthesized the poly(ionic liquid) 1-bromohexyl-1 methylpiperidinium bromide (Br-6-MPRD) grafted poly(2,6 dimethyl 1,4 phenylene oxide) (ILPPO). Then free-standing PIL/IL composite membranes were made by mixing the PIL with different amounts of free Br-6-MPRD (0, 2, 5, and 10 wt%), and these membranes are named (ILPPO/Br-6-MPRD-X, where X = 2, 5, 10). Permeability measurements showed that the permeability to CO2 (PCO2) increased significantly from 69.58 barrer in the neat ILPPO membrane, to 907.20 barrer in the PIL/IL composite membrane with 2 wt% of IL. However, further increases in the IL content led to a drastic reduction in the permeability to CO2—this drastic reduction was attributed to a space-filling effect. SEM was used to study the cross-section of the membranes and all of them looked very homogeneous with no visible phase domains.

2.3. PIL-Polymer Blend Membranes

In 2017, Zhang et al. [39] synthesized a series of semi-interpenetrating polymer network (semi-IPN) membranes by incorporating linear polyvinyl acetate (PVAc) into a cross-linked poly (ionic liquid) (c-PIL) network. For the preparation of PVAc/c-PIL semi-IPN membranes, films were first cast from a solution containing appropriate amounts of PVAc and PIL, and a cross-linker and photo-initiator. Then the cast films were placed under a UV-lamp to promote the cross-linking, and finally the cross-linked PVAc/c-PIL membranes were dried in a vacuum oven. For reference, similar uncross-linked membranes with linear PIL (l-PIL) were prepared by the same procedure, just lacking the cross-linker and photo-initiator (membranes PVAc/l-PIL). A structural analysis of the cross-section of the membranes was made using SEM (magnification between ×500 and ×10,000). While the pure c-PIL membrane exhibited no visible morphological structure (Figure 3e), a microscale morphology, with an average domain size of 2 μm, of the minor phase was observed in the PVAc/c-PIL membranes with 30 and 60 wt% c-PIL (Figure 3b,d), respectively. Furthermore, an interconnected co-continuous microstructure of two phases was observed in the PVAc/c-PIL membranes with 50 wt% c-PIL (Figure 3c). By contrast, the uncross-linked membranes (PVAc/l-PIL) exhibited a significant macroscopic phase separation for l-PIL contents above 10 wt%. The permeability of the PVAc/c-PIL semi-IPN membranes to CO2 (PCO2) and to N2 (PN2) was shown to increase with the amount of c-PIL in the membranes. The membrane reached its best permeability (PCO2) of 36.1 barrer and permselectivity (CO2/N2) of 59.6, when the c-PIL content was 50 wt%. For c-PIL contents above 60 wt% the PVAc/c-PIL semi-IPN membrane was very brittle and could not be tested. The performance of the PVAc/c-PIL-50 semi-IPN membrane was also studied at different temperatures, and the permeability to CO2 increased with increasing temperature, while the CO2/N2 permselectivity decreased.

2.4. PIL-Based Block Copolymer Membranes

Nellepalli et al. [40] synthesized a series of imidazolium-based homo-PILs and copolymer-PILs, having different side chain groups (ethyl, pentyl, benzyl, and naphthyl) at the imidazolium ring. The membrane forming ability of these homo-PILs and copolymer-PILs was tested both in their neat state and when mixed with different amounts of free [C2mim][NTf2] IL. Among all the tested combinations, only three originated stable and homogeneous free standing solid membranes: (i) poly(ViPenIm)(Sty) NTf2 with 10 wt% of IL; (ii) poly(ViBenIm)(Sty) NTf2 with 25 wt% of IL; and (iii) poly(ViNapIm)(Sty) NTf2 with 30 wt% of IL. These three membranes, with IL contents of 10 wt%, 25 wt%, and 30 wt%, exhibited permeabilities to CO2 (PCO2) of 21.6, 16.5 and 24.5 barrer, respectively, and CO2/N2 selectivities of 31.7, 32.9 and 34.4, respectively. The anomalous variation of PCO2 with the amount of the IL content was hypothesized as being due to specific structural features of the copolymers—however no structural characterization was performed to elucidate this. The selectivities observed were attributed to the much higher solubility of CO2 in the membranes relative to N2. The difference in the chemical structures of the co-PILs did not significantly affect the performance of the membranes.
In 2021, Wang et al. [41] compared membranes based on the synthesized block copolymer-grafted SiO2 particle brush SiO2-g-PMMA-b-PIL, with membranes based on the homopolymer SiO2-g-PIL. The mechanical and permeability tests demonstrated that by introducing a PMMA segment on a PIL-based block copolymer membrane, the mechanical properties of the membrane can be improved without compromising its gas separation performance.
Very recently, the block copolymers [NBM-mIM][Tf2N] and [NBM-ImCnmIm] [Tf2N]2 (n = 4 and 6) were synthesized by Ravula et al. [42], and then they were cast into thin membranes and tested for their permeability to several pure gases (CO2, N2, CH4, and H2). However, all the prepared membranes displayed very modest permeabilities to CO2. The cross-sections of the membranes were studied by SEM. The membranes were also subjected to WAXD analysis, that revealed their essentially amorphous nature.

2.5. PIL-Based Mixed Matrix Membranes (MMM)

PIL-based mixed matrix membranes (MMMs) combine the benefits of both polymeric PILs and inorganic materials, and they have gained a special interest in the research community over the last few years as a strategy to circumvent the performance trade-off shown by polymeric membranes.
Supported MMMs, based on the mixture “curable PIL/SAPO-34 zeolite/ionic liquid [EMIM][Tf2N]”, with different weight ratios of each component, were studied and reported by Dunn et al. in 2019 [43]. The cross-sections of the membranes were analyzed by SEM: no visible voids were detected. The best performing membrane was composed of 64 wt% PIL, 16 wt% SAPO-34, and 20 wt% [EMIM][Tf2N], and achieved a PCO2 of 47 barrer and a CO2/CH4 selectivity of 42.
In 2019, Nabais et al. [44] reported the preparation of mixed matrix membranes (MMMs) based on the pyrrolidinium-based PIL Poly[Pyr11][Tf2N], the IL [C4mpyr][Tf2N], and with three different concentrations (10, 20, and 30 wt%) of three different and highly CO2 selective metal organic frameworks (MOFs), namely MIL-53(Al), Cu3(BTC)2, and ZIF-8. Overall, nine different MMMs were prepared (three different MOFs, each in three different concentrations), and the gas separation performances of these were compared to a membrane without MOF. The results obtained showed that the permeability of the membranes to CO2 increased with the addition of MOFs, particularly for the two higher loadings (20 and 30 wt%), and the selectivity α(CO2/H2) also increased with the addition of MOFs. Among the different types of MOFs, ZIF-8 promoted the highest CO2 permeability (97.2 barrer, with 30 wt% loading), and MIL-53 the highest CO2/H2 permselectivity (13.3, with 30 wt% loading). The nanostructures of these membranes were not studied.
More recently, MMMs based on 60 wt% of poly([Pyr11][Tf2N]) and 40 wt% [C2mim][BETI] IL were prepared with different loadings of MOF-5 (between 10 and 30 wt% of the total mass) and were tested for their CO2/CH4 separation performance by Sampaio et al. [45]. The CO2 single gas permeabilities of the prepared membranes are shown in Table 1 as a function of the MOF-5 loading. Although PCO2 increased with the loading of MOF-5, all the performances were well below the Robeson upper bound limit. Furthermore, the addition of MOF-5 originated brittle membranes. SEM images of the cross-sections of the membranes revealed dense morphologies and a uniform dispersion of the MOF into the PIL/IL matrix on a micrometer length scale.
In 2020, Nikolaeva et al. [46] prepared PIL-IL-inorganic particle mixed matrix membranes by blending the PIL poly(diallyldimethyl ammonium) bis(trifluoromethylsulfonyl)imide (P[DADMA][Tf2N]) with the IL N-butyl-N-methyl pyrrolidinium bis(trifluoromethylsulfonyl)imide ([Pyrr14][Tf2N]) and with zinc di-bis(trifluoromethylsulfonyl)imide (Zn[Tf2N]2). Two different mixed matrix membranes PIL/IL/Zn[Tf2N]2 were prepared with weight ratios of 9:6:1 (P9IL6Zn1) and 9:6:9 (P9IL6Zn9), and the gas separation performance of these was compared with the performance of neat PIL membranes (P9IL0Zn0) and composite PIL/IL membranes (P9IL6Zn0). The P9IL6Zn0 membrane achieved the best performance for CO2/N2 separation. No structural studies were reported.

3. Advanced Structural Characterization of PIL-Based Membranes

Structural and morphological studies of PIL-based membranes for CO2 separation have been so far very much limited to the use of some relatively common techniques such as SEM [28,29,38,39,42,44,46] and TEM [41], as well as some WAXS [37,42], with their associated limitations. Furthermore, the reports on the use of small angle X-ray scattering (SAXS) are also still very scarce [38].
Electrons and X-rays interact with atomic electrons, meaning that the greatest contrast is obtained between elements with significantly different atomic numbers. Therefore, in PIL-IL composites the contrast between different phases—as observed using electron microscopy or X-ray scattering techniques—may be weak due to the small difference in scattering length density between the different phases containing atoms with similar atomic numbers. In this sense, neutron scattering can be used as a technique complementary to X-ray scattering, because neutrons interact with the atomic nucleus and the neutron−nucleus interaction can be very different between nuclei of similar atomic numbers. Therefore, the X-ray and neutron scattering profiles can be very different and provide complementary information. Furthermore, whereas X-ray scattering of a system typically produces only one scattering profile of the total structure, neutron scattering using selective isotopic substitutions (isotopes just differ in their nucleus) can produce many different neutron scattering profiles that highlight different atoms, leading to a more complete picture of the total structure, this latter approach, where H and D atoms are replaced, being termed selective deuteration.
Contrary to the structure of PILs for CO2 separation membranes, the micro and nanostructures of PILs has been previously studied in greater detail for some other applications, such as for electrochemical applications. An array of techniques has been used in those studies, including a combination of molecular dynamics (MD) simulations, X-ray scattering (WAXS and SAXS), and neutron scattering (SANS), besides some other more common techniques such as electron microscopy (SEM and TEM). These studies are briefly reviewed below.
The Paddison group has developed important work on elucidating the nanomorphologies of PILs for electrochemical applications [47,48,49]. In 2016, using atomistic molecular dynamics (MD) simulations this group investigated the structural properties of a homologous series of poly(nalkyl-vinylimidzolium bistrifluoromethylsulfonylimide) poly-(nVim Tf2N) [47]. The backbone-to-backbone distance, and the size of the nonpolar nanodomains, were shown to increase with the alkyl chain length at a rate of 1 Å/CH2. Excellent agreement was obtained between the MD simulations and the results from the X-ray scattering experiments. The alkyl chain length dependence of backbone-to-backbone distance on the complete homologous series of PIL poly(CnVim Tf2N) (n = 2–8), was later studied by the same group [48], using extensive atomistic MD simulations. Excellent agreement was once again observed between the atomistic simulations and the experimental X-ray scattering results, and the backbone-to-backbone correlation length was once again shown to increase with the alkyl chain length. In another similar work performed by the same group [49], atomistic simulations revealed a progressive change in the nanoscale morphology of imidazolium-based PILs with increasing alkyl chain length: discrete apolar islands form initially inside the continuous polar network and then grow beyond the percolation threshold, finally forming a bi-continuous nanostructure of polar and apolar domains. These complex 3D networks were considered very important for the ionic conductivity.
Doughty et al. [50], using WAXS in conjugation with DFT calculations, have shown that the size of the mobile anions has a large impact on chain packing in PILs. A well-packed structure is formed in the presence of larger mobile ions, while smaller ions frustrate the packing of PILs chains.
Very recently, Corvo et al. [51] studied the nanostructure of poly(1-vinyl-3-alkylimidazolium)s in the bulk, with varying alkyl side-chain lengths (n from n = 1 to n = 10) and counter-anions, using WAXS and SANS (small-angle neutron scattering). The WAXS patterns of bulk PIL features three peaks in the Q range 0.1 Å−1 < Q < 2.5 Å−1, as shown in Figure 4a. The low-Q peak (<0.5 Å−1) is assigned to the distance between two neighboring macromolecular chains, and when the alkyl chain length increases it sharpens, becomes more intense, and shifts to lower-Q values (higher distance between macromolecular chains). The intermediate peak shows a very small dependence on the alkyl side-chain length and is attributed to the correlation length of the counter-anion network. The higher-Q peak is ascribed to close contact between alkyl side chains inside the alkyl domain. Modelling of the SANS data, shown in Figure 4c,d, allowed the determination of the influence of the alkyl chain length on the radius of gyration Rg, on the chain cross section and on the backbone-to-backbone distance. The backbone-to-backbone distance exhibited a non-monotonic variation with n, as side-chains tend to interpenetrate as their length increases.
SANS, supported by MD simulations and SAXS, has also been used in recent years to study the bulk-phase structure of ionic liquid mixtures [52,53,54]. Using the isotopic contrast variation technique, it was determined that the structure of these ionic liquid mixtures changes substantially as a function of composition. Evidence has been emerging in recent years that points to the existence of an enhanced level of structural complexity in IL-based systems [54], that results in hierarchical complex morphologies that play a role in the bulk properties of the systems (be it membranes, or others).
Despite all these advanced characterization studies performed on elucidating the nanostructure of PIL-based membranes for electrochemical applications, as well as elucidating the structure of ionic liquid mixtures, similar detailed morphological studies performed on PIL-based membranes for CO2 separation are still missing in the literature. As far as we know, neutron scattering techniques with contrast variation, such as small angle neutron scattering (SANS) and Spin-Echo-SANS (SESANS), have still not been used to study the micro and nanostructures of PIL-based membranes for CO2 separation.
SANS probes the ~1–300 nm length scales, albeit in reciprocal space, whereas SESANS probes the 50 nm–15 μm length scale range [55,56]. Several studies have explored polymer systems such as colloids [57] and fibrous calcium caseinate gels [58]. However, it is only recently that new instrumentation at large facilities [59], and straightforward analysis techniques, have emerged for structural determination [60]. There also exist possibilities to use this technique to look at the kinetics [61], and a similar approach could be undertaken to look at the kinetics of film formation.
It is our belief that the design of PIL-based membranes for CO2 separation would greatly benefit from a better micro, nano, and molecular level understanding of micro- and nano-structure-performance relationships, which is still clearly missing. Relating the micro- and nano-structural features of the PIL-based membranes, to the understanding of their CO2 separation performances, remains therefore an open question up to now. Probing in more detail the structure of PIL-based membranes for CO2 separation will require the synergic use of advanced experimental (X-ray and neutron scattering) and computational tools.

4. Conclusions

PIL-based membranes have been studied for the separation of CO2 from gas mixtures. Among the different CO2 separations considered, namely CO2/CH4, CO2/H2, and CO2/N2, PIL-based membranes demonstrate more promising results in the separation of CO2 from N2. The best performing PIL-based membranes for CO2/N2 separation developed at laboratory scale in the last 5 years, exhibited a permeability of 542 barrer and a selectivity of 54, which is slightly above the 2008 Robeson upper bound.
The very high number of possible combinations of cations and anions creates the expectation of the large potential of this technology for CO2 separation. However, there seems to exist still a very large margin for further development. One particular aspect that requires much research improvement is related to the relationship between the microstructure and nanostructure of the PIL-based composite membranes, and their corresponding separation performances—this relationship is still poorly understood. In fact, studies regarding the relationship between PIL-based membranes’ nanostructure morphologies and their gas separation properties are still very scarce in the literature. The nanostructured morphologies are likely to impact on the transport properties, as well as on the mechanical properties of the membranes. To achieve this understanding, the micro- and nanostructures of the composite membranes should be studied with greater detail, using a battery of X-ray and neutron scattering techniques combined with theoretical ab-initio and molecular dynamics simulations. Although these advanced characterization techniques have been used in studies of PIL-based membranes for electrochemical applications, their use in the study of PIL-based membranes for CO2 separation has still not been reported.

Author Contributions

Conceptualization, G.B.; investigation, G.B. and H.G.; data curation, G.B. and H.G.; writing—original draft preparation, G.B. and H.G.; writing—review and editing, G.B.; visualization, H.G. All authors have read and agreed to the published version of the manuscript.


G. Bernardo thanks the Portuguese Foundation for Science and Technology (FCT) for the financial support of his work contract through the Scientific Employment Stimulus Individual Call—(CEEC_IND/02039/2018). This work was financially supported by: LA/P/0045/2020 (ALiCE), UIDB/00511/2020 and UIDP/00511/2020 (LEPABE), funded by national funds through FCT/MCTES (PIDDAC); POCI-01-0247-FEDER-039926, funded by FEDER funds through COMPETE2020—Programa Operacional Competitividade e Internacionalização (POCI) and by national funds (PIDDAC) through FCT/MCTES.


G. Bernardo thanks Steven R. Parnell (Reactor Institute Delft, Pays-Bas) for useful discussions.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Al-Ghussain, L. Global warming: Review on driving forces and mitigation. Environ. Prog. Sustain. Energy 2019, 38, 13–21. [Google Scholar] [CrossRef] [Green Version]
  2. Popovski, V. The Implementation of the Paris Agreement on Climate Change (Law, Ethics and Governance); Routledge: Abingdon, UK, 2018. [Google Scholar]
  3. Kanniche, M.; Gros-Bonnivard, R.; Jaud, P.; Valle-Marcos, J.; Amann, J.M.; Bouallou, C. Pre-combustion, post-combustion and oxy-combustion in thermal power plant for CO2 capture. Appl. Therm. Eng. 2010, 30, 53–62. [Google Scholar] [CrossRef] [Green Version]
  4. Jansen, D.; Gazzani, M.; Manzolini, G.; van Dijk, E.; Carbo, M. Pre-combustion CO2 capture. Int. J. Greenh. Gas Control 2015, 40, 167–187. [Google Scholar] [CrossRef] [Green Version]
  5. Samanta, A.; Zhao, A.; Shimizu, G.K.H.; Sarkar, P.; Gupta, R. Post-Combustion CO2 Capture Using Solid Sorbents: A Review. Ind. Eng. Chem. Res. 2012, 51, 1438–1463. [Google Scholar] [CrossRef]
  6. Stanger, R.; Wall, T.; Spörl, R.; Paneru, M.; Grathwohl, S.; Weidmann, M.; Scheffknecht, G.; McDonald, D.; Myöhänen, K.; Ritvanen, J.; et al. Oxyfuel combustion for CO2 capture in power plants. Int. J. Greenh. Gas Control 2015, 40, 55–125. [Google Scholar] [CrossRef]
  7. Dai, Z.; Noble, R.D.; Gin, D.L.; Zhang, X.; Deng, L. Combination of ionic liquids with membrane technology: A new approach for CO2 separation. J. Membr. Sci. 2016, 497, 1–20. [Google Scholar] [CrossRef]
  8. Bernhardsen, I.M.; Knuutila, H.K. A review of potential amine solvents for CO2 absorption process: Absorption capacity, cyclic capacity and pKa. Int. J. Greenh. Gas Control 2017, 61, 27–48. [Google Scholar] [CrossRef]
  9. Han, Y.; Ho, W.S.W. Polymeric membranes for CO2 separation and capture. J. Membr. Sci. 2021, 628, 119244. [Google Scholar] [CrossRef]
  10. Hou, M.; Qi, W.; Li, L.; Xu, R.; Xue, J.; Zhang, Y.; Song, C.; Wang, T. Carbon molecular sieve membrane with tunable microstructure for CO2 separation: Effect of multiscale structures of polyimide precursors. J. Membr. Sci. 2021, 635, 119541. [Google Scholar] [CrossRef]
  11. Araújo, T.; Andrade, M.; Bernardo, G.; Mendes, A. Stable cellulose-based carbon molecular sieve membranes with very high selectivities. J. Membr. Sci. 2022, 641, 119852. [Google Scholar] [CrossRef]
  12. Haider, S.; Lindbråthen, A.; Lie, J.A.; Andersen, I.C.T.; Hägg, M.-B. CO2 separation with carbon membranes in high pressure and elevated temperature applications. Sep. Purif. Technol. 2017, 190, 177–189. [Google Scholar] [CrossRef] [Green Version]
  13. Bernardo, G.; Araújo, T.; Lopes, T.D.S.; Sousa, J.; Mendes, A. Recent advances in membrane technologies for hydrogen purification. Int. J. Hydrogen Energy 2020, 45, 7313–7338. [Google Scholar] [CrossRef]
  14. Lei, L.; Bai, L.; Lindbråthen, A.; Pan, F.; Zhang, X.; He, X. Carbon membranes for CO2 removal: Status and perspectives from materials to processes. Chem. Eng. J. 2020, 401, 126084. [Google Scholar] [CrossRef]
  15. Tomé, L.C.; Marrucho, I.M. Ionic liquid-based materials: A platform to design engineered CO2 separation membranes. Chem. Soc. Rev. 2016, 45, 2785–2824. [Google Scholar] [CrossRef]
  16. Gao, H.; Bai, L.; Han, J.; Yang, B.; Zhang, S.; Zhang, X. Functionalized ionic liquid membranes for CO2 separation. Chem. Commun. 2018, 54, 12671–12685. [Google Scholar] [CrossRef]
  17. Solangi, N.H.; Anjum, A.; Tanjung, F.A.; Mazari, S.A.; Mubarak, N.M. A review of recent trends and emerging perspectives of ionic liquid membranes for CO2 separation. J. Environ. Chem. Eng. 2021, 9, 105860. [Google Scholar] [CrossRef]
  18. Zhang, M.; Semiat, R.; He, X. Recent advances in Poly(ionic liquids) membranes for CO2 separation. Sep. Purif. Technol. 2022, 299, 121784. [Google Scholar] [CrossRef]
  19. Bara, J.E.; Lessmann, S.; Gabriel, C.J.; Hatakeyama, E.S.; Noble, R.D.; Gin, D.L. Synthesis and Performance of Polymerizable Room-Temperature Ionic Liquids as Gas Separation Membranes. Ind. Eng. Chem. Res. 2007, 46, 5397–5404. [Google Scholar] [CrossRef]
  20. Tang, J.; Sun, W.; Tang, H.; Radosz, M.; Shen, Y. Enhanced CO2 Absorption of Poly(ionic liquid)s. Macromolecules 2005, 38, 2037–2039. [Google Scholar] [CrossRef]
  21. Tang, J.; Tang, H.; Sun, W.; Radosz, M.; Shen, Y. Poly(ionic liquid)s as new materials for CO2 absorption. J. Polym. Sci. Part A Polym. Chem. 2005, 43, 5477–5489. [Google Scholar] [CrossRef]
  22. Bara, J.E.; Hatakeyama, E.S.; Gin, D.L.; Noble, R.D. Improving CO2 permeability in polymerized room-temperature ionic liquid gas separation membranes through the formation of a solid composite with a room-temperature ionic liquid. Polym. Adv. Technol. 2008, 19, 1415–1420. [Google Scholar] [CrossRef]
  23. Mulder, M. (Ed.) Transport in Membranes. In Basic Principles of Membrane Technology; Springer: Dordrecht, The Netherlands, 1996. [Google Scholar] [CrossRef]
  24. Robeson, L.M. Correlation of separation factor versus permeability for polymeric membranes. J. Membr. Sci. 1991, 62, 165–185. [Google Scholar] [CrossRef]
  25. Robeson, L.M. The upper bound revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
  26. Araújo, T.; Bernardo, G.; Mendes, A. Cellulose-Based Carbon Molecular Sieve Membranes for Gas Separation: A Review. Molecules 2020, 25, 3532. [Google Scholar] [CrossRef] [PubMed]
  27. Rodrigues, S.C.; Sousa, J.; Mendes, A. Chapter 13—Facilitated Transport Membranes for CO2/H2 Separation. In Current Trends and Future Developments on (Bio-) Membranes; Basile, A., Favvas, E.P., Eds.; Elsevier: Amsterdam, The Netherlands, 2018; pp. 359–384. [Google Scholar] [CrossRef]
  28. Nikolaeva, D.; Azcune, I.; Sheridan, E.; Sandru, M.; Genua, A.; Tanczyk, M.; Jaschik, M.; Warmuzinski, K.; Jansen, J.C.; Vankelecom, I.F.J. Poly(vinylbenzyl chloride)-based poly(ionic liquids) as membranes for CO2 capture from flue gas. J. Mater. Chem. A 2017, 5, 19808–19818. [Google Scholar] [CrossRef]
  29. Nikolaeva, D.; Azcune, I.; Tanczyk, M.; Warmuzinski, K.; Jaschik, M.; Sandru, M.; Dahl, P.I.; Genua, A.; Loïs, S.; Sheridan, E.; et al. The performance of affordable and stable cellulose-based poly-ionic membranes in CO2/N2 and CO2/CH4 gas separation. J. Membr. Sci. 2018, 564, 552–561. [Google Scholar] [CrossRef]
  30. Yin, J.; Zhang, C.; Yu, Y.; Hao, T.; Wang, H.; Ding, X.; Meng, J. Tuning the microstructure of crosslinked Poly(ionic liquid) membranes and gels via a multicomponent reaction for improved CO2 capture performance. J. Membr. Sci. 2020, 593, 117405. [Google Scholar] [CrossRef]
  31. Tomé, L.C.; Gouveia, A.S.L.; Ab Ranii, M.A.; Lickiss, P.D.; Welton, T.; Marrucho, I.M. Study on Gas Permeation and CO2 Separation through Ionic Liquid-Based Membranes with Siloxane-Functionalized Cations. Ind. Eng. Chem. Res. 2017, 56, 2229–2239. [Google Scholar] [CrossRef]
  32. Teodoro, R.M.; Tomé, L.C.; Mantione, D.; Mecerreyes, D.; Marrucho, I.M. Mixing poly(ionic liquid)s and ionic liquids with different cyano anions: Membrane forming ability and CO2/N2 separation properties. J. Membr. Sci. 2018, 552, 341–348. [Google Scholar] [CrossRef]
  33. Tomé, L.C.; Guerreiro, D.C.; Teodoro, R.M.; Alves, V.D.; Marrucho, I.M. Effect of polymer molecular weight on the physical properties and CO2/N2 separation of pyrrolidinium-based poly(ionic liquid) membranes. J. Membr. Sci. 2018, 549, 267–274. [Google Scholar] [CrossRef]
  34. Gouveia, A.S.L.; Ventaja, L.; Tomé, L.C.; Marrucho, I.M. Towards Biohydrogen Separation Using Poly(Ionic Liquid)/Ionic Liquid Composite Membranes. Membranes 2018, 8, 124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Gouveia, A.S.; Yáñez, M.; Alves, V.D.; Palomar, J.; Moya, C.; Gorri, D.; Tomé, L.C.; Marrucho, I.M. CO2/H2 separation through poly(ionic liquid)–ionic liquid membranes: The effect of multicomponent gas mixtures, temperature and gas feed pressure. Sep. Purif. Technol. 2021, 259, 118113. [Google Scholar] [CrossRef]
  36. Gouveia, A.S.L.; Malcaitè, E.; Lozinskaya, E.I.; Shaplov, A.S.; Tomé, L.C.; Marrucho, I.M. Poly(ionic liquid)–Ionic Liquid Membranes with Fluorosulfonyl-Derived Anions: Characterization and Biohydrogen Separation. ACS Sustain. Chem. Eng. 2020, 8, 7087–7096. [Google Scholar] [CrossRef]
  37. Kammakakam, I.; Bara, J.E.; Jackson, E.M.; Lertxundi, J.; Mecerreyes, D.; Tomé, L.C. Tailored CO2-Philic Anionic Poly(ionic liquid) Composite Membranes: Synthesis, Characterization, and Gas Transport Properties. ACS Sustain. Chem. Eng. 2020, 8, 5954–5965. [Google Scholar] [CrossRef]
  38. Vijayakumar, V.; Kim, J.H.; Nam, S.Y. Piperidinium functionalized poly(2,6 dimethyl 1,4 phenylene oxide) based polyionic liquid/ionic liquid (PIL/IL) composites for CO2 separation. J. Ind. Eng. Chem. 2021, 99, 81–89. [Google Scholar] [CrossRef]
  39. Zhang, C.; Zhang, W.; Gao, H.; Bai, Y.; Sun, Y.; Chen, Y. Synthesis and gas transport properties of poly(ionic liquid) based semi-interpenetrating polymer network membranes for CO2/N2 separation. J. Membr. Sci. 2017, 528, 72–81. [Google Scholar] [CrossRef]
  40. Nellepalli, P.; Tomé, L.C.; Vijayakrishna, K.; Marrucho, I.M. Imidazolium-Based Copoly(Ionic Liquid) Membranes for CO2/N2 Separation. Ind. Eng. Chem. Res. 2019, 58, 2017–2026. [Google Scholar] [CrossRef]
  41. Wang, Z.; Wang, Y.; Chen, J.; Arnould, M.; Popovs, I.; Mahurin, S.M.; Chen, H.; Wang, T.; Dai, S. Synthesis of Poly(ionic Liquid)s-block-poly(methyl Methacrylate) Copolymer-Grafted Silica Particle Brushes with Enhanced CO2 Permeability and Mechanical Performance. Langmuir 2021, 37, 10875–10881. [Google Scholar] [CrossRef]
  42. Ravula, S.; O’Harra, K.E.; Watson, K.A.; Bara, J.E. Poly(ionic liquid)s with Dicationic Pendants as Gas Separation Membranes. Membranes 2022, 12, 264. [Google Scholar] [CrossRef]
  43. Dunn, C.A.; Shi, Z.; Zhou, R.; Gin, D.L.; Noble, R.D. (Cross-Linked Poly(Ionic Liquid)–Ionic Liquid–Zeolite) Mixed-Matrix Membranes for CO2/CH4 Gas Separations Based on Curable Ionic Liquid Prepolymers. Ind. Eng. Chem. Res. 2019, 58, 4704–4708. [Google Scholar] [CrossRef]
  44. Nabais, A.R.; Martins, A.P.S.; Alves, V.D.; Crespo, J.G.; Marrucho, I.M.; Tomé, L.C.; Neves, L.A. Poly(ionic liquid)-based engineered mixed matrix membranes for CO2/H2 separation. Sep. Purif. Technol. 2019, 222, 168–176. [Google Scholar] [CrossRef]
  45. Sampaio, A.M.; Nabais, A.R.; Tomé, L.C.; Neves, L.A. Impact of MOF-5 on Pyrrolidinium-Based Poly(ionic liquid)/Ionic Liquid Membranes for Biogas Upgrading. Ind. Eng. Chem. Res. 2019, 59, 308–317. [Google Scholar] [CrossRef]
  46. Nikolaeva, D.; Loïs, S.; Dahl, P.I.; Sandru, M.; Jaschik, J.; Tanczyk, M.; Fuoco, A.; Jansen, J.C.; Vankelecom, I.F.J. Water Vapour Promotes CO2 Transport in Poly(ionic liquid)/Ionic Liquid-Based Thin-Film Composite Membranes Containing Zinc Salt for Flue Gas Treatment. Appl. Sci. 2020, 10, 3859. [Google Scholar] [CrossRef]
  47. Liu, H.; Paddison, S.J. Direct Comparison of Atomistic Molecular Dynamics Simulations and X-ray Scattering of Polymerized Ionic Liquids. ACS Macro Lett. 2016, 5, 537–543. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, H.; Paddison, S.J. Alkyl Chain Length Dependence of Backbone-to-Backbone Distance in Polymerized Ionic Liquids: An Atomistic Simulation Perspective on Scattering. Macromolecules 2017, 50, 2889–2895. [Google Scholar] [CrossRef]
  49. Iacob, C.; Matsumoto, A.; Brennan, M.; Liu, H.; Paddison, S.J.; Urakawa, O.; Inoue, T.; Sangoro, J.; Runt, J. Polymerized Ionic Liquids: Correlation of Ionic Conductivity with Nanoscale Morphology and Counterion Volume. ACS Macro Lett. 2017, 6, 941–946. [Google Scholar] [CrossRef] [PubMed]
  50. Doughty, B.; Genix, A.-C.; Popov, I.; Li, B.; Zhao, S.; Saito, T.; Lutterman, D.A.; Sacci, R.L.; Sumpter, B.G.; Wojnarowska, Z.; et al. Structural correlations tailor conductive properties in polymerized ionic liquids. Phys. Chem. Chem. Phys. 2019, 21, 14775–14785. [Google Scholar] [CrossRef]
  51. Corvo, T.O.; Jourdain, A.; O’Brien, S.; Restagno, F.; Drockenmuller, E.; Chennevière, A. Multiscale Structure of Poly(ionic liquid)s in Bulk and Solutions by Small-Angle Neutron Scattering. Macromolecules 2022, 55, 4111–4118. [Google Scholar] [CrossRef]
  52. Cabry, C.P.; D’Andrea, L.; Shimizu, K.; Grillo, I.; Li, P.; Rogers, S.; Bruce, D.W.; Canongia Lopes, J.N.; Slattery, J.M. Exploring the bulk-phase structure of ionic liquid mixtures using small-angle neutron scattering. Faraday Discuss. 2018, 206, 265–289. [Google Scholar] [CrossRef] [Green Version]
  53. Cabry, C.P.; D’Andrea, L.; Elstone, N.S.; Kirchhecker, S.; Riccobono, A.; Khazal, I.; Li, P.; Rogers, S.E.; Bruce, D.W.; Slattery, J.M. Small-angle neutron scattering from mixtures of long- and short-chain 3-alkyl-1-methyl imidazolium bistriflimides. Phys. Chem. Chem. Phys. 2022, 24, 15811–15823. [Google Scholar] [CrossRef] [PubMed]
  54. Russina, O.; Lo Celso, F.; Plechkova, N.V.; Triolo, A. Emerging Evidences of Mesoscopic-Scale Complexity in Neat Ionic Liquids and Their Mixtures. J. Phys. Chem. Lett. 2017, 8, 1197–1204. [Google Scholar] [CrossRef]
  55. Gaspar, H.; Teixeira, P.; Santos, R.; Fernandes, L.; Hilliou, L.; Weir, M.P.; Parnell, A.J.; Abrams, K.J.; Hill, C.J.; Bouwman, W.G.; et al. A Journey along the Extruder with Polystyrene:C60 Nanocomposites: Convergence of Feeding Formulations into a Similar Nanomorphology. Macromolecules 2017, 50, 3301–3312. [Google Scholar] [CrossRef]
  56. Gaspar, H.; Santos, R.; Teixeira, P.; Hilliou, L.; Weir, M.P.; Duif, C.P.; Bouwman, W.G.; Parnell, S.R.; King, S.M.; Covas, J.A.; et al. Evolution of dispersion in the melt compounding of a model polymer nanocomposite system: A multi-scale study. Polym. Test. 2019, 76, 109–118. [Google Scholar] [CrossRef]
  57. Parnell, S.R.; Washington, A.L.; Parnell, A.J.; Walsh, A.; Dalgliesh, R.M.; Li, F.; Hamilton, W.A.; Prevost, S.; Fairclough, J.P.A.; Pynn, R. Porosity of silica Stöber particles determined by spin-echo small angle neutron scattering. Soft Matter 2016, 12, 4709–4714. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Tian, B.; Wang, Z.; van der Goot, A.J.; Bouwman, W.G. Air bubbles in fibrous caseinate gels investigated by neutron refraction, X-ray tomography and refractive microscope. Food Hydrocoll. 2018, 83, 287–295. [Google Scholar] [CrossRef]
  59. Bouwman, W.G. Spin-echo small-angle neutron scattering for multiscale structure analysis of food materials. Food Struct. 2021, 30, 100235. [Google Scholar] [CrossRef]
  60. Bakker, J.H.; Washington, A.L.; Parnell, S.R.; van Well, A.A.; Pappas, C.; Bouwman, W.G. Analysis of SESANS data by numerical Hankel transform implementation in SasView. J. Neutron Res. 2020, 22, 57–70. [Google Scholar] [CrossRef]
  61. Bernardo, G.; Melle-Franco, M.; Washington, A.L.; Dalgliesh, R.M.; Li, F.; Mendes, A.; Parnell, S.R. Different agglomeration properties of PC61BM and PC71BM in photovoltaic inks—A spin-echo SANS study. RSC Adv. 2020, 10, 4512–4520. [Google Scholar] [CrossRef]

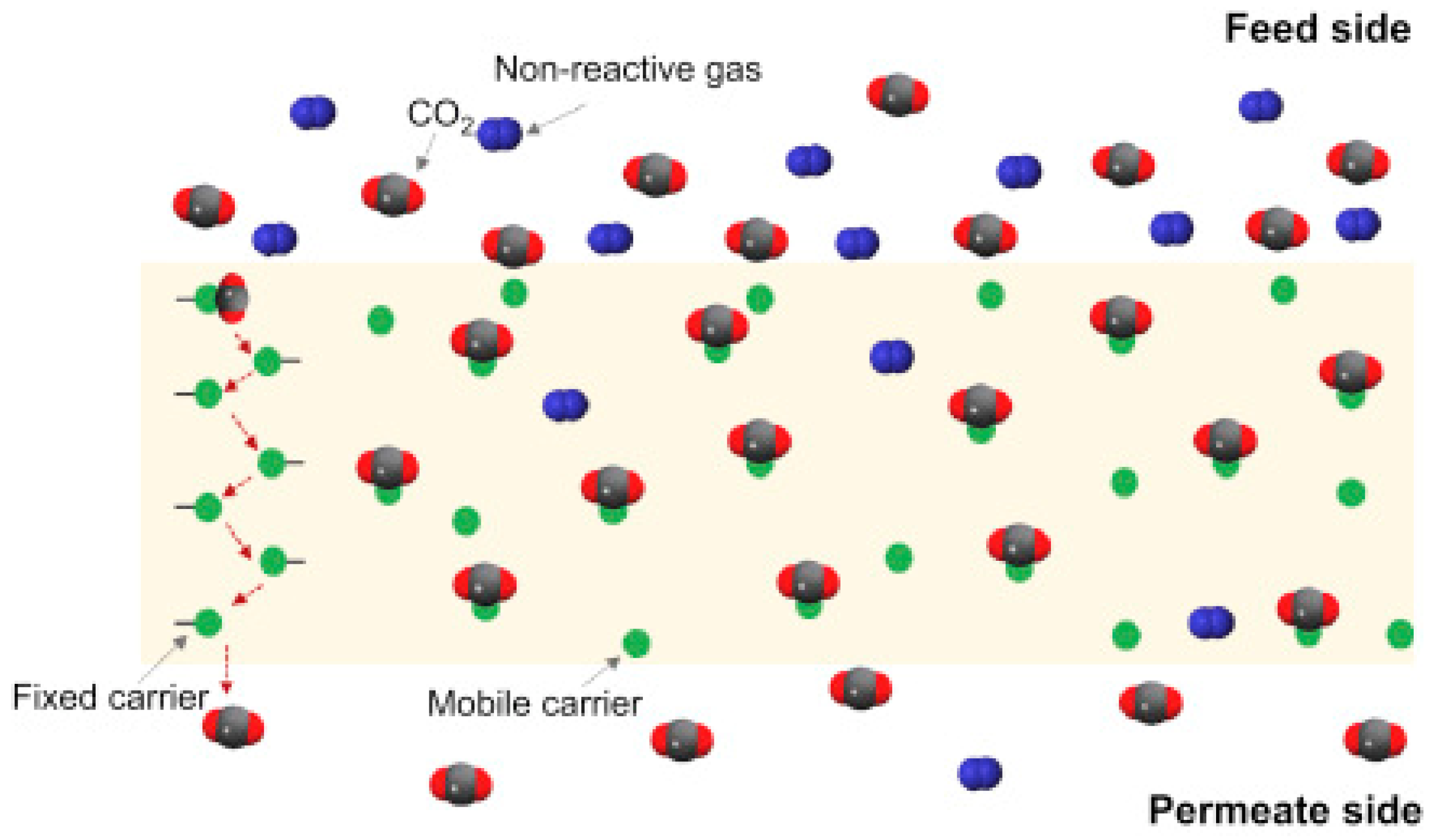

Figure 1. Schematic representation of the facilitated transport mechanism. Reproduced with permission from Ref. [27].
Figure 1. Schematic representation of the facilitated transport mechanism. Reproduced with permission from Ref. [27].
Polymers 15 00667 g001

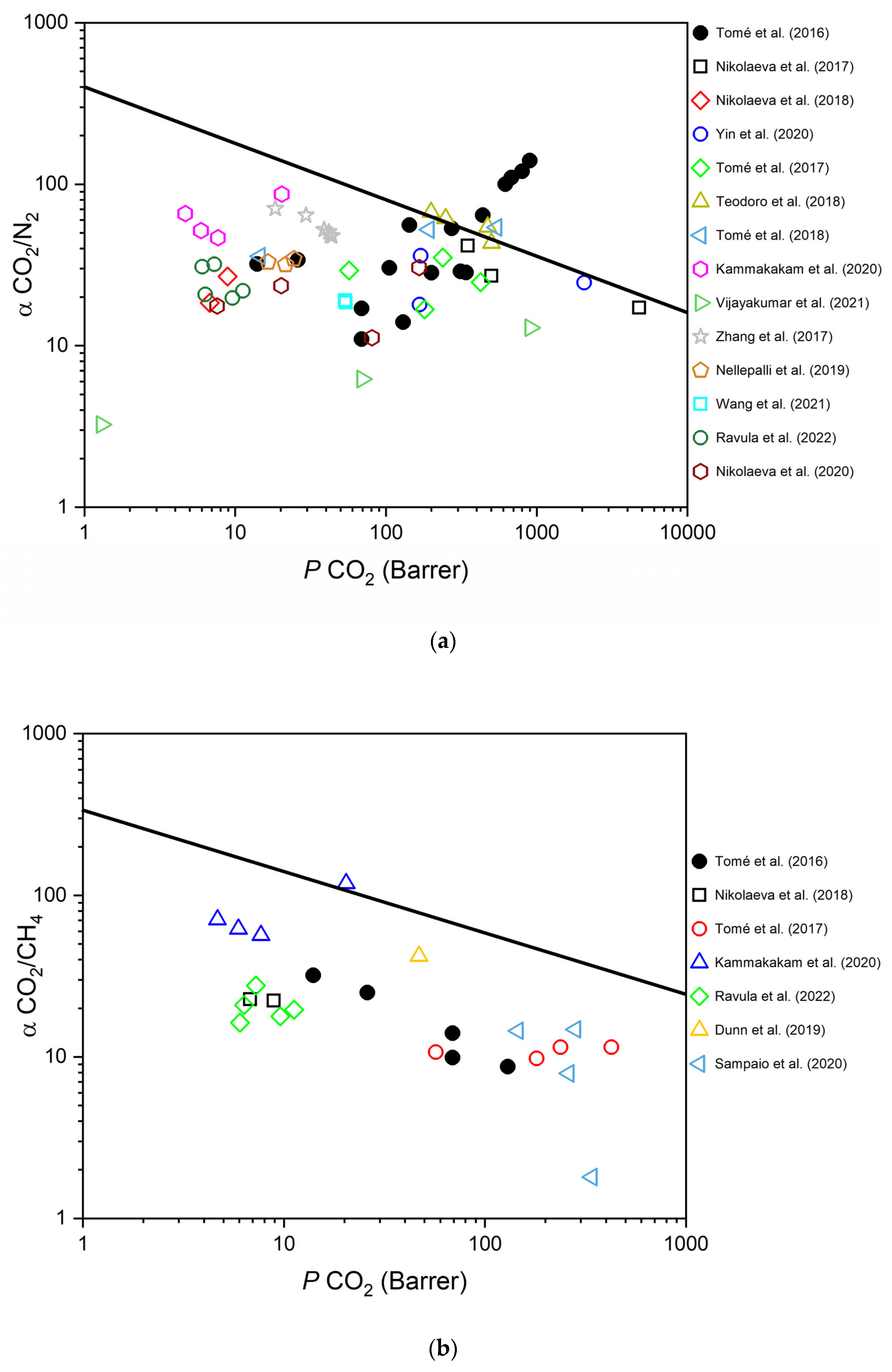

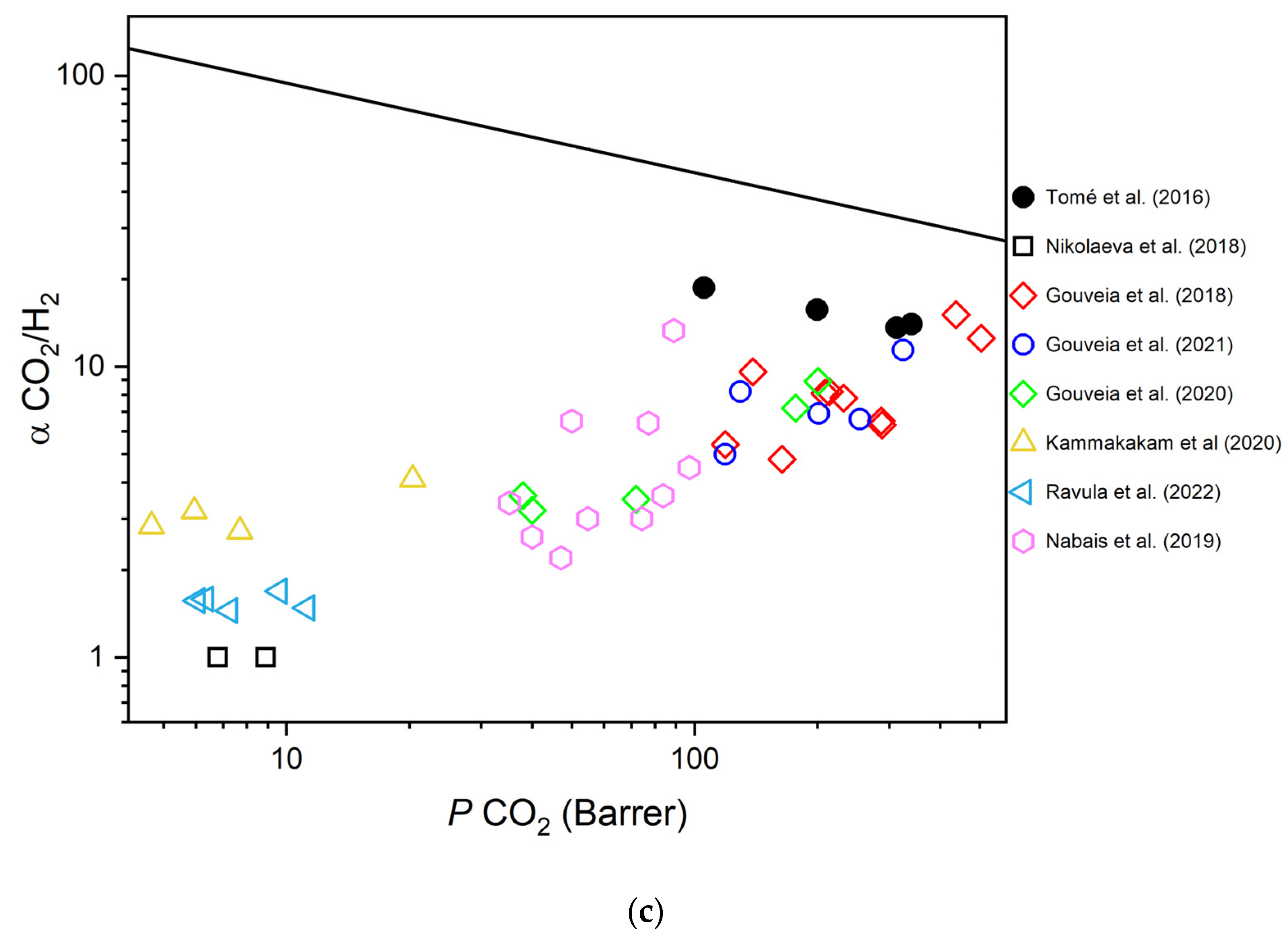

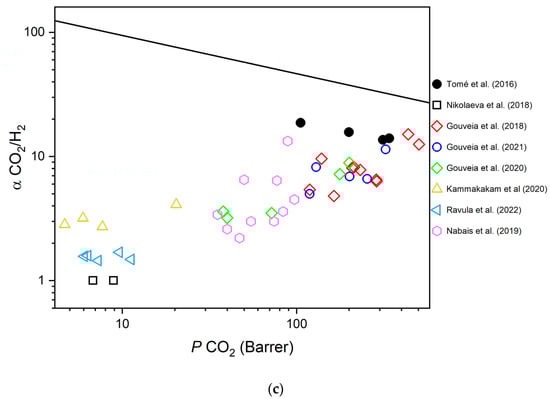

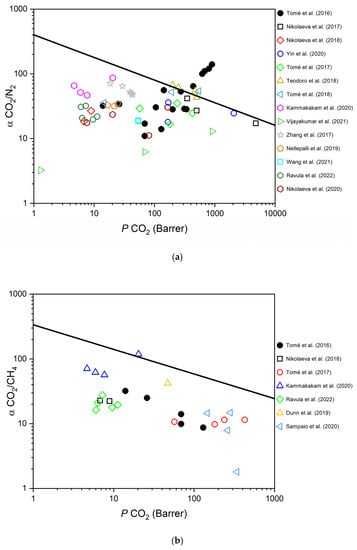

Figure 2. Robeson plots of PIL-based membranes for the: (a) CO2/N2 separation; (b) CO2/CH4 separation; and (c) CO2/H2 separation. The indicated works correspond to the following references: Tomé et al. (2016) [15]; Nikolaeva et al. (2017) [28]; Nikolaeva et al. (2018) [29]; Yin et al. (2020) [30]; Tomé et al. (2017) [31]; Teodoro et al. (2018) [32]; Tomé et al. (2018) [33]; Gouveia et al. (2018) [34]; Gouveia et al. (2021) [35]; Gouveia et al. (2020) [36]; Kammakakam et al. (2020) [37]; Vijayakumar et al. (2021) [38]; Zhang et al. (2017) [39]; Nellepalli et al. (2019) [40]; Wang et al. (2021) [41]; Ravula et al. (2022) [42]; Dunn et al. (2019) [43]; Nabais et al. (2019) [44]; Sampaio et al. (2020) [45] and Nikolaeva et al. (2020) [46].
Figure 2. Robeson plots of PIL-based membranes for the: (a) CO2/N2 separation; (b) CO2/CH4 separation; and (c) CO2/H2 separation. The indicated works correspond to the following references: Tomé et al. (2016) [15]; Nikolaeva et al. (2017) [28]; Nikolaeva et al. (2018) [29]; Yin et al. (2020) [30]; Tomé et al. (2017) [31]; Teodoro et al. (2018) [32]; Tomé et al. (2018) [33]; Gouveia et al. (2018) [34]; Gouveia et al. (2021) [35]; Gouveia et al. (2020) [36]; Kammakakam et al. (2020) [37]; Vijayakumar et al. (2021) [38]; Zhang et al. (2017) [39]; Nellepalli et al. (2019) [40]; Wang et al. (2021) [41]; Ravula et al. (2022) [42]; Dunn et al. (2019) [43]; Nabais et al. (2019) [44]; Sampaio et al. (2020) [45] and Nikolaeva et al. (2020) [46].
Polymers 15 00667 g002aPolymers 15 00667 g002b
Figure 3. SEM images of the cross-section (×10,000) of the membranes: (a) pure PVAc, (b) PVAc/c-PIL-30, (c) PVAc/c-PIL-50, (d) PVAc/c-PIL-60, and (e) c-PIL. Structural features in the micrometer range are clearly visible [39].
Figure 3. SEM images of the cross-section (×10,000) of the membranes: (a) pure PVAc, (b) PVAc/c-PIL-30, (c) PVAc/c-PIL-50, (d) PVAc/c-PIL-60, and (e) c-PIL. Structural features in the micrometer range are clearly visible [39].
Polymers 15 00667 g003

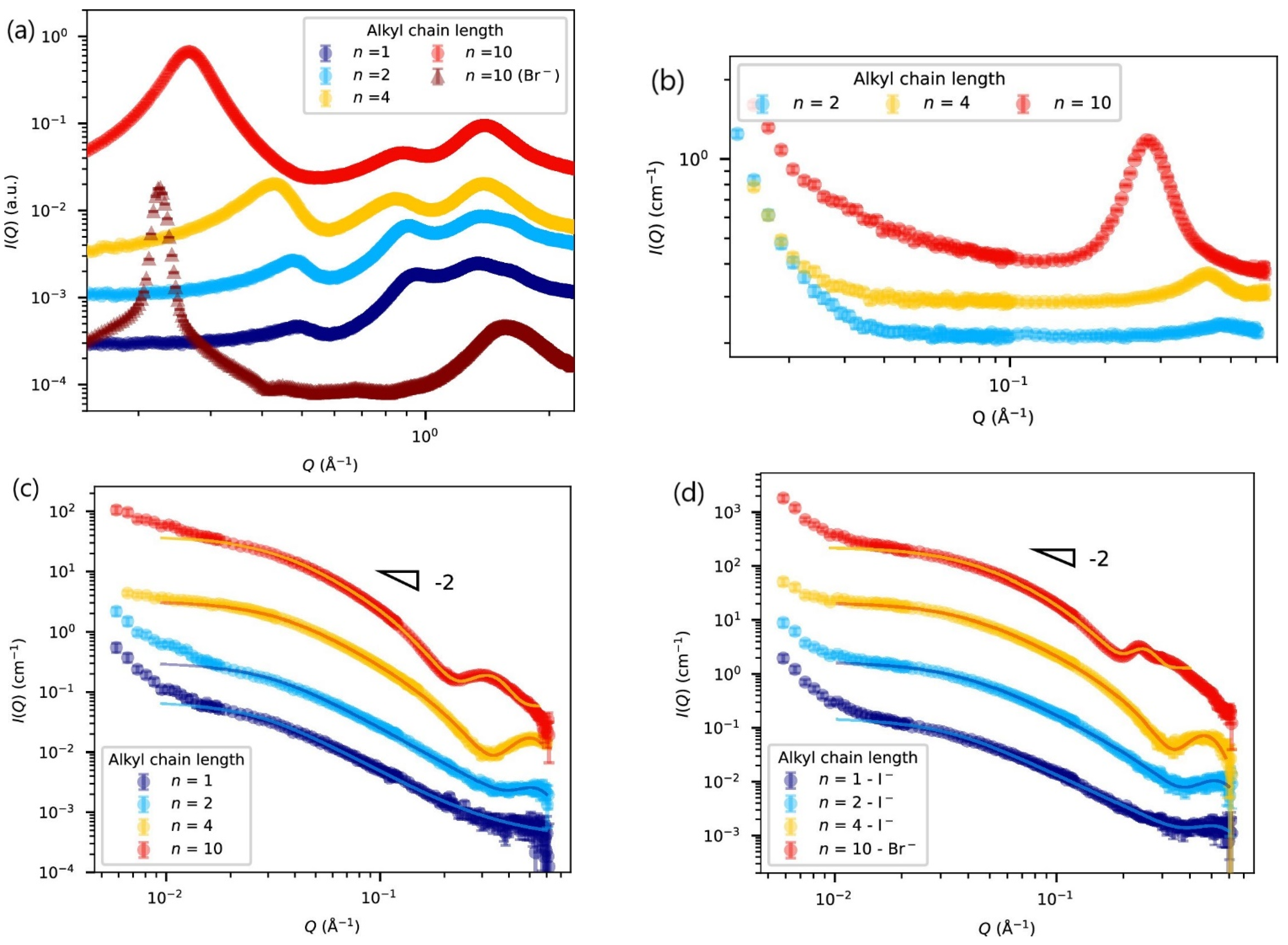

Figure 4. (a) WAXS data of bulk PCnTFSI (circle, open) with different alkyl side-chain lengths, n, and PC10Br (triangle, open), (b) SANS data of bulk purely deuterated PCnTFSI, (c) SANS data of bulk PCnTFSI H/D (1:1 w/w), and (d) SANS data of bulk PCnI and PC10Br H/D (1:1 w/w) with varying alkyl side-chain lengths, n. Solid lines correspond to the best model fits. All data in (ad) are shifted vertically for clarity. All figures were readapted from Ref. [51].
Figure 4. (a) WAXS data of bulk PCnTFSI (circle, open) with different alkyl side-chain lengths, n, and PC10Br (triangle, open), (b) SANS data of bulk purely deuterated PCnTFSI, (c) SANS data of bulk PCnTFSI H/D (1:1 w/w), and (d) SANS data of bulk PCnI and PC10Br H/D (1:1 w/w) with varying alkyl side-chain lengths, n. Solid lines correspond to the best model fits. All data in (ad) are shifted vertically for clarity. All figures were readapted from Ref. [51].
Polymers 15 00667 g004
Table 1. CO2 Separation Performance of Different Types of PIL-Based Membranes.
Table 1. CO2 Separation Performance of Different Types of PIL-Based Membranes.
Membrane TypeSupported or Unsupported Membrane NameTemp (°C)P CO2 (Barrer)P N2P H2P CH4α CO2/N2α CO2/H2α CO2/CH4YearRef.
Neat PILSP[VBTMA][Tf2N]2650219----------27.0 (a)----------2017[28]
P[VBHEDMA][Tf2N]3498.3----------41.6 (a)----------
P[VBMP][Tf2N]4802280----------17.2 (a)----------
P[DADMA][Tf2N] (reference)
PIL-IL composite membranesUPIL NTf2—40 IL Si NTf220181---------------16.8-----9.82017[31]
PIL NTf2—60 IL Si NTf2426---------------24.7-----11.5
PIL C(CN)3—40 IL Si C(CN)357---------------29.3-----10.7
PIL C(CN)3—60 IL Si C(CN)3238---------------35.2-----11.5
UPIL N(CN)2—60 IL C(CN)320249.04.1----------61.3----------2018[32]
PIL C(CN)3—60 IL B(CN)4472.78.7----------54.4----------
PIL C(CN)3—40 IL N(CN)2198.83.0----------67.0----------
PIL B(CN)4—60 IL C(CN)3502.111.6----------43.1----------
UMedium Mw PIL—20 IL2014.6---------------35.9----------2018[33]
Medium Mw PIL—40 IL193---------------52.3----------
Medium Mw PIL—60 IL542---------------54.0----------
UPIL C(CN)3—40 [C2mim][C(CN)3]20139-----14.5----------9.6-----2018[34]
PIL C(CN)3—60 [C2mim][C(CN)3]20438-----29.1----------15.1-----
PIL NTf2—40 [C4mpyr][NTf2]20119-----21.9----------5.4-----
PIL NTf2—60 [C4mpyr][NTf2]20232-----29.8----------7.8-----
PIL NTf2—40 [C2mim][NTf2]20214-----26.2----------8.2-----
UPIL C(CN)3—40 [C2mim][C(CN)3]35129.7-----15.7----------8.2 (a)-----2021[35]
PIL C(CN)3—60 [C2mim][C(CN)3]324.7-----28.3----------11.4 (a)-----
PIL NTf2—40 [C4mpyr][NTf2]118.9-----23.6----------5.0 (a)-----
PIL NTf2—60 [C4mpyr][NTf2]254.2-----38.3----------6.6 (a)-----
PIL NTf2—40 [C2mim][NTf2]201.6-----29.0----------6.9 (a)-----
UPIL TFSAM—20 IL TFSAM35401.112.4----------3.2-----2020[36]
PIL TFSAM—40 IL TFSAM1775.024.6----------7.2-----
PIL FSI—20 IL FSI380.910.5----------3.6-----
PIL FSI—40 IL FSI2014.522.7----------8.9-----
PIL TSAC—20 IL TSAC722.820.2----------3.5-----
UMIL—CF3/PEGDA(20%)/IL(0.5 equiv)207.690.1652.830.13646.62.7156.542020[37]
MIL—CF3/PEGDA(20%)/IL(1 equiv)5.940.1151.870.09651.653.1861.88
MIL—C7H7/PEGDA(20%)/IL(0.5 equiv)4.670.0711.650.06665.772.8370.75
MIL—C7H7/PEGDA(20%)/IL(1 equiv)20.40.2354.970.17286.814.1118.6
UHT—66 wt% IL 207084.1 24.6 2020[30]
PIL-polymer blend membranesUPVAc/ c-PIL-50 semi-IPN2018.430.26----------70.61----------2017[39]
Block-copolymerUpoly(ViPenIm)(Sty)NTf2—10% IL2021.60.68----------31.7----------2019[40]
poly(ViBenIm)(Sty)NTf2—25% IL16.50.50----------32.9----------
poly(ViNapIm)(Sty)NTf2—30% IL24.50.71----------34.4----------
USiO2-g-PMMA-b-PIL 54.12.9 18.5 2021[41]
SiO2-g-PIL 53.42.8 19.1
Mixed Matrix Membrane (MMM)S1d/IL/zeolite (64/16/20) 47 1.1 422019[43]
MMM/10% MIL-5335.2------------------------3.4------
MMM/20% MIL-5350.0------------------------6.5------
MMM/30% MIL-5389.0------------------------13.3------
MMM/10% Cu3(BTC)240.0------------------------2.6------
MMM/20% Cu3(BTC)274.3------------------------3.0------
MMM/30% Cu3(BTC)277.1------------------------6.4------
MMM/10% ZIF-854.8------------------------3.0------
MMM/20% ZIF-883.8------------------------3.6------
MMM/30% ZIF-897.2------------------------4.5------
UTf2N/40 IL BETI 146 10 14.52020[45]
Tf2N/40 IL BETI/10 MOF-5 261 33 7.9
Tf2N/40 IL BETI/20 MOF-5 282 19 14.8
Tf2N/40 IL BETI/30 MOF-5 340 189 1.8
(a) Mixed-gas selectivity.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bernardo, G.; Gaspar, H. Recent Advances in Poly(Ionic Liquid)-Based Membranes for CO2 Separation. Polymers 2023, 15, 667.

AMA Style

Bernardo G, Gaspar H. Recent Advances in Poly(Ionic Liquid)-Based Membranes for CO2 Separation. Polymers. 2023; 15(3):667.

Chicago/Turabian Style

Bernardo, Gabriel, and Hugo Gaspar. 2023. "Recent Advances in Poly(Ionic Liquid)-Based Membranes for CO2 Separation" Polymers 15, no. 3: 667.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
