Preparation and Photovoltaic Performance of a Composite TiO2 Nanotube Array/Polyaniline UV Photodetector

by
Chunlian Liu
1,
Peipei Huang
1,
Wei Wang
1,*,
Miao Tan
2,
Fangbao Fu
2 and
Yunhui Feng
1,*
1
Guangzhou Key Laboratory of Sensing Materials & Devices, Center for Interdisciplinary Health Management Studies, School of Chemistry and Chemical Engineering, Guangzhou University, Guangzhou 510006, China
2
School of Chemical Engineering and Light Industry, Guangdong University of Technology, Guangzhou 510006, China
*
Authors to whom correspondence should be addressed.
Polymers 2023, 15(22), 4400; https://doi.org/10.3390/polym15224400
Submission received: 31 July 2023 / Revised: 13 October 2023 / Accepted: 16 October 2023 / Published: 14 November 2023
(This article belongs to the Special Issue Green Synthesis of Polymers)
Browse Figures
Review Reports Versions Notes

Abstract

:
TiO2 has great potential for application in UV photodetectors due to its excellent photoelectric response. In this work, composite nanomaterials of TiO2 nanotube arrays (TiO2 NTAs) and polyaniline (PANI) were successfully prepared on titanium sheets using an anodic oxidation electrochemical method. The results showed that the TiO2 NTA/PANI composite materials had excellent UV photosensitivity and responsiveness and good stability and reproducibility. This was mainly attributed to the p–n heterostructure formed inside the TiO2 NTA/PANI composites that hindered the recombination of photogenerated electron–hole pairs and improved their utilization of UV light. This work provides a theoretical basis for the application of metal oxides in UV photodetectors, which is important for the development of UV photodetectors.

1. Introduction

UV photodetectors have emerged as an increasingly popular topic in science research in recent years [1,2]. Due to their excellent performance with a high sensitivity, wide linear range, and good stability, UV photodetectors in the mid-ultraviolet and near-ultraviolet wavelength bands are widely used in important fields, including military and defense [3], biomedicine [4,5], environmental monitoring [6], and light wave communication [7]. The focus of study has steadily shifted to the utilization of UV radiation from fires or sunlight for ozone hole and fire monitoring. UV photodetectors have notable advantages over conventional infrared and other types of photodetectors, including an outstanding photosensitivity and accuracy, good concealment, a high military value, and quick presentation of detection data [8,9,10]. The preparation of wide-band semiconductor arrays, which is complex and expensive, the material’s poor stability, and the devices’ inadequate performance are just a few of the issues that remain unresolved despite the extensive research on UV photodetectors [11,12,13]. High-performance, high-stability, high-reliability UV photodetectors, particularly UV detectors that can operate in extreme and harsh conditions, are extremely important to meet the needs of various fields, and the accuracy and reliability of UV photodetectors have a significant influence on practical applications. Due to their benefits, several semiconductor materials with various bandwidths are currently employed as substrate materials for UV photodetectors [14,15,16,17,18,19,20]. TiO2 is one of today’s most popular wide-bandwidth semiconductors due to its benefits of a strong chemical stability, low toxicity, and environmental friendliness [21,22,23]. Rutile TiO2 and anatase TiO2 have bandwidths of around 3.0 and 3.2 eV, respectively [24]. The heterojunction formed by combining the two crystal phases can reduce the forbidden bandwidth and produce a mixed crystal effect [25], which can somewhat facilitate the separation of photogenerated electron–hole pairs. This is because the two crystal phases have different valence band energies. In ultraviolet photodetection, the aforementioned good optoelectronic features have received a lot of attention [26,27]. Among them, TiO2 NTAs have a highly ordered structure that can offer numerous charge transport channels, a greater specific surface area, and more UV light interaction sites, opening up a wide range of possibilities for the development of UV photodetectors with a higher performance and efficiency [28,29,30,31,32]. TiO2, on the other hand, has a very high internal charge complex rate as an n-type metal oxide semiconductor, and TiO2-based photodetectors need an external voltage to provide potential difference excitation for proper operation, which results in large device sizes and severely restricts their application in real life [33]. TiO2TiO2TiO2TiO2TiO2TiO2TiO2P-type conductive polymers like polyaniline (PANI) have a high electrical conductivity and good electrochemical characteristics. They absorb light well, move carriers quickly, have a high capacitance, are easy to fabricate, and are environmentally friendly [34,35,36,37]. Photogenerated carriers can be prevented from combining in p–n heterojunctions because their internal electric fields cause photoelectrons and holes to flow in different directions [38,39]. Mixing the n-type metal oxide semiconductor TiO2 with the p-type conductive polymer PANI creates a p–n hetero-junction [40,41,42]. The heterojunction’s automatically produced potential difference can push photogenerated electron–hole pairs apart and induce a photocurrent, giving UV photodetectors [43,44,45] a high UV sensitivity.
The titanium substrate, which has a large specific surface area, is highly stable, and can be easily recycled, is fixed with neatly organized TiO2 nanotube arrays (NTAs). However, TiO2’s large band gap, UV light responsiveness, and high electron–hole pair recombination rate require modification via doping to improve the performance. Numerous researchers have coupled TiO2 NTAs with the conductive polymer PANI to develop high-performance compounds. Wang et al. [46] produced a TiO2 nanotube array photoelectrode (PANI/TiO2) wrapped in polyaniline (PANI) nanosheets using anodizing and vacuum-assisted impregnation. Polyaniline nanosheets that are securely wrapped in TiO2 nanotubes exhibit superior light responsiveness and charge separation efficiency compared to pure TiO2. PANI/TiO2-0.1 has 0.73 times the photocurrent density of TiO2. PEC p-phenol degrades PANI/TiO2-0.1 27.7% better than TiO2. It was found that the polyaniline/TiO2 photoelectrode synergized photocatalysis and electrocatalysis. Chen et al. [47] produced a PANI/H-TiO2 nanotube array composite electrode utilizing constant voltage electrochemical deposition. Before making the PANI/H-TiO2 nanotube array composite electrode, the researchers anodized a titanium sheet. They then calcined and hydrogenated the sample in hydrogen, put it in an acetone solution containing sulfuric acid and aniline, and deposited polyaniline on the titanium dioxide nanotube array at a continuous voltage. PANI/H-TiO2 nanotubes exhibit excellent electron transport and charge transfer, as shown by their solution resistance of 0.1554 and charge transfer resistance of 2.723 V cm2. Xie et al. [48] used electrochemical potentiostatic potential polymerization to construct a PANI-TiO2 nanotube array composite electrode. The anodized titanium dioxide nanotube array was immersed in a hydrochloric acid solution with aniline monomer, agitated until completely dissolved, and then polyaniline was added using the potentiostat method (0.9 V) to the same solution to generate a composite electrode. They observed arrays of disordered polyaniline nanowires around TiO2 nanotubes, which possessed a unique microstructure, a high specific surface area, a fast ion transport channel, and long-term cycle stability. An excellent electrochemical performance was exhibited by the composite. After recombining the TiO2 nanotube array and PANI, the material’s specific surface area, stability, and charge separation efficiency improved. Future photoelectric detection materials could benefit from this substance.
This study examines photodetectors and suggests combining TiO2 nanotube arrays with a p-type conjugated conductive polymer PANI using a two-step electrochemical method to increase the material’s spectral response range and ultraviolet light absorption. This analysis relies on previous research. A good p–n heterojunction interface inside the device improves the ultraviolet photodetectors’ response time, sensitivity, and stability, accelerates photogenerated electron–hole pair separation, suppresses carrier recombination, and boosts quantum efficiency.

2. Experimental Section

2.1. Chemicals

Aniline (C6H7N, AR) was purchased from Alfa Aesar (Shanghai, China). Anhydrous ethanol (C2H5OH, AR) and hydrofluoric acid (HF, AR) were purchased from Tianjin Damao Chemical Reagent Co., Ltd. (Tianjin, China). Concentrated sulfuric acid (H2SO4, AR) and acetone (CH3COCH, AR) were purchased from Guangzhou Chemical Reagent Factory (Guangzhou, China). Titanium flakes were purchased from Shaanxi Baoji Erlitai Products Co., Ltd. (Baoji, China).

2.2. Preparation of TiO2 NTAs

The titanium sheet was polished with sandpaper until the surface had a metallic luster, and then it was evenly cut to a thickness of 0.5 mm, a length of 20 mm, and a width of 10 mm. Then, the sheet was placed in acetone, anhydrous ethanol, and deionized water for ultrasonic cleaning for 30 min each, and then it was removed and dried for spares. A two-electrode system was adopted, where the pre-treated titanium sheet was placed on the electrode clamp as the anode, the platinum sheet was used as the cathode, a DC regulated power supply was used as the external power supply, and a hydrofluoric acid solution with a mass fraction of 1.5% was used as the electrolyte. After connecting the parts of the device, the samples were anodized at 20 V for 8 min, removed and rinsed in deionized water until the electrolyte was removed from the surface, and then dried. Finally, the samples were put into a muffle furnace with a heating rate of 5 °C/min and annealed at 600 °C for 3 h to produce the desired TiO2 NTAs.

2.3. Preparation of TiO2 NTAs/PANI Composite Nanomaterials

TiO2 NTAs were composited with PANI using an electrochemical method at room temperature. A three-electrode system was used at room temperature, and an aniline sulfuric acid solution with a mass fraction of 0.8% was used as the electrolyte using a 1 mol/L dilute sulfuric acid solution. The TiO2 NTA samples prepared above were placed on the electrode clamp as the anode, a platinum sheet electrode was used as the cathode, and a saturated mercuric glycol solution was used as the reference electrode. The electrodes were immersed in electrolyte and reacted for 1 h at a constant potential of 0.9 V using a potentiostat in an electrochemical workstation (CHI660D), with a sample interval of 0.1 s. The samples were taken out at the end of the reaction, and the surfaces of the samples were rinsed clean of the electrolyte with deionized water and dried to obtain the TiO2 NTA/PANI composite nanomaterials. The preparation flow diagram of the TiO2 NTA/PANI device is shown in Figure 1a,b.

2.4. Characterization

The micromorphology of the samples was evaluated using scanning electron microscopy (SEM, JSM-7001F). The crystal structure of the samples was investigated by X-ray diffraction (XRD, PW3040/60) and the molecular structure was investigated using a Raman spectrometer (LabRAM Aramis, Villeneuve d’Ascq, France).

2.5. Photoelectric Measurements

The photoelectric properties were tested using a UV-visible spectrophotometer (UV 2450, Shimadzu, Kyoto, Japan), a handheld dual-wavelength UV lamp (ENF260C, Spectronics, Underwood, QLD, Australia), a fluorescence spectrometer (FLS1000, Edinburgh, UK), and an electrochemical workstation (CHI660D, Shanghai, China).

3. Results and Discussion

3.1. Regulation of Process Parameters

The titanium sheet served as the anode, the aluminum sheet served as the cathode, and the electrolyte was a solution of hydrofluoric acid with a mass fraction of 1.5%. The reaction was conducted at room temperature for 8 min using the anodic oxidation method. Figure 2a–c displays the SEM images of the products obtained at oxidizing voltages of 15 V, 20 V, and 25 V, respectively. TiO2 NTAs were not generated on the surface of the titanium sheet when the oxidation voltage was as low as 15 V, but rather a laminated blade-like structure was observed. When the oxidation voltage was 20 V, TiO2 NTAs with smooth surfaces, large tube diameters, homogeneous morphologies, and stability were effectively manufactured. The TiO2 NTAs shattered and their surfaces became granular when the oxidation voltage reached 25 V, demonstrating that the voltage was too high at that point. A voltage of 20 V was therefore chosen as the subsequent reaction voltage. Other reaction conditions remain unchanged. SEM images of the samples obtained by oxidizing titanium sheets at room temperature for different durations are shown in Figure 2d–f, representing oxidation times of 5 min, 8 min, and 10 min, respectively. When the reaction was carried out for 5 min, it can be clearly observed that a large and uniform pore-like structure appears on the surface of the titanium sheet, and this phenomenon was considered to be a precursor to the nanotube array structure, even though it did not form a complete TiO2 NTA structure. When the reaction was carried out for 8 min, it was observed that complete and uniform TiO2 NTAs were obtained on the surface of the titanium sheet, with a uniform diameter and smooth mouth, which were the target products. With an increase in the reaction time to 10 min, the tube diameter was slightly reduced, and there was a local rupture of the tube mouth. Therefore, 8 min was chosen as the reaction time in subsequent experiments.
Figure 2g–i corresponds to electrolytes at hydrofluoric acid mass fractions of 1%, 1.5%, and 2%, respectively. When the electrolyte was hydrofluoric acid at 1% concentration, TiO2 NTAs were observed, but their walls were granular and slightly thinner than those of the target product. When the electrolyte was hydrofluoric acid at a concentration of 1.5%, complete TiO2 NTAs could be observed, and the tube wall was smoother, with a moderate thickness which was uniform and stable. When the electrolyte was 2% hydrofluoric acid, the tube wall was further thickened, and it can be observed that its thickness affected the size of the tube aperture, with the possibility of affecting the surface of the TiO2 NTs when in full contact with UV light. Therefore, during the preparation of TiO2 NTAs by anodic oxidation, the concentration of the electrolyte can directly affect the wall thickness of the resulting TiO2 NTs, tending to thicken as the concentration of the electrolyte increases. Considering the aim of increasing the photoelectric conversion efficiency of the UV photodetector by ensuring the material is in contact with UV light as much as possible, a hydrofluoric acid solution with a mass fraction of 1.5% was selected as the electrolyte.

3.2. Characterization of TiO2 NTA/PANI Nanocomposites

Figure 3a,c shows the top view of the TiO2 NTAs, which shows that the TiO2 NTAs were perpendicular to the substrate of the titanium sheet, and each one of them was separate and independent with a relatively uniform size. The diameter of the tubes was about 25 nm, the tube wall was smooth, and the thickness was uniform. In addition, a cross-sectional view of TiO2 NTAs is shown in Figure 3c, and we can observe that the thickness of the array structure is relatively uniform and its thickness is about 1.5 μm. In this way, the top-down nanotube array structure can generate a large specific surface area and expand the area of the p–n junction dissipation region, which provides favorable conditions for sufficient contact with ultraviolet light in the subsequent application of ultraviolet spot detectors. The bottom view of the sample is shown in Figure 3b, where it can be further observed that the TiO2 NTs have uniform and independent tube diameter sizes, smooth bottoms, and tight overall structures. Figure 3d shows the structure of the TiO2 NTA/PANI composite material. When the TiO2 NTAs were electrochemically composited with PANI, it could be observed that the mouth of the tubes, the tubes, and the inter-tube area were uniformly covered with PANI particles, showing an excellent composite effect.
Figure 4a shows the XRD pattern of TiO2 NTA/PANI composite nanomaterials. The TiO2 NTAs obtained under these conditions were binary, mixed, crystalline-type NTAs doped with rutile and anatase, and the contact interface between them forms an anatase/rutile (A/R) heterojunction. The intensity and number of peaks showed that the peaks were predominantly rutile peaks. Apart from the characteristic peaks of titanium flakes, there were no other impurity peaks in this sample. The Raman spectra of TiO2 NTA/PANI nanocomposites are shown in Figure 4b. Among them, the peaks at 141, 233, 443, and 611cm−1 are characteristic rutile TiO2 peaks [49], also indicating that the rutile type dominated the samples obtained by the above preparation method.
The intrinsic structural peaks of PANI can also be observed at 1196 cm−1 around the C-H plane bending vibration (benzene structure), 1293 cm−1 around the protonated structure, 1376 cm−1 around the C-N+ stretching vibration (semiquinone ring), 1569 cm−1 around the C=C stretching vibration (quinone structure), and 1621 cm−1 around the C-C stretching vibration in the benzene ring (benzene structure). A C-C stretching vibration in the benzene ring (benzene structure) occurs near 1621 cm−1 [46,50].

3.3. Optoelectronic Property Testing of TiO2 NTA/PANI Nanocomposites

The UV-Vis absorption spectra of TiO2 NTAs and TiO2 NTA/PANI nanocomposites are shown in Figure 5a. It can be seen that the absorption of pure TiO2 NTAs and TiO2/PANI nanocomposites in the UV region in the range of 200 nm~400 nm was significantly higher than that in the visible region of 400 nm~600 nm, especially after the combining TiO2 NTAs and PANI. The absorption of the composite material in the UV region increased by 20% compared to that of the pure TiO2 NTs, exhibiting a more effective detection of UV light. The detection effect of UV light was more significant.
Figure 5b shows the voltametric characterization curves of TiO2 NTA/PANI nanocomposites under UV irradiation at different wavelengths. The samples were irradiated under 365, 312, and 254 nm UV light and were subjected to photocurrent testing under dark conditions as a blank control. From this, it can be observed that the devices had obvious rectification characteristics, which proved that TiO2 effectively formed a p–n heterojunction after being combined with PANI using an electrochemical method. Meanwhile, it was not difficult to observe that its current under UV irradiation was higher than that in a dark environment; at the same voltage, the photocurrent increased with the increase in the wavelength of irradiated UV light and it had a better sensitivity to UV light.
Repeatability and the response speed are important factors when examining the performance of UV photodetector devices. The characteristic photocurrent–time response curves of pure TiO2 NTAs and TiO2 NTA/PANI nanocomposites are shown in Figure 6a, indicating a good stability and repeatability. We used the electrochemical workstation (CHI660D), selected amperometric i–t curve parameters, and set the initial voltage to 0 V, the sampling interval to 0.1 s, the running time to 400 s, the quiet time to 0 s, and the sensitivity to 1 × 10−4. Under the conditions of no applied voltage and darkness, it could be observed that there was almost no current generation for both samples. After turning on the UV light source and selecting an UV irradiation wavelength of 365 nm, the materials were in full contact with the UV light and both of them instantly generated a photocurrent in a very short time. When the current was stabilized and the UV light power supply was turned off, the current was then restored to the initial level in a very short time. The photocurrent generated by TiO2 NTA/PANI nanocomposites was three orders of magnitude larger than that of the pure TiO2 NTAs. As shown in Figure 6a,c, the response time of the pure TiO2 NTA device was 4.6 s/4.1 s when the light source was switched, while the response time of the TiO2 NTA/PANI nanocomposite device was 1.15 s/0.75 s, its photocurrent reached the desired level in a very short time, and its sensitivity to UV light and the response rate were much higher than those of the former. The characteristic photocurrent–time response curves of TiO2 NTA/PANI nanocomposites under three different wavelengths of UV irradiation (254, 312, and 365 nm) with an applied voltage of characteristic are shown in Figure 6b, from which we can observe that the TiO2 NTAs had a high sensitivity to UV light and a fast response rate after being effectively composited with PANI. At the same time, we can see that in the UV region, the longer the wavelength used to irradiate the sample, the larger the generated photocurrent.
In Figure 6c, we hypothesize that the heterojunction between pure TiO2 and the current collector is the reason that pure TiO2 materials also produce a photocurrent. In our test, the TiO2, Ti substrate, and FTO contacts make up the majority of the heterojunctions that may interact with photogenerated electrons. A faint photocurrent can form because FTO is a fluorine-doped SnO2 (tin dioxide) film that forms a very weak heterojunction at the point where it comes into contact with the TiO2 nanotube layer. Additionally, between the TiO2 nanotube layer and the substrate Ti sheet layer, there will be a metal/semiconductor metal oxide heterojunction that has the potential to create an integrated electric field [51,52,53]. A weak photocurrent is observed at 0 V bias in pure metal–oxide–semiconductor devices, which is consistent with many other similar device architectures. Furthermore, based on the SEM findings, we hypothesize that the TiO2 nanotube layer and the FTO layer have significantly less stratum areas than the TiO2 NTA/PANI device, resulting in a reduced built-in electric field. The built-in electric field of pure TiO2 is much weaker than the built-in electric field of TiO2 NTA/PANI devices, so the photocurrent is smaller when testing the photocurrent of pure TiO2 devices. In conclusion, even pure TiO2 devices have an internal electric field when testing the photocurrent, which can generate a photocurrent.
Responsivity (R) is a key parameter that determines the sensitivity of a photodetector device. The greater the R, the higher the sensitivity, expressed by the following formula [54]:
R = ∆I/P
ΔI is the difference between the photocurrent and the dark current and P is the optical power. Under 365 nm light irradiation (light intensity is 310 μW/cm2), the effective irradiation area was about 1 cm2, and when the bias voltage was 0 V, the calculated R value of the TiO2 NTA device was 0.002 A/W. TiO2 NTA/PANI devices had R values of 0.026 A/W when irradiated with 365 nm light. Obviously, TiO2 NTA/PANI had a bigger R, indicating that the device had the best responsivity. When changing the wavelength of irradiating ultraviolet light, it can be calculated that the R value of TiO2 NTAs/PANI at 254 nm was 0.005 A/W at 254 nm and 0.008 A/W at 312 nm, both of which are less than the R value at 365 nm. In summary, the TiO2 NTA/PANI device had good spectral selection responsiveness, high detection rate, and responsivity.
Figure 7 shows the PL spectra of TiO2 NTAs and TiO2 NTA/PANI nanocomposites. After excitation with ultraviolet light of different wavelengths, pure TiO2 has a strong luminous intensity, which is a typical optical characteristic of TiO2 semiconductors and confirms that the prepared TiO2 has good photoexcitation properties. At the same time, it can be clearly observed from Figure 7 that when TiO2 NTAs were loaded with PANI, the luminous intensity was significantly weakened, indicating that the presence of PANI can transfer photogenerated electrons and thereby effectively inhibiting the recombination of photogenerated electron–hole pairs and improving the charge separation efficiency. At the same time, this also confirms the existence of the built-in electric field at the interface of TiO2 NTA and PANI.
The heterojunctions in the anatase/rutile binary mixed-crystal TiO2 NTAs prepared in this work can promote the transfer, separation, and migration of internal electrons and holes, which can effectively enhance the photosensitivity and photoresponsivity by suppressing carrier recombination and achieve better photoelectrochemical performances than those of the single-crystal TiO2 devices [55,56]. Meanwhile, the p–n heterojunction formed by electrochemically combining TiO2 NTAs with PANI can improve the utilization of UV light in UV point detector devices, which offers the possibility of improving the photoelectric efficiency, response speed, and UV sensitivity of the devices.

3.4. Internal Electron Transfer Mechanism of TiO2 NTA/PANI Materials

A space charge zone will arise at the interface as a result of electrons and holes being transported during the recombination of the two due to the various heights of the Fermi energy level. PANI is a p-type semiconductor that primarily conducts holes with a band gap of 2.80 eV and a Fermi level that is in close proximity to the valence band [57]. With a band gap of 3.2 eV and a Fermi level that is quite close to the conduction band, TiO2 is an n-type semiconductor that primarily conducts electrons [58]. Figure 8 shows a schematic representation of the energy band at the PANI/TiO2 nanocomposite’s PANI/TiO2 interface. As shown in the picture, when a p–n heterojunction between PANI and TiO2 is created, since PANI is primarily conducted by holes and TiO2 is primarily conducted by electrons, holes will transfer from TiO2 to PANI and electrons will pass from PANI to TiO2. A built-in electric field will be created by the transfer of electrons and holes. The built-in electric field runs in the opposite direction from where electrons are moving. The Fermi energy level at the interface of PANI and TiO2 will then be flat, as holes and electrons attain dynamic equilibrium. The energy band structure at the contact is twisted as a result of the creation of the internal electric field. The p–n heterojunction is created by the formation of an electron accumulation layer on the PANI side and an electron depletion layer on the TiO2 side [59]. Photovoltaic heterojunction UV photodetectors are built around this.

4. Conclusions

In this work, TiO2 NTA/PANI composite nanomaterials were successfully grown on titanium sheets by applying an anodic oxidation electrochemical method, and their photoresponsivity properties were further investigated. The findings demonstrated that a good p–n heterostructure evolved within the TiO2 NTA/PANI composites, which produced a clear rectification effect in their voltametric characteristic curves. They also demonstrated a high reaction rate, a strong UV photosensitivity, and good repeatability. This was primarily caused by the development of a p–n heterostructure, which prevented the combination of photogenerated electron–hole pairs and increased the device’s quantum efficiency and ability to use UV light. This provides a theoretical foundation and technical direction for the use of innovative UV photodetectors.

Author Contributions

Conceptualization, C.L. and P.H.; methodology, W.W.; software, F.F.; validation, P.H., M.T. and F.F.; formal analysis, C.L. and P.H.; investigation, M.T.; resources, W.W.; data curation, C.L. and F.F.; writing—original draft preparation, P.H.; writing—review and editing, Y.F.; visualization, P.H.; supervision, Y.F.; project administration, W.W.; funding acquisition, W.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Science and Technology Research Project of Guangzhou (Grant No. 2023A03J0064 (Yunhui Feng), 202102020467 (Wei Wang)), Guangzhou University Provincial College Students Innovation Training Program(s202211078120, Peipei Huang).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rogalski, A.; Bielecki, Z.; Mikołajczyk, J.; Wojtas, J. Ultraviolet Photodetectors: From Photocathodes to Low-Dimensional Solids. Sensors 2023, 23, 4452. [Google Scholar] [CrossRef]
  2. Chen, Z.; Zhu, Z.; Huang, L.; Cheng, C. High Sensitivity UV Photodetectors Based on Low-Cost TiO2 P25-Graphene Hybrids. Nanotechnology 2022, 33, 08LT01. [Google Scholar] [CrossRef]
  3. El-Hossary, F.M.; Ghitas, A.; Abd El-Rahman, A.M.; Ebnalwaled, A.A.; Abdelhamid Shahat, M.; Fawey, M.H. Effect of UV-Activated TiO2 Nanoparticles on the Properties and Performance of PAni-TiO2 Nanocomposite Films for Solar Cell Applications. IOP Conf. Ser. Mater. Sci. Eng. 2020, 956, 012015. [Google Scholar] [CrossRef]
  4. Chen, J.; Li, Z.; Ni, F.; Ouyang, W.; Fang, X. Bio-Inspired Transparent MXene Electrodes for Flexible UV Photodetectors. Mater. Horiz. 2020, 7, 1828–1833. [Google Scholar] [CrossRef]
  5. Deb, P.; Dhar, J.C. Fast Response UV Photodetection Using TiO2 Nanowire/Graphene Oxide Thin-Film Heterostructure. IEEE Photonics Technol. Lett. 2019, 31, 571–574. [Google Scholar] [CrossRef]
  6. Ding, L.; Ma, C.; Li, L.; Zhang, L.; Yu, J. A Photoelectrochemical Sensor for Hydrogen Sulfide in Cancer Cells Based on the Covalently and in Situ Grafting of CdS Nanoparticles onto TiO2 Nanotubes. J. Electroanal. Chem. 2016, 783, 176–181. [Google Scholar] [CrossRef]
  7. Yang, W.; Xu, W.; Zhang, N.; Lai, X.; Peng, J.; Cao, Y.; Tu, J. TiO2 Nanotubes Modified with Polydopamine and Graphene Quantum Dots as a Photochemical Biosensor for the Ultrasensitive Detection of Glucose. J. Mater. Sci. 2020, 55, 6105–6117. [Google Scholar] [CrossRef]
  8. Yin, B.; Zhang, Y.; Li, K.; Zhou, J.; Liu, C.; Zhang, M.; Ruan, S. UV Detector Based on an FTO/TiO2/MoO3 Heterojunction with a Potential Well Trapping Electrons in the Dark. Nanotechnology 2019, 30, 465501. [Google Scholar] [CrossRef]
  9. Ferhati, H.; Djeffal, F. Role of Optimized Grooves Surface-Textured Front Glass in Improving TiO2Thin-Film UV Photodetector Performance. IEEE Sens. J. 2016, 16, 5618–5625. [Google Scholar] [CrossRef]
  10. Mondal, S.; Basak, D. Very High Photoresponse towards Low-Powered UV Light under Low-Biased Condition by Nanocrystal Assembled TiO2 Film. Appl. Surf. Sci. 2018, 427, 814–822. [Google Scholar] [CrossRef]
  11. Dai, H.; Chen, S.; Li, Y.; Zeng, B.; Zhang, S.; Hong, Z.; Lin, Y. Photoelectrochemical Biosensor Constructed Using TiO2 Mesocrystals Based Multipurpose Matrix for Trypsin Detection. Biosens. Bioelectron. 2017, 92, 687–694. [Google Scholar] [CrossRef]
  12. Wang, X.; Li, J.; Gao, X.; Shen, Y.; Xie, A. Ordered CdSe-Sensitized TiO2 Inverse Opal Film as Multifunctional Surface-Enhanced Raman Scattering Substrate. Appl. Surf. Sci. 2019, 463, 357–362. [Google Scholar] [CrossRef]
  13. Hsu, C.-L.; Gao, Y.-D.; Chen, Y.-S.; Hsueh, T.-J. Vertical P-Type Cu-Doped ZnO/n-Type ZnO Homojunction Nanowire-Based Ultraviolet Photodetector by the Furnace System with Hotwire Assistance. ACS Appl. Mater. Interfaces 2014, 6, 4277–4285. [Google Scholar] [CrossRef]
  14. Zhou, M.; Wu, B.; Zhang, X.; Cao, S.; Ma, P.; Wang, K.; Fan, Z.; Su, M. Preparation and UV Photoelectric Properties of Aligned ZnO-TiO2 and TiO2-ZnO Core-Shell Structured Heterojunction Nanotubes. ACS Appl. Mater. Interfaces 2020, 12, 38490–38498. [Google Scholar] [CrossRef]
  15. Reddy, Y.A.K.; Ajitha, B.; Sreedhar, A.; Varrla, E. Enhanced UV Photodetector Performance in Bi-Layer TiO2/WO3 Sputtered Films. Appl. Surf. Sci. 2019, 494, 575–582. [Google Scholar] [CrossRef]
  16. Lee, C.-T.; Liu, Y.-H.; Lee, H.-Y. Stacked Triple Ultraviolet-Band Metal–Semiconductor–Metal Photodetectors. IEEE Photonics Technol. Lett. 2019, 31, 15–18. [Google Scholar] [CrossRef]
  17. Elsayed, A.M.; Shaban, M.; Aly, A.H.; Ahmed, A.M.; Rabia, M. Preparation and Characterization of a High-Efficiency Photoelectric Detector Composed of Hexagonal Al2O3/ TiO2/TiN/Au Nanoporous Array. Mater. Sci. Semicond. Process. 2022, 139, 106348. [Google Scholar] [CrossRef]
  18. Rawat, G.; Somvanshi, D.; Kumar, H.; Kumar, Y.; Kumar, C.; Jit, S. Ultraviolet Detection Properties of P-Si/n-TiO2 Heterojunction Photodiodes Grown by Electron-Beam Evaporation and Sol–Gel Methods: A Comparative Study. IEEE Trans. Nanotechnol. 2016, 15, 193–200. [Google Scholar] [CrossRef]
  19. Mondal, S.; Ghosh, A.; Piton, M.R.; Gomes, J.P.; Felix, J.F.; Gobato, Y.G.; Galeti, H.V.A.; Choudhuri, B.; Dhar Dwivedi, S.M.M.; Henini, M.; et al. Investigation of Optical and Electrical Properties of Erbium-Doped TiO2 Thin Films for Photodetector Applications. J. Mater. Sci. Mater. Electron. 2018, 29, 19588–19600. [Google Scholar] [CrossRef]
  20. Liao, Y.; Zheng, Y.; Shin, S.; Zhao, Z.; An, S.; Seo, J.; Jeong, J.; Kim, M. Distinct UV–Visible Responsivity Enhancement of GaAs Photodetectors via Monolithic Integration of Antireflective Nanopillar Structure and UV Absorbing IGZO Layer. Adv. Opt. Mater. 2022, 10, 2200062. [Google Scholar] [CrossRef]
  21. Pooja, P.; Chinnamuthu, P. Annealed N-TiO2/In2O3 Nanowire Metal-Insulator-Semiconductor for Highly Photosensitive Low-Noise Ultraviolet Photodetector. J. Alloys Compd. 2021, 854, 157229. [Google Scholar] [CrossRef]
  22. Wang, J.; Wang, Z.; Wang, W.; Wang, Y.; Hu, X.; Liu, J.; Gong, X.; Miao, W.; Ding, L.; Li, X.; et al. Synthesis, Modification and Application of Titanium Dioxide Nanoparticles: A Review. Nanoscale 2022, 14, 6709–6734. [Google Scholar] [CrossRef]
  23. Yan, W.; Shao, P. Study on the Performance of Titanium Materials Based on Nano Silver Particles in Orthodontic Healing. J. Nanosci. Nanotechnol. 2021, 21, 1135–1141. [Google Scholar] [CrossRef]
  24. Ghosh, C.; Dhar Dwivedi, S.M.M.; Ghosh, A.; Dalal, A.; Mondal, A. A Novel Ag Nanoparticles/ TiO2 Nanowires-Based Photodetector and Glucose Concentration Detection. Appl. Phys. A 2019, 125, 810. [Google Scholar] [CrossRef]
  25. Zhang, Y.-H.; Li, M.-J.; Wang, H.-J.; Yuan, R.; Wei, S.-P. Supersensitive Photoelectrochemical Aptasensor Based on Br,N-Codoped TiO2 Sensitized by Quantum Dots. Anal. Chem. 2019, 91, 10864–10869. [Google Scholar] [CrossRef]
  26. Yıldırım, M. Characterization of the Framework of Cu Doped TiO2 Layers: An Insight into Optical, Electrical and Photodiode Parameters. J. Alloys Compd. 2019, 773, 890–904. [Google Scholar] [CrossRef]
  27. Wei, C.; Xu, J.; Shi, S.; Cao, R.; Chen, J.; Dong, H.; Zhang, X.; Yin, S.; Li, L. Self-Powered Visible-Blind UV Photodetectors Based on p-NiO Nanoflakes/n-ZnO Nanorod Arrays with an MgO Interfacial Layer. J. Mater. Chem. C 2019, 7, 9369–9379. [Google Scholar] [CrossRef]
  28. Gu, P.; Zhu, X.; Wu, H.; Li, J.; Yang, D. Influence of Oxygen Vacancy on the Response Properties of TiO2 Ultraviolet Detectors. J. Alloys Compd. 2019, 779, 821–830. [Google Scholar] [CrossRef]
  29. Deb, P.; Dhar, J.C. Low Dark Current and High Responsivity UV Detector Based on TiO2 Nanowire/RGO Thin Film Heterostructure. IEEE Trans. Electron Devices 2019, 66, 3874–3880. [Google Scholar] [CrossRef]
  30. Gao, C.; Li, X.; Wang, Y.; Chen, L.; Pan, X.; Zhang, Z.; Xie, E. Titanium Dioxide Coated Zinc Oxide Nanostrawberry Aggregates for Dye-Sensitized Solar Cell and Self-Powered UV-Photodetector. J. Power Sources 2013, 239, 458–465. [Google Scholar] [CrossRef]
  31. Wu, P.; Song, X.; Si, S.; Ke, Z.; Cheng, L.; Li, W.; Xiao, X.; Jiang, C. Significantly Enhanced Visible Light Response in Single TiO2 Nanowire by Nitrogen Ion Implantation. Nanotechnology 2018, 29, 184005. [Google Scholar] [CrossRef]
  32. Zhang, D.; Liu, C.; Xu, R.; Yin, B.; Chen, Y.; Zhang, X.; Gao, F.; Ruan, S. The Effect of Self-Depleting in UV Photodetector Based on Simultaneously Fabricated TiO2/NiO Pn Heterojunction and Ni/Au Composite Electrode. Nanotechnology 2017, 28, 365505. [Google Scholar] [CrossRef]
  33. Zhao, W.; He, L.; Feng, X.; Xiao, H.; Luan, C.; Ma, J. Deposition and Characterization of Epitaxial Ta-Doped TiO2 Films for Ultraviolet Photoelectric Detectors. Ceram. Int. 2018, 44, 21114–21119. [Google Scholar] [CrossRef]
  34. He, C.; Peng, L.; Lv, L.; Cao, Y.; Tu, J.; Huang, W.; Zhang, K. In Situ Growth of Carbon Dots on TiO2 NTAs for PEC Enzyme Biosensors with Visible Light Response. RSC Adv. 2019, 9, 15084–15091. [Google Scholar] [CrossRef]
  35. Ghasem Hosseini, M.; Shahryari, E. A Novel High-Performance Supercapacitor Based on Chitosan/Graphene Oxide-MWCNT/Polyaniline. J. Colloid Interface Sci. 2017, 496, 371–381. [Google Scholar] [CrossRef]
  36. Gu, H.; Zhang, H.; Lin, J.; Shao, Q.; Young, D.P.; Sun, L.; Shen, T.D.; Guo, Z. Large Negative Giant Magnetoresistance at Room Temperature and Electrical Transport in Cobalt Ferrite-Polyaniline Nanocomposites. Polymer 2018, 143, 324–330. [Google Scholar] [CrossRef]
  37. Cui, X.; Zhu, G.; Pan, Y.; Shao, Q.; Zhao, C.; Dong, M.; Zhang, Y.; Guo, Z. Polydimethylsiloxane-Titania Nanocomposite Coating: Fabrication and Corrosion Resistance. Polymer 2018, 138, 203–210. [Google Scholar] [CrossRef]
  38. Wang, X.; Feng, W.; Chen, Y.; Ge, N. Coverage Optimization for UAV-Aided Internet of Things with Partial Channel Knowledge. J. Commun. Inf. Netw. 2018, 3, 55–63. [Google Scholar] [CrossRef]
  39. Wang, L.; Tang, G.; Liu, S.; Dong, H.; Liu, Q.; Sun, J.; Tang, H. Interfacial Active-Site-Rich 0D Co3O4/1D TiO2 p-n Heterojunction for Enhanced Photocatalytic Hydrogen Evolution. Chem. Eng. J. 2022, 428, 131338. [Google Scholar] [CrossRef]
  40. Shi, H.; Zhao, T.; Wang, J.; Wang, Y.; Chen, Z.; Liu, B.; Ji, H.; Wang, W.; Zhang, G.; Li, Y. Fabrication of G-C3N4/PW12/TiO2 Composite with Significantly Enhanced Photocatalytic Performance under Visible Light. J. Alloys Compd. 2021, 860, 157924. [Google Scholar] [CrossRef]
  41. Megha, R.; Ravikiran, Y.T.; Vijaya Kumari, S.C.; Raj Prakash, H.G.; Ramana, C.H.V.V.; Thomas, S. Enhancement in Alternating Current Conductivity of HCl Doped Polyaniline by Modified Titania. Compos. Interfaces 2019, 26, 309–324. [Google Scholar] [CrossRef]
  42. Vaez, M.; Alijani, S.; Omidkhah, M.; Zarringhalam Moghaddam, A. Synthesis, Characterization and Optimization of N-TiO2/PANI Nanocomposite for Photodegradation of Acid Dye under Visible Light. Polym. Compos. 2018, 39, 4605–4616. [Google Scholar] [CrossRef]
  43. Xiao, T.; Wang, X.; Wang, X.; Li, Z.; Zhang, L.; Lv, P.; Zhao, J. Effects of Monomer Solvent on the Supercapacitance Performance of PANI/ TiO2 NTAs Composite Electrode. Mater. Lett. 2018, 230, 245–248. [Google Scholar] [CrossRef]
  44. Ali, A.; Chowdhury, S.; Carr, M.A.; Janorkar, A.V.; Marquart, M.; Griggs, J.A.; Bumgardner, J.D.; Roach, M.D. Antibacterial and Biocompatible Polyaniline-doped Titanium Oxide Layers. J. Biomed. Mater. Res. Part B Appl. Biomater. 2023, 111, 1100–1111. [Google Scholar] [CrossRef]
  45. Hashemi Monfared, A.; Jamshidi, M. Synthesis of Polyaniline/Titanium Dioxide Nanocomposite (PANi/TiO2) and Its Application as Photocatalyst in Acrylic Pseudo Paint for Benzene Removal under UV/VIS Lights. Prog. Org. Coat. 2019, 136, 105257. [Google Scholar] [CrossRef]
  46. Wang, H.; Han, B.; Lu, J.; Wu, P.; Cui, W. Excellent Photoelectrocatalytic Degradation and Superior Charge Separation of Polyaniline Nanosheets Wrapped TiO2 NTAs. Mater. Lett. 2020, 260, 126906. [Google Scholar] [CrossRef]
  47. Chen, J.; Xia, Z.; Li, H.; Li, Q.; Zhang, Y. Preparation of Highly Capacitive Polyaniline/Black TiO2 Nanotubes as Supercapacitor Electrode by Hydrogenation and Electrochemical Deposition. Electrochim. Acta 2015, 166, 174–182. [Google Scholar] [CrossRef]
  48. Xie, S.; Gan, M.; Ma, L.; Li, Z.; Yan, J.; Yin, H.; Shen, X.; Xu, F.; Zheng, J.; Zhang, J.; et al. Synthesis of Polyaniline-Titania Nanotube Arrays Hybrid Composite via Self-Assembling and Graft Polymerization for Supercapacitor Application. Electrochim. Acta 2014, 120, 408–415. [Google Scholar] [CrossRef]
  49. Heshmatpour, F.; Zarrin, S. A Probe into the Effect of Fixing the Titanium Dioxide by a Conductive Polymer and Ceramic on the Photocatalytic Activity for Degradation of Organic Pollutants. J. Photochem. Photobiol. A Chem. 2017, 346, 431–443. [Google Scholar] [CrossRef]
  50. Nunes, W.G.; Pires, B.M.; Thaines, E.H.N.S.; Pereira, G.M.A.; Da Silva, L.M.; Freitas, R.G.; Zanin, H. Operando Raman Spectroelectrochemical Study of Polyaniline Degradation: A Joint Experimental and Theoretical Analysis. J. Energy Storage 2022, 55, 105770. [Google Scholar] [CrossRef]
  51. Zu, X.; Wang, H.; Yi, G.; Zhang, Z.; Jiang, X.; Gong, J.; Luo, H. Self-Powered UV Photodetector Based on Heterostructured TiO2 Nanowire Arrays and Polyaniline Nanoflower Arrays. Synth. Met. 2015, 200, 58–65. [Google Scholar] [CrossRef]
  52. Kang, Q.; Cao, J.; Zhang, Y.; Liu, L.; Xu, H.; Ye, J. Reduced TiO2 Nanotube Arrays for Photoelectrochemical Water Splitting. J. Mater. Chem. A 2013, 1, 5766. [Google Scholar] [CrossRef]
  53. Chinnamuthu, P.; Dhar, J.C.; Mondal, A.; Bhattacharyya, A.; Singh, N.K. Ultraviolet Detection Using TiO2 Nanowire Array with Ag Schottky Contact. J. Phys. D Appl. Phys. 2012, 45, 135102. [Google Scholar] [CrossRef]
  54. Zhou, C.; Wang, X.; Kuang, X.; Xu, S. High Performance Flexible Ultraviolet Photodetectors Based on TiO2/Graphene Hybrid for Irradiation Monitoring Applications. J. Micromech. Microeng. 2016, 26, 075003. [Google Scholar] [CrossRef]
  55. Morávková, Z.; Dmitrieva, E. Structural Changes in Polyaniline near the Middle Oxidation Peak Studied by in Situ Raman Spectroelectrochemistry. J. Raman Spectrosc. 2017, 48, 1229–1234. [Google Scholar] [CrossRef]
  56. Kinoshita, M.; Kamizato, T.; Shimoyama, Y. Effect of Precursor Structure on Mixed-Crystal Phase Titanium Oxide Synthesized by Sol-Gel Reaction in Supercritical Carbon Dioxide. J. Supercrit. Fluids 2018, 138, 193–199. [Google Scholar] [CrossRef]
  57. Zhu, C.; Cakmak, U.; Sheikhnejad, O.; Cheng, X.; Zhang, X.; Xu, Y.; Gao, S.; Zhao, H.; Huo, L.; Major, Z. One Step Synthesis of PANI/Fe2O3 Nanocomposites and Flexible Film for Enhanced NH3 Sensing Performance at Room Temperature. Nanotechnology 2019, 30, 255502. [Google Scholar] [CrossRef]
  58. Feizpoor, S.; Habibi-Yangjeh, A.; Yubuta, K. Integration of Carbon Dots and Polyaniline with TiO2 Nanoparticles: Substantially Enhanced Photocatalytic Activity to Removal Various Pollutants under Visible Light. J. Photochem. Photobiol. A Chem. 2018, 367, 94–104. [Google Scholar] [CrossRef]
  59. Srivastava, S.; Kumar, S.; Singh, V.N.; Singh, M.; Vijay, Y.K. Synthesis and Characterization of TiO2 Doped Polyaniline Composites for Hydrogen Gas Sensing. Int. J. Hydrogen Energy 2011, 36, 6343–6355. [Google Scholar] [CrossRef]
Polymers 15 04400 g001

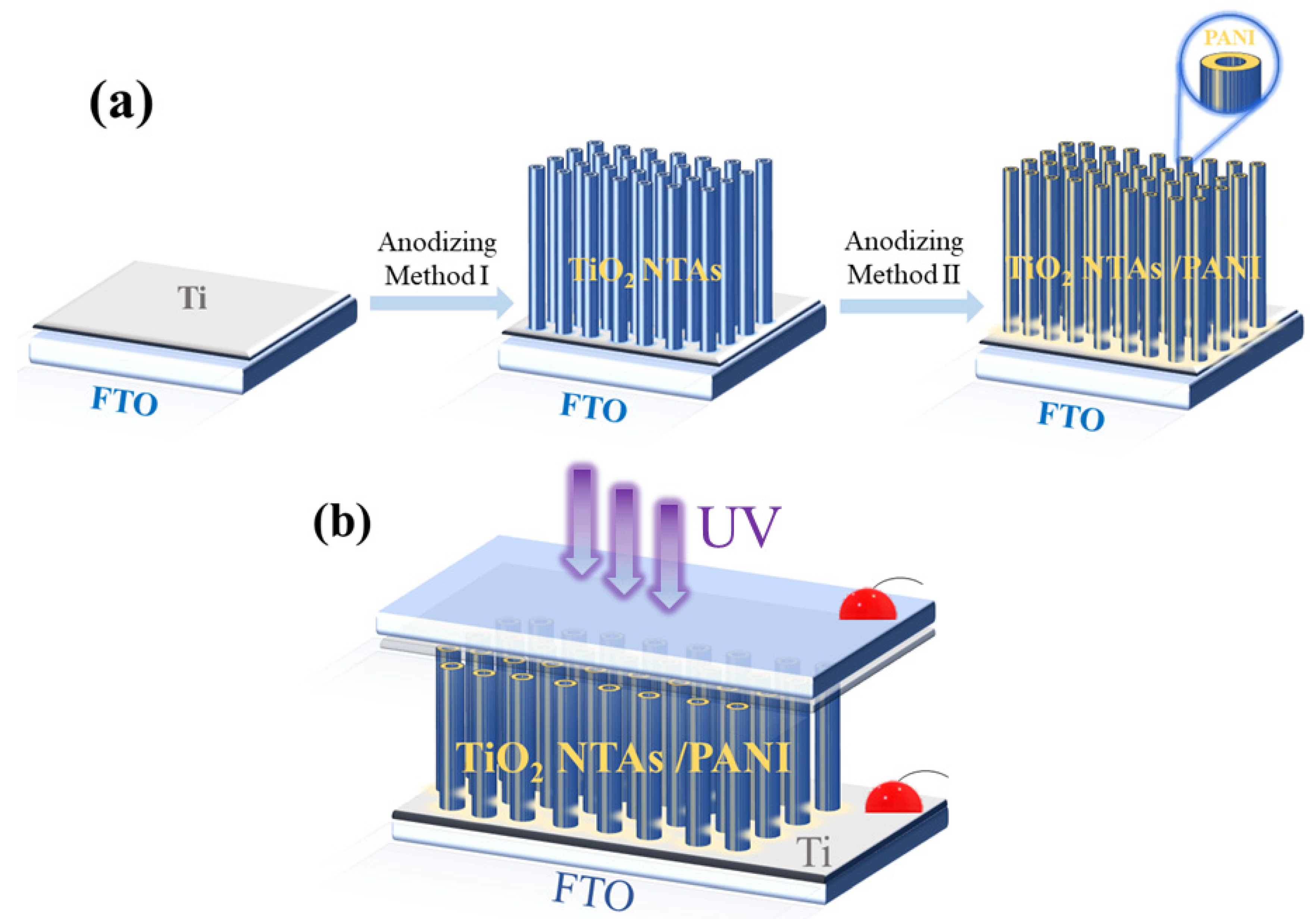

Figure 1. Schematic diagram of TiO2 NTA/PANI device preparation (a); device structure diagram (b).
Figure 1. Schematic diagram of TiO2 NTA/PANI device preparation (a); device structure diagram (b).
Polymers 15 04400 g001
Polymers 15 04400 g002
Figure 2. SEM diagram of TiO2 NTAs under different conditions: oxidation potential 15 V (a), 20 V (b), 25 V (c); oxidation time 5 min (d), 8 min (e), 10 min (f); electrolyte concentration 1% HF (g), 1.5% HF (h), 2% HF (i).
Figure 2. SEM diagram of TiO2 NTAs under different conditions: oxidation potential 15 V (a), 20 V (b), 25 V (c); oxidation time 5 min (d), 8 min (e), 10 min (f); electrolyte concentration 1% HF (g), 1.5% HF (h), 2% HF (i).
Polymers 15 04400 g002
Polymers 15 04400 g003
Figure 3. SEM images of TiO2 NTAs (a–c), TiO2 NTA/PANI nanocomposite (d).
Figure 3. SEM images of TiO2 NTAs (a–c), TiO2 NTA/PANI nanocomposite (d).
Polymers 15 04400 g003
Polymers 15 04400 g004

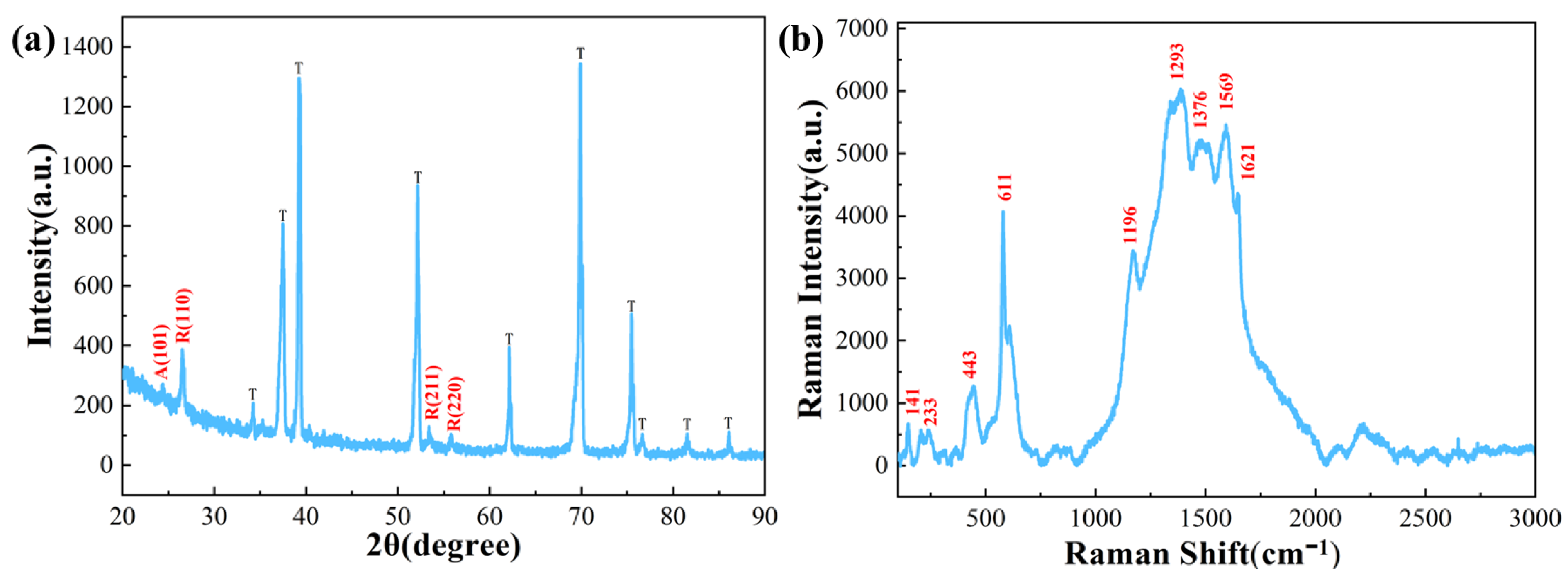

Figure 4. (a) XRD and (b) Raman spectroscopy of TiO2 NTAs.
Figure 4. (a) XRD and (b) Raman spectroscopy of TiO2 NTAs.
Polymers 15 04400 g004
Polymers 15 04400 g005

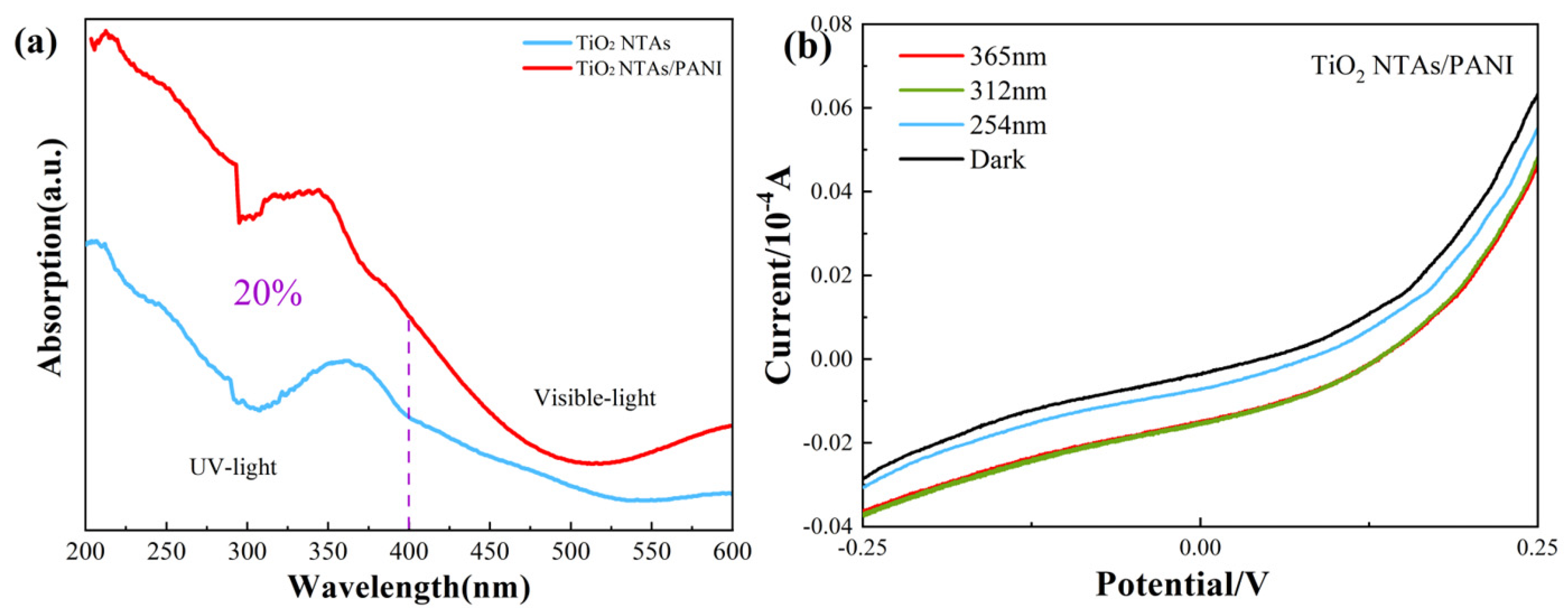

Figure 5. UV–vis light absorption spectra (a) and I–V curves (b) of TiO2 NTAs and TiO2 NTA/PANI nanocomposite.
Figure 5. UV–vis light absorption spectra (a) and I–V curves (b) of TiO2 NTAs and TiO2 NTA/PANI nanocomposite.
Polymers 15 04400 g005
Polymers 15 04400 g006

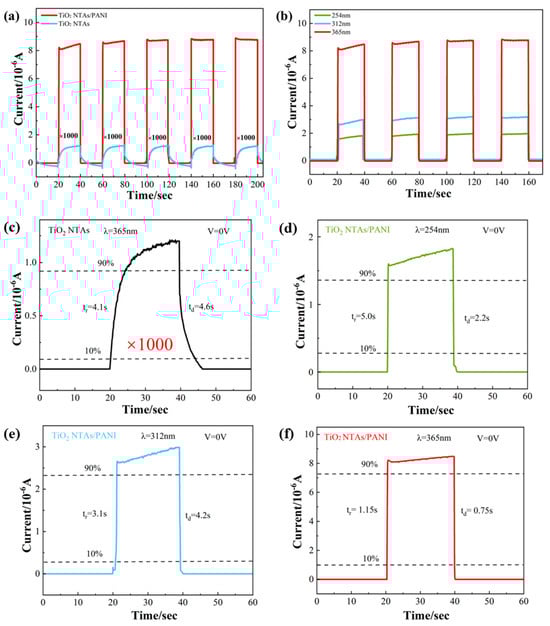

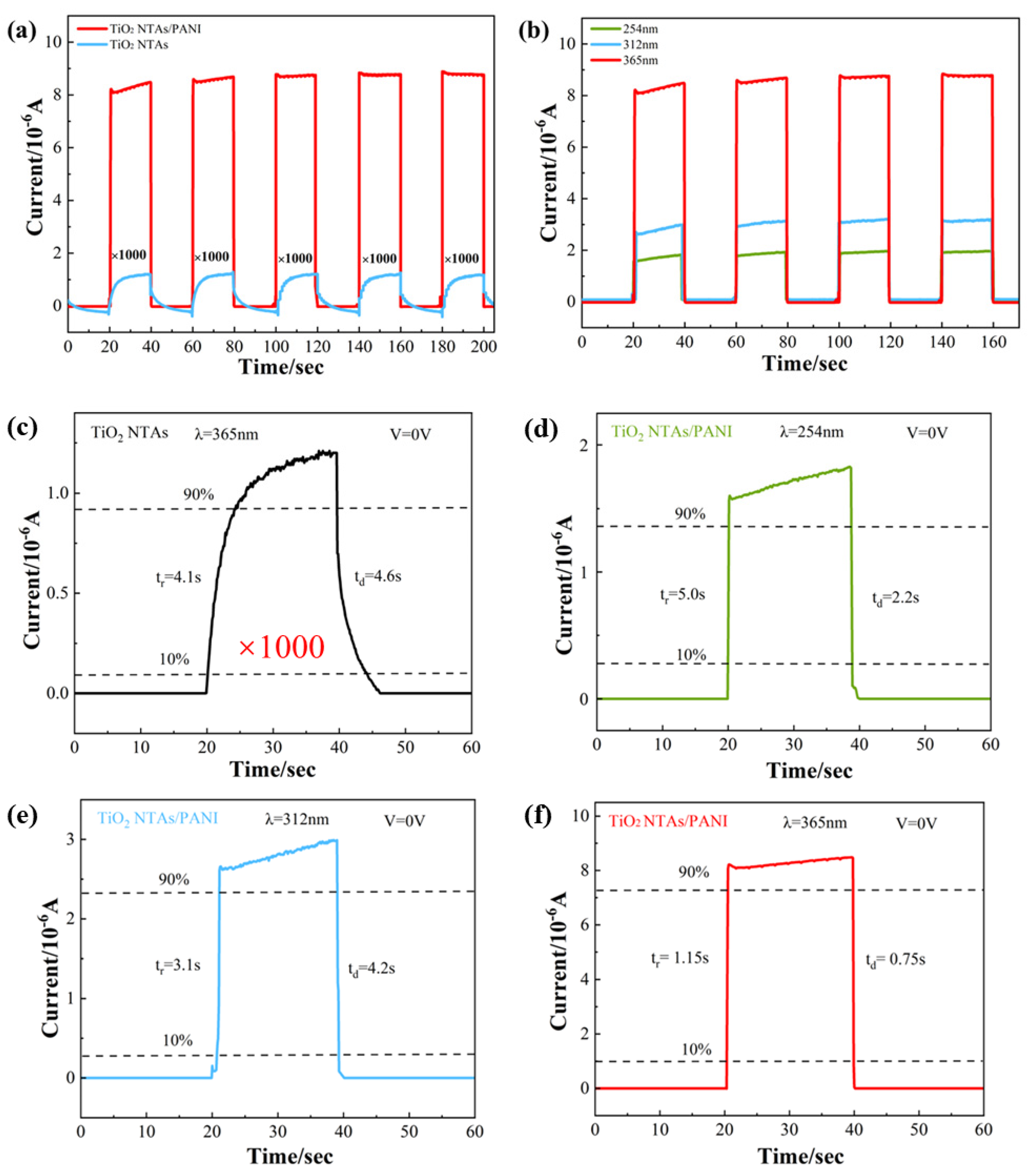

Figure 6. I–t curves of different devices at 0 V bias under 365nm UV light irradiation (a) and TiO2 NTA/PANI devices at different wavelengths (b). A sharp rise and fall in the enlarged portions of a 0–60 s range correspond to the on-state and off-state at a bias voltage of 0 V for (c) TiO2 NTAs, 365 nm and TiO2 NTA/PANI (d) 254 nm (e) 312 nm (f) 365 nm.
Figure 6. I–t curves of different devices at 0 V bias under 365nm UV light irradiation (a) and TiO2 NTA/PANI devices at different wavelengths (b). A sharp rise and fall in the enlarged portions of a 0–60 s range correspond to the on-state and off-state at a bias voltage of 0 V for (c) TiO2 NTAs, 365 nm and TiO2 NTA/PANI (d) 254 nm (e) 312 nm (f) 365 nm.
Polymers 15 04400 g006
Polymers 15 04400 g007

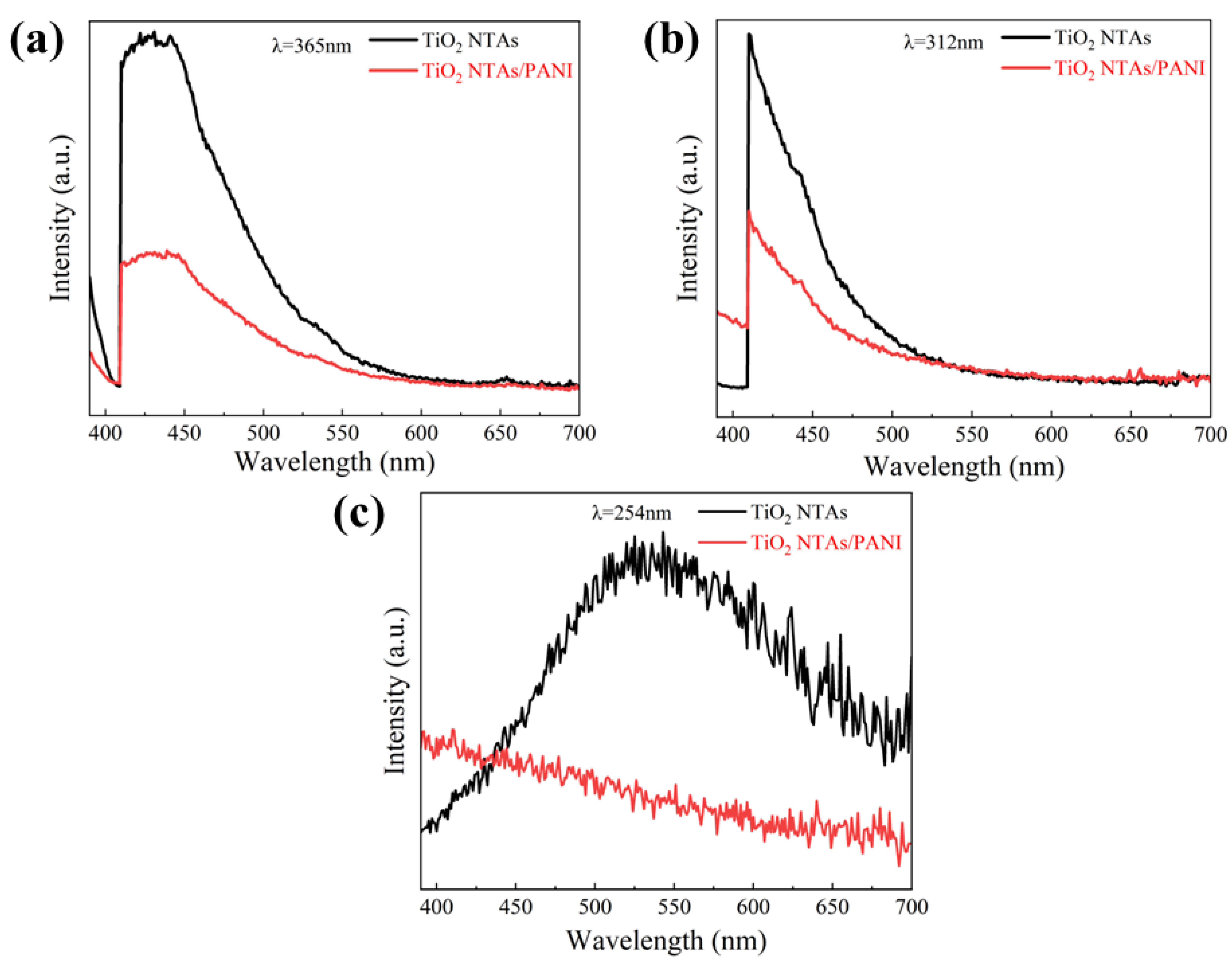

Figure 7. PL spectra of TiO2 and PANI/TiO2 under different excitation wavelengths of UV light: (a) 365 nm, (b) 312 nm, (c) 254 nm.
Figure 7. PL spectra of TiO2 and PANI/TiO2 under different excitation wavelengths of UV light: (a) 365 nm, (b) 312 nm, (c) 254 nm.
Polymers 15 04400 g007
Polymers 15 04400 g008

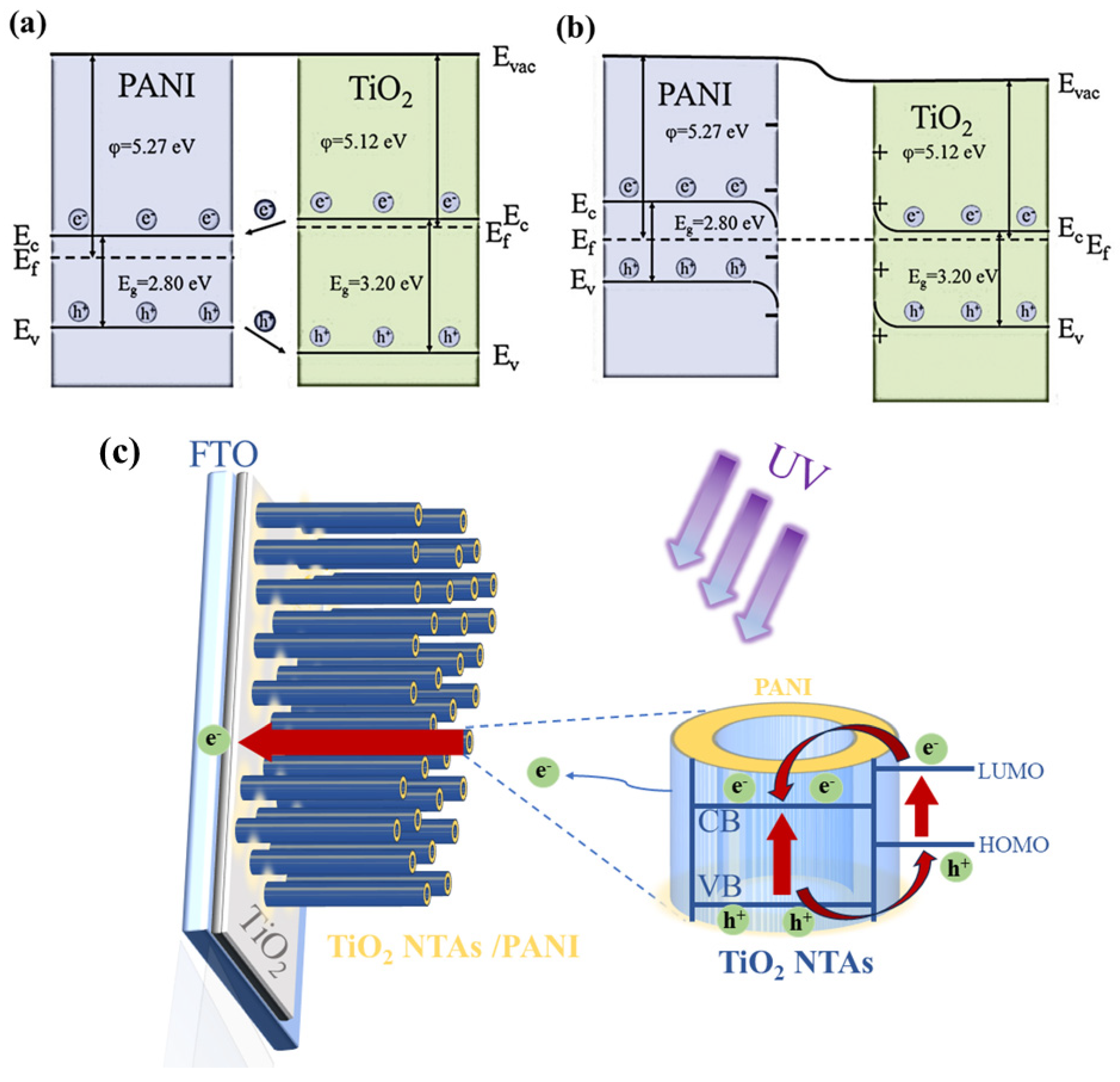

Figure 8. The contact potential differences of (a) PANI and (b) TiO2. (c) Schematic diagram of interface electron transfer.
Figure 8. The contact potential differences of (a) PANI and (b) TiO2. (c) Schematic diagram of interface electron transfer.
Polymers 15 04400 g008
