Structure–Property Relationship, Glass Transition, and Crystallization Behaviors of Conjugated Polymers
Abstract
:1. Introduction
2. The Structure–Property Relationship of the Conjugated Polymers

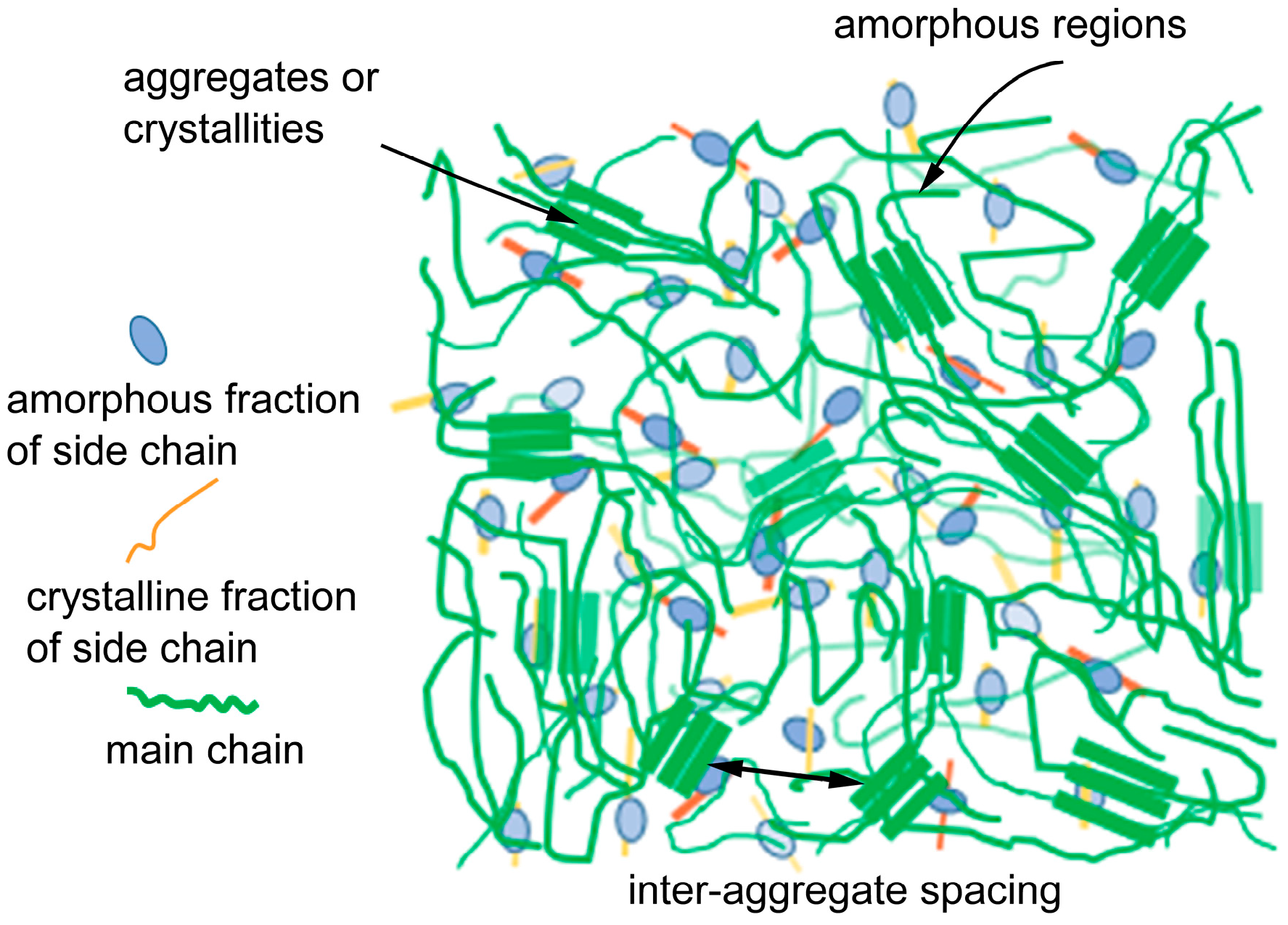

2.1. The Charge Transport in Conjugated Polymers

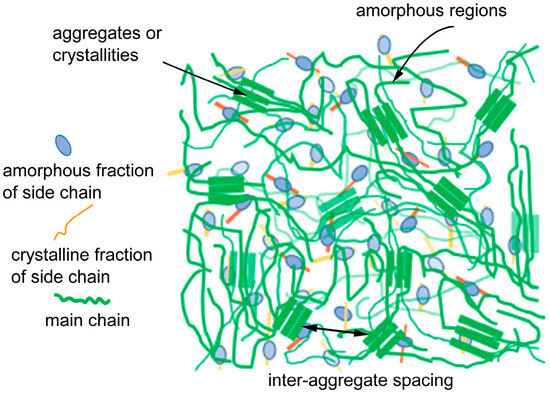

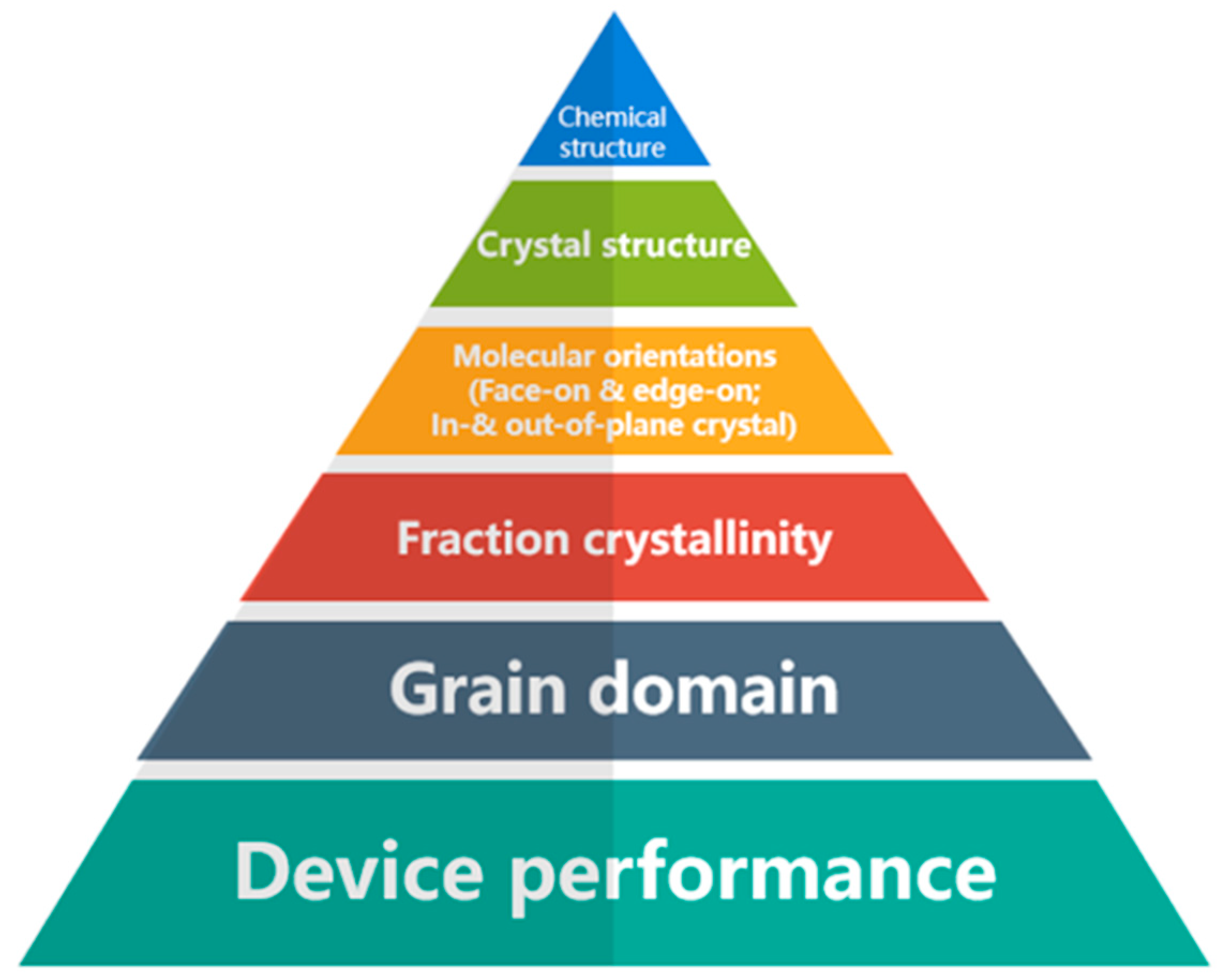

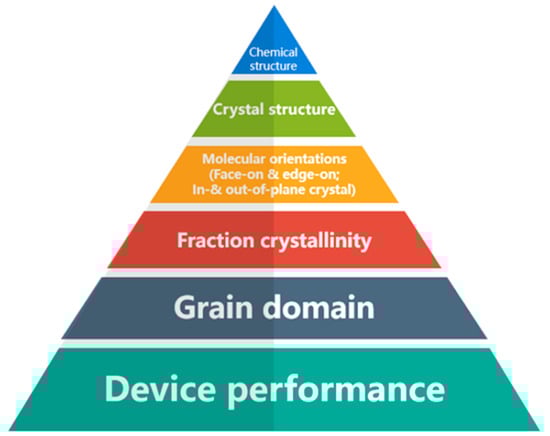

2.2. The Multi-Scale Aggregated Structure and the Charge Transport of Conjugated Polymers
3. The Glass Transition of the Conjugated Polymers
3.1. The Glass Transition in Polymers

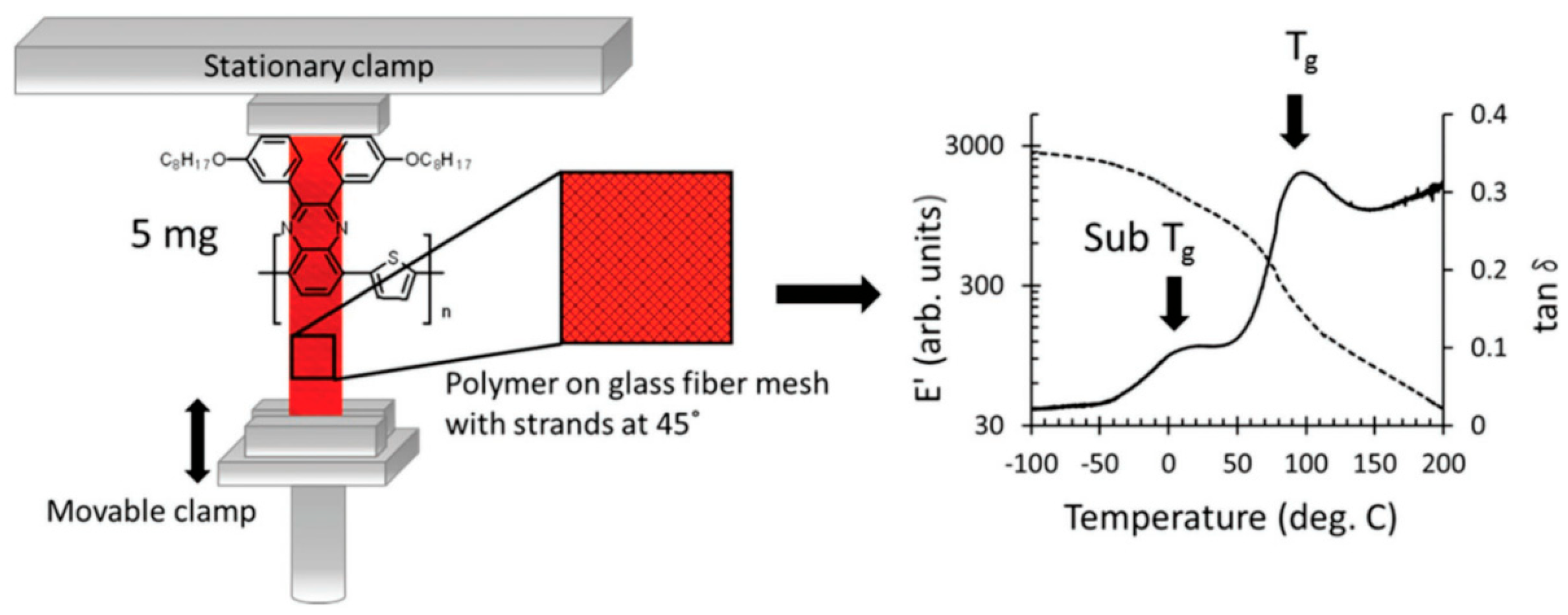

3.2. Experimental Techniques for Measuring the Tg in Polymers

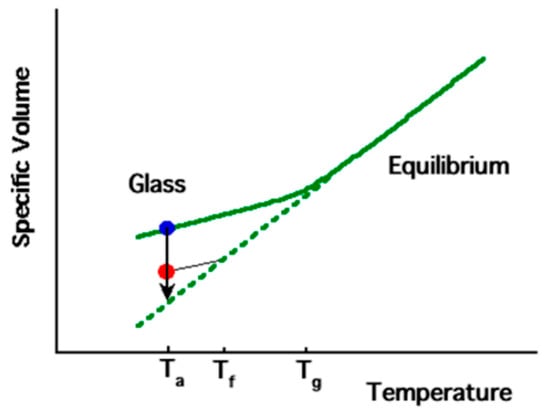

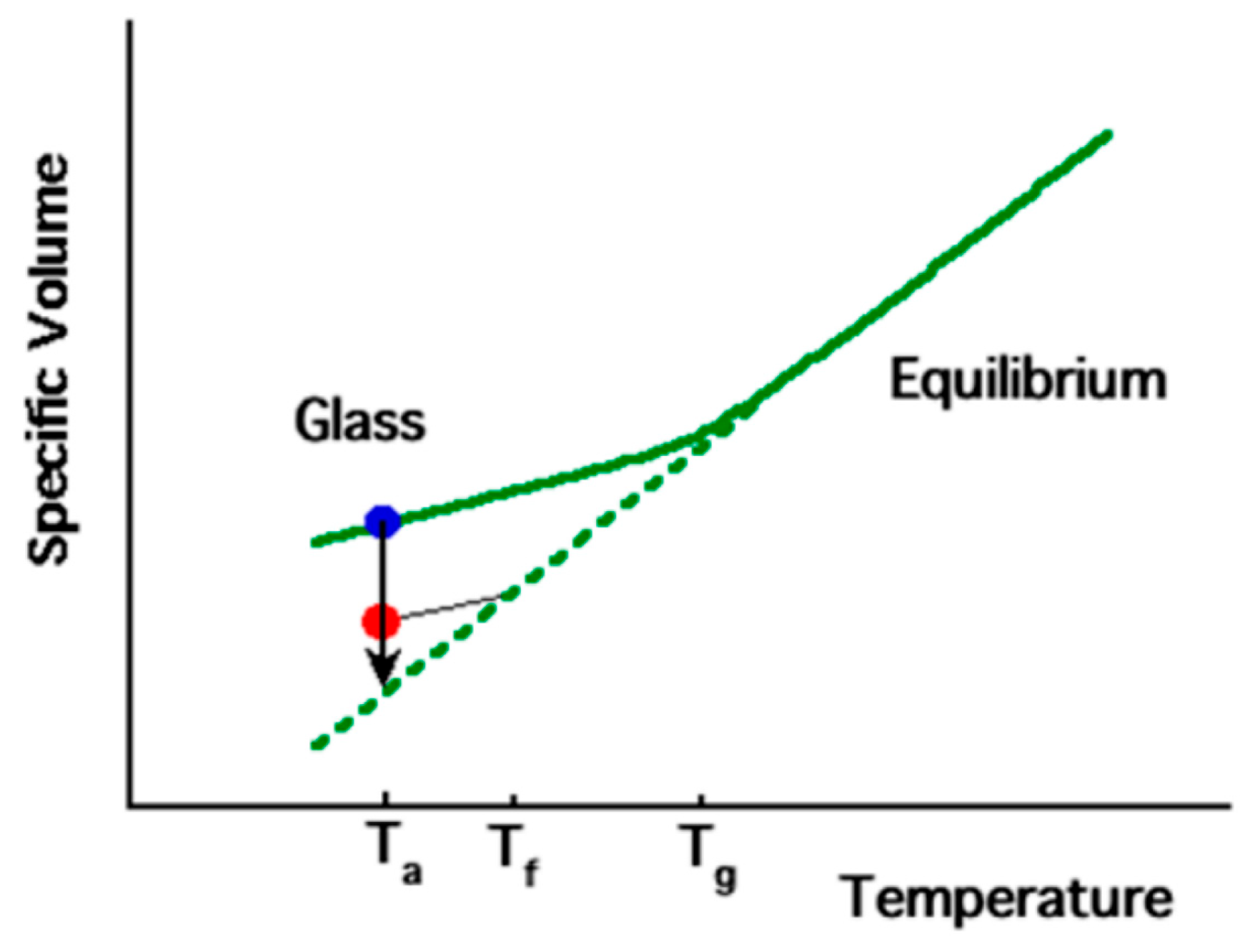

3.3. The Fictive Temperature in Glass Transition

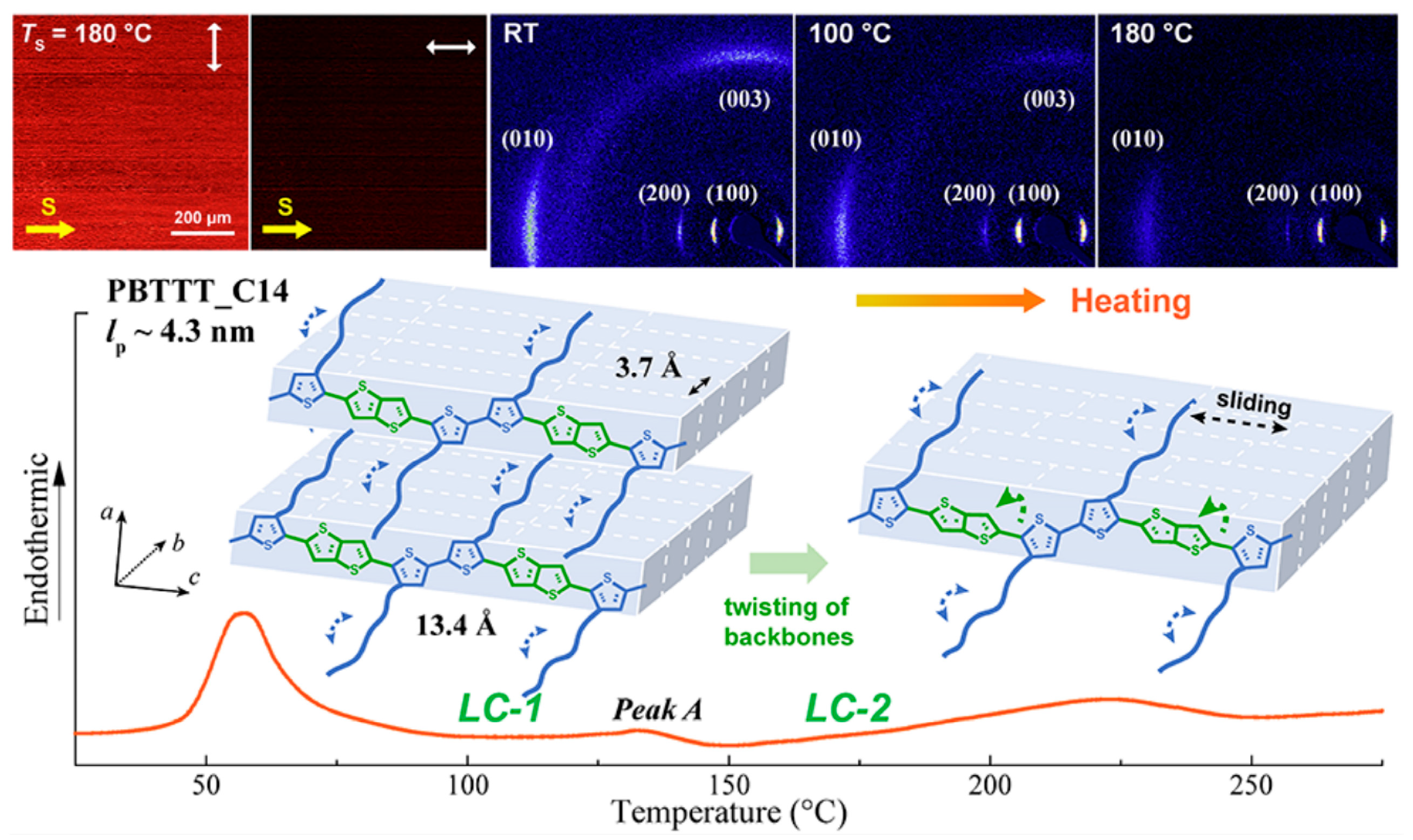

3.4. The Measurements of Tgs in Conjugated Polymers

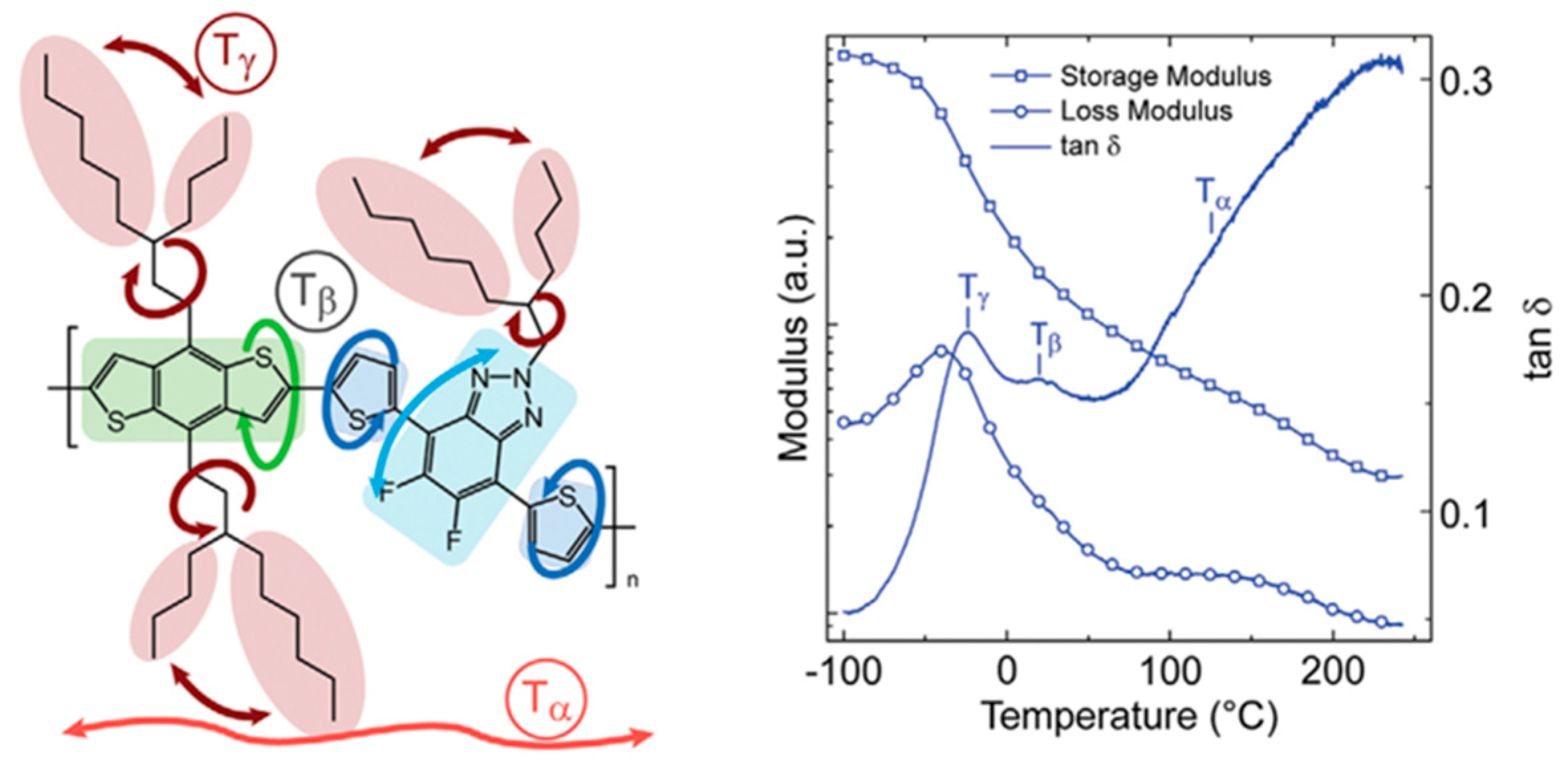

3.4.1. The Effect of the Lengths and Branches of the Side Groups on Tg of Conjugated Polymers

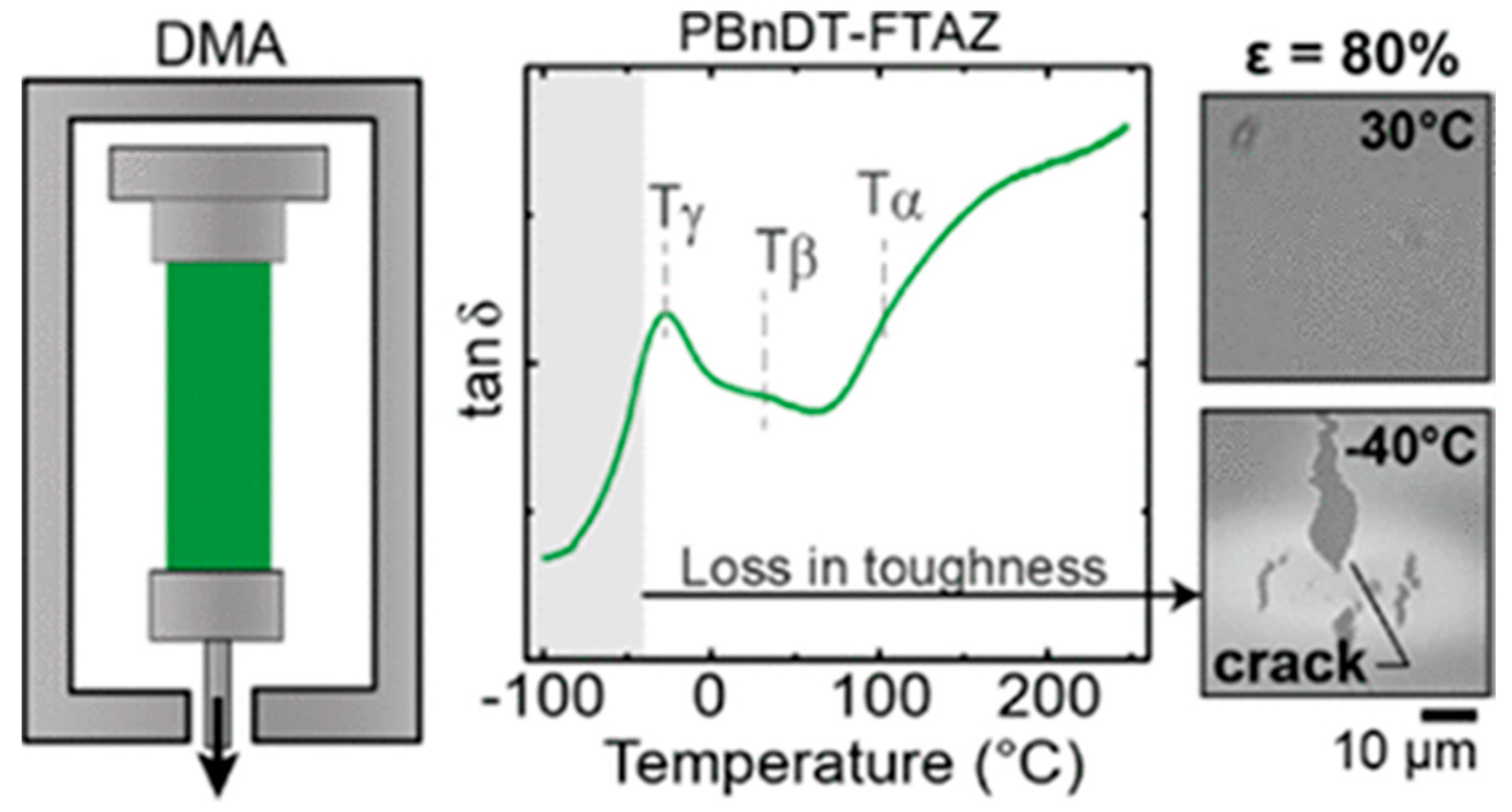

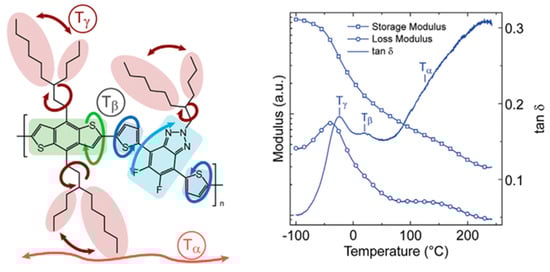

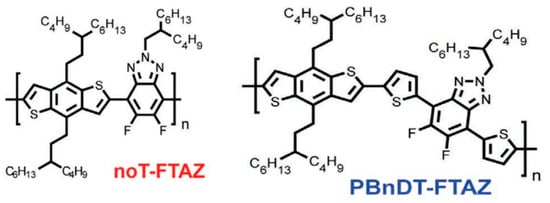

3.4.2. The Influence of the Rigidity of the Main Chains on Tg of Conjugated Polymers

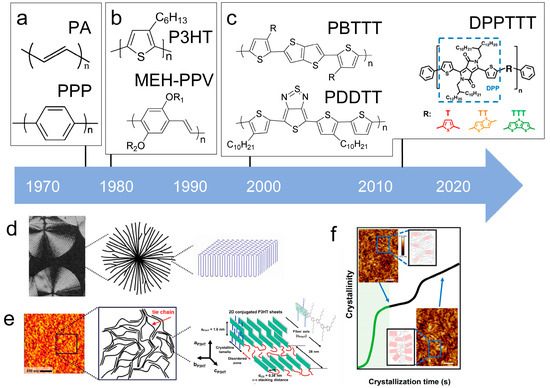

4. The Crystallization Behaviors of the Conjugated Polymers

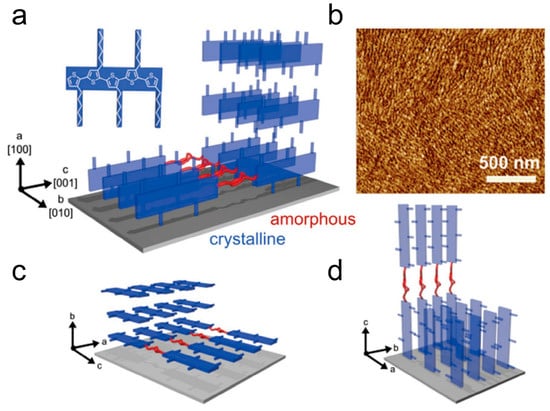

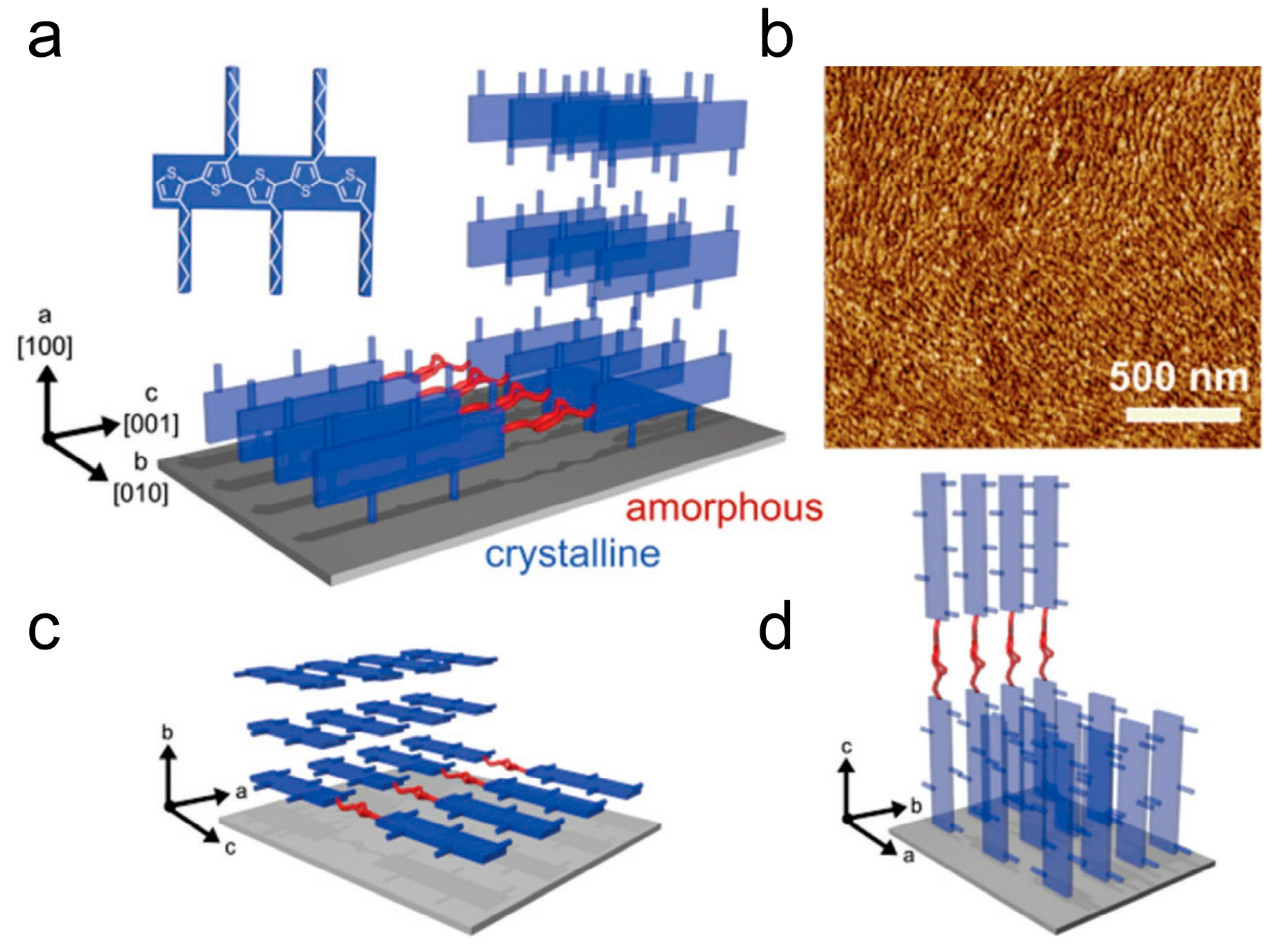

4.1. The Multi-Scale Morphology and Crystallization of the Conjugated Polymers

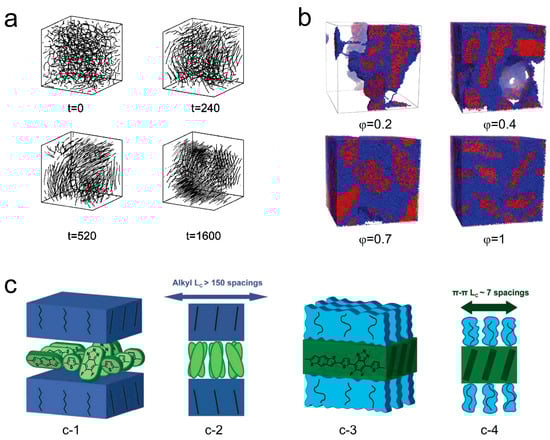

4.2. The Effect of Side Chains on the Crystallization of Conjugated Polymers
5. Conclusions and Outlook
5.1. Thermal Behavior Studies of Other Conjugated Polymers
5.2. Glass Transition Studies of Conjugated Polymers
5.3. Crystallization Behavior Studies of Conjugated Polymers
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
