An Evaluation of Parylene Thin Films to Prevent Encrustation for a Urinary Bladder Pressure MEMS Sensor System

School of Biomedical and Precision Engineering, University of Bern, Güterstrasse 24/26, 3010 Bern, Switzerland
Graduate School for Cellular and Biomedical Sciences, University of Bern, Mittelstrasse 43, 3012 Bern, Switzerland
Institute for Cell Biology, Rostock University Medical Center, Schillingallee 69, 18057 Rostock, Germany
Department of Urology, Rostock University Medical Center, Schillingallee 35, 18057 Rostock, Germany
Coat-X SA, Eplatures-Grise 17, 2300 La Chaux-de-Fonds, Switzerland
InVivo Bionics AS, Gaustadallèen 21, 0349 Oslo, Norway
Author to whom correspondence should be addressed.
Polymers 2023, 15(17), 3559;
Submission received: 31 July 2023 / Revised: 22 August 2023 / Accepted: 23 August 2023 / Published: 27 August 2023
(This article belongs to the Special Issue Advanced Polymeric Materials for Pharmaceutical Applications IV)


Recent developments in urological implants have focused on preventive strategies to mitigate encrustation and biofilm formation. Parylene, a conformal, pinhole-free polymer coating, has gained attention due to its high biocompatibility and chemical resistance, excellent barrier properties, and low friction coefficient. This study aims to evaluate the effectiveness of parylene C in comparison to a parylene VT4 grade coating in preventing encrustation on a urinary bladder pressure MEMS sensor system. Additionally, silicon oxide (SiOx) applied as a finish coating was investigated for further improvements. An in vitro encrustation system mimicking natural urine flow was used to quantify the formation of urinary stones. These stones were subsequently analyzed using Fourier transform infrared spectrometry (FTIR). Encrustation results were then discussed in relation to coating surface chemical properties. Parylene C and VT4 grades demonstrated a very low encrustation mass, making them attractive options for encrustation prevention. The best performance was achieved after the addition of a hydrophilic SiOx finish coating on parylene VT4 grade. Parylene-based encapsulation proved to be an outstanding solution to prevent encrustation for urological implants.

Graphical Abstract

1. Introduction

In the 1930s, Dr. Frederick Foley introduced the indwelling urinary catheter to urologic practice, and these catheters remain widely used in daily urological procedures today [1]. Despite their long history of use, urinary catheters still present various disadvantages. A significant concern is the formation of crystalline biofilms that encrust and block the catheter. Encrustation can occur rapidly, leading to urine flow obstruction and potential complications, such as incontinence or painful bladder distention. These challenges highlight the need for improved solutions to minimize encrustation and enhance patient comfort and care [2,3].
Recently, various preventive surface modification strategies against encrustation and biofilm formation have been investigated. Most urinary stents consist of polymer mixtures with optimized surface properties designed to reduce encrustation. New polymeric stents, exhibiting optimized surface properties, are intended to improve biocompatibility and bio-dispersibility, ease the insertion and withdrawal, and reduce the encrustation [4]. To reduce mechanical friction and resistance during ureteral stent placement, hydrophilic substances, including hydrogel, polyvinylpyrrolidone (PVP), and polyvinylpyrrolidone-iodine (PVP-I) coated to the surface of the implant, can be used [5]. Laube et al. [6] compared polyurethane surfaces with hydrophilic amorphous carbon (a-C:H) surfaces. The experiment showed that crystalline biofilms on urological stents in artificial urine are strongly influenced by the formation and development of gas bubbles on the surface of the stents. Hydrophobic polyurethane surfaces allowed the formation of more extensive and stable bubbles than hydrophilic surfaces. Gas bubbles increase the deposition of salts from the artificial urine and are trapped as crystalline hollow spheres in the encrustation layer. In contrast, the bubbles from hydrophilic surfaces lift off quickly before the settling salts can trap them. Various strategies have been explored to mitigate encrustation and bacterial adherence in urinary tract implants. Kram et al. [3] investigated diamond-like carbon coatings combined with copper doping to kill bacterial growth while maintaining biocompatibility. Their findings indicated that increased surface roughness, due to copper doping, correlated with higher encrustation, underscoring the need for low-roughness anti-adhesive surfaces in future stent designs. Recent attention has shifted towards metal ion coatings (gold, silver, copper) for inherent bactericidal properties. Innovative approaches involving Ag–Au nanoparticle-coated stents offer prolonged antibacterial and biofilm-resistant qualities [7]. Additionally, Franz et al. [8] proposed a sandwich layer with a silver base layer and parylene film to gradually release non-toxic, bactericidal Ag ions. Early antimicrobial coating studies involved soaking urological stents in antibiotics and drying them for a coated effect; combining such coated stents with systemic antibiotics yielded bacteriostatic effects. Clarithromycin-coated stents combined with amikacin prevented biofilm infections, and rifampicin-coated stents with tigecycline inhibited biofilm formation [9,10].
From the medical point of view, monitoring pressure in biomedical applications is of the highest importance, with routine measurements involving blood, eye, urinary bladder, and joint pressures. To facilitate accurate in vivo pressure measurements, MEMS technology offers promising possibilities due to its small size, low weight, and low energy consumption [11]. However, exposure to aggressive body fluids and biological substances can lead to biofouling and alter device characteristics, compromising stability [12]. Traditional MEMS packaging methods, often involving bulky metal or solid polymer cages, limit the potential for miniaturized implantable MEMS. To prevent the body attacking the sensor, a thin biocompatible coating emerges as a viable alternative, providing sufficient protection while maintaining the advantage of small size, and not affecting the sensor’s functionalities. In response to these requirements, an in vivo sensor system was developed by Clausen et al. for direct pressure measurement into human organs [13,14]. The system comprises a small-sized and highly sensitive MEMS pressure sensor that is integrated into a catheter. An applied version of this sensor catheter has been developed to measure pressure inside the human bladder. It is wired to an external module responsible for biasing, sampling, converting, and storing sensor measurements. This innovative solution allows for precise physiological recordings during natural bladder filling and emptying cycles. By employing protective coatings, this sensor system offers a reliable and minimally invasive approach for urinary bladder monitoring, facilitating valuable insights for medical experts [15,16]. Clausen’s solution show how the integration of biocompatible coatings with MEMS devices presents new opportunities for developing miniaturized implantable medical sensors in various applications.
Poly-para-xylylene, commonly referred to as parylene and its derivates, is a thin-film highly conformal polymer coating often cited as the material of choice in various biomedical applications, including for urinary tract implants [17,18,19]. Parylene coatings offer several advantages in this context. First, its biocompatibility and biostability are essential for urological implants to minimize the risk of adverse reactions or complications [20,21]. Furthermore, parylene coatings exhibit good barrier properties, even at high-temperature exposure, protecting the implant material and preventing potential issues such as the corrosion and degradation of medical devices placed inside the human body [22]. Parylene demonstrates a high resistance to a wide range of chemicals and body fluids, including urine, and shows a low coefficient of friction, that reduces frictional forces and potentially minimizes irritation, discomfort, or damage to the surrounding tissues [23]. Silicon oxide layers have gained well-known recognition for their effective barrier capabilities [24,25,26,27]. However, the attributes of silicon oxide-based compounds extend beyond barrier functions, positioning them as promising coating materials for optical purposes. Silicon oxide-based compounds exhibit remarkable characteristics, such as hardness, transparency, and hydrophilicity [28,29,30,31]. Additionally, significant interest has been directed towards the surface functionalization of silicon oxides. Researchers have studied enhancing surface properties through the deposition of robust overlayers, particularly in the field of optoelectronic device miniaturization [32,33].
The aim of this study is to investigate the effectiveness of two parylene grade coatings, parylene C and VT4, as well as a silicon-based finish coating, ceramic-like SiOx, in preventing encrustation for a urinary bladder pressure MEMS sensor system. An in vitro encrustation system was developed and employed to simulate the natural urine flow in the body and quantify the percentage of mass encrustation. Additionally, Fourier transform infrared spectrometry (FTIR) was utilized to analyze the formation of urinary stones. Surface chemical properties, such as the contact angle and surface charge, were characterized to correlate and discuss the results.

2. Materials and Methods

2.1. Thin Film Deposition

2.1.1. Parylene Deposition

Parylene, commonly referred to as poly-para-xylylene and its derivates, films were deposited using the Gorham process through low-pressure chemical vapor deposition (LPCVD) at room temperature [34]. Parylene films were performed in a CX-30 PC hydride machine, able to deposit inorganic layers by plasma-enhanced chemical vapor deposited (PECVD), provided by Coat-X SA, La Chaux-de-Fonds, Switzerland. To enhance the adhesion of the parylene film to the substrates, an adhesion promoter, methacryloxypropyl trimethoxysilane (Silane A174), was evaporated in the chamber for 3 min prior to the parylene deposition. In order to maintain a constant pressure of 80 µbar in the deposition chamber, a precise control of the sublimation temperature ranging from 80 to 150 °C was employed. The pyrolysis temperature was set at 700 °C to effectively cleave the dimers into monomers. Afterwards, the monomers condensed and polymerized inside the chamber, leading to the creation of a polymeric film at normal room temperature.
Two different parylene grades, namely parylene C and VT4, were deposited and evaluated. Parylene-based encapsulation solution is considered a very promising alternative to protect biomedical devices. Parylene C, or poly(chloro-p-xylylene), is the most commonly used variant of parylene. It demonstrates very low permeability to gases and moisture [22,35]. In addition, parylene C offers improved chemical resistance compared to the basic parylene grade (parylene N), making it suitable for applications that involve exposure to harsh environments. Parylene VT4, poly(tetrafluoro-p-xylylene), also categorized as fluorinated parylene or parylene F, incorporates fluorine atoms within its aromatic sites. Fluorinated parylene grades are known to exhibit superior thermal stability and possess a low dielectric constant [22,36].

2.1.2. SiOx Finish Coatings

Silicon oxide (SiOx) layers were obtained by dissociating a precursor called hexamethyldisiloxane (HMDSO) precursor and oxygen (O2) gas molecules using a capacitively-coupled high-frequency plasma at 13.56 MHz. By adjusting the ratio of O2 to HMDSO, the wettability properties of the coating layer could be modified. The O2/HMDSO ratio allowed for the transformation of the layer’s composition from purely inorganic to a more polymer-like layer due to the incorporation of organic groups from the HMDSO precursor [37]. In this study, a ratio of 10:1 was used for the SiOx coating, similar to the layer developed by Hogg et al. [38].

2.2. In Vitro Encrustation Test

Chemically defined synthetic urine was prepared according to Griffith et al. [39]. Solutions A and B, described in Table 1, were prepared with distinct amounts of different salt components (Carl Roth GmbH, Karlsruhe, Germany). Solution A was supplemented with urease (Merck KGaA, Darmstadt, Germany) to induce the crystallization process. The following chemical equations explain the development of struvite (so-called infection stones). Urease triggers the hydrolysis of the urea, producing ammonia. The increase in urinary pH leads to increased precipitation of calcium and magnesium phosphate.
NH2-CO-NH2 + H2O + Urease → CO2 + 2NH3
Urea is hydrolyzed in the presence of urease.
2NH3 + 2H2O → 2NH4+ + 2OH
Ammonia is hydrolyzed to ammonium ions. Binding with available cations produces magnesium ammonium phosphate (struvite), (NH4)Mg[PO4]·6H2O (pH > 7.5).
2NH3 + CO2 → CO2 + H2O → H2CO3 → 2H+ + CO32−
Carbon dioxide is oxidized to bicarbonate. Binding with available cations produces carbonate apatite Ca10(PO4)6CO3(OH)2 (pH > 6.8).
The temperature in the incubation system was set to 37 °C. The incubation system simulates the physiological conditions of a urinary bladder. A 500 mL bioreactor is used to simulate the physiological conditions in the urinary bladder. The typical filling volume of a human urinary bladder is estimated at 300 to 500 mL. The urine is well mixed by natural human movements and detrusor contractions. Natural micturition occurs in response to the filling pressure in the urinary bladder and by neuronal reflexes [40,41]. For our investigations, mixing was performed with the help of a magnetic stirrer with 80 revolutions per minute. Every 4 h 250 mL of synthetic urine was exchanged and every 24 h the medium was completely replaced. An experimental period of 7 days was allowed for each study. Catheterization every 4 h is recommended in the urological practice for patients with neurogenic bladder emptying disorders and residual urine in the urinary bladder should be expected. In preparation for a clinical study to analyze encrustations and biofilm on urinary bladder implants, in vitro studies were performed in the research department of Urology, Rostock University Medical Center and the parameters used in this study were determined by Buchholz et al. [42]. The encrustations were quantitatively analyzed by measuring the weight of the silicon wafer samples before and after the experiment. Samples were dried at 37 °C for 3 days to ensure that all residual liquid had evaporated.

Fourier Transform Infrared Spectroscopy

Encrustations deposited on silicon wafer samples were dried before the analysis and were ground in an agate mortar. The analysis of the implants was done by polarized light microscopy (BX43 Olympus, Hamburg, Germany) and the Urinary Stone Analyzer Fourier transform infrared spectrometry system FTIR ALPHA (Bruker, Billerica, MA, USA). Spectra were recorded between 2000 and 400 cm−1 (resolution 2 cm−1) for 120 scans and compared to the OPUS™ reference library, Version 7.5 (Bruker, Billerica, MA, USA). Semi-quantitative results were recorded in percentages. The qualitative analysis was based on the comparison of the spectrum of a sample with the spectrum of the reference material.

2.3. Contact Angle

Surface wettability was determined by the sessile drop method using the Drop Shape Analyzer—DSA25 (Krüss, Hamburg, Germany) [43]. One μL drop of distilled water and synthetic urine (pH 6.4; for formulation see Section 2.2) were deposited on the silicon wafer sample surface (n = 2 at 5 drops each). Distilled water and synthetic urine contact angle values were calculated with the supplied software (ADVANCE, V., Krüss, Hamburg, Germany) via Young’s equation and the surface free energy according to Owens, Wendt, Rabel, and Kaelble (OWRK).

2.4. Surface Charge

Zeta potential measurements were conducted on wafer samples (2 × 1 cm) using the SurPASS system (Anton Paar, Ostfildern, Germany) to determine the surface charge. Silicon wafer samples were mounted with a gap height of 100 µm between the two samples. The measurements were performed in 0.001 mol/L KCl solution ranging from pH 5.0 to 8.0. The streaming current was determined depending on the pressure (max. 400 mbar). Finally, the zeta potential was calculated according to the method of Helmholtz-Smoluchowski. Measurements on each surface were performed in quadruplicate on three independent sample pairs.

3. Results

3.1. In Vitro Encrustation Test

The formation of urinary stones in vivo depends on a variety of factors, such as pH, protein excretion, the presence of foreign material, bacterial infections, or dietary habits. Therefore, in vitro encrustation models have been developed to enable systematic studies that could contribute to a deeper understanding of the problem. We built our in vitro encrustation system based on this knowledge and used synthetic urine introduced by Griffith [39]. In this approach, two different unsaturated solutions were pumped into a bioreactor in which the polymer samples were placed. The initial pH of the synthetic urine was 5.5 and over time, the urease decomposed the urea into carbon dioxide and ammonia. This caused the pH to shift to the alkaline range, resulting in the precipitation of salt crystals. The rate of pH increase was caused by the urease reaction. The pH value reached the equilibrium state at a pH of 8.9. The encrustation mass was normalized, and each group comprised 4 samples. The mass of the samples with identical surface areas was measured before and after synthetic urine immersion. The normal distribution within each group was assessed using the Shapiro-Wilk test [44]. To compare the data groups, a two-tailed, unpaired Welch’s t-test was performed, revealing statistically significant differences (p < 0.05). The data analysis was conducted using R software version 4.2.2 [45,46].
Figure 1 illustrates the results of the encrustation test, indicating the encrustation mass (mg) measured. The data is categorized based on different parylene grades and further classified according to the type of finish coating applied. For parylene C, the mean value of the encrustation mass is measured at 9.55 mg. In the case of parylene VT4, the encrustation decreases to 7.5 mg when the parylene comes into direct contact with synthetic urine (“No Finish” group). When parylene is covered with a SiOx finish coating, the encrustation levels decrease further to 5.23 mg and 4.15 mg for parylene C and VT4, respectively.

Fourier Transform Infrared Spectroscopy

Encrustations are mostly mixtures of substances. Depending on the excited vibrational and rotational states of the molecules, characteristic absorptions were measured using Fourier transform infrared spectrometry. For an accurate qualitative and quantitative analysis, suitable reference substances and mixtures must be available (OPUSTM library, Bruker Optik GmbH, Ettlingen, Germany). The qualitative analysis was based on the comparison of the spectrum of a sample with the spectrum of the reference material. The measured absorption spectra of the mineral deposits are illustrated by the blue curve, while the absorption spectra of the OPUS reference library are shown in red.
FTIR analysis of the encrustations confirms that calcium oxalate (whewellite and weddellite), phosphate crystals (struvite, brushite, and apatite), and protein are major constituents and correlate well with the studies on human implants [47,48,49]. The FTIR analysis of urine encrustation depicted by the blue curve in Figure 2 consists of ammonium magnesium phosphate hexahydrate (struvite), carbonate apatite (dahlite), and calcium oxalate dihydrate (weddellite), with a compound ratio of 70, 20, and 10%, respectively. The hit quality with respect to the reference curve, red curve, is 968.

3.2. Contact Angle

The contact angle serves as a measure to characterize the hydrophilicity or hydrophobicity of a material. Typically, materials with a contact angle of <90° are labeled as hydrophilic, while those with a contact angle >90° are considered hydrophobic [50]. To closely emulate the in vivo conditions and to consider the potential impact of the solution on surface wettability, contact angle measurements using synthetic urine (hatched columns), as described earlier, and distilled water for reference measurements were conducted. Illustrated in Figure 3, the findings indicate that parylene C exhibits a lower water contact angle compared to parylene VT4, 91.9° (±2.1) and 94.7° (±1.6), respectively. This distinction is also observed when synthetic urine is used as the test liquid, 86.7° (±1.8) for parylene C and 95.1° (±2.7) for parylene VT4. Although the values obtained with synthetic urine differ slightly from those obtained with distilled water, both solutions confirm that parylene C possesses a more hydrophilic surface compared to parylene VT4. Furthermore, the application of a finish SiOx coating leads to significantly lower contact angle values of 56.7° (±3.6) and 54.1° (±2.7) for distilled water and synthetic urine, respectively. It has to be noted that the SiOx layer contact angle changed after several days of water immersion stabilizing at 71.5° (±2.2).

3.3. Surface Charge

The Zeta potential of the coated silicon wafer sample surfaces was measured in a pH range from 5.5 to 7.5 (see Appendix A, Figure A1). Specifically, the zeta potential value at pH 6.4, representing the average urine pH of healthy humans, was then extracted from the measurements. These results are presented and illustrated in Figure 4 for parylene C, VT4 films, and SiOx coating.
Zeta potential measurements detected negative charges for all examined materials. As depicted in Figure 4, within the characteristic pH value of 6.4, the parylene C coating demonstrates a more negative value of −65.0 mV (±3.3) when compared to parylene VT4, which displays −55.7 mV (±3.6). The SiOx coating exhibits a charge value of −51.9 mV (±3), making it the least negatively charged sample among all tested coatings. The complete data set of zeta potential measurements across the pH range of 5.5–7.5 are presented in Appendix A.

4. Discussion

As demonstrated in former studies, parylene-based encapsulation, and in particular parylene C grade, is considered a well-adapted solution for biomedical applications [20,21,23,51,52]. Implantation of biomaterials into the urinary tract is disadvantaged by stone formation, bacterial adherence and, ultimately, encrustation through biofilm formation resulting from a multifactorial disturbance of the delicate balance between numerous physico-chemical and biochemical processes [53,54]. Non-infectious stone formation and encrustation usually result from metabolic imbalances, often on the tubular level. In contrast, infectious stone formation and biofilm-induced encrustation are linked to the enzymatic activity of bacteria. The best known are urease-producing species, such as proteus mirabilis, which increase the pH of the urine. This alkalization, in turn, decreases the solubility of urinary calcium and magnesium salts and thus facilitates the encrustation [1,55]. From the implant functionality perspective, encrustation can lead to reduced sensitivity, measurement drift, implant dysfunction, or complete implant failure [56]. As the encrustation builds up, it can create a barrier between the implant and its surrounding environment, introducing various complications. In our case, the sensitivity of the MEMS sensors used for monitoring pressure can be impacted negatively due to the encrustation. When encrusted, the implant’s sensing capabilities may be altered or distorted. This reduction in sensitivity can cause inaccurate readings or measurements. Encrustation can also lead to measurement drifts or fluctuations caused by the alteration of the encrusted implant surface. Consequently, the reliability and accuracy of the measurements may deteriorate, making it challenging to obtain consistent data for long-term analysis or monitoring purposes [14].
The first phase of our investigations involved conducting urinary encrustation tests to evaluate the efficacy of different parylene films. Our aim was to use a reproducible in vitro system that simulates the in vivo infection situation realistically. To ensure this, we used defined amounts of urease instead of adding urease-producing bacteria. Furthermore, the quality and quantity of encrustations depend on the protein amount, which is why we decided to optimize our system and use albumin in a concentration of 333 mg/L, resembling a macroalbuminuria in our in vitro system [57]. Urinary encrustations consist of a mixture of crystals. In clinical practice, according to the guidelines for diagnosis, therapy, and metaphylaxis of urolithiasis, FTIR is recommended as a method for the urinary analysis of encrustations. The comparison of the analyzed crystal compounds with real combinations of urinary stones ensured the presence of urinary encrustation on tested samples. Among the parylene tested, grade C exhibited slightly less efficiency in preventing encrustation compared to grade VT4. However, when compared to other polymeric materials, parylene films present excellent results. Rebl et al. [58] investigated different polymers in a systematic screening approach to determine which surface parameter properties indicate low encrustation properties. The study showed that the most promising tested candidates for preventing encrustation on ureteral stents were a thermoplastic urethane, Elastollan 1185A 10 FC and a styrene-butadiene copolymer, Styroflex 2G 66, with 2.4% and 2.1% of mass encrustation, respectively. In comparison, parylene C and VT4 only exhibited an encrustation mass of 9.55 mg and 7.5 mg, which corresponds to a percentage of 2.2% and 1.7%, respectively, making them attractive options for encrustation prevention. Particularly, parylene-based encapsulation solutions prove to be an outstanding choice due to their properties, such as excellent barrier performance, thermal stability, pinhole-free coating, and biocompatibility. Furthermore, we observed that the addition of a SiOx layer to the coatings significantly improved their efficiency in preventing encrustation. This finding suggests that surface coatings might hold the key to enhancing encrustation prevention even further, reaching 5.23 mg and 4.15 mg of encrustation mass when parylene C and VT4, respectively, are covered with a finish coating of SiOx. Considering that the hydrophobicity of a surface can significantly influence interactions with surrounding fluids and substances, we next explored the contact angles of the coatings. Both parylene C and VT4 displayed comparable contact angles, indicating a slight hydrophobic nature. On the other hand, SiOx showed a notably strong hydrophilic character. Lastly, we analyzed the zeta potential of the coatings, which is a crucial factor affecting surface charge and interactions with surrounding substances. Parylene C exhibited the most negatively charged surface, possessing a zeta potential of −65 mV. In contrast, both parylene VT4 film and SiOx coating displayed similar zeta potential values, ranging from 55 to 52 mV. Interestingly, we discovered that the zeta potential alone does not entirely explain the encrustation results. While parylene C demonstrated a strong negative zeta potential, indicating heightened repulsion forces, it did not directly correlate with more effective prevention of encrustation. This finding partially aligns with the assumption discussed by Rebl et al. [58], suggesting that a negative surface charge of about −60 mV was the most suitable for use as stent materials, as the deposition of crystalline biofilms was minimized. It could be hypothesized that an excessively negative surface (inferior to −60 mV) may not be advantageous in preventing encrustation. Furthermore, our investigations into zeta potential and contact angle indicate that hydrophobicity might play a more essential role than zeta potential in explaining the differences in encrustation results among the coatings. This leads us to consider other chemical and physical surface properties that are potential contributing factors in the encrustation prevention mechanism. Additionally, the results revealed that the interaction of various surface properties, rather than individual factors, may hold the key to understanding and optimizing encrustation prevention. Further developments and characterizations have to be conducted to explore the exact mechanisms governing encrustation.
When considering encapsulation materials for in vivo implants or sensors, it was found that biocompatible parylene films alone demonstrate interesting barrier properties, even when in direct contact with fluids [59]. However, the barrier performance can be improved by several orders of magnitude once parylene is combined with inorganic thin films to build up multilayer structures [25,38,60,61]. A multilayer parylene-based barrier can prevent the penetration of moisture, gases, chemicals, and other contaminants that can degrade sensor performance for long-term implantation. Moreover, parylene-based encapsulation, deposited through a vapor-phase process, results in a uniform, conformal and pinhole-free coating. It can cover high-aspect ratio geometries, ensuring uniform encapsulation of 3D devices. This capability is particularly beneficial for MEMS sensors, which often have complex microstructures that need protection. Furthermore, the parylene-based solution can as well be considered an optimal solution for electronic sensors that may be exposed to a wide range of operating temperatures, due to its excellent thermal stability [22,62], combined with effective electrical insulator properties [36,63].

5. Conclusions

In conclusion, our investigations in encrustation prevention and the properties of parylene thin films highlighted the suitability of parylene as an encapsulation solution for biomedical and, more precisely, for urological applications. Parylene-based coatings, with their barrier properties, conformal deposition capability, thermal stability, biocompatibility, and electrical insulation, prove to be very promising candidates for sensor protection. The study demonstrated that parylene films can effectively protect urological MEMS sensors from adverse effects, and the SiOx finish coating additionally enhances the efficiency of the parylene-based encapsulation in preventing encrustation, suggesting the potential of composite coatings to optimize sensor protection even further. Understanding to a certain level the interaction of surface properties, such as surface charge and wettability, contributes to improving the development of surface treatments or finish coatings for encrustation prevention. Finally, a parylene-based solution stands out for its exceptional intrinsic properties, making it an outstanding choice for long-term urological implant encapsulation and effectively preventing encrustation.

Author Contributions

Conceptualization, S.B., M.H., H.R., S.S., W.K. and A.H.; methodology, S.B., M.H., H.R. and A.H.; validation, S.B., M.H., H.R., W.K., A.H. and L.G.W.T.; formal analysis, S.B., M.H., H.R., S.S. and W.K.; investigation, S.B., M.H., H.R., S.S. and W.K.; resources, S.B., H.R., W.K., A.H., I.C. and J.B.; data curation, S.B., M.H., H.R. and W.K.; writing—original draft preparation, S.B., M.H., H.R., W.K. and L.G.W.T.; writing—review and editing, S.B., M.H., H.R., S.S., W.K., A.H., L.G.W.T., I.C. and J.B.; visualization, S.B., M.H., H.R. and W.K.; supervision, S.B., H.R., W.K., A.H. and I.C.; project administration, S.B., M.H., H.R., W.K., A.H., L.G.W.T. and I.C.; funding acquisition, S.B., A.H., I.C. and J.B. All authors have read and agreed to the published version of the manuscript.


This research was funded by Innosuisse, the Swiss Innovation Agency, grant number 41363.1 IP-LS and by the Research Council of Norway, grant number 309275.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Figure A1 presents the measured zeta potential values for a pH from 5.5 to 7.5 for parylene C, VT4 films, and SiOx coating.

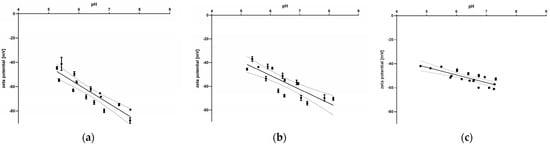

Figure A1. Zeta potential measurements: (a) parylene C; (b) parylene VT4; (c) SiOx as a function of pH from 5.5 to 7.5. The solid line represents the linear regression curve, dotted lines show standard deviation.
Figure A1. Zeta potential measurements: (a) parylene C; (b) parylene VT4; (c) SiOx as a function of pH from 5.5 to 7.5. The solid line represents the linear regression curve, dotted lines show standard deviation.
Polymers 15 03559 g0a1
After conducting measurements on each coating, it is evident that all of them exhibited a negative charge. However, there are noticeable differences in the slopes of the charge curves between parylene C (Figure A1a) and parylene VT4 (Figure A1b). For instance, parylene C displayed a significantly steeper slope. Figure A1c illustrates the measurement results for the SiOx coating, which shows a lower slope compared to the other two coatings.


  1. Stickler, D.J. Clinical Complications of Urinary Catheters Caused by Crystalline Biofilms: Something Needs to Be Done. J. Intern. Med. 2014, 276, 120–129. [Google Scholar] [CrossRef] [PubMed]
  2. Soria, F. Present and Future of Urinary Stents. In Urinary Stents: Current State and Future Perspectives; Springer International Publishing: Cham, Switzerland, 2022; pp. 1–4. ISBN 978-3-031-04483-0. [Google Scholar]
  3. Kram, W.; Rebl, H.; de la Cruz, J.E.; Haag, A.; Renner, J.; Epting, T.; Springer, A.; Soria, F.; Wienecke, M.; Hakenberg, O.W. Interactive Effects of Copper-Doped Urological Implants with Tissue in the Urinary Tract for the Inhibition of Cell Adhesion and Encrustation in the Animal Model Rat. Polymers 2022, 14, 3324. [Google Scholar] [CrossRef] [PubMed]
  4. Forbes, C.; Scotland, K.B.; Lange, D.; Chew, B.H. Innovations in Ureteral Stent Technology. Urol. Clin. N. Am. 2019, 46, 245–255. [Google Scholar] [CrossRef]
  5. Xia, K.; Shen, X.; Ang, X.; Hou, B.; Chen, Y.; Zhang, K.; Hao, Z. Surface Modification of Ureteral Stents: Development History, Classification, Function, and Future Developments. Expert Rev. Med. Devices 2023, 20, 401–416. [Google Scholar] [CrossRef]
  6. Laube, N.; Desai, C.; Bernsmann, F. Hydrophobic Forces as a Key Factor in Crystalline Biofilm Formation on Ureteral Stents. Biomed. Eng./Biomed. Tech. 2016, 61, 483–490. [Google Scholar] [CrossRef] [PubMed]
  7. Gao, L.; Wang, Y.; Li, Y.; Xu, M.; Sun, G.; Zou, T.; Wang, F.; Xu, S.; Da, J.; Wang, L. Biomimetic Biodegradable Ag@ Au Nanoparticle-Embedded Ureteral Stent with a Constantly Renewable Contact-Killing Antimicrobial Surface and Antibiofilm and Extraction-Free Properties. Acta Biomater. 2020, 114, 117–132. [Google Scholar] [CrossRef]
  8. Franz, G.; Schamberger, F.; Zare, H.H.; Bröskamp, S.F.; Jocham, D. Bi-Layer Sandwich Film for Antibacterial Catheters. Beilstein J. Nanotechnol. 2017, 8, 1982–2001. [Google Scholar] [CrossRef] [PubMed]
  9. Cirioni, O.; Ghiselli, R.; Silvestri, C.; Minardi, D.; Gabrielli, E.; Orlando, F.; Rimini, M.; Brescini, L.; Muzzonigro, G.; Guerrieri, M. Effect of the Combination of Clarithromycin and Amikacin on Pseudomonas Aeruginosa Biofilm in an Animal Model of Ureteral Stent Infection. J. Antimicrob. Chemother. 2011, 66, 1318–1323. [Google Scholar] [CrossRef]
  10. Minardi, D.; Cirioni, O.; Ghiselli, R.; Silvestri, C.; Mocchegiani, F.; Gabrielli, E.; d’Anzeo, G.; Conti, A.; Orlando, F.; Rimini, M. Efficacy of Tigecycline and Rifampin Alone and in Combination against Enterococcus Faecalis Biofilm Infection in a Rat Model of Ureteral Stent. J. Surg. Res. 2012, 176, 1–6. [Google Scholar] [CrossRef]
  11. Senturia, S.D. Microsystem Design; Kluwer Academic Publishers: Boston, MA, USA, 2002. [Google Scholar]
  12. Wisniewski, N.; Moussy, F.; Reichert, W.M. Characterization of Implantable Biosensor Membrane Biofouling. Fresenius J. Anal. Chem. 2000, 366, 611–621. [Google Scholar] [CrossRef]
  13. Clausen, I.; Tvedt, L.G.W.; Hellandsvik, A.; Rognlien, D.K.W.; Glott, T. An in Vivo MEMS Sensor System for Percutaneous Measurement of Urinary Bladder. In Proceedings of the 2017 39th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), Jeju, Korea, 11–15 July 2017; pp. 1857–1860. [Google Scholar] [CrossRef]
  14. Clausen, I.; Tvedt, L.G.W.; Moe, S.; Vogl, A. The Effect of True Human Synovial Fluid on the Functionality of an in Vivo Pressure Sensor Element. In Proceedings of the SENSORS, 2013 IEEE, Baltimore, MD, USA, 3–6 November 2013. [Google Scholar] [CrossRef]
  15. Clausen, I.; Seeberg, T.M.; Gheorghe, C.; Wang, D.T. Biofouling on Protective Coatings for Implantable MEMS. In Proceedings of the SENSORS, 2010 IEEE, Waikoloa, HI, USA, 1–4 November 2010; pp. 751–754. [Google Scholar] [CrossRef]
  16. Clausen, I.; Moe, S.T.; Tvedt, L.G.W.; Vogl, A.; Wang, D.T. A Miniaturized Pressure Sensor with Inherent Biofouling Protection Designed for in Vivo Applications. In Proceedings of the 2011 Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Boston, MA, USA, 30 August–3 September 2011; pp. 1880–1883. [Google Scholar] [CrossRef]
  17. Bröskamp, S.F.; Franz, G.; Jocham, D. Internal Coating of Ureteral Stents with Chemical Vapor Deposition of Parylene. Coatings 2021, 11, 739. [Google Scholar] [CrossRef]
  18. Bernsmann, F.; Laube, N.; Baldsiefen, G.; Castellucci, M. Hydrogenated Amorphous Carbon Coatings on Implants Drastically Reduce Biofilm Formation and Water Permeation. J. Phys. Conf. Ser. 2014, 564, 12001. [Google Scholar] [CrossRef]
  19. Schoenleber, M.; Vaghela, J.; Ismail, F.; Grahn, M.; Popa, C.; Rehman, I.; Vadgama, P. Complex Electronic Implants and Polymer Packaging Needs BT—World Congress on Medical Physics and Biomedical Engineering 2006; Magjarevic, R., Nagel, J.H., Eds.; Springer: Berlin/Heidelberg, Germany, 2007; pp. 703–706. [Google Scholar]
  20. Kumar, R. New Developments in Parylene Technology for Medical Electronics Advancement. In Proceedings of the SMTA Medical Electronics Symposium, Minneapolis, MN, USA, 15–17 May 2006; pp. 1–9. [Google Scholar]
  21. Hassler, C.; Von Metzen, R.P.; Ruther, P.; Stieglitz, T. Characterization of Parylene C as an Encapsulation Material for Implanted Neural Prostheses. J. Biomed. Mater. Res.—Part B Appl. Biomater. 2010, 93, 266–274. [Google Scholar] [CrossRef] [PubMed]
  22. Buchwalder, S.; Borzì, A.; Diaz Leon, J.J.; Bourgeois, F.; Nicolier, C.; Nicolay, S.; Neels, A.; Zywitzki, O.; Hogg, A.; Burger, J. Thermal Analysis of Parylene Thin Films for Barrier Layer Applications. Polymers 2022, 14, 3677. [Google Scholar] [CrossRef] [PubMed]
  23. Golda-Cepa, M.; Engvall, K.; Hakkarainen, M.; Kotarba, A. Recent Progress on Parylene C Polymer for Biomedical Applications: A Review. Prog. Org. Coatings 2020, 140, 105493. [Google Scholar] [CrossRef]
  24. Wuu, D.S.; Chen, T.N.; Wu, C.C.; Chiang, C.C.; Chen, Y.P.; Horng, R.H.; Juang, F.S. Transparent Barrier Coatings for Flexible Organic Light-Emitting Diode Applications. Chem. Vap. Depos. 2006, 12, 220–224. [Google Scholar] [CrossRef]
  25. Chen, T.-N.; Wuu, D.-S.; Wu, C.-C.; Chiang, C.-C.; Chen, Y.-P.; Horng, R.-H. Improvements of Permeation Barrier Coatings Using Encapsulated Parylene Interlayers for Flexible Electronic Applications. Plasma Process. Polym. 2007, 4, 180–185. [Google Scholar] [CrossRef]
  26. Chen, S.-W.; Wang, Y.-S.; Hu, S.-Y.; Lee, W.-H.; Chi, C.-C.; Wang, Y.-L. A Study of Trimethylsilane (3MS) and Tetramethylsilane (4MS) Based α-SiCN:H/α-SiCO:H Diffusion Barrier Films. Materials 2012, 5, 377–384. [Google Scholar] [CrossRef]
  27. Mitschker, F.; Schücke, L.; Hoppe, C.; Jaritz, M.; Dahlmann, R.; De Los Arcos, T.; Hopmann, C.; Grundmeier, G.; Awakowicz, P. Comparative Study on the Deposition of Silicon Oxide Permeation Barrier Coatings for Polymers Using Hexamethyldisilazane (HMDSN) and Hexamethyldisiloxane (HMDSO). J. Phys. D Appl. Phys. 2018, 51, 235201. [Google Scholar] [CrossRef]
  28. Kim, N. Recent Progress of Functional Coating Materials and Technologies for Polycarbonate. J. Coat. Technol. Res. 2017, 14, 21–34. [Google Scholar] [CrossRef]
  29. Bose, M.; Bose, D.N.; Basa, D.K. Plasma Enhanced Growth, Composition and Refractive Index of Silicon Oxynitride Films. Mater. Lett. 2002, 52, 417–422. [Google Scholar] [CrossRef]
  30. Zajíčková, L.; Buršíková, V.; Peřina, V.; Macková, A.; Subedi, D.; Janča, J.; Smirnov, S. Plasma Modification of Polycarbonates. Surf. Coatings Technol. 2001, 142, 449–454. [Google Scholar] [CrossRef]
  31. Yang, M.-R.; Chen, K.-S.; Hsu, S.-T.; Wu, T.-Z. Fabrication and Characteristics of SiOx Films by Plasma Chemical Vapor Deposition of Tetramethylorthosilicate. Surf. Coatings Technol. 2000, 123, 204–209. [Google Scholar] [CrossRef]
  32. Pavlovic, E.; Quist, A.P.; Gelius, U.; Oscarsson, S. Surface Functionalization of Silicon Oxide at Room Temperature and Atmospheric Pressure. J. Colloid Interface Sci. 2002, 254, 200–203. [Google Scholar] [CrossRef] [PubMed]
  33. Pujari, S.P.; Scheres, L.; Marcelis, A.T.M.; Zuilhof, H. Covalent Surface Modification of Oxide Surfaces. Angew. Chemie Int. Ed. 2014, 53, 6322–6356. [Google Scholar] [CrossRef] [PubMed]
  34. Gorham, W.F. A New, General Synthetic Method for the Preparation of Linear Poly-p-Xylylenes. J. Polym. Sci. Part A-1 Polym. Chem. 1966, 4, 3027–3039. [Google Scholar] [CrossRef]
  35. Menon, P.R.; Li, W.; Tooker, A.; Tai, Y.C. Characterization of Water Vapor Permeation through Thin Film Parylene C. In Proceedings of the TRANSDUCERS 2009—15th International Conference Solid-State Sensors, Actuators Microsystems, Denver, CO, USA, 21–25 June 2009; pp. 1892–1895. [Google Scholar] [CrossRef]
  36. Kahouli, A.; Sylvestre, A.; Laithier, J.F.; Lutsen, L.; Pairis, S.; André, E.; Garden, J.L. Structural and Dielectric Properties of Parylene-VT4 Thin Films. Mater. Chem. Phys. 2014, 143, 908–914. [Google Scholar] [CrossRef]
  37. Zanini, S.; Riccardi, C.; Orlandi, M.; Grimoldi, E. Characterisation of SiOxCyHz Thin Films Deposited by Low-Temperature PECVD. Vacuum 2007, 82, 290–293. [Google Scholar] [CrossRef]
  38. Hogg, A.; Uhl, S.; Feuvrier, F.; Girardet, Y.; Graf, B.; Aellen, T.; Keppner, H.; Tardy, Y.; Burger, J. Protective Multilayer Packaging for Long-Term Implantable Medical Devices. Surf. Coatings Technol. 2014, 255, 124–129. [Google Scholar] [CrossRef]
  39. Griffith, D.P.; Musher, D.M.; Itin, C. Urease. The Primary Cause of Infection-Induced Urinary Stones. Invest. Urol. 1976, 13, 346–350. [Google Scholar]
  40. Rosier, P.F.W.M.; Gammie, A.; Valdevenito, J.P.; Speich, J.; Smith, P.; Sinha, S. ICS-SUFU Standard: Theory, Terms, and Recommendations for Pressure-Flow Studies Performance, Analysis, and Reporting, Part 2: Analysis of PFS, Reporting, and Diagnosis. Continence 2023, 100709. [Google Scholar] [CrossRef]
  41. Yao, M.; Simoes, A. Urodynamic Testing and Interpretation; StatPearls Publishing: Treasure Island, FL, USA, 2020. [Google Scholar]
  42. Buchholz, N.; Budia, A.; de la Cruz, J.; Kram, W.; Humphreys, O.; Reches, M.; Valero Boix, R.; Soria, F. Urinary Stent Development and Evaluation Models: In Vitro, Ex Vivo and In Vivo—A European Network of Multidisciplinary Research to Improve Urinary Stents (ENIUS) Initiative. Polymers 2022, 14, 1641. [Google Scholar] [CrossRef] [PubMed]
  43. Staehlke, S.; Rebl, H.; Finke, B.; Mueller, P.; Gruening, M.; Nebe, J.B. Enhanced Calcium Ion Mobilization in Osteoblasts on Amino Group Containing Plasma Polymer Nanolayer. Cell Biosci. 2018, 8, 22. [Google Scholar] [CrossRef] [PubMed]
  44. Kirkwood, B.R.; Sterne, J.A.C. Essential Medical Statistics; John Wiley & Sons: Hoboken, NJ, USA, 2010; ISBN 1444392840. [Google Scholar]
  45. Kassambara, A. Rstatix: Pipe-Friendly Framework for Basic Statistical Tests. 2023. Available online: (accessed on 25 July 2023).
  46. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2022. [Google Scholar]
  47. Siener, R.; Herwig, H.; Rüdy, J.; Schaefer, R.M.; Lossin, P.; Hesse, A. Urinary Stone Composition in Germany: Results from 45,783 Stone Analyses. World J. Urol. 2022, 40, 1813–1820. [Google Scholar] [CrossRef]
  48. Cloutier, J.; Villa, L.; Traxer, O.; Daudon, M. Kidney Stone Analysis: “Give Me Your Stone, I Will Tell You Who You Are!”. World J. Urol. 2015, 33, 157–169. [Google Scholar] [CrossRef]
  49. Rouprêt, M.; Daudon, M.; Hupertan, V.; Gattegno, B.; Thibault, P.; Traxer, O. Can Ureteral Stent Encrustation Analysis Predict Urinary Stone Composition? Urology 2005, 66, 246–251. [Google Scholar] [CrossRef]
  50. Gomes, D.J.C.; de Souza, N.C.; Silva, J.R. Using a Monocular Optical Microscope to Assemble a Wetting Contact Angle Analyser. Measurement 2013, 46, 3623–3627. [Google Scholar] [CrossRef]
  51. Kim, B.J.; Meng, E. Micromachining of Parylene C for BioMEMS. Polym. Adv. Technol. 2016, 27, 564–576. [Google Scholar] [CrossRef]
  52. Homsy, A.; Laux, E.; Jeandupeux, L.; Charmet, J.; Bitterli, R.; Botta, C.; Rebetez, Y.; Banakh, O.; Keppner, H. Solid on Liquid Deposition, a Review of Technological Solutions. Microelectron. Eng. 2015, 141, 267–279. [Google Scholar] [CrossRef]
  53. Mandel, N. Mechanism of Stone Formation. Semin. Nephrol. 1996, 16, 364–374. [Google Scholar]
  54. Stamatelou, K.; Goldfarb, D.S. Epidemiology of Kidney Stones. Healthcare 2023, 11, 424. [Google Scholar] [CrossRef] [PubMed]
  55. Flannigan, R.; Choy, W.H.; Chew, B.; Lange, D. Renal Struvite Stones—Pathogenesis, Microbiology, and Management Strategies. Nat. Rev. Urol. 2014, 11, 333–341. [Google Scholar] [CrossRef] [PubMed]
  56. Gaunt, R.A.; Prochazka, A. Control of Urinary Bladder Function with Devices: Successes and Failures. In Autonomic Dysfunction After Spinal Cord Injury; Weaver, L.C., Polosa, C.B.T.-P., Eds.; Elsevier: Amsterdam, The Netherlands, 2006; Volume 152, pp. 163–194. ISBN 0079-6123. [Google Scholar]
  57. Kleinen, L.; Syring, I.; Laube, N. Reduction of Biofilm Formation on A-C: H Coated Implants: Investigation of Biofilm-surface Interactions by Variation of Thin Film Properties. Plasma Process. Polym. 2009, 6, S41–S45. [Google Scholar] [CrossRef]
  58. Rebl, H.; Renner, J.; Kram, W.; Springer, A.; Fritsch, N.; Hansmann, H.; Hakenberg, O.W.; Nebe, J.B. Prevention of Encrustation on Ureteral Stents: Which Surface Parameters Provide Guidance for the Development of Novel Stent Materials? Polymers 2020, 12, 558. [Google Scholar] [CrossRef] [PubMed]
  59. Buchwalder, S.; Nicolier, C.; Hersberger, M.; Bourgeois, F.; Hogg, A.; Burger, J. Development of a Water Transmission Rate (WTR) Measurement System for Implantable Barrier Coatings. Polymers 2023, 15, 2557. [Google Scholar] [CrossRef]
  60. Wu, J.; Fei, F.; Wei, C.; Chen, X.; Nie, S.; Zhang, D.; Su, W.; Cui, Z. Efficient Multi-Barrier Thin Film Encapsulation of OLED Using Alternating Al2O3 and Polymer Layers. RSC Adv. 2018, 8, 5721–5727. [Google Scholar] [CrossRef]
  61. Xie, X.; Rieth, L.; Caldwell, R.; Diwekar, M.; Tathireddy, P.; Sharma, R.; Solzbacher, F. Long-Term Bilayer Encapsulation Performance of Atomic Layer Deposited Al2O3 and Parylene c for Biomedical Implantable Devices. IEEE Trans. Biomed. Eng. 2013, 60, 2943–2951. [Google Scholar] [CrossRef]
  62. Dong, X.; Zhang, M.; Lei, Y.; Li, Z.; Jin, Y.; Wang, W. Parylene-MEMS Technique-Based Flexible Electronics. Sci. China Inf. Sci. 2018, 61, 60419. [Google Scholar] [CrossRef]
  63. Von Metzen, R.P.; Stieglitz, T. The Effects of Annealing on Mechanical, Chemical, and Physical Properties and Structural Stability of Parylene C. Biomed. Microdevices 2013, 15, 727–735. [Google Scholar] [CrossRef]

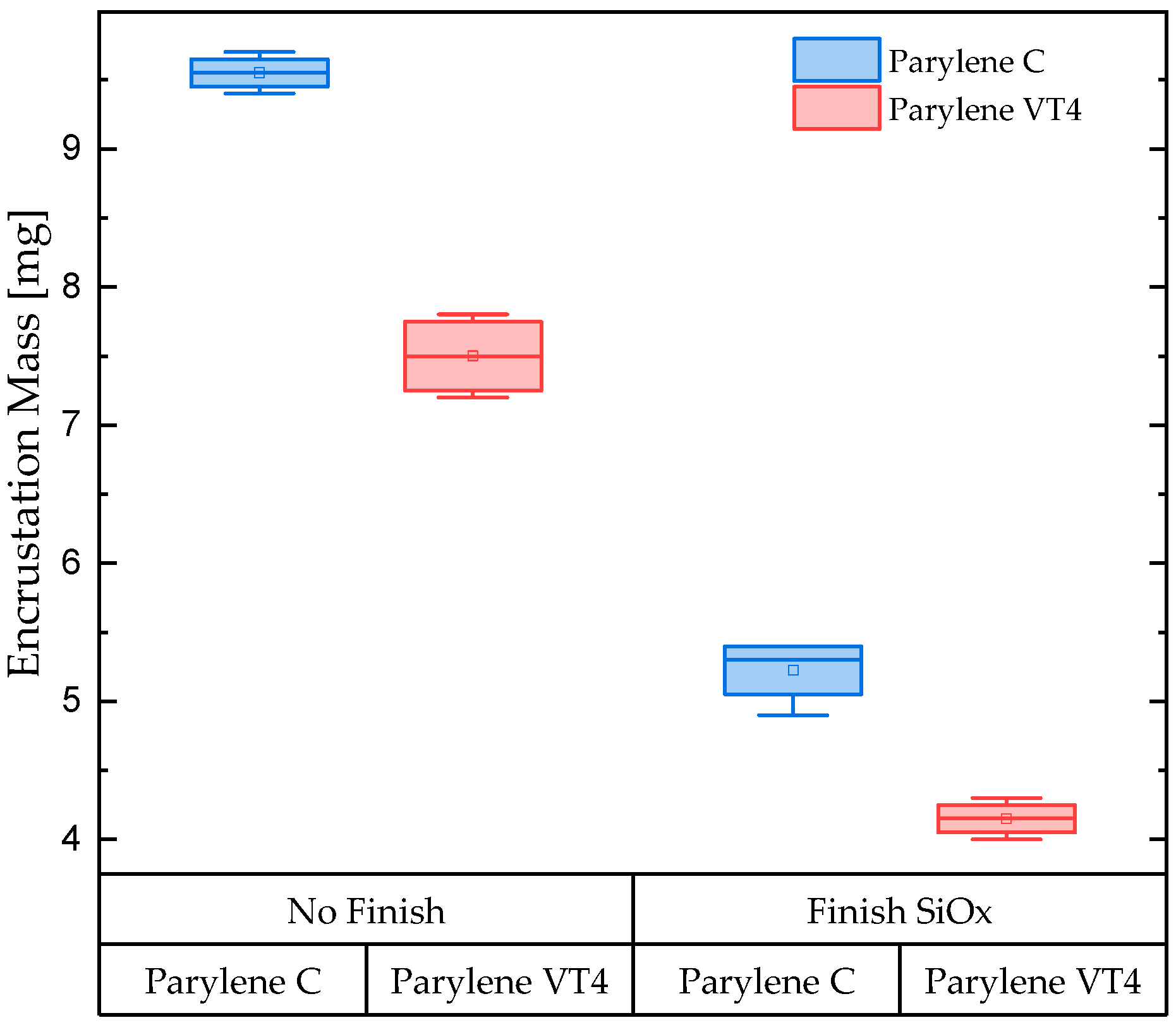

Figure 1. Urine encrustation mass (mg) for the coating groups parylene C and parylene VT4 without any finish coating (No Finish) and with a finish ceramic-like SiOx coating (Finish SiOx).
Figure 1. Urine encrustation mass (mg) for the coating groups parylene C and parylene VT4 without any finish coating (No Finish) and with a finish ceramic-like SiOx coating (Finish SiOx).
Polymers 15 03559 g001

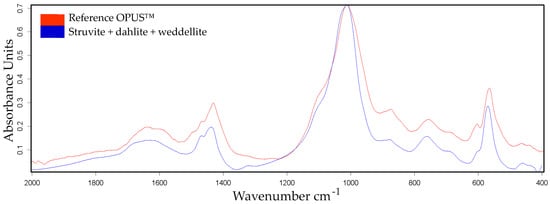

Figure 2. FTIR analysis of urine encrustations on silicon wafer samples. The measured absorption spectra and the absorption spectra of the OPUS™ reference library are illustrated by the blue and red curves, respectively. The encrustation consists of ammonium magnesium phosphate hexahydrate (struvite), carbonate apatite (dahlite), and calcium oxalate dihydrate (weddellite) with a compound ratio of 70, 20, and 10%, respectively.
Figure 2. FTIR analysis of urine encrustations on silicon wafer samples. The measured absorption spectra and the absorption spectra of the OPUS™ reference library are illustrated by the blue and red curves, respectively. The encrustation consists of ammonium magnesium phosphate hexahydrate (struvite), carbonate apatite (dahlite), and calcium oxalate dihydrate (weddellite) with a compound ratio of 70, 20, and 10%, respectively.
Polymers 15 03559 g002

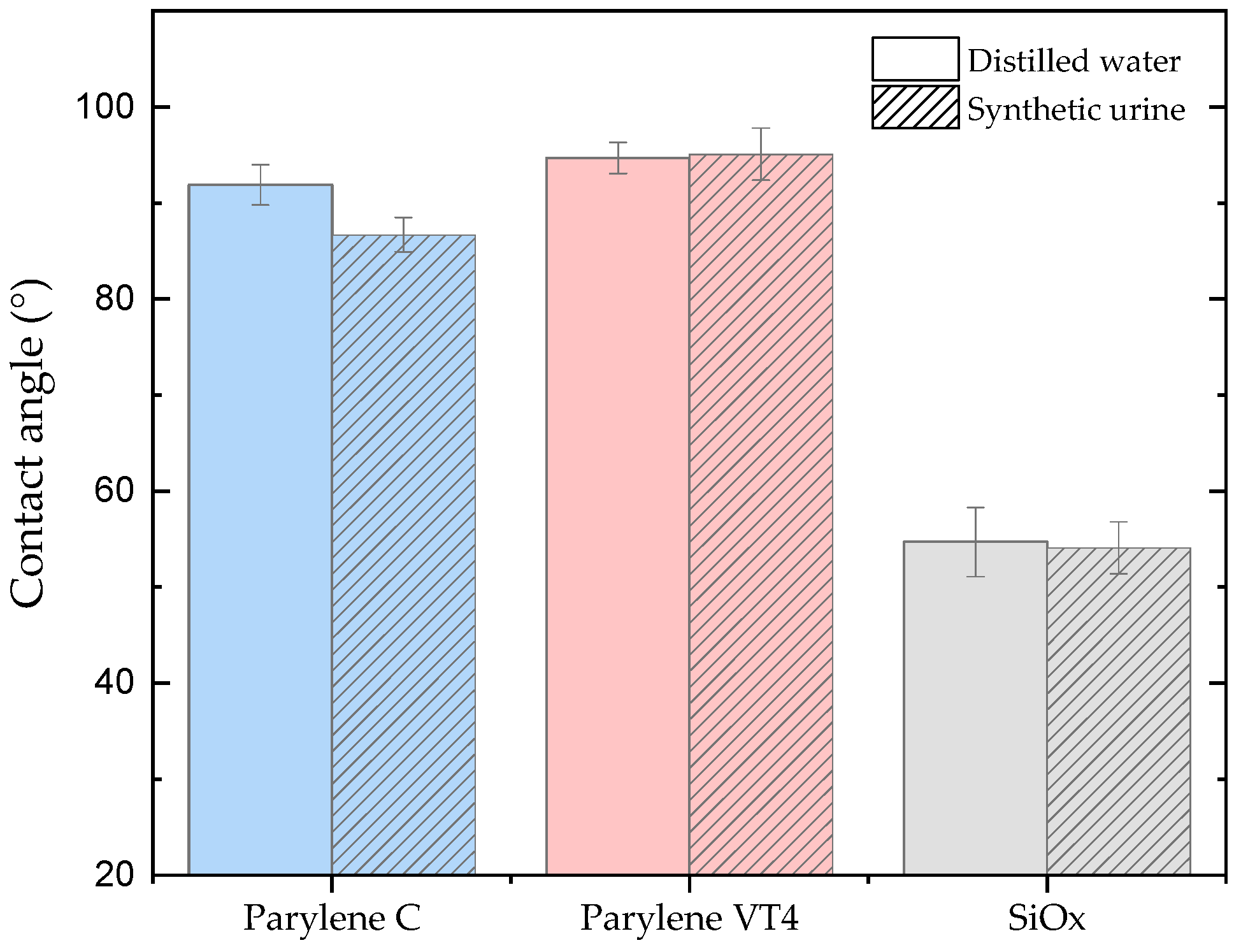

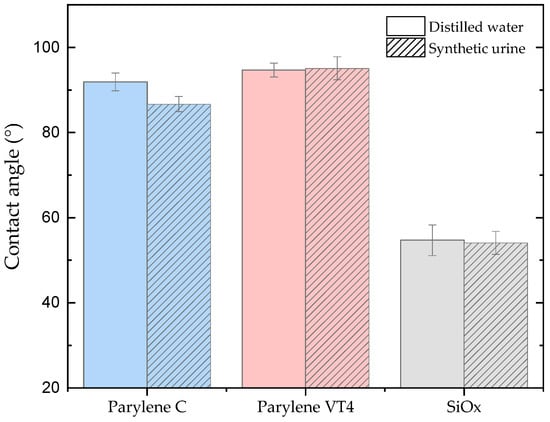

Figure 3. Contact angle measurements of parylene C, VT4, and SiOx coating for distilled water and synthetic urine (hatched columns) on silicon wafer samples. Finish SiOx coating demonstrates strong hydrophilic properties compared to both parylene-grade films.
Figure 3. Contact angle measurements of parylene C, VT4, and SiOx coating for distilled water and synthetic urine (hatched columns) on silicon wafer samples. Finish SiOx coating demonstrates strong hydrophilic properties compared to both parylene-grade films.
Polymers 15 03559 g003

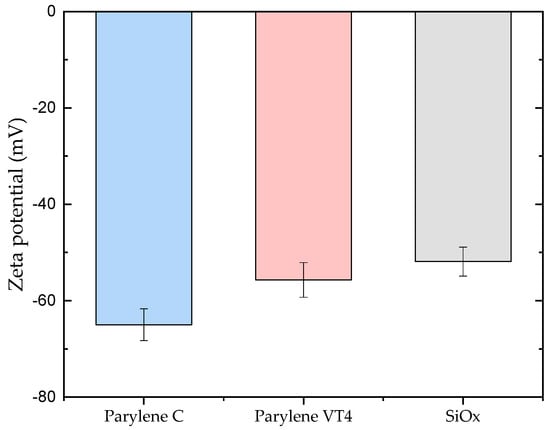

Figure 4. Zeta potential measurements of parylene C, VT4, and SiOx coating at a pH value of 6.4, representing the average urine pH of healthy humans.
Figure 4. Zeta potential measurements of parylene C, VT4, and SiOx coating at a pH value of 6.4, representing the average urine pH of healthy humans.
Polymers 15 03559 g004
Table 1. Solution A and B, in vitro encrustation system.
Table 1. Solution A and B, in vitro encrustation system.
Solution ASolution B
calcium chloride-dihydrateurea
magnesium chloride-hexahydratepotassium-dihydrogenphosphate
sodium citratecreatinine
sodium chlorideammonium chloride
sodium sulfatealbumin
potassium chloridesodium oxalate
urease, type IX
