Article

Crystallization and Performance of Polyamide Blends Comprising Polyamide 4, Polyamide 6, and Their Copolymers

by
Yajing Zhang
1,2,
Mingda Wang
1,2,
Di Zhang
1,2,
Yibing Wang
1,2,
Li Wang
1,2,
Yongjun Qiu
1,2,3,
Liquan Wang
4,
Tao Chen
2,4,* and
Liming Zhao
1,2,3,*
1
State Key Laboratory of Bioreactor Engineering, East China University of Science and Technology, Shanghai 200237, China
2
Key Laboratory of Biobased Material Engineering, China National Light Industry, East China University of Science and Technology, Shanghai 200237, China
3
Shanghai Collaborative Innovation Center for Biomanufacturing Technology (SCICBT), Shanghai 200237, China
4
Shanghai Key Laboratory of Advanced Polymeric Materials, School of Materials Science and Engineering, East China University of Science and Technology, Shanghai 200237, China
*
Authors to whom correspondence should be addressed.
Polymers 2023, 15(16), 3399; https://doi.org/10.3390/polym15163399
Submission received: 27 July 2023 / Revised: 10 August 2023 / Accepted: 12 August 2023 / Published: 14 August 2023
(This article belongs to the Section Biomacromolecules, Biobased and Biodegradable Polymers)
Browse Figures
Versions Notes

Abstract

:
Polyamide 4 (PA4) is a biobased and biodegradable polyamide. The high hydrogen bond density of PA4 bestows it with a high melting point that is close to its thermal decomposition temperature, thereby limiting the melt processing of PA4. In this study, PA4 was blended with polyamide 6 (PA6) and further modified with copolyamide 4/6 (R46). The effects of composition on the crystallization behavior of the blends were studied. The results demonstrated that the binary PA4/PA6 (B46) and ternary PA4/PA6/R46 (B46/R46) blends formed two crystalline phases (PA4- and PA6-rich phases) through crystallization-induced phase separation. With increasing PA6 content, the thermal stability and crystallinity of the B46 blend increased and decreased, respectively, and the contribution of PA6 toward the crystallization of the PA4-rich phase diminished. Molecular dynamics simulations showed the molecular chain orientation of the B46 blends well. The melting points, crystallinities, and grain sizes of the B46/R46 blends were lower than those of the B46 blends. The crystallization of the PA4-rich phase was restrained by the dilution effect of molten-state PA6, and the nucleation and crystallization of the PA6-rich phase were promoted by the presence of crystallized PA4. The B46 blends with 30–40 wt% PA6 had the best mechanical properties.

Graphical Abstract

1. Introduction

Polyamide 4 (polybutyrolactam, PA4), which is synthesized using a biobased monomer, butyrolactam (2-pyrrolidone) [1], is the only environmentally friendly biodegradable polyamide (PA) [2,3,4] with broad application prospects. PA4 has a higher amide bond density and, consequently, a higher hydrogen bond density than other PAs. It therefore exhibits a high melting point and excellent mechanical properties [5]. The thermal degradation of PAs begins with the cleavage of the amide or methylene C–N bonds connected to amino groups [6]. Consequently, owing to its higher amide bond density, PA4 has a lower thermal decomposition temperature than other PAs. However, the processing temperatures of PAs with high melting points are high, and because the thermal decomposition temperature and melting point of PA4 are close to each other, the thermal processing of PA4 is challenging.
Blending is a convenient, effective, and low-cost method for improving the processability of polymeric materials and enhancing their properties [7]. Several PA blends have been reported, such as those with polypropylene [8], polyethylene [9], polyethylene terephthalate [10], polylactic acid [11], acrylonitrile butadiene styrene [12], and two types of PA [13,14,15]. Although most of these blends are immiscible, PA/PA blends are miscible. Certain PA/PA blends, such as PA410/PA6 [16], PA48/PA66 [17], PA6/PA66 [18], and PA56/PA66 [19], can even miscible in the crystalline phase. The PAs that form miscible blends have comparable average numbers of methylene units between their amide bonds.
The crystallization behavior has a critical influence on the properties of crystalline polymer blends [20]. PA11/PA610 blends are miscible only in the molten state [21] because crystallization-induced phase separation occurs upon cooling. Wide-angle X-ray diffraction (WAXD) experiments have demonstrated that pure PA11 and PA610 crystals form upon cooling PA11/PA610 blends, regardless of the blending ratio. The composition also affects the crystallization behavior of some crystalline polymer blends. Safari et al. [16] studied the composition-dependent miscibility of PA410/PA6 blends triggered by crystallization-driven phase separation. PA410/PA6 blends with 10 wt% or 20 wt% PA6 comprised a single PA410-rich crystalline phase; however, PA410/PA6 blends with >30 wt% PA6 underwent crystallization-induced phase separation, which gradually intensified with increasing PA6 content. This induced the formation of double-crystalline blends comprising PA6- and PA410-rich phases. Eventhough, research on PA/PA blends is quite scarce, especially for those involving PA4. Therefore, it is desirable to understand the crystallization behavior of PA/PA blends containing PA4.
On the other hand, PAs contain the same functional groups, which makes it difficult to distinguish the different molecular chains in PA/PA blends and limits microstructural observations. Molecular dynamics (MD) simulations therefore play a crucial role in microstructural analysis [22], understanding the crystallization mechanisms [23,24,25] and hydrogen bonding-induced phase changes in polymer blends [26].
In this study, to improve the processability of PA4, several PA4/PA6 binary blends (B46) were prepared using PA6 with a similar average number of methylene units between the amide bonds as that in PA4. In addition, because the addition of copolymers comprising blended components can improve the interfacial connectivity between homopolymeric components [27,28], PA4 and PA6 copolymers (random copolyamides 4/6, R46) were used to prepare several PA4/PA6/R46 ternary blends (B46/R46). The effects of the blending ratio and R46 composition on the crystallization behavior of the B46 and B46/R46 blends were investigated by WAXD, MD simulations, thermal analysis, and mechanical properties analysis. The results provide insight into how composition affects the crystallization behavior of PA4-based blends, which is expected to provide theoretical guidance for the melt processing of PA4.

2. Materials and Methods

2.1. Materials

PA4 (Mn = 20,000) and R46 were prepared according to previously described methods [29]. PA6 (Novamid® 1010C2; Mn = 20,000) was supplied by DSM (Genk, Belgium). All PAs were dried using a vacuum drying oven (Yiheng Scientific Instrument Co., Ltd., Shanghai, China) at 80 °C for 48 h. The blends were prepared via melt mixing using a co-rotating twin-screw extruder (SJZS-10B, Ruiming Experimental Instrument Co., Ltd., Wuhan, China) at 260 °C. The compositions of the blends and R46 copolymers are summarized in Table 1 and our previous paper [29], respectively.
An SZS-20 reciprocating-screw injection molding machine (Ruiming Experimental Instrument Co., Ltd., Wuhan, China) was used to prepare injection-molded samples suitable for tensile testing (thickness = 2 mm, ISO 37:2005 [30], type 2). The melt and mold temperatures were set at 260 and 80 °C, respectively.

2.2. Differential Scanning Calorimetry (DSC)

Differential scanning calorimetry (DSC) was performed using a DSC-Q25 differential scanning calorimeter (TA Instruments, New Castle, DE, USA) to evaluate the thermal behavior of the blends. All experiments were performed under a nitrogen atmosphere at a flow rate of 40 mL min−1. The blends were vacuum-dried at 80 °C for 48 h prior to analysis. Each sample (5–8 mg) was first heated from 30 to 275 °C at a rate of 10 °C min−1 and maintained at 275 °C for 3 min to eliminate its thermal history, followed by cooling to 30 °C at a rate of 10 °C min−1.

2.3. Dynamic Mechanical Analysis (DMA)

Dynamic mechanical analysis (DMA; Q800, TA Instruments, New Castle, DE, USA) was used to measure the glass-transition temperature (Tg) of each sample in single cantilever bending mode in the temperature range of −20 to 150 °C at a heating rate of 10 °C min−1. The dimensions of the test samples were 10 mm × 35 mm × 1.9 mm.

2.4. Thermogravimetric Analysis (TGA)

The thermal stability of the samples was analyzed via thermogravimetric analysis (TGA) using a TG209F1 instrument (NETZSCH-Gerätebau GmbH, Selb, Germany). Each sample was heated from 30 to 550 °C at a rate of 10 °C min−1 under a nitrogen atmosphere.

2.5. Wide-Angle X-ray Diffraction (WAXD)

The crystallization behavior of the blends was analyzed via WAXD using an 18 KW/D/max2550VB/PC instrument (Rigaku Industrial Corporation, Osaka, Japan). The methods and parameters are described in our previous paper [29].

2.6. Scanning Electron Microscopy (SEM)

The blend samples were frozen in liquid nitrogen. Subsequently, the samples were fractured, and the cryo-fractured surfaces were spray-coated with gold. Cross-sectional scanning electron microscopy (SEM) images were obtained at 25 °C using an S3400-N field emission scanning electron microscope (Hitachi Limited, Tokyo, Japan) at an accelerating voltage of 15 kV.

2.7. Mechanical Analysis

Tensile tests were performed using a 2T/CMT 4204 universal testing machine (Sans Testing Machine Co., Ltd., Shenzhen, China). The experiments and calculations of the tensile strength, fracture strain, and Young’s modulus were performed according to ISO 527-2:2012 [31].

2.8. Molecular Dynamics (MD) Simulations

The microstructures of the B46 blends were investigated through MD simulations; however, MD simulations were not performed for the B46/R46 blends owing to their complexity. Simulations were performed in a 50 × 50 × 50 rc3 periodic box using LAMMPS open-source software (stable_29Sep2021) [32]. Schematics of the PA4 and PA6 molecular chains and the molecular chain information for each blend are presented in Tables S1 and S2, respectively. A schematic of the hydrogen bonding interactions is shown in Figure S1. Details of the simulation methodology and coefficients are given in the Supplementary Materials [33,34,35,36,37,38].

3. Results and Discussion

3.1. Crystalline Properties

The crystallization parameters of the B46 and B46/R46 blends were determined using WAXD, and the WAXD curves are illustrated in Figure 1. The peak-differentiating and fitting results are shown in Figure S2 and summarized in Table 2. The strong diffraction peaks at the scattering angles 2θ ≈ 20.7° and 23.7° correspond to the (200) and (020) crystal planes of the blends. As the PA6 content increased, particularly between 40% and 50%, the (200) diffraction peak weakened, and the ratio of the areas of the diffraction peaks (A1/A2) decreased. In addition, the crystallinity and grain size of the blends decreased gradually. Increasing the PA6 content increases the number of long methylene chain segments in the B46 blends, which alters their conformation during crystallization and inhibits the growth of the (200) crystal plane. For the B46/R46 blends, the diffraction peaks of (200) and (020) crystal planes gradually weakened as the content of PA6 structural units (C6) increased, but the A1/A2 ratios did not differ significantly. All the B46/R46 blends had considerably smaller grains than B46-73. This indicates that the addition of R46 to B46 induced a more random distribution of amide bonds and hindered the crystallization of the molecular chains by breaking the regular arrangement of intermolecular hydrogen bonds. Consequently, the crystallinities of the B46/R46 blends were lower than that of B46-73.
Polarizing microscope has been used to observe the crystallization process and structure. However, no meaningful result could be obtained due to thermal decomposition at high temperature. Alternatively, MD simulation was chosen to analyze the microstructure of the blends. The simulated distributions of molecules within the B46 blends are shown in Figure 2, and the calculated crystallinities (see Supplementary Materials) are shown in Figure 3. At 20–40% PA6, the ordered alignment of the molecular chains (regions within the red dotted boxes in Figure 2) gradually changed from a parallel tight alignment to a loose curved alignment; in addition, the crystallinity gradually decreased with increasing PA6 content, which agrees with the WAXD results. However, the MD simulations suggest that B46-55 (with 50% PA6) had the highest crystallinity, along with many parallel and closely aligned ordered regions. This may be because the MD simulations were performed under relatively ideal conditions, in which the hydrogen bond density played a key role in the crystallization process. Of the B46 blends, B46-55 had the lowest hydrogen bond density and a smaller free-motion confinement effect on the molecular chains, which was more favorable for the ordered arrangement of the molecular chains.

3.2. Thermal Properties

3.2.1. Thermomechanical Properties

The Tg values of the B46 and B46/R46 blends were determined using DMA, and the loss factor (tan δ, the ratio of the loss modulus to the storage modulus) values of the samples are shown in Figure 4a. The tan δ value indicates the energy absorption capacity of a material. The peak temperature of the tan δ curve corresponds to the Tg value of the material [39]. The Tg values are summarized in Table S3. Typically, a single Tg value indicates that the blend components are miscible at the molecular level [40]. The presence of single tan δ peaks for the B46 and B46/R46 blends in this study confirms the miscibility of PA4, PA6, and R46 in the amorphous state. The SEM images in Figure S3 confirm that all the blends had a homogeneous structure, with no apparent phase separation between the components.
B46-73 exhibited the highest Tg value among all the B46 blends, which is consistent with it having the highest crystallinity, as listed in Table 2. The data suggest that the higher the crystallinity, the greater the presence of the physical crosslinking points that restrict the segment migration, thus resulting in a higher Tg. However, although B46-64 had the lowest Tg value, its crystallinity was not the lowest (Table 2). To explain this finding, the MD simulation results shown in Figure 3 were considered. Although the hydrogen bond densities of B46-64 and B46-55 were similar, the degree of orientation of the local molecular chains in B46-64 was lower than that in B46-55, and thus the mobility of the molecular chains in B46-64 was higher. Consequently, the Tg value of B46-64 was lower than that of B46-55. Further explanation of the Tg of B46-82 is given in Section 3.2.2. For the B46/R46 blends, B46/R46-46 was found to have the highest Tg value owing to its high copolymerization structure sequence (S46) content, which obstructs chain movement.

3.2.2. Crystallization Behavior

The thermal behavior of the B46 and B46/R46 blends during cooling crystallization was analyzed using DSC. Owing to the thermal decomposition that occurred for the blend with 20% PA6 and considerable crystallization-induced phase separation observed for the blends with 40–50% PA6, the B46-73 blend (with a PA4/PA6 ratio of 70/30 w/w) was selected to prepare B46/R46 blends with different R46 copolymers. Figure 4b shows the DSC heat flow curves of the B46 and B46/R46 blends during cooling crystallization. The arrow indicates the direction of heat release. The curves contain two exothermic peaks. The low- and high-temperature exothermic peaks, which are downshifted from the exothermic peaks of pure PA6 and PA4, correspond to the crystallization temperatures of the PA6- (Tc1) and PA4-rich (Tc2) phases, respectively.
For the B46 blends, the Tc1 values upshifted gradually with increasing PA6 content. This was attributed to the PA4-rich phase crystallizing first, and the resulting PA4-rich crystals nucleating the PA6-rich crystals. The Tc2 values of the B46 blends downshifted with increasing PA6 content (except for B46-82). PA6 was in the molten state at the crystallization temperature of the PA4-rich phase and served as a diluent. This hindered the regular arrangement of the molecular chains for the PA4-rich phase, which resulted in a decrease in Tc2. The Tc2 value of the B46 blend with 20% PA6 (B46-82) was the lowest. This indicates that blends with high PA4 contents undergo thermal decomposition during processing, thereby decreasing the molecular weight of the blend. The plasticizing role of small-molecule components generated by thermal decomposition resulted in a decrease in the Tc2 and Tg values of B46-82.
The Tc1 and Tc2 values of the B46/R46 blends were lower than those of B46-73. The melting point of the S46-rich phase of R46 was approximately 140–150 °C [29]. Therefore, R46 was still molten at the crystallization temperature of the PA6-rich phase. Consequently, the S46-rich phase of R46 served as a diluent, decreasing the concentration of PA6 and thereby preventing the crystallization of the PA6-rich phase. The Tc1 values of all the B46/R46 blends, except B46/R46-46, were comparable and considerably lower than that of B46-73. The Tc1 value of the B46/R46-46 blend was higher than those of the other three B46/R46 blends, indicating that the amount of S46 entering the PA6-rich phase was lower than that in the other three B46/R46 blends.
Figure 4c illustrates the changes in the crystallization enthalpies (ΔHc) of the PA6- and PA4-rich phases of the B46 blends with increasing PA6 content. The dotted lines represent the theoretical crystallization enthalpy (ΔHcT), assuming no interactions between the blended components (“unmixed blends”). The ΔHcT values were calculated using the mass fractions of the blend components and the simple rule of mixtures. For the B46 blends with 20–40% PA6, the ΔHc values of the PA4- and PA6-rich phases positively and negatively deviated, respectively, from the ΔHcT values. The extent of the deviations decreased with increasing PA6 content. This indicates that, although phase separation occurred during crystallization (as indicated by the presence of two crystallization peaks), a fraction of the PA6 chains participated in the crystallization of the PA4 phase. Accordingly, the ΔHc value of the PA4-rich phase was higher than the ΔHcT value. At higher PA6 contents, phase separation was favored, which prevented the incorporation of PA6 chains into the crystalline PA4 phase. Crystallization-induced phase separation was particularly pronounced for B46-55 (with 50% PA6); therefore, the ΔHc and ΔHcT values of B46-55 were similar.
Figure 4d illustrates the changes in the ΔHc values of the PA6- and PA4-rich phases of the B46/R46 blends (ΔHc1E and ΔHc2E, respectively) with increasing C6 value of the blends. The total ΔHc values of the B46/R46 blends were lower than that of B46-73. When combined with the results shown in Table 2, it is evident that the B46/R46 blends displayed lower crystallinities than B46-73. The black dotted line in Figure 4d represents the theoretical ΔHc values of PA6 (ΔHc1T) assuming an “unmixed” state, as calculated using the blending ratio, and the red dotted line represents the theoretical ΔHc values of PA4 (ΔHc2T), as calculated from the sum of the ΔHc values of the “unmixed” state of the PA4 and PA4-rich phases of R46. The ΔHc1E value was lower than the ΔHc1T value, indicating that homopolymer PA6 was incorporated into the PA4-rich phase, albeit to a lower degree than that in B46-73. This suggests that R46 was more readily incorporated into the PA4-rich phase than homopolymer PA6. The difference between the ΔHc2T and ΔHc2E values (ΔHc2T – ΔHc2E) for the B46/R46 blends increased with increasing C6 content. B46/R46-82 presented the smallest ΔHc2T – ΔHc2E value among the B46/R46 blends. The high amount of PA4-rich phase in R46-82 increased the content of PA4 structural units (C4) in the blend. This can induce thermal decomposition during heating, thereby decreasing the experimental ΔHc value and changing the amount of R46 incorporated.

3.2.3. Thermal Stability

The thermal stability of the B46 and B46/R46 blends was analyzed using TGA. Figure 5a,b show the TGA and differential thermogravimetry (DTG) curves, respectively, of the B46 blends. The maximum degradation temperatures (Tdeg) and the temperatures at which 5%, 10%, and 50% thermal decomposition occurred (T5, T10, and T50, respectively) are listed in Table 3. Considering the Tdeg values of PA4 and PA6 (301.2 and 448.0 °C, respectively), the DTG peaks at 302.5–310.7 °C (Tdeg1) and 454.0–451.9 °C (Tdeg2) were attributed to the thermal decomposition of the PA4- and PA6-rich phases, respectively.
The slope of the TGA curve for the thermal decomposition of the PA4-rich phase decreased with increasing PA6 content, indicating that the decomposition rate of the PA4-rich phase decreased, and the T10 and T50 values increased gradually. These results suggest that PA6 can effectively improve the thermal stability of the blended materials. Figure 5b shows that the Tdeg1 value of the B46 blends gradually shifted to a higher temperature with increasing PA6 content. This indicates that the low amide bond density of the PA4-rich phase improved the thermal stability of the blend. Furthermore, the Tdeg2 values of the B46 blends were higher than the Tdeg value of pure PA6, indicating that blending improved the thermal stability of the PA6-rich phase. The T5 value of the B46 blends decreased gradually with increasing PA6 content. This indicates that higher PA6 contents prevented the crystallization of the PA4-rich phase, thereby expanding the amorphous region and causing a decrease in the T5 value.
Figure 5c,d show the TGA and DTG curves of the B46/R46 blends. With the increase in the C6 content of R46, the decomposition rate of the PA4-rich phase decreased slightly and the T50 value increased gradually. This indicates that the higher the C6 content, the higher the thermal stability of the blend. The B46/R46 blends all had similar Tdeg1 and Tdeg2 values (no significant difference) to B46-73. The T5 value of B46/R46-82 was not significantly different from that of B46-73, and the other B46/R46 blends all had lower T5 values than B46-73. The WAXD data (Table 2) showed that the crystallinity of B46/R46-82 was higher than those of the other tested B46/R46 blends. This suggests that the amorphous regions of the other B46/R46 blends were larger than those in B46/R46-82, and, accordingly, the T5 value of B46/R46-82 was higher than those of the other B46/R46 blends.

3.3. Mechanical Properties

The tensile strengths, fracture strains, and Young’s modulus of the B46 and B46/R46 blends are shown in Table 4. The typical stress–strain curves of each blend are shown in Figure S4. All blends exhibit the common mechanical behaviors of polyamides. The tensile strengths and fracture strains of the blends were higher than those of the PA4 homopolymer. The tensile strength, fracture strain, and Young’s modulus of B46-82 were lower than those of the other B46 blends, which is likely due to the thermal decomposition that occurred during the melt processing of the B46-82 blend. Such thermal decomposition would decrease the molecular weight of PA4 and the mechanical properties of the B46-82 blend. The tensile strength, fracture strain, and Young’s modulus of B46-55 were lower than those of B46-73 and B46-64. When combined with the data in Figure 4c, we can conclude that crystallization-induced phase separation can also deteriorate the mechanical properties.
The mechanical properties of the B46/R46 blends were inferior to those of all the B46 blends, except for those of B46-82. The grain size and crystallinity of the B46/R46 blends were smaller and lower, respectively, than those of the B46 blends. Studies have shown that Young’s modulus is related to the degree of crystallinity, with a high crystalline fraction corresponding to a high Young’s modulus [41]. Therefore, the changes in the Young’s modulus of the B46 and B46/R46 blends with composition (Table 4) are consistent with the changes in crystallinity (Table 2).

4. Conclusions

The effects of composition on the properties and crystallization behavior of B46 and B46/R46 blends were studied. For the B46 blends, owing to crystallization induction, two crystalline phases formed (i.e., the PA4- and PA6-rich phases). As the PA6 content of the B46 blends increased from 20% to 50%, the decomposition rate of the blend decreased, and the Tdeg1 value of the PA4-rich phase increased by 10 °C; hydrogen bonding weakened, causing a decrease in crystallinity from 55.1% to 45.1%; the Tc and Tm values of the PA4-rich phase increased by 5.9 and 5.2 °C, respectively; and the Tc and Tm values of the PA6-rich phase increased by 12.7 and 13.2 °C, respectively. The participation of the PA6 chain segments in the crystallization of the PA4-rich phase diminished gradually. Upon increasing the PA6 content to 50%, crystallization-induced phase separation became evident. PA6-caused dilution suppressed the crystallization of the PA4-rich phase, whereas the pre-crystallization of the PA4-rich phase promoted the nucleation and crystallization of the PA6-rich phase. MD simulations showed that as the PA6 content increased from 20% to 40%, the crystallinity of the blend decreased by 6.8%. The crystallinity of B46-55 was higher than those of B46-82, B46-73, and B46-64. This may be because B46-82, B46-73, and B46-64 have a higher content of PA4 molecular chains than B46-55 and a thus higher hydrogen bond density, which restricts the free movement of the molecular chains. The tensile strengths and fracture strains of the B46 blends were 35–67 MPa and 225–369%, respectively. Therefore, the mechanical properties of the B46 blends were good.
For the B46/R46 blends, the decomposition rate decreased and the thermal stability improved as the C6 content of the R46 copolymer increased. Moreover, hydrogen bonding was weakened and crystallinity decreased from 47.9% for B46/R46-82 to 43.7% for B46/R46-46 (7.7–11.9% decrease relative to B46-73). The addition of R46 to B46 decreased the Tc and Tm values and the crystallinity of the samples. Moreover, the grain size decreased from 67 Å for B46-73 to 44–48 Å for the B46/R46 blends. R46 was more likely to incorporate within the PA4-rich phase than the PA6 homopolymer was, thereby hindering the two-phase crystallization of the blends. The tensile strengths and fracture strains of the B46/R46 blends were 41–55 MPa and 224–309%, respectively. Therefore, the B46/R46 blends exhibited good mechanical properties.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym15163399/s1, Computational methods; Figure S1. Schematic of the hydrogen bond in the system; Figure S2. The peak-differentiating and fitting results of B46 and B46/R46 blends; Figure S3. Cross-sectional SEM images of B46 and B46/R46 blends; Figure S4. Stress–strain curves of B46 and B46/R46 blends; Table S1. Molecular chain in the system; Table S2. Molecular chain information of the B46 blends; Table S3. The Tg values of B46 and B46/R46 blends. References [33,34,35,36,37,38] are cited in Supplementary Materials File.

Author Contributions

Conceptualization, Y.Z. and T.C.; methodology, Y.Z. and M.W.; software, L.W. (Liquan Wang) and Y.Z.; validation, L.Z.; formal analysis, Y.Z.; investigation, Y.Z. and Y.Q.; resources, D.Z. and Y.Q.; data curation, Y.Z. and M.W.; writing—original draft preparation, Y.Z.; writing—review and editing, M.W., Y.W., L.W. (Li Wang), T.C. and L.Z.; visualization, Y.Z. and D.Z.; supervision, L.Z. and T.C.; project administration, L.Z.; funding acquisition, L.Z. and T.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Research and Development of Technical Standards for Bio-based Material Polybutyrolactam Project [grant number 21DZ2205900], the National Key R&D Program of China [grant number 2017YFB0309302], the 111 Project [grant number B18022], the Fundamental Research Funds for the Central Universities [grant number 22221818014], and the Natural Science Foundation of Shanghai, China [grant number 21ZR1416000].

Institutional Review Board Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this submitted article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yamano, N.; Kawasaki, N.; Takeda, S.; Nakayama, A. Production of 2-pyrrolidone from biobased glutamate by using Escherichia coli. J. Polym. Environ. 2013, 21, 528–533. [Google Scholar] [CrossRef]
  2. Kawasaki, N.; Yamano, N.; Nakayama, A. Synthesis, properties, and biodegradability of three-branched copolyamide (4/6). J. Appl. Polym. Sci. 2020, 137, e49165. [Google Scholar] [CrossRef]
  3. Yamano, N.; Kawasaki, N.; Ida, S.; Nakayama, A. Biodegradation of polyamide 4 in seawater. Polym. Degrad. Stab. 2019, 166, 230–236. [Google Scholar] [CrossRef]
  4. Yamano, N.; Kawasaki, N.; Ida, S.; Nakayama, Y.; Nakayama, A. Biodegradation of polyamide 4 in vivo. Polym. Degrad. Stab. 2017, 137, 281–288. [Google Scholar] [CrossRef]
  5. Kim, N.C.; Kim, J.H.; Nam, S.W.; Jeon, B.S.; Kim, Y.J. Preparation of Nylon 4 microspheres via heterogeneous polymerization of 2-pyrrolidone in a paraffin oil continuous phase. J. Ind. Eng. Chem. 2015, 28, 236–240. [Google Scholar] [CrossRef]
  6. Pagacz, J.; Leszczynska, A.; Modesti, M.; Boaretti, C.; Roso, M.; Malka, I.; Pielichowski, K. Thermal decomposition studies of bio-resourced polyamides by thermogravimetry and evolved gas analysis. Thermochim. Acta 2015, 612, 40–48. [Google Scholar] [CrossRef]
  7. de Gortari, M.G.; Wu, F.; Mohanty, A.K.; Misra, M. Evaluating the Performance of a Semiaromatic/Aliphatic Polyamide Blend: The Case for Polyphthalamide (PPA) and Polyamide 4,10 (PA410). Polymers 2021, 13, 3391. [Google Scholar] [CrossRef] [PubMed]
  8. Kim, S.Y.; Ha, J.U.; Shin, D.; Jung, W.; Lee, P.C. Mechanical properties and morphology of polyamide/polypropylene blends. Elastom. Compos. 2020, 55, 1–5. [Google Scholar]
  9. Chen, X.H.; Shi, W.X.; Yang, S.H.; Li, Y.Y.; Ma, G.Q.; Sheng, J. Fractal analysis of morphology of PE/PA blends: Composition. J. Appl. Polym. Sci. 2008, 109, 2496–2502. [Google Scholar] [CrossRef]
  10. Evstatiev, M.; Schultz, J.M.; Fakirov, S.; Friedrich, K. In situ fibrillar reinforced PET/PA-6/PA-66 blend. Polym. Eng. Sci. 2001, 41, 192–204. [Google Scholar] [CrossRef]
  11. Puglisi, R.; Scamporrino, A.A.; Dintcheva, N.T.; Filippone, G.; Bruno, E.; Scarfato, P.; Cerruti, P.; Carroccio, S.C. Photo- and water-degradation phenomena of ZnO bio-blend based on poly(lactic acid) and polyamide 11. Polymers 2023, 15, 1434. [Google Scholar] [CrossRef] [PubMed]
  12. Fernandes, J.P.C.; Castro, L.D.C.; Mareau, V.H.; Pessan, L.A.; Gonon, L. New insights on the compatibilization of PA6/ABS blends: A co-localized AFM-Raman study. Polymer 2018, 146, 151–160. [Google Scholar] [CrossRef]
  13. Hashimoto, K.; Sudo, M.; Ohta, K.; Sugimura, T.; Yamada, H.; Aoki, T. Biodegradation of nylon4 and its blend with nylon6. J. Appl. Polym. Sci. 2002, 86, 2307–2311. [Google Scholar] [CrossRef]
  14. Wang, Y.; Kang, H.L.; Wang, R.; Liu, R.G.; Hao, X.M. Crystallization of polyamide 56/polyamide 66 blends: Non-isothermal crystallization kinetics. J. Appl. Polym. Sci. 2018, 135, e46409. [Google Scholar] [CrossRef]
  15. Moran, C.S.; Barthelon, A.; Pearsall, A.; Mittal, V.; Dorgan, J.R. Biorenewable blends of polyamide-4,10 and polyamide-6,10. J. Appl. Polym. Sci. 2016, 133, 43626. [Google Scholar] [CrossRef]
  16. Safari, M.; Otaegi, I.; Aramburu, N.; Wang, Y.; Liu, G.M.; Dong, X.; Wang, D.J.; Guerrica-Echevarria, G.; Muller, A.J. Composition dependent miscibility in the crystalline state of polyamide 6/polyamide 4,10 blends: From single to double crystalline blends. Polymer 2021, 219, 123570. [Google Scholar] [CrossRef]
  17. Zhang, G.Z.; Yoshida, H.; Kawai, T. Miscibility of nylon 66 and nylon 48 blend evaluated by crystallization dynamics. Thermochim. Acta 2004, 416, 79–85. [Google Scholar] [CrossRef]
  18. Wei, M.; Shin, I.D.; Urban, B.; Tonelli, A.E. Partial miscibility in a nylon-6/nylon-66 blend coalesced from their common alpha-cyclodextrin inclusion complex. J. Polym. Sci. Pol. Phys. 2004, 42, 1369–1378. [Google Scholar] [CrossRef]
  19. Wang, Z.; Lin, N.; Kang, H.L.; Hao, X.M.; Liu, R.G. Isodimorphism in polyamide 56/polyamide 66 blends with controllable thermal and mechanical properties. ACS Appl. Polym. Mater. 2022, 4, 9407–9416. [Google Scholar] [CrossRef]
  20. Jose, S.; Aprem, A.S.; Francis, B.; Chandy, M.C.; Werner, P.; Alstaedt, V.; Thomas, S. Phase morphology, crystallisation behaviour and mechanical properties of isotactic polypropylene/high density polyethylene blends. Eur. Polym. J. 2004, 40, 2105–2115. [Google Scholar] [CrossRef]
  21. Ruehle, D.A.; Perbix, C.; Castaneda, M.; Dorgan, J.R.; Mittal, V.; Halley, P.; Martin, D. Blends of biorenewable polyamide-11 and polyamide-6,10. Polymer 2013, 54, 6961–6970. [Google Scholar] [CrossRef]
  22. Higuchi, Y.; Kubo, M. Deformation and fracture processes of a lamellar structure in polyethylene at the molecular level by a coarse-grained molecular dynamics simulation. Macromolecules 2017, 50, 3690–3702. [Google Scholar] [CrossRef]
  23. Zhaio, Z.Q.; Fusco, C.; Morthomas, J.; Perez, M.; Lame, O. Disentangling and lamellar thickening of linear polymers during crystallization: Simulation of bimodal and unimodal molecular weight distribution systems. ACS Nano 2019, 13, 11310–11319. [Google Scholar] [CrossRef] [PubMed]
  24. Zhao, J.W.; Song, M. A computer simulation of stress transfer in carbon nanotube/polymer nanocomposites. Compos. Pt. B-Eng. 2019, 163, 236–242. [Google Scholar] [CrossRef]
  25. Pisani, W.A.; Newman, J.K.; Shukla, M.K. Multiscale modeling of polyamide 6 using molecular dynamics and micromechanics. Ind. Eng. Chem. Res. 2021, 60, 13604–13613. [Google Scholar] [CrossRef]
  26. Kulshreshtha, A.; Hayward, R.C.; Jayaraman, A. Impact of composition and placement of hydrogen-bonding groups along polymer chains on blend phase behavior: Coarse-grained molecular dynamics simulation study. Macromolecules 2022, 55, 2675–2690. [Google Scholar] [CrossRef]
  27. Ramachandran, A.A.R.A.; Maria, H.J.; Thomas, S. Role of Functional Polymers in the Compatibilization of Polymer Blends. In Reactive and Functional Polymers Volume Two: Modification Reactions, Compatibility and Blends; Gutiérrez, T.J., Ed.; Springer International Publishing: Cham, Switzerland, 2020; Volume 2, pp. 5–21. [Google Scholar]
  28. Lin, Z.D.; Guan, Z.X.; Xu, B.F.; Chen, C.; Guo, G.H.; Zhou, J.X.; Xian, J.M.; Cao, L.; Wang, Y.L.; Li, M.Q.; et al. Crystallization and melting behavior of polypropylene in beta-PP/polyamide 6 blends containing PP-g-MA. J. Ind. Eng. Chem. 2013, 19, 692–697. [Google Scholar] [CrossRef]
  29. Zhang, Y.J.; Cai, Z.L.; Wang, Y.B.; Liu, J.; Chen, T.; Zhao, L.M. Effect of sequence distribution on the non-isothermal crystallization of copolyamide 4/6. J. Mater. Sci. 2022, 57, 17883–17901. [Google Scholar] [CrossRef]
  30. ISO 37; Rubber, Vulcanized or Thermoplastic—Determination of Tensile Stress-Strain Properties. International Organization for Standardization: Geneva, Switzerland, 2005.
  31. ISO 527-2; Plastics—Determination of Tensile Properties—Part 2: Test Conditions for Moulding and Extrusion Plastics. International Organization for Standardization: Geneva, Switzerland, 2012.
  32. LAMMPS Molecular Dynamics Simulator. Available online: https://lammps.sandia.gov/ (accessed on 18 January 2023).
  33. Kremer, K.; Grest, G.S. Dynamics of entangled linear polymer melts:  A molecular-dynamics simulation. J. Chem. Phys. 1990, 92, 5057–5086. [Google Scholar] [CrossRef]
  34. Yeung, C.; Herrmann, K.A. Molecular dynamics simulation of reactive compatibilization of polymer blends. Macromolecules 2003, 36, 229–237. [Google Scholar] [CrossRef]
  35. Hsieh, C.C.; Jain, S.; Larson, R.G. Brownian dynamics simulations with stiff finitely extensible nonlinear elastic-Fraenkel springs as approximations to rods in bead-rod models. J. Chem. Phys. 2006, 124, 044911. [Google Scholar] [CrossRef] [PubMed]
  36. Hossain, D.; Tschopp, M.A.; Ward, D.K.; Bouvard, J.L.; Wang, P.; Horstemeyer, M.F. Molecular dynamics simulations of deformation mechanisms of amorphous polyethylene. Polymer 2010, 51, 6071–6083. [Google Scholar] [CrossRef]
  37. Hong, W.; Lin, J.P.; Tian, X.H.; Wang, L.Q. Linear and nonlinear viscoelasticity of self-associative hydrogen-bonded polymers. Polymer 2021, 235, 124301. [Google Scholar] [CrossRef]
  38. Liu, J.; Wu, S.Z.; Zhang, L.Q.; Wang, W.C.; Cao, D.P. Molecular dynamics simulation for insight into microscopic mechanism of polymer reinforcement. Phys. Chem. Chem. Phys. 2011, 13, 518–529. [Google Scholar] [CrossRef] [PubMed]
  39. Durmaz, B.U.; Aytac, A. Enhanced mechanical and thermal properties of graphene nanoplatelets-reinforced polyamide11/poly(lactic acid) nanocomposites. Polym. Eng. Sci. 2023, 63, 105–117. [Google Scholar] [CrossRef]
  40. Ridhore, A.; Jog, J. Synergistic mechanical response of nylon 6/trogamid (R) T blends. J. Appl. Polym. Sci. 2013, 129, 65–72. [Google Scholar] [CrossRef]
  41. Vallejo, F.J.; Eguiazabal, J.I.; Nazabal, J. Solid state features and mechanics properties of PEI/PBT blends. J. Appl. Polym. Sci. 2001, 80, 885–892. [Google Scholar] [CrossRef]
Polymers 15 03399 g001

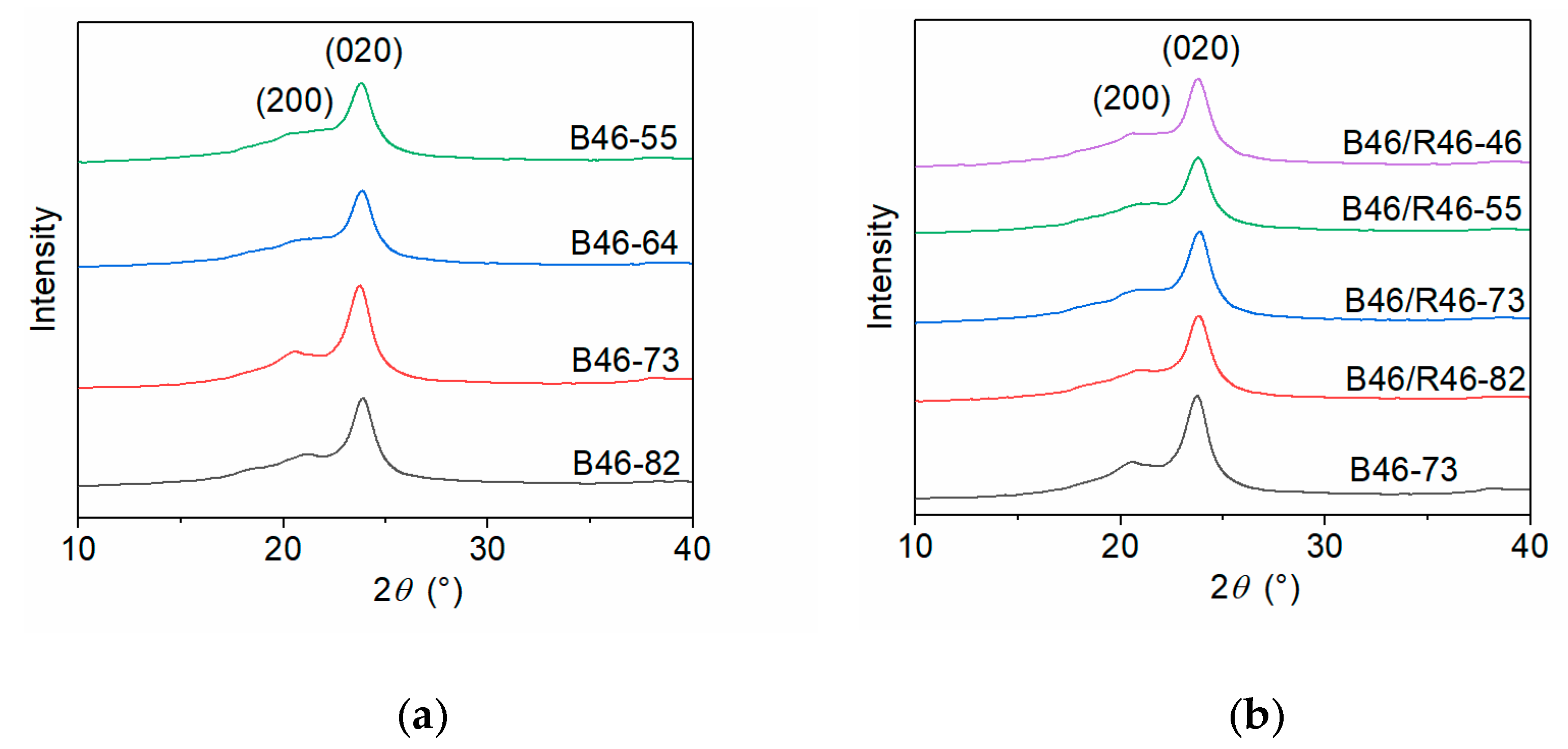

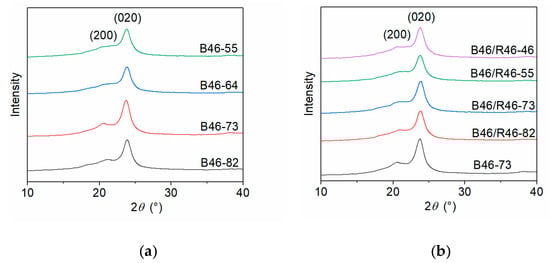

Figure 1. WAXD curves of the (a) B46 and (b) B46/R46 blends.
Figure 1. WAXD curves of the (a) B46 and (b) B46/R46 blends.
Polymers 15 03399 g001
Polymers 15 03399 g002

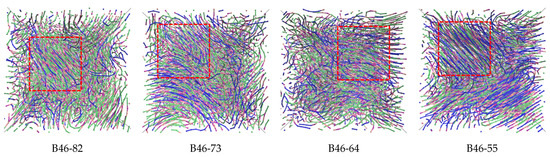

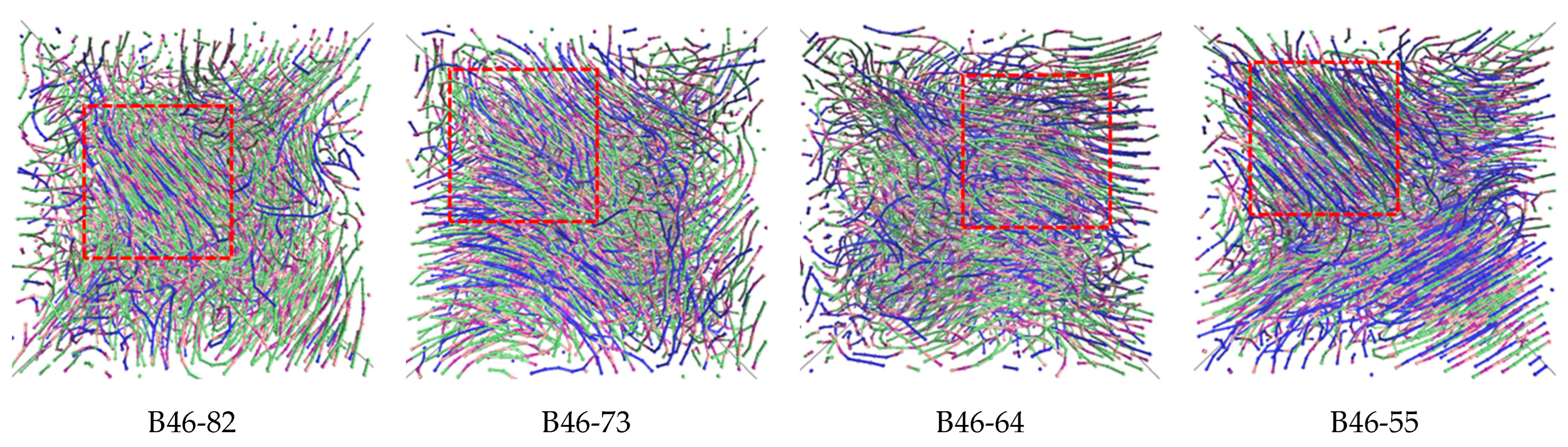

Figure 2. Molecular chain distribution after MD-simulated crystallization of the B46 blends with various compositions. Green: methylene group in PA4; blue: methylene group in PA6; pink: N atom in the amide group; purple: carbonyl group in the amide group. The red dotted boxes indicate regions of ordered alignment.
Figure 2. Molecular chain distribution after MD-simulated crystallization of the B46 blends with various compositions. Green: methylene group in PA4; blue: methylene group in PA6; pink: N atom in the amide group; purple: carbonyl group in the amide group. The red dotted boxes indicate regions of ordered alignment.
Polymers 15 03399 g002
Polymers 15 03399 g003

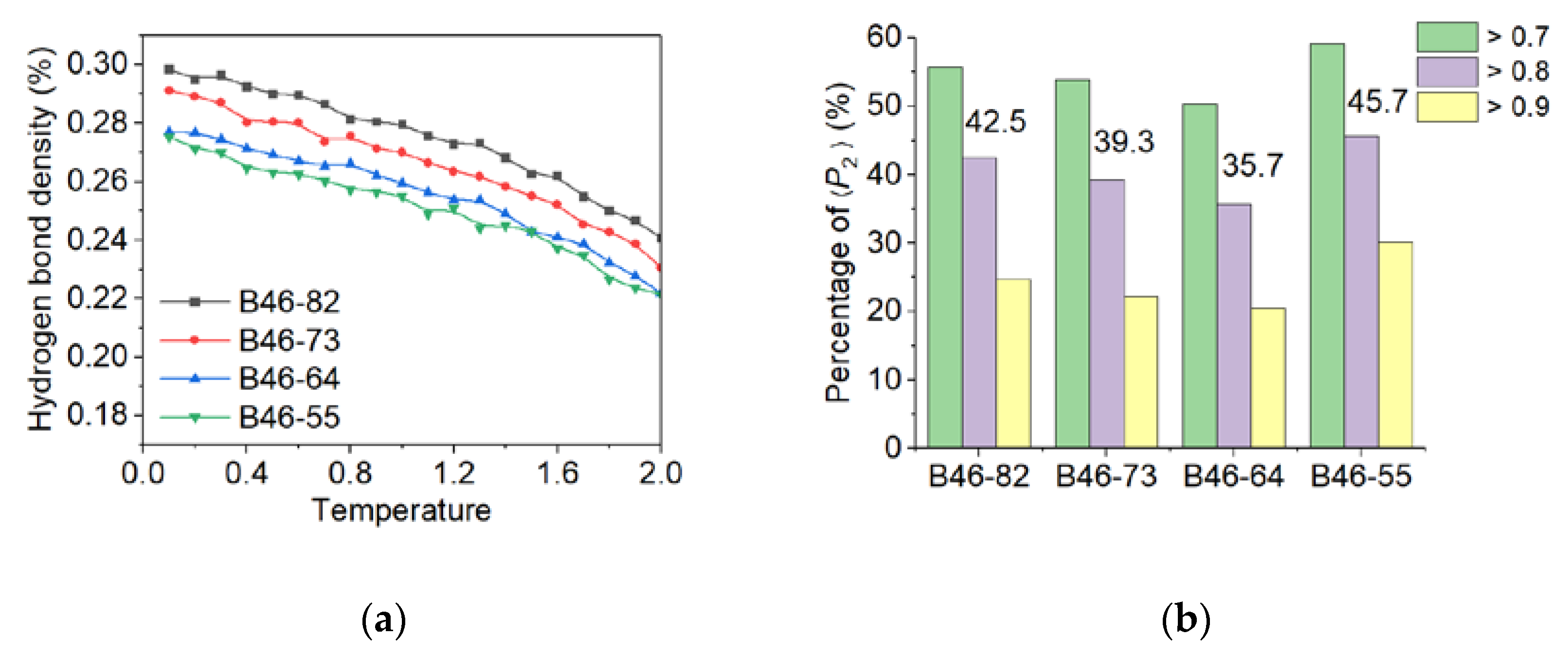

Figure 3. (a) Hydrogen bond density and (b) distribution of local orientation degree of the B46 blends. The numbers on the bar graph represent the crystallinity of each blend.
Figure 3. (a) Hydrogen bond density and (b) distribution of local orientation degree of the B46 blends. The numbers on the bar graph represent the crystallinity of each blend.
Polymers 15 03399 g003
Polymers 15 03399 g004

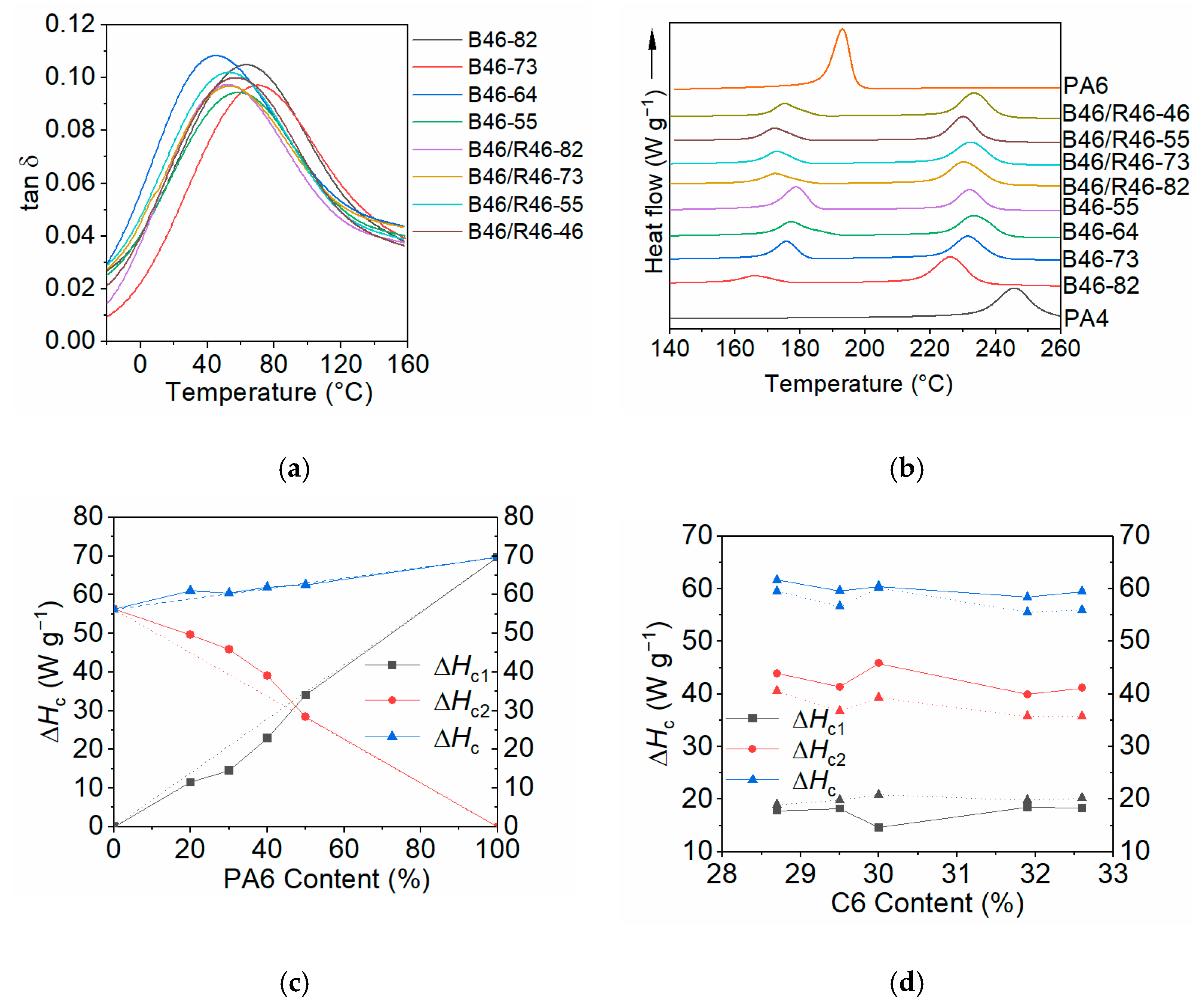

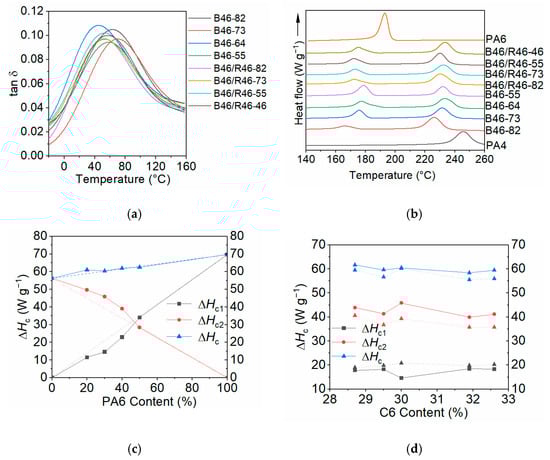

Figure 4. (a) Temperature-dependence of the tan δ values of the B46 and B46/R46 blends. (b) DSC heat flow curves of the B46 and B46/R46 blends during cooling crystallization. Crystallization enthalpies of the (c) B46 and (d) B46/R46 blends. Black dotted line: the theoretical crystallization enthalpy (assuming no interactions between the blended components) of PA6; Red dotted line: the theoretical crystallization enthalpy of PA4; Blue dotted line: total theoretical crystallization enthalpy.
Figure 4. (a) Temperature-dependence of the tan δ values of the B46 and B46/R46 blends. (b) DSC heat flow curves of the B46 and B46/R46 blends during cooling crystallization. Crystallization enthalpies of the (c) B46 and (d) B46/R46 blends. Black dotted line: the theoretical crystallization enthalpy (assuming no interactions between the blended components) of PA6; Red dotted line: the theoretical crystallization enthalpy of PA4; Blue dotted line: total theoretical crystallization enthalpy.
Polymers 15 03399 g004
Polymers 15 03399 g005

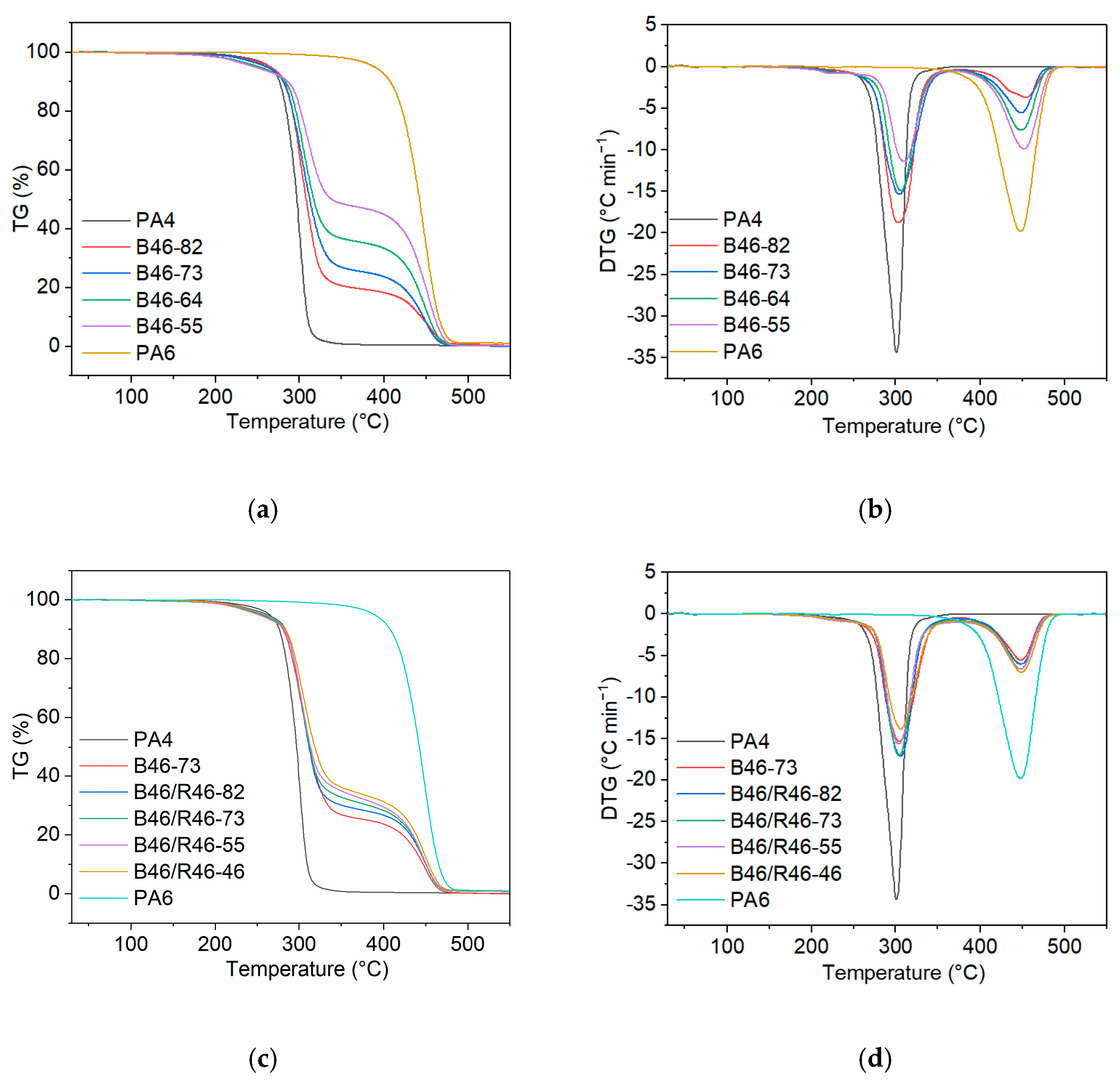

Figure 5. (a) TGA and (b) DTG curves of the B46 blends. (c) TGA and (d) DTG curves of the B46/R46 blends.
Figure 5. (a) TGA and (b) DTG curves of the B46 blends. (c) TGA and (d) DTG curves of the B46/R46 blends.
Polymers 15 03399 g005
Table 1. Compositions of the B46 and B46/R46 blends.
Table 1. Compositions of the B46 and B46/R46 blends.
SamplePA4/PA6 (w/w)R46-82 (wt%) 1R46-73 (wt%)R46-55 (wt%)R46-46 (wt%)
B46-8280/20----
B46-7370/30----
B46-6460/40----
B46-5550/50----
B46/R46-8270/3010---
B46/R46-7370/30-10--
B46/R46-5570/30--10-
B46/R46-4670/30---10
1 The R46 content is a percentage of the total mass of the blend.
Table 2. Crystallization parameters of the B46 and B46/R46 blends.
Table 2. Crystallization parameters of the B46 and B46/R46 blends.
Sample2θ (°)A1/A2Grain SizeInterplanar Spacing (Å)Crystallinity (%)
B46-8220.9/23.90.06784.24/3.7355.1
B46-7320.7/23.70.05674.29/3.7555.6
B46-6420.6/23.80.04534.31/3.7347.8
B46-5520.6/23.90.04524.31/3.7345.1
B46/R46-8220.7/23.80.12484.29/3.7347.9
B46/R46-7320.7/23.80.11464.29/3.7343.8
B46/R46-5520.7/23.80.10444.30/3.7444.9
B46/R46-4620.7/23.80.15484.30/3.7443.7
Table 3. Thermal decomposition temperatures of the B46 and B46/R46 blends with various compositions.
Table 3. Thermal decomposition temperatures of the B46 and B46/R46 blends with various compositions.
SampleT5 (°C)T10 (°C)T50 (°C)DTG Peak 1DTG Peak 2
Tdeg1 (°C)TG (%)Tdeg2 (°C)TG (%)
PA4264.2276.2296.5301.235.3--
B46-82265.0281.8307.6302.560.7454.06.5
B46-73261.2281.0312.4304.661.5448.88.9
B46-64250.8282.2317.1305.965.7448.014.0
B46-55246.5286.1338.2310.769.9451.918.3
B46/R46-82261.6283.1311.5305.960.3449.310.4
B46/R46-73255.1282.3311.9304.662.1448.011.4
B46/R46-55251.3281.0313.7303.864.5448.411.5
B46/R46-46259.4283.1318.8306.465.4448.813.3
PA6389.0407.9442.4--448.038.6
Table 4. Mechanical properties of the B46 and B46/R46 blends.
Table 4. Mechanical properties of the B46 and B46/R46 blends.
SampleTensile Strength (MPa)Fracture Strain (%)Young’s Moduli (MPa)
PA431.99 ± 2.36112.88 ± 12.35870.35 ± 13.44
B46-8235.17 ± 4.97225.88 ± 51.39850.16 ± 21.57
B46-7363.11 ± 15.39348.72 ± 87.17921.95 ± 40.35
B46-6467.40 ± 11.61369.88 ± 27.37913.87 ± 20.85
B46-5556.49 ± 1.70298.23 ± 40.11866.49 ± 31.21
B46/R46-8248.17 ± 2.02224.09 ± 4.26825.71 ± 4.56
B46/R46-7341.30 ± 3.23262.00 ± 26.04791.91 ± 19.82
B46/R46-5551.21 ± 0.08309.24 ± 26.25727.95 ± 22.36
B46/R46-4655.57 ± 4.54299.31 ± 28.70797.43 ± 19.64
PA671.38 ± 4.42338.06 ± 20.44669.38 ± 21.68
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, Y.; Wang, M.; Zhang, D.; Wang, Y.; Wang, L.; Qiu, Y.; Wang, L.; Chen, T.; Zhao, L. Crystallization and Performance of Polyamide Blends Comprising Polyamide 4, Polyamide 6, and Their Copolymers. Polymers 2023, 15, 3399. https://doi.org/10.3390/polym15163399

AMA Style

Zhang Y, Wang M, Zhang D, Wang Y, Wang L, Qiu Y, Wang L, Chen T, Zhao L. Crystallization and Performance of Polyamide Blends Comprising Polyamide 4, Polyamide 6, and Their Copolymers. Polymers. 2023; 15(16):3399. https://doi.org/10.3390/polym15163399

Chicago/Turabian Style

Zhang, Yajing, Mingda Wang, Di Zhang, Yibing Wang, Li Wang, Yongjun Qiu, Liquan Wang, Tao Chen, and Liming Zhao. 2023. "Crystallization and Performance of Polyamide Blends Comprising Polyamide 4, Polyamide 6, and Their Copolymers" Polymers 15, no. 16: 3399. https://doi.org/10.3390/polym15163399

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
