Preparation and Characterization of Light-Colored Polyimide Nanocomposite Films Derived from a Fluoro-Containing Semi-Alicyclic Polyimide Matrix and Colloidal Silica with Enhanced High-Temperature Dimensionally Stability

School of Material Science and Engineering, Key Laboratory of Polymer Chemistry and Physics of Ministry of Education, Peking University, Beijing 100871, China
Engineering Research Center of Ministry of Education for Geological Carbon Storage and Low Carbon Utilization of Resources, School of Materials Science and Technology, China University of Geosciences, Beijing 100083, China
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2023, 15(14), 3015;
Submission received: 19 June 2023 / Revised: 8 July 2023 / Accepted: 11 July 2023 / Published: 12 July 2023
(This article belongs to the Special Issue Feature Papers in Smart and Functional Polymers)


Light-colored and transparent polyimide (PI) films with good high-temperature dimensional stability are highly desired for advanced optoelectronic applications. However, in practice, the simultaneous achievement of good optical and thermal properties in one PI film is usually difficult due to the inter-conflicting molecular design of the polymers. In the present work, a series of PI-SiO2 nanocomposite films (ABTFCPI) were developed based on the PI matrix derived from hydrogenated pyromellitic anhydride (HPMDA) and an aromatic diamine containing benzanilide and trifluoromethyl substituents in the structure, 2,2′-bis(trifluoromethyl)-4,4′-bis [4-(4-aminobenzamide)]biphenyl (ABTFMB). The inorganic SiO2 fillers were incorporated into the nanocomposite films in the form of colloidal nanoparticles dispersed in the good solvent of N,N-dimethylacetamide (DMAc) for the PI matrix. The derived ABTFCPI nanocomposite films showed good film-forming ability, flexible and tough nature, good optical transparency, and good thermal properties with loading amounts of SiO2 up to 30 wt% in the system. The ABTFCPI-30 film with a SiO2 content of 30 wt% in the film showed an optical transmittance of 79.6% at the wavelength of 400 nm (T400) with a thickness of 25 μm, yellow index (b*) of 2.15, and 5% weight loss temperatures (T5%) of 491 °C, which are all comparable to those the pristine ABTFCPI-0 matrix without filler (T400 = 81.8%; b* = 1.77; T5% = 492 °C). Meanwhile, the ABTFCPI-30 film exhibited obviously enhanced high-temperature dimensional stability with linear coefficients of thermal expansion (CTE) of 25.4 × 10−6/K in the temperature range of 50 to 250 °C, which is much lower than that of the AMTFCPI-0 film (CTE = 32.7 × 10−6/K).

1. Introduction

Colorless or light-colored polyimide (CPI) films have been widely investigated as high-performance components in modern optoelectronic applications due to their excellent combined thermal, optical, dielectric, and other functionalities [1,2,3]. However, the common CPI films, either the fluoro-containing or the semi-alicyclic ones, usually suffer from relatively poor high-temperature dimensional stability; that is, the high linear coefficients of thermal expansion (CTE) compared with the commonly used metal or inorganic materials in the current optoelectronic fabrications. For example, the CPI films derived from fluoro-containing dianhydride, 4,4′-hexafluoroisopropylene diphthalic anhydride (6FDA), and fluoro-containing diamine, 2,2′-bis(trifluoromethyl)benzene (TFMB) showed a CTE value of 82 × 10−6/K [4]. The semi-alicyclic CPI films derived from hydrogenated pyromellitic anhydride (HPMDA) and 4,4′-oxydianiline (ODA) had a CTE value of 57.1 × 10−6/K [5]. Comparatively, the first generation of silicon-based semiconductor chips showed a CTE value of 3.0 × 10−6/K [6], and the third generation of silicon carbide (SiC)-based chips showed a CTE value of 4.2 × 10−6/K [7]. The optical sodalime glass (SLG) and the new generation of ultrathin glass (UTG) showed CTE values of 8.9 × 10−6/K and 7.2 × 10−6/K, respectively [8]. The mismatch between the CTE values of CPI films and the inorganic components might induce internal stress during the fabrication of the optoelectronic devices, which might result in delamination, cracking, warpage, and other reliability issues [9]. Thus, it is becoming one of the most important topics for the improvements of the high-temperature dimensional stability of the CPI films [10,11,12].
Among various CPI films, the ones based on the alicyclic dianhydrides and aromatic diamines, that is, the semi-alicyclic (or semi-aromatic) systems, have attracted great attention in the research and development of high-performance polymers for optoelectronic applications due to the excellent combined thermal, optical, mechanical, and dielectric properties and the relatively low cost at the same time [13,14,15,16]. Various methodologies based on the molecular design of the functional alicyclic dianhydride or the aromatic diamine monomers have been proposed and carried out to reduce the CTE values of the semi-alicyclic CPI films. For instance, an alicyclic dianhydride monomer having a rigid cyclopentanone bis-spironorbornane structure (CpODA) was developed, and the derived CPI films showed reduced CTE values in the range of 17 × 10−6/K to 57 × 10−6/K [17]. An alicyclic dianhydride, octahydro-2,3,6,7-anthracenetetracarboxylic dianhydride (OHADA) was recently reported, and the CPI films based on the dianhydride monomer showed a CTE value as low as 41.5 × 10−6/K [18]. An alicyclic dianhydride monomer containing a rigid cyclobutane unit, 1,3-dimethyl-1,2,3,4-cyclobutane tetracarboxylic dianhydride (DM-CBDA), was synthesized to develop low-CTE CPI films [19]. The CPI film based on DM-CBDA and TFMB exhibited a CTE value of 28.1 × 10−6/K, which was much lower than that of the 6FDA-TFMB system (CTE = 82 × 10−6/K). For the diamine monomers, various rigid-rod units have been introduced into the molecular structures of the compounds so as to reduce the CTE values of the derived semi-alicyclic CPI films. Amide (-CONH-) or benzanilide (-Ph-CONH-Ph-) structural units have been proven to be the most effective substituents for achieving this target [20,21,22]. In our previous work, the aromatic diamines containing amide linkages were developed, and the CPI films based on the diamines and the hydrogenated pyromellitic anhydride (HPMDA) showed reduced CTE values as low as 27.7 × 10−6/K [23]. However, the optical properties of the derived low-CTE CPI films deteriorated with the incorporation of the amide components. In view of this defect of the common CPI films derived from the amide-containing diamines, a novel aromatic diamine simultaneously containing rigid-rod benzanilide and highly electronegative trifluoromethyl (–CF3) units, 2,2′-bis (trifluoromethyl)-4,4′-bis[4-(4-aminobenzamide)]biphenyl (ABTFMB) was designed and developed in Hasegawa’s group and was widely used to develop high-performance CPI films [24,25,26].
Although the semi-alicyclic CPI films derived from alicyclic dianhydride and the ABTFMB or its derivative diamines usually represent the high-performance films with both high optical transparency and high thermal stability, it is often required to further decrease the CTE values so as to meet the ever-increasing reliability requirements in the optoelectronic fields. Composite films seem to be one of the few feasible pathways to achieve this target. Combination with inorganic nanofillers with low thermal expansion characteristics, such as silica (SiO2), has been proven to be an effective way to further reduce the CTE values of the CPI films [27,28,29,30]. However, the incorporation of nanoparticles might deteriorate the optical transparency of derived composite films. This requires careful design of the morphology, particle size, and surface pretreatment of the nanoparticles. Recently, a special class of silica nanoparticles, colloidal-type silica, has been widely used in the modification of CPI films [29]. In practical applications, colloidal silica (cSiO2) nanoparticles are usually dispersed in a good solvent, such as N,N-dimethylacetamide (DMAc), for the CPI film manufacturing, and thus can form uniform dispersion and distribution in the CPI matrix after high-temperature imidization or curing process. The unique physical and chemical properties of the colloidal silica nanoparticles make them achieve a higher loading proportion in the CPI matrix than the traditional nano-silica particles, which can effectively reduce the CTE values of the composite films while maintaining the inherent optical properties of the CPI matrix film to a large extent. Yu and coworkers reported the highly transparent PI/silica hybrid optical thin films based on the wholly aromatic fluoro-containing PI matrix and cSiO2 fillers [30,31]. The derived nanocomposite films showed good optical transparency. Although the wholly aromatic fluoro-containing PI films have been widely used as the matrix for the development of the PI/cSiO2 nanocomposite films, the CPI/cSiO2 films based on fluoro-containing semi-alicyclic PI films have been rarely reported in the literature.
In the current work, a synergistic methodology was used to develop high-performance CPI films with good dimensional stability at elevated temperatures. On the one hand, the semi-alicyclic CPI matrix film (ABTFCPI-0) with the low-CTE feature was prepared from HPMDA dianhydride and ABTFMB diamine. On the other hand, colloidal SiO2 nanoparticles were used as the filler to further reduce the CTE values of the ABTFCPI-0 matrix. Effects of the loading amounts of the colloidal SiO2 nanoparticles on the properties of the afforded composite films were studied in detail.

2. Materials and Methods

2.1. Materials

Hydrogenated pyromellitic anhydride (HPMDA, purity: 99.7%) and 2,2′-bis(trifluoromethyl)-4,4′-bis[4-(4-aminobenzamide)]biphenyl (ABTFMB, purity: 99.2%) monomers were all prepared and purified in our laboratory. The alicyclic HPMDA dianhydride and the ABTFMB diamine were dried at 180 °C and 80 °C in vacuum for 24 h, respectively, prior to use. The colloidal SiO2 nanoparticles (average diameter: 15 nm; 20 wt% in DMAc) were also prepared in our laboratory by replacing the dispersing agent of pure water of commercially available water-based colloidal SiO2 (VPS NE20, Evonik Industrial Co., Ltd., Darmstadt, Germany) with ultra-dry DMAc solvent (InnoChem Science & Technology Co., Ltd., Beijing, China). The ultra-dry γ-butyrolactone (GBL) solvent with water contents below 50 ppm (InnoChem Science & Technology Co., Ltd., Beijing, China), toluene, and other commercially available reagents were used as received.

2.2. Characterization Methods

The number average molecular weight (Mn) and weight average molecular weight (Mw) of the ABTFCPI-0 resin were measured using a gel permeation chromatography (GPC) system (Shimadzu, Kyoto, Japan) with HPLC grade N-methyl-2-pyrrolidone (NMP) as the mobile phase. Fourier transform infrared (FTIR) spectra of the CPI films were recorded on an Iraffinity-1S FT-IR spectrometer (Shimadzu, Kyoto, Japan). Hydrogen nuclear magnetic resonance (1H-NMR) of the ABTFCPI-0 resin was measured on an AV 400 spectrometer (Ettlingen, Germany) operating at 400 MHz in deuterated dimethyl sulfoxide (DMSO-d6). Ultraviolet–visible (UV-Vis) spectra of the CPI films were recorded on a Hitachi U-3210 spectrophotometer (Tokyo, Japan) at room temperature. Wide-angle X-ray diffractions (XRD) of the CPI films were performed on a Rigaku D/max-2500 X-ray diffractometer (Tokyo, Japan) with Cu-Kα1 radiation, operated at 40 kV and 200 mA. The full-width at half-maximum (FWHM) values of the ABTFCPI samples were calculated using Scherrer’s equation together with the Jade software [32]. X-ray photoelectron spectroscopy (XPS) was measured with an ESCALab220i-XL electron spectrometer (Thermo Fisher Scientific, Franklin, MA, USA) using 300 W of MgKα radiation. Yellow index (YI) values of the CPI films were measured using an X-rite color i7 spectrophotometer (Grand Rapids, MI, USA) with PI samples at a thickness of 50 μm. The color parameters were recorded according to a CIE Lab equation. L* is the lightness, where 100 means white and 0 implies black. A positive a* means a red color and a negative one indicates a green color. A positive b* means a yellow color and a negative one indicates a blue color. Thermogravimetric analyses (TGA) of the CPI films were recorded on a TA-Q series thermal analysis system (New Castle, DE, USA) at a heating rate of 20 °C/min in nitrogen. Dynamic mechanical analysis (DMA) was recorded on a TA-Q800 thermal analysis system (New Castle, DE, USA) at a heating rate of 5 °C/min and a frequency of 1 Hz in nitrogen. Thermo-mechanical analyses (TMA) of the CPI films were performed on a TMA402F3 thermal analysis system (NETZSCH, Selb, Germany) with a heating rate of 5 °C/min in nitrogen. The CTE values of the CPI films were recorded in the range of 50~250 °C.

2.3. CPI Resin Synthesis and the Film Preparation

The ABTFCPI-0 matrix resin was synthesized via a well-established one-stage high-temperature polycondensation procedure in the literature. As a demonstration, an oil bath, Dean–Stark trap, and a nitrogen inlet were added ABTFMB (55.8470 g, 100 mmol) and GBL (200.0 g) into a 1000 mL four-necked glass vessel equipped with a mechanical stirrer. Nitrogen was passed through the diamine solution in the flask, and a transparent ABTFMB solution was obtained after stirring at room temperature for 30 min. HPMDA (22.4170 g, 100 mmol) was then added to the ABTFMB solution, and GBL (34.8 g) was added to make the solid content of the polymerization system to be 25 wt%. The reaction system was stirred for 3 h, and the solution temperature slightly increased. Then, the imidization catalyst of isoquinoline (0.5 g) and the water azeotropic agent of toluene (200 mL) were added. The reaction system was heated via the oil bath, and the toluene–water azeotrope appeared in the system when the temperature reached 130~135 °C. The water by-product was continuously distilled out of the system via the azeotrope until no droplet was observed in the Dean–Stark trap (~6 h). The residual toluene was distilled out of the reaction system, and the temperature gradually increased to 180 °C. The polymerization temperature was maintained for 6 h and then cooled to room temperature. The obtained viscous solution with the pale-brown color was then poured into an aqueous ethanol solution (1000 mL, ethanol:water = 70:30, volume ratio). The off-white silky resin continuously precipitated into the ethanol solution. The obtained ABTFCPI-0 resin was immersed in the ethanol solution for 48 h and then collected and dried at 100 °C in a vacuum for 24 h. Yield: 71.9 g (96.3%). Numeric average molecular weight (Mn): 1.11 × 105 g/mol; weight average molecular weight (Mw): 2.08 × 105 g/mol; polydispersity index (PDI): 1.87. 1H-NMR (DMSO-d6, ppm): 10.77 (s, 2H), 8.37–8.08 (m, 8H), 7.57–7.40 (m, 6H), 3.33–3.30 (m, 4H), and 2.28–2.09 (m, 4H).
The ABTFCPI-0 resin was re-dissolved in ultra-dry DMAc solvent at room temperature according to the formulas shown in Table 1. Then, the colloidal silica (cSiO2)/DMAc solution was dispersed into the ABTFCPI-0/DMAc solution under supersonic treatment for 1 h. The total solid contents of the CPI solutions were controlled to be 20 wt%. The weight percent of the colloidal silica nanoparticles in the CPI films increased from 0 (ABTFCPI-0) to 30 wt% (ABTFCPI-30). Taking ABTFCPI-30 as an example, ABTFCPI-0 resin (14.0 g) was added into DMAc (56.0 g) in a 250 mL three-necked flask equipped with a mechanical stirrer. The solution was stirred overnight until a homogeneous and transparent varnish was obtained. The varnish was then purified by filtration through a 0.45 μm Teflon syringe filter. The purified solution was mechanically blended with the colloidal silica dispersion (30.0 g) at room temperature for 2 h and then further treated with a supersonic oscillator for another 1 h. The obtained varnish was coated on a clean borosilicate glass and thermally dried in a clean oven with the heating procedure of 80 °C/3 h, 150 °C/1 h, 180 °C/1 h, 200 °C/1 h, and 250 °C/1 h. After the thermal treatment, the glass substrate was cooled to room temperature and immersed in deionized water. Free-standing ABTFCPI-30 film automatically peeled off the substrate, which was further dried in a vacuum at 120 °C for 24 h. ABTFCPI-0 films with various thicknesses in the range of 10–100 μm were separately prepared for the following characterization. The other composite films, including ABTFCPI-5, ABTFCPI-10, ABTFCPI-15, ABTFCPI-20, and ABTFCPI-25, were prepared according to a similar procedure as mentioned above. For the preparation of the pure ABTFCPI-0 film, no colloidal silica nanoparticles were added.

3. Results and Discussion

3.1. CPI Resin Synthesis and Film Preparation

One pure CPI (ABTFCPI-0) and seven CPI nanocomposite films (ABTFCPI-5~ABTFCPI-35) were prepared, respectively, based on the ABTFCPI-0 matrix resin, as shown in Figure 1. The resin was soluble in the polycondensation system despite the existence of the rigid-rod benzanilide units in the diamine moiety. The non-conjugated molecular structure feature in the HPMDA dianhydride moiety endowed the derived resin with good solubility in the reaction media. The resin was soluble in both polar aprotic solvents, such as N,N–dimethylformamide (DMF), DMAc, NMP, dimethyl sulfoxide (DMSO), and common polar solvents, such as cyclopentanone, chloroform, and so on at the solid content of 10 wt%.
The good solubility of the ABTFCPI-0 resin in organic solvents made it possible to confirm the structure by 1H-NMR measurements, as illustrated in Figure 2. In the figure, the characteristic absorptions of hydrogen protons in the amide (–CONH–) units, in the aromatic rings (H1~H5), and in the alicyclic rings (Ha, Hb, and Hb′) could be clearly assigned. As expected, the amide proton exhibited absorption at the chemical shift of 10.77 ppm, which was at the farthest downfield in the spectra. This is due to the strong electron-withdrawing carbonyl group. Similarly, the absorption of H3 appeared at the second farthest downfield in the spectra due to the ortho-substituted –CF3 groups with high electronegativity. Contrarily, the absorptions of the cyclohexane protons were present in the upfield in the spectra due to the electron-donating features of the alicyclic rings. This is consistent with the structural features of the ABTFCPI-0 resin.
The pure ABTFCPI-0 film and the ABTFCPI-SiO2 nanocomposite films (ABTFCPI-5~ABTFCPI-35) were prepared according to the procedure shown in Figure 3. All the films showed flexible and tough characters except ABTFCPI-35, which was a bit brittle and could not be folded like the other counterparts. The good flexibility of the nanocomposite films was, on the one hand, due to the merits of the ABTFCPI-0 matrix and, on the other hand, owing to the good dispersion and distribution of the SiO2 nanoparticles. The ABTFCPI-0 resin showed a numerical average molecular weight (Mn) of 1.11 × 105 g/mol, average molecular weight (Mw) of 2.08 × 105 g/mol, and polydispersity index (PDI) of 1.87. The high molecular weights of the resin could endow the derived films with good strength and toughness. As for the colloidal silica nanoparticles, they could be uniformly dispersed into the pristine ABTFCPI-0 matrix due to the specific physical and chemical features of the fillers. Few aggregations were observed for the nanoparticles in the composite films, as could be evidenced by the clear and transparent appearance of the composite solutions and films shown in Figure 3. Even though the loading amounts of the SiO2 fillers reached 35 wt%, the composite films still maintain good optical transparency.
The successful dispersion of the SiO2 nano-fillers in the composite films could further be proven by the XRD and XPS measurements. As could be seen from the XRD plots of the polymer films shown in Figure 4, the pristine SiO2 nanoparticles, the ABTFCPI-0 film, and the nanocomposite films all exhibited amorphous nature. This is mainly ascribed to the non-conjugated feature of the cyclohexane rings in the dianhydride moiety, which efficiently prohibited the formation of crystalline regions in the polymers. The amorphous colloidal silica nanoparticles showed the absorption peak at 2θ = 22.1° (d spacing = 4 Å), which was in good agreement with the data reported in the literature [33]. In addition, it could be deduced from the full width at half maxima (FWHM) values of the samples labeled in the figure that the FWHM values increased with the increasing SiO2 contents in the films. This indicates that the partially ordered molecular packing structures in the films were gradually destroyed with the increasing contents of the SiO2. On the other hand, it also indicates that with the increase of the SiO2 fillers, some interactions between the SiO2 particles and the ABTFCPI-0 matrix occurred, causing a lower crystallinity in the films. The loose molecular packing in the nanocomposite films was beneficial for the penetration of visible light and endowed the films with good optical transparency.
Figure 5 depicts the XPS plots of the ABTFCPI films. All the samples showed clear absorptions of common elements, including the F1s at the binding energy of 688 eV, O1s at 532 eV, N1s at 400 eV, and C1s at 284 eV. However, only the composite films showed the absorptions of Si2p in the range of 100~153 eV, as can be seen in Figure 5a. In addition, from the expanded binding energy ranging from 99 to 107 eV (Figure 5b), one can observe that the absorption of Si2p increased with the increasing contents of the SiO2 fillers in the polymers. This is in good agreement with the composition characters of the nanocomposite films.
Figure 6 further demonstrates the high-resolution spectra of Si2p, O1s, and N1s of the typical ABTFCPI-35 nanocomposite film. It can be seen from Figure 6a that the Si2p spectra exhibited three components with different relative intensities. The binding energy at 102.2 eV was due to the silicon of the Si-OH bond, the one at 104.0 eV was attributed to the Si-O bond, and the one at 103.4 eV was attributed to the Si-O-Si bond, respectively. It has been reported in the literature that the peaks of the Si-O-Si network structure in the SiO2 showed absorptions at 103.5 eV [34]. The current data have good consistency with the data reported in the literature. The O1s spectra of the ABTFCPI-35 film (Figure 6b) displayed three components, in which the binding energy at 531.3 eV was ascribed to the oxygen in the C=O bonds in the imide rings, the one at 532.4 eV was to the –CONH– bond. In addition, the binding energy at 533.1 eV was ascribed to the Si-O in SiO2, which was incorporated into this composite film. Figure 6c shows the N1s spectrum of the ABTFCPI-35 film. Two absorption peaks were observed at 400.6 eV and 400.0 eV, respectively. The former was due to the characteristic peak of nitrogen in the imide rings, and the latter was ascribed to the nitrogen in the amide units. Based on the data mentioned above, it could be deduced that the colloidal silica nanoparticles basically maintained the initial states in the nanocomposite films during the mechanical blending with the ABTFCPI matrix.
After confirming the successful incorporation of SiO2 nanoparticles into the ABTFCPI-0 matrix, the chemical structures of the polymers were identified by the FTIR measurements. Figure 7 shows the FTIR spectra of the ABTFCPI films together with the assignments of the main characteristic absorptions (Table 2). The spectra revealed the characteristic absorption peaks of the imide rings for all the polymers, including the asymmetrical and symmetrical carbonyl stretching vibrations at 1785 cm−1 and 1710 cm−1 and the C–N at 1381 cm−1. In addition, the phenyl C=C stretching vibrations at 1504 cm−1 and the amide (–CONH–) carbonyl stretching vibrations at 1670 cm−1 were also observed. The Si–O stretching vibrations at 1049 cm−1 were only detected for the composite films, indicating the incorporation of the silica fillers. At last, the C–H stretching vibrations in cyclohexane units at 3000~2900 cm−1 were also detected.

3.2. Optical Properties

Deterioration of the optical properties of the nanocomposite films due to the aggregation of the incorporated nanoparticles has been becoming one of the most concerning issues in the development of high-performance organic/inorganic composite optical films. After all, maintaining the intrinsic optical transparency and low color parameters of the pristine optical films is always the prerequisite in practical applications. Nano-sized silica fillers have been one of the most important functional fillers to compensate for the defects of the common polymeric films, such as the relatively poor dimensional stability at elevated temperatures, the low modulus, the low flame retardancy, and so on. However, the common silica nanoparticle is usually aggregated in the optical film matrixes, especially at high loading amounts. Thus, special surface treatments and additional dispersion treatments are usually required during the fabrication of the nanocomposite films. Even by these methodologies, the loading proportions of the nano-fillers in the final composite films were usually controlled at a relatively low level (<10 wt%). By contrast, colloidal silica (cSiO2) or silica sol nanoparticles dispersed in water or organic solvents exhibited good dispersion and distribution in the polymer films. Usually, the functionalization of the SiO2 surface introduces organic groups that make the colloidal SiO2 particles surface-active and sterically stable. The particles are amorphous, but the particle surface is composed of silanol groups, which is the hydroxyl group connected to the silicon atom. The increased surface activity of SiO2 particles enables them to act as an emulsifier. In general, silica sols are an aqueous suspension of colloidal SiO2 particles. In order to endow the silica sols with good compatibility with the ABTFCPI-0 matrix, the commercially available aqueous cSiO2 dispersion was modified by solvent replacement in the current work, in which the water was replaced by DMAc.
Figure 8 and Figure 9 show the UV-Vis spectra and the 3D CIE Lab optical parameters of the ABTFCPI films, and the detailed data are summarized in Table 3. As expected, both the pristine ABTFCPI-0 and the nanocomposite films showed good optical transparency and low yellow indices. Incorporation of the cSiO2 nanoparticles did not deteriorate the optical properties of the derived films even at the high loading contents of 35 wt%. As shown in the figures and Table 2, the optical transmittance of the ABTFCPI films at the wavelength of 400 nm (T400) showed a trend of increasing first and then decreasing with the incorporation of silica nanoparticles. For example, the T400 value of the pristine ABTFCPI-0 film was 81.8%, while the ABTFCPI-5 film containing 5 wt% of silica fillers showed a value of 82.0%. As can be seen from the CIE Lab parameters shown in Figure 9, the brightness (L*) values of the nanocomposite films slightly increased with the increase of the silica fillers, but the yellow indices (b*) also increased, showing a trend of yellowing for the films. The haze values of the nanocomposite films remained at a relatively stable level. It can be concluded seen that the nanocomposite films could maintain the inherent optical characteristics of the pristine ABTFCPI-0 film when the silica contents were below 30 wt%.

3.3. Thermal Properties

The thermal properties of the ABTFCPI films, including the 5% weight loss temperatures (T5%), the residual weight ratios at 750 °C (Rw750), the glass transition temperatures (Tg), and the linear coefficients of thermal expansion (CTE) were investigated by TGA, DMA, and TMA measurements, respectively. The thermal properties data are tabulated in Table 3.
First, the TGA and the derivative TG (DTG) plots of the samples are illustrated in Figure 10. All the ABTFCPI films showed good thermal stability before 450 °C. The films began to thermally decompose around 500 °C and revealed similar T5% values in the range of 488~494 °C. Basically, the incorporation of the rigid-rod amide units in the semi-alicyclic CPIs efficiently increased the thermal resistance of the polymers due to the enhancement of the molecular chain interactions caused by the formation of strong hydrogen bonds [39]. According to the DTG plots, the most rapid thermal decomposition occurred in the range of 500~525 °C. At 750 °C, the samples maintained 47.8~64.7% of their original weights. From the above thermal data, it can be deduced that the incorporation of the cSiO2 nanoparticles had little effect on the initial thermal decomposition behaviors; however, it could efficiently increase the Rw750 values of the composite films. This is mainly ascribed to the high thermal stability of the inorganic cSiO2 fillers at elevated temperatures.
Secondly, the Tg values of the ABTFCPI films were determined by the DMA measurements, as shown in Figure 11. It can be seen that the ABTFCPI films maintained most of the initial storage and loss modulus up to 350 °C, after which the modulus dramatically decreased. As for the tanδ plots, the inflection point temperatures of the samples were not detected before 400 °C, which is the upper limitation of the DMA equipment in the current work. The peak temperatures of the loss modulus plots were recognized as the Tg values of the films. According to this definition, the ABTFCPI-0 film showed a Tg of 390.3 °C, and the nanocomposite films exhibited similar Tg values, indicating the little effects of the cSiO2 nanoparticles on the glass transition behaviors of the films. This also verified the thermal stability of inorganic silica fillers at elevated temperatures. The high-Tg features of the current ABTFCPI films were mainly attributed to the rigid-rod benzanilide and biphenylene units in the polymers. Strong chemical bonds, such as hydrogen bonds, might form among the ABTFCPI molecular chains, which efficiently prohibited the free motions of the molecular segments in the polymers at elevated temperatures.
At last, the high-temperature dimensional stabilities of the ABTFCPI films were evaluated by the TMA measurements. Figure 12 depicts the TMA curves of the ABTFCPI films together with the expanded image in the temperature range of 360~420 °C. The pristine ABTFCPI-0 film showed a CTE value of 32.7 × 10−6/K in the range of 50~250 °C (Table 3). This value ranked lower in all of the semi-alicyclic PI films, which are also the effects of the rigid-rod benzanilide and biphenylene units in the polymers. The incorporation of rigid amide or benzanilide linkages has been widely used to develop CPI films with low-CTE features. When incorporated with the cSiO2 nanoparticles, the CTE values of the CPI films further decreased. For example, the ABTFCPI-30 film showed a CTE value of 25.4 × 10−6/K, which was 22.3% lower than that of the pristine ABTFCPI film. In addition, it can be seen from the inserted picture that the ABTFCPI-25 and ABTFCPI-30 films with the higher loading contents of cSiO2 fillers showed much lower dimensional expansion at elevated temperatures. Undoubtedly, the inorganic cSiO2 fillers efficiently increased the dimensional stability of the nanocomposite films. On the one hand, this might be attributed to the good dispersion and distribution of the cSiO2 nanoparticles. On the other hand, the possible strong interactions between the hydroxyl (–OH) groups on the surface of the silica fillers and the amide bond (–CONH–) in the molecular structure of the ABTFCPI matrix film may also contribute to the reduction of CTE.

4. Conclusions

Semi-alicyclic CPI-SiO2 nanocomposite films with enhanced high-temperature dimensional stabilities were designed and prepared by incorporation of the colloidal silica nanoparticles into a CPI matrix film containing rigid-rod benzanilide and trifluoromethyl-substituted biphenylene units in the structure. The cSiO2 nanoparticles showed excellent compatibility with the CPI matrix with loading amounts over 30 wt%. The derived nanocomposite films exhibited excellent combined properties. The ABTFCPI-30 film showed the best properties, including a T400 value of 79.6%, a b* value of 2.15, a haze value of 0.50, a T5% value of 491 °C, a Tg value of 386.1 °C, and a CTE value of 25.4 × 10−6/K, which makes it a good candidate for advanced optical applications.

Author Contributions

Conceptualization, J.L. and H.Y.; methodology, J.L. and H.Y.; investigation, Z.H., X.R. and Z.W.; data curation, Z.H., X.R., Z.P., Y.Q. and S.H.; writing—original draft preparation, Z.H.; writing—review and editing, J.L.; supervision, J.L. and H.Y.; funding acquisition, J.L. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Shenzhen Science and Technology Program (No. JSGG20210629144539012) and the Shandong Key Research and Development Program (No. 2019JZZY020235).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Su, C.; Liu, P.; Yue, J.; Huan, H.; Yang, Z.; Yang, K.; Guo, H.; Zhao, J. High-transparency and colorless polyimide film prepared by inhibiting the formation of chromophores. Polymers 2022, 14, 4242. [Google Scholar] [CrossRef] [PubMed]
  2. Feng, J.; Wang, Y.; Qin, X.; Lv, Y.; Huang, Y.; Yang, Q.; Li, G.; Kong, M. Revealing molecular mechanisms of colorless transparent polyimide films under photo-oxidation. Polym. Degrad. Stab. 2023, 210, 110294. [Google Scholar] [CrossRef]
  3. Jeon, H.; Kwac, L.K.; Kim, H.G.; Chang, J.H. Comparison of properties of colorless and transparent polyimide films using various diamine monomers. Rev. Adv. Mater. Sci. 2022, 61, 394–404. [Google Scholar] [CrossRef]
  4. Matsuura, T.; Hasuda, Y.; Nishi, S.; Yamada, N. Polyimide derived from 2,2-bis(trifluoromethyl)-4,4-diaminobiphenyl. 1. Synthesis and characterization of polyimides prepared with 2,2-bis(3,4-dicarboxyphenyl)hexafluoropropane dianhydride or pyromellitic dianhydride. Macromolecules 1991, 24, 5001–5005. [Google Scholar] [CrossRef]
  5. Hasegawa, M.; Hirano, D.; Fujii, M.; Haga, M.; Takezawa, E.; Yamaguchi, S.; Ishikawa, A.; Kagayama, T. Solution-processable colorless polyimides derived from hydrogenated pyromellitic dianhydride with controlled steric structure. J. Polym. Sci. Part A Polym. Chem. 2013, 51, 575–592. [Google Scholar] [CrossRef]
  6. Sha, C.H.; Lee, C.C. Low-temperature solid-state silver bonding of silicon chips to alumina substrates. IEEE Trans. Compon. Packag. Manuf. Technol. 2011, 1, 1983–1987. [Google Scholar] [CrossRef]
  7. Moran, B.; Wu, F.; Romanov, A.E.; Mishra, U.K.; Denbaars, S.P.; Speck, J.S. Structural and morphological evolution of GaN grown by metalorganic chemical vapor deposition on SiC substrates using an AlN initial layer. J. Cryst. Growth 2004, 273, 38–47. [Google Scholar] [CrossRef]
  8. Gerthoffer, A.; Poulain, C.; Roux, F.; Emieux, F.; Grenet, L.; Perraud, S. CIGS solar cells on ultra-thin glass substrates: Determination of mechanical properties by nanoindentation and application to bending-induced strain calculation. Solar Energy Mater. Solar Cells 2017, 166, 254–261. [Google Scholar] [CrossRef]
  9. Seo, K.; Nam, K.H.; Lee, S.; Han, H. Low stress polyimide/silica nanocomposites as dielectrics for wafer level chip scale packaging. Mater. Lett. 2020, 263, 127204. [Google Scholar] [CrossRef]
  10. Liu, Y.; Wang, Y.; Wu, D. Synthetic strategies for highly transparent and colorless polyimide film. J. Appl. Polym. Sci. 2022, 139, e52604. [Google Scholar] [CrossRef]
  11. Yang, Y.; Jung, Y.; Cho, M.D.; Lee, S.G.; Kwon, S. Transient color changes in oxidative-stable fluorinated polyimide film for flexible display substrates. RSC Adv. 2015, 5, 57339–57345. [Google Scholar] [CrossRef]
  12. Zhi, X.; Jiang, G.; Zhang, Y.; Jia, Y.; Wu, L.; An, Y.; Liu, J.; Liu, Y. Preparation and properties of colorless and transparent semi-alicyclic polyimide films with enhanced hightemperature dimensional stability via incorporation of alkyl-substituted benzanilide units. J. Appl. Polym. Sci. 2022, 139, 51544. [Google Scholar] [CrossRef]
  13. Wang, Y.; Liu, X.; Shen, J.; Zhao, J.; Tu, G. Synthesis of a novel rigid semi-alicyclic dianhydride and its copolymerized transparent polyimide films’ properties. Polymers 2022, 14, 4132. [Google Scholar] [CrossRef] [PubMed]
  14. Wei, X.Y.; He, Z.B.; Yuan, S.Q.; Wu, H.; Zhi, X.X.; Zhang, Y.; Chen, S.J.; Liu, J.G. Enhancement of ultraviolet light resistance of colorless and transparent semi-alicyclic polyimide nanocomposite films via the incorporation of hindered amine light stabilizers for potential applications in flexible optoelectronics. Polymers 2022, 14, 1091. [Google Scholar] [CrossRef] [PubMed]
  15. Yan, X.; Dai, F.; Ke, Z.; Yan, K.; Chen, C.; Qian, G.; Li, H. Synthesis of colorless polyimides with high Tg from asymmetric twisted benzimidazole diamines. Eur. Polym. J. 2022, 164, 110975. [Google Scholar] [CrossRef]
  16. Sawada, R.; Ando, S. Colorless, low dielectric, and optically active semialicyclic polyimides incorporating a biobased isosorbide moiety in the main chain. Macromolecules 2022, 55, 6787–6800. [Google Scholar] [CrossRef]
  17. Ozawa, H.; Ishiguro, E.; Kyoya, Y.; Kikuchi, Y.; Matsumoto, T. Colorless polyimides derived from an alicyclic tetracarboxylic dianhydride, CpODA. Polymers 2021, 13, 2824. [Google Scholar] [CrossRef]
  18. Hasegawa, M.; Sato, H.; Hishino, K.; Arao, Y.; Ishii, J. Colorless polyimides derived from octahydro-2,3,6,7-anthracenetetracarboxylic dianhydride. Polymers 2023, 3, 175–199. [Google Scholar] [CrossRef]
  19. Hasegawa, M.; Horiuchi, M.; Kumakura, K.; Koyama, J. Colorless polyimides with low coefficient of thermal expansion derived from alkyl-substituted cyclobutanetetracarboxylic dianhydrides. Polym. Int. 2014, 63, 486–500. [Google Scholar] [CrossRef]
  20. Hasegawa, M.; Ichikawa, K.; Takahashi, S.; Ishii, J. Solution-processable colorless polyimides derived from hydrogenated pyromellitic dianhydride: Strategies to reduce the coefficients of thermal expansion by maximizing the spontaneous chain orientation behavior during solution casting. Polymers 2022, 14, 1131. [Google Scholar] [CrossRef]
  21. Xia, X.; He, X.; Zhang, S.; Zheng, F.; Lu, Q. Short-side-chain regulation of colorless and transparent polyamide-imides for flexible transparent displays. Eur. Polym. J. 2023, 191, 112030. [Google Scholar] [CrossRef]
  22. Zhang, Y.; Zhou, Y.; Wang, Z.; Yan, J. Colorless poly(amide-imide) copolymers for flexible display applications. J. Appl. Polym. Sci. 2022, 139, e53082. [Google Scholar] [CrossRef]
  23. Jiang, G.; Wang, D.; Du, H.; Wu, X.; Zhang, Y.; Tan, Y.; Wu, L.; Liu, J.; Zhang, X. Reduced coefficients of linear thermal expansion of colorless and transparent semi-alicyclic polyimide films via incorporation of rigid-rod amide moiety: Preparation and properties. Polymers 2020, 12, 413. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Hasegawa, M.; Watanabe, Y.; Ishii, J. Solution-processable colorless polyimides with ultralow coefficients of thermal expansion for optoelectronic applications. Polym. Int. 2016, 65, 1063–1073. [Google Scholar] [CrossRef]
  25. Ren, X.; Wang, H.; Du, X.; Qi, H.; Pan, Z.; Wang, X.; Dai, S.; Yang, C.; Liu, J. Synthesis and properties of optically transparent fluoro-containing polyimide films with reduced linear coefficients of thermal xxpansion from organo-soluble resins derived from aromatic diamine with benzanilide units. Materials 2022, 15, 6346. [Google Scholar] [CrossRef]
  26. Xia, X.; Zhang, S.; He, X.; Zheng, F.; Lu, Q. Molecular necklace strategy for enhancing modulus and toughness of colorless transparent polyimides for cover window application. Polymer 2022, 259, 125358. [Google Scholar] [CrossRef]
  27. Morikawa, A.; Iyoku, Y.; Kakimoto, M.; Imai, Y. Preparation of a new class of polyimide-silica hybrid films by sol-gel process. Polym. J. 1992, 24, 107–113. [Google Scholar] [CrossRef]
  28. Bae, W.J.; Kovalev, M.K.; Kalinina, F.; Kim, M.; Cho, C. Towards colorless polyimide/silica hybrids for flexible substrates. Polymer 2016, 105, 124–132. [Google Scholar] [CrossRef]
  29. Moon, K.H.; Chae, B.; Kim, K.S.; Lee, S.W.; Jung, Y.M. Preparation and characterization of transparent polyimide-silica composite films using polyimide with carboxylic acid groups. Polymers 2019, 11, 489. [Google Scholar] [CrossRef] [Green Version]
  30. Yu, Y.Y.; Chien, W.C.; Tsai, T.W. High transparent soluble polyimide/silica hybrid optical thin films. Polym. Test. 2010, 29, 33–40. [Google Scholar] [CrossRef]
  31. Yu, Y.Y.; Chien, W.C.; Lai, C.L. Synthesis and characterization of polyimide/monodispersed colloidal silica hybrid thin films. J. Nanosci. Nanotechnol. 2009, 9, 4135–4142. [Google Scholar] [CrossRef] [PubMed]
  32. Yang, Z.; Ma, P.; Li, F.; Guo, H.; Kang, C.; Gao, L. Ultrahigh thermal-stability polyimides with low CTE and required flexibility by formation of hydrogen bonds between poly(amic acid)s. Eur. Polym. J. 2021, 148, 110369. [Google Scholar] [CrossRef]
  33. Moaddeb, M.; Koros, W.J. Gas transport properties of thin polymeric membranes in the presence of silicon dioxide particles. J. Membr. Sci. 1997, 125, 143–163. [Google Scholar] [CrossRef]
  34. Wang, L.; Tian, Y.; Ding, H.; Li, J. Microstructure and properties of organosoluble polyimide/silica hybrid films. Eur. Polym. J. 2006, 42, 2921–2930. [Google Scholar] [CrossRef]
  35. Iida, K.; Imamura, Y.; Liao, C.; Nakamura, S.; Sawa, G. Evaluation of molecular orientation in aromatic polyimide films by FT-IR reflection absorption spectroscopy. Polym. J. 1996, 28, 352–356. [Google Scholar] [CrossRef] [Green Version]
  36. Luo, L.; Pang, Y.; Jiang, X.; Wang, X.; Zhang, P.; Chen, Y.; Peng, C.; Liu, X. Preparation and characterization of novel polyimide films containing amide groups. J. Polym. Res. 2012, 19, 9783. [Google Scholar] [CrossRef]
  37. Wang, Y.; Zhou, X.; Feng, X.; Yu, X.; Li, S.; Zhao, J.; Fan, Z.; Sun, X.; Zhang, P.; Cui, J.; et al. Polyimide films containing trifluoromethoxy groups with high comprehensive performance for flexible circuitry substrates. ACS Appl. Polym. Mater. 2022, 4, 5831–5839. [Google Scholar] [CrossRef]
  38. Chang, C.C.; Chen, W.C. Synthesis and optical properties of polyimide-silica hybrid thin films. Chem. Mater. 2002, 14, 4242–4248. [Google Scholar] [CrossRef]
  39. Zhang, T.; Yang, Z.; Piao, F.; Guo, H. Transparent polyimide films with ultra-low coefficient of thermal expansion. High Perform. Polym. 2022, 34, 871–879. [Google Scholar] [CrossRef]

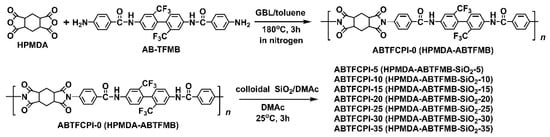

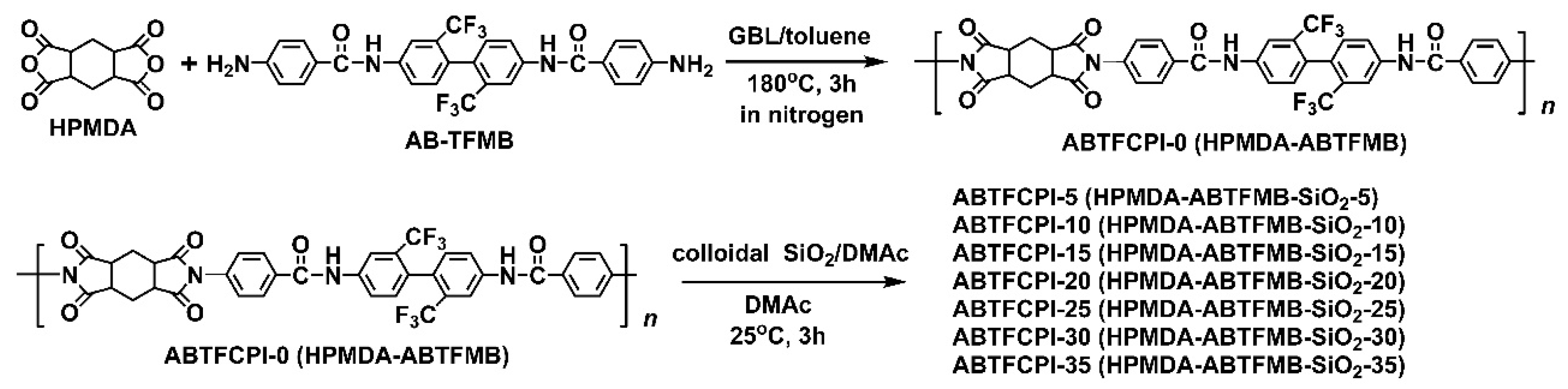

Figure 1. Preparation of semi-alicyclic amide-bridged PIs.
Figure 1. Preparation of semi-alicyclic amide-bridged PIs.
Polymers 15 03015 g001

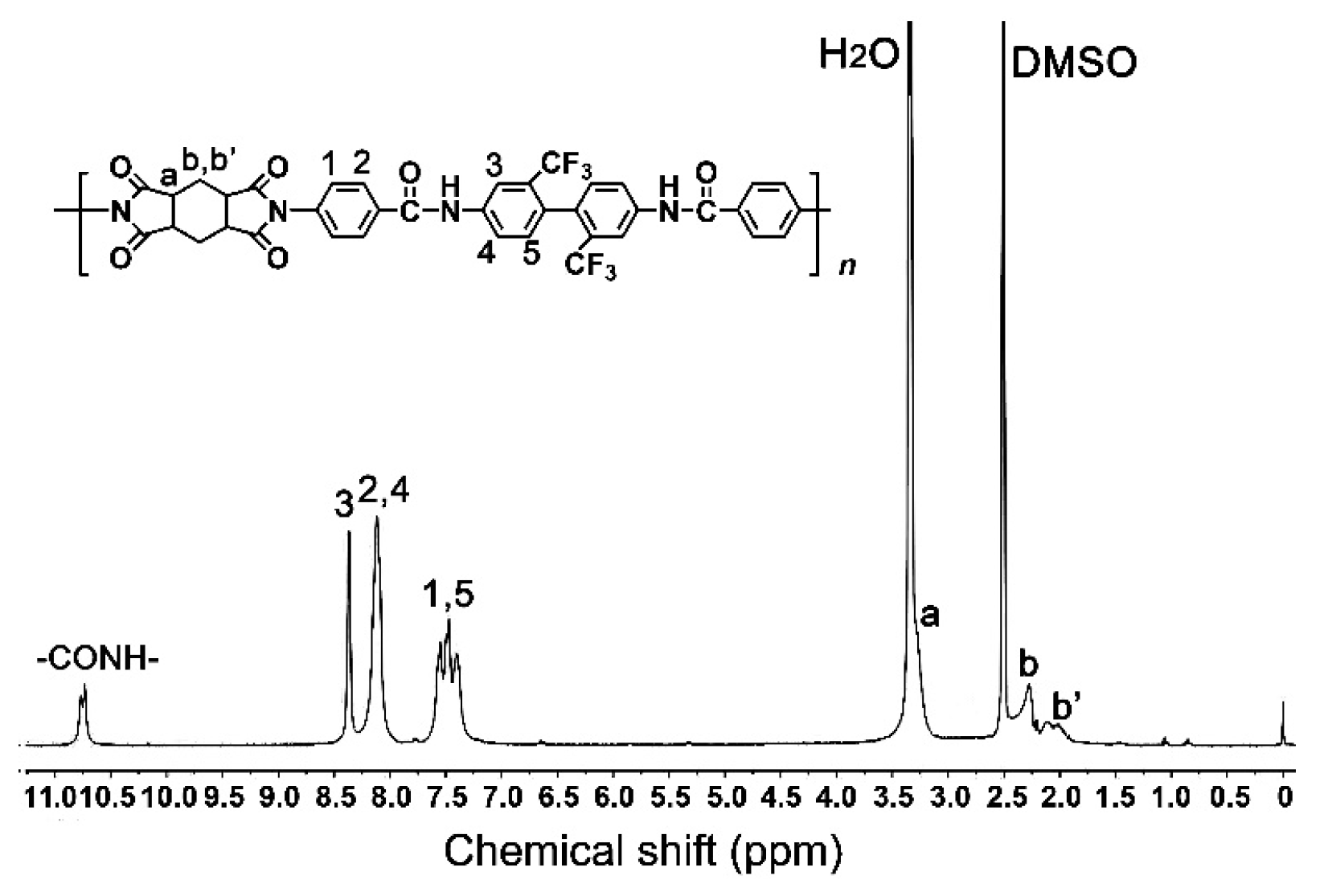

Figure 2. 1H-NMR spectrum of ABTFCPI-0 resin.
Figure 2. 1H-NMR spectrum of ABTFCPI-0 resin.
Polymers 15 03015 g002

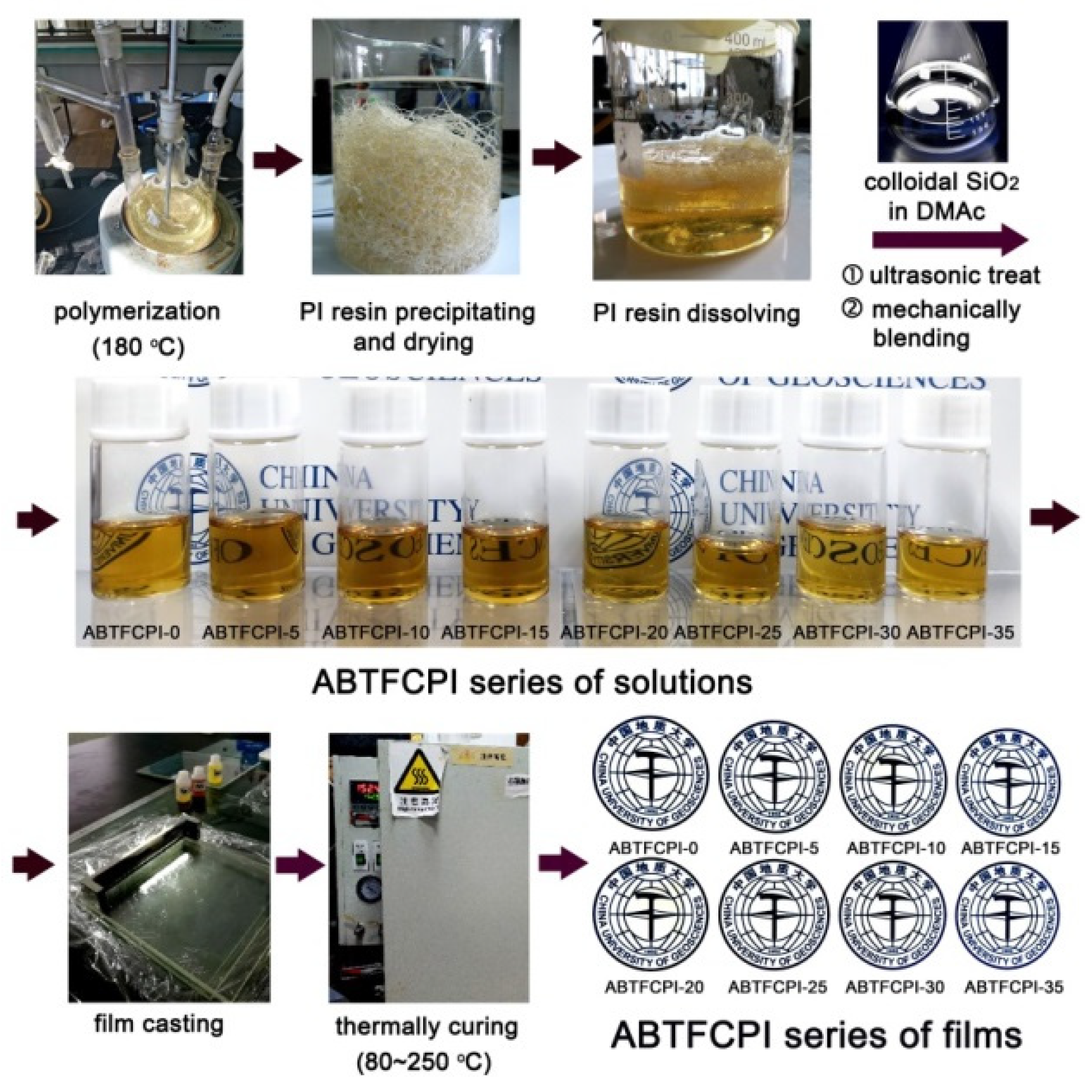

Figure 3. Preparation of ABTFCPI-0 resin and the fabrication diagram of ABTFCPI series of nanocomposite films with the ABTFCPI-0 resin as the matrix and the cSiO2 as the fillers.
Figure 3. Preparation of ABTFCPI-0 resin and the fabrication diagram of ABTFCPI series of nanocomposite films with the ABTFCPI-0 resin as the matrix and the cSiO2 as the fillers.
Polymers 15 03015 g003

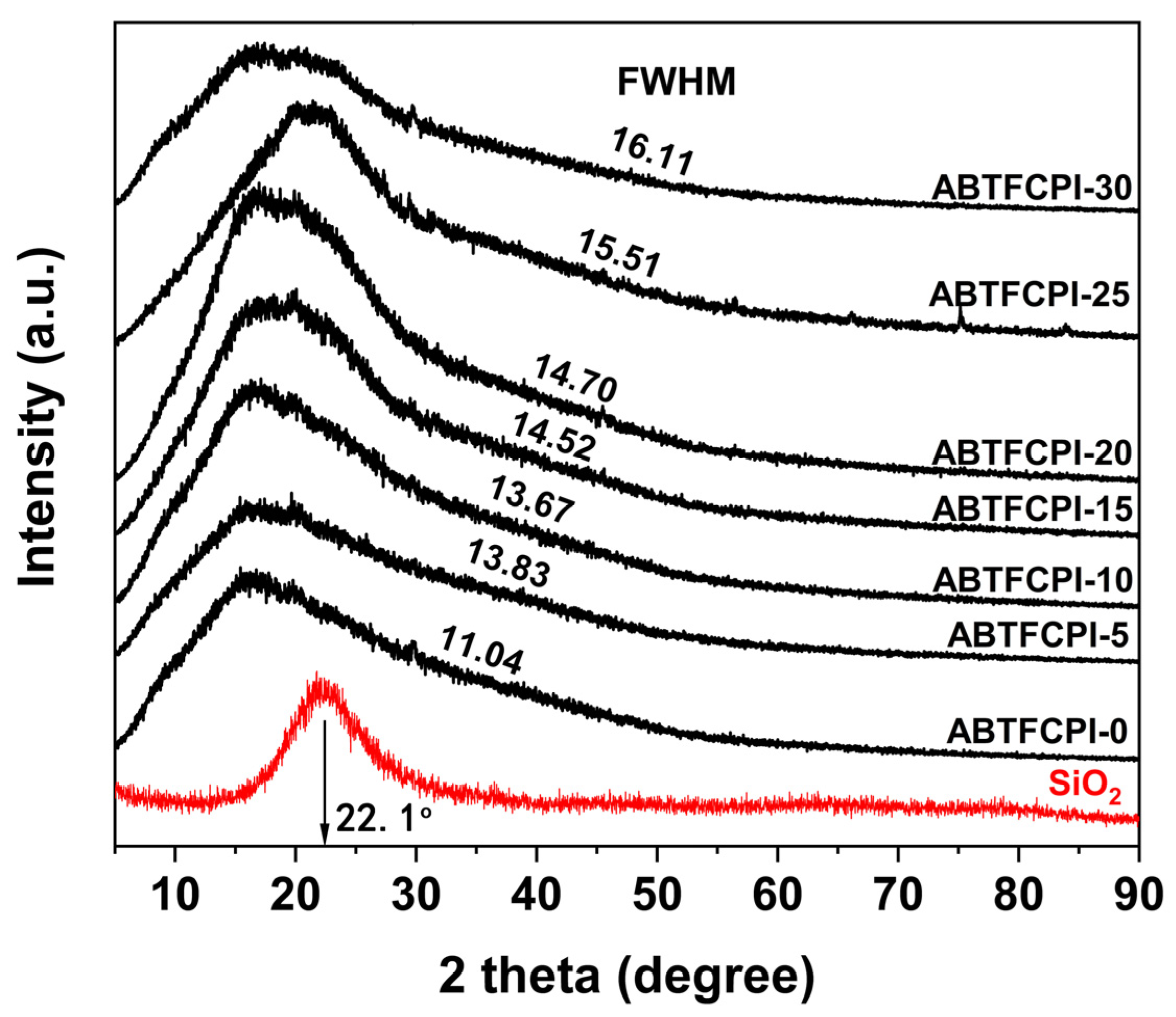

Figure 4. XRD patterns of ABTFCPI films.
Figure 4. XRD patterns of ABTFCPI films.
Polymers 15 03015 g004

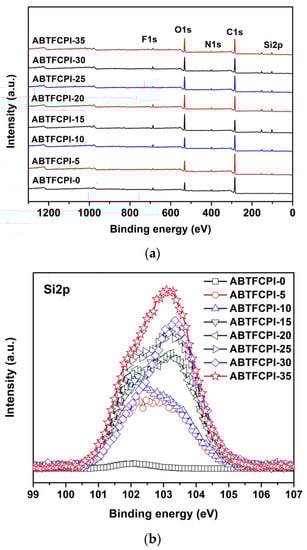

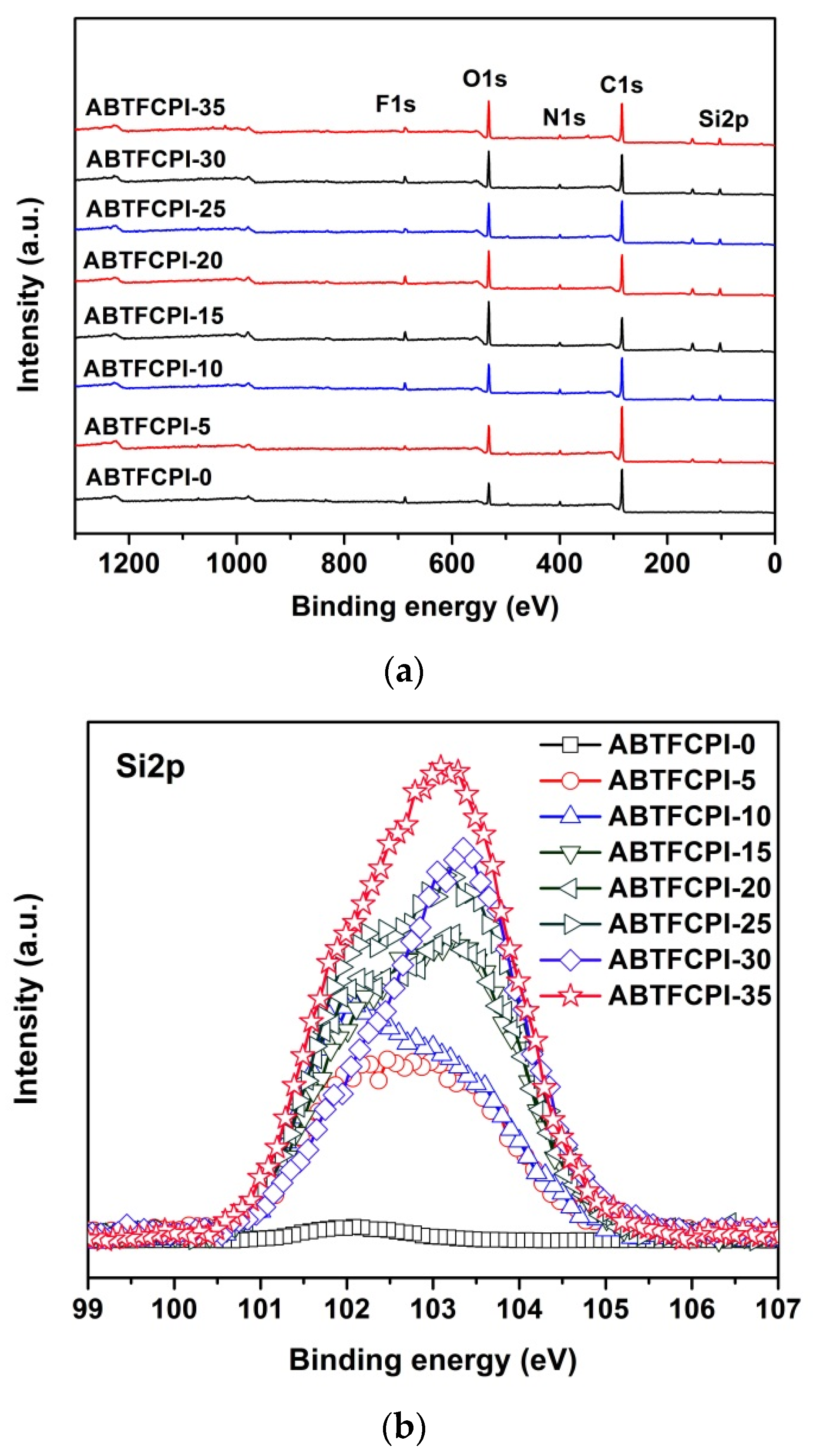

Figure 5. XPS plots of ABTFCPI films. (a) all-element plots; (b) Si2p plots.
Figure 5. XPS plots of ABTFCPI films. (a) all-element plots; (b) Si2p plots.
Polymers 15 03015 g005

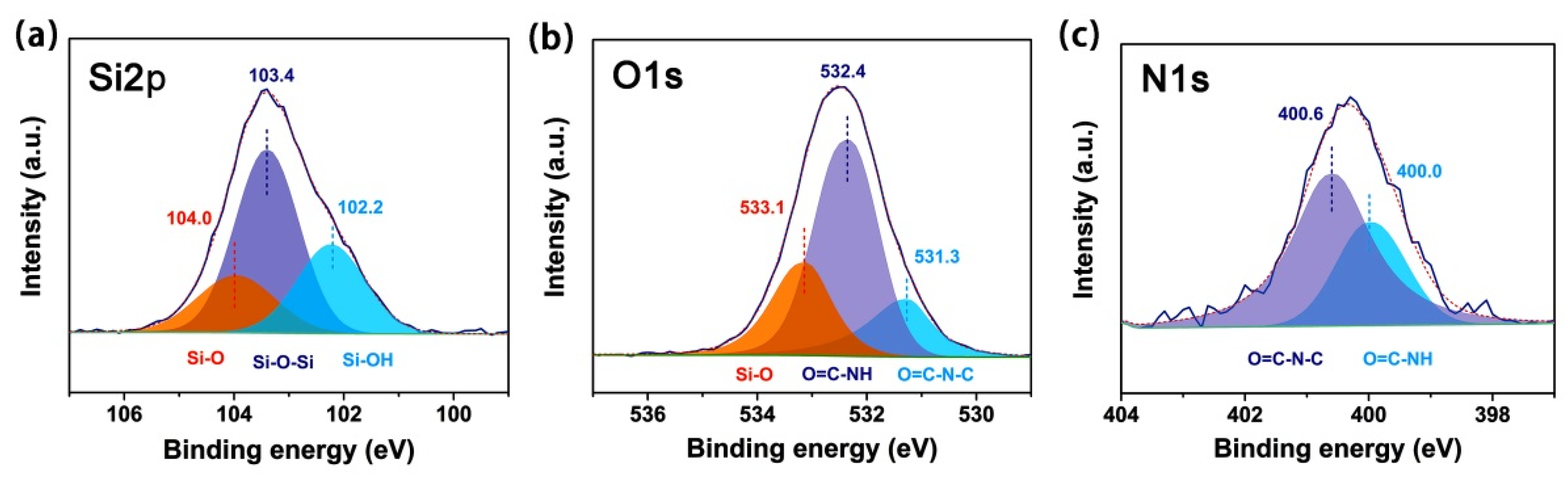

Figure 6. High-resolution XPS spectra of ABTFCPI-35 film. (a) Si2p; (b) O1s; (c) N1s.
Figure 6. High-resolution XPS spectra of ABTFCPI-35 film. (a) Si2p; (b) O1s; (c) N1s.
Polymers 15 03015 g006

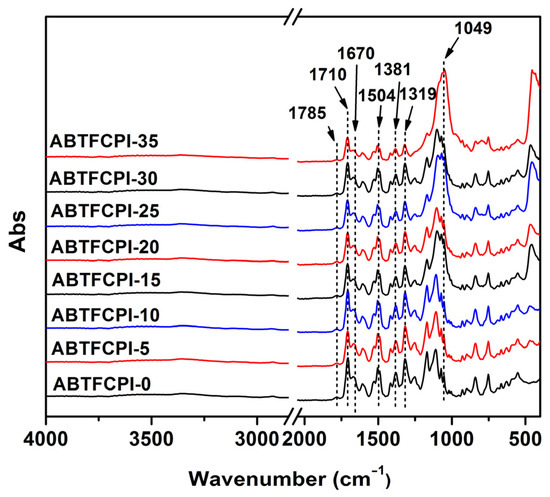

Figure 7. FTIR spectra of ABTFCPI films.
Figure 7. FTIR spectra of ABTFCPI films.
Polymers 15 03015 g007

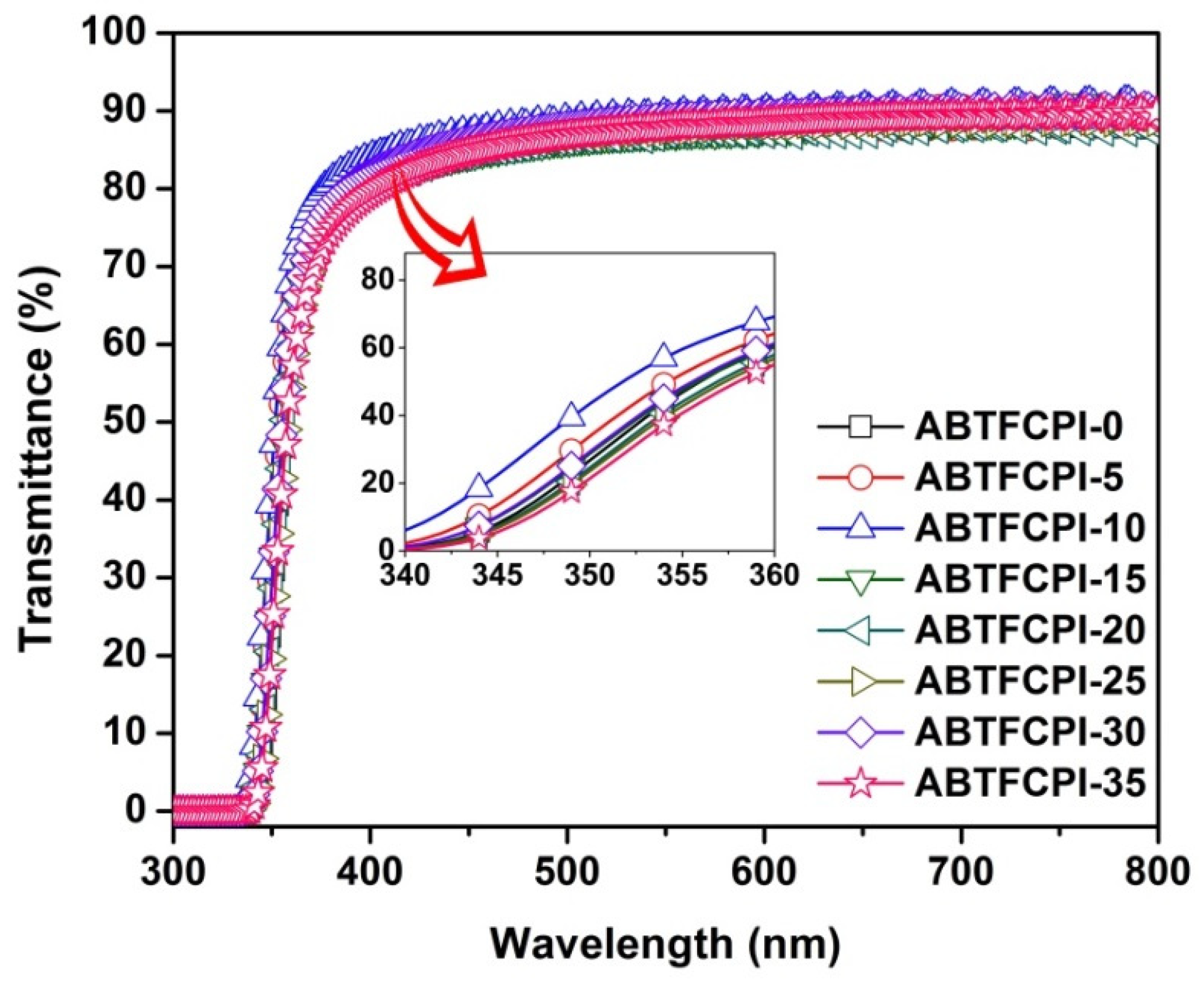

Figure 8. UV-Vis spectra of ABTFCPI films.
Figure 8. UV-Vis spectra of ABTFCPI films.
Polymers 15 03015 g008

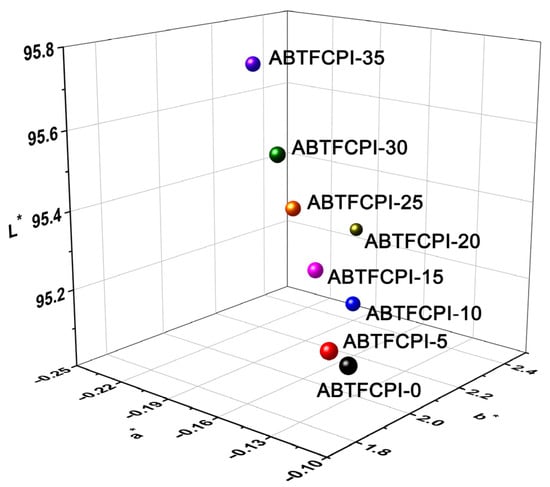

Figure 9. CIE Lab color parameters of ABTFCPI films.
Figure 9. CIE Lab color parameters of ABTFCPI films.
Polymers 15 03015 g009

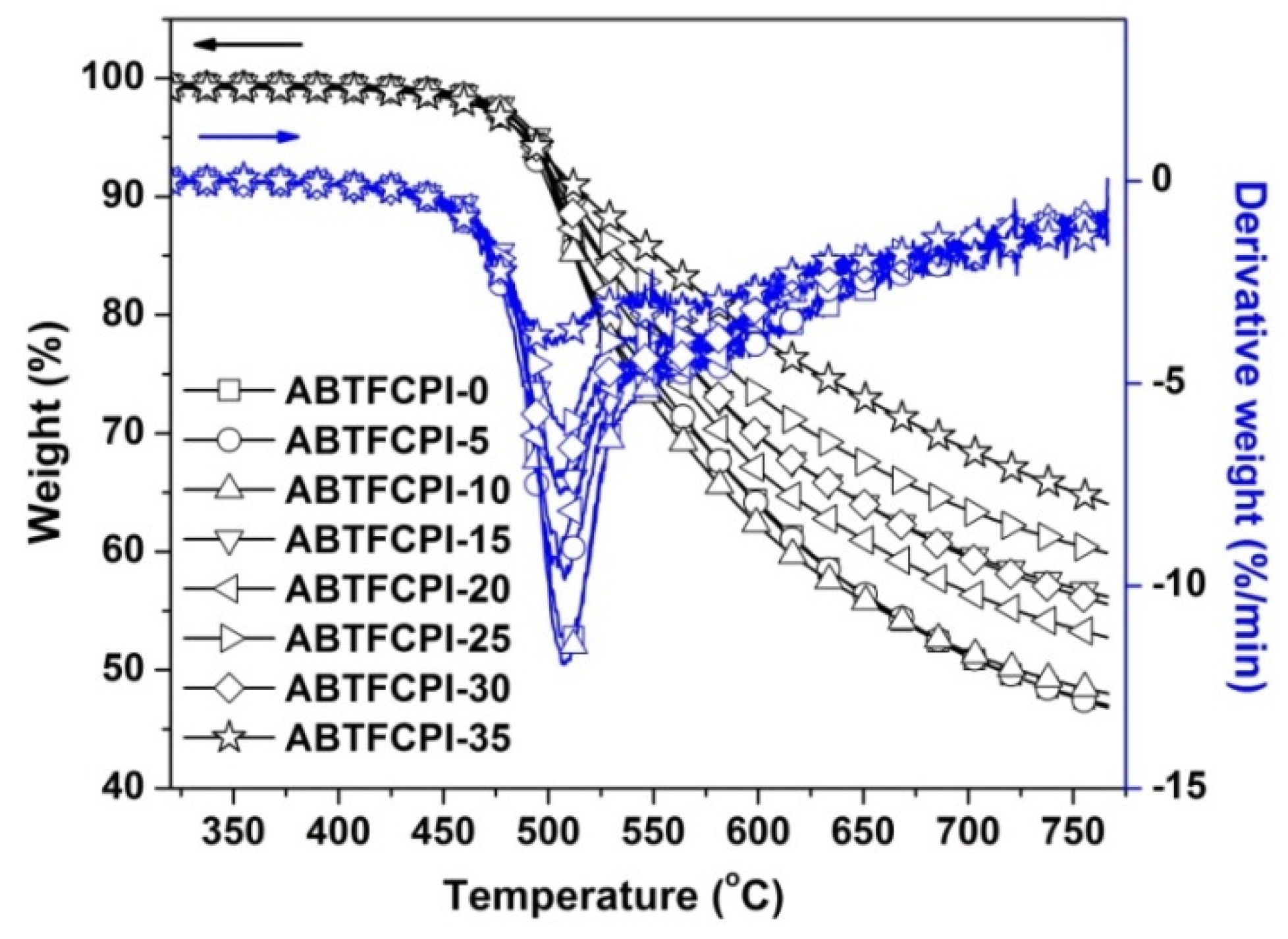

Figure 10. TGA and DTG curves of PI films in nitrogen.
Figure 10. TGA and DTG curves of PI films in nitrogen.
Polymers 15 03015 g010

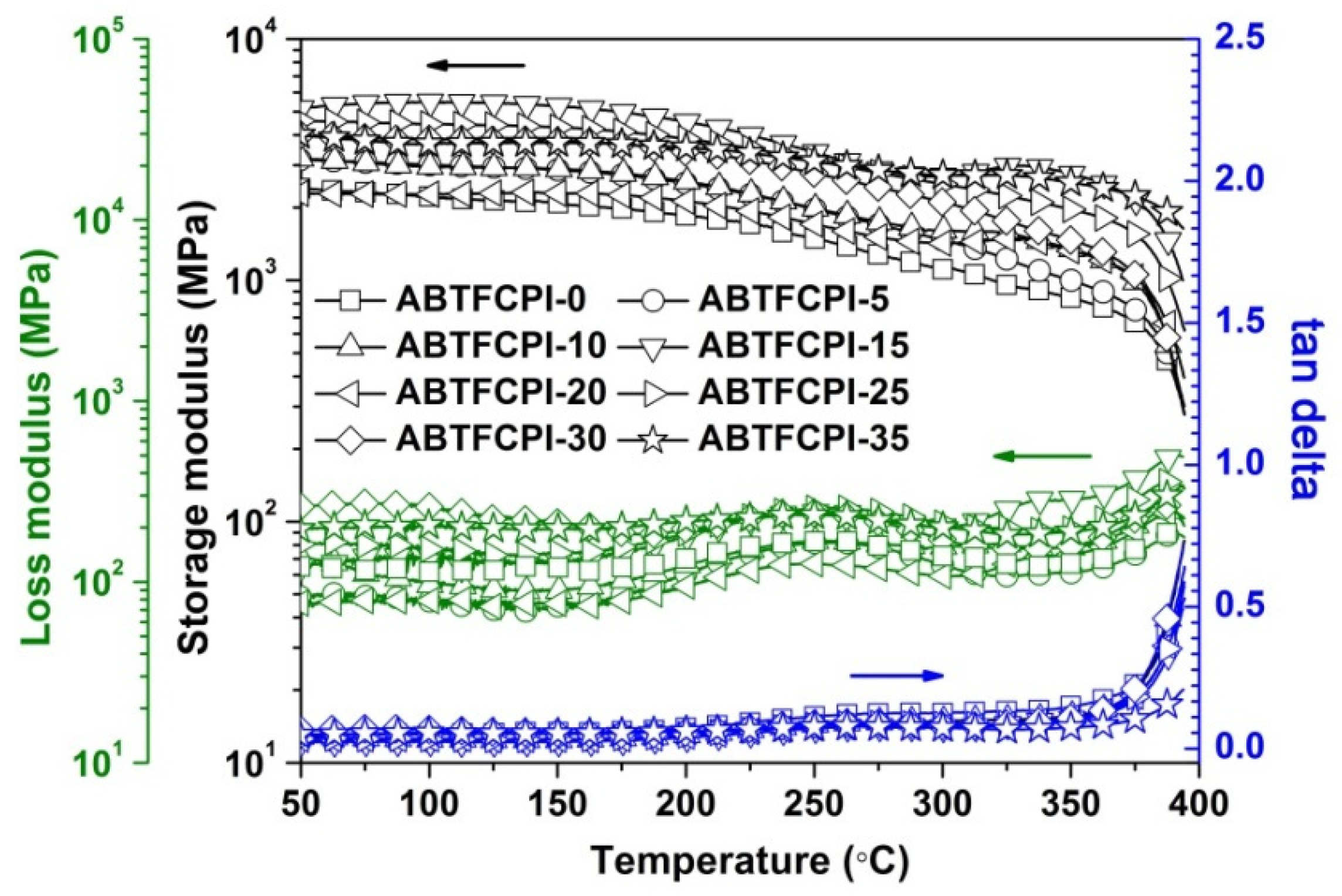

Figure 11. DMA curves of PI films.
Figure 11. DMA curves of PI films.
Polymers 15 03015 g011

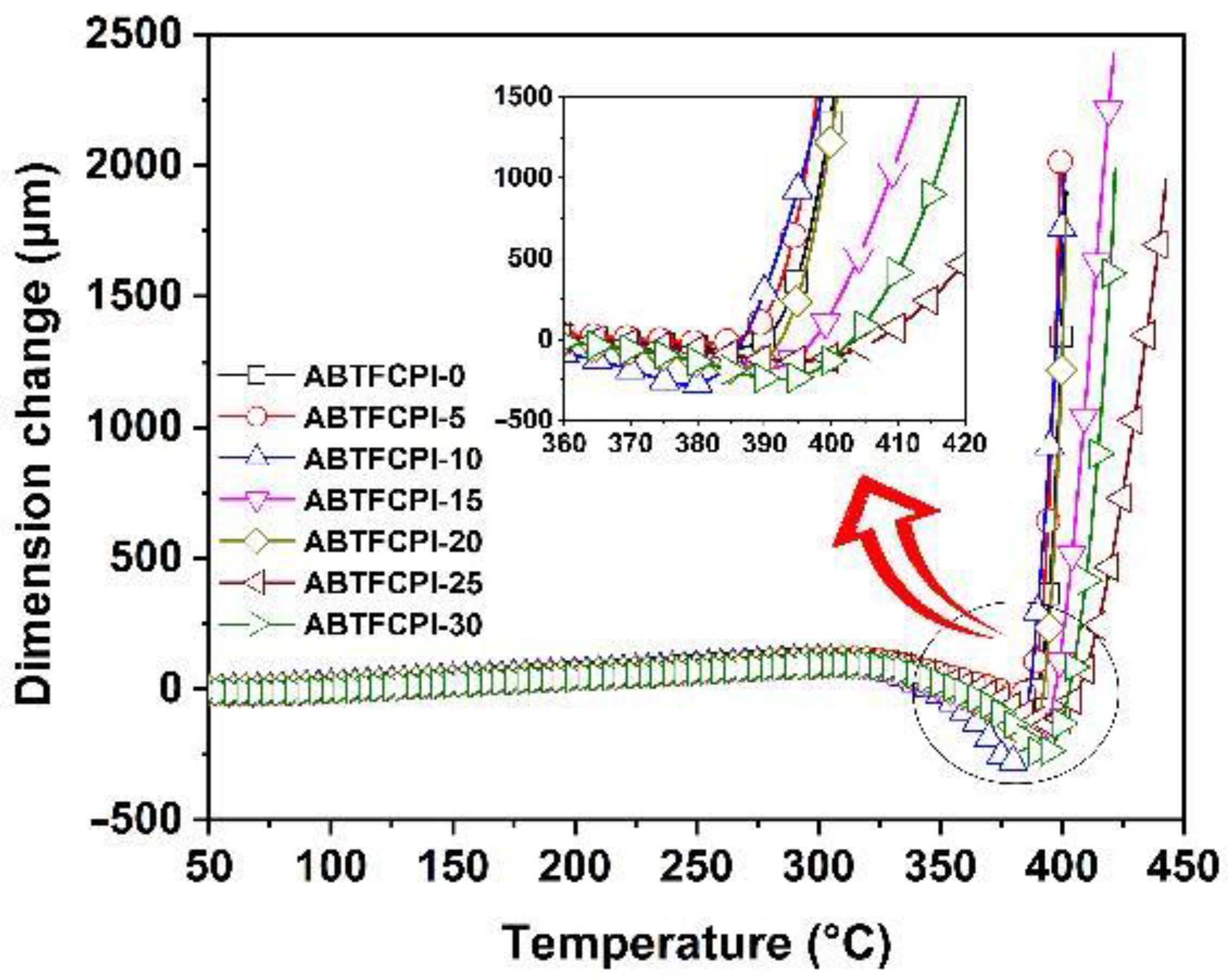

Figure 12. TMA curves of PI films.
Figure 12. TMA curves of PI films.
Polymers 15 03015 g012
Table 1. Formulas for the preparation of ABTFCPI nanocomposite films.
Table 1. Formulas for the preparation of ABTFCPI nanocomposite films.
SamplesABTFCPI-0, DMAc (g, g)cSiO2
(20 wt% in DMAc, g)
MSiO2/Mtotal (wt%)
ABTFCPI-020.0, 80.000
ABTFCPI-519.0, 76.05.05
ABTFCPI-1018.0, 72.010.010
ABTFCPI-1517.0, 68.015.015
ABTFCPI-2016.0, 64.020.020
ABTFCPI-2515.0, 60.025.025
ABTFCPI-3014.0, 56.030.030
ABTFCPI-3513.0, 52.035.035
Table 2. Absorption peaks of ABTFCPI films.
Table 2. Absorption peaks of ABTFCPI films.
Wavenumber (cm−1)AssignmentReference
1785C=O symmetric stretching[35]
1710C=O asymmetric stretching[35]
1670amide C=O (amide I)[36]
1504C=C stretching[35]
1381C-N stretching[35]
1319C-F stretching[37]
1049Si-O stretching[38]
Table 3. Optical and thermal properties of ABTFCPI films.
Table 3. Optical and thermal properties of ABTFCPI films.
PIOptical Properties aThermal Properties b
a λ: cutoff wavelength; T400: transmittance at the wavelength of 400 nm with a thickness of 50 μm; L*, a*, b*, see measurements part. b Tg: glass transition temperatures defined as the peak temperatures of loss modulus in DMA measurements; T5%: temperatures at 5% weight loss; Rw700: residual weight ratio at 750 °C in nitrogen; CTE: linear coefficient of thermal expansion in the range of 50~250 °C. ND: not detected.
