Effect of CuO and Graphene on PTFE Microfibers: Experimental and Modeling Approaches

by
Maroof A. Hegazy
1,
Hend A. Ezzat
1,
Ibrahim S. Yahia
2,3,4,
Heba Y. Zahran
2,3,4,
Hanan Elhaes
5,
Islam Gomaa
6 and
Medhat A. Ibrahim
6,7,*
1
Nano Unit, Space Lab, Solar and Space Research Department, National Research Institute of Astronomy and Geophysics (NRIAG), Helwan 11421, Egypt
2
Laboratory of Nano-Smart Materials for Science and Technology (LNSMST), Department of Physics, Faculty of Science, King Khalid University, P.O. Box 9004, Abha 61413, Saudi Arabia
3
Research Center for Advanced Materials Science (RCAMS), King Khalid University, P.O. Box 9004, Abha 61413, Saudi Arabia
4
Nanoscience Laboratory for Environmental and Bio-Medical Applications (NLEBA), Semiconductor Lab., Metallurgical Lab. 1., Physics Department, Faculty of Education, Ain Shams University, Roxy 11757, Egypt
5
Physics Department, Faculty of Women for Arts, Science and Education, Ain Shams University, Cairo 11757, Egypt
6
Nanotechnology Research Centre (NTRC), The British University in Egypt (BUE), Suez Desert Road, El-Sherouk City 11837, Egypt
7
Molecular Spectroscopy and Modeling Unit, Spectroscopy Department, National Research Centre, 33 El-Bohouth St., Dokki 12622, Egypt
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(6), 1069; https://doi.org/10.3390/polym14061069
Submission received: 18 January 2022 / Revised: 16 February 2022 / Accepted: 21 February 2022 / Published: 8 March 2022
(This article belongs to the Collection Reinforced Polymer Composites)
Browse Figures
Versions Notes

Abstract

:
The surface of pure polytetrafluoroethylene (PTFE) microfibers was modified with ZnO and graphene (G), and the composite was studied using ATR-FTIR, XRD, and FESEM. FTIR results showed that two significant bands appeared at 1556 cm−1 and 515 cm−1 as indications for CuO and G interaction. The SEM results indicated that CuO and G were distributed uniformly on the surface of the PTFE microfibers, confirming the production of the PTFE/CuO/G composite. Density functional theory (DFT) calculations were performed on PTFE polymer nanocomposites containing various metal oxides (MOs) such as MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2 at the B3LYP level using the LAN2DZ basis set. Total dipole moment (TDM) and HOMO/LUMO bandgap energy ΔE both show that the physical and electrical characteristics of PTFE with OCu change to 76.136 Debye and 0.400 eV, respectively. PTFE/OCu was investigated to observe its interaction with graphene quantum dots (GQDs). The results show that PTFE/OCu/GQD ZTRI surface conductivity improved significantly. As a result, the TDM of PTFE/OCu/GQD ZTRI and the HOMO/LUMO bandgap energy ΔE were 39.124 Debye and ΔE 0.206 eV, respectively. The new electrical characteristics of PTFE/OCu/GQD ZTRI indicate that this surface is appropriate for electronic applications.

Graphical Abstract

1. Introduction

PTFE, one of several synthetic polymeric matrices, has excellent corrosion resistance and electrical properties, as well as high temperature resistance and cost-effectiveness [1,2]. Polymers of various forms, particularly fibers influenced by MOs, are frequently used to improve polymer characteristics, resulting in low-cost, high-functioning nano-composites [3,4,5,6]. Because of the mechanical, physical, and chemical stability of PTFE, it may be utilized as a substrate for the development of ZnO nanotubes, allowing for the effective production of various sensors [7] and nanoscale photodetectors used for nano optics applications [8]. Furthermore, because of the unique properties of SiO2 nanoparticles, such as high hardness, corrosion resistance, and superior electrical insulation, PTFE/SiO2 might be used in technological applications [9] and for vapor oil purification [10]. Moreover, by increasing the SiO2 amount, the PTFE/SiO2 composite possesses good mechanical characteristics [11]. PTFE/SiO2/Epoxy composites provide a new hybrid composite with unique properties [12]. The PTFE/Al2O3 nanocomposite shows a high mechanical characteristic with increased thermal conductivity and thermal stability [13,14]. Furthermore, the electrical characteristics of the PANI/PTFE/GO composite have been observed to have increased in the fabrication of electrochemical instruments [15]. Further, the corrosion resistance and insulating characteristics of PTFE/ZnO/SiO2 on glass have already been considerably enhanced, and this technique provides a novel idea for building an insulator surface on glass that acts as an anti-icing surface [16]. Additionally, there is a Teflon FEP derivative of PTFE that is employed as a thermal control barrier for the Hubble Space Telescope (HST) [17,18,19]. In a space environment in Low Earth orbit (LEO), Teflon FEP suffers from corrosion, exposing the component in space to damage [20,21,22]. As a result, the improvement of Teflon and its derivatives has become an important research topic for space applications [23,24,25]. Physical parameters determined using simulations, such as TDM, HOMO/LUMO band gap energy (ΔE), and MESP, are thought to be effective indicators of electronic properties and the responsiveness of such explored interactions [26,27,28]. In addition, it was shown that reactive systems have a high TDM when the energy band gap is minimal, and the charge distribution as contour of the MESP can be compared with the corresponding active sites along the base material [29,30,31,32].
In this work, we investigate the effect of ZnO and G on PTFE microfibers, which are characterized to investigate changes in molecular structure, crystal structure, and morphology. Moreover, in order to study the influence of MOs such as MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2 on PTFE electronic characteristics, it is required to analyze the change in TDM, band gap, and MESP. The goal of this theoretical work is to elucidate the influence of GQDs on the electronic characteristics of PTFE/MOs when electronic parameters change.

2. Materials and Methods

PTFE 100% hermetic seal (20 mm × 19 mm × 0.25 mm density 0.3 g/cm3) was from RICH, Italy. Copper sulphate pentahydrate (CuSO4·5H2O) was utilized to produce CuO nanoparticles. Glacial acetic acid, dimethyl sulfoxide (DMSO) (LabScan Ltd., Unit, Blackrock, Ireland) and sodium hydroxide (Fisher chemical, 97 percent, Suwanee, GA, USA) were utilized as solvents. This experiment made use of deionized (DI) Milli-Q water. All materials were utilized without additional purification.

2.1. CuO Nanoparticles Preparation Method

CuO nanoparticles were synthesized according to the usual precipitation procedure—1 M sulphate pentahydrate (CuSO4·5H2O) in 100 mL glacial acetic acid with stirring for 2 h at 70 °C. After the solution was completely dissolved, 2 M of Sodium hydroxide was added dropwise in 100 mL of DI water while stirring. The black precipitate was filtrated as well as washed using DI water, then dried at 80 °C for 24 h and later calcined for 2 h at 500 °C.

2.2. Preparation of the PTFE/CuO/G Nanocomposite

To start the preparation process, Graphene was prepared in a laboratory following the Hammer method, as indicated earlier in the literature under code (IFP-KKU-2020/10) [33]. PTFE was cut into microfibers to be used in the nanocomposite fabrication. 0.01 gm of CuO combined with 0.02 g of G were dissolved using (100 mL) DMSO solution, and then PTFE microfibers (70%) were mixed in the solution for 24 h with continuous stirring. The composite fibers were then removed and dried in air.

2.3. Characterization Techniques

For the intermolecular investigation of pure and composite materials, an Attenuated Total Reflection Fourier Transform Infrared (ATR-FTIR) spectrometer (Vertex 70, Bruker, Billerica, MA, USA) with a spectral range of 4000–400 cm−1 and a spectral resolution of 4 cm−1 was utilized. Furthermore, X-ray Diffraction (XRD) was used to determine the crystal structure and phase composition of samples using a Malvern Panalytical Empyrean 3 diffractometer (Malvern, UK). Furthermore, Field-emission Scanning Electron Microscopy (FESEM, Quattro S, Thermo Scientific, Waltham, MA, USA) was utilized to analyze the morphology of the produced samples.

2.4. Calculation Details

The GAUSSIAN 09 software (Gaussian, Inc.: Wallingford, CT, USA) was used to design model designs for four PTFE units and their interactions with MOs such as MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2 at the Molecular Spectroscopy and Modeling Unit, National Research Centre, Egypt [34]. The HOMO/LUMO band gap energy, TDM, and MESP as contour were calculated for model structures using DFT theory at the B3LYP level with the LANL2DZ basis set [35,36,37].

3. Results

3.1. Characterization Result of the PTFE/CuO/G Composite

3.1.1. FTIR Result

FTIR spectra for pure PTFE, CuO, G and PTFE/CuO/G composite are illustrated in Figure 1. The characteristic bands for pure PTFE microfibers are shown as only transmittance bands of F2 stretching at 1204 cm−1, 1152 cm−1, and 635 cm−1, respectively [38]. Moreover, CuO nanoparticles spectra displays a prominent band at 598 cm−1, indicating CuO generation [39]. The PTFE/CuO/G spectrum reveals the recognized bands of PTFE microfibers and even a new band at 1556 cm−1, reflecting the C−C of G with lower intensity in respect to a lower ratio and good distribution of the composite, and a CuO band which moved to a lower wavenumber at 553 cm−1, confirming the composite creation of PTFE, CuO, and G.

3.1.2. XRD Result

As shown in Figure 2, the XRD pattern of PTFE microfibers was observed at around 2θ = 18.02° and 31.60°, relative to (100) and (110) diffraction plan [40]. In addition, the XRD pattern of monoclinic crystal CuO nanoparticles appearing around 2θ = 32.50°, 35.50°, 38.71°, 48.79°, 53.49°, 58.19°, 61.52°, 66.08°, 67.94°, 72.36°, and 75.11° which can be attributed to the reflection planes of (110), (−111), (111), (−202), (020), (202), (−113), (−311), (113), (311), and (−222), respectively [41]. Then, a characteristic diffraction peak of G was at about 2θ = 25.12°, which is related to the (002) reflection plan [42]. Finally, PTFE/CuO/G composite diffraction peaks were seen at 2 = 18.16°, 24.93°, 31.79°, 37.15° 41.49°, and 72.89° in relation to the (100), (222), (110), (107), (108), and (311) reflection planes. The intensity of the G peak was so small according to the interaction of CuO on the two G sheet surfaces, indicating that the PTFE/CuO/G nanocomposite was formed with high purity. Particle size calculation from X-ray diffraction and by considering the peak at degrees, average particle size was estimated by using the Debye–Scherrer formula [xx]: D = 0.9λ/β cos θ (1), where λ is the wavelength of the X-ray (0.15406 nm), β is FWHM (full width at half maximum), θ is the diffraction angle, and ‘D’ is the particle size diameter; thus, D = 111 nm as particle size. This would be more accurate in individual CuO because the composite would be on a micro scale, invading the limits of equations and accuracy, as estimated from the FESEM [43,44].

3.1.3. SEM Result

Figure 3 shows an electron microscope image of the surface of PTFE microfibers, CuO, G, and PTFE/CuO/G composite. For a pure PTFE image, the diameters of the PTFE fibers were measured by using an image-analysis system consisting of an FESEM, a high-resolution monitor, and image-analysis by image j® Program. The estimated diameter size is 100 nm. The thickness size distribution curve is indicated in Figure 4. The distribution curve indicates a narrow unimodal size distribution in the range from 20 to 220 nm with an average size of 100 nm [45]. For CuO-Nps, similar to the above analysis, the average particle size distribution was found to be in the range of (101–196 nm) with mean of 102 nm, as indicated in Figure 4b, ensuring the estimated value obtained by FESEM.
Small spherical CuO nanoparticles with homogenous distribution were illustrated in the morphological SEM image [46]. Moreover, the G SEM image illustrates agglomeration layers. As a result, PTFE/CuO/G illustrates uniform distribution of the quantities of CuO and G on the PTFE microfibers’ surface, which confirms the formation of the PTFE/CuO/G composite.
According to the experimental results of enhancing PTFE microfibers with CuO and G, a theoretical analysis of PTFE with different Mos, including MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2, might be performed to study the change in electronic characteristics.

3.2. Designed Model Structures

Nanocomposites are of great interest currently for a wide range of applications. The addition of nanofillers to polymer matrices improves their main properties, leading to better electrical and optical mechanical functionality [47]. As a result, the model structure assumes four monomers of PTFE interacting with a variety of MOs, including MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2. It is worth mentioning that for each metal oxide MO, there are two modes of interaction between the MO and the PTFE—one from the side of the metal atom and the other from the oxygen atom. Figure 5, Figure 6 and Figure 7 presents the PTFE; it first interacts with MgO and then Omg; this is repeated for all the studied MOs.
To follow up the reactivity of the PTFE’s interaction with MOs and graphene, the change in the HOMO/LUMO orbitals is mapped, followed by planning the MESP for those model structures. The values of the calculated HOMO/LUMO band gap energies and the total dipole moment are also summarized in Table 1 and Table 2.

3.2.1. Interaction of PTFE with Different Metal Oxides

Distribution of HOMO/LUMO Orbitals

Four PTFE monomers were assumed to interact through the F atom, indicating that the active side of PTFE interacts through the F atom with numerous Mos, including MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2. The distribution of HOMO/LUMO orbitals changed because of the interaction of PTFE with MOs, as seen in Figure 5. The HOMO/LUMO orbital dispersion is spread throughout the whole chain of the four PTFE monomers. When MOs interacted with the PTFE surface, HOMO/LUMO orbitals delocalized all over MO atoms. According to this, increasing TDM while lowering ΔE improved electrical characteristics, in addition to structure stability and reactivity [48]. Table 1 presents TDM along with band gap energy (ΔE) computed for all designed interactions.
TDM were increased according to PTFE interactions with the proposed MOs (MgO, OMg, Al2O3, O3Al2, SiO2, TiO2, Fe3O4, NiO, ONi, CuO, OCu, ZnO, OZn, and ZrO2 from 00.000 Debye to 30.100, 27.449, 22.477, 12.709, 00.231, 04.722, 06.575, 19.260, 08.924, 20.532, 76.136, 22.524, 19.137, and 07.526 Debye, respectively. Simultaneously, band gap energy (ΔE) also decreased according to PTFE interactions with proposed MOs from 8.510 eV to 1.466, 1.327, 1.102, 0.407, 3.226, 1.366, 1.996, 0.579, 1.106, 0.506, 0.400, 1.909, 2.317, and 0.938, respectively. As a consequence, PTFE/OCu seemed to have the lowest band gap value, signifying an improvement in electrical, responsiveness, and durability properties.

Molecular Electrostatic Potential (MESP)

Figure 6 illustrates the MESP of PTFE and PTFE interactions with numerous MOs, such MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2. MESP is another significant characteristic for understanding the electrical properties of chemical interactions. MESP is significant because it may connect between changes in total charge and the influence on physical and chemical characteristics for studied structures. The distribution of MESP on the molecule’s surface was illustrated by a map with the colors Red > Orange > Yellow > Green > Blue, with the red color representing the greatest charge zone, the blue color representing the lowest charge zone, and the green color representing zero charge zone [49]. The F atom was revealed to be the active side of the low reactivity of PTFE. The colour red intensified along the polymer chain’s up and down branches due to the F atom, which is an indication for the PTFE active side. Because of the influence of MOs, the red colour increased and relocated then around the oxygen atom of the MO, indicating an improvement in PTFE reactivity. According to the MESP observations, PTFE’s electrical properties increased, allowing it to be used in a wide range of applications.

GQDs Interaction with PTFE/OCu

According to earlier findings, the four GQD forms—ATRI, AHEX, ZTRI, and ZHEX—should be examined with PTFE/OCu. Owing to the GQDs’ features of large surface area and effective edge atoms, they have great interaction with the surrounding molecules [50]. The most electronically improved active structure is PTFE/OCu, so it was chosen to interact with the four GQDs forms, as illustrated in Figure 7. From Table 2, TDM of PTFE/OCu changed from 76.136 Debye to 20.421, 16.439, 39.124 and 17.571 Debye, while the band gap decreased from 0.400 eV to 0.480, 0.432, 0.206 and 0.433 eV for PTFE/OCu/GQD ATRI C60, PTFE/OCu/GQD AHEX C42, PTFE/OCu/GQD ZTRI C46, and PTFE/OCu/GQD ZHEX C54, respectively. From all data, PTFE/OCu/GQD ZTRI C46 is the most effective, stable, and novel in electrical properties and could be used in nanoelectronic devices.

4. Conclusions

This work combined both experimental and DFT:B3LYP/LANL2DZ calculations to gain better insight into the molecular structure of the studied polymer PTFE as well as its graphene and Mos-modified structure.
Thus, the PTFE microfibers were reinforced with CuO and graphene G, then studied with some characterization techniques such as FTIR, XRD, and SEM. The FTIR results confirmed that the PTFE/CuO/G is formed as a composite structure, and the SEM image showed the uniform distributed of nanoparticles on the PTFE microfibers’ surface.
DFT calculations as consulted to study PTFE interacted with various MOs. Throughout the calculations, the HOMO/LUMO orbitals were mapped. It could be concluded that MOs are responsible for reducing the HOMO/LUMO band gap by changing it from broad to small band gap semiconductor.
The addition of various MOs to PTFE creates and controls a wide range of band gaps, allowing for several applications, including as a solar cell, sensor, and capacitor.
Another important mapping throughout the calculations is the molecular electrostatic potential map, which indicated an active site starting from the PTFE step by step during the interaction with graphene as well as other MOs.
The structure is considered active as its calculated total dipole moment increased with a decrease in its HOMO/LUMO band gap energy.
It could thus be concluded that CuO was the most effective MO to increase the electronic characteristics of PTFE. Thus, it was chosen to interact with the four GQDs forms, namely ATRI, AHEX, ZTRI, and ZHEX.
The results confirmed that, the PTFE/OCu/GQD ZTRI C46 composite increases PTFE’s ability to perform in nanoelectronics devices, which are important in space applications.

Author Contributions

Conceptualization, M.A.H. and M.A.I.; methodology, H.A.E.; software; validation H.E. and M.A.I.; formal analysis, H.Y.Z.; investigation, I.S.Y.; resources, H.E.; data curation, I.G.; writing—original draft preparation, H.A.E.; writing—review and editing, H.E.; visualization, M.A.H.; supervision, M.A.I.; project administration, I.S.Y. and H.Y.Z.; funding acquisition, I.S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by project number (IFP-KKU-2020/10).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All original measurements and data analysis of this work will be available when required.

Acknowledgments

The authors express their appreciation to the Deputyship for Research & Innovation, Ministry of Education, in Saudi Arabia, for funding this research work through the project number: (IFP-KKU-2020/10).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shabannia, R.; Abu Hassan, H. Controllable vertically aligned ZnO nanorods on flexible polyethylene naphthalate (PEN) substrate using chemical bath deposition synthesis. Appl. Phys. A 2014, 114, 579–584. [Google Scholar] [CrossRef]
  2. Bedia, E.L.; Murakami, S.; Kitade, T.; Kohjiya, S. Structural development and mechanical properties of polyethylene naphthalate/polyethylene terephthalate blends during uniaxial drawing. Polymer 2001, 42, 7299–7305. [Google Scholar] [CrossRef]
  3. Agrawal, N.; Munjal, S.; Ansari, M.Z.; Khare, N. Superhydrophobic palmitic acid modified ZnO nanoparticles. Ceram. Int. 2017, 43, 14271–14276. [Google Scholar] [CrossRef]
  4. Thabet, A.; Mubarak, Y.A.; Bakry, M. A review of nano-fillers effects on industrial polymers and their characteristics. Int. J. Eng. Sci. 2011, 39, 377–403. [Google Scholar]
  5. Aruniit, A.; Kers, J.; Majak, J.; Krumme, A.; Tall, K. Influence of hollow glass microspheres on the mechanical and physical properties and cost of particle reinforced polymer composites. Proc. Est. Acad. Sci. 2012, 61, 160. [Google Scholar] [CrossRef]
  6. Zhang, J.-N.; Wang, C.-Y.; Guo, Z.; Zhou, Y.-G.; Wu, H.-H. Prediction on electrical resistivity of thin-ply unidirectional composites considering electric tunnel effect. Polym. Compos. 2020, 41, 4318–4328. [Google Scholar] [CrossRef]
  7. Bhattacharya, M. Polymer Nanocomposites—A Comparison between Carbon Nanotubes, Graphene, and Clay as Nanofillers. Materials 2016, 9, 262. [Google Scholar] [CrossRef]
  8. Farhat, O.; Halim, M.M.; Abdullah, M.J.; Ali, M.K.M.; Ahmed, N.M.; Allam, N.K. Growth of vertically aligned ZnO nanorods on Teflon as a novel substrate for low-power flexible light sensors. Appl. Phys. A 2015, 119, 1197–1201. [Google Scholar] [CrossRef]
  9. Plirdpring, T.; Neamsong, P.; Prachachet, R.; Chananonnawathorn, C.; Lertvanithphol, T.; Pattantsetakul, V.; Limwichean, S.; Eiamchai, P.; Nuntawong, N.; Horprathum, M. Preparation of PTFE-coated SiO2 nanorod films for self-cleaning application. In AIP Conference Proceedings; AIP Publishing LLC: Melville, NY, USA, 2020; Volume 2279, p. 120005. [Google Scholar]
  10. Liang, Y.; Ju, J.; Deng, N.; Zhou, X.; Yan, J.; Kang, W.; Cheng, B. Super-hydrophobic self-cleaning bead-like SiO2@PTFE nanofiber membranes for waterproof-breathable applications. Appl. Surf. Sci. 2018, 442, 54–64. [Google Scholar] [CrossRef]
  11. Zhu, X.; Feng, S.; Zhao, S.; Zhang, F.; Xu, C.; Hu, M.; Zhong, Z.; Xing, W. Perfluorinated superhydrophobic and oleophobic SiO2@PTFE nanofiber membrane with hierarchical nanostructures for oily fume purification. J. Membr. Sci. 2020, 594, 117473. [Google Scholar] [CrossRef]
  12. Chen, X.M.; Liu, K.W.; Yang, Q.F. Study on preparation and mechanical properties of PTFE/nano-SiO2 composites. Chem. Res. Appl. 2007, 19, 831. [Google Scholar]
  13. Shen, J.; Top, M.; Pei, Y.; De Hosson, J. Wear and friction performance of PTFE filled epoxy composites with a high concentration of SiO2 particles. Wear 2015, 322–323, 171–180. [Google Scholar] [CrossRef]
  14. Chao, M.; Guo, C.; Feng, A.; Huang, Z.; Yang, Q.; Wu, G. Improved Thermal Conductivity and Mechanical Property of PTFE Reinforced with Al2O3. Nano 2019, 14, 1950064. [Google Scholar] [CrossRef]
  15. Badry, R.; Radwan, S.H.; Ezzat, D.; Ezzat, H.; Elhaes, H.; Ibrahim, M. Study of the Electronic Properties of Graphene Oxide/(PANi/Teflon). Biointerface Res. Appl. 2020, 10, 6926–6935. [Google Scholar]
  16. Ruijin, L.; Chao, L.; Yuan, Y.; Duan, Y.; Zhuang, A. Anti-icing performance of ZnO/SiO2/PTFE sandwich-nanostructure superhydrophobic film on glass prepared via RF magnetron sputtering. Mater. Lett. 2017, 206, 109–112. [Google Scholar]
  17. Moser, M.; Semprimoschnig, C.; Van Eesbeek, M.; Pippan, R. Surface and Bulk Degradation of Teflon® FEP Retrieved from the Hubble Space Telescope Solar Arrays. High Perform. Polym. 2008, 20, 429–446. [Google Scholar] [CrossRef]
  18. Dever, J.A.; De Groh, K.K.; Banks, B.A.; Townsend, J.A.; Barth, J.L.; Thomson, S.; Gregory, T.; Savagek, W. Environmental Exposure Conditions for Teflon® Fluorinated Ethylene Propylene on the Hubble Space Telescope. High Perform. Polym. 2000, 12, 125–139. [Google Scholar] [CrossRef]
  19. De Groh, K.K.; Martin, M. Thermal Contributions to the Degradation of Ground Laboratory and Space-Irradiated Teflon. J. Spacecr. Rocket. 2004, 41, 366–372. [Google Scholar] [CrossRef]
  20. Minton, T.K.; Wu, B.; Zhang, J.; Lindholm, N.F.; Abdulagatov, A.I.; O’Patchen, J.; George, S.M.; Groner, M.D. Protecting Polymers in Space with Atomic Layer Deposition Coatings. ACS Appl. Mater. Interfaces 2010, 2, 2515–2520. [Google Scholar] [CrossRef]
  21. Yeong, Y.H.; Gupta, M.C. Hot embossed micro-textured thin superhydrophobic Teflon FEP sheets for low ice adhesion. Surf. Coat. Technol. 2017, 313, 17–23. [Google Scholar] [CrossRef] [Green Version]
  22. Hegazy, M.A.; Ghoneim, R.; Ezzat, H.A.; Yahia, I.S.; Elhaes, H.; Ibrahim, M.A. Electronic and physical studies for Teflon FEP as a thermal control in low earth orbit reinforced with ZnO and SiO2 nanoparticles. J. Mol. Model. 2021, 27, 1–8. [Google Scholar] [CrossRef] [PubMed]
  23. Jucius, D.; Grigaliūnas, V.; Mikolajūnas, M.; Guobienė, A.; Kopustinskas, V.; Gudonytė, A.; Narmontas, P. Hot embossing of PTFE: Towards superhydrophobic surfaces. Appl. Surf. Sci. 2011, 257, 2353–2360. [Google Scholar] [CrossRef]
  24. Jucius, D.; Guobienė, A.; Grigaliūnas, V. Surface texturing of polytetrafluoroethylene by hot embossing. Appl. Surf. Sci. 2010, 256, 2164–2169. [Google Scholar] [CrossRef]
  25. Bhagat, S.D.; Gupta, M.C. Superhydrophobic microtextured polycarbonate surfaces. Surf. Coat. Technol. 2015, 270, 117–122. [Google Scholar] [CrossRef]
  26. Abdelsalam, H.; Elhaes, H.; Ibrahim, M. Tuning electronic properties in graphene quantum dots by chemical functionalization: Density functional theory calculations. Chem. Phys. Lett. 2018, 695, 138–148. [Google Scholar] [CrossRef]
  27. Ezzat, H.; Badry, R.; Yahia, I.S.; Zahran, H.Y.; Elhaes, H.; Ibrahim, M.A. Mapping the molecular electrostatic potential of carbon nanotubes. Biointerface Res. Appl. 2018, 8, 3539–3542. [Google Scholar]
  28. Badry, R.; Ghanem, A.S.; Ahmed, H.; Fahmy, A.; Elhaes, H.; Refaat, A. Effect of li, na, K, be, mg and ca on the electronic properties, geometrical parameters of carboxylic acids. Biointerface Res. Appl. Chem. 2018, 8, 3657–3660. [Google Scholar]
  29. Ibrahim, M. Molecular Modeling and FTIR Study for K, Na, Ca and Mg Coordination with Organic Acid. J. Comput. Theor. Nanosci. 2009, 6, 682–685. [Google Scholar] [CrossRef]
  30. Ibrahim, M.; Mahmoud, A.A. Computational Notes on the Reactivity of Some Functional Groups. J. Comput. Theor. Nanosci. 2009, 6, 1523–1526. [Google Scholar] [CrossRef]
  31. Elhaes, H.; Ezzat, H.; Morsy, M.; El-Khodary, S.A.; Yahia, I.S.; Zahran, H.Y.; Ibrahim, M.A. PVC/ZnO Nano-Composite as Gas Sensor for Natural Gas. Sens. Lett. 2018, 16, 513–516. [Google Scholar] [CrossRef]
  32. Abdelsalam, H.; Saroka, V.A.; Ali, M.; Teleb, N.H.; Elhaes, H.; Ibrahim, M.A. Stability and electronic properties of edge functionalized silicene quantum dots: A first principles study. Phys. E Low Dimens. Syst. Nanostruct. 2019, 108, 339–346. [Google Scholar] [CrossRef]
  33. Hummers, W.S., Jr. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  34. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  35. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  36. Lee, C.; Yang, W.; Parr, R.G. Development of the Colic-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Vosko, S.H.; Wilk, L.; Nusair, M. Accurate spin-dependent electron liquid correlation energies for local spin density calculations: A critical analysis. Can. J. Phys. 1980, 58, 1200–1211. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, C.; Chen, J.-R. Studies on surface graft polymerization of acrylic acid onto PTFE film by remote argon plasma initiation. Appl. Surf. Sci. 2007, 253, 4599–4606. [Google Scholar] [CrossRef]
  39. Hegazy, M.A.; El-Agamy, H.H. ICMMS-2: Comparative Study on Copper Oxide Nanocrystals Synthesized by Two Precipitation Methods. Egypt. J. Chem. 2021, 64, 7–8. [Google Scholar] [CrossRef]
  40. Kang, W.; Zhao, H.; Ju, J.; Shi, Z.; Qiao, C.; Cheng, B. Electrospun poly(tetrafluoroethylene) nanofiber membranes from PTFE-PVA-BA-H2O gel-spinning solutions. Fibers Polym. 2016, 17, 1403–1413. [Google Scholar] [CrossRef]
  41. Siddiqui, H.; Qureshi, M.S.; Haque, F.Z. Surfactant assisted wet chemical synthesis of copper oxide (CuO) nanostructures and their spectroscopic analysis. Optik 2016, 127, 2740–2747. [Google Scholar] [CrossRef]
  42. Andonovic, B.; Grozdanov, A.; Paunović, P.; Dimitrov, A.T. X-ray diffraction analysis on layers in graphene samples obtained by electrolysis in molten salts: A new perspective. Micro Nano Lett. 2015, 10, 683–685. [Google Scholar] [CrossRef]
  43. Petkov, V.; Ohta, T.; Hou, Y.; Ren, Y. Atomic-Scale Structure of nanocrystals by HighEnergy X-ray Diffraction and Atomic Pair Distribution Function Analysis Nanoparticles. J. Phys. Chem. C 2007, 111, 714–720. [Google Scholar] [CrossRef]
  44. Hall, B.D.; Zanchet, D.; Ugarte, D. Estimating nanoparticle size from diffraction measurements. J. Appl. Crystallogr. 2000, 33, 1335–1341. [Google Scholar] [CrossRef]
  45. Borkar, S.; Gu, B.; Dirmyer, M.; Delicado, R.; Sen, A.; Jackson, B.R.; Badding, J.V. Polytetrafluoroethylene nano/microfibers by jet blowing. Polymer 2006, 47, 8337–8343. [Google Scholar] [CrossRef]
  46. Radhakrishnan, A.A.; Beena, B.B. Structural and optical absorption analysis of CuO nanoparticles. Indian J. Adv. Chem. Sci. 2014, 2, 158–161. [Google Scholar]
  47. Hashim, A.; Hadi, A. Synthesis and characterization of (MgO–Y2O3–CuO) nanocomposites for novel humidity sensor application. Sens. Lett. 2017, 15, 858–861. [Google Scholar] [CrossRef]
  48. Ezzat, H.A.; Hegazy, M.A.; Nada, N.A.; Ibrahim, M.A. Effect of nano metal oxides on the electronic properties of cellulose, chitosan and sodium alginate. Biointerface Res. Appl. Chem. 2019, 9, 4143–4149. [Google Scholar]
  49. Politzer, P.; Laurence, P.R.; Jayasuriya, K. Molecular electrostatic potentials: An effective tool for the elucidation of biochemical phenomena. Environ. Health Perspect. 1985, 61, 191–202. [Google Scholar] [CrossRef]
  50. Zhang, Z.; Zhang, J.; Chen, N.; Qu, L. Graphene quantum dots: An emerging material for energy-related applications and beyond. Energy Environ. Sci. 2012, 5, 8869–8890. [Google Scholar] [CrossRef]
Polymers 14 01069 g001 550

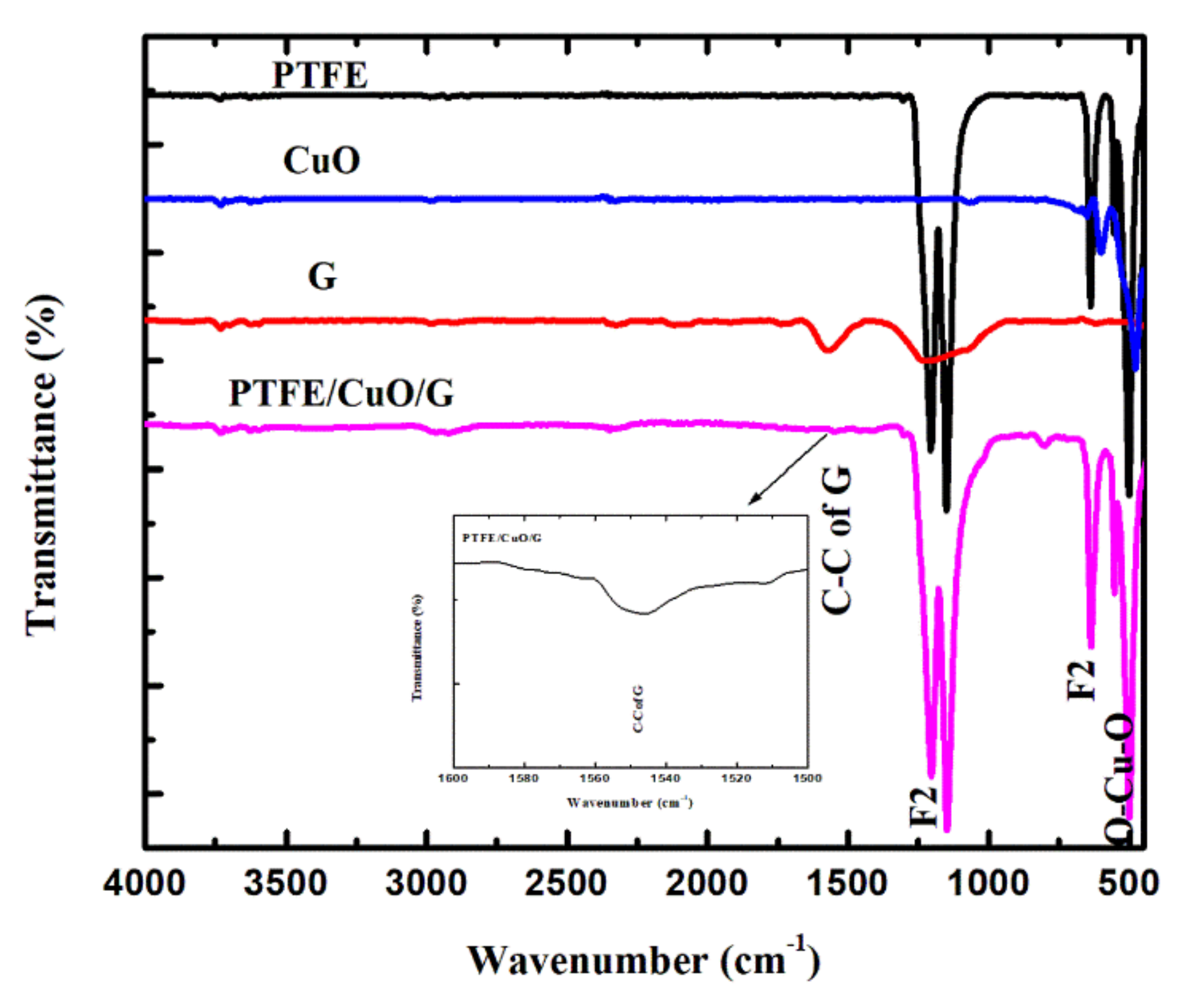

Figure 1. PTFE, CuO, G and PTFE/CuO/G transmittance ATR–FTIR spectra.
Figure 1. PTFE, CuO, G and PTFE/CuO/G transmittance ATR–FTIR spectra.
Polymers 14 01069 g001
Polymers 14 01069 g002 550

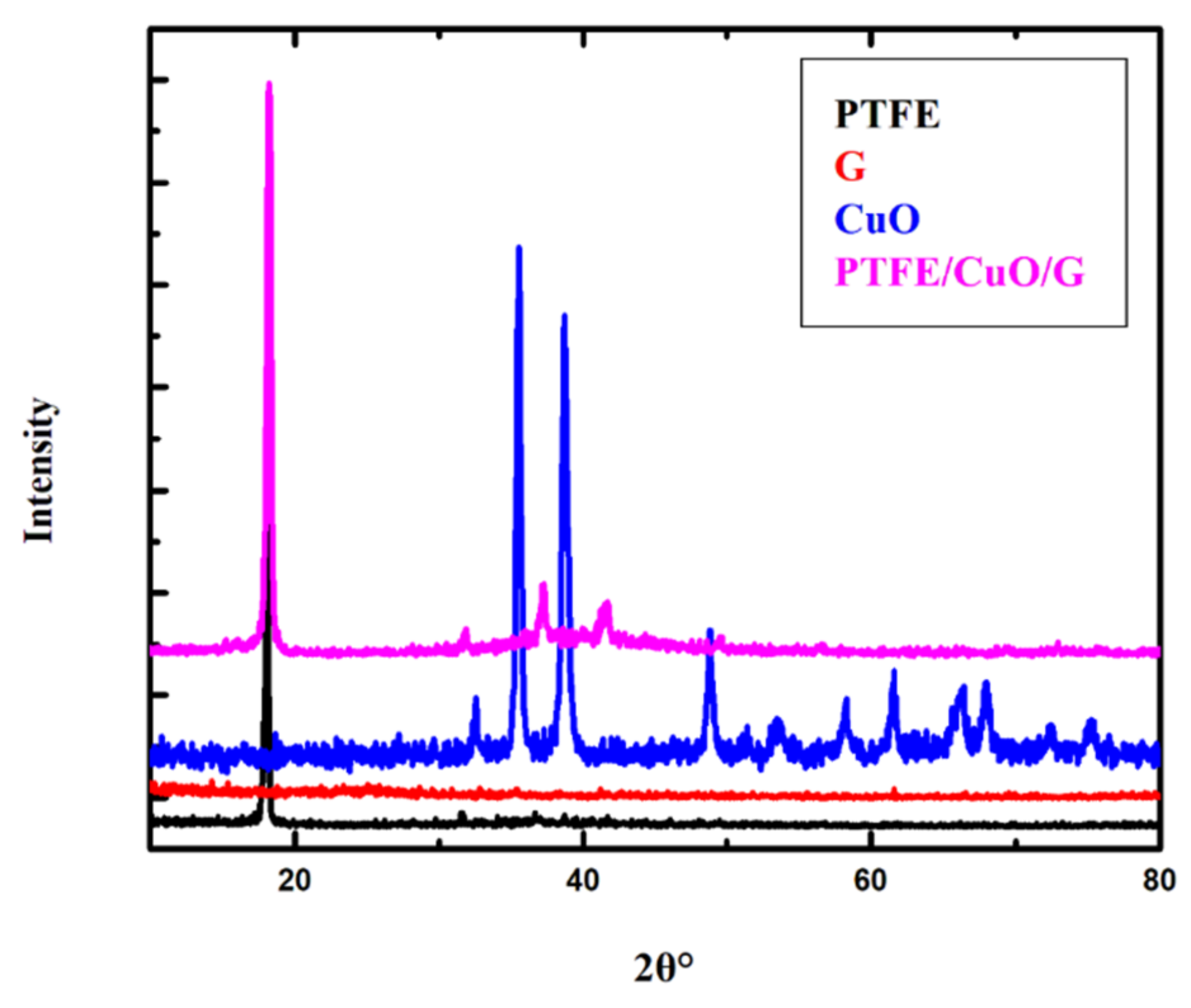

Figure 2. XRD diffraction pattern for PTFE, CuO, G, and PTFE/CuO/G nanocomposite.
Figure 2. XRD diffraction pattern for PTFE, CuO, G, and PTFE/CuO/G nanocomposite.
Polymers 14 01069 g002
Polymers 14 01069 g003 550
Figure 3. FESEM of (a) PTFE, (b) CuO, (c) G and (d) PTFE/CuO/G composite samples.
Figure 3. FESEM of (a) PTFE, (b) CuO, (c) G and (d) PTFE/CuO/G composite samples.
Polymers 14 01069 g003
Polymers 14 01069 g004 550

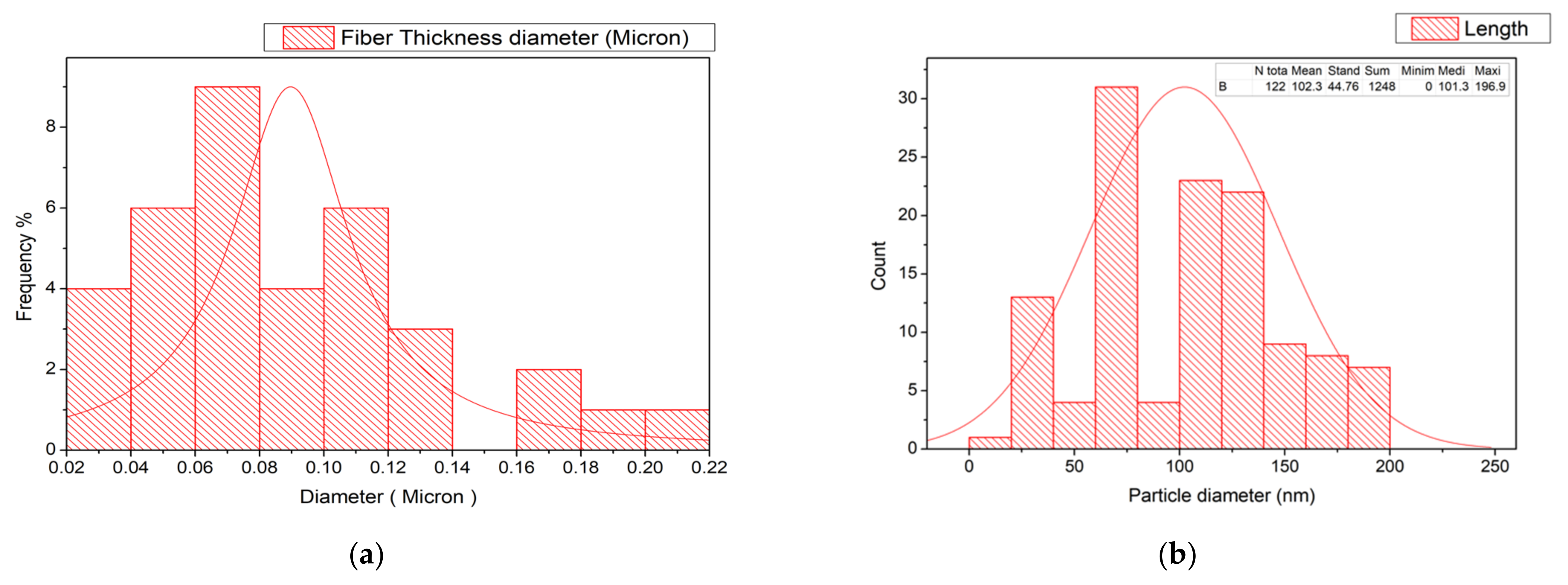

Figure 4. Histogram of the (a) fiber thickness and (b) CuO-NPs size distribution and curve of mean value.
Figure 4. Histogram of the (a) fiber thickness and (b) CuO-NPs size distribution and curve of mean value.
Polymers 14 01069 g004
Polymers 14 01069 g005a 550Polymers 14 01069 g005b 550

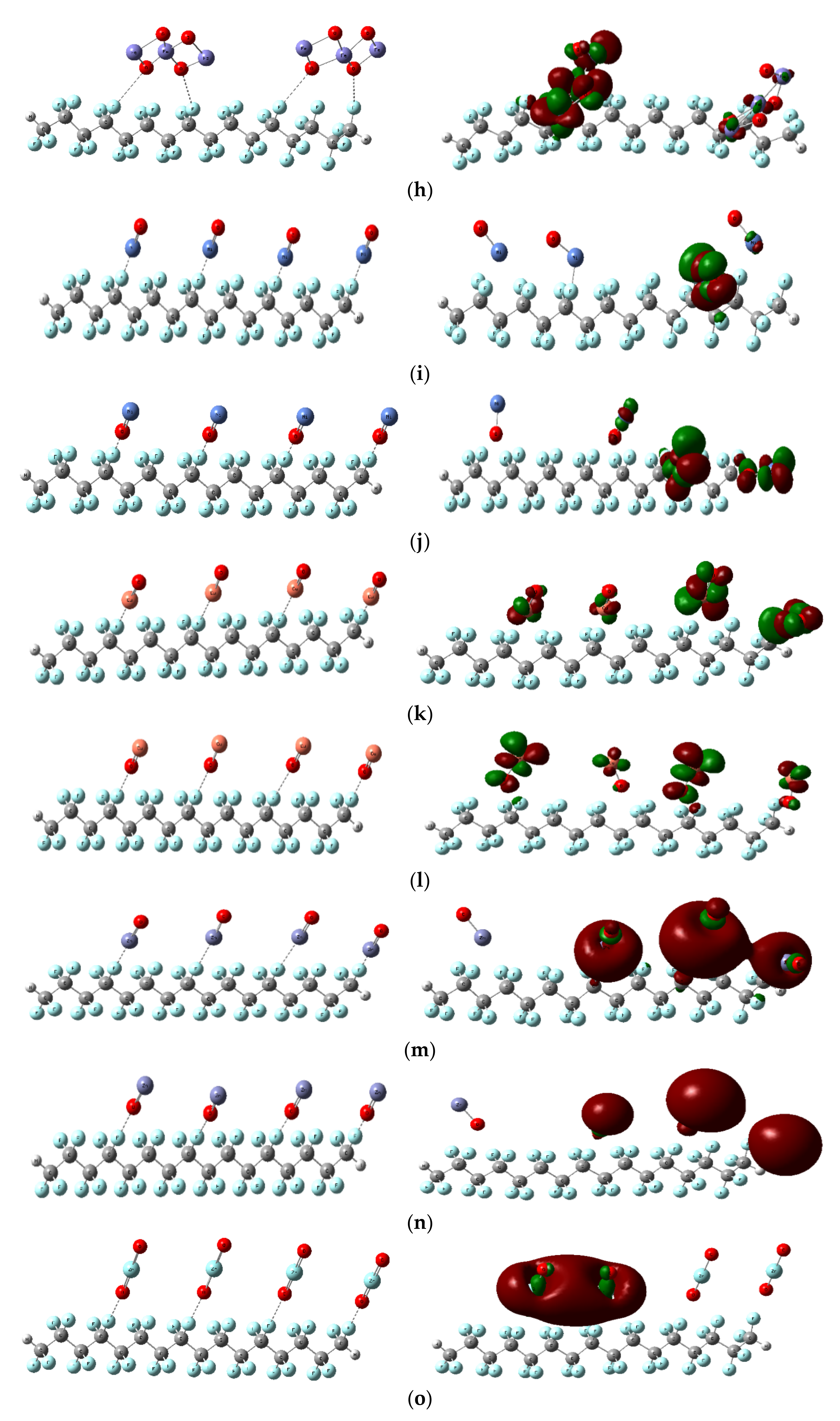

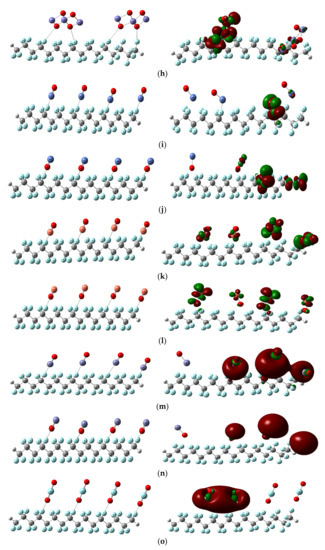

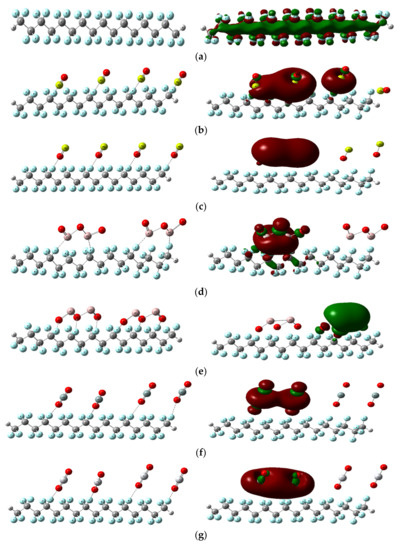

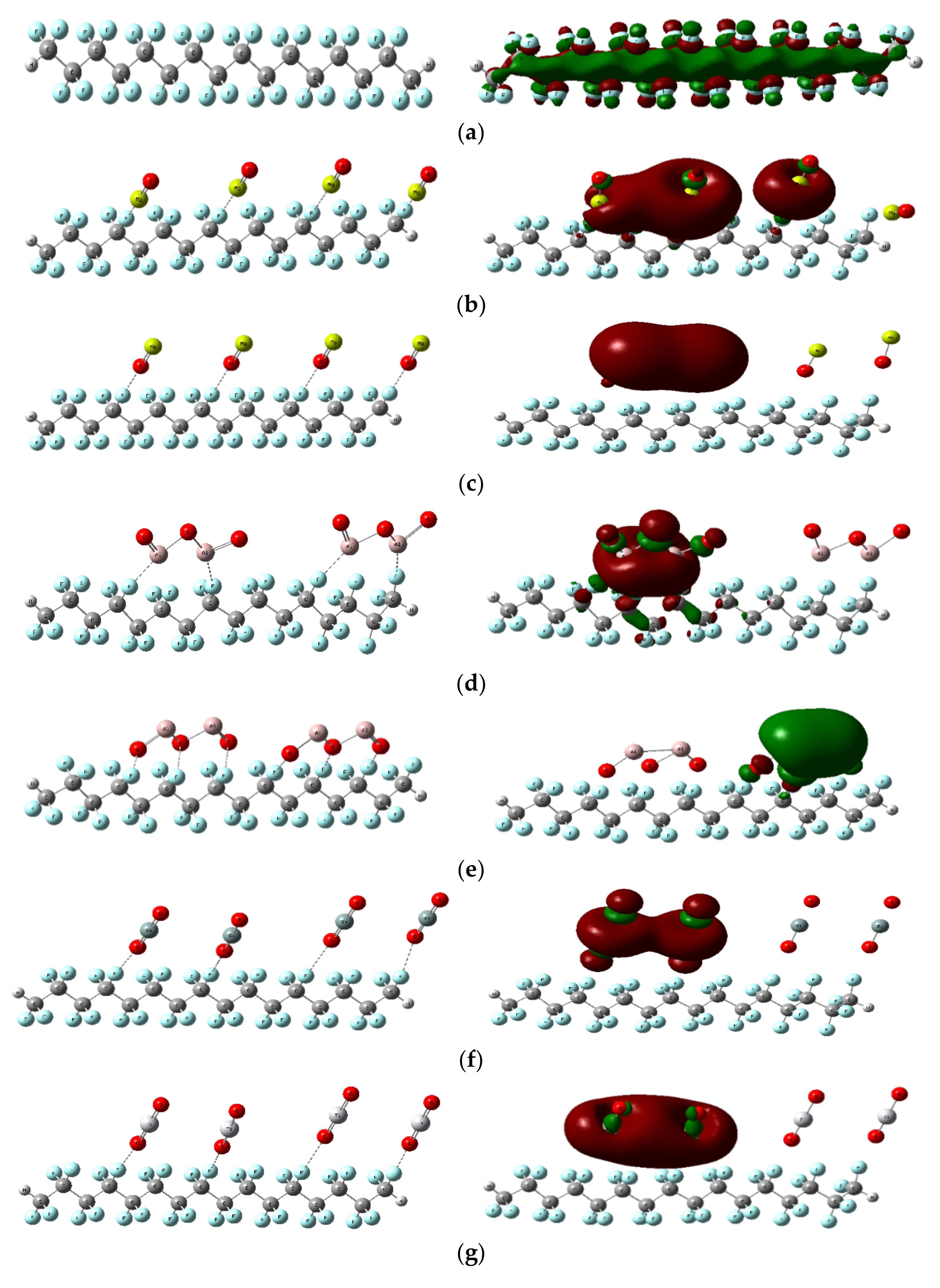

Figure 5. Optimized structure and HOMO/LUMO orbital distribution of PTFE interacting with different MOs using DFT:B3LYP/LANL2DZ as (a) PTFE, (b) PTFE/MgO, (c) PTFE/Omg, (d) PTFE/Al2O3, (e) PTFE/O3Al2, (f) PTFE/SiO2, (g) PTFE/TiO2, (h) PTFE/Fe3O4, (i) PTFE/NiO, (j) PTFE/ONi, (k) PTFE/CuO, (l) PTFE/OCu, (m) PTFE/ZnO, (n) PTFE/OZn, (o) PTFE/ZrO2.
Figure 5. Optimized structure and HOMO/LUMO orbital distribution of PTFE interacting with different MOs using DFT:B3LYP/LANL2DZ as (a) PTFE, (b) PTFE/MgO, (c) PTFE/Omg, (d) PTFE/Al2O3, (e) PTFE/O3Al2, (f) PTFE/SiO2, (g) PTFE/TiO2, (h) PTFE/Fe3O4, (i) PTFE/NiO, (j) PTFE/ONi, (k) PTFE/CuO, (l) PTFE/OCu, (m) PTFE/ZnO, (n) PTFE/OZn, (o) PTFE/ZrO2.
Polymers 14 01069 g005aPolymers 14 01069 g005b
Polymers 14 01069 g006 550

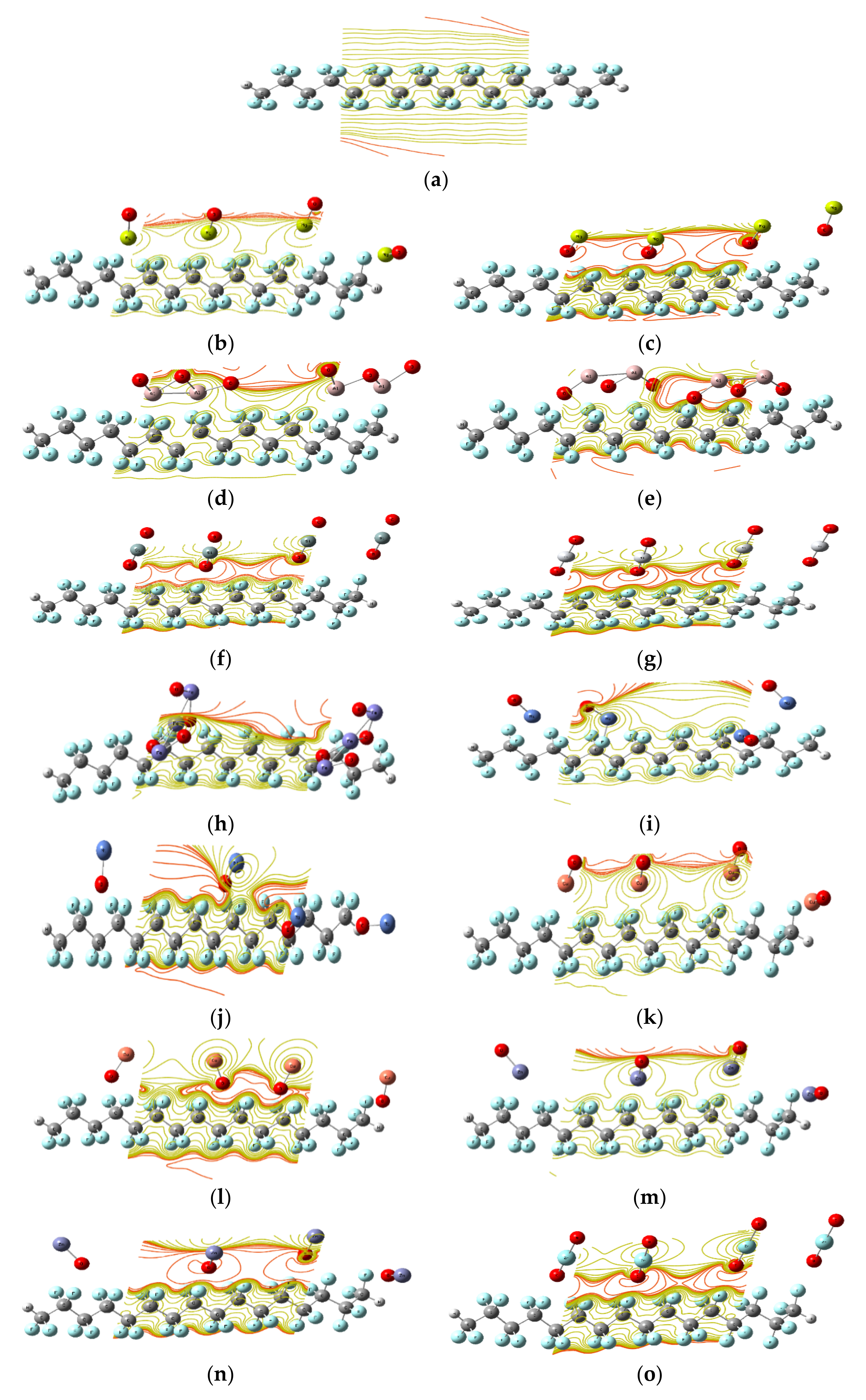

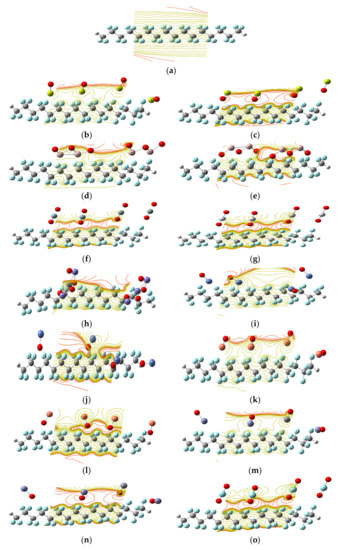

Figure 6. MESP mapping of PTFE interacting with different MOs using DFT:B3LYP/LANL2DZ as (a) PTFE, (b) PTFE/MgO, (c) PTFE/Omg, (d) PTFE/Al2O3, (e) PTFE/O3Al2, (f) PTFE/SiO2, (g) PTFE/TiO2, (h) PTFE/Fe3O4, (i) PTFE/NiO, (j) PTFE/ONi, (k)PTFE/CuO, (l) PTFE/OCu, (m) PTFE/ZnO, (n) PTFE/OZn, (o) PTFE/ZrO2.
Figure 6. MESP mapping of PTFE interacting with different MOs using DFT:B3LYP/LANL2DZ as (a) PTFE, (b) PTFE/MgO, (c) PTFE/Omg, (d) PTFE/Al2O3, (e) PTFE/O3Al2, (f) PTFE/SiO2, (g) PTFE/TiO2, (h) PTFE/Fe3O4, (i) PTFE/NiO, (j) PTFE/ONi, (k)PTFE/CuO, (l) PTFE/OCu, (m) PTFE/ZnO, (n) PTFE/OZn, (o) PTFE/ZrO2.
Polymers 14 01069 g006
Polymers 14 01069 g007 550

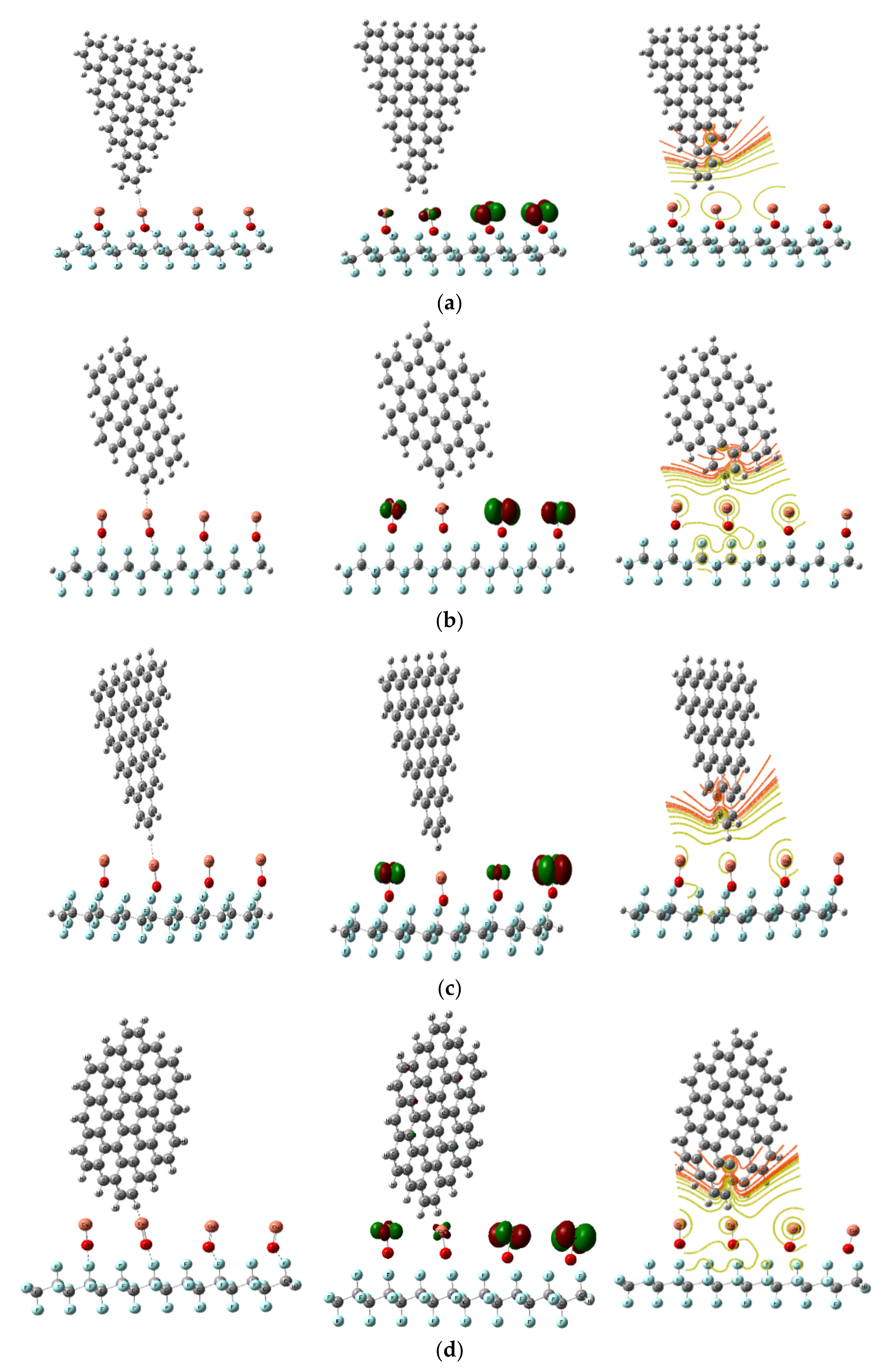

Figure 7. Model structure and calculated HOMO/LUMO orbital distribution and MESP mapping of PTFE/OCu reinforced with GQDs DFT:B3LYP/LANL2DZ as (a) PTFE/OCu/GQD ATRI C60, (b) PTFE/OCu/GQD AHEX C42, (c) PTFE/OCu/GQD ZTRI C46, (d) PTFE/OCu/GQD ZHEX C54.
Figure 7. Model structure and calculated HOMO/LUMO orbital distribution and MESP mapping of PTFE/OCu reinforced with GQDs DFT:B3LYP/LANL2DZ as (a) PTFE/OCu/GQD ATRI C60, (b) PTFE/OCu/GQD AHEX C42, (c) PTFE/OCu/GQD ZTRI C46, (d) PTFE/OCu/GQD ZHEX C54.
Polymers 14 01069 g007
Table
Table 1. Calculated TDM (Debye) combined with ΔE (eV) for PTFE interactions with supposed MOs (MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2) using B3LYP/LANL2DZ.
Table 1. Calculated TDM (Debye) combined with ΔE (eV) for PTFE interactions with supposed MOs (MgO, Al2O3, SiO2, TiO2, Fe3O4, NiO, CuO, ZnO, and ZrO2) using B3LYP/LANL2DZ.
StructureTDM (Debye)ΔE (eV)
PTFE00.0008.510
PTFE/MgO30.1001.466
PTFE/OMg27.4491.327
PTFE/Al2O322.4771.102
PTFE/O3Al212.7090.407
PTFE/OSiO00.2313.226
PTFE/OTiO04.7221.366
PTFE/Fe3O406.5751.996
PTFE/NiO19.2600.579
PTFE/ONi08.9241.106
PTFE/CuO20.5320.506
PTFE/OCu76.1360.400
PTFE/ZnO22.5241.909
PTFE/OZn19.1372.317
PTFE/OZrO07.5260.938
Table
Table 2. TDM (Debye) and ΔE (eV) of GQDs interaction with PTFE/OCu using B3LYP/LANL2DZ.
Table 2. TDM (Debye) and ΔE (eV) of GQDs interaction with PTFE/OCu using B3LYP/LANL2DZ.
StructureTDM (Debye)ΔE (eV)
PTFE/OCu/GQD ATRI C6020.4210.480
PTFE/OCu/GQD AHEX C4216.4390.432
PTFE/OCu/GQD ZTRI C4639.1240.206
PTFE/OCu/GQD ZHEX C5417.5710.433
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hegazy, M.A.; Ezzat, H.A.; Yahia, I.S.; Zahran, H.Y.; Elhaes, H.; Gomaa, I.; Ibrahim, M.A. Effect of CuO and Graphene on PTFE Microfibers: Experimental and Modeling Approaches. Polymers 2022, 14, 1069. https://doi.org/10.3390/polym14061069

AMA Style

Hegazy MA, Ezzat HA, Yahia IS, Zahran HY, Elhaes H, Gomaa I, Ibrahim MA. Effect of CuO and Graphene on PTFE Microfibers: Experimental and Modeling Approaches. Polymers. 2022; 14(6):1069. https://doi.org/10.3390/polym14061069

Chicago/Turabian Style

Hegazy, Maroof A., Hend A. Ezzat, Ibrahim S. Yahia, Heba Y. Zahran, Hanan Elhaes, Islam Gomaa, and Medhat A. Ibrahim. 2022. "Effect of CuO and Graphene on PTFE Microfibers: Experimental and Modeling Approaches" Polymers 14, no. 6: 1069. https://doi.org/10.3390/polym14061069

APA Style

Hegazy, M. A., Ezzat, H. A., Yahia, I. S., Zahran, H. Y., Elhaes, H., Gomaa, I., & Ibrahim, M. A. (2022). Effect of CuO and Graphene on PTFE Microfibers: Experimental and Modeling Approaches. Polymers, 14(6), 1069. https://doi.org/10.3390/polym14061069

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
