Article

Thermal Degradation Kinetics Analysis of Polymer Composite Electrolyte Membranes of PEVOH and PBT Nano Fiber

by
Sheng-Jen Lin
and
Gwomei Wu
*
Institute of Electro-Optical Engineering, Chang Gung University, Chang Gung Memorial Hospital, Taoyuan 333, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(3), 537; https://doi.org/10.3390/polym14030537
Submission received: 30 December 2021 / Revised: 20 January 2022 / Accepted: 22 January 2022 / Published: 28 January 2022
(This article belongs to the Special Issue Plastic and Natural Fiber Materials)
Browse Figures
Versions Notes

Abstract

:
The thermal degradation kinetics of high-performance polymer composite electrolyte membranes were investigated by thermal gravimetric analysis in this study. The novel porous polymer composite membranes were fabricated by crosslinking poly (ethylene-co-vinyl alcohol) (EVOH) with polybutylene terephthalate (PBT) nano fiber. The PBT nano-scale fiber non-woven cloth was first prepared by the electrospinning method to form a labyrinth-like structure, and the crosslinking was carried out by filtering it through a solution of EVOH and crosslinking agent triallylamine using the Porcelain Buchner funnel vacuum filtration method. The PBT–EVOH composite membranes with various crosslinking agent ratios and ethylene carbonate/dimethyl carbonate (EC/DMC) immersion times were investigated for their thermal stability and ionic conductivity. The results showed that the higher crosslinking agent content would lower the crystallinity and enhance thermal stability. The thermal degradation activation energy was dramatically increased from 125 kJ/mol to 340 kJ/mol for the 1.5% crosslinking agent content sample at 80% conversion. The triallylamine crosslinking agent was indeed effective in improving thermal degradation resistivity. The best ionic conductivity of the polymer composite membranes was exhibited at 5.04 × 10−3 S cm−1 using the optimal weight ratio of EVOH/PBT composite controlled at 1/2. On the other hand, the EC/DMC immersion time was more effective in controlling the Rb value, thus the ionic conductivity of the membranes. A higher immersion time, such as 48 h, not only gave higher conductivity data but also provided more stable results. The triallylamine crosslinking agent improved the membrane ionic conductivity by about 22%.

Graphical Abstract

1. Introduction

A lithium-ion rechargeable battery is a remarkable energy-storage system, attributed to the excellent energy density and high working voltage [1]. However, the electrochemical device’s safety has always been of great concern as one of the most important issues that could limit its wider use in mobile electronic products and electric vehicles. Damage has been reported from time to time through battery explosions of products even those produced by many renowned international companies. It has been noted that high-performance polymer composite electrolyte membranes may play important roles in battery structures, not only to provide high ionic conductivity but also to construct a thin and tough interface between anodes and cathodes [2,3,4,5]. Their structures and electrochemical characteristics can be crucial for energy storage and energy conversion [6]. Nevertheless, when compared to the traditional non-woven cloth membrane separators, the use of organic/inorganic electrolyte membranes can be limited by some key factors, such as a complicated synthesis route [7], low ionic conductivity [8], low mechanical strength [9], difficulty in mass production [10], environmental solvent pollution [11], and high cost [12]. These issues drastically limit the applications in battery systems.
An ideal membrane separator should be designed to safely isolate the anode and cathode, and also to supply adequate ionic transport during the charge and discharge processes [13]. Conventional polyethylene, polypropylene and their composites have usually been selected as the base materials for commercial separators due to the cost and processability. However, a battery can be used under high power charge or discharge processes, and the rapid or abnormal current loading may induce transient temperature climbing. Transient high temperature could easily induce thermal shrinkage for those polyolefin-based separators and result in a battery short circuit. In order to resolve these undesirable problems such as electrolyte leakage, related low ionic conductivity and thermal shrinkage, it has been desirable to develop polymer composite electrolyte membranes with improved characteristics to replace the conventional separators. However, the poor ionic conductivity and low mechanical integrity have still restricted the development in rechargeable battery systems [14,15]. Several polymeric materials have been studied for their thermal shrinkage and electrochemical performances, including Al2O3/poly(vinylidene fluoride-hexafluoropropylene) composite separators for lithium-ion batteries [16], the polyacrylonitrile system [17], and a gelled polymer electrolyte with inorganic fillers [18,19]. For example, the pristine polyethylene has a significant shrinkage percentage of 86% at 140 °C. Liao et al. developed Al2O3- and SiO2-based solid polymeric electrolyte membrane separators and achieved lower dimensional shrinkage of 65% and 63%, respectively [20]. Although some polymer membranes showed good ionic conductivity in the range of 10−3 S cm−1, poor mechanical strength and thermal stability were still observed. This would result in breaking and cracking of electrolyte membranes during the battery fabrication and the charge/discharge procedures. The internal short-circuits might cause an irreversible reaction and inhibit the battery performance.
Polybutylene terephthalate (PBT) is a semi-crystalline engineering thermoplastic material that shows high mechanical strength, low molding shrinkage and good thermal resistance [21,22]. It can be processed by several available techniques and is readily dissolvable in methylene chloride. This creates a possible route for electrospinning into microporous non-woven structures [23,24]. The porous polymer composites are very important and have been widely used in many practical applications, such as fibrous porous media [25]. The effective electrolyte diffusion through charged porous media has been also validated by a fractal model. The experimental data yielded satisfying agreement with semi-analytical model results [26]. The PBT non-woven cloth could thus result in having properties with very high permeability and binding capacity for various applications. The electrospinning method has been developed for several years to produce nanofibers for industry [27,28,29]. The rheological properties of the polymer solutions showed critical effects on the essential electro-spinnability. It was also demonstrated to have produced a dye-sensitized solar cell to harvest solar energy. Xiao, et al. developed a layer-by-layer structure for electrospun poly (vinyl alcohol) nanofibers with ZrO2 nanoparticles. Their polymer composites exhibited improved mechanical tensile strength up to 14.5 MPa [30]. On the other hand, ethylene vinyl alcohol (EVOH) copolymer is hydrophilic with high inter- and intra-molecular cohesive energy. The incorporation can be utilized to improve electrolyte uptake by the plasticization effect of the copolymer [31]. This copolymer has been recently reported to be electrospun to obtain hybrid nanocomposites. The resultant fiber mats were further annealed to promote inter-fiber coalescence [32].
In order to obtain good ionic conductivity with higher thermal resistance for polymer composites, we present the synthesis and characteristic properties of PBT–EVOH polymer composite electrolyte membranes in this study. A higher thermal stability should improve the life-cycle for an energy storage and/or energy conversion system [33]. The PBT nanofiber non-woven cloth was firstly prepared by electrospinning, then crosslinked [34] with EVOH using various crosslinking agent ratios and membrane immersion times. The thermal stability was analyzed by the Ozawa method [35,36]. The derived activation energy can reveal the difficulty in thermal degradation reaction of the materials. Meng, et al. studied the Flynn–Wall–Ozawa methods to calculate the activation energy of 1-butyl-2,3-dimethylimidazolium nitrate [37]. Canakci also investigated the activation energies of synthesized compounds from the slope of the plot vs. 1/T. Therefore, the experimental data could be followed for each stage of the thermal degradation that occurred at different rates. The kinetics relationship between the fractional conversion and the activation energy was then analyzed [38]. The resulting polymer composite membranes would show good ionic conductivity with improved thermal stability. The ionic conductivity was measured by AC impedance spectroscopy. The structural properties and electrochemical characteristics have been systematically studied and are discussed in this paper. The ionic conductivity could be improved to 5.04 × 10−3 S cm−1 and the thermal degradation activation energy was increased to 340 kJ/mol. The crosslinking agent should have played a role in lowering the crystallinity and enhancing the thermal stability.

2. Materials and Methods

The polymer composite electrolyte membranes were fabricated by crosslinking poly (ethylene-co-vinyl alcohol) (Chang Chun Petrochemical, Taipei, Taiwan) and polybutylene terephthalate (Shinkong Synthetic Fibers, Taipei, Taiwan). The PBT chips were firstly dried and dissolved in methylene chloride (Sigma-Aldrich, St. Louis, MO, USA) to form a 15 wt.% viscous solution. The fiber non-woven cloth with PBT nano-scale fiber was then prepared by an electrospinning method to form a labyrinth-like structure. Further crosslinking was carried out by filtering through a 10 wt.% EVOH dissolved in dimethyl sulfoxide (DMSO, Sigma-Aldrich) solution using a different crosslinking agent (triallylamine, Sigma-Aldrich) contents at 0, 0.2 and 1.5%, with 0.1% azobisisobutyronitrile (AIBN, Sigma-Aldrich). Finally, the composite membrane cloth samples were finished with good binding membrane characteristics by using the Porcelain Buchner funnel vacuum filtration method. The weight ratio of the EVOH versus PBT fiber after filtration was nominally controlled at 1:2. The prepared polymer composite membranes were shaped into round sheets and then immersed in ethylene carbonate and dimethyl carbonate (EC/DMC = 1:1 (v/v) 1 M) at 25 °C for a specified period of time. The samples were then assembled between a pair of SS316 stainless steel electrodes in an argon-filled glove box (Braun, Germany; working condition, H2O: 3 ppm, O2: 1 ppm). Figure 1 shows the schematic illustration of the preparation steps of the PBT–EVOH composite membranes.
The surface morphology study of the prepared PBT–EVOH polymer composite membrane samples was performed using a JEOL JSM-5600LV scanning electron microscope (SEM). The X-ray diffraction (XRD) measurements were carried out using a Rigaku MultiFlex diffractometer, equipped with a monochromator and a Cu target tube. The radiation wavelength λ was 0.154 nm. The continuous scans were conducted from 10° to 80°, with a step size of 0.05° and a scan rate of 10°/min. Differential scanning calorimetry (DSC) thermal analysis was performed by using a Perkin Elmer Pyris 7 DSC system. The measurements were taken by heating ~5 mg samples from 25 °C to 300 °C, in N2 atmosphere. Thermogravimetric analysis (TGA) experiments were carried out using a Perkin Elmer Pyris 7 TGA system. The measurements were made from 25 °C to 500 °C, also under N2 atmosphere. In this study, for the the thermal degradability of PBT–EVOH composite films we followed the Ozawa method to determine the corresponding thermal degradation activation energy of the polymer. The Ozawa equation is listed here as [39,40]:
−logA1 − 0.4567 (Ea/RT1) = −logA2 − 0.4567 (Ea/RT2)
where Ai is the heating rate, Ea is the activation energy, and T is the temperature in Kelvins.
The AC impedance method was employed to measure the ionic conductivity. The PBT–EVOH polymer composite electrolyte membranes had a contact surface area of 1.29 cm2. The AC impedance measurements were carried out by AutoLab from Eco Chemi, with a computer program. In addition, the frequency range from 100 Hz to 100 kHz was recorded. The following equation has been used to calculate the ionic conductivity σ in this study.
σ = L R b × A
where, L and A are the thickness and area of the polymer composite membranes, respectively. Rb was derived from the Nyquist plot of the AC impedance analysis [41].

3. Results and Discussion

3.1. Surface Morphology

The SEM micrograph of the PBT non-woven cloth that was prepared by the electrospinning method is shown in Figure 2. It can be observed that the non-woven cloth with numerous PBT fibers was formed in a labyrinth-like structure. It has a lot of pores for potential electrolyte transport. The fiber size was mainly in the range of 50~500 nm. Figure 3 shows the SEM micrograph of the PBT–EVOH composite films with the triallylamine crosslinking agent ratio of 1.5%. It shows that the PBT nano-scale fibers were all well covered by EVOH and the micro-pores were also distributed uniformly. This is indeed beneficial for electrochemical applications due to more electronic transport channels. The gas aggregation near the polymer composite membrane surface could be also reduced during the battery charge/discharge process.

3.2. Thermal Degradation Stability

The thermal degradability of PBT–EVOH polymer composite films was investigated using Ozawa method to determine the thermal degradation activation energy. Figure 4 shows an example of the TGA thermogravimetric scans of the PBT–EVOH composite film using 0.2% triallylamine crosslinking agent. Three different heating rates were employed.
In the study, including 5, 10, and 20 °C/min. In general, under the same weight loss percentage or degradation conversion percentage, a higher heating rate resulted in a higher conversion temperature. This trend was in good agreement with the thermal analysis models in the literature [39]. At the weight loss of 50%, the higher heating rate of 20 °C/min was achieved at 425 °C. It was lowered to 388 °C when the middle heating rate of 10 °C/min was used. It was further reduced to 358 °C for the lowest heating rate of 5 °C/min. This was caused by the complicated thermal degradation kinetics of the polymer composite materials and should be further analyzed. Figure 5 displays the TGA thermal degradation analysis results of the PBT–EVOH composite film, prepared using 0% or no triallylamine crosslinking agent. The derived corresponding thermal analysis results are listed in Table 1. The thermal degradation activation energy Ea ranged from 211 kJ/mol at 5% conversion to 125 kJ/mol at 80% conversion. The correlation coefficient R2 was high at 0.965~0.999, nearly 1.
The TGA thermal degradation analysis results of the PBT–EVOH polymer composite film, prepared using 0.2% triallylamine crosslinking agent, are shown in Figure 6. The same three different heating rates were employed in this analysis. The conversion temperature followed the same increasing trend with the heating rate results in Figure 5. Thus, the higher the heating rate, the higher the degradation temperature data that were observed. However, all the conversion temperature data increased further, indicating more resistance to the thermal degradation. The derived corresponding thermal analysis results of the 0.2%-triallylamine-crosslinking PBT–EVOH polymer composite film are shown in Table 2. It can be seen that the thermal degradation activation energy Ea ranged from 209 kJ/mol at 5% conversion to 237 kJ/mol at 80% conversion. The activation energy increased from the PBT–EVOH polymer composite film sample without using triallylamine crosslinking agent. Thus, the application of triallylamine crosslinking agent was quite effective in improving the thermal degradation resistivity of the polymer composites. The correlation coefficient R2 has been also high at 0.982~0.999, nearly 1.
Finally, the triallylamine crosslinking agent content was increased to 1.5% for further evaluation. Thus, the TGA thermal degradation analysis results of the PBT–EVOH polymer composite film, prepared using 1.5% triallylamine crosslinking agent, are presented in Figure 7. Again, the same three heating rates were employed in this analysis. The conversion temperature followed the same increasing trend with the heating rate results in Figure 5. Although all the conversion temperature data increased more than the no-triallylamine-crosslinking PBT–EVOH polymer composite film sample, they are not much higher than the 0.2%-triallylamine-crosslinking PBT–EVOH polymer composite film sample. However, the slope data were significantly higher. The derived corresponding thermal degradation analysis results of the 1.5%-triallylamine-crosslinking PBT–EVOH polymer composite film are shown in Table 3. The thermal degradation activation energy Ea ranged from 259 kJ/mol at 5% conversion to 340 kJ/mol at 80% conversion. It is thus evidenced that the activation energy increased well from the PBT–EVOH polymer composite film sample without using triallylamine crosslinking agent. The application of triallylamine crosslinking agent was indeed very effective in improving the thermal degradation resistivity of the polymer composite film. The correlation coefficient R2 was also high at 0.993~0.999, nearly 1.
In brief summary, the TGA thermal degradation analysis results showed that the higher the crosslinking agent content, the higher the activation energy that could be obtained. It was dramatically increased from 125 kJ/mol with no crosslinking content to 340 kJ/mol while using 1.5% crosslinking agent content at the 80% conversion. It has been also proved that triallylamine is an effective crosslinking agent to enhance the PBT–EVOH polymer composite film’s thermal stability.

3.3. Differential Scanning Calorimetry (DSC) Analysis

The DSC analysis of the PBT–EVOH polymer composite films was undertaken in terms of the heating and cooling rate of 10 °C/min to determine the melting temperature Tm and the crystallization temperature Tc. The DSC thermal calorimetry scan results of the PBT- EVOH polymer composite films are displayed in Figure 8. The results showed that both the Tm and enthalpy (∆H) were significantly decreased with the addition of higher triallylamine crosslinking agent content. The Tm was reduced from 187 °C for the PBT–EVOH polymer composite film sample without using triallylamine crosslinking agent to 170 °C for the 1.5%-triallylamine-crosslinking PBT–EVOH polymer composite film. The data are slightly lower than the values reported for pure PBT due to the incorporation of EVOH [21]. The endothermic enthalpy was also decreased from –73.7 J/g for the polymer composite film using no triallylamine crosslinking agent to –24.6 J/g for the 1.5%-triallylamine-crosslinking polymer composite film. In addition, the Tc was decreased from the addition of the triallylamine crosslinking agent. It was reduced from 165 °C for the PBT–EVOH polymer composite film sample without using the triallylamine crosslinking agent to 156 °C for the 1.5%-triallylamine-crosslinking PBT–EVOH polymer composite film. It has been suggested that the crosslinking agent might have decreased the crystallinity of the PBT–EVOH polymer composite film.

3.4. X-Ray Diffraction (XRD) Analysis

XRD analysis of the PBT–EVOH polymer composite films was conducted using a scan rate of 10°/min at room temperature. Figure 9 shows the XRD diffraction scans of the different PBT–EVOH polymer composite films with various triallylamine crosslinking agent ratios. Typical peaks could be observed at the 2θ of 20° for all the scans. The peak intensity slightly decreased with the increasing crosslinking agent content. This suggested that the crosslinking agent would have decreased the crystallinity of the PBT–EVOH polymer composite film. This is likely beneficial for an ionic transport application due to the lower barrier effect from the non-crystalline part of the polymer composite film. The lower crystallinity film could also exhibit the higher ionic conductivity. In addition, both the PBT and EVOH materials are relatively safe because they have no toxicity to be widely used in many fields, including food packaging applications [21,30].

3.5. Ionic Conductivity Analysis

Table 4 summarizes the ionic conductivity analysis results of the 15%-PBT and 10%-EVOH polymer composite electrolyte membranes at 25 °C. The polymer composite membranes had been immersed in ethylene carbonate and dimethyl carbonate for different periods of time. The immersion time has an impact on the polymer composite electrolyte membrane performances. Typically, the Rb values for the PBT–EVOH crosslinked polymer composite electrolytes are in the order of 1~10 Ω and they are more dependent upon the electrolyte solution immersion time for the films. The shorter immersion time of 24 h was not enough to provide satisfactory electrolyte absorption for the polymer composite films. The electrical resistance obtained was higher and the samples exhibited lower conductivity. The trend for crosslinking agent ratio on conductivity was also not clearly revealed. On the other hand, at a higher immersion time, such as 48 h, it not only gave higher conductivity data but also provided more stable/predictable results. The ionic conductivity values are in the order of 10−3~10−4 S cm−1. The results were comparable with the conductivity data reported in the literature, such as 5.1 × 10−4 S cm−1 measured at 60 °C by Zhan et al. [3] and 5.2 × 10−3 S cm−1 at room temperature by Aziz et al. [6]. In this study, it was experimentally observed that the ionic conductivity of the PBT–EVOH polymer composite electrolyte membrane with the 1.5% crosslinking agent ratio and 48 h immersion time could exhibit the best σ of 5.04 × 10−3 S cm−1. Thus, the addition of triallylamine crosslinking agent improved the sample’s ionic conductivity from 4.12 × 10−3 S cm−1 by about 22%.

4. Conclusions

The PBT–EVOH polymer composite electrolyte membranes were prepared well with different crosslinking agent ratios and EC/DMC immersion times for this study. This was achieved by the combination of the electrospinning method and using a Porcelain Buchner funnel vacuum filtration method. The results showed that the higher crosslinking agent content would lower the crystallinity and enhance the thermal stability. The TGA thermal degradation activation energy was dramatically increased from 125 kJ/mol for the no crosslinking content sample to 340 kJ/mol for the 1.5% crosslinking agent content sample at the 80% conversion. The application of triallylamine crosslinking agent was indeed very effective in improving the thermal degradation resistivity of the polymer composite film. The correlation coefficients R2 were all near 1. The ionic conductivity of the polymer composite electrolyte membrane could exhibit σ of 5.04 × 10−3 S cm−1 for the 1.5% crosslinking agent content sample. On the other hand, the EC/DMC immersion time was more effective in controlling the Rb values, and thus the ionic conductivity results of the polymer composite membranes. A higher immersion time, such as 48 h, not only gave higher conductivity data but also provided more stable/predictable results. Thus, a suitable immersion time is highly recommended for the PBT–EVOH polymer composite membranes. The addition of triallylamine crosslinking agent experimentally improved the polymer composite’s ionic conductivity from 4.12 × 10−3 S cm−1 by about 22%. This investigation should help to pave the way for the successful development of polymer composite electrolyte membranes with improved thermal stability and good ionic conductivity for rechargeable battery systems. In addition, the ionic transport in relation to the microporous polymer composite structures should be very important and can be further studied in future work.

Author Contributions

Methodology, S.-J.L.; investigation, G.W.; data curation, S.-J.L.; writing—original draft preparation, S.-J.L.; writing—review and editing, G.W.; funding acquisition, G.W. All authors have read and agreed to the published version of the manuscript.

Funding

Please add: This research was funded by the Ministry of Science and Technology (Taiwan) under research contracts MOST105-2221-E-182-059-MY3 and MOST-108-2221-E-182-020-MY3. The APC was funded by CGMH support of CMRP246 and CMRPD3G0063.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barbosa, J.C.; Goncalves, R.; Costa, C.M.; Lanceros-Mendez, S. Recent advances on materials for lithium-ion batteries. Energies 2021, 14, 3154. [Google Scholar] [CrossRef]
  2. Taillades, G.; Hachemi, I.; Pers, P.; Dailly, J.; Marrony, M. Synthesis and characterizations of barium zirconate–alkali carbonate composite electrolytes for intermediate temperature fuel cells. J. Compos. Sci. 2021, 5, 183. [Google Scholar] [CrossRef]
  3. Zhan, H.; Wu, M.; Wang, R.; Wu, S.; Li, H.; Tian, T.; Tang, H. Excellent performances of composite polymer electrolytes with porous vinyl-functionalized SiO2 nanoparticles for lithium metal batteries. Polymers 2021, 13, 2468. [Google Scholar] [CrossRef] [PubMed]
  4. Sazali, N.; Salleh, W.N.W.; Jamaludin, A.S.; Razali, M.N.M. New perspectives on fuel cell technology: A brief review. Membranes 2020, 10, 99. [Google Scholar] [CrossRef] [PubMed]
  5. Waidha, A.I.; Vanita, V.; Clemens, O. PEO infiltration of porous garnet-type lithium-conducting solid electrolyte thin films. Ceramics 2021, 4, 421–436. [Google Scholar] [CrossRef]
  6. Aziz, S.B.; Hamsan, M.H.; Nofal, M.M.; Karim, W.O.; Brevik, I.; Brza, M.A.; Abdulwahid, R.T.; Al-Zangana, S.; Kadir, M.F.Z. Structural, Impedance and electrochemical characteristics of electrical double layer capacitor devices based on chitosan: Dextran biopolymer blend electrolytes. Polymers 2020, 12, 1411. [Google Scholar] [CrossRef]
  7. Harun, N.A.M.; Shaari, N.; Zaiman, N.F.H.N. A review of alternative polymer electrolyte membrane for fuel cell application based on sulfonated poly(ether ether ketone). Int. J. Energy Res. 2021, 45, 19671–19708. [Google Scholar] [CrossRef]
  8. Niu, C.; Liu, J.; Chen, G.; Liu, C.; Qian, T.; Zhang, J.; Cao, B.; Shang, W.; Chen, Y.; Han, J. Anion-regulated solid polymer electrolyte enhances the stable deposition of lithium ion for lithium metal batteries. J. Power Source 2019, 417, 70–75. [Google Scholar] [CrossRef]
  9. Mackanic, D.G.; Yan, X.; Zhang, Q.; Matsuhisa, N.; Yu, Z.; Jiang, Y.; Manika, T.; Lopez, J.; Yan, H.; Liu, K.; et al. Decoupling of mechanical properties and ionic conductivity in supramolecular lithium ion conductors. Nat. Commun. 2019, 10, 5384. [Google Scholar] [CrossRef] [Green Version]
  10. Huang, Z.; Tong, R.A.; Zhang, J.; Chen, L.; Wang, C.A. Blending poly(ethylene oxide) and Li6.4La3Zr1.4Ta0.6O12 by Haake rheomixer without any solvent: A low-cost manufacture method for mass production of composite polymer electrolyte. J. Power Source 2020, 451, 227797. [Google Scholar] [CrossRef]
  11. Vinodh, R.; Atchudan, R.; Kim, H.J.; Yi, M. Recent advancements in polysulfone based membranes for fuel cell (PEMFCs, DMFCs and AMFCs) applications: A critical review. Polymers 2022, 14, 300. [Google Scholar] [CrossRef]
  12. Mery, A.; Rousselot, S.; Lepage, D.; Dolle, M. A critical review for an accurate electrochemical stability window measurement of solid polymer and composite electrolytes. Materials 2021, 14, 3840. [Google Scholar] [CrossRef]
  13. Raju, M.M.; Altayran, F.; Johnson, M.; Wang, D.; Zhang, Q. Crystal structure and preparation of Li7La3Zr2O12 (LLZO) solid-state electrolyte and doping impacts on the conductivity: An overview. Electrochem 2021, 2, 390–414. [Google Scholar] [CrossRef]
  14. Song, J.J.; Wang, Y.Y.; Wan, C.C. Review of gel-type polymer electrolytes for lithium-ion batteries. J. Power Source 1999, 77, 183–197. [Google Scholar] [CrossRef]
  15. Yurova, P.A.; Malakhova, V.R.; Gerasimova, E.V.; Stenina, I.A.; Yaroslavtsev, Q. Nafion/surface modified ceria hybrid membranes for proton exchange fuel cell application. Polymers 2021, 13, 2513. [Google Scholar] [CrossRef]
  16. Jeong, H.S.; Hong, S.C.; Lee, S.Y. Effect of microporous structure on thermal shrinkage and electrochemical performance of Al2O3/poly(vinylidene fluoride-hexafluoropropylene) composite separators for lithium-ion batteries. J. Membr. Sci. 2010, 364, 177–182. [Google Scholar] [CrossRef]
  17. Liang, Y.H.; Wang, C.C.; Chen, C.Y. Conductivity and characterization of plasticized polymer electrolyte based on (polyacrylonitrile-b-polyethylene glycol) copolymer. J. Power Source 2007, 172, 886–892. [Google Scholar] [CrossRef]
  18. Rao, M.; Liu, J.; Li, W.; Liang, Y.; Zhou, D. Preparation and performance analysis of PE-supported P(AN-co-MMA) gel polymer electrolyte for lithium ion battery application. J. Membr. Sci. 2008, 322, 314–319. [Google Scholar] [CrossRef]
  19. Oh, B.; Amine, K. Evaluation of macromonomer-based gel polymer electrolyte for high-power applications. Solid State Ion. 2004, 175, 785–788. [Google Scholar] [CrossRef]
  20. Liao, Y.; Sun, C.; Hu, S.; Li, W. Anti-thermal shrinkage nanoparticles/polymer and ionic liquid based gel polymer electrolyte for lithium ion battery. Electrochim. Acta 2013, 89, 461–468. [Google Scholar] [CrossRef]
  21. Li, H.; Wei, Z. Impacts of modified graphite oxide on crystallization, thermal and mechanical properties of polybutylene terephthalate. Polymers 2021, 13, 2431. [Google Scholar] [CrossRef] [PubMed]
  22. Dobrota, D.; Lazar, S.V. Ultrasonic welding of PBT-GF30 (70% polybutylene terephthalate + 30% fiber glass) and expanded polytetrafluoroethylene (e-PTFE). Polymers 2021, 13, 298. [Google Scholar] [CrossRef] [PubMed]
  23. Lemma, S.M.; Boi, C.; Carbonell, R.G. Nonwoven ion-exchange membranes with high protein binding capacity for bioseparations. Membranes 2021, 11, 181. [Google Scholar] [CrossRef] [PubMed]
  24. Sazali, N.; Salleh, W.N.W.; Jamaludin, A.S.; Razali, M.N.M. Iminodiacetic acid (IDA) cation-exchange nonwoven membranes for efficient capture of antibodies and antibody fragments. Membranes 2021, 11, 530. [Google Scholar]
  25. Xiao, B.; Wang, W.; Zhang, X.; Long, G.; Fan, J.; Chen, H.; Deng, L. A novel fractal solution for permeability and Kozeny-Carman constant of fibrous porous media made up of solid particles and porous fibers. Powder Technol. 2019, 349, 92–98. [Google Scholar] [CrossRef]
  26. Liang, M.; Fu, C.; Xiao, B.; Luo, L.; Wang, Z. A fractal study for the effective electrolyte diffudion through charged porous media. Int. J. Heat Mass Transf. 2019, 137, 365–371. [Google Scholar] [CrossRef]
  27. Dai, M.; Jin, S.; Nugen, S.R. Water-soluble electrospun nanofibers as a method for on-chip reagent storage. Biosensors 2012, 2, 388–395. [Google Scholar] [CrossRef] [Green Version]
  28. Kohn, S.; Wehlage, D.; Junger, I.J.; Ehrmann, A. Electrospinning a dye-sensitized solar cell. Catalysts 2019, 9, 975. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, H.; Chen, X.; Chen, H.; Liu, X.; Li, J.; Luo, J.; He, A.; Han, C.C.; Liu, Y.; Xu, S. Molecular interaction, chain conformation, and rheological modification during electrospinning of hyaluronic acid aqueous solution. Membranes 2020, 10, 217. [Google Scholar] [CrossRef]
  30. Xiao, W.; Song, J.; Huang, L.; Yang, Z.; Qiao, Q. PVA-ZrO2 multilayer composite separator with enhanced electrolyte property and mechanical strength for lithium-ion batteries. Ceram. Int. 2020, 46, 29212–29221. [Google Scholar] [CrossRef]
  31. Aragon-Gutierrez, A.; Rosa, E.; Gallur, M.; Lopez, D.; Hernandez-Munoz, P.; Gavara, R. Melt-processed bioactive EVOH films incorporated with ferulic acid. Polymers 2021, 13, 68. [Google Scholar] [CrossRef]
  32. Melendez, B.; Torres-Giner, S.; Zavagna, L.; Sammon, C.; Cabedo, L.; Prieto, C.; Lagaron, J.M. Development and characterization of electrospun fiber-based poly(ethylene-co-vinyl alcohol) films of application interest as high-gas-barrier interlayers in food packaging. Polymers 2021, 13, 2061. [Google Scholar] [CrossRef]
  33. Mori, M.; Stropnik, R.; Sekavcnik, M.; Lotric, A. Criticality and life-cycle assessment of materials used in fuel-cell and hydrogen technologies. Sustainability 2021, 13, 3565. [Google Scholar] [CrossRef]
  34. Lu, Q.; Fang, J.; Yang, J.; Miao, R.; Wang, J.; Nuli, Y. Novel cross-linked copolymer gel electrolyte supported by hydrophilic polytetrafluoroethylene for rechargeable lithium batteries. J. Membr. Sci. 2014, 449, 176–183. [Google Scholar] [CrossRef]
  35. Bianchi, O.; Oliveira, R.V.B.; Fiorio, R.; Martins, J.D.N.; Zattera, A.J.; Canto, L.B. Assessment of Avrami, Ozawa and Avrami–Ozawa equations for determination of EVA crosslinking kinetics from DSC measurements. Polym. Test. 2008, 27, 722–729. [Google Scholar] [CrossRef]
  36. Cui, H.W.; Suganuma, K.; Uchida, H. Using the Ozawa method to study the thermally initiated curing kinetics of vinyl ester resin. RSC Adv. 2015, 5, 2677–2683. [Google Scholar] [CrossRef]
  37. Meng, J.; Pan, Y.; Ran, Z.; Li, Y.; Jiang, J.; Wang, Q.; Jiang, J. Thermal hazard and decomposition kinetics of 1-butyl-2,3-dimethylimidazolium nitrate via TGA/DSC and FTIR. J. Loss Prev. Process Ind. 2021, 72, 104562. [Google Scholar] [CrossRef]
  38. Canakci, D. Thermal stability, degradation kinetic and structural characterization of novel aromatic amide compounds. J. Mol. Struct. 2020, 1205, 127645. [Google Scholar] [CrossRef]
  39. Zhang, X. Applications of kinetic methods in thermal analysis: A review. Eng. Sci. 2021, 14, 1–13. [Google Scholar] [CrossRef]
  40. Pal, A.K.; Kativar, V. Theoretical and analyzed data related to thermal degradation kinetics of poly(L-lactic acid)/chitosan-grafted-ologo L-lactic acid (PLA/CH-g-OLLA) bionanocomposite films. Data Brief 2017, 10, 304–311. [Google Scholar] [CrossRef]
  41. Wu, G.M.; Lin, S.J.; Yang, C.C. High performance composite solid polymer electrolyte systems for electrochemical cells. J. Power Source 2013, 244, 287–293. [Google Scholar] [CrossRef]
Polymers 14 00537 g001 550

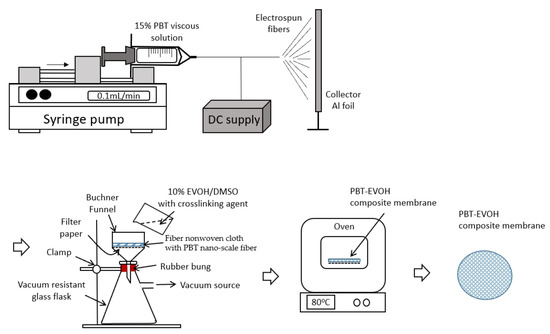

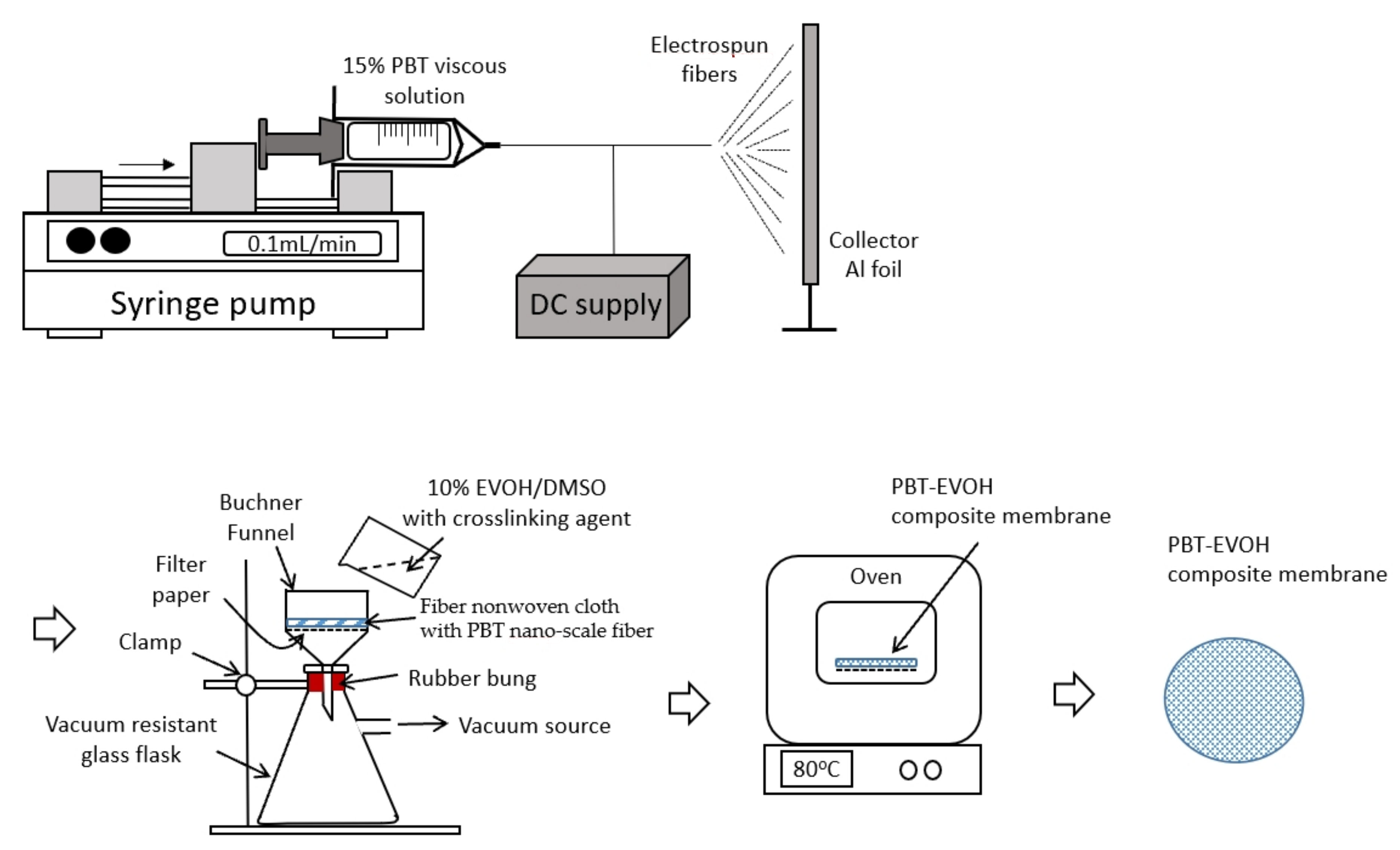

Figure 1. Schematic illustration of the preparation of polybutylene terephthalate–ethylene vinyl alcohol (PBT–EVOH) composite membranes.
Figure 1. Schematic illustration of the preparation of polybutylene terephthalate–ethylene vinyl alcohol (PBT–EVOH) composite membranes.
Polymers 14 00537 g001
Polymers 14 00537 g002 550

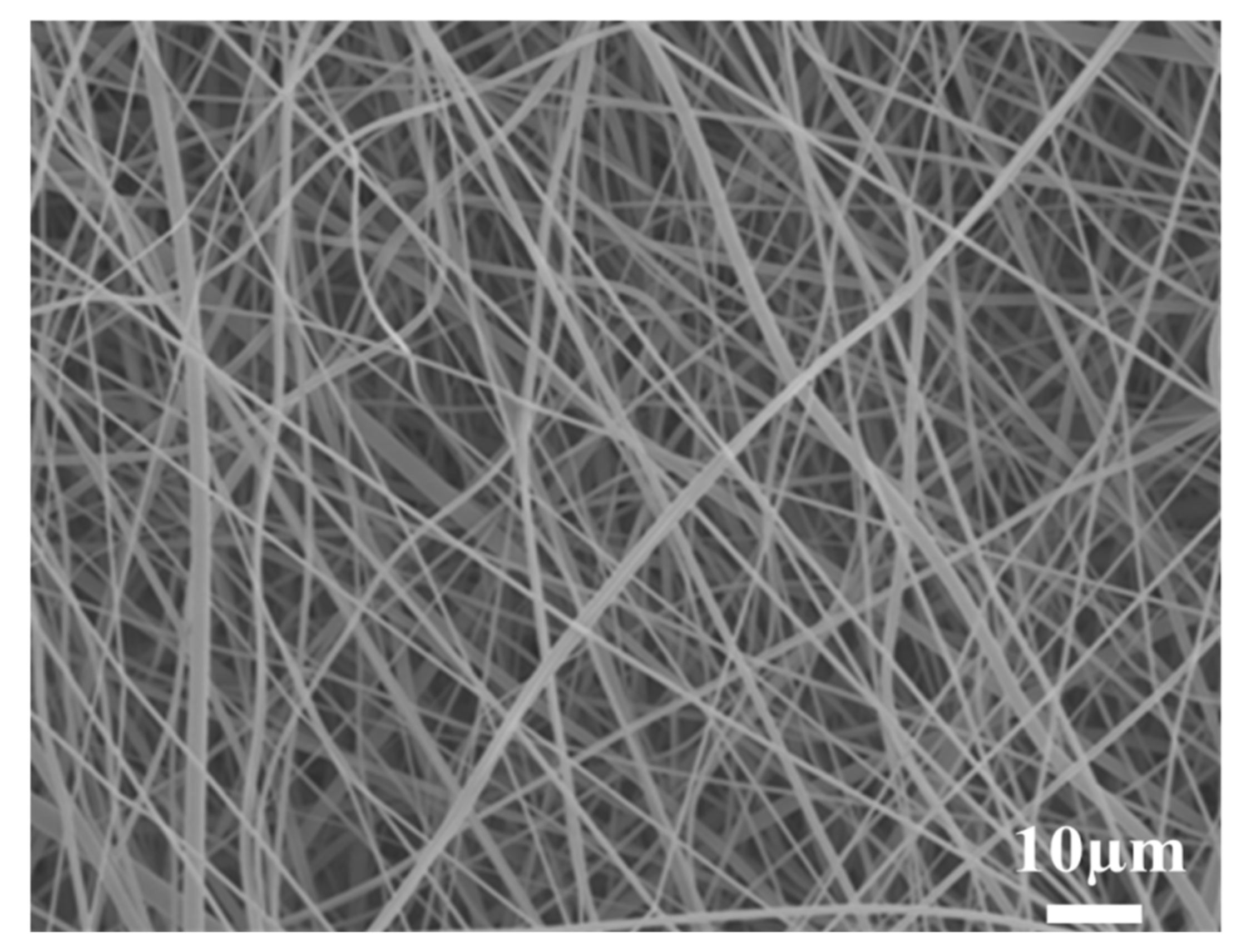

Figure 2. Scanning electron microscopy (SEM) micrograph of the PBT non-woven formed in a labyrinth-like structure.
Figure 2. Scanning electron microscopy (SEM) micrograph of the PBT non-woven formed in a labyrinth-like structure.
Polymers 14 00537 g002
Polymers 14 00537 g003 550

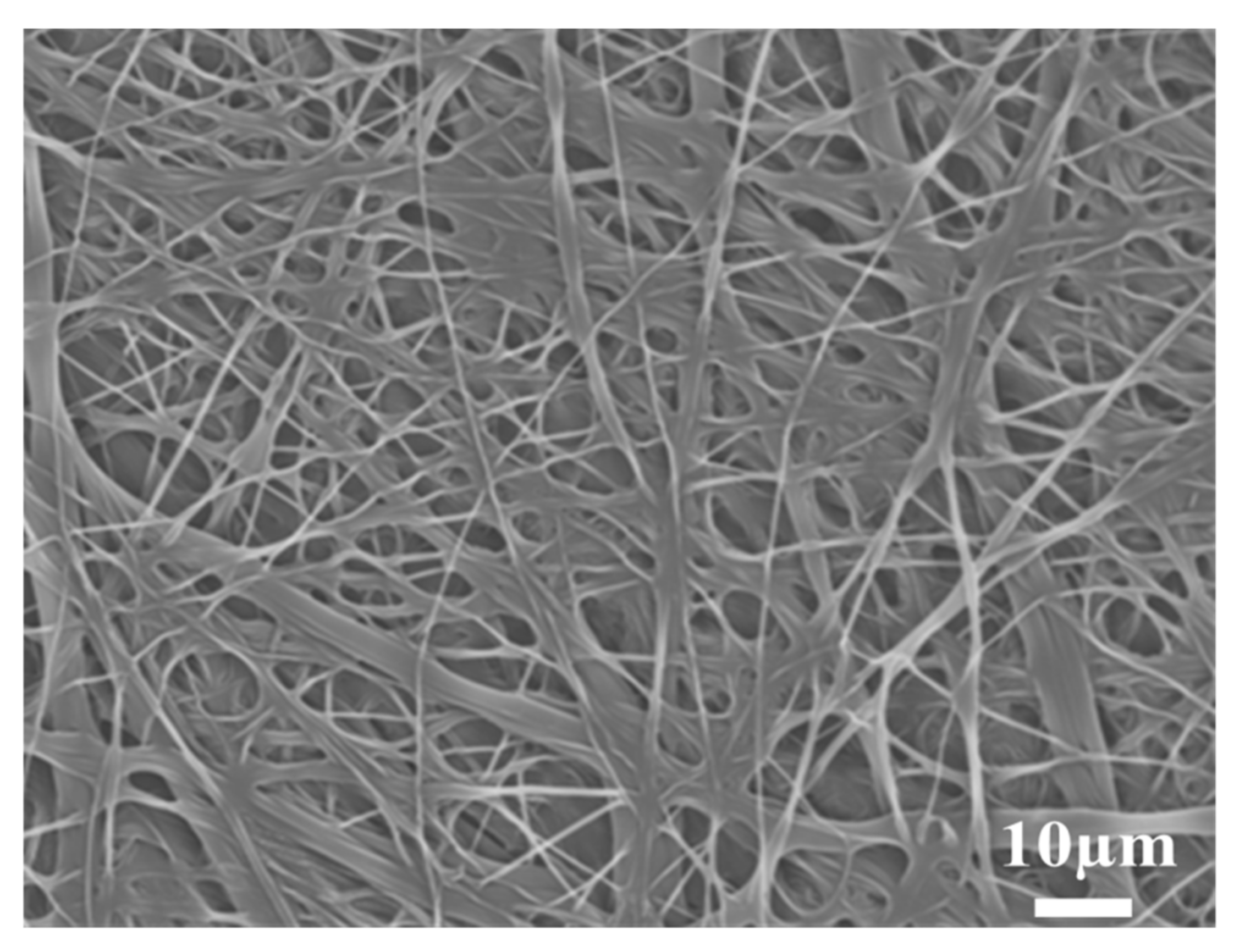

Figure 3. SEM micrograph of the PBT–EVOH polymer composite film, prepared with the triallylamine crosslinking agent ratio of 1.5%.
Figure 3. SEM micrograph of the PBT–EVOH polymer composite film, prepared with the triallylamine crosslinking agent ratio of 1.5%.
Polymers 14 00537 g003
Polymers 14 00537 g004 550

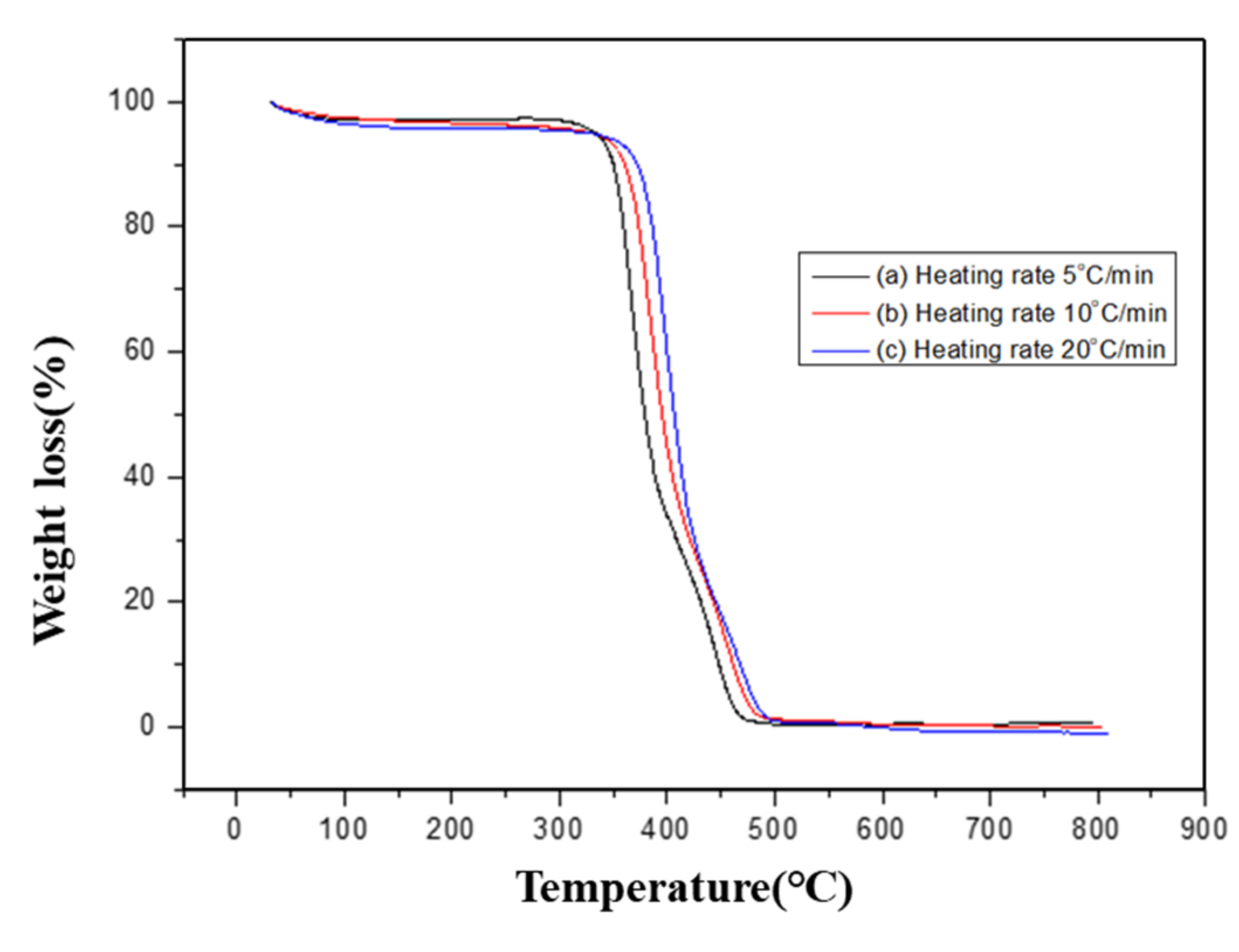

Figure 4. Thermogravimetric analysis (TGA) scans of the PBT–EVOH polymer composite film using 0.2% triallylamine crosslinking agent.
Figure 4. Thermogravimetric analysis (TGA) scans of the PBT–EVOH polymer composite film using 0.2% triallylamine crosslinking agent.
Polymers 14 00537 g004
Polymers 14 00537 g005 550

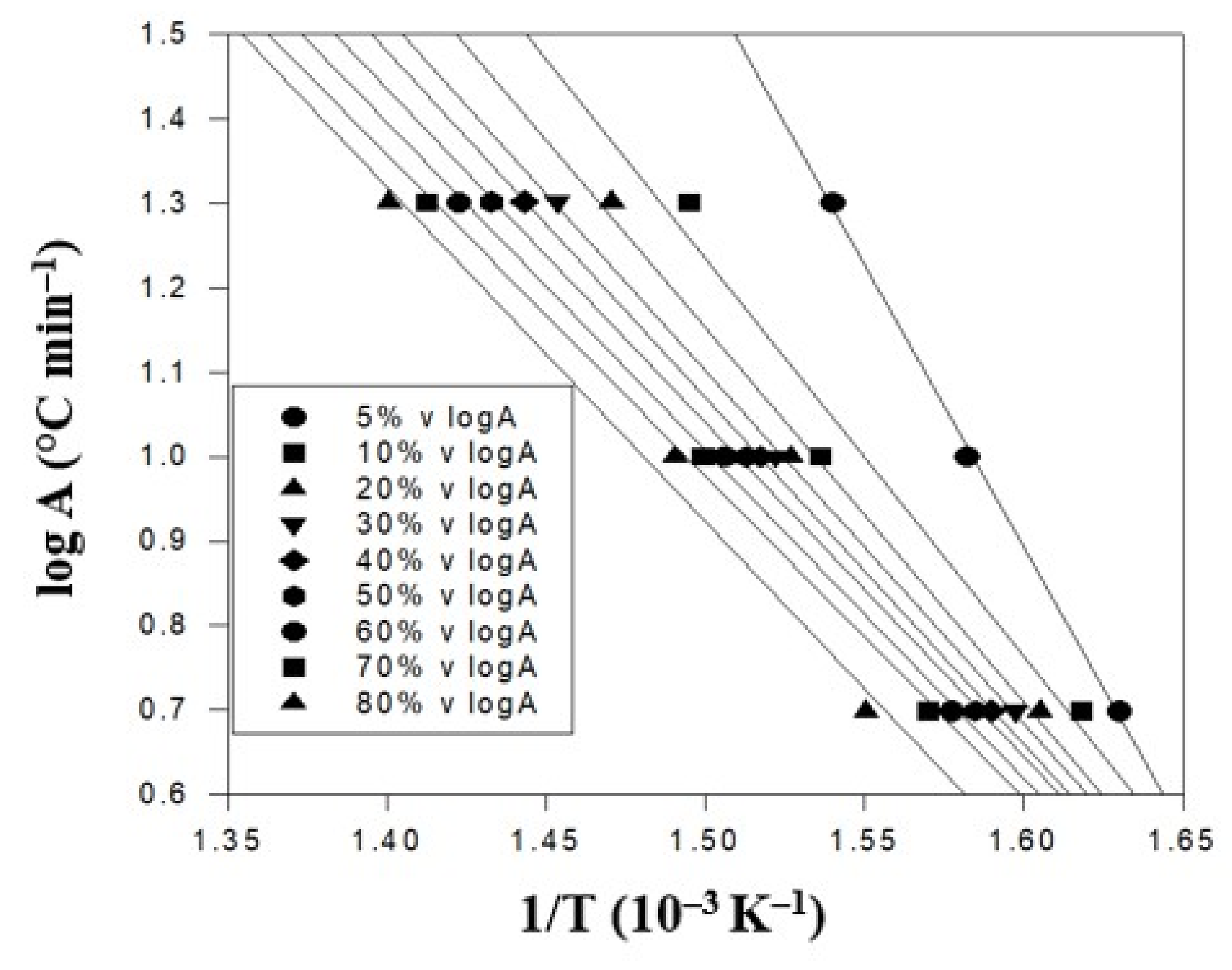

Figure 5. TGA thermal degradation analysis results of the PBT–EVOH polymer composite film using no triallylamine crosslinking agent.
Figure 5. TGA thermal degradation analysis results of the PBT–EVOH polymer composite film using no triallylamine crosslinking agent.
Polymers 14 00537 g005
Polymers 14 00537 g006 550

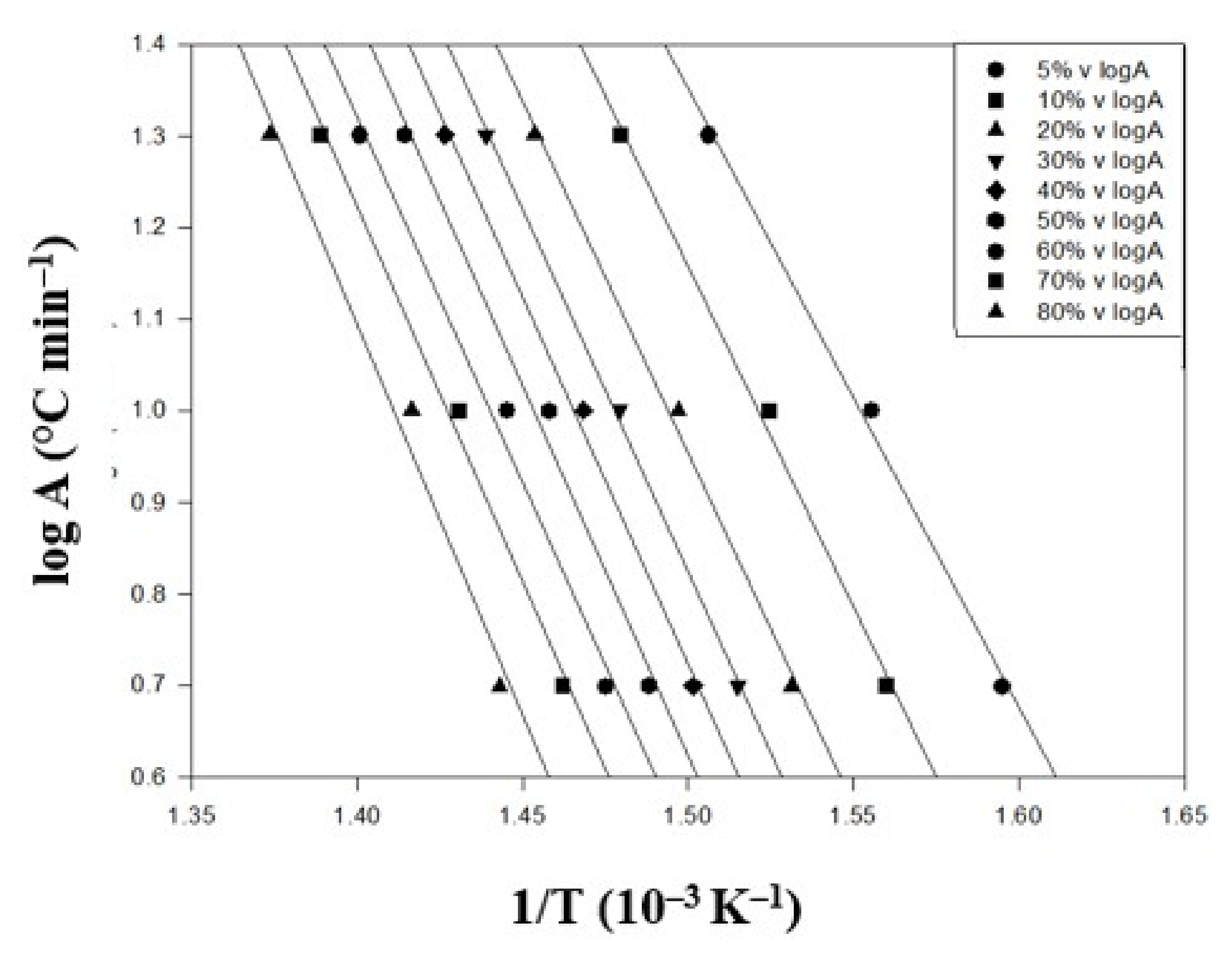

Figure 6. TGA thermal degradation analysis results of the PBT–EVOH polymer composite film using 0.2% triallylamine crosslinking agent.
Figure 6. TGA thermal degradation analysis results of the PBT–EVOH polymer composite film using 0.2% triallylamine crosslinking agent.
Polymers 14 00537 g006
Polymers 14 00537 g007 550

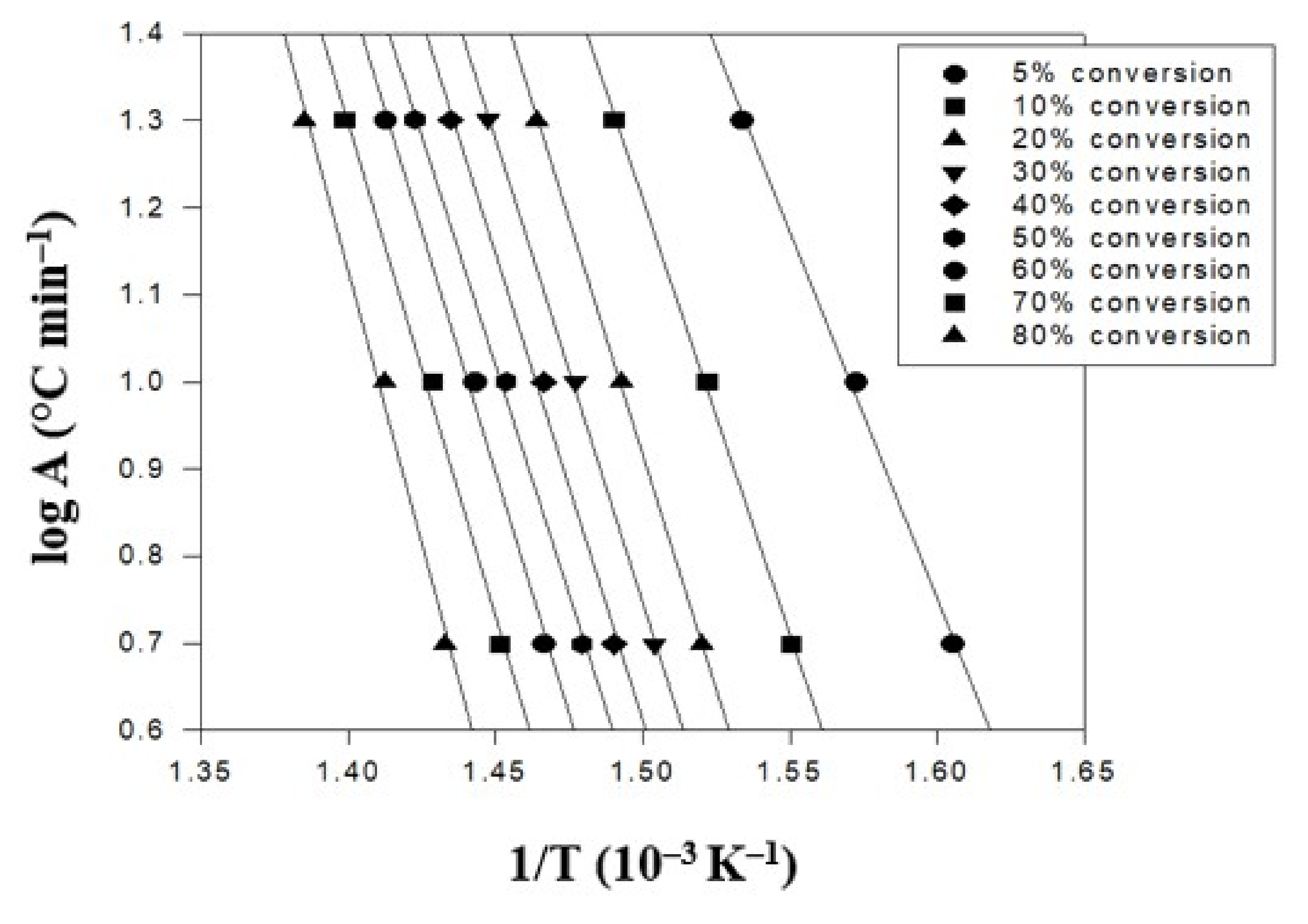

Figure 7. TGA thermal degradation analysis results of the PBT–EVOH polymer composite film using 1.5% triallylamine crosslinking agent.
Figure 7. TGA thermal degradation analysis results of the PBT–EVOH polymer composite film using 1.5% triallylamine crosslinking agent.
Polymers 14 00537 g007
Polymers 14 00537 g008 550

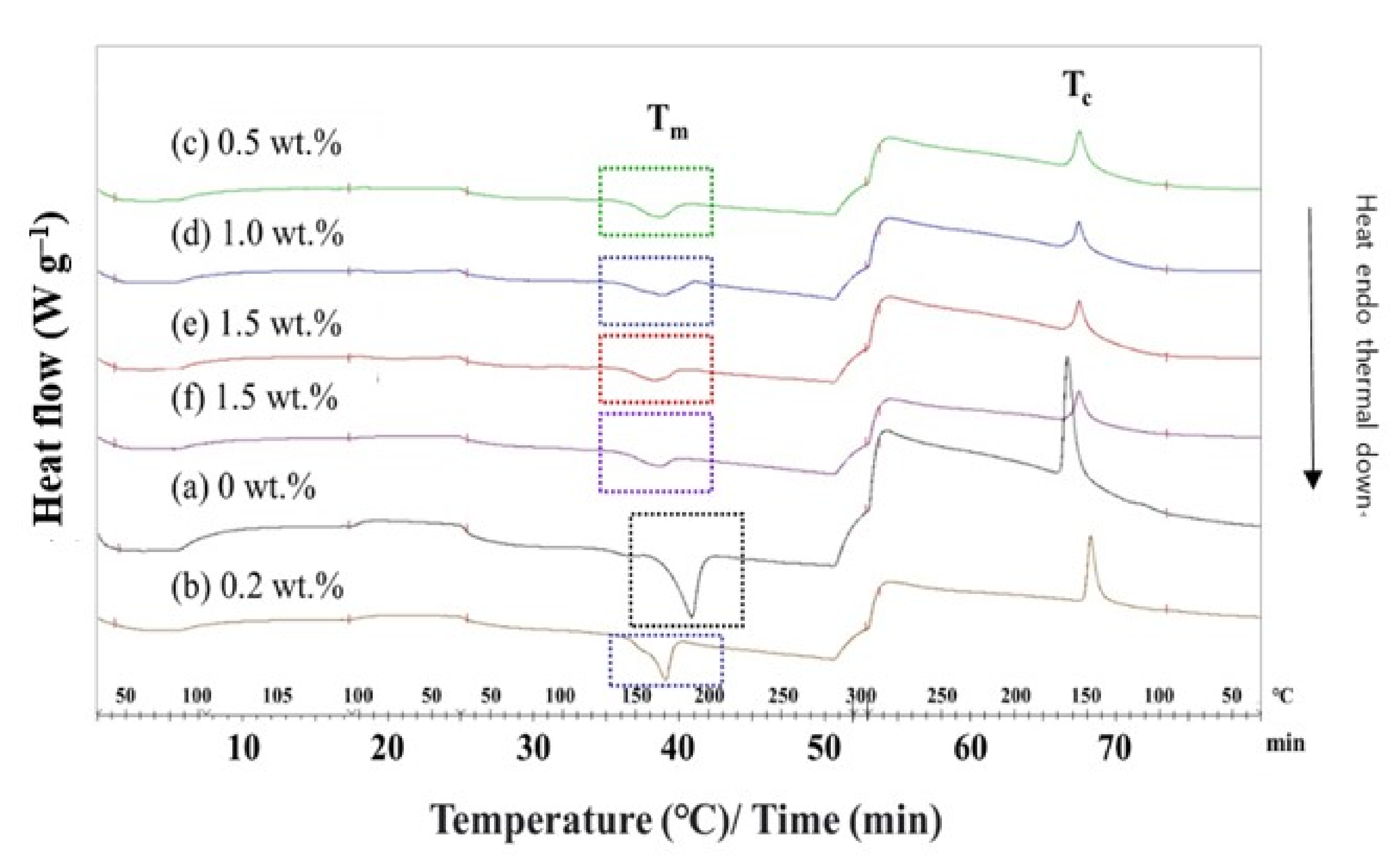

Figure 8. DSC thermal calorimetry scans of the PBT–EVOH polymer composite film.
Figure 8. DSC thermal calorimetry scans of the PBT–EVOH polymer composite film.
Polymers 14 00537 g008
Polymers 14 00537 g009 550

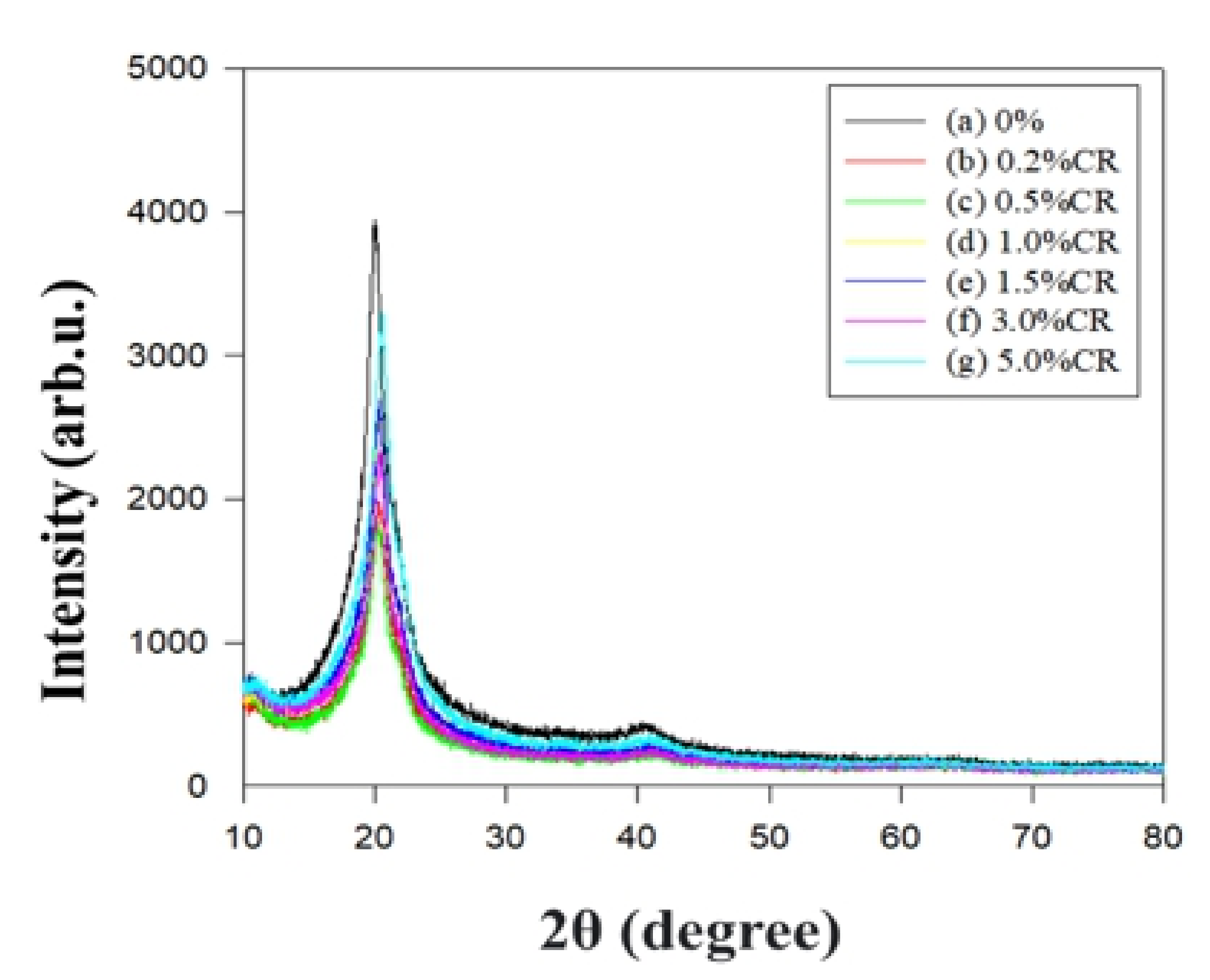

Figure 9. X-ray diffraction (XRD) scans of the PBT–EVOH polymer composite films.
Figure 9. X-ray diffraction (XRD) scans of the PBT–EVOH polymer composite films.
Polymers 14 00537 g009
Table
Table 1. The corresponding thermal analysis results of the PBT–EVOH polymer composite film using no triallylamine crosslinking agent.
Table 1. The corresponding thermal analysis results of the PBT–EVOH polymer composite film using no triallylamine crosslinking agent.
Conversion
(%)		Heating Rate (°C/min)Ea (kJ/mol)SlopeR2
51020
T (°C)
533935937621111.580.999
103453783961518.300.965
203503824071427.800.991
303533844151347.370.999
403563864201317.220.999
503583884251276.970.999
603613914301246.830.998
703643944351226.690.996
803723984411256.870.997
R2 is correlation coefficient.
Table
Table 2. The corresponding thermal analysis results of the 0.2%-triallylamine-crosslinking PBT–EVOH polymer composite film.
Table 2. The corresponding thermal analysis results of the 0.2%-triallylamine-crosslinking PBT–EVOH polymer composite film.
Conversion
(%)		Heating Rate (°C/min)Ea (kJ/mol)SlopeR2
51020
T (°C)
535437039120911.470.996
1036838340322412.290.995
2038039541522712.490.995
3038740342223012.650.999
4039340842823212.720.995
5039941343423212.760.990
6040541944122812.510.990
7041142644723112.680.993
8042043345523713.030.982
R2 is correlation coefficient.
Table
Table 3. The corresponding thermal analysis results of the 1.5%-triallylamine-crosslinking PBT–EVOH polymer composite film.
Table 3. The corresponding thermal analysis results of the 1.5%-triallylamine-crosslinking PBT–EVOH polymer composite film.
Conversion
(%)		Heating Rate (°C/min)Ea (kJ/mol)SlopeR2
51020
T (°C)
535036337925914.210.998
1037238439829616.260.999
2038539741031217.150.999
3039240441830416.690.999
4039840942430516.760.994
5040341543029716.340.997
6040942043531017.010.994
7041642744231317.170.994
8042543544934018.690.993
R2 is correlation coefficient.
Table
Table 4. Ionic conductivity analysis results of the PBT–EVOH polymer composite electrolyte membranes.
Table 4. Ionic conductivity analysis results of the PBT–EVOH polymer composite electrolyte membranes.
Triallylamine Content
(%)		Time (h)L (cm)Rb (Ω)Area (cm2)σ (S cm−1)
0.0240.009715.781.294.77 × 10−4
0.2240.01064.671.291.76 × 10−3
1.5240.01059.741.298.36 × 10−4
0.0480.01001.881.294.12 × 10−3
0.2480.01081.971.294.25 × 10−3
1.5480.00951.461.295.04 × 10−3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
