# A Study of the Flexural Properties of PA12/Clay Nanocomposites

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Materials

^{3}according to DIN53466 0.435- [31].

#### 2.2. Design of Experiment

^{3}factorial points, 2 × 3 axial points, and 5 center points (Table 1).

#### 2.3. Preparation of Specimens

#### 2.4. Morphological and Structural Characterization

#### 2.5. Determination of Flexural Properties of PA12/Clay Nanocomposites

_{1}= 5 mm ± 0.1 mm and R

_{2}= 2 mm ± 0.2 mm were used for a test specimen with a thickness ≤ 3 mm, h = 2 mm, width of b = 25 mm, and length of l = 40 mm [37].

_{fM}is the maximum flexural stress that can be sustained by the test specimen during a bending test. This can be calculated using the equation:

_{fM}(MPa) is the maximum flexural stress, F

_{M}(N) is the maximum applied force, L (mm) is the span between supports (32 mm), b (mm) is the width of the specimen, and h (mm) is the thickness of the specimen.

_{f}is the ratio of the stress difference σ

_{f2}–σ

_{f1}to the corresponding strain difference, ε

_{f2}(= 0.25%)–ε

_{f1}(= 0.05%). It can be calculated using the equation:

_{f1}(MPa) is the flexural stress at deflection S

_{1}, σ

_{f2}(MPa) is the flexural stress at deflection S

_{2}, and ε

_{f}is the flexural strain (ε

_{f2}= 0.0025, ε

_{f1}= 0.0005).

_{1}and S

_{2}corresponding to values of the flexural strain of ε

_{f1}and ε

_{f1}can be calculated using the equation:

_{i}(mm) is the deflection and ε

_{fi}is the corresponding flexural strain.

## 3. Results and Discussion

#### 3.1. Characterization of Nanocomposite Structure

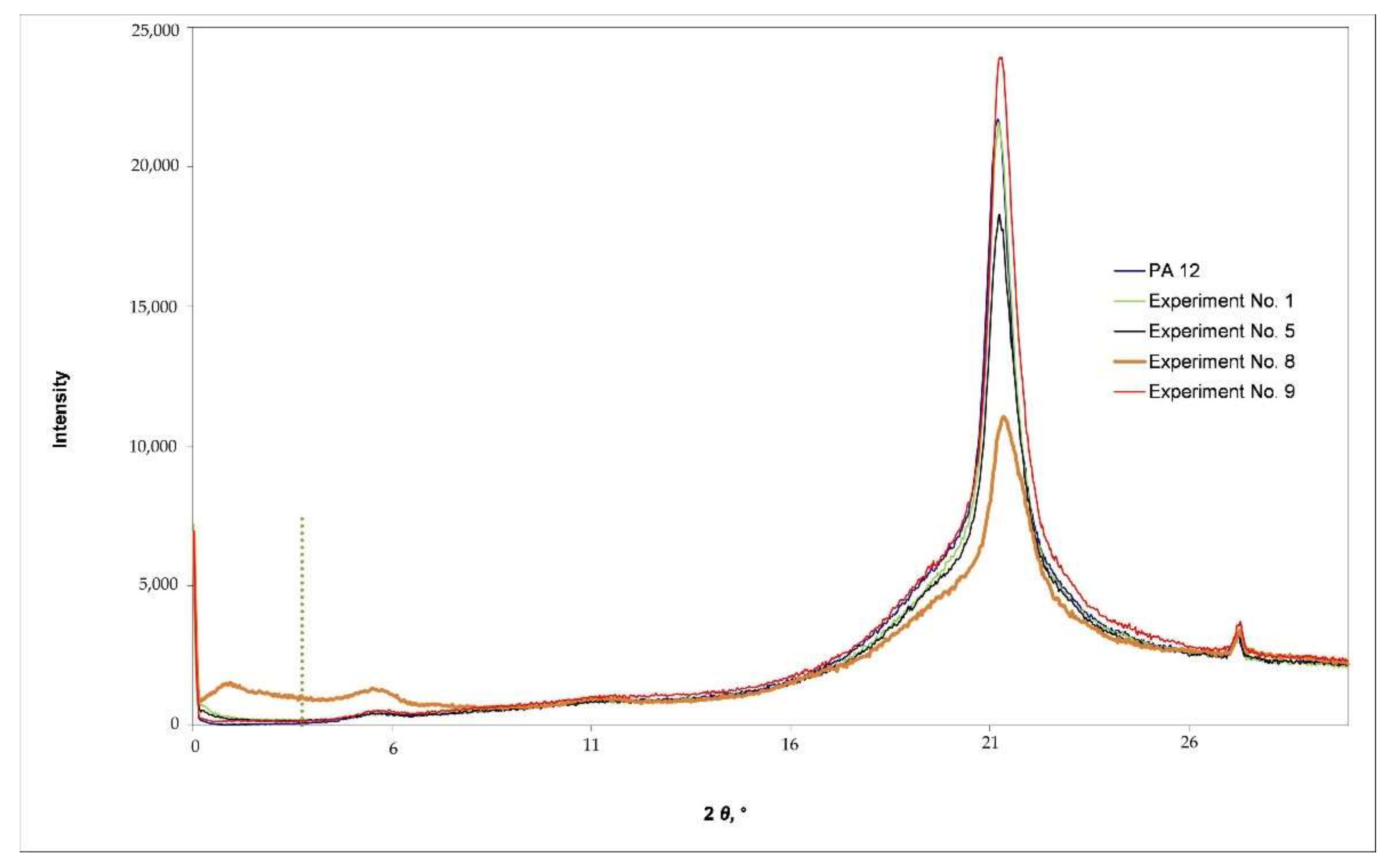

_{001}and indicate the exfoliation of nanofiller in the polymer matrix [2,7,24]. However, since the absence of diffraction maximum could also indicate the agglomeration of nanofiller, the microstructure of the specimens was additionally evaluated using SEM microscopy.

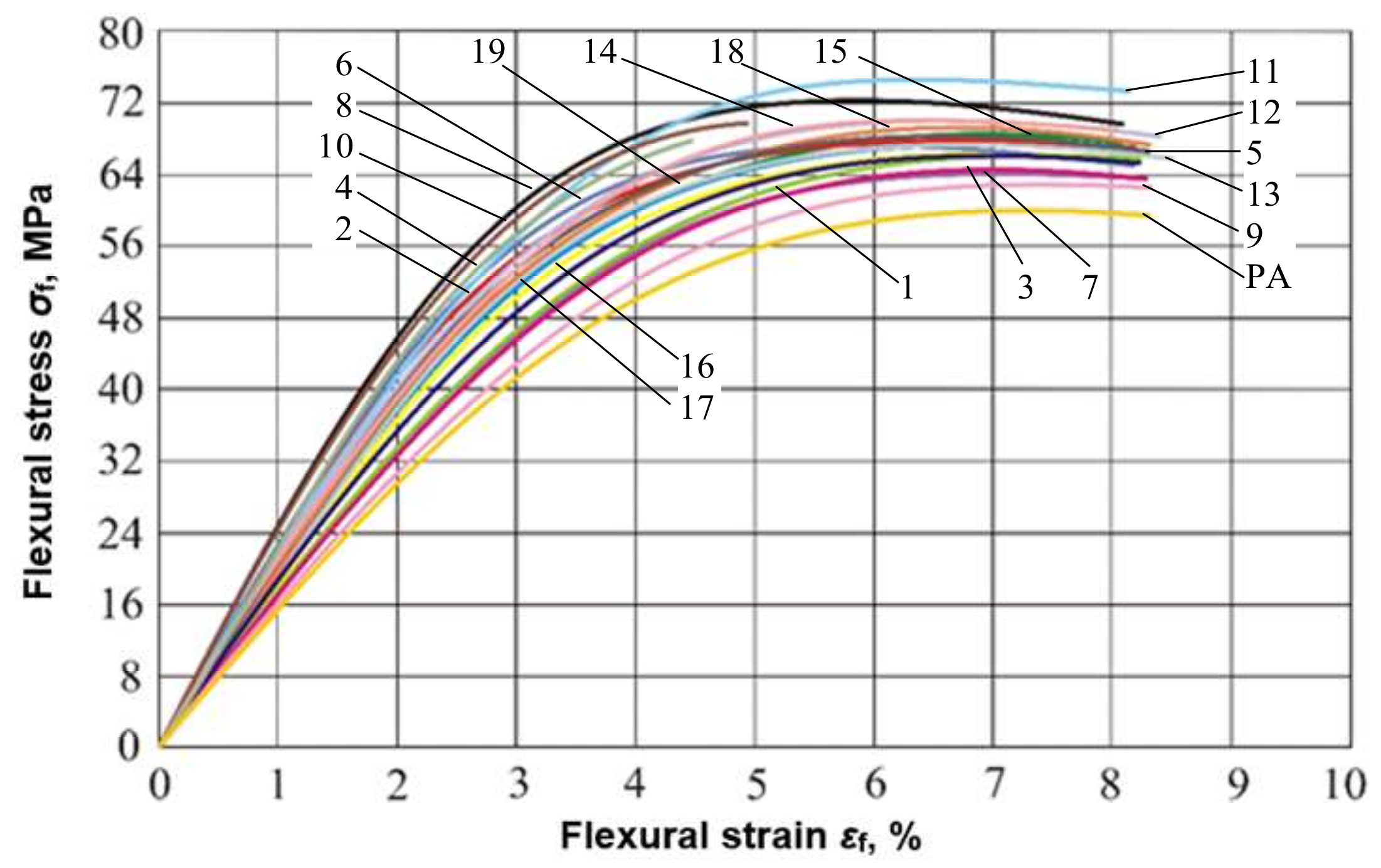

#### 3.2. Flexural Properties of PA12/Clay Nanocomposites

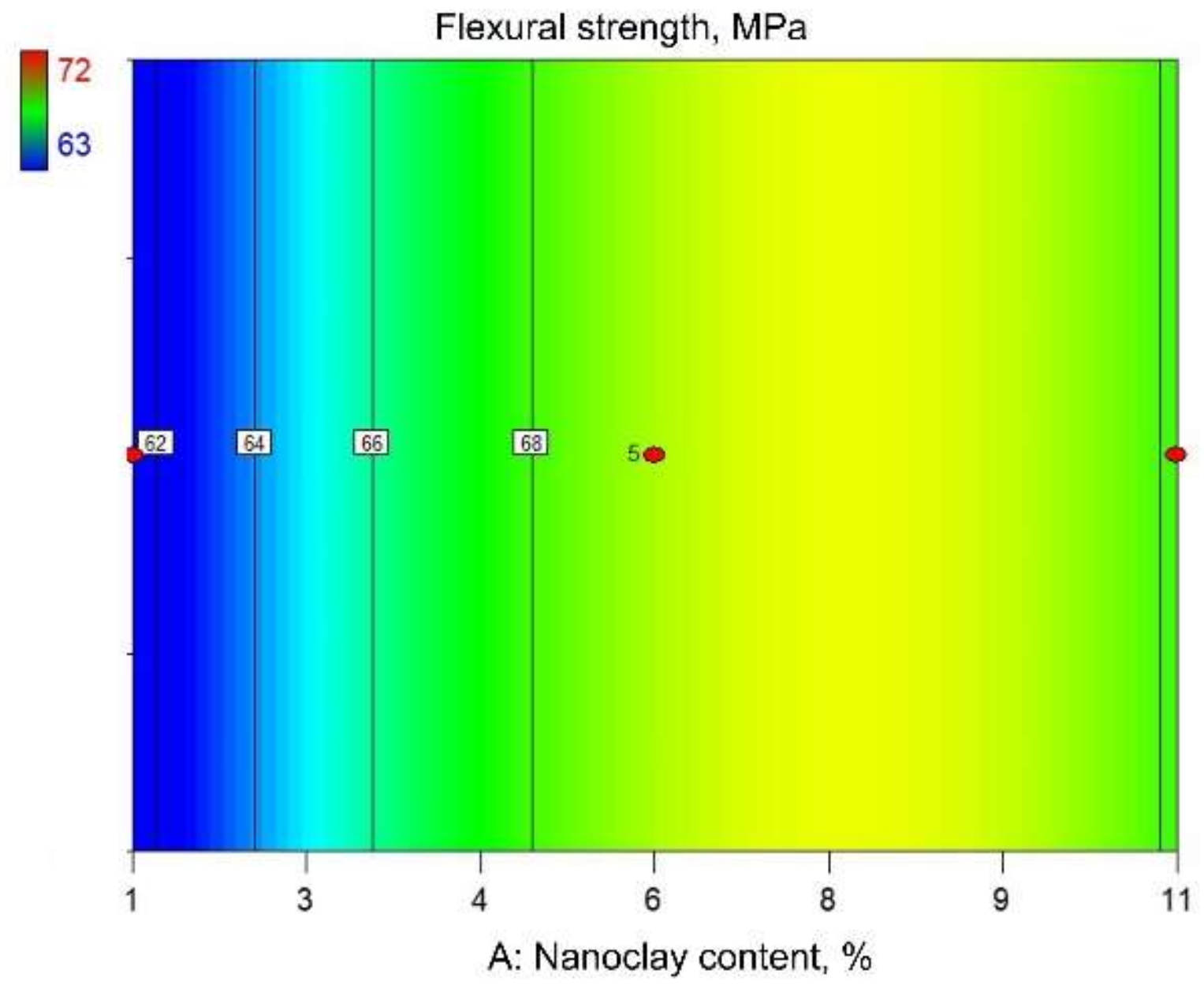

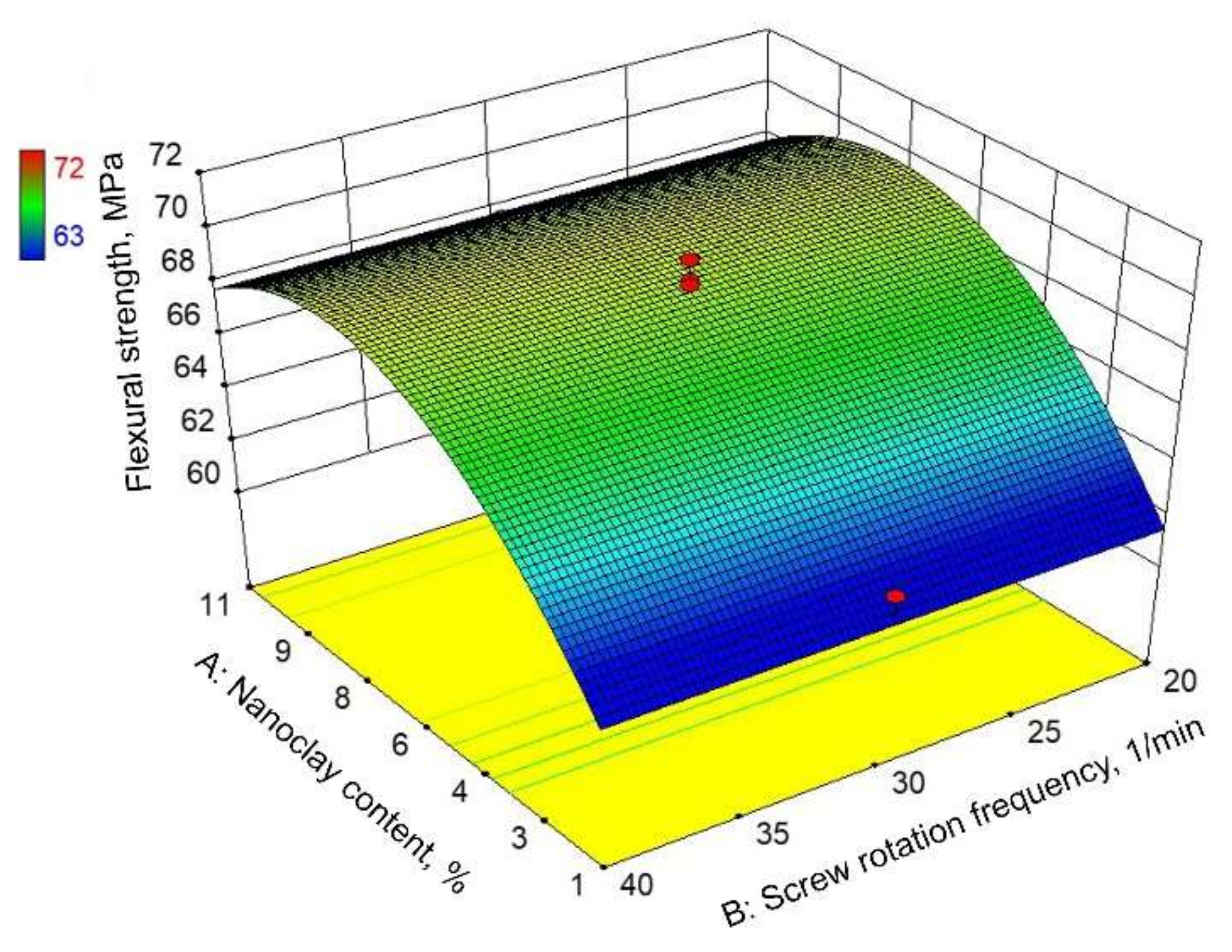

#### 3.2.1. Flexural Strength

^{2}are less than 0.05, meaning that they are statistically significant (have considerable effects on the response). Variables B, C, AB. AC, BC, B

^{2}, and C

^{2}with p-values greater than 0.05 are not significant and could be excluded from the model. The lack of fit for the model is not significant (p-value = 0.65 is greater than 0.05) and implies that the proposed model fits the experimental data. The coefficient of determination is 0.83.

^{2}are statistically significant (p-values are less than 0.05). The lack of fit for the model is not significant (p-value of 0.62 is greater than 0.05) and implies that the proposed model fits the experimental data. The coefficient of determination is 0.67. Based on the obtained results, an expression showing functional correlation between the flexural strength of PA12/clay nanocomposite and the content of nanoclay was established:

^{2}

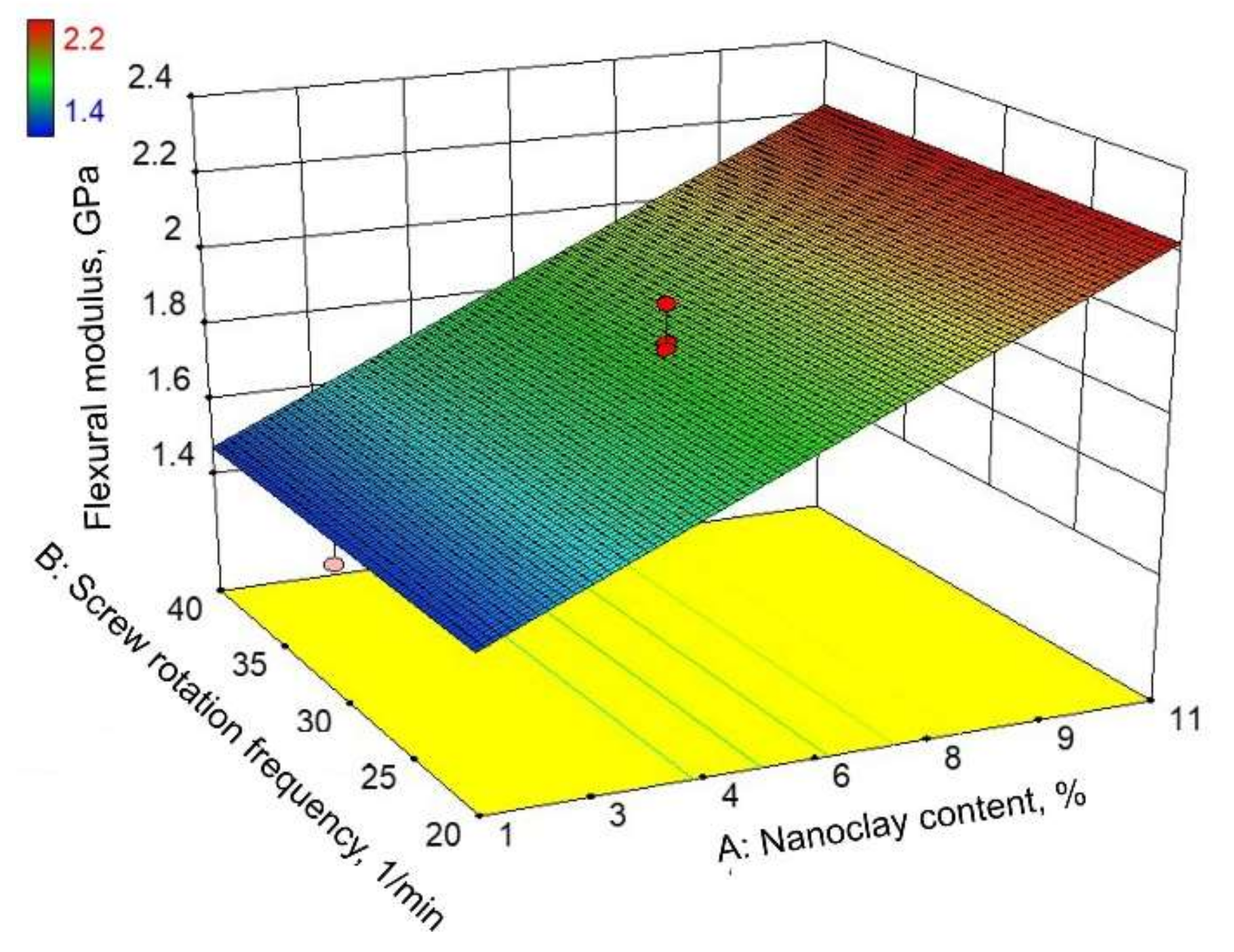

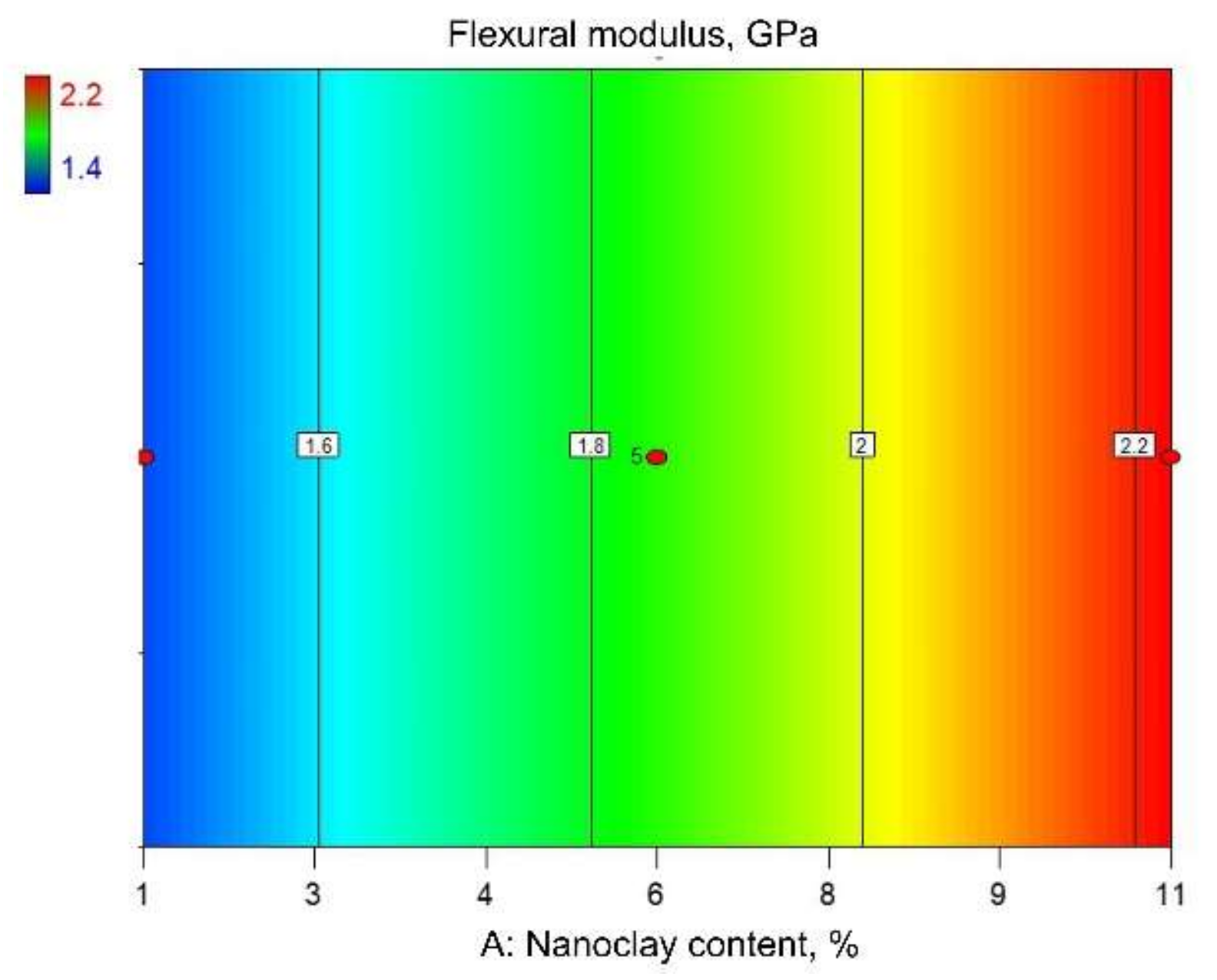

#### 3.2.2. Flexural Modulus

**<**0.0001) indicates that at least one of the three regression variables have a regression coefficient unequal to zero—i.e., they have a correlation with the dependent variable. The p-value for variable A is less than 0.05 and is statistically significant (has a considerable effect on the response). Variables B and C have p-values greater than 0.05, meaning that they are not significant and could be excluded from the model. The lack of fit for the model is not significant (p-value of 0.76 is greater than 0.05) and implies that the proposed model fits the experimental data. The coefficient of determination is 0.76.

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Ceritbinmez, F.; Yapici, A. An investigation of punching the MWCNTs doped composite plates by using different cutting profiles. Teh. Vjesn. Tehnički Vjesnik
**2021**, 28, 385–390. [Google Scholar] - Ivanković, M. Polimerni nanokompoziti. Polimerin
**2007**, 28, 156–167. [Google Scholar] - Manias, E.; Polizos, G.; Nakajima, H.; Heidecker, M.J. Fundamentals of Polymer Nanocomposite Technology; John Wiley & Sons: Hoboken, NJ, USA, 2007. [Google Scholar]
- Triaki, M.; Benmounah, A.; Zenati, A. Investigation on improving properties of polypropylene-based nanocomposites by employing Algerian nanoclay. Polym. Bull.
**2021**, 78, 3275–3292. [Google Scholar] [CrossRef] - Dagmar, M.; Alice, T.; Alena, K. Polyethylene/Ethylene vinyl acetate and ethylene octene copolymer/clay nanocomposite films: Different processing conditions and their effect on properties. Pol. Eng. Sci.
**2019**, 59, 2514–2521. [Google Scholar] [CrossRef] - Follain, N.; Alexandre, B.; Chappey, C.; Colasse, L.; Médéric, P.; Marais, S. Barrier properties of polyamide 12/montmorillonite nanocomposites: Effect of clay structure and mixing conditions. Compos. Sci. Technol.
**2016**, 136, 18–28. [Google Scholar] [CrossRef] - Borić, A.; Kalendová, A.; Urbanek, M.; Pepelnjak, T. Characterisation of polyamide (PA)12 nanocomposites with montmorillonite (MMT) filler clay used for the incremental forming of sheets. Polymers
**2019**, 11, 1248. [Google Scholar] [CrossRef] [PubMed] - Pavlidou, S.; Papaspyrides, C.D. A review on polymer-layered silicate nanocomposites. Prog. Polym. Sci.
**2008**, 33, 1119–1198. [Google Scholar] [CrossRef] - Chin, I.J.; Thurn-Albrecht, T.; Kim, H.C.; Russell, T.P.; Wang, J. On exfoliation of montmorillonite in epoxy. Polymer
**2001**, 42, 5947–5952. [Google Scholar] [CrossRef] - Giannopoulos, G.I.; Georgantzinos, S.K.; Tsiamaki, A.; Anifantis, N. Combining FEM and MD to simulate C60/PA-12 nanocomposites. Int. J. Struct. Integr.
**2009**, 10, 380–392. [Google Scholar] [CrossRef] - Giannopoulos, G.I. Linking MD and FEM to predict the mechanical behaviour of fullerene reinforced nylon-12. Compos. Part B Eng.
**2019**, 161, 455–463. [Google Scholar] [CrossRef] - Yang, Y.-K.; Shie, J.-R.; Yang, R.-T.; Chang, H.-A. Optimization of injection molding process for contour distortions of polypropylene composite components via design of experiments method. J. Reinf. Plast. Compos.
**2006**, 25, 1585–1599. [Google Scholar] [CrossRef] - Mulenga, T.K.; Ude, A.U.; Vivekanandhan, C. Techniques for modelling and optimizing the mechanical properties of natural fiber composites: A review. Fibers
**2021**, 9, 6. [Google Scholar] [CrossRef] - Samuel, B.O.; Sumaila, M.; Dan-Asabe, B. Manufacturing of a natural fiber/glass fiber hybrid reinforced polymer composite (PxGyEz) for high flexural strength: An optimization approach. Int. J. Adv. Manuf. Technol.
**2021**, 117, 1–12. [Google Scholar] [CrossRef] - Aydar, A.Y. Utilization of response surface methodology in optimization of extraction of plant materials. In Statistical Approaches with Emphasis on Design of Experiments Applied to Chemical Processes; BoD – Books on Demand: Norderstedt, Germany, 2018; pp. 157–169. [Google Scholar] [CrossRef][Green Version]
- Nooraziah, A.; Tiagrajah, V.J. A study on regression model using response surface methodology. Appl. Mech. Mater.
**2014**, 666, 235–239. [Google Scholar] [CrossRef] - Choi, C.-W.; Jin, J.-W.; Lee, H.; Huh, M.; Kang, K.-W. Optimal polymerization conditions in thermoplastic-resin transfer molding process for mechanical properties of carbon fiber-reinforced PA6 composites using the response surface method. Fiber. Polym.
**2019**, 20, 1021–1028. [Google Scholar] [CrossRef] - Pragasam, V.; Degalahal, M.R. Investigation on flexural strength of cellulose microfibrils reinforced polymer composite. Emerg. Mater. Res.
**2020**, 9, 1–12. [Google Scholar] [CrossRef] - Athijayamani, A.; Stalin, B.; Sidhardhan, S.; Boopathi, C. Parametric analysis of mechanical properties of bagasse fiber-reinforced vinyl ester composites. J. Compos. Mater.
**2015**, 50, 481–493. [Google Scholar] [CrossRef] - Ozcelik, B.; Ozbay, A.; Demirbas, E. Influence of injection parameters and mold materials on mechanical properties of ABS in plastic injection molding. Int. Commun. Heat Mass Transf.
**2010**, 37, 1359–1365. [Google Scholar] [CrossRef] - Benkhelladi, A.; Laouici, H.; Bouchoucha, A. Tensile and flexural properties of polymer composites reinforced by flax, jute and sisal fibres. Int. J. Adv. Manuf. Technol.
**2010**, 108, 895–916. [Google Scholar] [CrossRef] - Kumar, P.K.; Raghavendra, N.V.; Sridhara, B.K. Effect of infrared cure parameters on the mechanical properties of polymer composite laminates. J. Compos. Mater.
**2011**, 46, 549–556. [Google Scholar] [CrossRef] - Kunnan Singh, J.; Ching, Y.; Abdullah, L.; Ching, K.; Razali, S.; Gan, S. Optimization of mechanical properties for polyoxymethylene/glass fiber/polytetrafluoroethylene composites using response surface methodology. Polymers
**2018**, 10, 338. [Google Scholar] [CrossRef][Green Version] - Paul, D.R.; Robeson, L.M. Polymer nanotechnology. Nanocompos. Polymer
**2008**, 49, 3187–3204. [Google Scholar] [CrossRef][Green Version] - Dennis, H.R.; Hunter, D.L.; Chang, D.; Kim, S.; White, J.L.; Cho, J.W.; Paul, D.R. Effect of melt processing conditions on the extent of exfoliation in organoclay-based nanocomposites. Polymer
**2001**, 42, 9513–9522. [Google Scholar] [CrossRef] - Nanni, A.; Parisi, M.; Colonna, M.; Messori, M. Thermo-mechanical and morphological properties of polymer composites rein-forced by natural fibers derived from wet blue leather wastes: A comparative study. Polymers
**2021**, 13, 1837. [Google Scholar] [CrossRef] [PubMed] - Aldousiri, B.; Dhakal, H.N.; Onuh, S.; Zhang, Z.Y.; Bennett, N. Nanoindentation behaviour of layered silicate filled spent polyamide-12 nanocomposites. Polym. Test
**2011**, 30, 688–692. [Google Scholar] [CrossRef] - Hoffmann, B.; Kressler, J.; Stöppelmann, G.; Friedrich, C.; Kim, G.-M. Rheology of nanocomposites based on layered silicates and polyamide-12. Colloid Polym. Sci.
**2000**, 278, 629–636. [Google Scholar] [CrossRef] - Aït Hocine, N.; Médéric, P.; Aubry, T. Mechanical properties of polyamide-12 layered silicate nanocomposites and their relations with structure. Polym. Test
**2008**, 27, 330–339. [Google Scholar] [CrossRef] - Hassan, H.; Aït Hocine, N.; Médéric, P.; Deffarges, M.-P.; Poirot, N. Thermal and mechanical properties of PA12/C30B nanocomposites in relationship with nanostructure. J. Appl. Polym. Sci.
**2015**, 132. [Google Scholar] [CrossRef] - EOS Polyamide 12 for 3D Printing. Available online: https://www.eos.info/en/additive-manufacturing/3d-printing-plastic/sls-polymer-materials/polyamide-pa-12-alumide (accessed on 20 November 2021).
- MatWeb Material Property Data. Available online: http://www.matweb.com/search/datasheet.aspx?MatGUID=3181d0899a0b46a592eb37c47f0f841b&ckck=1 (accessed on 20 November 2021).
- Brabender Simulation in Laboratory and Compounding. Available online: http://www.brabender.com/english/plastics/products/extruders/twin-screw-extruders/docking-station.html (accessed on 20 October 2021).
- Brabender Simulation in Laboratory and Compounding. Available online: https://www.brabender.com/en/chemical/products/extrusion/downstream-equipment/convey-cool-pelletize/conveyor-belt/ (accessed on 20 October 2021).
- Brabender Simulation in Laboratory and Compounding. Available online: https://www.brabender.com/en/chemical/products/extrusion/downstream-equipment/convey-cool-pelletize/pelletizer/ (accessed on 20 October 2021).
- Teixeira, D.; Giovanela, M.; Gonella, L.B.; Crespo, J.S. Influence of injection molding on the flexural strength and surface quality of long glass fiber-reinforced polyamide 6.6 composites. Mater. Des.
**2015**, 85, 695–706. [Google Scholar] [CrossRef] - HRN EN ISO 178:2019; Plastics—Determination of Flexural Properties. ISO: Geneva, Switzerland, 2019.
- Zhao, F.; Bao, X.; McLauchlin, A.R.; Gu, J.; Wan, C.; Kandasubramanian, B. Effect of POSS on morphology and mechanical properties of polyamide 12/montmorillonite nanocomposites. Appl. Clay Sci.
**2010**, 47, 249–256. [Google Scholar] [CrossRef] - McNally, T.; Raymond Murphy, W.; Lew, C.Y.; Turner, R.J.; Brennan, G.P. Polyamide-12 layered silicate nanocomposites by melt blending. Polymer
**2003**, 44, 2761–2772. [Google Scholar] [CrossRef] - Kundu, S.; Jana, P.; De, D.; Roy, M. SEM image processing of polymer nanocomposites to estimate filler content. In Proceedings of the 2015 IEEE International Conference on Electrical, Computer and Communication Technologies (ICECCT), Coimbatore, India, 5–7 March 2015. [Google Scholar] [CrossRef]

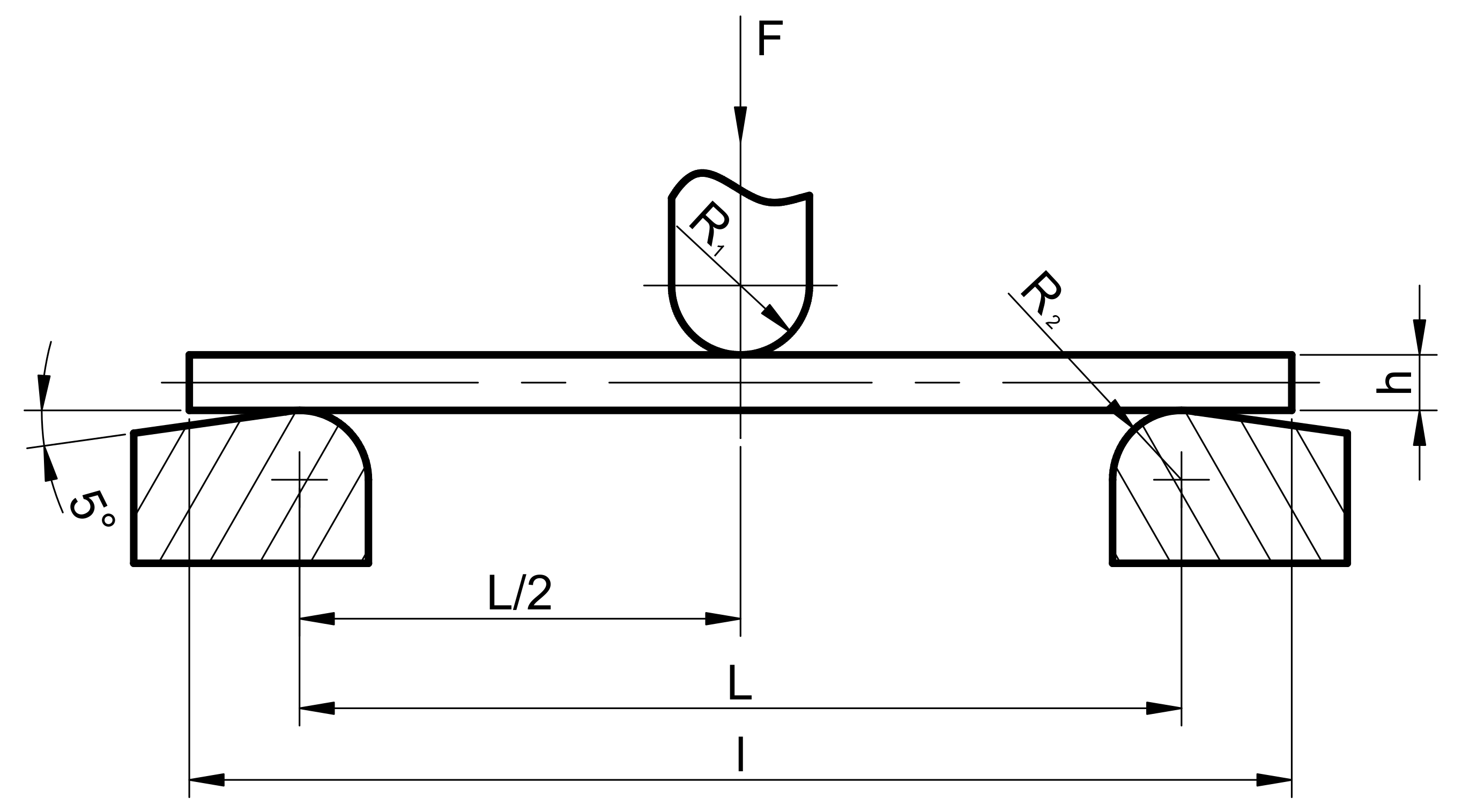

**Figure 1.**Position of test specimen at the start of the test [37].

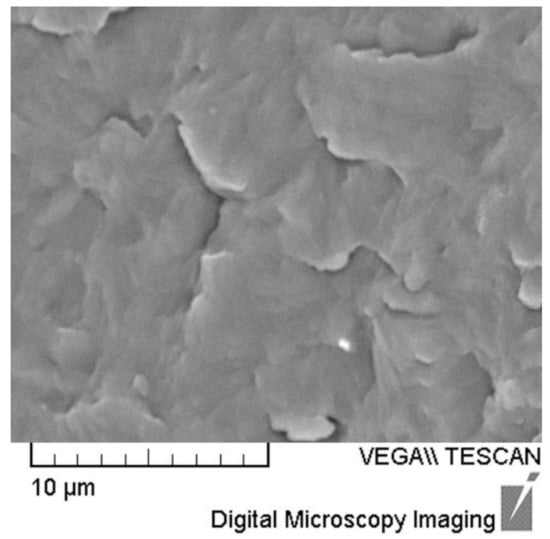

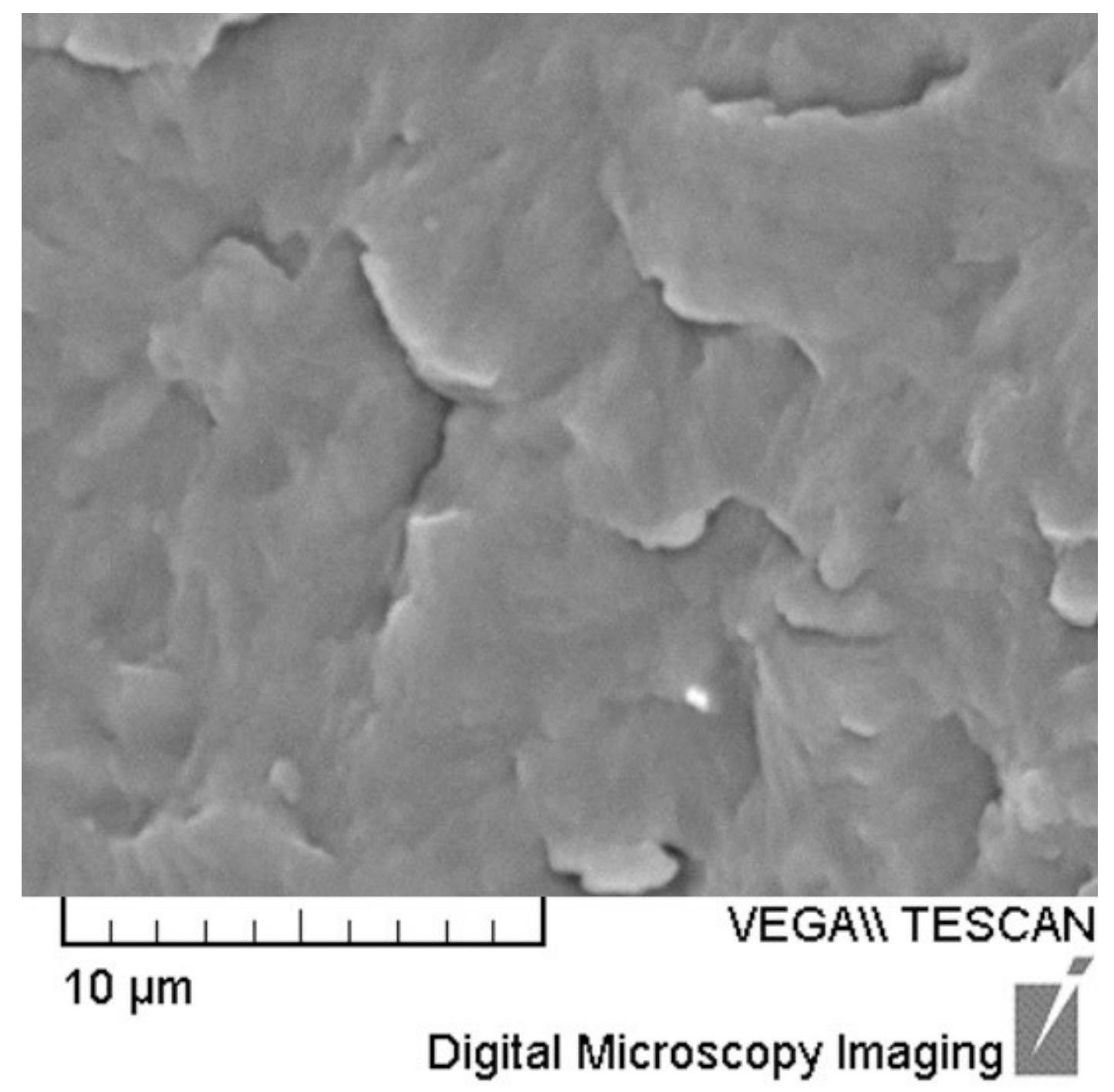

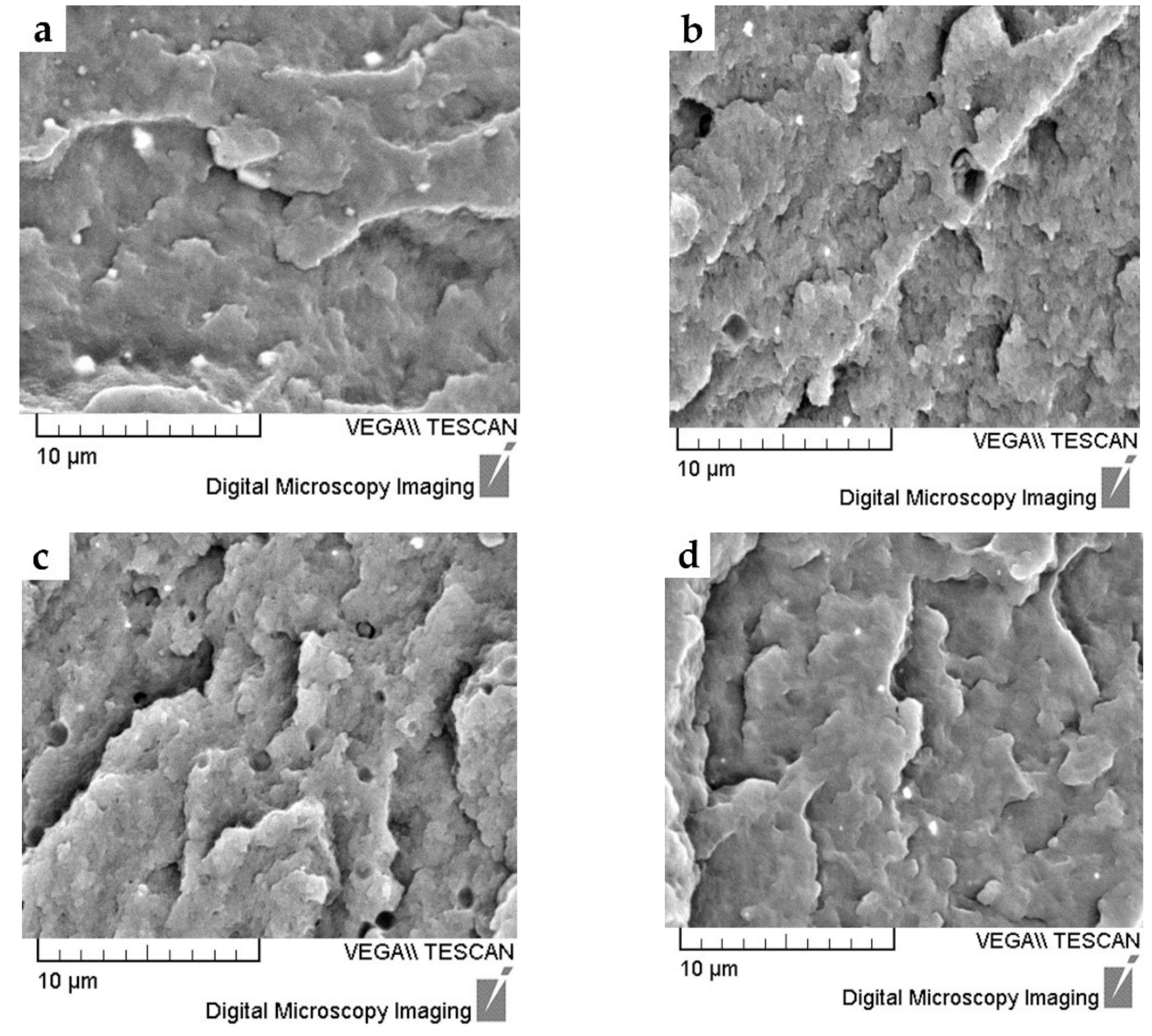

**Figure 3.**SEM micrographs of (

**a**) specimens made according to experiment No. 1, (

**b**) specimens made according to experiment No. 5, (

**c**) specimens made according to experiment No. 8, and (

**d**) specimens made according to experiment No. 9.

Experiment No./Point of the Experiment | A: Nanoclay Content, % | B: Screw Rotation Frequency, min^{−1} | C: Mixing Temperature, °C |
---|---|---|---|

1/factorial point | 3 | 20 | 210 |

2/factorial point | 9 | 20 | 210 |

3/factorial point | 3 | 40 | 210 |

4/factorial point | 9 | 40 | 210 |

5/factorial point | 3 | 20 | 230 |

6/factorial point | 9 | 20 | 230 |

7/factorial point | 3 | 40 | 230 |

8/factorial point | 9 | 40 | 230 |

9/axial point | 0.95 | 30 | 220 |

10/axial point | 11.05 | 30 | 220 |

11/axial point | 6 | 13.18 | 220 |

12/axial point | 6 | 46.82 | 220 |

13/axial point | 6 | 30 | 203.18 |

14/axial point | 6 | 30 | 236.82 |

15/center point | 6 | 30 | 220 |

16/center point | 6 | 30 | 220 |

17/center point | 6 | 30 | 220 |

18/center point | 6 | 30 | 220 |

19/center point | 6 | 30 | 220 |

Extruder type | Twin-screw, counter-rotating |

Screw diameter D | 42 mm |

Length/diameter ratio L/D | 6 |

Operating temperature max. | 350 °C |

Conveyor belt speed | 0.6 to 6 m/min |

Strand diameter | 1 to 4 mm |

Pellet length | 3 mm |

Strand pelletizer speed | 0.5 to 15 m/min |

Experiment No. | A: Nanoclay Content, % | B: Screw Rotation Frequency, min^{−1} | C: Mixing Temperature, °C | Flexural Strength σ_{fM}, MPa | Flexural Modulus E_{f}, GPa |
---|---|---|---|---|---|

1 | 3 | 20 | 210 | 65.6 | 1.7 |

2 | 9 | 20 | 210 | 67.9 | 2.0 |

3 | 3 | 40 | 210 | 64.4 | 1.6 |

4 | 9 | 40 | 210 | 68.5 | 2.0 |

5 | 3 | 20 | 230 | 66.2 | 1.7 |

6 | 9 | 20 | 230 | 68.7 | 2.2 |

7 | 3 | 40 | 230 | 63.8 | 1.5 |

8 | 9 | 40 | 230 | 72.2 | 2.2 |

9 | 0.95 | 30 | 220 | 62.5 | 1.4 |

10 | 11.05 | 30 | 220 | 67.6 | 2.1 |

11 | 6 | 13.18 | 220 | 71.9 | 1.9 |

12 | 6 | 46.82 | 220 | 70.1 | 2.0 |

13 | 6 | 30 | 203.18 | 68.6 | 1.9 |

14 | 6 | 30 | 236.82 | 69.8 | 1.9 |

15 | 6 | 30 | 220 | 69.4 | 1.6 |

16 | 6 | 30 | 220 | 67.3 | 1.9 |

17 | 6 | 30 | 220 | 70.1 | 2.0 |

18 | 6 | 30 | 220 | 69.2 | 1.9 |

19 | 6 | 30 | 220 | 66.1 | 1.7 |

PA12 | 60.7 | 1.4 |

Source | Sum of Squares | Degrees of Freedom df | Mean Square | F Value | p-Value |
---|---|---|---|---|---|

Model | 101.68 | 9 | 11.30 | 4.85 | 0.01 |

A—Nanoclay content | 48.82 | 1 | 48.82 | 20.94 | 0.001 |

B—Screw rotation frequency | 0.50 | 1 | 0.50 | 0.21 | 0.66 |

C—Mixing temperature | 3.11 | 1 | 3.11 | 1.34 | 0.28 |

AB | 7.18 | 1 | 7.18 | 3.08 | 0.11 |

AC | 2.62 | 1 | 2.62 | 1.12 | 0.32 |

BC | 0.34 | 1 | 0.34 | 0.15 | 0.71 |

A^{2} | 28.79 | 1 | 28.79 | 12.35 | 0.01 |

B^{2} | 5.57 | 1 | 5.57 | 2.39 | 0.16 |

C^{2} | 0.0009 | 1 | 0.0009 | 0.0004 | 0.99 |

Residual | 20.98 | 9 | 2.33 | ||

Lack of fit | 9.76 | 5 | 1.95 | 0.70 | 0.65 |

Pure error | 11.21 | 4 | 2.80 | ||

Cor total | 122.7 | 18 |

Source | Sum of Squares | Degrees of Freedom df | Mean Square | F Value | p-Value |
---|---|---|---|---|---|

Model | 82.24 | 2 | 41.12 | 16.28 | 0.0001 |

A—Nanoclay content | 48.82 | 1 | 48.82 | 19.33 | 0.001 |

A^{2} | 33.42 | 1 | 33.42 | 13.23 | 0.002 |

Residual | 40.42 | 16 | 2.53 | ||

Lack of fit | 29.20 | 12 | 2.43 | 0.87 | 0.62 |

Pure error | 11.21 | 4 | 2.80 | ||

Cor total | 122.66 | 18 |

Source | Sum of Squares | Degrees of Freedom df | Mean Square | F Value | p-Value |
---|---|---|---|---|---|

Model | 0.69 | 3 | 0.23 | 15.66 | <0.0001 |

A—Nanoclay content | 0.69 | 1 | 0.69 | 46.47 | <0.0001 |

B—Screw rotation frequency | 0.002 | 1 | 0.002 | 0.11 | 0.74 |

C—Mixing temperature | 0.006 | 1 | 0.01 | 0.41 | 0.53 |

Residual | 0.22 | 15 | 0.02 | ||

Lack of fit | 0.14 | 11 | 0.01 | 0.63 | 0.76 |

Pure error | 0.08 | 4 | 0.02 | ||

Cor total | 0.92 | 18 |

Source | Sum of Squares | Degrees of Freedom df | Mean Square | F Value | p-Value |
---|---|---|---|---|---|

Model | 0.69 | 1 | 0.69 | 50.90 | <0.0001 |

A—Nanoclay content | 0.69 | 1 | 0.69 | 50.90 | <0.0001 |

Residual | 0.23 | 17 | 0.01 | ||

Lack of fit | 0.15 | 13 | 0.01 | 0.56 | 0.81 |

Pure error | 0.08 | 4 | 0.02 | ||

Cor total | 0.92 | 18 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Stojšić, J.; Raos, P.; Milinović, A.; Damjanović, D.
A Study of the Flexural Properties of PA12/Clay Nanocomposites. *Polymers* **2022**, *14*, 434.
https://doi.org/10.3390/polym14030434

**AMA Style**

Stojšić J, Raos P, Milinović A, Damjanović D.
A Study of the Flexural Properties of PA12/Clay Nanocomposites. *Polymers*. 2022; 14(3):434.
https://doi.org/10.3390/polym14030434

**Chicago/Turabian Style**

Stojšić, Josip, Pero Raos, Andrijana Milinović, and Darko Damjanović.
2022. "A Study of the Flexural Properties of PA12/Clay Nanocomposites" *Polymers* 14, no. 3: 434.
https://doi.org/10.3390/polym14030434
