Magnetic Extraction of Weathered Tire Wear Particles and Polyethylene Microplastics

Department of Polymer Chemistry and Technology, National Institute of Chemistry, Hajdrihova 19, 1000 Ljubljana, Slovenia
Slovenian National Building and Civil Engineering Institute, Dimičeva ulica 12, 1000 Ljubljana, Slovenia
Authors to whom correspondence should be addressed.
Polymers 2022, 14(23), 5189;
Submission received: 6 October 2022 / Revised: 17 November 2022 / Accepted: 22 November 2022 / Published: 29 November 2022
(This article belongs to the Special Issue Degradation and Stabilization of Polymer Materials)


Magnetic extraction offers a rapid and low-cost solution to microplastic (MP) separation, in which we magnetize the hydrophobic surface of MPs to separate them from complex environmental matrices using magnets. We synthesized a hydrophobic Fe-silane based nanocomposite (Fe@SiO2/MDOS) to separate MPs from freshwater. Pristine and weathered, polyethylene (PE) and tire wear particles (TWP) of different sizes were used in the study. The weathering of MPs was performed in an accelerated weathering chamber according to ISO 4892-2:2013 standards that mimic natural weathering conditions. The chemical properties and morphology of the Fe@SiO2/MDOS, PE and TWP were confirmed by Fourier transform infrared spectroscopy and Scanning electron microscopy, respectively. The thermal properties of PE and TWP were evaluated by Thermogravimetric analysis. Using 1.00 mg of Fe@SiO2/MDOS nanocomposite, 2.00 mg of pristine and weathered PE were extracted from freshwater; whereas, using the same amount of the nanocomposite, 7.92 mg of pristine TWP and 6.87 mg of weathered TWP were extracted. The retrieval of weathered TWP was 13% less than that of pristine TWP, which can be attributed to the increasing hydrophilicity of weathered TWP. The results reveal that the effectiveness of the magnetic separation technique varies among different polymer types and their sizes; the weathering of MPs also influences the magnetic separation efficiency.

Graphical Abstract

1. Introduction

Microplastics (MPs) are defined as plastic particles smaller than 5 mm [1]. They are found almost everywhere on Earth including oceans, wastewater, drinking water, sediments, soil, air, organisms and food [2,3]. Analysis of MPs’ presence involves a series of procedures starting with sample collection including environmental and organism samples, followed by treatments such as sieving, dissection, pre-digestion, etc. [4,5]. Afterwards, MPs are further separated using filtration, purification including enzymatic treatment, and are finally identified using analytical methods such as Fourier transform infra-red spectroscopy (FTIR), Raman spectroscopy, etc. [6]. The extraction of MPs from environmental samples is a challenging and crucial step for their effective analysis. The most common methods used for the separation of MPs are density separation, electrostatic separation, magnetic separation, oil and solvent separation [7,8]. Among these methods, density separation is most widely used as it is very effective although time-consuming, not suitable for collecting nano-plastics (NPs), high-density MPs such as TWP, paint particles, etc., and may discharge hazardous materials depending on the extraction solutions [9,10]. In particular, TWPs are difficult to separate and characterize from environmental matrices. It is therefore likely that a number of reports may have greatly underestimated the abundance of NPs and TWPs in the environment due to the challenges in identifying and isolating them [11]. A reliable analytical method to extract and characterize NPs and TWP is needed for effective analysis [12].
Magnetic separation is an emerging approach that is quick, low-cost and environmentally friendly. It is based on the principle of using hydrophobic adsorption to attach magnetic material to the hydrophobic surface of MPs. These can then be efficiently collected using a magnet, although the effectiveness of the method is strongly dependent upon the characteristics of the detected MPs including polymer type, properties, size and shape [7]. Using selective magnetization, we could overcome the shortcomings of current laboratory techniques for collecting NPs and TWP, as well as resolve environmental issues, such as wastewater treatment and those associated with environmental remediation. Iron-based nanoparticles found in the environment are byproducts of the weathering of iron-bearing minerals and biominerals, found in sediments, naturally occurring water sources, rocks and ash [13]. The fate, transport and chemical behavior of iron particles in environmental systems have already been studied and show no adverse effects on the environment [14].
Grbic et al., 2019 [15] demonstrated that small particles with a high surface to volume ratio are effectively separated by the magnetic separation method. They found that hydrophobic Fe nanoparticles can be used to bind plastic particles with a size below 20 µm. Misra et al., 2020 [16] have also reported an approach in which a polyoxometalate ionic liquid was adsorbed onto magnetic microporous core-shell Fe2O3/SiO2 particles that can remove MPs, organic, inorganic and microbial pollutants from water. Zhang et al., 2021 [17] have proved that a magnetic magnesium hydroxide coagulant made by incorporating magnetic Fe2O3 particles to polyacrylamide can be used to remove the PE MPs from wastewater. Tang et al., 2021 [18] have shown in their study that magnetic carbon nanotubes can be used to remove 100% of MPs from aqueous solutions. Furthermore, Kang et al., 2019 [19] have demonstrated that magnetic N-doped nanocarbon springs can be used to break down PE, polyvinyl chloride (PVC) and polypropylene (PP) into harmless substances in water. The advanced oxidation process provides a feasible strategy for MP pollution remediation in water. Recently, Shi et al., 2022 [20] have suggested the removal of PE MPs using a magnetic medium carrier (magnetic sepiolite) in a magnetic field created by a permanent magnet.
In the present work, the influence of the weathering of MPs on the magnetic separation was studied. A silane-coated Fe nanocomposite (Fe@SiO2/MDOS) was synthesized and used in the magnetic extraction of pristine and weathered PE and TWP from freshwater. A xenon light weathering chamber was used for artificial photodegradation for 1000 h according to the ISO 4892-2:2013 standard [21]. To the author’s knowledge, this is the first study in which weathered PE and TWP are extracted from freshwater using the magnetic separation method. We also evaluated the method’s suitability using road dust samples collected from the environment.

2. Materials and Methods

2.1. Chemicals and Materials

Iron nano powder, (99.5% metal basis, O < 10%), with a spherical morphology and an average particle size of 25 nm and a specific surface area of 40–60 m2/g was purchased from abcr (Karlsruhe, Germany). Ammonia solution 25% and absolute anhydrous ethanol were obtained from Merck (Darmstadt, Germany) and Carlo Erba (Val de Reuil, France) respectively. Tetraethyl orthosilicate (TEOS, 98%) was purchased from Sigma Aldrich (Steinheim, Germany) and methoxy(dimethyl)octadecylsilane (MDOS, 90%) was acquired from Sigma Aldrich (St. Louis, MO, USA). High Density Polyethylene (HDPE) (Polyethylene Lumicene Supertough 22ST05 and 32ST05) was procured from Total Energies (Felury, Belgium). Spherical polymethyl methacrylate (PMMA) nanoparticles with an average diameter of 670 nm were obtained from Evonik industries (Hanau, Germany). TWPs were taken from a Michelin passenger tire manufactured in April 2018 with the following type code: 245/45 R 18 100 V. Here, 245 is the section width, 45 is the aspect ratio, R stands for radial construction, 18 is the rim size and 100 and V represent load index and speed rating, respectively. The tread and sidewall of the tire had five and two plies, respectively. The tread plies had 2 polyester, 2 steel and 1 polyamide (PA) plies whereas both sidewall plies were made of polyester. Both PE and TWP were cryogenically ground using a ball mill Domel Tehtnica MillMix 20 (Domel, Zelezniki, Slovenia). Afterwards, the particles were sieved into different size ranges. For further experiments, PE was used in the size range of <100 µm and TWP in the size range of 300–600 µm. A permanent niodimium magnet (NdFeB N38) purchased from Svet Magnetov (Kamnik, Slovenia) was used for magnetic separation experiments. To analyze a real environmental sample, road dust was collected from the tunnel under the Ljubljana castle, Ljubljana, Slovenia (46°02′57.0″ N 14°30′37.4″ E) on 26 January 2022. The road dust in the size range of 63–125 μm was sieved and used during the experiment.

2.2. Accelerated Ageing

A xenon light weathering Q-SUN Xe-3 chamber (Q-Lab, Bolton, UK, Europe) was used for artificial photodegradation lasting up to 1000 h. The chamber was operated according to the ISO 4892-2:2013 standard [21]. This chamber enables the setting up of different accelerated weathering conditions by changing the UV irradiation power, relative humidity and temperature to perform the laboratory-accelerated aging of plastic materials. The relative humidity in the chamber was regulated by an ultrasound humidifying system. Its three air-cooled 1800 W xenon lamps emit light in the 300–400 nm wavelength range. At a fan speed of 2000 rpm, the substrates were subjected to 60 W/m2 of irradiation at 38 °C in the chamber, 65 °C for the black standard and 50% relative humidity [21,22]. After 1000 h, samples were taken out of the weathering chamber and stored in a dark envelope until further experiments.

2.3. Synthesis of Fe@SiO2/MDOS Nanocomposite

A magnetic iron silane nanocomposite (Fe@SiO2/MDOS) was synthesized by a two-step process. In the first step, Fe nanoparticles were coated with silica using the sol-gel process: Fe nanoparticles (1.00 g) were dispersed in a solvent mixture of ethanol (160 mL) and water (40 mL) using an ultrasonic bath. TEOS (3 mL) and ammonia (4 mL) were added to this suspension, which was then continuously stirred for 8 h. During the stirring, TEOS would hydrolyze and create the silica oligomers around the Fe nanoparticles. The Fe@SiO2 nanocomposites collected by centrifugal separation were washed with ethanol and Milli-Q water. The washed Fe@SiO2 nanocomposites were dried overnight in a vacuum chamber at 50 °C.
In the second step, MDOS was then grafted onto the surface of the Fe@SiO2 nanocomposites using the silane chemistry of MDOS: Typically, 50 mL of anhydrous ethanol was used to homogeneously combine 1.00 g of Fe@SiO2 nanocomposite and 0.50 g of MDOS before being further sonicated for 20 min. The final mixture was swirled for 8 h at reflux temperature under a nitrogen atmosphere. The MDOS-modified Fe@SiO2 nanocomposite, Fe@SiO2/MDOS was cooled naturally to room temperature, centrifuged with anhydrous ethanol to remove excess organo-silane and then dried under reduced pressure at 50 °C [23,24].

2.4. Characterization of Fe@SiO2/MDOS, PE and TWP

The Fe@SiO2/MDOS nanocomposite, PE and TWP particles were characterized by Attenuated Total Reflectance-Fourier Transform Infrared spectroscopy (ATR-FTIR) using a Perkin-Elmer Spectrum One (Perkin Elmer, Waltham, MA, USA) Fourier transform infra-red spectrometer combined with an attenuated total reflectance diamond crystal attachment measuring in the 4000–600 cm−1 range. Substrates were evaluated before and after exposure to accelerated aging. The resulting ATR-FTIR spectra were validated by direct visual inspection with the ATR-FTIR spectra collection and compared to the spectra from the reference spectral library, IR Hummel Industrial Polymers Volume 3 (c) 1999 Chemical Concepts GmbH.
Thermogravimetric analysis (TGA) of PE, weathered PE1000h, TWP and weathered TWP1000h were carried out on a Mettler Toledo (Greifensee, Switzerland) TGA/DSC 1 thermogravimeter. For PE, the experiments were carried out in the temperature range of 40–650 °C. The experiments were performed in a nitrogen atmosphere with a flow rate of 50 mL/min and a heating rate of 30 K/min. For TWP, the experiments were carried out in the temperature range of 30–900 °C. The experiments were done in an N2 environment with a flow rate of 30 mL/min and a heating rate of 20 K/min from 30–700 °C and in an O2 atmosphere with a flow rate of 30 mL/min and a heating rate of 20 K/min from 700–900 °C.
The surface morphology of Fe@SiO2/MDOS nanocomposite, PE, weathered PE1000h, TWP and weathered TWP1000h were examined on a JEOL model JSM-IT500LV, Oxford Instruments (Tokyo, Japan) scanning electron microscope equipped with an EDS analyzer suitable for analyzing the elemental composition, with the following technical specifications: high vacuum mode, resolution of 3.00 nm (30 kV) and 15.00 nm (1.00 kV) in high vacuum mode, resolution of 4.00 nm (30 kV, BED), electron gun: W filament, fully automatic gun alignment, accelerating voltage from 0.3 to 30 kV, probe current from 1 pA to 1 µA, maximum specimen size: 200 mm (diameter) × 75 mm (height). To avoid electrostatic charge accumulation during observation, gold was sputter-coated onto each sample. At 10 kV, images at various magnifications were captured.

2.5. Recovery of PE and TWP

PE particles and TWP were magnetically extracted from freshwater using a NdFeB N38 magnet. The magnet was attached to a stainless steel rod, which was dipped and swirled in the sample to collect MPs. Afterward, the rod was removed and rinsed with deionized water to collect MPs in the petri dish. Using this method, the TWP were easily separated, dried and weighed. The PE MPs were recovered by putting the rod into the ultrasonic bath for 30 sec; the MPs then detach from the magnet and afterward they are sieved and collected to be weighed. Each experiment was repeated three times and standard deviations in the results are reported.

3. Results and Discussion

3.1. Attenuated Total Reflectance-Fourier Transform Infrared Spectroscopy

The FTIR spectra depicted in Figure 1 show that (i) Fe@SiO2/MDOS nanocomposite exhibits a strong band at 1076 cm–1 that corresponds to Si-O asymmetric stretching vibration. The bands at 454 cm−1 and 791 cm−1 are assigned to Si-O symmetric stretching and bending vibration, respectively [25]. The significant band at 564 cm−1 is attributed to Fe-O bending vibration, confirming the formation of iron-silane nanocomposite [26]. The spectra of (ii) PE and (iii) weathered PE1000h exhibit specific PE peaks independent of weathering. The strong bands at 2915 cm−1 and 2848 cm−1 are assigned to the CH2 asymmetric stretching and CH2 symmetric stretching respectively. The band at 1469 cm−1 is credited to the crystallinity effects of CH2 bending deformation, whereas the band around 730 cm−1 arises from a skeletal vibration of (-CH2-) in the polymer chain [27]. A strong IR absorbance band between 1710 cm−1 and 1740 cm−1 is observed for weathered PE1000h that corresponds to the carbonyl group (C=O), confirming the oxidation of the polymer [21,28]. The spectra of (iv) TWP and (v) weathered TWP1000h exhibit similar peaks independent of weathering. It is difficult to assign peaks specific to TWP because of its complex chemical composition, which contains carbon black in the rubber mixture. However, an IR absorbance band between 1710 cm−1 and 1740 cm−1 is observed for weathered TWP1000h that corresponds to a carbonyl group (C=O), implying surface oxidation.
The carbonyl Index (CI) is used to evaluate the oxidation and characterize the degree of aging of PE and TWP. The CI is calculated using the “specified area under band” (SAUB) method [29]. The CI is defined as the ratio of area under band 1850–1650 cm−1 and area under 1500–1420 cm−1 which correspond to carbonyl (C=O) and methylene (CH2) peaks, respectively [29]. The values of CI for PE, weathered PE1000h, TWP and weathered TWP1000h were 0.279, 0.701, 0.798 and 2.551, respectively. The values of CI are directly proportional to the surface oxidation of PE and TWP. These results are supported by Scanning Electron Microscopy (SEM) micrographs.

3.2. Thermogravimetric Analysis

The TGA confirmed the difference in thermal properties between pristine and weathered PE and TWP. The TGA of PE, weathered PE1000h, TWP and weathered TWP1000h are depicted in Figure 2i,ii, respectively. The weathered PE1000h and TWP1000h showed a decrease in thermal stability as compared to pristine PE and TWP, respectively, as seen by the decrease in onset temperature and temperature of the maximum mass loss rate. Table 1 depicts the onset temperature (Tos), midset temperature (Tmid, T50%), maximum degradation temperature (Tmax) and first derivative peak temperature, also called the inflection point (Tp). The results show a significant reduction in the thermal stability of weathered PE MPs compared to pristine PE, which is confirmed by a decrease in the Tos to 467 °C for weathered PE as compared to the Tos value of 486 °C for pristine PE. The Tmid and Tmax values for PE and weathered PE show comparable figures. The Tmid is an important indicator for the thermal stability of the polymer. The overall degradation in weight remains similar for pristine and weathered PE. This leads to the conclusion that the partially weathered PE becomes more reactive as compared to the pristine PE [21,30].
Tires from different means of transport and from different manufacturers differ in their chemical composition. An automobile tire may contain more than 100 components such as natural rubber, synthetic rubber, steel, nylon, silica (derived from sand), polyester, carbon black, petroleum and many more additives present in lower concentrations. Generally, a tire consists of softeners: oils, resins (15 mass%), polymers: natural rubber, synthetic rubber (40–50 mass%), fillers: carbon black, silica, chalk (30–35 mass%), vulcanization agents: sulfur, zinc (2–5 mass%) and various additives (5–10 mass%) [31]. Due to the complex chemical composition of tires, it is expected that mass losses from the various compounds contained in the rubber will overlap, especially in the temperature range, where the overall mass loss is greatest, between 200 and 500 °C. As shown in Figure 2ii, pristine TWP has a shoulder at 396 °C which is not present in the weathered TWP. During the experiment, we found that a layer of oil was formed on the quartz glass due to oil evaporation. This explains the disappearance of a peak in weathered TWP and led to the conclusion that TWP can cause uncontrollable oil release into the environment. The weight loss at 472 °C is due to the thermal degradation of the polymer. Due to the slow release of oils from the tire, it overlaps with the weight loss curve of the weathered polymer. Therefore, it is difficult to accurately measure the mass of oil and polymer in the tire. In the sample, an endothermic process occurred at temperatures of 723 °C and 731 °C, respectively in which energy was used for the process, which also manifests itself in mass loss. Due to the high temperature where the process takes place, the mass loss due to carbon black occurs in this temperature range; the decomposition curve at 723 °C and 731 °C is attributed to the weight loss of carbon black [32]. The values of Tos, Tmid, Tmax and Tp for TWP and weathered TWP1000h are represented in Table 1.

3.3. Scanning Electron Microscopy

A representative SEM image of Fe@SiO2/MDOS is shown in Figure 3i. The image was taken at 10 kV with 1000 magnification. It shows small globular granules, confirming that a hydrophobic silane coating layer was formed around the surface of iron particles [33]. Figure 3ii,iii show the surface morphology of PE and weathered PE1000h, respectively. The image was taken at 10 kV with 500 magnification. The PE surface is uneven and rough with some cracks, whereas the weathered PE1000h has more pronounced cracks with pores developing on the surface due to oxidation, as confirmed by FTIR studies [34]. Figure 3iv,v depict the surface morphology of TWP and weathered TWP1000h taken at 10 kV with 500 and 1000 magnification, respectively. The TWP has a layered surface with some bumps over the surface, whereas weathered TWP1000h has a fractured surface due to oxidation of the TWP, as revealed in CI values calculated by the SAUB method [35].
It is clear from the SEM images that UV radiation causes changes on the surface of polymer materials due to oxidative aging of the TWP and PE MPs. As a result of the accelerated aging, polymer materials decompose, eventually breaking down into NPs that accumulate in nature. The problem is exacerbated by the fact that 109 tires [36] and over 360 metric tons of fossil-based polymers are produced worldwide annually, with an 8.4% annual increase rate [37]. These polymers, after their intended use, find their way into the environment as plastic litter.

3.4. Magnetic Extraction Experiments

The magnetic extraction of pristine and weathered PE and TWP has been studied. For each 1.00 mg of Fe@SiO2/MDOS nanocomposite, approximately 2.00 ± 0.25 mg of pristine and 2.00 ± 0.20 mg of weathered PE have been extracted using a permanent NdFeB magnet in freshwater. Similarly, for 1.00 mg of Fe@SiO2/MDOS nanocomposite, 7.92 ± 0.68 mg and 6.87 ± 0.39 mg of pristine and weathered TWP have been extracted. The experiments were repeated three times and the standard deviation is reported as error bars depicted in Figure 4. The large difference in the mass of PE and TWP being retrieved is due to their sizes. The smaller the particle size, the greater is its surface area, therefore 2.00 mg of pristine PE (<100 µm) and 7.92 mg of pristine TWP (300–600 µm) were extracted. Weathered TWP retrieval was 13% lower than that of pristine TWP, which can be attributed to weathered TWP’s increasing hydrophilicity. However, weathered PE MPs do not show any significant effect on the magnetic separation technique; this could be because the extent of degradation does not substantially affect the surface properties. The CI for PE and weathered PE1000h was found to be 0.279 and 0.701, respectively, whereas for TWP and weathered TWP1000h the value increases from 0.798 to 2.551, respectively. The high CI value for weathered TWP1000h implies that the TWP is highly oxidized and has a hydrophilic surface. While the weathered PE1000h is oxidized, the extent of oxidation is still low compared to the weathered TWP1000h. Shi et al., 2022 [38] have shown in their study that the removal of PE, PP, Polystyrene (PS) and Polyethylene Terephthalate (PET) MPs in the size range of 200–900 μm varies due to differences in their physiochemical properties such as density, crystallinity etc. The differential scanning calorimetry of pristine and weathered PE MPs has been carried out to confirm the effect of crystallinity on magnetic extraction of PE. The results revealed that the crystallinity of PE is 74%, which was reduced to 68% after the degradation. The degradation does not affect the crystallinity to a great extent; this could also be a reason for no change in the extraction of pristine and weathered PE MPs. The DSC of PE and PE1000h is shown in Supplementary Figure S1.
The results have shown that the magnetic extraction capacity of weathered MPs with Fe@SiO2/MDOS nanocomposite decreases compared to the pristine MPs for two reasons. Firstly, the weathered MPs have a more hydrophilic surface due to surface oxidation [39,40]. Secondly, the weathered MPs can fragment during the experiment, which leads to an increase in the surface area of the MPs and thus affects their overall extraction capacity [15,41]. So, the hydrophilicity and surface area of MPs can affect the magnetic extraction of MPs. All previous studies demonstrating the magnetic extraction of MPs from different environmental samples have utilized pristine MPs in their experiments [15]. These results confirm that the behaviour of weathered MPs is different from pristine MPs, which should be relevant to the study of real-world MP pollution, since in the environment we encounter degraded MPs whose properties vary significantly from those of pristine MPs [42].
Furthermore, PMMA NPs and a road dust sample collected from the environment were analyzed to verify the applicability of the method to real-life samples. Even though PMMA NPs were successfully separated from the freshwater, counting their number could not be performed due to their size and continuous motion. It was impossible to keep the NPs within a microscope’s field of view. Recently, Martin et al., 2022 [43] have shown that 90% of the NPs in the size range of 100–1000 nm were magnetically separated from water using iron oxide nanoparticles (IONP). They used fluorescently labelled PS to show the quantification of PS NPs interacting with IONP using SEM imaging and fluorescence.
The majority of the road dust (60%) is made up of road-derived minerals, with quartz making up the majority (40–50%) and the remaining clay-forming minerals coming from nearby soils. Organic matter, mostly composed of plant matter, made up around 2% of the total. About 30% of the accumulation was made up of potentially hazardous contaminants including road wear particles, fly ash from asphalt, TWP, heavy metals and particulate combustion emissions [44]. Because there were fewer particle sources and no precipitation, road dust collected in tunnels would contain more TWP than dust collected from open highways; however, due to the lack of sunlight and rain, TWP in tunnel dust is less exposed to sunlight and rain [45]. Road dust collected from the tunnel was sieved to a size range of 63–125 μm. The TGA of this fraction showed a small peak at 443 °C which could be due to the degradation of the polymer in tire rubber. The TGA of road dust is shown in Supplementary Figure S2. The weathered TWP1000h were added to the road dust sample collected from the tunnel in the ratio of 1:2 by weight. The recovery rate of TWP from road dust samples was found between 59–77%. The road dust sample collected from the environment also contains TWP that is not considered, as only the weathered TWP1000h added was measured. The magnetic extraction of PE and TWP from freshwater is shown in Supplementary Videos S1 and S2, respectively. The magnetic separation of several MPs in different size ranges separated by various materials is discussed in detail in Table 2.

4. Conclusions and Future Perspectives

This work provides a feasible strategy for the magnetic extraction of pristine and weathered PE and TWP from freshwater using an iron-silane based Fe@SiO2/MDOS nanocomposite. The formation of Fe@SiO2/MDOS and the oxidation of weathered PE and TWP are assessed by spectral change in ATR-FTIR spectroscopy. The change in thermal properties and morphology of PE and TWP is confirmed by TGA and SEM analysis. The large difference in the recovery of PE and TWP is mainly due to their different sizes. The retrieval of weathered TWP was 13% lower than that of pristine TWP, which can be attributed to the increasing hydrophilicity of weathered TWP. Herein, we have demonstrated that binding and recovery of pristine and weathered PE and TWP depend upon the surface area and hydrophobic/hydrophilic surface of the MPs. Therefore, it is important to use weathered MPs for magnetic extraction experiments, which gives us more reliable results as it is based on the surface interaction of material with the MPs.
The magnetic separation technique has the capability of removing NPs from the environment, which is simple, economical and less time-consuming. Iron-based nanocomposites are a viable candidate for use in water remediation and the removal of MPs/NPs, as they are economical to produce and environmentally friendly. However, further research and development is needed to make iron-based environmentally friendly nanocomposites with better magnetic properties that can remove various contaminants including dyes, heavy metals, MPs, NPs, etc., for improved environmental remediation. Further advancements in magnetic separation toward large-scale applications could be made possible by the construction of novel, inexpensive magnetic carrier media and separation facilities. In summary, this work demonstrates the viability of a rapid, economical and effective magnetic extraction method to separate MPs from freshwater. The results presented here may serve as a solid foundation for future research that should be concerned with the extraction of NPs and the scaling up of this process with environmental samples.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: DSC of PE and weathered PE1000h; Figure S2: TGA of Road Dust. First differential is shown in the inset; Video S1: Magnetic Extraction of Polyethylene; Video S2: Magnetic Extraction of Tire Wear Particles.

Author Contributions

Conceptualization, V.B.; Project Management, A.K.; Experimental Work, V.B. and B.M.; Original Draft, V.B.; Methodology, V.B.; Data Curation, V.B.; Supervision, A.K.; Visualization, V.B.; Validating, V.B.; Review and Editing, V.B., B.M. and A.K. All authors have read and agreed to the published version of the manuscript.


This project has received funding from the European Union’s horizon 2020 research and innovation program under Marie Sklodowska-Curie grant agreement No. 860720 and ARRS, Slovenia; ARRS programme group No. P2-0273 and J1-2482.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Frias, J.P.G.L.; Nash, R. Microplastics: Finding a Consensus on the Definition. Mar. Pollut. Bull. 2019, 138, 145–147. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, C.; Zhao, J.; Xing, B. Environmental Source, Fate, and Toxicity of Microplastics. J. Hazard. Mater. 2021, 407, 124357. [Google Scholar] [CrossRef]
  3. Wu, P.; Huang, J.; Zheng, Y.; Yang, Y.; Zhang, Y.; He, F.; Chen, H.; Quan, G.; Yan, J.; Li, T.; et al. Environmental Occurrences, Fate, and Impacts of Microplastics. Ecotoxicol. Environ. Saf. 2019, 184, 109612. [Google Scholar] [CrossRef] [PubMed]
  4. Ding, J.; Li, J.; Sun, C.; Jiang, F.; Ju, P.; Qu, L.; Zheng, Y.; He, C. Detection of Microplastics in Local Marine Organisms Using a Multi-Technology System. Anal. Methods 2019, 11, 78–87. [Google Scholar] [CrossRef]
  5. Rocha-Santos, T.; Duarte, A.C. A Critical Overview of the Analytical Approaches to the Occurrence, the Fate and the Behavior of Microplastics in the Environment. TrAC Trends Anal. Chem. 2015, 65, 47–53. [Google Scholar] [CrossRef]
  6. Vinay Kumar, B.N.; Löschel, L.A.; Imhof, H.K.; Löder, M.G.J.; Laforsch, C. Analysis of Microplastics of a Broad Size Range in Commercially Important Mussels by Combining FTIR and Raman Spectroscopy Approaches. Environ. Pollut. 2021, 269, 116147. [Google Scholar] [CrossRef] [PubMed]
  7. He, D.; Zhang, X.; Hu, J. Methods for Separating Microplastics from Complex Solid Matrices: Comparative Analysis. J. Hazard. Mater. 2021, 409, 124640. [Google Scholar] [CrossRef] [PubMed]
  8. Nabi, I.; Bacha, A.U.R.; Zhang, L. A Review on Microplastics Separation Techniques from Environmental Media. J. Clean. Prod. 2022, 337, 130458. [Google Scholar] [CrossRef]
  9. Nguyen, B.; Claveau-Mallet, D.; Hernandez, L.M.; Xu, E.G.; Farner, J.M.; Tufenkji, N. Separation and Analysis of Microplastics and Nanoplastics in Complex Environmental Samples. Acc. Chem. Res. 2019, 52, 858–866. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Quinn, B.; Murphy, F.; Ewins, C. Validation of Density Separation for the Rapid Recovery of Microplastics from Sediment. Anal. Methods 2017, 9, 1491–1498. [Google Scholar] [CrossRef]
  11. Cabernard, L.; Roscher, L.; Lorenz, C.; Gerdts, G.; Primpke, S. Comparison of Raman and Fourier Transform Infrared Spectroscopy for the Quantification of Microplastics in the Aquatic Environment. Environ. Sci. Technol. 2018, 52, 13279–13288. [Google Scholar] [CrossRef]
  12. Kovochich, M.; Liong, M.; Parker, J.A.; Oh, S.C.; Lee, J.P.; Xi, L.; Kreider, M.L.; Unice, K.M. Chemical Mapping of Tire and Road Wear Particles for Single Particle Analysis. Sci. Total Environ. 2021, 757, 144085. [Google Scholar] [CrossRef]
  13. Vindedahl, A.M.; Strehlau, J.H.; Arnold, W.A.; Penn, R.L. Organic Matter and Iron Oxide Nanoparticles: Aggregation, Interactions, and Reactivity. Environ. Sci. Nano 2016, 3, 494–505. [Google Scholar] [CrossRef]
  14. Zhao, X.; Liu, W.; Cai, Z.; Han, B.; Qian, T.; Zhao, D. An Overview of Preparation and Applications of Stabilized Zero-Valent Iron Nanoparticles for Soil and Groundwater Remediation. Water Res. 2016, 100, 245–266. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Grbic, J.; Nguyen, B.; Guo, E.; You, J.B.; Sinton, D.; Rochman, C.M. Magnetic Extraction of Microplastics from Environmental Samples. Environ. Sci. Technol. Lett. 2019, 6, 68–72. [Google Scholar] [CrossRef]
  16. Misra, A.; Zambrzycki, C.; Kloker, G.; Kotyrba, A.; Anjass, M.H.; Franco Castillo, I.; Mitchell, S.G.; Güttel, R.; Streb, C. Water Purification and Microplastics Removal Using Magnetic Polyoxometalate-Supported Ionic Liquid Phases (MagPOM-SILPs). Angew. Chem. Int. Ed. 2020, 59, 1601–1605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Zhang, Y.; Zhao, J.; Liu, Z.; Tian, S.; Lu, J.; Mu, R.; Yuan, H. Coagulation Removal of Microplastics from Wastewater by Magnetic Magnesium Hydroxide and PAM. J. Water Process Eng. 2021, 43, 102250. [Google Scholar] [CrossRef]
  18. Tang, Y.; Zhang, S.; Su, Y.; Wu, D.; Zhao, Y.; Xie, B. Removal of Microplastics from Aqueous Solutions by Magnetic Carbon Nanotubes. Chem. Eng. J. 2021, 406, 126804. [Google Scholar] [CrossRef]
  19. Kang, J.; Zhou, L.; Duan, X.; Sun, H.; Ao, Z.; Wang, S. Degradation of Cosmetic Microplastics via Functionalized Carbon Nanosprings. Matter 2019, 1, 745–758. [Google Scholar] [CrossRef] [Green Version]
  20. Shi, C.; Zhang, S.; Zhao, J.; Ma, J.; Wu, H.; Sun, H.; Cheng, S. Experimental Study on Removal of Microplastics from Aqueous Solution by Magnetic Force Effect on the Magnetic Sepiolite. Sep. Purif. Technol. 2022, 288, 120564. [Google Scholar] [CrossRef]
  21. Budhiraja, V.; Urh, A.; Horvat, P.; Krzan, A. Synergistic Adsorption of Organic Pollutants on Weathered Polyethylene Microplastics. Polymers 2022, 14, 2674. [Google Scholar] [CrossRef]
  22. Julienne, F.; Lagarde, F.; Delorme, N. Influence of the Crystalline Structure on the Fragmentation of Weathered Polyolefines. Polym. Degrad. Stab. 2019, 170, 109012. [Google Scholar] [CrossRef]
  23. Cai, J.; Guo, J.; Ji, M.; Yang, W.; Wang, C.; Fu, S. Preparation and Characterization of Multiresponsive Polymer Composite Microspheres with Core-Shell Structure. Colloid Polym. Sci. 2007, 285, 1607–1615. [Google Scholar] [CrossRef]
  24. Xie, W.; Wang, H. Immobilized Polymeric Sulfonated Ionic Liquid on Core-Shell Structured Fe3O4/SiO2 Composites: A Magnetically Recyclable Catalyst for Simultaneous Transesterification and Esterifications of Low-Cost Oils to Biodiesel. Renew. Energy 2020, 145, 1709–1719. [Google Scholar] [CrossRef]
  25. Widjonarko, D.M.; Jumina, J.; Kartini, I. Nuryono Phosphonate Modified Silica for Adsorption of Co(II), Ni(II), Cu(II), and Zn(II). Indones. J. Chem. 2014, 14, 143–151. [Google Scholar] [CrossRef] [Green Version]
  26. Ahangaran, F.; Hassanzadeh, A.; Nouri, S. Surface Modification of Fe3O4@SiO2 Microsphere by Silane Coupling Agent. Int. Nano Lett. 2013, 3, 1–5. [Google Scholar] [CrossRef]
  27. Fan, C.; Huang, Y.Z.; Lin, J.N.; Li, J. Microplastic Constituent Identification from Admixtures by Fourier-Transform Infrared (FTIR) Spectroscopy: The Use of Polyethylene Terephthalate (PET), Polyethylene (PE), Polypropylene (PP), Polyvinyl Chloride (PVC) and Nylon (NY) as the Model Constituent. Environ. Technol. Innov. 2021, 23, 101798. [Google Scholar] [CrossRef]
  28. Ceccarini, A.; Corti, A.; Erba, F.; Modugno, F.; La Nasa, J.; Bianchi, S.; Castelvetro, V. The Hidden Microplastics: New Insights and Figures from the Thorough Separation and Characterization of Microplastics and of Their Degradation Byproducts in Coastal Sediments. Environ. Sci. Technol. 2018, 52, 5634–5643. [Google Scholar] [CrossRef] [PubMed]
  29. Almond, J.; Sugumaar, P.; Wenzel, M.N.; Hill, G.; Wallis, C. Determination of the Carbonyl Index of Polyethylene and Polypropylene Using Specified Area under Band Methodology with ATR-FTIR Spectroscopy. E-Polymers 2020, 20, 369–381. [Google Scholar] [CrossRef]
  30. Gharehdashli, A.; Mortazavi, S.; Rashidi, H. Photodegradation of Low-Density Polyethylene with Prooxidant and Photocatalyst. J. Appl. Polym. Sci. 2020, 137, 48979. [Google Scholar] [CrossRef]
  31. Baensch-Baltruschat, B.; Kocher, B.; Stock, F.; Reifferscheid, G. Tyre and Road Wear Particles (TRWP)—A Review of Generation, Properties, Emissions, Human Health Risk, Ecotoxicity, and Fate in the Environment. Sci. Total Environ. 2020, 733, 137823. [Google Scholar] [CrossRef] [PubMed]
  32. Analysis of Elastomers with Different Carbon Black Contents by TGA. Available online: (accessed on 11 November 2022).
  33. Shariati-Rad, M.; Irandoust, M.; Amri, S.; Feyzi, M.; Ja’fari, F. Magnetic Solid Phase Adsorption, Preconcentration and Determination of Methyl Orange in Water Samples Using Silica Coated Magnetic Nanoparticles and Central Composite Design. Int. Nano Lett. 2014, 4, 91–101. [Google Scholar] [CrossRef]
  34. Herath, A.; Salehi, M. Studying the Combined Influence of Microplastics’ Intrinsic and Extrinsic Characteristics on Their Weathering Behavior and Heavy Metal Transport in Storm Runoff. Environ. Pollut. 2022, 308, 119628. [Google Scholar] [CrossRef]
  35. Son, C.E.; Choi, S.S. Preparation and Characterization of Model Tire-Road Wear Particles. Polymers 2022, 14, 1512. [Google Scholar] [CrossRef] [PubMed]
  36. van Hoek, J.W.; Heideman, G.; Noordermeer, J.W.M.; Dierkes, W.K.; Blume, A. Implications of the Use of Silica as Active Filler in Passenger Car Tire Compounds on Their Recycling Options. Materials 2019, 12, 725. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Beghetto, V.; Sole, R.; Buranello, C.; Al-Abkal, M.; Facchin, M. Recent Advancements in Plastic Packaging Recycling: A Mini-Review. Materials 2021, 14, 4782. [Google Scholar] [CrossRef] [PubMed]
  38. Shi, X.; Zhang, X.; Gao, W.; Zhang, Y.; He, D. Removal of Microplastics from Water by Magnetic Nano-Fe3O4. Sci. Total Environ. 2022, 802, 149838. [Google Scholar] [CrossRef]
  39. Liu, P.; Zhan, X.; Wu, X.; Li, J.; Wang, H.; Gao, S. Effect of Weathering on Environmental Behavior of Microplastics: Properties, Sorption and Potential Risks. Chemosphere 2020, 242, 125193. [Google Scholar] [CrossRef]
  40. Luo, H.; Liu, C.; He, D.; Xu, J.; Sun, J.; Li, J.; Pan, X. Environmental Behaviors of Microplastics in Aquatic Systems: A Systematic Review on Degradation, Adsorption, Toxicity and Biofilm under Aging Conditions. J. Hazard. Mater. 2022, 423, 126915. [Google Scholar] [CrossRef]
  41. Enfrin, M.; Hachemi, C.; Hodgson, P.D.; Jegatheesan, V.; Vrouwenvelder, J.; Callahan, D.L.; Lee, J.; Dumée, L.F. Nano/Micro Plastics—Challenges on Quantification and Remediation: A Review. J. Water Process Eng. 2021, 42, 102128. [Google Scholar] [CrossRef]
  42. Luo, H.; Zhao, Y.; Li, Y.; Xiang, Y.; He, D.; Pan, X. Aging of Microplastics Affects Their Surface Properties, Thermal Decomposition, Additives Leaching and Interactions in Simulated Fluids. Sci. Total Environ. 2020, 714, 136862. [Google Scholar] [CrossRef] [PubMed]
  43. Martin, L.M.A.; Sheng, J.; Zimba, P.V.; Zhu, L.; Fadare, O.O.; Haley, C.; Wang, M.; Phillips, T.D.; Conkle, J.; Xu, W. Testing an Iron Oxide Nanoparticle-Based Method for Magnetic Separation of Nanoplastics and Microplastics from Water. Nanomaterials 2022, 12, 2348. [Google Scholar] [CrossRef]
  44. Gunawardana, C.; Goonetilleke, A.; Egodawatta, P.; Dawes, L.; Kokot, S. Source Characterisation of Road Dust Based on Chemical and Mineralogical Composition. Chemosphere 2012, 87, 163–170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Klöckner, P.; Seiwert, B.; Weyrauch, S.; Escher, B.I.; Reemtsma, T.; Wagner, S. Comprehensive Characterization of Tire and Road Wear Particles in Highway Tunnel Road Dust by Use of Size and Density Fractionation. Chemosphere 2021, 279, 130530. [Google Scholar] [CrossRef]
  46. Wang, J.; Sun, C.; Huang, Q.X.; Chi, Y.; Yan, J.H. Adsorption and Thermal Degradation of Microplastics from Aqueous Solutions by Mg/Zn Modified Magnetic Biochars. J. Hazard. Mater. 2021, 419, 126486. [Google Scholar] [CrossRef]
  47. Rhein, F.; Scholl, F.; Nirschl, H. Magnetic Seeded Filtration for the Separation of Fine Polymer Particles from Dilute Suspensions: Microplastics. Chem. Eng. Sci. 2019, 207, 1278–1287. [Google Scholar] [CrossRef]
  48. Ramage, S.J.F.F.; Pagaling, E.; Haghi, R.K.; Dawson, L.A.; Yates, K.; Prabhu, R.; Hillier, S.; Devalla, S. Rapid Extraction of High- and Low-Density Microplastics from Soil Using High-Gradient Magnetic Separation. Sci. Total Environ. 2022, 831, 154912. [Google Scholar] [CrossRef]
  49. Wang, C.; Huang, R.; Sun, R.; Yang, J.; Dionysiou, D.D. Microplastics Separation and Subsequent Carbonization: Synthesis, Characterization, and Catalytic Performance of Iron/Carbon Nanocomposite. J. Clean. Prod. 2022, 330, 129901. [Google Scholar] [CrossRef]
  50. Zandieh, M.; Liu, J. Removal and Degradation of Microplastics Using the Magnetic and Nanozyme Activities of Bare Iron Oxide Nanoaggregates. Angew. Chem. Int. Ed. 2022, 61, e202212013. [Google Scholar] [CrossRef]
  51. Rhein, F.; Nirschl, H.; Kaegi, R. Separation of Microplastic Particles from Sewage Sludge Extracts Using Magnetic Seeded Filtration. Water Res. X 2022, 17, 100155. [Google Scholar] [CrossRef]
  52. Bhore, R.K.; KAMBLE, S.B. Nano Adsorptive Extraction of Diverse Microplastics from the Potable and Seawater Using Organo-Polyoxometalate Magnetic Nanotricomposites. SSRN Electron. J. 2022, 10, 108720. [Google Scholar]
  53. Ye, H.; Wang, Y.; Liu, X.; Xu, D.; Yuan, H.; Sun, H.; Wang, S.; Ma, X. Magnetically Steerable Iron Oxides-Manganese Dioxide Core–Shell Micromotors for Organic and Microplastic Removals. J. Colloid Interface Sci. 2021, 588, 510–521. [Google Scholar] [CrossRef] [PubMed]
  54. Sarcletti, M.; Park, H.; Wirth, J.; Englisch, S.; Eigen, A.; Drobek, D.; Vivod, D.; Friedrich, B.; Tietze, R.; Alexiou, C.; et al. The Remediation of Nano-/Microplastics from Water. Mater. Today 2021, 48, 38–46. [Google Scholar] [CrossRef]
  55. Rius-Ayra, O.; Bouhnouf-Riahi, O.; Llorca-Isern, N. Superhydrophobic and Sustainable Nanostructured Powdered Iron for the Efficient Separation of Oil-in-Water Emulsions and the Capture of Microplastics. ACS Appl. Mater. Interfaces 2020, 12, 45629–45640. [Google Scholar] [CrossRef]
  56. Kim, J.; Lee, Y.J.; Park, J.W.; Jung, S.M. Repeatable Separation of Microplastics Integrating Mineral Oil Extraction and a PDMS-Ni Foam Adsorbent in Real Soil. Chem. Eng. J. 2022, 429, 132517. [Google Scholar] [CrossRef]
  57. Sun, M.; Chen, W.; Fan, X.; Tian, C.; Sun, L.; Xie, H. Cooperative Recyclable Magnetic Microsubmarines for Oil and Microplastics Removal from Water. Appl. Mater. Today 2020, 20, 100682. [Google Scholar] [CrossRef]

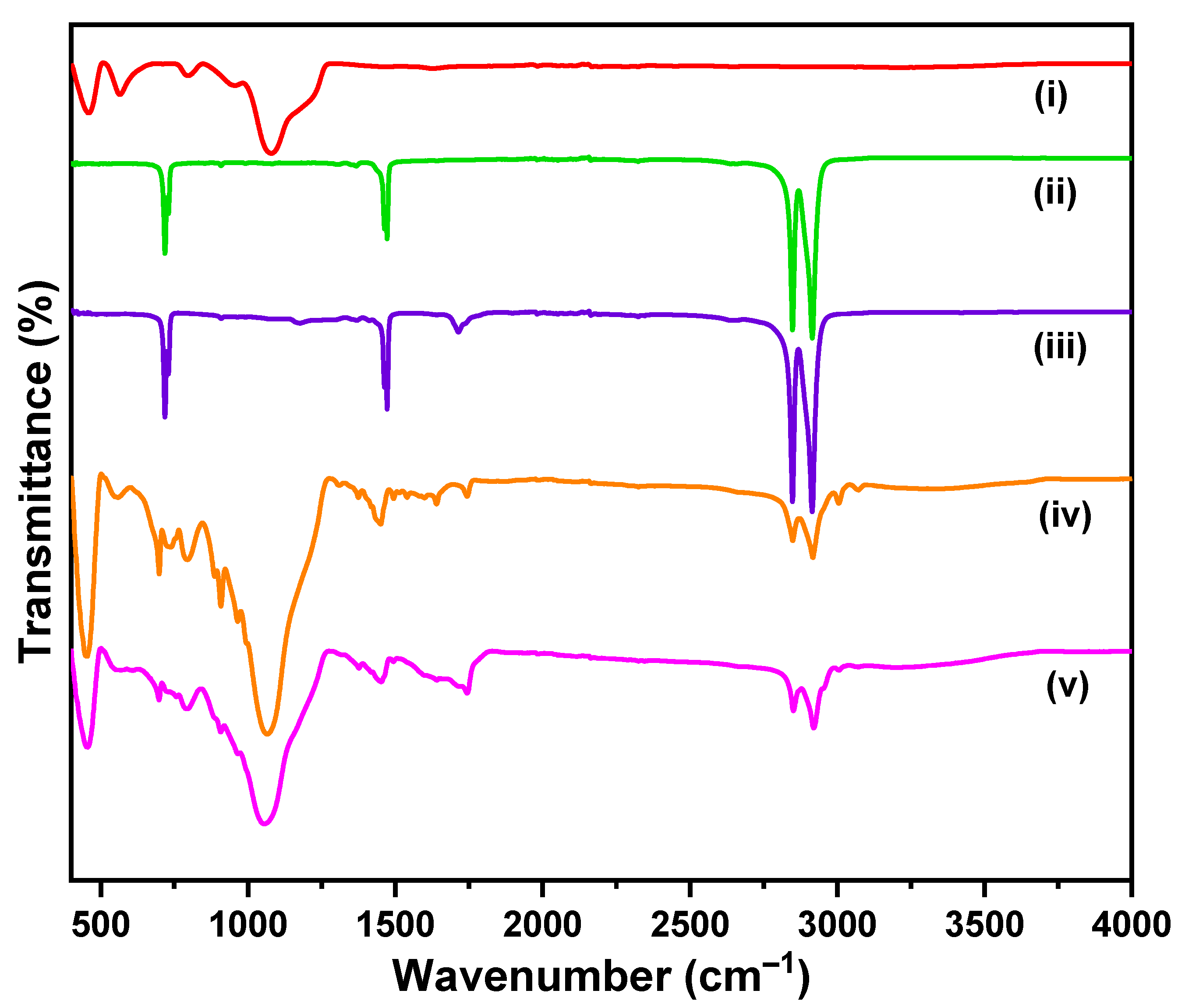

Figure 1. FTIR spectra of (i) Fe@SiO2/MDOS (ii) PE (iii) weathered PE1000h (iv) TWP and (v) weathered TWP1000h.
Figure 1. FTIR spectra of (i) Fe@SiO2/MDOS (ii) PE (iii) weathered PE1000h (iv) TWP and (v) weathered TWP1000h.
Polymers 14 05189 g001

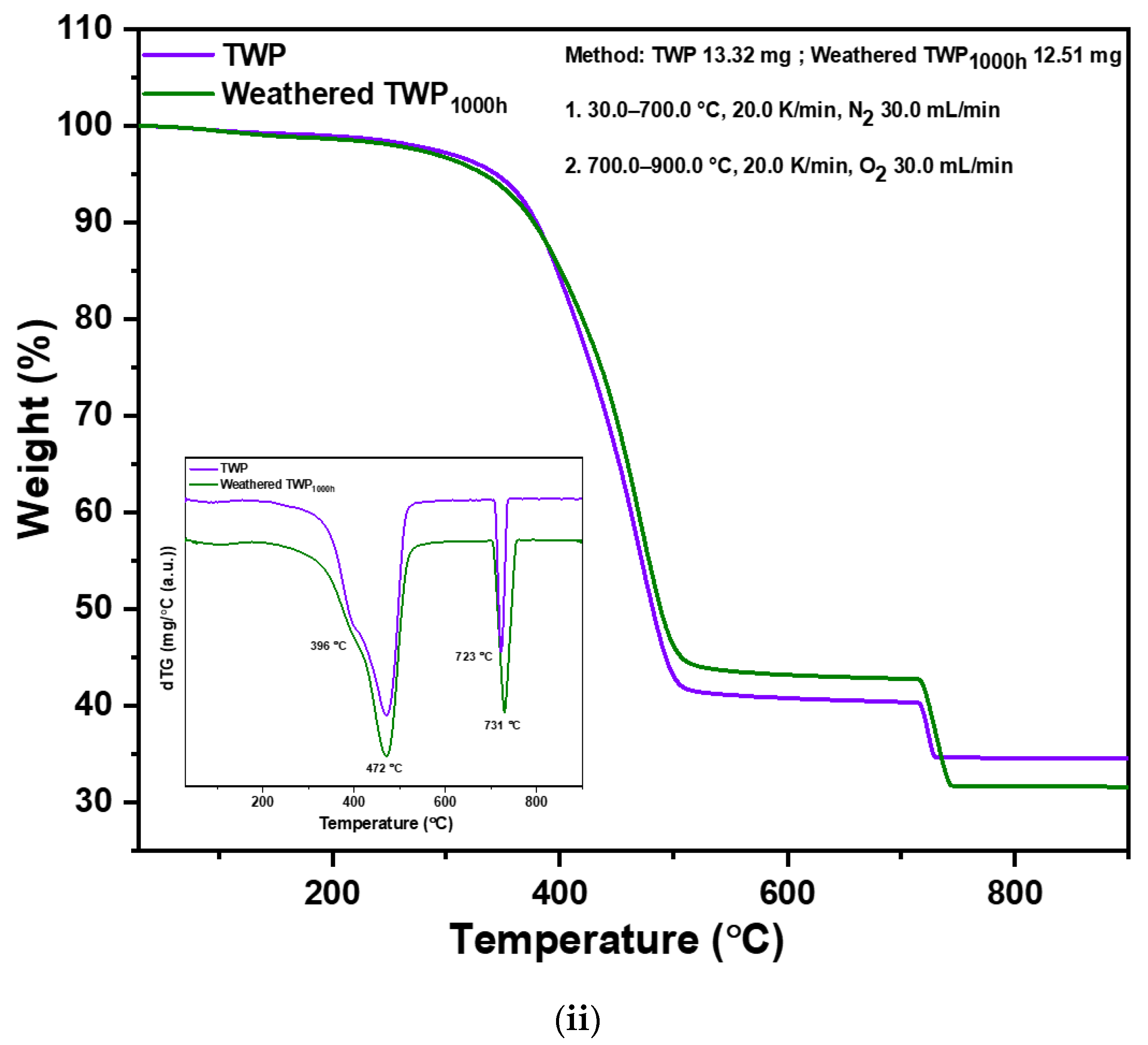

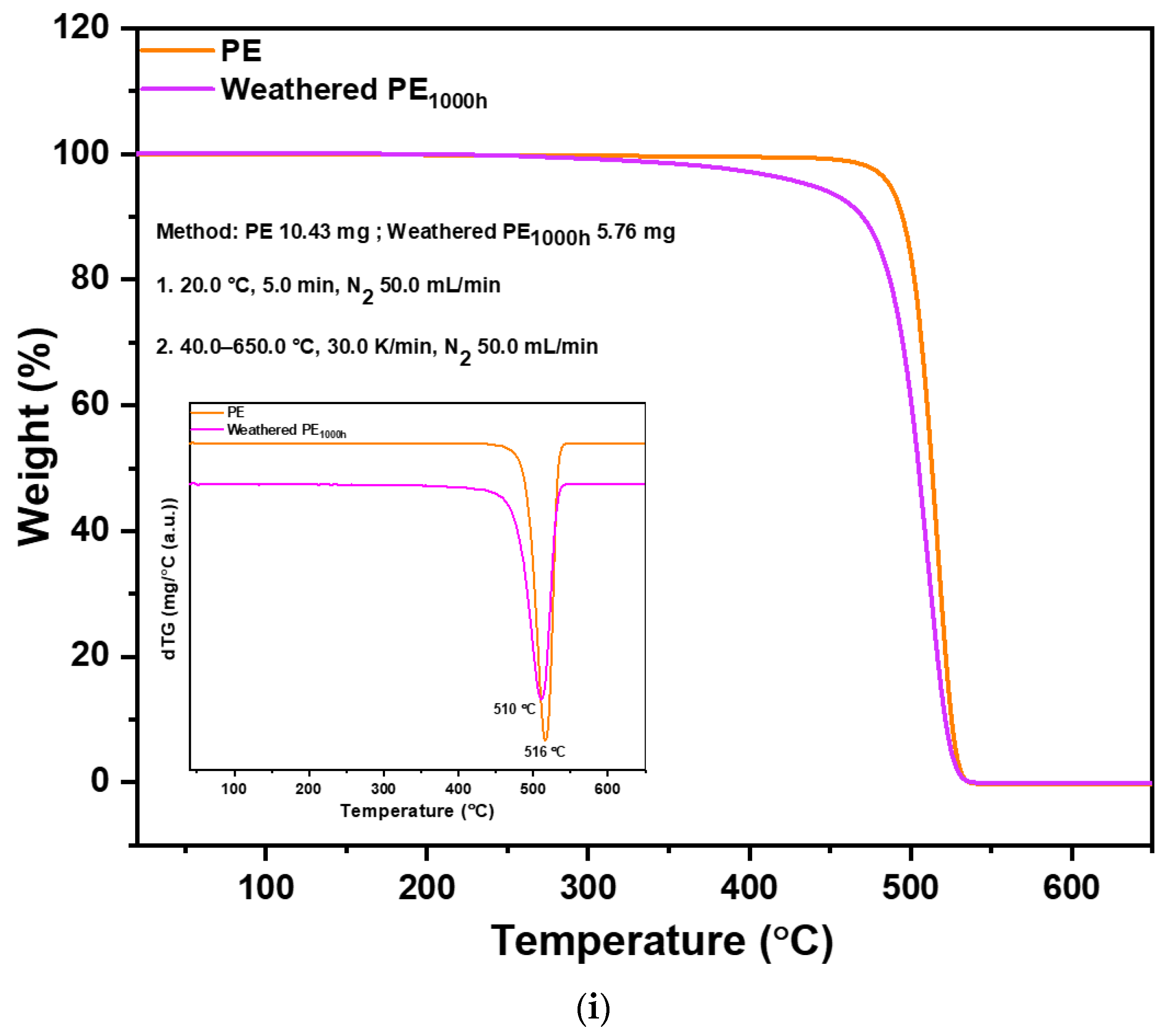

Figure 2. TGA of (i) PE, weathered PE1000h (ii) TWP, weathered TWP1000h. First differentials are shown in the inset.
Figure 2. TGA of (i) PE, weathered PE1000h (ii) TWP, weathered TWP1000h. First differentials are shown in the inset.
Polymers 14 05189 g002aPolymers 14 05189 g002b
Figure 3. SEM of (i) Fe@SiO2/MDOS (ii) PE (iii) Weathered PE1000h (iv) TWP (v) Weathered TWP1000h.
Figure 3. SEM of (i) Fe@SiO2/MDOS (ii) PE (iii) Weathered PE1000h (iv) TWP (v) Weathered TWP1000h.
Polymers 14 05189 g003

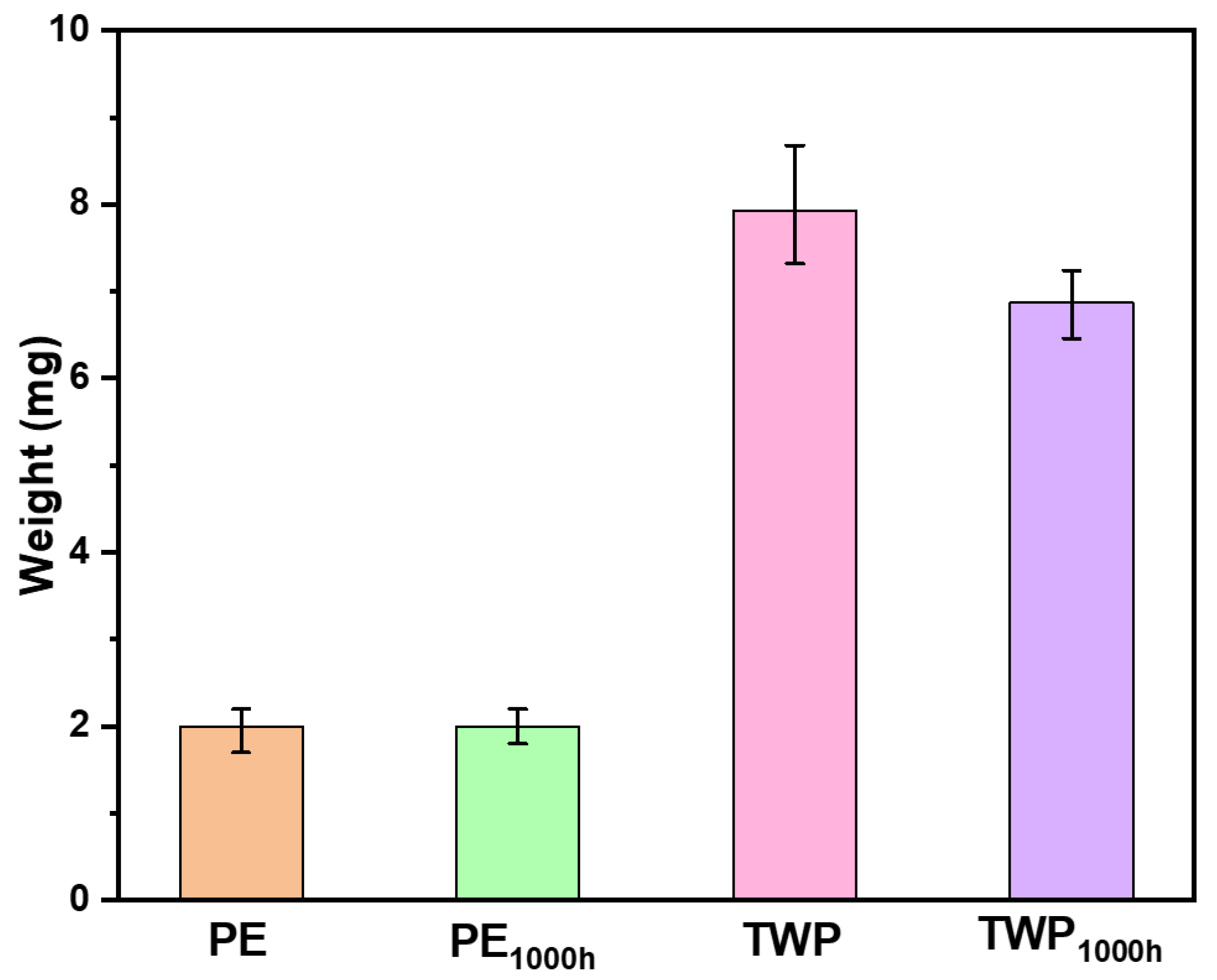

Figure 4. Results from recovery experiments of PE, Weathered PE1000h (<100 µm) and TWP, Weathered TWP1000h (300–600 µm). Error bars show standard deviation.
Figure 4. Results from recovery experiments of PE, Weathered PE1000h (<100 µm) and TWP, Weathered TWP1000h (300–600 µm). Error bars show standard deviation.
Polymers 14 05189 g004
Table 1. Thermal profile determined for (i) PE (ii) weathered PE1000h (iii) TWP (iv) weathered TWP1000h.
Table 1. Thermal profile determined for (i) PE (ii) weathered PE1000h (iii) TWP (iv) weathered TWP1000h.
PolymerTos (°C)Tmid (°C)Tmax (°C)Tp (°C)
Weathered PE1000h466.97505.64521.73510.22
Weathered TWP1000h333.09488.40740.51472.00
Table 2. Reported literature on the magnetic separation of the MPs.
Table 2. Reported literature on the magnetic separation of the MPs.
MaterialMPs TypeMPs SizeRemoval EfficiencyReference
Fe-HexadecyltrimethoxysilaneHDPE, PP, PS, PU 1, PVC, PET200–1000 µm49–105%[15]
Magnetic polyoxometalate ionic-liquidsPS1 or 10 µm100%[16]
Magnetic Carbon NanotubesPE, PA, PET48 µm100%[18]
Magnetic SepiolitePE48 µm98.4%[20]
Nano-Fe3O4PE, PP, PS, PET200–900 µm62.83–86.87%[38]
Fe-polydimethylsiloxaneLDPE 2
2–5 mm
100–1000 nm
Magnetic biocharPS1 µm94.8%[46]
Magnetic seeded filtration, Fe3O4PVC, PMMA2.06–5.98 µm95%[47]
Magnetic steel collector wirePE, PET, PTFE 363 µm–2 mm87–97%[48]
Carbon/iron nanocompositePS147 µm100%[49]
Fe3O4PE, PP, PVC, PS, PET20–800 µm100%[50]
Magnetic seeded filtration, Fe3O4LDPE, PP, PVC, PS, PET100 µm80–100%[51]
Fe3O4 polyoxometalate/n-octylaminePS, PET, Polysulphone1–500 µm83–99%[52]
Fe2O3-MnO2 micromotorPE0.8 µm10%[53]
Fe3O4PS, PMMA105–970 nm-[54]
Fe-Lauric AcidHDPE273–1250 µm100%[55]
Polydimethylsiloxane-Ni FoamLDPE, PP, PS, PC, PET, PVC, PTFE70–1200 µm86.25–100%[56]
Magnetic microsubmarines, sunflower pollon grainsPS40–100 µm70–75%[57]
<100 µm
300–600 µm
Present Work
1 Polyurethane, 2 Low Density Polyethylene; 3 Polytetrafluoroethylene.
