Fully Automated Multi-Step Synthesis of Block Copolymers

by
Timo Schuett
1,2,
Julian Kimmig
1,2,
Stefan Zechel
1,2 and
Ulrich S. Schubert
1,2,*
1
Laboratory of Organic and Macromolecular Chemistry (IOMC), Friedrich Schiller University Jena, Humboldtstr. 10, 07743 Jena, Germany
2
Jena Center for Soft Matter (JCSM), Friedrich Schiller University Jena, Philosophenweg 7, 07743 Jena, Germany
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(2), 292; https://doi.org/10.3390/polym14020292
Submission received: 13 December 2021 / Revised: 30 December 2021 / Accepted: 4 January 2022 / Published: 11 January 2022
Browse Figures
Versions Notes

Abstract

:
An automated synthesis protocol is developed for the synthesis of block copolymers in a multi-step approach in a fully automated manner. For this purpose, an automated dialysis setup is combined with robot-based synthesis protocols. Consequently, several block copolymerizations are executed completely automated and compared to the respective manual synthesis. As a result, this study opens up the field of autonomous multi-step reactions without any human interactions.

Graphical Abstract

1. Introduction

Block copolymers are macromolecules with at least two different blocks of monomers that are linearly and/or radially connected [1,2]. Due to high variability in composition and properties, block copolymers enable a wide range of potential applications. Amphiphilic block copolymers are applicable as surfactants [3,4] and pigment dispersants [5]. Furthermore, copolymers containing, e.g., poly(ethylene oxide) as hydrophilic block and poly(L-amino acid) as hydrophobic block, can aggregate in water to micelles [6]. The core of the micelles can be loaded with a drug for the use as long-circulating drug carriers [7,8].
There are several techniques to synthesize such block copolymers [9]. In order to obtain well-defined products with a small dispersity, living ionic [2,10,11,12] and controlled radical polymerizations [13,14] are the most successful and utilized approaches. Recently, those techniques were utilized in flow chemistry to produce block copolymers rapidly. However, these approaches are limited to monomers that reach a high conversion to avoid purification and isolation protocols [15,16].
Living and controlled polymerizations were also utilized in the past using automated protocols and synthesis robots for the preparation of linear polymers [17]. In particular, controlled living radical polymerizations such as reversible addition–fragmentation chain transfer (RAFT) polymerizations were applied in the past [14,18,19]. Nevertheless, nearly every established polymerization type has also been performed as a high-throughput experimentation (HTE) approach: Step growth [20,21] as well as chain-growth polymerizations [22], living ionic [23] and controlled radical polymerizations [24,25], and even copolymerizations (one-step synthesis) [18,26]. The first approach in this field was published in 1997 by Brocchini and coworkers with the first combinatorial attempt to create a polymer library of 112 biodegradable aromatic polyesters by step-growth polymerization [20]. To accelerate the screening of properties and the optimization of polymerization conditions, HTE was typically performed with an automated synthesizer (synthesis robot) [17]. Furthermore, Haven and coworkers created a quasi-block copolymer library in a one-pot HTE approach utilizing an automated synthesizer. Nevertheless, they still avoided purification steps by assuming a full monomer conversion [27].
To accelerate kinetic investigations, online characterization was realized as well. An automated synthesizer can, in principle, be combined with nearly every characterization device (e.g., nuclear magnetic resonance (NMR)-spectroscopy [28], size exclusion chromatography (SEC) or gas chromatography (GC) [29]). An advantage is the possibility to adjust conditions of the running reaction, such as temperature or time, after analyzing the results of the first samples [30].
In comparison to formulation and characterization, purification is a widely unexplored field. A first approach was studied in 2003 [31,32,33,34]. A copper catalyst of an ATRP reaction was automatically removed via a short column filled with aluminum oxide in a solid phase extraction (SPE) process [32,33,34]. The first automated precipitation was performed in diethyl ether using poly(2-ethyl-2-oxazoline) synthesized via living cationic polymerization [31]. Prior to this study, we developed an automated continuous dialysis process, which is compatible to the automated synthesizer [35]. The system was investigated utilizing tetrahydrofuran (THF) as a solvent, which is commonly used in polymer purification [36,37,38,39] and resulted in a monomer removal up to the detection limit of the NMR-spectrometer in less than 48 h [39].
At the current point of research, automated synthesis [20,25] and characterization [30] are already possible using such robots. However, automated purification techniques directly connected to synthesis robots are rarely investigated [31,32,33,34]. Hence, batchwise multi-step synthesis such as the sequential synthesis of pure block copolymers in high yields is still not possible without having a complete conversion of the monomers.
Consequently, the current investigation focuses on the implementation of a dialysis setup to access the field of automated multi-step reactions (i.e., polymerizations) using a synthesis robot without human intervention. Furthermore, several block copolymerizations are performed manually and automatically to prove the potential of the developed technology.

2. Materials and Methods

2.1. Materials and Methods

All chemicals were used as received from TCI (Eschborn, Germany), Sigma Aldrich (Darmstadt, Germany), Alfa Aesar (Kandel, Germany), VWR (Darmstadt, Germany), Thermo Fisher Scientific and Acros Organics (Schwerte, Germany) if not otherwise stated. Dimethylformamide (DMF) (99.8%) was dried over molecular sieve under nitrogen atmosphere. The used liquid monomers, butyl acrylate (≥99%) and styrene (≥99%), were destabilized using a short AlOx column (neutral AlOx, obtained from Molekula (Munich, Germany). The dialysis tubings were purchased from Spectrum Labs (Ravensburg, Germany) (Spectra/PorTM, pre-wetted tubing, 3.5 kDa) and rinsed with THF (99%) before use.
Nuclear magnetic resonance spectra (1H, DOSY) were recorded on a Bruker AV 250 (250 MHz), Bruker AV 400 (400 MHz) and a Bruker AV 500 (500 MHz) spectrometer at 298 K. The chemical shifts are given in parts per million (ppm on δ scale) related to deuterated solvent.
Size exclusion chromatography measurements were performed on the following setup: Shimadzu with CBM-20A (system controller), DGU-14A (degasser), LC-20AD (pump), SIL-20AHT (auto sampler), CTO-10AC vp (oven), SPD-20A (UV detector), RID-10A (RI detector), and PSS SDV guard/1000 Å/1,000,000 Å (5 μm particle size) chloroform/isopropanol/triethylamine [94/2/4] with 1 mL min−1 at 40 °C, poly(methyl methacrylate) or polystyrene (standard).
The automated polymerizations and purifications were performed using a Chemspeed SLT-Accelerator automated parallel synthesizer (Basel, Switzerland) equipped with an overhead robot arm that can pick up several tools such as a four-needle head (4-NH) for automated liquid handling of solvents and a glass reactor block, as well as an individual heater. The synthesizer is equipped with a glass reactor block consisting of four reaction vessels (60 mL) with thermal jackets and reflux condensers connected in series through the reaction block and connected to a heating/cooling system (Unistat Tango, heating range: −40 to 145 °C). The synthesis robot was programmed utilizing the AutoSuite software (Version 2.2) by Chemspeed (AutoSuite Editor, AutoSuite Executer, and AutoSuite Driver Manager).

2.2. Synthesis of the Polymers

The synthesis of all polymers (P1–P4) was adapted from a literature procedure [40] and is reported in more details in the Supporting Information. An overview of all synthesized polymers and copolymers is shown in Table 1. An exemplary synthesis protocol for one manual (P3) and one automated approach (P4) is described in the following.

2.2.1. Manual Synthesis of P3c

The pentablock copolymer P3c was synthesized via homopolymerization of styrene (resulting in P3a). Subsequently, P3a was converted to P3b (triblock) and finally to P3c (pentablockcopolymer).
Styrene (10.0 g, 96.0 mmol), azobisisobutyronitrile (AIBN) (26.3 mg, 0.16 mmol), and S,S-dibenzyl trithiocarbonate (DBTTC) (185.9 mg, 0.64 mmol) were dissolved in dimethylformamide (DMF) in a 50 mL round bottom flask ([M]:[CTA]:[I] ratio of 150:1:0.25) (M = monomer; CTA = chain-transfer agent; I = initiator). After closing the flask with a septum, the solution was degassed for 30 min with nitrogen. The solution polymerization was carried out in a pre-heated oil-bath at 70 °C for 17 h. Polystyrene (PS, P3a) (3.0 g, 30%) was obtained after dialysis in THF (5 × 350 mL, solvent exchange after 12 h) and after drying in vacuo.
1H NMR (250 MHz, CDCl3,): 0.87–2.55 (3H), 6.32–7.55 (5H) ppm.
SEC (chloroform/isopropanol/triethylamine [94/2/4], PS standard): Mn = 5900 g mol−1, Mw = 7500 g mol−1, Ð = 1.28.
Subsequently, P3a (2.87 g, 0.49 mmol), AIBN (20.0 mg, 0.12 mmol) and butyl acrylate (BA) (9.4 g, 72.9 mmol) were dissolved in DMF in a 25 mL round bottom flask ([M]:[CTA]:[I] ratio of 150:1:0.25). After closing the flask with a septum, the solution was degassed for 30 min with nitrogen. The solution polymerization was carried out in a pre-heated oil-bath at 70 °C for 17 h. PBA-b-PS-b-PBA (P3b) (7.33 g, 60%) was obtained after dialysis in THF (5 × 350 mL, solvent exchange after 12 h) and after drying in vacuo.
1H NMR (250 MHz, CDCl3,): 0.74–1.08 (3H), 1.09–2.57 (12H), 3.36–4.10 (2H), 6.30–7.58 (9H) ppm.
SEC (chloroform/isopropanol/triethylamine [94/2/4], PS standard): Mn = 17,800 g mol−1, Mw = 21,500 g mol−1, Ð = 1.20.
Afterwards, P3b (7.33 g, 0.41 mmol), AIBN (16.6 mg, 0.10 mmol), and styrene (6.33 g, 60.78 mmol) were dissolved in DMF in a 25 mL round bottom flask ([M]:[CTA]:[I] ratio of 150:1:0.25). After closing the flask with a septum, the solution was degassed for 30 min with nitrogen. The solution polymerization was carried out in a pre-heated oil-bath at 70 °C for 17 h. P3c (6.89 g, 50%) was obtained after dialysis in THF (5 × 350 mL, solvent exchange after 12 h) and after drying in vacuo.
1H NMR (250 MHz, CDCl3,): 0.78–1.05 (3H), 1.10–2.48 (16H), 3.35–4.11 (2H), 6.29–7.49 (14H) ppm.
SEC (chloroform/isopropanol/triethylamine [94/2/4], PS standard): Mn = 20,800 g mol−1, Mw = 26,000 g mol−1, Ð = 1.25.

2.2.2. Automated Synthesis of P4c

The pentablock copolymer P4c was synthesized via homopolymerization of styrene (resulting in P4a). Afterwards, P4a was converted to P4b (triblock) and finally to P4c (pentablock copolymer).
Styrene (10 g, 96.0 mmol), AIBN (26.3 g, 0.16 mmol) and DBTTC (185.9 g, 0.64 mmol) were dissolved via the 4-NH in DMF in a 60 mL glass reactor ([M]:[CTA]:[I] ratio of 150:1:0.25). The solution was degassed for 30 min with nitrogen and the polymerization was carried out by heating the oil-jacket to 70 °C for 17 h. Polystyrene (P4a) (3.0 g, 30%) was obtained after dialysis in THF (35 mL/h, 32 h) and after drying in vacuo.
1H NMR (250 MHz, CDCl3,): 1.02–2.88 (3H), 6.54–7.99 (5H) ppm.
SEC (chloroform/isopropanol/triethylamine [94/2/4], PS standard): Mn = 5200 g mol−1, Mw = 6700 g mol−1, Ð = 1.28.
Then, P4a (3.0 g, 0.6 mmol) dissolved in THF was transferred automatically from the dialysis tubing to a second reactor and the solvent was evaporated in vacuo. AIBN (22.8 mg, 0.14 mmol) and butyl acrylate (10.7 g, 83.5 mmol) were dissolved in DMF in a 60 mL glass reactor ([M]:[CTA]:[I] ratio of 150:1:0.25). The solution was degassed for 30 min with nitrogen and the polymerization was carried out by heating the oil-jacket to 70 °C for 17 h. P4b (7.0 g, 51%) was obtained after dialysis in THF (35 mL/h, 32 h) and after drying in vacuo.
1H NMR (250 MHz, CDCl3,): 0.89–1.14 (3H), 1.22–2.21 (7H), 4.41–4.20 (1H), 6.41–7.62 (19H) ppm.
SEC (chloroform/isopropanol/triethylamine [94/2/4], PS standard): Mn = 13,700 g mol−1, Mw = 17,100 g mol−1, Ð = 1.25.
Afterwards, P4b (7.0 g, 0.51 mmol) dissolved in THF was transferred automatically from the dialysis tubing to a second reactor and the solvent was evaporated in vacuo. AIBN (21.8 mg, 0.13 mmol) and styrene (8.3 g, 79.7 mmol) were dissolved in DMF in a 60 mL glass reactor ([M]:[CTA]:[I] ratio of 150:1:0.25). The solution was degassed for 30 min with nitrogen and the polymerization was carried out by heating the oil-jacket to 70 °C for 17 h. P4c (11.4 g, 76%) was obtained after dialysis in THF (35 mL/h, 32 h) and after drying in vacuo.
1H NMR (250 MHz, CDCl3,): 0.64–0.95 (3H), 0.98–2.37 (14H), 3.24–4.03 (2H), 6.19–7.41 (12H).
SEC (chloroform/isopropanol/triethylamine [94/2/4], PS standard): Mn = 22,200 g mol−1, Mw = 26,800 g mol−1, Ð = 1.21.

2.2.3. General Procedure of Manual Dialysis

The polymer was dissolved in THF (100 mg/mL), poured into a dialysis tubing (3.5 kDa, d = 34 mm) and stored in a beaker filled with 350 mL THF. The surrounding solvent was exchanged every 12 h and a new 400 mL of THF was utilized for this purpose.

2.2.4. Automated Dialysis

The procedure was performed according to literature [35]. The polymer was dissolved in THF (100 mg/mL) and poured into dialysis tubing (3.5 kDa, d = 34 mm) using the 4-NH of the robot. The tubing was fixed to the cap of the dialysis system. The surrounding solvent (250 mL THF) was continuously exchanged by a pump with a volume flow of 35 mL/h. After 48 h, the purified polymeric solution was extracted and the dialysis tubing was rinsed with THF (10 × 10 mL).

2.2.5. Reusability Test of Dialysis Tubing

An automated dialysis setup was prepared as mentioned above. Fifteen milliliters of the raw reaction solution of 1 g PMMA (P5) in THF was filled into the tubing and a continuous solvent flow of 35 mL/min was applied for 24 h. Afterwards, the purified polymeric solution was extracted utilizing a pump and rinsed four times with 10 mL THF for each cycle using the 4-NH of the synthesis robot. Each fraction was collected and analyzed via SEC. Subsequently, 10 mL of a solution of 1 g PS (P6) in THF was filled into the rinsed dialysis tubing. After 24 h, the polymer was extracted, the dialysis tubing was rinsed and 1.5 mL of each rinsing fraction was analyzed via SEC.

3. Results and Discussion

As a first experiment, the copolymerization of the triblock copolymer (P1b, PS-b-PBA-b-PS) and the pentablock copolymer (P3b, PS-b-PBA-b-PS-b-PBA-b-PS) was performed manually in order to generate reference data for the automated setup. The polymerization was inspired by a literature example of the RAFT-polymerization of multi-block copolymers [40]. Thus, styrene was polymerized first (P1a, P2a, P3a, P4a), followed by a synthesis of the triblock copolymer using butyl acrylate as second monomer (P1b, P2b, P3b, P4b) and finally the polymerization of a pentablock copolymer using styrene again as monomer (P3c, P4c). The reaction was performed using standard round bottom flasks equipped with septa and a typical dialysis setup using beakers and THF as solvent. The resulting molar masses, dispersities Ð and yields are summarized in Table 1.
As expected, the molar mass increased within every synthesis step (Figure 1, left; P3a: Mn = 5900 g mol−1, P3b: Mn = 17,800 g mol−1, P3c: Mn = 20,800 g mol−1). All dispersities are very low, indicating a good control over the consecutive polymerizations.
Secondly, due to limited space in the synthesis robot, the reusability of a dialysis tubing was tested. Therefore, two typical automated dialysis approaches were performed each for 24 h in the same dialysis tubing utilizing the prior developed setup [35] and two different polymers synthesized for this approach (P5–P6). After each purification, the dialysis tubing was rinsed for four cycles by inserting and extracting THF. Subsequently, every rinsing solvent fraction was analyzed via SEC to investigate the residual polymer. The resulting elugrams are shown in Figure 2. The dialysis tubing filled with PMMA (P5) dissolved in THF revealed no residual polymer after the fourth rinsing step (Figure 2, left). Compared to this, there was a small polystyrene (P6) signal after the fourth rinsing step in the respective experiment (Figure 2, right). As a consequence, the dialysis tubing was rinsed in 10 cycles after each reaction step of the copolymerizations, to ensure that there are no contaminations with polymer of the prior synthesis. Additionally, a prior long-term experiment revealed the usability of dialysis tubing for a long period of time [35]. Thus, those tubings can be applied for more than 28 d.
Afterwards, the automated setup was installed to ensure a completely autonomous working system. For this purpose, the stock solutions (AIBN and DBTTC, each in DMF), the respective monomer (styrene or butyl acrylate) as well as the solvent (DMF) were fixed in the stock solution rack inside the synthesis robot. Furthermore, the automated dialysis setup was installed.
For this purpose, the dialysis tubing was equipped with a Teflon hemisphere at the bottom to increase the volume of the tubing filled with air, which, in consequence, prevents it from overfilling and piercing of the tubing with the needle of the robot.
Additionally, a rinsing solvent (THF) for the dialysis tubing was placed inside the robot to enable purification of the dialysis tubing between two purification steps.
After the automated synthesis and purification of P2a, a specific volume was taken for analysis and calculation of the yield. Based on the results, the second step (P2b) was calculated, programmed, and performed automatically. To enable no human interactions during the synthesis of P4, a theoretical yield of the PS-block of 30% and of the BA block of 40% was presumed for the addition of the substrates of the respective next step. The assumed yields are based on the findings of the manual reactions.
According to Scheme 1, the triblock copolymer (PS-b-PBA-b-PS) P2b and the pentablock copolymer (PS-b-PBA-b-PS-b-PBA-b-PS) P4c were synthesized in a fully automated manner. After each purification, a specific volume was extracted out of the process for characterization and calculation of the yield.
All polymers were characterized using SEC and NMR spectroscopy, which are depicted in the SI. The SEC traces indicates a successful synthesis of the block copolymers due to a shift to lower elution volumes (Table 1, Figure 1).
Furthermore, no significant tailing could be observed indicating the formation of the block copolymers. Within the NMR spectra, the signals of the corresponding moieties could be found (i.e., styrene and butyl acrylate) The ratio between these signals changes during the formation of block copolymer structures. Furthermore, it could be shown that for the final products, no residual monomer is observable beside polymer P4c, for which slightly monomer signals could be observed.
Furthermore, the dispersity of all polymerizations is low (below 1.3), indicating a high control of the polymerizations. To ensure there is only one polymer species, 1H-DOSY measurements were performed with the block copolymer samples (P1b, P2b, P3b, P3c, and P4c, respectively). An example spectrum is shown in Figure 3; all other spectra can be found in the Supplementary Information. As it can be seen, there is only one species in the solution and, thus, the synthesis of the block copolymer was successful for both approaches. All NMR spectra and SEC-curves can be found in the Supplementary Information.
In comparison, both the manual as well as the automated approach feature a similar yield, purity, dispersity, and molar mass. However, the amount of work is significantly decreased in the automated procedure. After preparing the robot, by writing the program, inserting the substrates, and preparing the dialysis setup, no further interaction was required to achieve a purified pentablock copolymer.
Furthermore, the automated approach led faster to the destined product due to a more efficient dialysis and the robot working every day and night (total amount of time for the pentablock copolymer synthesis: Automated: 9 d, manual: 10 d). The total amount of time for both approaches is such high due to the purification via dialysis. A further improvement in the future can be the utilization of other techniques such as precipitation.
However, the amount of solvent required for the manual approach is lower compared to the automatic one (automated: 7.5 L, manual: 5.25 L). Nevertheless, the automated purification of the dialysis tubings resulted in a significant advantage since only one tubing is required per block copolymer synthesis.

4. Conclusions

In summary, a new, fully automated protocol was developed enabling the sufficient synthesis of multi-block copolymers via the reversible-addition-fragmentation chain-transfer (RAFT)-polymerization.
For this purpose, a dialysis system was combined with a synthesis robot. Consequently, the synthesis and the purification of each block could be performed without any human intervention.
In comparison to the manual approach, automated block copolymerization decreases the amount of human work significantly, is faster and leads to comparable results regarding purity, yield, molar mass, and dispersity. However, the yield and purity of every step have to be estimated before the synthesis to start the automated program and the amount of solvent needed for automated dialysis is slightly higher than for manual dialysis (automated: 7.5 L, manual: 5.25 L). Therefore, further optimizations will be performed in order to improve the system. Furthermore, investigations on the dialysis setup regarding type of solvent, polymer and monomer type as well as size and the cut-off of the dialysis tubing are currently in progress.
Overall, the new setup integrating an automated purification technique into a continuous workflow enables automated multi-step synthesis in a fully automated manner.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/polym14020292/s1, Table S1: Reaction details for the RAFT-polymerizations. Table S2: Summary of the utilized amounts and volumes for the RAFT-polymerizations of MMA and PS. Table S3: Summary of the molar masses of the polymers P5–P6 (molar mass was determined using SEC; standard PMMA for P5 and polystyrene for P6; solvent: Chloroform/isopropanol/triethylamine [94/2/4]). Figure S1: 1H NMR spectrum of polymer P1b (250 MHz, CDCl3). Figure S2: 1H NMR spectrum of polymer P2b (250 MHz, CDCl3). Figure S3: 1H NMR spectrum of polymer P3c (500 MHz, CDCl3). Figure S4: 1H NMR spectrum of polymer P4c (500 MHz, CDCl3). Figure S5: 1H NMR spectrum of polymer P6 (300 MHz, CDCl3). Figure S6: DOSY-NMR spectrum of PS-b-PBA-b-PS (P1b) in CDCl3 (400 MHz). Figure S7: DOSY-NMR spectrum of PS-b-PBA-b-PS (P2b) in CDCl3 (400 MHz). Figure S8: DOSY-NMR spectrum of PS-b-PBA-b-PS (P3b) in CDCl3 (400 MHz). Figure S9: DOSY-NMR spectrum of PS-b-PBA-b-PS-b-PBA-b-PS (P3c) in CDCl3 (500 MHz). Figure S10: DOSY-NMR spectrum of PS-b-PBA-b-PS-b-PBA-b-PS (P4c) in CDCl3 (500 MHz). Figure S12: SEC-curve of the automatically synthesized block copolymer P2. Black: First reaction step (PS, P2a). Red: Second reaction step (PS-b-PBA-b-PS, P2b), (chloroform/isopropanol/triethylamine [94/2/4], PS standard). Figure S13: SEC-curve of the manually synthesized block copolymer P3. Black: First reaction step (PS, P3a). Red: Second reaction step (PS-b-PBA-b-PS, P3b). Blue: Third reaction step (PS-b-PBA-b-PS-b-PBA-b-PS, P3c), (chloroform/isopropanol/triethylamine [94/2/4], PS standard). Figure S14: SEC-curve of the automatically synthesized block copolymer P4. Black: First reaction step (PS, P4a). Red: Second reaction step (PS-b-PBA-b-PS, P4b). Blue: Third reaction step (PS-b-PBA-b-PS-b-PBA-b-PS, P4c), (chloroform/isopropanol/triethylamine [94/2/4], PS standard). Figure S15: SEC-curves of the synthesized polymers P5 and P6. Red: PMMA, P5. Black: PS, P6) (chloroform/isopropanol/triethylamine [94/2/4], PMMA or PS standard).

Author Contributions

Conceptualization, T.S., J.K., and S.Z.; experiments, T.S.; writing—original draft preparation, T.S.; writing—review and editing, S.Z., J.K., and U.S.S.; supervision, S.Z. and U.S.S.; project administration, U.S.S.; funding acquisition, U.S.S. All authors have read and agreed to the published version of the manuscript.

Funding

The author would like to thank the Thüringer Aufbaubank (TAB) (2021 FGI 0005) for financial support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Riess, G.; Hurtrez, G.; Bahadur, P. Block Copolymers, Encyclopedia Polymer Science and Engineering; Wiley: New York, NY, USA, 1986; Volume 2, pp. 324–434. [Google Scholar]
  2. Riess, G. Micellization of block copolymers. Prog. Polym. Sci. 2003, 28, 1107–1170. [Google Scholar] [CrossRef] [Green Version]
  3. Burguière, C.; Pascual, S.; Coutin, B.; Polton, A.; Tardi, M.; Charleux, B.; Matyjaszewski, K.; Vairon, J.-P. Amphiphilic block copolymers prepared via controlled radical polymerization as surfactants for emulsion polymerization. Macromol. Symp. 2000, 150, 39–44. [Google Scholar] [CrossRef]
  4. Mu, B.; Cui, J.; Yang, B.; Cui, J.; Guo, J.; Tian, L. One-Pot Synthesis and Tribological Properties of Oil-Containing Self-Lubricating Polyurethane Materials. Macromol. Mater. Eng. 2020, 306, 2000509. [Google Scholar] [CrossRef]
  5. Auschra, C.; Eckstein, E.; Knischka, R.; Pirrung, F.; Harbers, P. Controlled polymers for pigment dispersants. Paint. Coat. Ind. 2005, 21, 98–108. [Google Scholar]
  6. Kwon, G.S.; Kataoka, K. Block copolymer micelles as long-circulating drug vehicles. Adv. Drug Deliv. Rev. 1995, 16, 295–309. [Google Scholar] [CrossRef]
  7. Ramesh, K.; Mishra, A.K.; Kim, J.K.; Jeong, Y.T.; Gal, Y.-S.; Lim, K.T. Preparation of Doxorubicin-Loaded Amphiphilic Poly(D,L-Lactide-Co-Glycolide)-b-Poly(N-Acryloylmorpholine) AB2 Miktoarm Star Block Copolymers for Anticancer Drug Delivery. Materials 2020, 13, 3713. [Google Scholar] [CrossRef]
  8. Kwon, G.S.; Okano, T. Polymeric micelles as new drug carriers. Adv. Drug Deliv. Rev. 1996, 21, 107–116. [Google Scholar] [CrossRef]
  9. Lieske, A.; Jaeger, W. Synthesis and characterization of block copolymers containing cationic blocks. Macromol. Chem. Phys. 1998, 199, 255–260. [Google Scholar] [CrossRef]
  10. Szwarc, M.; Levy, M.; Milkovich, R. Polymerization Initiated by electron transfer to Monomer. A New Method of Formation of Block Polymers. J. Am. Chem. Soc. 1956, 78, 2656–2657. [Google Scholar] [CrossRef]
  11. Paraskeva, S.; Hadjichristidis, N. Synthesis of an exact graft copolymer of isoprene and styrene with two branches. J. Polym. Sci. Part A Polym. Chem. 2000, 38, 931–935. [Google Scholar] [CrossRef]
  12. Natalello, A.; Morsbach, J.; Friedel, A.; Alkan, A.; Tonhauser, C.; Müller, A.H.E.; Frey, H. Living Anionic Polymerization in Continuous Flow: Facilitated Synthesis of High-Molecular Weight Poly(2-vinylpyridine) and Polystyrene. Org. Process. Res. Dev. 2014, 18, 1408–1412. [Google Scholar] [CrossRef]
  13. Tamasi, M.; Kosuri, S.; DiStefano, J.; Chapman, R.; Gormley, A.J. Automation of Controlled/Living Radical Polymerization. Adv. Intell. Syst. 2020, 2, 1900126. [Google Scholar] [CrossRef]
  14. Zhang, W.; D’Agosto, F.; Dugas, P.-Y.; Rieger, J.; Charleux, B. RAFT-mediated one-pot aqueous emulsion polymerization of methyl methacrylate in presence of poly(methacrylic acid-co-poly(ethylene oxide) methacrylate) trithiocarbonate macromolecular chain transfer agent. Polymer 2013, 54, 2011–2019. [Google Scholar]
  15. Parkinson, S.; Knox, S.T.; Bourne, R.A.; Warren, N.J. Rapid production of block copolymer nano-objects via continuous-flow ultrafast RAFT dispersion polymerisation. Polym. Chem. 2020, 11, 3465–3474. [Google Scholar] [CrossRef]
  16. Baeten, E.; Haven, J.J.; Junkers, T. RAFT multiblock reactor telescoping: From monomers to tetrablock copolymers in a continuous multistage reactor cascade. Polym. Chem. 2017, 8, 3815–3824. [Google Scholar] [CrossRef]
  17. Oliver, S.; Zhao, L.; Gormley, A.J.; Chapman, R.; Boyer, C. Living in the fast lane—High throughput controlled/living radical polymerization. Macromolecules 2019, 52, 3–23. [Google Scholar] [CrossRef] [Green Version]
  18. Rosales-Guzmán, M.; Pérez-Camacho, O.; Guerrero-Sánchez, C.; Harrisson, S.; Torres-Lubián, R.; Vitz, J.; Schubert, U.S.; Saldívar-Guerra, E. Semiautomated Parallel RAFT Copolymerization of Isoprene with Glycidyl Methacrylate. ACS Comb. Sci. 2019, 21, 771–781. [Google Scholar] [CrossRef]
  19. Chiefari, J.; Chong, Y.K.; Ercole, F.; Krstina, J.; Jeffery, J.; Le, T.P.T.; Mayadunne, R.T.A.; Meijs, G.F.; Moad, C.L.; Moad, G.; et al. Living Free-Radical Polymerization by Reversible Addition−Fragmentation Chain Transfer:  The RAFT Process. Macromolecules 1998, 31, 5559–5562. [Google Scholar] [CrossRef]
  20. Brocchini, S.; James, K.; Tangpasuthadol, V.; Kohn, J. A Combinatorial Approach for Polymer Design. J. Am. Chem. Soc. 1997, 119, 4553–4554. [Google Scholar] [CrossRef]
  21. Nasrullah, M.J.; Bahr, J.A.; Gallagher-Lein, C.; Webster, D.C.; Roesler, R.R.; Schmitt, P. Automated parallel polyurethane dispersion synthesis and characterization. J. Coat. Technol. Res. 2009, 6, 1–10. [Google Scholar] [CrossRef]
  22. Thomas, M.; Lu, J.J.; Zhang, C.; Chen, J.; Klibanov, A.M. Identification of novel superior polycationic vectors for gene delivery by high-throughput synthesis and screening of a combinatorial library. Pharm. Res. 2007, 24, 1564–1571. [Google Scholar] [PubMed]
  23. Szwarc, M. ‘Living’ Polymers. Nature 1956, 178, 1168–1169. [Google Scholar]
  24. Wang, J.-S.; Matyjaszewski, K. Controlled/”living” radical polymerization. atom transfer radical polymerization in the presence of transition-metal complexes. J. Am. Chem. Soc. 1995, 117, 5614–5615. [Google Scholar]
  25. Hawker, C.J.; Barclay, G.G.; Dao, J. Radical Crossover in Nitroxide Mediated “Living” Free Radical Polymerizations. J. Am. Chem. Soc. 1996, 118, 11467–11471. [Google Scholar] [CrossRef]
  26. Rojas, R.; Harris, N.; Piotrowska, K.; Kohn, J. Evaluation of Automated Synthesis for Chain and Step-Growth Polymerizations: Can Robots Replace the Chemists? J. Polym. Sci. Part A Polym. Chem. 2009, 47, 49–58. [Google Scholar]
  27. Haven, J.J.; Guerrero-Sanchez, C.; Keddie, D.J.; Moad, G.; Thang, S.H.; Schubert, U.S. One pot synthesis of higher order quasi-block copolymer libraries via sequential RAFT polymerization in an automated synthesizer. Polym. Chem. 2014, 5, 5236–5246. [Google Scholar] [CrossRef]
  28. Chatterjee, S.; Guidi, M.; Seeberger, P.H.; Gilmore, K. Automated radial synthesis of organic molecules. Nature 2020, 579, 379–384. [Google Scholar] [CrossRef]
  29. Hoogenboom, R.; Fijten, M.W.M.; Abeln, C.H.; Schubert, U.S. High-Throughput Investigation of Polymerization Kinetics by Online Monitoring of GPC and GC. Macromol. Rapid Commun. 2004, 25, 237–242. [Google Scholar] [CrossRef]
  30. Hoogenboom, R.; Schubert, U.S. High-throughput synthesis equipment applied to polymer research. Rev. Sci. Instrum. 2005, 76, 062202. [Google Scholar] [CrossRef] [Green Version]
  31. Hoogenboom, R.; Fijten, M.W.M.; Meier, M.A.R.; Schubert, U.S. Living Cationic Polymerizations Utilizing an Automated Synthesizer: High-Throughput Synthesis of Polyoxazolines. Macromol. Rapid Commun. 2003, 24, 92–97. [Google Scholar] [CrossRef]
  32. Hoogenboom, R.; Schubert, U.S. The fast and the curious: High-throughput experimentation in synthetic polymer chemistry. J. Polym. Sci. Part A Polym. Chem. 2003, 41, 2425–2434. [Google Scholar] [CrossRef]
  33. Zhang, H.; Marin, V.; Fijten, M.W.M.; Schubert, U.S. High-throughput experimentation in atom transfer radical polymerization: A general approach toward a directed design and understanding of optimal catalytic systems. J. Polym. Sci. Part A Polym. Chem. 2004, 42, 1876–1885. [Google Scholar] [CrossRef]
  34. Zhang, H.; Fijten, M.W.M.; Hoogenboom, R.; Reinierkens, R.; Schubert, U.S. Application of a Parallel Synthetic Approach in Atom-Transfer Radical Polymerization: Set-Up and Feasibility Demonstration. Macromol. Rapid Commun. 2003, 24, 81–86. [Google Scholar] [CrossRef]
  35. Schuett, T.; Kimmig, J.; Zechel, S.; Schubert, U.S. Automated polymer purification using dialysis. Polymers 2020, 12, 2095. [Google Scholar] [CrossRef] [PubMed]
  36. Verstraete, K.; Buckinx, A.-L.; Zaquen, N.; Junkers, T. Micelle Purification in Continuous Flow via Inline Dialysis. Macromolecules 2021, 54, 3865–3872. [Google Scholar] [CrossRef]
  37. Zhang, C.; Chung, J.W.; Priestley, R.D. Dialysis Nanoprecipitation of Polystyrene Nanoparticles. Macromol. Rapid Commun. 2012, 33, 1798–1803. [Google Scholar] [CrossRef] [PubMed]
  38. McKenzie, B.E.; De Visser, J.F.; Portale, G.; Hermida-Merino, D.; Friedrich, H.; Bomans, P.H.H.; Bras, W.; Monaghan, O.R.; Holder, S.J.; Sommerdijk, N.A.J.M. The evolution of bicontinuous polymeric nanospheres in aqueous solution. Soft Matter 2016, 12, 4113–4122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Schuett, T.; Geitner, R.; Zechel, S.; Schubert, U.S. Dialysis Diffusion Kinetics in Polymer Purification. Macromolecules 2021, 54, 9410–9417. [Google Scholar] [CrossRef]
  40. Enke, M.; Bose, R.K.; Bode, S.; Vitz, J.; Schacher, F.H.; Garcia, S.J.; van der Zwaag, S.; Hager, M.D.; Schubert, U.S. A Metal Salt Dependent Self-Healing Response in Supramolecular Block Copolymers. Macromolecules 2016, 49, 8418–8429. [Google Scholar] [CrossRef]
Polymers 14 00292 g001 550

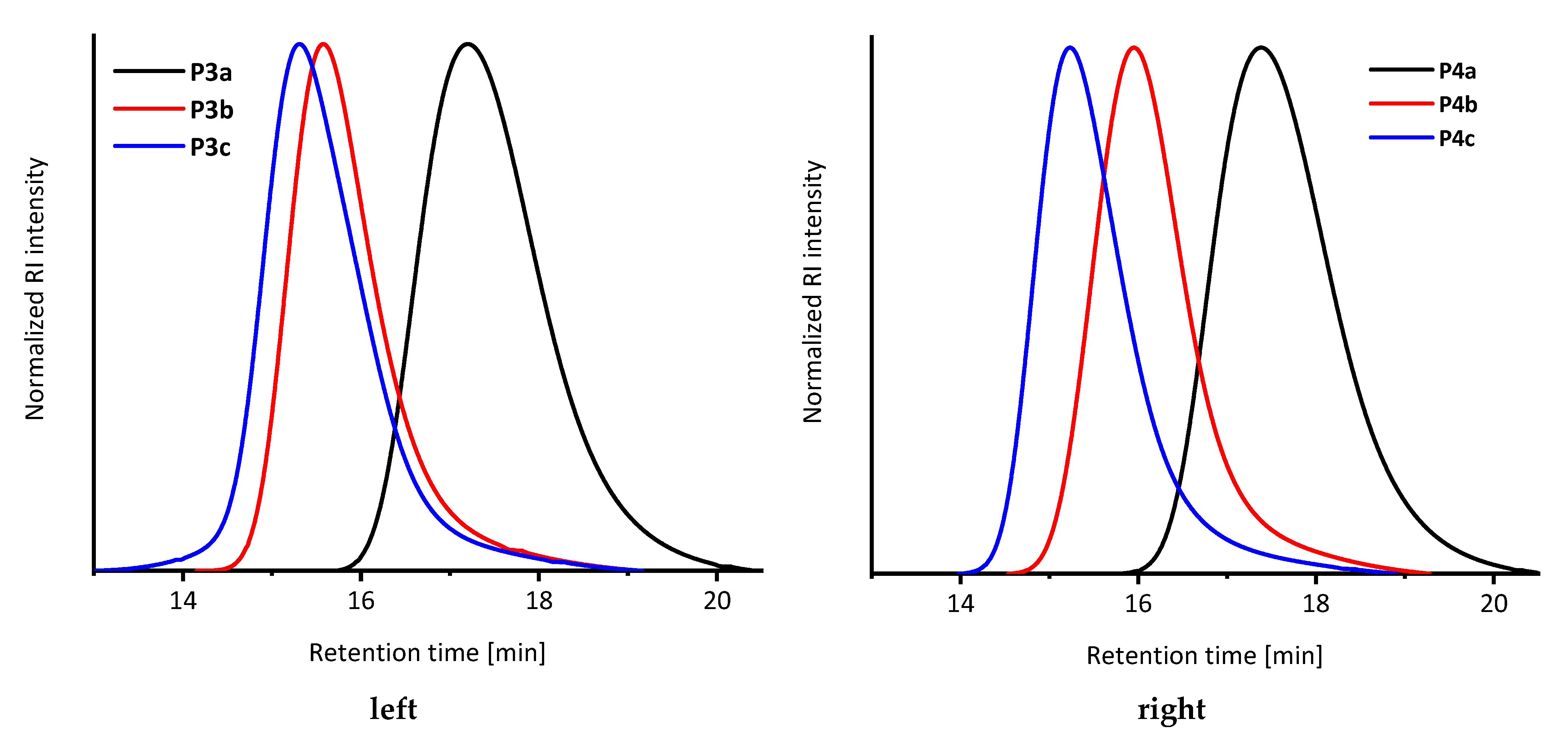

Figure 1. SEC-Elugram of the manually (P3, left) and automated (P4, right) synthesized block copolymer. Black: First reaction step (PS, P3a/P4a). Red: Second reaction step (PS-b-PBA-b-PS, P3b/P4b). Blue: Third reaction step (PS-b-PBA-b-PS-b-PBA-b-PS, P3c/P4c). Standard: Poly(methyl methacrylate) or polystyrene; solvent: chloroform/isopropanol/triethylamine [94/2/4]).
Figure 1. SEC-Elugram of the manually (P3, left) and automated (P4, right) synthesized block copolymer. Black: First reaction step (PS, P3a/P4a). Red: Second reaction step (PS-b-PBA-b-PS, P3b/P4b). Blue: Third reaction step (PS-b-PBA-b-PS-b-PBA-b-PS, P3c/P4c). Standard: Poly(methyl methacrylate) or polystyrene; solvent: chloroform/isopropanol/triethylamine [94/2/4]).
Polymers 14 00292 g001
Polymers 14 00292 g002 550

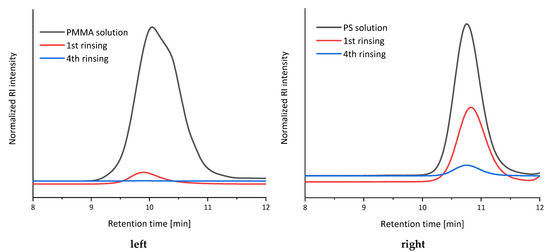

Figure 2. SEC-Elugram of dialysis tubing reusability tests. (left) PMMA (P5) solution. (right) PS (P6) solution. Black: Raw polymeric solution. Red: 1st rinsing fraction. Blue: 4th rinsing fraction.
Figure 2. SEC-Elugram of dialysis tubing reusability tests. (left) PMMA (P5) solution. (right) PS (P6) solution. Black: Raw polymeric solution. Red: 1st rinsing fraction. Blue: 4th rinsing fraction.
Polymers 14 00292 g002
Polymers 14 00292 sch001 550

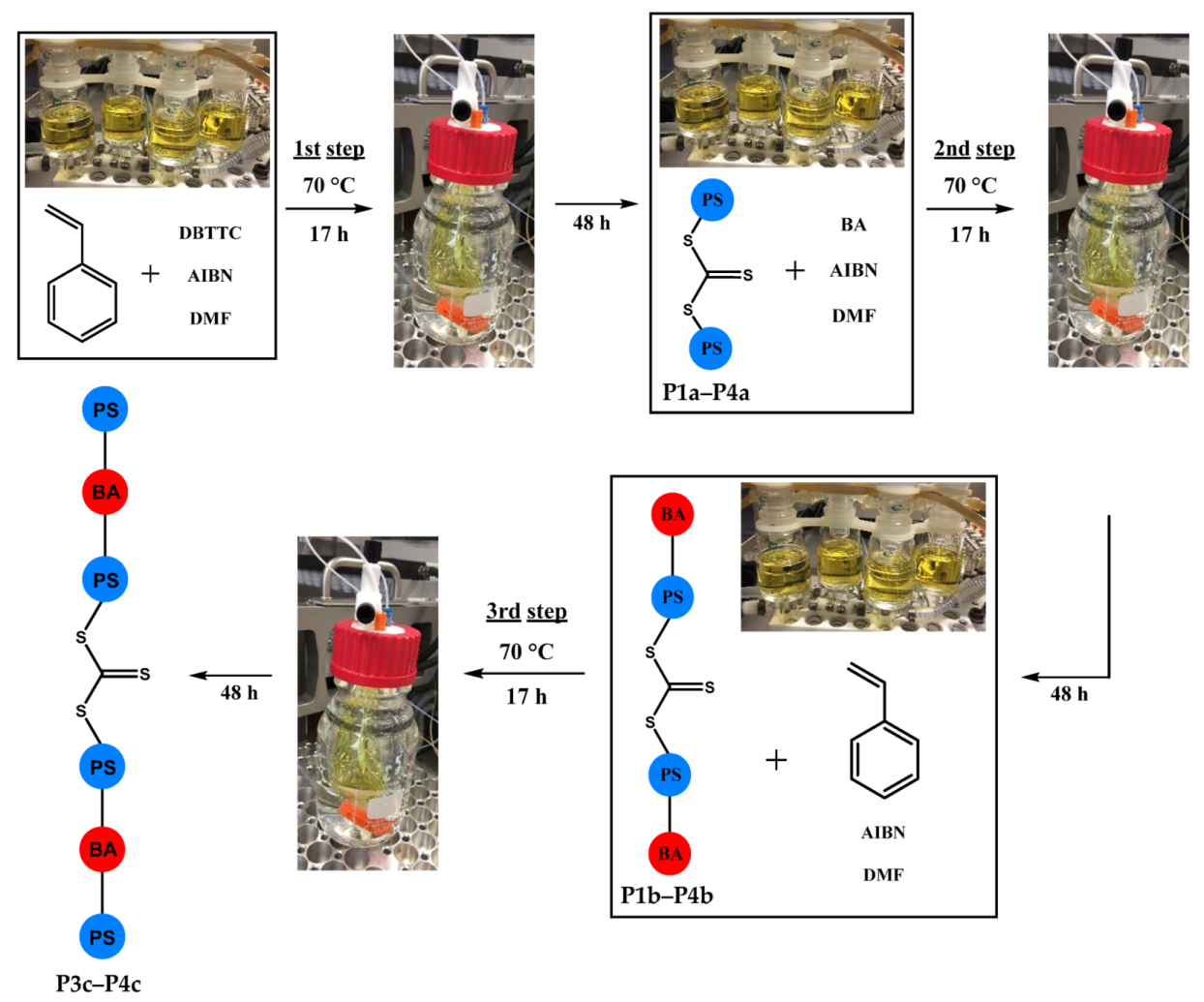

Scheme 1. Schematic representation of the automated synthesis of PS-b-PBA-b-PS-b-PBA-b-PS, utilizing the developed automated dialysis system.
Scheme 1. Schematic representation of the automated synthesis of PS-b-PBA-b-PS-b-PBA-b-PS, utilizing the developed automated dialysis system.
Polymers 14 00292 sch001
Polymers 14 00292 g003 550

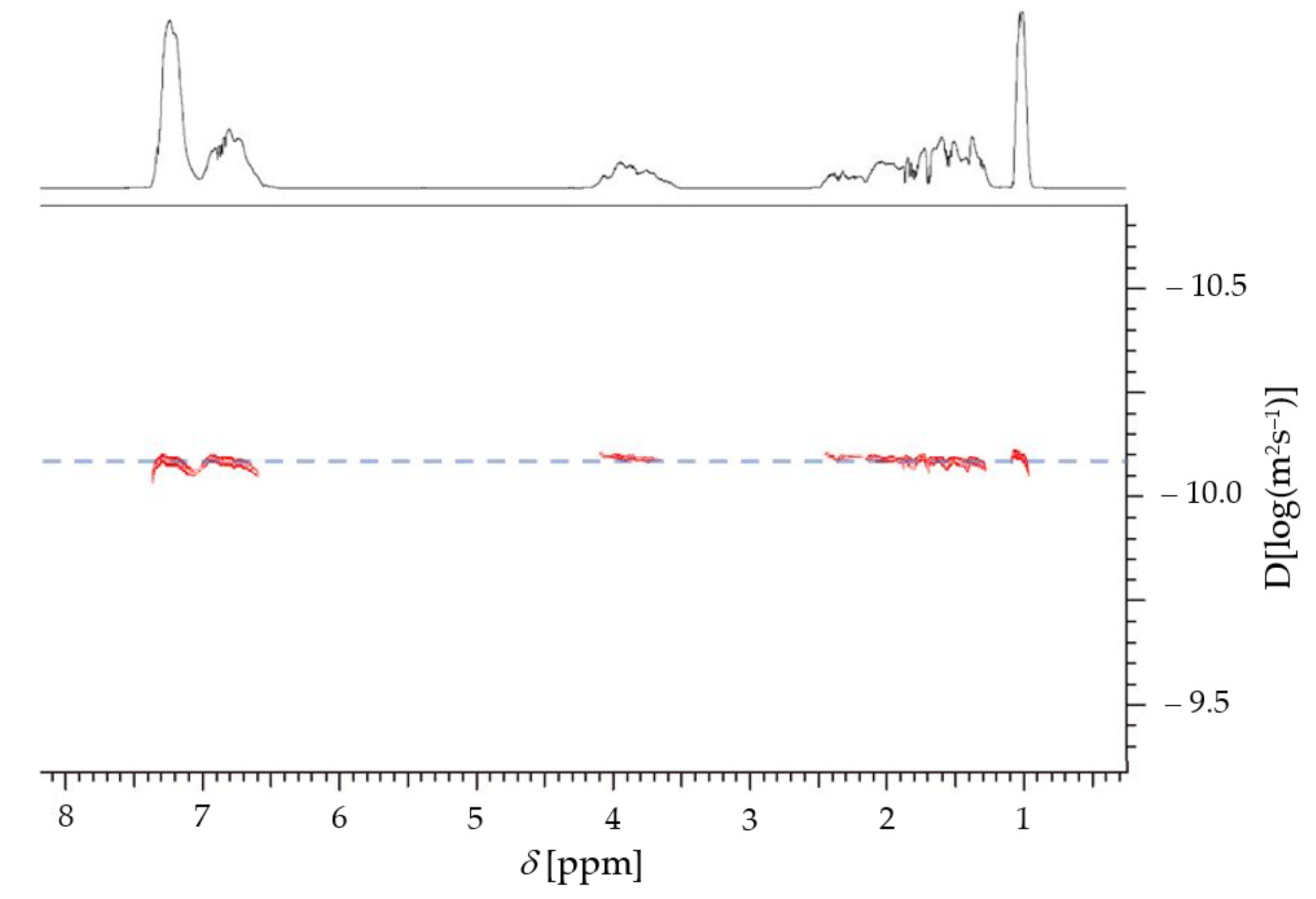

Figure 3. DOSY-NMR spectrum of PS-b-PBA-b-PS-b-PBA-b-PS (P4c) in CDCl3 (500 MHz).
Figure 3. DOSY-NMR spectrum of PS-b-PBA-b-PS-b-PBA-b-PS (P4c) in CDCl3 (500 MHz).
Polymers 14 00292 g003
Table
Table 1. Summary of the molar masses of the synthesized polymers P1–P4 (the molar masses were determined using SEC; standard: Polystyrene; solvent: Chloroform/isopropanol/triethylamine [94/2/4]).
Table 1. Summary of the molar masses of the synthesized polymers P1–P4 (the molar masses were determined using SEC; standard: Polystyrene; solvent: Chloroform/isopropanol/triethylamine [94/2/4]).
NumberPolymerSynthesis ApproachMn (g mol−1)Mw (g mol−1)ĐYield
[g][%]
P1aPSmanual380049001.291.0020
P1bPS-b-PBA-b-PSmanual810010,5001.300.3117
P2aPSautomated410051001.250.7816
P2bPS-b-PBA-b-PSautomated12,70018,7001.480.228
P3aPSmanual590075001.283.0030
P3bPS-b-PBA-b-PSmanual17,80021,5001.207.3360
P3cPS-b-PBA-b-PS-b-PBA-b-PSmanual20,80026,0001.256.8950
P4aPSautomated520067001.283.0030
P4bPS-b-PBA-b-PSautomated13,70017,1001.257.0051
P4cPS-b-PBA-b-PS-b-PBA-b-PSautomated22,20026,8001.2111.4076
