Characterization of High Molecular Weight Pneumococcal Conjugate by SEC-MALS and AF4-MALS

by
James Z. Deng
1,*,
Jason Lin
2,
Michelle Chen
2,
Catherine Lancaster
1 and
Ping Zhuang
1
1
Vaccine Analytical Research & Development, Merck & Co., Inc., Rahway, NJ 07065, USA
2
Wyatt Technology Corporation, Goleta, CA 93117, USA
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(18), 3769; https://doi.org/10.3390/polym14183769
Submission received: 25 July 2022 / Revised: 6 September 2022 / Accepted: 6 September 2022 / Published: 9 September 2022
(This article belongs to the Special Issue Advanced Pharmaceutical Polymers)
Browse Figures
Versions Notes

Abstract

:
Infections by Streptococcus pneumoniae can cause serious pneumococcal diseases and other medical complications among patients. Polysaccharide-based vaccines have been successfully developed as prophylactic agents against such deadly bacterial infections. In the 1980s, PNEUMOVAX® 23 were introduced as the first pneumococcal polysaccharide vaccines (PPSV). Later, pneumococcal polysaccharides were conjugated to a carrier protein to improve immune responses. Pneumococcal conjugate vaccines (PCV) such as PREVNAR® and VAXNEUVANCE™ have been developed. Of the more than 90 pneumococcal bacteria serotypes, serotype 1 (ST-1) and serotype 4 (ST-4) are the two main types that cause invasive pneumococcal diseases (IPD) that could lead to morbidity and mortality. Development of a novel multi-valent PCV against these serotypes requires extensive biophysical and biochemical characterizations of each monovalent conjugate (MVC) in the vaccine. To understand and characterize these high molecular weight (Mw) polysaccharide protein conjugates, we employed the multi-angle light scattering (MALS) technique coupled with size-exclusion chromatography (SEC) separation and asymmetrical flow field flow fractionation (AF4). MALS analysis of MVCs from the two orthogonal separation mechanisms helps shed light on the heterogeneity in conformation and aggregation states of each conjugate.

1. Introduction

Streptococcus pneumoniae (S. pneumoniae) is a group of Gram-positive bacteria, from which infections are the major cause of community-acquired pneumonia. The major virulence factor is the exterior capsule that consists of pneumococcal capsular polysaccharide (CPS) [1,2]. Initially, multivalent pneumococcal polysaccharide vaccine (PPSV) was developed against invasive pneumococcal serotypes [3]. To boost vaccine immune response and offer better protection for infants, pneumococcal conjugate vaccines (PCVs), such as Prevnar® series, Synflorix® and VAXNEUVANCE™, have been developed. In the PCVs, a carrier protein, such as CRM197, is covalently conjugated to each polysaccharide (Ps) serotype (ST) to form a monovalent conjugate (MVC) (Figure 1). The resulting MVCs can recruit the T-cell dependent immune response, therefore improving the immunogenicity and enhancing immunological memory response among infants [4,5,6,7,8,9,10,11,12].
Each pneumococcal CPS is a biopolymer formed by hundreds of repeating units. The repeat unit (RU) for each CPS has a unique chemical structure that confers specific immunogenic and physicochemical properties [2]. Among more than ninety known pneumococcal CPS types, serotype 1 (ST-1) and serotype 4 (ST-4) are among the most common serotypes that can cause invasive pneumococcal diseases [13,14,15]. Furthermore, simultaneous infections by ST-1 and ST-4 dual serotypes were observed and could generate more complications in disease treatment and prevention [16]. Therefore, both ST-1 and ST-4 are included in the recent novel vaccine developments [9,11].
ST-1 polysaccharide has a free primary amine and two carboxylic acid groups among three monosaccharides that form one RU. These ionic functional groups render ST-1 zwitterionic properties in solution [17,18]. ST-4 has one ionic carboxylate group among four monosaccharides within its repeating unit (Figure 2) [19]. Due to the ionic nature of the RU structures, monovalent conjugates (MVCs) generated from conjugation of a highly charged carrier protein to the poly-ionic polysaccharide are matrix-type polyelectrolyte materials. Each MVC could contain different molecular association states assembled by covalent linkages and/or non-covalent ionic interactions. A conjugate molecule can also adopt different conformations, such as the linear-like Conformation A (Figure 1) or the more branched Conformation B or/and some conformations in between. Each MVC is likely to contain conjugate molecules in a heterogenous and polydisperse nature. Molar mass (Mw) of an MVC ranges from 1–10 MDa, which is above the upper detection limit for normal mass spectroscopy. These make the physical characterization and Mw determination for such conjugated biopolymers a modern analytical challenge [20,21].
For many years, chromatographic methods have been employed to analyze vaccines and their components [21,22,23,24]. Size-exclusion chromatography (SEC) coupled with multi-angle light scattering detection (MALS) is employed as a standard method for Mw/size measurement and characterization of polysaccharide conjugates and other vaccines [25,26,27,28,29]. Generally, the SEC-MALS method offers good precision and repeatability for PCV samples in the desired concentration range. However, with increased Mw and complexity of interactions of these cross-linked protein polysaccharide conjugates, characterization by SEC could encounter unpredicted complexity. Analyte shearing degradation and pore anchoring within the SEC stationary phase have been observed and might impact the accuracy of the measurement [30].
Methods that offer gentler separation conditions or/and wider size separation range, such as asymmetric flow field-flow fractionation (AF4) or hydrodynamic chromatography (HDC), would serve as orthogonal tools to study these polydisperse high Mw polymers, in complement to the existing SEC-MALS technique [31,32,33,34]. While SEC-based separation may encounter steric interactions (gel filtration) with column stationary phases, AF4 separates/fractionates analytes are based on Brownian motion of the molecules. Therefore, generally, AF4 has a larger size range for separation, which can be beneficial for high Mw conjugate analysis. Herein, for research purposes, we have generated high Mw ST-1 and ST-4 MVCs on a small scale for SEC-MALS and AF4-MALS characterizations. Results from this study provide insight about the molecular associations and their contribution to Mw measurement.

2. Materials and Methods

2.1. Reagents and Materials

Bis-Tris-HCl 1 M solution was purchased from Rigaku Reagents, Inc. (Seattle, WA, USA). Sodium chloride 5 M solution was bought from Promega corporation (Madison, WI, USA). Bovine Serum Albumin (BSA) Standard Ampules (2.0 mg/mL) were purchased from Thermosphere (Waltham, MA, USA). The 40 kDa dextran standard was purchased from Wyatt Technology Corp. (Santa Barbara, CA, USA) and prepared as 10.0 mg/mL solution in water before use.

2.2. SEC-MALS Method

The SEC liquid chromatography separation was performed on an Agilent 1260 high performance liquid chromatography (HPLC) system (Agilent, DE, USA) equipped with an integrated degassing unit, a quaternary pump, a column compartment, an autosampler and a UV−Vis diode array detector. A TSKgel GMPWxL column (7.8 mm × 30 cm, 13 μm particle size, Tosoh Bioscience, Tokyo, Japan) was used for the separation condition with a 10 mM Bis-Tris, 150 mM NaCl, pH 6.8 mobile phase. An optimized flow rate of 0.8 mL/min was employed to avoid high system pressure. Column temperature was set at 35 °C and HPLC run time was 25 min for each injection.
A multi-angle light scattering detector (MALS) (DAWN®) and an Optilab® refractive index (RI) detector (Wyatt Technology Corp., Santa Barbara, CA, USA) were connected in series to the UV-Vis diode array detector on the SEC system. In all experiments, the detectors were connected in the following order: SEC-UV-MALS-RI.

2.3. AF4-MALS Method

The Eclipse AF4 system was set up on an Agilent 1260 system (Agilent, DE, USA) with an integrated degassing unit, a quaternary pump, a column compartment, an autosampler and a UV−Vis diode array detector. The system was controlled by Vision® software. The UV, RI and light scattering detectors were set in the same fashion as in the SEC-MALS method, with the following order: AF4-UV-MALS-RI. AF4 separation was performed on a short channel with 350 µm spacer and a 10 kDa regenerated cellulose membrane. The same forementioned Bis-Tris buffer was used as the AF4 mobile phase, at a channel flow rate of 1.0 mL/min with exponentially decreasing cross-flow gradient from 1.0 to 0 mL/min within 30 min.

2.4. MALS Measurement

In both SEC and AF4, the MALS detectors were calibrated using toluene and the detectors were normalized using a BSA standard according to the manufacturer’s instructions. The original retention times of the signal from different detectors are slightly different due to the sequential connections. Peak alignment and inter-detector band broadening were performed with a monodisperse BSA standard and the aligned chromatographic data were reported. All data were collected and analyzed with ASTRA® software (Wyatt Technology Corp., Santa Barbara, CA, USA). The first-order fit Zimm formalism has been used as default data process procedure in ASTRA for proteins and relatively small polymers. Berry 2nd order fit was selected for the ultra-high Mw conjugates [35,36,37,38].
For each MVC, Wyatt protein conjugate analysis in ASTRA [39] was employed to deconvolute the molar mass of the protein (CRM197) from the mass of the polysaccharide. Thus, the Mw and mass for the conjugate and for the respective protein (Pr) and polysaccharide (Ps) were calculated from the software. The conjugate Mw is the sum of protein Mw and polysaccharide Mw. The UV extinction coefficient for CRM197 at 280 nm is 0.903 mL/(mg·cm) from previous internal measurements. The UV extinction coefficient of 0.667 mL/(mg·cm) was used for BSA at 280 nm based on its Certificate of Analysis provided by Wyatt Technology. A generic protein dn/dc value of 0.185 mL/g was used for CRM197 and BSA [40]. A dn/dc of 0.138 mL/g was provided for dextran by Wyatt Technology and used for the 40 kDa dextran standard. A literature dn/dc value of 0.133 mL/g was used for both pneumococcal polysaccharides [24].
The accuracy of Mw measurements was evaluated and confirmed by the measurements of a protein standard (BSA) or/and a polysaccharide (dextran) standard (Table S1, Table S2, Supplemental information). BSA has been used across different systems and columns to ensure run-to-run accuracy.

2.5. Monovalent Conjugate (MVC) Samples

Both ST-1 and ST-4 MVCs were produced for small-scale research and exploratory purposes by our vaccine process development group, using procedures described in the literature [28]. MVCs were directly used by both SEC and AF4 analysis without modification, unless stated otherwise.

3. Results and Discussion

3.1. SEC Measurement of High Mw MVCs

The SEC method utilized was successfully demonstrated for the analysis of MVCs as in a previous report [28], and the chromatographic profile is depicted in Figure 3a. The method demonstrated good linearity, precision and accuracy during method development and optimization, and gave consistent results for most batches across various injection ranges. However, while our MVC standard showed Mw consistency across injection ranges, significant Mw increase was observed in two small exploratory conjugate batches with increased injection volume (MVC standard, ST-1 MVC and ST-4 MVC in Table 1). The measured z-average mean square radius (Rz) also varied in the same pattern, confirming the size change of the conjugate. However, such change in size was not observed for the unconjugated ST-1 and ST-4 polysaccharide precursors (Table 2).
A different formalism, 2nd order Berry, which is often preferred for high-Mw polymers [37], was also used to analyze these MVC conjugates. The MALS detector fit with both 1st order Zimm and 2nd order Berry formalisms are shown in Figure 4. Here, R2 (R-square) values were obtained from Astra software to evaluate the general goodness-of-fit of both formalisms, rather than the linearity of the fit. The use of 2nd order Berry formalism only reduced the variation but did not eliminate it. As seen in Table 3, the ratio of maximum Mw vs. minimum Mw (MAX/MIN) from duplicate measurements was reduced from 1.55 to 1.26 for ST-1 MVC, and from 1.73 to 1.38 for ST-4 MVC. Based on these results, we hypothesized that conjugation of the highly charged carrier protein to the charged ST-1 and ST-4 polysaccharide might have induced unexpected molecular interactions, such as self-association among the polyelectrolyte conjugate species in the MVCs. At a higher injection volume, the sample is more concentrated on the SEC column, which induces more of such self-association and results in higher Mw measured by the light scattering detector. With a lower injection volume, on the other hand, the sample is more diluted and less self-association is formed, thus a lower measured Mw. We also observed the non-ideal SEC effect from the Mw versus elution time plots depicted in Figure 5a,b. With an ideal SEC separation, Mw of a polydisperse polymer decreases with elution time. However, we observed Mw of both ST-1 and ST-4 curves up at about 9 min, a tell-tale sign of a non-ideal SEC separation, commonly observed with high Mw and branched polymers [41]. This led us to investigate these two high Mw MVCs with the orthogonal AF4-MALS measurements [42].

3.2. AF4 Measurement of High Mw MVCs

The AF4-MALS method was developed and optimized on a Wyatt AF4 system by applying different flow conditions and Vision Design software. The AF4 profile of the MVC is shown in Figure 3b. A Berry 2nd order fit model was used for data analysis. Both ST-1 and ST-4 MVCs were injected in duplicate at 100 µL, the standard injection volume for SEC-MALS.
Compared to SEC, AF4 provides milder separation conditions where analytes are not trapped or/and sheared by the pores of the stationary phase beads. Indeed, Mw from AF4 increases monotonically with elution time as shown in Figure 6a,b. The data summarized in Table 4 demonstrate both Mw and Rz measured from AF4-MALS are larger than those from SEC-MALS (Table 1 and Table 3). The higher Mw measured from AF4-MALS could be attributed to not only less shearing, but also more self-association states were maintained during the milder AF4 separation. This also supported that the concentration-dependent Mw observed on SEC-MALS (Table 1 and Table 3) might be rooted from the conjugate self-association.
In addition, we also observed an unsmooth peak from ST-4 MVC sample, but not from the ST-1 MVC sample, though both were analyzed under the same conditions. The reproducibility of Mw and Rz for ST-4 is also significantly worse than that for ST-1. These observations suggest the “viscous fingering” phenomenon during the AF4 separation of ST-4. Viscous fingering happens when the sample viscosity is too high compared to the mobile phase viscosity causing non-uniform sample solution to pass through the detectors [43]. When the viscous fingering effect occurs during the separation, the apparent Mw is less reproducible and the sample peak becomes unsmooth, which are consistent with what we observed in Figure 6b and Table 4 (ST4-MVC).

3.3. SEC-MALS and AF4-MALS Discussion

It is worth noting that the Mw from AF4-MALS is more than two-fold higher than the corresponding value from SEC-MALS (Table 3 and Table 4). Molar mass measurements for such high Mw polyelectrolytes have been known to be challenging and are dependent on the associated/aggregated states and distribution among different populations [44,45,46,47]. Absolute Mw determination for the MVC can be complicated by the heterogeneity in Mw, self-association state and conformations. AF4 is a mild separation technique that may help maintain or/and retain the native associated states of the conjugates. Therefore, there were higher populations of associated/aggregated conjugates eluted out from the AF4 separation channel, which in turn resulted in higher Mw reported from AF4-MALS. These weakly associated reversible aggregates, on the other hand, can be broken up more under shearing inside the SEC stationary phase. The lower Mw measured from SEC-MALS may reflect more closely to the conjugate that contains less self-associated populations.
Conjugate process/formulation optimization can generate more desirable MVCs with low or no observable self-association. Our research 15-valent pneumococcal vaccine (PCV15) was formulated with fifteen optimized MVCs. Each MVC was highly diluted in the formulation buffer and bound to a proprietary aluminum adjuvant. Therefore, each conjugate in the PCV15 is believed to be free of self-interactions. If needed, such self-interaction can be evaluated by measuring the second virial coefficient (A2 or B2) of the analyte. Previously, we have reported A2 measurement for a ST-1 MVC [28].
As demonstrated here, implementing two orthogonal methods to monitor the molar mass of these complex conjugates would provide insights about key conjugate attributes and the distribution of conjugate population. This would help process development and optimization.

4. Conclusions

Protein-conjugated polysaccharides have been developed as potent vaccines that fight numerous deadly bacteria infections. These conjugates could exist in heterogeneous and polydisperse forms and in various association states. Accurate characterization and absolute molar mass (Mw) determination of these polysaccharide conjugates can be complicated by the self-interaction/aggregation behaviors of these highly charged species. For absolute and accurate Mw measurements, SEC-MALS has been established as a gold standard that demonstrated excellent assay performance and robustness [26,28]. It also demonstrates sensitivity to detect change in molecular association/entanglement states of a polymeric material. AF4-MALS operated under a mild separation condition may better reflect the conjugates in native states. Combined analysis from SEC-MALS and AF4-MALS would shed more light on physical states of the conjugate and offer a better understanding of Mw/size distribution and inter-molecular interaction. However, establishing a robust and precise AF4-MALS assay in quality control (QC) labs still meets many challenges, due to the need for frequent membrane change and conditioning, and the requirements of precise control on channel and cross flow rates for focusing and separation. Therefore, at this time, AF4-MALS is not suitable for commercial batch release or for quality controls. SEC-MALS remains the primary accepted assay for determination of Mw. These orthogonal analytical methods can be very useful tools for process optimization and understanding in research and development.
In all, we have presented an analytical strategy to characterize a complex polymeric product system by two complementary and orthogonal analytical methods. Such strategy should find its application in many other complex vaccine, pharmaceutical and material products.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14183769/s1, Table S1: BSA Mw measured by the SEC-MALS and AF4-MALS; Table S2: 40 kDa dextran standard Mw measured by the SEC-MALS.

Author Contributions

Conceptualization, J.Z.D.; methodology, J.Z.D.; M.C. and J.L.; formal analysis, J.Z.D. and M.C.; investigation, J.Z.D. and J.L.; resources, C.L., P.Z. and M.C.; data curation, J.Z.D. and M.C.; writing—original draft preparation, J.Z.D.; writing—review and editing, M.C. and J.L.; supervision and project administration, J.Z.D., M.C. and P.Z.; funding acquisition, J.Z.D. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Merck & Co., Inc., Rahway, NJ, USA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.

Acknowledgments

This research is entirely funded by Merck & Co., Inc., Rahway, NJ, USA. We would like to extend our gratitude to Michael A Winters and the vaccine process development group in Merck & Co., Inc., Rahway, NJ, USA for providing polysaccharide and MVC samples. We would like to thank Kartik Narayan, Caroline McGregor, Jeremy Manheim, Joseph G. Joyce, Michael A Winters and Patrick McHugh for reviewing the manuscript.

Conflicts of Interest

All authors have declared no conflict of interest.

References

  1. Daniels, C.C.; Rogers, P.D.; Shelton, C.M. A Review of Pneumococcal Vaccines: Current Polysaccharide Vaccine Recommendations and Future Protein Antigens. J. Pediatr. Pharmacol. Ther. 2016, 21, 27–35. [Google Scholar] [CrossRef] [PubMed]
  2. Geno, K.A.; Gilbert, G.L.; Song, J.Y.; Skovsted, I.C.; Klugman, K.P.; Jones, C.; Konradsen, H.B.; Nahm, M.H. Pneumococcal capsules and their types: Past, present, and future. Clin. Microbiol. Rev. 2015, 28, 871–899. [Google Scholar] [CrossRef] [PubMed]
  3. Niedermana, M.S.; Folaranmib, T.; Buchwald, U.K.; Musey, L.; Cripps, A.W.; Johnson, K.D. Efficacy and effectiveness of a 23-valent polysaccharide vaccine against invasive and noninvasive pneumococcal disease and related outcomes: A review of available evidence. Expert Rev. Vaccines 2021, 20, 243–256. [Google Scholar] [CrossRef] [PubMed]
  4. Koff, W.C.; Burton, D.R.; Johnson, P.R.; Walker, B.D.; King, C.R.; Nabel, G.J.; Ahmed, R.; Bhan, M.K.; Plotkin, S.A. Accelerating Next-Generation Vaccine Development for Global Disease Prevention. Science 2013, 340, 1064. [Google Scholar] [CrossRef] [PubMed]
  5. Musher, D.M.; Chapman, A.J.; Goree, A.; Jonsson, S.; Briles, D.; Baughn, R.E. Natural and vaccine-related immunity to Streptococcus pneumoniae. J. Infect. Dis. 1986, 154, 245–256. [Google Scholar] [CrossRef]
  6. Weller, S.; Reynaud, C.A.; Weill, J.C. Vaccination against encapsulated bacteria in humans: Paradoxes. Trends Immunol. 2005, 26, 85–89. [Google Scholar] [CrossRef]
  7. Masomian, M.; Ahmad, Z.; Gew, L.T.; Poh, C.L. Development of next generation Streptococcus pneumonia vaccines conferring broad protection. Vaccines 2020, 8, 132. [Google Scholar] [CrossRef]
  8. Gruber, W.C.; Scott, D.A.; Emini, E. Development and clinical evaluation of Prevnar 13, a 13-valent pneumococcal CRM197 conjugate vaccine. Ann. N. Y. Acad. Sci. 2012, 1263, 15–26. [Google Scholar] [CrossRef]
  9. Cannon, K.; Elder, C.; Young, M.; Scott, D.A.; Scully, I.L.; Baugher, G.; Peng, Y.; Jansen, K.U.; Gruber, W.C.; Watson, W. A trial to evaluate the safety and immunogenicity of a 20-valentpneumococcal conjugate vaccine in populations of adults ≥65 years of age with different prior pneumococcal vaccination. Vaccine 2021, 39, 7494–7502. [Google Scholar] [CrossRef]
  10. Prymula, R.; Schuerman, L. 10-valent pneumococcal nontypeable Haemophilus influenzae PD conjugate vaccine: Synflorix. Expert Rev. Vaccines 2009, 8, 1479–1500. [Google Scholar] [CrossRef]
  11. Platt, H.L.; Cardona, J.F.; Haranaka, M.; Schwartz, H.I.; Perez, S.N.; Dowell, A.; Chang, C.; Dagan, R.; Tamms, G.M.; Sterling, T.; et al. A phase 3 trial of safety, tolerability, and immunogenicity of V114, 15-valent pneumococcal conjugate vaccine, compared with 13-valent pneumococcal conjugate vaccine in adults 50 years of age and older (PNEU-AGE). Vaccine 2022, 40, 162–172. [Google Scholar] [CrossRef] [PubMed]
  12. Caro-Aguilar, I.; Indrawati, L.; Kaufhold, R.M.; Gaunt, C.; Zhang, Y.; Nawrocki, D.K.; Giovarelli, C.; Winters, M.A.; Smith, W.J.; Heinrichs, J.; et al. Immunogenicity differences of a 15-valent pneumococcal polysaccharide conjugate vaccine (PCV15) based on vaccine dose, route of immunization and mouse strain. Vaccine 2017, 35, 865–872. [Google Scholar] [CrossRef] [PubMed]
  13. Kalin, M. Pneumococcal serotypes and their clinical relevance. Thorax 1998, 53, 159–162. [Google Scholar] [CrossRef] [PubMed]
  14. Jacques, L.C.; Panagiotou, S.; Baltazar, M.; Senghore, M.; Khandaker, S.; Xu, R.; Bricio-Moreno, L.; Yang, M.; Dowson, C.G.; Everett, D.B.; et al. Increased pathogenicity of pneumococcal serotype 1 is driven by rapid autolysis and release of pneumolysin. Nat. Commun. 2020, 11, 1892. [Google Scholar] [CrossRef] [PubMed]
  15. Beall, B.; Walker, H.; Tran, T.; Li, Z.; Varghese, J.; McGee, L.; Li, Y.; Metcalf, B.J.; Gierke, R.; Mosites, E.; et al. Upsurge of Conjugate Vaccine Serotype 4 Invasive Pneumococcal Disease Clusters Among Adults Experiencing Homelessness in California, Colorado, and New Mexico. J. Infect. Dis. 2021, 223, 1241. [Google Scholar] [CrossRef]
  16. Ndlangis, K.; Plessis, M.; Allam, M.; Wolter, N.; De Gouveia, L.; Klugman, K.P.; Cohen, C.; Gladstone, R.A.; Gottberg, A.V. Invasive Disease Caused Simultaneously by Dual Serotypes of Streptococcus pneumoniae. J. Clin. Microbiol. 2018, 56, e01149-17. [Google Scholar]
  17. Lindberg, B.; Lindqvist, B.; Lönngren, J.; Powell, D.A. Structural studies of the capsular polysaccharide from Streptococcus pneumoniae type 1. Carbohydr. Res. 1980, 78, 111–117. [Google Scholar] [CrossRef]
  18. Stroop, C.J.M.; Xu, Q.; Retzlaff, M.; Abeygunawardana, C.; Bush, A. Structural analysis and chemical depolymerization of the capsular polysaccharide of Streptococcus pneumoniae type 1. Carbohydr. Res. 2002, 337, 335–344. [Google Scholar] [CrossRef]
  19. Jones, C.; Currie, F. The Pneumococcal Polysaccharide S4: A Structural Reassessment. Carbohydr. Res. 1988, 184, 279–284. [Google Scholar] [CrossRef]
  20. Frasch, C.E. Preparation of bacterial polysaccharide–protein conjugates: Analytical and manufacturing challenges. Vaccine 2009, 27, 6468–6470. [Google Scholar] [CrossRef]
  21. Biemans, R.; Micoli, F.; Romano, M.R. Glycoconjugate vaccines, production and characterization. Recent Trends Carbohydr. Chem. 2020, 2, 285–313. [Google Scholar]
  22. Hadidi, M.; Buckley, J.J.; Zydney, A.L. Effects of solution conditions on characteristics and size exclusion chromatography of pneumococcal polysaccharides and conjugate vaccines. Carbohydr. Polym. 2016, 152, 12–18. [Google Scholar] [CrossRef] [PubMed]
  23. Deng, J.Z.; Rustandi, R.R.; Barbacci, D.; Swartz, A.; Gulasarian, A.; Loughney, J.W. RP-UPLC method for Oncolytic Coxsackievirus Viral Protein Separation and Empty to Full Capsid Quantification. Hum. Gene Ther. 2022, 33, 765–775. [Google Scholar] [CrossRef]
  24. Bednar, B.; Hennessey, J.P., Jr. Molecular size analysis of capsular polysaccharide preparations from Streptococcus pneumoniae. Carbohydr. Res. 1993, 243, 115–130. [Google Scholar] [CrossRef]
  25. Deng, J.Z.; Rustandi, R.R.; Swartz, A.; Shieh, Y.; Baker, J.B.; Vlasak, J.; Wang, S.; Loughney, J.W. SEC Coupled with In-line Multiple Detectors for the Characterization of an Oncolytic Coxsackievirus. Mol. Ther. Oncolytic 2022, 24, 139–147. [Google Scholar] [CrossRef] [PubMed]
  26. Thiebaud, J.; Fangeta, I.; Jaudinaud, I.; Fourrichon, L.; Sabouraud, A.; Talaga, P.; Uhlrich, S. Development and validation of high-performance size exclusion chromatography methods to determine molecular size parameters of Haemophilus influenzae type b polysaccharides and conjugates. Anal. Biochem. 2014, 453, 22–28. [Google Scholar] [CrossRef]
  27. Lockyera, K.; Gao, F.; Francis, R.J.; Eastwood, D.; Khatri, B.; Stebbings, R.; Derrick, J.P.; Bolgiano, B. Higher mass meningococcal group C-tetanus toxoid vaccines conjugated with carbodiimide correlate with greater immunogenicity. Vaccine 2020, 38, 2859–2869. [Google Scholar] [CrossRef]
  28. Deng, J.Z.; Lancaster, C.; Winters, M.A.; Phillips, K.M.; Zhuang, P.; Ha, S. Multi-attribute Characterization of Pneumococcal Conjugate Vaccine by Size-exclusion Chromatography Coupled with UV-MALS-RI Detections. Vaccine 2022, 40, 1464–1471. [Google Scholar] [CrossRef]
  29. Harding, S.E.; Abdelhameed, A.S.; Morris, G.A.; Adams, G.; Laloux, O.; Cerny, L.; Bonnier, B.; Duvivier, P.; Conrath, K.; Lenfant, C. Solution properties of capsular polysaccharides from Streptococcus pneumoniae. Carbohydr. Polym. 2012, 90, 237–242. [Google Scholar] [CrossRef]
  30. Podzimek, S. Light Scattering, Size Exclusion Chromatography and Asymmetric Flow Field Flow Fractionation: Powerful Tools for the Characterization of Polymers, Proteins and Nanoparticles; John Wiley & Sons: Hoboken, NJ, USA, 2011. [Google Scholar]
  31. Muza, U.L.; Boye, S.; Lederer, A. Dealing with the complexity of conjugated and self-assembled polymer-nano structures using field-flow fractionation. Anal. Sci. Adv. 2021, 2, 95–108. [Google Scholar] [CrossRef]
  32. Pitkänen, L.; Striegel, A.M. Polysaccharide characterization by hollow-fiber flow field-flow fractionation with on-line multi-angle static light scattering and differential refractometry. J. Chromatogr. A 2015, 1380, 146–155. [Google Scholar] [CrossRef] [PubMed]
  33. Ventouri, I.K.; Loeber, S.; Somsen, G.W.; Schoenmakers, P.J.; Astefanei, A. Field-flow fractionation for molecular-interaction studies of labile and complex systems: A critical review. Anal. Chim. Acta 2022, 1193, 339396. [Google Scholar] [CrossRef] [PubMed]
  34. Plavchak, C.L.; Smith, W.C.; Bria, C.R.M.; Williams, S.K.R. New Advances and Applications in Field-Flow Fractionation. Annu. Rev. Anal. Chem. 2021, 14, 257–279. [Google Scholar] [CrossRef]
  35. Huglin, M.B. Light Scattering from Polymer Solutions; Book Chapter 5; Academic Press: Cambridge, MA, USA, 1972. [Google Scholar]
  36. Wyatt, P.J. Light Scattering and the Absolute Characterization of Macromolecules. Anal. Chim. Acta 1993, 272, 1–40. [Google Scholar] [CrossRef]
  37. Zimm, B.H.J. The scattering of light and the radial distribution function of high polymer solutions. J. Chem. Phys. 1948, 16, 1093–1099. [Google Scholar] [CrossRef]
  38. Andersson, M.; Wittgren, B.; Wahlund, K. Accuracy in Multiangle Light Scattering Measurements for Molar Mass and Radius Estimations. Model Calculations and Experiments. Anal. Chem. 2003, 75, 4279–4291. [Google Scholar] [CrossRef] [PubMed]
  39. Kendrick, B.S.; Kerwin, B.A.; Chang, B.S.; Philo, J.S. Online Size-Exclusion High-Performance Liquid Chromatography Light Scattering and Differential Refractometry Methods to Determine Degree of Polymer Conjugation to Proteins and Protein-Protein or Protein-Ligand Association States. Anal. Biochem. 2001, 299, 136–146. [Google Scholar] [CrossRef]
  40. Theisen, A.; Johann, C.; Deacon, M.P.; Harding, S.E. Refractive Increment Data-Book; Nottingham University Press: Nottingham, UK, 2000. [Google Scholar]
  41. Netopilík, M.; Podzimek, S. Retention Mechanism of Branched Macromolecules in Size Exclusion Chromatography. ACS Omega 2020, 5, 14254–14260. [Google Scholar] [CrossRef]
  42. Podzimek, S.; Lebeda, P.; Johann, C. Asymmetric flow field flow fractionation: A powerful method for polymer characterization. LC-GC N. Am. 2009, 27, 62–69. [Google Scholar]
  43. Broyles, B.S.; Shalliker, R.A.; Cherrak, D.E.; Guiochon, G. Visualization of viscous fingering in chromatographic columns. J. Chromatogr. A 1998, 822, 173–187. [Google Scholar] [CrossRef]
  44. Chremos, A.; Horkay, F.; Douglas, J.F. Structure and Conformational Properties of Ideal Nanogel Particles in Athermal Solutions. J. Chem. Phys. 2021, 155, 134905. [Google Scholar] [CrossRef] [PubMed]
  45. Jiwani, S.I.; Gillis, R.B.; Besong, D.; Almutairi, F.; Erten, T.; Kök, S.M.; Harding, S.E.; Paulsen, B.S.; Adams, G.G. Isolation and Biophysical Characterisation of Bioactive Polysaccharides from Cucurbita Moschata. Polymers 2020, 12, 1650. [Google Scholar] [CrossRef] [PubMed]
  46. Abdelhameed, A.S.; Morris, G.A.; Almutairi, F.; Adams, G.G.; Duvivier, P.; Conrath, K.; Harding, S.E. Solution conformation and flexibility of capsular polysaccharides from Neisseria meningitidis and glycoconjugates with the tetanus toxoid protein. Nature 2016, 6, 35588. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Podzimek, S. Truths and Myths about the Determination of Molar Mass Distribution of Synthetic and Natural Polymers by Size Exclusion Chromatography. J. Appl. Polym. Sci. 2014, 131, 40111. [Google Scholar] [CrossRef]
Polymers 14 03769 g001 550
Figure 1. A PCV monovalent conjugate (MVC) and its conformations.
Figure 1. A PCV monovalent conjugate (MVC) and its conformations.
Polymers 14 03769 g001
Polymers 14 03769 g002 550

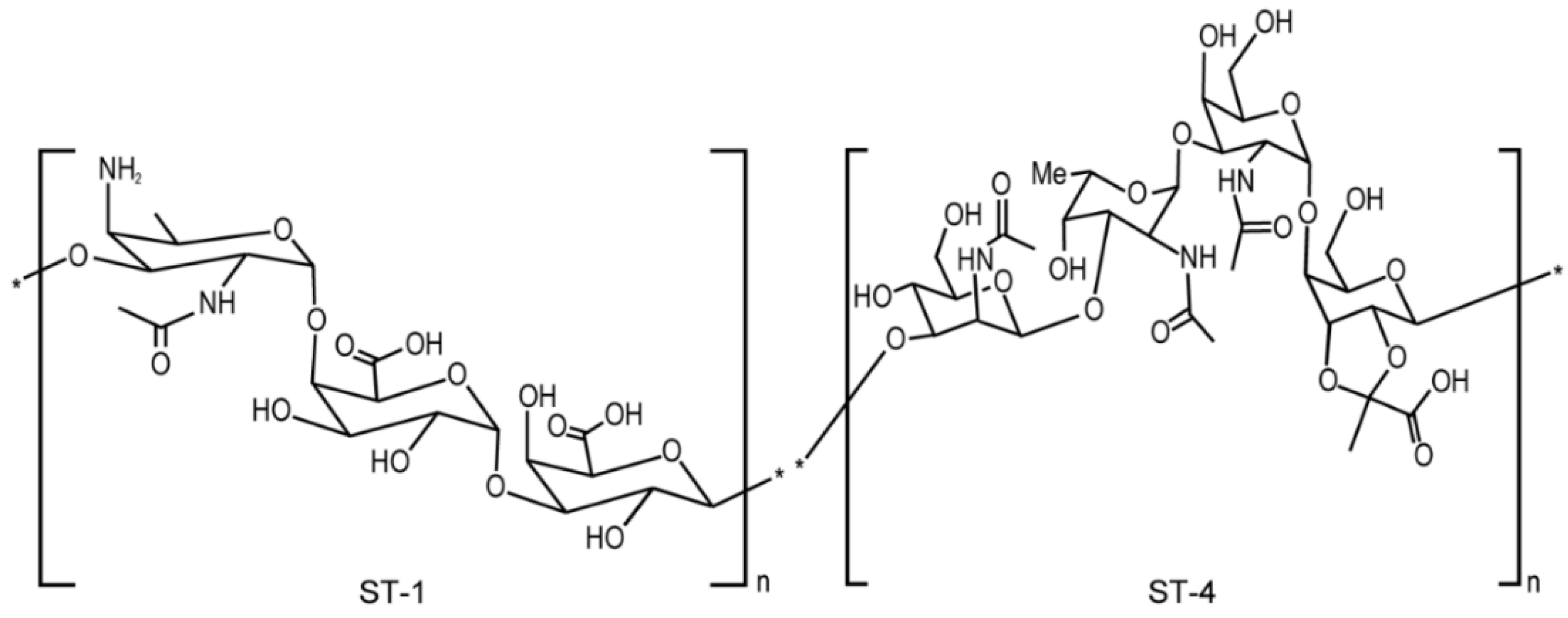

Figure 2. Structure of pneumococcal ST-1 and ST-4 polysaccharides.
Figure 2. Structure of pneumococcal ST-1 and ST-4 polysaccharides.
Polymers 14 03769 g002
Polymers 14 03769 g003 550

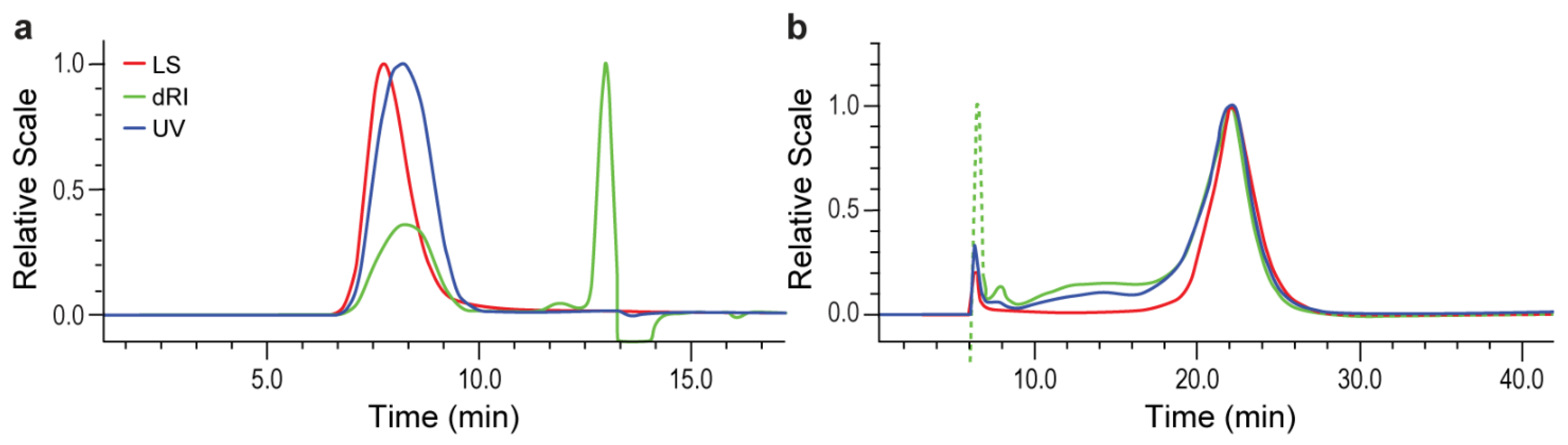

Figure 3. Chromatograms of a ST-1 MVC: (a) SEC-MALS; (b) AF4-MALS. (Dotted line in (b) represented change of channel pressure after the focus step).
Figure 3. Chromatograms of a ST-1 MVC: (a) SEC-MALS; (b) AF4-MALS. (Dotted line in (b) represented change of channel pressure after the focus step).
Polymers 14 03769 g003
Polymers 14 03769 g004 550

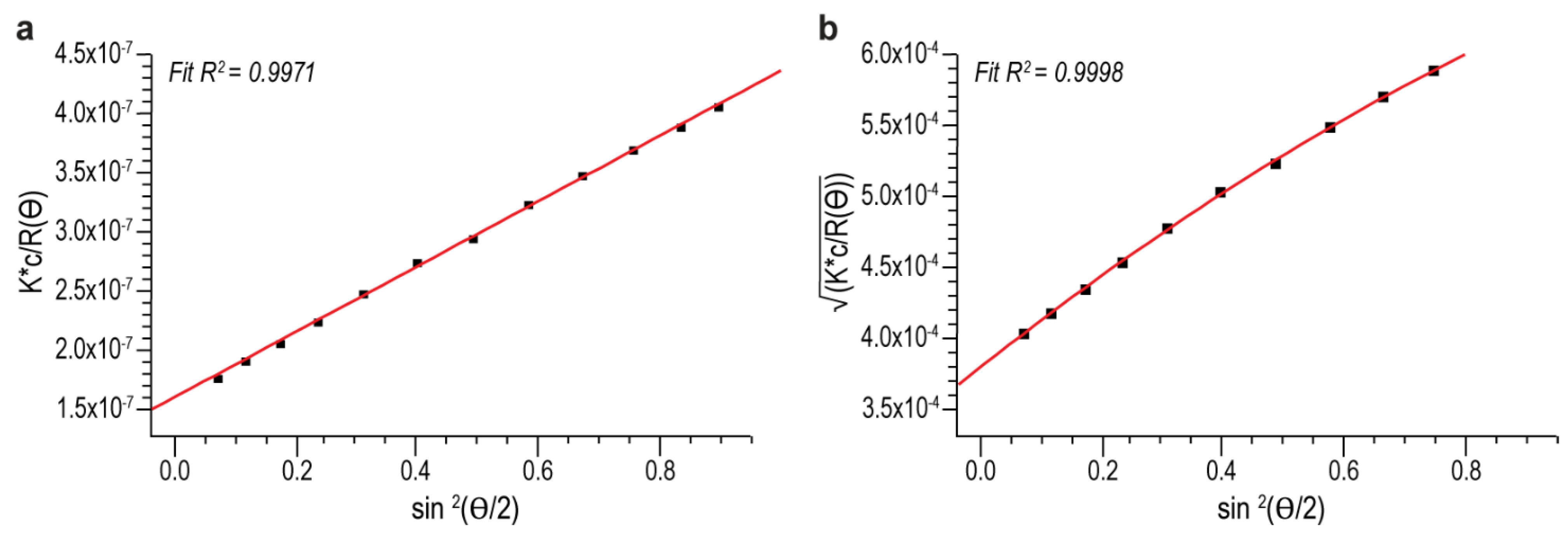

Figure 4. Zimm 1st order fit (a) vs. Berry 2nd order fit (b) for a ST-1 MVC on SEC-MALS. The red lines represent relationship between light scattering and angular function as described in Zimm and Berry formalisms.
Figure 4. Zimm 1st order fit (a) vs. Berry 2nd order fit (b) for a ST-1 MVC on SEC-MALS. The red lines represent relationship between light scattering and angular function as described in Zimm and Berry formalisms.
Polymers 14 03769 g004
Polymers 14 03769 g005 550
Figure 5. MVC Mw distribution on SEC-MALS: (a) ST-1 MVC; (b) ST-4 MVC. Each conjugate eluted out as a peak in blue trace. Conjugate molar mass distributions are shown as hook-shaped red lines.
Figure 5. MVC Mw distribution on SEC-MALS: (a) ST-1 MVC; (b) ST-4 MVC. Each conjugate eluted out as a peak in blue trace. Conjugate molar mass distributions are shown as hook-shaped red lines.
Polymers 14 03769 g005
Polymers 14 03769 g006 550
Figure 6. MVC Mw distribution on AF4-MALS: (a) ST-1 MVC; (b) ST-4 MVC. Each conjugate eluted out as a peak in blue trace. The Mw (molar mass) distribution across a peak was represented by a red line.
Figure 6. MVC Mw distribution on AF4-MALS: (a) ST-1 MVC; (b) ST-4 MVC. Each conjugate eluted out as a peak in blue trace. The Mw (molar mass) distribution across a peak was represented by a red line.
Polymers 14 03769 g006
Table
Table 1. Mw and Rz for MVCs from SEC-MALS. Zimm 1st order fit was used.
Table 1. Mw and Rz for MVCs from SEC-MALS. Zimm 1st order fit was used.
Injection Volume (µL)MVC StandardST-1 MVCST-4 MVC
Mw (kDa)Rz (nm)Mw (kDa)Rz (nm)Mw (kDa)Rz (nm)
5041675050591406986272
10041475163452019713363
150408551786328712,066419
Average41335164232099588351
MAX/MIN1.021.011.552.041.731.54
Table
Table 2. Mw and Rz for unconjugated polysaccharides on SEC-MALS.
Table 2. Mw and Rz for unconjugated polysaccharides on SEC-MALS.
Injection Volume (µL)ST-1 PolysaccharideST-4 Polysaccharide
Mw (kDa)Rz (nm)Mw (kDa)Rz (nm)
502813824740
1002753724039
1502693823440
Average2753824039
MAX/MIN1.051.041.061.03
Table
Table 3. MVC Mw comparison between Zimm and Berry fit models on SEC-MALS.
Table 3. MVC Mw comparison between Zimm and Berry fit models on SEC-MALS.
MALS Fit ModelZimm 1st DegreeBerry 2nd DegreeZimm 1st DegreeBerry 2nd Degree
MVC Injection (µL)ST-1 MVC Mw (kDa)ST-4 MVC Mw (kDa)
505059485769865904
1006345555897137130
1507863612912,0668159
Avg6423551595887064
MAX/MIN1.551.261.731.38
Table
Table 4. MVC Mw and Rz measured from AF4-MALS.
Table 4. MVC Mw and Rz measured from AF4-MALS.
InjectionsST-1 MVCST-4 MVC
Mw (kDa)Rz (nm)Mw (kDa)Rz (nm)
Injection-118,91016040,303184
Injection-219,13516362,532211
Average19,02216151,418198
MAX/MIN1.011.021.551.15
