Article

Processing Effects on the Through-Plane Electrical Conductivities and Tensile Strengths of Microcellular-Injection-Molded Polypropylene Composites with Carbon Fibers

1
R&D Center for Smart Manufacturing, Chung Yuan Christian University, Taoyuan 32023, Taiwan
2
R&D Center for Semiconductor Carrier, Chung Yuan Christian University, Taoyuan 32023, Taiwan
3
Department of Mechanical Engineering, Chung Yuan Christian University, Taoyuan 32023, Taiwan
4
Department of Mechanical Engineering, Chien-Hsin University of Science and Technology, Taoyuan 32031, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(16), 3251; https://doi.org/10.3390/polym14163251
Submission received: 15 June 2022 / Revised: 29 July 2022 / Accepted: 5 August 2022 / Published: 10 August 2022
(This article belongs to the Special Issue Functional Cellular Polymer Composites)

Abstract

:
Polymers reinforced with conducting fibers to achieve electrical conductivity have attracted remarkable attention in several engineering applications, and injection molding provides a cost-effective way for mass production. However, the electrical performance usually varies with the molding conditions. Moreover, high added content of conducting fibers usually results in molding difficulties. In this study, we propose using microcellular (MuCell) injection molding for polypropylene (PP)/carbon fiber (CF, 20, and 30 wt%) composites and hope that the MuCell injection molding process can improve both electrical and mechanical performance as compared with conventional injection molded (CIM) parts under the same CF content. Both molding techniques were also employed with and without gas counter pressure (GCP), and the overall fiber orientation, through-plane electrical conductivity (TPEC), and tensile strength (TS) of the composites were characterized. Based on the various processing technologies, the results can be described in four aspects: (1) Compared with CIM, microcellular foaming significantly influenced the fiber orientation, and the TPECs of the samples with 20 and 30 wt% CF were 18–78 and 5–8 times higher than those of the corresponding samples molded by CIM, respectively; (2) when GCP was employed in the CIM process, the TPEC of the samples with 20 and 30 wt% CF increased by 3 and 2 times, respectively. Similar results were obtained in the case of microcellular injection molding—the TPEC of the 20 and 30 wt% composites increased by 7–74 and 18–32 times, respectively; (3) although microcellular injection molding alone (i.e., without GCP) showed the greatest influence on the randomness of the fiber orientation and the TPEC, the TS of the samples was the lowest due to the uncontrollable foaming cell size and cell size uniformity; (4) in contrast, when GCP was employed in the microcellular foaming process, high TS was obtained, and the TPEC was significantly enhanced. The high foaming quality owing to the GCP implementation improved the randomness of fiber orientation, as well as the electrical and mechanical properties of the composites. Generally speaking, microcellular injection combined with gas counter pressure does provide a promising way to achieve high electrical and mechanical performance for carbon-fiber-added polypropylene composites.

1. Introduction

Conductive polymer composites are promising materials for many applications, such as rechargeable batteries, electromagnetic interference shielding, electrically conductive or static dissipative sensors, and electronic packaging devices [1,2,3,4]. Conductive polymer composites can be obtained by blending conductive additives, such as carbon fiber (CF) [5,6], carbon black [7,8], stainless steel fibers [9,10], and/or carbon nanofibers and nanotubes [11,12] with a polymer matrix. Although nanoscale additives are of great interest in polymer composites, owing to their superior electrical properties, the high processing costs limit their applications [13]. To date, microsized additives, particularly CF, are the most cost effective and widely used conductive additives [5,6].
The conductivity of composites reinforced with discontinuous fibers can be varied over a wide range (from insulating to highly conducting), depending on various factors [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24]. Gurland [14] reported that the electrical conductivity of conductive polymers increases linearly with the fiber concentration until a critical concentration, above which a nonlinear relationship is observed [15]. This critical concentration depends mainly on the electrical characteristics of the filler. Davenport [17] also reported that conductivity increases with an increase in the fiber aspect ratio because a conductive path can be generated more easily at higher aspect ratios. Heinzel et al. [20] and Blunk et al. [21] reported that the electrical conductivity of conductive polymers varies with the fiber orientation. Fiber orientations in an injection-molded part mainly depend on the flow field, including the part geometry and injection speed during the injection mold filling process. The melt and mold temperatures are only secondary factors in conductive polymers [22]. Recently, Chen et al. proposed gas counter pressure (GCP) technology [23,25], which influences the fiber orientation and the associated through-plane electrical conductivity (TEPC) of polymers. GCP restricts fountain flows around the melt front and thus results in a more random fiber orientation [23] and higher TEPC. Ameli et al. [6] also reported that foaming can significantly increase TEPC, depending on the cell density. Recently, Yilmaz et al. [26] reported the microcellular foaming of polycarbonate composites filled with glass fiber and carbon black. Most studies have focused on the tensile properties of composites formed by micromolecular foaming. However, the effects of foaming cells on fiber orientation and the associated conductivities have not been reported. In this study, we investigated the effects of foaming in microcellular (MuCell) injection molding on the fiber orientation and the associated TEPC and tensile performance of molded polypropylene (PP) samples with various contents of CF additives. CIM was also employed, and selected results were compared. Then, GCP combined with MuCell injection molding was also conducted to investigate its influence on the properties of the molded parts. In general, more random fiber orientation results in less tensile strength (TS) along the melt flow direction. Therefore, the effects of GCP, MuCell injection molding, and MuCell injection molding plus GCP on the TS of the molded parts along the flow direction were also examined.

2. Experimental Section

The experiment was conducted following procedures reported in previous studies [16,23,24,25,27].

2.1. MuCell Injection Molding Machine and Gas Counter Pressure Regulation

An ARBURG ALLROUNDER 420C (ARBURG GmbH + Co KG, Arthur-Hehl-Straße, 72290 Lossburg, Germany) (Figure 1a) equipped with a supercritical fluid (SCF) generator (Trexel; Figure 1b) was used. The machine uses nitrogen as a foaming agent. A homemade gas pressure regulating unit with a high-frequency gas control valve was used to provide the required GCP (Figure 1c).

2.2. Experimental Mold

A bar-shaped mold was used to fabricate specimens for tensile tests (ASTM-D638 Type I), as shown in Figure 2. A single fan gate was designed at the upper side of the mold, and an O-ring (orange line in Figure 2a) was used to seal the parting surface when applying GCP. A GCP air inlet was designed at the lower side of the mold (Figure 2c), with an overflow area in the front. The molded specimen (Figure 2b) was cut at the center to analyze the fiber orientation and the through-plane electrical conductivity (TPEC).

2.3. Materials

In this study, polypropylene was offered from Taiwan Chemical with the product name K-1035. Carbon fiber was manufactured by the Japanese company Toho Tenax Co. Ltd. (Teijin Limited, Kasumigaseki Common Gate West Tower, 3-2-1 Kasumigaseki, Chiyoda-ku, 100-8585 Tokyo, Japan) with the brand name TENAX@C493. Samples with 20 and 30 wt% of the filler were compounded by YE-HO-JI Plastic, a professional compounding company, using the standard twin-screw extruder compounding method.

2.4. Characterization

A universal tensile testing machine (MTS Criterion Model 43) (MTS Systems Corporation, 14000 Technology Drive, Eden Prairie, MN 55344, USA) was used in this study to measure the TS of the specimens. The tensile speed was 0.0625 mm/s, and other settings follow the ASTM D638 Type I standard.
The through-plane resistance (TPR) of the specimen was measured using the contact resistance method; the sample was measured from the front plant to the back plant and into an insulated fixture electrified at 1 amp. The TPR was calculated using Ohm’s law, and the TPEC was calculated as the reciprocal of the TPR.
The fiber orientation was analyzed following the procedure reported in our previous study [23]. The fiber orientation level (FOL) was used as an index to evaluate the correlation of the TPEC with the fiber orientation. A scanning electron microscope (SEM; Hitachi, Model S-3000N, 15 KV) (Hitachi High-Tech Corporation, Toranomon Hills Business Tower, 1-17-1 Toranomon, Minato-ku, Tokyo 105-6409, Japan) and a gold-foil-coating unit (E-1010) were used to characterize the fiber orientation and foaming cell at the cross section of the specimens. Magnified SEM images (150×) of the specimens were also obtained.
SEM images of polished surfaces of the specimens were quantitatively analyzed using Image. All the samples were coated with gold before the SEM analysis. Figure 3 shows the SEM image used to examine the fiber orientation (half gap across the thickness section) of the specimens. To evaluate the fiber orientation degree, six orientation angle ranges (0–30°, 31–60°, 61–90°, 91–120°, 121–150°, and 151–180°) were analyzed [23]. The 0° and 90° angles indicate CFs parallel and perpendicular to the flow direction, respectively. Considering the images from the LW (length–width) plane, the FOL was calculated using Equation (1) [5,23]:
FOL = 1 n ( cos θ ) n n
where θ is the fiber in-plane angle with respect to the length of the specimen and was directly determined using the image analyzer, and n is the number of measured fibers. FOLs of 0 and 1 represent CFs perpendicular and parallel to the length of the specimen, respectively. Details of the calculation are shown in a previous report [23].

2.5. Experimental Parameters

First, we evaluated the effects of the molding parameters (melt temperature, mold temperature, and injection speed) on the fiber orientation and the TPEC of the PP composites, with 20 and 30 wt% CF additives molded by CIM. The parameters are listed in Table 1 (ID 1–7). GCP was also applied to the molding process to investigate its effects. The corresponding process parameters are listed in Table 1 (ID 8–12). Next, MuCell injection molding was employed to mold the composites under the processing conditions listed in Table 2 (ID 13–21). GCP was applied at different gas holding times to investigate their effects on the properties of the specimens (Figure 2c, ID 22–26).

3. Results and Discussions

3.1. Conventional Injection Molding

Figure 4a–f shows the SEM images of the PP/CF composites with 20 and 30 wt% fiber, respectively, fabricated at various injection speeds. The figures show the fiber orientations. The fiber was more oriented along the flow direction as the injection speed increased. The corresponding TPECs and TSs are depicted in Figure 5a,b, respectively. The higher the degree of fiber orientation (i.e., the higher the FOL), the lower the TPEC and the higher the TS.
High mold temperatures resulted in thinner skin layers and less shear stress in the core region (i.e., less orientation along the flow direction); thus, the TPEC slightly increased. A similar result was obtained at high melt temperatures. High melt temperatures resulted in low melt viscosity and shear stress reduction, and the TPEC decreased. Due to the limitation of the article length, the variation in FOL with various processing parameters and the effects of the melt and mold temperatures are summarized in Table 3.

3.2. Microcellular Injection Molding

CF orientations in the samples obtained via MuCell injection molding at different injection speeds are shown in the SEM images in Figure 6a–f. Cell foaming induced a pushing force on the fiber, resulting in a more random distribution (schematic is shown in Figure 6g,h) and high TPEC, as shown in Figure 5a (also in Figure 7a but on a different scale). Microcellular foaming does show a significant effect on the fiber orientation, and the TPEC was significantly improved (Figure 5a). In contrast, the TS significantly decreased (Table 3, ID 13–21). This is attributed to the uncontrolled foamed cell, and its effect exceeded the fiber orientation.
At higher SCF dosages, the foaming cell density and size increased, and the corresponding fiber orientation randomness and TPEC increased (Figure 7b). However, with very high SCF dosages, the formation of larger foaming cells decreased the effects of the dosage. Figure 8a–f shows the SEM images of the samples. For the MuCell injection molding process, the injection speed, melt temperature, and mold temperature exhibited similar effects as those of the CIM. However, they also affected the foaming characteristic, and the effects are not as straightforward as those of the CIM. In general, microcellular foaming enhanced the TPEC by 5–8 and 18–78 times for the 30 and 20 wt% CF composites, respectively.

3.3. Effect of Gas Counter Pressure on Conventional Injection Molding

Employing GCP alone with CIM could affect the fiber orientation and the TPEC. Compared with CIM, the TPECs of the samples with 30 and 20 wt% increased by 2–3 times, respectively. GCP slightly decreased the TS of the samples (Table 3, ID 8–12) due to the reduction of flow-direction-orientated fibers.

3.4. Effect of Gas Counter Pressure on Microcellular Injection Molding

Figure 9a–h shows SEM images of MuCell-molded samples under different GCP parameters, showing the foaming and fiber orientations. The combined effects of GCP and gas holding time on the associated TPEC and TS are shown in Figure 10a,b, respectively. The combined effects of GCP and gas holding time influenced the TPEC and TS more significantly than the effects of CIM and CIM plus GCP. In the sample with 20 wt% CF, the combined effects did not enhance TEPC as significantly as that obtained using MuCell injection molding alone (Table 4); however, the TPEC of the sample with 30 wt% CF was significantly enhanced (Table 4). Although microcellular foaming alone could randomize the fiber orientation, by increasing the TPEC, the associated TS also decreased. By combining GCP with MuCell injection molding, the fine and uniform foaming cells enhanced the TPEC while maintaining the TS of the samples (Table 5).

4. Conclusions

In this study, we prepared PP/CF (20 and 30 wt%) composites using CIM and MuCell injection foaming under various molding conditions. We investigated the TPEC and TS of the composites while considering the fiber orientations. GCP was also employed in both CIM and MuCell injection molding processes to investigate its influence on the fiber orientation, foaming cell quality, and the associated TPEC and TS.

4.1. Influence from Conventional Injection Molding with and without Gas Counter Pressure

In CIM, the injection speed influenced the fiber orientation and the TPEC more than the mold and melt temperatures. Increasing injection speed results in higher shear stress and a higher percentage of fiber orientation in the flow direction and ends up with lower TPEC and higher TS. Higher mold and melt temperatures reduced shear stress due to the thinner skin layer and lower viscosity, thereby increasing TPEC slightly. GCP also influenced the fiber orientation. The TEPCs of the samples with 20 and 30 wt% of CF increased by 2–3 times. However, GCP reduces the TS values slightly due to the reduction of flow-orientated fibers.

4.2. Influence from Typical Microcellular Injection Molding

When microcellular foaming was employed, the foaming cell significantly influenced the fiber orientation, and the TEPCs of the samples containing 20 and 30 wt% CF were increased by 18–78 and 5–8 times, respectively. High injection speeds during the MuCell injection molding process, on the other hand, decreased TEPC, similar to the case of CIM. The mold and melt temperatures showed similar trends to those of CIM. The SCF dosage showed a varying effect on the TPEC: at high SCF dosages, TPEC increased, but when the SCF dosage was too high, the big, foaming cell reduced its influence on the TPEC.

4.3. Influence from Combined Gas Counter Pressure with Microcellular Injection

Although GCP in the MuCell injection molding process showed less significant effects than microcellular foaming, it does improve the TS of MuCell-molded samples more significantly than that of the CIM-molded ones. By employing GCP in the microcellular foaming process, the TS of the samples increased, and the TPECs of the samples with 20 and 30 wt% increased by 7–74 and 18–32 times, respectively. This can be attributed to the foaming cell quality induced by GCP.

Author Contributions

Conceptualization, S.-C.C.; Data curation, M.-Y.J., S.-S.H. and C.-T.F.; Formal analysis, M.-Y.J. and S.-S.H.; Investigation, M.-Y.J.; Methodology, M.-Y.J.; Project administration, S.-C.C. and S.-S.H.; Resources, S.-S.H.; Supervision, S.-C.C., C.-C.H. and S.-S.H.; Validation, C.-T.F.; Visualization, M.-Y.J., C.-C.H. and C.-T.F.; Writing—original draft, S.-C.C.; Writing—review & editing, C.-C.H. and C.-T.F. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the Ministry of Science and Technology under Grant 110-2622-8-033-002 and the Smart Manufacturing R&D Centers for Semiconductor Carrier of Chung Yuan Christian University, Taiwan.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, W.Y.; Jang, J.; Lee, H.S.; Kim, S.Y. Electrical conductivity of polymer composites based on carbonized wood flour via plasma post-treatment as an effective and economical filler. Polym. Compos. 2021, 42, 4814–4821. [Google Scholar] [CrossRef]
  2. Qiu, J.; Wang, L.; Uchiya, K.; Sakai, E. Effects of injection molding conditions on the electrical properties of polycarbonate/carbon nanotube nanocomposites. Polym. Compos. 2016, 37, 3245–3255. [Google Scholar] [CrossRef]
  3. Wang, Q.; Cheng, L.; Wang, J.; Qian, Z.; Wei, T.; Guo, W. High performance antistatic HDPE composites with bridging effect of hybrid carbon black and multi-walled carbon nanotubes fillers. Adv. Eng. Mater. 2019, 21, 1800609. [Google Scholar] [CrossRef]
  4. Brunella, V.; Rossatto, B.G.; Mastropasqua, C.; Cesano, F.; Scarano, D. Thermal/electrical properties and texture of carbon black PC polymer composites near the electrical percolation threshold. J. Compos. Sci. 2021, 5, 212. [Google Scholar] [CrossRef]
  5. Wong, K.H.; Pickering, S.J.; Rudd, C.D. Recycled carbon fibre reinforced polymer composite for electromagnetic interference shielding. Compos. Part A Appl. Sci. Manuf. 2010, 41, 693–702. [Google Scholar] [CrossRef]
  6. Ameli, A.; Jung, P.U.; Park, C.B. Through-plane electrical conductivity of injection-molded polypropylene/carbon-fiber composite foams. Compos. Sci. Technol. 2013, 76, 37–44. [Google Scholar] [CrossRef]
  7. Tchoudakov, R.; Breuer, O.; Narkis, M.; Siegma, A. Polym. Conductive polymer blends with low carbon black loading: Polypropylene/polyamide. Eng. Sci. 1996, 36, 1336–1346. [Google Scholar]
  8. Chen, D.; Yang, J.; Chen, G. The physical properties of polyurethane/graphite nanosheets/carbon black foaming conducting nanocomposites. Compos. Part A Appl. Sci. Manuf. 2010, 41, 1636–1638. [Google Scholar] [CrossRef]
  9. Chang, H.; Kao, M.J.; Huang, K.D.; Kuo, C.G.; Huang, S.Y. Electromagnetic shielding effectiveness of thin film with composite carbon nanotubes and stainless steel fibers. J. Nanosci. Nanotechnol. 2011, 11, 1754–1757. [Google Scholar] [CrossRef]
  10. Chen, C.S.; Chen, W.R.; Chen, S.C.; Chien, R.D. Optimum injection molding processing condition on EMI shielding effectiveness of stainless steel fiber filled polycarbonate composite. Int. Commun. Heat Mass Transf. 2008, 35, 744–749. [Google Scholar] [CrossRef]
  11. Alig, I.; Skipa, T.; Lellinger, D.; Potschke, P. Destruction and formation of a carbon nanotube network in polymer melts: Rheology and conductivity spectroscopy. Polymer 2008, 49, 3524–3532. [Google Scholar] [CrossRef]
  12. Arjmand, M.; Apperley, T.; Okoniewski, M.; Sundararaj, U.T. Comparative study of electromagnetic interference shielding properties of injection molded versus compression molded multi-walled carbon nanotube/polystyrene composites. Carbon 2012, 50, 5126–5134. [Google Scholar] [CrossRef]
  13. O’Connell, M. Carbon Nanotubes Properties and Applications; CRC: Boca Raton, FL, USA, 2006. [Google Scholar]
  14. Gurland, J. An estimate of contact and contiguity of dispersions in opaque samples. Trans. Metall. Soc. AIME 1966, 236, 642–646. [Google Scholar]
  15. Kortschot, M.T.; Woodhams, R.T. Computer simulation of the electrical conductivity of polymer composites containing metallic fillers. Polym. Compos. 1988, 9, 60–71. [Google Scholar] [CrossRef]
  16. Hwang, S.S. Tensile, electrical conductivity and EMI shielding properties of solid and foamed PBT/carbon fiber composites. Compos. Part B Eng. 2016, 98, 1–8. [Google Scholar] [CrossRef]
  17. Davenport, D.E. Metalloplastics: High conductivity materials. Polym. News 1982, 8, 134–137. [Google Scholar]
  18. Shih, M.Y. Effect of Gas Counter Pressure on the Carbon Fiber Orientation and the Associated Electrical Conductivity in Injection Molded Polymer. Ph.D. Thesis, Chung Yuan Christian University, Taoyuan, Taiwan, 2012. [Google Scholar]
  19. Zhou, Y.G.; Su, B.; Turng, L.S. Mechanical properties, fiber orientation, and length distribution of glass fiber-reinforced polypropylene parts: Influence of water-foaming technology. Polymers 2018, 12, 4386–4399. [Google Scholar] [CrossRef]
  20. Heinzel, A.; Mahlendorf, F.; Niemzig, O.; Kreuz, C. Injection moulded low cost bipolar plates for PEM fuel cells. J. Power Sources 2004, 131, 35–40. [Google Scholar] [CrossRef]
  21. Blunk, R.H.J.; Lisi, D.J.; Yoo, Y.E.; Tucker, C.L., III. Enhanced conductivity of fuel cell plates through controlled fiber orientation. AIChE J. 2003, 49, 18–29. [Google Scholar] [CrossRef]
  22. Chien, M.Y. Fiber Orientation and Part Qualities of PP/CF Composite Foams made\through Microcellular Injection Molding via Control Mechanisms of Gas Counter Pressure. Ph.D. Thesis, Chung Yuan Christian University, Taoyuan, Taiwan, 2022. [Google Scholar]
  23. Chen, S.C.; Chien, M.Y.; Lin, S.H.; Chien, R.D.; Lin, M.C. Effect of gas counter pressure on the carbon fiber orientation and the associated electrical conductivities in injection molded polymer composites. J. Polym. Eng. 2015, 35, 503–510. [Google Scholar] [CrossRef]
  24. Zaghloul, M.M.Y.; Zaghloul, M.Y.M.; Zaghloul, M.M.Y. Experimental and modeling analysis of mechanical-electrical behaviors of polypropylene composites filled with graphite and MWCNT fillers. Polym. Test. 2017, 63, 467–474. [Google Scholar] [CrossRef]
  25. Chen, S.C.; Liao, W.H.; Chien, R.D. Structure and mechanical properties of polystyrene foams made through microcellular injection molding via control mechanisms of gas counter pressure and mold temperature. Int. Commun. Heat Mass Transf. 2012, 39, 1125–1131. [Google Scholar] [CrossRef]
  26. Yilmaz, G.; Devahastin, A.; Turng, L.S. Conventional and microcellular injection molding of a highly filled polycarbonate composite with glass fibers and carbon black. Polymers 2022, 14, 1193. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, S.C.; Chang, C.W.; Tseng, C.Y.; Shen, E.N.; Feng, C.T. Using P(pressure)-T(temperature) path to control the foaming cell sizes in microcellular injection molding process. Polymers 2021, 13, 1843. [Google Scholar] [CrossRef] [PubMed]

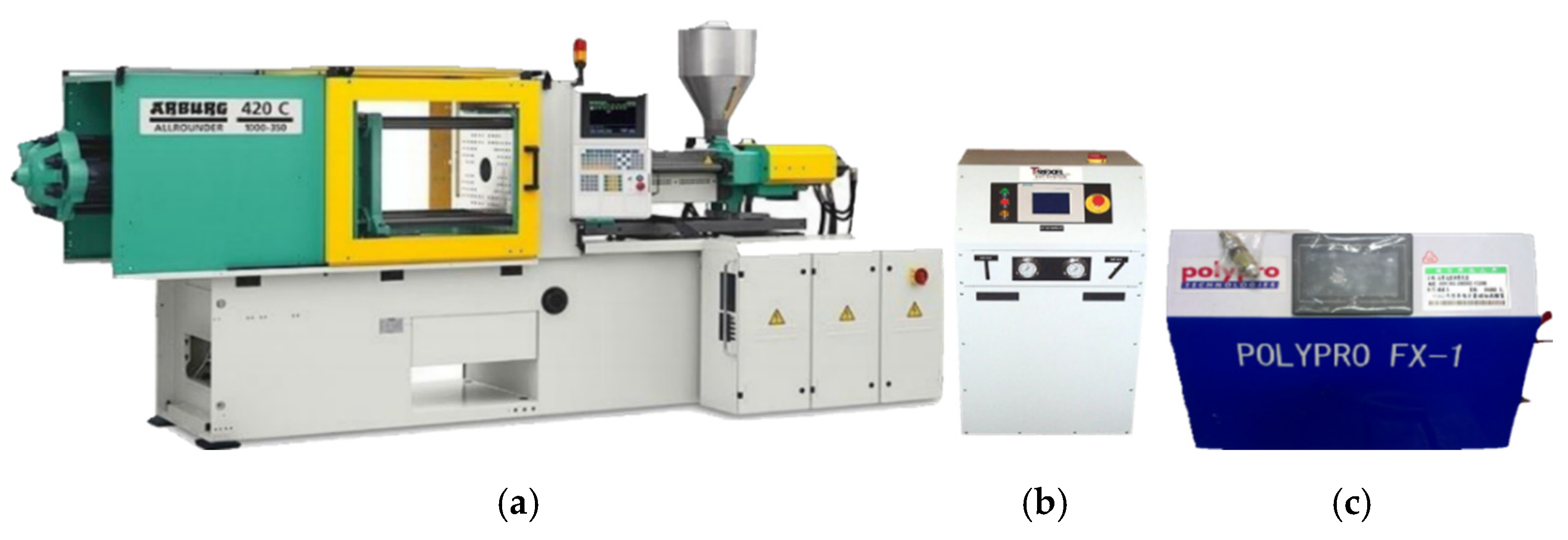

Figure 1. (a) Microcellular (MuCell) injection molding machine with a gas counter pressure equipment (ARBURG ALLROUNDER 420C). (b) Supercritical fluid (SCF) generator (Trexel). (c) High-frequency gas control valve.
Figure 1. (a) Microcellular (MuCell) injection molding machine with a gas counter pressure equipment (ARBURG ALLROUNDER 420C). (b) Supercritical fluid (SCF) generator (Trexel). (c) High-frequency gas control valve.
Polymers 14 03251 g001

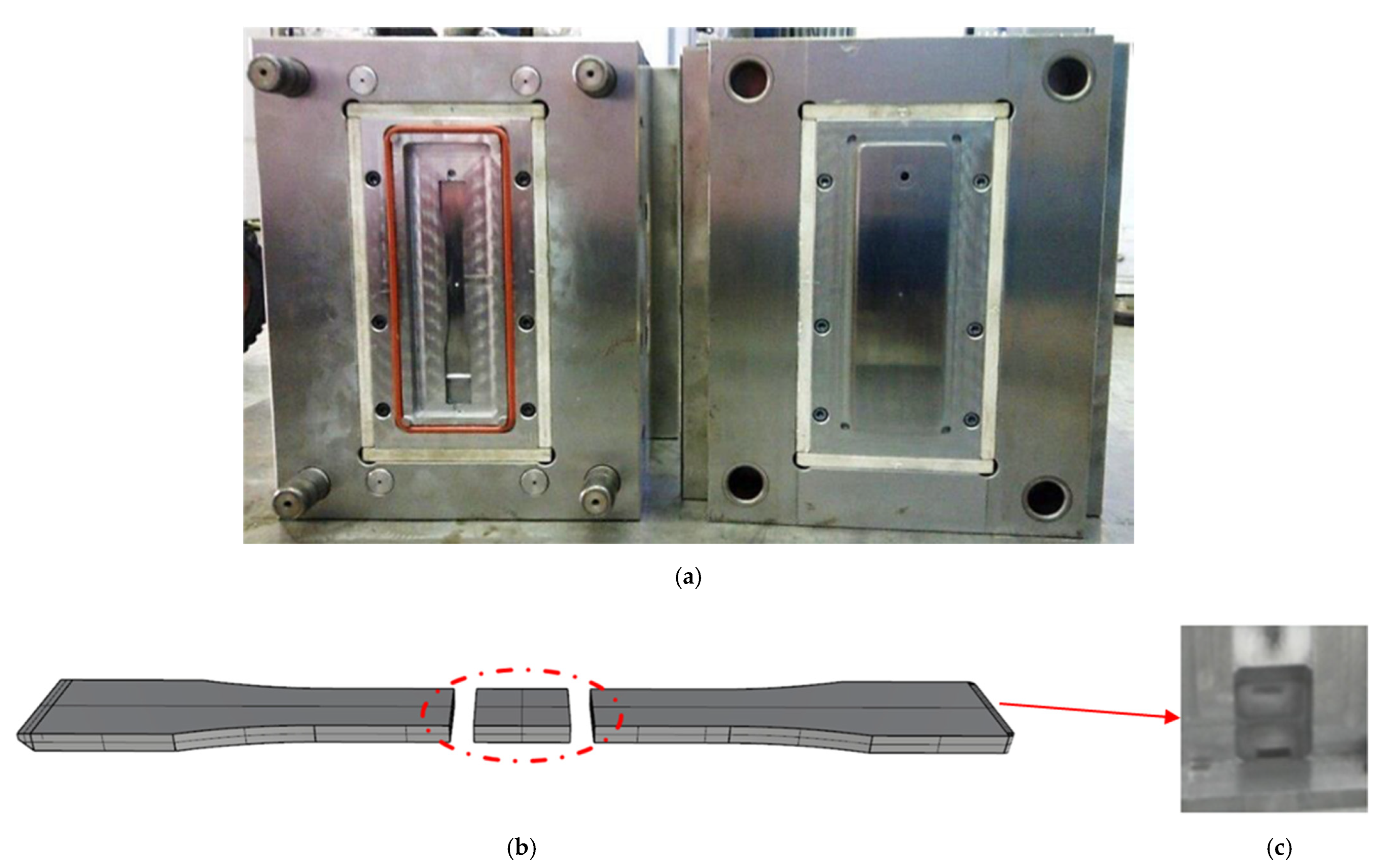

Figure 2. (a) Mold for the tensile test samples. (b) Specimen for fiber orientation and through-plane electrical conductivity (TPEC) analyses. The specimen is 143 mm × 19 mm × 3 mm, following the ASTM-D638 Type I standard. (c) Gas counter pressure (GCP) inlet position.
Figure 2. (a) Mold for the tensile test samples. (b) Specimen for fiber orientation and through-plane electrical conductivity (TPEC) analyses. The specimen is 143 mm × 19 mm × 3 mm, following the ASTM-D638 Type I standard. (c) Gas counter pressure (GCP) inlet position.
Polymers 14 03251 g002

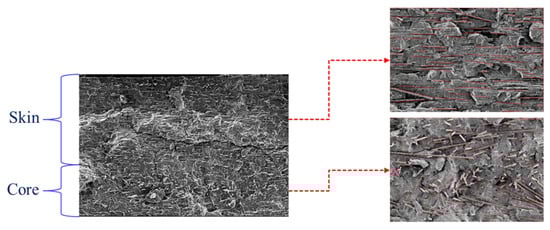

Figure 3. Scanning electron microscopy (SEM) image for evaluating the fiber orientation level (FOL) of the sample. The magnification is ×100.
Figure 3. Scanning electron microscopy (SEM) image for evaluating the fiber orientation level (FOL) of the sample. The magnification is ×100.
Polymers 14 03251 g003

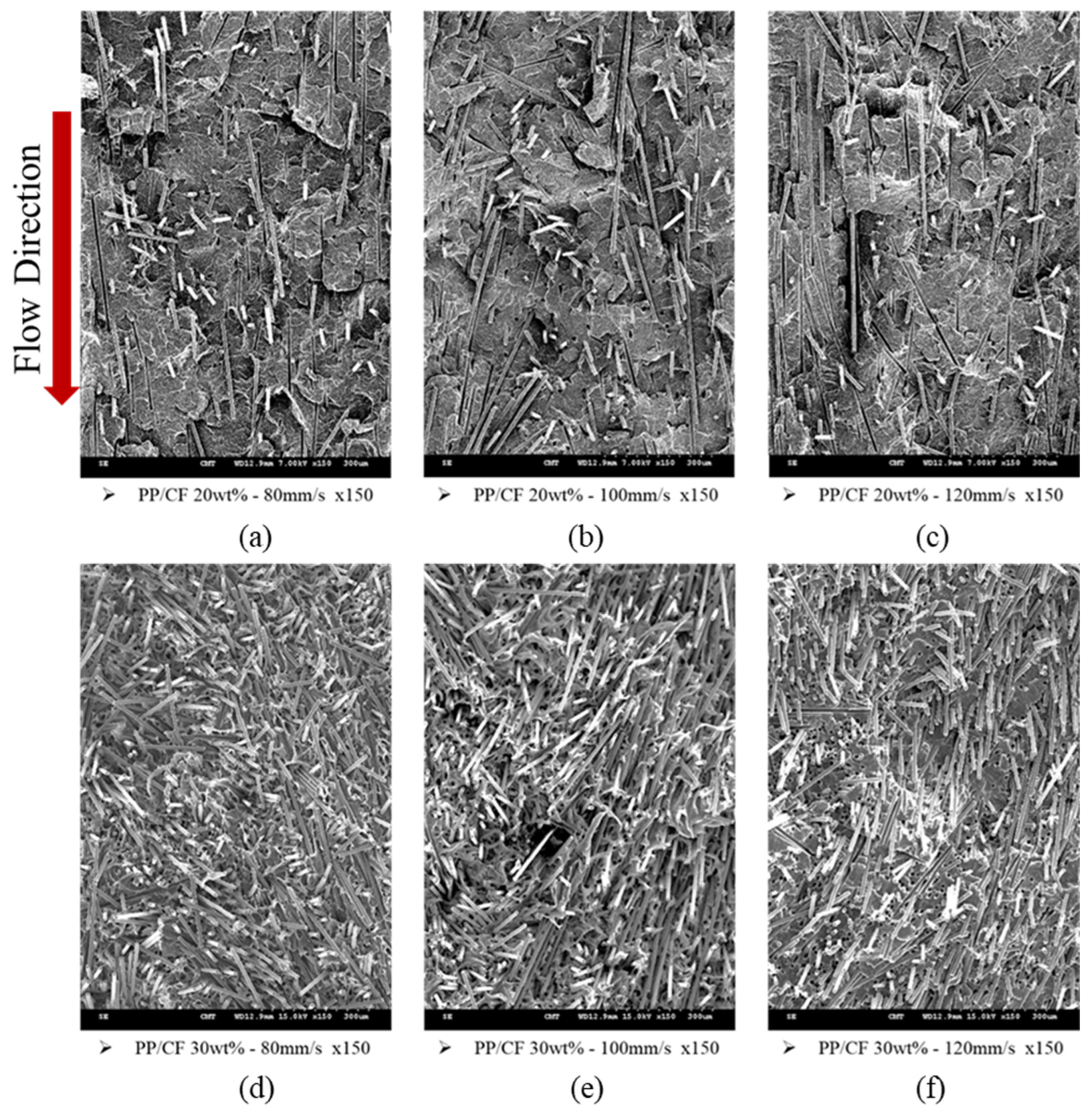

Figure 4. Fiber orientations under various injection speeds. (a) Polypropylene (PP)/carbon fiber (CF) 20 wt%, 80 mm/s. (b) PP/CF 20 wt%, 100 mm/s. (c) PP/CF 20 wt%, 120 mm/s. (d) PP/CF 30 wt%, 80 mm/s. (e) PP/CF 30 wt%, 100 mm/s. (f) PP/CF 30 wt%, 120 mm/s.
Figure 4. Fiber orientations under various injection speeds. (a) Polypropylene (PP)/carbon fiber (CF) 20 wt%, 80 mm/s. (b) PP/CF 20 wt%, 100 mm/s. (c) PP/CF 20 wt%, 120 mm/s. (d) PP/CF 30 wt%, 80 mm/s. (e) PP/CF 30 wt%, 100 mm/s. (f) PP/CF 30 wt%, 120 mm/s.
Polymers 14 03251 g004

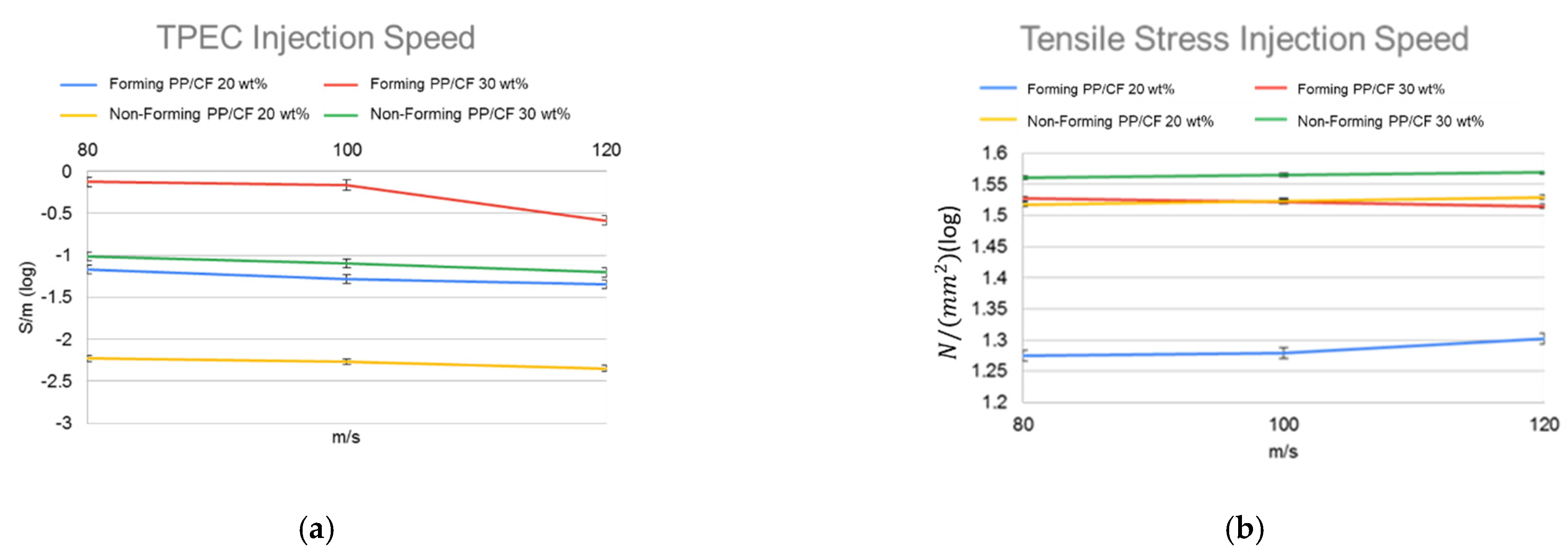

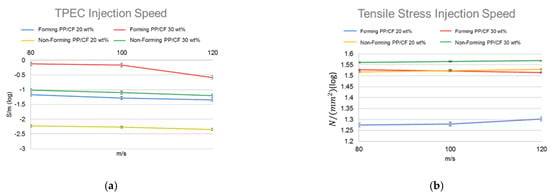

Figure 5. (a) TPEC and (b) tensile strength of samples with different CF contents at different injection speeds (for comparison, TPEC are presented in log scale). Comparisons for MuCell-molded (foaming) parts and CIM-molded parts (non-foaming).
Figure 5. (a) TPEC and (b) tensile strength of samples with different CF contents at different injection speeds (for comparison, TPEC are presented in log scale). Comparisons for MuCell-molded (foaming) parts and CIM-molded parts (non-foaming).
Polymers 14 03251 g005
Figure 6. Fiber orientations with SCF-foamed PP/CF composites at various injection speeds. (a) PP/CF 20 wt%, 80 mm/s. (b) PP/CF 20 wt%, 100 mm/s. (c) PP/CF 20 wt%, 120 mm/s. (d) PP/CF 30 wt%, 80 mm/s. (e) PP/CF 30 wt%, 100 mm/s. (f) PP/CF 30 wt%, 120 mm/s. (g) Influence of cell foaming on fiber orientation (Schematic). (h) Real case.
Figure 6. Fiber orientations with SCF-foamed PP/CF composites at various injection speeds. (a) PP/CF 20 wt%, 80 mm/s. (b) PP/CF 20 wt%, 100 mm/s. (c) PP/CF 20 wt%, 120 mm/s. (d) PP/CF 30 wt%, 80 mm/s. (e) PP/CF 30 wt%, 100 mm/s. (f) PP/CF 30 wt%, 120 mm/s. (g) Influence of cell foaming on fiber orientation (Schematic). (h) Real case.
Polymers 14 03251 g006

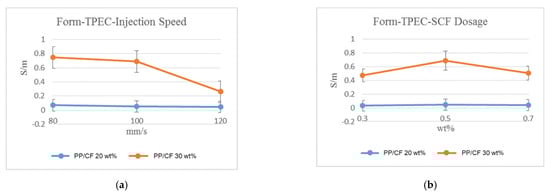

Figure 7. Values of TPEC after SCF foaming under various injection speeds, SCF dosage, and CF content. (a) Different injection speeds and (b) different SCF dosage.
Figure 7. Values of TPEC after SCF foaming under various injection speeds, SCF dosage, and CF content. (a) Different injection speeds and (b) different SCF dosage.
Polymers 14 03251 g007

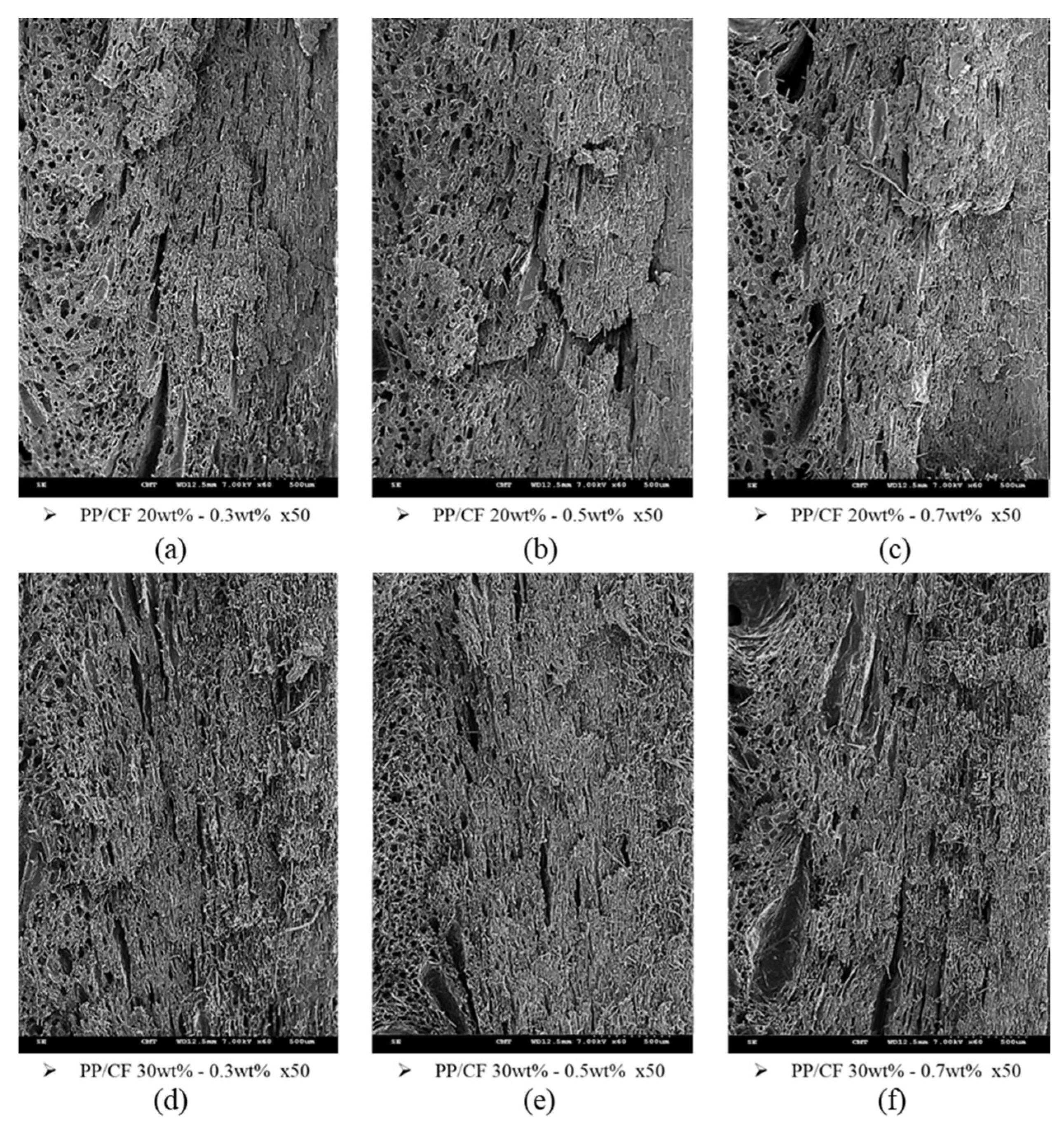

Figure 8. Fiber orientations in SCF-foamed PP composites with different SCF dosages: (a) PP/CF 20 wt%, SF 0.3 wt%; (b) PP/CF 20 wt%, SF 0.5 wt%; (c) PP/CF 20 wt%, SF0.7 wt%; (d) PP/CF 30 wt%, SF 0.3 wt%; (e) PP/CF 30 wt%, SF 0.5 wt%; (f) PP/CF 30 wt%, SF 0.7 wt%.
Figure 8. Fiber orientations in SCF-foamed PP composites with different SCF dosages: (a) PP/CF 20 wt%, SF 0.3 wt%; (b) PP/CF 20 wt%, SF 0.5 wt%; (c) PP/CF 20 wt%, SF0.7 wt%; (d) PP/CF 30 wt%, SF 0.3 wt%; (e) PP/CF 30 wt%, SF 0.5 wt%; (f) PP/CF 30 wt%, SF 0.7 wt%.
Polymers 14 03251 g008
Figure 9. Fiber orientations in SCF-foamed PP composite with different GCPs: (a) PP/CF 20 wt%, GCP 0 bar; (b) PP/CF 20 wt%, GCP 30 bar; (c) PP/CF 20 wt%, GCP 50 bar; (d) PP/CF 20 wt%, GCP 0 bar; (e) PP/CF 30 wt%, GCP 0 bar; (f) PP/CF 30 wt%, GCP 30 bar; (g) PP/CF 30 wt%, GCP 50 bar; (h) PP/CF 30 wt%, GCP 70 bar.
Figure 9. Fiber orientations in SCF-foamed PP composite with different GCPs: (a) PP/CF 20 wt%, GCP 0 bar; (b) PP/CF 20 wt%, GCP 30 bar; (c) PP/CF 20 wt%, GCP 50 bar; (d) PP/CF 20 wt%, GCP 0 bar; (e) PP/CF 30 wt%, GCP 0 bar; (f) PP/CF 30 wt%, GCP 30 bar; (g) PP/CF 30 wt%, GCP 50 bar; (h) PP/CF 30 wt%, GCP 70 bar.
Polymers 14 03251 g009

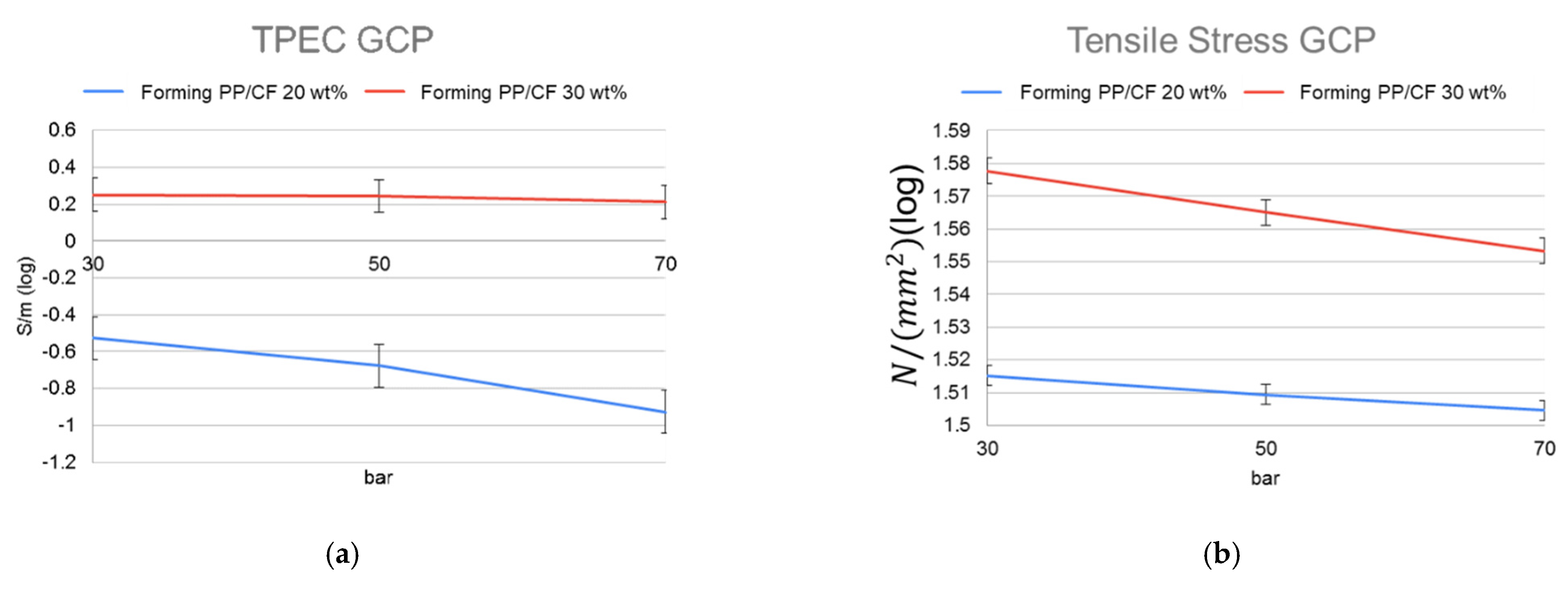

Figure 10. (a) TPEC and (b) TS of samples with different GCPs and CF contents.
Figure 10. (a) TPEC and (b) TS of samples with different GCPs and CF contents.
Polymers 14 03251 g010
Table 1. Processing conditions for conventional injection molding (CIM) without (ID 1–7) and with gas counter pressure (GCP, ID 8–12).
Table 1. Processing conditions for conventional injection molding (CIM) without (ID 1–7) and with gas counter pressure (GCP, ID 8–12).
Group
ID
Injection Speed (mm/s)Mold Temperature (°C)Material Temperature (°C)GCP (bar)GCP Holding Time (s)
1805022000
2100
3120
410030
570
650200
7240
8220303
950
1070
11501
125
Table 2. Processing conditions for MuCell injection molding without (ID 13–21) and with GCP (ID 22–26).
Table 2. Processing conditions for MuCell injection molding without (ID 13–21) and with GCP (ID 22–26).
Group
ID
Injection Speed (mm/s)Mold Temperature (°C)Material Temperature (°C)SCF Dosage (wt%)GCP (bar)GCP Holding Time (s)
1380502200.500
14100
15120
1610030
1770
1850200
19240
202200.3
210.7
220.5303
2350
2470
25501
265
Table 3. FOL, TEPC, and TS for the experiments.
Table 3. FOL, TEPC, and TS for the experiments.
FOL (Skin)%TPEC (S/m)Tensile Stress (N/mm2)
Group20 wt%30 wt%20 wt% (×10−3)30 wt% (×10−2)20 wt%30 wt%
Results of Conventional Injection Molding10.8 ± 0.10.68 ± 0.155.9 ± 0.5629.69 ± 1.932.96 ± 2.6536.38 ± 2.39
20.8 ± 0.230.72 ± 0.075.4 ± 0.9218.04 ± 1.433.39 ± 3.2836.75 ± 6.05
30.89 ± 0.180.75 ± 0.144.5 ± ,0.3826.27 ± 1.833.86 ± 8.2637.07 ± 7.33
40.84 ± 0.130.73 ± 0.184.7 ± 0.3696.55 ± 128.07 ± 2.4727.51 ± 7.89
50.88 ± 0.190.7 ± 0.055.6 ± 0.1257.64 ± 1.929.52 ± 1.7328.44 ± 3.64
60.85 ± 0.10.74 ± 0.074.3 ± 0.7994.58 ± 3.728.05 ± 327.42 ± 7.85
70.89 ± 0.210.68 ± 0.195.2 ± 0.6617.57 ± 1.528.86 ± 5.4627.94 ± 7.89
Results of Conventional Injection Molding Combined with GCP80.63 ± 0.040.66 ± 0.1515.2 ± 0.29217.56 ± 2.335.32 ± 6.7939.66 ± 5.53
90.65 ± 0.060.69 ± 0.1314.8, ± 0.41715.53 ± 3.834.76 ± 3.638.45 ± 2.32
100.68 ± 0.120.72 ± 0.1914.6 ± 0.2613.11 ± 3.534.38 ± 8.6337.22 ± 6.53
110.64 ± 0.190.65 ± 0.0914.6, ± 0.26915.86 ± 836.26 ± 7.3739.57 ± 3.67
120.71 ± 0.120.74 ± 0.113.5 ± 0.10411.31 ± 2.8835.57 ± 3.938.12 ± 9.61
Results of Microcellular Injection Molding130.65 ± 0.110.65 ± 0.1168.1 ± 0.68274.69 ± 15.518.81 ± 118.7 ± 1.36
140.68 ± 0.090.67 ± 0.1151.9 ± 0.10368.7 ± 19.919.02 ± 2.4419.53 ± 2.03
150.69 ± 0.160.68 ± 0.1645.1 ± 0.32526.12 ± 3.5420.06 ± 2.6321.2 ± 4.95
160.64 ± 0.170.65 ± 0.08386 ± 36.246.01 ± 12.1519.51 ± 3.5320.21 ± 3.72
170.67 ± 0.090.68 ± 0.1242.4 ± 4.8154.07 ± 15.1818.42 ± 2.8119.29 ± 3
180.63 ± 0.10.63 ± 0.1335 ± 6.0738.18 ± 6.223.23 ± 1.7520.28 ± 2.53
190.68 ± 0.170.67 ± 0.1540.4 ± 6.9861.14 ± 4.6620.43 ± 2.5519.84 ± 4.64
200.69 ± 0.160.67 ± 0.0531 ± 4.2847.48 ± 13.5120.53 ± 3.4118.9 ± 2.76
210.64 ± 0.120.64 ± 0.1339.7 ± 9.6950.86 ± 12.3519.85 ± 4.6418.49 ± 0.99
Results of Microcellular Injection Molding Combined with GCP220.66 ± 0.150.69 ± 0.19296.8 ± 82.8178.65 ± 18.7332.75 ± 5.9837.82 ± 6.57
230.68 ± 0.090.71 ± 0.1227.5 ± 66.2175.58 ± 33.9732.31 ± 2.2436.73 ± 10.91
240.7 ± 0.120.75 ± 0.09118.6 ± 7.15162.46 ± 37.6531.96 ± 1.8335.75 ± 3.97
250.66 ± 0.130.69 ± 0.08216.9 ± 50.4170.15 ± 47.0632.52 ± 8.4937.68 ± 5.8
260.73 ± 0.140.76 ± 0.08112.6 ± 29.9161.16 ± 30.1631.86 ± 8.6435.46 ± 3.33
Table 4. Comparisons of TPECs of samples molded with different processing techniques.
Table 4. Comparisons of TPECs of samples molded with different processing techniques.
TPEC (S/m) (Scope)Enhancement (Times)
PP/CF 20 wt% no foaming0.0043–0.00521
PP/CF 20 wt% foaming0.0803–0.405618.67–78.00
(GCP)PP/CF 20 wt% no foaming0.0132–0.01522.923–3.069
(GCP)PP/CF 20 wt% foaming0.0310–0.38607.209–74.23
PP/CF 30 wt% no foaming0.0458–0.09691
PP/CF 30 wt% foaming0.2312–0.79775.048–8.232
(GCP)PP/CF 30 wt% no foaming0.1131–0.17561.812–2.469
(GCP)PP/CF 30 wt% foaming1.4996–1.785618.43–32.74
Table 5. Comparisons of TS molded under various processing technology.
Table 5. Comparisons of TS molded under various processing technology.
Tensile   Strength   ( N / mm 2 ) Enhancement
(times)
PP/CF 20 wt% no foaming28.05–33.861
PP/CF 20 wt% foaming18.42–23.350.66–0.69
(GCP)PP/CF 20 wt% no foaming34.38–36.260.934–0.942
(GCP)PP/CF 20 wt% foaming31.86–33.680.99–1.14
PP/CF 30 wt% no foaming27.42–36.751
PP/CF 30 wt% foaming18.49–21.200.58–0.67
(GCP)PP/CF 30 wt% no foaming37.47–39.660.96–0.972
(GCP)PP/CF 30 wt% foaming34.72–38.771.06–1.27
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, S.-C.; Jien, M.-Y.; Hsu, C.-C.; Hwang, S.-S.; Feng, C.-T. Processing Effects on the Through-Plane Electrical Conductivities and Tensile Strengths of Microcellular-Injection-Molded Polypropylene Composites with Carbon Fibers. Polymers 2022, 14, 3251. https://doi.org/10.3390/polym14163251

AMA Style

Chen S-C, Jien M-Y, Hsu C-C, Hwang S-S, Feng C-T. Processing Effects on the Through-Plane Electrical Conductivities and Tensile Strengths of Microcellular-Injection-Molded Polypropylene Composites with Carbon Fibers. Polymers. 2022; 14(16):3251. https://doi.org/10.3390/polym14163251

Chicago/Turabian Style

Chen, Shia-Chung, Ming-Yuan Jien, Chi-Chuan Hsu, Shyh-Shin Hwang, and Ching-Te Feng. 2022. "Processing Effects on the Through-Plane Electrical Conductivities and Tensile Strengths of Microcellular-Injection-Molded Polypropylene Composites with Carbon Fibers" Polymers 14, no. 16: 3251. https://doi.org/10.3390/polym14163251

APA Style

Chen, S. -C., Jien, M. -Y., Hsu, C. -C., Hwang, S. -S., & Feng, C. -T. (2022). Processing Effects on the Through-Plane Electrical Conductivities and Tensile Strengths of Microcellular-Injection-Molded Polypropylene Composites with Carbon Fibers. Polymers, 14(16), 3251. https://doi.org/10.3390/polym14163251

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
