Multifunctional PEG Carrier by Chemoenzymatic Synthesis for Drug Delivery Systems: In Memory of Professor Andrzej Dworak

by
Judit E. Puskas
1,*,
Gayatri Shrikhande
2,
Eniko Krisch
1 and
Kristof Molnar
1
1
Department of Food, Agricultural and Biological Engineering, College of Food, Agricultural, and Environmental Sciences, The Ohio State University, 222 FABE, 1680 Madison Avenue, Wooster, OH 44691, USA
2
Dantari, Inc., 1290 Rancho Conejo Blvd, Suite 103, Thousand Oaks, CA 91320, USA
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(14), 2900; https://doi.org/10.3390/polym14142900
Submission received: 6 June 2022 / Revised: 30 June 2022 / Accepted: 11 July 2022 / Published: 16 July 2022
(This article belongs to the Special Issue Polymeric Carriers for Delivery Systems in Biomedical Applications – in Memory of Professor Andrzej Dworak)
Browse Figures
Review Reports Versions Notes

Abstract

:
This paper describes the synthesis and characterization of new bivalent folate-targeted PEGylated doxorubicin (FA2-dPEG-DOX2) made by modular chemo-enzymatic processes using Candida antarctica lipase B (CALB) as a biocatalyst. Unique features are the use of monodisperse PEG (dPEG) and the synthesis of thiol-functionalized folic acid yielding exclusive γ-conjugation of folic acid (FA) to dPEG. The polymer-based drug conjugate is built up by a series of transesterification and Michael addition reactions all catalyzed be CALB. In comparison with other methods in the literature, the modular approach with enzyme catalysis leads to selectivity, full conversion and high yield, and no transition metal catalyst residues. The intermediate product with four acrylate groups is an excellent platform for Michael-addition-type reactions for a wide variety of biologically active molecules. The chemical structures were confirmed by nuclear magnetic resonance spectroscopy (NMR). Flow cytometry analysis showed that, at 10 µM concentration, both free DOX and FA2-dPEG-DOX2 were taken up by 99.9% of triple-negative breast cancer cells in 2 h. Fluorescence was detected for 5 days after injecting compound IV into mice. Preliminary results showed that intra-tumoral injection seemed to delay tumor growth more than intravenous delivery.

Graphical Abstract

1. Introduction

Targeted drug delivery systems promise to send cancer drugs to diseased cells without affecting healthy cells, thereby reducing cytotoxicity and minimizing devastating side-effects [1,2,3,4,5,6]. Such delivery systems consist of a drug or diagnostic agent (or both), a linker, a cleavable bond for the release of the drug and a targeting agent, all built into one molecule [7]. Diagnostic and therapeutic agents are being developed that target vitamin receptors (e.g., folate or biotin receptors) that are highly concentrated on the surface of cancer cells [8,9]. Most reports discuss compounds containing folic acid (FA) targeting folate receptors (FR) [10,11]. The two major groups of compounds studied are small molecule drug conjugates and polymeric drug conjugates (PDCs) [12,13]. This latter group showed promise due to increased water solubility and circulation time in the body and multivalent attachment to FRs [14,15,16,17]. However, as a recent review pointed out, the greatest challenge is the inherent heterogeneity of PDCs, coupled with uncontrolled conjugation of diagnostic and therapeutic agents, resulting in polydisperse polymer mixtures [6]. There are a wide variety of polymers used in the synthesis of PDCs with poly(amido amine) dendrimers and poly(ethylene glycol) (PEG) being the most well-known [18,19,20]. We investigated monodisperse PDCs based on PEG, specifically, dPEG (discrete PEG with Đ = 1). First, we synthesized fluorescein (FL)-labeled PEGs containing two FA (FA-FL-PEG-FL-FA, in comparison with compounds with one or two FA (FA-FL, and FA-FL-FA), all made by chemo-enzymatic methods with excellent yield (95%+) and selectivity (100%) [21]. FA-FL-FA with two FA showed better endocytosis in both MDA-MB-231 (Caucasian) and MDA-MB-468 (African American, less FR) triple-negative breast cancer (TNBC) cell lines than FA-FL with a single targeting group. dPEG20, with precisely 20 repeat units with no polydispersity and two FA in each molecule, demonstrated the best uptake, in comparison with polydisperse PEGs with Mn = 1050 and 2000 g/mol. This was the first instance of using dPEG in FR-targeted PDCs. The uptake of FA-FL-PEG-FL-FA was monitored in vivo using a rat liver cancer model [22]. For intravenous delivery, tissue autofluorescence interfered with monitoring. In contrast, intra-arterial delivery led to accumulation in the tumor. FL is used extensively in cell culture studies but it is less than optimal for in vivo monitoring [14]. Therefore, we designed a new PDC platform based on a four-functional dPEG core to which drug and diagnostic molecules could be attached via enzyme-catalyzed Michael addition. The first compound tested was a bivalent folate-targeted PEGylated doxorubicin (DOX) serving as both a drug and an imaging agent, made by modular chemo-enzymatic processes (FA2-dPEG-DOX2) [23]. DOX is a widely used chemotherapeutic drug, which prohibits cell division by blocking the topoisomerase 2 enzyme [24]. It is also one of the most often chosen drugs in the synthesis of PDCs [25,26]. It fluoresces in red, enabling in vitro and in vivo tracking of drug release and distribution by fluorescent imaging techniques [27]. Our synthetic strategy is shown in Scheme 1. Exclusive γ-conjugation of FA was achieved using FA-SH made with a chemo-enzymatic method [28]. Flow cytometry analysis showed that, at 10 µM concentration, both free DOX and FA2-dPEG-DOX2 would be taken up by 99.9% of TNBC cells in 2 h. However, no cytotoxicity was found in the first 24 h. Slow cytotoxicity development led us to the conclusion that DOX was released slowly from the compound. Preliminary testing revealed that intra-tumoral injection of mice seemed to delay tumor growth more than intravenous delivery. Thus, this PDC showed great promise.
This paper discusses the synthesis of FA2-dPEG-DOX2 and the challenges associated with characterization of the compound.

2. Materials and Methods

Discrete poly(ethylene glycol) (dPEG20, FW = 882 g/mol, Ð = 1.00) was purchased from Quanta Biodesign Limited (Plain City, OH, USA). Doxorubicin hydrochloride (DOX.HCl, CAS 25316-40-9) was purchased from AvaChem Scientific (San Antonio, TX, USA). DL-α-tocopherol (Vitamin E, purity 97+%) was obtained from Alfa Aesar (Tewksbury, MA, USA). Thiol-functionalized folic acid (FA-SH) was synthesized as reported in [28]. Candida antarctica lipase B immobilized on acrylic resin (CALB, Novozyme 235), Vinyl acrylate (VA, <600 ppm MEHQ as inhibitor), diethanolamine (DEA, 99%), tetrahydrofuran (THF, ACS reagent grade), n-hexane (Hexane, ACS reagent grade), and anhydrous dimethyl sulfoxide (DMSO, ≥99.9%) were purchased from Sigma-Aldrich (Darmstadt, Germany) and used without further purification. Other solvents, such as anhydrous diethyl ether (95.8%, BHT free ACS Certified), methanol (ACS Certified), and acetone (ACS Certified), were obtained from Fisher Chemicals (Pittsburgh, PA, USA). Deuterated solvents, such as dimethyl sulfoxide (DMSO d6, purity 99.9%), chloroform (CDCl3, purity 99.8%), methylene chloride (CD2Cl2, purity 99.9%), and methanol (CD3OD, purity 99.8%) were purchased from Cambridge Isotope Laboratories (Tewksbury, MA, USA).

2.1. Synthesis

2.1.1. Synthesis of Compound I: Acrylate-dPEG20-Acrylate

dPEG (1.4398 g, 0.0016 mol, 1 equivalent) was placed into a 25 mL round-bottom flask and dried under vacuum on a Schlenk line at 65 °C until bubble formation ceased. It was then cooled to room temperature and VA (0.3928 g, 0.0040 mol, 2.5 equivalents), CALB (0.1332 g @ 20 wt.% enzyme, 3 × 10−4 mol/L) and vitamin E (antioxidant) were added to the reaction mixture which was heated to 48 °C in an oil bath. After 4 h, the reaction mixture was diluted with 10 mL of dried THF. CALB was filtered over a Q5 filter paper and THF and VA were removed by a rotary evaporator under reduced pressure. The product was then dried in a vacuum oven. An amount of 1.3191 g (1.31 mmol) diacrylated product was obtained (82% yield).

2.1.2. Synthesis of Compound II: (HO)2-dPEG20-(OH)2

Acrylate-dPEG20-acrylate (1.3191 g, 0.0013 mol, 1 equivalent), DEA (0.2782 g, 0.0026 mol, 2.02 equivalents) and 0.4 mL of DMSO were added to a 25 mL round-bottom flask and stirred at room temperature for 10 min. CALB (0.1089 g, 20 wt.% enzyme, 3 × 10−4 mol/L). One drop of vitamin E (antioxidant) was added to the reaction mixture which was then heated in an oil bath for 5 h at 50 °C. The reaction mixture was then taken out of the oil bath and diluted with 10 mL of THF. CALB was filtered over a Q5 filter paper and THF was removed using a rotary evaporator under reduced pressure. The product was then precipitated twice in 150 mL of hexane to remove excess DEA and DMSO, followed by drying of the product in a vacuum oven for 2 days. An amount of 1.0365 g (0.851 mmol) product was obtained (65% yield).

2.1.3. Synthesis of Compound III: (Acr)2-dPEG-(Acr)2

(HO)2-dPEG20-(OH)2 (1.0365 g, 0.0009 mol, 1 equivalent) was mixed with VA (0.3427 g, 0.0035 mol, 4.10 equivalent) and 1.5 mL of CHCl3 and stirred at room temperature for 10 min. CALB (0.1133 g, 20 wt.% enzyme, 4 × 10−4 mol/L) and a drop of vitamin E (antioxidant) were added to the mixture which was kept in an oil bath for 5 h at 48 °C. Then the reaction mixture was diluted with 15 mL of THF. CALB was filtered over a Q5 filter paper and THF and VA were then removed by a rotary evaporator under reduced pressure. The product was then dried in a vacuum oven. An amount of 0.3290 g (0.229 mmol) (Acrylate)2-dPEG20-(Acrylate)2 was obtained (26% yield).

2.1.4. Synthesis of Compound IV: FA2-dPEG-DOX2

Considering that the FA-SH used contained ~28 mol% of unreacted FA, FA-SH (0.3830 g, 0.0007 mol, 2.84 equivalents) was reacted with (Acrylate)2-dPEG20-(Acrylate)2 (0.3290 g, 0.0002 mol, 1 equivalent) using CALB (20 wt.% enzyme, 3 × 10−4 mol/L) in 1.4 mL of DMSO and a drop of vitamin E. The progress of the reaction was monitored by 1H-NMR. After 3 days, DOX (0.2659 g, 0.0005 mol, 2.13 equivalents) was first desalted using TEA and then added to the reaction mixture of the previous reaction. After running the reaction for 24 h at 65 °C, CALB was filtered out and the product was obtained by precipitation in 300 mL diethyl ether.

2.2. Characterization

Nuclear Magnetic Resonance (NMR) Spectroscopy

A Varian Mercury 300 MHz spectrometer was used to record the 1H-NMR spectra at 40 mg/mL concentration with the following parameters: 2 s relaxation time, 64 scans, and a 45° half-angle.

3. Results and Discussion

3.1. Synthesis of Acrylate-dPEG20-Acrylate (I)

Figure 1 shows the 1H-NMR of dPEG. The integral ratio of protons (c + d) with respect to proton (b) was 4.01:76.34, in excellent agreement with the theoretical 4:76 ratio.
dPEG was reacted with VA in bulk; no solvent was necessary because the liquified dPEG was miscible with VA. This reaction is irreversible because the vinyl alcohol product immediately tautomerizes into acetaldehyde that evaporates from the system. The 1H-NMR spectrum of the Acr-dPEG-Acr product after purification is shown in Figure 2. Resonance b shifted from 3.73 ppm to 4.30 ppm (b’). The integral ratio of the methylene (g, g’) and methine (f) protons of the acrylate group and proton (b’) relative to the reference protons of dPEG (c + d) was 2.20: 1.96: 2.16: 3.97: 80.01. This demonstrated successful transesterification between VA and dPEG and confirmed the structure of the diacrylate product.

3.2. Synthesis of (HO)2-dPEG20-(OH)2

Acrylate-dPEG20-Acrylate was reacted with DEA in DMSO using CALB catalysis. Figure 3 shows the 1H-NMR of the product after purification and drying. Signal (i) of the DEA shifted from 3.42 to 3.56 ppm (i’), and signal (h) shifted from 2.54 ppm to 2.59 ppm (h’) after the reaction. No methylene and methine protons due to the acrylate were present. The integral ratio of proton (h’) and newly generated signals (g) and (f) with respect to the reference proton (b) was 8.25: 4.02: 4.03: 4.06 which demonstrated successful Michael addition between DEA and dPEG-diacrylate and confirmed the structure of the product.

3.3. Synthesis of (Acrylate)2-dPEG20-(Acrylate)2

(HO)2-dPEG20-(OH)2 was reacted with four equivalents of VA using CALB catalysis. As mentioned before, this transesterification reaction is irreversible. Figure 4 shows the 1H-NMR spectrum of the product after purification and drying. Signal (i’) moved from 3.56 ppm to 4.21 ppm (i”) and signal (h’) moved from 2.59 ppm to 2.69 ppm (h”) after the reaction.
New methylene and methine protons were generated at 6.39 ppm (l), 6.13 ppm (k) and δ 5.38 ppm (l’). The integral ratio of newly generated methylene and methine protons to the signal (i + b) was 4.50: 4.34: 4.36: 12.65. This demonstrated the successful transesterification reaction and confirmed the structure of the tetra-acrylated product. This product (III) is the platform to which drugs and diagnostic agents can be attached to form PDCs. The first PDC made and tested was FA2-dPEG20-DOX2.

3.4. Synthesis of FA2-dPEG20-DOX2

FA-SH was attached to the (Acrylate)2-dPEG20-(Acrylate)2 by CALB-catalyzed Michael addition. The 1H NMR spectrum with assignments of FA-SH prepared as reported in [28] is shown in Figure 5. The 1H NMR spectrum of the product of the reaction can be seen in Figure 6.
Capital letters are used to mark the protons of the FA in Figure 6 as the spectra are quite complicated. The integral ratio of methylene protons (l) (6.39 ppm), (l’) (5.38 ppm) and methine protons (k) (6.13 ppm) with respect to the reference proton E of FA-SH was 2:2.20:2.28:2.18. Since the integral of the methylene and methine proton signals (l, l’, k) were reduced from 4 to 2, it was concluded that two of the acrylate groups reacted with FA-SH. The spectrum is very complicated with many overlaps, so only resonances assigned to protons l, k, l’, b, r, n, i, v, E, Z, A and C are identified in the spectrum.
The structure of DOX.HCl is shown in Figure 7 (See the 1H NMR spectrum in Figure S1) Whereas the 1H NMR spectrum of FA2-dPEG20-DOX2 can be seen in Figure 8. Proper assignment of the NMR signals of DOX.HCl and some conjugates was published in 2017, correcting some errors in earlier publications [29]. When DOX is attached via amide bond formation from the primary amine after removal of the HCl, the signals associated with the protons 1′ through 6′ shift (see Table 1). Especially important is the proton in the position marked 3′ at 3.37 ppm which was shown to shift to 3.94 ppm upon formation of an amide bond. However, this overlapped with the methyl protons of the methoxy group of DOX marked OCH3, also at 3.94 ppm, that remained in its original position.
The integral ratio of E from FA (see Figure 6), 6′ from DOX, and the dPEG main chain protons observed of 2:6:80, indicated that the desired FA2-dPEG20-DOX2 was obtained.
Some characteristic signals were able to be identified: E at 8.63 ppm from FA (see Figure 6), and 5′ at 4.16 ppm and 6′ (methyl protons) at 1.14 ppm from DOX. The 13C NMR was also crowded but shifts in some characteristic signals supported DOX conjugation: the 3′ signals shifted from 46.50 to 45.62 ppm, while the 2′ and 4′ signals shifted from 28.76 and 66.80 to 30.23 and 68.10 ppm, respectively (see Table 1 and Figure S2). The characteristic signal of γ-substituted FA was seen at 172.3 ppm, while the α carbonyl signal appeared at 173.7 ppm [28].

3.5. In Vitro and In Vivo Testing

FA2-dPEG20-DOX2 was tested in vitro and in vivo in comparison with free DOX at the same concentration [22,23]. Free DOX already showed a cytotoxic effect after 24 h at 0.1 μM concentration, while no toxicity was observed with FA2-dPEG-DOX2. After 48 h treatment, the viability of the cells was reduced to 75% of the untreated control, even at the lowest (0.01 μM) concentration, and remained below the control level at all other concentrations applied. In comparison, the cytotoxicity of free DOX increased with increasing concentration, killing all cells at 100 μM. Preliminary testing in a live nude mouse model showed localization in an induced prostate cancer (PC3-PSCA-PSMA) tumor when delivered via intra-tumoral injection (Figure 9). The increase in the tumor volumes slowed down until Day 21 (see Figure 10). After this time point, the intravenously injected mouse tumor grew in a faster manner than the tumor of the intra-tumorally injected animal. Throughout the study, the intra-tumoral injection seemed to delay tumor growth more than the intravenous route of delivery. The results appear to indicate that DOX was released relatively slowly from the FA2-dPEG20-DOX2.
In summary, FA2-dPEG20-DOX2 seems to be a promising candidate as a folate-targeted cancer diagnostic and therapeutic agent, but more investigations are necessary in vitro and in vivo of this, and similar dPEG-based compounds, made by chemo-enzymatic synthesis.
We will continue research in the spirit of Andrzej’s legacy—another great scientist lost [2,30,31].

4. Conclusions

The chemo-enzymatic esterification and Michael addition reactions catalyzed by CALB are excellent selective reactions for the modification of PEGs. As was shown, a platform based on dPEG with four reactive acrylate groups was built with high selectivity. This is an excellent platform for the synthesis of a variety of polymer-based drug carriers. In the current investigation, we have shown that two folic acid groups and two doxorubicin groups could be attached to the platform using a CALB-catalyzed Michael addition reaction. We will expand this concept in the future for the synthesis of compounds with a variety of drugs and targeting agents.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14142900/s1, Figure S1: 1H NMR spectrum of DOX.HCl; Figure S2. 13C NMR spectrum of FA2-dPEG-DOX2

Author Contributions

Conceptualization, J.E.P.; methodology, G.S.; validation, G.S.; formal analysis, G.S.; investigation, G.S., K.M. and E.K.; writing—original draft preparation, J.E.P., K.M. and E.K.; writing—review and editing, J.E.P., K.M. and E.K.; visualization, G.S., K.M. and E.K.; supervision, J.E.P.; funding acquisition, J.E.P. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the Ohio State University USDA-NIFA under Hatch project number OHO01417 and the Breast Cancer Innovation Foundation for financial support.

Data Availability Statement

Raw data can be requested from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhong, L.; Li, Y.; Xiong, L.; Wang, W.; Wu, M.; Yuan, T.; Yang, W.; Tian, C.; Miao, Z.; Wang, T.; et al. Small molecules in targeted cancer therapy: Advances, challenges, and future perspectives. Signal. Transduct. Target. Ther. 2021, 6, 201. [Google Scholar] [CrossRef] [PubMed]
  2. Lipowska-Kur, D.; Szweda, R.; Trzebicka, B.; Dworak, A. Preparation and characterization of doxorubicin nanocarriers based on thermoresponsive oligo(ethylene glycol) methyl ether methacrylate polymer-drug conjugates. Eur. Polym. J. 2018, 109, 391–401. [Google Scholar] [CrossRef]
  3. Bae, Y.H.; Park, K. Targeted drug delivery to tumors: Myths, reality and possibility. J. Control. Release 2011, 153, 198–205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Tewabe, A.; Abate, A.; Tamrie, M.; Seyfu, A.; Abdela Siraj, E. Targeted Drug Delivery—From Magic Bullet to Nanomedicine: Principles, Challenges, and Future Perspectives. J. Multidiscip. Healthc. 2021, 14, 1711–1724. [Google Scholar] [CrossRef] [PubMed]
  5. Manzari, M.T.; Shamay, Y.; Kiguchi, H.; Rosen, N.; Scaltriti, M.; Heller, D.A. Targeted drug delivery strategies for precision medicines. Nat. Rev. Mater. 2021, 6, 351–370. [Google Scholar] [CrossRef] [PubMed]
  6. Ekladious, I.; Colson, Y.L.; Grinstaff, M.W. Polymer–drug conjugate therapeutics: Advances, insights and prospects. Nat. Rev. Drug Discov. 2019, 18, 273–294. [Google Scholar] [CrossRef]
  7. Srinivasarao, M.; Low, P.S. Ligand-Targeted Drug Delivery. Chem. Rev. 2017, 117, 12133–12164. [Google Scholar] [CrossRef]
  8. Jurczyk, M.; Jelonek, K.; Musiał-Kulik, M.; Beberok, A.; Wrześniok, D.; Kasperczyk, J. Single- versus Dual-Targeted Nanoparticles with Folic Acid and Biotin for Anticancer Drug Delivery. Pharmaceutics 2021, 13, 326. [Google Scholar] [CrossRef]
  9. Frigerio, B.; Bizzoni, C.; Jansen, G.; Leamon, C.P.; Peters, G.J.; Low, P.S.; Matherly, L.H.; Figini, M. Folate receptors and transporters: Biological role and diagnostic/therapeutic targets in cancer and other diseases. J. Exp. Clin. Cancer Res. 2019, 38, 125. [Google Scholar] [CrossRef] [Green Version]
  10. Puskas, J.E.; Molnar, K.; Krisch, E. Toward the effective synthesis of bivalent Folate-targeted PEGylated cancer diagnostic and therapeutic agents using chemo-enzymatic processes. J. Mol. Liq. 2020, 310, 113218–113227. [Google Scholar] [CrossRef]
  11. Ullah, S.; Azad, A.K.; Nawaz, A.; Shah, K.U.; Iqbal, M.; Albadrani, G.M.; Al-Joufi, F.A.; Sayed, A.A.; Abdel-Daim, M.M. 5-Fluorouracil-Loaded Folic-Acid-Fabricated Chitosan Nanoparticles for Site-Targeted Drug Delivery Cargo. Polymers 2022, 14, 2010. [Google Scholar] [CrossRef] [PubMed]
  12. Alshamrani, M. Broad-Spectrum Theranostics and Biomedical Application of Functionalized Nanomaterials. Polymers 2022, 14, 1221. [Google Scholar] [CrossRef] [PubMed]
  13. Casi, G.; Neri, D. Antibody–Drug Conjugates and Small Molecule–Drug Conjugates: Opportunities and Challenges for the Development of Selective Anticancer Cytotoxic Agents. J. Med. Chem. 2015, 58, 8751–8761. [Google Scholar] [CrossRef] [PubMed]
  14. Baker, J.R. Dendrimer-based nanoparticles for cancer therapy. Hematology 2009, 2009, 708–719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Singh, P.; Gupta, U.; Asthana, A.; Jain, N.K. Folate and Folate−PEG−PAMAM Dendrimers: Synthesis, Characterization, and Targeted Anticancer Drug Delivery Potential in Tumor Bearing Mice. Bioconjug. Chem. 2008, 19, 2239–2252. [Google Scholar] [CrossRef]
  16. Majoros, I.J.; Myc, A.; Thomas, T.; Mehta, C.B.; Baker, J.R. PAMAM Dendrimer-Based Multifunctional Conjugate for Cancer Therapy: Synthesis, Characterization, and Functionality. Biomacromolecules 2006, 7, 572–579. [Google Scholar] [CrossRef]
  17. van Dongen, M.A.; Dougherty, C.A.; Banaszak Holl, M.M. Multivalent Polymers for Drug Delivery and Imaging: The Challenges of Conjugation. Biomacromolecules 2014, 15, 3215–3234. [Google Scholar] [CrossRef] [Green Version]
  18. Marcinkowska, M.; Sobierajska, E.; Stanczyk, M.; Janaszewska, A.; Chworos, A.; Klajnert-Maculewicz, B. Conjugate of PAMAM Dendrimer, Doxorubicin and Monoclonal Antibody—Trastuzumab: The New Approach of a Well-Known Strategy. Polymers 2018, 10, 187. [Google Scholar] [CrossRef] [Green Version]
  19. Shiraishi, K.; Yokoyama, M. Toxicity and immunogenicity concerns related to PEGylated-micelle carrier systems: A review. Sci. Technol. Adv. Mater. 2019, 20, 324–336. [Google Scholar] [CrossRef] [Green Version]
  20. Rahme, K.; Dagher, N. Chemistry Routes for Copolymer Synthesis Containing PEG for Targeting, Imaging, and Drug Delivery Purposes. Pharmaceutics 2019, 11, 327. [Google Scholar] [CrossRef] [Green Version]
  21. Das, D.; Koirala, N.; Li, X.; Khan, N.; Dong, F.; Zhang, W.; Mulay, P.; Shrikhande, G.; Puskas, J.; Drazba, J.; et al. Screening of Polymer-Based Drug Delivery Vehicles Targeting Folate Receptors in Triple-Negative Breast Cancer. J. Vasc. Interv. Radiol. 2020, 31, 1866–1873.e2. [Google Scholar] [CrossRef] [PubMed]
  22. Koirala, N.; Das, D.; Fayazzadeh, E.; Sen, S.; McClain, A.; Puskas, J.E.; Drazba, J.A.; McLennan, G. Folic acid conjugated polymeric drug delivery vehicle for targeted cancer detection in hepatocellular carcinoma. J. Biomed. Mater. Res. Part A 2019, 107, 2522–2535. [Google Scholar] [CrossRef] [PubMed]
  23. Nagy, K.S.; Toth, K.; Pallinger, E.; Takacs, A.; Kohidai, L.; Jedlovszky-Hajdu, A.; Mathe, D.; Kovacs, N.; Veres, D.S.; Szigeti, K.; et al. Folate-Targeted Monodisperse PEG-Based Conjugates Made by Chemo-Enzymatic Methods for Cancer Diagnosis and Treatment. Int. J. Mol. Sci. 2021, 22, 10347. [Google Scholar] [CrossRef]
  24. Christidi, E.; Brunham, L.R. Regulated cell death pathways in doxorubicin-induced cardiotoxicity. Cell Death Dis. 2021, 12, 339. [Google Scholar] [CrossRef] [PubMed]
  25. Zhao, N.C.; Woodle, M.; Mixson, A.J. Advances in Delivery Systems for Doxorubicin. J. Nanomed. Nanotechnol. 2018, 9, 519. [Google Scholar] [CrossRef]
  26. Psarrou, M.; Kothri, M.G.; Vamvakaki, M. Photo- and Acid-Degradable Polyacylhydrazone–Doxorubicin Conjugates. Polymers 2021, 13, 2461. [Google Scholar] [CrossRef]
  27. Xue, X.; Wu, Y.; Xu, X.; Xu, B.; Chen, Z.; Li, T. pH and Reduction Dual-Responsive Bi-Drugs Conjugated Dextran Assemblies for Combination Chemotherapy and In Vitro Evaluation. Polymers 2021, 13, 1515. [Google Scholar] [CrossRef]
  28. Puskas, J.E.; Castano, M.; Mulay, P.; Dudipala, V.; Wesdemiotis, C. Method for the Synthesis of γ-PEGylated Folic Acid and Its Fluorescein-Labeled Derivative. Macromolecules 2018, 51, 9069–9077. [Google Scholar] [CrossRef]
  29. Piorecka, K.; Stanczyk, W.; Florczak, M. NMR analysis of antitumor drugs: Doxorubicin, daunorubicin and their functionalized derivatives. Tetrahedron Lett. 2017, 58, 152–155. [Google Scholar] [CrossRef]
  30. Kowalczuk, A.; Trzcinska, R.; Trzebicka, B.; Müller, A.H.E.; Dworak, A.; Tsvetanov, C.B. Loading of polymer nanocarriers: Factors, mechanisms and applications. Prog. Polym. Sci. 2014, 39, 43–86. [Google Scholar] [CrossRef]
  31. Haladjova, E.; Toncheva-Moncheva, N.; Apostolova, M.D.; Trzebicka, B.; Dworak, A.; Petrov, P.; Dimitrov, I.; Rangelov, S.; Tsvetanov, C.B. Polymeric Nanoparticle Engineering: From Temperature-Responsive Polymer Mesoglobules to Gene Delivery Systems. Biomacromolecules 2014, 15, 4377–4395. [Google Scholar] [CrossRef] [PubMed]
Polymers 14 02900 sch001 550
Scheme 1. Synthesis of FA2-dPEG-DOX2: Thiol-functionalized folic acid (FA-SH), Doxorubicin (DOX), discrete poly(ethylene glycol) (dPEG).
Scheme 1. Synthesis of FA2-dPEG-DOX2: Thiol-functionalized folic acid (FA-SH), Doxorubicin (DOX), discrete poly(ethylene glycol) (dPEG).
Polymers 14 02900 sch001
Polymers 14 02900 g001 550

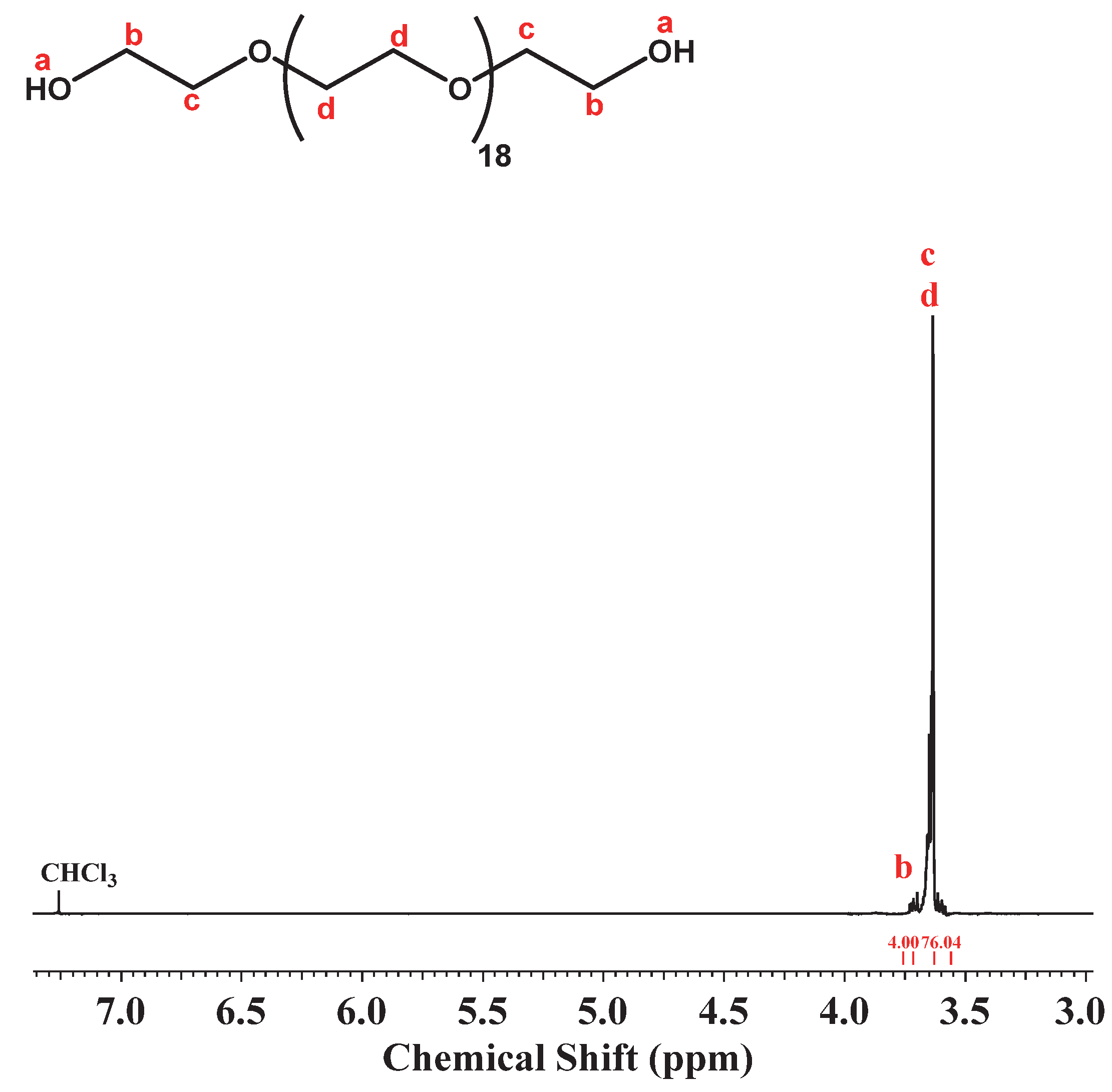

Figure 1. 1H-NMR of dPEG20 ([δ 3.73 ppm ((b), s, 4H), 3.64 ((c, d), 76H)]).
Figure 1. 1H-NMR of dPEG20 ([δ 3.73 ppm ((b), s, 4H), 3.64 ((c, d), 76H)]).
Polymers 14 02900 g001
Polymers 14 02900 g002 550
Figure 2. 1H-NMR of the Acrylate-dPEG20-Acrylate in CDCl3 ([δ 6.50–6.38 ppm ((g), 2H), 6.21–6.07 ((f), 76H), 5.94–5.80 ((g’), 2H), 4.30 ((b’), 4H), 77–3.59 ((c,d), 80H)]).
Figure 2. 1H-NMR of the Acrylate-dPEG20-Acrylate in CDCl3 ([δ 6.50–6.38 ppm ((g), 2H), 6.21–6.07 ((f), 76H), 5.94–5.80 ((g’), 2H), 4.30 ((b’), 4H), 77–3.59 ((c,d), 80H)]).
Polymers 14 02900 g002
Polymers 14 02900 g003 550
Figure 3. 1H NMR spectrum of (HO)2-dPEG20-(OH)2 ([δ 4.24 ((b), 4H), δ 3.77–3.59 ((c,d), 80H), δ 3.56 ((i’), 8H), δ 2.83 ((g), 4H), δ 2.59 ((h’), 8H), δ 2.48 ((f), 4H)]).
Figure 3. 1H NMR spectrum of (HO)2-dPEG20-(OH)2 ([δ 4.24 ((b), 4H), δ 3.77–3.59 ((c,d), 80H), δ 3.56 ((i’), 8H), δ 2.83 ((g), 4H), δ 2.59 ((h’), 8H), δ 2.48 ((f), 4H)]).
Polymers 14 02900 g003
Polymers 14 02900 g004 550

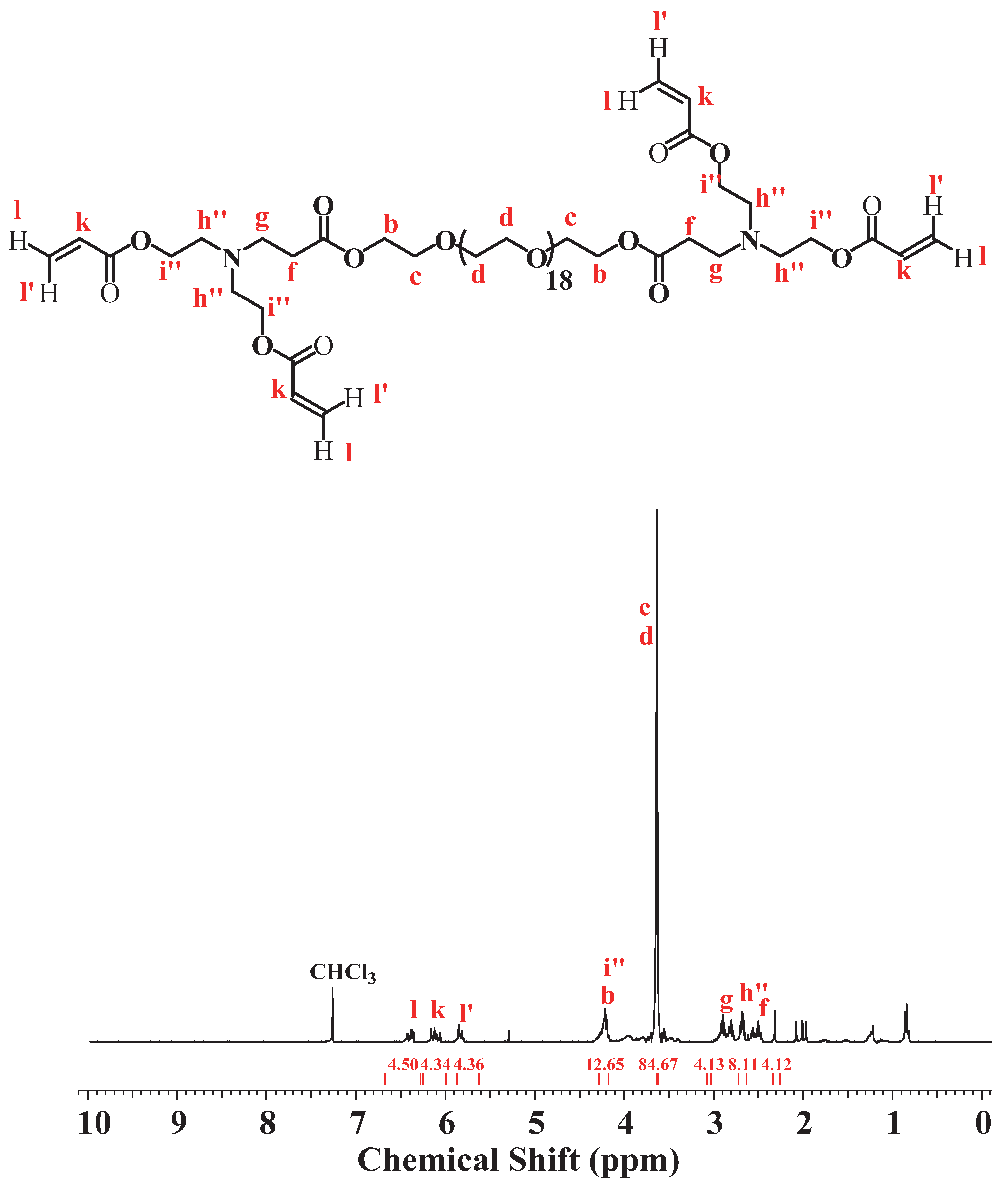

Figure 4. 1H-NMR of the (Acrylate)2-dPEG20-(Acrylate)2 in CDCl3 ([δ 6.39 ppm ((l), 4H), δ 6.13 ppm ((k), 4H), δ 5.38 ppm ((l’), 4H), δ 4.21 ppm ((i”, b), 12H), δ 3.64 ppm ((c, d), 80H), δ 2.81 ppm ((g), 4H), δ 2.69 ppm ((h”), 8H), δ 2.54 ppm ((f), 4H)]).
Figure 4. 1H-NMR of the (Acrylate)2-dPEG20-(Acrylate)2 in CDCl3 ([δ 6.39 ppm ((l), 4H), δ 6.13 ppm ((k), 4H), δ 5.38 ppm ((l’), 4H), δ 4.21 ppm ((i”, b), 12H), δ 3.64 ppm ((c, d), 80H), δ 2.81 ppm ((g), 4H), δ 2.69 ppm ((h”), 8H), δ 2.54 ppm ((f), 4H)]).
Polymers 14 02900 g004
Polymers 14 02900 g005 550

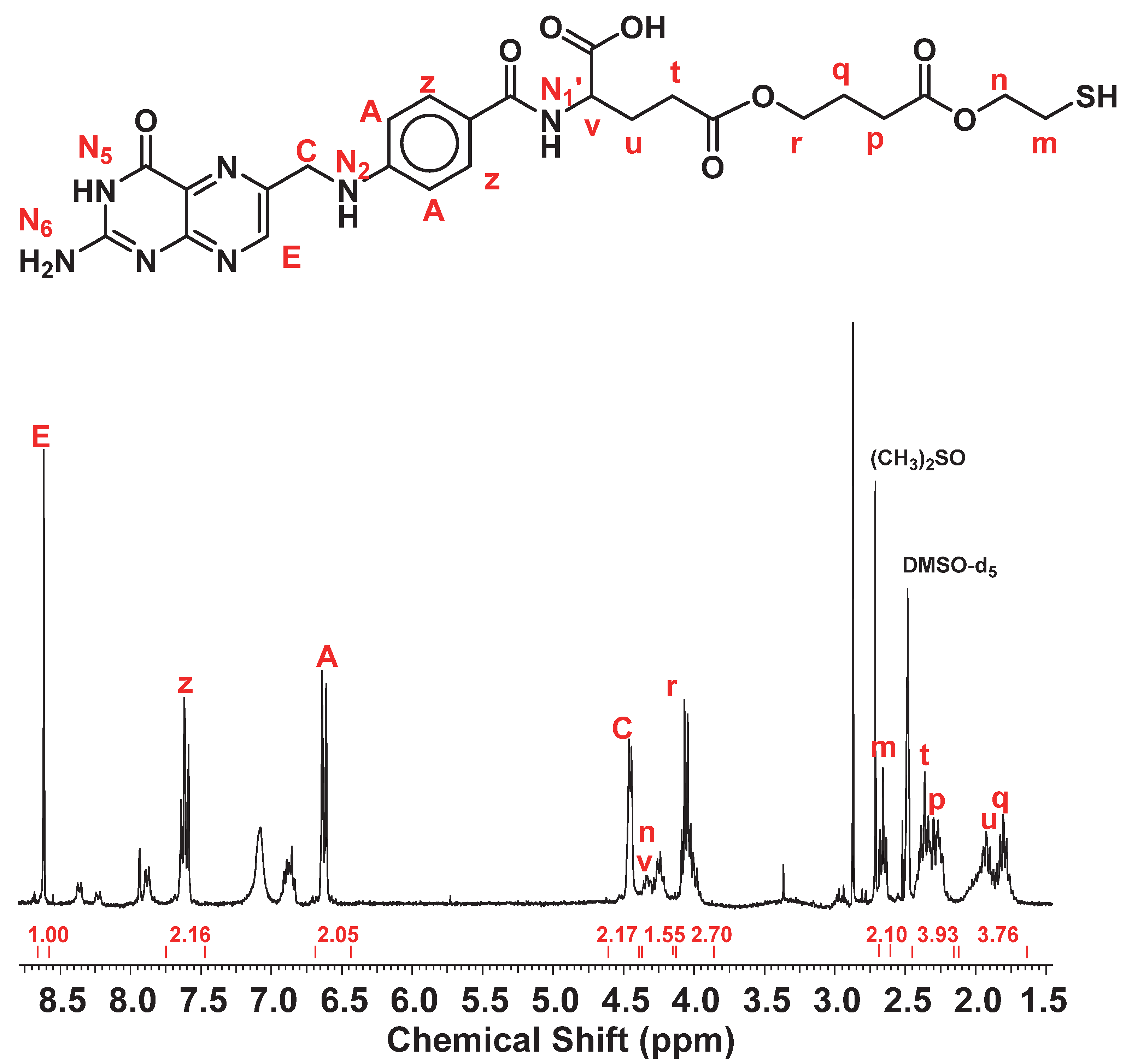

Figure 5. 1H-NMR of the FA-SH in DMSO d6 ([δ 8.60 ppm ((E), 1H), δ 7.60 ((z), 2H), δ 6.60 ((A), 2H), δ 4.40 ((C), 2H), δ 4.30-4.20 ((n, v), 3H), δ 3.95 ((r), 2H), δ 2.65 ((m), 2H), δ 2.25 ((t, p), 4H), 1.90 ((u), 2H), 1.50 ((q), 2H)]).
Figure 5. 1H-NMR of the FA-SH in DMSO d6 ([δ 8.60 ppm ((E), 1H), δ 7.60 ((z), 2H), δ 6.60 ((A), 2H), δ 4.40 ((C), 2H), δ 4.30-4.20 ((n, v), 3H), δ 3.95 ((r), 2H), δ 2.65 ((m), 2H), δ 2.25 ((t, p), 4H), 1.90 ((u), 2H), 1.50 ((q), 2H)]).
Polymers 14 02900 g005
Polymers 14 02900 g006 550
Figure 6. 1H NMR of the raw sample of Michael addition between FA-SH and (Acrylate)2-dPEG20-(Acrylate)2 in DMSO d6.
Figure 6. 1H NMR of the raw sample of Michael addition between FA-SH and (Acrylate)2-dPEG20-(Acrylate)2 in DMSO d6.
Polymers 14 02900 g006
Polymers 14 02900 g007 550

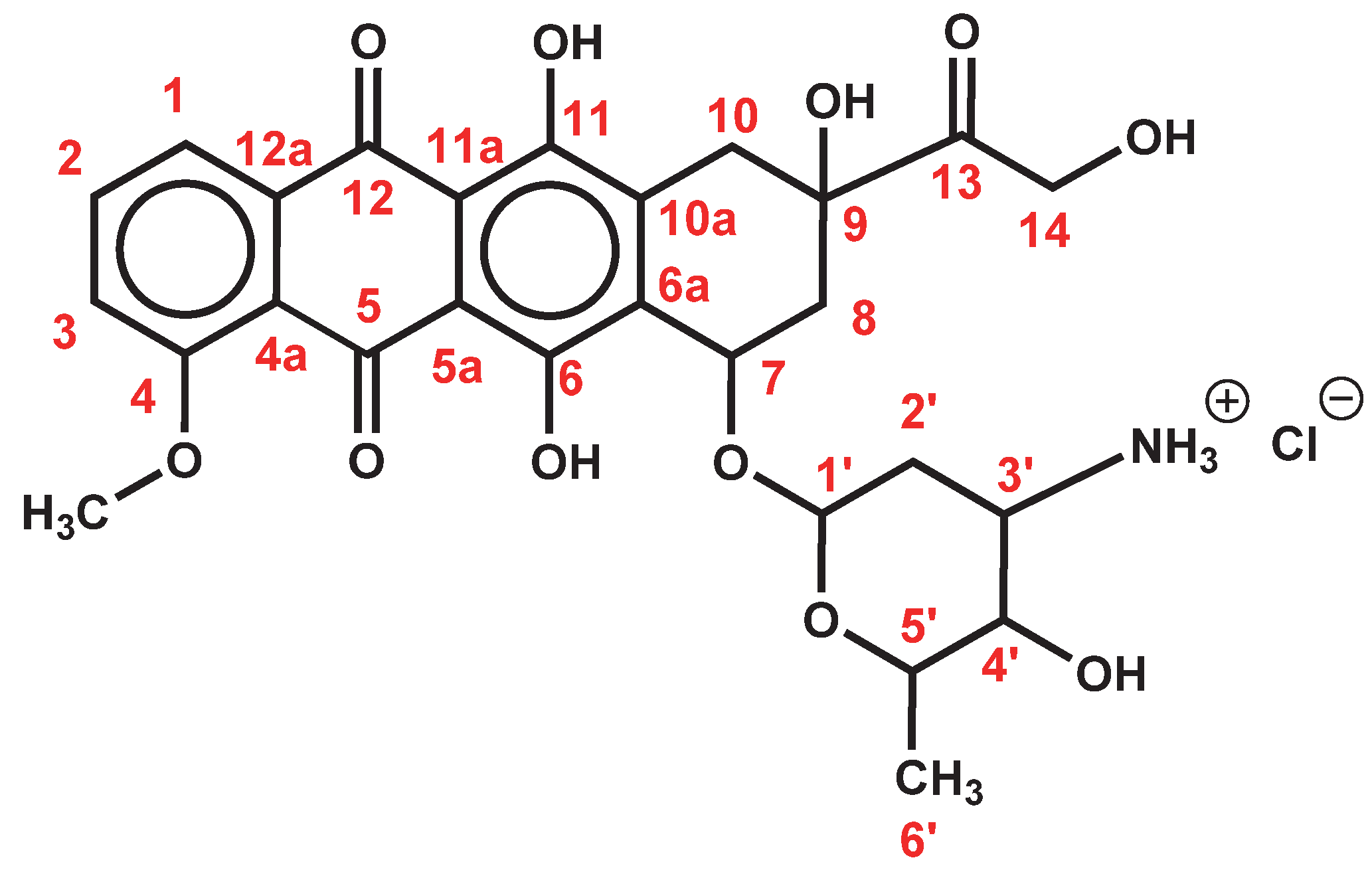

Figure 7. Structure of DOX.HCl: the NMR assignments listed in Table 1.
Figure 7. Structure of DOX.HCl: the NMR assignments listed in Table 1.
Polymers 14 02900 g007
Polymers 14 02900 g008 550

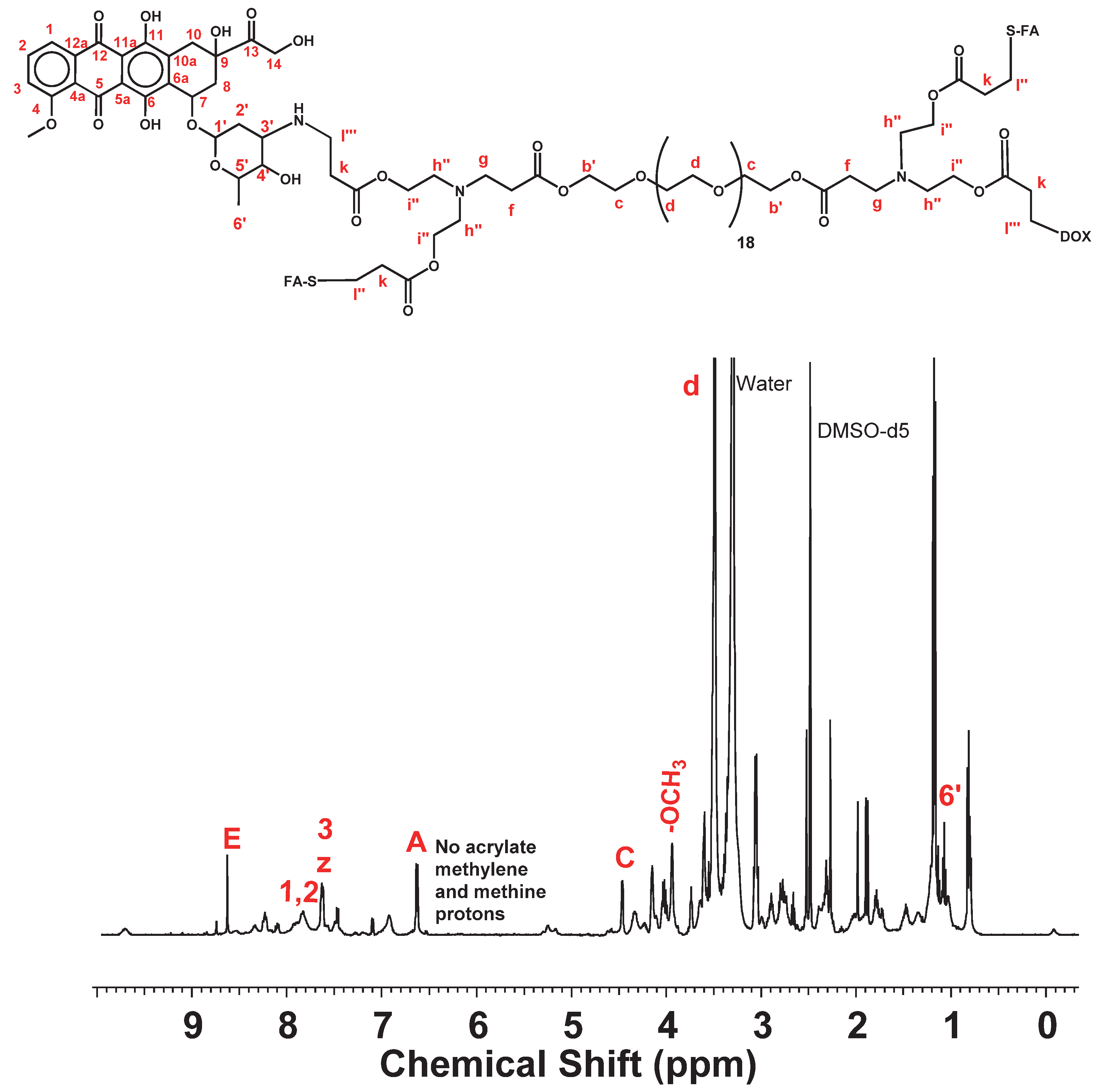

Figure 8. 1H-NMR FA2-dPEG20-DOX2 in DMSO d6.
Figure 8. 1H-NMR FA2-dPEG20-DOX2 in DMSO d6.
Polymers 14 02900 g008
Polymers 14 02900 g009 550
Figure 9. In vivo fluorescent images from the dorsal view of FoxnNu/Nu nude mice bearing LNCaP prostate xenograft tumors. Images before (a) and 24 h after IV (b) in one mouse, and after 24 h after intra-tumoral injection in another mouse (c). All images are standardized to identical light radiance minima and maxima in relative light intensity per pixel arbitrary units to allow for direct comparison. Fluorescence of the PDC is identified in the tumor (T) tail vein, kidneys (K), and capillary-rich head nuchal skin in (b), while a distinct fluorescent signal is observed in the tumor (T) and some lymph nodes of the neck (Ln) in the case of the intra-tumoral PDC injected animal (c). The slight autofluorescence, as seen in (a) before injection, is clearly different from the fluorescent signals of injected animals. Reproduced with permission from [23]. 2022, MDPI.
Figure 9. In vivo fluorescent images from the dorsal view of FoxnNu/Nu nude mice bearing LNCaP prostate xenograft tumors. Images before (a) and 24 h after IV (b) in one mouse, and after 24 h after intra-tumoral injection in another mouse (c). All images are standardized to identical light radiance minima and maxima in relative light intensity per pixel arbitrary units to allow for direct comparison. Fluorescence of the PDC is identified in the tumor (T) tail vein, kidneys (K), and capillary-rich head nuchal skin in (b), while a distinct fluorescent signal is observed in the tumor (T) and some lymph nodes of the neck (Ln) in the case of the intra-tumoral PDC injected animal (c). The slight autofluorescence, as seen in (a) before injection, is clearly different from the fluorescent signals of injected animals. Reproduced with permission from [23]. 2022, MDPI.
Polymers 14 02900 g009
Polymers 14 02900 g010 550

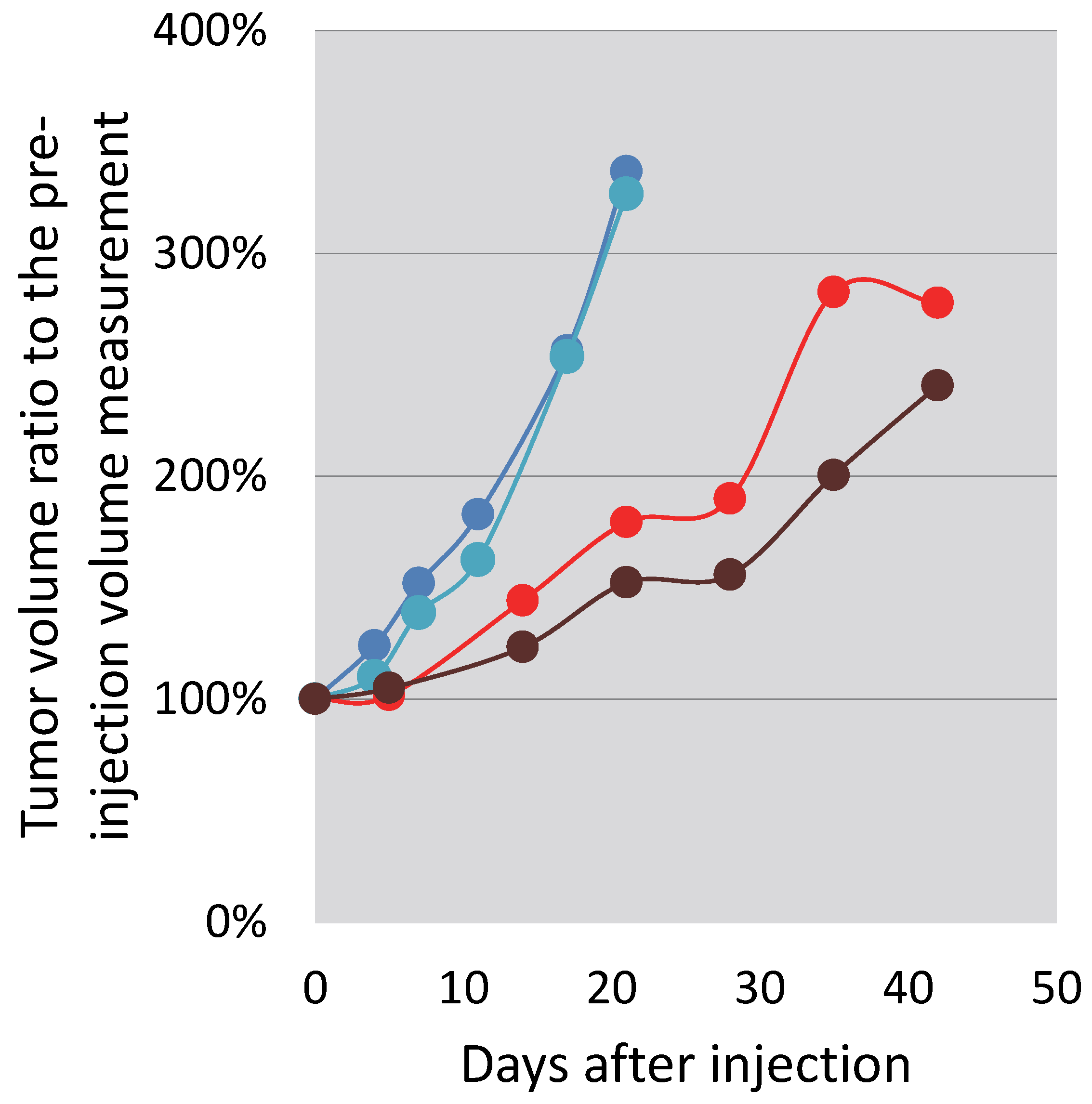

Figure 10. Follow-up of tumor volume increase in percentage of the initial tumor volume in a PC3-PSMA overexpressing cell line xenograft in two saline control (blue and turquoise) Nu/Nu nude mice, one injected intra-tumorally (brown) and one injected intravenously (red) with the PDC. Reproduced with permission from [23]. 2022, MDPI.
Figure 10. Follow-up of tumor volume increase in percentage of the initial tumor volume in a PC3-PSMA overexpressing cell line xenograft in two saline control (blue and turquoise) Nu/Nu nude mice, one injected intra-tumorally (brown) and one injected intravenously (red) with the PDC. Reproduced with permission from [23]. 2022, MDPI.
Polymers 14 02900 g010
Table
Table 1. NMR assignments from reference [29] in comparison with FA2-dPEG20-DOX2.
Table 1. NMR assignments from reference [29] in comparison with FA2-dPEG20-DOX2.
DOX.HClDOC-NH-(C = O)-RFA2-dPEG20-DOX2
GroupHCHCHC
OCH3 (4)3.9457.03.9457.03.9456.6
1′5.2599.75.18100.95.18-
2′1.67; 1.8728.6(1.38); 1.7930.21.7930.2
3′3.3746.93.9445.33.9445.9
4′3.6166.63.3768.63.3569.7
4′-OH5.46-4.70-4.46-
5′4.1966.54.1267.24.1668.1
6′1.1417.21.1917.61.1719.6
FA-SHFA2-dPEG20-DOX2
E 8.6 8.63
z 7.6 7.63
A 6.6 6.63
C 4.4 4.47
m 2.7
