Morphology-Controlled Synthesis of Polyphosphazene-Based Micro- and Nano-Materials and Their Application as Flame Retardants

by
Yuanzhao Zhu
1,2,
Wei Wu
1,2,
Tong Xu
1,2,
Hong Xu
1,2,
Yi Zhong
1,2,
Linping Zhang
1,2,
Yimeng Ma
1,2,
Xiaofeng Sui
1,2,
Bijia Wang
1,2,
Xueling Feng
1,2 and
Zhiping Mao
1,2,3,4,*
1
Key Laboratory of Science and Technology of Eco-Textile, Ministry of Education, College of Chemistry, Chemical Engineering and Biotechnology, Donghua University, Shanghai 201620, China
2
Innovation Center for Textile Science and Technology, Donghua University, Shanghai 201620, China
3
National Engineering Research Center for Dyeing and Finishing of Textiles, Donghua University, Shanghai 201620, China
4
National Manufacturing Innovation Center of Advanced Dyeing and Finishing Technology, Donghua University, Shanghai 201620, China
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(10), 2072; https://doi.org/10.3390/polym14102072
Submission received: 3 April 2022 / Revised: 22 April 2022 / Accepted: 29 April 2022 / Published: 19 May 2022
(This article belongs to the Special Issue Polymer Composite Analysis and Characterization)
Browse Figures
Versions Notes

Abstract

:
Common flame retardants, such as halogen-based materials, are being phased-out owing to their harmful environmental and health effects. We prepared poly-(cyclotriphosphazene-co-4,4′-sulfonyldiphenol) (PZS) microspheres, nanotubes, capsicum-like nanotubes, and branched nanotubes as flame retardants. An increase in reaction temperature changed the morphology from nanotubes to microspheres. A PZS shape had a positive effect on the flame retardancy of polyethylene terephthalate (PET). The PZS with a capsicum-like nanotube morphology had the best flame retardancy, and the PET limiting oxygen index increased from 25.2% to 34.4%. The flame retardancy capability was followed by PZS microspheres (33.1%), branched nanotubes (32.8%), and nanotubes (32.5%). The capsicum-like nanotubes promote the formation of highly dense and continuous carbon layers, and they release a non-combustible gas (CO2). This study confirms polyphosphazene-based flame retardants as viable and environmentally-friendly alternatives to common flame retardants. It also presents a novel and facile design and synthesis of morphology-controlled nanomaterials with enhanced flame retardant properties.

1. Introduction

Hexachlorocyclotriphosphazene (HCCP) is a stable six-membered ring structure comprising alternating backbones of phosphorus and nitrogen atoms with sufficient thermal stability. Polyphosphazenes have a flexible molecular design and are excellent materials used in many fields, including flame retardance [1,2], drug delivery [3], optoelectrical materials [4,5], and catalysis [6]. Although halogen-based flame retardants are widely used, burning them releases a lot of harmful substances that may be carcinogenic and are hazardous to the environment; thus, they are being gradually restricted [7,8]. Polyphosphazene flame retardants are emerging as promising alternatives owing to their environmentally-friendly nature, which has stimulated considerable research interest.
In recent decades, research on controlling the morphology and size [9,10] of micro- and nano-materials has received significant attention. Many researchers [11,12,13] have selected HCCP as a monomer to react in tetrahydrofuran (THF), acetonitrile, N, N-dimethylformamide (DMF), and pyridine, using morphology-controlled methods for the synthesis of different micro- and nano-materials, such as microspheres, nanotubes, and nanofibers. Zhu et al. [13] reported a one-pot fabrication of poly-(cyclotriphosphazene-co-4,4′-sulfonyldiphenol) (PZS) nanotubes from the reaction of HCCP and 4,4′-sulfonyldiphenol (BPS) in THF at room temperature. Triethylamine (TEA) was used as an acid acceptor to absorb the hydrochloric acid (HCl) generated during the reaction. Zhu et al. [14] further reported a one-pot fabrication of monodispersed PZS microspheres in a room temperature reaction of HCCP and BPS in the presence of TEA in acetone. Fu et al. [15] successfully synthesized capsicum-like PZS nanotubes by slowly adding a toluene solution containing HCCP to an acetone solution containing BPS and TEA at room temperature. Fu et al. [16] successfully prepared branched PZS nanotubes using a two-step method, wherein small amounts of TEA were added to the HCCP and BPS reaction solution. The remaining TEA was added after 2 h, and the reaction was then allowed to continue for 10 h. Although many researchers have prepared polyphosphazene compounds with different morphologies using HCCP and BPS as reactants in different solutions, few have investigated how the polyphosphazene morphology affects flame retardancy.
In this study, four different morphologies of PZS polymers were prepared by adding reactants dropwise in THF and varying the reaction temperature. This study also aimed to elucidate the formation mechanism of PZS with different morphologies. To explore the effect of the PZS morphology on flame retardancy, the four different flame retardants were melt-blended with polyethylene terephthalate (PET). Lastly, the thermal stability, flame retardancy and combustion behavior, pyrolysis products, gas, and condensed phase flame retardant mechanism of the synthesized flame retardant–PET composites were analyzed.

2. Experimental

2.1. Materials

In this study, hexachlorocyclotriphosphazene (HCCP, 99%) and 4,4′-sulfonyldiphenol (BPS, 99.8%) were procured from Adamas Reagent Co., Ltd. (Shanghai, China). Ethanol (95%), THF (99.5%), and TEA (99.0%) were procured from General-Reagent. PET chips were procured from Sinopec Yizheng Chemical Fiber Co., Ltd. (Yizheng, China). All reagents were used as received.

2.2. Synthesis of Micro/Nanoscale PZSs

The facile synthesis of PZS polyphosphazene flame retardants with different morphologies was conducted as set out below (Figure 1).

2.2.1. Preparation of PZS Nanotubes (PZS_NT)

First, 0.2 g HCCP and 0.432 g BPS were dissolved in 200 mL THF in a three-necked flask; thereafter, 3 mL TEA was added to the above solution and the resulting reaction solution was mechanically stirred at room temperature for 3 h. The solution was then centrifuged, and the resulting precipitate was washed three times with ethanol and deionized water. The precipitate was freeze-dried at −50 °C for 24 h, followed by drying at 60 °C for 12 h to obtain a final powdered product.

2.2.2. Preparation of PZS Microspheres (PZS_SP)

The preparation of PZS_SP followed the same procedure as that of PZS_NT presented in Section 2.2.1 above, except that the reaction was performed at 120 °C.

2.2.3. Preparation of PZS Capsicum-like Nanotubes (PZS_CLNT)

First, 0.432 g BPS and 3 mL TEA were added to 150 mL THF in a three-necked flask (solution A). Thereafter, 0.2 g HCCP was dissolved in 50 mL THF (solution B). Solution B was slowly added dropwise to solution A under mechanical stirring for 2 h. The reaction was conducted at room temperature for 3 h. The post-synthesis procedures of centrifugation and drying were performed according to the procedure for PZS_NT presented in Section 2.2.1 above.

2.2.4. Preparation of PZS Branched Nanotubes (PZS_BNT)

First, 0.432 g BPS and 3 mL TEA were added to 150 mL THF in a three-necked flask (solution A). Thereafter, 0.2 g HCCP was dissolved in 50 mL THF (solution B). Half of solution B was slowly added dropwise into solution A over a period of 1 h under mechanical stirring at room temperature. After 1 h, the other half of solution B was also slowly added dropwise over a period of 1 h and the reaction was allowed to continue for 2 h. The post-synthesis procedures of centrifugation and drying were performed according to the procedure for PZS_NT presented in Section 2.2.1 above.

2.3. Preparation of PET/PZS Composites

PET chips were crushed and mixed with each of the different morphologies of PZS flame retardants (5 wt%). To remove moisture, the mixed samples were placed in an oven at 140 °C for 12 h. The samples were then processed using a two-screw extruder (WLG10G, Xinshuo Precision Machinery Co., Ltd., Suzhou, China) at 260 °C, at a screw speed of 40 rpm. Finally, the PET/PZS flame retardant composites, with varying sizes, were subjected to injection molding according to testing standards using a precision micro-injection molding machine (Suzhou Yangyi Vouch Testing Technology Co., Ltd., Suzhou, China) at 245 °C in segment 1, 245 °C in segment 2, and 230 °C in segment 3, at a screw speed of 40 rpm.

2.4. Characterization Techniques

Fourier transform infrared (FTIR) spectra were measured on a PerkinElmer Spectrum Two spectrometer (Germany) over the wavenumber range of 400–4000 cm−1. X-ray diffraction (XRD) was conducted using an X-ray diffractometer (D/max-2550 PC, Tokyo, Japan) with Cu Kα radiation (λ = 0.15405 nm). Sample morphologies were obtained using scanning electron microscopy (SEM, Hitachi TM-3030, Japan) and transmission electron microscopy (TEM, JEM-2100, Tokyo, Japan). Thermogravimetric analysis (TGA, Netzsch TG209 F1 Libra, Netzsch, Germany) was recorded under an N2 atmosphere in the temperature range of 50–800 °C at a heating rate of 10 °C/min.
The limiting oxygen index (LOI) values were measured using a 5801A digital oxygen index analyzer (Suzhou Yangyi Vouch Testing Technology Co., Ltd., Suzhou, China) in accordance with the ISO 4589-2 testing standard. The dimension of each sample for the LOI test was 130 mm × 10 mm × 3.5 mm. Underwriter Laboratory 94 vertical burning tests (UL-94 V) were conducted using a vertical burning instrument (5402A, Suzhou Yangyi Vouch Testing Technology Co., Ltd., Suzhou, China) according to the ASTM D3801 testing standard, with spline dimensions of 130 mm × 13 mm × 3.2 mm. The combustion behavior of PET and PET/PZS composites was measured using a 6810-cone calorimeter (Suzhou Yangyi Vouch Testing Technology Co., Ltd., Suzhou, China) with sample sizes of 100 mm × 100 mm × 3 mm under a heat flux of 50 kW/m2 based on the ISO 5660-1 testing standard. Thermogravimetric analysis–Fourier transform infrared (TG-IR) spectra of the PET and PET/PZS composites were performed using a TA Q50 thermal gravimetric analyzer coupled with a Nicolet IS50 spectrometer (Madison, WI, USA) in the temperature range of 50–800 °C under an N2 atmosphere. Pyrolysis-gas chromatography-mass spectrometry (Py-GC/MS) was employed to analyze the pyrolysis products of PET/PZS flame retardant composites using a FRONTIER PY-2020iD Pyrolyser and a SHIMADZU GCMS QP2010 (Japan). Laser Raman spectroscopy of the char residue was conducted using a DXR2Xi laser Raman spectrometer (Thermo Fisher Scientific Co., Madison, WI, USA) equipped with an excitation wavelength of 532 nm, with measurements recorded in the range of 500–4000 cm−1.

3. Results and Discussion

3.1. Characterization of PZSs

The microstructure of the fabricated PZS samples was characterized using SEM and TEM, and the results are shown in Figure 2 and Figure S1. Figure S1 reveals that PZS nanotubes were more easily formed at room temperature, whereas both PZS irregular nanotubes and microspheres were obtained at 80 °C. At 120 °C, the morphology changed to PZS microspheres. By adding the reactants dropwise, capsicum-like and branched PZS nanotubes were obtained. Lastly, PZS microspheres, nanotubes, capsicum-like nanotubes, and branched nanotubes were fabricated in THF (Figure 2). Notably, the diameter of the PZS microspheres was approximately 300 nm. PZS nanotubes were ~2–5 μm in length, approximately 200 nm in diameter, with an inner diameter of approximately 50 nm and a wall thickness of 50 nm. Capsicum-like PZS nanotubes were ~1–3 μm in length, with an outer diameter of 100–300 nm and an inner diameter of 20–50 nm. The main stem diameter of PZS branched nanotubes was approximately 200 nm, and the branched chain diameter was 20–100 nm. FTIR and XRD were used to characterize the chemical structure of PZSs, and the results are shown in Figure S2. There were no differences in the FTIR spectra or the XRD patterns of the PZSs with different morphologies.
Initially, we proposed that the formation mechanism of PZS with different morphologies occurred in the following manner: at the initial stage of the reaction at room temperature, the TEA catalyzed reaction between HCCP and BPS in THF was slow, forming oligomers and rod-like triethylamine hydrochloride (TEACl) crystals. PZS oligomers were spontaneously adsorbed onto the surface of the TEACl nanocrystals due to their low surface energy [13]. After washing with water, the TEACl dissolved and finally formed PZS nanotubes. The way that the reactants were added to the reaction solution influenced the resulting PZS morphology. For example, the slow and dropwise addition of the HCCP solution to the reaction solution resulted in the limited production of oligomers that were rapidly adsorbed onto one end of the TEACl nanocrystals. This allowed for easier adsorption of the subsequent oligomers onto the thicker end of the tube wall, and thereby, the capsicum-like PZS nanotubes were formed after the removal of TEACl. Similarly, when the HCCP solution was slowly added to the reaction in two steps, capsicum-like PZS nanotubes were formed in the primary growth period due to less oligomer production. A further addition of HCCP induced a new polymerization reaction, whereas new TEACl nanocrystals were formed on the surface of the original nanotubes. The branched PZS nanotubes were formed by secondary growth. PZS microspheres were formed during the high-temperature reaction where the primary particles collided with each other rapidly to form stable particles, and the stable particles gradually grew into spheres by absorbing oligomers from the solution.

3.2. Thermal Stability Analysis

Previous studies have shown that the combustion behavior of polymers is, to a certain extent, correlated to the thermal degradation process. The thermogravimetry (TG) and derivative thermogravimetry (DTG) curves are shown in Figure 3 and the corresponding data are listed in Table 1, where T5 (the temperature at 5 wt% mass loss) is defined as the initial decomposition temperature and Tmax represents the maximum degradation (or mass loss) rate. From Figure 3a, the PET/PZS composites have similar thermal degradation behaviors to PET. The initial degradation temperatures of the PET/PZS composites were all reduced relative to PET owing to the addition of the flame retardant material, with PET/PZS_SP exhibiting the lowest T5 of 366 °C. The flame retardant catalyzed and accelerated the degradation of PET, which is consistent with previously reported results in the literature [17,18]. The maximum degradation rate (Tmax) did not significantly change except for PET/PZS_SP, which was lower than that of PET. The higher the amount of residual carbon in the material at 800 °C, the more favorable it is for application in flame retardancy. According to the results of this study, PET had the lowest residual carbon at 800 °C (9.5 wt%). Notably, PZS_CLNT had the highest amount of residual carbon, followed by PZS_SP, which was unexpected. Among the PET/PZS composites, PZS_NT exhibited the lowest amount of residual carbon at 800 °C (13.8 wt%).

3.3. Analysis of Flame Retardancy and Burning Behavior

The dispersion of the flame retardant in the polymer influences the flame retardancy of the material, and the energy dispersive spectroscopy (EDS) mapping results in Figure S3 show that PZS with different morphologies are well dispersed in PET. LOI and UL-94 are commonly used as important indicators for evaluating flame retardancy of composites. The results of the LOI and UL-94 analysis for PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT are displayed in Table 2. It was found that PET had the lowest LOI value (25.2 vol%), and the worst UL-94 grade (V-2 level), as well as a significant melt dripping phenomenon upon burning. The flame retardancy of the material improved after the addition of different morphologies of the PZS flame retardants. All the UL-94 levels reached the V-0 rating and the appearance of molten droplets was reduced. Among the composites investigated, PET/PZS_CLNT achieved the highest LOI value of 34.4 vol%, followed by PET/PZS_SP (33.1 vol%), then PET/PZS_BNT (32.8 vol%), and lastly, PET/PZS_NT (32.5 vol%). These results are consistent with the results obtained by thermal analysis of the residual carbon content of the composites at 800 °C.
The cone calorimeter that simulates the real combustion environment [19,20] was used to evaluate the burning behavior of pure PET and PET/PZS composites. The results of the heat release rate (HRR), total smoke production (TSP), and total heat release (THR) are shown in Figure 4 and the related data are summarized in Table 2. It was found that PET had a high peak heat release rate (PHRR) value of 715.94 kW/m2 and THR value of 120.3 MJ/m2. Both the PHRR and THR values decreased to a large extent relative to PET after the addition of flame retardants with different morphologies. Among the composites, PET/PZS_CLNT showed the best performance, with significant reductions in both the PHRR and THR values. Although the PHRR value of PET/PZS_SP was relatively high compared with the other flame retardants, its final THR value was relatively low. Among the composites, PET/PZS_NT exhibited the poorest flame retardant performance. The flame retardancy results were consistent with the LOI results. Notably, the PET TSP value was 15.9 m2, indicating that it produces a large amount of smoke upon burning. After the addition of flame retardants with different morphologies, the TSP values were significantly lower compared with that of PET. It is noteworthy that PET/PZS_CLNT and PET/PZS_SP released the least amount of smoke upon burning. These results indicate that PET/PZS_CLNT and PET/PZS_SP not only exhibit improved flame retardancy, but also have a significant smoke suppression effect.

3.4. Pyrolysis Products Analysis

The analysis of the cracking products of PET and its composites aids in understanding and elucidating the flame retardant mechanism. The Py-GC/MS curves of PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT are shown in Figure 5, and the MS data are summarized in Table 3. Many PET cracking peaks were observed, which indicates that many kinds of substances are cracked when PET is combusted. The number of cracking peaks decreased after the addition of flame retardants with different morphologies compared with PET. Moreover, the cracking peaks of the same substances were advanced, indicating that the flame retardant could catalyze the pyrolysis of PET. These results are consistent with the TGA results. Furthermore, the non-combustible gas, CO2, produced by cracking, drastically increased from 5.27% for PET to 16.38% and 18.06% for PET/PZS_CLNT and PET/PZS_SP, respectively. The addition of flame retardants led to a reduction in the content of combustible aromatic compounds, such as benzene. Furthermore, the release of a large amount of non-combustible gas and a reduction in the content of combustible substances inhibited the combustion of the substrate.

3.5. Condensed and Gas Phase Analysis

To investigate the condensed phase flame retardant mechanism, the char residues were analyzed using Raman and X-ray photoelectron spectroscopy (XPS). The Raman spectra of the char residues for PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT are shown in Figure 6. The ID/IG value, which is defined as the area ratio of the D band (1350 cm−1) to the G band (1580 cm−1) [21,22], is often used to evaluate the microcrystal size of the char layer [23,24,25]. Higher ID/IG values represent better flame retardant properties [24,26]. PET had the lowest ID/IG value, and the ID/IG values of the flame retardants with different morphologies, which were higher than that of PET, had the following order: PET/PZS_CLNT > PET/PZS_SP > PET/PZS_BNT > PET/PZS_NT, which indicates that PET/PZS_CLNT can form a highly compact and cohesive carbon layer during combustion. The compact and cohesive carbon layer can form a barrier that inhibits mass and heat transfer during combustion, thus inhibiting combustion [27,28].
To further investigate the relationship between residual carbon and flame retardancy, the residual carbon elements of PET and its composites were studied using XPS. Figure 7 shows the XPS profiles of the residual carbon of PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT. It was found that the PET residual carbon contains C and O elements, whereas the flame retardant composites contained N and P elements in addition to C and O. From the C1s spectra of Figure 7b, the binding energy peak at 289.5 eV, 286.3 eV, and 284.3 eV were attributed to C=O, C-O, and C=C/C-C, respectively [29,30,31]. Based on the results, it was clear that the main carbon in the residual carbon was in the form of C=C and/or C-C. In Figure 7c, the P2p core spectrum of PET/PZS_CLNT was divided into two peaks. The first peak at 134.5 eV was attributed to P=O bonds due to the phosphorous compounds produced in air during the combustion process, and the other peak was attributed to P=N/P-N groups [32,33,34]. These results provide strong evidence that PZS functioned in the condensed phase during the combustion process by forming a stable phosphate ester carbon layer [35,36].
To further understand the flame retardant mechanism, the products generated by the cracking process were analyzed using TG-IR. The 3D TG-IR and FTIR spectra of the products released from the thermal cracking process of PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT are shown in Figure 8 and Figure 9, respectively. Overall, the PET/PZS composites released similar gaseous products as PET. Several gaseous products were detected within the range of 1040–1175 cm−1 (aliphatic ethers), 1230–1450 cm−1 (hydrocarbons), 1760 cm−1 (benzoic acid), 2360 cm−1 (CO2), and 3550–3600 cm−1 (H2O) [37,38,39]. It is evident that the amount of CO2 and benzoic acid released after the addition of the flame retardant was highest at 450 °C, whereas for PET it was highest at 500 °C. This indicates that the flame retardant catalyzes the cleavage of PET, which is consistent with the TGA results. Only a small amount of CO2 and benzoic acid was released at 600 °C, whereas a large amount was released from PET. This may be due to the formation of a highly dense and continuous char layer, owing to the addition of a flame retardant, which inhibits the release of cracking products [40].

4. Conclusions

In this study, four different morphologies of PZS were successfully synthesized in one solvent (THF). PZS nanotubes were prepared by a room temperature reaction of HCCP with BPS in THF. By increasing the reaction temperature, PZS gradually transformed from nanotubes into microspheres. The dropwise addition of the reactants yielded capsicum-like and branched PZS nanotubes. Different morphologies of PZS flame retardants were added into PET to form separate PET/PZS composites, which all had improved flame retardancy. From highest to lowest, the flame retardancy of the composites followed the order: PET/PZS_CLNT > PET/PZS_SP > PET/PZS_BNT > PET/PZS_NT. To investigate the effect of morphology on flame retardancy, Py-GC/MS, Raman, XPS, and TG-IR were used to elucidate the mechanism of flame retardants. The compact and coherent carbon layer and the release of non-combustible gas played an important role in the flame retardancy of the PET/PZS composites; therefore, this study provided a facile synthetic method for morphology-controlled nanomaterials and presented a novel strategy for the design of new flame retardant materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14102072/s1, Figure S1: SEM images of PZS obtained at different temperatures: (a) room temperature, (b) 80 °C, and (c) 120 °C; Figure S2: (a) FTIR and (b) XRD profiles of HCCP, BPS, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT; Figure S3: EDS mapping of (a) PET/PZS_SP, (b) PET/PZS_CLNT, (c) PET/PZS_BNT, and (d) PET/PZS_NT.

Author Contributions

Conceptualization, Y.Z. (Yuanzhao Zhu) and W.W.; Formal analysis, Y.Z. (Yuanzhao Zhu), W.W. and T.X.; Funding acquisition, Z.M.; Investigation, Y.Z. (Yuanzhao Zhu) and T.X.; Methodology, Y.Z. (Yuanzhao Zhu); Project administration, Z.M.; Resources, Y.Z. (Yuanzhao Zhu), W.W. and T.X.; Validation, W.W., H.X., Y.Z. (Yi Zhong), L.Z., Y.M., X.S., B.W., X.F. and Z.M.; Visualization, W.W. and T.X.; Writing—original draft, Y.Z. (Yuanzhao Zhu); Writing—review & editing, Y.Z. (Yuanzhao Zhu), H.X., Y.Z. (Yi Zhong), L.Z., Y.M., X.S., B.W., X.F. and Z.M. All authors have read and agreed to the published version of the manuscript.

Funding

The present study was financially supported by the National Key R & D Program of China (No. 2018YFC1801502).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, B.; Zhu, Y.; Wang, X.; Xu, H.; Zhong, Y.; Zhang, L.; Ma, Y.; Sui, X.; Wang, B.; Feng, X.; et al. Synthesis and application of poly(cyclotriphosphazene-resveratrol) microspheres for enhancing flame retardancy of poly(ethylene terephthalate). Polym. Adv. Technol. 2021, 33, 658–671. [Google Scholar] [CrossRef]
  2. Li, S.; Li, T.; Wang, X.; Zhong, Y.; Zhang, L.; Wang, B.; Feng, X.; Sui, X.; Xu, H.; Chen, Z.; et al. Polyphosphazene microspheres modified with transition metal hydroxystannate for enhancing the flame retardancy of polyethylene terephthalate. Polym. Adv. Technol. 2020, 31, 1194–1207. [Google Scholar] [CrossRef]
  3. Hou, S.; Chen, S.; Dong, Y.; Gao, S.; Zhu, B.; Lu, Q. Biodegradable Cyclomatrix Polyphosphazene Nanoparticles: A Novel pH-Responsive Drug Self-Framed Delivery System. ACS Appl. Mater. Interfaces 2018, 10, 25983–25993. [Google Scholar] [CrossRef] [PubMed]
  4. Allcock, H.R.; Ravikiran, R.; Olshavsky, M.A. Synthesis and Characterization of Hindered Polyphosphazenes via Functionalized Intermediates: Exploratory Models for Electro-optical Materials. Macromolecules 1998, 31, 5206–5214. [Google Scholar] [CrossRef]
  5. Fushimi, T.; Allcock, H.R. Cyclotriphosphazenes with sulfur-containing side groups: Refractive index and optical dispersion. Dalton Trans. 2009, 14, 2477–2481. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, M.; Fu, J.; Huang, D.; Zhang, C.; Xu, Q. Silver nanoparticles-decorated polyphosphazene nanotubes: Synthesis and applications. Nanoscale 2013, 5, 7913–7919. [Google Scholar] [CrossRef]
  7. Alongi, J.; Carletto, R.A.; Di Blasio, A.; Carosio, F.; Bosco, F.; Malucelli, G. DNA: A novel, green, natural flame retardant and suppressant for cotton. J. Mater. Chem. A 2013, 1, 4779–4785. [Google Scholar] [CrossRef]
  8. Jiang, J.; Cheng, Y.; Liu, Y.; Wang, Q.; He, Y.; Wang, B. Intergrowth charring for flame-retardant glass fabric-reinforced epoxy resin composites. J. Mater. Chem. A 2015, 3, 4284–4290. [Google Scholar] [CrossRef]
  9. Meng, L.; Lane, J.M.D.; Baca, L.; Tafoya, J.; Ao, T.; Stoltzfus, B.; Knudson, M.; Morgan, D.; Austin, K.; Park, C.; et al. Shape Dependence of Pressure-Induced Phase Transition in CdS Semiconductor Nanocrystals. J. Am. Chem. Soc. 2020, 142, 6505–6510. [Google Scholar] [CrossRef]
  10. Meng, L.; Yu, B.; Qin, Y. Templated interfacial synthesis of metal-organic framework (MOF) nano- and micro-structures with precisely controlled shapes and sizes. Commun. Chem. 2021, 4, 82. [Google Scholar] [CrossRef]
  11. Zhao, L.; Zhao, C.; Guo, C.; Li, Y.; Li, S.; Sun, L.; Li, H.; Xiang, D. Polybenzoxazine Resins with Polyphosphazene Microspheres: Synthesis, Flame Retardancy, Mechanisms, and Applications. ACS Omega 2019, 4, 20275–20284. [Google Scholar] [CrossRef] [PubMed]
  12. Zhu, Y.; Wu, W.; Xu, T.; Xu, H.; Zhong, Y.; Zhang, L.; Ma, Y.; Sui, X.; Wang, B.; Feng, X.; et al. Effect of weak intermolecular interactions in micro/nanoscale polyphosphazenes and polyethylene terephthalate composites on flame retardancy. Polym. Adv. Technol. 2022, 1–13. [Google Scholar] [CrossRef]
  13. Zhu, L.; Xu, Y.; Yuan, W.; Xi, J.; Huang, X.; Tang, X.; Zheng, S. One-Pot Synthesis of Poly(cyclotriphosphazene-co-4,4′-sulfonyldiphenol) Nanotubes via an In Situ Template Approach. Adv. Mater. 2006, 18, 2997–3000. [Google Scholar] [CrossRef] [Green Version]
  14. Zhu, Y.; Huang, X.; Li, W.; Fu, J.; Tang, X. Preparation of novel hybrid inorganic–organic microspheres with active hydroxyl groups using ultrasonic irradiation via one-step precipitation polymerization. Mater. Lett. 2008, 62, 1389–1392. [Google Scholar] [CrossRef]
  15. Fu, J.; Huang, X.; Zhu, Y.; Zhu, L.; Tang, X. Facile Synthesis and Characterization of Novel Capsicum-like Polyphosphazene Nanotubes via an in situ Template Route. Macromol. Chem. Phys. 2008, 209, 1845–1850. [Google Scholar] [CrossRef]
  16. Fu, J.; Huang, X.; Huang, Y.; Zhu, L.; Zhu, Y.; Tang, X. Facile Preparation of Branched Phosphazene-Containing Nanotubes via an in situ Template Approach. Macromol. Mater. Eng. 2008, 293, 173–177. [Google Scholar] [CrossRef]
  17. Li, T.; Li, S.; Ma, T.; Zhong, Y.; Zhang, L.; Xu, H.; Wang, B.; Sui, X.; Feng, X.; Chen, Z.; et al. Flame-retardant poly(ethylene terephthalate) enabled by a novel melamine polyphosphate nanowire. Polym. Adv. Technol. 2019, 31, 795–806. [Google Scholar] [CrossRef]
  18. Zhu, Y.; Wu, W.; Xu, T.; Xu, H.; Zhong, Y.; Zhang, L.; Ma, Y.; Sui, X.; Wang, B.; Feng, X.; et al. Preparation and characterization of polyphosphazene-based flame retardants with different functional groups. Polym. Degrad. Stab. 2022, 196, 109815. [Google Scholar] [CrossRef]
  19. Sai, T.; Ran, S.; Guo, Z.; Fang, Z. A Zr-based metal organic frameworks towards improving fire safety and thermal stability of polycarbonate. Compos. Part B Eng. 2019, 176, 107198. [Google Scholar] [CrossRef]
  20. Yu, B.; Tawiah, B.; Wang, L.-Q.; Yuen, A.C.Y.; Zhang, Z.-C.; Shen, L.-L.; Lin, B.; Fei, B.; Yang, W.; Li, A.; et al. Interface decoration of exfoliated MXene ultra-thin nanosheets for fire and smoke suppressions of thermoplastic polyurethane elastomer. J. Hazard. Mater. 2019, 374, 110–119. [Google Scholar] [CrossRef]
  21. Qiu, S.; Xing, W.; Mu, X.; Feng, X.; Ma, C.; Yuen, K.K.R.; Hu, Y. A 3D Nanostructure Based on Transition-Metal Phosphide Decorated Heteroatom-Doped Mesoporous Nanospheres Interconnected with Graphene: Synthesis and Applications. ACS Appl. Mater. Interfaces 2016, 8, 32528–32540. [Google Scholar] [CrossRef] [PubMed]
  22. Yang, G.; Wu, W.-H.; Wang, Y.-H.; Jiao, Y.-H.; Lu, L.-Y.; Qu, H.-Q.; Qin, X.-Y. Synthesis of a novel phosphazene-based flame retardant with active amine groups and its application in reducing the fire hazard of Epoxy Resin. J. Hazard. Mater. 2019, 366, 78–87. [Google Scholar] [CrossRef] [PubMed]
  23. Jing, X.-K.; Wang, X.-S.; Guo, D.-M.; Zhang, Y.; Zhai, F.-Y.; Wang, X.-L.; Chen, L.; Wang, Y.-Z. The high-temperature self-crosslinking contribution of azobenzene groups to the flame retardance and anti-dripping of copolyesters. J. Mater. Chem. A 2013, 1, 9264–9272. [Google Scholar] [CrossRef]
  24. Zhao, X.; Wei, P.; Qian, Y.; Yu, H.; Liu, J. Effect of talc on thermal stability and flame retardancy of polycarbonate/PSBPBP composite. J. Appl. Polym. Sci. 2012, 125, 3167–3174. [Google Scholar] [CrossRef]
  25. Bourbigot, S.; Le Bras, M.; Delobel, R.; Amoureux, J.-P. Synergistic effect of zeolite in an intumescence process: Study of the carbonaceous structures using solid-state NMR. J. Chem. Soc. Faraday Trans. 1996, 92, 149–158. [Google Scholar] [CrossRef]
  26. Qiu, S.; Xing, W.; Feng, X.; Yu, B.; Mu, X.; Yuen, K.K.R.; Hu, Y. Self-standing cuprous oxide nanoparticles on silica@ polyphosphazene nanospheres: 3D nanostructure for enhancing the flame retardancy and toxic effluents elimination of epoxy resins via synergistic catalytic effect. Chem. Eng. J. 2017, 309, 802–814. [Google Scholar] [CrossRef]
  27. Shi, Y.; Yu, B.; Zheng, Y.; Yang, J.; Duan, Z.; Hu, Y. Design of reduced graphene oxide decorated with DOPO-phosphanomidate for enhanced fire safety of epoxy resin. J. Colloid Interface Sci. 2018, 521, 160–171. [Google Scholar] [CrossRef]
  28. Wang, C.; Wu, L.; Dai, Y.; Zhu, Y.; Wang, B.; Zhong, Y.; Zhang, L.; Sui, X.; Xu, H.; Mao, Z. Application of self-templated PHMA sub-microtubes in enhancing flame-retardance and anti-dripping of PET. Polym. Degrad. Stab. 2018, 154, 239–247. [Google Scholar] [CrossRef]
  29. Liang, W.-J.; Zhao, B.; Zhao, P.-H.; Zhang, C.-Y.; Liu, Y.-Q. Bisphenol-S bridged penta(anilino)cyclotriphosphazene and its application in epoxy resins: Synthesis, thermal degradation, and flame retardancy. Polym. Degrad. Stab. 2017, 135, 140–151. [Google Scholar] [CrossRef]
  30. Wu, J.-N.; Chen, L.; Fu, T.; Zhao, H.-B.; Guo, D.-M.; Wang, X.-L.; Wang, Y.-Z. New application for aromatic Schiff base: High efficient flame-retardant and anti-dripping action for polyesters. Chem. Eng. J. 2018, 336, 622–632. [Google Scholar] [CrossRef]
  31. Sai, T.; Ran, S.; Guo, Z.; Yan, H.; Zhang, Y.; Wang, H.; Song, P.; Fang, Z. Transparent, highly thermostable and flame retardant polycarbonate enabled by rod-like phosphorous-containing metal complex aggregates. Chem. Eng. J. 2021, 409, 128223. [Google Scholar] [CrossRef]
  32. Zhang, Z.; Han, Z.; Pan, Y.-T.; Li, D.; Wang, D.-Y.; Yang, R. Dry synthesis of mesoporous nanosheet assembly constructed by cyclomatrix polyphosphazene frameworks and its application in flame retardant polypropylene. Chem. Eng. J. 2020, 395, 125076. [Google Scholar] [CrossRef]
  33. Zhou, Y.; Zhang, L.; Liu, J.; Fan, X.; Wang, B.; Wang, M.; Ren, W.; Wang, J.; Li, M.; Shi, J. Brand new P-doped g-C3N4: Enhanced photocatalytic activity for H2 evolution and Rhodamine B degradation under visible light. J. Mater. Chem. A 2015, 3, 3862–3867. [Google Scholar] [CrossRef]
  34. Chen, R.; Luo, Z.; Yu, X.; Tang, H.; Zhou, Y.; Zhou, H. Synthesis of chitosan-based flame retardant and its fire resistance in epoxy resin. Carbohydr. Polym. 2020, 245, 116530. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, P.; Xia, L.; Jian, R.; Ai, Y.; Zheng, X.; Chen, G.; Wang, J. Flame-retarding epoxy resin with an efficient P/N/S-containing flame retardant: Preparation, thermal stability, and flame retardance. Polym. Degrad. Stab. 2018, 149, 69–77. [Google Scholar] [CrossRef]
  36. Malmgren, S.; Ciosek, K.; Hahlin, M.; Gustafsson, T.; Gorgoi, M.; Rensmo, H.; Edström, K. Comparing anode and cathode electrode/electrolyte interface composition and morphology using soft and hard X-ray photoelectron spectroscopy. Electrochimica Acta 2013, 97, 23–32. [Google Scholar] [CrossRef]
  37. Li, P.; Liu, C.; Xu, Y.-J.; Jiang, Z.-M.; Liu, Y.; Zhu, P. Novel and eco-friendly flame-retardant cotton fabrics with lignosulfonate and chitosan through LbL: Flame retardancy, smoke suppression and flame-retardant mechanism. Polym. Degrad. Stab. 2020, 181, 109302. [Google Scholar] [CrossRef]
  38. Peng, H.; Mao, Y.; Wang, D.; Fu, S. B-N-P-linked covalent organic frameworks for efficient flame retarding and toxic smoke suppression of polyacrylonitrile composite fiber. Chem. Eng. J. 2021, 430, 133120. [Google Scholar] [CrossRef]
  39. Li, J.; Pan, F.; Xu, H.; Zhang, L.; Zhong, Y.; Mao, Z. The flame-retardancy and anti-dripping properties of novel poly(ethylene terephalate)/cyclotriphosphazene/silicone composites. Polym. Degrad. Stabil. 2014, 110, 268–277. [Google Scholar] [CrossRef]
  40. Qiu, S.; Wang, X.; Yu, B.; Feng, X.; Mu, X.; Yuen, K.K.R.; Hu, Y. Flame-retardant-wrapped polyphosphazene nanotubes: A novel strategy for enhancing the flame retardancy and smoke toxicity suppression of epoxy resins. J. Hazard. Mater. 2017, 325, 327–339. [Google Scholar] [CrossRef]
Polymers 14 02072 g001 550

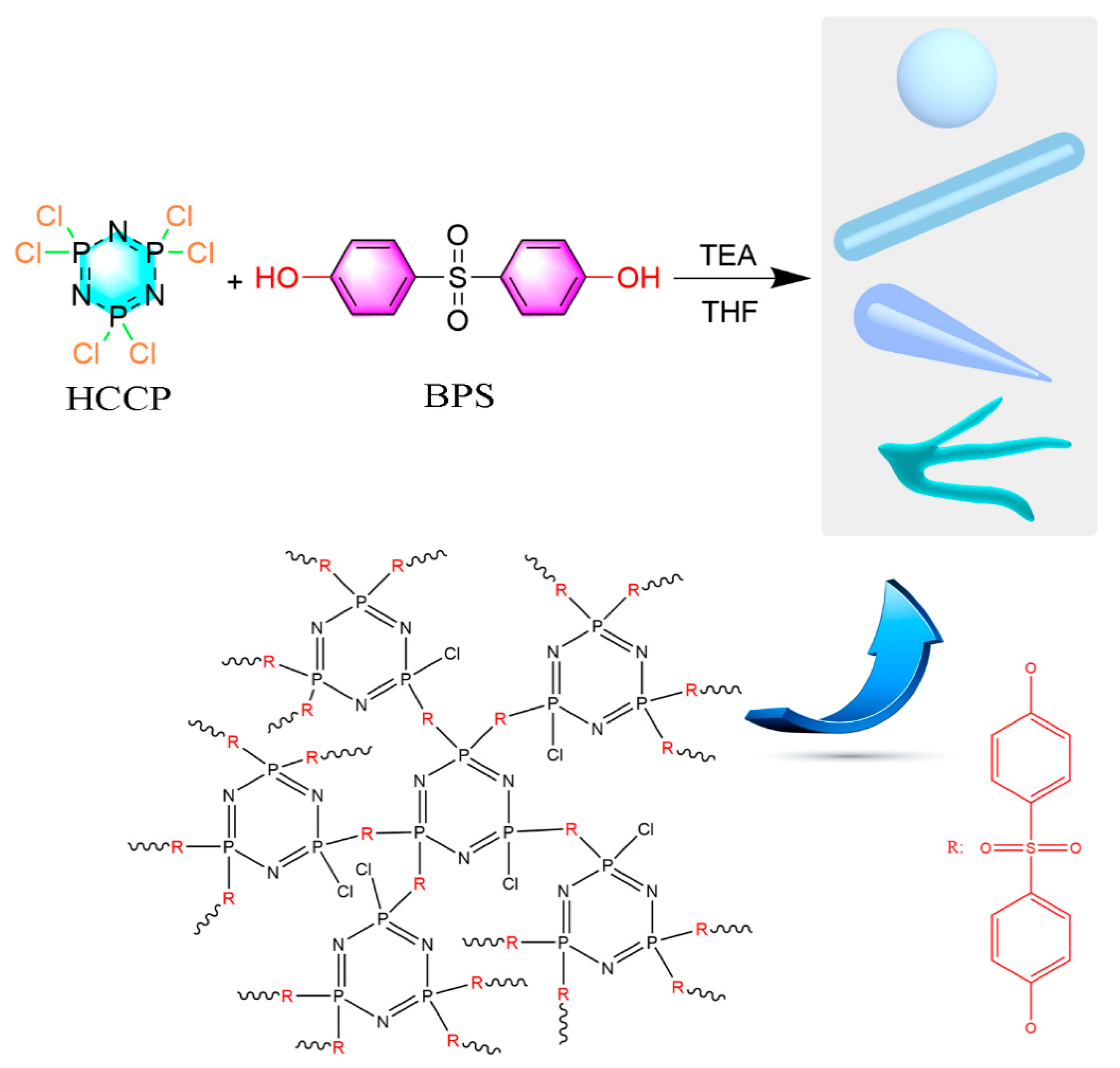

Figure 1. Scheme of the synthesis route of PZS with different morphologies and the proposed chemical structure.
Figure 1. Scheme of the synthesis route of PZS with different morphologies and the proposed chemical structure.
Polymers 14 02072 g001
Polymers 14 02072 g002 550
Figure 2. SEM and TEM images of PZS with different morphologies: (a) PZS microspheres, (b) PZS nanotubes, (c) PZS capsicum-like nanotubes, and (d) PZS branched nanotubes.
Figure 2. SEM and TEM images of PZS with different morphologies: (a) PZS microspheres, (b) PZS nanotubes, (c) PZS capsicum-like nanotubes, and (d) PZS branched nanotubes.
Polymers 14 02072 g002
Polymers 14 02072 g003 550

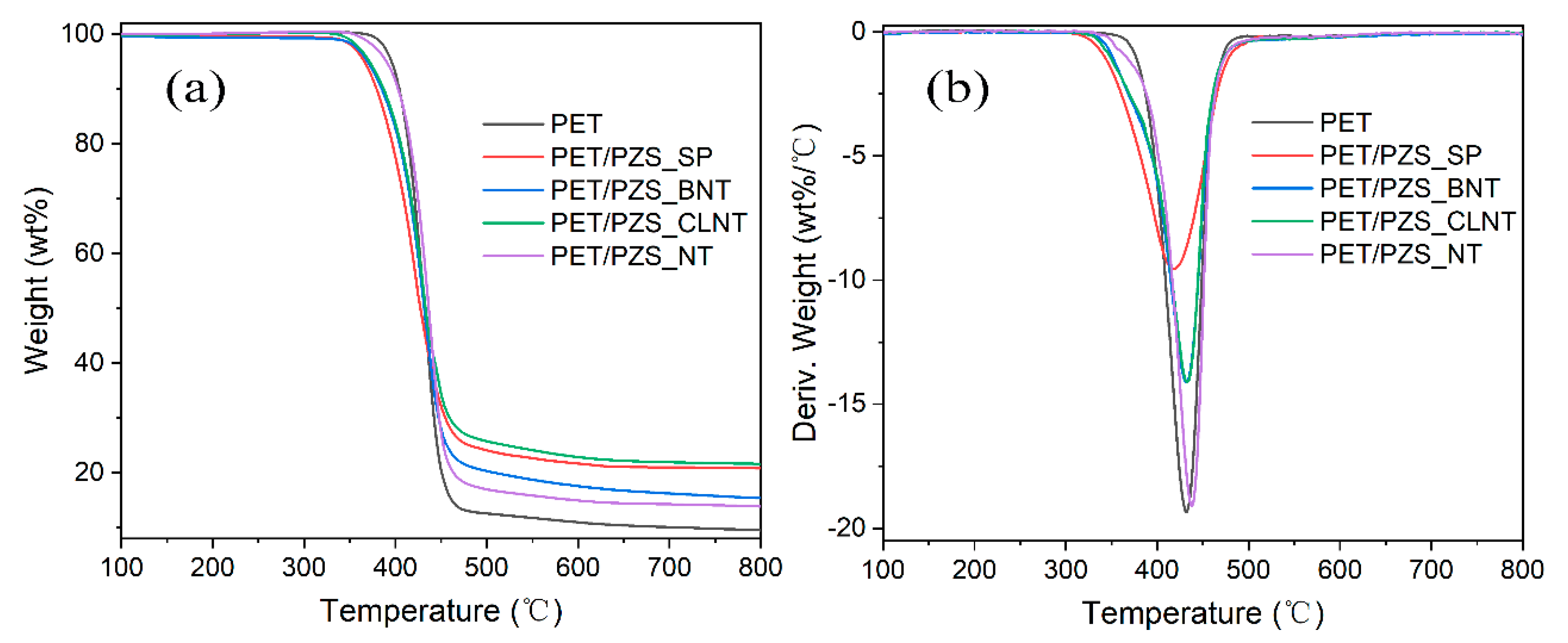

Figure 3. (a) TGA and (b) DTG curves of PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT under a N2 atmosphere.
Figure 3. (a) TGA and (b) DTG curves of PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT under a N2 atmosphere.
Polymers 14 02072 g003
Polymers 14 02072 g004 550
Figure 4. (a) HRR, (b) THR, and (c) TSP curves of pure PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT.
Figure 4. (a) HRR, (b) THR, and (c) TSP curves of pure PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT.
Polymers 14 02072 g004
Polymers 14 02072 g005 550

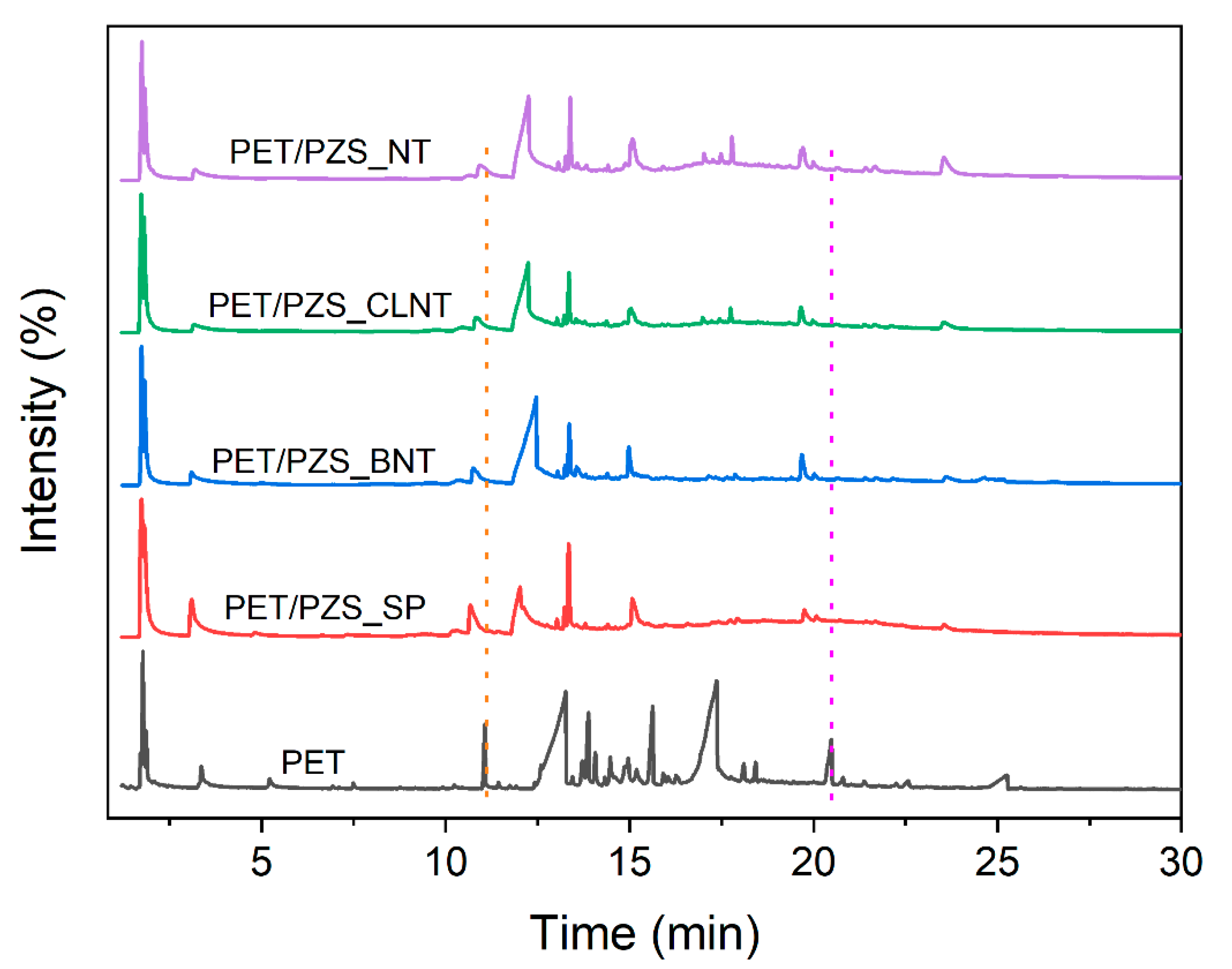

Figure 5. Py-GC/MS of PET and PET/PZS composites at 600 °C.
Figure 5. Py-GC/MS of PET and PET/PZS composites at 600 °C.
Polymers 14 02072 g005
Polymers 14 02072 g006 550

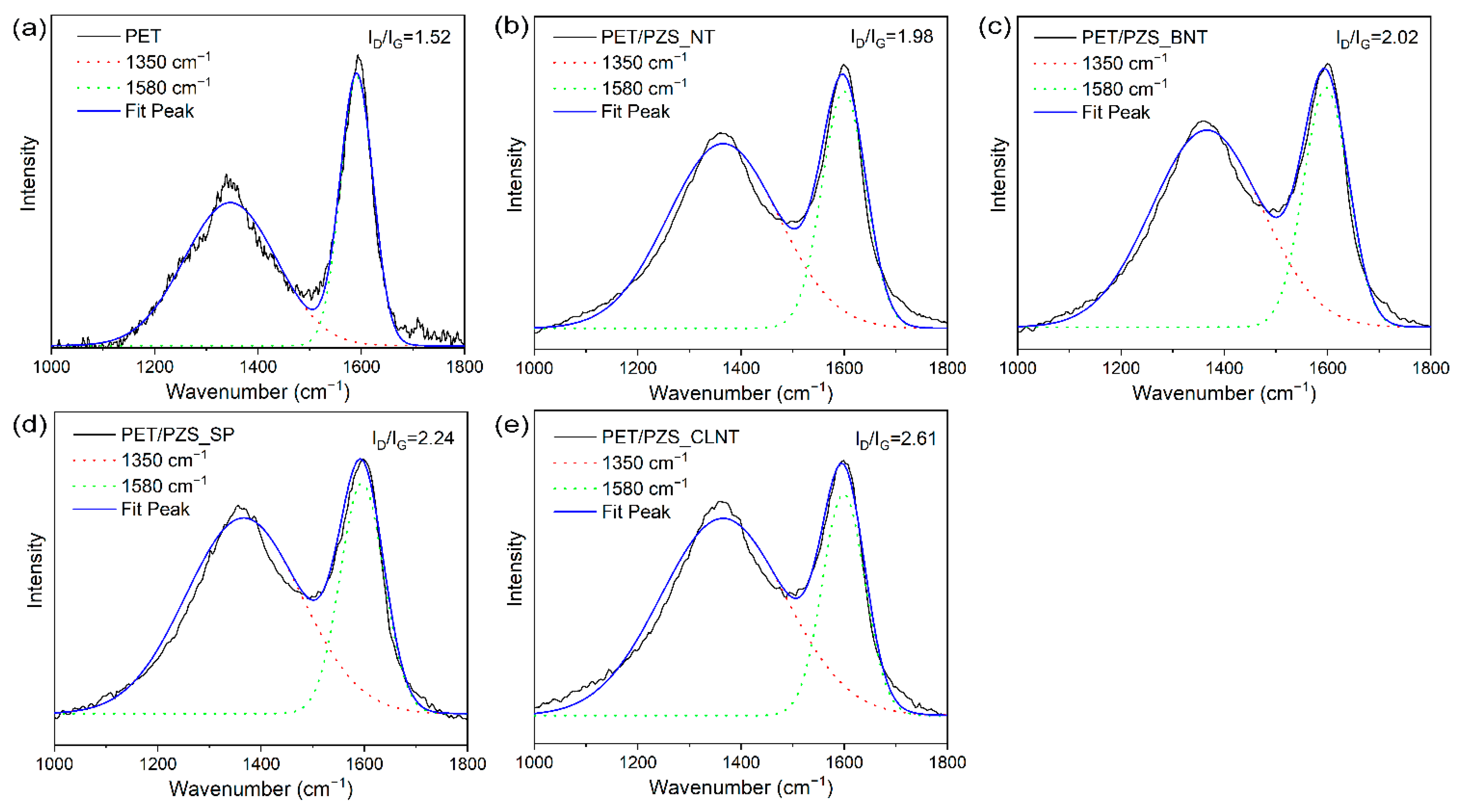

Figure 6. Raman spectra of the char residues for (a) PET, (b) PET/PZS_NT, (c) PET/PZS_BNT, (d) PET/PZS_SP, and (e) PET/PZS_CLNT.
Figure 6. Raman spectra of the char residues for (a) PET, (b) PET/PZS_NT, (c) PET/PZS_BNT, (d) PET/PZS_SP, and (e) PET/PZS_CLNT.
Polymers 14 02072 g006
Polymers 14 02072 g007 550

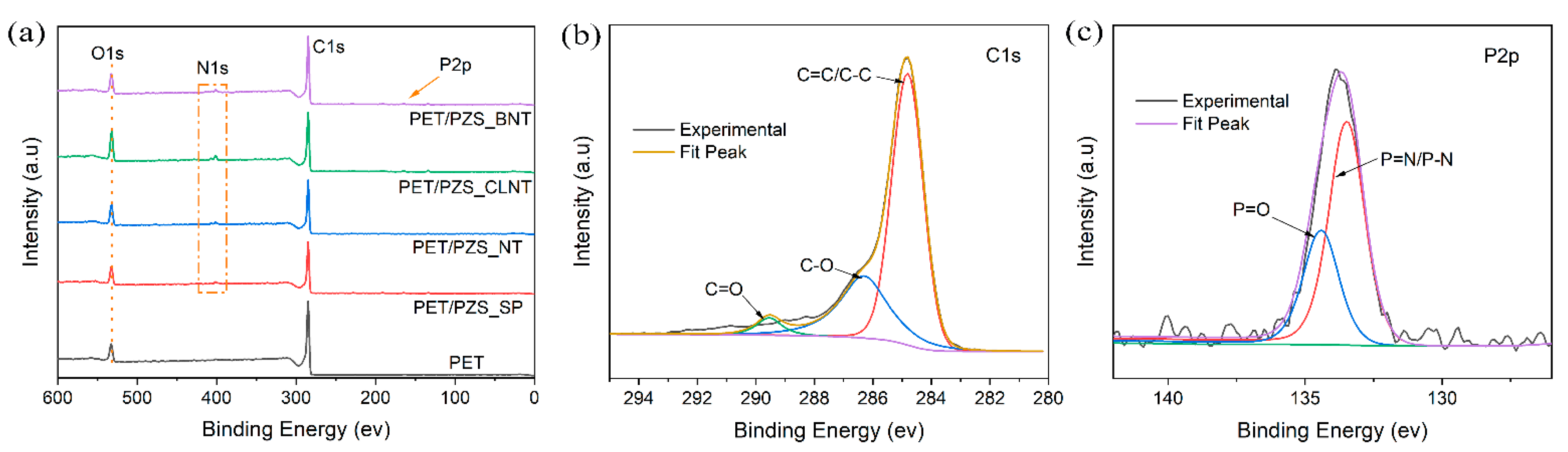

Figure 7. (a) XPS survey scan profiles, (b) C1s, and (c) P2p core spectra of the char residues for PET/PZS_CLNT.
Figure 7. (a) XPS survey scan profiles, (b) C1s, and (c) P2p core spectra of the char residues for PET/PZS_CLNT.
Polymers 14 02072 g007
Polymers 14 02072 g008 550
Figure 8. 3D TG-IR spectra of (a) PET, (b) PET/PZS_NT, (c) PET/PZS_BNT, (d) PET/PZS_SP, and (e) PET/PZS_CLNT.
Figure 8. 3D TG-IR spectra of (a) PET, (b) PET/PZS_NT, (c) PET/PZS_BNT, (d) PET/PZS_SP, and (e) PET/PZS_CLNT.
Polymers 14 02072 g008
Polymers 14 02072 g009 550

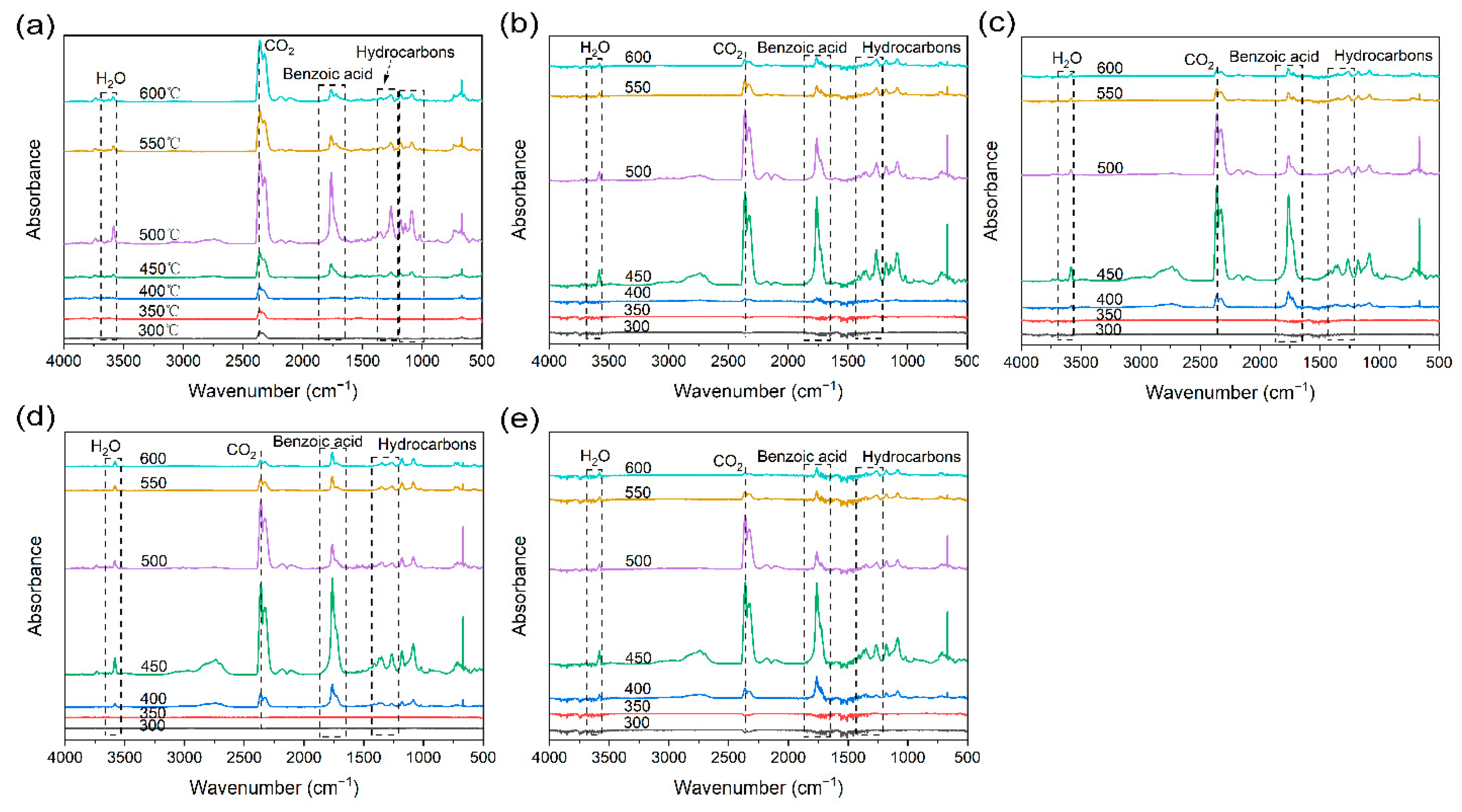

Figure 9. FTIR spectra of pyrolysis products at different temperatures for (a) PET, (b) PET/PZS_NT, (c) PET/PZS_BNT, (d) PET/PZS_SP, and (e) PET/PZS_CLNT.
Figure 9. FTIR spectra of pyrolysis products at different temperatures for (a) PET, (b) PET/PZS_NT, (c) PET/PZS_BNT, (d) PET/PZS_SP, and (e) PET/PZS_CLNT.
Polymers 14 02072 g009
Table
Table 1. TGA data of PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT.
Table 1. TGA data of PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT.
SamplesT5 (°C)Tmax (°C)Char Residue at 800 °C (wt%)
PET3954339.5
PET/PZS_SP36641620.8
PET/PZS_NT39043813.8
PET/PZS_CLNT37243221.5
PET/PZS_BNT37043215.4
Table
Table 2. LOI, UL-94, and cone calorimeter results for PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT.
Table 2. LOI, UL-94, and cone calorimeter results for PET, PET/PZS_SP, PET/PZS_BNT, PET/PZS_CLNT, and PET/PZS_NT.
SamplesLOI (vol%)UL-94PHRR
(kW/m2)		THR
(MJ/m2)		TSP
(m2)
RatingDripping
PET25.2V-2Severe715.94120.315.9
PET/PZS_SP33.1V-0Slow530.7493.011.7
PET/PZS_NT32.5V-0Slow525.68101.312.7
PET/PZS_CLNT34.4V-0Slow506.2890.511.9
PET/PZS_BNT32.8V-0Slow504.2296.312.4
Table
Table 3. Pyrolysis products of PET and PET/PZS composites under 600 °C.
Table 3. Pyrolysis products of PET and PET/PZS composites under 600 °C.
Peak No.Main ProductsPure PETPET/PZS_SPPET/PZS_BNTPET/PZS_CLNTPET/PZS_NT
Time
(min)		Intensity
(%)		Time
(min)		Intensity
(%)		Time
(min)		Intensity
(%)		Time
(min)		Intensity
(%)		Time
(min)		Intensity
(%)
1CO21.7725.271.73318.061.73412.091.72416.381.74313.89
2CH3CHO1.8661.611.80718.771.81712.161.80716.511.8318.05
3C6H63.3651.783.112.713.0986.33.1745.093.1936.45
6 Polymers 14 02072 i00111.0682.610.6768.3810.7464.510.8255.3210.9465.31
9C6H5COOH13.26328.3612.02121.4512.46343.1612.24836.1112.25337.92
11C6H5CHCHCOOCHCH213.7111.6513.2271.4113.2450.8213.2220.8213.2570.88
12C6H5-C6H513.8813.9813.3457.7413.3645.2613.3494.7613.3854.95
13C6H5(COOCHCH2)215.6285.1715.0795.9614.9773.3915.0364.2415.0816.56
19C15H12O318.4270.9317.9390.8117.870.6417.7451.3717.7862.03
31 Polymers 14 02072 i00225.2553.5123.5581.1623.6021.6923.5393.0723.5445.95
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhu, Y.; Wu, W.; Xu, T.; Xu, H.; Zhong, Y.; Zhang, L.; Ma, Y.; Sui, X.; Wang, B.; Feng, X.; et al. Morphology-Controlled Synthesis of Polyphosphazene-Based Micro- and Nano-Materials and Their Application as Flame Retardants. Polymers 2022, 14, 2072. https://doi.org/10.3390/polym14102072

AMA Style

Zhu Y, Wu W, Xu T, Xu H, Zhong Y, Zhang L, Ma Y, Sui X, Wang B, Feng X, et al. Morphology-Controlled Synthesis of Polyphosphazene-Based Micro- and Nano-Materials and Their Application as Flame Retardants. Polymers. 2022; 14(10):2072. https://doi.org/10.3390/polym14102072

Chicago/Turabian Style

Zhu, Yuanzhao, Wei Wu, Tong Xu, Hong Xu, Yi Zhong, Linping Zhang, Yimeng Ma, Xiaofeng Sui, Bijia Wang, Xueling Feng, and et al. 2022. "Morphology-Controlled Synthesis of Polyphosphazene-Based Micro- and Nano-Materials and Their Application as Flame Retardants" Polymers 14, no. 10: 2072. https://doi.org/10.3390/polym14102072

APA Style

Zhu, Y., Wu, W., Xu, T., Xu, H., Zhong, Y., Zhang, L., Ma, Y., Sui, X., Wang, B., Feng, X., & Mao, Z. (2022). Morphology-Controlled Synthesis of Polyphosphazene-Based Micro- and Nano-Materials and Their Application as Flame Retardants. Polymers, 14(10), 2072. https://doi.org/10.3390/polym14102072

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
