Systematic Review

Alveolar Bone Ridge Augmentation Using Polymeric Membranes: A Systematic Review and Meta-Analysis

1
Colegio Máximo de Cartuja s/n, Faculty of Dentistry, University of Granada, 18071 Granada, Spain
2
Medicina Clínica y Salud Pública PhD Programme, University of Granada, 18071 Granada, Spain
3
Biomedical Group (BIO277), Department of Stomatology, School of Dentistry, University of Granada, 18071 Granada, Spain
4
Instituto Investigación Biosanitaria, ibs. Granada, 18071 Granada, Spain
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(7), 1172; https://doi.org/10.3390/polym13071172
Submission received: 16 February 2021 / Revised: 16 March 2021 / Accepted: 1 April 2021 / Published: 6 April 2021
(This article belongs to the Special Issue Polymeric Materials as Scaffolds for Tissue Engineering)

Abstract

:
Alveolar bone ridge resorption occurred after natural teeth loss and it can restrict the possibility of dental implants placement. The use of bone regenerative procedures is frequently required. The existing evidence regarding the efficacy of horizontal bone ridge augmentation trough guided bone regeneration (GBR) using polymeric membranes was stated. A systematic review and meta-analysis were performed. Electronic and manual literature searches were conducted. Screening process was done using the National Library of Medicine (MEDLINE by PubMed), Embase, and the Cochrane Oral Health. Included articles were randomized controlled trials and observational studies. Weighted means were calculated. Heterogeneity was determined using Higgins (I2). If I2 > 50% a random-effects model was applied. It was found that the mean of horizontal bone gain was 3.95 mm, ranging from 3.19 to 4.70 mm (confidence interval 95%). Heterogeneity is I2 = 99% (confidence interval 95%) and significance of the random-effects model was p < 0.001. The complications rate was 8.4% and membrane exposure was the most frequent. Through this study, we were able to conclude that the existing scientific evidence suggests that GBR using polymeric membranes is a predictable technique for achieving horizontal bone augmentation, thus, permitting a proper further implant placement.

1. Introduction

Dental implants have become a predictable treatment option therapy after teeth loss. To perform an optimal implant placement and to improve their long-term prognosis, it is frequently required alveolar ridge augmentation to increase bone volume [1]. Alveolar ridge resorption occurred after teeth loss, trauma, or infections and it can severely restrict dental implant placement [2]. The use of bone regenerative procedures is frequently required before implant placement. Alveolar ridge defects may be classified according to the main resorbed region as horizontal, vertical, or combined defects [2]. The loss of horizontal ridge width occurs more frequently and to a greater extent compared with the loss of vertical ridge height [3].
Different approaches may be used to regenerate atrophic alveolar ridges, but guided bone regeneration (GBR) is the most frequently used technique [2,4]. For GBR various biomaterials are applied: (1) autogenous, allogenic, xenogeneic, and synthetic bioceramics of polymers can be use as bone substitute materials and can be particulated or as a block unit [5] and (2) resorbable or non-resorbable polymeric membranes which will act as barriers, playing an important role by isolating soft tissue and allowing bone to grow. Several combinations of materials may be employed but the use of polymeric barrier membranes is highly encouraged as it prevented significant bone resorption during the healing period and, thus, greater mean ridge width gain is obtained [3,6]. The barrier polymeric membrane excluded undesirable cells, for example, epithelial and connective tissue cells from populating the wound site, therefore allowing cells with regenerative potential, for example, osteoblasts to colonize the defect and form bone [7]. Non-resorbable membranes, with polytetrafluroethyelene (PTFE) membranes as the maximum representative, have a superior space-making capability but there is a high frequency of wound dehiscence and the subsequent risk of bacterial contamination and infection that require retreatment [5,8,9]. Trying to avoid this problem, antibiotics and metal such as silver, zinc, or copper have been incorporated into the GBR membranes to improve periodontal healing [10,11,12,13]. Another drawback of these membranes is the need of a second surgery in order to retrieve the membrane, besides, the difficulty of this process due to their soft tissue integration [5]. Meanwhile, resorbable membranes, which are mainly represented by collagen membranes, are mainly limited by their lack of rigidity, reducing the space-making potential [14]. Another downside of this membranes is their fast degradation rate, which may not meet the necessary period for an optimal tissue regeneration [5]. This problem has been partially solved by the chemical cross-linking of the collagen matrices. This enhances the collagen stability, but it has also been associated with severe inflammation at the surgical site due to the release of chemical residues [5].
The main objectives of this study were to gather all of the scientific evidence about the effectiveness of GBR achieved with polymeric membranes and to quantify the expectable amount of horizontal bone gain than can be obtained.

2. Materials and Methods

2.1. Development of the Protocol

The study protocol was designed according to the Preferred Reporting Items for Systematic Review and Meta-Analysis (PRISMA) statement. The developed protocol was registered in the PROSPERO - International Prospective Register of Systematic Reviews database hosted by the National Institute for Health Research, University of York, Center for Reviews and Dissemination (ID: CRD42021232447). Details regarding the PICO question (population, intervention, comparison, and outcome) are the following:
P—Healthy patients, older than 18 years, with a deficient alveolar ridge that needs to be horizontally augmented prior to implant placement.
I—Guided Bone Regeneration with bone graft materials (resorbable or non-resorbable membranes alone or with the addition of bone graft substitutes as autografts, xenografts, alloplasts, or allografts.
C—Defects pre-treatment and post-treatment (between 3 and 7 months of follow-up) or other surgical approaches.
O—Bone gain after treatment, measured with cone beam computed tomography (CBCT). Secondary outcomes are clinical benefits and/or biological complications of GBR.
Articles considered eligible for inclusion were interventional (randomized controlled trials (RCTs)) and observational studies (cohort, case-control studies, and case series). A minimum sample size of 5 patients was required.
Exclusion criteria included: animal studies, in vitro studies, reviews and articles published in a language other than English, studies assessing lateral or vertical bone augmentation or horizontal when in conjunction with immediate implant placement.

2.2. Search Strategy, Data Extraction, and Studies Quality Assessment

Electronic and manual literature searches were conducted by 2 independent reviewers (M.T-O. and R.O.). The following search strategy was followed: (“collagen membrane” OR “extracellular membrane” OR “porcine collagen membrane” OR “porcine derived collagen membrane” OR “cytoplast” OR “PTFE membrane” OR “Bio-guide”) AND (“guide bone regeneration” OR “Bone augmentation” OR “GBR” OR “ridge augmentation”) NOT (“sinus lift” OR “sinus elevation” OR “ridge preservation” OR “socket preservation” OR “animal” OR “dog” OR “pig” OR “rabbit”). A time frame restriction of 15 years was applied. Screening process was performed at the following information sources: the National Library of Medicine (MEDLINE by PubMed), Embase and the Cochrane Oral Health. Databases were searched for studies published up to including January 2021. Reference lists of the previous reviews and included studies were analyzed trying to search for relevant manuscripts that were missing after the electronic screening.
Data extraction and risk-of bias were assessed by two investigators (M.T-O. and C.V.) in duplicate and thereafter discussed to find agreement. In the case of disagreement, the judgment of a third reviewer (R.O.) was decisive. The following data were extracted: (1) authors and year of publication, (2) study design, (3) participants and number of interventions, (4) bone substitute, (5) membrane, (4) follow-up time, (5) bone gain, and (6) clinical complications.
The study quality and designs were evaluated according to: (i) An adapted version of the Newcastle–Ottawa scale [15] for interventional and observational researches. Studies were considered as having a high, medium, or low methodological quality and (ii) The Joanna Briggs Institute Critical Appraisal tool for case series. Studies were considered as having a high, medium, or low risk of bias [15].

2.3. Data Analyses

Descriptive statistics were used to present the primary outcome—efficacy of GBR in terms of bone gain (mm). Weighted means (CI 95%) were calculated, including total sample size, inverse variance, and standard error of the treatment effect. Heterogeneity was determined using Higgins (I2). If I2 > 50% a random-effects model was applied. Statistical significance was set at 0.05. Data were analyzed with RevMan 5.4 (The Cochrane Collaboration, Oxford, UK). Funnel plot was produced by MedCalc 18.2.1 (MedCalc Software Ltd., Ostend, Belgium) to represent systematic heterogeneity.

3. Results

3.1. Search Results

The electronic search was performed in January 2021, resulting in 523 articles. After duplicate removal and the reading of titles and/or abstracts, 41 articles were selected. A manual search identified eight more manuscripts. Then the full-text of all the selected articles was reviewed for the inclusion criteria. Then, 25 articles were excluded after full reading, and 16 articles were then included in the final selection. A flowchart of the selection and inclusion process, based on PRISMA recommendations is presented in Figure 1. The extracted data for each reviewed article are shown in Table 1.

3.2. Studies Quality Assessment and Risk of Bias

The quality assessment and the risk of bias of the selected papers are summarized in Figure 2. Most of the selected studies are classified as high quality or low risk of bias.

3.3. Primary and Secondary Outcomes: Horizontal Bone Gain and Complications

Sixteen studies (292 patients and 381 defects) analyzed the regenerative efficacy measured as horizontal bone gain. Main study characteristics are displayed in Table 1.
The mean of horizontal bone gain was 3.95 mm, ranging from 3.19 to 4.70 mm (CI 95%). Heterogeneity is I2 = 99% (CI 95%) and significance of the random-effects model was P < 0.001. Bone gain forest plot graph is displayed in Figure 3. Systematic heterogeneity is displayed at the funnel plot graph (Figure 4).
The complications rate was 8.4%, while five studies did not report any type [16,19,24,25,27]. The 11 remaining studies demonstrate some clinical complications, including: membrane exposure, the most frequent (15 membranes exposures in seven studies [17,21,23,26,28,29,30]); nine dehiscences were reported in three studies [18,20,22]; two manuscripts referred to one infection each [23,26] (Table 1).

4. Discussion

The aim of this systematic review and meta-analysis was to obtain the most reliable scientific information regarding the efficacy of bone augmentation procedures in terms of bone gain in cases of horizontal and/or vertical ridge bone deficiencies, when using polymeric membranes for GBR. A great variability of results, measured as bone gain, does exist. Therefore, in this study it is intended to reduce heterogeneity of primary outcomes. For this purpose, only studies that counted with CBCT measurements were included in the review. It has been previously reported that there was variability between measurements performed at CBCT images and direct clinical measuring [31]. The follow-up of the patients included in the present review was set as between 3 and 7 months, and always before implant placement, in order to ensure that GBR processes were not influenced by the implants’ outcome.
The first CBCT device (NewTom-9000; Quantitative Radiology, Verona, Italy) was described in 1998. Since then, a number of CBCT machines have been introduced into the market. The cost-effective technology of CBCT led to a speedy ingress into the field of dentistry with demand for commitment of dental professionals and dental educators to explore the applications of CBCT technology [32]. Nevertheless, CBCT is not employed in postsurgical assessments of bone grafts’ and implants’ position planning until 2006 [33,34,35]. It is the reason why, although a time frame restriction of 15 years was applied, the first published clinical trial using CBCT for bone augmentation evaluation was not found until 2013, which is the earliest study included in this review.
This systematic review was not limited to clinical trials to achieve more data about the use of polymeric membranes in GBR procedures. Sixteen studies were included, from which only four were randomized clinical trials. Case series, prospective, and retrospective designs were also included to achieve more data about the GBRs. In total, 381 GBRs have been analyzed, involving the mandible and the maxilla. Fourteen studies evaluated just horizontal bone gain after the augmentation surgery whereas two of them studied horizontal and vertical bone gain. Absorbable membranes were the most used (14 studies). Only three out of the 16 included studies tested non-resorbable membranes; two of them used a titanium reinforced dense polytetrafluroethyelene (Ti-d-PTFE) membrane and one with no reinforcing (d-PTFE). When using absorbable membranes, collagen membranes were the most frequently placed (93% of the studies using absorbable membranes), whereas only one used a commercialized pericardium membrane. The polymeric resorbable collagen membrane is the most employed for GBR procedures, having the higher number of published clinical studies [36]. Main advantages include easy manipulation, weak immunogenicity, a direct effect on bone formation and chemotaxis of gingival and periodontal ligament fibroblasts [37,38]. However, their rapid biodegradation by the enzymatic activity of macrophages and polymorphonuclear leucocytes or bacterial collagenases is their major drawback [39]. Then, the potential of losing space maintenance ability in physiological conditions is high and clinical results may be sometimes unpredictable [36].
Following the main results of the present research, GBR techniques using polymeric membranes may facilitate a horizontal bone gain from 3.19 to 4.70 mm at the alveolar ridge. It is a clinically relevant amount of bone, if we consider that placed implant may usually be from 3.5 to 4.5 mm in diameter, and a minimum of 1.5 mm of remnant bone is required around the placed implants [2]. Therefore, it may be speculated that the achieved horizontal volume after tested GBR techniques, should allow for implant placement with success in most of the clinical cases.
A bone gain of 8.5 ± 2.4 mm was described in the study that reported the highest horizontal bone gain [26]. It is a case series study in which a Ti-d-PTFE and bovine-derived xenograft in combination with autogenous bone chips. There are not many other studies in which non-resorbable membranes are used to treat horizontal bone defects. It may be that non-resorbable membranes requiring a second surgery and with complications derived from membranes exposition and contamination are preferred when treating vertical defects, in which procedures and healing time is longer and mechanical properties of membranes are a crucial prerequisite [40].
Ten of the selected studies used autologous bone + xenogenic as bone substitute [16,18,19,20,21,23,24,25,26,30], from which, 70% used particulate autologous bone + xenograft [16,18,21,24,25,26,30], 20% used autologous bone block [19,23], and one study compared both techniques [20], concluding that mean horizontal bone gain and width after healing were significantly greater in the group of autologous particulate bone compared to bone block.
High bone gain results (5.9 ± 2.4 mm [25], 5.42 ± 0.76 mm [20], and 5.03 ± 2.15 mm [21]) were obtained in three studies which employed a common protocol. They used a collagen membrane with bovine-derived xenograft in combination with autogenous bone chips as bone filler. The highest clinical success when applying this bone combination was previously reported in one study published in 2019 [2]. It may be explained by the fact that an inorganic xenogenous graft could slow down the resorption of autogenous bone and also increase the volume to the grafted area [2].
The encountered rate of complications, 8.4%, is within the rate of other previous meta-analysis about bone regeneration procedures, ranging from 7.95% [2] to 22.7% [6]. Membrane exposure and dehiscences are also the most frequently reported complications in previous studies [2,6].
The attained total heterogeneity data between published studies is very high, 99% (95% CI) (Figure 3); it is also observable in the funnel plot graph (Figure 4). It may be explained by differences in implemented surgical techniques, employed biomaterials and operators. The surgical technique and execution are crucial for the success of bone augmentation procedures. Factors as achieving primary wound closure, adequate angiogenesis, space creation and maintenance, wound stability, membrane exposure, or microorganism colonization may influence the amount of bone regeneration that can occur [3]. The encountered systematic difference between studies may also be due to the small sample size of included studies (namely: ‘small-studies effect’) [41]. It should be considered that the experiments’ sample size ranges from 6 to 21 patients and from 6 to 29 surgical interventions. A mean bone gain of 5.9 mm (SD: 2.4 mm) was achieved in the study with the greatest sample size [25], a case series in which a combination of demineralized bovine bone matrix particles with autogenous bone, adding leukocytes and platelet rich fibrin was used. However, it should be remarkable that a high statistical significance was obtained at the random-model effects (p < 0.001).
Another meta-analysis has been previously published about bone regeneration at the alveolar ridge [6]. Differing from the present study, this study just considered GBRs performed simultaneously with dental implant placement. This surgical strategy is beneficial in terms of reducing the number of interventions. However, it usually negatively affects the total bone gain and increases the complications ratio. Membrane exposure was found in about 23% of the performed GBRs [6]. In this case, the most often used type of intervention was also a xenogeneic particulated grafting material and a resorbable collagen membrane. A mean bone gain of 4.44 mm (ranging from 0.11 to 7.72 mm) was obtained in a systematic review [2], which also studied horizontal bone ridge augmentation procedures but only applying xenogenous graft. It is a value slightly higher than the one obtained in the present research, but with a high standard deviation. Therefore, the present study was the only one considering several bone graft types, which is not reported in any other study. It is considered highly valuable for clinicians and researchers.
This systematic review and meta-analysis possess some strengths which differentiates it from previously published reviews. The registration of the research design in PROSPERO, prior to the beginning of the search, warrants that it has been shown to be associated with increased review quality [42]. Strict inclusion criteria, such as the need for a previous and follow-up CBCT and the exclusion of all the studies with clinical conditions that could alter the results such as immediate implant placement, simultaneal sinus lift, or socket preservation make the results more reliable. In addition, a thorough and rigorous analysis of the risk of bias and methodological quality of the studies included was carried out. As a result of all these methodological premises, a high level of significance (p < 0.001) was obtained, even when the random-effects model was applied.
However, the study does not lack of certain limitations. The narrow focus of the question of systematic reviews is a crucial drawback of systematic reviews in general, since they do not allow for complex literature coverage. Apart from this, some of the differences encountered between the clinical trials could have been caused by the small-studies effect, due to their small sample sizes [41].
Additionally, as future perspectives, clinical researchers should try to perform more protocolized and randomized clinical trials in this area, since there is an enormous methodological and clinical heterogeneity in the identified studies.

5. Conclusions

Through this systematic review and meta-analysis, we have been able to conclude that the existing scientific evidence suggests that GBR surgical procedure using polymeric membranes is a predictable technique, in order to achieve horizontal bone augmentation and, usually, the postoperative elapses with no complications. Clinicians can expect to reduce the horizontal bony defect from 3.19 to 4.70 mm, thus, permitting, in most of the cases, proper further implant placement.

Author Contributions

Conceptualization, M.T.-O., M.T. and R.O.; Formal analysis, M.T., M.T.-O., C.V., A.R.-A. and R.O.; Funding acquisition, M.T. and R.O.; Investigation, M.T., M.T.-O., M.V.-R., C.V., A.R.-A., F.J.M.-M. and R.O., Methodology, M.T.-O., C.V., A.R.-A., and R.O.; Project administration, M.T. and R.O.; Supervision, M.T., R.O., and F.J.M.-M.; Validation, M.T., M.T.-O. and R.O.; Visualization; M.T., M.T.-O. and R.O.; Writing—original draft, M.T.-O., M.V.-R., M.T., and R.O.; Writing—review and editing, M.T.-O., M.T., F.J.M.-M., A.R.-A. and R.O. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Ministry of Economy and Competitiveness and European Regional Development Fund (MINECO/FEDER MAT2017-85999P). University of Granada/Regional Government of Andalusia Research Fund from Spain and European Regional Development Fund (A-BIO-157-UGR-18/FEDER). This research is part of M.T-O.’s Ph.D. research study.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barbu, H.M.; Andreescu, C.F.; Lorean, A.; Kolerman, R.; Moraru, L.; Mortellaro, C.; Mijiritsky, E. Comparison of Two Techniques for Lateral Ridge Augmentation in Mandible With Ramus Block Graft. J. Craniofac. Surg. 2016, 27, 662–667. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. de Azambuja Carvalho, P.H.; Dos Santos Trento, G.; Moura, L.B.; Cunha, G.; Gabrielli, M.A.C.; Pereira-Filho, V.A. Horizontal Ridge Augmentation Using Xenogenous Bone Graft-Systematic Review. Oral. Maxillofac. Surg. 2019, 23, 271–279. [Google Scholar] [CrossRef]
  3. Garaicoa, C.; Suarez, F.; Fu, J.-H.; Chan, H.-L.; Monje, A.; Galindo-Moreno, P.; Wang, H.-L. Using Cone Beam Computed Tomography Angle for Predicting the Outcome of Horizontal Bone Augmentation. Clin. Implant Dent. Relat. Res. 2015, 17, 717–723. [Google Scholar] [CrossRef]
  4. Sbricoli, L.; Guazzo, R.; Annunziata, M.; Gobbato, L.; Bressan, E.; Nastri, L. Selection of Collagen Membranes for Bone Regeneration: A Literature Review. Materials 2020, 13, 786. [Google Scholar] [CrossRef] [Green Version]
  5. Sanz, M.; Dahlin, C.; Apatzidou, D.; Artzi, Z.; Bozic, D.; Calciolari, E.; Bruyn, H.D.; Dommisch, H.; Donos, N.; Eickholz, P.; et al. Biomaterials and Regenerative Technologies Used in Bone Regeneration in the Craniomaxillofacial Region: Consensus Report of Group 2 of the 15th European Workshop on Periodontology on Bone Regeneration. J. Clin. Periodontol. 2019, 46, 82–91. [Google Scholar] [CrossRef]
  6. Thoma, D.S.; Bienz, S.P.; Figuero, E.; Jung, R.E.; Sanz-Martín, I. Efficacy of Lateral Bone Augmentation Performed Simultaneously with Dental Implant Placement: A Systematic Review and Meta-Analysis. J. Clin. Periodontol. 2019, 46 (Suppl. S21), 257–276. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Melcher, A.H. On the Repair Potential of Periodontal Tissues. J. Periodontol. 1976, 47, 256–260. [Google Scholar] [CrossRef]
  8. Zitzmann, N.U.; Naef, R.; Schärer, P. Resorbable versus Nonresorbable Membranes in Combination with Bio-Oss for Guided Bone Regeneration. Int. J. Oral Maxillofac. Implants 1997, 12, 844–852. [Google Scholar] [PubMed]
  9. Makvandi, P.; Gu, J.T.; Zare, E.N.; Ashtari, B.; Moeini, A.; Tay, F.R.; Niu, L. Polymeric and Inorganic Nanoscopical Antimicrobial Fillers in Dentistry. Acta Biomater. 2020, 101, 69–101. [Google Scholar] [CrossRef]
  10. Makvandi, P.; Josic, U.; Delfi, M.; Pinelli, F.; Jahed, V.; Kaya, E.; Ashrafizadeh, M.; Zarepour, A.; Rossi, F.; Zarrabi, A.; et al. Drug Delivery (Nano)Platforms for Oral and Dental Applications: Tissue Regeneration, Infection Control, and Cancer Management. Adv. Sci. 2021, 2004014. [Google Scholar] [CrossRef]
  11. Bueno, J.; Sánchez, M.d.C.; Toledano-Osorio, M.; Figuero, E.; Toledano, M.; Medina-Castillo, A.L.; Osorio, R.; Herrera, D.; Sanz, M. Antimicrobial Effect of Nanostructured Membranes for Guided Tissue Regeneration: An in Vitro Study. Dent. Mater. 2020, 36, 1566–1577. [Google Scholar] [CrossRef] [PubMed]
  12. Toledano, M.; Toledano-Osorio, M.; Osorio, R.; Carrasco-Carmona, Á.; Gutiérrez-Pérez, J.-L.; Gutiérrez-Corrales, A.; Serrera-Figallo, M.-A.; Lynch, C.D.; Torres-Lagares, D. Doxycycline and Zinc Loaded Silica-Nanofibrous Polymers as Biomaterials for Bone Regeneration. Polymers 2020, 12, 1201. [Google Scholar] [CrossRef]
  13. Toledano, M.; Gutierrez-Pérez, J.L.; Gutierrez-Corrales, A.; Serrera-Figallo, M.A.; Toledano-Osorio, M.; Rosales-Leal, J.I.; Aguilar, M.; Osorio, R.; Torres-Lagares, D. Novel Non-Resorbable Polymeric-Nanostructured Scaffolds for Guided Bone Regeneration. Clin. Oral Investig. 2020, 24, 2037–2049. [Google Scholar] [CrossRef]
  14. Mir-Mari, J.; Wui, H.; Jung, R.E.; Hämmerle, C.H.F.; Benic, G.I. Influence of Blinded Wound Closure on the Volume Stability of Different GBR Materials: An in Vitro Cone-Beam Computed Tomographic Examination. Clin. Oral Implants Res. 2016, 27, 258–265. [Google Scholar] [CrossRef]
  15. Tavelli, L.; Ravidà, A.; Barootchi, S.; Chambrone, L.; Giannobile, W.V. Recombinant Human Platelet-Derived Growth Factor: A Systematic Review of Clinical Findings in Oral Regenerative Procedures. JDR Clin. Trans. Res. 2020. [Google Scholar] [CrossRef]
  16. Pushparajan, S.; Thiagarajan, R.; Namasi, A.; Emmadi, P.; Saravanan, H. Efficacy of Guided Bone Regeneration Using Composite Bone Graft and Resorbable Collagen Membrane in Seibert’s Class I Ridge Defects: Radiological Evaluation. J. Oral Implantol. 2013, 39, 455–462. [Google Scholar] [CrossRef] [PubMed]
  17. Shalash, M.A.; Rahman, H.A.; Azim, A.A.; Neemat, A.H.; Hawary, H.E.; Nasry, S.A. Evaluation of Horizontal Ridge Augmentation Using Beta Tricalcium Phosphate and Demineralized Bone Matrix: A Comparative Study. J. Clin. Exp. Dent. 2013, 5, e253–e259. [Google Scholar] [CrossRef] [PubMed]
  18. Mordenfeld, A.; Johansson, C.B.; Albrektsson, T.; Hallman, M. A Randomized and Controlled Clinical Trial of Two Different Compositions of Deproteinized Bovine Bone and Autogenous Bone Used for Lateral Ridge Augmentation. Clin. Oral Implants Res. 2014, 25, 310–320. [Google Scholar] [CrossRef]
  19. Monje, A.; Monje, F.; Hernández-Alfaro, F.; Gonzalez-García, R.; Suárez-López del Amo, F.; Galindo-Moreno, P.; Montanero-Fernández, J.; Wang, H.-L. Horizontal Bone Augmentation Using Autogenous Block Grafts and Particulate Xenograft in the Severe Atrophic Maxillary Anterior Ridges: A Cone-Beam Computerized Tomography Case Series. J. Oral Implants 2015, 41, 366–371. [Google Scholar] [CrossRef]
  20. Gultekin, B.A.; Bedeloglu, E.; Kose, T.E.; Mijiritsky, E. Comparison of Bone Resorption Rates after Intraoral Block Bone and Guided Bone Regeneration Augmentation for the Reconstruction of Horizontally Deficient Maxillary Alveolar Ridges. Biomed. Res. Int. 2016, 2016, 4987437. [Google Scholar] [CrossRef] [Green Version]
  21. Meloni, S.M.; Jovanovic, S.A.; Urban, I.; Canullo, L.; Pisano, M.; Tallarico, M. Horizontal Ridge Augmentation Using GBR with a Native Collagen Membrane and 1:1 Ratio of Particulated Xenograft and Autologous Bone: A 1-Year Prospective Clinical Study. Clin. Implant Dent. Relat. Res. 2017, 19, 38–45. [Google Scholar] [CrossRef] [PubMed]
  22. Cortellini, S.; Castro, A.B.; Temmerman, A.; Van Dessel, J.; Pinto, N.; Jacobs, R.; Quirynen, M. Leucocyte- and Platelet-Rich Fibrin Block for Bone Augmentation Procedure: A Proof-of-Concept Study. J. Clin. Periodontol. 2018, 45, 624–634. [Google Scholar] [CrossRef]
  23. Mendoza-Azpur, G.; de la Fuente, A.; Chavez, E.; Valdivia, E.; Khouly, I. Horizontal Ridge Augmentation with Guided Bone Regeneration Using Particulate Xenogenic Bone Substitutes with or without Autogenous Block Grafts: A Randomized Controlled Trial. Clin. Implant Dent. Relat. Res. 2019, 21, 521–530. [Google Scholar] [CrossRef]
  24. Lucaciu, O.; Apostu, D.; Mester, A.; Campian, R.S.; Gheban, D.; Miron, R.J. Atelo-Collagen Type I Bovine Bone Substitute and Membrane in Guided Bone Regeneration: A Series of Clinical Cases and Histopathological Assessments. Histol. Histopathol. 2019, 34, 1061–1071. [Google Scholar] [CrossRef]
  25. Amaral Valladão, C.A.; Freitas Monteiro, M.; Joly, J.C. Guided Bone Regeneration in Staged Vertical and Horizontal Bone Augmentation Using Platelet-Rich Fibrin Associated with Bone Grafts: A Retrospective Clinical Study. Int. J. Implant Dent. 2020, 6, 72. [Google Scholar] [CrossRef] [PubMed]
  26. Atef, M.; Tarek, A.; Shaheen, M.; Alarawi, R.M.; Askar, N. Horizontal Ridge Augmentation Using Native Collagen Membrane vs Titanium Mesh in Atrophic Maxillary Ridges: Randomized Clinical Trial. Clin. Implant Dent. Relat. Res. 2020, 22, 156–166. [Google Scholar] [CrossRef] [PubMed]
  27. Batas, L.; Anagnostou, E.; Vouros, I. Evaluation of a Double Layer Technique to Enhance Bone Formation in Atrophic Alveolar Ridge: Histologic Results of a Pilot Study. J. Oral Maxillofac. Surg. 2020, 78, 2195–2207. [Google Scholar] [CrossRef] [PubMed]
  28. Hashemipoor, M.; Asghari, N.; Mohammadi, M.; Kalantari, M.; Arabsolghar, M.; Ranjbar, H. Radiological and Histological Evaluation of Horizontal Ridge Augmentation Using Corticocancellous Freeze-Dried Bone Allograft with and without Autogenous Bone: A Randomized Controlled Clinical Trial. Clin. Implant Dent. Relat. Res. 2020, 22, 582–592. [Google Scholar] [CrossRef]
  29. César Neto, J.B.; Cavalcanti, M.C.; Sapata, V.M.; Pannuti, C.M.; Hämmerle, C.H.F.; Naenni, N.; Thoma, D.S.; Romito, G.A. The Positive Effect of Tenting Screws for Primary Horizontal Guided Bone Regeneration: A Retrospective Study Based on Cone-Beam Computed Tomography Data. Clin. Oral Implants Res. 2020, 31, 846–855. [Google Scholar] [CrossRef] [PubMed]
  30. Windisch, P.; Orban, K.; Salvi, G.E.; Sculean, A.; Molnar, B. Vertical-Guided Bone Regeneration with a Titanium-Reinforced d-PTFE Membrane Utilizing a Novel Split-Thickness Flap Design: A Prospective Case Series. Clin. Oral Investig. 2020. [Google Scholar] [CrossRef]
  31. Ritter, L.; Elger, M.C.; Rothamel, D.; Fienitz, T.; Zinser, M.; Schwarz, F.; Zöller, J.E. Accuracy of Peri-Implant Bone Evaluation Using Cone Beam CT, Digital Intra-Oral Radiographs and Histology. Dentomaxillofac. Radiol. 2014, 43, 20130088. [Google Scholar] [CrossRef] [Green Version]
  32. Venkatesh, E.; Elluru, S.V. Cone Beam Computed Tomography: Basics and Applications in Dentistry. J. Istanb. Univ. Fac. Dent. 2017, 51, S102–S121. [Google Scholar] [CrossRef] [PubMed]
  33. Almog, D.M.; LaMar, J.; LaMar, F.R.; LaMar, F. Cone Beam Computerized Tomography-Based Dental Imaging for Implant Planning and Surgical Guidance, Part 1: Single Implant in the Mandibular Molar Region. J. Oral Implants 2006, 32, 77–81. [Google Scholar] [CrossRef]
  34. Nickenig, H.-J.; Eitner, S. Reliability of Implant Placement after Virtual Planning of Implant Positions Using Cone Beam CT Data and Surgical (Guide) Templates. J. Craniomaxillofac. Surg. 2007, 35, 207–211. [Google Scholar] [CrossRef] [PubMed]
  35. Tischler, M. In-Office Cone Beam Computerized Tomography: Technology Review and Clinical Examples. Dent. Today 2008, 27, 102–106. [Google Scholar] [PubMed]
  36. Zhang, Y.; Zhang, X.; Shi, B.; Miron, R. Membranes for Guided Tissue and Bone Regeneration. Oral Maxillofac. Surg. 2013, 1, 1–10. [Google Scholar] [CrossRef] [Green Version]
  37. Calciolari, E.; Ravanetti, F.; Strange, A.; Mardas, N.; Bozec, L.; Cacchioli, A.; Kostomitsopoulos, N.; Donos, N. Degradation Pattern of a Porcine Collagen Membrane in an in Vivo Model of Guided Bone Regeneration. J. Periodontal. Res. 2018, 53, 430–439. [Google Scholar] [CrossRef] [PubMed]
  38. Kilinc, A.; Ataol, M. How Effective Is Collagen Resorbable Membrane Placement after Partially Impacted Mandibular Third Molar Surgery on Postoperative Morbidity? A Prospective Randomized Comparative Study. BMC Oral Health 2017, 17, 126. [Google Scholar] [CrossRef] [Green Version]
  39. Toledano, M.; Asady, S.; Toledano-Osorio, M.; García-Godoy, F.; Serrera-Figallo, M.-A.; Benítez-García, J.A.; Osorio, R. Differential Biodegradation Kinetics of Collagen Membranes for Bone Regeneration. Polymers 2020, 12, 1290. [Google Scholar] [CrossRef]
  40. Urban, I.A.; Montero, E.; Monje, A.; Sanz-Sánchez, I. Effectiveness of Vertical Ridge Augmentation Interventions: A Systematic Review and Meta-Analysis. J. Clin. Periodontol. 2019, 46 (Suppl. S21), 319–339. [Google Scholar] [CrossRef] [Green Version]
  41. Egger, M.; Davey Smith, G.; Schneider, M.; Minder, C. Bias in Meta-Analysis Detected by a Simple, Graphical Test. BMJ 1997, 315, 629–634. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Sideri, S.; Papageorgiou, S.N.; Eliades, T. Registration in the International Prospective Register of Systematic Reviews (PROSPERO) of Systematic Review Protocols Was Associated with Increased Review Quality. J. Clin. Epidemiol. 2018, 100, 103–110. [Google Scholar] [CrossRef] [PubMed] [Green Version]

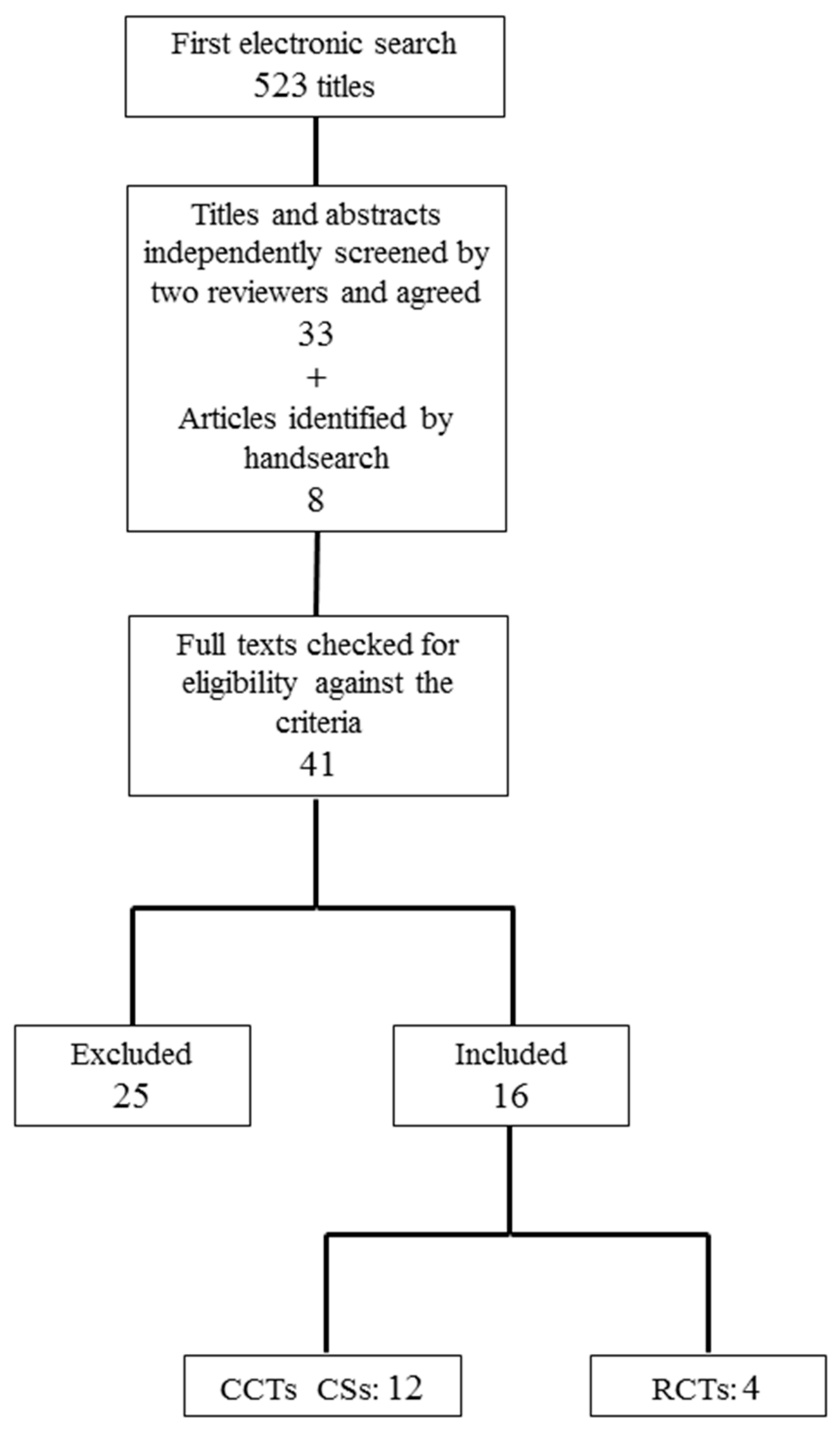

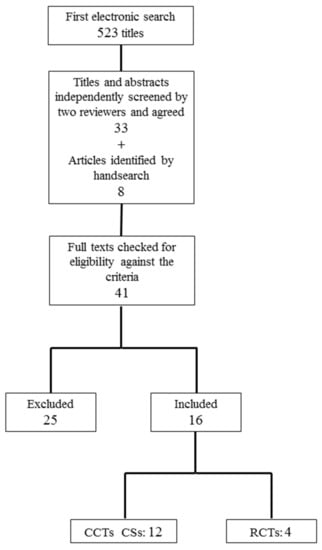

Figure 1. Flow chart of the search results and respective selection process. RCTs: randomized controlled trials, CCTs: cohort and case-control studies, CSs: case series.
Figure 1. Flow chart of the search results and respective selection process. RCTs: randomized controlled trials, CCTs: cohort and case-control studies, CSs: case series.
Polymers 13 01172 g001

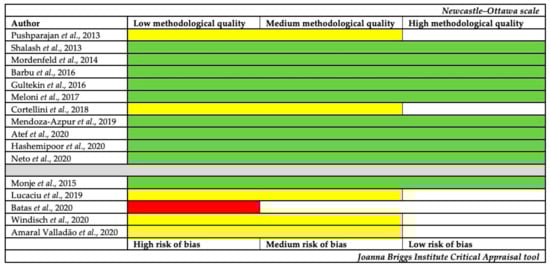

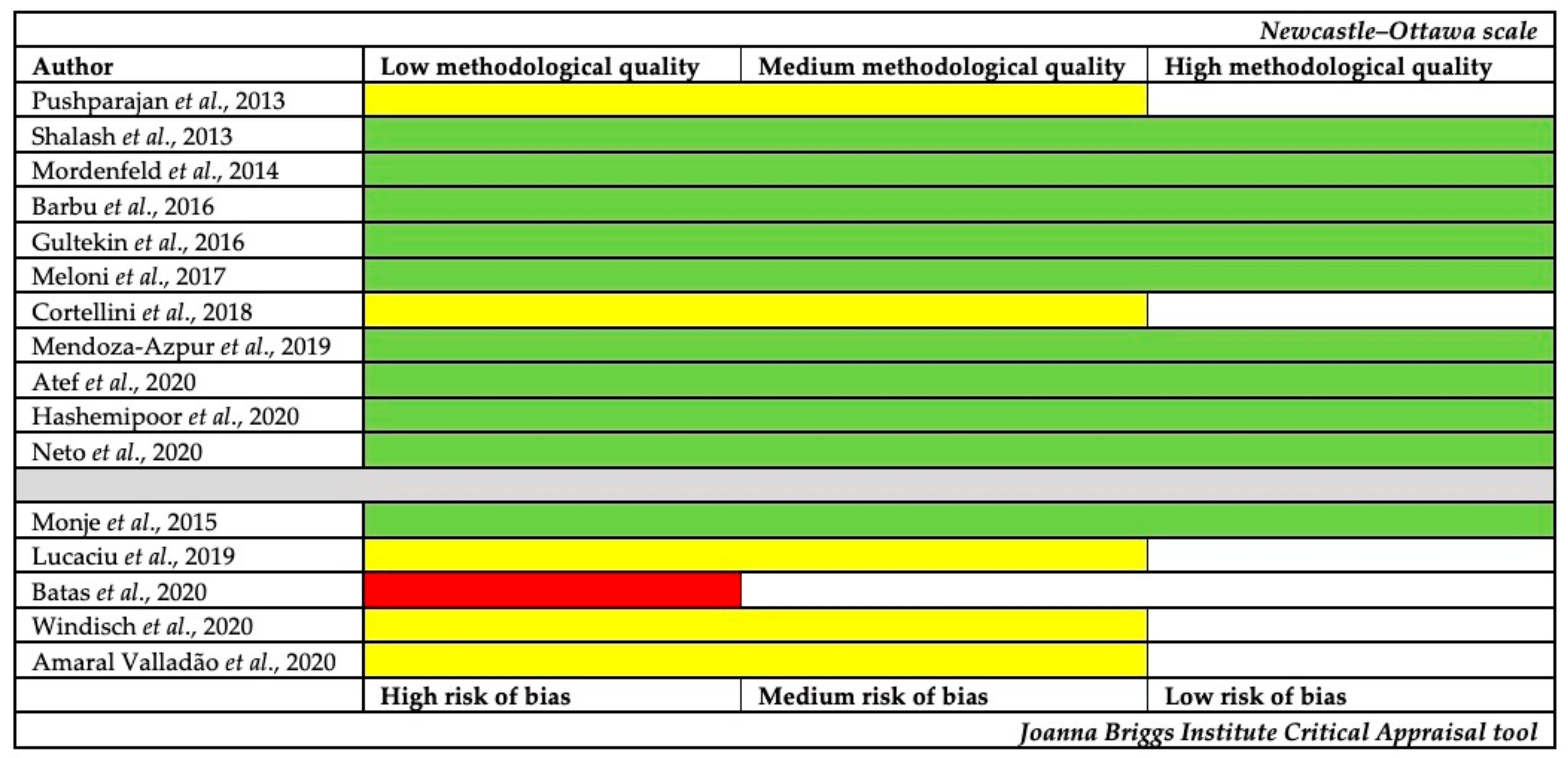

Figure 2. Studies’ quality assessment and risk of bias following: Newcastle–Ottawa scale for interventional and observational assays. Studies were considered as having a high (green), medium (yellow), or low (red) methodological quality, and the Joanna Briggs Institute Critical Appraisal tool for case series. Studies were considered as having high (red), moderate (yellow), or low (green) risk of bias.
Figure 2. Studies’ quality assessment and risk of bias following: Newcastle–Ottawa scale for interventional and observational assays. Studies were considered as having a high (green), medium (yellow), or low (red) methodological quality, and the Joanna Briggs Institute Critical Appraisal tool for case series. Studies were considered as having high (red), moderate (yellow), or low (green) risk of bias.
Polymers 13 01172 g002

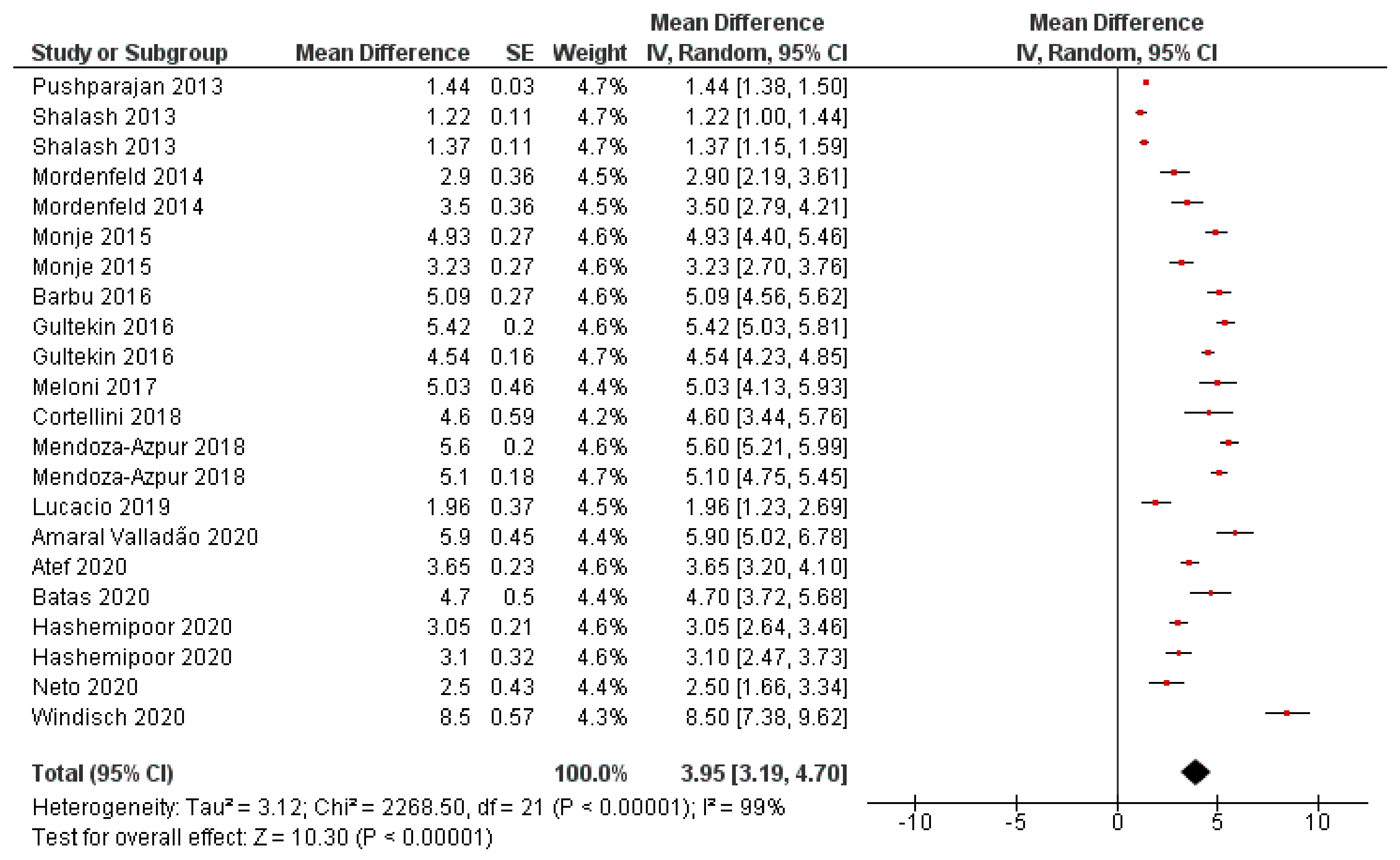

Figure 3. Horizontal bone gain forest plot. Weighted mean is presented at CI 95%. Heterogeneity was determined using Higgins (I2). A random-effects model was applied. Statistical significance was set at 0.05.
Figure 3. Horizontal bone gain forest plot. Weighted mean is presented at CI 95%. Heterogeneity was determined using Higgins (I2). A random-effects model was applied. Statistical significance was set at 0.05.
Polymers 13 01172 g003

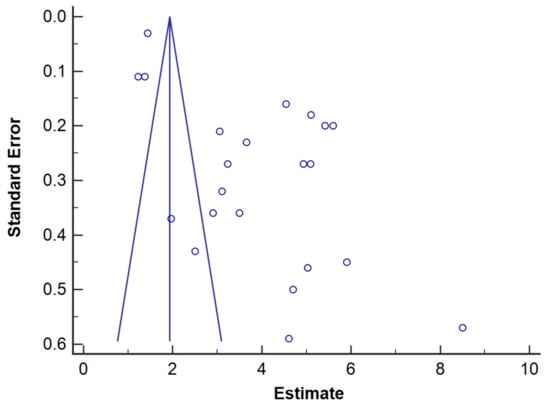

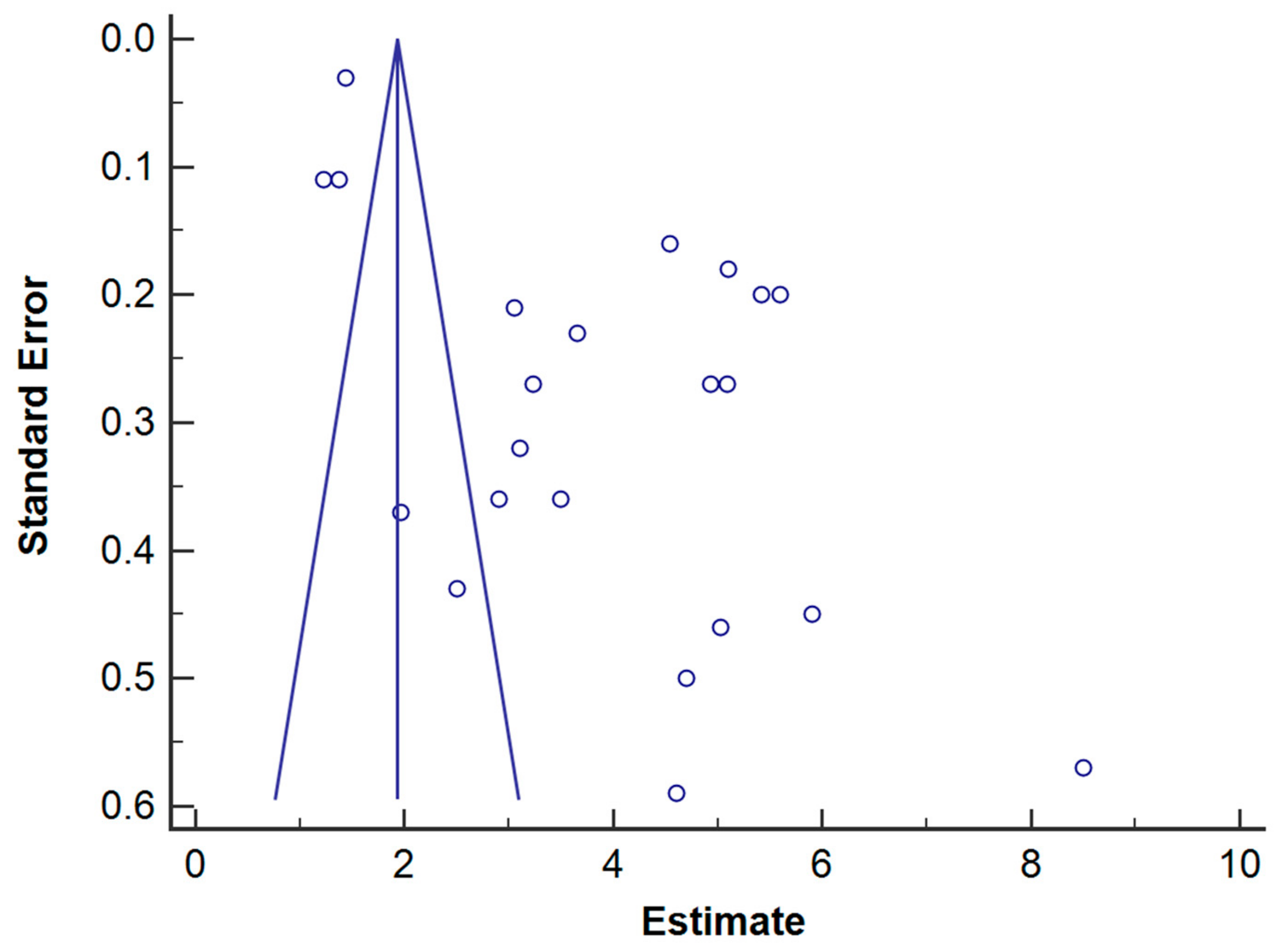

Figure 4. Horizontal bone gain funnel plot. Estimate of bone gain measurement is on the horizontal axis and study precision (standard error) appears on the vertical axis.
Figure 4. Horizontal bone gain funnel plot. Estimate of bone gain measurement is on the horizontal axis and study precision (standard error) appears on the vertical axis.
Polymers 13 01172 g004
Table 1. General overview of the included studies, investigating the outcomes of bone defects treated by guided bone regeneration (GBR) with bone graft materials (polymeric membranes and bone graft substitutes as autografts, xenografts, alloplasts, or allografts).
Table 1. General overview of the included studies, investigating the outcomes of bone defects treated by guided bone regeneration (GBR) with bone graft materials (polymeric membranes and bone graft substitutes as autografts, xenografts, alloplasts, or allografts).
AuthorStudy DesignPatients
GBRs
Bone SubstituteMembraneFollow-Up
Time
BG (mm)
Mean (SD)
Complications
Pushparajan et al., 2013 [16]CCT 10 patients
10 GBRs
DBBM particles
Autogenous
Collagen 6 months 1.44 (0.09)Not reported
Shalash et al., 2013 [17]CCT 10 patients
10 GBRs
β-TCP particlesd-PTFE6 months 1.22 (0.35) 2 membrane exposures
10 patients
10 GBRs
β-TCP particles
DBBM particles
d-PTFE1.37 (0.35)
Mordenfeld et al., 2014 [18]RCT13 patients
13 GBRs
DBBM particles (90)
Autogenous (10)
Collagen 7.5 months 2.9 (1.3) 7 dehiscences
13 patients
13 GBRs
DBBM particles (60)
Autogenous (40)
Collagen 3.5 (1.3)
Monje et al., 2015 [19]CS6 patients
9 GBRs
Illiac crest block
DBBM particles
Collagen 5 months 4.93 (0.65) Not reported
8 patients
10 GBRs
Mandib ramus block
DBBM particles
Collagen 3.23 (0.76)
Barbu et al., 2016 [1]RCT11 patients
11 GBRs
Mandib ramus block
DBBM particles + Autogenous
Pericardium 4 months 5.10 (0. 91)3 patients with pain in donor site
Gultekin et al., 2016 [20]CCT12 patients
15 GBRs
DBBM particles
Autogenous
Collagen 4–7 months5.42 (0.76)1 dehiscence
12 patients
13 GBRs
Mandib ramus block
DBBM particles
Collagen 4.54 (0.59)
Meloni et al., 2017 [21]CCT18 patients
22 GBRs
DBBM particles
Autogenous
Collagen 7 months 5.03 (2.15)3 membrane exposures
Cortellini et al., 2018 [22]CCT10 patients
15 GBRs
L-PRF + DBBM particlesCollagen5–8 months 4.6 (2.3)1 dehiscence
Mendoza-Azpur et al., 2019 [23]RCT20 patients
20 GBRs
DBBM particles
Autogenous
Collagen 6 months 5.6 (0.89)6 membrane exposures
1 infection
19 patients
19 GBRs
Mandib ramus block DBBM particlesCollagen 5.10 (0.77)
Lucaciu et al., 2019 [24]CS 13 patients
20 GBRs
ABBM particles
Autogenous
Collagen 4 months 1.96 (1.64)Not reported
Amaral Valladão et al., 2020 [25]CS 18 patients
29 GBRs
L-PRF DBBM particles
Autogenous
Collagen 7.5–8.5 months 5.9 (2.4) Not reported
Atef et al., 2020 [26]RCT10 patients
10 GBRs
ABBM particles
Autogenous
Collagen 6 months 3.65 (1.04) 1 membrane exposure
1 infection
Batas et al., 2020 [27]CS 6 patients
6 GBRs
Allogenic bone
DBBM particles
Collagen 5 months 4.7 (1.22) Not reported
Hashemipoor et al., 2020 [28]RCT 21 patients
21 GBRs
FDBA Collagen 6 months 3.05 (0.98)1 membrane exposure
19 patients
19 GBRs
FDBA
Autogenous
Collagen 3.10 (1.4)
Neto et al., 2020 [29]CCT18 patients
22 GBRs
DBBM particles Collagen 6–8 months 2.5 (2.02) 1 membrane exposure
Windisch et al., 2020 [30]CS 15 patients
18 GBRs
DBBM particles
Autogenous
d-PTFE 9 months 8.5 (2.4)1 membrane exposure
* GBRs: Guided Bone Regeneration procedures; BG: Bone gain; CCT: Cohort and Case-Control Trial, RCT: Randomized Clinical Trial; CS: Case series; DBBM: Demineralized Bovine Bone Matrix; β-TCP: β-tricalcium phosphate; ABBM: Anorganic Bovine Bone Matrix; L-PRF: Leukocyte and Platelet Rich Fibrin; FDBA: Freeze Dried Bone Allograft.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Toledano-Osorio, M.; Toledano, M.; Manzano-Moreno, F.J.; Vallecillo, C.; Vallecillo-Rivas, M.; Rodriguez-Archilla, A.; Osorio, R. Alveolar Bone Ridge Augmentation Using Polymeric Membranes: A Systematic Review and Meta-Analysis. Polymers 2021, 13, 1172. https://doi.org/10.3390/polym13071172

AMA Style

Toledano-Osorio M, Toledano M, Manzano-Moreno FJ, Vallecillo C, Vallecillo-Rivas M, Rodriguez-Archilla A, Osorio R. Alveolar Bone Ridge Augmentation Using Polymeric Membranes: A Systematic Review and Meta-Analysis. Polymers. 2021; 13(7):1172. https://doi.org/10.3390/polym13071172

Chicago/Turabian Style

Toledano-Osorio, Manuel, Manuel Toledano, Francisco Javier Manzano-Moreno, Cristina Vallecillo, Marta Vallecillo-Rivas, Alberto Rodriguez-Archilla, and Raquel Osorio. 2021. "Alveolar Bone Ridge Augmentation Using Polymeric Membranes: A Systematic Review and Meta-Analysis" Polymers 13, no. 7: 1172. https://doi.org/10.3390/polym13071172

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
