Influence of Osmotic Pressure on Nanostructures in Thin Films of a Weakly-Segregated Block Copolymer and Its Blends with a Homopolymer

Department of Chemical and Materials Engineering, National Central University, Taoyuan 32001, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(15), 2480; https://doi.org/10.3390/polym13152480
Submission received: 24 June 2021 / Revised: 17 July 2021 / Accepted: 21 July 2021 / Published: 28 July 2021
(This article belongs to the Special Issue Phase Behavior in Polymers: Morphology and Self-Assembly)

Abstract

:
We studied the influence of osmotic pressure on nanostructures in thin films of a symmetric weakly-segregated polystyrene-block-poly (methyl methacrylate), P(S-b-MMA), block copolymer and its mixtures with a polystyrene (PS) homopolymer of various compositions. Thin films were deposited on substrates through surface neutralization. The surface neutralization results from the PS mats, which were oxidized and cross-linked by UV-light exposure. Thus, thermal annealing produced perpendicularly oriented lamellae and perforated layers, depending on the content of added PS chains. Nevertheless, a mixed orientation was obtained from cylinders in thin films, where a high content of PS was blended with the P(S-b-MMA). A combination of UV-light exposure and acetic acid rinsing was used to remove the PMMA block. Interestingly, the treatment of PMMA removal inevitably produced osmotic pressure and consequently resulted in surface wrinkling of perpendicular lamellae. As a result, a hierarchical structure with two periodicities was obtained for wrinkled films with perpendicular lamellae. The formation of surface wrinkling is due to the interplay between UV-light exposure and acetic acid rinsing. UV-light exposure resulted in different mechanical properties between the skin and the inner region of a film. Acetic acid rinsing produced osmotic pressure. It was found that surface wrinkling could be suppressed by reducing film thickness, increasing PS content and using high-molecular-weight P(S-b-MMA) BCPs.

Graphical Abstract

1. Introduction

The self-assembly of diblock copolymers (BCPs) in bulk has been well established [1]. The equilibrium phase behavior in bulk is governed by segregation strength (χN) and volume fractions (f) of constituent blocks, where χ is the Flory-Huggins interaction and N is the degree of polymerization. Below an order-disorder transition temperature, the self-assembly of BCPs can yield a variety of nanodomains of one-, two-, and three-dimensional periodicities [1]. However, as BCPs are confined to thin films, surface fields (at air/BCP and substrate/BCP interfaces) and geometric confinement factors play important roles in the phase behavior, which deviates from the phase behavior in bulk [2]. The two factors have been thoroughly studied for cylinder-forming [3,4,5,6,7,8] or lamellae-forming [9,10,11,12] BCP systems. For example, if an asymmetric BCP that forms cylinders in bulk is confined to thin films with symmetric or asymmetric wetting interfaces, tuning the surface fields and/or changing the film thickness can form several non-cylinder morphologies, such as wetting lamellae, perforated layers, spheres and even the coexistence of multiple phases. The non-cylinder structures can laterally coexist at the same depth or vertically coexist at different depths [3,4,5,6,7]. In addition to morphological diversity, domain orientation, shape or size undulation are also influenced by both spatial confinement and surface fields [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21].
Adding a homopolymer into a BCP melt not only causes morphological changes but also affects the relative stability of various morphologies [22,23,24,25,26,27,28,29]. Morphological changes are a result of variations in the volume fraction of the constituent block. New phases can stabilize by homopolymer chains filling the space originally occupied by highly stretched copolymer chains [25,26]. Furthermore, adding a homopolymer into BCPs can increase morphological diversity, amplify size tunability and enhance phase stability [22,23,24,25,26,27,28,29]. Hence, an introduction of spatial confinement and surface fields into BCP/homopolymer mixtures can even lead to an increased level of complexity for self-assembly in thin films [30,31,32,33,34,35,36,37,38,39]. Furthermore, the addition of a homopolymer also influences the kinetic and dynamic spatial order of nanodomains in thin films [40,41].
Surface wrinkling has recently generated considerable research interest because it results in a series of surface morphologies on the micrometer scale. Surface wrinkling has been studied for homogenous films deposited on a soft substrate, homogenous gels with solvent swelling, and bilayer films with two distinct mechanical properties [42,43]. Nevertheless, little attention has been paid to BCP thin films [44,45,46]. One of the driving forces which induces surface wrinkling arises from osmotic pressure. Osmotic pressure can partly exist due to solvent swelling when polymer films are immersed in an organic solvent or acid aqueous solution. Thus, a combination of osmotic pressure and BCP self-assembly has been used to produce hierarchical structures [44,45,46,47] or porous membranes [39,48,49], for which BCP itself cannot solely form through self-assembly.
Surface wrinkling has been found in thin films of other BCPs [44,45,46]. However, as far as we know, surface wrinkling has not yet been reported for the P(S-b-MMA) system. A combination of UV-light exposure and acetic acid rinsing [39,48], or a single step of acetic acid rinsing [50,51], has been frequently used to make porous membranes from P(S-b-MMA) films. In some cases, film instability may occur during such processes. This study aims to understand the effects of osmotic pressure on nanostructures in thin films on substrates with surface neutralization. The surface neutralization results from the PS mats, which were oxidized and cross-linked by UV-light exposure. The thin films were composed of a P(S-b-MMA) and its miscible mixtures with a homopolymer polystyrene (PS) of various weight fractions. The homopolymer PS used for preparing P(S-b-MMA)/PS mixtures has a lower molecular weight than the PS and PMMA blocks. Upon finely tuning the blending compositions, several morphologies with perpendicular or mixed orientation were obtained in thin film self-assembly for the P(S-b-MMA)/PS mixtures, on substrates with neutral surface. A combination of UV-light exposure and acetic acidic rinsing was applied to remove the PMMA component. Interestingly, solvent swelling inevitably resulted in osmotic pressure. The osmotic pressure could cause surface wrinkles in perpendicular lamellae. As a result of osmotic pressure, a hierarchical structure with two periodicities formed in wrinkled films containing lamellae. Nevertheless, such osmotic pressure only produced dimple-like or mushroom-like pores in the films that formed perforated layers and cylinders. Mechanisms of surface wrinkling of lamellae are detailed in the last section.

2. Experimental Section

2.1. Materials and Sample Preparation

Five symmetric polystyrene-block-poly(methyl methacrylate) BCPs, P(S-b-MMA), and two polystyrene (PS) homopolymers were purchased from Polymer Source Inc. and used as received. The five block copolymers are briefly denoted as P(Sx-b-My), where x and y denote values of molecular weight in unit of kg/mol, if specified. Details of the five BCPs and two homopolymers are given in Table 1. The high-molecular-weight, PS270, was used for surface neutralization. The low-molecular-weight, PS6, was used to prepare P(S21-b-M21)/PS6 mixtures. P(S21-b-M21) was first dissolved in toluene to prepare BCP solutions. Various amounts of PS6 were then added into the solutions to give P(S21-b-M21)/PS6 mixtures in toluene. Total polymer concentrations in toluene were 1.5 and 3 wt%, respectively. Three weight fraction ratios were prepared for the P(S21-b-M21)/PS6 mixtures; P(S21-b-M21)/PS6 = 95/5, 75/25, and 50/50. The volumetric fractions (ϕPS) of the PS constituent in the mixtures correspond to ϕPS = 55, 64, and 77 vol%, respectively. Films of neat P(S-b-MMA) and P(S21-b-M21)/PS mixtures were prepared by spin-coating the solutions onto substrates. The thickness of the films was controlled by using different polymer concentrations and spin rates. Two thicknesses (hi) initially obtained were approximately 16.3 nm (1.5 wt%, 5000 rpm) and 97 nm (3 wt%, 3000 rpm), respectively. After one-day dying, all the as-spun films of binary P(S-b-MMA)/PS6 mixtures were annealed at 230 °C for 1 h.
To prepare surface-neutralized SiOx/Si substrates, we used PS270 as a capping layer for surface neutralization. Each capping layer on SiOx/Si was prepared by spin coating (4000 rpm, 1 min) from a solution containing 1 wt% PS270 in toluene. After complete removal of the toluene, the PS270-covered SiOx/Si substrates were exposed to UV-light exposure (at λ = 254 nm) in a glove box for cross-linking and mild oxidation of the PS270 capping layer. The thickness of the PS270 capping layer was approximately 24 nm. Details of the treatment of UV-light exposure, used for the neutralization of the substrate interface, have been reported elsewhere [52,53,54]. After cross-linking and mild oxidation, the PS270 homogeneous layers were resistant to solvents. The contact angle of a water droplet exhibited 78~82° on the surface-neutralized SiOx/Si substrates. For the contact-angle range, there should be no affinity between the substrates and the constituent blocks. For brevity, PS270n denotes the neutralized PS270 layers.
To increase the contrast between PS and PMMA blocks in thin films, the PMMA component was selectively degraded, and the PS component was cross-linked by UV-light exposure in a glove box, filled with Ar or N2 gas for 2.5 h (λ = 254 nm; UV-light dosage = 2.7 mW/cm2). The degraded PMMA component was then quickly removed by short immersion (10 s) in acetic acid.

2.2. Materials Characterization

For the thin films of neat P(S21-b-M21) and its mixtures with various contents of PS, surface morphologies were characterized by a three real-space technique: an optical microscope (OM, Olympus BX-BLA2) in reflection mode, an atomic force microscope (AFM, SPA400 Seiko, Tokyo, Japan) in tapping mode, and a field-emission scanning electron microscope (FE-SEM, SUB8200 Hitachi, Tokyo, Japan) performed at 10 keV. The thermally annealed films, which were deposited on the PS270n-capped SiOx/Si substrate, were characterized by grazing-incidence small-angle X-ray scattering (GISAXS) at BL 23A of the National Synchrotron Radiation Research Center (NSRRC), Hsinchu, or by in-house GISAXS instrument (Nano-Viewer, Rigaku, Tokyo, Japan), using Cu Kα X-rays of λ = 1.54 Å (30 kV and 40 mA) at the National Central University (NCU). The incident angle was 0.17° and the energy of synchrotron-based X-rays was 10 keV for GISAXS measurements at NSRRC. Reciprocal-space scattering signals were collected by a Pilatus 2D area detector. The output data are GISAXS 2D images with intensity as functions of q// and q, where q// and q denote the scattering momentum vector along the lateral and normal direction, respectively. A standard sample, silver behenate, was used for calibration of the sample-to-detector distance and scattering momentum vector.

3. Results and Discussion

3.1. Morphological Observations

Our previous studies [52,53,54] have demonstrated that cylinders and lamellae tend to adopt perpendicular orientations to SiOx/Si with a layer of neutralized PS chains. For the films on PS270n-SiOx/Si, there is no miscibility between the PS270n and the PS block because the molecular weight of PS270n is considerably higher than the molecular weight of the PS block. In parallel to Hashimoto et al.’s findings [22,23], large disparities in chain length can lead to immiscibility rather than miscibility. Furthermore, after the capping layer of the PS270 chains was cross-linked and mildly oxidized, its chain mobility was limited and it was therefore not miscible with the short PS6 chains. Thus, after thermal annealing, there must be no interpenetration between the BCP films and the neutralized PS layers of the specimens.
Figure 1A–D shows representative AFM images of the pristine thin films (hi = 97 nm) without UV-light exposure and acetic acid rinsing. As Figure 1A–D shows, several prominent features are worth our attention. Firstly, the neat P(S21-b-M21) and P(S21-b-M21)/PS6 (95/5) thin films both display a morphology of fingerprint-like nanodomains on PS270n-SiOx/Si (Figure 1A,B). The P(S21-b-M21)/PS6 (75/25) film displays a morphology of dot-like nanodomains packed in rows (Figure 1C). In particular, each row of dot-like nanodomains is sandwiched by two neighboring worm-like nanodomains. This morphology appears to be similar to a morphology of discrete perforations within lamellae [55]. Furthermore, the dot-like nanodomains lack in-plane hexagonal arrays. For the P(S21-b-M21)/PS6 (50/50) film, the AFM image shows a patchy surface (Figure 1D). The patchy surface is partially due to the coexistence of dot-like nanodomains with an ill-defined morphology. The ill-defined morphology suggests that there should be a PS overlayer on the free surface. The PS overlayer has an incomplete surface coverage. Thus, the patchy PS overlayer may be due to partial surface aggregation from short PS6 chains. Such surface aggregation of short chains in our system is similar to the segregation behavior of short chains in a binary mixture of two homopolymers with different molecular weights [56,57].
Nevertheless, with the exception of the P(S21-b-M21)/PS6 (50/50) film, there is no PS overlayer on the surface of most of the thin films on PS270n-SiOx/Si. Thus, the PMMA nanodomains are directly exposed to air. To increase the morphological contrast of the thin films on PS270n-SiOx/Si, UV-light exposure of 2.5 h was performed in order to selectively degrade the PMMA block and to cross-link the PS block. After UV-light exposure, the degraded PMMA block chains were rinsed by brief immersion in acetic acid. Upon removal of degraded PMMA through acetic acid rinsing, a hierarchical structure was obtained from the structural evolution of the fingerprint-like nanodomains (Figure 1E,F). Furthermore, acetic acid rinsing not only removed the PMMA nanodomains but also “swelled” the PS nanodomains. Close inspection of Figure 1E-F demonstrates that the hierarchical structure was composed of two periodic series of alternating layers. The first periodic series was alternating layers of relief nano-stripe and shallow nanogroove; the second periodic series was composed of alternating layers of deep nanogroove and relief mesa.
We further analyzed the fast Fourier transfer (FFT) patterns and height profiles of AFM images 1A&B and 1E&F (Figures S1 and S2 of supporting information). As one can see, the hierarchical structure exhibits two periodic spacings (Figure S1C,D) but the fingerprint-like nanodomains only show one periodic spacing (Figure S1A,B). A careful comparison indicates that the small spacing should result from the intrinsic periodicity of the self-assembled nanodomains, while the large spacing should result from the correlation of the deep nanogrooves.
Figure S2 shows the height profiles of the neat P(S21-b-M21) and P(S21-b-M21)/PS6 (95/5) thin films before and after a combination of UV-light exposure and acetic acid rinsing. As Figure S2A,B shows, the height difference between the relief nano-stripes and shallow nanogrooves was less than 2 nm before UV-light exposure followed by acetic acid ringing. In contrast, the height difference between the relief mesas and deep trenches became more than 8 nm after UV-light exposure followed by acetic acid ringing (Figure S2C,D). Furthermore, the two periodic spacings were incommensurate. In other words, d2 ≠ nd1, where d1 denotes the spacing of the self-assembled nanodomains, d2 denotes the spacing of the deep nanogrooves, and n is an integer. d1 and d2 were approximately evaluated as 26.1–29.9 nm and 78.3–84.1 nm, respectively.
To clearly see the pattern of a hierarchical structure in the two periodicities, we characterized another neat PS-b-PMMA film of hi = 97 nm with SEM. The film was prepared by the same preparation procedure as the sample in Figure 1E. As the low-magnification SEM image (Figure 2) shows, the surface of the film clearly displays a similar morphology of hierarchical structures as the two periodicities. Close scrutiny of the SEM image shows that the lower periodicity is produced by the long period of perpendicular lamellae (see the insert of Figure 2).
The P(S21-b-M21)/PS6 (75/25) thin film on PS270n-SiOx/Si displays another striking morphology, after the same procedure was carried out to remove PMMA but crosslink PS (Figure 1G). As Figure 1G shows, alternating layers and rows of dimple-like pores coexisted. Each row of dimple-like pores was surrounded by two neighboring layers. In contrast, the same procedure produced a coexistence of two kinds of nanostructures for the P(S21-b-M21)/PS6 (50/50) film on PS270n-SiOx/Si. As Figure 1H shows, one kind composed dimple-like pores (marked as region i) and the other kind composed mushroom-like nanodomains (marked as region ii). The dimple-like pores were present in the areas that initially displayed dot-like nanodomains, while the mushroom-like nanodomains were present in the patchy areas that displayed the ill-defined morphology. Close inspection of the morphology of region ii demonstrates that the mushroom-like nanodomains seem to grow on top of worm-like nanodomains.
The observed morphologies are further explained in detail. Firstly, three phases formed at different PS contents. Similarly to the neat symmetric P(S21-b-M21), the P(S21-b-M21)/PS6 (95/5) thin films formed lamellae. The P(S21-b-M21)/PS6 (75/25) films formed perforated layers. The P(S21-b-M21)/PS6 (50/50) films formed cylinders. Secondly, perpendicular domain orientation was favored for the lamellae and perforated-layer phases, but a mixed orientation was favored for the cylinder phase on PS270n-capped SiOx/Si. Thirdly, the hierarchical nanostructure obtained for the films with perpendicular lamellae may be linked to surface instability as a result of osmotic pressure. Furthermore, osmotic pressure also led to the formation of mushroom-like structures for the cylinders on PS270n-SiOx/Si. More details of surface wrinkling will be interpreted in the last section.
For the P(S21-b-M21)/PS6 (75/25) mixture, its thin films tend to form perforated layers where the PS component not only formed layers but also formed perforations embedded within the PMMA layers. During the perforated-layer phase, PMMA removal produced dimple-like nanodomains, as observed in Figure 1G. Close inspection of Figure 1G demonstrates that the perpendicular perforated layers on PS270n-capped SiOx/Si were dense in dislocation and disclination defects. The defects span over a large area along the lateral direction. Due to the defects, the PS perforations in the perpendicular perforated layers lacked a long-range order, and consequently neither AB nor ABC inter-layer stacking was present in the perforations. Instead, a liquid-like order appeared in the PS perforations.
The coexistence of patches of dimple-like pores and mushroom-like nanostructures suggests that the cylinders on PS270n-SiOx/Si should have two different orientations (Figure 1H). The coexistence of the mixed orientation is ascribed to the surface segregation of certain short PS chains. In other words, the free surface should not reach a perfect neutralization state when the P(S21-b-M21)/PS6 (50/50) film on PS270n-SiOx/Si is annealed at 230 °C. For thin films of neat P(S-b-MMA) BCPs, the neutralization of the free surface can be controlled by annealing the temperature [58].
As reported in literature [59], the surface energy (γ) of polymers is usually a function of temperature (T) and molecular weight (MW). γ is inversely proportional to T but directly proportional to MW. For a symmetric P(S-b-MMA) BCP, PS has a lower γ than PMMA at room temperature. The difference in γ is due to the intrinsic nature between the two chemically different species. As the temperature-dependent declining of γ is slightly higher for PMMA than for PS upon heating, the γ values of PS and PMMA can eventually become identical when thermal annealing is performed a high temperature [58,60].
For a symmetric, lamellae-forming P(S-b-MMA), the free surface can be perfectly neutralized by thermal annealing at 225 °C [58]. As both the free surface and substrate interfaces are perfectly neutralized, there must be no segregation of either of the two blocks onto the free surface and substrate interface. However, if there is any disparity in the molecular weight between the PS and PMMA blocks or between their chemically identical species, achieving a neutralized free surface with temperature control should compensate the additional disparity. Furthermore, Demarquette et al. demonstrated that the surface energy of PS decreases with increasing MW [59]. In our study, we speculate that the low-molecular-weight PS6 must have a lower γ than the PS block. Thus, selectively adding the low-molecular-weight PS6 homopolymer into the PS block should increase the disparity in the surface energy between the PMMA and PS blocks. Hence, annealing at 230 °C may not produce a perfect neutral situation for the free surface. In other words, the free surface should still remain selective for the affinity of the PS6. The competition between the selective free surface and the neutral substrate interface consequently led to the coexistence of the two orientations observed for the P(S21-b-M21)/PS6 (50/50) film on PS270n-SiOx/Si.
An alternative reason is that grains have different orientations in an ill-defined cylindrical structure, which might also produce the morphology observed in Figure 1D. This might be due to a poor neutralization (irradiation of the PS mats affords surface neutralization for lamellar morphology) or non-optimized annealing conditions (annealing conducted too close to the ODT due to the addition of the short PS chains). Considering that the above reason is also possible when interpreting the ill-defined morphology, the surface preference of short chains on thin blend films will be further clarified in the future.
The parallel PMMA cylinders should be buried underneath the free surface because of the surface segregation of certain short PS chains. In the presence of aggregated PS chains, the parallel PMMA cylinders underneath the free surface should still remain in a pristine state. This is because UV-light exposure was not able to degrade the PMMA block through the PS overlayer. Furthermore, UV-light exposure cross-linked the PS overlayer. Under this condition, immersion in acetic acid should produce an accumulation of osmotic pressure within the pristine PMMA cylinders. Once the magnitude of osmotic pressure overwhelms the mechanical property of the PS block, the PMMA cylinders swollen by acetic acid are forced to pierce the PS overlay, consequently resulting in mushroom cups. Such behavior is similar to the response of the nanostructures immersed in an acidic solution [47]. In contrast, the perpendicular PMMA cylinders on PS270n-SiOx/Si were able to be directly removed by the same combination of UV-light exposure and acetic acid rinsing. As a result, the removal of the perpendicular PMMA cylinders produced dimple-like nanodomains.

3.2. Spatial Ordering

Figure 3 shows GISAXS 2D patterns of another set of P(S21-b-M21)/PS6 thin films with the same compositions as those that were prepared on PS270n-SiOx/Si for morphological observations. Figure 3 shows GISAXS 2D patterns and 1D profiles for the pristine films with no UV-light exposure or acetic acid rinsing. As Figure 3A,B shows, both the perpendicular lamellae and perforated layers supported on PS270n-SiOx/Si show partial Debye-Scherrer (DS) arcs in the 2D GISAXS patterns. Such DS arcs have been interpreted in previous studies [61,62,63]. The presence of DS arcs can be ascribed to the formation of defective lamellae. Thus, it is likely that some of the lamellae might not be perfectly perpendicular to the substrate direction, and that defective lamellae, such as tilted and/or kinked lamellae, may exist in the perpendicular lamellae. Quantitatively analyzing the 1D in-plane GISAXS profiles demonstrates that the perpendicular lamellae on PS270n-SiOx/Si exhibit diffraction peaks in series with a positional ratio of either 1:3 for neat P(S21-b-M21) or 1:2:3 for P(S21-b-M21)/PS6 (95/5) (Figure 3Ei,Eii). The systematic forbidden of even-number diffraction peaks, as shown in Figure 3Ei, is due to the symmetric volume fraction of the neat P(S21-b-M21). Forbidden of even-number diffraction peaks is common when two phases forming lamellae have equal volume fractions [64]. The emerging of even-number diffraction peaks, as shown in Figure 3Eii, is ascribed to compositional asymmetry resulted from a selective incorporation of a small amount of PS chains into the PS block. According to the position of the first-order peak, the long period of lamellae was estimated as 27.7 nm for the neat P(S21-b-M21) film and 27.9 nm for the P(S21-b-M21)/PS6 (95/5) film.
For the perpendicular perforated layers on PS270n-SiOx/Si, the 1D GISAXS profile only displays a feature of lamellar stacking, showing diffraction peaks in series with a positional ratio of 1:2:3 (Figure 3Eiii). The result suggests that the perforations in the perpendicular perforated layers only have a liquid-like order so that only the diffraction feature corresponding to lamellar stacking is present. By quantitatively analyzing the first-order peak centered at q// = 0.0211 Å−1, the inter-lamellae distance was estimated to be 29.8 nm for the perforated-layer phase.
For the P(S21-b-M21)/PS6 (50/50) film on PS270n-SiOx/Si, two sharp scattering rods are discerned (Figure 3D,Eiv). The two rods have a positional ratio of 1:(4/3)1/2. According to Kramer et al.’s study [65], the positional ratio can be taken as an indication of cylinders with mixed perpendicular and parallel orientation. The two scattering rods are marked as q//par and q//per, where q//par denotes the first-order diffraction of parallel cylinders and q//per denotes the first-order diffraction of perpendicular cylinders. The q//par rod centered at 0.0170 Å−1 exhibits intensity undulations in series along the q direction but such intensity undulations are absent from the q//per rod centered at 0.0197 Å−1 (Figure 3D,Eiv).
After being exposed to UV-light irradiation and subsequent acetic acid rinsing, the films deposited on PS270n-SiOx/Si were characterized by GISAXS. As Figure 3F,J shows, several noticeable features emerge. Firstly, standing waves are clearly observable for the films. Secondly, the partial Debye-Scherrer rings disappeared for the films with perpendicular lamellae (Figure 3F,G). The absence of the Debye-Scherrer arcs implies that the defective lamellae might be eliminated by osmotic pressure. Thirdly, the sharp Bragg diffraction truncation rods extend toward high q with enhanced intensity. The enhanced intensity observed for those sharp rods is due to an increase in the scattering contrast between the porous channels and cross-linked PS nanodomains. Furthermore, there are additional diffraction lobes, which newly emerge at q// = 0.0095 Å−1 and symmetrically locate beside the shadow of beam stopper. The diffraction lobes are highlighted by black asteroids in Figure 3F,G,Ji,Jii. The additional diffraction lobes exhibit strong intensities and broad q// widths. The broad diffraction lobes should arise from the wrinkles as a result of osmotic pressure that may form during acetic acid rinsing. The broad q// width indicates that the wrinkles have a broad distribution of inter-domain spacing. The averaged inter-domain distance (λwrinkle) was approximately 66.4 nm.
For the P(S21-b-M21)/PS6 (75/25) thin film, the Bragg diffraction rods display enhanced intensity so that the positional ratio of 1:2:3 can be easily recognized in the GISAXS pattern (Figure 3H,Jiii). In addition, the broad hump associated with surface wrinkles shows a depressed intensity. The depressed intensity indicates that wrinkle formation could be suppressed in the perforated layers. The reason is that the incorporation of the PS homopolymer could increase inter-layer connectivity and may increase resistance to the deformation that was driven by osmotic pressure (Figure 3H,Jiii).
Figure 3I shows GISAXS pattern of the P(S21-b-M21)/PS6 (50/50) thin film. The diffraction feature associated with wrinkles was totally absent, indicating that film wrinkling could be completely prohibited for the P(S21-b-M21)/PS6 (50/50) thin film. The absence of surface wrinkling is due to an increase in continuity and interconnectivity of the PS matrix. As a result, only intense diffraction truncation rods/peaks, corresponding to self-assembled nanocylinders, are left in Figure 3I,Jiv. Even high-order peaks labelled by 31/2, 41/2, 71/2 and 91/2 emerged at high q//. The relative q// positions offer evidence that the diffraction rods/peaks marked with q//par in series resulted from parallel cylinders and the rods/peaks marked with q//per resulted from perpendicular cylinders. Another striking feature shown in Figure 3I demonstrates that the intensity extension of the q//par peak displays several modulations along the q direction. The intensity of modulations imply a heterogeneous density distribution along the substrate normal. In contrast, the q//per rods exhibit no intensity modulations along the q direction because their q-component intensity quickly dampens at high q. Previous studies have demonstrated that intensity modulations along q are related to the correlation of heterogeneous density distributions along substrate normal direction [66,67]. In our study, the intensity modulations observed for the q//par rods should be ascribed to the out-of-plane correlation of parallel cylinders along the substrate normal. In the P(S21-b-M21)/PS6 thin film, the perpendicular cylinders grew and propagated throughout the whole film thickness. Thus, the absence of intensity modulations for the q//per rods suggests that the free surface and the substrate interface were uncorrelated in the perpendicular cylinders. For uncorrelated interfaces, it has been proposed that the roughness of a free surface is mainly determined by the surface topography of perpendicular nanodomains, while the roughness of a substrate interface is determined by an underlying substrate [66,67,68].

3.3. Surface Wrinkling for Perpendicular Lamellae

Previous studies [42,43,69] demonstrated that the surface property of a film can be altered by UV-light/ozone exposure. The skin surface of a film inevitably exhibits a different mechanical property from an inner region underneath the surface because the light dosage varies along the depth of the film. As a result, solvent swelling of such a film with two distinct mechanical properties frequently induces wrinkle patterns, whose period and amplitude are governed by the interplay between mechanical properties (such as moduli of a cross-linked skin layer and non-cross-linked inner region underlying it), swelling ratios by solvent, and thicknesses [42,43]. In other words, the periodicity (λc) and amplitude of wrinkles strongly depend on properties of materials, given by [42,43].
λ c = 2 π h s [ ( 1 v f 2 ) E s 3 ( 1 v s 2 ) E f ] 1 / 3
where hs denotes the thickness of a skin layer; Es, Ef, vs and vf are the elastic moduli and poisson’s ratios of the cross-linked skin layer and uncross-linked inner, respectively According to Equation (1), the wavelength of wrinkles can increase with increasing hs. In our study, hs could be increased by long duration of UV-light exposure.
To study the effect of the duration of UV-light exposure on the periodicity wrinkles, we prepared two neat P(S21-b-M21) thin films that initially formed perpendicular lamellae on PS270n-SiOx/Si. One P(S21-b-M21) film was selected for UV-light exposure of 5 h followed by acetic acid rinsing. The other one was not exposed to UV-light but directly immersed in acetic acid for rinsing. As Figure 4A shows, most of the perpendicular lamellae without UV-light exposure collapsed after direct immersion in acetic acid. The collapse of perpendicular lamellae thus resulted in surface roughening with height variations being less than 10 nm (Figure 4B). In contrast, the perpendicular lamellae with prolonged UV-light exposure formed profound wrinkles (Figure 4C). The profound wrinkles have expanded widths and deep valleys (Figure 4D). This experiment verifies that a combination of UV-light exposure and acetic acid rinsing enabled surface wrinkling for perpendicular lamellae. Additionally, this result demonstrates that the periodicity and amplitude of the wrinkles could increase alongside increasing the duration of exposure. However, if the distance between two relief nano-stripes is extremely small due to expansion of PS nanodomains, the shallow nanogrooves resulted from PMMA removal may not be clearly probed with AFM (Figure 4C). Therefore, the relief nano-stripes seem to fuse together to form lamellar bundles with expanded width (see Figure 4C). Furthermore, the height and depth of the wrinkles fluctuate widely (Figure 4D). Thus, the wrinkles have polydisperse sizes. As a result, only a diffuse FFT pattern was present (see the inset of Figure 4C). Considering possible AFM tip-sample effects, we also carried out SEM to characterize the sample of Figure 4A,B. As the insert of Figure 4E shows, the perpendicular lamellae were tightly squeezed so that their packing is hardly probed, even under the SEM characterization. Instead, only the pattern of surface wrinkles with a large periodicity can be clearly observed in Figure 4E.
Different molecular weight should have distinct mechanical properties. Therefore, in addition to the dosage of UV-light exposure, surface wrinkling should be influenced by BCP molecular weight. To study the effect of molecular weight in P(S-b-MMA) on surface wrinkling, we prepared thin films of neat P(S-b-MMA) BCPs of different molecular weights. After thermal annealing at 230 °C, the films formed perpendicular lamellae on PS270n-SiOx/Si. To induce osmotic pressure, the thermally annealed films were exposed to UV-light for 2.5 h followed by brief acetic acid rinsing. The films were characterized by AFM and GISAXS. As Figure 5 shows, the treatment of UV-light exposure and acetic acid rinsing only produced relief nano-stripes. The relief nano-stripes are due to PMMA removal. No wrinkling formed in films of P(S45-b-M44), P(S53-b-M54) and P(S65-b-M61) BCPs. In contrast, the film of P(S33-b-M33) could form wrinkles with small amplitude (Figure 5A). Due to small amplitude, the feature of surface wrinkling was not clearly probed by AFM but could be detected by GISAXS (Figure 5Ei). In Figure 5Ei, the broad humps were associated with surface wrinkling. This result indicates that using high-molecular-weight P(S-b-MMA) BCPs could prevent thin films from surface wrinkling during acetic acid rinsing.
To study the effects of film thickness on surface wrinkling, we also prepared another set of thin films (hi = 16.3 nm) on PS270n-capped SiOx/Si for the neat P(S21-b-M21) and P(S33-b-M33) BCPs. After UV exposure and acetic acid rinsing, the surface morphology of the pristine film was characterized by AFM and GISAXS. As Figure 6A,B shows, the P(S21-b-M21) and P(S33-b-M33) films form nanogrooves in series as a result of PMMA removal. Additionally, the size of the nanogrooves is comparable to the dimension of the fingerprint-like nanodomains. This result suggests that osmotic pressure should not significantly expand the size of the perpendicular lamellae. Nevertheless, the corresponding GISAXS patterns of the nanogrooves for the P(S21-b-M21) film still displays a scattering of broad humps as a result of surface wrinkling (Figure 6Ci). The scattering humps show weak intensity and coexist with Bragg truncation rods. The result indicates that the amplitude of the surface wrinkle in thin films is smaller than that in thick films. Furthermore, the broad scattering humps are located at q// = 0.01107 Å−1. According to the position of the scattering lobes, the periodicity was estimated at approximately 56.8 nm. Both weak intensity and small periodicity suggest that although surface wrinkling could still form in thin films, the extent of surface wrinkling is limited by the thickness of the film.
On the basis of the morphological observations made above, we propose a mechanism of surface wrinkling triggered by osmotic pressure that occurs during immersion in acetic acid for the films with perpendicular lamellae. For surface wrinkling, two requirements must be satisfied: UV-light exposure and solvent swelling. The former requirement changes the mechanical and chemical properties of a film. The latter requirement imparts external force to trigger surface wrinkling.
In this study, neat P(S-b-MMA), and its blend with a low content of PS, tend to form perpendicular lamellae on the neutralized substrate (see the top diagrammatic sketch of Figure 7). The main purpose of UV-light exposure is to remove the PMMA component through oxidative degradation. However, UV-light exposure also cross-links the PS component. Our previous study demonstrated that the cross-linking of the PS component initiates from chain-scission, which must produce free radicals with a concentration gradient [52,70]. The concentration gradient of free radicals is likely due to different distances to a UV-lamp and the attenuation of the UV-light by the top surface. The top surface and inner part of the films should experience disparate UV-light dosages. As a result, the free surface has the highest concentration of free radicals, whereas the bottom region in the vicinity of the substrate interface has the lowest concentration of free radicals. The free radicals are reactive species, which can react with either their analogous radicals or oxygen molecules. A recombination of free radicals leads to cross-linking and the reaction of free radicals with oxygen species results in oxidation. Similarly to the distribution of free radicals, the concentration of oxygen molecules is also gradient: highest on the free surface and lowest in the vicinity of the substrate interface. Thus, it is expected that the extents of oxidation and cross-linking depend on various depths within a film. Our result is correlates with previous studies [69,71], which have demonstrated that varied oxidation and cross-linking can lead to variations in property between the free surface and inner regions.
Next, we explain why acetic acid rinsing can result in surface wrinkling of the UV-light-exposed films that form perpendicular lamellae. The interpretation of the generation of osmotic pressure is based on the Tanaka et al.’s pioneering work [72]. When the thin films were immersed in acetic acid for rinsing, acetic acid could quickly swell the films. Solvent swelling always started from the outer surface and gradually diffused into the inner regions of the film. Thus, there should be a gradient in the concentration of acetic acid within the films. The bottom area, close to the rigid substrate, should remain confined and unchanged. By acetic acid rinsing, anisotropic osmotic pressure is caused by different concentrations of acidic acid along the thickness of the film (see the middle diagrammatic sketch of Figure 7). If the molecular weight of the PS-b-PMMA top layer is low, such anisotropic pressure can easily deform the outer surface to wrinkle, leading to patterns of surface wrinkles (see the bottom diagrammatic sketch of Figure 7). In fact, such anisotropic pressure can result in the formation of surface nanostructures [47], pores [48,49], and wrinkles [69,71] in thin films supported on a rigid substrate. We also notice that surface instability might also be induced by capillary forces that may emerge during drying [73]. However, the mechanism of drying-induced capillary forces might not cause periodic wrinkles in films with perpendicular lamellae.

4. Conclusions

We have demonstrated the phase behavior of thin films with mixtures of a symmetric weakly-segregated P(S21-b-M21) and PS homopolymer, at various weight fractions. Upon blending PS at different weight fractions, perforated lamellae and cylinders were obtained in thin films of the P(S21-b-M21)/PS mixtures. A combination of UV-light exposure and acetic acid rinsing was used to remove the PMMA block. Interestingly, the post-treatment produced surface wrinkling for perpendicular lamellae. Such surface wrinkling is due to the interplay between UV-light exposure and acetic acid rinsing. As a result, wrinkled films with perpendicular lamellae formed a hierarchical structure with two periodicities. Nevertheless, the surface wrinkling could be suppressed by reducing the film thickness, increasing the PS content and using high P(S-b-MMA).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym13152480/s1. Figure S1.FFT patterns of Figure 1. Figure S2. Height profiles of Figure 1.

Author Contributions

Conceptualization, Y.-S.S.; formal analysis, Y.-F.C., J.-W.H. and J.-H.C.; methodology, Y.-F.C. and J.-W.H.; visualization, B.A.J.; writing—original draft preparation, Y.-S.S.; writing-review & editing, Y.-S.S.; supervision, Y.-S.S. All authors have read and agreed to the published version of the manuscript.

Funding

A financial support from the Ministry of Science and Technology MOST 107-2221-E-008-034-MY3) is gratefully acknowledged. We thank U-Ser Jeng and Chun-Jen Su at beamline BL23A of NSRRC for measuring GISAXS data.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Matsen, M.W.; Bates, F.S. Unifying Weak-and Strong-Segregation Block Copolymer Theories. Macromolecules 1996, 29, 1091–1098. [Google Scholar] [CrossRef]
  2. Knoll, A.; Horvat, A.; Lyakhova, K.S.; Krausch, G.; Sevink, G.J.A.; Zvelindovsky, A.V.; Magerle, R. Phase behavior in thin films of cylinder-forming block copolymers. Phys. Rev. Lett. 2002, 89, 035501. [Google Scholar] [CrossRef]
  3. Huinink, H.P.; Brokken-Zijp, J.C.M.; van Dijk, M.A. Asymmetric block copolymers confined in a thin film. J. Chem. Phys. 2000, 112, 2452–2462. [Google Scholar] [CrossRef] [Green Version]
  4. Knoll, A.; Magerle, R.J. Phase behavior in thin films of cylinder-forming ABA block copolymers: Experiments. Chem. Phys. 2004, 120, 1105–1116. [Google Scholar] [CrossRef] [PubMed]
  5. Horvat, A.; Lyakhova, K.S.; Sevink, G.J.A.; Zvelindovsky, A.V.; Magerle, R. Phase behavior in thin films of cylinder-forming ABA block copolymers: Mesoscale modeling. J. Chem. Phys. 2004, 120, 1117–1126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Knoll, A.; Lyakhova, K.S.; Horvat, A.; Krausch, G.; Sevink, G.J.A.; Zvelindovsky, A.V.; Magerle, R. Direct imaging and mesoscale modelling of phase transitions in a nanostructured fluid. Nat. Mater. 2004, 3, 886–891. [Google Scholar] [CrossRef] [PubMed]
  7. Laykhova, K.S.; Sevink, G.J.A.; Zvenlindovsky, A.V.; Horvat, A.; Magerle, R. Role of dissimilar interfaces in thin films of cylinder-forming block copolymers. J. Chem. Phys. 2004, 120, 1127–1137. [Google Scholar] [CrossRef] [PubMed]
  8. Huinink, H.P.; van Dijk, M.A.; Brokken-Zijp, J.C.M.; Sevink, G.J.A. Surface-induced transitions in thin films of asymmetric diblock copolymers. Macromolecules 2001, 34, 5325–5330. [Google Scholar] [CrossRef]
  9. Fasolka, M.J.; Mayes, A.M. Block copolymer thin films: Physics and applications. Annu. Rev. Mater. Res. 2001, 31, 323–355. [Google Scholar] [CrossRef] [Green Version]
  10. Matsen, M.W. Thin films of block copolymer. J. Chem. Phys. 1997, 106, 7781–7791. [Google Scholar] [CrossRef]
  11. Fasolka, M.J.; Banerjee, P.; Mayes, A.M.; Pickett, G.; Balazs, A.C. Morphology of ultrathin supported diblock copolymer films: Theory and experiment. Macromolecules 2000, 33, 5702–5712. [Google Scholar] [CrossRef]
  12. Morkved, T.L.; Jaeger, H.M. Thickness-induced morphology changes in lamellar diblock copolymer ultrathin films. Europhys. Lett. 1997, 40, 643–648. [Google Scholar] [CrossRef]
  13. Sparnacci, K.; Antonioli, D.; Gianotti, V.; Laus, M.; Lupi, F.F.; Giammaria, T.J.; Seguini, G.; Perego, M. Ultrathin random copolymer-grafted layers for block copolymer self-assembly. ACS Appl. Mater. Interfaces 2015, 7, 10944–10951. [Google Scholar] [CrossRef] [PubMed]
  14. Lupi, F.F.; Giammaria, T.J.; Seguini, G.; Vita, F.; Francescangeli, O.; Sparnacci, K.; Antonioli, D.; Gianotti, V.; Laus, M.; Perego, M. Fine Tuning of Lithographic Masks through Thin Films of PS-b-PMMA with Different Molar Mass by Rapid Thermal Processing. ACS Appl. Mater. Interfaces 2014, 6, 7180–7188. [Google Scholar] [CrossRef]
  15. Ham, S.; Shin, C.; Kim, E.; Ryu, D.Y.; Jeong, U.; Russell, T.P.; Hawker, C.J. Microdomain Orientation of PS-b-PMMA by Controlled Interfacial Interactions. Macromolecules 2008, 41, 6431–6437. [Google Scholar] [CrossRef]
  16. Huang, E.; Russell, T.P.; Harrison, C.; Chaikin, P.M.; Register, R.A.; Hawker, C.J.; Mays, J. Using surface active random copolymers to control the domain orientation in diblock copolymer thin films. Macromolecules 1998, 31, 7641–7650. [Google Scholar] [CrossRef]
  17. Huang, E.; Pruzinsky, S.; Russell, T.P.; Mays, J.; Hawker, C.J. Neutrality conditions for block copolymer systems on random copolymer brush surfaces. Macromolecules 1999, 32, 5299–5303. [Google Scholar] [CrossRef]
  18. Ryu, D.Y.; Ham, S.; Kim, E.; Jeong, U.; Hawker, C.J.; Russell, T.P. Cylindrical Microdomain Orientation of PS-b-PMMA on the Balanced Interfacial Interactions: Composition Effect of Block Copolymers. Macromolecules 2009, 42, 4902–4906. [Google Scholar] [CrossRef]
  19. Hong, S.; Higuchi, T.; Sugimori, H.; Kaneko, T.; Abetz, V.; Takahara, A.; Jinnai, H. Highly oriented and ordered double-helical morphology in ABC triblock terpolymer films up to micrometer thickness by solvent evaporation. Polym. J. 2012, 44, 567–572. [Google Scholar] [CrossRef] [Green Version]
  20. Han, E.; Stuen, K.O.; Leolukman, M.; Liu, C.C.; Nealey, P.F.; Gopalan, P. Perpendicular orientation of domains in cylinder-forming block copolymer thick films by controlled interfacial interactions. Macromolecules 2009, 42, 4896–4901. [Google Scholar] [CrossRef]
  21. She, M.S.; Lo, T.Y.; Ho, R.M. Long-range ordering of block copolymer cylinders driven by combining thermal annealing and substrate functionalization. ACS Nano 2013, 7, 2000–2011. [Google Scholar] [CrossRef]
  22. Hashimoto, T.; Tanaka, H.; Hasegawa, H. Ordered structure in mixtures of a block copolymer and homopolymers. 2. Effects of molecular weights of homopolymers. Macromolecules 1990, 23, 4378–4386. [Google Scholar] [CrossRef]
  23. Tanaka, H.; Hasegawa, H.; Hashimoto, T. Ordered structure in mixtures of a block copolymer and homopolymers. 1. Solubilization of low molecular weight homopolymers. Macromolecules 1991, 24, 240–251. [Google Scholar] [CrossRef]
  24. Winey, K.I.; Thomas, E.L.; Fetters, L.J. Ordered morphologies in binary blends of diblock copolymer and homopolymer and characterization of their intermaterial dividing surfaces. J. Chem. Phys. 1991, 95, 9367–9375. [Google Scholar] [CrossRef]
  25. Matsen, M.W. Phase behavior of block copolymer/homopolymer blends. Macromolecules 1995, 28, 5765–5773. [Google Scholar] [CrossRef]
  26. Matsen, M.W. Stabilizing new morphologies by blending homopolymer with block copolymer. Phys. Rev. Lett. 1995, 74, 4225. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Huang, Y.Y.; Chen, H.L.; Hashimoto, T. Face-centered cubic lattice of spherical micelles in block copolymer/homopolymer blends. Macromolecules 2003, 36, 764–770. [Google Scholar] [CrossRef]
  28. Chu, C.Y.; Pei, R.Y.; Chen, H.L. Order–Order Transition from Ordered Bicontinuous Double Diamond to Hexagonally Packed Cylinders in Stereoregular Diblock Copolymer/Homopolymer Blends. Macromolecules 2018, 51, 8493–8500. [Google Scholar] [CrossRef]
  29. Wang, H.F.; Yu, L.H.; Wang, X.B.; Ho, R.M. A facile method to fabricate double gyroid as a polymer template for nanohybrids. Macromolecules 2014, 47, 7993–8001. [Google Scholar] [CrossRef]
  30. Jeong, U.; Ryu, D.Y.; Kho, D.H.; Lee, D.H.; Kim, J.K.; Russell, T.P. Phase behavior of mixtures of block copolymer and homopolymers in thin films and bulk. Macromolecules 2003, 36, 3626–3634. [Google Scholar] [CrossRef]
  31. Jeong, U.; Ryu, D.Y.; Kho, D.H.; Kim, J.K.; Goldbach, J.T.; Kim, D.H.; Russell, T.P. Enhancement in the orientation of the microdomain in block copolymer thin films upon the addition of homopolymer. Adv. Mater. 2004, 16, 533–536. [Google Scholar] [CrossRef]
  32. Stoykovich, M.P.; Müller, M.; Kim, S.O.; Solak, H.H.; Edwards, E.W.; de Pablo, J.J.; Nealey, P.F. Directed assembly of block copolymer blends into nonregular device-oriented structures. Science 2005, 308, 1442. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Nagpal, U.; Kang, H.; Craig, G.S.W.; Nealey, P.F.; de Pablo, J.J. Pattern Dimensions and Feature Shapes of Ternary Blends of Block Copolymer and Low Molecular Weight Homopolymers Directed To Assemble on Chemically Nanopatterned Surfaces. ACS Nano 2011, 5, 5673–5682. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, G.; Thomas, C.S.; Craig, G.S.W.; Nealey, P.F. Integration of Density Multiplication in the Formation of Device-Oriented Structures by Directed Assembly of Block Copolymer–Homopolymer Blends. Adv. Funct. Mater. 2010, 20, 1251–1257. [Google Scholar] [CrossRef]
  35. Stoykovich, M.P.; Kang, H.; Daoulas, K.C.; Liu, G.; Liu, C.C.; de Pablo, J.J.; Müller, M.; Nealey, P.F. Directed self-assembly of block copolymers for nanolithography: Fabrication of isolated features and essential integrated circuit geometries. ACS Nano 2007, 1, 168–175. [Google Scholar] [CrossRef] [PubMed]
  36. Stuen, K.O.; Thomas, C.S.; Liu, G.; Ferrier, N.; Nealey, P.F. Dimensional Scaling of Cylinders in Thin Films of Block Copolymer—Homopolymer Ternary Blends. Macromolecules 2009, 42, 5139–5145. [Google Scholar] [CrossRef]
  37. Orso, K.A.; Green, P.F. Phase behavior of thin film blends of block copolymers and homopolymers: Changes in domain dimensions. Macromolecules 1999, 32, 1087–1092. [Google Scholar] [CrossRef]
  38. Ahn, H.; Lee, Y.; Lee, H.; Park, S.; Kim, Y.; Cho, J.; Ryu, D.Y. Microdomain expansion and transition behavior of PS-b-PMMA/PS homopolymers by SAXS analysis. Polymer 2012, 53, 5163–5169. [Google Scholar] [CrossRef]
  39. Joo, W.; Yang, S.Y.; Kim, J.K.; Jinnai, H. Nanohole Structure Prepared by a Polystyrene-block-poly(methyl methacrylate)/poly(methyl methacrylate) Mixture Film. Langmuir 2008, 24, 12612–12617. [Google Scholar] [CrossRef]
  40. Doerk, G.S.; Yager, K.G. Rapid ordering in “wet brush” block copolymer/homopolymer ternary blends. ACS Nano 2017, 11, 12326–12336. [Google Scholar] [CrossRef] [PubMed]
  41. Doerk, G.S.; Li, R.; Fukuto, M.; Rodriguez, A.; Yager, K.G. Thickness-dependent ordering kinetics in cylindrical block copolymer/homopolymer ternary blends. Macromolecules 2018, 51, 10259–10270. [Google Scholar] [CrossRef]
  42. Rodriguez-Hernandez, J. Wrinkled interfaces: Taking advantage of surface instabilities to pattern polymer surfaces. Prog. Polym. Sci. 2015, 42, 1–41. [Google Scholar] [CrossRef] [Green Version]
  43. Chung, J.Y.; Nolte, A.J.; Stafford, C.M. Surface wrinkling: A versatile platform for measuring thin-film properties. Adv. Mater. 2011, 23, 349–368. [Google Scholar] [CrossRef] [PubMed]
  44. Hayward, R.C.; Chmelka, B.F.; Kramer, E.J. Template cross-linking effects on morphologies of swellable block copolymer and mesostructured silica thin films. Macromolecules 2005, 38, 7768–7783. [Google Scholar] [CrossRef] [Green Version]
  45. Croll, A.B.; Crosby, A.J. Pattern driven stress localization in thin diblock copolymer films. Macromolecules 2012, 45, 4001–4006. [Google Scholar] [CrossRef]
  46. Lee, J.H.; Jeong, H.C.; Won, J.; Kim, D.H.; Lee, D.W.; Song, I.H.; Oh, J.Y.; Kim, D.H.; Liu, Y.; Seo, D.S. Formation of the Wrinkle Structure on a Styrene–Butadiene–Styrene Block Copolymer Surface by Surface Chemical Reformation via Ion-Beam Irradiation. J. Phys. Chem. C 2020, 124, 8378–8385. [Google Scholar] [CrossRef]
  47. Chai, J.; Wang, D.; Fan, X.; Buriak, J.M. Assembly of aligned linear metallic patterns on silicon. Nat. Nanotechnol. 2007, 2, 500–506. [Google Scholar] [CrossRef] [PubMed]
  48. Zavala-Rivera, P.; Channon, K.; Nguyen, V.; Sivaniah, E.; Kabra, D.; Friend, R.H.; Nataraj, S.K.; Al-Muhtaseb, S.A.; Hexemer, A.; Calvo, M.E.; et al. Collective osmotic shock in ordered materials. Nat. Mater. 2012, 11, 53–57. [Google Scholar] [CrossRef]
  49. Wang, Y.; Li, F. An Emerging Pore-Making Strategy: Confined Swelling-Induced Pore Generation in Block Copolymer Materials. Adv. Mater. 2011, 23, 2134–2148. [Google Scholar] [CrossRef]
  50. Xu, T.; Stevens, J.; Villa, J.; Goldbach, J.T.; Guarini, K.W.; Black, C.T.; Hawker, C.J.; Russell, T.P. Block copolymer surface reconstuction: A reversible route to nanoporous films. Adv. Func. Mater. 2003, 13, 698–702. [Google Scholar] [CrossRef]
  51. Xu, T.; Goldbach, J.T.; Misner, M.J.; Kim, S.; Gibaud, A.; Gang, O.; Ocko, B.; Guarini, K.W.; Black, C.T.; Hawker, C.J.; et al. Scattering study on the selective solvent swelling induced surface reconstruction. Macromolecules 2004, 37, 2972–2977. [Google Scholar] [CrossRef]
  52. Sun, Y.S.; Wang, C.T.; Liou, J.Y. Tuning polymer-surface chemistries and interfacial interactions with UV irradiated polystyrene chains to control domain orientations in thin films of PS-b-PMMA. Soft Matter 2016, 12, 2923–2931. [Google Scholar] [CrossRef]
  53. Yang, W.C.; Wu, S.H.; Chen, Y.F.; Nelson, A.; Wu, C.M.; Sun, Y.S. Effects of the Density of Chemical Cross-links and Physical Entanglements of Ultraviolet-Irradiated Polystyrene Chains on Domain Orientation and Spatial Order of Polystyrene-block-Poly(methyl methacrylate) Nano-Domains. Langmuir 2019, 35, 14017–14030. [Google Scholar] [CrossRef] [PubMed]
  54. Yang, W.C.; Hong, J.W.; Chang, J.H.; Chen, Y.F.; Nelson, A.; Wang, Y.M.; Chiang, Y.W.; Wu, C.M.; Sun, Y.S. Dispersity effects on phase behavior and structural evolution in ultrathin films of a deuterated polystyrene-block-poly(methyl methacrylate) diblock copolymer. Polymer 2020, 210, 123027. [Google Scholar] [CrossRef]
  55. Vukovic, I.; ten Brinke, G.; Loos, K. Hexagonally Perforated Layer Morphology in PS-b-P4VP(PDP) Supramolecules. Macromolecules 2012, 45, 9409–9418. [Google Scholar] [CrossRef] [Green Version]
  56. Matsen, M.W.; Kim, J.U.; Likhtman, A.E. Finite-N effects for ideal polymer chains near a flat impenetrable wall. Eur. Phys. J. E 2009, 29, 107–115. [Google Scholar] [CrossRef] [PubMed]
  57. Hariharan, A.; Kumar, S.K.; Russell, T.P. Free surfaces of polymer blends. II. Effects of molecular weight and applications to asymmetric polymer blends. J. Chem. Phys. 1993, 99, 4041–4050. [Google Scholar] [CrossRef]
  58. Mansky, P.; Russell, T.P.; Hawker, C.J.; Mays, J.; Cook, D.C.; Satija, S.K. Interfacial segregation in disordered block copolymers: Effect of tunable surface potentials. Phys. Rev. Lett. 1997, 79, 237–240. [Google Scholar] [CrossRef]
  59. Demarquette, N.R.; Moreira, J.C.; Shimizu, R.N.; Samara, M.; Kamal, M.R. Influence of temperature, molecular weight, and molecular weight dispersity on the surface tension of polystyrene, polypropylene, and polyethylene. II. Theoretical. J. Appl. Polym. Sci. 2002, 83, 2201–2212. [Google Scholar] [CrossRef]
  60. Wu, S. Surface and interfacial tensions of polymer melts. II. Poly (methyl methacrylate), poly (n-butyl methacrylate), and polystyrene. J. Phys. Chem. 1970, 74, 632–638. [Google Scholar] [CrossRef]
  61. Busch, P.; Rauscher, M.; Moulin, J.F.; Mueller-Buschbaum, P. Debye–Scherrer rings from block copolymer films with powder-like order. J. Appl. Cryst. 2011, 44, 370–379. [Google Scholar] [CrossRef]
  62. Vu, T.; Mahadevapuram, N.; Perera, G.M.; Stein, G.E. Controlling domain orientations in thin films of AB and ABA block copolymers. Macromolecules 2011, 44, 6121–6127. [Google Scholar] [CrossRef]
  63. Chourou, S.T.; Sarje, A.; Li, X.S.; Chan, E.R.; Hexemer, A. HipGISAXS: A high-performance computing code for simulating grazing-incidence X-ray scattering data. J. Appl. Cryst. 2013, 46, 1781–1795. [Google Scholar] [CrossRef]
  64. Roe, R.J. Methods of X-Ray and Neutron Scattering in Polymer Science; Oxford University Press: New York, NY, USA, 2000; Chapter 5; pp. 155–209. [Google Scholar]
  65. Khanna, V.; Cochran, E.W.; Hexemer, A.; Stein, G.E.; Fredrickson, G.H.; Kramer, E.J.; Li, X.; Wang, J.; Hahn, S.F. Effect of chain architecture and surface energies on the ordering behavior of lamellar and cylinder forming block copolymers. Macromolecules 2006, 39, 9346–9356. [Google Scholar] [CrossRef]
  66. Müller-Buschbaum, P. A basic introduction to grazing incidence small-angle X-ray scattering. Lect. Notes Phys. 2009, 776, 61–89. [Google Scholar]
  67. Sun, Y.S.; Chien, S.W.; Liou, J.Y. Probing relief terraces in destabilized thin films of an asymmetric block copolymer with grazing-incidence small-angle X-ray scattering. Macromolecules 2010, 43, 7250–7260. [Google Scholar] [CrossRef]
  68. Sun, Y.S.; Chien, S.W.; Liou, J.Y.; Su, C.H.; Liao, K.-F. Film instability induced evolution of hierarchical structures in annealed ultrathin films of an asymmetric block copolymer on polar substrates. Polymer 2011, 52, 1180–1190. [Google Scholar] [CrossRef]
  69. Chung, J.Y.; Nolte, A.J.; Stafford, C.M. Diffusion-controlled, self-organized growth of symmetric wrinkling patterns. Adv. Mater. 2009, 21, 1358–1362. [Google Scholar] [CrossRef]
  70. Liu, J.Y.; Sun, Y.S. Tailor-made dimensions of diblock copolymer truncated micelles on a solid by UV irradiation. Soft Matter 2015, 11, 7119–7129. [Google Scholar] [CrossRef] [PubMed]
  71. Guvendiren, M.; Yang, S.; Burdick, J.A. Swelling-induced surface patterns in hydrogels with gradient crosslinking density. Adv. Func. Mater. 2009, 19, 3038–3045. [Google Scholar] [CrossRef]
  72. Tanaka, T.; Sun, S.T.; Hirokawa, Y.; Katayama, S.; Kucera, J.; Hirose, Y.; Amiya, T. Mechanical instability of gels at the phase transition. Nature 1987, 325, 796–798. [Google Scholar] [CrossRef]
  73. Bico, J.; Reyssat, É.; Roman, B. Elastocapillarity: When surface tension deforms elastic solids. Annu. Rev. Fluid Mech. 2018, 50, 629–659. [Google Scholar] [CrossRef] [Green Version]

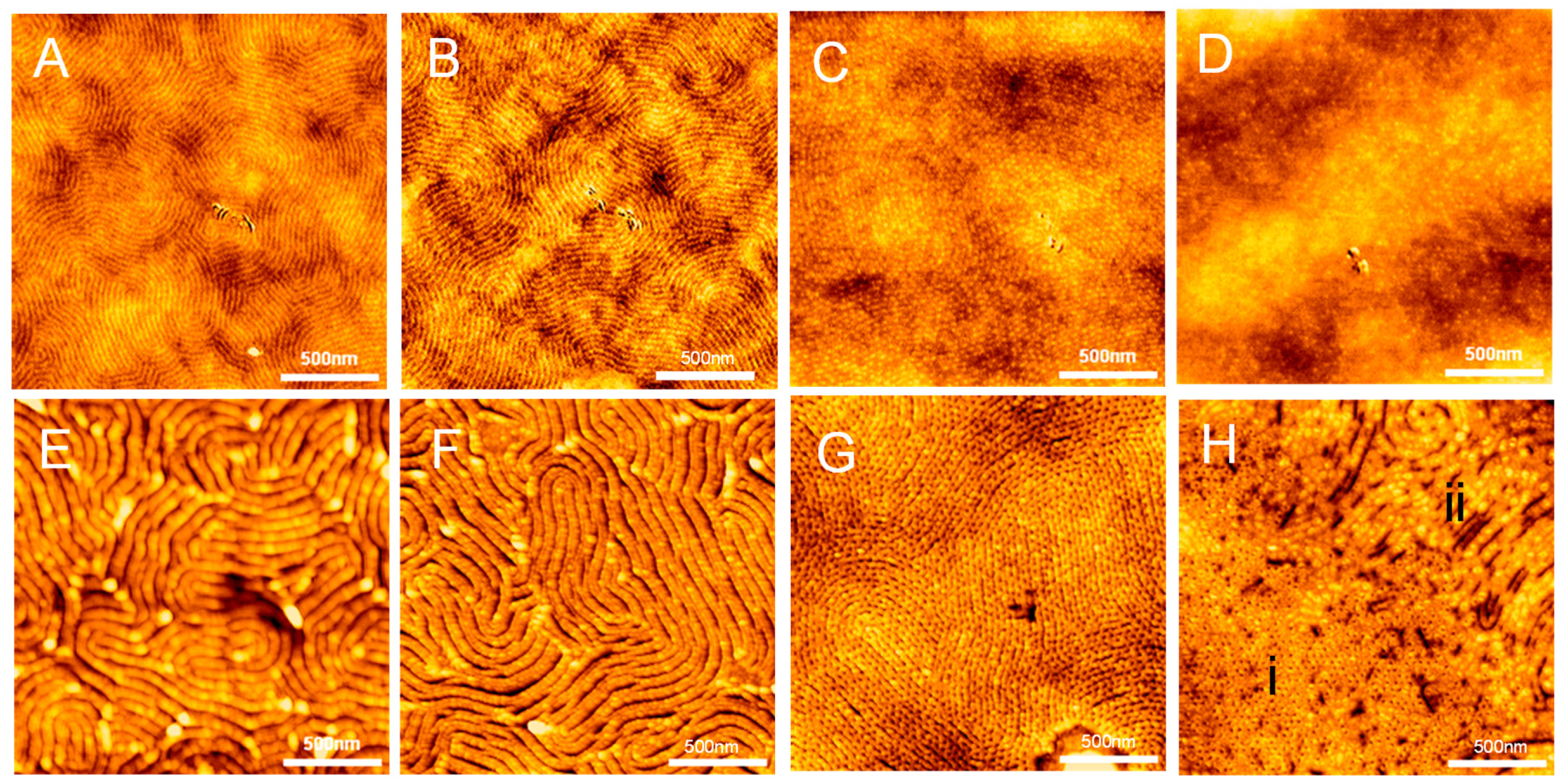

Figure 1. AFM topographic images of thin films (hi = 97 nm) of P(S21-b-M21)/PS6 mixtures of various weight fractions: (A,E) 100/0, (B,F) 95/5, (C,G) 75/25 and (D,H) 50/50, respectively. The thin films were spin-coated on PS270n-capped SiOx/Si substrates and then annealed at 230 °C (1 h). Images A–D were collected for the films without a combination of UV-light exposure (2.5 h) and acetic acid rinsing. Images E–H were collected for the films through a combination of UV-light exposure (2.5 h) and acetic acid rinsing.
Figure 1. AFM topographic images of thin films (hi = 97 nm) of P(S21-b-M21)/PS6 mixtures of various weight fractions: (A,E) 100/0, (B,F) 95/5, (C,G) 75/25 and (D,H) 50/50, respectively. The thin films were spin-coated on PS270n-capped SiOx/Si substrates and then annealed at 230 °C (1 h). Images A–D were collected for the films without a combination of UV-light exposure (2.5 h) and acetic acid rinsing. Images E–H were collected for the films through a combination of UV-light exposure (2.5 h) and acetic acid rinsing.
Polymers 13 02480 g001

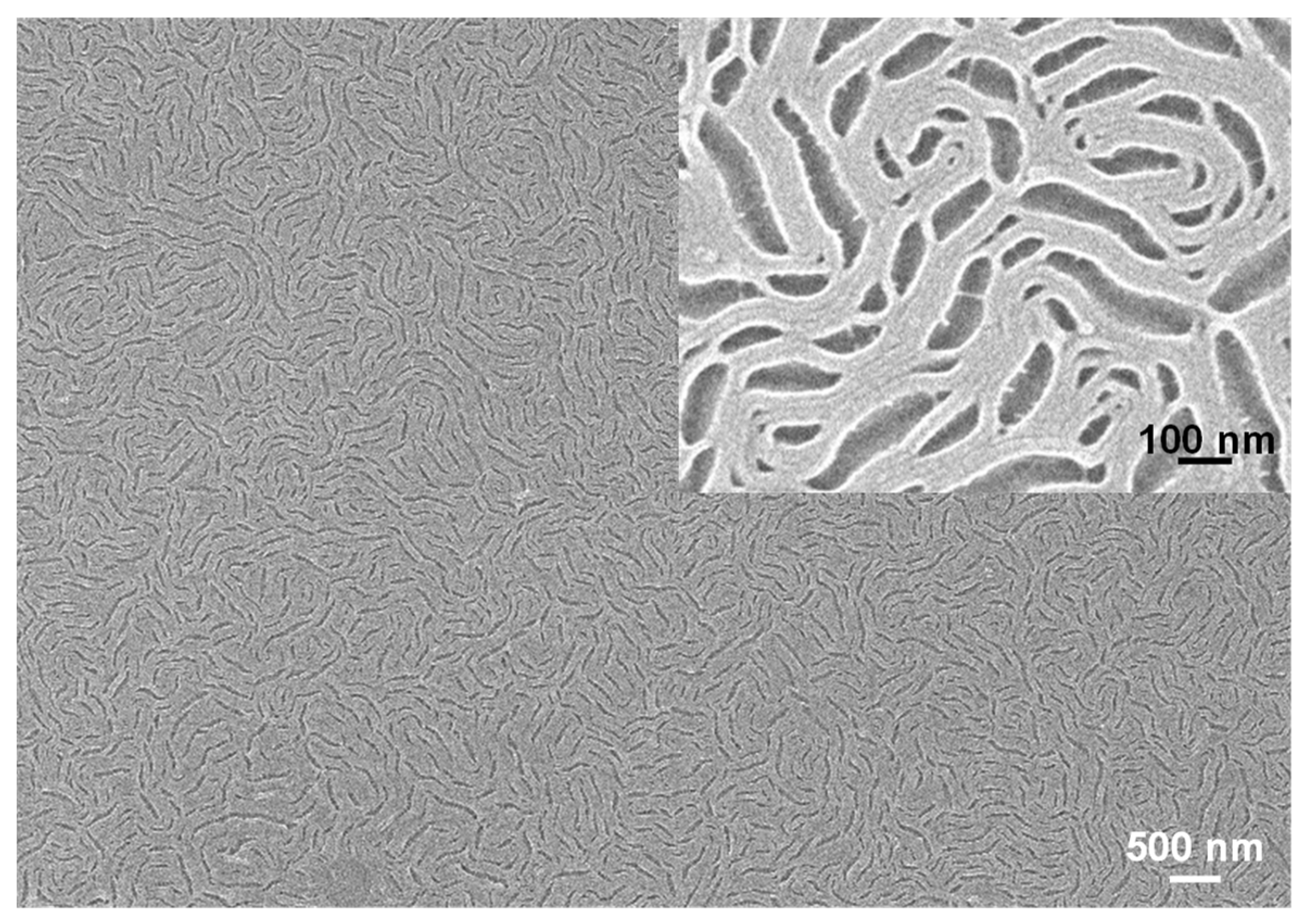

Figure 2. Low- and high-magnification SEM images of a P(S21-b-M21) film of hi = 97 nm. The film was prepared under the same procedure described in the previous figure caption.
Figure 2. Low- and high-magnification SEM images of a P(S21-b-M21) film of hi = 97 nm. The film was prepared under the same procedure described in the previous figure caption.
Polymers 13 02480 g002
Figure 3. (AD,FI) GISAXS 2D patterns and (E,J) 1D profiles of thin films (hi = 97 nm) of P(S21-b-M21)/PS6 mixtures of various weight fractions: (A,Ei,F,Ji) 100/0, (B,Eii,G,Jii) 95/5, (C,Eiii,H,Jiii) 75/25 and (D,Eiv,I,Jiv) 50/50, respectively. The films were spin-coated on PS270n-SiOx/Si and annealed at 230 °C for 1 h. Broad rods, corresponding to the scattering of wrinkles, are marked by black asteroids (*). The positions of the diffraction truncation rods are labelled by q// ratios, and standing waves are highlighted by dotted boxes for a visual guide. In (E,J), lines i−iv correspond to the 1D GISAXS profiles extracted from in-plane scan cuts along the intense streaks. Broad humps, a scattering feature of wrinkles, are marked by black asteroids (*).
Figure 3. (AD,FI) GISAXS 2D patterns and (E,J) 1D profiles of thin films (hi = 97 nm) of P(S21-b-M21)/PS6 mixtures of various weight fractions: (A,Ei,F,Ji) 100/0, (B,Eii,G,Jii) 95/5, (C,Eiii,H,Jiii) 75/25 and (D,Eiv,I,Jiv) 50/50, respectively. The films were spin-coated on PS270n-SiOx/Si and annealed at 230 °C for 1 h. Broad rods, corresponding to the scattering of wrinkles, are marked by black asteroids (*). The positions of the diffraction truncation rods are labelled by q// ratios, and standing waves are highlighted by dotted boxes for a visual guide. In (E,J), lines i−iv correspond to the 1D GISAXS profiles extracted from in-plane scan cuts along the intense streaks. Broad humps, a scattering feature of wrinkles, are marked by black asteroids (*).
Polymers 13 02480 g003
Figure 4. (A,C) AFM topographic images and (B,D) height profiles of neat P(S21-b-M21) films (hi = 97 nm on PS270n-SiOx/Si) with perpendicular lamellae. Prior to AFM characterization, the films were briefly immersed in acetic acid (A,B) without and (C,D) with UV-light irradiation of 5 h. The inset in (C) denotes the corresponding FFT pattern of Image C. (E) low-magnification SEM image of the same film of Figure 4A,B. The insert in (E) is a large-magnification SEM image.
Figure 4. (A,C) AFM topographic images and (B,D) height profiles of neat P(S21-b-M21) films (hi = 97 nm on PS270n-SiOx/Si) with perpendicular lamellae. Prior to AFM characterization, the films were briefly immersed in acetic acid (A,B) without and (C,D) with UV-light irradiation of 5 h. The inset in (C) denotes the corresponding FFT pattern of Image C. (E) low-magnification SEM image of the same film of Figure 4A,B. The insert in (E) is a large-magnification SEM image.
Polymers 13 02480 g004

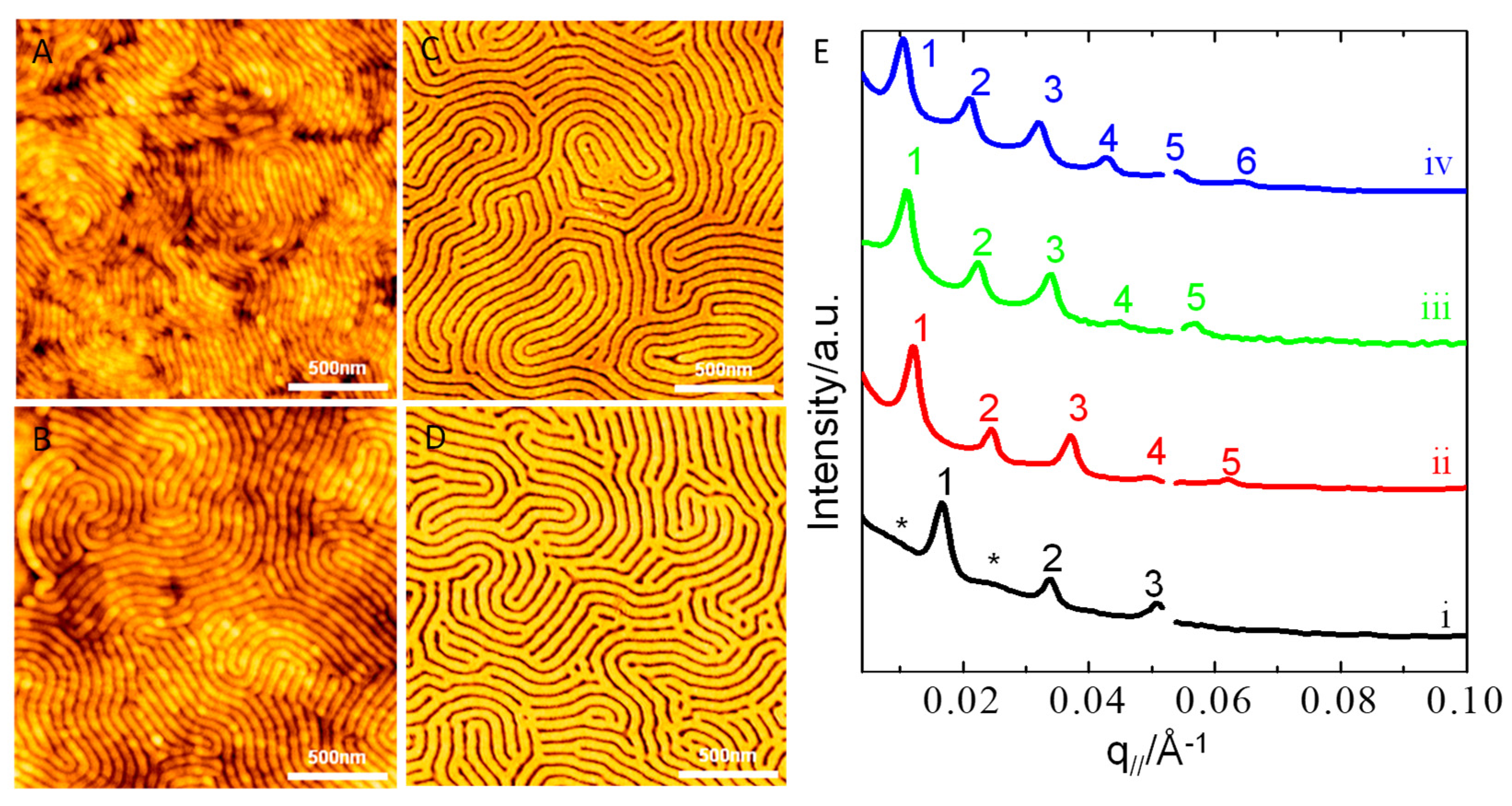

Figure 5. (AD) 2 µm × 2 µm AFM topographies and (E) 1D in-plane GISAXS profiles of thin films (hi = 97nm on PS270n-SiOx/Si) of neat P(S-b-MMA) BCPs of different molecular weights: (A,Ei) P(S33-b-M33), (B,Eii) P(S45-b-M44), (C,Eiii) P(S53-b-M54) and (D,Eiv) P(S65-b-M61). The films were annealed at 230 °C (1 h), and treated by a combination of UV-light exposure (2.5 h) and acetic acid rinsing. In (E), lines i−iv correspond to the 1D GISAXS profiles extracted from in-plane scan cuts along the intense streaks. In curve−Ei, broad humps corresponding to the scattering of wrinkles are marked by black asteroids (*). The positions of the diffraction truncation rods are labelled by q// ratios.
Figure 5. (AD) 2 µm × 2 µm AFM topographies and (E) 1D in-plane GISAXS profiles of thin films (hi = 97nm on PS270n-SiOx/Si) of neat P(S-b-MMA) BCPs of different molecular weights: (A,Ei) P(S33-b-M33), (B,Eii) P(S45-b-M44), (C,Eiii) P(S53-b-M54) and (D,Eiv) P(S65-b-M61). The films were annealed at 230 °C (1 h), and treated by a combination of UV-light exposure (2.5 h) and acetic acid rinsing. In (E), lines i−iv correspond to the 1D GISAXS profiles extracted from in-plane scan cuts along the intense streaks. In curve−Ei, broad humps corresponding to the scattering of wrinkles are marked by black asteroids (*). The positions of the diffraction truncation rods are labelled by q// ratios.
Polymers 13 02480 g005

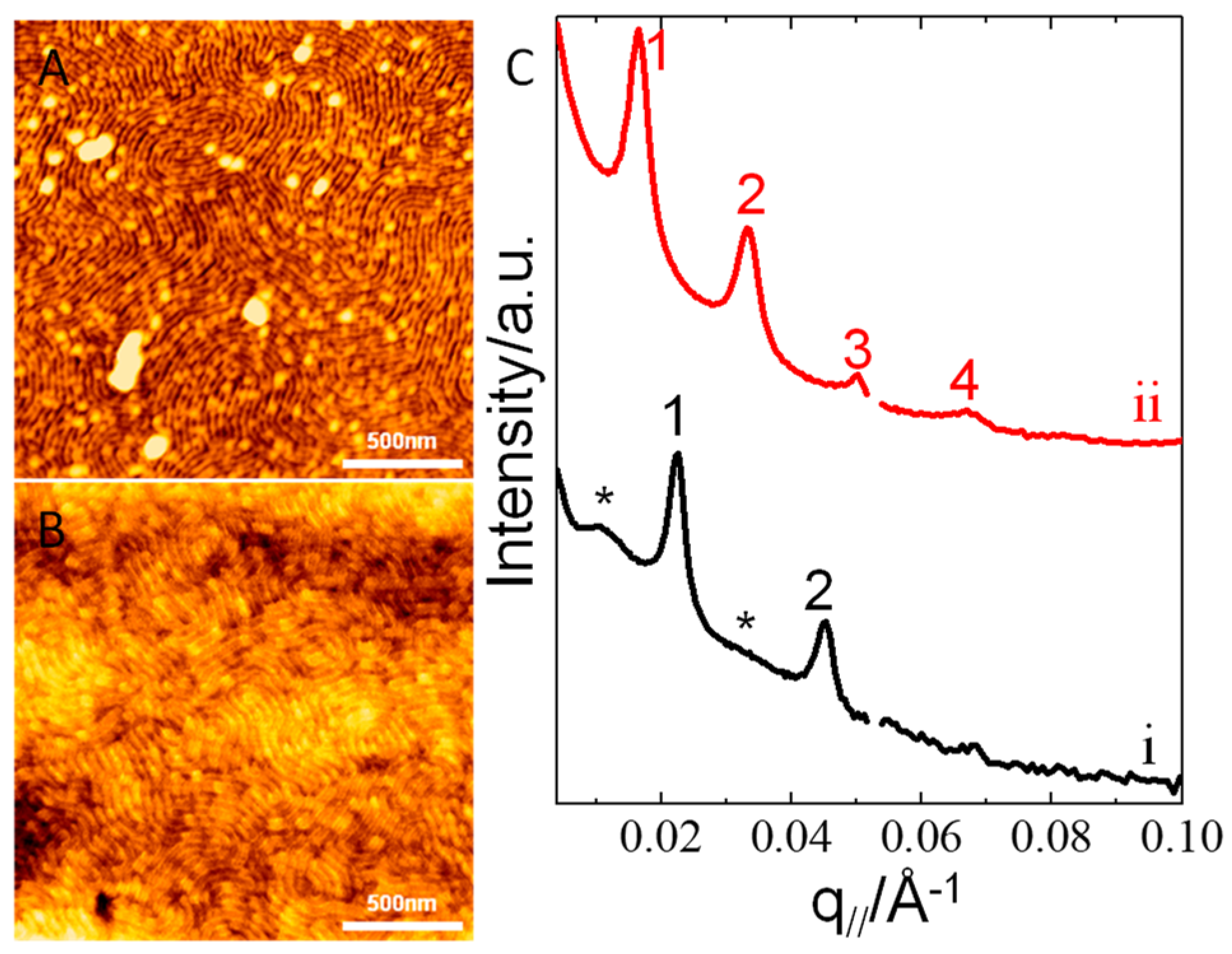

Figure 6. (A,B) 2 × 2 µm2 AFM topographies and (C) 1D in-plane GISAXS profiles of thin films (hi = 17 nm on PS270n-SiOx/Si) of neat P(S-b-MMA) BCPs of various molecular weight: (A,Ci) P(S21-b-M21) and (B,Cii) P(S33-b-M33). The films were annealed at 230 °C (1 h) and treated by a combination of UV-light exposure (2.5 h) and acetic acid rinsing. In curve−Ci, broad humps corresponding to the scattering of wrinkles are marked by black asteroids (*). The positions of the diffraction truncation rods are labelled by q// ratios.
Figure 6. (A,B) 2 × 2 µm2 AFM topographies and (C) 1D in-plane GISAXS profiles of thin films (hi = 17 nm on PS270n-SiOx/Si) of neat P(S-b-MMA) BCPs of various molecular weight: (A,Ci) P(S21-b-M21) and (B,Cii) P(S33-b-M33). The films were annealed at 230 °C (1 h) and treated by a combination of UV-light exposure (2.5 h) and acetic acid rinsing. In curve−Ci, broad humps corresponding to the scattering of wrinkles are marked by black asteroids (*). The positions of the diffraction truncation rods are labelled by q// ratios.
Polymers 13 02480 g006

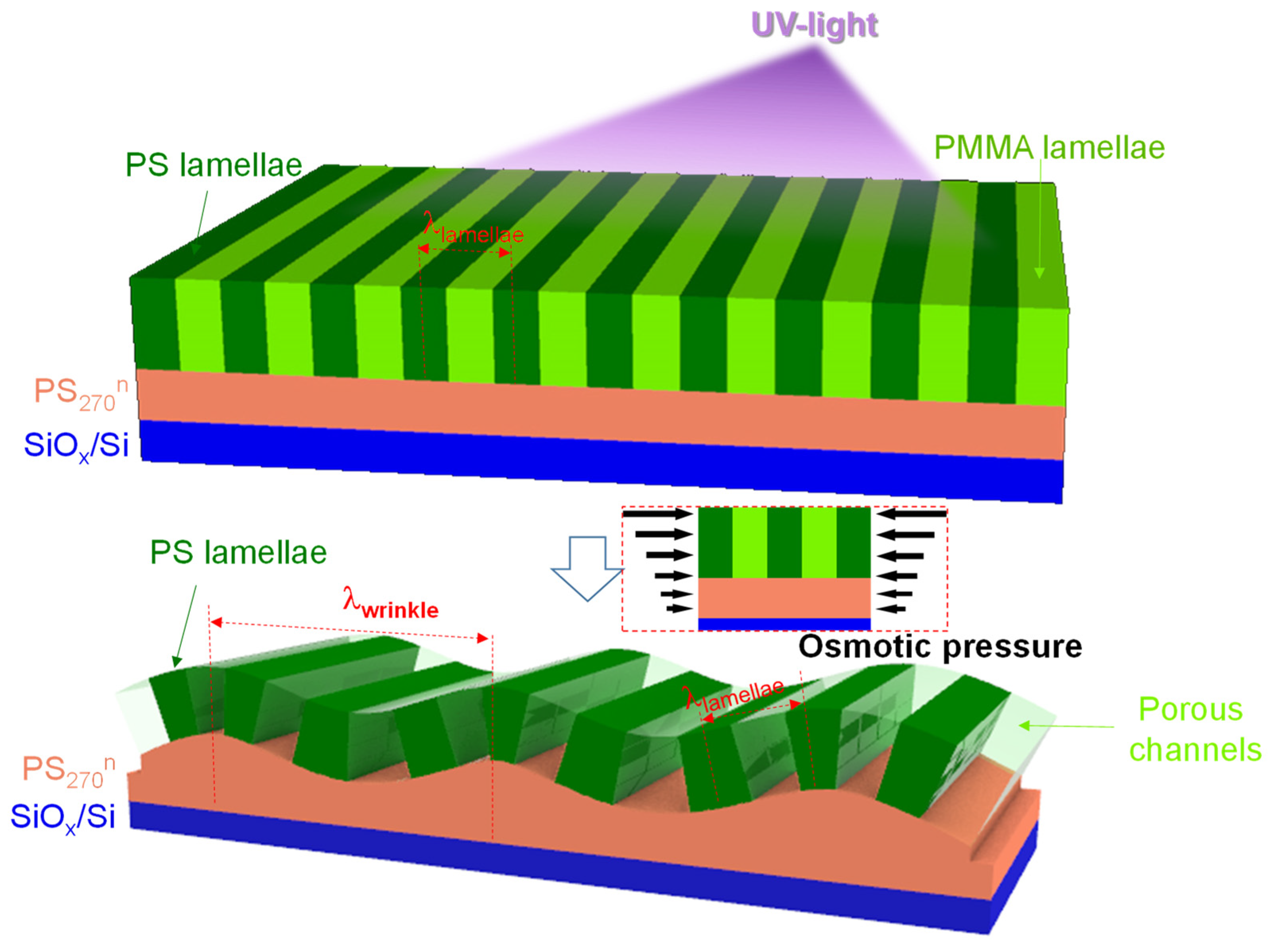

Figure 7. Schema of surface wrinkling of perpendicular lamellae in thin films of neat P(S-b-MMA) and its blends with a low content of PS during UV-light exposure followed by acetic acid rinsing. The parallel arrows shown in the middle diagrammatic sketch denote the magnitude gradient of osmotic pressure.
Figure 7. Schema of surface wrinkling of perpendicular lamellae in thin films of neat P(S-b-MMA) and its blends with a low content of PS during UV-light exposure followed by acetic acid rinsing. The parallel arrows shown in the middle diagrammatic sketch denote the magnitude gradient of osmotic pressure.
Polymers 13 02480 g007
Table 1. Details of P(S-b-MMA) BCPs and PS Homopolymers.
Table 1. Details of P(S-b-MMA) BCPs and PS Homopolymers.
MaterialsMntotal
(kg/mol)
MnPS
(kg/mol)
MnPMMA
(kg/mol)
Mw/MnfPSMorphology
P(S65-b-M61)12665611.100.51lamellae
P(S53-b-M54)10753541.160.49lamellae
P(S45-b-M44)8945441.120.49lamellae
P(S33-b-M33)6633331.090.5lamellae
P(S21-b-M21)4221211.070.5lamellae
PS270270 1.061
PS66.1 1.331
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, Y.-F.; Hong, J.-W.; Chang, J.-H.; Junisu, B.A.; Sun, Y.-S. Influence of Osmotic Pressure on Nanostructures in Thin Films of a Weakly-Segregated Block Copolymer and Its Blends with a Homopolymer. Polymers 2021, 13, 2480. https://doi.org/10.3390/polym13152480

AMA Style

Chen Y-F, Hong J-W, Chang J-H, Junisu BA, Sun Y-S. Influence of Osmotic Pressure on Nanostructures in Thin Films of a Weakly-Segregated Block Copolymer and Its Blends with a Homopolymer. Polymers. 2021; 13(15):2480. https://doi.org/10.3390/polym13152480

Chicago/Turabian Style

Chen, Yi-Fang, Jia-Wen Hong, Jung-Hong Chang, Belda Amelia Junisu, and Ya-Sen Sun. 2021. "Influence of Osmotic Pressure on Nanostructures in Thin Films of a Weakly-Segregated Block Copolymer and Its Blends with a Homopolymer" Polymers 13, no. 15: 2480. https://doi.org/10.3390/polym13152480

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
