Next Article in Journal
Pressure Equilibrium Time of a Cyclic-Olefin Copolymer
Next Article in Special Issue
Protein-, (Poly)peptide-, and Amino Acid-Based Nanostructures Prepared via Polymerization-Induced Self-Assembly
Previous Article in Journal
Lignin-Based Gel Polymer Electrolyte for Cationic Conductivity
Previous Article in Special Issue
Nano-Assemblies from Amphiphilic PnBA-b-POEGA Copolymers as Drug Nanocarriers
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Structure/Properties Relationship of Anionically Synthesized Diblock Copolymers “Grafted to” Chemically Modified Graphene

Department of Materials Science Engineering, University Campus-Dourouti, University of Ioannina, 45110 Ioannina, Greece
Faculty of Chemistry, Lomonosov Moscow State University (MSU), GSP-1, 1-3 Leninskiye Gory, 119991 Moscow, Russia
Institute of Problems of Chemical Physics, Russian Academy of Sciences, Chernogolovka, 142432 Moscow, Russia
Institut de Sciences des Matériaux de Mulhouse—IS2M, CNRS UMR7361, 15 Jean Starcky, 68057 Mulhouse, France
Author to whom correspondence should be addressed.
Polymers 2021, 13(14), 2308;
Received: 28 June 2021 / Revised: 7 July 2021 / Accepted: 10 July 2021 / Published: 14 July 2021


A novel approach to obtaining nanocomposite materials using anionic sequential polymerization and post-synthetic esterification reactions with chemically modified graphene sheets (CMGs) is reported. The anionically synthesized diblock copolymer precursors of the PS-b-PI-OH type were grafted to the chemically modified –COOH groups of the CMGs, giving rise to the final composite materials, namely polystyrene-b-poly(isoprene)-g-CMGs, which exhibited enhanced physicochemical properties. The successful synthesis was determined through multiple molecular characterization techniques together with thermogravimetric analysis for the verification of increased thermal stability, and the structure/properties relationship was justified through transmission electron microscopy. Furthermore, the arrangement of CMGs utilizing lamellar and cylindrical morphologies was studied in order to determine the effect of the loaded CMGs in the adopted topologies.

Graphical Abstract

1. Introduction

Graphene oxide (GO) nanosheets constitute a highly investigated topic of research, rendering their use imperative in a multitude of applications, holding exceptional properties such as mechanical strength, thermal, and electric conductivity [1,2,3,4]. The hydrophobic two-dimensional (2-D) sp2 carbon nanostructures are susceptible to covalent or non-covalent surface chemical modification, inducing functional groups able to react with polymeric chains [1,5]. Grafting polymers on modified graphene sheets results in nanocomposites presenting a combination of properties resulting from both materials, namely improved solubility and interfacial energy alternations [6,7,8,9,10,11,12,13,14,15,16]. The reaction between polymers and graphene oxide nanosheets involves two methods and specifically the “grafting from” [17], where the GO–initiator complex is primarily prepared in order to initiate the polymerization from the GO surface, and the “grafting to” [18], where the polymeric precursor bearing a functional group reacts with the chemically modified GO [19,20,21,22,23]. Employing the “grafting to” method, better control over the polymer’s molecular characteristics can be realized and satisfactory dispersity, and solubility are achieved, while the “grafting from” method results in higher coupling yields, but limited control over the molecular characteristics is reported [24].
Several methods for preparing polymer/graphene composites have been exploited involving the utilization of various polymerization techniques, such as “click” chemistry reactions [25,26,27], atom transfer radical (ATRP) [28,29,30], reversible addition fragmentation chain transfer (RAFT) [31,32,33], and ionic polymerizations [34,35,36], in combination with functionalized graphene groups (carboxyl, hydroxyl, and so on), which are already reported in the literature [37,38].
Although the abovementioned polymerization methods have been extensively studied for the synthesis of various composite materials, resulting in promising applications such as nanoelectronics, sensors [39], water treatment and gas/transport membranes, energy storage, and so on [40], ionic polymerization methods for the preparation of nanocomposite materials are only scarcely adopted [35,36,37].
The highly demanding purifying and synthetic protocols in combination with the limited number of monomers bearing functional side groups on both anionic and cationic polymerization impede the exploitation of these synthetic methods, as the use of GO completely reduces the reactivity of the initiators, resulting in low yields during reaction [39].
Cationic polymerization of vinyl monomers (e.g., vinyl ethers, indene, acenaphthylene) “grafting from” or “grafting to” GO has been achieved by the non-nucleophilic addition attributed to the intensified acidic character, thanks to the existence of –COOH groups on the modified graphene sheet surface [41,42,43]. Various total number average molecular weights of polyester, polyamide, and poly(caprolactone) composites have been reported by Bielawski et al. [44], utilizing cationic polymerization using GO as catalyst. The use of GO as a cationic initiator has also been expanded for a diblock copolymer system of the polystyrene-b-polyisoprene (PS-b-PI) type and a PS homopolymer, resulting in composites presenting satisfactory dispersion in many organic solvents. The increased sheet-to-sheet distance exhibited in the aforementioned diblock copolymers gave rise to porous structures, rendering the specific composite materials appealing for membrane applications and specifically for gas permeability and chemical separation [36]. Homopolymer composites of GO-g-benzoxazine type have been prepared using GO as cationic initiator and subsequently thermally characterized, leading to enhanced thermal stability [45].
On the other hand, the neutralization of the carboxyl groups (–COOH) through potassium hydroxide (–KOH) led to the formation of potassium carboxylate (–COOK) side groups on the GO, enabling the anionic polymerization of epoxides and cyclic acid anhydrides [46,47].
Herein, we report for the first time, to the best of our knowledge, the preparation of composite materials constituting anionically synthesized diblock copolymers of the PS-b-PI-OH type with chemically modified graphene oxide (CMGs) through the “grafting to” method. The diblock copolymer precursors were end-capped with two monomeric units of ethylene oxide prior to the polymerization termination, in order to bear functional hydroxyl side groups capable of reacting through esterification reaction with the carboxyl GO groups, eventually obtaining the composite materials, namely PS-b-PI-g-CMGs. The successful synthesis of the intermediate PS-b-PI-OH products was verified through molecular characterizations, such as size exclusion chromatography (SEC), proton nuclear magnetic resonance spectroscopy (1H-NMR), and infrared spectroscopy (FT-IR). The thermal characterization through thermogravimetric analysis (TGA) determined the thermal stability of both intermediate and final materials. Raman spectroscopy was used to verify the structure of the carbon nanoforms, while X-ray diffraction (XRD) was employed in order to evaluate possible changes between the spaces of the consecutive layers of the CMGs. Transmission electron microscopy (TEM) experiments were also conducted in order to study structure/properties relationship after the incorporation of the CMGs in the corresponding polymer matrices, as well as the successful composite formation. The inability of graphitic structures to be dispersed in common organic solvents for long periods was compensated after the CMGs were covalently bonded to the diblock copolymers, leading to the observation of enhanced dispersion in organic solvents for significantly longer periods.

2. Materials and Methods

2.1. Materials

Monomers (styrene, isoprene, and ethylene oxide), initiators (n-BuLi, sec-BuLi), and solvents (benzene, tetrahydrofuran (THF), and methanol), as well as nitric acid (HNO3, 70%), sulfuric acid (H2SO4, 97%), potassium chlorate (KClO3, 99%), sodium hydroxide (NaOH, 97%), hydrochloric acid (HCl, 37%), N,N′-dicyclohexylcarbodiimide (DCC), 4-dimethylaminopyridine (DMAP), and powdered graphite (powder, <20 μm), employed for the functionalization of the GO, were purchased from Sigma-Aldrich, St. Louis, MO, USA. All reagents used for the anionic polymerization were purified as already thoroughly described in the literature [48,49], while compounds concerning GO were used without further purification. The Staudenmaier method [5] was employed in order to receive exfoliated graphene oxide sheets.

2.2. Methods

The molecular characterization was accomplished through size exclusion chromatography (SEC) utilizing a PL-GPC 50 Integrated GPC System from Agilent Technologies (St. Clara, CA, USA) and was calibrated with ten PS standards Mp: 1.2 kg/mol to 1500 kg/mol. The eluent utilized by the specific technique was tetrahydrofuran (THF) with a flow rate of 1.0 mL min−1.
1H-NMR spectroscopy (Bruker GmbH, Berlin, Germany) was employed in order to determine the mass and volume fractions of each segment as well as to verify the successful end-capping reaction of the poly(isoprene) with the –OH groups. The spectra were obtained at room temperature in CDCl3 on a Bruker AV-400 Avance using a frequency of 400 MHz. Data were processed using UXNMR (Bruker) software.
Infrared spectroscopy (FT-IR) was carried out using a FTIR spectrometer JASCO FT/IR (JASCO, Easton, MD, USA). Spectra were retrieved by employing 32 scans ranging from 4000 to 400 cm−1 with a resolution of 2 cm−1 under ambient conditions.
Raman spectroscopy (RS) was realized via micro-Raman RM 1000 Renishaw system (Renishaw, Wotton-under-Edge, UK). The power of the laser was 30 mW and a 2 μm focus spot was used.
Thermogravimetric analysis (TGA) was performed using a Perkin Elmer Pyris-Diamond instrument (PerkinElmer, Inc., Waltham, MA, USA). Approximately 10 mg of the sample was heated from 40 °C to 700 °C following a step of 5 °C/min.
Transmission electron microscopy (TEM) was conducted with a JEOL 2100 TEM (JEOL Ltd., Tokyo, Japan) using 200 KeV as the acceleration voltage. Cryo-ultramicrotoming of the films was realized in a Leica EM UC7 ultramicrotome (Leica EM UC7 from Leica Microsystems, Wetzlar, Germany) below the glass transition temperature of both blocks (−100 °C) in order to obtain very thin sections (~30 nm) and the sections were picked up on 400 mesh copper grids.
X-ray diffraction (XRD) measurements were carried out in a Bruker D8 Advance (Bruker, Billerica, MA, USA) with Bragg–Brentano geometry with LYNXEYE detector in 2θ range from 2° to 30°. For the X-rays, a Cu-Kα wire was used, resulting in a radiation of 1.5406 Å wavelength.

2.3. Synthesis of PS-b-PI-OH

The diblock copolymers of the PS-b-PI-OH type were synthesized via anionic polymerization under high vacuum using sequential monomer addition (Scheme S1a, Supplementary Materials). The synthesis of the intermediate product (e.g., 1-PS-b-PI-OH) was accomplished after the polymerization of the PS segment using styrene (5 g, 0.05 mol) and sec-BuLi (0.24 mmol) in the presence of a non-polar solvent (benzene, 300 mL). Afterwards, the PI segment was synthesized sequentially by introducing isoprene (4.2 g, 0.06 mol) in the living PS macroinitiator and, eventually, the living diblock copolymer was end-capped with two monomeric units of ethylene oxide (0.72 mmol) prior to termination with degassed methanol.

2.4. Synthesis of Carboxylated Graphene Oxide (CMGs)

The carboxylation of graphene oxide sheets was accomplished through the already established method by Park et al. [50] GO sheets were dissolved in dionized water (~4 mg/mL) and ultra-sonicated for 1 h before an equal quantity of NaOH (3M) was added to the solution and further sonicated for 3 h. Finally, HCl was added and, after the complete neutralization of the solution, the final solid product (GO–COOH) was filtered and rinsed (Scheme S1b, Supplementary Materials).

2.5. Synthesis of PS-b-PI-g-CMGs

In a round-bottom flask under inert atmosphere containing 250 mL of anhydrous THF, 1.5 g of each diblock copolymer precursor together with 0.150 g or 0.450 g of CMGs were added and, after the homogenization of all compounds, the mixture was cooled at 5 °C using an ice bath. Afterwards, appropriate amounts of coupling reagent (DCC) and catalyst (DMAP) were introduced into the solution and the temperature was set at 25 °C, initiating the reaction (Steglich esterification) [51]. By-products were retrieved through filtering and the final composite was rinsed with anhydrous methanol prior to drying in the vacuum oven (Fisherbrand™ Isotemp™ Model 281A Vacuum Oven, Pittsburgh, PA, USA) for 48 h. The degree of reinforcement in the final composite materials was determined to be equal to 1 and 3 weight percentage (%wt) of CMGs in the polymeric matrix for both polymer samples (1-PS-b-PI-OH and 2-PS-b-PI-OH, respectively). The final nanocomposite materials are presented in Scheme S1c (Supplementary Materials).
For clarification reasons, the four (4) final samples were labeled, taking into consideration the initial content of CMGs on each polymeric matrix as follows: 1-PS-b-PI-g-CMGs 1%, 1-PS-b-PI-g-CMGs 3%, 2-PS-b-PI-g-CMGs 1%, and 2-PS-b-PI-g-CMGs 3%, respectively.

3. Results and Discussion

3.1. Molecular and Thermal Characterization Results

The total number average molecular weights, the dispersity indices, and the absence of any by-products were determined via SEC, further confirming the successful synthesis of well-defined copolymers. In total, two diblock copolymer samples were synthesized, exhibiting the following molecular characteristics as evident in Table 1, where the number average molecular weights, the dispersity, and the mass and volume fractions are presented. Chromatographs (Figure S1a,b) and 1H-NMR spectra (Figure S2a,b) are presented in the Supplementary Materials for each sample respectively.
Further confirmation on the existence of –OH groups in the diblock copolymers was accomplished using FT-IR spectroscopy. As evident in Figure S3a in the Supplementary Materials, both samples exhibited a weak peak in the region of 3500 cm−1, which is attributed to the hydroxyl groups at the end of the macromolecular chains. It should be noted that the limited intensity of the peak is assigned to the low –OH group percentage. Additionally, in the region of 650–700 cm−1, the bending of the –CH bonds is evident, while at 1500 cm−1, the C–C stretching vibration of the aromatic ring in the monomeric unit of polystyrene is obvious and, finally, the stretching vibrations of the C–H, C–C, and =C–H groups are located at 2700–3000 cm−1 [52,53]. The FT-IR spectrum of the GMCs is also given in the Supplementary Materials (Figure S3b) in order to verify the existence of the –COOH groups at 1630 cm−1 through the complete neutralization of the hydroxyl groups.
TGA studies were performed in order to examine the thermal behavior of the modified graphene oxide, where a trivial weight loss at approximately 100 °C is attributed to the water molecules, while the decomposition of functional groups leads to a second significant weight loss at 200 °C [54]. Finally, the complete decomposition of the graphitic lattice occurred at approximately 485 °C (Figure S4a in the Supplementary Materials). Concerning the final composite, materials the TGA thermographs resulted in higher decomposition temperatures in the case of the final composites when compared with the pristine diblock precursors, indicating increased thermal stability attributed to the covalent bonds between the diblock copolymer matrices and the CMGs (Figure S4b,c in the Supplementary Materials).
Raman spectroscopy was employed in order to determine the structural defects of the CMG sheets calculated from the ratio ID/IG (Figure S5 in the Supplementary Materials), as well as the covalent attachment between polymeric chains and CMGs and, consequently, the formation of sp3 hybridism. Specifically, at ~1350 cm−1 the D band, attributed to the overall structural defects of the CMGs, while at ~1592 cm−1 the G band, indicates the permitted phononic transmittance derived from sp2 carbon hybridisms. The D Raman band is located in the region between 1250 and 1450 cm−1 and is attributed to the sp3 carbons, indicating the structural defects (hetero-atoms, grain boundaries, vacancies, and so on), while G band is assigned to the planar vibrations of sp2 carbon bonds at approximately 1600 cm−1. High-quality samples exhibit a low ID/IG ratio, indicating the lack of defects, and thus the enhanced lattice crystallinity degree [55,56]. Raman spectroscopy was applied to all samples, including intermediate diblock copolymers of the PS-b-PI-OH type and the final nanocomposites with different concentrations, and the results are presented in Figure 1a,b. Regarding Figure 1a, the black colored line corresponds to the chemically modified graphene oxide, where the D band is evident at 1340 cm−1, while the G band is observed at 1580 cm−1. The diblock copolymer precursor is presented with red color and the wagging vibrations at 1050–1150 cm−1 are assigned to the –CH2 and –CH bonds of polystyrene and poly(isoprene), respectively. The intense peak that appeared at 1668 cm−1 is ascribed to C=O (stretching). The double carbon bonds [53] (=CH2) of the monomeric unit of poly(isoprene) are obvious at 1300 cm−1, the band at 1452 cm–1 is attributed to (–CH2 bending) of the poly(isoprene) segments, while the C=C aromatic bonds in the monomeric unit of the PS are evident at 1580–1600 cm−1. Moreover, the intense signal at 1002 cm−1 is assigned to C–C aromatic (stretching), while the band at 618 cm−1 is imputed to C–H aromatic (stretching out of plane in the opposite direction). Finally, a strong peak at 3058 cm–1 is assigned to the aromatic protons (C–H stretching in plane bending), while the bands at 2850–2930 cm–1 are attributed to the alkane vibrations (C–H anti-symmetric stretching –CH3). Regarding the final composite materials, in addition to the characteristic intensities attributed to the intermediate product, the two characteristic vibrations attributed to the graphitic structures are evident. No substantial differentiations were observed on the intensities when the CMGs content was increased from 1 to 3 wt%. Accordingly in Figure 1b, the coherent intensities can be clearly observed, further verifying the covalent bonding between CMGs and PS-b-PI-OH diblock precursors, attributed to the esterification reactions.
X-ray diffraction studies were conducted in order to justify the successful exfoliation of CMG sheets owing to the grafting of the polymeric chains. In Figure 2a, the XRD patterns of CMGs, 1-PS-b-PI-OH, 1-PS-b-PI-g-CMGs 1%, and 1-PS-b-PI-g-CMGs 3% are illustrated, where the black line corresponds to the CMGs with the characteristic diffraction peak at 2θ° = 12.6° and d-spacing equal to 6.6 Å (distance between two consecutive graphene sheets or interlayer spacing), while the diffraction peaks of 1-PS-b-PI-g-CMGs 1% and 1-PS-b-PI-g-CMGs 3% appear at 2θ° = 11.4°, leading to d = 7.3 Å in both cases. Similarly, in Figure 2b, the characteristic diffraction peaks for 2-PS-b-PI-g-CMGs 1% and 2-PS-b-PI-g-CMGs 3% are exhibited at 2θ° = 11.0° and 2θ° = 10.4°, leading to d = 7.6 Å and d = 7.3 Å, respectively. Partial polymeric chain interference between consecutive CMG sheets is evident owing to the slight increase of the d-spacing approximately equal to 0.7–1 Å (6.6 Å for the neat CMGs and 7.3 Å or 7.6 Å for the composite materials).

3.2. Morphological Characterization

Transition electron microscopy measurements were carried out in order to verify the incorporation of the CMGs into the polymeric matrices, as well as the effect of the incorporated CMGs on the adopted morphology. Both samples were casted in 5% w/v solution using a non-selective solvent, namely toluene, in order to obtain equilibrium morphologies regarding the diblock copolymer, for 5–7 days in a saturated environment. It should be mentioned that the dissolution of the diblock copolymers resulted in satisfactory dispersion of the CMGs for longer periods in organic solvents (Figure S6 in the Supplementary Materials). Both samples were submitted to an annealing process above the glass transition temperature of both segments (120 °C) for 48 h. The almost identical electron densities between the PS and PI segments require the utilization of staining processes with aqueous solution of OsO4 (Science Services, Munich, Germany) for approximately 2 h, prior to morphological studies [49]. Based on the literature, the adopted morphologies for the specific systems were in accordance with the experimentally obtained results, namely lamellar morphology in the case of 1-PS-b-PI-g-CMGs 1–3% and hexagonally close packed cylindrical morphology in the case of 2-PS-b-PI-g-CMGs 1–3%. However, the main purpose of this work was to study the structure/properties relationship of the composite materials and, specifically, the arrangement of the modified graphene sheets when incorporated into the polymeric matrices.
In Figure 3a,b, TEM micrographs regarding 1-PS-b-PI-g-CMGs 1% and 1-PS-b-PI-g-CMGs 3%, respectively, are presented. Alternating lamellae corresponding to white PS and black PI domains along with CMGs incorporated in the PI lamellar domains attributed to the adopted synthetic route, which included the esterification reaction between hydroxyl (PS-b-PI-OH) and carboxyl groups (CMG–COOH). The low content of CMGs in the polymeric matrix during synthesis reaction led to limited incorporation, which is evident in the TEM images, where a minimal amount of CMGs was embedded into the PI segments. For the second case (Figure 3c,d), hexagonally close packed cylinders were obtained for both 2-PS-b-PI-g-CMGs 1% and 2-PS-b-PI-g-CMGs 3%, where the PS (white) majority constituted the matrix and the PI (black) minority formed the cylindrical domains. As expected, the arrangement of the CMGs in the cylindrical domains was not favored owing to the inability of the CMGs to curve in the confined cylindrical structure, resulting in graphitic vertical structures evident only in grain boundaries.

4. Conclusions

Employing anionic polymerization led to the synthesis of well-defined diblock copolymers of the PS-b-PI-OH type, presenting narrow dispersity as well as molecular and structural homogeneity, capable of reacting through esterification with chemically modified graphene sheets, resulting in the final composite materials. The sensitivity of living ends during anionic polymerization renders “grafting to” methods for the preparation of composite materials quite challenging, which is further supported by the lack of corresponding published works in the literature. Therefore, in this work, esterification reactions were preferred as a facile method for the incorporation of modified graphitic structures to the diblock copolymer precursors.
The successful loading of the CMGs in the polymeric matrices was supported using various techniques. All samples were molecularly, thermally, and morphologically characterized using SEC, 1H-NMR, FT-IR, TGA, Raman spectroscopy, XRD, and TEM. It should be noted that the structure/properties relationships of such systems, prepared through the sequential anionic addition polymerization technique and subsequent esterification reaction, have not yet been reported in the literature. The obtained morphologies of the final nanocomposites showcased microphase separation in the presence of CMGs that were arranged according to the adopted morphologies. Specifically, graphene sheets were incorporated between the alternating lamellar domains, while the inability of graphene sheets to curve within the cylindrical topology led to CMGs’ alignment to the grain boundaries.

Supplementary Materials

The following are available online at, Scheme S1: Schematic illustration of the (a) synthesis of the PS-b-PI-OH type, (b) synthesis of the carboxylation of the graphene oxide sheets, and (c) synthesis of the final composite materials of the PS-b-PI-g-CMGs type. Figure S1: SEC chromatographs of the synthesized diblock copolymers corresponding to (a) the PS homopolymer (blue color) and the hydroxyl terminated diblock copolymer of the 1-PS-b-PI-OH type (red color) and (b) the PS homopolymer (blue color) and the hydroxyl terminated diblock copolymer of the 2-PS-b-PI-OH type (red color). Figure S2: 1H-NMR spectra corresponding to (a) 1-PS-b-PI-OH and (b) 2-PS-b-PI-OH diblock copolymer precursors, where in both cases, the characteristic chemical shift at 3.5 ppm confirms the presence of –OH groups after the successful end-capping reaction using two monomeric units of ethylene oxide. Figure S3: FT-IR spectra of (a) the hydroxyl terminated diblock copolymers of the PS-b-PI-OH type and (b) chemically modified graphene. Figure S4: TGA thermographs corresponding to (a) the neat CMGs; (b) 1-PS-b-PI-OH (black color), 1-PS-b-PI-g-CMGs 1% (red color), and 1-PS-b-PI-g-CMGs 3% (blue color); and (c) 2-PS-b-PI-OH (black color), 2-PS-b-PI-g-CMGs 1% (red color), and 2-PS-b-PI-g-CMGs 3% (blue color). Figure S5: Raman spectrum corresponding to the chemically modified graphene. Figure S6: Optical observation of the final composite materials dispersed in toluene. From left to right, 1-PS-b-PI-g-CMGs 1%, 1-PS-b-PI-g-CMGs 3%, 2-PS-b-PI-g-CMGs 1%, and 2-PS-b-PI-g-CMGs 3%.

Author Contributions

Conceptualization, A.A.; methodology, D.K. and A.A.; validation, A.A. and D.A.I.; formal analysis, D.K., E.G., K.T., I.M., G.-M.M., N.C., D.M., and A.A.; data curation, D.K., E.G., K.T., I.M., G.-M.M., E.A.N., N.C., D.M., and A.A.; writing—original draft preparation, D.K., K.T., I.M., G.-M.M., D.M., and A.A; writing—review and editing, D.G., D.A.I., and A.A.; supervision, A.A. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Ministry of Science and Higher Education of the Russian Federation within State Contract 075-15-2019-1889.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.


D.K.: E.G., K.T., I.M., G.-M.M., D.M., and A.A. would like to acknowledge the Network of Research Supporting Laboratories at the University of Ioannina for using the Electron Microscopy Facility and the Nuclear Magnetic Resonance Spectroscopy Center.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zhu, Y.; Murali, S.; Cai, W.; Li, X.; Suk, J.W.; Potts, J.R.; Ruoff, R.S. Graphene and Graphene Oxide: Synthesis, Properties, and Applications. Adv. Mater. 2010, 22, 3906–3924. [Google Scholar] [CrossRef] [PubMed]
  2. Kouloumpis, A.; Vourdas, N.; Zygouri, P.; Chalmpes, N.; Potsi, G.; Kostas, V.; Spyrou, K.; Stathopoulos, V.N.; Gournis, D.; Rudolf, P. Controlled Deposition of Fullerene Derivatives within a Graphene Template by Means of a Modified Langmuir-Schaefer Method. J. Colloid Interface Sci. 2018, 524, 388–398. [Google Scholar] [CrossRef][Green Version]
  3. Kouloumpis, A.; Thomou, E.; Chalmpes, N.; Dimos, K.; Spyrou, K.; Bourlinos, A.B.; Koutselas, I.; Gournis, D.; Rudolf, P. Graphene/Carbon Dot Hybrid Thin Films Prepared by a Modified Langmuir-Schaefer Method. ACS Omega 2017, 2, 2090–2099. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Potsi, G.; Bourlinos, A.B.; Mouselimis, V.; Poláková, K.; Chalmpes, N.; Gournis, D.; Kalytchuk, S.; Tomanec, O.; Błoński, P.; Medved´, M.; et al. Intrinsic Photoluminescence of Amine-Functionalized Graphene Derivatives for Bioimaging Applications. Appl. Mater. Today 2019, 17, 112–122. [Google Scholar] [CrossRef]
  5. Brisebois, P.P.; Siaj, M. Harvesting Graphene Oxide-Years 1859 to 2019: A Review of Its Structure, Synthesis, Properties and Exfoliation. J. Mater. Chem. C 2020, 8, 1517–1547. [Google Scholar] [CrossRef]
  6. Chalmpes, N.; Moschovas, D.; Tantis, I.; Bourlinos, A.B.; Bakandritsos, A.; Fotiadou, R.; Patila, M.; Stamatis, H.; Avgeropoulos, A.; Karakassides, M.A.; et al. Carbon Nanostructures Derived through Hypergolic Reaction of Conductive Polymers with Fuming Nitric Acid at Ambient Conditions. Molecules 2021, 26, 1595. [Google Scholar] [CrossRef] [PubMed]
  7. Choi, K.I.; Kim, T.H.; Lee, Y.; Kim, H.; Lee, H.; Yuan, G.; Satija, S.K.; Choi, J.H.; Ahn, H.; Koo, J. Perpendicular Orientation of Diblock Copolymers Induced by Confinement between Graphene Oxide Sheets. Langmuir 2018, 34, 1681–1690. [Google Scholar] [CrossRef] [PubMed]
  8. Fang, M.; Wang, K.; Lu, H.; Yang, Y.; Nutt, S. Single-Layer Graphene Nanosheets with Controlled Grafting of Polymer Chains. J. Mater. Chem. 2010, 20, 1982–1992. [Google Scholar] [CrossRef]
  9. Zhu, S.; Li, J.; Chen, Y.; Chen, Z.; Chen, C.; Li, Y.; Cui, Z.; Zhang, D. Grafting of Graphene Oxide with Stimuli-Responsive Polymers by Using ATRP for Drug Release. J. Nanopart. Res. 2012, 14, 1–11. [Google Scholar] [CrossRef]
  10. Ren, L.; Wang, X.; Guo, S.; Liu, T. Functionalization of Thermally Reduced Graphene by in Situ Atom Transfer Radical Polymerization. J. Nanopart. Res. 2011, 13, 6389–6396. [Google Scholar] [CrossRef]
  11. Cui, L.; Liu, J.; Wang, R.; Liu, Z.; Yang, W. A Facile “Graft from” Method to Prepare Molecular-Level Dispersed Graphene-Polymer Composites. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 4423–4432. [Google Scholar] [CrossRef]
  12. Atanase, L.I.; Riess, G. Block Copolymers as Polymeric Stabilizers in Non-Aqueous Emulsion Polymerization. Polym. Int. 2011, 60, 1563–1573. [Google Scholar] [CrossRef]
  13. Bessif, B.; Pfohl, T.; Reiter, G. Self-Seeding Procedure for Obtaining Stacked Block Copolymer Lamellar Crystals in Solution. Polymers 2021, 13, 1676. [Google Scholar] [CrossRef]
  14. Lerch, J.P.; Atanase, L.I.; Riess, G. Adsorption of Non-Ionic ABC Triblock Copolymers: Surface Modification of TiO 2 Suspensions in Aqueous and Non-Aqueous Medium. Appl. Surf. Sci. 2017, 419, 713–719. [Google Scholar] [CrossRef]
  15. Mohamed, M.G.; Kuo, S.W. Functional Silica and Carbon Nanocomposites Based on Polybenzoxazines. Macromol. Chem. Phys. 2019, 220, 1–13. [Google Scholar] [CrossRef]
  16. Sathirapongsasuti, N.; Panaksri, A.; Boonyagul, S.; Chutipongtanate, S. Electrospun Fibers of Polybutylene Succinate/Graphene Oxide. Polymers 2021, 13, 2042. [Google Scholar] [CrossRef]
  17. Barbey, R.; Lavanant, L.; Paripovic, D.; Schüwer, N.; Sugnaux, C.; Tugulu, S.; Klok, H.A. Polymer Brushes via Surface-Initiated Controlled Radical Polymerization: Synthesis, Characterization, Properties, and Applications. Chem. Rev. 2009, 109, 5437–5527. [Google Scholar] [CrossRef]
  18. Zdyrko, B.; Luzinov, I. Polymer Brushes by the “Grafting to” Method. Macromol. Rapid Commun. 2011, 32, 859–869. [Google Scholar] [CrossRef]
  19. Tsubokawa, N. Functionalization of Carbon Material by Surface Grafting of Polymers. Bull. Chem. Soc. Jpn. 2002, 75, 2115–2136. [Google Scholar] [CrossRef]
  20. Tsubokawa, N. Preparation and Properties of Polymer-Grafted Carbon Nanotubes and Nanofibers. Polym. J. 2005, 37, 637–655. [Google Scholar] [CrossRef][Green Version]
  21. Tang, Z.; Kang, H.; Shen, Z.; Guo, B.; Zhang, L.; Jia, D. Grafting of Polyester onto Graphene for Electrically and Thermally Conductive Composites. Macromolecules 2012, 45, 3444–3451. [Google Scholar] [CrossRef]
  22. Zygo, M.; Mrlik, M.; Ilcikova, M.; Hrabalikova, M.; Osicka, J.; Cvek, M.; Sedlacik, M.; Hanulikova, B.; Munster, L.; Skoda, D.; et al. Effect of Structure of Polymers Grafted from Graphene Oxide on the Compatibility of Particles with a Silicone-Based Environment and the Stimuli-Responsive Capabilities of Their Composites. Nanomaterials 2020, 10, 591. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Thomas, H.R.; Phillips, D.J.; Wilson, N.R.; Gibson, M.I.; Rourke, J.P. One-Step Grafting of Polymers to Graphene Oxide. Polym. Chem. 2015, 6, 8270–8274. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Guimont, A.; Beyou, E.; Cassagnau, P.; Martin, G.; Sonntag, P.; D’Agosto, F.; Boisson, C. Grafting of Polyethylene onto Graphite Oxide Sheets: A Comparison of Two Routes. Polym. Chem. 2013, 4, 2828–2836. [Google Scholar] [CrossRef]
  25. Yang, X.; Ma, L.; Wang, S.; Li, Y.; Tu, Y.; Zhu, X. “Clicking” Graphite Oxide Sheets with Well-Defined Polystyrenes: A New Strategy to Control the Layer Thickness. Polym. Guildf. 2011, 52, 3046–3052. [Google Scholar] [CrossRef]
  26. Ye, Y.S.; Chen, Y.N.; Wang, J.S.; Rick, J.; Huang, Y.J.; Chang, F.C.; Hwang, B.J. Versatile Grafting Approaches to Functionalizing Individually Dispersed Graphene Nanosheets Using RAFT Polymerization and Click Chemistry. Chem. Mater. 2012, 24, 2987–2997. [Google Scholar] [CrossRef]
  27. Huang, W.; Wang, S.; Guo, C.; Yang, X.; Li, Y.; Tu, Y. Synthesis and Characterization of Well-Defined Poly(l-Lactide) Functionalized Graphene Oxide Sheets with High Grafting Ratio Prepared through Click Chemistry and Supramolecular Interactions. Polym. Guildf. 2014, 55, 4619–4626. [Google Scholar] [CrossRef]
  28. Sun, X.; Wang, W.; Wu, T.; Qiu, H.; Wang, X.; Gao, J. Grafting of Graphene Oxide with Poly(Sodium 4-Styrenesulfonate) by Atom Transfer Radical Polymerization. Mater. Chem. Phys. 2013, 138, 434–439. [Google Scholar] [CrossRef]
  29. Goncalves, G.; Marques, P.A.A.P.; Barros-Timmons, A.; Bdkin, I.; Singh, M.K.; Emami, N.; Grácio, J. Graphene Oxide Modified with PMMA via ATRP as a Reinforcement Filler. J. Mater. Chem. 2010, 20, 9927–9934. [Google Scholar] [CrossRef][Green Version]
  30. Ren, L.; Huang, S.; Zhang, C.; Wang, R.; Tjiu, W.W.; Liu, T. Functionalization of Graphene and Grafting of Temperature-Responsive Surfaces from Graphene by ATRP “on Water. ” J. Nanopart. Res. 2012, 14, 1–9. [Google Scholar] [CrossRef]
  31. Lee, S.H.; Dreyer, D.R.; An, J.; Velamakanni, A.; Piner, R.D.; Park, S.; Zhu, Y.; Kim, S.O.; Bielawski, C.W.; Ruoff, R.S. Polymer Brushes via Controlled, Surface-Initiated Atom Transfer Radical Polymerization (ATRP) from Graphene Oxide. Macromol. Rapid Commun. 2010, 31, 281–288. [Google Scholar] [CrossRef]
  32. Ding, P.; Zhang, J.; Song, N.; Tang, S.; Liu, Y.; Shi, L. Growing Polystyrene Chains from the Surface of Graphene Layers via RAFT Polymerization and the Influence on Their Thermal Properties. Compos. Part A Appl. Sci. Manuf. 2015, 69, 186–194. [Google Scholar] [CrossRef]
  33. Gu, R.; Xu, W.Z.; Charpentier, P.A. Synthesis of Graphene-Polystyrene Nanocomposites via RAFT Polymerization. Polym. Guildf. 2014, 55, 5322–5331. [Google Scholar] [CrossRef]
  34. Nikdel, M.; Salami-Kalajahi, M.; Salami Hosseini, M. Synthesis of Poly(2-Hydroxyethyl Methacrylate-Co-Acrylic Acid)-Grafted Graphene Oxide Nanosheets via Reversible Addition-Fragmentation Chain Transfer Polymerization. RSC Adv. 2014, 4, 16743–16750. [Google Scholar] [CrossRef]
  35. Mylvaganam, K.; Zhang, L. Fabrication of Graphene-Polymer Nanocomposites through Ionic Polymerization. J. Phys. Chem. A 2016, 120, 7689–7693. [Google Scholar] [CrossRef]
  36. Li, B.; Hou, W.; Sun, J.; Jiang, S.; Xu, L.; Li, G.; Memon, M.A.; Cao, J.; Huang, Y.; Bielawski, C.W.; et al. Tunable Functionalization of Graphene Oxide Sheets through Surface-Initiated Cationic Polymerization. Macromolecules 2015, 48, 994–1001. [Google Scholar] [CrossRef]
  37. Tsubokawa, N.; Yamauchi, T.; Fujiki, K.; Tamesue, S. A Novel Grafting of Polymers onto the Surface of Graphene Oxide. In Graphene Materials: Structure, Properties and Modifications; IntechOpen: London, UK, 2017; pp. 3–26. [Google Scholar]
  38. Ramanathan, T.; Abdala, A.A.; Stankovich, S.; Dikin, D.A.; Herrera-Alonso, M.; Piner, R.D.; Adamson, D.H.; Schniepp, H.C.; Chen, X.; Ruoff, R.S.; et al. Functionalized Graphene Sheets for Polymer Nanocomposites. Nat. Nanotechnol. 2008, 3, 327–331. [Google Scholar] [CrossRef]
  39. Politakos, N.; Liontos, G.; Karanastasis, A.; Zapsas, G.; Moschovas, D.; Avgeropoulos, A. Surface Initiated Polymerization from Graphene Oxide. Curr. Org. Chem. 2015, 19, 1757–1772. [Google Scholar] [CrossRef]
  40. Islam, A.; Ahmad, H.; Zaidi, N.; Kumar, S. Graphene Oxide Sheets Immobilized Polystyrene for Column Preconcentration and Sensitive Determination of Lead by Flame Atomic Absorption Spectrometry. ACS Appl. Mater. Interfaces 2014, 6, 13257–13265. [Google Scholar] [CrossRef]
  41. Smith, A.T.; LaChance, A.M.; Zeng, S.; Liu, B.; Sun, L. Synthesis, Properties, and Applications of Graphene Oxide/Reduced Graphene Oxide and Their Nanocomposites. Nano Mater. Sci. 2019, 1, 31–47. [Google Scholar] [CrossRef]
  42. Nagata, K.; Kawahara, T.; Hashimoto, K.; Fujiki, K.; Tamesue, S.; Yamauchi, T.; Tsubokawa, N. Grafting of Polymers onto Graphene Oxide by Cationic and Anionic Polymerization Initiated by the Surface-Initiating Groups. Compos. Interfaces 2015, 22, 25–37. [Google Scholar] [CrossRef]
  43. Tsubokawa, N.; Takeda, N.; Iwasa, T. Cationic Polymerization of Isobutyl Vinyl Ether Initiated by Carbon Black Surface. Polymer J. 1981, 13, 1093–1097. [Google Scholar] [CrossRef][Green Version]
  44. Dreyer, D.R.; Jarvis, K.A.; Ferreira, P.J.; Bielawski, C.W. Graphite Oxide as a Carbocatalyst for the Preparation of Fullerene-Reinforced Polyester and Polyamide Nanocomposites. Polym. Chem. 2012, 3, 757–766. [Google Scholar] [CrossRef]
  45. Zeng, M.; Wang, J.; Li, R.; Liu, J.; Chen, W.; Xu, Q.; Gu, Y. The Curing Behavior and Thermal Property of Graphene Oxide/Benzoxazine Nanocomposites. Polym. Guildf. 2013, 54, 3107–3116. [Google Scholar] [CrossRef]
  46. Tsubokawa, N.; Hamada, H.; Sone, Y. Grafting of Polyesters from Carbon Fiber. Anionic Ring-Opening Copolymerization of Epoxides with Cyclic Acid Anhydrides Initiated by Cook Groups on the Surface of Carbon Fiber. Polym. Plast. Technol. Eng. 1989, 28, 201–214. [Google Scholar] [CrossRef]
  47. Tsubokawa, N.; Yamada, A.; Sone, Y. Grafting of Polyesters on Carbon Black V. Preparation of Polyester-Grafted Carbon Black with a Higher Grafting Ratio by the Copolymerization of Epoxide with Cyclic Acid Anhydrides Using Cook Groups on Carbon Black as the Initiator. Polym. J. 1984, 16, 333–340. [Google Scholar] [CrossRef][Green Version]
  48. Hadjichristidis, N.; Iatrou, H.; Pispas, S.; Pitsikalis, M. Anionic Polymerization: High Vacuum Techniques. J. Polym. Sci. Part. A Polym. Chem. 2000, 38, 3211–3234. [Google Scholar] [CrossRef]
  49. Avgeropoulos, A.; Paraskeva, S.; Hadjichristidis, N.; Thomas, E.L. Synthesis and Microphase Separation of Linear Triblock Terpolymers of Polystyrene, High 1,4-Polybutadiene, and High 3,4-Polyisoprene. Macromolecules 2002, 35, 4030–4035. [Google Scholar] [CrossRef]
  50. Park, K.W.; Jung, J.H. Spectroscopic and Electrochemical Characteristics of a Carboxylated Graphene-ZnO Composites. J. Power Sources 2012, 199, 379–385. [Google Scholar] [CrossRef]
  51. Neises, B.; Steglich, W. Simple Method for the Esterification of Carboxylic Acids. Angew. Chemie Int. Ed. Engl. 1978, 17, 522–524. [Google Scholar] [CrossRef]
  52. Chalmpes, N.; Spyrou, K.; Vasilopoulos, K.C.; Bourlinos, A.B.; Moschovas, D.; Avgeropoulos, A.; Gioti, C.; Karakassides, M.A.; Gournis, D. Hypergolics in Carbon Nanomaterials Synthesis: New Paradigms and Perspectives. Molecules 2020, 25, 2207. [Google Scholar] [CrossRef]
  53. Arjunan, V.; Subramanian, S.; Mohan, S. Fourier transform infrared and Raman spectral analysis of trans-1,4-polyisoprene. Spectrochim. Acta Part A 2001, 57, 2547–2554. [Google Scholar] [CrossRef]
  54. Kumar, R.; Kumar, M.; Kumar, A.; Singh, R.; Kashyap, R.; Rani, S.; Kumar, D. Surface Modification of Graphene Oxide Using Esterification. Mater. Today Proc. 2019, 18, 1556–1561. [Google Scholar] [CrossRef]
  55. Tsirka, K.; Katsiki, A.; Chalmpes, N.; Gournis, D.; Paipetis, A.S. Mapping of Graphene Oxide and Single Layer Graphene Flakes—Defects Annealing and Healing. Front. Mater. 2018, 5, 37. [Google Scholar] [CrossRef][Green Version]
  56. Chalmpes, N.; Asimakopoulos, G.; Spyrou, K.; Vasilopoulos, K.C.; Bourlinos, A.B.; Moschovas, D.; Avgeropoulos, A.; Karakassides, M.A.; Gournis, D. Functional Carbon Materials Derived through Hypergolic Reactions at Ambient Conditions. Nanomaterials 2020, 10, 566. [Google Scholar] [CrossRef][Green Version]
Figure 1. Raman spectra corresponding to (a) CMGs (black color), diblock precursor of the 1-PS-b-PI-OH type (red color), the final nanocomposites 1-PS-b-PI-g-CMGs-1% (green color), and 1-PS-b-PI-g-CMGs-3% (blue color); and (b) CMGs (black color), diblock precursor of the 2-PS-b-PI-OH type (red color), the final nanocomposites 2-PS-b-PI-g-CMGs-1% (green color), and 2-PS-b-PI-g-CMGs-3% (blue color).
Figure 1. Raman spectra corresponding to (a) CMGs (black color), diblock precursor of the 1-PS-b-PI-OH type (red color), the final nanocomposites 1-PS-b-PI-g-CMGs-1% (green color), and 1-PS-b-PI-g-CMGs-3% (blue color); and (b) CMGs (black color), diblock precursor of the 2-PS-b-PI-OH type (red color), the final nanocomposites 2-PS-b-PI-g-CMGs-1% (green color), and 2-PS-b-PI-g-CMGs-3% (blue color).
Polymers 13 02308 g001
Figure 2. XRD patterns corresponding to (a) CMGs (black color), diblock precursor of the 1-PS-b-PI-OH type (red color), the final nanocomposites 1-PS-b-PI-g-CMGs 1% (blue color), and 1-PS-b-PI-g-CMGs 3% (green color); and (b) CMGs (black color), diblock precursor of the 2-PS-b-PI-OH type (red color), the final nanocomposites 2-PS-b-PI-g-CMGs 1% (blue color), and 2-PS-b-PI-g-CMGs 3% (green color).
Figure 2. XRD patterns corresponding to (a) CMGs (black color), diblock precursor of the 1-PS-b-PI-OH type (red color), the final nanocomposites 1-PS-b-PI-g-CMGs 1% (blue color), and 1-PS-b-PI-g-CMGs 3% (green color); and (b) CMGs (black color), diblock precursor of the 2-PS-b-PI-OH type (red color), the final nanocomposites 2-PS-b-PI-g-CMGs 1% (blue color), and 2-PS-b-PI-g-CMGs 3% (green color).
Polymers 13 02308 g002

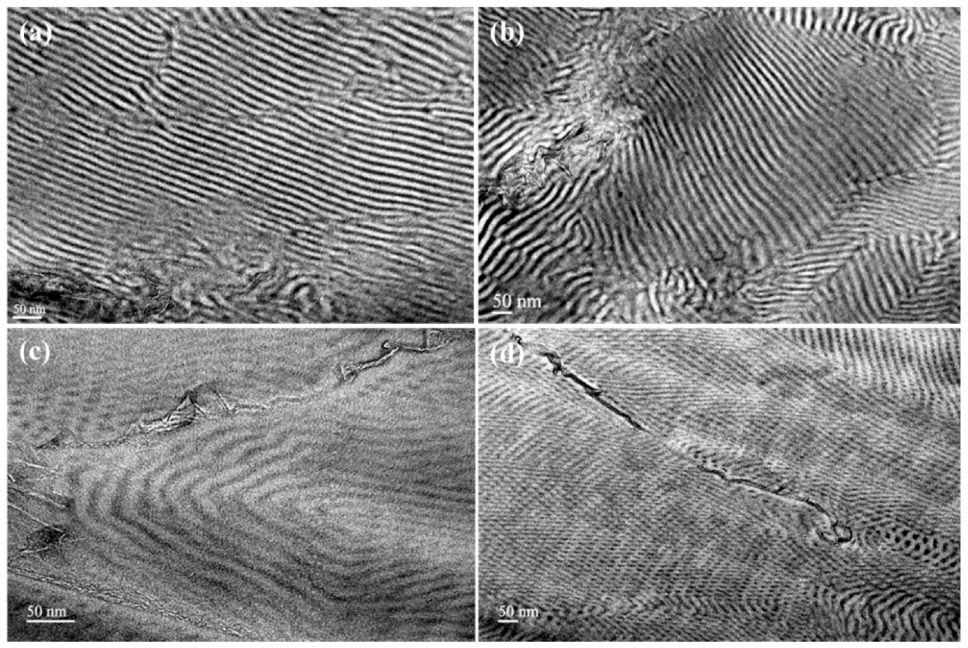

Figure 3. Bright field TEM images corresponding to the (a) 1-PS-b-PI-g-CMGs 1%, (b) 1-PS-b-PI-g-CMGs 3%, (c) 2-PS-b-PI-g-CMGs 1%, and (d) 2-PS-b-PI-g-CMGs 3% final composite materials after thermal annealing at 120 °C for 48 h, sequential microtoming, and staining with vapors of OsO4 for approximately 2 h.
Figure 3. Bright field TEM images corresponding to the (a) 1-PS-b-PI-g-CMGs 1%, (b) 1-PS-b-PI-g-CMGs 3%, (c) 2-PS-b-PI-g-CMGs 1%, and (d) 2-PS-b-PI-g-CMGs 3% final composite materials after thermal annealing at 120 °C for 48 h, sequential microtoming, and staining with vapors of OsO4 for approximately 2 h.
Polymers 13 02308 g003
Table 1. Molecular characterization results for the linear diblock copolymers of the PS-b-PI-OH type.
Table 1. Molecular characterization results for the linear diblock copolymers of the PS-b-PI-OH type.
Sample NumberSamples M ¯ n PS   a
M ¯ n P Ι   a
M ¯ n Total   a
Đtotal  afPS  bφPS  c
a SEC in THF at 30 °C, b 1H-NMR Measurements in CDCl3 at 25 °C, and c from the Equation φ P S = f P S ρ P I f P S ρ P I + 1 f P S ρ P S .
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Katsigiannopoulos, D.; Grana, E.; Tsitoni, K.; Moutsios, I.; Manesi, G.-M.; Nikitina, E.A.; Chalmpes, N.; Moschovas, D.; Gournis, D.; Ivanov, D.A.; et al. Structure/Properties Relationship of Anionically Synthesized Diblock Copolymers “Grafted to” Chemically Modified Graphene. Polymers 2021, 13, 2308.

AMA Style

Katsigiannopoulos D, Grana E, Tsitoni K, Moutsios I, Manesi G-M, Nikitina EA, Chalmpes N, Moschovas D, Gournis D, Ivanov DA, et al. Structure/Properties Relationship of Anionically Synthesized Diblock Copolymers “Grafted to” Chemically Modified Graphene. Polymers. 2021; 13(14):2308.

Chicago/Turabian Style

Katsigiannopoulos, Dimitrios, Eftychia Grana, Konstantina Tsitoni, Ioannis Moutsios, Gkreti-Maria Manesi, Evgeniia A. Nikitina, Nikolaos Chalmpes, Dimitrios Moschovas, Dimitrios Gournis, Dimitri A. Ivanov, and et al. 2021. "Structure/Properties Relationship of Anionically Synthesized Diblock Copolymers “Grafted to” Chemically Modified Graphene" Polymers 13, no. 14: 2308.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
