The Study of Plasticized Amorphous Biopolymer Blend Electrolytes Based on Polyvinyl Alcohol (PVA): Chitosan with High Ion Conductivity for Energy Storage Electrical Double-Layer Capacitors (EDLC) Device Application

Hameed Majid Advanced Polymeric Materials Research Laboratory, Department of Physics, College of Science, University of Sulaimani, Qlyasan Street, Kurdistan Regional Government, Sulaimani 46001, Iraq
Department of Civil Engineering, College of Engineering, Komar University of Science and Technology, Kurdistan Regional Government, Sulaimani 46001, Iraq
College of Engineering, Tishk International University, Kurdistan Regional Government, Sulaimani 46001, Iraq
Department of Medical Laboratory of Science, College of Health Sciences, University of Human Development, Kurdistan Regional Government, Sulaimani 46001, Iraq
Associate Director of General Science Department, Woman Campus, Prince Sultan University, P. O. Box 66833, Riyadh 11586, Saudi Arabia
Department of Physics, College of Education, Old Campus, University of Sulaimani, Kurdistan Regional Government, Sulaimani 46001, Iraq
Charmo Research Center, Charmo University, Peshawa Street, Chamchamal, Kurdistan Region, Sulaimani 46001, Iraq
Department of Chemistry, College of Science, University of Sulaimani, Qlyasan Street, Kurdistan Regional Government-Iraq, Sulaimani 46001, Iraq
Centre for Foundation Studies in Science, University of Malaya, Kuala Lumpur 50603, Malaysia
Author to whom correspondence should be addressed.
Polymers 2020, 12(9), 1938;
Received: 8 August 2020 / Revised: 20 August 2020 / Accepted: 25 August 2020 / Published: 27 August 2020
(This article belongs to the Special Issue Application and Performance of Biopolymers)


In this study, plasticized films of polyvinyl alcohol (PVA): chitosan (CS) based electrolyte impregnated with ammonium thiocyanate (NH4SCN) were successfully prepared using a solution-casting technique. The structural features of the electrolyte films were investigated through the X-ray diffraction (XRD) pattern. The enrichment of the amorphous phase with increasing glycerol concentration was confirmed by observing broad humps. The electrical impedance spectroscopy (EIS) portrays the improvement of ionic conductivity from 10−5 S/cm to 10−3 S/cm upon the addition of plasticizer. The electrolytes incorporated with 28 wt.% and 42 wt.% of glycerol were observed to be mainly ionic conductor as the ionic transference number measurement (TNM) was found to be 0.97 and 0.989, respectively. The linear sweep voltammetry (LSV) investigation indicates that the maximum conducting sample is stable up to 2 V. An electrolyte with the highest conductivity was used to make an energy storage electrical double-layer capacitor (EDLC) device. The cyclic voltammetry (CV) plot depicts no distinguishable peaks in the polarization curve, which means no redox reaction has occurred at the electrode/electrolyte interface. The fabricated EDLC displays the initial specific capacitance, equivalent series resistance, energy density, and power density of 35.5 F/g, 65 Ω, 4.9 Wh/kg, and 399 W/kg, respectively.

1. Introduction

The development of electrochemical devices such as batteries, and electrical double-layer capacitors (EDLCs) has attracted the attention of many researchers, because of their wide applications in portable devices [1]. The most favorable electrochemical storage devices are EDLCs with higher energy properties [2]. EDLC is an energy storage device that supplies electricity via producing an electrical double layer consisting of an adsorbed layer of anions and cations at the electrolyte/the electrodes interfaces. However, traditional batteries deliver lower power and store adequate energy than the traditional capacitors [1,3]. The EDLC with relatively high conductive polymer as electrolytes and electrode separators, might be a potential substitute for other types of charge storage devices [4]. Recently, EDLC has attracted much attention because of its unique properties like durability, speedy charge-discharge rate, higher energy density, reversibility, and improvement in safety, which make it a good candidate for a wide range of applications [5]. In the fabrication of EDLCs, the electrode of activated carbons (ACs) plays a vital role as an activated material owing to the excellent chemical and physical characteristics for instance; large temperature stability, high specific surface area, cheap and good conductivity that can be prepared from the variety of forerunners with the activated agents through heat treatment. Correspondingly, coal is the most popular source of activated carbon manufacturing due to its abundance, cost-effective, and high content of carbon that makes it preferable [6,7,8]. Good mechanical property and high ionic conductivity are promising for the EDLCs preparation. Besides, liquid electrolyte exhibits high ionic conductivity, nonetheless, there is a leakage problem and corrosion while gel and solid-state electrolytes overcome these drawbacks, and they are considerably preferred in EDLCs [9].
Solid polymer electrolyte (SPE) as a key material for various solid-state electrochemical devices have been reported [10,11]. SPE can be prepared by dissolving inorganic salts in a polar polymer chain, and the salts provide anions and cations that make the polymers conductive ionically [12,13]. It is well established that biodegradable polymers are more desirable over non-degradable polymers in the polymer-based electrolytes, because of their biocompatibility and renewability. Among the biodegradable polymers, polyvinyl alcohol (PVA) and chitosan (CS) are two of the utmost valuable candidates as environmentally friendly materials in the preparation of SPEs [14,15]. Previous studies have shown that, CS can be successfully employed in the energy storage devices [16,17]. The PVA polymer exhibits excellent outstanding characteristics including hydrophilicity, high chemical stability, the large capacitance of charge storage, safety, and affordability [18]. Additionally, the presence of a hydroxyl group (OH) in the PVA backbone structure can be considered as the source of the hydrogen bond and promoting the formation of polymer electrolytes [19]. On the other hand, chitosan is mostly investigated and it has a variety of performances in different fields because of the enrichment of functional groups (i.e., NH2, OH) in its backbone structure [20]. The amino group in the CS structure is able to act as the electron donner and strongly coordinates with the inorganic salts which make it enable to generate the proton-conducting SPEs [21].
Blending of polymers is a practical methodology undertaken to increase the room temperature ionic conductivity and reduce the crystallinity of polymers. PVA as a semi-crystalline polymer can be modified through blending with chitosan. Regarding this, several studies were reported in the literature and they revealed that PVA: CS blending has the ability to be used in electrochemical devices applications including supercapacitors, solar cells, and batteries [22,23,24].
The important part to be considered in EDLC design is the polymer electrolyte separated the electrodes with conductivity between ~10−4 and 10−3 Scm−1 [25]. A little effort has been initiated to improve the conductivity of such polymer electrolytes, for instance salt impregnation and plasticization [26,27]. Previous studies on various polymer electrolytes revealed that glycerol plasticizer (GP) can increase the DC conductivity up to two powers [28,29,30,31,32,33]. Glycerol has multi hydroxyl (OH) moiety structure which acts as an alternative pathway for free ion from the salt to move in the polymer electrolytes [28]. Thus, GP has many OH groups to dissociate more salt and scarifying the inter and intra-hydrogen bonding that exists in the polymer matrix and consequently increasing the amorphous phases which are significant for ion transport mechanism.
In this work, PVA: CS blend is doped with 40% of ammonium thiocyanate (NH4SCN) and plasticized with various contents of glycerol. The purpose of this work is to use the highest conducting system of PVA: CS: NH4SCN: glycerol for the EDLC applications.

2. Materials and Methods

2.1. Materials

The straightforward polymeric materials are the polyvinyl alcohol (PVA) and chitosan (CS) with the average molecular weights of 310,000–375,000 g/mol, and 35,000 g/mol, respectively. Other raw materials used are: Ammonium thiocyanate (NH4SCN) salt was used as a dopant; acetic acid (CH3COOH) solution was used as a solvent; and glycerol (C3H8O3) was used as a plasticizer. All the chemical materials were from the commercial supplier Sigma-Aldrich (St. Louis, MO, USA).

2.2. Preparation of Samples

The fabrication of the PVA: CS: NH4SCN: glycerol based electrolyte was carried out using a solution casting technique. For this reason, 0.5 g of PVA was dissolved in 30 mL of distilled water at 80 °C for several hours. In the meantime, 0.5 g of CS was dissolved in 30 mL of 1% acetic acid solution for some hours at the ambient temperature. After cooling the PVA solution to room temperature, the separate solutions were mixed to prepare blending solution of PVA: CS polymers. Then, a constant weight percentage (40 wt.%) of ammonium thiocyanate (NH4SCN) was dissolved in the four individual solutions of the PVA:CS mixture. In each section of the procedure, the magnetic stirrer has been employed continually so as to produce a homogenous solution. Finally, various content of glycerol was added to the PVA: CS: 40% NH4SCN systems. In the prepared samples, the glycerol content was varied from 0 to 42 wt.%. The blended polymer electrolyte films were specified as PVCH0, PVCH1, PVCH2, and PVCH3 incorporated with 0, 14, 28, and 42 weight percent of glycerol, respectively. To obtain dry and free-standing films, the solutions were cast into different labeled glass Petri dishes and kept untouched to evaporate slowly at room temperature. The composition and designation of SPE samples are tabulated in Table 1.

2.3. Characterization of Samples

2.3.1. XRD Pattern and Impedance Spectroscopy

To examine the structural changes of the prepared samples, the XRD has been employed. The Siemens D-5000 X-ray diffractometer (Bruker AXS GmbH, Berlin, Germany) was used with an operating voltage of 40 kV and a current of 40 mA. The blended SPE samples were studied through the monochromic XRD of wavelength (λ = 1.5406 Å) with a 2θ glancing angle ranging from 10° to 80° with a step size of 0.1°. The measurements of electrical impedance spectroscopy of the fabricated samples were done using an impedance analyzer of LCR meter (HIOKI 3531 Z Hi-tester, Nagano, Japan). The operating frequencies were in the range of (50 Hz ≤ f ≤ 1 MHz) at the room temperature. Two stainless-steel electrodes were used as a working electrode to investigate the electrolytes after the films were cut into appropriate size.

2.3.2. TNM and LSV Analysis

Two of the uppermost conducting samples were characterized by the V&A instrument DP3003 digital DC power supply (V & A Instrument, Shanghai, China) to evaluate the ionic transference (tion), and electronic transference (tel) number. The cell that consists of stainless-steel electrodes sandwiched with ion conducting film was polarized with a fixed DC potential (0.8 V). The maximum operating voltage of the uppermost conducting sample was also determined via LSV technique. The LSV was performed utilizing the Digi-IVY DY2300 potentiostat (Neware, Shenzhen, China) at a scan rate of 10 mV s−1 from the potential range of 0 to 2.5 V. Consequently, the cell for the LSV evaluation was prepared by means of placed the free-standing film between a pair of stainless-steel electrodes.

2.3.3. Construction of EDLC

The electrochemical double-layer capacitor EDLC has been constructed with some steps. In the first step, 6.25% of carbon black (CB), and 81.25% of activated carbon (AC) were dried and merged by planetary ball miller for less than a half-hour at 500 r/min. In the next step, 12.5% of polyvinylidene fluoride (PVdF) like a binder was dissolved in the N-methyl pyrrolidone (NMP) solution. The mixed powder of AC and CB was poured in the NMP-PVdF solution and stirred continuously until producing a black solution. Afterward, acetone was used to clean the aluminum foil and compressed on the surface of the glass. The solution mixture was cast and spread on the aluminum foil via the doctor blade method. Eventually, an oven was employed to dry the electrodes at 60 °C for some hours. For future drying, the electrodes were placed in a desiccator to eradicate any extra moisture. Also, the dried anodes were cut into a little hover shape with an area of 2.01 cm2. Then the most conducting sample was located among two activated carbon electrodes, and the CR2032 coin cell was used to pack the sample in a Teflon case. The CV of an EDLC was performed utilizing the Digi-IVY DY2300 potentiostat in the potential range of 0 to 0.9 V at various scan rates. The Neware battery cycler with a current density of 0.5 mA/cm2 was used to evaluate the charge-discharge profiles of EDLC.

3. Results and Discussion

3.1. XRD Analysis

X-ray diffraction patterns were recorded for understanding the structural changes of PVA: CS: NH4SCN system upon the addition of glycerol plasticizer. The diffractogram of the un-plasticized film as depicted in Figure 1 displays a crystalline narrow peak that belongs to the NH4SCN added salt at (2θ = 29.9°) [34,35]. It is obvious that two broad bands can be observed in the diffractogram of the un-plasticized sample at the regions 2θ of 18° and 24°. Figure 2 illustrates the XRD patterns of plasticized systems at room temperature. The glycerol content was varied from 14, to 42 weight percentages (wt.%). After the addition of glycerol, one can see that the crystalline peak disappeared, and broad hallo peaks were observed. This represents an almost complete amorphous structure because of the weakening of the intermolecular forces inside the PVA: CS polymer electrolytes [36]. Figure 2c shows that the addition of 42 wt.% of glycerol causes the decrease of the peak intensities, and results in less sharp peaks. However, the peaks experienced broadening upon the increment of the glycerol concentration. This shows the entire dissociation of NH4SCN salt in the amorphous area of the PVA: CS blended polymeric chain [37]. Schematically the role of glycerol plasticizer on ion dissociation and increase of amorphous phase is shown in Scheme 1. Earlier studies observed that upon addition of various plasticizers amorphous humps are enhanced and they attributed to the disruption of hydrogen bonds that built up the crystalline phase through the polymer host [29,32,33,38]. The ionic conductivity is robustly affected by the nature of crystallinity, and the amorphousness of the materials [39]. Remarkably, the ionic conductivity of the PVCH films expected to be enhanced when the amorphous nature was increased [40]. This may be ascribed to the fact that in the amorphous region, the quick segmental motions of polymeric backbone increase the charge transporter’s mobility, promoting the ionic conductivity [41].

3.2. EIS Study

In ion-conducting electrolyte materials, which are decisive from both of the technological and fundamental aspects, it is significant to grasp the mechanism of charge transport and electrical properties. In this regard, one of the influential techniques is the examination of impedance spectroscopy to illustrate the transport process and establish the relationships between structure and property [42,43]. It is well-known that the conductivity of the polymer electrolytes greatly depends on the actual density of conducting ion species and their mobilities. The impedance spectra (Zi versus Zr) of glycerol plasticized solid polymer blend electrolytes based on PVA: CS: NH4SCN at room temperature are depicted in Figure 3a–d. Usually, two well-defined regions are observable in the plots that include a lower-frequency inclined spike, and high-frequency semicircle. The semicircle that exists at the high frequency regions embodies the bulk effect of the electrolyte samples. While the polarization effect and the surface inhomogeneity between the electrodes and electrolyte interfaces are ascribed by the inclined spike at a lower-frequency region [44,45,46]. It can be denoted that the semicircle was observed in the un-plasticized electrolyte system of PVA: CS incorporated with 40 wt.% of NH4SCN while the semicircle disappeared upon adding glycerol plasticizer along with the entire experimental frequency range [47].

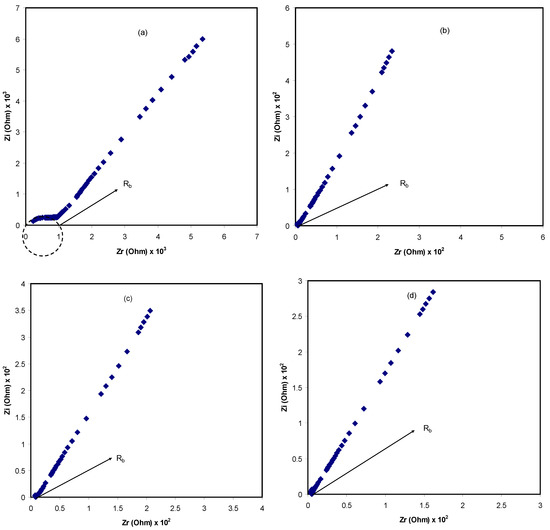

The bulk resistance Rb values were given by the point where the semicircle intersects the horizontal axis (Zr-axis). Also, the ionic conductivity ( σ d c ) was determined for the PVCH electrolyte films through the known Rb value along with the sample’s dimensions using the relation below:
σ d c =   [ 1 R b ]   ×   [ t A ]
where Rb stands for the bulk resistance, t is the film thickness, and A is equal to the known electrode area [48,49,50,51]. It was discovered that the un-plasticized system has the ionic conductivity of 10−5 S/cm, while it increases to 10−3 S/cm through adding 14 wt.% of glycerol (see Table 2). Clearly, upon an increment of the glycerol concentration in the system, the ionic conductivity was significantly improved because of the increase in the mobility of the charge carriers [52]. The glycerol has a great impact on the enhancement of ionic conductivity by promoting the salt dissociation through weakening the Coulombic force between the opposite charges [53]. Rathod et al. [54] recognized the room-temperature ionic conductivity as 3 × 10−6 S/cm for the PVA: CS: 20% LiClO4 system. Also, the PVA: CS: NH4I system showed the maximum conductivity of 7.6 × 10−7 S/cm [23]. Benitez et al. [55] investigated the polymer electrolyte system of the PVA: CS incorporated with 50% of hypophosphorous acid (H3PO2), and the obtained maximum conductivity has found to be 1.4 × 10−2 S/cm. Accordingly, Hamsan et al. [56] prepared the glycerol plasticized of the PS: MC: NH4NO3 based polymer electrolytes and recorded the maximum DC conductivity of ~10−3 S/cm. It is noteworthy that the obtained maximum conductivity in this work is comparable with the above-mentioned systems reported in the literature.

3.3. TNM Study

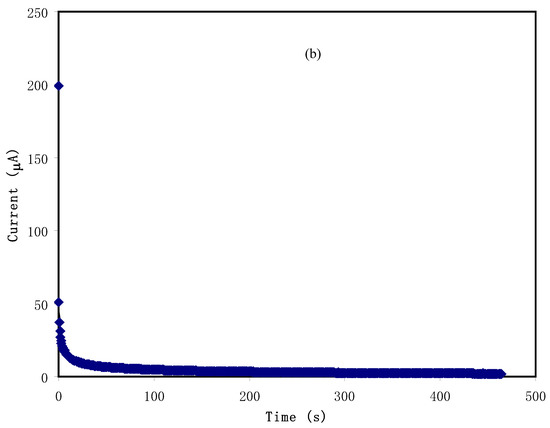

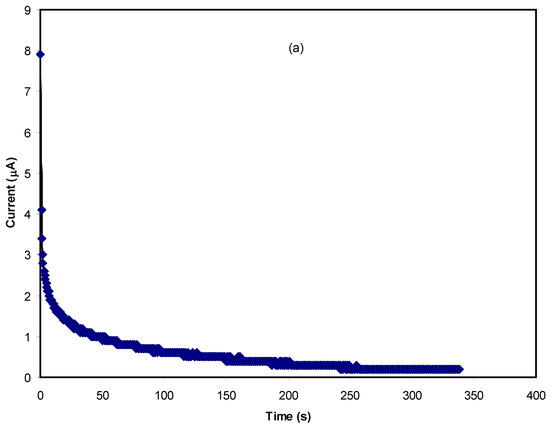

The conductivity in the polymer electrolyte is given mainly by the conduction of ions and insignificantly by electrons. Electrolytes are considered to be the heart of electrochemical devices, and their ionic conductivity examination is significant from the perspective of device applications such as supercapacitor and battery [57]. The TNM has been employed to figure out the main charge carrier at the working voltage of 0.2 V. Figure 4a,b displays the polarization curve of current against time for the two of the most conducting samples (i.e., PVCH2 and PVCH3) at ambient temperature, respectively. Figure 4a belongs to 28 wt.% of added glycerol to the PVA: CS: 40%NH4SCN system, and shows a current of (7.9 µA) at the TNM initiation. Therefore, an extreme drop can be seen until the time of 30 s, even though the current is continued to decrease gradually up until the time of 250 s. On the other hand, the polarization curve of the uppermost conducting sample (i.e., PVCH3) reveals a very high initial current value of 200 µA. A rapid initial current can be observed with time up to 20 s, subsequently, the current slowly moved to stabilize at about 0.1 µA. The drop of the initial total current versus time is mainly due to the lessening of the ionic charge carrier species in the electrolyte systems [58,59]. Based on the TNM plots, the ions and electrons transference number were evaluated using the following equations:
t i o n = I i I S S I i
t i o n = 1 t e l
where tion is the ion transport, tel stands for the electron transport, Ii stands for the initial current which embraces’ electrons and ions, and Iss is the steady-state current holds electron only. The tion result outcomes value was found to be 0.97 and 0.989 for the samples of PVCH2, and PVCH3, respectively. The prepared PVCH3 system is purely ionic because the tion value is ~1. This indicates that the charge immigration in the SPE is mainly as a result of ions [60]. Our previous work for the glycerolized CS: NH4F system possesses 0.976 of tion value, which is in good agreement with the current study [38].

3.4. LSV Study

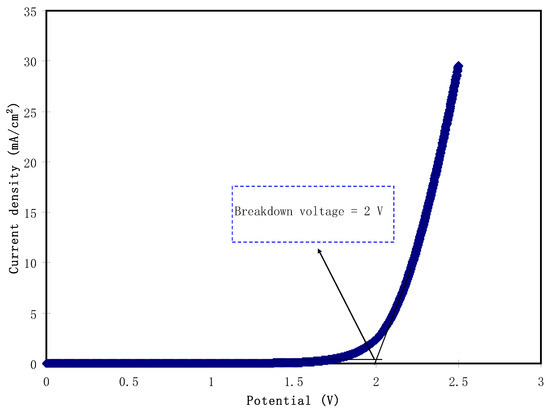

The analysis of electrochemical stability is central for the real applications of the electrochemical devices. LSV has been engaged to specify the maximum operating voltage of the uppermost conducting sample at the scan rate of 10 mV s−1 mV/s [61]. Figure 5 represents a potential window of the PVCH3 blend polymer electrolyte film at ambient temperature. An applied voltage has been measured in the range of 0 to 2.5 V using two stainless-steel working electrodes [62]. It was found that there is no residual electronic current up to 1.75 V, and the breakdown voltage of the PVA: CS: 40%NH4SCN: 42%glycerol system was found to be ~2 V. Beyond 2 V the drastic rise in the current density is observable, which signifies the breakdown of the film at the inert electrode surface. Consequently, the prepared PVCH3-based SPE has adequate anode stability that can be used as electrode separators in the application of electrochemical devices [63,64]. The result is analogous with other glycerol plasticizer and ammonium salt-based blend solid polymer electrolytes. The system including methylcellulose/potato starch (MC:PS) integrated with ammonium nitrate (NH4NO3) and plasticized with glycerol reported by Hamsan et al. [65] has the breakdown voltage of 1.88 V. Yusof et al. [66] documented the decomposition voltage of 1.9 V for glycerol plasticized of the starch-chitosan-NH4I system. Obviously, their results were found to be lower than the outcome obtained in this work.

3.5. CV Study

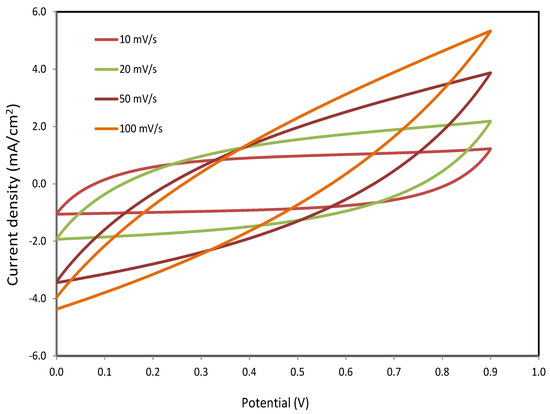

The electrochemical routines of the prepared PVCH3-based solid polymer electrolyte system has been investigated using CV technique. The CV investigation of the fabricated device is vital to be measured in order to use the device for EDLC application [67]. The CV curve of the maximum ion-conducting sample in a potential window ranging from 0 to 0.9 V at various scan rates of 10–100 mV/s is depicted in Figure 6 at room temperature. Overall, the leaf shape can be seen for all the CV plots, and the specific capacitance of the fabricated EDLC has been determined via the following equation:
C C V =   V i V f I ( V ) d V 2 m a   ( V f V i )
where V i   and V f are the initial and final voltages, respectively. m stands for the mass of active material, υ stands for the scan rates, and ∫(V)dV is the real area of the CV curve. The rectangular-like shapes of cyclic voltammogram were obtained once the capacitance is potential independent, whereas if the capacitance relies on voltage the state of cyclic voltammogram displays an alternate profile [68,69,70]. The highest specific capacitance Cs for the sample that is incorporated with 42 wt.% of glycerol was calculated based on Equation (4), and found to be 25.05 F/g, at the scan rate of 10 mV/s [71]. It is also noticeable that the specific capacitance Cs values varied with changing the scan rates, as shown in Table 3. Furthermore, the values of specific capacitance decrease with increasing scan rates because of the unreachable portion for ions dispersion at the interfaces between the electrodes and electrolyte sample. It can be said that the PVCH3 electrolyte film admirably has electrochemical stability because of the almost nearly rectangular mirror images of the shape of the voltammograms, especially at a high sweep rate. Meanwhile, the CV curve shows an ideal capacitor since the plot possesses no visible peaks in the polarization curve, which means no redox reaction occurred with the voltage of 0.9 V [72,73,74]. The specific capacitance Cs value of fabricated EDLC achieved in this work was found to be higher than some previously reported works. Shukur et al. [75] fabricated EDLC with activated carbon using CS: NH4Br: Glycerol, which obtained 7.5 F/g from CV analysis at scan rate of 10 mV/s. Also, the Cs value of our previous study for the CS: PEO: NH4SCN system was 3.8 F/g at 50 mV/s [4].

3.6. Charge-Discharge Study

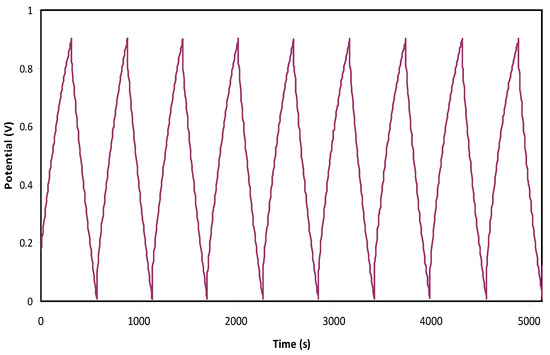

Figure 7 demonstrates the typical galvanostatic charge-discharge (GCD) curve of constructed EDLC over 150 cycles at a constant current density of 0.5 mA/cm2 in the potential ranging from 0 to 0.9 V at room temperature. One can see that these nine cycles indicate the outstanding capacitive performance of EDLC because of their shape of almost perfect symmetrical patterns [76]. However, a slight deviation can be observed in the voltage drop of discharge characteristics from their triangle-like shapes attributed to the roughness of activated carbon, internal resistance, and bulk electrolyte. The discharge slop linearity represents the relatively pure electrostatic interactions between the ions and charged pore surface [77]. Furthermore, the existence of the non-Faradaic charge storage process can be recognized through symmetric triangles of the GCD curve [78].

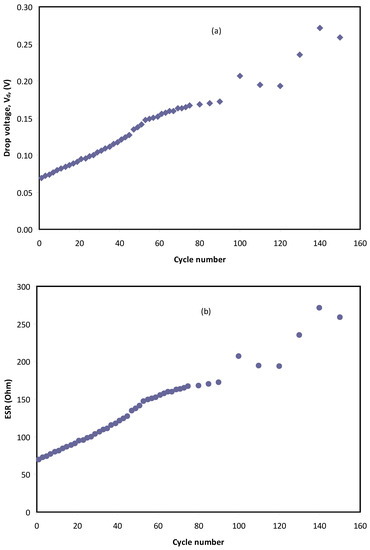

The drop voltage (Vd) of the constructed EDLC and equivalent series resistance (Res) versus cycle number are presented in Figure 8a,b, respectively. The value of drop voltage Vd acquired for the first cycle was found to be about 0.07 V, while it gradually increased over the cycles beyond 120th. Afterthought, the drop potential is raised and attained the maximum value (i.e., 0.28 V) at the 140th cycle. This phenomenon takes place because of the increment in the internal resistance which is known as the equivalent series resistance Res that can be determined from the following equation:
R e s =   V d i
where Vd stands for the drop voltage before the discharge process initiates, and i is the applied current [79]. From Figure 8b, the ESR value at the first cycle was found to be 65 Ω. It can also be observed that the values of (Res) increase with increasing the cycle number and reached the maximum value of approximately 275 Ω at the cycle number of 140 because of the voltage drop, Vd is the highest value. In the fabricated EDLC, the presence of internal resistance is mainly attributed to the electrolyte used for the current collector, and the gap between electrolyte with current collector [80,81]. In this investigation, the result of (Res) for the manufactured EDLC is tolerable and comparable to some other previously reported activated carbon-based EDLC works [76,79,82].

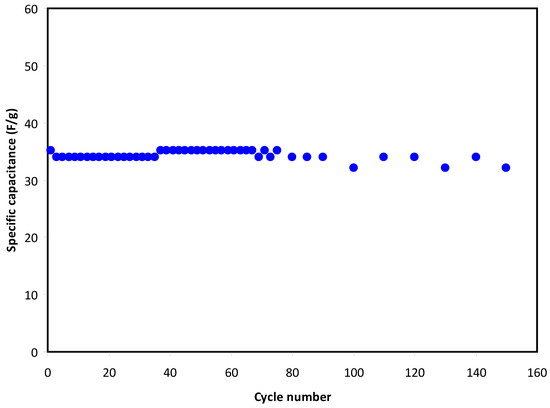

The variation of the specific capacitance, Cs of the fabricated EDLC for the 150th cycles is presented in Figure 9. The Cs value of the constructed EDLC was determined via the equation below:
C s = i g m
where i is the applied current, g stands for the gradient of discharge fragment, and m is the weight of active material. It is worth noting that the first cycle discharge Cs value was found to be 35.5 F/g, and followed by a slight decrease at the 150th cycle to 34 F/g, which may be owing to the decomposition of the prepared polymer electrolyte [83]. An interesting observation is that the specific capacitance Cs values are almost constant over 150 charge-discharge cycles, which verify its perfect cycling stability [84,85]. Moreover, the low lattice energy of the salt is noteworthy as enhancing the specific capacitance value, which possesses high dissociation [86]. The obtained Cs value in our previous study for the CS: Dextrane: NH4F system was 12.4 F/g, which is lower than the present Cs value [87]. The Cs pattern in our previous study for CS: Dextran: NH4I is completely different from the results of the Cs pattern present work. This is may be due to the lattice energy of NH4SCN salt is lower compared to NH4F. Thus, the strong interaction between NH4+ with F is predictable than NH4+ with SCN. Compared to Figure 8, the trend of Cs with cycle number is different. The ESR is calculated from drop voltage. With increasing cycle number, the drop voltage also increased. Thus ESR, which is proportional to drop voltage, also rises with increasing cycle number. On the other hand in the equation of specific capacitance the drop voltage is absent. Thus its trend is different. Usually the slop of linear part of discharge curve excluding the drop voltage was used to calculate the slop (g) in Equation (6).

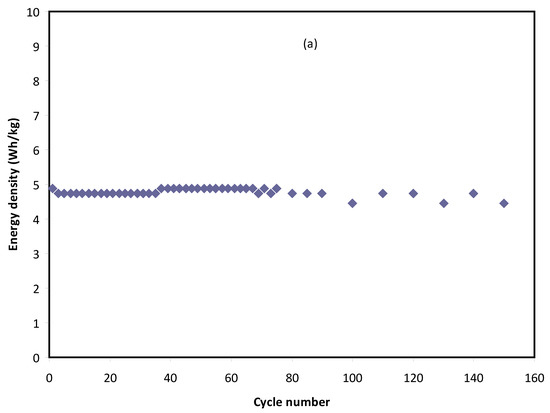

There are two more significant parameters that have to be determined for the EDLC, which are: energy (Ed, Wh/kg) and power (Pd, W/kg) densities to confirm the EDLC practical device applications. Figure 10a and b demonstrate the values of energy density (Ed) and power density (Pd) at selected cycles for the PVA: CS: NH4SCN:glycerol-based EDLC, respectively [88]. Both the EDLC parameters value of energy density (Ed) and power density (Pd) were calculated using the following equations [79]:
E d = C S V 2 2
P d = V 2 4 m ( R e s )
where Cs stands for the specific capacitance, V is the applied voltage, m and Res are the weight of active material and equivalent series resistance, respectively. It can be seen that the Ed value at the first cycle is 4.9 Wh/kg, and beyond it just about unchanged toward the 150th cycle with an average of ~4.8 Wh/kg (see Figure 10a). This display implies the almost same energy barrier for the transportation of ions in the prepared electrolyte film, from the 1st to 150th cycle [89]. Pandey et al. [88] have stated the energy density, Ed of (0.3 Wh/kg) in their electrolyte system, which is worse than the current work. Additionally, the outcome of energy density, Ed achieved in this work is near to the reported (5.5 Wh/kg) one for the based gel polymer electrolyte [90].

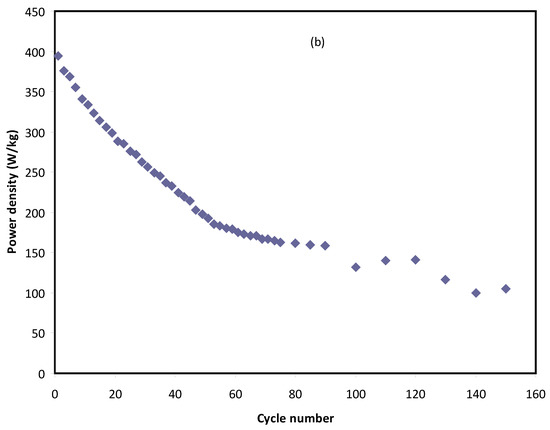

From Figure 10b, it is predictable that the power density, Pd decreased with the increment of the cycle number because of the increase of drop voltage and ESR (see Figure 8a). The power density, Pd value for the first cycle was found to be 399 W/kg. It also dropped to about 180 W/kg at the 50th cycle with continuously released to 100 W/kg, once the EDLC finalized the 150 cycles. The drop in Pd value is due to ion accumulation from the recombination of charge species during a quick charge-discharge procedure, which blocks the transport of ions [91]. Liew et al. [92] documented that the Pd value of 18.37 W/kg obtained in the first cycle using the PVA-CH3COONH4-BmImTf system, is obviously lower than this study.

4. Conclusions

In conclusion, the plasticized polymer blend electrolytes have been prepared via solution-casting method. Polyvinyl alcohol (PVA) and chitosan (CS) were used as the basic polymeric materials. Ion-conducting carriers from ammonium thiocyanate (NH4SCN) and glycerol plasticizer were used to increase the number of free ions and enhance the amorphous phase. The XRD results confirmed the role of plasticizer to enrich the amorphous content. Appearance of broad humps and disappearance of the crystalline sharp peaks in plasticized systems established that plasticization is a novel approach to improve the performance of polymer electrolytes for device application. Through the EIS technique, the sample incorporated with 42 wt.% of plasticizer possesses the maximum conductivity of 3.5 × 10−3 S/cm with the electrochemical stability window up to 2 V. The results from TNM analysis for the two of the highest conducting samples portrayed that the ions in the PVCH systems were the dominant charge carriers. The uppermost conducting sample (i.e., PVCH3) verified that it can be employed in the preparation of the EDLC. The (CV) plot displays an ideal capacitor since the EDLC did not experience either reduction or oxidation reaction. The constructed EDLC offers an initial specific capacitance (Cs) of 35.5 F/g, equivalent series resistance (Res) of 65 Ω, energy density (Ed) of 4.9 Wh/kg, and power density (Pd) of 399 W/kg. In the present study, the result outcomes imply that the PVCH electrolyte systems have the potential to be used in EDLC devices.

Author Contributions

Conceptualization, S.B.A., R.T.A., S.R.S. and M.F.Z.K.; Formal analysis, S.B.A. and R.T.A.; Funding acquisition, E.M.A.D.; Investigation, S.B.A., R.T.A. and A.S.M.; Methodology, A.S.M.; Project administration, S.B.A., E.M.A.D., R.T.A. and M.F.Z.K.; Validation, J.M.H., R.T.A. and S.R.S.; Writing—original draft, S.B.A., J.M.H. and R.T.A.; Writing—review & editing, J.M.H., E.M.A.D., R.T.A., S.R.S., W.O.K. and M.F.Z.K. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.


The authors appreciatively acknowledge the financial support for this work by the Ministry of Higher Education & Scientific Research-Kurdish National Research Council (KNRC), Kurdistan Regional Government-Iraq. The financial support by the University of Sulaimani, Prince Sultan University and Komar University of Science and Technology are impressively respected.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Staiti, P.; Minutoli, M.; Lufrano, F. All solid electric double layer capacitors based on Nafion ionomer. Electrochim. Acta 2002, 47, 2795–2800. [Google Scholar] [CrossRef]
  2. Wei, L.; Yushin, G. Nanostructured activated carbons from natural precursors for electrical double layer capacitors. Nano Energy 2012, 1, 552–565. [Google Scholar] [CrossRef]
  3. Sato, T.; Marukane, S.; Morinaga, T.; Kamijo, T.; Arafune, H.; Tsujii, Y. High voltage electric double layer capacitor using a novel solid-state polymer electrolyte. J. Power Sources 2015, 295, 108–116. [Google Scholar] [CrossRef][Green Version]
  4. Aziz, S.; Abdulwahid, R.; Hamsan, M.H.; Brza, M.A.; Abdullah, R.M.; Kadir, M.; Muzakir, S.K. Structural, Impedance, and EDLC Characteristics of Proton Conducting Chitosan-Based Polymer Blend Electrolytes with High Electrochemical Stability. Molecules 2019, 24, 3508. [Google Scholar] [CrossRef][Green Version]
  5. Wei, L.; Sevilla, M.; Fuertes, A.B.; Mokaya, R.; Yushin, G.; Valdés-Solís, T. Polypyrrole-Derived Activated Carbons for High-Performance Electrical Double-Layer Capacitors with Ionic Liquid Electrolyte. Adv. Funct. Mater. 2011, 22, 827–834. [Google Scholar] [CrossRef]
  6. Zhao, X.Y.; Wu, Y.; Cao, J.P.; Zhuang, Q.Q.; Wan, X.; He, S.; Wei, X.Y. Preparation and characterization of activated carbons from oxygen-rich lignite for electric double-layer capacitor. Int. J. Electrochem. Sci. 2018, 13, 2800–2816. [Google Scholar] [CrossRef][Green Version]
  7. Aziz, S.; Hamsan, M.H.; Kadir, M.F.Z.; Karim, W.; Abdullah, R.M. Development of Polymer Blend Electrolyte Membranes Based on Chitosan: Dextran with High Ion Transport Properties for EDLC Application. Int. J. Mol. Sci. 2019, 20, 3369. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Hashim, M.A.; Sa’Adu, L. A Flexible Solid State EDLC from a Commercially Prepared Multiwalled Carbon Nanotubes and Hybrid Polymer Electrolytes. J. Mater. Sci. Res. 2014, 3, p13. [Google Scholar] [CrossRef][Green Version]
  9. Das, S.; Ghosh, A. Solid Polymer Electrolyte Based on PVDF-HFP and Ionic Liquid Embedded with TiO2Nanoparticle for Electric Double Layer Capacitor (EDLC) Application. J. Electrochem. Soc. 2017, 164, F1348–F1353. [Google Scholar] [CrossRef]
  10. Verma, M.L.; Minakshi, M.; Singh, N.K. Structural and Electrochemical Properties of Nanocomposite Polymer Electrolyte for Electrochemical Devices. Ind. Eng. Chem. Res. 2014, 53, 14993–15001. [Google Scholar] [CrossRef]
  11. Verma, M.L.; Minakshi, M.; Singh, N.K. Synthesis and Characterization of Solid Polymer Electrolyte based on Activated Carbon for Solid State Capacitor. Electrochim. Acta 2014, 137, 497–503. [Google Scholar] [CrossRef][Green Version]
  12. Rodríguez-Moreno, J.; Navarrete-Astorga, E.; Dalchiele, E.A.; Sánchez, L.; Ramos-Barrado, J.; Martín, F. Polyvinylpyrrolidone-LiClO4 solid polymer electrolyte and its application in transparent thin film supercapacitors. J. Power Sources 2013, 237, 270–276. [Google Scholar] [CrossRef]
  13. Aziz, S.B. Structural, Morphological and Electrochemical Impedance Study of CS: LiTf based Solid Polymer Electrolyte: Reformulated Arrhenius Equation for Ion Transport Study. Int. J. Electrochem. Sci. 2016, 11, 9228–9244. [Google Scholar] [CrossRef]
  14. Shukur, M.F.; Yusof, Y.M.; Zawawi, S.M.M.; Illias, H.A.; Kadir, M. Conductivity and transport studies of plasticized chitosan-based proton conducting biopolymer electrolytes. Phys. Scr. 2013, T157. [Google Scholar] [CrossRef]
  15. Aziz, S.; Abdullah, O.G.; Hussein, S.A. Role of Silver Salts Lattice Energy on Conductivity Drops in Chitosan Based Solid Electrolyte: Structural, Morphological and Electrical Characteristics. J. Electron. Mater. 2018, 47, 3800–3808. [Google Scholar] [CrossRef]
  16. Ramkumar, R.; Minakshi, M. Fabrication of ultrathin CoMoO 4 nanosheets modified with chitosan and their improved performance in energy storage device. Dalton Trans. 2015, 44, 6158–6168. [Google Scholar] [CrossRef]
  17. Ramkumar, R.; Sundaram, M.M. A biopolymer gel-decorated cobalt molybdate nanowafer: Effective graft polymer cross-linked with an organic acid for better energy storage. New J. Chem. 2016, 40, 2863–2877. [Google Scholar] [CrossRef]
  18. Yang, C.-C.; Lin, S.-J.; Wu, G.-M. Study of ionic transport properties of alkaline poly(vinyl) alcohol-based polymer electrolytes. Mater. Chem. Phys. 2005, 92, 251–255. [Google Scholar] [CrossRef]
  19. Aziz, S.; Abdullah, R.M.; Rasheed, M.A.; Ahmed, H.M. Role of Ion Dissociation on DC Conductivity and Silver Nanoparticle Formation in PVA:AgNt Based Polymer Electrolytes: Deep Insights to Ion Transport Mechanism. Polymers 2017, 9, 338. [Google Scholar] [CrossRef][Green Version]
  20. Osman, Z.; Ibrahim, Z.; Arof, A. Conductivity enhancement due to ion dissociation in plasticized chitosan based polymer electrolytes. Carbohydr. Polym. 2001, 44, 167–173. [Google Scholar] [CrossRef]
  21. Aziz, S. Role of Dielectric Constant on Ion Transport: Reformulated Arrhenius Equation. Adv. Mater. Sci. Eng. 2016, 2016, 1–11. [Google Scholar] [CrossRef][Green Version]
  22. Kadir, M.; Aspanut, Z.; Majid, S.; Arof, A.K. FTIR studies of plasticized poly(vinyl alcohol)-chitosan blend doped with NH4NO3 polymer electrolyte membrane. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2011, 78, 1068–1074. [Google Scholar] [CrossRef] [PubMed]
  23. Marf, A.S.; Abdullah, R.M.; Aziz, S.B. Structural, Morphological, Electrical and Electrochemical Properties of PVA: CS-Based Proton-Conducting Polymer Blend Electrolytes. Membranes 2020, 10, 71. [Google Scholar] [CrossRef]
  24. Kadir, M.; Majid, S.; Arof, A.K. Plasticized chitosan-PVA blend polymer electrolyte based proton battery. Electrochim. Acta 2010, 55, 1475–1482. [Google Scholar] [CrossRef]
  25. Poonam, K.; Sharma, A.; Arora, S.K. Review of supercapacitors: Materials and devices. J. Energy Storage 2019, 21, 801–825. [Google Scholar] [CrossRef]
  26. Ibrahim, S.; Yasin, S.M.M.; Nee, N.M.; Ahmad, R.; Johan, M.R. Conductivity and dielectric behaviour of PEO-based solid nanocomposite polymer electrolytes. Solid State Commun. 2012, 152, 426–434. [Google Scholar] [CrossRef]
  27. Aziz, S.; Woo, T.J.; Kadir, M.F.; Ahmed, H.M.; Ahmed, H.M. A conceptual review on polymer electrolytes and ion transport models. J. Sci. Adv. Mater. Devices 2018, 3, 1–17. [Google Scholar] [CrossRef]
  28. Hamsan, H.; Aziz, S.B.; Kadir, M.; Brza, M.; Karim, W.O. The study of EDLC device fabricated from plasticized magnesium ion conducting chitosan based polymer electrolyte. Polym. Test. 2020, 106714. [Google Scholar] [CrossRef]
  29. Asnawi, A.S.F.M.; Aziz, S.; Nofal, M.; Hamsan, M.H.; Brza, M.A.; Yusof, Y.M.; Abdulwahid, R.; Muzakir, S.K.; Kadir, M. Glycerolized Li+ Ion Conducting Chitosan-Based Polymer Electrolyte for Energy Storage EDLC Device Applications with Relatively High Energy Density. Polymers 2020, 12, 1433. [Google Scholar] [CrossRef]
  30. Hamsan, M.; Aziz, S.B.; Azha, M.; Azli, A.; Shukur, M.; Yusof, Y.; Muzakir, S.; Manan, N.S.; Kadir, M. Solid-state double layer capacitors and protonic cell fabricated with dextran from Leuconostoc mesenteroides based green polymer electrolyte. Mater. Chem. Phys. 2020, 241. [Google Scholar] [CrossRef]
  31. Sekhar, P.C. Effect of plasticizer on conductivity and cell parameters of (PMMA+NaClO4) polymer electrolyte system. IOSR J. Appl. Phys. 2012, 2, 1–6. [Google Scholar] [CrossRef]
  32. Hadi, J.M.; Aziz, S.B.; Nofal, M.; Hussein, S.A.; Hafiz, M.H.; Brza, M.A.; Abdulwahid, R.; Kadir, M.; Woo, H.J.; Hamsan, M.H. Electrical, Dielectric Property and Electrochemical Performances of Plasticized Silver Ion-Conducting Chitosan-Based Polymer Nanocomposites. Membranes 2020, 10, 151. [Google Scholar] [CrossRef] [PubMed]
  33. Hamsan, M.; Aziz, S.B.; Nofal, M.; Brza, M.; Abdulwahid, R.; Hadi, J.M.; Karim, W.O.; Kadir, M. Characteristics of EDLC device fabricated from plasticized chitosan: MgCl2 based polymer electrolyte. J. Mater. Res. Technol. 2020, 9, 10635–10646. [Google Scholar] [CrossRef]
  34. Shukur, M.F.; Kadir, M. Hydrogen ion conducting starch-chitosan blend based electrolyte for application in electrochemical devices. Electrochim. Acta 2015, 158, 152–165. [Google Scholar] [CrossRef]
  35. Göktepe, F.; Çelik, S.Ü.; Bozkurt, A. Preparation and the proton conductivity of chitosan/poly(vinyl phosphonic acid) complex polymer electrolytes. J. Non-Cryst. Solids 2008, 354, 3637–3642. [Google Scholar] [CrossRef]
  36. Aziz, S.; Abidin, Z.; Arof, A.K. Effect of silver nanoparticles on the DC conductivity in chitosansilver triflate polymer electrolyte. Phys. B Condens. Matter 2010, 405, 4429–4433. [Google Scholar] [CrossRef]
  37. Aziz, S.; Hassan, A.Q.; Mohammed, S.J.; Karim, W.; Kadir, M.; Tajuddin, H.A.; Chan, N.N.M.Y. Structural and Optical Characteristics of PVA:C-Dot Composites: Tuning the Absorption of Ultra Violet (UV) Region. Nanomaterials 2019, 9, 216. [Google Scholar] [CrossRef][Green Version]
  38. Asnawi, A.S.F.M.; Aziz, S.; Nofal, M.; Yusof, Y.M.; Brevik, I.; Hamsan, M.H.; Brza, M.A.; Abdulwahid, R.; Kadir, M. Metal Complex as a Novel Approach to Enhance the Amorphous Phase and Improve the EDLC Performance of Plasticized Proton Conducting Chitosan-Based Polymer Electrolyte. Membranes 2020, 10, 132. [Google Scholar] [CrossRef]
  39. Yulianti, E.; Karo, A.K.; Susita, L.; Sudaryanto. Synthesis of Electrolyte Polymer Based on Natural Polymer Chitosan by Ion Implantation Technique. Procedia Chem. 2012, 4, 202–207. [Google Scholar] [CrossRef][Green Version]
  40. Mobarak, N.N.; Ahmad, A.; Abdullah, M.; Ramli, N.; Rahman, M.Y.A. Conductivity enhancement via chemical modification of chitosan based green polymer electrolyte. Electrochim. Acta 2013, 92, 161–167. [Google Scholar] [CrossRef]
  41. Rosli, N.; Chan, C.; Subban, R.; Winie, T. Studies on the Structural and Electrical Properties of Hexanoyl Chitosan/Polystyrene-based Polymer Electrolytes. Phys. Procedia 2012, 25, 215–220. [Google Scholar] [CrossRef][Green Version]
  42. Machappa, T.; Prasad, M.A. AC conductivity and dielectric behavior of polyaniline/sodium metavenadate (PANI/NaVO3) composites. Phys. B Condens. Matter 2009, 404, 4168–4172. [Google Scholar] [CrossRef]
  43. Aziz, S.B.; Karim, W.O.; Ghareeb, H.O. The deficiency of chitosan:AgNO3 polymer electrolyte incorporated with titanium dioxide filler for device fabrication and membrane separation technology. J. Mater. Res. Technol. 2020, 9, 4692–4705. [Google Scholar] [CrossRef]
  44. Siddaiah, T.; Ojha, P.; Gopal, N.; Ramu, C.; Nagabhushana, H. Thermal, structural, optical and electrical properties of PVA/MAA:EA polymer blend filled with different concentrations of Lithium Perchlorate. J. Sci. Adv. Mater. Devices 2018, 3, 456–463. [Google Scholar] [CrossRef]
  45. Aziz, S.B.; Brza, M.; Saed, S.R.; Hamsan, M.; Kadir, M. Ion association as a main shortcoming in polymer blend electrolytes based on CS:PS incorporated with various amounts of ammonium tetrafluoroborate. J. Mater. Res. Technol. 2020, 9, 5410–5421. [Google Scholar] [CrossRef]
  46. Muchakayala, R.; Song, S.; Gao, S.; Wang, X.; Fan, Y. Structure and ion transport in an ethylene carbonate-modified biodegradable gel polymer electrolyte. Polym. Test. 2017, 58, 116–125. [Google Scholar] [CrossRef]
  47. Yusof, Y.M.; Illias, H.A.; Kadir, M. Incorporation of NH4Br in PVA-chitosan blend-based polymer electrolyte and its effect on the conductivity and other electrical properties. Ionics 2014, 20, 1235–1245. [Google Scholar] [CrossRef]
  48. Polu, A.R.; Kumar, R. AC impedance and dielectric spectroscopic studies of Mg2+ ion conducting PVA-PEG blended polymer electrolytes. Bull. Mater. Sci. 2011, 34, 1063–1067. [Google Scholar] [CrossRef]
  49. Mustafa, M.S.; Ghareeb, H.O.; Aziz, S.; Brza, M.A.; Al-Zangana, S.; Hadi, J.M.; Kadir, M. Electrochemical Characteristics of Glycerolized PEO-Based Polymer Electrolytes. Membranes 2020, 10, 116. [Google Scholar] [CrossRef]
  50. Hadi, J.M. Electrochemical Impedance study of Proton Conducting Polymer Electrolytes based on PVC Doped with Thiocyanate and Plasticized with Glycerol. Int. J. Electrochem. Sci. 2020, 15, 4671–4683. [Google Scholar] [CrossRef]
  51. Aziz, S.B.; Hamsan, M.H.H.; Nofal, M.; San, S.; Abdulwahid, R.; Saeed, S.R.R.; Brza, M.A.; Kadir, M.; Mohammed, S.J.; Al-Zangana, S. From Cellulose, Shrimp and Crab Shells to Energy Storage EDLC Cells: The Study of Structural and Electrochemical Properties of Proton Conducting Chitosan-Based Biopolymer Blend Electrolytes. Polymers 2020, 12, 1526. [Google Scholar] [CrossRef] [PubMed]
  52. Al-Muntaser, A.; Abdelghany, A.; Abdelrazek, E.; Elshahawy, A. Enhancement of optical and electrical properties of PVC/PMMA blend films doped with Li4Ti5O12 nanoparticles. J. Mater. Res. Technol. 2020, 9, 789–797. [Google Scholar] [CrossRef]
  53. Shukur, M.F.; Ithnin, R.; Kadir, M. Ionic conductivity and dielectric properties of potato starch-magnesium acetate biopolymer electrolytes: The effect of glycerol and 1-butyl-3-methylimidazolium chloride. Ionics 2016, 22, 1113–1123. [Google Scholar] [CrossRef]
  54. Rathod, S.G.; Bhajantri, R.F.; Ravindrachary, V.; Pujari, P.K.; Sheela, T. Ionic conductivity and dielectric studies of LiClO4 doped poly(vinylalcohol)(PVA)/chitosan(CS) composites. J. Adv. Dielectr. 2014, 4, 1450033. [Google Scholar] [CrossRef]
  55. Benítez, M.; Astaiza, J.D.; Vargas, R.A. Effect of H3PO2 on the mechanical, thermal, and electrical properties of polymers based on poly (vinyl alcohol) (PVA) and chitosan (CS). Ionics 2018, 24, 2029–2034. [Google Scholar] [CrossRef]
  56. Hamsan, M.H.; Shukur, M.F.; Kadir, M. NH4NO3 as charge carrier contributor in glycerolized potato starch-methyl cellulose blend-based polymer electrolyte and the application in electrochemical double-layer capacitor. Ionics 2017, 23, 3429–3453. [Google Scholar] [CrossRef]
  57. Aziz, S.B.; Brza, M.A.; Hamsan, H.M.; Kadir, M.F.Z.; Abdulwahid, R.T. Electrochemical characteristics of solid state double-layer capacitor constructed from proton conducting chitosan-based polymer blend electrolytes. Polym. Bull. 2020, 1–19. [Google Scholar] [CrossRef]
  58. Samsudin, A.; Lai, H.; Isa, M.I.N. Biopolymer Materials Based Carboxymethyl Cellulose as a Proton Conducting Biopolymer Electrolyte for Application in Rechargeable Proton Battery. Electrochim. Acta 2014, 129, 1–13. [Google Scholar] [CrossRef]
  59. Noor, N.; Isa, M.I.N. Investigation on transport and thermal studies of solid polymer electrolyte based on carboxymethyl cellulose doped ammonium thiocyanate for potential application in electrochemical devices. Int. J. Hydrogen Energy 2019, 44, 8298–8306. [Google Scholar] [CrossRef]
  60. Hadi, J.M.; Aziz, S.B.; Mustafa, M.S.; Hamsan, M.H.; Abdulwahid, R.T.; Kadir, M.F.; Ghareeb, H.O. Role of nano-capacitor on dielectric constant enhancement in PEO:NH4SCN:xCeO2 polymer nano-composites: Electrical and electrochemical properties. J. Mater. Res. Technol. 2020, 9, 9283–9294. [Google Scholar] [CrossRef]
  61. Cheng, H.; Zhu, C.; Huang, B.; Lu, M.; Yang, Y. Synthesis and electrochemical characterization of PEO-based polymer electrolytes with room temperature ionic liquids. Electrochim. Acta 2007, 52, 5789–5794. [Google Scholar] [CrossRef]
  62. Francis, K.A.; Liew, C.-W.; Ramesh, S.; Ramesh, K. Ionic liquid enhanced magnesium-based polymer electrolytes for electrical double-layer capacitors. Ionics 2015, 22, 919–925. [Google Scholar] [CrossRef]
  63. Dhatarwal, P.; Choudhary, S.; Sengwa, R.J. Electrochemical performance of Li+-ion conducting solid polymer electrolytes based on PEO-PMMA blend matrix incorporated with various inorganic nanoparticles for the lithium ion batteries. Compos. Commun. 2018, 10, 11–17. [Google Scholar] [CrossRef]
  64. Aziz, S.B.; Brza, M.; Mishra, K.; Hamsan, M.; Karim, W.O.; Abdullah, R.M.; Kadir, M.; Abdulwahid, R.T. Fabrication of high performance energy storage EDLC device from proton conducting methylcellulose: Dextran polymer blend electrolytes. J. Mater. Res. Technol. 2020, 9, 1137–1150. [Google Scholar] [CrossRef]
  65. Hamsan, M.H.; Aziz, S.B.; Shukur, M.F.; Kadir, M. Protonic cell performance employing electrolytes based on plasticized methylcellulose-potato starch-NH4NO3. Ionics 2019, 25, 559–572. [Google Scholar] [CrossRef]
  66. Yusof, Y.M.; Majid, N.A.; Kasmani, R.M.; Illias, H.A.; Kadir, M.F.Z. The Effect of Plasticization on Conductivity and Other Properties of Starch/Chitosan Blend Biopolymer Electrolyte Incorporated with Ammonium Iodide. Mol. Cryst. Liq. Cryst. 2014, 603, 73–88. [Google Scholar] [CrossRef]
  67. Mazuki, N.; Majeed, A.P.P.A.; Samsudin, A.S. Study on electrochemical properties of CMC-PVA doped NH4Br based solid polymer electrolytes system as application for EDLC. J. Polym. Res. 2020, 27, 1–13. [Google Scholar] [CrossRef]
  68. Aziz, S.B.; Hamsan, M.H.; Abdullah, R.M.; Abdulwahid, R.T.; Brza, M.A.; Marif, A.S.; Kadir, M.F.Z. Protonic EDLC cell based on chitosan (CS): Methylcellulose (MC) solid polymer blend electrolytes. Ionics 2020, 26, 1829–1840. [Google Scholar] [CrossRef]
  69. Nadiah, N.; Omar, F.S.; Numan, A.; Mahipal, Y.K.; Ramesh, S.; Ramesh, K. Influence of acrylic acid on ethylene carbonate/dimethyl carbonate based liquid electrolyte and its supercapacitor application. Int. J. Hydrogen Energy 2017, 42, 30683–30690. [Google Scholar] [CrossRef]
  70. Bandaranayake, C.; Weerasinghe, W.; Vidanapathirana, K.; Perera, K.S. A Cyclic Voltammetry study of a gel polymer electrolyte based redox-capacitor. Sri Lankan J. Phys. 2016, 16, 19. [Google Scholar] [CrossRef][Green Version]
  71. Chong, M.Y.; Numan, A.; Liew, C.-W.; Ng, H.; Ramesh, K.; Ramesh, S. Enhancing the performance of green solid-state electric double-layer capacitor incorporated with fumed silica nanoparticles. J. Phys. Chem. Solids 2018, 117, 194–203. [Google Scholar] [CrossRef]
  72. Yang, C.-C.; Wu, G. Study of microporous PVA/PVC composite polymer membrane and it application to MnO2 capacitors. Mater. Chem. Phys. 2009, 114, 948–955. [Google Scholar] [CrossRef]
  73. Kasprzak, D.; Stepniak, I.; Galiński, M.; Stepniak, I. Electrodes and hydrogel electrolytes based on cellulose: Fabrication and characterization as EDLC components. J. Solid State Electrochem. 2018, 22, 3035–3047. [Google Scholar] [CrossRef][Green Version]
  74. Fattah, N.F.A.; Ng, H.M.; Mahipal, Y.K.; Numan, A.; Ramesh, S.; Ramesh, K. An Approach to Solid-State Electrical Double Layer Capacitors Fabricated with Graphene Oxide-Doped, Ionic Liquid-Based Solid Copolymer Electrolytes. Materials 2016, 9, 450. [Google Scholar] [CrossRef][Green Version]
  75. Shukur, M.; Hamsan, M.; Kadir, M. Investigation of plasticized ionic conductor based on chitosan and ammonium bromide for EDLC application. Mater. Today Proc. 2019, 17, 490–498. [Google Scholar] [CrossRef]
  76. Liew, C.-W.; Ramesh, S.; Arof, A.K. Enhanced capacitance of EDLCs (electrical double layer capacitors) based on ionic liquid-added polymer electrolytes. Energy 2016, 109, 546–556. [Google Scholar] [CrossRef]
  77. Aziz, S.B.; Hamsan, M.; Brza, M.; Kadir, M.; Muzakir, S.; Abdulwahid, R.T. Effect of glycerol on EDLC characteristics of chitosan: Methylcellulose polymer blend electrolytes. J. Mater. Res. Technol. 2020, 9, 8355–8366. [Google Scholar] [CrossRef]
  78. Nadiah, N.S.; Mahipal, Y.K.; Numan, A.; Ramesh, S.; Ramesh, K. Efficiency of supercapacitor using EC/DMC-based liquid electrolytes with methyl methacrylate (MMA) monomer. Ionics 2015, 22, 107–114. [Google Scholar] [CrossRef]
  79. Aziz, S.B.; Hamsan, M.H.; Karim, W.O.; Marif, A.S.; Abdulwahid, R.T.; Kadir, M.F.Z.; Brza, M.A. Study of impedance and solid-state double-layer capacitor behavior of proton (H+)-conducting polymer blend electrolyte-based CS:PS polymers. Ionics 2020, 1–15. [Google Scholar] [CrossRef]
  80. Arof, A.K.; Kufian, M.Z.; Shukur, M.F.; Aziz, M.F.; Abdelrahman, A.; Majid, S. Electrical double layer capacitor using poly(methyl methacrylate)-C4BO8Li gel polymer electrolyte and carbonaceous material from shells of mata kucing (Dimocarpus longan) fruit. Electrochim. Acta 2012, 74, 39–45. [Google Scholar] [CrossRef]
  81. Hamsan, M.H.; Shukur, M.F.; Aziz, S.B.; Yusof, Y.M.; Kadir, M. Influence of NH 4 Br as an ionic source on the structural/electrical properties of dextran-based biopolymer electrolytes and EDLC application. Bull. Mater. Sci. 2019, 43, 30. [Google Scholar] [CrossRef]
  82. Lim, C.-S.; Teoh, K.; Liew, C.-W.; Ramesh, S. Capacitive behavior studies on electrical double layer capacitor using poly (vinyl alcohol)-lithium perchlorate based polymer electrolyte incorporated with TiO2. Mater. Chem. Phys. 2014, 143, 661–667. [Google Scholar] [CrossRef]
  83. Gu, H.-B.; Kim, J.-U.; Song, H.-W.; Park, G.-C.; Park, B.-K. Electrochemical properties of carbon composite electrode with polymer electrolyte for electric double-layer capacitor. Electrochim. Acta 2000, 45, 1533–1536. [Google Scholar] [CrossRef]
  84. Aziz, S.; Hamsan, M.; Brza, M.; Kadir, M.; Abdulwahid, R.; Ghareeb, H.O.; Woo, H. Fabrication of energy storage EDLC device based on CS:PEO polymer blend electrolytes with high Li+ ion transference number. Results Phys. 2019, 15, 102584. [Google Scholar] [CrossRef]
  85. Kadir, M.F.Z.; Arof, A.K. Application of PVA-chitosan blend polymer electrolyte membrane in electrical double layer capacitor. Mater. Res. Innov. 2011, 15, s217–s220. [Google Scholar] [CrossRef]
  86. Aziz, S.; Hamsan, M.H.; Nofal, M.; Karim, W.; Brevik, I.; Brza, M.A.; Abdulwahid, R.; Al-Zangana, S.; Kadir, M. Structural, Impedance and Electrochemical Characteristics of Electrical Double Layer Capacitor Devices Based on Chitosan: Dextran Biopolymer Blend Electrolytes. Polymers 2020, 12, 1411. [Google Scholar] [CrossRef]
  87. Aziz, S.; Hamsan, M.H.; Karim, W.; Kadir, M.; Brza, M.A.; Abdullah, O.G. High Proton Conducting Polymer Blend Electrolytes Based on Chitosan:Dextran with Constant Specific Capacitance and Energy Density. Biomolecules 2019, 9, 267. [Google Scholar] [CrossRef][Green Version]
  88. Pandey, G.P.; Kumar, Y.; Hashmi, S. Ionic liquid incorporated PEO based polymer electrolyte for electrical double layer capacitors: A comparative study with lithium and magnesium systems. Solid State Ion. 2011, 190, 93–98. [Google Scholar] [CrossRef]
  89. Wang, J.; Zhao, Z.; Song, S.; Ma, Q.; Liu, R. High Performance Poly(vinyl alcohol)-Based Li-Ion Conducting Gel Polymer Electrolyte Films for Electric Double-Layer Capacitors. Polymers 2018, 10, 1179. [Google Scholar] [CrossRef][Green Version]
  90. Tripathi, S.K. Electrical studies on ionic liquid-based gel polymer electrolyte for its application in EDLCs. Ionics 2017, 77, 183–2746. [Google Scholar] [CrossRef]
  91. Aziz, S.; Hamsan, M.H.; Abdullah, R.M.; Kadir, M.F.Z. A Promising Polymer Blend Electrolytes Based on Chitosan: Methyl Cellulose for EDLC Application with High Specific Capacitance and Energy Density. Molecules 2019, 24, 2503. [Google Scholar] [CrossRef] [PubMed][Green Version]
  92. Liew, C.-W.; Ramesh, S.; Arof, A. Investigation of ionic liquid-doped ion conducting polymer electrolytes for carbon-based electric double layer capacitors (EDLCs). Mater. Des. 2016, 92, 829–835. [Google Scholar] [CrossRef]

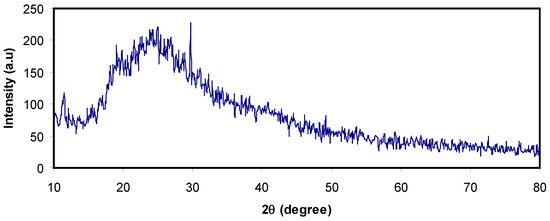

Figure 1. XRD spectra for the un-plasticized of the PVA: CS: 40%NH4SCN system at room temperature.
Figure 1. XRD spectra for the un-plasticized of the PVA: CS: 40%NH4SCN system at room temperature.
Polymers 12 01938 g001

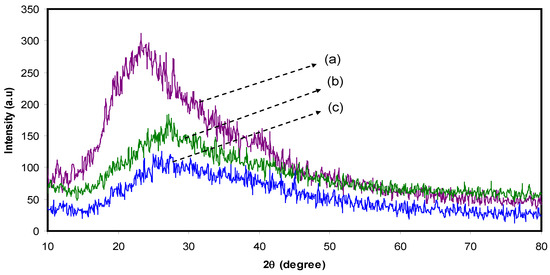

Figure 2. XRD patterns of plasticized PVA: CS: 40%NH4SCN systems incorporated with (a) 14 wt.% glycerol, (b) 28 wt.% glycerol, and (c) 42 wt.% glycerol, at room temperature.
Figure 2. XRD patterns of plasticized PVA: CS: 40%NH4SCN systems incorporated with (a) 14 wt.% glycerol, (b) 28 wt.% glycerol, and (c) 42 wt.% glycerol, at room temperature.
Polymers 12 01938 g002

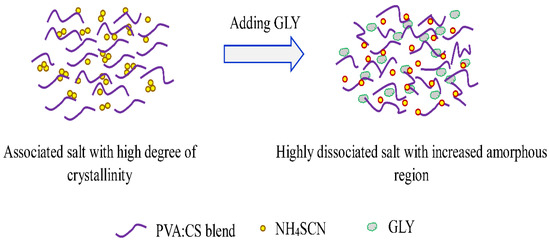

Scheme 1. Role of plasticizer on the ion dissociation and increase of disorder.
Scheme 1. Role of plasticizer on the ion dissociation and increase of disorder.
Polymers 12 01938 sch001
Figure 3. Impedance plot (Zi versus Zr) of the PVA: CS: 40%NH4SCN incorporated with (a) 0% glycerol, (b) 14% glycerol, (c) 28% glycerol, and (d) 42% glycerol.
Figure 3. Impedance plot (Zi versus Zr) of the PVA: CS: 40%NH4SCN incorporated with (a) 0% glycerol, (b) 14% glycerol, (c) 28% glycerol, and (d) 42% glycerol.
Polymers 12 01938 g003
Figure 4. Current against time for the (a) PVCH2, and (b) PVCH3 electrolyte films.
Figure 4. Current against time for the (a) PVCH2, and (b) PVCH3 electrolyte films.
Polymers 12 01938 g004aPolymers 12 01938 g004b
Figure 5. Linear sweep voltammogram for the PVCH3 electrolyte sample at room temperature.
Figure 5. Linear sweep voltammogram for the PVCH3 electrolyte sample at room temperature.
Polymers 12 01938 g005
Figure 6. Cyclic voltammogram responses of the EDLC fabrication for the PVCH3 at different scan rates in the potential rage of 0 to 0.9 V.
Figure 6. Cyclic voltammogram responses of the EDLC fabrication for the PVCH3 at different scan rates in the potential rage of 0 to 0.9 V.
Polymers 12 01938 g006
Figure 7. Charge-discharge profile of the fabricated EDLC at selected cycles.
Figure 7. Charge-discharge profile of the fabricated EDLC at selected cycles.
Polymers 12 01938 g007
Figure 8. The EDLC parameters of (a) drop voltage (Vd) of discharge process initiation, (b) equivalent series resistance (ESR) pattern up to 150th cycles.
Figure 8. The EDLC parameters of (a) drop voltage (Vd) of discharge process initiation, (b) equivalent series resistance (ESR) pattern up to 150th cycles.
Polymers 12 01938 g008
Figure 9. The specific capacitance, Cs of the constructed EDLC versus cycle number.
Figure 9. The specific capacitance, Cs of the constructed EDLC versus cycle number.
Polymers 12 01938 g009
Figure 10. The EDLC parameters of (a) energy density (Ed), and (b) power density (Pd) at selected cycles.
Figure 10. The EDLC parameters of (a) energy density (Ed), and (b) power density (Pd) at selected cycles.
Polymers 12 01938 g010aPolymers 12 01938 g010b
Table 1. The composition and designation of the PVA: CS: NH4SCN: glycrol systems.
Table 1. The composition and designation of the PVA: CS: NH4SCN: glycrol systems.
Sample DesignationPVA:CS (g)NH4SCN (g)Glycerol (wt.%)Glycerol (g)
Table 2. The ionic conductivity σ d c of un-plasticized and plasticized of PVA: CS: NH4SCN systems at ambient temperature.
Table 2. The ionic conductivity σ d c of un-plasticized and plasticized of PVA: CS: NH4SCN systems at ambient temperature.
Sample Code Ionic Conductivity σdc (S cm−1)Bulk Resistance (Rb) (Ohm)
PVCH01.4 × 10−5995
PVCH11.4 × 10−39.8
PVCH22 × 10−37.1
PVCH33.5 × 10−33.9
Table 3. The specific capacitance (F/g) value of PVCH3 sample at the scan rates of 10, 20, 50, and 100 mV s−1.
Table 3. The specific capacitance (F/g) value of PVCH3 sample at the scan rates of 10, 20, 50, and 100 mV s−1.
Scan Rate (mV/s)Specific Capacitance (F/g)

Share and Cite

MDPI and ACS Style

Aziz, S.B.; M. Hadi, J.; Dannoun, E.M.A.; Abdulwahid, R.T.; R. Saeed, S.; Shahab Marf, A.; Karim, W.O.; Kadir, M.F.Z. The Study of Plasticized Amorphous Biopolymer Blend Electrolytes Based on Polyvinyl Alcohol (PVA): Chitosan with High Ion Conductivity for Energy Storage Electrical Double-Layer Capacitors (EDLC) Device Application. Polymers 2020, 12, 1938.

AMA Style

Aziz SB, M. Hadi J, Dannoun EMA, Abdulwahid RT, R. Saeed S, Shahab Marf A, Karim WO, Kadir MFZ. The Study of Plasticized Amorphous Biopolymer Blend Electrolytes Based on Polyvinyl Alcohol (PVA): Chitosan with High Ion Conductivity for Energy Storage Electrical Double-Layer Capacitors (EDLC) Device Application. Polymers. 2020; 12(9):1938.

Chicago/Turabian Style

Aziz, Shujahadeen B., Jihad M. Hadi, Elham M. A. Dannoun, Rebar T. Abdulwahid, Salah R. Saeed, Ayub Shahab Marf, Wrya O. Karim, and Mohd F.Z. Kadir. 2020. "The Study of Plasticized Amorphous Biopolymer Blend Electrolytes Based on Polyvinyl Alcohol (PVA): Chitosan with High Ion Conductivity for Energy Storage Electrical Double-Layer Capacitors (EDLC) Device Application" Polymers 12, no. 9: 1938.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
