Article

Organic and Inorganic PCL-Based Electrospun Fibers

1
Instituto de Ciencia y Tecnología de Polímeros (ICTP-CSIC), C/Juan de la Cierva 3, 28006 Madrid, Spain
2
Interdisciplinary Platform for Sustainable Plastics towards a Circular Economy—The Spanish National Research Council (SusPlast-CSIC), 28006 Madrid, Spain
3
Facultad de Óptica y Optometría, Universidad Complutense de Madrid (UCM), Arcos de Jalón 118, 28037 Madrid, Spain
4
Civil and Environmental Engineering Department, University of Perugia, Via G, Duranti 93, 06125 Perugia, Italy
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(6), 1325; https://doi.org/10.3390/polym12061325
Received: 30 March 2020 / Revised: 25 May 2020 / Accepted: 2 June 2020 / Published: 10 June 2020
(This article belongs to the Special Issue Organic-Inorganic Hybrid Materials)

Abstract

:
In this work, different nanocomposite electrospun fiber mats were obtained based on poly(e-caprolactone) (PCL) and reinforced with both organic and inorganic nanoparticles. In particular, on one side, cellulose nanocrystals (CNC) were synthesized and functionalized by “grafting from” reaction, using their superficial OH– group to graft PCL chains. On the other side, commercial chitosan, graphene as organic, while silver, hydroxyapatite, and fumed silica nanoparticles were used as inorganic reinforcements. All the nanoparticles were added at 1 wt% with respect to the PCL polymeric matrix in order to compare the different behavior of the woven no-woven nanocomposite electrospun fibers with a fixed amount of both organic and inorganic nanoparticles. From the thermal point of view, no difference was found between the effect of the addition of organic or inorganic nanoparticles, with no significant variation in the Tg (glass transition temperature), Tm (melting temperature), and the degree of crystallinity, leading in all cases to high crystallinity electrospun mats. From the mechanical point of view, the highest values of Young modulus were obtained when graphene, CNC, and silver nanoparticles were added to the PCL electrospun fibers. Moreover, all the nanoparticles used, both organic and inorganic, increased the flexibility of the electrospun mats, increasing their elongation at break.

1. Introduction

Poly(ε-caprolactone) (PCL) is a biodegradable and biocompatible aliphatic polyester. It offers a unique combination of polyolefin-like mechanical properties and polyester-like hydrolyzability [1,2], providing good compatibility with a wide range of other polymers in both blends and copolymer forms in order to tune its properties [3,4,5]. PCL is also used as a polymeric matrix to obtain nanocomposites by adding micro and nanoparticles to improve its mechanical properties and its thermal stability [6], thus taking also the advantage of the strong ability of PCL-based materials to be processed in different forms, such as bulk, films, and fibers, among others [7]. In particular, PCL fibers can be obtained by following different methods, such as melt-spinning, dry-spinning, and electrospinning, depending on the desired fiber properties as well as on the final applications [8,9,10].
The electrospinning process is the most suitable technique for drug delivery and tissue engineering applications of PCL-based nanocomposite fibers [11,12,13,14]. The electrospinning process, belonging to the electro-hydrodynamic processing [14], can consistently produce a wide variety of woven non-woven mat starting from polymeric solutions exposed to high electric fields that offer large surface areas, small inter-fibrous pore size, and high porosity [15,16,17,18], with interest in the biomedical field since they mimic the structure of extracellular matrix [19]. Moreover, the electrospinning process is one of the most efficient, simple, and versatile processing techniques able to control micro and nanofibers’ structural and functional properties through a relatively simple and cost-effective approach [20,21,22,23,24].
Furthermore, the development of nanocomposites is one of the most used approaches to improve PCL properties (i.e., thermal, mechanical, etc.) [6]. Among nanoparticles, cellulose derivatives have been considered optimal, reinforcing materials for biopolymers since they are bio-based, biodegradable, stiff, lightweight, and highly abundant in nature at low cost [22]. In particular, in the last years, cellulose nanocrystals (CNC), obtained from the acid hydrolysis of microcrystalline cellulose, have attracted the attention of many researchers [25,26]. However, CNC with high amounts of hydroxyl groups on their surface tends to aggregate, limiting improvements in the final properties of the nanocomposites [27,28,29]. Therefore, the homogeneous dispersion of high polarity CNC into the hydrophobic polymers matrices could be favored, modifying the nanocrystal surfaces by physical (i.e., use of surfactant) [30] or chemical modifications (grafting) [31]. The “grafting from” approach is particularly interesting since, in this method, different polymers can be directly grown in situ from the hydroxyl groups of the nanocellulose surface [31].
Chitosan is the second organic substance, most abundant in nature, after cellulose. Moreover, it has generated enormous interest due to its various advantages, such as easy availability, positive charge, renewability, biodegradability, biocompatibility, non-toxicity, and antimicrobial activity [32]. Another organic nanoparticle is graphene, which presents extraordinary mechanical properties, as high Young modulus and hardness and excellent flexibility are being considered as an effective reinforcement for high-performance nanocomposites [33,34].
On the other hand, PCL can be modified with inorganic nanoparticles, as hydroxyapatite, to improve its mechanical and biological properties for tissue engineering purposes. Hydroxyapatite is an inorganic component of bone with bioactivity and biocompatibility and shows good osteoconductivity and bone-bonding ability [35,36,37].
Finally, fumed silica is an inorganic and amorphous particle widely used at the industrial level mainly because it is a low-cost material obtained as a by-product of silicon [38]. Nanosized SiO2, in general, improves the mechanical performance of the corresponding nanocomposite, even at low concentration as a consequence of their small particle size [38,39]. Besides, metal nanoparticles have been extensively used as reinforcing agents to produce nanocomposites with several functional properties. Silver is one of the most conductive metals in nature, and silver nanoparticles (Ag) are known as a powerful antimicrobial agent, with an outstanding broad-spectrum of antibacterial effects against both Gram-positive and Gram-negative bacteria, and this is why Ag have been widely used in biomedical applications [40,41].
Therefore, in general, woven no-woven electrospun fiber mats can find applications in tissue engineering since they mimic the microarchitecture of the extracellular matrix [19,20]. Their structure can improve cell adhesion, proliferation, migration, and differentiation. Moreover, PCL electrospun mats can be used as a drug release system. Similar works are reported with cellulose nanocrystal and graphene [42,43]. Among other applications, silver nanoparticles are used as reinforcement for PCL-based scaffold for wound dressing due to their high antibacterial properties [44]. At the same time, scaffolds with fibrous structure can be designed for nerve tissue regeneration due to their morphological similarity of the organization of neurons by developing electrospun chitosan-PCL scaffold [45]. The incorporation of HA is supposed to produce an ideal scaffold suitable for bone tissue because it improves osteoblast proliferation and differentiation [46]. Graphene can be added not only to improve the mechanical properties of PCL but also to obtain electrospun nanofibers with high antibacterial activity [47,48]. At the same time, silica nanoparticles can be used as an additive to enhance the mechanical properties and/or trigger an osteogenic response from osteoblastic progenitor cells for guided bone regeneration used for the treatment of lesions in the alveolar or mandible bone [49].
In this work, the processing conditions to obtain PCL-based electrospun fibers reinforced with organic as well as inorganic nanoparticles were optimized. Firstly, neat PCL and PCL reinforced with 1 wt% of silica nanoparticles were used to optimize the processing parameters. The optimized processing conditions were then used to produce PCL-based electrospun nanocomposite fibers in order to study the effect of the addition of different nanoparticles on their thermal and mechanical responses. In particular, the nanofillers used as reinforcements were CNC, CNC-g-PCL, chitosan, and graphene as organic nanoparticles, while HA, Ag, and SiO2 were used as inorganic nanoparticles. All the nanoparticles were added to the PCL at 1 wt% in order to compare. The morphology, thermal behavior, and mechanical properties of the woven no-woven electrospun nanocomposite fibers were studied and compared with the neat PCL electrospun mat.
In particular, due to the intrinsic characteristic of both PCL polymer and the different nanoparticles, these electrospun nanocomposite mats could be considered for potential applications in bioactivity, such as antibacterial, biocompatibility, and biodegradability with proper mechanical performance.

2. Materials and Methods

2.1. Materials

Poly(ε-caprolactone) (PCL) (PCL CAPA 6500, Mn = 50,000 g/mol, 0.5 wt% ε-caprolactone monomer) was kindly donated by Perstorp (Malmö, Sweden).
Chitosan (degree of deacetylation > 75%) [17], microcrystalline cellulose, as well as commercial hydroxyapatite nanofillers (HA, the particle size of about 30 nm), were purchased from Sigma-Aldrich (Madrid, Spain). Silver nanoparticles, Ag, (P203, Cima NanoTech, Caesarea, Israel) were previously purified by a thermal treatment, obtaining a specific surface area of 4.9 m2/g and particle size distribution from 20 to 70 nm [50]. Graphene nanoplatelets were supplied by Cheap Tubes Inc., Grafton, VT, USA (Grade 2) [51]. As indicated, they had a surface area of about 100 m2/g and an average thickness of a bit less than 10 nm. They were used as supplied by the manufacturer without any functionalization process. Fumed silica dioxide nanopowder, SiO2 (primary particle average size: 7–14 nm), was purchased from Interchim Innovations (Montluçon, France) [39]. Chloroform (99.6% purity) (CF) and dimethylformamide (DMF) (99.5% purity) were supplied by Sigma Aldrich (Madrid, Spain).

2.2. Synthesis of Cellulose Nanocrystals

Cellulose nanocrystals were obtained by sulfuric acid hydrolysis of 64% (wt/wt) of microcrystalline cellulose (MCC) stirring at 45 °C for 30 min [26,31]. The acid was further eliminated by centrifugation; the sediment was then dialyzed until neutral pH. An ion exchange resin was added to the cellulose suspension for 24 h, and it was then removed by filtration followed by ultrasonic treatment. Cellulose nanocrystal (CNC) solutions were then neutralized (1.0% (w/w) of 0.25 mol L−1 NaOH). Finally, the CNC solution was sonicated to get a stable suspension of the nanofillers.

2.3. CNC Functionalization with PCL Chains

CNC surface chemical modification was performed by grafting PCL chains onto the CNC surface by ring-opening polymerization (ROP) of ε-caprolactone (ε-CL) by using the surface hydroxyl groups of the CNC as initiator, as schematically shown in Scheme 1. The procedure for CNC functionalization was previously reported for PCL grafting [28,31]. Briefly, the aqueous suspension of CNC was solvent-exchanged with acetone, then with dichloromethane, and finally with previously dried toluene with phosphorus pentoxide. For each solvent exchange step, the solution was centrifuged and re-dispersed three times.
The CNC-g-PCL nanocrystals were observed by field emission scanning electron microscopy, FESEM, (Hitachi S8000). The structure of CNC-g-PCL was characterized by Fourier-transform infrared (FT–IR) in the attenuated total reflectance (ATR) mode (as well as Raman spectroscopy), and its thermal stability was studied by thermogravimetric analysis (TGA), as indicated in the characterization section.

2.4. Preparation of Electrospun Nanofibers

Electrospun fibers were prepared by means of a coaxial Electrospinner Yflow 2.2.D-XXX (Nanotechnology Solutions) with a vertical standard configuration equipped with two concentric needles and connected to a high voltage power. The polymer solution flew through the inner needle, and the solvent flew through the outer one.
PCL electrospun fibers, named ePCL, were prepared from polymer solutions of PCL (10 wt%) in a solvent mixture of CHCl3:DMF (4:1) using a magnetic stirrer for 24 h at room temperature. The same solution was used to obtain PCL-based nanocomposite electrospun fibers by adding 1 wt% with respect to the polymer matrix of organic as well as inorganic nanoparticles, such as CNC, CNC-g-PCL, chitosan, graphene, Ag, HA, SiO2.
To prepare electrospun nanocomposite fibers, nanoparticles were dispersed separately (1 wt%) in the same mix of solvents using a magnetic stirrer for 2 h and ultrasonication for 2 min. Finally, to achieve homogeneous dispersion of the nanoparticles in the dissolved matrix, the polymer solution and nanoparticles’ suspensions were mixed, stirred (2 h), and sonicated (2 min) to form nanocomposite solutions with 1 wt% with respect to the matrix in the final composition.
The polymer solutions were flown through the inner needle, and the same mixture of solvent used for polymer solutions was flown through the outer needle. The applied positive and negative voltages were set at 10 and −10 kV, respectively. The polymer flow rate, as well as the solvent flow rate, were fixed at 1.0 mL/h. Electrospun mats were randomly collected in a grounded aluminum foil collector situated perpendicular at 15 cm from the charged spinneret. The obtained electrospun mats were vacuumed for 48 h in a vacuum chamber to eliminate residual solvents before testing.

2.5. Characterization Techniques

2.5.1. Vibrational Spectroscopy: Raman and FT-IR Spectra

Neat CNC and functionalized CNC were characterized by Raman spectra using a RenishawInVia Reflex Raman system. An optical microscope was coupled to the system. The Raman scattering was excited using a diode laser at a wavelength of 785 nm. The laser beam was focused on the sample with a 100 × 0.85 microscope objective. The laser power at the sample was 350 mW. The exposure was for 10 s, and there were 10 accumulations for the Raman measurements.
Fourier-transform infrared (FT–IR) spectra were obtained in the attenuated total reflectance (ATR) mode. The measurements were performed using a Spectrum One FTIR spectrometer Perkin Elmer equipped with an internal reflection element of diamond in the range of 650–4000 cm−1 with 1 cm−1 of resolution and an accumulation of 16 scans.

2.5.2. Scanning Electron Microscopy

The morphology of PCL-based electrospun nanocomposite fibers was analyzed by means of scanning electron microscopy (SEM). Thus, electrospun fibers were sputtered with a gold/palladium layer and observed by a PHILIPS XL30 scanning electron microscope (SEM). Fiber diameters were statistically calculated by means of Fib_thick software executable under image analysis platform Fiji based on ImageJ.

2.5.3. Thermal Analysis

TGA analysis was performed to study the thermal degradation of the electrospun samples. Thermogravimetric analysis (TGA) was performed in a TA-TGA Q500 thermal analyzer. Dynamic TGA experiments were performed under a nitrogen atmosphere (flow rate of 60 mL/min). Samples were heated from room temperature to 700 °C at 10 °C·min−1. In this case, the maximum degradation temperature (Tmax) was calculated from the first derivative of the TGA curves.
The thermal behavior, as well as the degree of crystallinity (Xc), were studied by differential scanning calorimetry (DSC). DSC experiments were conducted in a Mettler Toledo DSC822 instrument under a nitrogen atmosphere (50 mL/min). Sample weights of about 4 mg were sealed in aluminum pans and heated from −90 to 100 °C at a heating rate of 10 °C min−1. The glass transition temperature (Tg) was taken at the midpoint of heat capacity changes. The melting temperature (Tm) and cold crystallization temperature (Tcc) were obtained from the first heating, and the degree of crystallinity (χc) was calculated through Equation (1):
χ c = 100 % × Δ H m Δ H c c Δ H m c
where ΔHm is the melting enthalpy, ΔHcc is the cold crystallization enthalpy, and Δ H m c is the melting heat associated with pure crystalline PCL (148 J g−1) [5].

2.5.4. Mechanical Analysis

The mechanical properties of the PCL-based electrospun nanocomposite mats were investigated by tensile test measurements determined at room temperature in an Instron dynamometer (model 3366) equipped with a 100 N load cell, at a crosshead speed of 10 mm min−1 and initial length of 30 mm. Dog-bone samples were prepared from the mats, and, at least, five specimens were tested for each formulation. From these experiments, the Young Modulus—as the slope of the curve between 0% and 2% of deformation—the elongation at break, and the maximum strain reached were obtained.

3. Results

3.1. CNC Synthesis and Functionalization

First, the synthesis and the characterization of the different organic and inorganic nanoparticles were performed. In particular, neat cellulose nanocrystals (CNC) were synthesized and functionalized in our lab, while the other nanoparticles used in this work were purchased.
In particular, cellulose nanocrystals were synthesized in the laboratory by acid hydrolysis of commercial microcrystalline cellulose. Then, surface modification of the CNC was carried out by a “grafting from” reaction, grafting PCL chains onto the CNC surface by ring-opening polymerization (ROP) of –CL, using the surface hydroxyl groups of the CNC as initiator [28].
In particular, in order to ensure the presence of PCL chains in CNC-g-PCL during the “grafting from” reaction, vibrational spectroscopies studies were conducted, comparing the results obtained from neat PCL and CNC with CNC grafted with PCL (Figure 1). The FTIR spectrum of the CNC-g-PCL (Figure 1a) showed the characteristic peaks of CNC and of PCL. It was possible to observe a broad peak corresponding to the hydroxyl groups of CNC in the 3200 cm−1 to 3600 cm−1 region and a shaper peak of carboxyl groups of PCL at 1721 cm−1, confirming the presence of both of them in the nanoparticles. Figure 1b shows the Raman spectrum of the PCL, CNC, and CNC-g-PCL, confirming the presence of PCL and CNC in the sample. These results confirmed the success of the grafting procedure.
Moreover, TGA was used to determine the amount of CNC and PCL in the CNC-g-PCL nanoparticles. Figure 1c shows the weight loss and the derivative of weight loss for CNC-g-PCL. Two overlapped peaks were observed, in which one of them corresponded to the thermal degradation of CNC and the other one to the thermal degradation of PCL chains. CNC peak presented a maximum corresponding to 270 °C, and PCL showed the maximum peak at 292 °C. The amounts of the components were computed by fitting the curves with two Gaussian curves, so the amount of PCL grafted chains resulted as 21 wt%, while the amount of CNC was 79 wt%, in the range of already reported results [28].

3.2. Morphological Analysis

Morphological analysis was performed for all the organic and inorganic nanoparticles used and reported in Figure 2.
From the FE-SEM images, the nanometer range size of the different nanoparticles was confirmed. In particular, the average length of CNC was determined by image analysis (ImageJ software), obtaining an average value of 179 ± 20 nm for the length and of 14.1 ± 1.6 nm for the diameter (Figure 2a), in good agreement with previous synthesized CNC [26]. Figure 2b shows individual nanoparticles of CNC-g-PCL, showing the characteristic rod-like morphology. The average length of CNC-g-PCL was determined by image analysis (ImageJ software), obtaining a value of 317 ± 59 nm for the length and a value of 24.4 ± 10.0 nm for the diameter, respectively, indicating an increase in both length and diameters due to the polymeric chain grafted onto the surface of the cellulose nanocrystals, in accordance with previous works [28].
Regarding the other nanoparticles used in the present work, the average dimension measured was in accordance with the values indicated by the seller, as indicated in Table 1. However, we could summarize that all the nanoparticles used in this work were smaller than 50 nanometers and could be easily used in the electrospinning process (Figure 2).

3.3. Optimization of the Electrospinning Process Parameters

Once the nanoparticles were characterized, we proceeded with the optimization of the electrospinning process and the characterization of the woven no-woven reinforced and no-reinforced PCL-based electrospun fiber mats. In particular, for the electrospinning process, PCL should be homogeneously dissolved in a proper solvent, and it is known that an effective solvent should present a similar solubility parameter (δ) to that of the polymer [52]. The solubility parameter of PCL is between 15.9 and 21.2 MPa1/2 [53]. Chloroform (CF) has shown to be an effective solvent for PCL; meanwhile, dimethylformamide (DMF) is normally used to facilitate the electrospinning process. CF and DMF have solubility parameters of 19 MPa1/2 and 24.9 MPa1/2, respectively [15]. Accordingly, good solubility in CF and DMF for PCL should be expected.
The electrospinning processing conditions used to prepare electrospun fibers were selected, taking into account the optimization carried out for the production of neat PCL electrospun fibers (ePCL), as well as for silica-reinforced PCL electrospun fibers (ePCL + SiO2). Both neat PCL electrospun fibers and PCL-based electrospun nanocomposite fibers were obtained from a PCL solution (10 wt%) and nanoparticle dispersions (1 wt%) in a mixture of solvents (chloroform-DMF 4:1). Firstly, the PCL solution was prepared, and, at the same time, nanofillers were dispersed separately. Then, the polymer solution and nanoparticles’ suspensions were mixed, and then the final stable dispersion of nanoparticles into the PCL solution was obtained after sonication. Thus, the concentration of PCL solutions was set at 10 wt%, and the working distance between the needle and the collector was set at 15 cm [15,22]. The solvent and polymer flow rate, as well as the positive and negative voltage, were optimized according to the experimental results reported in Figure 3.
According to the fiber formations for both neat PCL and PCL-based electrospun nanocomposite fibers, reported in the table of Figure 3, it was worth noting that when small voltages were applied, the fiber formation was avoided. Both neat PCL and PCL-based electrospun fibers were formed upon increasing the voltage applied. However, for high flow rates of the polymer solution, typical defects, named beads, were obtained (see Figure 3). The best conditions for both neat and reinforced electrospun fibers were with a small flow rate in the solvent solution pump, a flow rate of 1 mL/h for the polymer solutions, and a high voltage (run 18). In particular, the electrospun fibers obtained with these conditions are reported in Figure 3 for both ePCL and ePCL reinforced with silica nanoparticles. These results showed that to ensure the formation of the so-called Taylor cone, and hence the formation of electrospun fibers without defects, higher Coulomb forces were required to favor the elongation of the polymeric drops, and thus, higher voltage values were required. Therefore, we considered these conditions as optimum to obtain and to compare the properties of neat PCL as well as of PCL-based electrospun fibers reinforced with both organic and inorganic nanoparticles at 1 wt%.
In accordance with the literature, we chose to study 1 wt% of different organic and inorganic nanoparticles, considering that this amount of nanoparticles could be effectively dispersed into the CHCl3:DMF (4:1) solution, while higher concentrations produce a detriment of the structural and mechanical performance due to their reduced dispersion [22]. It was quite difficult to fix a unique amount of very disparate types of nanoparticles in order to compare the final properties of the nanocomposite electrospun fibers. Therefore, when we referred to the literature, in the case of CNC, we found that 1 wt% is a good amount to be dispersed into electrospun fibers [54]. Low amounts are also used for chitosan (i.e., 1 wt%) [17]. At the same time, Correa et al. developed electrospun scaffolds based on PCL reinforced with reduced graphite oxide (rGO) at concentrations up to 1 wt% [54]. Inorganic nanoparticles can be used also at low content. In fact, Ribeiro Nieto et al. studied PLA and PCL electrospun fibers reinforced with 1 wt% and 5 wt% of nano-sized hydroxyapatite, and the highest Young modulus was found for bionanocomposites reinforced with 1 wt% HA, also showing viable cells with early osteogenic activity [8]. Therefore, in this work, 1 wt% was the amount of both organic and inorganic nanoparticles added to the PCL electrospun mats.
Therefore, the electrospinning process was realized for all the systems, and the ePCL, as well as the PCL-based electrospun fiber mats, were obtained using the same processing window optimized before. Thus, the electrospun fibers based on PCL and reinforced with the organic, such as CNC and CNC-g-PCL, chitosan and graphene, as well as the other inorganic nanoparticles, such as silver and hydroxyapatite, were obtained. SEM images for all the PCL-based electrospun fiber mats are reported in Figure 4, and the corresponding average fiber diameters—for each system studied—are indicated on the top of each image.
Thermal and mechanical characterization was also carried out. In particular, the main result of the thermal characterization is reported in Table 2, where the glass transition temperature (Tg), the melting temperature (Tm), and the degree of crystallinity (Xc) calculated from the DSC analysis and the maximum degradation temperature from TGA analysis are reported.

3.4. Thermal Analysis

In particular, from the thermal point of view, no significant differences in the Tg and Tm of the PCL-based electrospun fibers, as well as in their degree of crystallinity, were emerged from their comparison (Table 2). However, the degree of crystallinity of ePCL was quite high, 52%, indicating that the balance between the fiber formation and the solvent evaporation produced a quite crystalline material. Moreover, the addition of the nanoparticles did not alter the high degree of crystallinity of the neat ePCL. Different behavior, for example, was noted when working with other polymers, such as poly(lactic acid), where its neat electrospun fibers show a very low degree of crystallinity [23].
On the other hand, when we considered the maximum degradation temperature, it was evidenced that all the nanoparticles increased the maximum degradation temperature of the ePCL. The highest value was obtained when functionalized CNC and chitosan were added to the PCL. It seemed that the smallest increment was obtained when inorganic nanoparticles were added to the ePCL, considering that the addition of SiO2 nanoparticles did not change the Tmax of neat ePCL, and the addition of both Ag and HA nanoparticles increased the Tmax of neat ePCL by about 1%.
For these reasons, we concluded that it was not possible to classify the different effects produced from the addition of organic and inorganic nanoparticles on the ePCL electrospun mats in terms of thermal characterization.

3.5. Mechanical Characterization

The mechanical characterization of all the different electrospun nanocomposite systems based on PCL was also performed by tensile test measurements (Figure 5a). First of all, it was important to point out that the measurement of “electrospun mats” was quite different from PCL “bulk” materials, considering the presence of fiber entanglements and the many microvoids between the fiber webs, producing very high error measurements, as indicated by the large error bars in Figure 5. Moreover, it was worth noting that the mechanical response of ePCL was quite different from the PCL bulk material, thus considering that when PCL was obtained in the form of electrospun fibers, the values of about 45% for the deformation at break were obtained. However, the ePCL electrospun nanocomposite fibers showed their reinforcing effects with respect to the neat ePCL in terms of Young modulus, tensile strength, as well as elongation at break, as indicated in Figure 5b–d, respectively.
Analyzing the different systems studied, both organic and inorganic nanofillers were able to increase the Young modulus and the tensile strength of electrospun PCL mat. The smallest effects in terms of Yong modulus and tensile strength were presented when CNC-g-PCL and SiO2 were added to the PCL matrix; however, their elongation at break was strongly increased. In fact, the electrospun nanocomposite mat reinforced with CNC-g-PCL showed the highest elongation at break, with an increment of about 220% with respect to ePCL, suggesting that the better compatibilization between PCL and CNC was reached by grafting PCL chains onto the CNC surfaces. Regarding ePCL/SiO2, although it was not able to increase the mechanical resistance of ePCL, it was able to increase the flexibility of the material by increasing the elongation at break by about 155% with respect to ePCL.
However, all the electrospun nanocomposite fibers showed improved elongation at break, with increments higher than 150% with respect to ePCL.
Furthermore, also in the case of the mechanical response, it was quite impossible to classify the reinforcement effect depending on the use of organic or inorganic nanoparticles. In fact, the addition of Ag nanoparticles, graphene, and CNC to the ePCL electrospun fibers provided an increment of more than 350% in terms of Young modulus with respect to ePCL, while the electrospun PCL fibers reinforced with chitosan and with HA showed an increment of about 250% with respect to the Young modulus of ePCL.
For the tensile strength, as said before, the addition of both CNC-g-PCL and SiO2 nanoparticles slightly increased the tensile strength with respect to ePCL; however, the addition of CNC, graphene, Ag, and HA increased the tensile strength by about 300%.
Finally, in Figure 6, the variation of the properties of the woven no-woven electrospun nanocomposite systems with respect to the ePCL values has been summarized in order to better visualize the effect of the addition of the different organic and inorganic nanoparticles on the fiber diameter, degree of crystallinity, and the mechanical response.

4. Discussion

Summarizing, the values for the degree of crystallinity were quite similar, hindering a clear separation on the effect of the addition of organic or inorganic nanoparticles being strongly influenced by the high crystallinity of the neat ePCL electrospun fiber mats—higher than 50%.
Firstly, on comparing the properties of woven no-woven electrospun fibers and their corresponding bulk materials, we found that they were completely different. This was the case of PCL, but when we considered other polymers, such as PLA, the electrospun fiber mats presented a completely different mechanical response from bulk. For instance, PLA in bulk presents a Young modulus much higher and an elongation at break very smaller than PLA electrospun mats [55]. For PCL electrospun materials, the effect was different with respect to PLA-based electrospun mats. In fact, in our previous work [56], we reported the mechanical response of the same PCL obtained by the extrusion process, obtaining an elastic modulus of 294 ± 18 MPa, the maximum stress of 41 ± 4 MPa, and an elongation at break of 952 ± 23%. All the values obtained in bulk were much higher than the mechanical response obtained in electrospun fiber forms, where the elastic modulus obtained was about 6 MPa, the tensile strength was about 1 MPa, and the elongation at break was less than 50%. It was clear that PCL in the form of woven no-woven electrospun mats lost its capability of being a very flexible material.
It is expected that the elastic modulus and the tensile strength of the electrospun PCL-based fibers increase as the fiber diameter decreases [57]. Nevertheless, it could be observed that in the case of organic PCL-based electrospun fibers, the flexibility of the material increased with increasing the average fiber diameter. This behavior was particularly evident in the case of functionalized CNC (CNC-g-PCL), which showed a higher average fiber diameter and the higher elongation at break. Considering the inorganic nanofillers, it was observed that SiO2 nanoparticles were able to produce the highest increment on the elongation at break among inorganic PCL-based electrospun fibers. However, it was quite difficult to differentiate the mechanical response of the PCL-based electrospun nanocomposite fibers regarding the effects of organic and inorganic nanofillers as a clear trend was not found.
It is well known that the different morphologies of the nanoparticles (0 D, 1 D, or 2 D dimensions) can strongly affect the mechanical response as well as the degree of crystallinity of the electrospun fibers [6]. However, in our case, it was difficult to differentiate the main results in terms of thermal or mechanical properties, depending on the geometry of the nanoparticles. In fact, the highest Young modulus and tensile strength were obtained with CNC, rod-like shaped Ag with spherical geometry, and graphene with a layered structure, indicating that the three different geometries provided the highest mechanical response.

5. Conclusions

Woven no-woven electrospun fibers based on PCL and reinforced with both organic and inorganic nanoparticles were obtained. As organic nanoparticles, we used cellulose nanocrystals, chitosan, and graphene, while, as inorganic nanoparticles, we used silver, hydroxyapatite, and fumed silica nanoparticles. In particular, cellulose nanocrystals (CNCs) were synthesized and functionalized by “grafting from” reaction, using their superficial OH– group to graft PCL chains. All the nanoparticles were added at 1 wt% with respect to the polymeric matrix, in order to be compared to each other. No difference was found between the effect of the addition of organic or inorganic nanoparticles on the thermal properties, considering that no significant variation in the Tg, Tm, and degree of crystallinity was obtained, leading to a high crystallinity electrospun mats with a degree of crystallinity of the electrospun PCL matrix of about 50%. However, all the nanoparticles increased the maximum degradation temperature of the respective nanocomposite electrospun fibers, indicating a good interaction between nanoparticles and the polymeric matrix. From the mechanical point of view, the highest values of Young modulus were obtained when graphene, CNC, and silver nanoparticles were added to the ePCL. On the other hand, all the nanoparticles used, both organic and inorganic types, increased the flexibility of the electrospun mats, increasing the elongation at break.

Author Contributions

Conceptualization, L.P.; Funding acquisition, L.P., J.M.K., and D.L.; Investigation, A.L., A.M.-G., and V.S.; Methodology, M.P.A., A.L., and A.M.-G.; Supervision, L.P. and J.M.K.; Writing—Original draft, L.P., A.M.-G., and M.P.A.; Writing—Review and editing, L.P., J.M.K., and D.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by MAT2017-88123-P and PCIN-2017-036 (MINEICO FEDER EU).

Acknowledgments

Authors thank the Spanish Ministry of Economy, Industry, and Competitiveness (MINEICO) MAT2017-88123-P, POLYMAGIC: (PCIN-2017-036) co-financed with EU FEDER funds. M.A. and L.P. acknowledge the “Juan de la Cierva” (FJCI-2017-33536) and “Ramon y Cajal” (RYC-2014-15595) contracts from the MINEICO, respectively.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lee, K.H.; Kim, H.Y.; Khil, M.S.; Ra, Y.M.; Lee, D.R. Characterization of nano-structured poly(ε-caprolactone) nonwoven mats via electrospinning. Polymer 2003, 44, 1287–1294. [Google Scholar] [CrossRef]
  2. Mohanty, A.K.; Misra, M.; Hinrichsen, G. Biofibres, biodegradable polymers and biocomposites: An overview. Macromol. Mater. Eng. 2000, 276–277, 1–24. [Google Scholar] [CrossRef]
  3. Peponi, L.; Navarro-Baena, I.; Sonseca, A.; Gimenez, E.; Marcos-Fernandez, A.; Kenny, J.M. Synthesis and characterization of PCL-PLLA polyurethane with shape memory behavior. Eur. Polym. J. 2013, 49, 893–903. [Google Scholar] [CrossRef][Green Version]
  4. López-Rodríguez, N.; López-Arraiza, A.; Meaurio, E.; Sarasua, J.R. Crystallization, morphology, and mechanical behavior of polylactide/poly(ε-caprolactone) blends. Polym. Eng. Sci. 2006, 46, 1299–1308. [Google Scholar] [CrossRef]
  5. Peponi, L.; Navarro-Baena, I.; Báez, J.E.; Kenny, J.M.; Marcos-Fernández, A. Effect of the molecular weight on the crystallinity of PCL-b-PLLA di-block copolymers. Polymer 2012, 53, 4561–4568. [Google Scholar] [CrossRef][Green Version]
  6. Peponi, L.; Puglia, D.; Torre, L.; Valentini, L.; Kenny, J.M. Processing of nanostructured polymers and advanced polymeric based nanocomposites. Mater. Sci. Eng. R Rep. 2014, 85, 1–46. [Google Scholar] [CrossRef][Green Version]
  7. Lamastra, F.R.; Puglia, D.; Monti, M.; Vella, A.; Peponi, L.; Kenny, J.M.; Nanni, F. Poly(ε-caprolactone) reinforced with fibres of Poly(methyl methacrylate) loaded with multiwall carbon nanotubes or graphene nanoplatelets. Chem. Eng. J. 2012, 195–196, 140–148. [Google Scholar] [CrossRef]
  8. Ribeiro Neto, W.A.; Pereira, I.H.L.; Ayres, E.; De Paula, A.C.C.; Averous, L.; Góes, A.M.; Oréfice, R.L.; Suman Bretas, R.E. Influence of the microstructure and mechanical strength of nanofibers of biodegradable polymers with hydroxyapatite in stem cells growth. Electrospinning, characterization and cell viability. Polym. Degrad. Stab. 2012, 97, 2037–2051. [Google Scholar] [CrossRef]
  9. Hutmacher, D.W.; Schantz, T.; Zein, I.; Ng, K.W.; Teoh, S.H.; Tan, K.C. Mechanical properties and cell cultural response of polycaprolactone scaffolds designed and fabricated via fused deposition modeling. J. Biomed. Mater. Res. 2001, 55, 203–216. [Google Scholar] [CrossRef]
  10. Pal, J.; Kankariya, N.; Sanwaria, S.; Nandan, B.; Srivastava, R.K. Control on molecular weight reduction of poly(ε-caprolactone) during melt spinning—A way to produce high strength biodegradable fibers. Mater. Sci. Eng. C 2013, 33, 4213–4220. [Google Scholar] [CrossRef] [PubMed]
  11. Keun Kwon, I.; Kidoaki, S.; Matsuda, T. Electrospun nano- to microfiber fabrics made of biodegradable copolyesters: Structural characteristics, mechanical properties and cell adhesion potential. Biomaterials 2005, 26, 3929–3939. [Google Scholar] [CrossRef] [PubMed]
  12. Nematpour, N.; Farhadian, N.; Ebrahimi, K.S.; Arkan, E.; Seyedi, F.; Khaledian, S.; Shahlaei, M.; Moradi, S. Sustained release nanofibrous composite patch for transdermal antibiotic delivery. Colloids Surfaces A Physicochem. Eng. Asp. 2020, 586, 124267. [Google Scholar] [CrossRef]
  13. Kai, D.; Liow, S.S.; Loh, X.J. Biodegradable polymers for electrospinning: Towards biomedical applications. Mater. Sci. Eng. C 2015, 45, 659–670. [Google Scholar] [CrossRef] [PubMed]
  14. Cruz-Salas, C.N.; Prieto, C.; Calderón-Santoyo, M.; Lagarón, J.M.; Ragazzo-Sánchez, J.A. Micro-and nanostructures of agave fructans to stabilize compounds of high biological value via electrohydrodynamic processing. Nanomaterials 2019, 9, 1659. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Mujica-Garcia, A.; Navarro-Baena, I.; Kenny, J.M.; Peponi, L. Influence of the Processing Parameters on the Electrospinning of Biopolymeric Fibers. J. Renew. Mater. 2014, 2, 23–34. [Google Scholar] [CrossRef]
  16. Torres-Giner, S.; Wilkanowicz, S.; Melendez-Rodriguez, B.; Lagaron, J.M. Nanoencapsulation of Aloe vera in Synthetic and Naturally Occurring Polymers by Electrohydrodynamic Processing of Interest in Food Technology and Bioactive Packaging. J. Agric. Food Chem. 2017, 65, 4439–4448. [Google Scholar] [CrossRef] [PubMed]
  17. Arrieta, M.P.; López, J.; López, D.; Kenny, J.M.; Peponi, L. Effect of chitosan and catechin addition on the structural, thermal, mechanical and disintegration properties of plasticized electrospun PLA-PHB biocomposites. Polym. Degrad. Stab. 2016, 132, 145–156. [Google Scholar] [CrossRef]
  18. Torres-Martínez, E.J.; Pérez-González, G.L.; Serrano-Medina, A.; Grande, D.; Vera-Graziano, R.; Cornejo-Bravo, J.M.; Villarreal-Gómez, L.J. Drugs Loaded into Electrospun Polymeric Nanofibers for Delivery. J. Pharm. Pharm. Sci. 2019, 22, 313–331. [Google Scholar] [CrossRef] [PubMed][Green Version]
  19. De Cassan, D.; Becker, A.; Glasmacher, B.; Roger, Y.; Hoffmann, A.; Gengenbach, T.R.; Easton, C.D.; Hänsch, R.; Menzel, H. Blending chitosan-g-poly(caprolactone) with poly(caprolactone) by electrospinning to produce functional fiber mats for tissue engineering applications. J. Appl. Polym. Sci. 2020, 137, 1–11. [Google Scholar] [CrossRef]
  20. Kriegel, C.; Arrechi, A.; Kit, K.; McClements, D.J.; Weiss, J. Fabrication, functionalization, and application of electrospun biopolymer nanofibers. Crit. Rev. Food Sci. Nutr. 2008, 48, 775–797. [Google Scholar] [CrossRef] [PubMed]
  21. Huang, Z.M.; Zhang, Y.Z.; Kotaki, M.; Ramakrishna, S. A review on polymer nanofibers by electrospinning and their applications in nanocomposites. Compos. Sci. Technol. 2003, 63, 2223–2253. [Google Scholar] [CrossRef]
  22. Arrieta, M.P.; López, J.; López, D.; Kenny, J.M.; Peponi, L. Biodegradable electrospun bionanocomposite fibers based on plasticized PLA–PHB blends reinforced with cellulose nanocrystals. Ind. Crops Prod. 2016, 93, 290–301. [Google Scholar] [CrossRef]
  23. Leonés, A.; Sonseca, A.; López, D.; Fiori, S.; Peponi, L. Shape memory effect on electrospun PLA-based fibers tailoring their thermal response. Eur. Polym. J. 2019, 117, 217–226. [Google Scholar] [CrossRef]
  24. Sessini, V.; López Galisteo, A.J.; Leonés, A.; Ureña, A.; Peponi, L. Sandwich-Type Composites Based on Smart Ionomeric Polymer and Electrospun Microfibers. Front. Mater. 2019, 6, 1–15. [Google Scholar] [CrossRef][Green Version]
  25. Habibi, Y.; Lucia, L.A.; Rojas, O.J. Cellulose nanocrystals: Chemistry, self-assembly, and applications. Chem. Rev. 2010, 110, 3479–3500. [Google Scholar] [CrossRef] [PubMed]
  26. Navarro-Baena, I.; Kenny, J.M.; Peponi, L. Thermally-activated shape memory behaviour of bionanocomposites reinforced with cellulose nanocrystals. Cellulose 2014, 21, 4231–4246. [Google Scholar] [CrossRef][Green Version]
  27. Mujica-Garcia, A.; Hooshmand, S.; Skrifvars, M.; Kenny, J.M.; Oksman, K.; Peponi, L. Poly(lactic acid) melt-spun fibers reinforced with functionalized cellulose nanocrystals. RSC Adv. 2016, 6, 9221–9231. [Google Scholar] [CrossRef]
  28. Sessini, V.; Navarro-Baena, I.; Arrieta, M.P.; Dominici, F.; López, D.; Torre, L.; Kenny, J.M.; Dubois, P.; Raquez, J.M.; Peponi, L. Effect of the addition of polyester-grafted-cellulose nanocrystals on the shape memory properties of biodegradable PLA/PCL nanocomposites. Polym. Degrad. Stab. 2018, 152, 126–138. [Google Scholar] [CrossRef]
  29. Miao, C.; Hamad, W.Y. Cellulose reinforced polymer composites and nanocomposites: A critical review. Cellulose 2013, 20, 2221–2262. [Google Scholar] [CrossRef]
  30. Bondeson, D.; Oksman, K. Dispersion and characteristics of surfactant modified cellulose whiskers nanocomposites. Compos. Interfaces 2007, 14, 617–630. [Google Scholar] [CrossRef]
  31. Paquet, O.; Krouit, M.; Bras, J.; Thielemans, W.; Belgacem, M.N. Surface modification of cellulose by PCL grafts. Acta Mater. 2010, 58, 792–801. [Google Scholar] [CrossRef]
  32. Fernández-Pan, I.; Maté, J.I.; Gardrat, C.; Coma, V. Effect of chitosan molecular weight on the antimicrobial activity and release rate of carvacrol-enriched films. Food Hydrocoll. 2015, 51, 60–68. [Google Scholar] [CrossRef]
  33. Geim, A.K.; Novoselov, K.S. The rise of graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef] [PubMed]
  34. Peponi, L.; Tercjak, A.; Verdejo, R.; Lopez-Manchado, M.A.; Mondragon, I.; Kenny, J.M. Confinement of functionalized graphene sheets by triblock copolymers. J. Phys. Chem. C 2009, 113, 17973–17978. [Google Scholar] [CrossRef]
  35. Spadaccio, C.; Rainer, A.; Trombetta, M.; Vadalá, G.; Chello, M.; Covino, E.; Denaro, V.; Toyoda, Y.; Genovese, J.A. Poly-l-lactic acid/hydroxyapatite electrospun nanocomposites induce chondrogenic differentiation of human MSC. Ann. Biomed. Eng. 2009, 37, 1376–1389. [Google Scholar] [CrossRef] [PubMed]
  36. Peponi, L.; Sessini, V.; Arrieta, M.P.; Navarro-Baena, I.; Sonseca, A.; Dominici, F.; Gimenez, E.; Torre, L.; Tercjak, A.; López, D.; et al. Thermally-activated shape memory effect on biodegradable nanocomposites based on PLA/PCL blend reinforced with hydroxyapatite. Polym. Degrad. Stab. 2018, 151, 36–51. [Google Scholar] [CrossRef]
  37. Sonseca, A.; Peponi, L.; Sahuquillo, O.; Kenny, J.M.; Giménez, E. Electrospinning of biodegradable polylactide/hydroxyapatite nanofibers: Study on the morphology, crystallinity structure and thermal stability. Polym. Degrad. Stab. 2012, 97, 2052–2059. [Google Scholar] [CrossRef][Green Version]
  38. Salgado, C.; Arrieta, M.P.; Peponi, L.; Fernández-García, M.; López, D. Silica-nanocomposites of photo-crosslinkable poly(urethane)s based on poly(ε-caprolactone) and coumarin. Eur. Polym. J. 2017, 93, 21–32. [Google Scholar] [CrossRef]
  39. Sessini, V.; Brox, D.; López, A.J.; Ureña, A.; Peponi, L. Thermally activated shape memory behavior of copolymers based on ethylene reinforced with silica nanoparticles. Nanocomposites 2018, 4, 19–35. [Google Scholar] [CrossRef][Green Version]
  40. Xu, X.; Yang, Q.; Wang, Y.; Yu, H.; Chen, X.; Jing, X. Biodegradable electrospun poly(l-lactide) fibers containing antibacterial silver nanoparticles. Eur. Polym. J. 2006, 42, 2081–2087. [Google Scholar] [CrossRef]
  41. Gangadharan, D.; Harshvardan, K.; Gnanasekar, G.; Dixit, D.; Popat, K.M.; Anand, P.S. Polymeric microspheres containing silver nanoparticles as a bactericidal agent for water disinfection. Water Res. 2010, 44, 5481–5487. [Google Scholar] [CrossRef] [PubMed]
  42. Hivechi, A.; Bahrami, S.H.; Siegel, R.A. Drug release and biodegradability of electrospun cellulose nanocrystal reinforced polycaprolactone. Mater. Sci. Eng. C 2019, 94, 929–937. [Google Scholar] [CrossRef] [PubMed]
  43. Scaffaro, R.; Maio, A.; Botta, L.; Gulino, E.F.; Gulli, D. Tunable release of Chlorhexidine from Polycaprolactone-based filaments containing graphene nanoplatelets. Eur. Polym. J. 2019, 110, 221–232. [Google Scholar] [CrossRef]
  44. Zhang, M.; Lin, H.; Wang, Y.; Yang, G.; Zhao, H.; Sun, D. Fabrication and durable antibacterial properties of 3 D porous wet electrospun RCSC/PCL nanofibrous scaffold with silver nanoparticles. Appl. Surf. Sci. 2017, 414, 52–62. [Google Scholar] [CrossRef]
  45. Cooper, A.; Bhattarai, N.; Zhang, M. Fabrication and cellular compatibility of aligned chitosan-PCL fibers for nerve tissue regeneration. Carbohydr. Polym. 2011, 85, 149–156. [Google Scholar] [CrossRef]
  46. Wutticharoenmongkol, P.; Sanchavanakit, N.; Pavasant, P.; Supaphol, P. Preparation and characterization of novel bone scaffolds based on electrospun polycaprolactone fibers filled with nanoparticles. Macromol. Biosci. 2006, 6, 70–77. [Google Scholar] [CrossRef] [PubMed]
  47. Ramazani, S.; Karimi, M. Study the molecular structure of poly(ε-caprolactone)/graphene oxide and graphene nanocomposite nanofibers. J. Mech. Behav. Biomed. Mater. 2016, 61, 484–492. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, S.; Zeng, T.H.; Hofmann, M.; Burcombe, E.; Wei, J.; Jiang, R.; Kong, J.; Chen, Y. Antibacterial activity of graphite, graphite oxide, graphene oxide, and reduced graphene oxide: Membrane and oxidative stress. ACS Nano 2011, 5, 6971–6980. [Google Scholar] [CrossRef] [PubMed]
  49. Castro, A.G.B.; Diba, M.; Kersten, M.; Jansen, J.A.; van den Beucken, J.J.J.P.; Yang, F. Development of a PCL-silica nanoparticles composite membrane for Guided Bone Regeneration. Mater. Sci. Eng. C 2018, 85, 154–161. [Google Scholar] [CrossRef] [PubMed]
  50. Peponi, L.; Tercjak, A.; Torre, L.; Kenny, J.M.; Mondragon, I. Morphological analysis of self-assembled SIS block copolymer matrices containing silver nanoparticles. Compos. Sci. Technol. 2008, 68, 1631–1636. [Google Scholar] [CrossRef]
  51. Monti, M.; Rallini, M.; Puglia, D.; Peponi, L.; Torre, L.; Kenny, J.M. Morphology and electrical properties of graphene-epoxy nanocomposites obtained by different solvent assisted processing methods. Compos. Part A Appl. Sci. Manuf. 2013, 46, 166–172. [Google Scholar] [CrossRef]
  52. Arrieta, M.P.; López, J.; López, D.; Kenny, J.M.; Peponi, L. Development of flexible materials based on plasticized electrospun PLA-PHB blends: Structural, thermal, mechanical and disintegration properties. Eur. Polym. J. 2015, 73, 433–446. [Google Scholar] [CrossRef]
  53. Bordes, C.; Fréville, V.; Ruffin, E.; Marote, P.; Gauvrit, J.Y.; Briançon, S.; Lantéri, P. Determination of poly(ε-caprolactone) solubility parameters: Application to solvent substitution in a microencapsulation process. Int. J. Pharm. 2010, 383, 236–243. [Google Scholar] [CrossRef] [PubMed]
  54. Bellani, C.F.; Pollet, E.; Hebraud, A.; Pereira, F.V.; Schlatter, G.; Avérous, L.; Bretas, R.E.S.; Branciforti, M.C. Morphological, thermal, and mechanical properties of poly(ε-caprolactone)/poly(ε-caprolactone)-grafted-cellulose nanocrystals mats produced by electrospinning. J. Appl. Polym. Sci. 2016, 133, 4–11. [Google Scholar] [CrossRef]
  55. Arrieta, M.P.; Perdiguero, M.; Fiori, S.; Kenny, J.M.; Peponi, L. Biodegradable electrospun PLA-PHB fibers plasticized with oligomeric lactic acid. Polym. Degrad. Stab. 2020, 109226. [Google Scholar] [CrossRef]
  56. Navarro-Baena, I.; Sessini, V.; Dominici, F.; Torre, L.; Kenny, J.M.; Peponi, L. Design of biodegradable blends based on PLA and PCL: From morphological, thermal and mechanical studies to shape memory behavior. Polym. Degrad. Stab. 2016, 132, 97–108. [Google Scholar] [CrossRef]
  57. Wong, S.C.; Baji, A.; Leng, S. Effect of fiber diameter on tensile properties of electrospun poly(ε-caprolactone). Polymer 2008, 49, 4713–4722. [Google Scholar] [CrossRef]
Scheme 1. CNC with grafted PCL chains. CNC, cellulose nanocrystal; PCL, poly(e-caprolactone).
Scheme 1. CNC with grafted PCL chains. CNC, cellulose nanocrystal; PCL, poly(e-caprolactone).
Polymers 12 01325 sch001

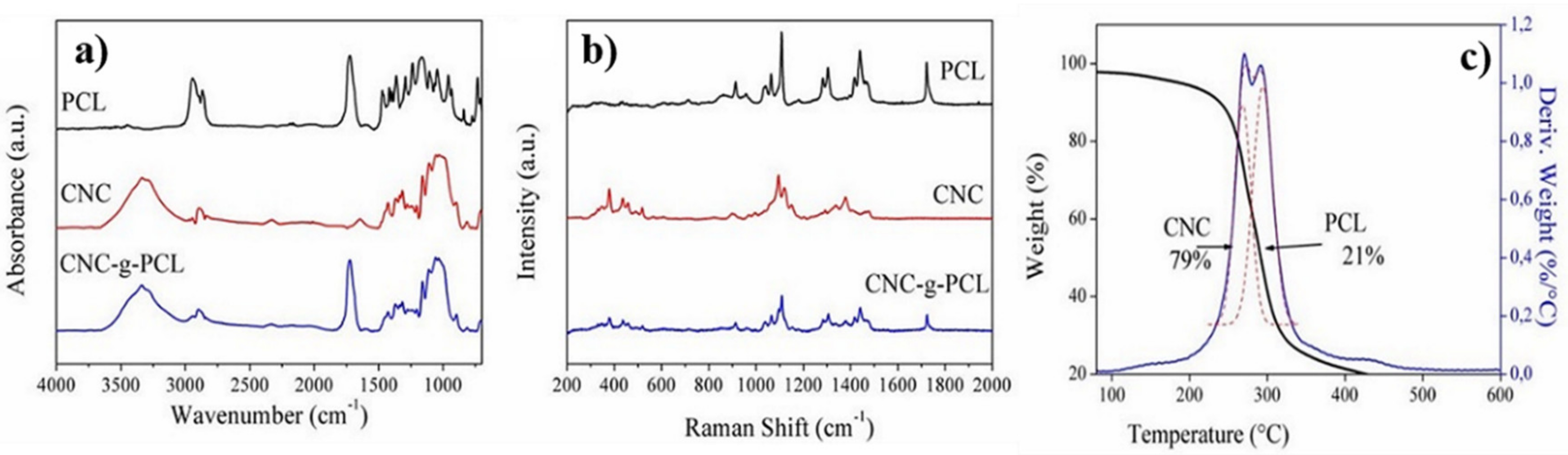

Figure 1. Vibrational spectroscopy: (a) FTIR spectra for PCL, CNC and CNC-g-PCL, (b) Raman spectra for PCL, CNC and CNC-g-PCL, and (c) thermogravimetric analysis of CNC-g-PCL. CNC-g-PCL: CNC with grafted PCL chains.
Figure 1. Vibrational spectroscopy: (a) FTIR spectra for PCL, CNC and CNC-g-PCL, (b) Raman spectra for PCL, CNC and CNC-g-PCL, and (c) thermogravimetric analysis of CNC-g-PCL. CNC-g-PCL: CNC with grafted PCL chains.
Polymers 12 01325 g001
Figure 2. FE-SEM images of the different nanoparticles used in this work: (a) CNC, (b) CNC-g-PCL, (c) Graphene, (d) Chitosan, (e) silver (Ag), (f) hydroxyapatite (HA), (g) silica (SiO2) nanoparticles.
Figure 2. FE-SEM images of the different nanoparticles used in this work: (a) CNC, (b) CNC-g-PCL, (c) Graphene, (d) Chitosan, (e) silver (Ag), (f) hydroxyapatite (HA), (g) silica (SiO2) nanoparticles.
Polymers 12 01325 g002

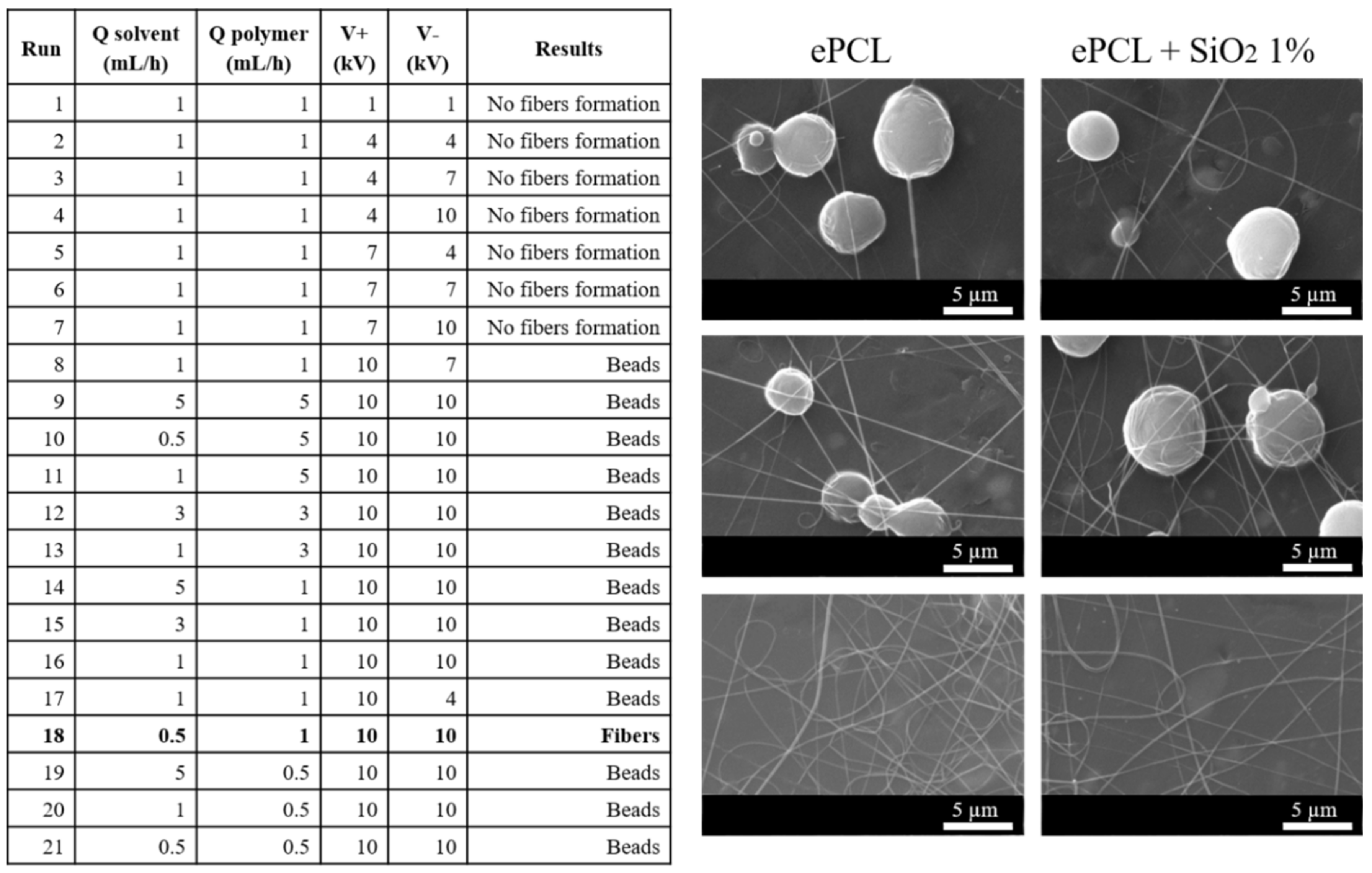

Figure 3. Optimization of the electrospinning process: processing-window parameters and SEM images for PCL and PCL reinforced with silica nanoparticles.
Figure 3. Optimization of the electrospinning process: processing-window parameters and SEM images for PCL and PCL reinforced with silica nanoparticles.
Polymers 12 01325 g003
Figure 4. SEM images of (a) ePCL, (b) ePCL/CNC, (c) ePCL/CNC-g-PCL, (d) ePCL/Graphene, (e) ePCL/Chitosan, (f) ePCL/Ag, (g) ePCL/HA, (h) ePCL/SiO2 electrospun fibers as well as their corresponding average diameters.
Figure 4. SEM images of (a) ePCL, (b) ePCL/CNC, (c) ePCL/CNC-g-PCL, (d) ePCL/Graphene, (e) ePCL/Chitosan, (f) ePCL/Ag, (g) ePCL/HA, (h) ePCL/SiO2 electrospun fibers as well as their corresponding average diameters.
Polymers 12 01325 g004

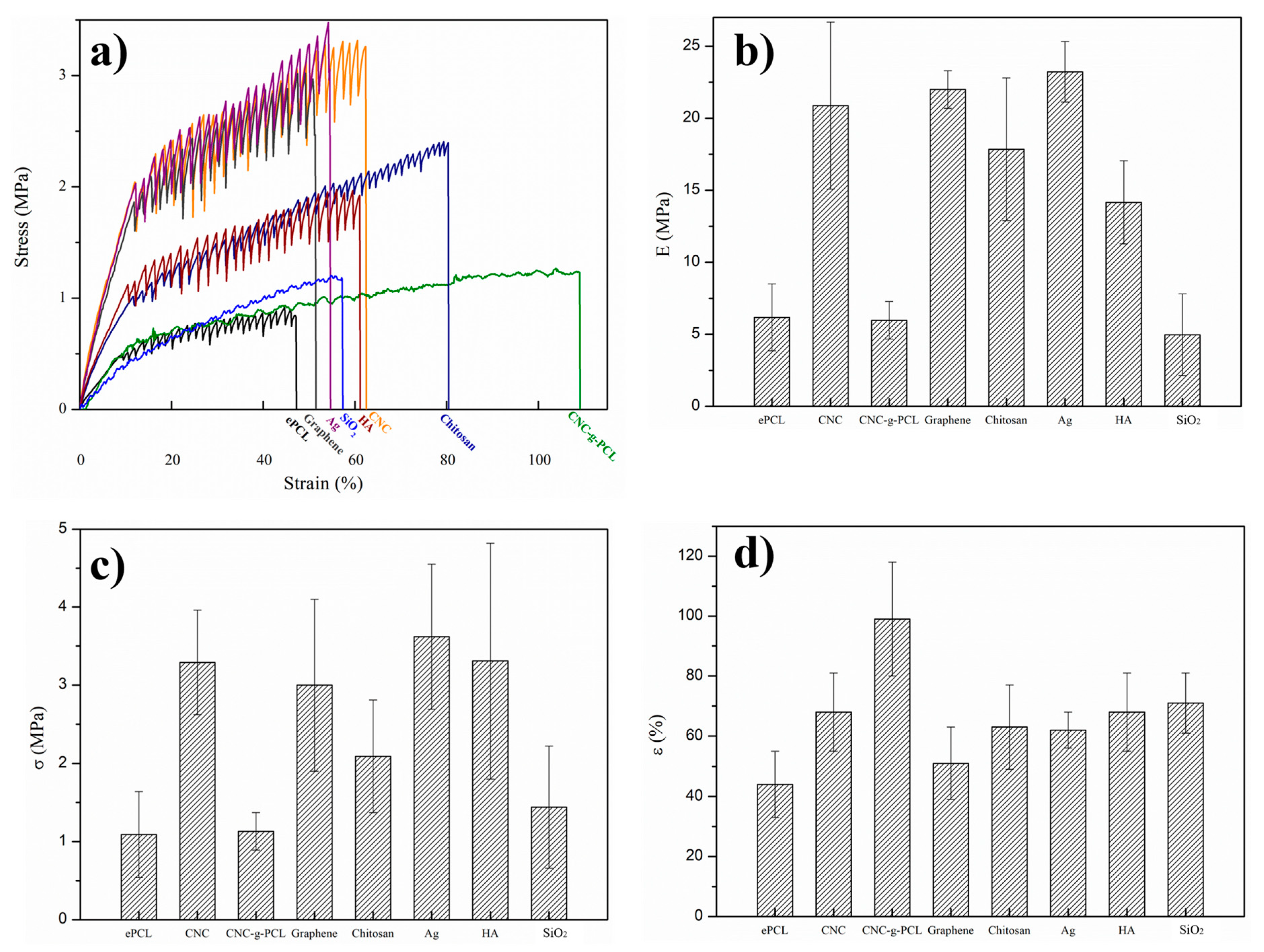

Figure 5. Mechanical response for the neat PCL and the reinforced PCL-based electrospun fibers. Stress-strain diagrams (a), Young modulus (b), tensile strength (c) and elongation at break (d) for all the samples studied.
Figure 5. Mechanical response for the neat PCL and the reinforced PCL-based electrospun fibers. Stress-strain diagrams (a), Young modulus (b), tensile strength (c) and elongation at break (d) for all the samples studied.
Polymers 12 01325 g005

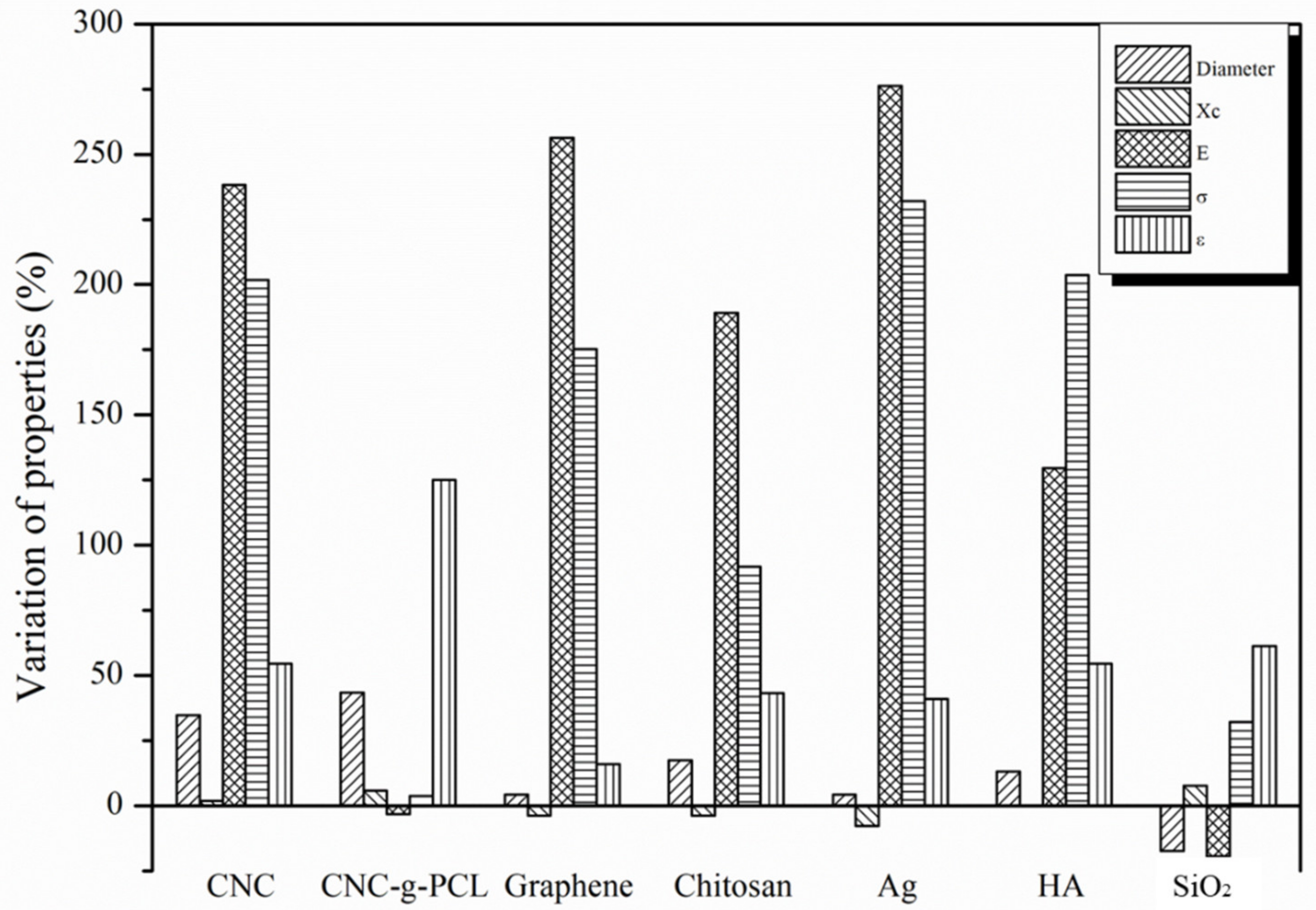

Figure 6. Variation of the properties of the woven no-woven electrospun nanocomposite systems with respect to the ePCL values.
Figure 6. Variation of the properties of the woven no-woven electrospun nanocomposite systems with respect to the ePCL values.
Polymers 12 01325 g006
Table 1. Nanoparticles used and their dimensions.
Table 1. Nanoparticles used and their dimensions.
NanoparticlesDimensions
CNC179 ± 20 nm
14.1 ± 1.6 nm
CNC-g-PCL317 ± 59 nm
24.4 ± 10.0 nm
Graphene286.6 ± 64.6 nm
35.5 ± 1.0 nm
Chitosan23.7 ± 2.3 nm
Ag22.4 ± 2.4 nm
HA18.8 ± 2 nm
SiO224.5 ± 2.9 nm
CNC: Cellulose nanocrystals; CNC-g-PCL: CNC with grafted PCL chains; HA: hydroxyapatite.
Table 2. Thermal characterization for the neat PCL and the reinforced PCL-based electrospun fibers.
Table 2. Thermal characterization for the neat PCL and the reinforced PCL-based electrospun fibers.
SamplesTg (°C)Tm (°C)Xc (%)Tmax (°C)
ePCL−636352398
ePCL/CNC−656553405
ePCL/CNC-g-PCL−606155417
ePCL/Graphene−626250406
ePCL/Chitosan−626450417
ePCL/Ag−626448400
ePCL/HA−626152402
ePCL/SiO2−656352398
Electruspun PCL fibers (ePCL), ePCL reinforced with cellulose nanocrystals (ePCL/CNC), ePCL reinforced with CNC grafted with PCL chains (ePCL/CNC-g-PCL), ePCL reinforced with silver nanoparticles (ePCL/Ag), ePCL reinforced with hydroxyapatite (ePCL/HA), ePCL reinforced with fumed silica nanoparticles (ePCL/SiO2).

Share and Cite

MDPI and ACS Style

Leonés, A.; Mujica-Garcia, A.; Arrieta, M.P.; Salaris, V.; Lopez, D.; Kenny, J.M.; Peponi, L. Organic and Inorganic PCL-Based Electrospun Fibers. Polymers 2020, 12, 1325. https://doi.org/10.3390/polym12061325

AMA Style

Leonés A, Mujica-Garcia A, Arrieta MP, Salaris V, Lopez D, Kenny JM, Peponi L. Organic and Inorganic PCL-Based Electrospun Fibers. Polymers. 2020; 12(6):1325. https://doi.org/10.3390/polym12061325

Chicago/Turabian Style

Leonés, Adrián, Alicia Mujica-Garcia, Marina Patricia Arrieta, Valentina Salaris, Daniel Lopez, José Maria Kenny, and Laura Peponi. 2020. "Organic and Inorganic PCL-Based Electrospun Fibers" Polymers 12, no. 6: 1325. https://doi.org/10.3390/polym12061325

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
