Biodegradable Polylactide–Poly(3-Hydroxybutyrate) Compositions Obtained via Blending under Shear Deformations and Electrospinning: Characterization and Environmental Application
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Production of Compositions
2.3. Investigation of Thermophysical Properties
2.4. Mechanical Tests
2.5. Biodegradability

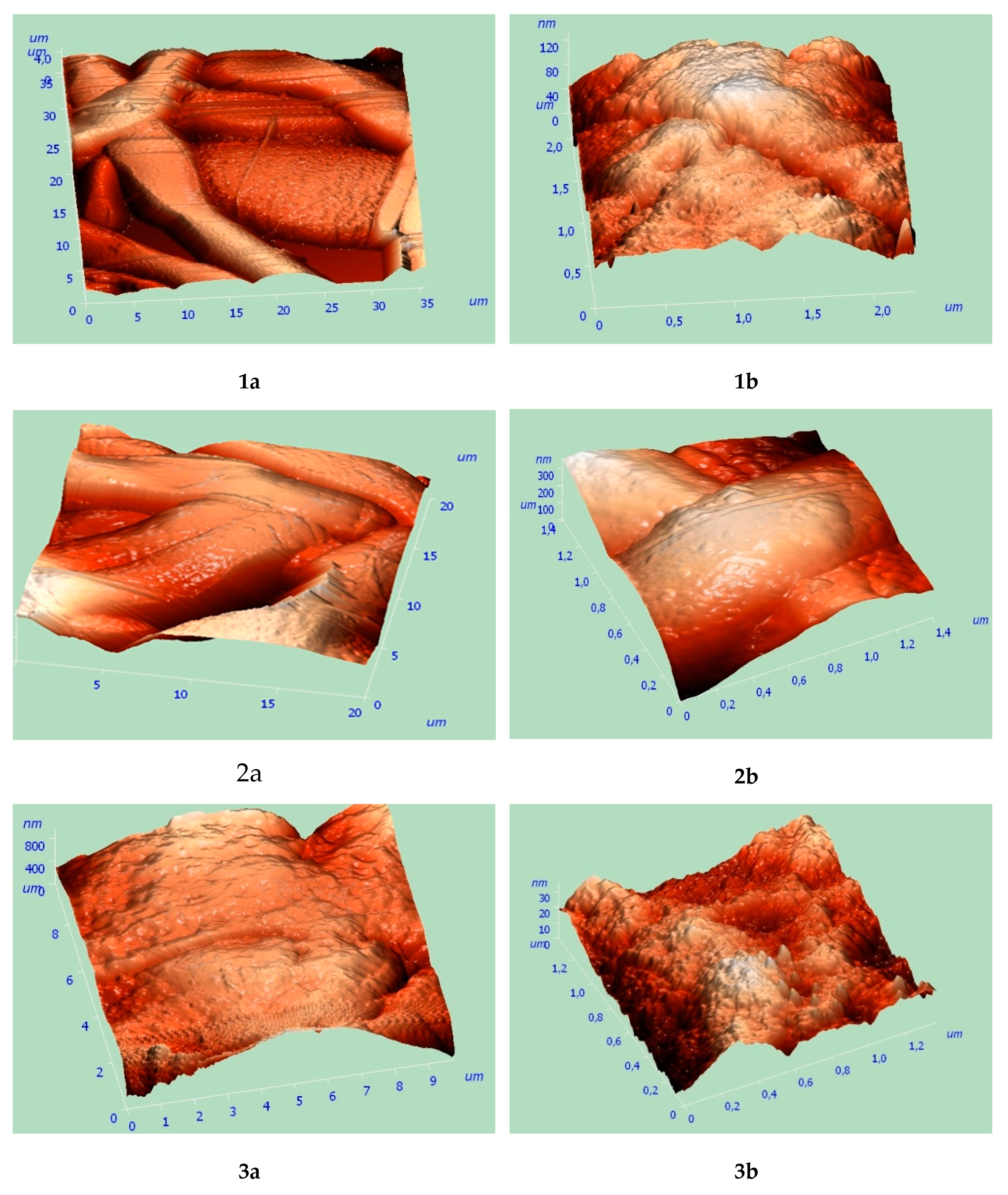

2.6. Atomic Force Microscopy (AFM)
2.7. Production of Fibers and Unwoven Materials by Electrospinning
2.8. Oil Absorption Measurements
2.9. Statistics and Data Availability Statement
3. Results and Discussion
3.1. Thermophysical Properties of PHB, PLA, and their Compositions

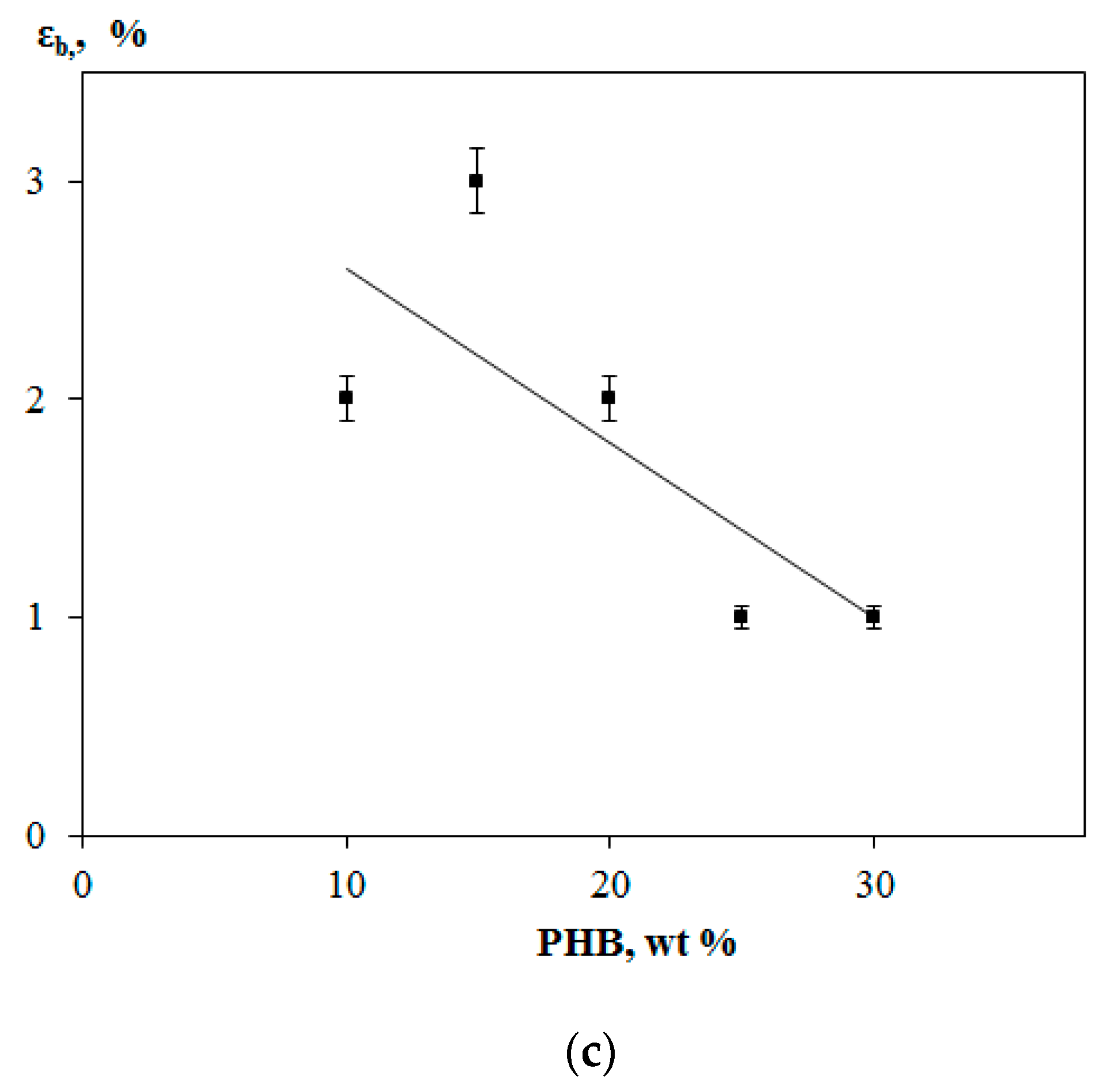

3.2. Mechanical Testing
3.3. Biodegradation of Composites
3.4. Oil Sorption by Electrospun Fibrous Absorbents
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Yadav, B.; Pandey, A.; Kumar, L.R.; Tyagi, R.D. Bioconversion of waste (water)/residues to bioplastics-A circular bioeconomy approach. Bioresour. Technol. 2020, 298, 122584. [Google Scholar] [CrossRef] [PubMed]
- Rameshkumar, R.; Shaiju, P.; O’Connor, K.E.; Babu, P.R. Bio-based and biodegradable polymers-State-of-the-art, challenges and emerging trends. Curr. Opin. Green Sustain. Chem. 2020, 21, 75–81. [Google Scholar] [CrossRef]
- Murariu, M.; Dubois, P. PLA composites. From production to properties. Adv. Drug Deliv. Rev. 2016, 107, 17–46. [Google Scholar] [CrossRef] [PubMed]
- Nakajima, H.; Dijkstra, P.; Loos, K. Recent Developments in Biobased Polymers toward General and Engineering Applications: Polymers that are Upgraded from Biodegradable Polymers, Analogous to Petroleum-Derived Polymers, and Newly Developed. Polymers 2017, 9, 523. [Google Scholar] [CrossRef]
- Soares, R.M.D.; Siqueira, N.M.; Prabhakaram, M.P.; Ramakrishna, S. Electrospinning and electrospray of bio-based and natural polymers for biomaterials development. Mater. Sci. Eng. C 2018, 921, 969–982. [Google Scholar] [CrossRef]
- Rogovina, S.Z. Biodegradable polymer Composites Based on Synthetic and Natural Polymers of Various Polymers of Various Classes. Polym. Sci. Ser. C 2016, 58, 62–73. [Google Scholar] [CrossRef]
- Dorgan, J.R.; Lehermeier, H.; Mang, M. Thermal and Rheological Properties of Commercial-Grade Poly(Lactic Acid)s. J. Polym. Environ. 2000, 8, 1–9. [Google Scholar] [CrossRef]
- Rodriguez, E.J.; Marcos, B.; Huneault, M.A. Hydrolysis of polylactide in aqueous media. J. Appl. Polym. Sci. 2016, 133, 44152. [Google Scholar] [CrossRef]
- Valentina, I.; Haroutioun, A.; Fabrice, L.; Vincent, V.; Roberto, P. Poly(Lactic Acid)-Based Nanobiocomposites with Modulated Degradation Rates. Materials 2018, 11, 1943. [Google Scholar] [CrossRef] [Green Version]
- Tsuji, H.; Miyauchi, S. Enzymatic Hydrolysis of Poly(lactide)s: Effects of Molecular Weight, l-Lactide Content, and Enantiomeric and Diastereoisomeric Polymer Blending. Biomacromolecules 2001, 2, 597–604. [Google Scholar] [CrossRef]
- Lim, L.-T.; Auras, R.; Rubino, M. Processing technologies for poly(lactic acid). Prog. Polym. Sci. 2008, 33, 820–852. [Google Scholar] [CrossRef]
- Gupta, B.; Revagade, N.; Hilborn, J. Poly(lactic acid) fiber: An overview. Prog. Polym. Sci. 2007, 32, 455–482. [Google Scholar] [CrossRef]
- Follain, N.; Chappey, C.; Dargent, E.; Chivrac, F.; Crétois, R.; Marais, S. Structure and Barrier Properties of Biodegradable Polyhydroxyalkanoate Films. J. Phys. Chem. 2014, 118, 6165–6177. [Google Scholar] [CrossRef]
- Iordanskii, A.L.; Ol’khov, A.A.; Karpova, S.G.; Kucherenko, E.L.; Kosenko, R.Y.; Rogovina, S.Z.; Chalykh, A.E.; Berlin, A.A. Influence of the structure and morphology of ultrathin poly(3-hydroxybutyrate) fibers on the diffusion kinetics and transport of drugs. Polym. Sci. Ser. A 2017, 59, 343–353. [Google Scholar] [CrossRef]
- Saini, P.; Arora, M.; Kumar, M.N.V.R. Poly(lactic acid) blends in biomedical applications. Adv. Drug Deliv. Rev. 2016, 107, 47–59. [Google Scholar] [CrossRef]
- Butt, F.I.; Muhammad, N.; Hamid, A.; Moniruzzaman, M.; Sharif, F. Recent progress in the utilization of biosynthesized polyhydroxyalkanoates for biomedical applications–Review. Int. J. Biol. Macromol. Part A 2018, 120, 1294–1305. [Google Scholar] [CrossRef]
- Da Silva, L.P.; Kundu, S.C.; Reis, R.L.; Correlo, V.M. Electric Phenomenon: A Disregarded Tool in Tissue Engineering and Regenerative Medicine. Trends Biotechnol. 2020, 38, 24–49. [Google Scholar] [CrossRef]
- Cheng, H.; Yang, X.; Che, X.; Yang, M.; Zhai, G. Biomedical application and controlled drug release of electrospun fibrous materials. Mater. Sci. Eng. C 2018, 90, 750–763. [Google Scholar] [CrossRef]
- Tyler, B.; Gullotti, D.; Mangraviti, A.; Utsuki, T.; Brem, H. Polylactic acid (PLA) controlled delivery carriers for biomedical applications. Adv. Drug Deliv. Rev. 2016, 107, 163–175. [Google Scholar] [CrossRef]
- Arrieta, M.P.; Samper, M.D.; Aldas, M.; López, J. On the Use of PLA-PHB Blends for Sustainable Food Packaging Applications. Materials 2017, 10, 1008. [Google Scholar] [CrossRef]
- Yu, L.; Dean, K.; Li, L. Polymer blends and composites from renewable resources. Prog. Polym. Sci. 2006, 31, 576–602. [Google Scholar] [CrossRef]
- Armentano, I.; Fortunati, E.; Burgos, N.; Dominici, F.; Luzi, F.; Fiori, S.; Jiménez, A.; Yoon, K.; Ahn, J.; Kang, S.; et al. Processing and characterization of plasticized PLA/PHB blends for biodegradable multiphase systems. eXPRESS Polym. Lett. 2015, 9, 583–596. [Google Scholar] [CrossRef]
- Abdelwahab, M.A.; Flynn, A.; Chiou, B.-S.; Imam, S.; Orts, W.; Chiellini, E. Thermal, mechanical and morphological characterization of plasticized PLA-PHB blends. Polym. Degrad. Stab. 2012, 97, 1822–1828. [Google Scholar] [CrossRef]
- Balogová, A.F.; Tóth, R.H.T.; Schnitzer, M.; Feranc, J.; Bakoš, D.; Živcak, J. Determination of geometrical and viscoelastic properties of PLA/PHB samples made by additive manufacturing for urethral substitution. J. Biotechnol. 2018, 284, 123–130. [Google Scholar] [CrossRef] [PubMed]
- Pavan, F.A.; Junqueira, T.L.; Watanabe, M.D.B.; Bonomi, A.; Quines, L.K.M.; Schmidell, W.; Aragao, G.M.F. Economic analysis of polyhydroxybutyrate production by Cupriavidus necator using different routes for product recovery. Biochem. Eng. J. 2019, 146, 97–104. [Google Scholar] [CrossRef]
- Arrieta, M.P.; López, J.; Hernández, A.; Rayón, E. Ternary PLA–PHB–Limonene blends intended for biodegradable food packaging applications. Eur. Polym. J. 2014, 50, 255–270. [Google Scholar] [CrossRef]
- D’Amico, D.A.; Montes, M.L.I.; Manfredi, L.B.; Cyras, V.P. Fully bio-based and biodegradable polylactic acid/poly(3-hydroxybutirate) blends: Use of a common plasticizer as performance improvement strategy. Polym. Test. 2016, 49, 22–28. [Google Scholar] [CrossRef]
- Armentano, I.; Fortunati, E.; Burgos, N.; Dominici, F.; Luzi, F.; Fiori, S.; Jiménez, A.; Yoon, K.; Ahn, J.; Kang, S.; et al. Biobased PLA-PHB plasticized blend films. Part I: Processing and structural characterization. LWT-Food Sci. Technol. 2015, 64, 980–988. [Google Scholar] [CrossRef] [Green Version]
- Arrieta, M.P.; Samper, M.D.; Lo’pez, J.; Jime´nez, A. Combined Effect of Poly(hydroxybutyrate) and Plasticizers on Polylactic acid Properties for Film Intended for Food Packaging. J. Polym. Environ. 2014, 22, 460–470. [Google Scholar] [CrossRef]
- Enikolopian, N.S. Some aspects of chemistry and physics of plastic flow. Pure Appl. Chem. 1985, 57, 1707–1711. [Google Scholar] [CrossRef]
- Filatov, Y.; Budyka, A.; Kirichenko, V. Electrospinning of Micro-and Nanofibers: Fundamentals in Separation and Filtration Processes; Begell House, Inc.: Redding, CT, USA, 2007; p. 488. [Google Scholar]
- Saleem, H.; Trabzon, L.; Kilic, A.; Zaidi, S.J. Recent advances in nanofibrous membranes: Production and applications in water treatment and desalination. Desalination 2020, 478, 114178. [Google Scholar] [CrossRef]
- Cao, K.; Liu, Y.; Olkhov, A.A.; Siracusa, V.; Iordanskii, A.L. PLLA-PHB fiber membranes obtained by solvent-free electrospinning for short-time drug delivery. Drug Deliv. Translat. Res. 2018, 8, 291–302. [Google Scholar] [CrossRef] [PubMed]
- Liu, Y.; Cao, K.; Karpova, S.; Olkhov, A.A.; Iordanskii, A.L. Comparative Characterization of Melt Electrospun Fibers and Films Based on PLA-PHB Blends: Diffusion, Drug Release, and Structural Features. Macromol. Symp. 2018, 381, 1800130. [Google Scholar] [CrossRef]
- Bagbi, Y.; Pandey, A.; Solank, P.R. Electrospun Nanofibrous Filtration Membranes for Heavy Metals and Dye Removal. In Nanoscale Materials in Water Purification; Elsevier: Amsterdam, The Netherlands, 2019; pp. 275–288. [Google Scholar]
- Wang, Y.; Qu, W.; Choi, S.H. FDA’s Regulatory Science Program for Generic PLA-PLGA-Based Drug Products. Am. Pharm. Rev. 2016, 19, 5–9. [Google Scholar]
- Absorbable Poly(hydroxybutyrate) Surgical Suture Produced by Recombinant DNA Technology-Class II Special Controls Guidance for Industry and FDA Staff. Available online: https://www.fda.gov/medical-devices/guidance-documents-medical-devices-and-radiation-emitting-products/absorbable-polyhydroxybutyrate-surgicalutureproduced-recombinant-dna-technology-class-ii-special (accessed on 28 June 2018).
- Cheng, S.Z.D. (Ed.) Handbook of Thermal Analysis and Calorimetry, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2002; Volume 3, p. 810. [Google Scholar]
- Lin, K.-W.; Lan, C.-H.; Sun, Y.-M. Poly[(R)3-hydroxybutyrate] (PHB)/poly(L-lactic acid) (PLLA) blends with poly(PHB/PLLA urethane) as a compatibilizer. Polym. Degrad. Stab. 2016, 134, 30–40. [Google Scholar] [CrossRef]
- Mousavioun, P.; Halley, P.J.; Doherty, W.O.S. Thermophysical properties and rheology of PHB/lignin blends. Ind. Crops Prod. 2013, 50, 270–275. [Google Scholar] [CrossRef]
- Qiu, J.; Xing, C.; Cao, X.; Wang, H.; Wang, L.; Zhao, L.; Li, Y. Miscibility and Double Glass Transition Temperature Depression of PLA (PLLA-POM) Blends. Macromolecules 2013, 46, 5806–5814. [Google Scholar] [CrossRef]
- Florez, J.P.; Fazeli, M.; Simão, R.A. Preparation and characterization of thermoplastic starch composite reinforced by plasma-treated poly (hydroxybutyrate) PHB. Int. J. Biol. Macromol. 2019, 123, 609–621. [Google Scholar] [CrossRef]
- Faradilla, R.F.; Lee, G.; Sivakumar, P.; Stenzel, M.; Arcot, J. Effect of PEG molecular weight and nanofillers on properties of banana nanocellulose films. Carbohydr. Polym. 2019, 205, 330–339. [Google Scholar] [CrossRef]
- Qussi, B.; Suess, W.G. The Influence of Different Plasticizers and Polymers on the Mechanical and Thermal Properties, Porosity and Drug Permeability of Free Shellac Films. Drug Dev. Ind. Pharm. 2006, 32, 403–412. [Google Scholar] [CrossRef]
- Yu, Y.; Cheng, Y.; Ren, J.; Cao, E.; Fu, X.; Guo, W. Plasticizing effect of poly(ethylene glycol)s with different molecular weights in poly(lactic acid)/starch blends. J. Appl. Polym. Sci. 2015, 132, 41808. [Google Scholar] [CrossRef]
- Zhang, M.; Thomas, N.L. Blending polylactic acid with polyhydroxybutyrate: The effect on thermal, mechanical, biodegradation properties. Adv. Polym. Technol. 2011, 30, 67–79. [Google Scholar] [CrossRef]
- Fujita, H. Notes on free volume theories. Polym. J. 1991, 23, 1499–1506. [Google Scholar] [CrossRef] [Green Version]
- Sharma, J.; Tewari, K.; Arya, R.K. Diffusion in polymeric systems–A review on free volume theory. Prog. Org. Coat. 2017, 111, 83–92. [Google Scholar] [CrossRef]
- Modi, S.; Koelling, K.; Vodovotz, Y. Assessing the mechanical, phase inversion, and rheological properties of poly-[(R)-3-hydroxybutyrate-co-(R)-3-hydroxyvalerate] (PHBV) blended with poly-(L-lactic acid) (PLA). Eur. Polym. J. 2013, 49, 3681–3690. [Google Scholar] [CrossRef]
- Arrieta, M.P.; López, J.; López, D.; Kenny, J.M.; Peponi, L. Development of flexible materials based on plasticized electrospun PLA–PHB blends: Structural, thermal, mechanical and disintegration properties. Eur. Polym. J. 2015, 73, 433–446. [Google Scholar] [CrossRef]
- Montes, M.L.I.; Cyras, V.P.; Manfredi, L.B.; Pettarín, V.; Fasce, L.A. Fracture evaluation of plasticized polylactic acid/poly (3-HYDROXYBUTYRATE) blends for commodities replacement in packaging applications. Polym. Test. 2020, 84, 106375–106386. [Google Scholar] [CrossRef]
- Zhang, L.; Xiong, C.; Deng, X. Miscibility, crystallization and morphology of poly(b-hydroxybutyrate)- poly(d,l-lactide) blends. Polymer 1996, 37, 235–241. [Google Scholar] [CrossRef]
- Martin, O.; Averous, L. Polylactic acid: Plasticization and properties of biodegradable multiphase systems. Polymer 2001, 42, 6209–6219. [Google Scholar] [CrossRef]
- Wang, S.; Ma, P.; Wang, R.; Wang, S.; Zhang, Y.; Zhang, Y. Mechanical, thermal and degradation properties of poly(d,l-lactide)/poly(hydroxybutyrate-co-hydroxyvalerate)/poly(ethylene glycol) blend. Polym. Degrad. Stab. 2008, 93, 1364–1369. [Google Scholar] [CrossRef]
- Bonartsev, A.P.; Boskhomodgiev, A.P.; Iordanskii, A.L.; Bonartseva, G.A.; Rebrov, A.V.; Makhina, T.K.; Myshkina, V.L.; Yakovlev, S.A.; Filatova, E.A.; Ivanov, E.A.; et al. Hydrolytic Degradation of Poly(3-hydroxybutyrate), Polylactide and their Derivatives: Kinetics, Crystallinity, and Surface Morphology. Mol. Cryst. Liq. Cryst. 2012, 556, 288–300. [Google Scholar] [CrossRef]
- Zhuikov, V.A.; Berlin, A.A.; Bonartsev, A.P.; Iordanskii, A.L. Comparative Structure-Property Characterization of Poly(3-Hydroxybutyrate-Co-3-Hydroxyvalerate)s Films Under Hydrolytic And Enzymatic Degradation: Finding a Transition Point in 3-Hydroxyvalerate Content. Polymers 2020, 12, 728. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Rogovina, S.Z.; Aleksanyan, K.V.; Kosarev, A.A.; Ivanushkina, N.E.; Prut, E.A.; Berlin, A.A. Biodegradable Polymer Composites Based on Polylactide and Cellulose. Polym. Sci. Ser. B 2016, 58, 38–46. [Google Scholar] [CrossRef]
- Rogovina, S.Z.; Aleksanyan, K.V.; Loginova, A.A.; Ivanushkina, N.E.; Vladimirov, L.V.; Prut, E.A.; Berlin, A.A. Influence of PEG on Mechanical Properties and Biodegradability of Composites Based on PLA and Starch. Starch 2018, 70, 1700268. [Google Scholar] [CrossRef]
- Samoilov, N.A.; Khlestkin, R.N.; Shemetov, A.V.; Shammazov, A.A. Sorption Method of Liquidation of Emergency Spills of Oil AND Oil Products; Khimiya: Moscow, Russia, 2001; p. 189. [Google Scholar]
- Blinovskaya, Y.Y. Efficiency Sorbents Comparative Analysis for Heavy Oil Products in the Conditions of Low Temperatures. IOP Conf. Ser. Earth Environ. Sci. 2019, 272, 032116. [Google Scholar] [CrossRef]
- Iordanskii, A.L.; Samoilov, N.A.; Olkhov, A.A.; Markin, V.S.; Rogovina, S.Z.; Kildeeva, N.R.; Berlin, A.A. New Fibrillar Composites Based on Biodegradable Poly(3-hydroxybutyrate) and Polylactide Polyesters with High Selective Absorption of Oil from Water Medium. Dokl. Phys. Chem. 2019, 487, 106–108. [Google Scholar] [CrossRef]
- Sirotkina, E.E.; Novoselova, L.Y. Materials for Adsorption Purification of Water from Petroleum and Oil Products. Chem. Sustain. Dev. 2005, 13, 359–375. [Google Scholar]

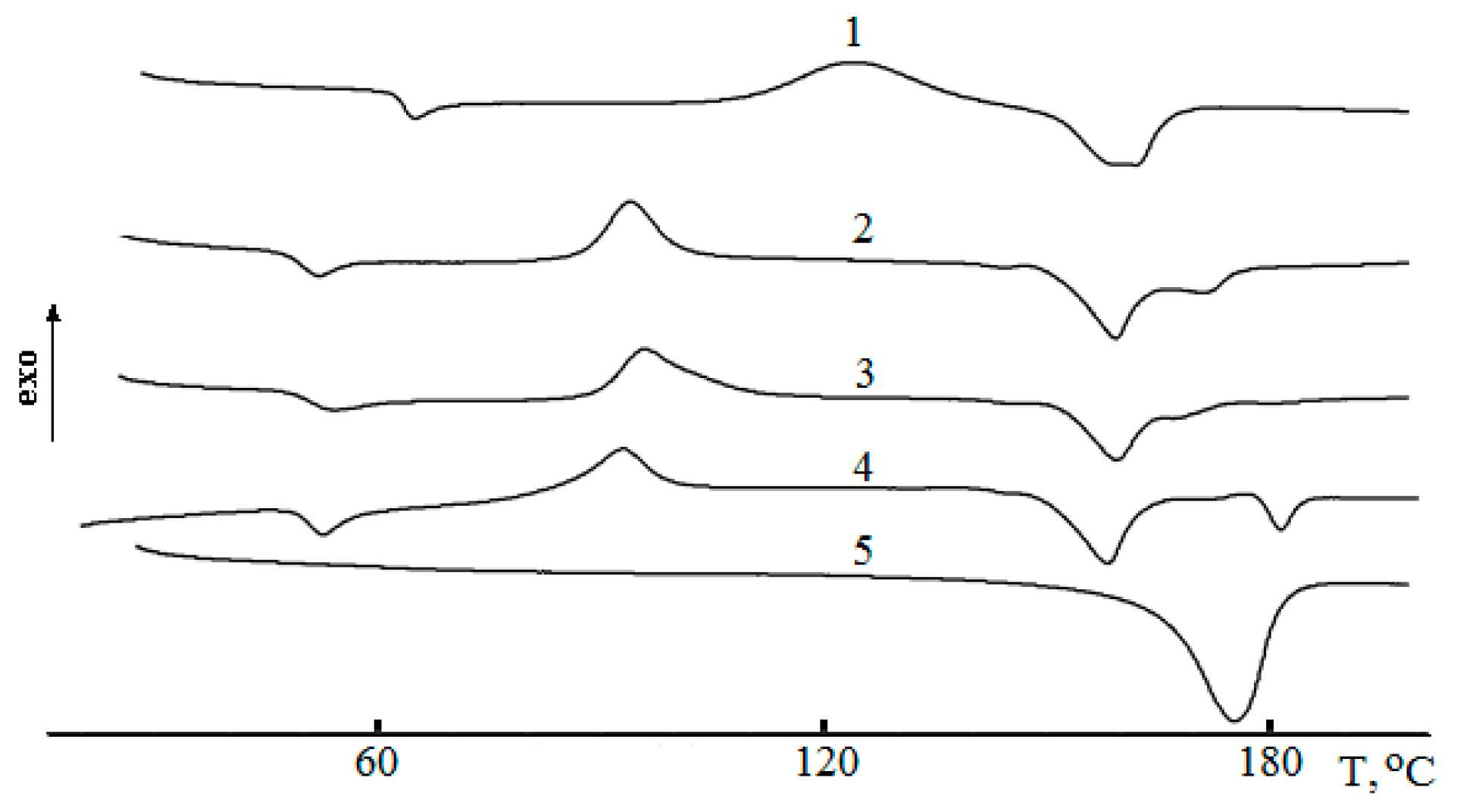

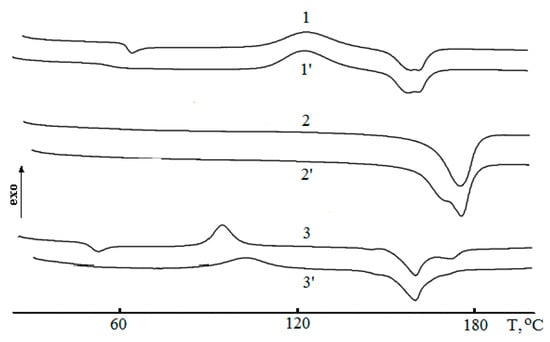

Blend Composition PLA-PGB, wt % | Heating | Tg, °C | Tm, °C | ΔHm, J/g | Tcc, °C | ∆Tccg, °C | χcr,% * |
---|---|---|---|---|---|---|---|
Polylactide | |||||||
PLA = 100 | first | 65.0 | doublet 159.4; 162.0 | 25.6 | 124.0 | 59.0 | 27.3 |
second | 63.0 | doublet 158.4; 161.7 | 27.7 | 123.3 | 60.3 | 29.6 | |
(80:20) + 5% PEG400 | first | 52.0 | doublet 144.4; 159.3 | 31.3 | 94.0 | 42.0 | 42.0 |
second | − | doublet 146.4; 159.3 | 36.6 | 102.0 | 49.0 | ||
(80:20) + 10% PEG400 | first | − | 157.6 | 41.3 | 83.0 | 55.0 | |
second | − | 156.8 | 42.7 | doublet 81.5; 127.0 | 57.0 | ||
(80:20) + 5% PEG600 | first | 54.2 | doublet 145.6; 159.3 | 22.8 | 96.0 | 42.0 | 30.0 |
second | − | doublet 148.0; 159.4 | 32.4 | 106.0 | 43.0 | ||
(80:20) +5% PEG1000 | first | 53.5 | 159.0 | 29.6 | 107.0 | 53.5 | 34.0 |
PHB = 100 | first | - | 175.0 | 71.0 | - | 49.0 | |
second | - | 170.0 | 75.5 | - | 52.0 |

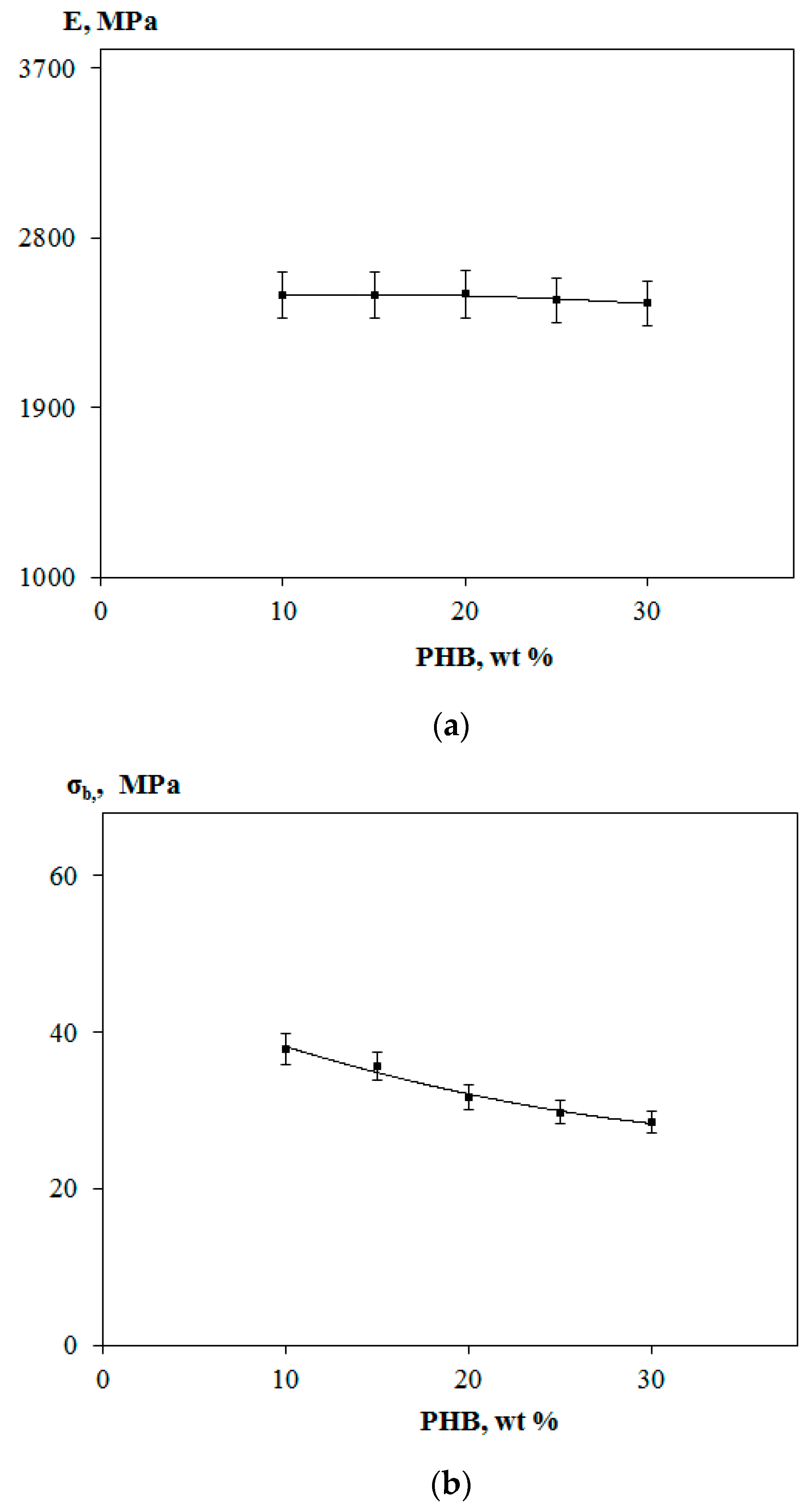

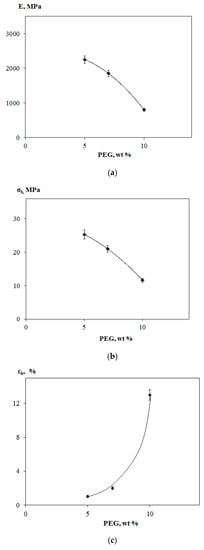

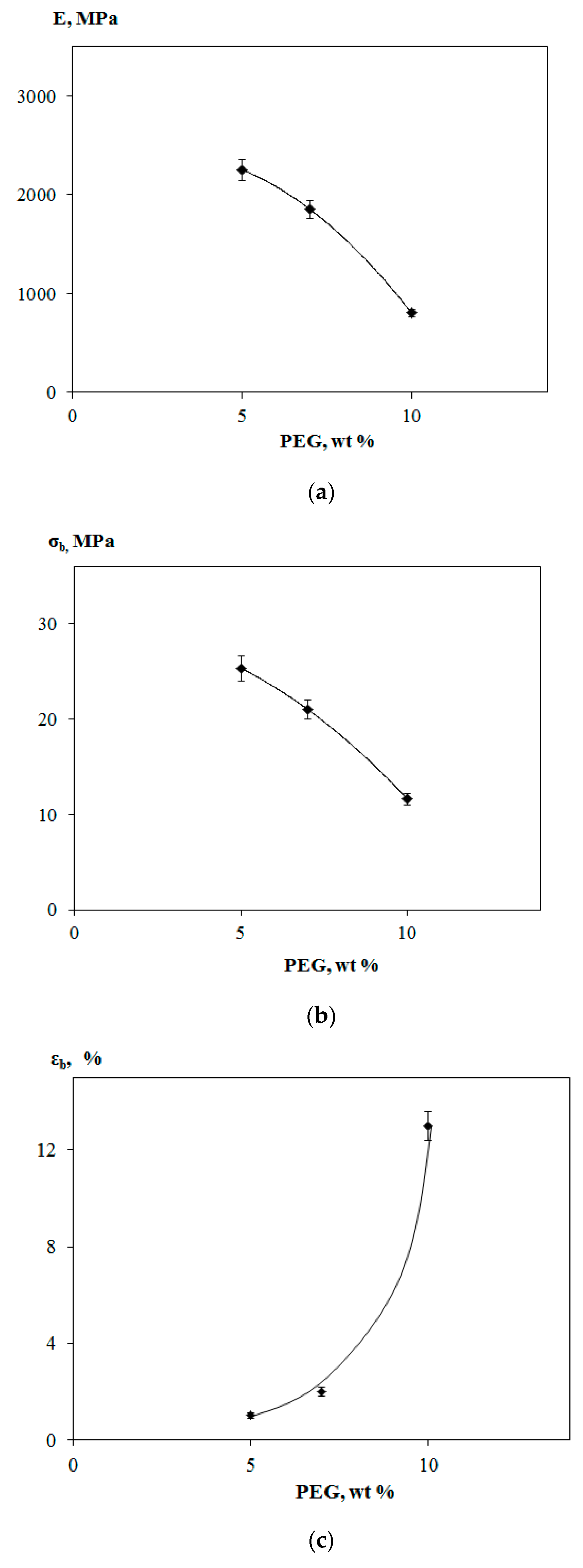

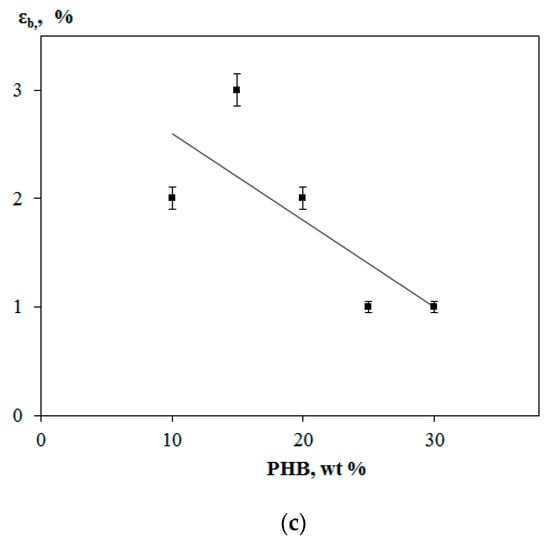

Blend Composition, PLA-PHB, wt % | E, MPa | σb, MPa | εb, % |
---|---|---|---|
80:20 + 5% PEG1000 | 2500 ± 125 | 31.6 ± 1.6 | 2 ± 0.1 |
80:20 + 5% PEG600 | 2700 ± 130 | 21.0 ± 1.1 | 1 ± 0.1 |
80:20 + 5% PEG400 | 2250 ± 110 | 25.3 ± 1.2 | 2 ± 0.1 |
Testing Time, Days | Fungi Growth Intensity, Points | |||
---|---|---|---|---|
PLA | PHB | PLA-PHB (70:30 wt %) + 5 wt % PEG1000 | PLA-PHB (85:15 wt %) + 5 wt % PEG1000 | |
10 | 0 | 2 | 1 | 1 |
15 | 0 | 2 | 1 | 1 |
21 | 0 | 2 | 2 | 1 |
28 | 0 | 5 | 2 | 1 |
50 | 0 | 5 | 3 | 1-2 |
84 | 0-1 | 5 | 3-4 | 2 |
Absorbent | Oil Capacity, g/g | Absorbent Condition | References |
---|---|---|---|
PDOS | 3.4 | Peat Dust Oil Sorbent | [60] |
LessorbTM | 5.6 | Dispersed powder | [60] |
PET | 14 | Nonwoven Fabric | [61] |
PHB-PLA (90:10) | 15 | Nonwoven mat | [61] |
PHB-PLA (50:50) | 16 | Nonwoven mat | [61] |
Sintapeks | 24 | Cotton-processing product | [62] |
PLA | 30 | Nonwoven mat | [61] |
PU | 37 | Foam pellets (5-8 mm) | [61] |
PHB | 45 | Nonwoven mat | [61] |
EGS | 50 | Exfoliated Graphite Sorbent | [60] |
