Article

Polyurethane/Nanosilver-Doped Halloysite Nanocomposites: Thermal, Mechanical Properties, and Antibacterial Properties

by
Jui-Ting Sun
1,
Jia-Wun Li
1,
Chi-Hui Tsou
2,
Jen-Chieh Pang
3,
Ren-Jei Chung
4 and
Chih-Wei Chiu
1,*
1
Department of Materials Science and Engineering, National Taiwan University of Science and Technology, Taipei 10607, Taiwan
2
Material Corrosion and Protection Key Laboratory of Sichuan Province, College of Materials Science and Engineering, Sichuan University of Science and Engineering, Zigong 643000, China
3
Department of Biotechnology, Van-Nung University, Tao-Yuan 32061, Taiwan
4
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, Taipei 10608, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(11), 2729; https://doi.org/10.3390/polym12112729
Submission received: 7 November 2020 / Revised: 13 November 2020 / Accepted: 15 November 2020 / Published: 17 November 2020
(This article belongs to the Special Issue Advances in Functional Polyurethanes)
Browse Figures
Versions Notes

Abstract

:
In this study, the researchers successfully embellished the surface of halloysite (Ag/HNTs) with silver using halloysite, silver nitrate (AgNO3), and polyvinylpyrrolidone (PVP). The researchers then prepared polyurethane that contained pyridine ring by using 4,4′-diphenylmethane diisocyanate (MDI) and polytetramethylene glycol (PTMG) as the hard chain segment and the soft chain segment of polyurethane (PU), as well as 2,6-pyridinedimethanol (2,6-PDM) as the chain extension agent. This was followed by the preparation of Ag/HNTs/PUs nanocomposite thin films, achieved by mixing Ag/HNTs with different ratios into polyurethane that contains pyridine ring. First, the Ag/HNTs powders were analyzed using energy-dispersive X-ray spectroscopy, X-ray diffraction, and transmission electron microscopy. Subsequently, Fourier-transform infrared spectroscopy was used to examine the dispersibility of Ag/HNTs in PU, whereas the thermal stability and the viscoelasticity of Ag/HNTs/PU were examined using thermal gravimetric analysis, differential scanning calorimetry, and dynamic mechanical analysis. When the mechanical properties of Ag/HNTs/PU were tested using a universal strength tester, the results indicated a maximum increase of 109.5% in tensile strength. The researchers then examined the surface roughness and the hydrophobic ability of the Ag/HNTs/PU thin films by using atomic force microscopy and water contact angle. Lastly, antibacterial testing on Escherichia coli revealed that when the additive of Ag/HNTs reached 2.0 wt%, 99.3% of the E. coli were eliminated. These results indicated that the addition of Ag/HNTs into PU could enhance the thermal stability, mechanical properties, and antibacterial properties of PU, implying the potential of Ag/HNTs-02 as biomedicine material.

Graphical Abstract

1. Introduction

Polyurethane (PU) is an extensively used material. It has a unique form and excellent chemical and mechanical properties [1,2]. It is widely used as insulation material for walls, rooftops, and home electrical appliances; flexible and rigid foams for furniture; thermoplastic PU for medical devices; and adhesives or sealants for the coating of clothes and shoes [3,4,5]. PU is a type of linear block copolymer composed of hard chain segment and soft chain segment. The hard chain segment is usually made up of carbamate groups [6], whereas the soft chain segment usually comprises polyether diols [7]. Different strength and hardness can be generated through changing the ratio of hard chain segment and soft chain segment or their structures or adding different chain extenders to exhibit the comprehensive properties [8]. For example, Chiu et al. [9] introduced the chain extender of 2,6-PDM into the polyurethane to prove the existence of hydrogen bond between the pyridine ring and the polyurethane, so that the shape stability of polyurethane is improved by this hydrogen bond. Numerous researchers have also mixed nanofillers into PU using the compounding method to enhance the physical properties of PU or endow PU with special properties. For example, Cai et al. [10] introduced graphene sheets into PU to endow the resultant PU with a higher level of thermal conductivity, thermal stability, and fire retardance for use in fire-retardant materials. Because of characteristics such as large body surface area, excellent physical and chemical properties, and low cost [11], clay nanotube is often used as a filler for enhancing the physical properties of polymers. Halloysite is a type of natural nanomaterial that possesses a unique nano hollow tubular structure. The ideal chemical formula of halloysite, Al2Si2O5(OH)4·2H2O, is composed of an external surface group of Si-O-Si and an internal surface group, Al-OH [12]. The HNTs produced in different regions have different polydispersity. In general, the length of HNTs is about 1000 nm and the diameter is between 10-70 nm [13]. Halloysite is a material that possesses excellent thermal and mechanical properties and biocompatibility. Furthermore, it is available in large amounts at low cost [14], Sikora [15] et al. added the Halloysite nanotubes into the low-density polyethylene (LDPE) to change its thermal property and mechanics property. From the results of the study, it is found that the thermal stability and maximum tensile strength can be increased through adding the Halloysite nanotubes. Since halloysite has been researched, it has been used extensively in the fields of biology and applied medicine. For example, halloysite is embedded into the base layer of bandage as a drug delivery system. Embedded halloysite can also facilitate healing in the context of burn and wound care [16] or can be injected directly to regulate drug release after it is functionalized [17]. In a recent report, Cavallaro et al. [18] made a series of comparisons of HNTs in different specific geology, and the results showed that it was demonstrated that the sizes polydispersity strongly affects the influence of HNTs as filler of nanocomposites. Additionally, many researchers have coated silver particles on inorganic substances by using physical or chemical methods, with the hope of endowing the composite materials with better physical or antibacterial properties. For example, Wu et al. [19] introduced graphene sheets into PU. In addition to endowing the composite material with better thermal and mechanical properties, the introduction of the sheets also endowed the resultant composite material with antibacterial properties.
Nanosilver is a type of antibacterial metal that possesses excellent disinfection and antibacterial properties [20] and is already used extensively in commercial products [21]. In the 1960s, silver(I) sulfadiazine was introduced, and it soon became the most well-known and extensively used silver agent applied in human medicine. It is an excellent antibacterial and is often used in treating severe burns [22,23]. Materials containing silver can also be used in eliminating microorganisms on textile fabrics [24,25], and nanoparticles also exhibit effective sterilizing rates and preservation of cell activity [26]. This indicates nanosilver offers favorable sterilizing properties. For example, Tsou et al. [27] synthesized the multiple wall carbon nanotube (MWCNT–Ag) doped with nanosilver first, and then mixed it into the polylactic acid (PLA) by melt blending way. It was found that not only the tensile strength and the thermal stability could be increased, but also the antibacterial performance could be gained. Previously, the author has reported [28] that the functional groups on the surface of carbon black are used to dope nano-silver particles on the surface of carbon black, and mixed into the polysulfone substrate. The results show that inorganic nano-particles can improve the thermal stability of the polymer. In addition, it can also provide the nano composite film with good antibacterial effect. Additionally, a large amount of biocompatible hydroxyl groups exists on the surface of halloysite [29]. These hydroxyl groups can form the hydrogen bonds with C=O in the polyurethane. It means that the HNT may have good dispersion property in the polyurethane. These hydroxyl groups can also form the ionic bonds with silver ions [30], so that the nanosilver particles can be coated on the surface of Halloysite much more evenly.
The researchers of current study prepared PU by using 4,4′-diphenylmethane diisocyanate (MDI), polytetramethylene glycol (PTMG), and 2,6-pyridinedimethanol (2,6-PDM) as the hard chain segment, the soft chain segment and the chain extension agent of PU, respectively. This was followed by the preparation of Ag/HNTs/PUs nanocomposite thin films, achieved by compounding silver-coated halloysite (Ag/HNTs) with PU. Subsequently, Fourier-transform infrared spectroscopy (FT-IR), transmission electron microscopy (TEM), and X-ray diffraction (XRD) were used to perform shape analyses of the Ag/HNTs and to examine the dispersibility of Ag/HNTs in PU. The thermal stability and viscoelasticity of the Ag/HNTs/PUs were examined using thermal gravimetric analysis (TGA), differential scanning calorimetry (DSC), and dynamic mechanical analysis (DMA). The mechanical properties of the Ag/HNTs/PU were then tested using a universal strength tester, followed by examination of surface roughness and the hydrophilic and hydrophobic abilities of the Ag/HNTs/PU thin films by using atomic force microscopy (AFM) and water contact angle (WCA). Lastly, the antibacterial properties of the Ag/HNTs/PUs were tested using Escherichia coli (E. coli).

2. Experimental

2.1. Materials

4,4′-Diphenylmethane diisocyanate (MDI), 2,6-pyridinedimethanol (2,6-PDM), and halloysite nanotubes were purchased from Sigma-Aldrich (St. Louis, MO, USA). Polyvinylpyrrolidone and silver nitrate were purchased from Echo Chemical (Echo Chemical CO., LTD., Miaoli County, Taiwan). PTMG (Mw = 1000) was obtained from Sigma-Aldrich. N,N-dimethylacetamide (DMAc) was obtained from Mallinckrodt Chemicals (Dublin, Ireland). All the raw materials used were synthetic grade.

2.2. Preparation of Ag/HNTs Powder

First, 1 g of halloysite powders and 100 mL of dimethylformamide were mixed and placed in an ultrasonic vibration machine to vibrate for 10 min. Next, polyvinylpyrrolidone was added as dispersing agent and the mixture was vibrated for another 30 min. After the completion of the vibration process, a mixture solution consisting of 10 g of silver nitrate (AgNO3) and deionized water was added, and the mixture was stirred at 80 °C for 12 h. The preparation process of nano-Ag/PVP/HNTs was thus completed. Lastly, the mixture solution was centrifuged at 12,000 rpm. The lower level precipitates were taken out to extract the nano-Ag/HNTs, and the extracted nano-Ag/HNTs samples were rinsed three times to obtain pure nano-Ag/HNTs powders.

2.3. Synthesis of Ag/HNTs/PU Nanocomposites

The Ag/HNTs/PU nanocomposites were synthesized using a two-step method. First, MDI, PTMG, and DMAc were added to a 500 mL three-necked, flat-bottomed flask fitted with a nitrogen inlet. The reaction proceeded by heating the mixture to 80 °C and stirring at 200 rpm. PU prepolymer formed after reacting for 2 h. Second, 2,6-PDM in DMAc was added to the flask, and the reaction proceeded for 1 h. The mixture was then added to Ag/HNTs powder that had been subjected to 1 h of ultrasonic vibration, and the reaction proceeded for 1 h. The mixture was then collected and defoamed using a vacuum pump, and Ag/HNTs/PU films were obtained by pouring a suitable amount of the Ag/HNTs/PU solution onto Teflon plates. The liquid films were dried in a temperature-programmable circulating oven for 8 h. The synthesizing process is illustrated in Scheme 1. The experimental formula is as compiled and presented in Table 1.

2.4. Fourier Transform Infrared Spectroscopy (FT-IR)

FT-IR was performed using a PerkinElmer spectrometer (Model Spectrum One, MA, USA) with a scanning range of 4000–650 cm−1 and a resolution of 2 cm−1. The values of 16 scans were averaged.

2.5. Energy-Dispersive X-ray Spectroscopy Observations (EDS)

Element compositions of the Attapulgite/Chitosan membrane were examined by energy dispersive X-ray spectroscopy (EDS) (model 7021-H; Horiba, Tokyo, Japan). Specimens of 2 × 2 cm2 were fixed on a sample holder using conductive adhesive tape and then coated with a thin layer of gold to improve image resolution. The samples were photographed at 1000 magnification.

2.6. Transmission Electron Microscopy (TEM)

A transmission electron microscope (TEM, Hitachi model H-7500, Tokyo, Japan) was used to examine the morphology of the Ag/HNTs/PUs nanocomposites. The samples for TEM examination were first prepared by placing the nanocomposite films into epoxy capsules and curing the epoxy at 70 °C for 24 h in an oven. The cured epoxies containing Ag/HNTs/PUs nanocomposites were then microtomed with a diamond knife into 70–90-nm-thick slices at −100 °C. Finally, a 3-nm-thick carbon layer was deposited on the slices placed on 200-mesh copper grids for TEM observation.

2.7. X-ray Diffraction (XRD)

X-ray diffractometer measurements were performed using a Rigaku diffractometer (BRUKER, model D2 Phaser XRD, MA, USA). X-rays were filtered through CuKα radiation tubes using Ni filters, and tests were conducted at 60 Kv and 300 mA. The results showed 0.05° per point and a scanning range of 2θ = 10°–70°.

2.8. Thermogravimetric Analysis (TGA)

Thermogravimetric analyses were performed using a PerkinElmer (model Pyris 1). The samples (weighing 5–8 mg) were subjected to a nitrogen environment and an initial temperature of 50 °C; the temperature was then increased in 10 °C/min increment to 700 °C, after which analyses were made. Each reported TGA is the mean of decomposition temperatures measured for three to four specimens.

2.9. Differential Scanning Calorimetry (DSC)

DSC was performed using a PerkinElmer calorimeter (model Jade). At first, the samples were heated up to 100 °C with a heating rate of 50 °C/min, maintained for 3min to eliminate the heat history, and then cooled down to −80 °C with a cooling rate of 10 °C/min and maintained for 5 min. Finally, the samples were heated up to 50 °C with a heating rate of 10 °C/min. Transitions were recorded from the cooling scan and the second heating scan. The glass transition temperatures (Tg) were located as the midpoints of the sharp descent regions in the recorded curves. All tested Ag/HNTs/PU samples were used in masses of 5–8 mg.

2.10. Dynamic Mechanical Analysis (DMA)

DMA was performed using a Seiko dynamic mechanical spectrometer (Model SII Muse, DMS6100, Tokyo, Japan). The Ag/HNTs/PU films had dimensions of 20 × 5 × 0.2 mm3 (L × W × H). The stress test conducted between −50 and 50 °C had the following parameters: 1-Hz frequency, 5-μm amplitude, and 3 °C/min heating rate.

2.11. Stress–Strain Testing

Tensile strength and elongation at break were measured using a universal testing machine (MTS QTEST5, model QC505B1). Testing was conducted according to ASTM D638 specifications. The dimension of the film specimens was 45 mm × 8 mm × 0.2 mm.

2.12. Contact Angle

Contact angles between the samples and deionized water were measured using a Face instrument (model CA-VP150) at room temperature. Dynamic advancing and receding contact angles were recorded while water was added to and withdrawn from the drop, respectively, using a syringe pump. Each reported contact angle is the average value from 3 to 4 drops.

2.13. Surface Roughness Analysis

Atomic force microscopy (AFM) scans were performed using a CSPM5500 instrument from Being Nano-instruments. Generally, there are two types of imaging modes, i.e., tapping and contact modes. Tapping mode was used in this study such that the oscillating probe cantilever causes the tip to make only intermittent contact with the sample. With respect to the phase of the sine wave driving the cantilever, the phase of the tip oscillation is highly sensitive to various sample surface characteristics. Therefore, the tip can also sense the phase images of the sample surface in addition to the topography. The specimens were cut from Ag/HNTs/PUs nanocomposite films with different clay contents.

3. Results and Discussion

3.1. Characterization of Ag/Halloysite

Figure 1 presents the surface structure of the Ag/halloysite powder, captured through TEM, and the Ag element content chart measured using EDS. The bar structure of Ag/HNTs were observed through TEM, where TEM revealed that the ion-interface interactions formed between Ag+ in AgNO3 and –OH on the surface of HNTs can be used to form silver nanoparticles on the surface of HNTs by in-situ reduction method. The calculation of EDS indicated that the silver (Ag) content of the Ag/halloysite was 13.96%; XRD was used to assay the Ag/halloysite powder, and the results are displayed in Figure 2. In the 38.1° (2θ), 44.3° (2θ), and 64.4° (2θ) portions of the figure, the classic stretching vibration peak of silver can be observed. The results were similar to those obtained in relevant studies [31,32].

3.2. Fourier Transform Infrared Spectroscopy

Figure 3 depicts the FT-IR spectra of Ag/HNTs/PUs in a wavenumber range of 4000–650 cm−1. Five classic PU(–COONH) peaks were observed in the pure PU. An N–H stretching vibration peak was observed at 3356 cm−1; symmetrical and asymmetrical CH2 stretching vibration peaks were observed at 2939 and 2855 cm−1; a C=O stretching vibration peak appeared at 1713 cm−1; and a C–O–C stretching vibration peak appeared at 1107 cm−1. No N=C=O absorption peak was present near 2275–2240 cm−1; this indicated that the reaction of 2,6-PDM and MDI was almost near completion. The results also indicated that no changes occurred in the stretching vibration peak after the addition of Ag/HNTs.

3.3. Energy-Dispersive X-ray Spectroscopy Observations

After Ag/HNTs was added to the PU, the Ag content was analyzed using EDS elemental analysis. The results are presented in Figure 4; the content of the main element was calculated and compiled and is presented in Table 2. The Ag content of Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 was 1.02 wt%, 1.95 wt%, and 3.96 wt%, respectively. The Ag element in the Ag/HNTs/PU increased with Ag/HNTs content. Thus, the larger the additive amount of Ag/HNTs, the larger the amount of Ag dispersed in the PU. The analysis indicated that the nanosilver particles were adsorbed well on the HNTs and dispersed evenly in the PU thin films.

3.4. X-ray Diffraction

The XRD spectra of the Ag/HNTs/PUs composites are reproduced in Figure 5. The spectrogram indicated that the PU existed in amorphous state. After the addition of the Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3, all exhibited characteristic crystallization peaks at 2θ = 12°, 25°, and 26°. The characteristic crystallization peak of silver element is 2θ = 38.1°, 44.3°, and 64.4°, respectively. These results are similar to the results obtained in the testing of the Ag/HNTs powder; the crystallization peak became more prominent in HNTs additive amount.

3.5. Thermal Properties of Ag/HNTs/PU Nanocomposites

The thermal analysis curve of Ag/HNTs/PUs is presented in Figure 6. The initial decomposition temperature, as well as the residual volume at 700 °C, were calculated and are presented in Table 3. The thermal decomposition temperatures of PU, Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 were 291.0 °C, 323.7 °C, 329.0 °C, and 330.1 °C, respectively. The residual volumes of PU, Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 at 700 °C were 0.2%, 4.1%, 5.4%, and 6.1%. When Ag/HNTs was added to pure PU, the thermal decomposition temperature of PU increased to a maximum temperature of 39.1 °C, and the residual volume of PU at 700 °C also increased, from 0.2% to 6.1%; this was because the inorganic fillers in the study possessed a higher level of thermal stability than did PU, and it has been reported in the literature that when the inorganic filler is uniformly dispersed in the matrix, it can form the barrier effect to the volatile products of polymer degradation [33]. Therefore, the addition of these inorganic fillers to PU could result in the enhancement of the PU’s stability. The addition of Ag/HNTs to PU thin films could effectively enhance the thermal stability of the PU.
The DSC curves of the Ag/HNTs/PUs are presented in Figure 7, and the Tg points of the Ag/HNTs/PUs are presented in Table 3. The data indicated that the Tg points of Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 were −51.5 °C, −50.7 °C, −48.9 °C, and −47.4 °C, respectively. The glass transition temperature increased with the amount of Ag/HNTs added; this phenomenon was similar to that observed with DSC. It may have occurred because when the inorganic materials (i.e., Ag/HNTs) were added to the PU, the entrapment of the polymer into lumen of HNTs [34], and they effectively hindered the activity. Therefore, a high level of energy was needed to cause activity in the PU molecular chain, and this in turn resulted in the increase in glass transition temperature.

3.6. Dynamic Mechanical Analysis

The DMA curves of the Ag/HNTs/PUs are presented in Figure 8. The maximum value of Tgd and Tan δ were calculated using the loss modulus (E′′) and are presented in Table 4. The results indicated that the Tgd values of PU, Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 calculated based on E′′ were −44.09 °C, −42.27 °C, −37.68 °C, and −33.72 °C, whereas the Tgd values of PU, Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 calculated using Tanδ were −35.68 °C, −33.77 °C, −32.73 °C, and −27.90 °C, respectively. The addition of Ag/HNTs led to increases of the Tgd point; this phenomenon was similar to that observed with DSC. It may have occurred because the Ag/HNTs effectively hindered PU molecular chain activity, increasing the Tgd point. The Tanδ curves indicated that the maximum Tanδ of PU, Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 were 0.5568, 0.2854, 0.2772, and 0.2530, respectively. The addition of Ag/HNTs resulted in a lower level of loss modulus and a higher level of storage modulus. The results also indicated that the addition of Ag/HNTs resulted in a higher level of elasticity and a lower level of viscosity in the PU.

3.7. Stress–Strain Testing

The stress–strain curves of Ag/HNTs/PUs are provided in Figure 9. These results were used to calculate the maximum stress, the elongation at break, and the Young’s modulus, and the results are presented in Table 5. The data indicated that the maximum stress, elongation at break, and Young’s modulus of the original untreated PU were 10.5 MPa, 1060%, and 0.78 MPa, respectively. After the addition of Ag/HNTs, the maximum stress of the resulting Ag/HNTs/PUs increased from 10.5 MPa to 22.0 MPa. However, the elongation at break decreased from 1060 to 618%, and Young’s modulus increased from 0.78 MPa to 2.82 MPa. The addition of Ag/HNTs enhanced the mechanical properties of the Ag/HNTs/PUs and resulted in improved PU rigidity. The rigidity caused by the addition of inorganic materials to PU is a classic characteristic of organic/inorganic composite materials.

3.8. Surface Properties of Ag/HNTs/PU Nanocomposites

The 3D morphologies of the surfaces of Ag/HNTs/PUs are presented in Figure 10. The calculated average surface roughness of pure the PU, Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 were 0.37 nm, 2.79 nm, 3.16 nm, and 4.52 nm, respectively. The surface roughness of the PU thin films increased with the amount of Ag/HNTs. A possible reason is that increasing Ag/HNTs increased the amount of Ag/HNTs exposed on the surface of the thin films; this in turn resulted in the phenomenon increased average surface roughness. Figure 11 contains a water contact angle trend chart for the Ag/HNTs/PUs. The water contact angles of pure PU, Ag/HNTs/PU-1, Ag/HNTs/PU-2, and Ag/HNTs/PU-3 were 71.8°, 75.7°, 80.1°, and 86.8°, respectively. The Ag/HNTs thus increased the surface water contact angle of the PU thin films to as high as 86.8°. This indicated that the addition of Ag/HNTs help enhance the hydrophobic property of PU thin films, and this may be caused by the influence of surface roughness. This phenomenon was proven by AFM; the level of surface roughness increased with the addition of Ag/HNTs, and this in turn affected the surface water contact angle.

3.9. Antibacterial Evaluation of Ag/HNTs/PU Nanocomposites

Figure 12 features a bar chart that illustrates the antibacterial effect of the Ag/HNTs/PU nanocomposites on E. coli. Quantitative analysis was conducted, and the relevant data are presented in Table 6. The test was to ASTM E2149-01 standard; 1 g samples of PU and Ag/HNTs/PUs were put in a 25 mL liquid petri dish containing E. coli bacteria liquid with a concentration of 1 × 105 CFU/mL. They were placed in an incubator at 37 °C for 24 h. Then, 5 uL of bacterial solution for serial dilution was smeared on a plate, and the plate was placed in an incubator at 37 °C for 24 h, and finally the number of colonies was counted. The results indicated that pure PU does not possess any antibacterial property. However, antibacterial activity increased dramatically with the addition of Ag/HNTs. When Ag/HNTs content was 0.5 wt% and 1 wt%, 62.3% and 93.4% of E. coli were eliminated; when the content of Ag/HNTs was 2 wt%, 99.3% of E. coli were eliminated. Thus, the addition of Ag/HNTs endowed the PU with antibacterial effects; this is mainly because nanosilver itself possesses excellent antibacterial properties. The inorganic substance Ag/HNTs, formed through the coating of nanosilver on HNTs through a nanosilver coating technique, both helps in cost reduction and provides an excellent sterilization capacity. This result implies its potential in the field of biomedicine materials. To support these claims, we have summarized the relevant analytical parameters for antibacterial rate of E. coli. in Table 7, including the nanomaterial, substrate, addition method, antibacterial rate for various Ag-related nanomaterials.

4. Conclusions

In this study, the researchers prepared Ag/HNTs/PU nanocomposite materials using MDI, PTMG, 2,6-PDM, and silver-coated Ag/HNTs. FT-IR, TEM, XRD were used to determine whether the nanoparticles were coated successfully on the surface of halloysite such that Ag/HNTs could be produced and compounded into PU. The results of mechanical property analysis indicated that compared with pure PU, PU added with Ag/HNTs exhibited a 109.5% increase in tensile strength. TGA, DSC, and DMA analyses revealed that Ag/HNTs enhanced the thermal stability of PU; this was indicated by the increase of initial decomposition temperature from 291.0 °C to 330.1 °C and the increase of glass transition temperature from −51.5 °C to −47.4 °C. AFM analysis and water contact angles indicated that the hydrophobic property of Ag/HNTs/PU was increased (due to increased surface roughness). Furthermore, 99.3% of E. coli were eliminated when the Ag/HNTs additive was 2.0 wt%. This indicated halloysite containing Ag may cause Ag/HNTs/PU to have a high level of antibacterial activity, implying the potential of this type of material in the field of biomedicine.

Author Contributions

Data curation, J.-T.S. and J.-W.L.; Formal analysis, J.-T.S. and J.-W.L.; Supervision, C.-W.C; Writing—Original draft, J.-T.S., J.-W.L. and C.-W.C; Writing—Review & editing, C.-H.T., J.-C.P., R.-J.C. and C.-W.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Technology (MOST 108-2221-E-011-042-MY2) of Taiwan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tian, S. Recent advances in functional polyurethane and its application in leather manufacture: A review. Polymers 2020, 12, 1996. [Google Scholar] [CrossRef] [PubMed]
  2. Li, J.W.; Tsai, H.A.; Lee, H.T.; Cheng, Y.H.; Chiu, C.W.; Suen, M.C. Synthesis and properties of side chain fluorinated polyurethanes and evaluation of changes in microphase separation. Prog. Org. Coat. 2020, 145, 105702. [Google Scholar] [CrossRef]
  3. Rusu, L.C.; Ardelean, L.C.; Jitariu, A.A.; Miu, C.A.; Streian, C.G. An insight into the structural diversity and clinical applicability of polyurethanes in biomedicine. Polymers 2020, 12, 1197. [Google Scholar] [CrossRef] [PubMed]
  4. Hepburn, C. Polyurethane Elastomers, 2nd ed.; Elsevier Science Publishers LTD: Amsterdam, The Netherlands, 1992. [Google Scholar]
  5. Wirpsza, Z. Polyurethanes, Chemistry, Technology and Applications; Ellis Horwood: New York, NY, USA, 1993. [Google Scholar]
  6. Wölfel, B.; Seefried, A.; Allen, V.; Kaschta, J.; Holmes, C.; Schubert, D.W. Recycling and reprocessing of thermoplastic polyurethane materials towards nonwoven processing. Polymers 2020, 12, 1917. [Google Scholar] [CrossRef]
  7. Tamotsu, H.; Hiroaki, M.; Michio, U. Poly(tetramethylene ether) glycol containing acetal linkages: New PTMG-based polyol for chemically recyclable polyurethane thermoplastic elastomer. J. Polym. Sci. A Polym. Chem. 2008, 46, 1893. [Google Scholar]
  8. Li, J.W.; Tsen, W.C.; Tsou, C.H.; Suen, M.C.; Chiu, C.W. Synthetic environmentally friendly castor oil based-polyurethane with carbon black as a microphase separation promoter. Polymers 2019, 11, 1333. [Google Scholar] [CrossRef] [Green Version]
  9. Chiu, S.H.; Wu, C.L.; Tsou, C.Y.; Lee, H.T.; Tsou, C.H.; Suen, M.C. Study of the synthesis and properties of polyurethane containing pyridyl units for shape memory. Polym. Bull. 2016, 73, 1303. [Google Scholar] [CrossRef]
  10. Cai, W.; Feng, X.; Hu, W.; Pan, Y.; Hu, Y.; Gong, X. Functionalized graphene from electrochemical exfoliation for thermoplastic polyurethane: Thermal stability, mechanical properties, and flame retardancy. Ind. Eng. Chem. Res. 2016, 55, 10681. [Google Scholar] [CrossRef]
  11. Hebbar, R.S.; Isloor, A.M.; Ananda, K.; Ismail, A.F. Fabrication of polydopamine functionalized halloysite nanotube/polyetherimide membranes for heavy metal removal. J. Mater. Chem. A 2016, 4, 764. [Google Scholar] [CrossRef]
  12. Massaro, M.; Amorati, R.; Cavallaro, G.; Guernelli, S.; Lazzara, G.; Milioto, S.; Noto, R.; Poma, P.; Riela, S. Direct chemical grafted curcumin on halloysite nanotubes as dual-responsive prodrug for pharmacological applications. Colloid. Surf. B Biointerfaces 2016, 140, 505. [Google Scholar] [CrossRef]
  13. Pasbakhsh, P.; Churchman, G.J.; Keeling, J.L. Characterisation of properties of various halloysites relevant to their use as nanotubes and microfibre fillers. Appl. Clay Sci. 2013, 74, 47–57. [Google Scholar] [CrossRef]
  14. Massaro, M.; Lazzara, G.; Milioto, S.; Notoa, R.; Riela, S. Covalently modified halloysite clay nanotubes: Synthesis, properties, biological and medical applications. J. Mater. Chem. B 2017, 5, 2867. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Sikora, J.W.; Gajdoš, I.; Puszka, A. Polyethylene-matrix composites with halloysite nanotubes with enhanced physical/thermal properties. Polymers 2019, 11, 787. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kamble, R.; Ghag, M.; Gaikawad, S.; Panda, B.K. Halloysite nanotubes and applications: A review. J. Adv. Sci. Res. 2012, 3, 25–29. [Google Scholar]
  17. Soloperto, G.; Conversano, F.; Greco, A.; Casciaro, E.; Ragusa, A.; Leporatti, S.; Lay-Ekuakille, A.; Casciaro, S. Multiparametric evaluation of the acoustic behavior of halloysite nanotubes for medical echographic image enhancement. IEEE Trans. Instrum. Meas. 2014, 63, 1423. [Google Scholar] [CrossRef]
  18. Cavallaro, G.; Chiappisi, L.; Pasbakhsh, P.; Gradzielski, M.; Lazzara, G. A structural comparison of halloysite nanotubes of different origin by Small-Angle Neutron Scattering (SANS) and Electric Birefringence. Appl. Clay Sci. 2018, 160, 71–80. [Google Scholar] [CrossRef]
  19. Wu, C.L.; Tsou, C.Y.; Tseng, Y.C.; Lee, H.T.; Suen, M.C.; Gu, J.H.; Chiu, S.H. Preparation and characterization of biodegradable polyurethanes composites filled with silver nanoparticles-decorated grapheme. J. Polym. Res. 2016, 23, 263. [Google Scholar] [CrossRef]
  20. Kumar, A.; Vemula, P.K.; Ajayan, P.M.; John, G. Silver-nanoparticle-embedded antimicrobial paints based on vegetable oil. Nat. Mater. 2008, 7, 236. [Google Scholar] [CrossRef]
  21. Husheng, J.; Wensheng, H.; Liqiao, W.; Bingshe, X.; Xuguang, L. The structures and antibacterial properties of nano-SiO2 supported silver/zinc–silver materials. Dent. Mater. 2008, 24, 244. [Google Scholar]
  22. Silver, S. Bacterial silver resistance: Molecular biology and uses and misuses of silver compounds. FEMS Microbiol. Rev. 2003, 27, 341. [Google Scholar] [CrossRef] [Green Version]
  23. Atiyeh, B.S.; Costagliola, M.; Hayek, S.N.; Dibo, S.A. Effect of silver on burn wound infection control and healing: Review of the literature. Burns 2007, 33, 139. [Google Scholar] [CrossRef] [PubMed]
  24. Yuranova, T.; Rincon, A.G.; Bozzi, A.; Parra, S.; Pulgarin, C.; Albers, P.; Kiwi, J. Antibacterial textiles prepared by RF-plasma and vacuum-UV mediated deposition of silver. J. Photochem. Photobiol. A 2003, 161, 27. [Google Scholar] [CrossRef]
  25. Jeong, S.H.; Yeo, S.Y.; Yi, S.C. The effect of filler particle size on the antibacterial properties of compounded polymer/silver fibers. J. Mater. Sci. 2005, 40, 5407. [Google Scholar] [CrossRef]
  26. Panáček, A.; Kvítek, L.; Prucek, R.; Kolář, M.; Večeřová, R.; Pizúrová, N.; Sharma, K.V.; Nevěčná, T.; Zbořil, R. Silver colloid nanoparticles:  synthesis, characterization, and their antibacterial activity. J. Phys. Chem. B 2006, 110, 16248. [Google Scholar] [CrossRef]
  27. Tsou, C.H.; Yao, W.H.; Lu, Y.C.; Tsou, C.Y.; Wu, C.S.; Chen, J.; Wang, R.Y.; Su, C.; Hung, W.S.; Guzman, M.D.; et al. Antibacterial property and cytotoxicity of a poly (lactic acid)/nanosilver-doped multiwall carbon nanotube nanocomposite. Polymers 2017, 9, 100. [Google Scholar] [CrossRef] [Green Version]
  28. Sun, J.T.; Wang, C.C.; Lee, H.T.; Wu, C.L.; Gu, J.H.; Suen, M.C. Preparation and Characterization of Polysulfone/Nanosilver-Doped Activated Carbon Nanocomposite. Polym. Sci. Ser. A 2018, 60, 90–101. [Google Scholar] [CrossRef]
  29. Zeng, G.; He, Y.; Zhan, Y.; Zhang, L.; Pan, Y.; Zhang, C.; Yu, Z. Novel polyvinylidene fluoride nanofiltration membrane blended with functionalized halloysite nanotubes for dye and heavy metal ions removal. J. Hazard. Mater. 2016, 317, 60. [Google Scholar] [CrossRef]
  30. Chiu, C.W.; Li, J.W.; Huang, C.Y.; Yang, S.S.; Soong, Y.C.; Lin, C.L.; Lee, J.C.M.; Sanchez, W.A.L.; Cheng, C.C.; Suen, M.C. Controlling the structures, flexibility, conductivity stability of three-dimensional conductive networks of silver nanoparticles/carbon-based nanomaterials with nanodispersion and their application in wearable electronic sensors. Nanomaterials 2020, 10, 1009. [Google Scholar] [CrossRef]
  31. Falcón, J.M.; Sawczen, T.; Aoki, I. Dodecylamine-Loaded Halloysite nanocontainers for active anticorrosion coatings. Front. Mater. 2015, 2, 1. [Google Scholar] [CrossRef] [Green Version]
  32. Yang, Z.; Zhenga, X.; Zheng, J. Non-enzymatic sensor based on a glassy carbon electrode modified with Ag nanoparticles/polyaniline/halloysite nanotube nanocomposites for hydrogen peroxide sensing. RSC Adv. 2016, 6, 58329. [Google Scholar] [CrossRef]
  33. Lisuzzo, L.; Cavallaro, G.; Milioto, S.; Lazzara, G. Effects of halloysite content on the thermo-mechanical performances of composite bioplastics. Appl. Clay Sci. 2020, 185, 105416. [Google Scholar] [CrossRef] [Green Version]
  34. Bertolino, V.; Cavallaro, G.; Milioto, S.; Lazzara, G. Polysaccharides/Halloysite nanotubes for smart bionanocomposite materials. Carbohydr. Polym. 2020, 245, 116502. [Google Scholar] [CrossRef] [PubMed]
  35. Fu, H.; Wang, Y.; Li, X.; Chen, W. Synthesis of vegetable oil-based waterborne polyurethane/silver-halloysite antibacterial nanocomposites. Compos. Sci. Technol. 2016, 126, 86–93. [Google Scholar] [CrossRef]
  36. Park, S.H.; Ko, Y.S.; Park, S.J.; Lee, J.S.; Cho, J.; Baek, K.Y.; Kim, I.T.; Woo, K.; Lee, J.H. Immobilization of silver nanoparticle-decorated silica particles on polyamide thin film composite membranes for antibacterial properties. J. Membr. Sci. 2016, 499, 80–91. [Google Scholar] [CrossRef]
  37. Liang, X.; Qin, L.; Wang, J.; Zhu, J.; Zhang, Y.; Liu, J. Facile construction of long-lasting antibacterial membrane by using an orientated halloysite nanotubes interlayer. Ind. Eng. Chem. Res. 2018, 57, 3235–3245. [Google Scholar] [CrossRef]
  38. Andrade, P.F.; de Faria, A.F.; Oliveira, S.R.; Arruda, M.A.Z.; do Carmo Gonçalves, M. Improved antibacterial activity of nanofiltration polysulfone membranes modified with silver nanoparticles. Water Res. 2015, 81, 333–342. [Google Scholar] [CrossRef]
  39. Wang, X.; Cao, W.; Xiang, Q.; Jin, F.; Peng, X.; Li, Q.; Jiang, M.; Hu, B.; Xing, X. Silver nanoparticle and lysozyme/tannic acid layer-by-layer assembly antimicrobial multilayer on magnetic nanoparticle by an eco-friendly route. Mater. Sci. Eng. C 2017, 76, 886–896. [Google Scholar] [CrossRef]
  40. Deng, C.H.; Gong, J.L.; Zhang, P.; Zeng, G.M.; Song, B.; Liu, H.Y. Preparation of melamine sponge decorated with silver nanoparticles-modified graphene for water disinfection. J. Colloid Interface Sci. 2017, 488, 26–38. [Google Scholar] [CrossRef]
Polymers 12 02729 sch001 550

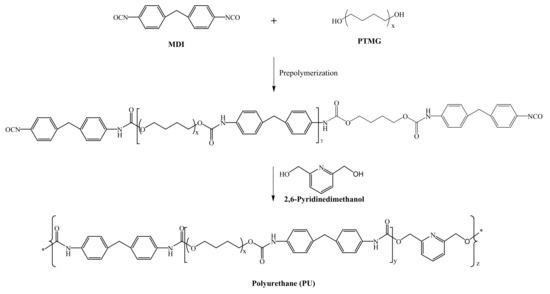

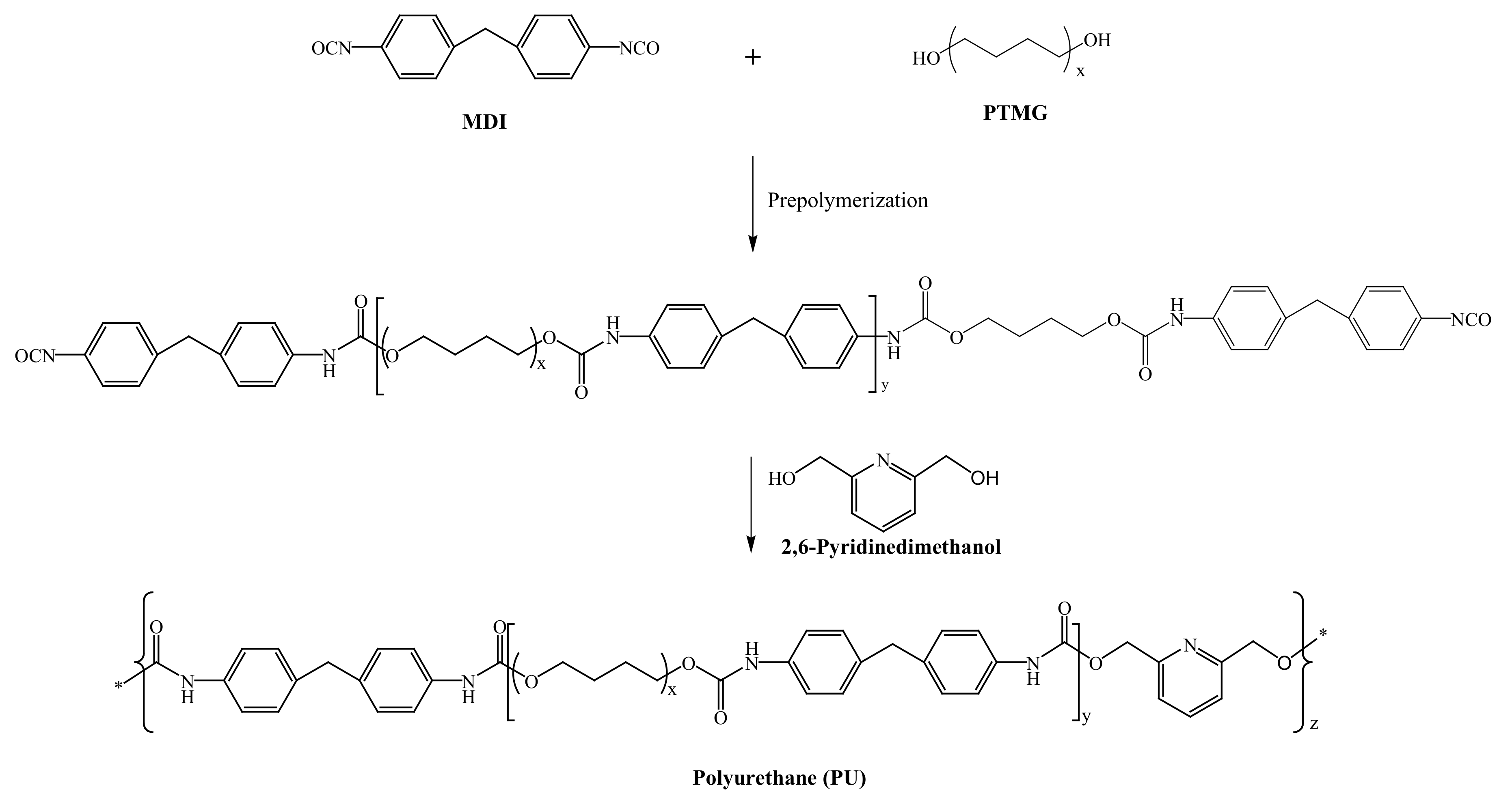

Scheme 1. Synthesized image of polyurethane (PU).
Scheme 1. Synthesized image of polyurethane (PU).
Polymers 12 02729 sch001
Polymers 12 02729 g001 550

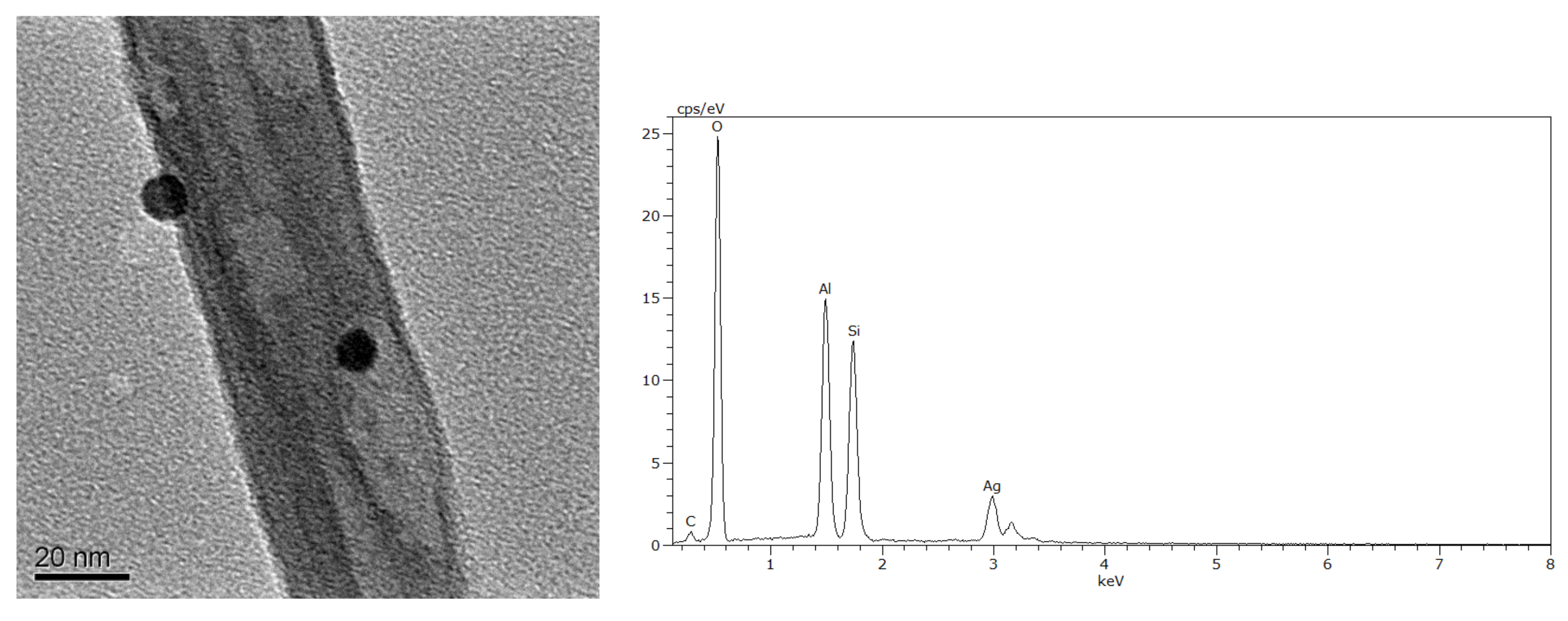

Figure 1. Transmission electron microscopy (TEM) and energy dispersive X-ray spectroscopy (EDS) images of the Ag/Halloysite.
Figure 1. Transmission electron microscopy (TEM) and energy dispersive X-ray spectroscopy (EDS) images of the Ag/Halloysite.
Polymers 12 02729 g001
Polymers 12 02729 g002 550

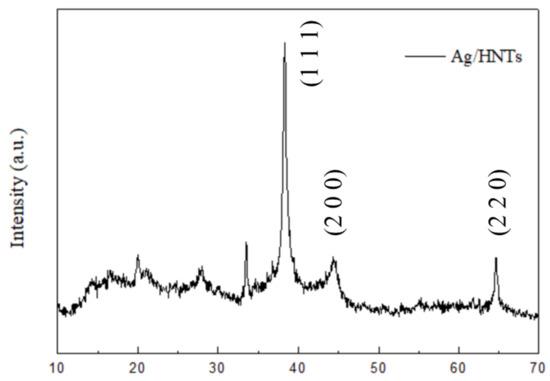

Figure 2. X-ray diffraction (XRD) patterns of the Ag/Halloysite.
Figure 2. X-ray diffraction (XRD) patterns of the Ag/Halloysite.
Polymers 12 02729 g002
Polymers 12 02729 g003 550

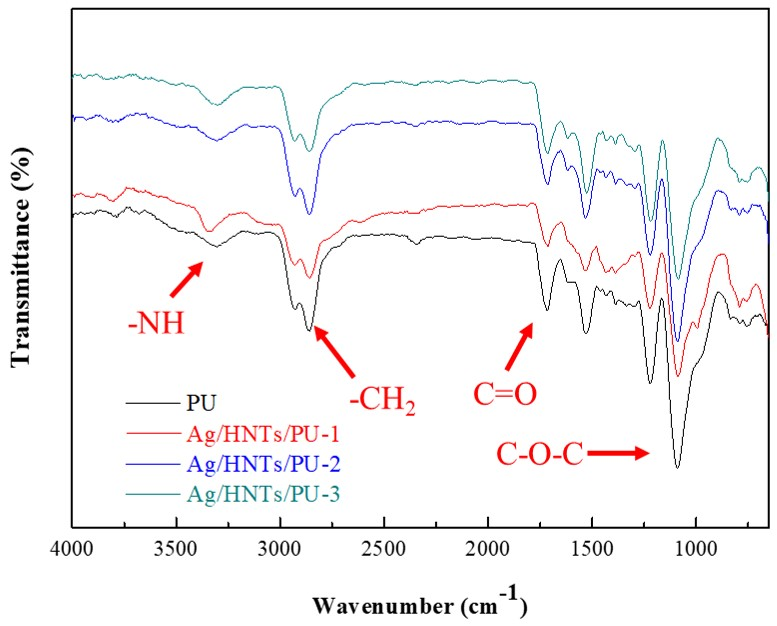

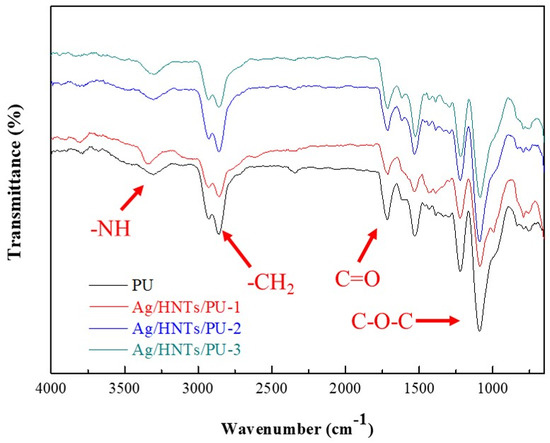

Figure 3. Fourier-transform infrared spectroscopy (FT-IR) spectra of the Ag/HNTs/PUs at the wavenumber range of 4000–650 cm−1.
Figure 3. Fourier-transform infrared spectroscopy (FT-IR) spectra of the Ag/HNTs/PUs at the wavenumber range of 4000–650 cm−1.
Polymers 12 02729 g003
Polymers 12 02729 g004 550

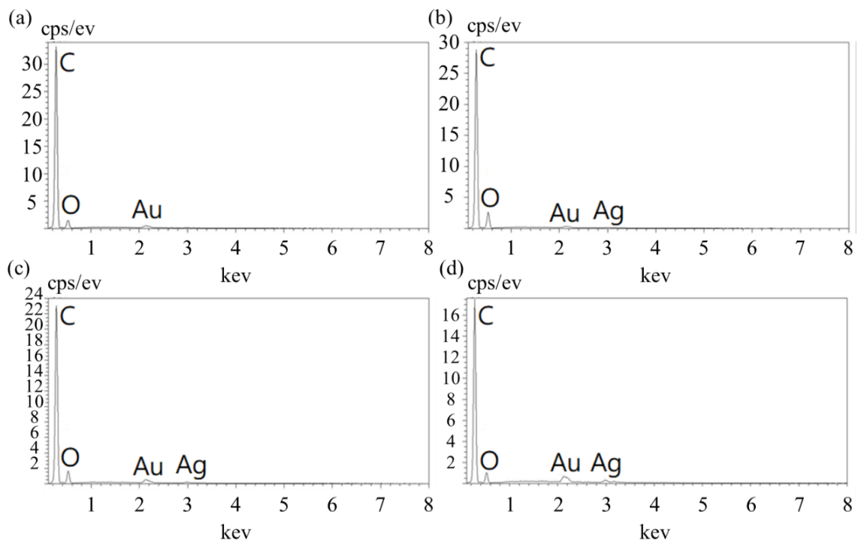

Figure 4. EDS images of the Ag/HNTs/PUs (a) PU (b) Ag/HNTs/PU-1 (c) Ag/HNTs/PU-2 (d) Ag/HNTs/PU-3.
Figure 4. EDS images of the Ag/HNTs/PUs (a) PU (b) Ag/HNTs/PU-1 (c) Ag/HNTs/PU-2 (d) Ag/HNTs/PU-3.
Polymers 12 02729 g004
Polymers 12 02729 g005 550

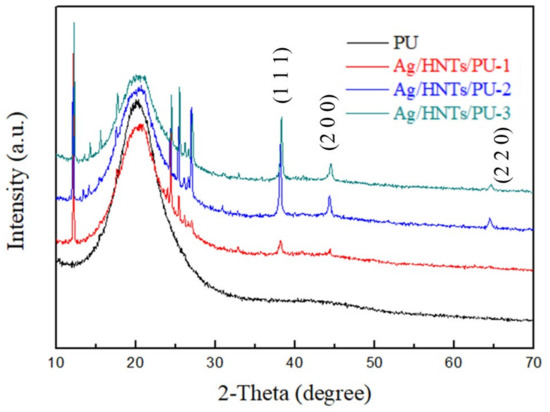

Figure 5. XRD patterns of the Ag/HNTs/PUs.
Figure 5. XRD patterns of the Ag/HNTs/PUs.
Polymers 12 02729 g005
Polymers 12 02729 g006 550

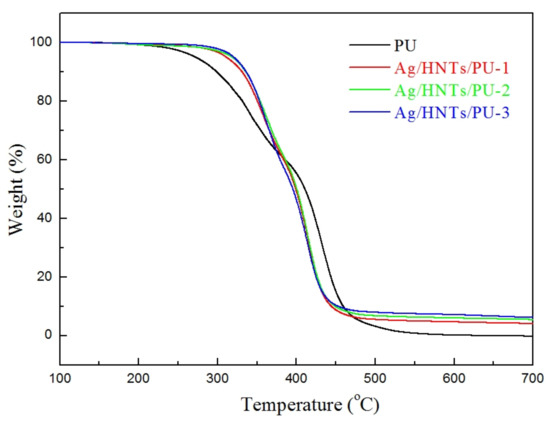

Figure 6. Thermal gravimetric analysis (TGA) curves of the Ag/HNTs/PUs.
Figure 6. Thermal gravimetric analysis (TGA) curves of the Ag/HNTs/PUs.
Polymers 12 02729 g006
Polymers 12 02729 g007 550

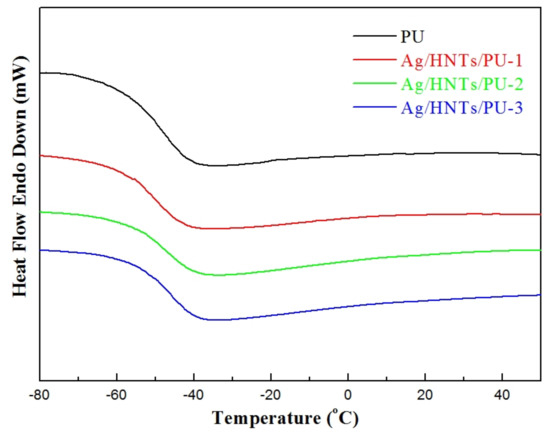

Figure 7. Differential scanning calorimetry (DSC) thermograms of the Ag/HNTs/PUs.
Figure 7. Differential scanning calorimetry (DSC) thermograms of the Ag/HNTs/PUs.
Polymers 12 02729 g007
Polymers 12 02729 g008 550

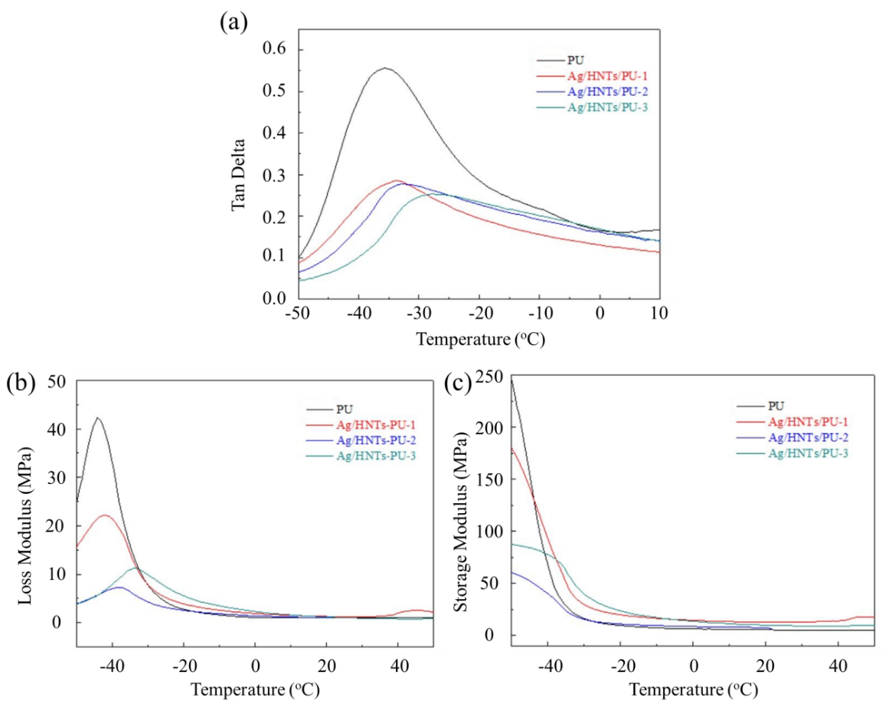

Figure 8. Dynamic mechanical analysis of the Ag/HNTs/PU, (a) Tanδ, (b) loss modulus (E″), (c) storage modulus.
Figure 8. Dynamic mechanical analysis of the Ag/HNTs/PU, (a) Tanδ, (b) loss modulus (E″), (c) storage modulus.
Polymers 12 02729 g008
Polymers 12 02729 g009 550

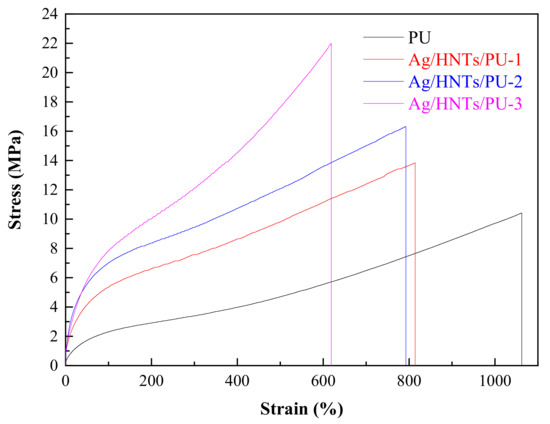

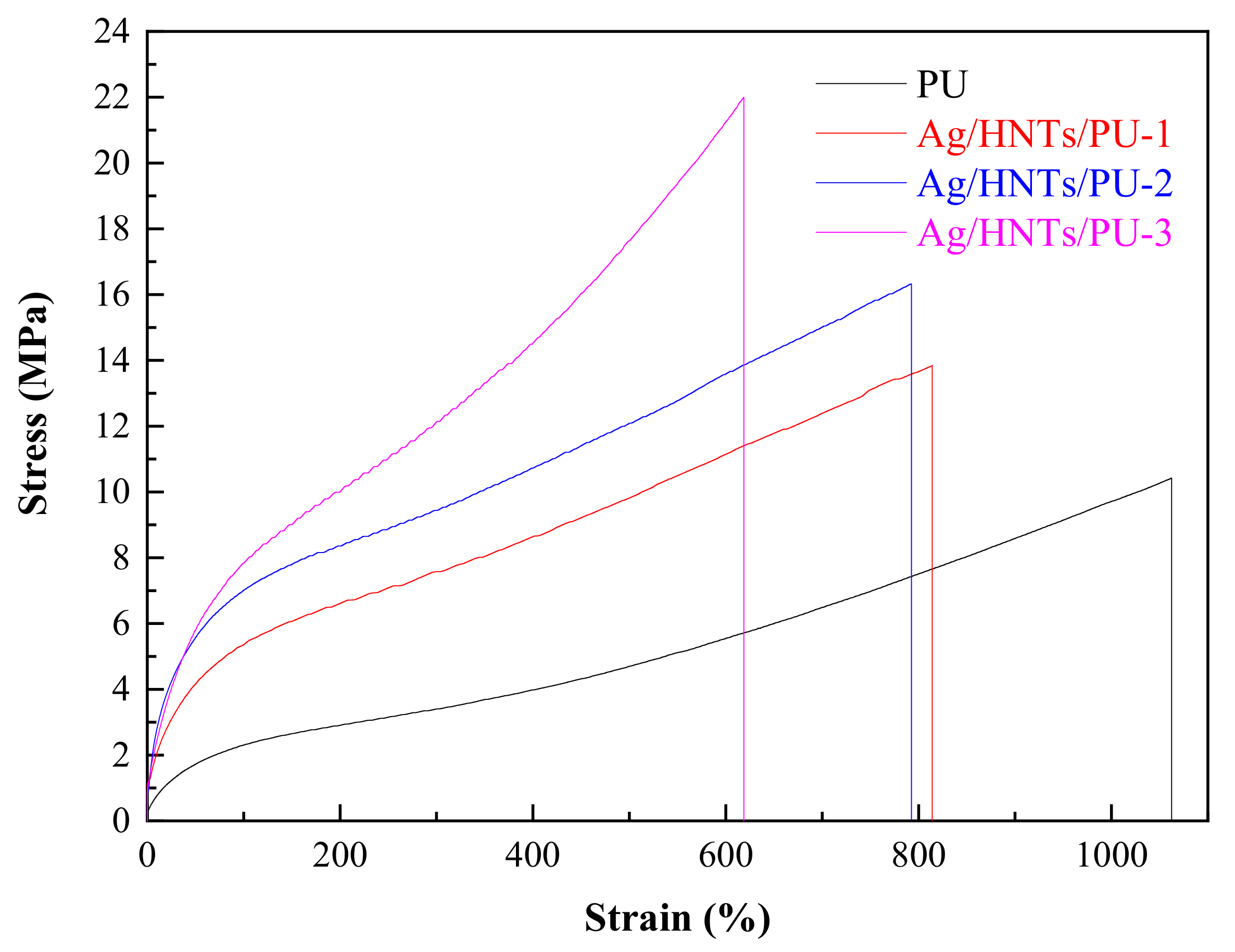

Figure 9. Tensile properties of the Ag/HNTs/PUs stress–strain curve.
Figure 9. Tensile properties of the Ag/HNTs/PUs stress–strain curve.
Polymers 12 02729 g009
Polymers 12 02729 g010 550

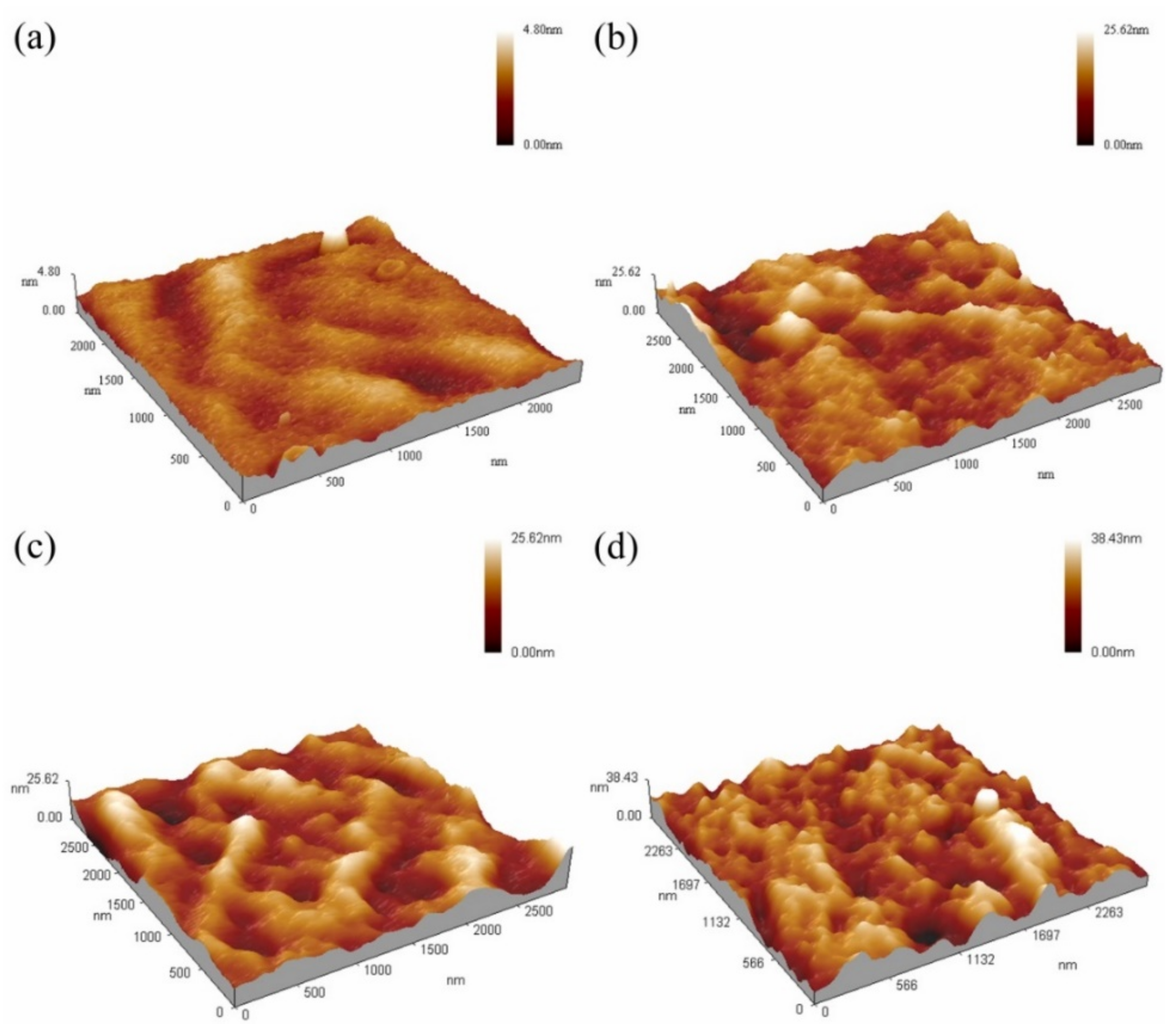

Figure 10. The 3D morphologies of the surfaces of Ag/HNTs/PUs nanocomposites (a) PU (b) Ag/HNTs/PU-1 (c) Ag/HNTs/PU-2 (d) Ag/HNTs/PU-3.
Figure 10. The 3D morphologies of the surfaces of Ag/HNTs/PUs nanocomposites (a) PU (b) Ag/HNTs/PU-1 (c) Ag/HNTs/PU-2 (d) Ag/HNTs/PU-3.
Polymers 12 02729 g010
Polymers 12 02729 g011 550

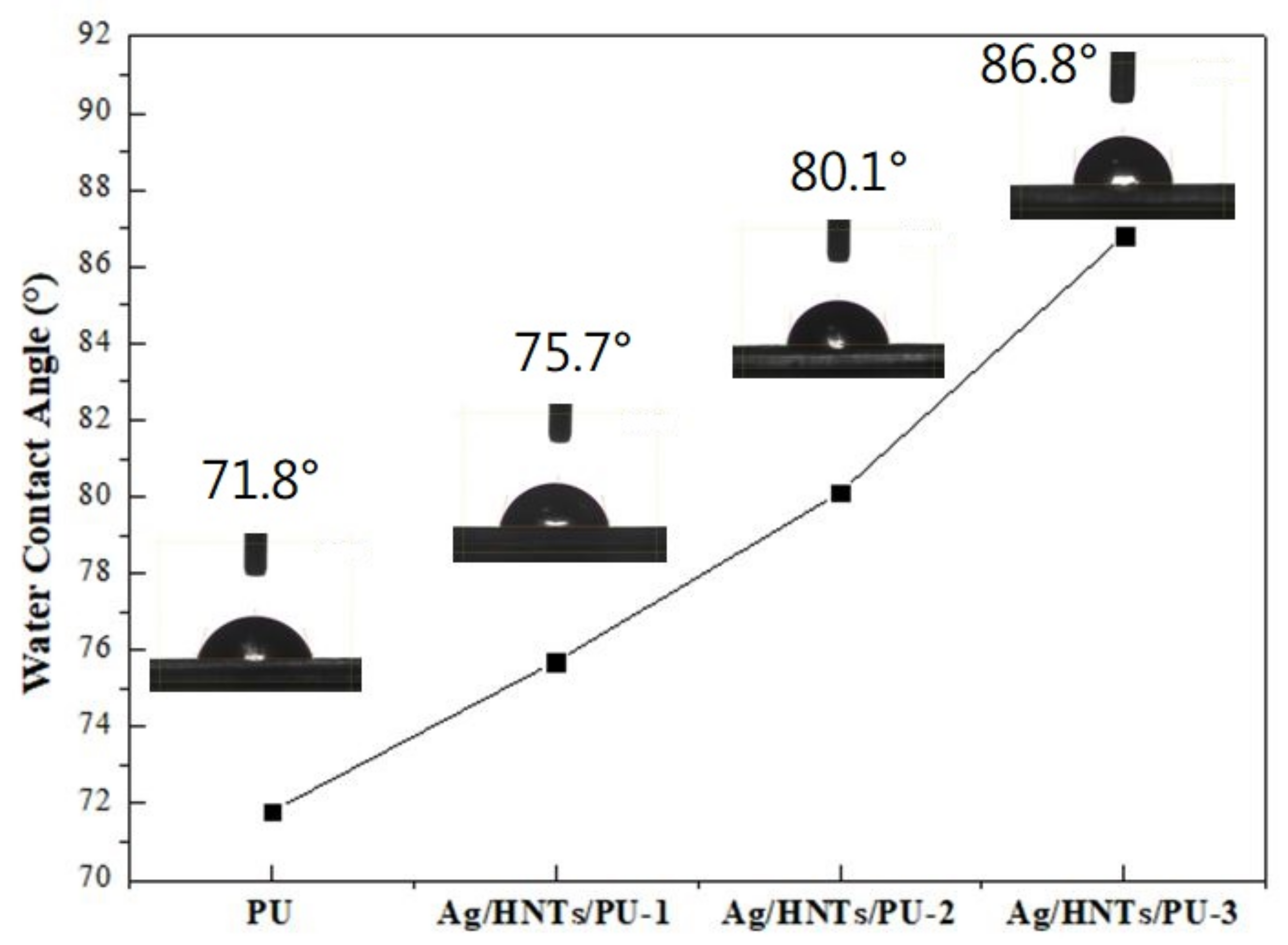

Figure 11. Water contact angle (WCA) trend chart of Ag/HNTs/PUs.
Figure 11. Water contact angle (WCA) trend chart of Ag/HNTs/PUs.
Polymers 12 02729 g011
Polymers 12 02729 g012 550

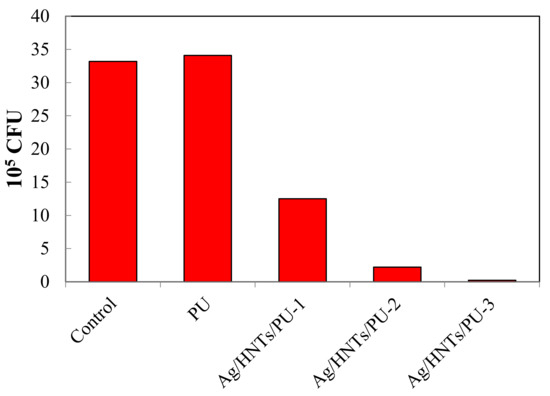

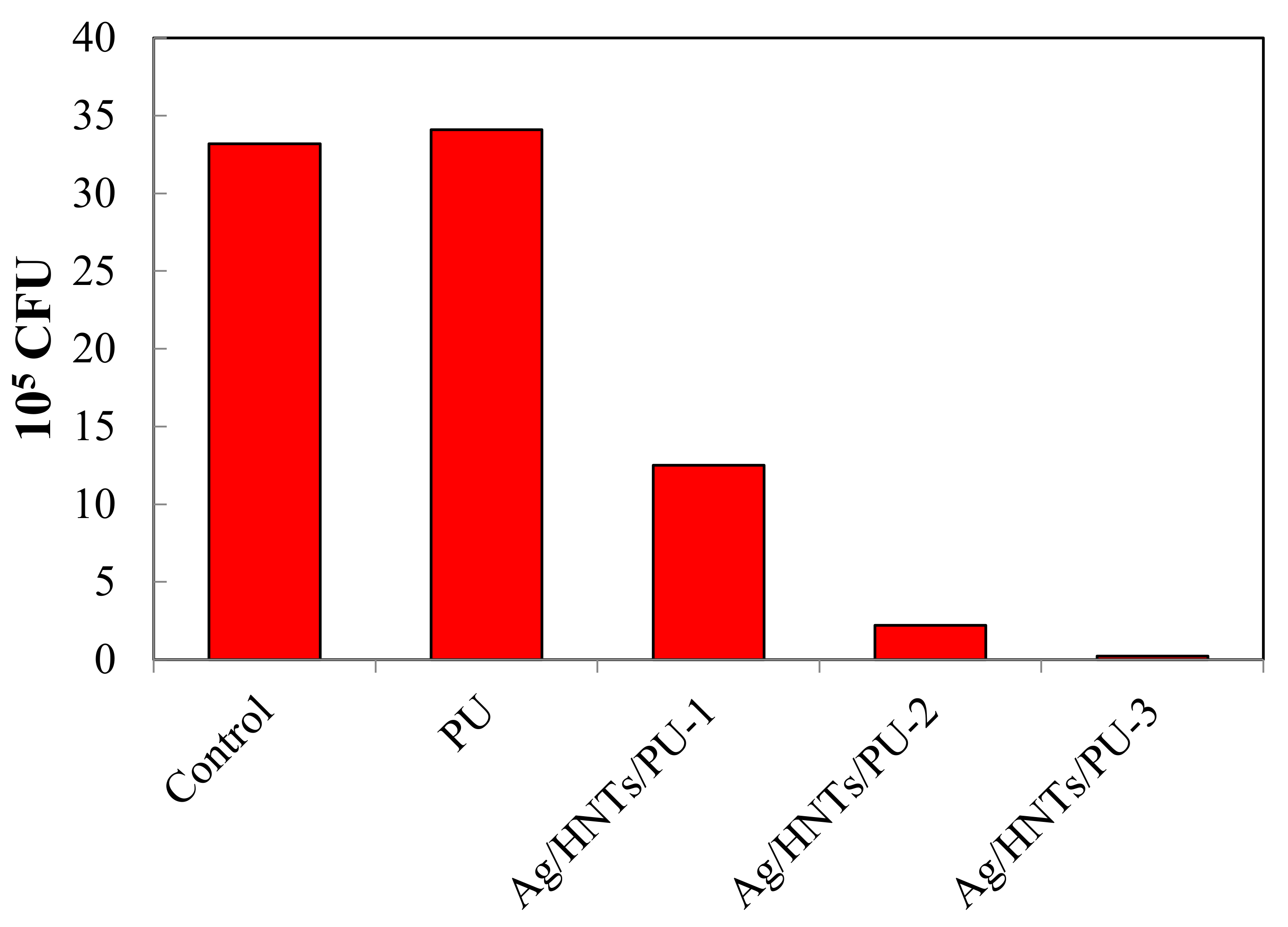

Figure 12. Bar chart illustrating the antibacterial effect of Ag/HNTs/PU on E. coli, based on the quantitative analysis conducted.
Figure 12. Bar chart illustrating the antibacterial effect of Ag/HNTs/PU on E. coli, based on the quantitative analysis conducted.
Polymers 12 02729 g012
Table
Table 1. Experimental formula of Ag/HNTs/PU.
Table 1. Experimental formula of Ag/HNTs/PU.
Sample NameMDI
(mol)		PTMG
(mol)		2,6-PDM
(mol)		Ag/Halloysite
(wt%)
PU4310
Ag/HNTs/PU-14310.5
Ag/HNTs/PU-24311
Ag/HNTs/PU-34312
Table
Table 2. The EDS results of Ag/HNTs and Ag/HNTs/PU.
Table 2. The EDS results of Ag/HNTs and Ag/HNTs/PU.
SampleAg (wt%)
Ag/HNTs13.96
Ag/HNTs/PU-11.02
Ag/HNTs/PU-21.95
Ag/HNTs/PU-33.96
Table
Table 3. Thermal properties of the Ag/HNTs/PUs.
Table 3. Thermal properties of the Ag/HNTs/PUs.
SampleTGADSC
Tonset (°C)Residue at 700 °C Tg (°C)
PU291.00.2%-51.5
Ag/HNTs/PU-1323.74.1%-50.7
Ag/HNTs/PU-2329.05.4%-48.9
Ag/HNTs/PU-3330.16.1%-47.4
Table
Table 4. Dynamic mechanical analysis (DMA) results of the Ag/HNTs/PUs.
Table 4. Dynamic mechanical analysis (DMA) results of the Ag/HNTs/PUs.
Sample
Tgd
From E’’ (°C)		Tgd
From Tanδ(°C)		Tan δmax

PU-44.09-35.680.5568
Ag/HNTs/PU-1-42.27-33.770.2854
Ag/HNTs/PU-2-37.68-32.730.2772
Ag/HNTs/PU-3-33.72-27.900.2530
Table
Table 5. Tensile properties of the Ag/HNTs/PUs.
Table 5. Tensile properties of the Ag/HNTs/PUs.
SampleTensile Strengths (MPa)Strain at Break (%)Young’s Modulus (MPa)
PU10.510600.78
Ag/HNTs/PU-113.98141.46
Ag/HNTs/PU-216.47911.76
Ag/HNTs/PU-322.06182.82
Table
Table 6. Quantity of residual bacteria and antibacterial rate, as revealed by the quantitative analysis of Ag/HNTs/PU versus E. coli.
Table 6. Quantity of residual bacteria and antibacterial rate, as revealed by the quantitative analysis of Ag/HNTs/PU versus E. coli.
Sample105 CFUAntibacterial Rate (%)
Control33.2-
PU34.10
Ag/HNTs/PU-112.562.3
Ag/HNTs/PU-22.293.4
Ag/HNTs/PU-30.2499.3
Table
Table 7. The antibacterial rate of E. coli. in the literature and our work.
Table 7. The antibacterial rate of E. coli. in the literature and our work.
NanomaterialSubstrateAddition MethodAntibacterial RateReference
Ag-HNTWPUMix94.69[35]
Ag@SiO2polyamide/polysulfone (PA/PSf)Deposition92.7 ± 1.8[36]
AgPANCoating99.7[37]
AgPSfIn situ97.6 ± 2.8[38]
Aglysozyme/tannic acidIn situ98.9[39]
Ag/graphene oxidemelamine spongeIn situ99.8[40]
Ag-HNTPUMix99.3our work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sun, J.-T.; Li, J.-W.; Tsou, C.-H.; Pang, J.-C.; Chung, R.-J.; Chiu, C.-W. Polyurethane/Nanosilver-Doped Halloysite Nanocomposites: Thermal, Mechanical Properties, and Antibacterial Properties. Polymers 2020, 12, 2729. https://doi.org/10.3390/polym12112729

AMA Style

Sun J-T, Li J-W, Tsou C-H, Pang J-C, Chung R-J, Chiu C-W. Polyurethane/Nanosilver-Doped Halloysite Nanocomposites: Thermal, Mechanical Properties, and Antibacterial Properties. Polymers. 2020; 12(11):2729. https://doi.org/10.3390/polym12112729

Chicago/Turabian Style

Sun, Jui-Ting, Jia-Wun Li, Chi-Hui Tsou, Jen-Chieh Pang, Ren-Jei Chung, and Chih-Wei Chiu. 2020. "Polyurethane/Nanosilver-Doped Halloysite Nanocomposites: Thermal, Mechanical Properties, and Antibacterial Properties" Polymers 12, no. 11: 2729. https://doi.org/10.3390/polym12112729

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
