Next Article in Journal
Fabrication and Characterization of Carboxymethyl Starch/Poly(l-Lactide) Acid/β-Tricalcium Phosphate Composite Nanofibers via Electrospinning
Previous Article in Journal
Amine Responsive Poly(lactic acid) (PLA) and Succinic Anhydride (SAh) Graft-Polymer: Synthesis and Characterization
Open AccessArticle

Enhanced Poly(propylene carbonate) with Thermoplastic Networks: A Cross-Linking Role of Maleic Anhydride Oligomer in CO2/PO Copolymerization

1
School of Chemistry and Chemical Engineering, Key Laboratory of Clean Energy Materials Chemistry of Guangdong Higher Education Institutes, Resource and Chemical Engineering Technology Research Center of Western Guangdong Province, Lingnan Normal University, Zhanjiang 524048, China
2
School of Chemistry and Chemical Engineering, Key Laboratory of Functional Molecular Engineering of Guangdong Province, South China University of Technology, Guangzhou 510641, China
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(9), 1467; https://doi.org/10.3390/polym11091467
Received: 19 August 2019 / Revised: 3 September 2019 / Accepted: 4 September 2019 / Published: 8 September 2019

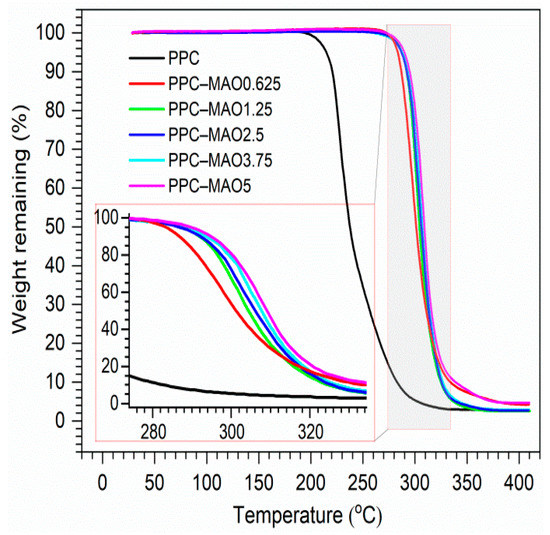

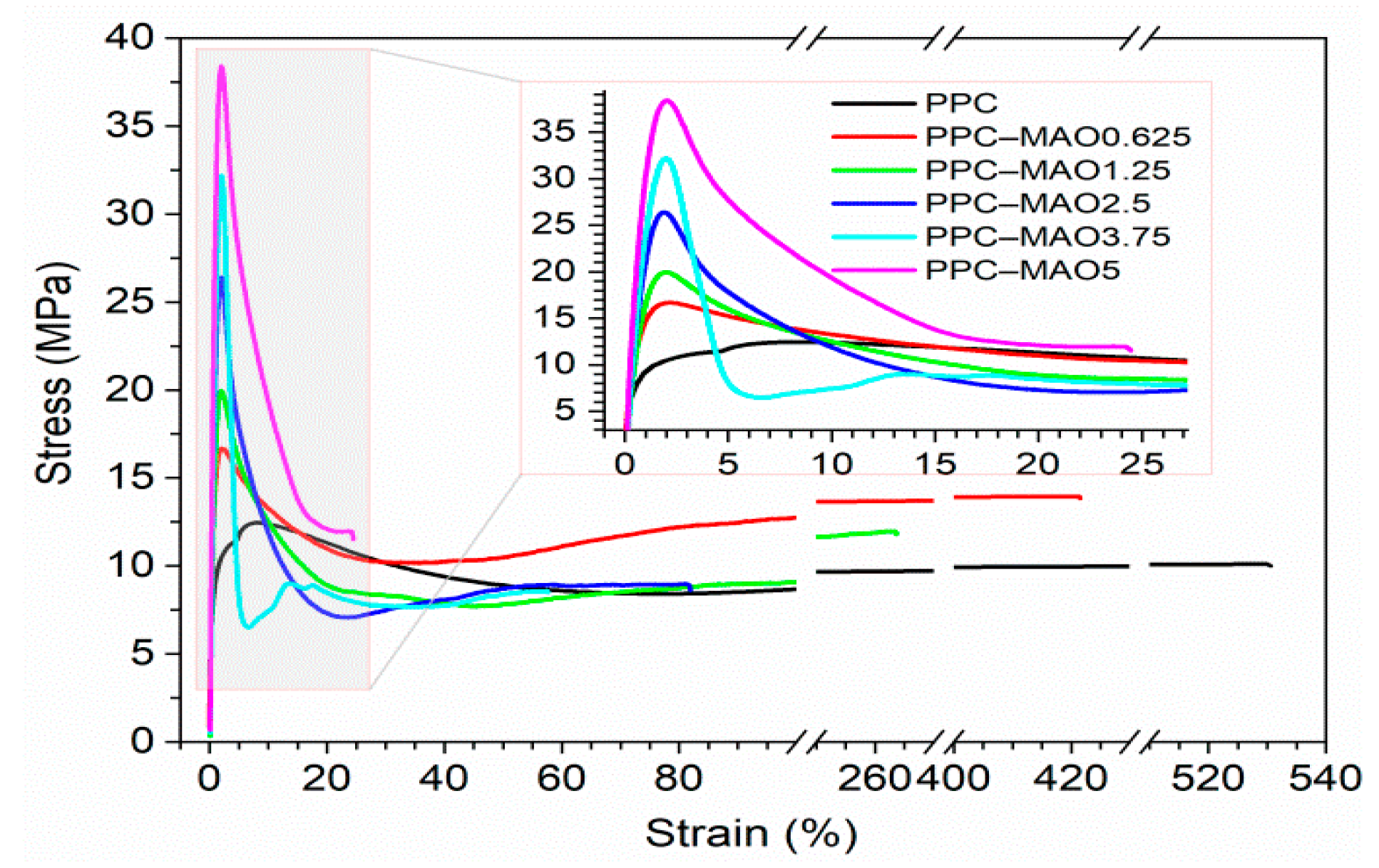

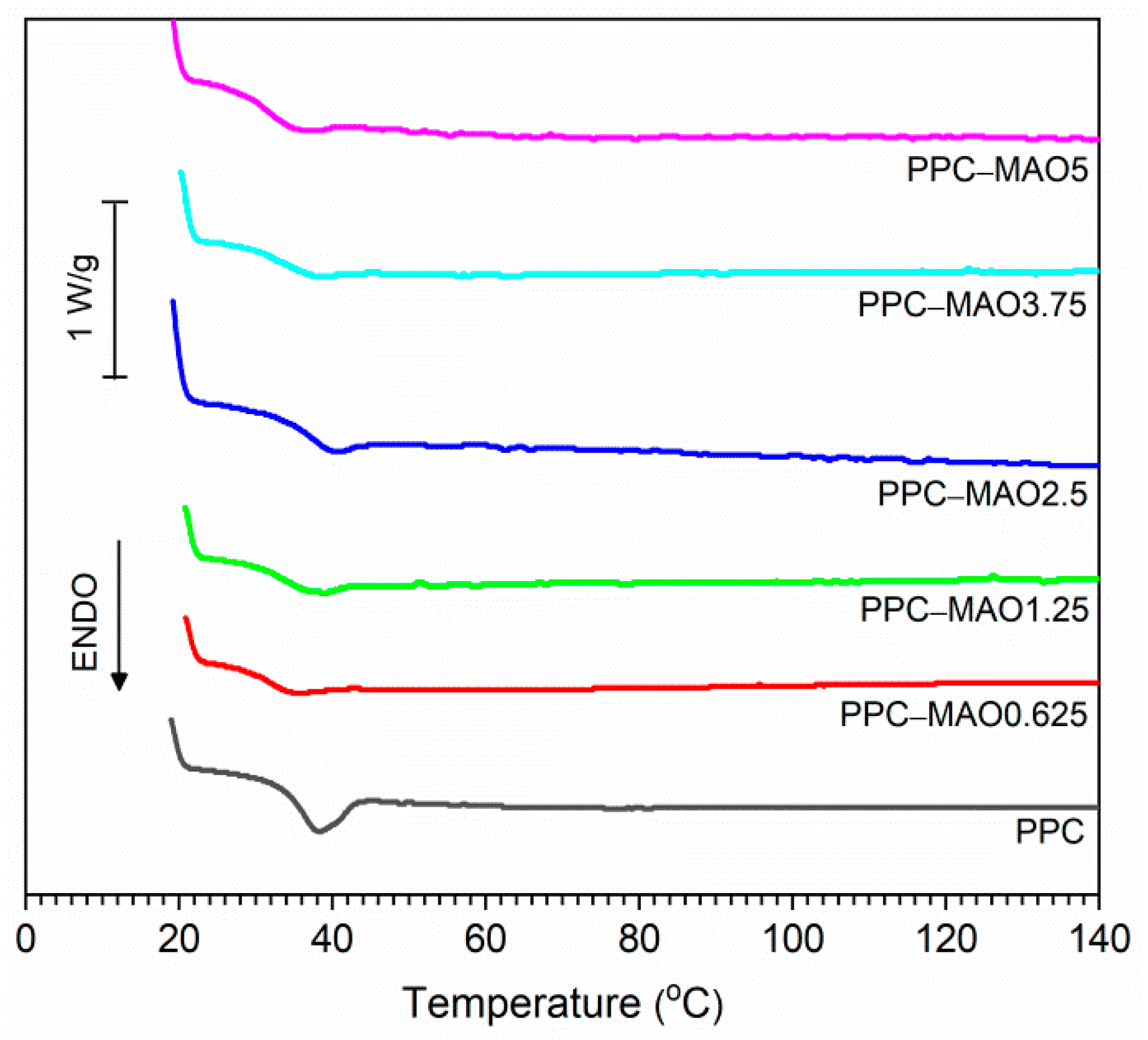

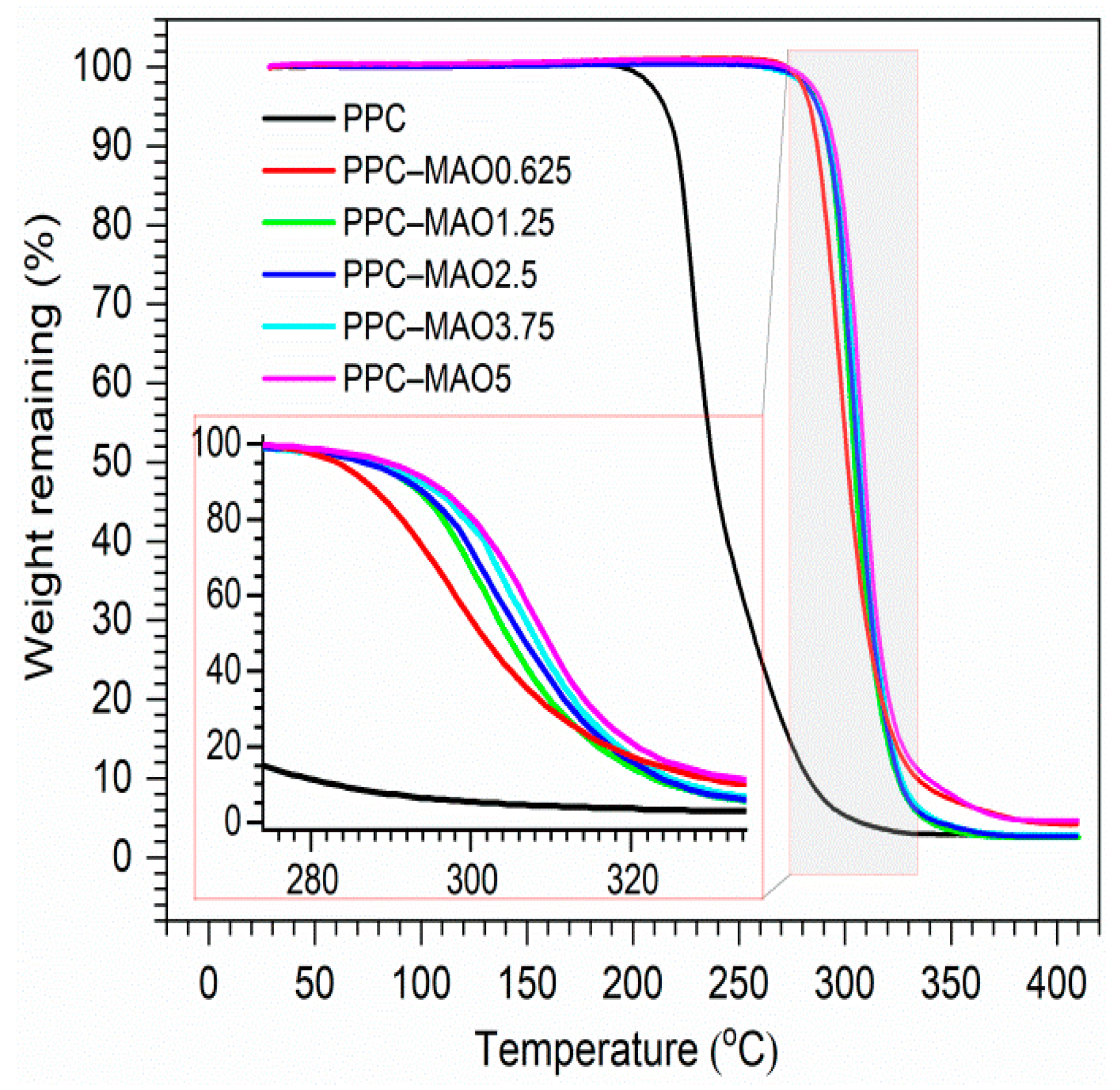

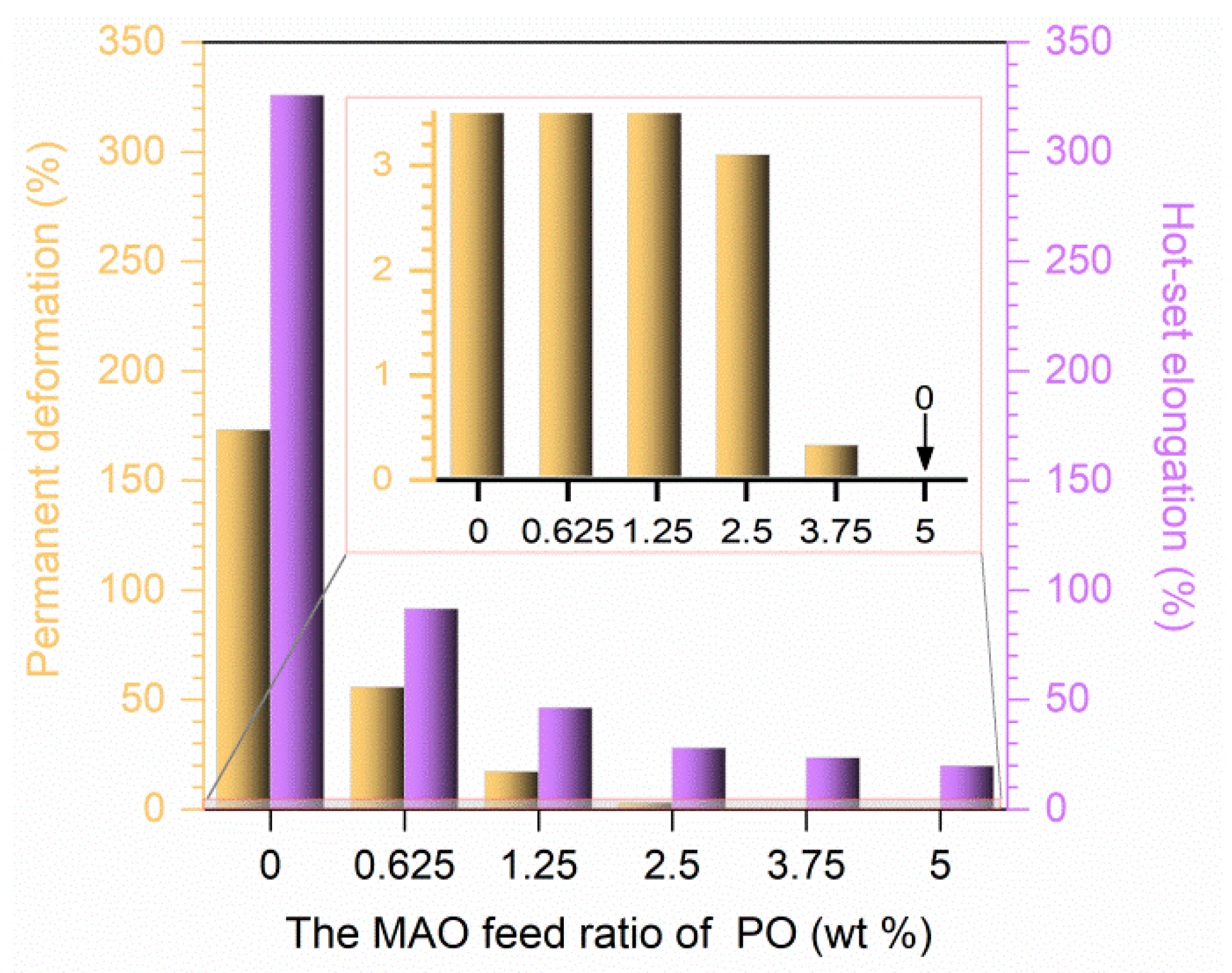

Cross-linking is an effective way to enhance biodegradable poly(propylene carbonate) (PPC) from CO2 and propylene oxide (PO). Cross-linked PPC can be prepared by one-step terpolymerization of multifunctional third monomers with CO2 and PO. However, few such third monomers are available. Each molecule of maleic anhydride oligomer (MAO) contains more than two cyclic anhydride groups. Here, we use it to synthesize PPC with cross-linked networks by adding a small quantity of MAO (0.625–5 wt% of PO) in CO2/PO copolymerization that was catalyzed by zinc glutarate. The formation of networks in the prepared copolymers was confirmed by the presence of gel in copolymers combined Fourier transform infrared spectroscopy (FT-IR), 1H NMR, and the improved mechanical properties. The 5% weight-loss degradation temperatures and maximum weight-loss degradation temperatures greatly increase up to 289.8 °C and 308.8 °C, respectively, which are remarkably high when compared to those of PPC. The minimum permanent deformation of the copolymers closes to 0, while that of PPC is 173%. The maximum tensile strength of the copolymers is 25.5 MPa higher than that of PPC, reaching 38.4 MPa, and it still has some toughness with the elongation at break of 25%. The above phenomena indicate that MAO that was inserted in PPC chains play a cross-linking role, which results in enhanced thermal stability, dimensional stability, and mechanical strength, comprehensively. View Full-Text
Keywords: poly(propylene carbonate); networks; maleic anhydride oligomer; terpolymerization poly(propylene carbonate); networks; maleic anhydride oligomer; terpolymerization
Show Figures

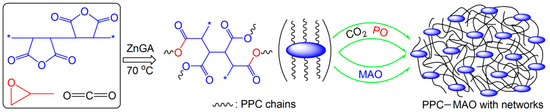

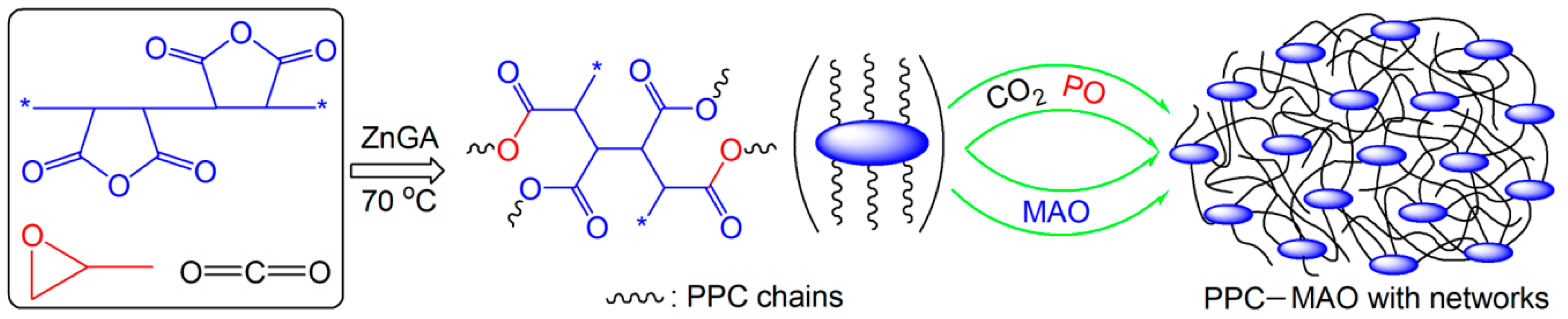

Graphical abstract

MDPI and ACS Style

Gao, L.; Huang, M.; Wu, Q.; Wan, X.; Chen, X.; Wei, X.; Yang, W.; Deng, R.; Wang, L.; Feng, J. Enhanced Poly(propylene carbonate) with Thermoplastic Networks: A Cross-Linking Role of Maleic Anhydride Oligomer in CO2/PO Copolymerization. Polymers 2019, 11, 1467.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
